1.ConnecttheevaluationboardwithUSBtoData&Power.

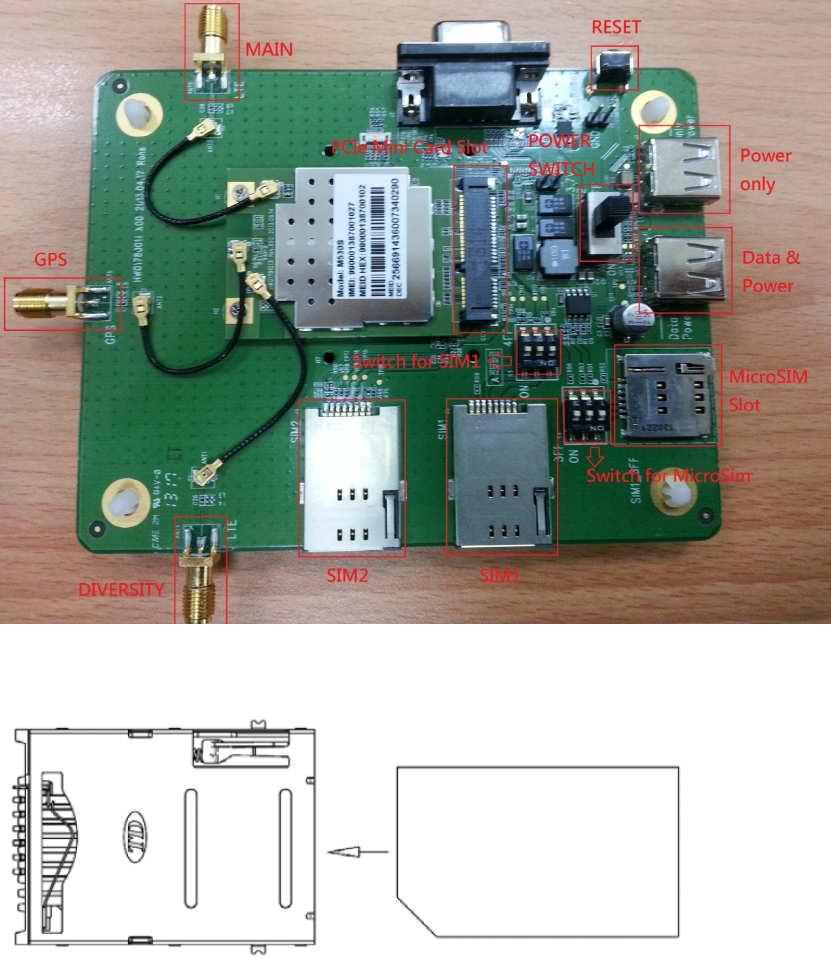

2.FollowthedirectiontoinserttheSIMcard.



3.TurnonthePowerSwitch.



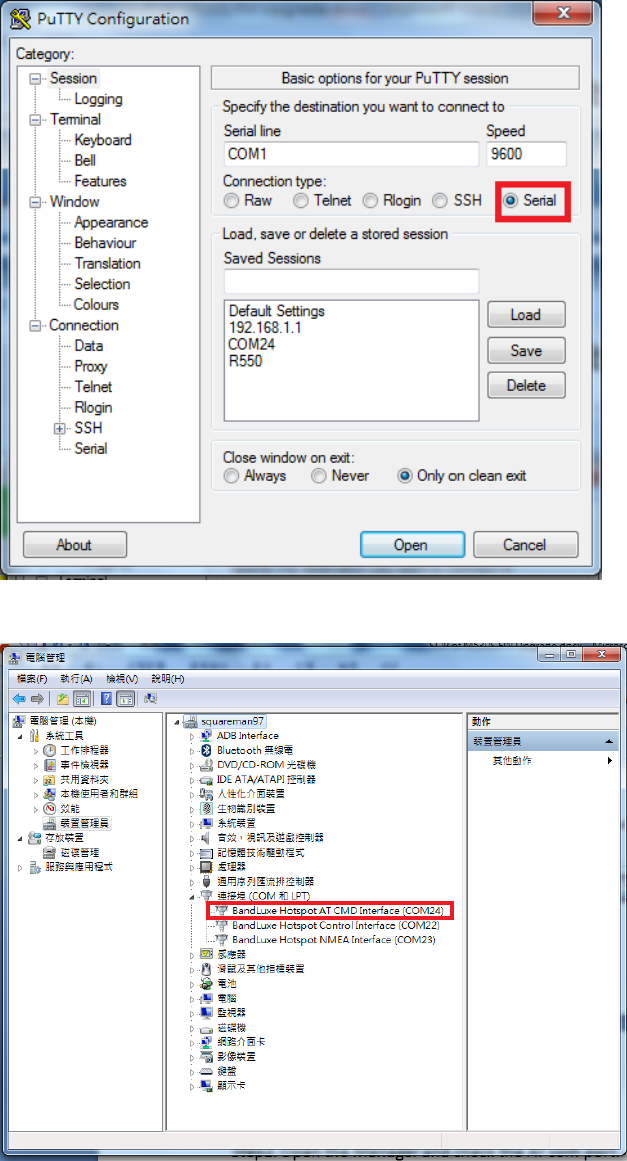

4.LaunchPuttyandselectSerial.



5.LaunchDeviceManagerandchecktheATCMDport.



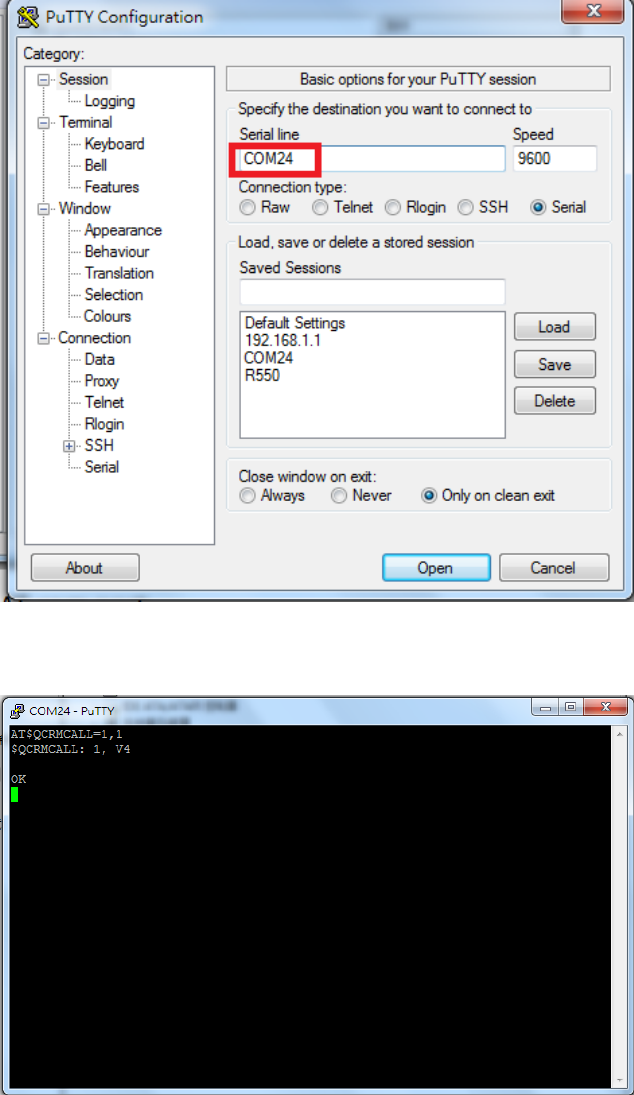

6.InputtheATCMDporttoPutty.



7.InputATcommand(at$qcrmcall=1,1)toestablishtheconnection

betweenPCandM535U.



8.HowtoinstallM535Utootherhostdevices.

InsertthemoduletoassignedstandardPCI‐Eminicardslot.Securethe

moduleusingtwoscrewsandattachthecables(LTE1/2&GPSif

applicable)appropriately.



ManualInformationtotheEndUser

TheOEMintegratorhastobeawarenottoprovideinformationtotheenduser

regardinghowtoinstallorremovethisRFmoduleintheuser’smanualoftheend

productwhichintegratesthismodule.Theendusermanualshallincludeallrequired

regulatoryinformation/warningasshowinthismanual.



FederalCommunicationCommissionInterferenceStatement

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe

followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)

thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay

causeundesiredoperation.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB

digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto

providereasonableprotectionagainstharmfulinterferenceinaresidential

installation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergy

and,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause

harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby

turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe

interferencebyoneofthefollowingmeasures:

‐Reorientorrelocatethereceivingantenna.

‐Increasetheseparationbetweentheequipmentandreceiver.

‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser'sauthoritytooperatethisequipment.This

transmittermustnotbeco‐locatedoroperatinginconjunctionwithanyother

antennaortransmitter.



RadiationExposureStatement

ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan

uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith

minimumdistance20cmbetweentheradiator&yourbody.



EndProductLabeling

Whenthemoduleisinstalledinthehostdevice,theFCCIDlabelmustbevisible

throughawindowonthefinaldeviceoritmustbevisiblewhenanaccesspanel,

doororcoveriseasilyre‐moved.Ifnot,asecondlabelmustbeplacedontheoutside

ofthefinaldevicethatcontainsthefollowingtext:“ContainsFCCID:UZI‐35M168”

Thegrantee'sFCCIDcanbeusedonlywhenallFCCcompliancerequirementsare

met.



ThisdeviceisintendedonlyforOEMintegratorsunderthefollowing

conditions:

(1)Theantennamustbeinstalledsuchthat20cmismaintainedbetweenthe

antennaandusers,

(2)Thetransmittermodulemaynotbeco‐locatedwithanyothertransmitteror

antenna,excepthasbeenassessedinaccordancewithFCCmulti‐transmitterproduct

guidelines.

(3)TocomplywithFCCregulationslimitingbothmaximumRFoutputpowerand

humanexposuretoRFradiation,themaximumantennagainincludingcablelossina

mobileexposureconditionmustnotexceed:

Wheninstand‐aloneconfiguration:

。9.0dBiinCellularband

。8.0dBiinPCSband

。7.5dBiinAWSband

。11.0dBiin700MHzband

Whenco‐locatedwitha5dBiWi‐Fiantenna:

。6.0dBiinCellularband

。8.0dBiinPCSband

。7.5dBiinAWSband

。7.5dBiin700MHzband



Intheeventthattheseconditionscannotbemet(forexamplecertainlaptop

configurationsorco‐locationwithanothertransmitter),thentheFCCauthorizationis

nolongerconsideredvalidandtheFCCIDcannotbeusedonthefinalproduct.In

thesecircumstances,theOEMintegratorwillberesponsibleforre‐evaluatingthe

endproduct(includingthetransmitter)andobtainingaseparateFCCauthorization.


