User
Manual
BandLuxe
M530S
LTE/EVDO Module
1
Introduction
Thank you for your purchase of the M530S LTE/EVDO Module. This
device is designed to access the Internet via 4G technology.
Features
LTE/EVDO
Uplink speeds up to 50 Mbps
Downlink speeds up to 100 Mbps
Operating Frequency Bands
o LTE: Band 25/26/41
o EVDO: BC0/BC1/BC10
Getting Started
2
Getting Started
This chapter will provide a hardware overview of the M530S LTE/EVDO
Module.
The module is operated with defined voltage and pin assignments
according to the specification in the next page.

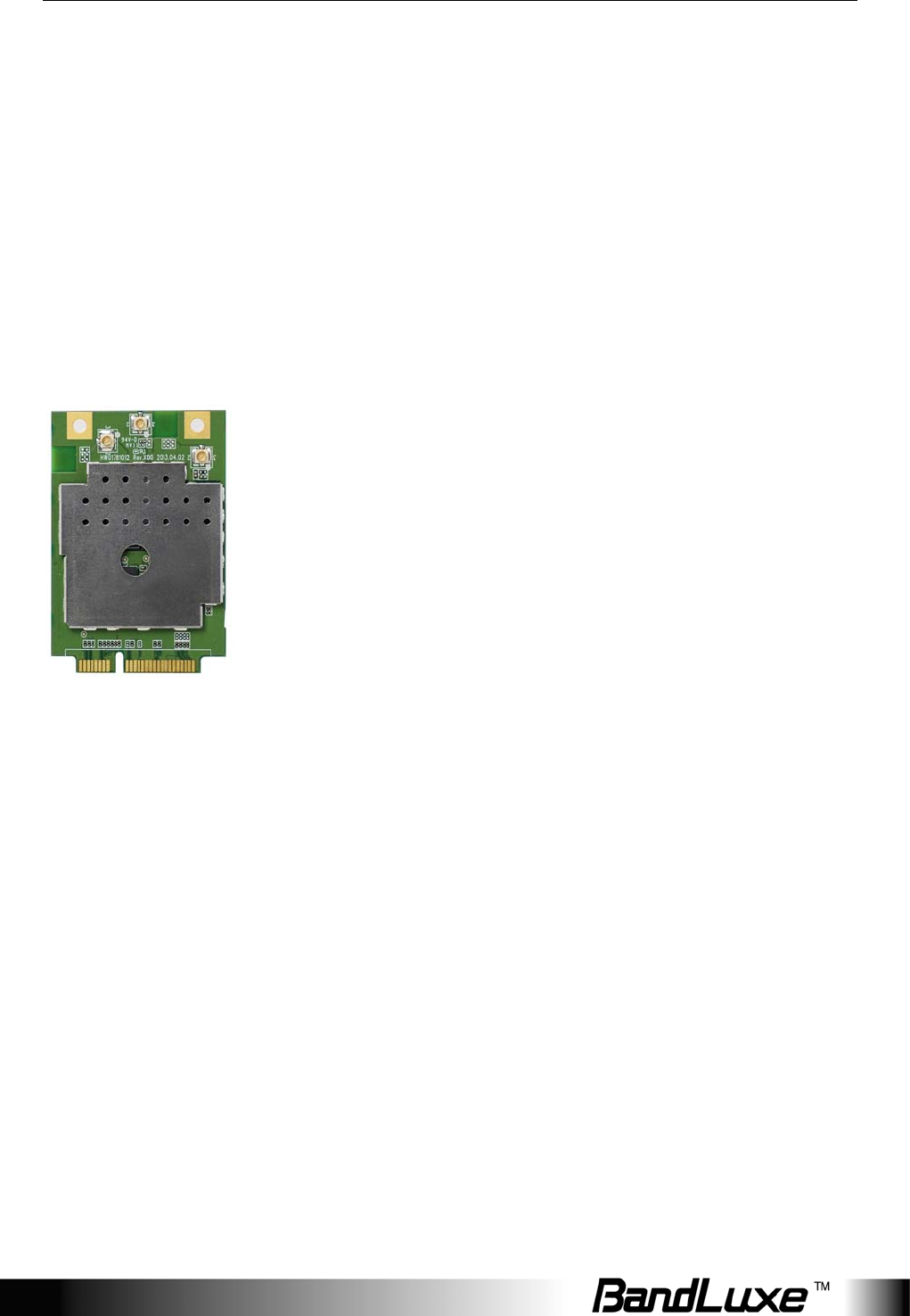

Package Contents
1.
1.
1.
1.
1. M530S LTE/EVDO Module
Getting Started
3
Specifications
Note: Specifications are subject to change without notice.
Form Factor PCI Express Mini Card
Dimension (LxWxH, mm) 50.95 x 36 x 3.9 mm
Weight (g) 10.6 g
Chipset Qualcomm MDM9615
Connectivity and Data Speed
LTE Band FDD: B25/B26, TDD: B41
LTE Data Rate FDD: Downlink up to 100Mbps, Uplink up to 50Mbps
TDD: Downlink up to 68Mbps, Uplink up to 17Mbps (in
configuration 3)
3GPP Protocol Support Release 9, UE Category 3
CDMA 1xRTT/EV-DO BC0/BC1/BC10
EVDO version Rev. 0, Rev. A
eHRPD Yes
Location solution Standalone GPS, A-GPS, GPS XTRA, Composite Glonass
and GPS GNSS systems
Antenna port
RF Antenna Port Main, Aux and GNSS
LTE MIMO B25/B26/B41, DL 2x2 SU-MIMO
EVDO/CDMA Diversity Support Yes
GPS Yes, Supports Passive GPS antenna
RF Antenna Connector Type IPEX 20279
Interface
USB USB 2.0 HS
SIM Connector Interface to SIM Connector as PIN assignment.
UART Yes
LED Control Yes, x 3 PINs for LED control signal
GPIOs Yes, these pins can be optionally configured for UIM, SPI,
I2C, or LED use.
Power Info
Voltage 3.7 V typical, 3.5V ~ 4.2V voltage swing
Power consumption Max. 3.5W in worst conditions, Typical 2W
Power save mode Supported and with 28nm Qualcomm Chipset for lower
power consumption.
Environment
Operation Temperature -30oC to 60oC
Storage Temperature -30oC to 85oC
Operating System supported
Linux, MAC OS X, Windows
Other Supporting Features
AT Commands Yes
OMA-DM Yes, OMA-DM is an optional feature
FW Upgrade Support Yes, support FW upgrade by DM platform or proprietary
auto-checking method
Certifications
GCF, CCF, FCC, ALU IOT, Ericsson IOT, Samsung IOT,
Sprint certification
Conformance of Environmental Regulation
Environmental Regulation RoHS
Getting Started
4
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Getting Started
5
This device is intended only for OEM integrators under the following conditions:
1. The antenna must be installed such that 20 cm is maintained between the
antenna and users, and
2. The transmitter module may not be co-located with any other transmitter or
antenna.
As long as 2 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another transmitter),
then the FCC authorization is no longer considered valid and the FCC ID can not
be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna
may be installed such that 20 cm may be maintained between the antenna and
users. The final end product must be labeled in a visible area with the following:
“Contains FCC ID: UZI-M30S58”. The grantee's FCC ID can be used only when
all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the
end product which integrates this module.
The end user manual shall include all required regulatory information/warning as
show in this manual.
