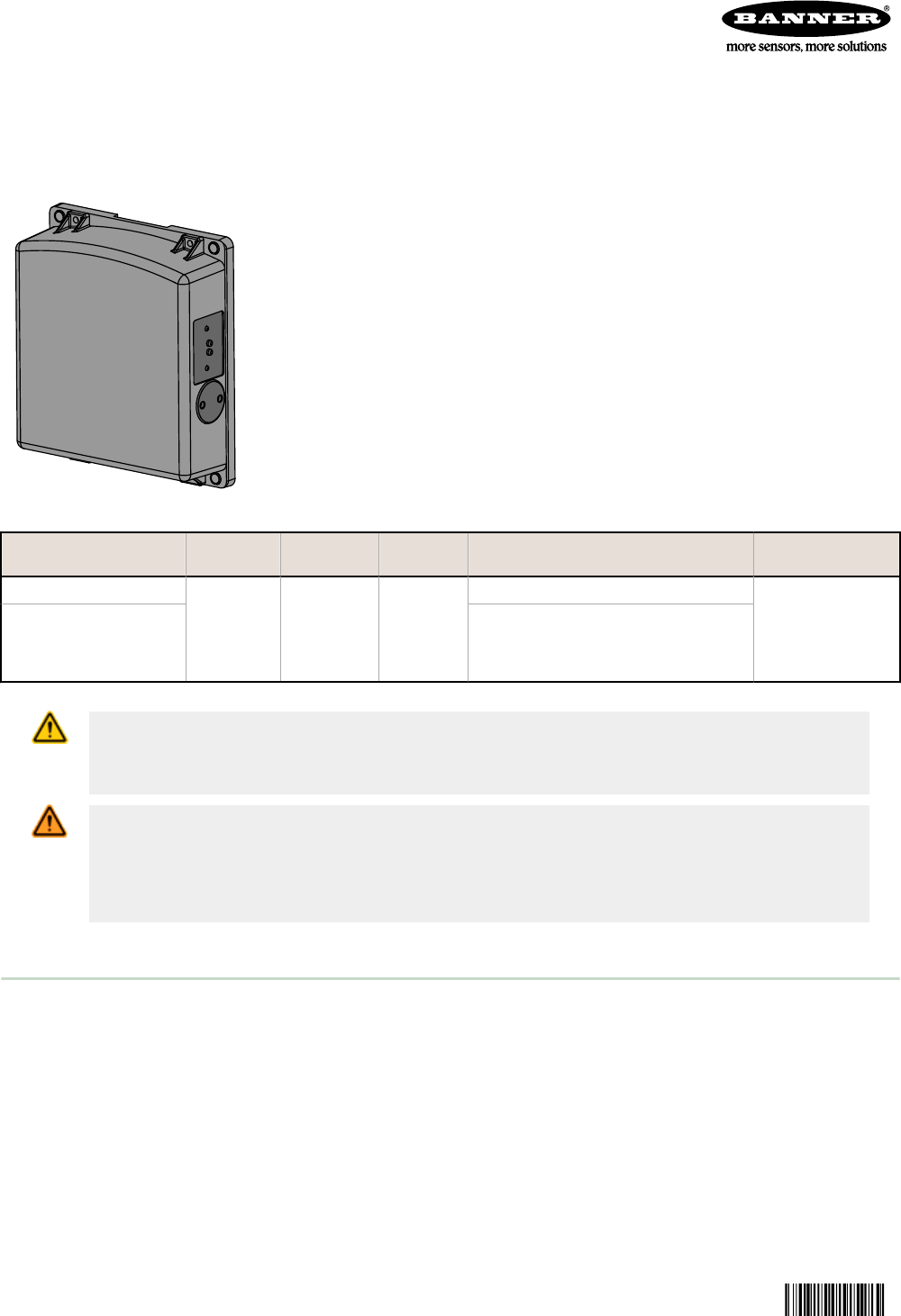

Banner Engineering Q240RA Q240RA-US-AF2Q and Q240RA-US-AF2 User Manual
Banner Engineering Corporation Q240RA-US-AF2Q and Q240RA-US-AF2
User Manual
Datasheet
Radar-Based Dual-Zone Narrow-Beam Sensors for Detection of Moving and Stationary Targets
• FMCW (true-presence) radar detects moving and stationary objects
• Narrow 11° × 13° beam pattern
• Two independent, adjustable sensing zones detect objects up to 40 meters
away (131.2 ft)
• Easy setup and configuration of range, sensitivity, and output with simple DIP
switches
• Sensing functions are unaffected by wind, falling rain or snow, fog, humidity,
air temperatures, or light
• Sensor operates in Industrial, Scientific, and Medical (ISM) telecommunication
band
• Rugged IP67 housing withstands harsh environments
Protected by US patents
Model Sensing
Range Connection Supply
Voltage Telecom Approval Output
Q240RA-US-AF2Q Two
independent
sensing
zones; 1 to
40+ meters
(131 ft)
5-pin M12
quick
disconnect
12 to 30 V
dc
Telecom approved for US and Canada
DIP-switch-
selectable NPN or
PNP; N.O. or N.C.
Q240RA-CN-AF2Q Telecom approved for China
CAUTION: Make No Modifications to this Product
Any modifications to this product not expressly approved by Banner Engineering could void the user's
authority to operate the product. Contact Banner Engineering for more information.
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to
serious injury or death. This device does not include the self-checking redundant circuitry necessary
to allow its use in personnel safety applications. A sensor failure or malfunction can cause either an
energized or de-energized sensor output condition.
Overview
The R-GAGE sensor emits a well-defined beam of high-frequency radio waves from an internal antenna. Some of this
emitted energy is reflected back to the receiving antenna. Signal processing electronics determine the distance from the
sensor to the object based on the time delay of the return signal. The sensor can be configured to two independent
sensing zones.
The two sensing zones are factory pre-set to default distances; they can be reconfigured for different distances using the
DIP switches on the side of the sensor. The sensor is plug-in ready for immediate operation.
The sensitivity is precalibrated at the factory, assuming that the sensing field will be clear of obstacles. The sensitivity can
be adjusted using the DIP switches on the side of the sensor.
R-GAGE™ Q240RA-AF2 Sensor
Original Document
184564 Rev. A 22 September 2015
184564
1
2
5
6
3
4

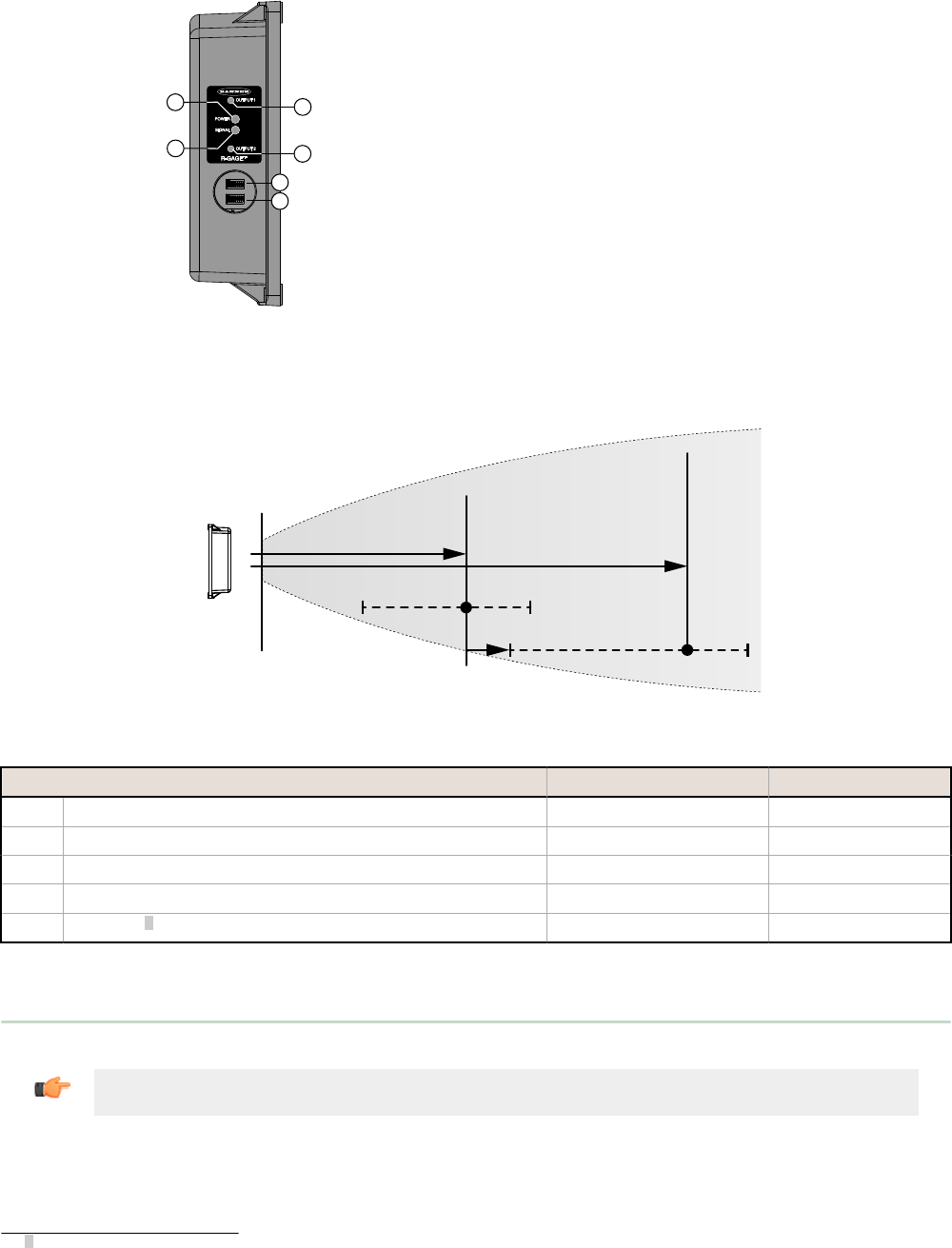

Figure 1. R-GAGE features
1. Output LEDs: Yellow (output 1 energized); Red
(configuration)
2. Output LEDs: Yellow (output 2 energized); Red
(configuration)
3. Power LED: Green (power ON)
4. Signal Strength LED: Red (flashes in proportion to
the signal strength)
5. DIP switch row A
6. DIP switch row B
Access the DIP switches behind the threaded cap on the
sensor side
D
X Y
A B
Zone 1 Zone 2
Figure 2. R-GAGE setpoint distances
CN Model US Model
X Minimum Zone 1 setpoint distance 2 m (6.6 ft) 3.5 m (11.5 ft)
Y Maximum Zone 1 setpoint distance 30 m (98.4 ft) 30 m (98.4 ft)
A Minimum Zone 2 (offset from Zone 1: 2 m to 25 m) 4 m (13.1 ft) 5.5 m (18.0 ft)
B Maximum Zone 2 (offset from Zone 1: 2 m to 25 m) 55 m (180.4 ft) 55 m (180.4 ft)
D Dead Zone1
Sensor Configuration
Use the included spanner to open the screw-off cover on the side of the sensor and access the DIP switches.
Important: Tighten the DIP switch cover a full quarter turn after contact to maintain the watertight
seal.
1Typical dead zone: 0.4 m (1.3 ft) for moving and 1.0 m (3.3 ft) for stationary targets, but varies with target reflectivity.
R-GAGE™ Q240RA-AF2 Sensor
2 www.bannerengineering.com - Tel: +1-763-544-3164 P/N 184564 Rev. A
DIP Switch Functions
Switches Function
A1, A2, A3, A4 Zone 1 Distance (detects objects from sensor face to this point)
A5, A6, A7 Zone 2 Distance, Offset from Zone 1
A8 Polarity
B1, B2, B3 Sensitivity (higher sensitivity sees weaker objects and has a larger beam pattern)
B4, B5, B6 Response Speed
B7 Normally Open/Normally Closed output functionality
B8 Not Used
DIP switch 1 is on the left and DIP switch 8 is on the right.
Distance Settings
Zone 1 Distance
A1 A2 A3 A4 Distance
CN US
0 0 0 0 2 m (6.6 ft) 3.5 m (11.5 ft)
0 0 0 1 2.5 m (8.2 ft) 4 m (13.1 ft)
0 0 1 0 3 m (9.8 ft) 4.5 m (14.8 ft)
0 0 1 1 3.5 m (11.5 ft) 5 m (16.4 ft)
0 1 0 0 4 m (13.1 ft) 5.5 m (18.0 ft)
0 1 0 1 5 m (16.4 ft) 6 m (19.7 ft)
0 1 1 0 6 m (19.7 ft) 6.5 m (21.3 ft)
0 1 1 1 7 m (23.0 ft) 7 m (23.0 ft)
1* 0* 0* 0* 8 m (26.2 ft) 8 m (26.2 ft)
1 0 0 1 10 m (32.8 ft) 10 m (32.8 ft)
1 0 1 0 12 m (39.4 ft) 12 m (39.4 ft)
1 0 1 1 14 m (45.9 ft) 14 m (45.9 ft)
1 1 0 0 16 m (52.5 ft) 16 m (52.5 ft)
1 1 0 1 20 m (65.6 ft) 20 m (65.6 ft)
1 1 1 0 25 m (82.0 ft) 25 m (82.0 ft)
1 1 1 1 30 m (98.4 ft) 30 m (98.4 ft)
* Default settings
R-GAGE™ Q240RA-AF2 Sensor
P/N 184564 Rev. A www.bannerengineering.com - Tel: +1-763-544-3164 3
Zone 2 Distance Offset from Zone 1
A5 A6 A7 Offset
0 0 0 2 m (6.6 ft)
0 0 1 4 m (13.1 ft)
0 1 0 6 m (19.7 ft)
0* 1* 1* 8 m (26.2 ft)
1 0 0 10 m (32.8 ft)
1 0 1 15 m (49.2 ft)
1 1 0 20 m (65.6 ft)
1 1 1 25 m (82.0 ft)
NOTE: Highest sensitivity is achieved only if the sensing distance is 36 m (118.1 ft) or less.
Sensitivity Selection
B1 B2 B3 Sensitivity
0 0 0 8 (Highest)
0 0 1 7...
0 1 0 6 (High)
0 1 1 5...
1 * 0 * 0 * 4 (Medium)
1 0 1 3...
1 1 0 2 (Low)
1 1 1 1 (Lowest)
* Default settings
NOTE: Operation at a high sensitivity not guaranteed for a zone set beyond 45 m (147.6 ft)
Output Configuration
A8 NPN / PNP
0* NPN
1 PNP
* Default settings
B7 Normally Open / Closed
0* NO
1 NC
Response Speed
B4 B5 B6 ON Total (ms) OFF Total (ms) Total (ms)
0 0 0 15 15 30
0 0 1 30 70 100
0 1 0 30 120 150
0* 1* 1* 50 300 350
R-GAGE™ Q240RA-AF2 Sensor
4 www.bannerengineering.com - Tel: +1-763-544-3164 P/N 184564 Rev. A
B4 B5 B6 ON Total (ms) OFF Total (ms) Total (ms)
1 0 0 50 600 650
1 0 1 30 1000 1030
1 1 0 120 600 720
1 1 1 120 6000 6120
* Default settings
Specifications
Range
The sensor is able to detect a proper object (see Detectable Objects)
from 1 to 40+ m (3.3 to 131.2+ ft), depending on target
Detectable Objects
Objects containing metal, water, or similar high-dielectric materials
Operating Principle
Frequency modulated continuous-wave (FMCW) radar
Operating Frequency
24.00 to 24.25 GHz, ISM Band (varies slightly with model, depending
on national telecom regulations)
Supply Voltage
12 to 30 V dc, less than 100 mA, exclusive of load
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Delay at Power-up
Less than 2 seconds
Output Configuration
DIP switch A8 selects Dual NPN (default) or PNP; DIP switch B7 selects
N.O. (default) or N.C. operation; 150mA each
· Zone 1 output: white wire
· Zone 2 output: black wire
Output Protection
Protected against short circuit conditions
Response Time
DIP-switch-configurable ON/OFF response time
Indicators
Power LED: Green (power ON)
Signal Strength LED: Red, flashes in proportion to signal strength.
Steady on at 4x excess gain. Only indicates signal amplitude, not
target distance.
Output LEDs: Yellow (output energized) / Red (configuration)
See Overview on page 1
Adjustments
DIP-switch-configurable sensing distance, sensitivity, response time,
and output configuration
Construction
Housing: Polycarbonate
Lightpipes: Acrylic
Access Cap: Polyester
Operating Temperature
– 40° to + 65° C (– 40° to + 149° F)
Environmental Rating
IP67
Connections
Integral M12 Euro-style QD fitting. QD models require a mating cordset
Certifications
CMIIT Category G, FCC part 15, RSS-210, others pending

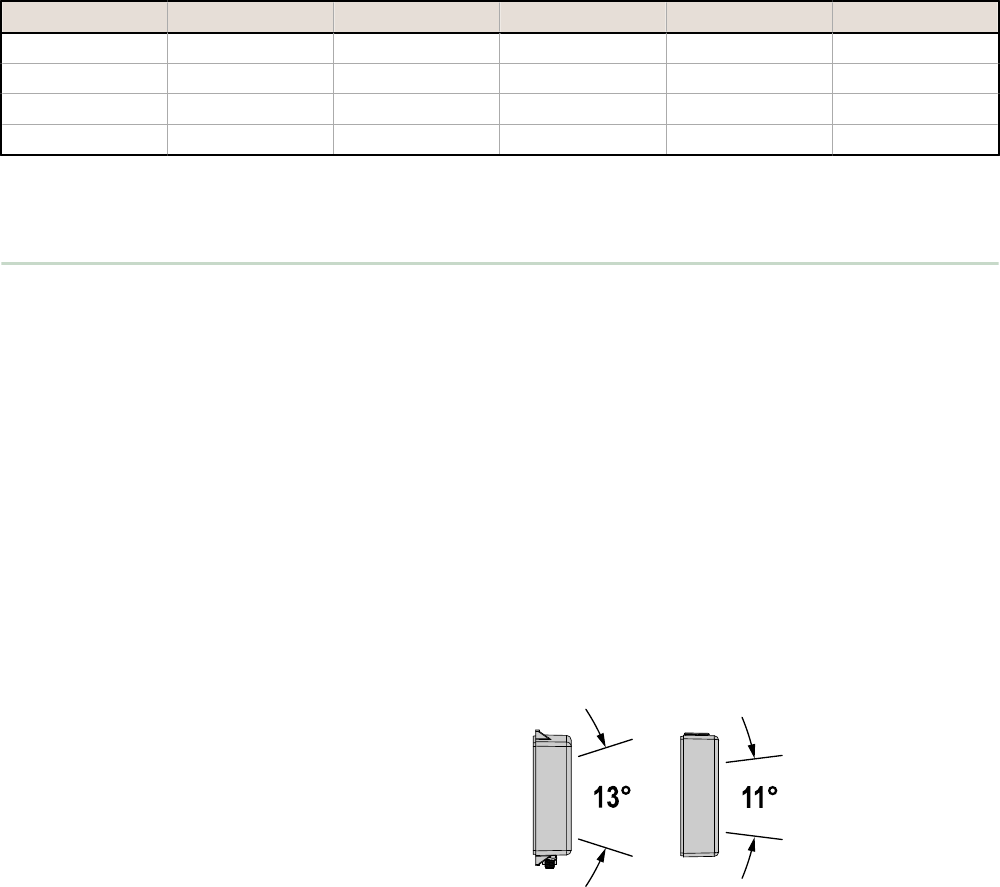

Beam Angles
SIDE TOP
FCC ID: UE3Q240RAUS—This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IC: 7044A-Q240RA—This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Cet appareil est conforme aux CNR exempts de licence d'Industrie Canada. Son fonctionnement est soumis aux deux
conditions suivantes: (1) Ce dispositif ne peut causer des interférences; et (2) Ce dispositif doit accepter toute
interférence, y compris les interférences qui peuvent entraîner un mauvais fonctionnement de l'appareil.
R-GAGE™ Q240RA-AF2 Sensor
P/N 184564 Rev. A www.bannerengineering.com - Tel: +1-763-544-3164 5

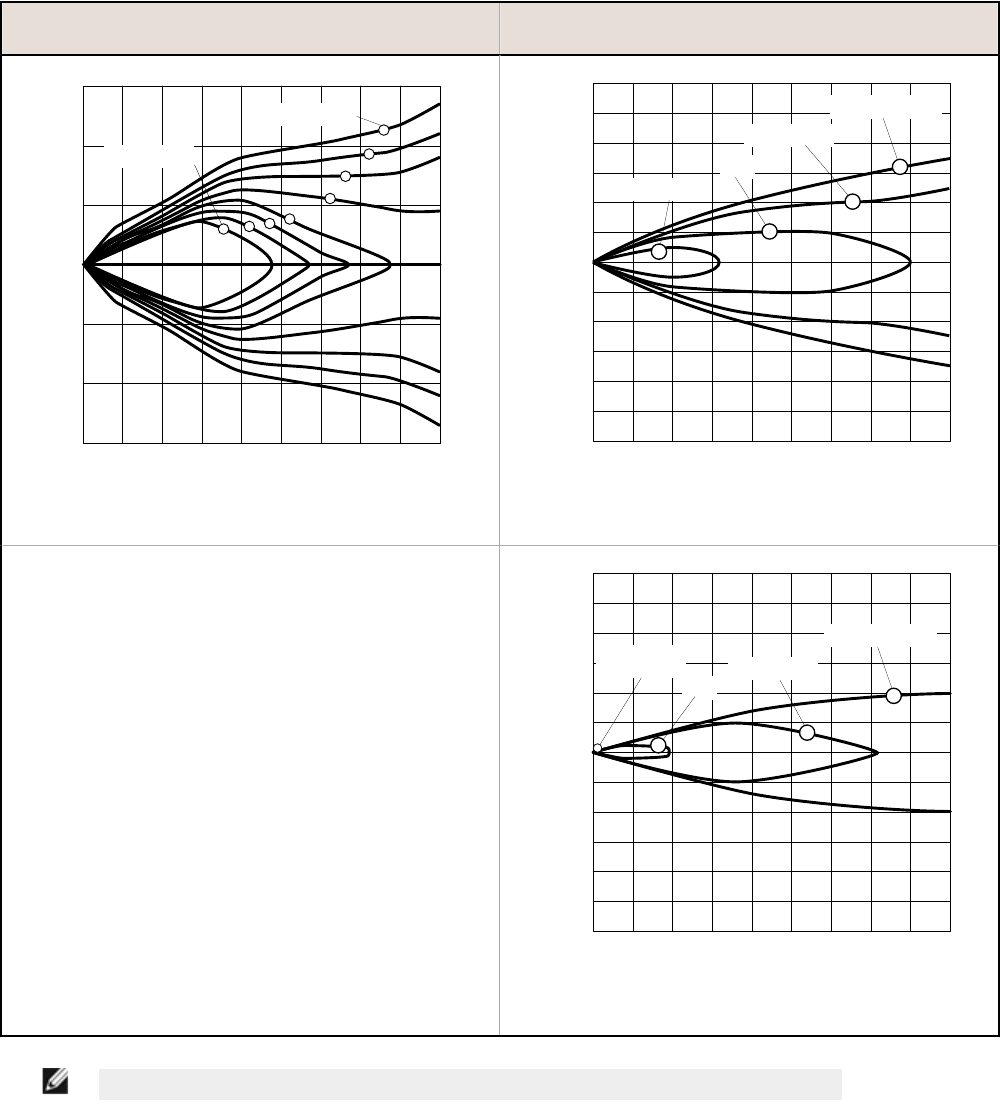

Beam Pattern
Typical Beam Pattern (with BRTR-CC20E Radar
Target, Radar Cross Section = 50 m2)Typical Beam Pattern (with 4 different targets)
0
0
-1
-2
-3
3
2
1
5 10 15 20 25
Meters
30 35 40 45
Meters
Sensitivity 1
Sensitivity 8
8
1234
5
6
7
1–8: Indicates sensitivity level
0
0
-1
-2
-3
-4
-5
-6
4
3
6
5
2
1
5 10 15 20 25
Meters
30 35 40 45
Meters
Weak Object
Car
Large Truck
Passenger Train
4
3
2
1
At sensitivity level 8
1: Weak Object (Radar cross section = 0.25 m2)
2: Car (Radar cross section = 3 m2)
3: Large Truck (Radar cross section = 50 m2)
4: Passenger Train (Radar cross section = 300 m2)
0
0
-1
-2
-3
-4
-5
-6
4
3
6
5
2
1
5 10 15 20 25
Meters
30 35 40 45
Meters
Car
Large Truck
Passenger Train
4
3
2
Weak Object
(Trace Data)
1
At sensitivity level 4
NOTE: The effective beam pattern depends on the sensitivity level and target properties.
R-GAGE™ Q240RA-AF2 Sensor
6 www.bannerengineering.com - Tel: +1-763-544-3164 P/N 184564 Rev. A

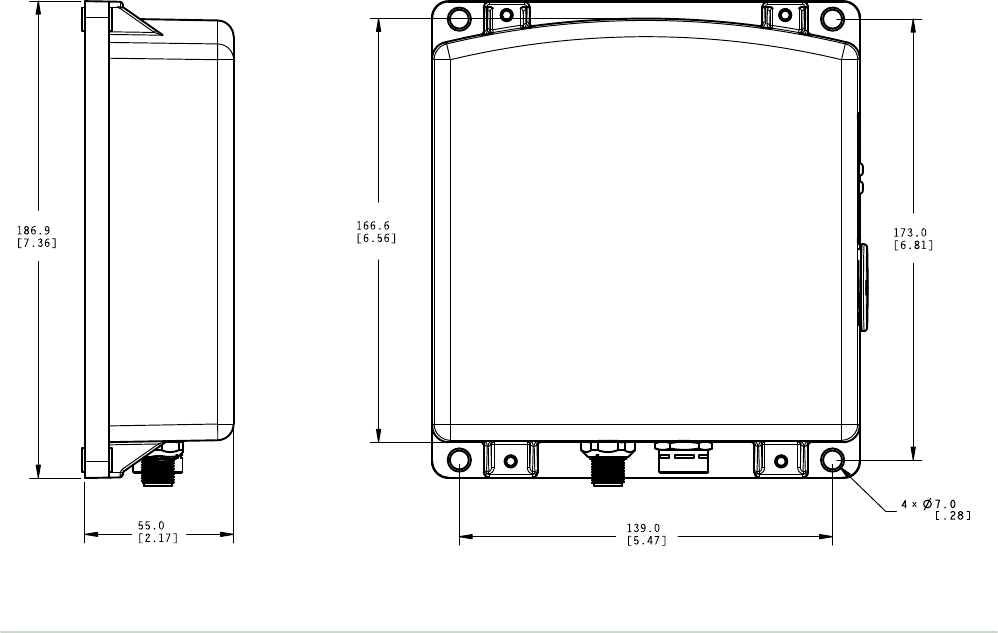

Dimensions
All measurements are listed in millimeters (inches), unless noted otherwise.
Windows
The R-GAGE sensor can be placed behind a glass or a plastic window, but the configuration must be tested and the
distance from the sensor to the window must be determined and controlled prior to installation. There is typically a 20%
signal reduction when the sensor is placed behind a window.
Polycarbonate at 4 mm thickness performs well in most situations, but the performance depends on filler materials.
Thinner (1 to 3 mm) windows have high reflection. The amount of reflection depends on the material, thickness, and
distance from the sensor to the window.
Locate the sensor in a position of minimum reflection from the window, which will repeat every 6.1 mm of distance
between the sensor and the window. The positions of maximum reflection from the window repeat between the minimums,
and decrease in effect until the window is approximately 150 mm (5.9 in) away. Consult the factory for pre-tested window
materials which can be used at any distance without issue.
Additionally, the face of the window should be protected from flowing water and ice by use of a flow diverter or hood
directly above the window. Falling rain or snow in the air in front of the window, light water mist, or small beads on the
face of the window are typically not an issue. However, a thick, continuous surface of water or ice directly on the face of
the window can be detected as a dielectric boundary.
The Q240WS is a clip-on hydrophobic weather shield accessory specially designed to meet these requirements.
R-GAGE™ Q240RA-AF2 Sensor
P/N 184564 Rev. A www.bannerengineering.com - Tel: +1-763-544-3164 7

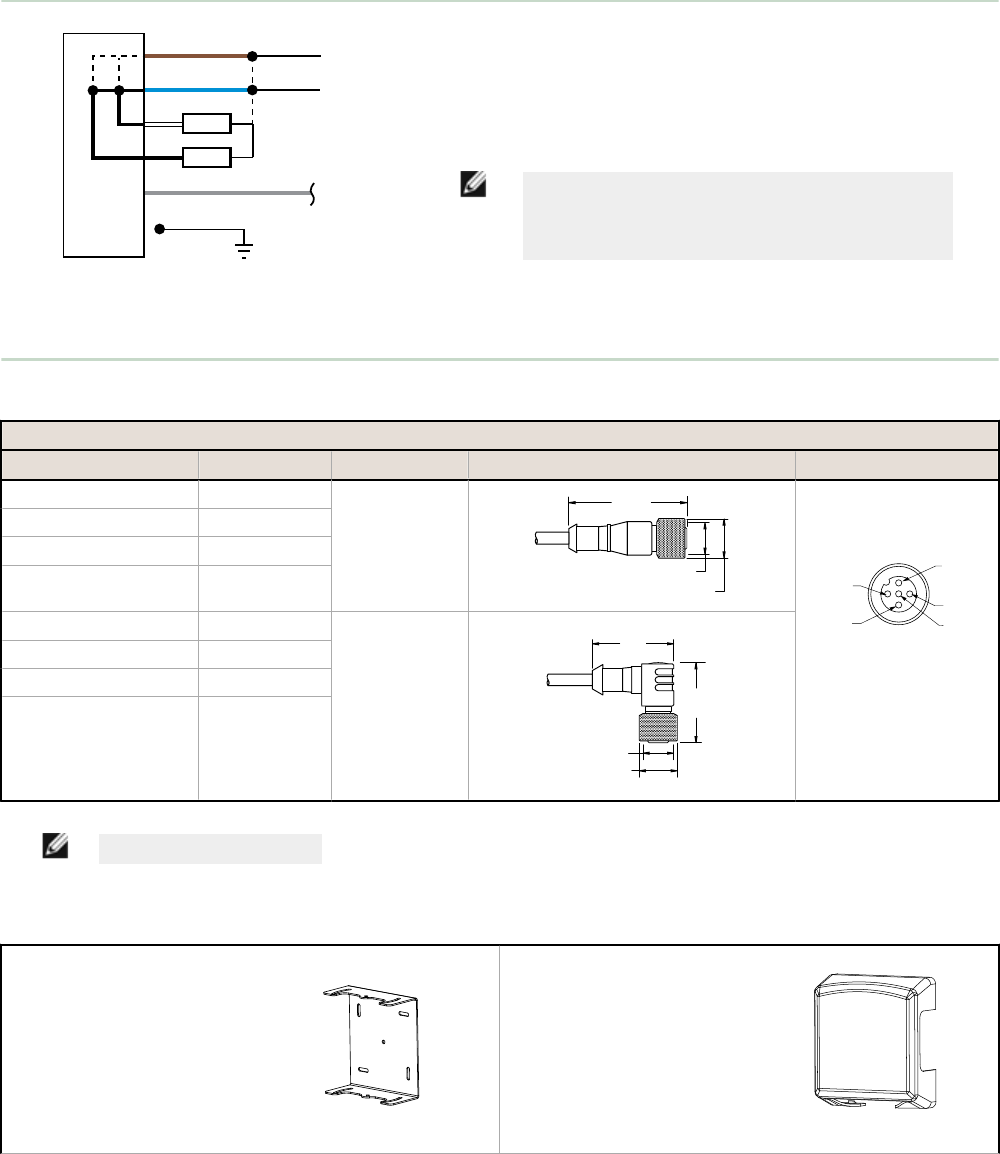

Wiring
shield (QD cordset)
3
1
2
4
5
12-30V dc
Load 1
Load 2
+
–
Wiring Key:
1. Brown
2. White
3. Blue
4. Black
5. Gray (Do not connect)
NOTE: Banner recommends that the shield wire
(QD cordsets only) be connected to earth ground
or dc common. Shielded cordsets are
recommended for all QD models.
Accessories
Quick Disconnect (QD) Cordsets
5-Pin Threaded M12/Euro-Style Cordsets—with Shield
Model Length Style Dimensions Pinout (Female)
MQDEC2-506 1.83 m (6 ft)
Straight
44 Typ.
ø 14.5
M12 x 1
2
3
4
1
5
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray
MQDEC2-515 4.57 m (15 ft)
MQDEC2-530 9.14 m (30 ft)
MQDEC2-550 15.2 m (50 ft)
MQDEC2-506RA 1.83 m (6 ft)
Right-Angle
32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
MQDEC2-515RA 4.57 m (15 ft)
MQDEC2-530RA 9.14 m (30 ft)
MQDEC2-550RA 15.2 m (50 ft)
NOTE: Pin 5 is not used.
Brackets and Other Accessories
SMBQ240SS2
• Add-on accessory to be
used in conjunction with
SMBQ240SS1
• Provides ± 20° of tilt in
second axis for maximum
control of sensor alignment
• 12 gauge stainless steel
Q240WS
• Coated to help repel water
and maximize signal
strength
• Snap-on cover for easy
application and replacement
R-GAGE™ Q240RA-AF2 Sensor
8 www.bannerengineering.com - Tel: +1-763-544-3164 P/N 184564 Rev. A
SMBQ240SS1
• Sensor mounting plate and
pivoting bracket
• Provides ± 20° of tilt in one
axis for enhanced sensor
alignment
• 12 gauge stainless steel
• Sensor can mount on
bracket horizontally or
vertically

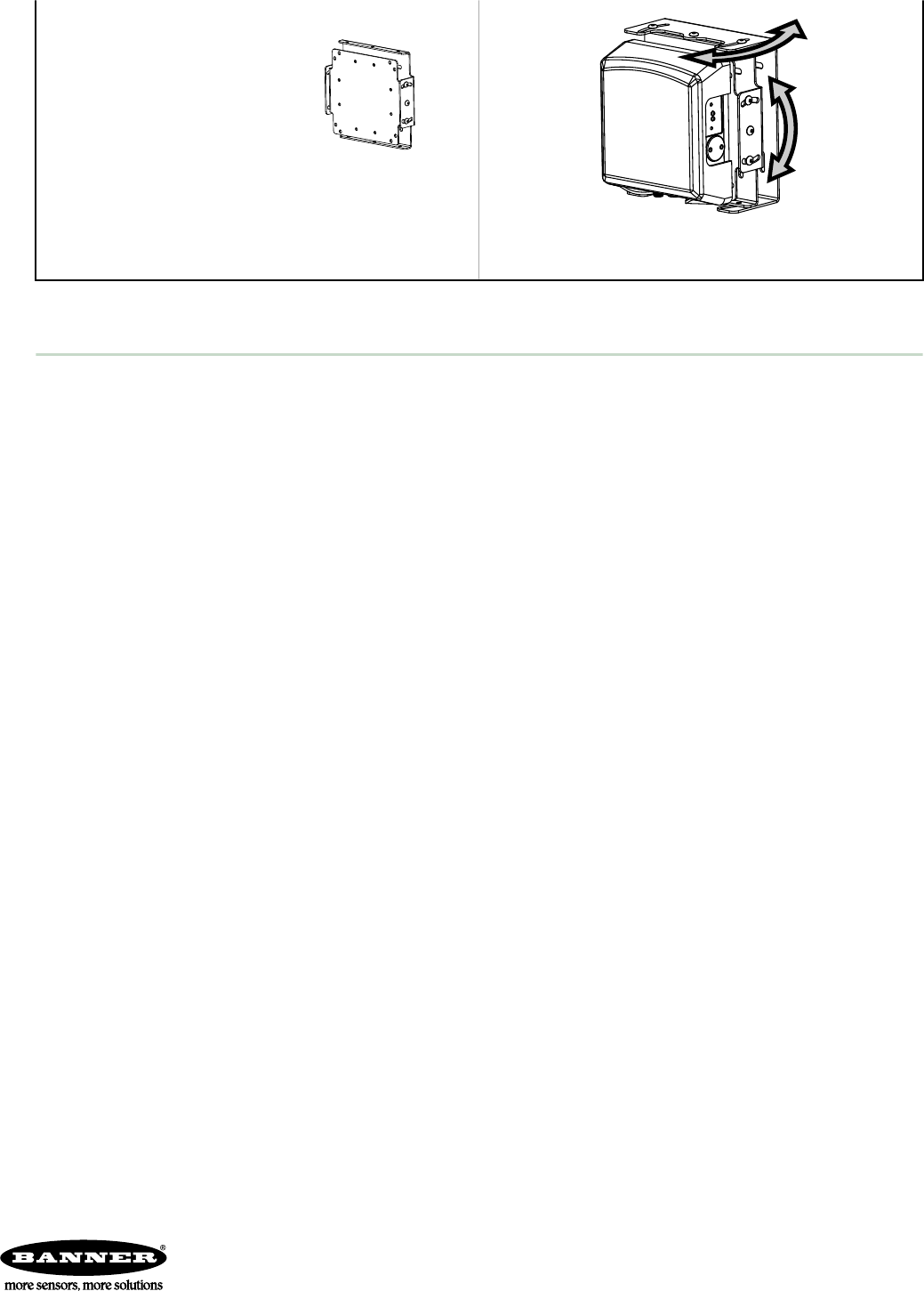

Q240RA R-GAGE sensor shown with all three accessories
installed.
Banner Engineering Corp Limited Warranty
Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following
the date of shipment. Banner Engineering Corp. will repair or replace, free of charge, any product of its manufacture
which, at the time it is returned to the factory, is found to have been defective during the warranty period. This warranty
does not cover damage or liability for misuse, abuse, or the improper application or installation of the Banner product.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR
IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE), AND WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR
TRADE USAGE.
This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO
EVENT SHALL BANNER ENGINEERING CORP. BE LIABLE TO BUYER OR ANY OTHER PERSON OR ENTITY FOR
ANY EXTRA COSTS, EXPENSES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL OR
SPECIAL DAMAGES RESULTING FROM ANY PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE
PRODUCT, WHETHER ARISING IN CONTRACT OR WARRANTY, STATUTE, TORT, STRICT LIABILITY,
NEGLIGENCE, OR OTHERWISE.
Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any
obligations or liabilities relating to any product previously manufactured by Banner Engineering Corp.
R-GAGE™ Q240RA-AF2 Sensor
www.bannerengineering.com - Tel: +1-763-544-3164
