8VHUPDQXDO

PFWX-51B & PFWU-51B

8VHUPDQXDO

Barco nv Projection Division

Noordlaan 5, B-8520 Kuurne

Phone: +32 56.36.82.11

Fax: +32 56.36.883.86

Support: www.barco.com/esupport

Visit us at the web: www.barco.com

Printed in China

Revision: 03

Changes

Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the

implied warranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to

the product(s) and/or the program(s) described in this publication at any time without notice.

This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to the information

in this publication; these changes are incorporated in new editions of this publication.

The latest edition of Barco manuals can be downloaded from the Barco web site www.barco.com or from the secured Barco

web site https://my.barco.com.

Copyright ©

All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be recorded,

transmitted or stored in a retrieval system without the prior written consent of Barco.

EN55022/CISPR22 Class A ITE (Information Technology Equipment)

Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the class B ITE limits. Such equipment

should not be restricted in its sale but the following warning shall be included in the instructions for use:

Warning : This is a class A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Federal Communications Commission (FCC Statement)

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the

FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area may cause harmful interference, in which case the user will be responsible

for correcting any interference at his own expense.

Guarantee and Compensation

Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guarantee. On receipt,

the purchaser must immediately inspect all delivered goods for damage incurred during transport, as well as for material and

manufacturing faults Barco must be informed immediately in writing of any complaints.

The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of

commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the

fault or provide a replacement at its own discretion within an appropriate period. If this measure proves to be impossible or

unsuccessful, the purchaser can demand a reduction in the purchase price or cancellation of the contract. All other claims,

in particular those relating to compensation for direct or indirect damage, and also damage attributed to the operation of

software as well as to other services provided by Barco, being a component of the system or independent service, will be

deemed invalid provided the damage is not proven to be attributed to the absence of properties guaranteed in writing or due

to the intent or gross negligence or part of Barco.

If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled

incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods

are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.

Not included in the guarantee coverage are system failures which are attributed to programs or special electronic circuitry

provided by the purchaser, e.g. interfaces. Normal wear as well as normal maintenance are not subject to the guarantee

provided by Barco either.

The environmental conditions as well as the servicing and maintenance regulations specified in the this manual must be

complied with by the customer.

Trademarks

Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their

respective holders. All brand and product names mentioned in this manual serve as comments or examples and are not to be

understood as advertising for the products or their manufacturers.

TABLE OF CONTENTS

1. SAFETY 1

1.1 General considerations 1

1.2 Important safety instructions 2

2. GENERAL 5

2.1 Installation requirements 5

2.2 Unpacking the projector 6

2.3 Initial inspection 7

2.4 Projector configurations 8

2.5 Projector air inlets and outlets 10

2.6 Installation process overview 11

3. PHYSICAL INSTALLATION 12

3.1 Remote control unit (RCU) 12

3.2 Lenses 14

3.3 Connecting the projector with the power net 18

3.4 Alignment of a table mounted projector 19

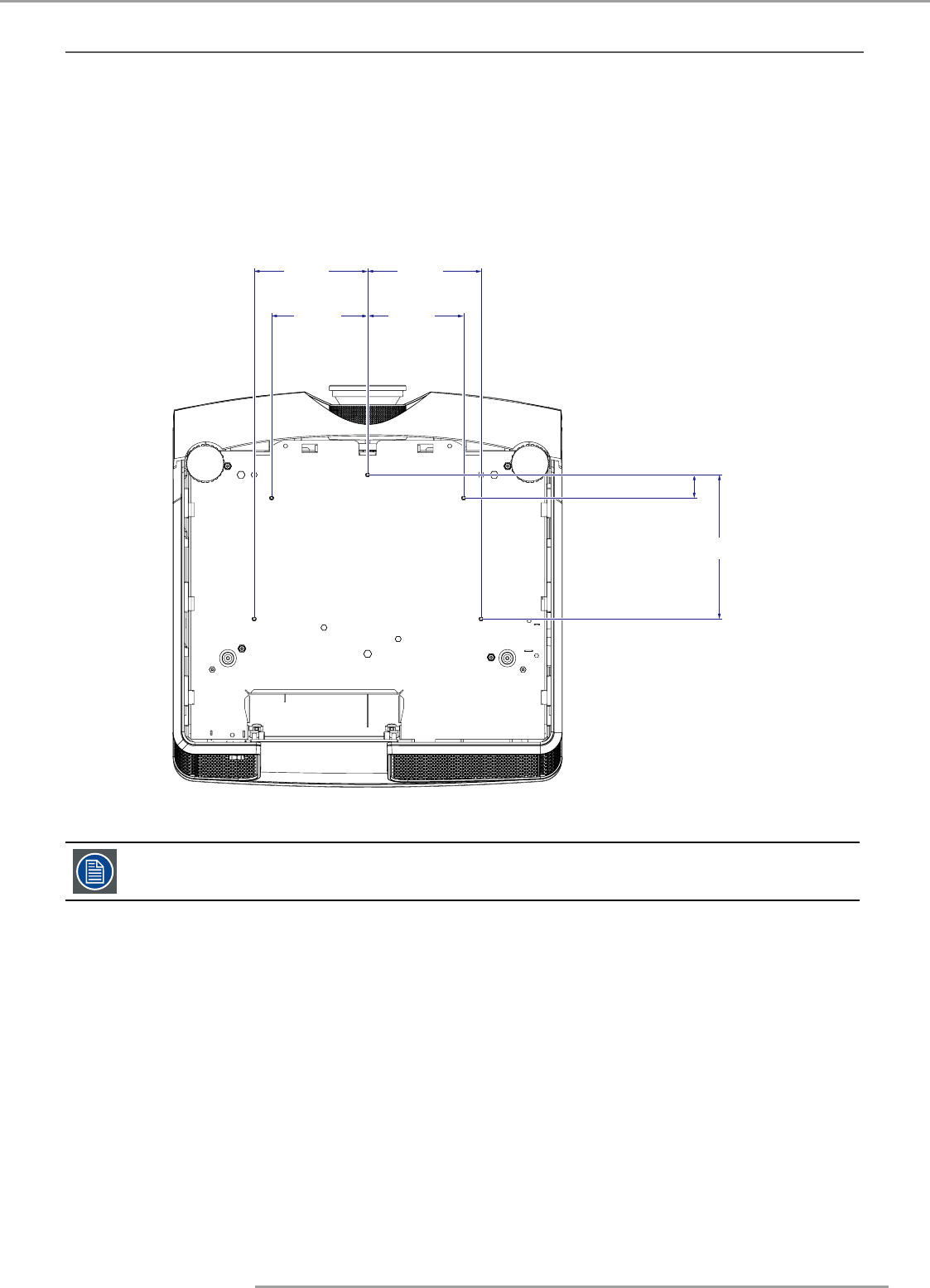

3.5 Mounting the Ceiling mount 21

4. PROJECTOR PARTS AND FUNCTIONS 22

4.1 Projector front view 22

4.2 Projector Rear view 22

4.3 Input and Communication 23

4.4 Status lights of LED 26

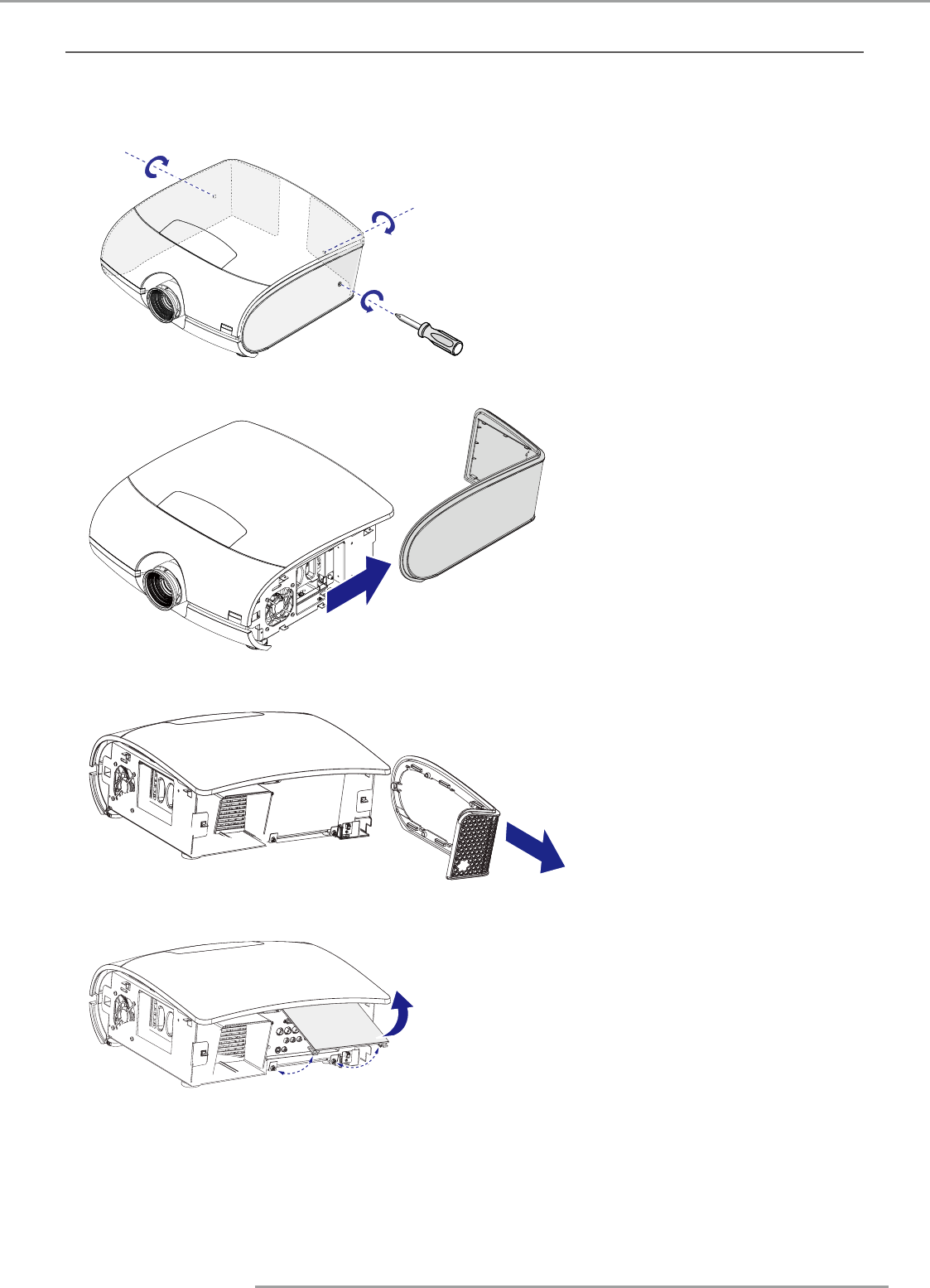

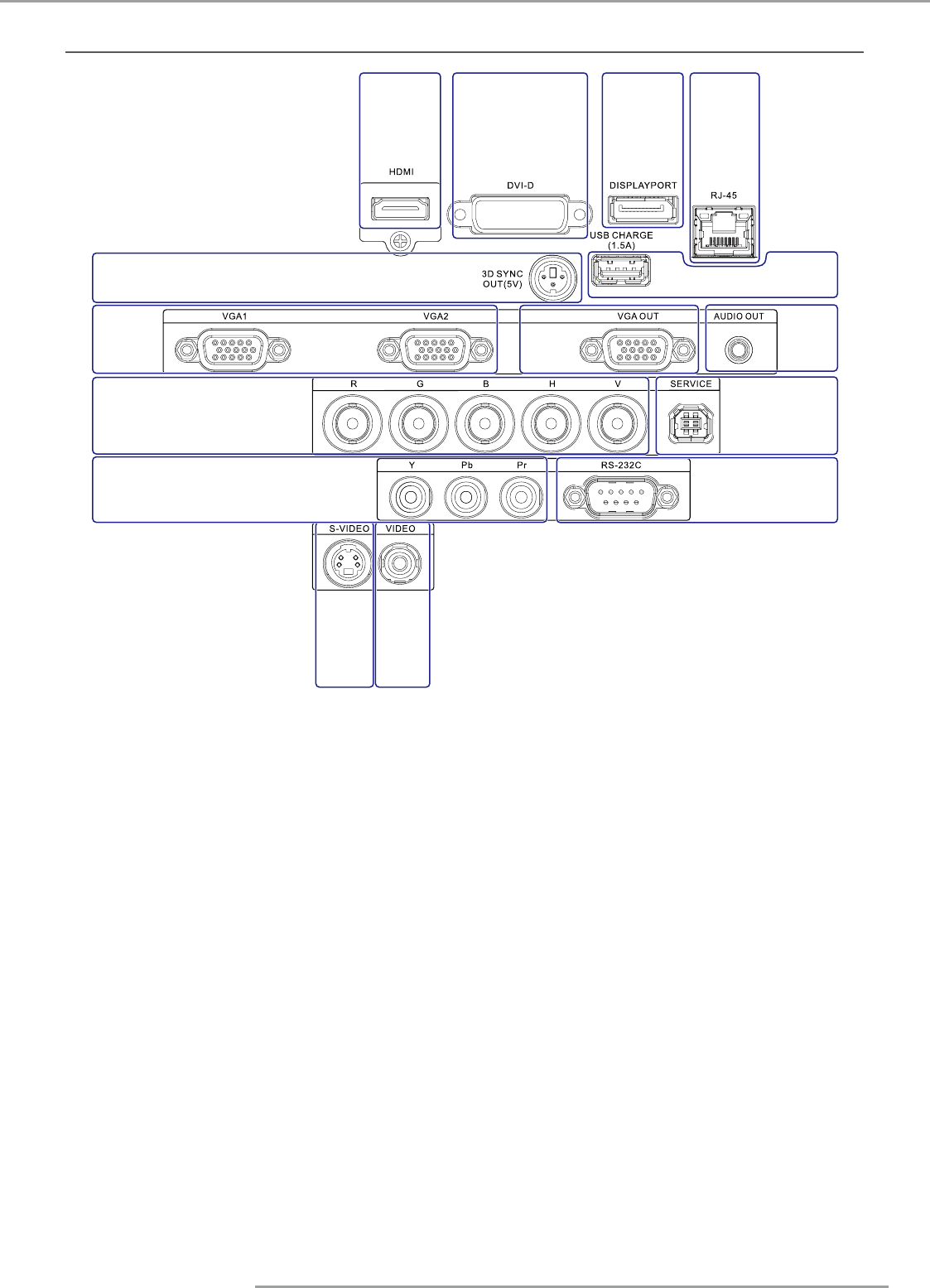

4.5 Opening the I/O cover 27

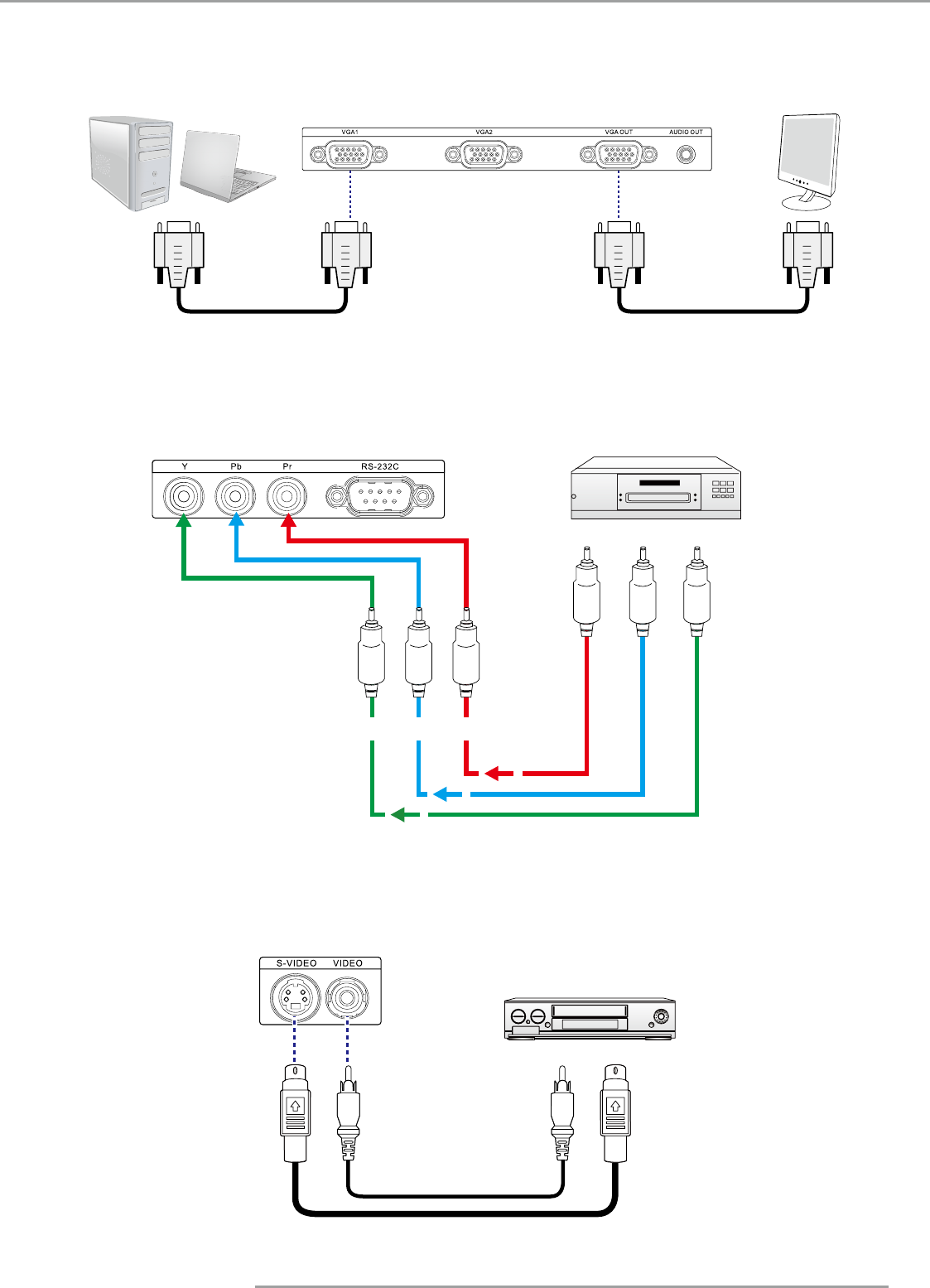

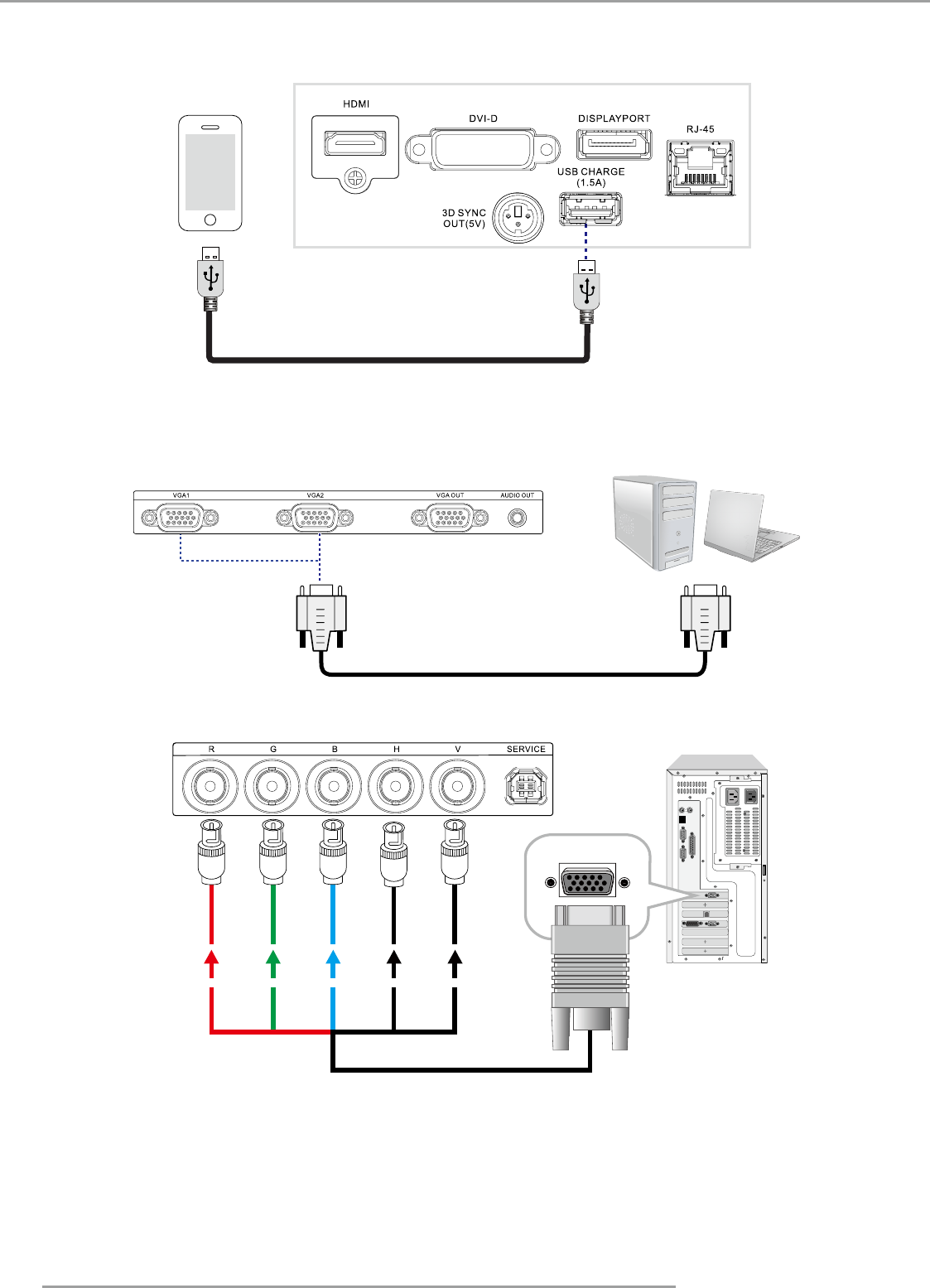

4.6 Connecting the projector to other devices 28

5. GETTING STARTED 33

5.1 RCU & Local keypad 33

5.2 Remote Control and OSD Lite on Screen 33

5.3 Power on projector 34

5.4 Power off projector 35

5.5 Range of effective remote control signal reception 35

5.6 Source selection 35

TABLE OF CONTENTS

5.7 Changing OSD language 36

5.8 Adjusting the lens by horizontal and vertical lens shift 36

5.9 Introduction the OSD Lite on screen 37

6. ADVANCED OSD MENU 38

6.1 How to activate the Advanced OSD menu 38

6.2 How to navigate in the Advanced menu structure? 39

6.3 Advanced menu memory 39

7. IMAGE 40

7.1 Image menu overview 40

7.2 Display Mode 41

7.3 Brightness 41

7.4 Contrast 41

7.5 Computer 42

7.6 Auto Image 43

7.7 Advanced 44

7.8 Input Balance 45

8. SETTINGS 1 48

8.1 Settings 1 menu overview 48

8.2 Source 49

8.3 Projection 49

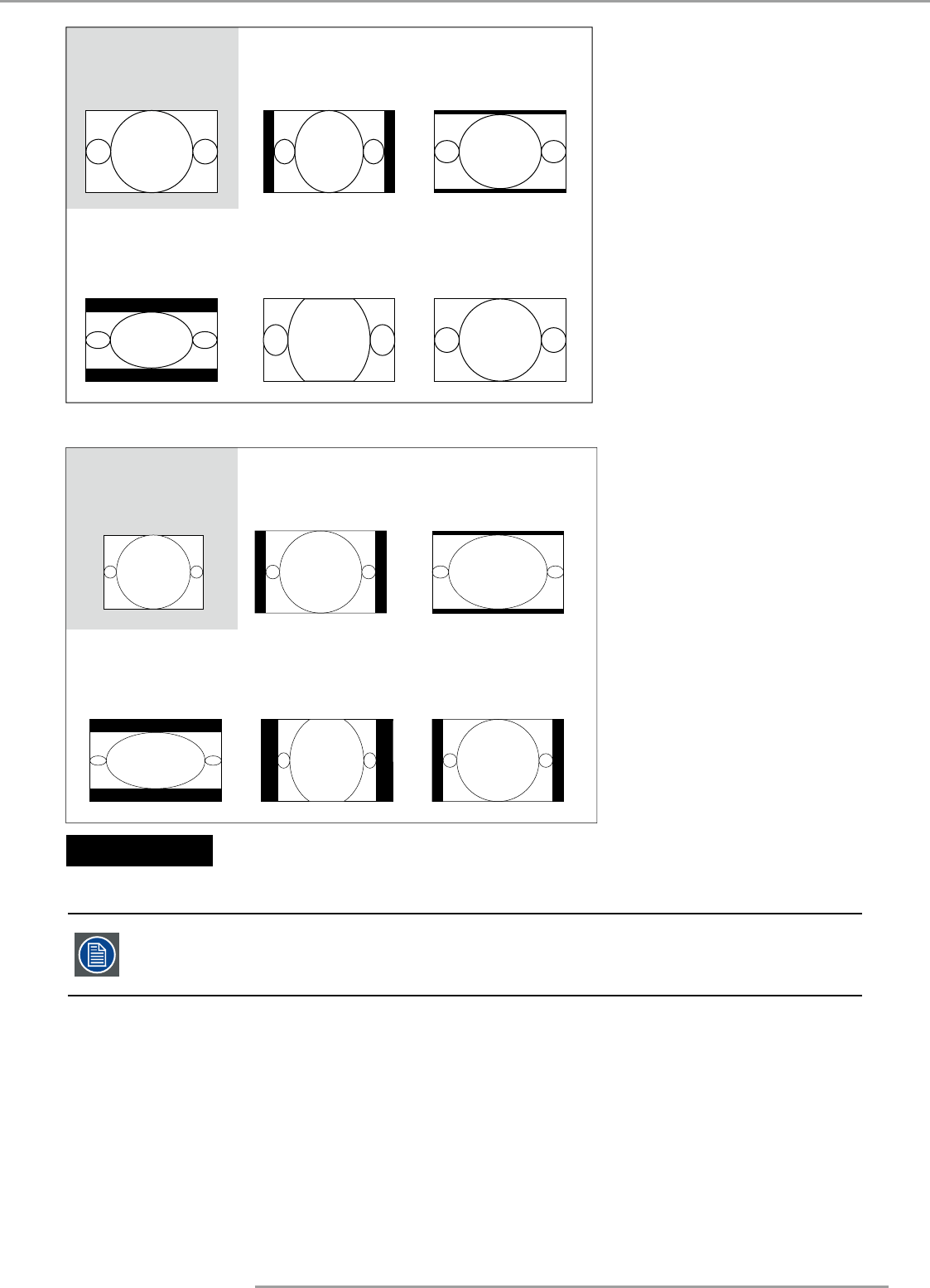

8.4 Aspect Ratio 50

8.5 Keystone 52

8.6 Digital Zoom 52

8.7 Advanced 1 52

8.8 Advanced 2 53

9. SETTINGS 2 54

9.1 Settings 2 menu overview 54

9.2 Auto Source 55

9.3 No Signal Power Off 56

9.4 Auto Power On 56

9.5 Lamp Mode 56

TABLE OF CONTENTS

9.6 Reset All 56

9.7 Status 56

9.8 Advanced 1 57

9.9 Advanced 2 59

10. MAINTENANCE 60

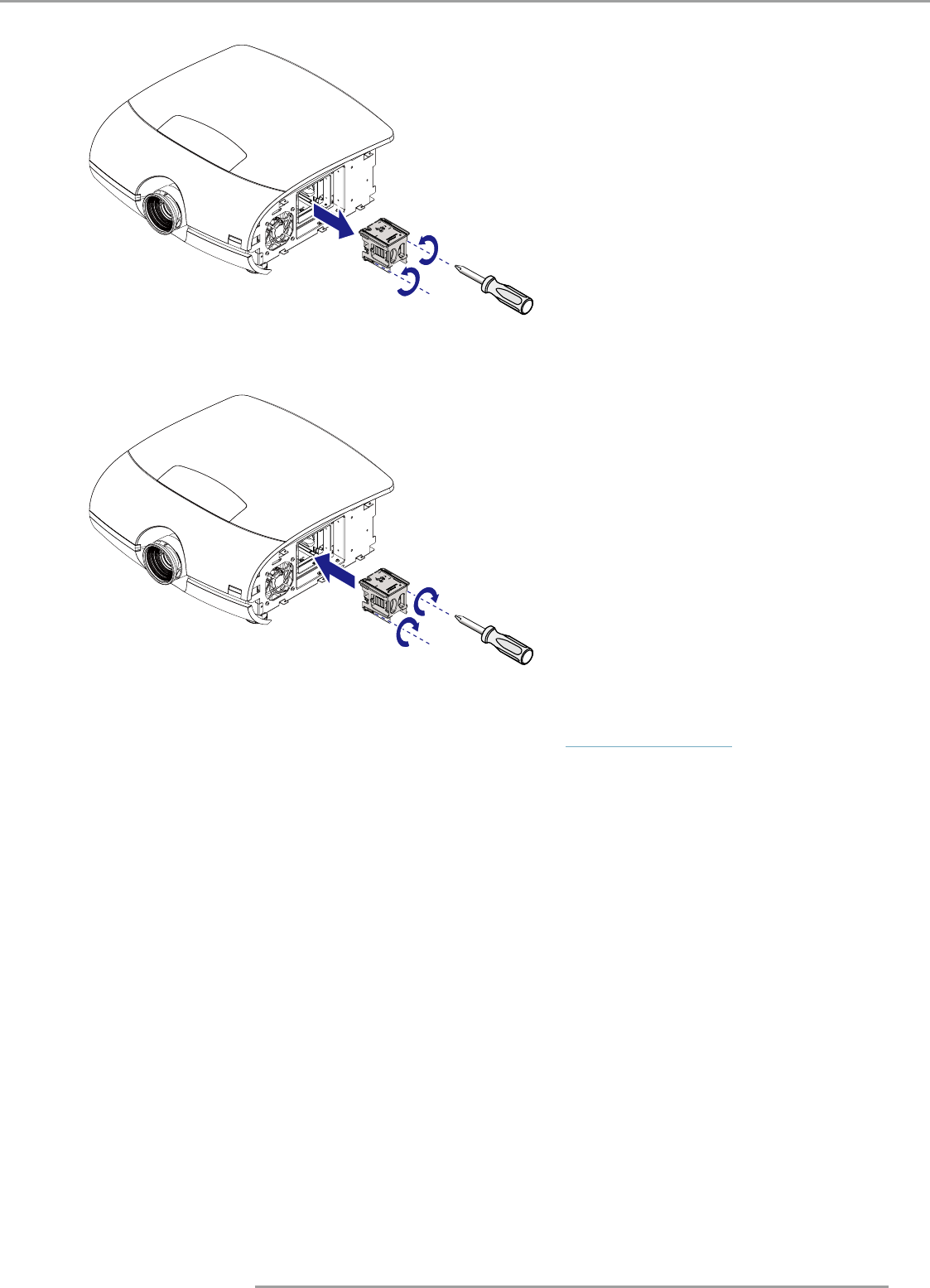

10.1 Lamp Replacement 60

10.2 Clean the dust 62

10.3 Cleaning the lens 62

10.4 Cleaning the exterior of the projector 62

10.5 Simple troubleshooting 63

11. PROJECTOR SPECIFICATION 65

11.1 PFWU-51B Specifications 65

11.2 PFWX-51B Specifications 67

11.3 Standard Source Files 69

11.4 Dimension 72

12. ENVIRONMENTAL INFORMATION 73

12.1 Disposal information 73

12.2 Rohs compliance 73

12.3 Production address 75

PFWX-51B/PFWU-51B 10/02/2014 1

1.Safety

1. SAFETY

About this chapter

Read this chapter attentively. It contains important information to prevent personal injury while installing and using a

PFWX-51B/PFWU-51B projector. Furthermore, it includes several cautions to prevent damage to the PFWX-51B/PFWU-51B

projector. Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this

chapter before installing your PFWX-51B/PFWU-51B projector. After this chapter, additional “warnings” and “cautions” are

given depending on the installation procedure. Read and follow these “warnings” and “cautions” as well.

1.1 General considerations

When referring in this document to the term “PRESENT SERIES” means that the content is applicable for following Barco

products:

• PFWX-51B

• PFWU-51B

WARNING: Ensure you understand and follow all the safety guidelines, safety instructions, warnings and

cautions mentioned in this manual.

WARNING: Be aware of suspended loads.

WARNING: Wear a hard hat to reduce the risk of personal injury.

WARNING: Be careful while working with heavy loads.

WARNING: Mind your fingers while working with heavy loads.

CAUTION: High pressure lamp may explode if improperly handled.

General safety instructions

• Before operating this equipment please read this manual thoroughly and retain it for future reference.

• Installation and preliminary adjustments should be performed by qualified Barco personnel or by authorized Barco service

dealers.

• All warnings on the projector and in the documentation manuals should be adhered to.

• All instructions for operating and use of this equipment must be followed precisely.

• All local installation codes should be adhered to.

Notice on safety

This equipment is built in accordance with the requirements of the international safety standards IEC60950-1,

EN60950-1, UL60950-1 and CAN/CSA C22.2 No.60950-1, which are the safety standards of information technology equipment

including electrical business equipment. These safety standards impose important requirements on the use of safety critical

components, materials and insulation, in order to protect the user or operator against risk of electric shock and energy hazard

and having access to live parts. Safety standards also impose limits to the internal and external temperature rises, radiation

levels, mechanical stability and strength, enclosure construction and protection against the risk of fire. Simulated single fault

condition testing ensures the safety of the equipment to the user even when the equipment’s normal operation fails.

PFWX-51B/PFWU-51B 10/02/2014

2

1.Safety

Users definition

Throughout this manual, the term SERVICE PERSONNEL refers to persons having appropriate technical training and experience

necessary to be knowledgeable of potential hazards to which they are exposed (including, but not limited to HIGH VOLTAGE

ELECTRIC and ELECTRONIC CIRCUITRY and HIGH BRIGHTNESS PROJECTORS) in performing a task, and of measures to minimize

the potential risk to themselves or other persons. The term USER and OPERATOR refers to any person other than SERVICE PER-

SONNEL, AUTHORIZED to operate professional projection systems.

A PFWX-51B/PFWU-51B projector is intended "FOR PROFESSIONAL USE ONLY" by AUTHORIZED PERSONNEL familiar with

potential hazards associated with high voltage, high intensity light beams, ultraviolet exposure and high temperatures

generated by the lamp and associated circuits. Only qualified SERVICE PERSONNEL, knowledgeable of such risks, are allowed

to perform service functions inside the product enclosure.

1.2 Important safety instructions

To prevent the risk of electrical shock

• This product should be operated from a mono phase AC power source.

• This apparatus must be grounded (earthed) via the supplied 3 conductor AC power cable. If none of the supplied power

cables are the correct one, consult your dealer. If you are unable to insert the plug into the outlet, contact your electrician

to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.

• Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord. To

disconnect the cord, pull it out by the plug. Never pull the cord itself.

• Use only the power cord supplied with your device. While appearing to be similar, other power cords have not been safety

tested at the factory and may not be used to power the device. For a replacement power cord, contact your dealer.

• Do not operate the projector with a damaged cord. Replace the cord.Do not operate the projector if the projector has been

dropped or damaged until it has been examined and approved for operation by a qualified service technician.

• Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.

• If an extension cord is necessary, a cord with a current rating at least equal to that of the projector should be used. A cord

rated for less amperage than the projector may overheat.

• Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short

out parts that could result in a risk of fire or electrical shock.

• Do not expose this projector to rain or moisture.

• Do not immerse or expose this projector in water or other liquids.

• Do not spill liquid of any kind on this projector.

• Should any liquid or solid object fall into the cabinet, unplug the set and have it checked by qualified service personnel

before resuming operations.

• Do not disassemble this projector, always take it to an authorized trained service person when service or repair work is

required.

• Do not use an accessory attachment which is not recommended by the manufacturer.

• Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused

for long periods of time, unplug it from the wall outlet. This will prevent damage to the device due to lightning and AC

power-line surges.

To prevent personal injury

• Isolate electrically before replacing the lamp or lamp house. Caution: Hot lamp (house).

• Caution: High pressure lamp may explode if improperly handled. Refer servicing to qualified service personnel.

• To prevent injury and physical damage, always read this manual and all labels on the system before inserting the lamp

casing, connecting to the wall outlet or adjusting the projector.

• To prevent injury, take note of the weight of the projector. Minimum 2 persons are needed to carry the projector.

• To prevent injury, ensure that the lens and all covers are correctly installed. See installation procedures.

• Warning: high intensity light beam. NEVER look into the lens ! High luminance could result in damage to the eye.

• Warning: extremely high brightness lamps: This projector uses extremely high brightness lamps. Never attempt to

look directly into the lens or at the lamp. If the projection distance is less than 6 meter, any person needs to be at least 4

meters away from the projected image. Avoid close range reflection of the projected image on any reflecting surface (such

as glass, metal, …) . When operating the projector, we strongly recommend wearing suitable safety glasses.

• Before attempting to remove any of the projector’s covers, you must turn off the projector and disconnect from the wall

outlet.

• When required to switch off the projector, to access parts inside, always disconnect the power cord from the power net.

• The power input at the projector side is considered as the disconnect device. When required to switch off the projector, to

access parts inside, always disconnect the power cord at the projector side. In case the power input at the projector side is

not accessible (e.g. ceiling mount), the socket outlet supplying the projector shall be installed nearby the projector and be

easily accessible, or a readily accessible general disconnect device shall be incorporated in the fixed wiring.

• Do not place this equipment on an unstable cart, stand, or table. The product may fall, causing serious damage to it and

possible injury to the user.

PFWX-51B/PFWU-51B 10/02/2014 3

1.Safety

• It is hazardous to operate without lens or shield. Lenses, shields or ultra violet screens shall be changed if they have

become visibly damaged to such an extent that their effectiveness is impaired. For example by cracks or deep scratches.

• Warning: Protection from ultraviolet radiation: Do not look directly in the light beam. The lamp contained in this

product is an intense source of light and heat. One component of the light emitted from this lamp is ultraviolet light.

Potential eye and

skin hazards are present when the lamp is energized due to ultraviolet radiation. Avoid unnecessary exposure. Protect

yourself and your employees by making them aware of the hazards and how to protect themselves. Protecting the skin

can be accomplished by wearing tightly woven garments and gloves. Protecting the eyes from UV can be accomplished by

wearing safety glasses that are designed to provide UV protection. In addition to the UV, the visible light from the lamp is

intense and should also be considered when choosing protective eye wear.

• Exposure to UV radiation: Some medications are known to make individuals extra sensitive to UV radiation. The American

Conference of Governmental Industrial Hygienists (ACGIH) recommends occupational UV exposure for an-8 hour day to be

less than 0,1 micro-watts per square centimeters of effective UV radiation. An evaluation of the workplace is advised to

assure employees are not exposed to cumulative radiation levels exceeding these government guidelines. The exposer of

this UV radiation is allowed for only 1 hour per day for maintenance and service persons.

• Mercury Vapor Warnings: Keep the following warnings in mind when using the projector. The lamp used in the projector

contains mercury. In case of a lamp rupture, explosion there will be a mercury vapor emission. In order to minimize the

potential risk of inhaling mercury vapors:

- Ensure the projector is installed only in ventilated rooms.

- Replace the lamp module before the end of its operational life.

- Promptly ventilate the room after a lamp rupture, explosion has occurred, evacuate the room (particularly in case of a

pregnant woman).

- Seek medical attention if unusual health conditions occur after a lamp rupture, explosion, such as headache, fatigue,

shortness of breath, chest-tightening coughing or nausea.

To prevent fire hazard

• Do not place flammable or combustible materials near the projector!

• Barco large screen projection products are designed and manufactured to meet the most stringent safety regulations.

This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both

normal and safe. Exposing flammable or combustible materials into close proximity of this projector could result in the

spontaneous ignition of that material, resulting in a fire. For this reason, it is absolutely necessary to leave an “exclusion

zone” around all external surfaces of the projector whereby no flammable or combustible materials are present. The

exclusion zone must be not less than 50 cm (20”) for all DLP projectors. The exclusion zone on the lens side must be at

least 5 m. Do not cover the projector or the lens with any material while the projector is in operation. Keep flammable

and combustible materials away from the projector at all times. Mount the projector in a well ventilated area away from

sources of ignition and out of direct sun light. Never expose the projector to rain or moisture. In the event of fire, use

sand, CO2 or dry powder fire extinguishers. Never use water on an electrical fire. Always have service performed on this

projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco

replacement parts as they may degrade the safety of this projector.

• Slots and openings in this equipment are provided for ventilation. To ensure reliable operation of the projector and to

protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by

placing the projector too close to walls, or other similar surface. This projector should never be placed near or over a

radiator or heat register. This projector should not be placed in a built-in installation or enclosure unless proper ventilation

is provided.

• Projection rooms must be well ventilated or cooled in order to avoid build up of heat.

• Let the projector cool down completely before storing. Remove cord from the projector when storing.

• Heat sensitive materials should not be placed in the path of the exhausted air or on the lamp house.

To prevent projector damage

• This projector has been designed for use with a specific lamp (house) type. See installation instructions for its correct type.

• The air filters of the projector must be cleaned or replaced on regular base (a "clean" booth would be monthly-minimum).

Neglecting this could result in disrupting the air flow inside the projector, causing overheating. Overheating may lead to

the projector shutting down during operation.

• The projector must always be installed in a manner which ensures free flow of air into its air inlets and unimpeded

evacuation of the hot air from its cooling system.

• In order to ensure that correct airflow is maintained, and that the projector complies with Electromagnetic Compatibility

(EMC)requirements, it should always be operated with all of it’s covers in place.

• Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it

from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the

product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat

register. The device should not be placed in a built-in installation or enclosure unless proper ventilation is provided.

• Ensure that nothing can be spilled on, or dropped inside the projector. If this does happen, switch off and unplug the mains

supply immediately. Do not operate the projector again until it has been checked by qualified service personnel.

• Do not block the projector cooling fans or free air movement around the projector. Loose papers or other objects may not

be nearer to the projector than 30 cm (12") on any side.

PFWX-51B/PFWU-51B 10/02/2014

4

1.Safety

• Do not use this equipment near water.

• Special care for Laser Beams:Special care should be used when DLP projectors are used in the same room as high power

laser equipment. Direct or indirect hitting of a laser beam on to the lens can severely damage the Digital Mirror Devices™

in which case there is a loss of warranty.

• Never place the projector in direct sun light. Sun light on the lens can severely damage the Digital Mirror Devices TM in

which case there is a loss of warranty.

• Save the original shipping carton and packing material. They will come in handy if you ever have to ship your equipment.

For maximum protection, repack your set as it was originally packed at the factory.

• Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth

for cleaning. Never use strong solvents, such as thinner or benzine, or abrasive cleaners, since these will damage the

cabinet. Stubborn stains may be removed with a cloth lightly dampened with mild detergent solution.

• To ensure the highest optical performance and resolution, the projection lenses are specially treated with an anti-reflective

coating, therefore, avoid touching the lens. To remove dust on the lens, use a soft dry cloth. Do not use a damp cloth,

detergent solution, or thinner.

• Rated maximum ambient temperature, ta= 40 °C (104 °F).

• The lamp house shall be replaced if it has become damaged or thermally deformed.

On servicing

• Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage

potentials and risk of electric shock.

• Refer all servicing to qualified service personnel.

• Attempts to alter the factory-set internal controls or to change other control settings not specially discussed in this manual

can lead to permanent damage to the projector and cancellation of the warranty.

• Unplug this product from the wall outlet and refer servicing to qualified service technicians under the following conditions:

- When the power cord or plug is damaged or frayed.

- If liquid has been spilled into the equipment.

- If the product has been exposed to rain or water.

- If the product does not operate normally when the operating instructions are followed. Adjust only those controls that

are covered by the operating instructions since improper adjustment of the other controls may result in damage and will

often require extensive work by a qualified technician to restore the product to normal operation.

- If the product has been dropped or the cabinet has been damaged.

- If the product exhibits a distinct change in performance, indicating a need for service.

• Replacement parts: When replacement parts are required, be sure the service technician has used original Barco

replacement parts or authorized replacement parts which have the same characteristics as the Barco original part.

Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards.

Unauthorized substitutions may void warranty.

• Safety check: Upon completion of any service or repairs to this projector, ask the service technician to perform safety

checks to determine that the product is in proper operating condition.

• Possible explosion hazard: Always keep in mind the caution below:

CAUTION: Do not touch a lamp during operation and right after it is turned off as it is extremely hot. Lamp

contains mercury. It's brokeage might cause mercury or broken glass pieces to folow out of lamp housing.

To avoid exposure the risk of mercury poisoning. Don't drop, hit, force or scratch while handing a lamp.

To prevent battery explosion

• Danger of explosion if battery is incorrectly installed.

• Replace only with the same or equivalent type recommended by the manufacturer.

• For disposal of used batteries, always consult federal, state, local and provincial hazardous waste disposal rules and

regulations to ensure proper disposal.

PFWX-51B/PFWU-51B 10/02/2014 5

2.General

2. GENERAL

About this chapter

Read this chapter before installing your PFWX-51B/PFWU-51B projector. It contains important information concerning

installation requirements for the PFWX-51B/PFWU-51B projector, such as minimum and maximum allowed ambient

temperature, humidity conditions, required safety area around the installed projector, required power net, etc.

Furthermore, careful consideration of things such as image size, ambient light level, projector placement and type of screen

to use are critical to the optimum use of the projection system.

Overview

• Installation requirements

• Unpacking the projector

• Initial inspection

• Projector configurations

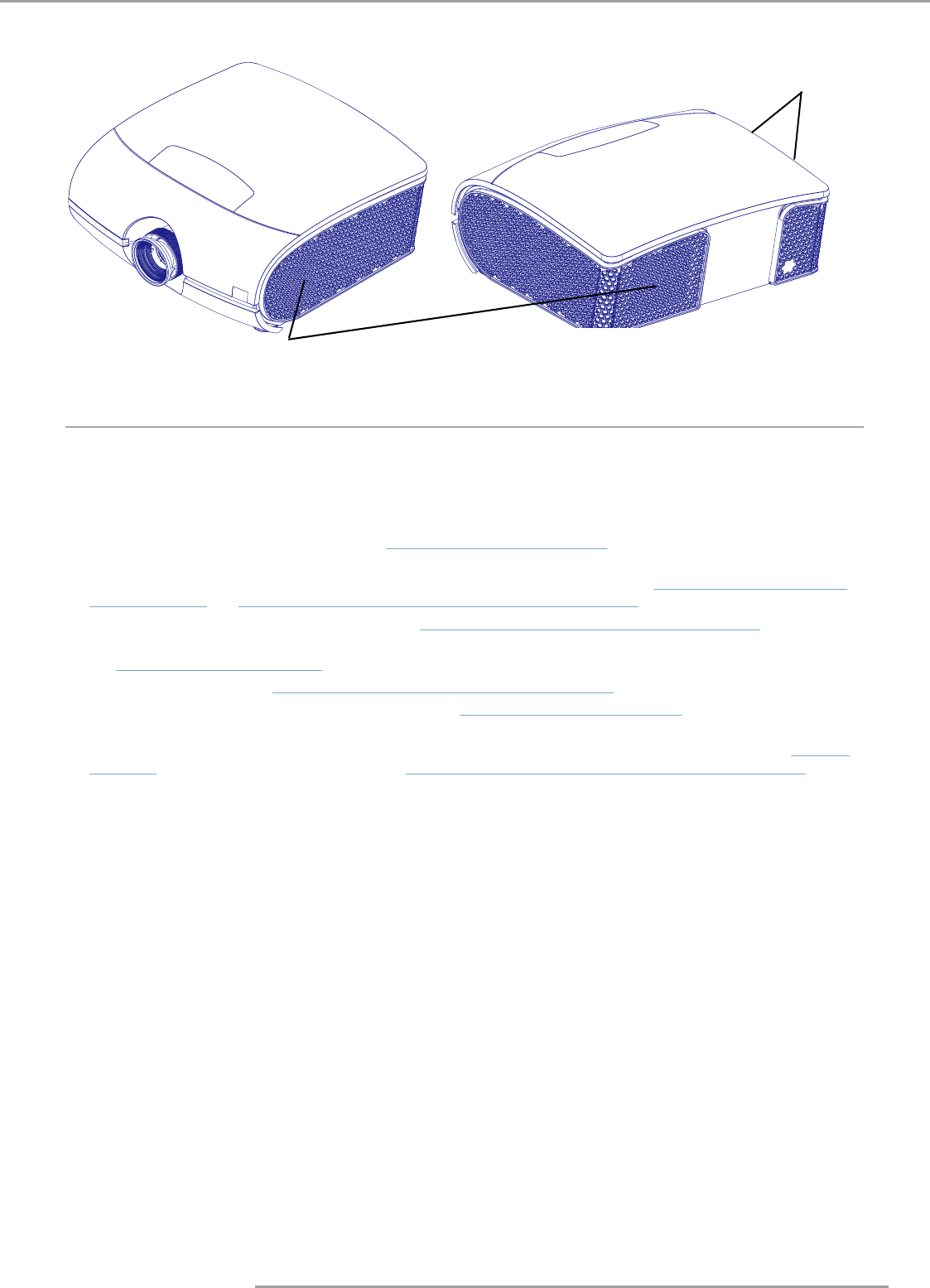

• Projector air inlets and outlets

• Installation process overview

WARNING: Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated

terms of guarantee. Observing the specification mentioned in this chapter is critical for projector

performance. Neglecting this can result in loss of warranty.

2.1 Installation requirements

Environment conditions

Table below summarizes the physical environment in which the PFWX-51B/PFWU-51B projector may be safely operated or

stored.

Environment Operating Non-Operating

Ambient Temperature

Humidity

Altitude

5°C (41°F) to 35°C (95°F)

10% to 85% RH Non-condensed

-60 (-197Ft) to 3000m (9843Ft)

-10°C (14°F) to 60°C (140°F)

5% to 90% RH Non-Condensed

-60 (-197Ft) to 10000m (32810Ft)

Let the projector acclimatize after unpacking. Neglecting this may result in a startup failure of the Light

Pro- cessor Unit.

Cooling requirements

The projector is fan cooled and must be installed with sufficient space around the projector head, minimum 30 cm (12 inch) to

ensure sufficient air flow. It should be used in an area where the ambient temperature, as measured at the projector air inlet

, does not exceed +35°C (+95°F).

Clean air environment

A projector must always be mounted in a manner which ensures the free flow of clean air into the projectors ventilation

inlets. For installations in environments where the projector is subject to airborne contaminants such as that produced by

smoke machines or similar (these deposit a thin layer of greasy residue upon the projectors internal optics and imaging

electronic surfaces, degrading performance), then it is highly advisable and desirable to have this contamination removed

prior to it reaching the projectors clean air supply. Devices or structures to extract or shield contaminated air well away

from the projector are a prerequisite, if this is not a feasible solution then measures to relocate the projector to a clean air

environment should be considered.

Only ever use the manufacturer’s recommended cleaning kit which has been specifically designed for cleaning optical parts,

never use industrial strength cleaners on the projector’s optics as these will degrade optical coatings and damage sensitive

optoelectronics components. Failure to take suitable precautions to protect the projector from the effects of persistent and

prolonged air contam- inants will culminate in extensive and irreversible ingrained optical damage. At this stage cleaning of

PFWX-51B/PFWU-51B 10/02/2014

6

2.General

the internal optical units will be noneffective and impracticable. Damage of this nature is under no circumstances covered

under the manufacturer’s warranty and may deem the warranty null and void. In such a case the client shall be held solely

responsible for all costs incurred during any repair. It is the clients responsibility to ensure at all times that the projector

is protected from the harmful effects of hostile airborne particles in the environment of the projector. The manufacturer

reserves the right to refuse repair if a projector has been subject to knowingly neglect, abandon or improper use.

Main Power requirements

The PFWX-51B/PFWU-51B projector operates from a nominal mono phase power net with a separate earth ground PE.

Projector Power requirements

PFWX-51B AC INPUT 100-240V 4.8A 50/60Hz

PFWU-51B AC INPUT 100-240V 4.8A 50/60Hz

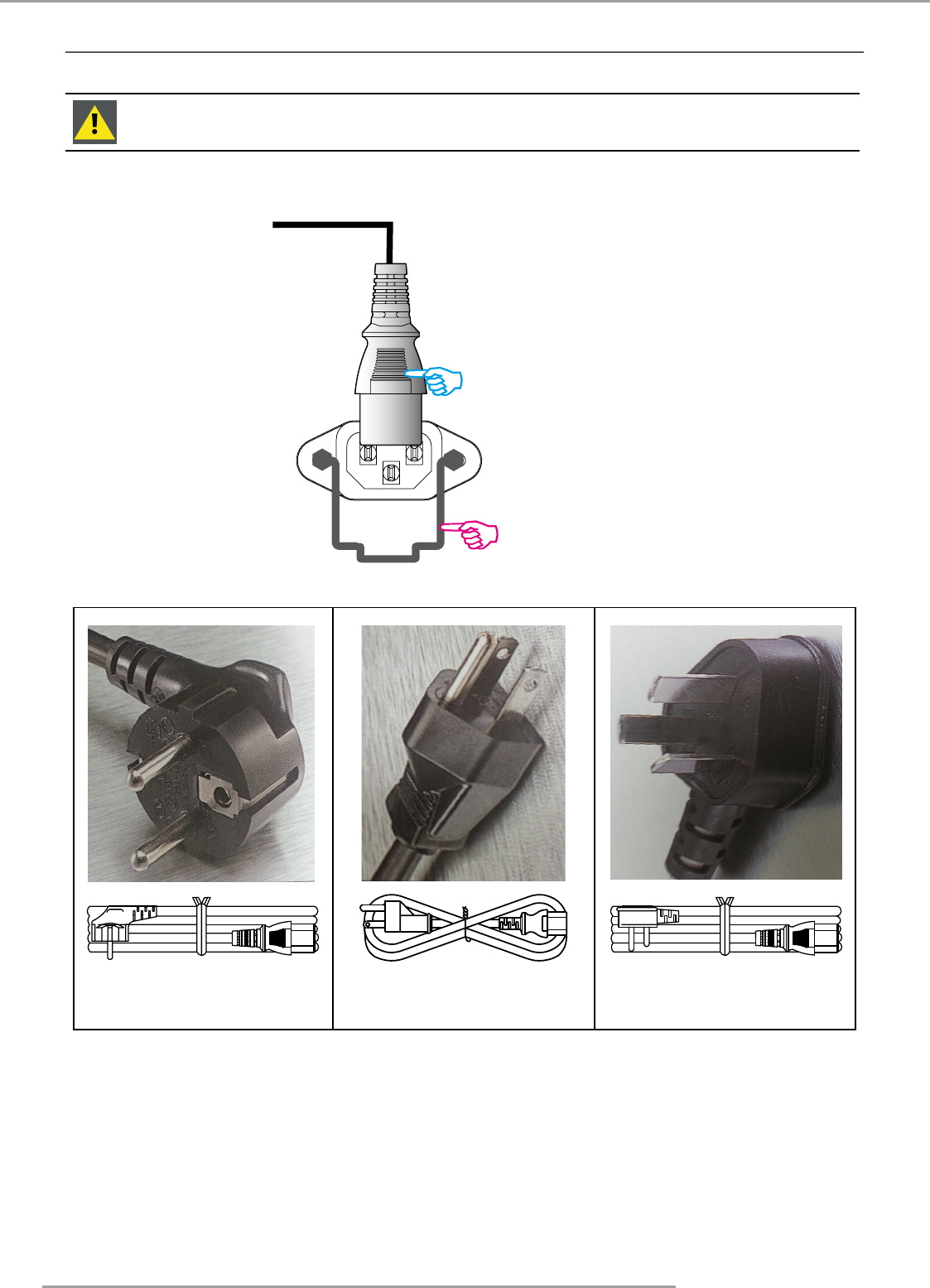

The power cord required to connect the projector with the power net is delivered with the projector.

Projector weight

Do not underestimate the weight of the PFWX-51B/PFWU-51B projector. The projector weights about ±12 kg (±26.5 lb.)

without lens. Be sure that the pedestal or ceiling mount on which the projector has to be installed is capable of handling five (5)

times the complete load of the system.

2.2 Unpacking the projector

1. Remove the tape around the carton box, then open the box.

2. Take out the foam upper the projector.

3. Take out the projector.

PFWX-51B/PFWU-51B 10/02/2014 7

2.General

After unpacking let the projector acclimatizes to a room temperature higher then 5°C (41°F) and lower then

35°C (95°F). Neglecting this may result in a start up failure of the Light Processor Unit.

Save the original shipping carton and packing material, they will be necessary if you ever have to ship your

projector. For maximum protection, repack your projector as it was originally packed at the factory.

2.3 Initial inspection

General

Before shipment, the projector was inspected and found to be free of mechanical and electrical defects. As soon as the

projector is unpacked, inspect for any damage that may have occurred in transit. Save all packing material until the inspection

is completed. If damage is found, file claim with carrier immediately. The Barco Sales and Service office should be notified as

soon as possible.

Box content

After unpacking the projector it is recommended to check if all following items where included:

• Projector with standard lens mounted.

• Three power cords

• CD (Contents has this installation manual)

• One Safety manual

• One remote control unit (RCU)

• Two AAA size batteries for the RCU. Type: size-AAA (R03). Only Carbon-Zinc or Alkaline-Manganese Dioxide type batteries

should be used.

Lamp is mounted inside the lamp house at delivery.

Mechanical check

This check should confirm that there are no broken knobs or connectors, that the cabinet and panel surfaces are free of dents

and scratches, and that the operating panel is not scratched or cracked. The Barco Sales and Service office should be notified

as soon as possible if this is not the case.

PFWX-51B/PFWU-51B 10/02/2014

8

2.General

2.4 Projector configurations

The different configurations

Depending on the installation the projector can be mounted in different ways, the different configurations are:

1. Front / Table (F/T)

2. Front / Ceiling (F/C) (upside down)

3. Rear / Table (R/T)

4. Rear / Ceiling (R/C) (upside down)

Front projection

The projector is installed, either in a table mount or ceiling mount configuration, at the same side of the screen as the

audience.

F/C

AUDIENCE

F/T

FLOOR

SCREEN

Frontprojection

PFWX-51B/PFWU-51B 10/02/2014 9

2.General

Rear projection

The projector is installed, either in a table mount or ceiling mount configuration, at the other side of the screen opposite the

audience.

AUDIENCE BACKSTAGE

R/C

R/T

FLOOR

SCREEN

Re

ar projection

Positioning the projector

FLOOR

SCREENSCREEN

PD

ACD

SCREEN

SW

SW

SHB

SHB

CD

Positioningprojector

The projector should be installed at right angles (horizontally and vertically) to the screen at a distance PD. Note the distance

(A) between lens centre and table surface is slightly variable. This distance (A) is nominal 8.3 cm in case all feet are turned in

completely and the vertical lens shift is set to zero (0).

On axis / off axis projection

The position of the projector with reference to the screen may also be different depending on the installation. Basically the

projector can be positioned in On-Axis or Off-Axis configuration. On-Axis configuration means that the projector is positioned

so as to have the centre of the lens coinciding with the centre of the screen. Off-Axis projection is obtained by shifting the

lens up, down, left or right. Several parameters can be calculated determining the position in any installation.

Formula to calculate the distance CD for On-Axis projection: CD = SH/2 + B - A

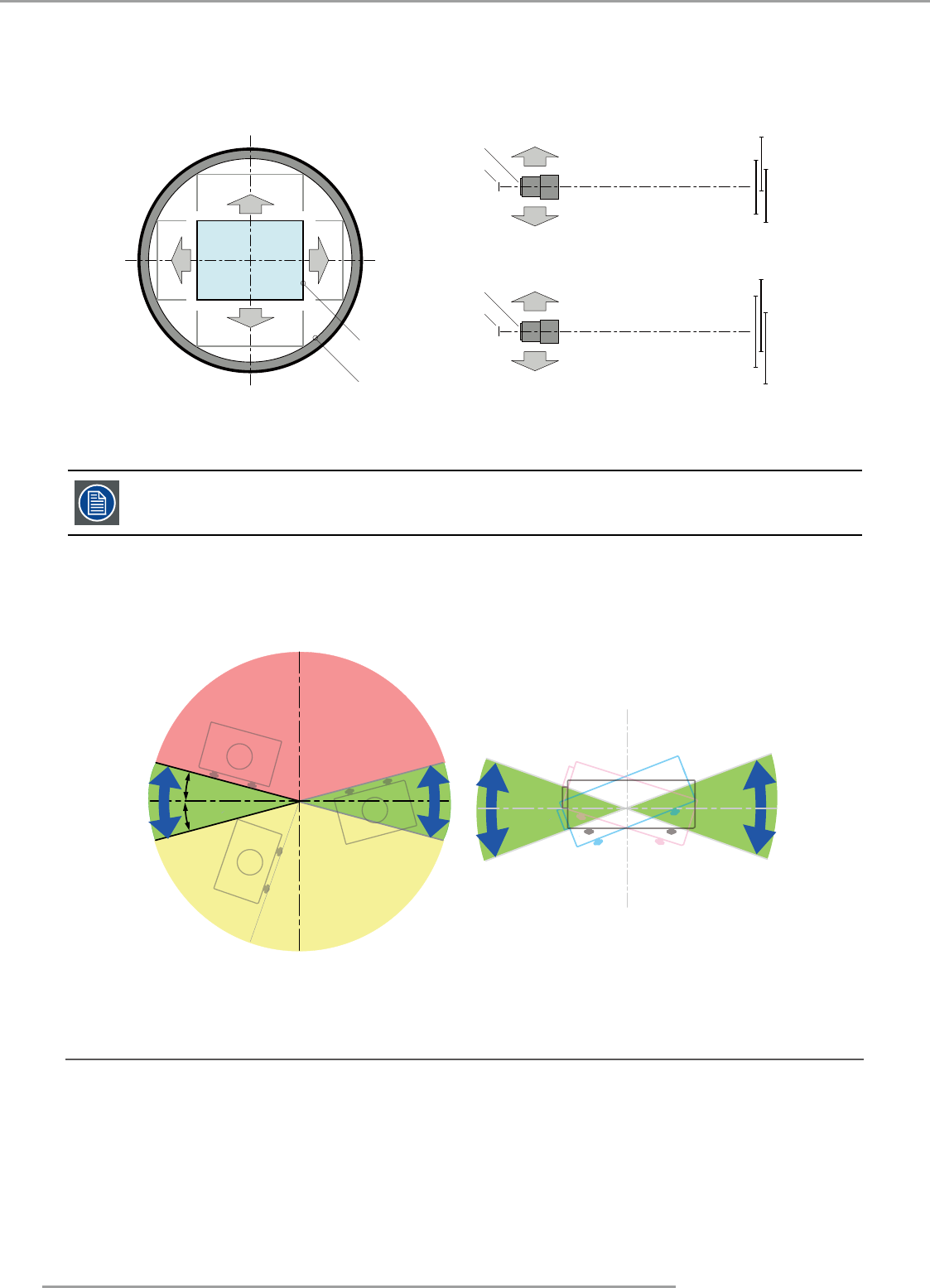

Shift range

The lens can be shifted with respect to the DMD (P) which result in a shifted image on the screen (Off-Axis). A 100% shift

means that the centre point of the projected image is shifted by half the screen size. In other words, the centre point of

PFWX-51B/PFWU-51B 10/02/2014

10

2.General

the projected image falls together with the outline of the image in an On-Axis projection. Due to mechanical and optical

limitations it’s recommended to keep the shift values within the field of view (F) as illustrated below. Within these shift

ranges the projector and lens perform excellently. Configuring the projector outside these shift ranges will result in a slight

decline of image quality.

U

+110%

-30%

-10 % +10%

D

L R

P

F

U

D

SIDE VIEW

P

F+110%

-30%

TOP VIEW

P

F

L

R

-10%

+10%

Vertical andhorizontalshift range

PDMD.

FField of view.

It is mechanical possible to shift outside the recommended field of view, but it will result in a decline of

image quality depending on the used lens and the zoom position of the used lens. Furthermore, shifting

too much in both directions will result in a blurred image corner.

Horizontal and vertical projector tilt ranges

Avoid to reduce the usage of lamp life. Suggest the projector rotated and mounted vertical angle not > ±15°.

Side to side tilt, however, must not exceed ±10°. This limit ensures that the lamp in the projector operates properly and safely.

MAX

A

MAX

MAX

MAX

10°

±15° ±15°

10° A

B

C

A Tilting allowed without problems

B No tilting allowed in this area

C No tilting allowed in this area

10°

10°

A

2.5 Projector air inlets and outlets

Ventilation inlet:

The internal cooling fan draws cool air from the ventilation inlet into the projector.

Ventilation outlet:

The hot air generated inside the projector is dispersed through the ventilation slot. Make sure the ventilation slot is free from

PFWX-51B/PFWU-51B 10/02/2014 11

2.General

obstruction.

Ventilation inlet

Ventilation outlet

2.6 Installation process overview

Quick setup

The following steps describe briefly how to setup your PFWX-51B/PFWU-51B projector in a table mount front projection. Note

that each step refers to a corresponding procedure, which is more detailed and illustrated.

1. Install the batteries of the remote control. See page 12: Remote control unit (RCU).

2. Place the projector on a solid table in front of the screen at the expected throw distance. Adjust the feet to ensure that

the projector is installed at right angles (horizontally and vertically) with the screen. See page 19: Alignment of a table

mounted projector and page 36: Adjusting the lens by horizontal and vertical lens shift.

3. Connect the projector with the local power net. See page 18: Connecting the projector with the power net.

4. Select and install an appropriate lens, which covers the throw ratio ( = screen size / projector screen distance).

See page 9: Positioning the projector.

5. Switch ON the projector. See page 18: Connecting the projector with the power net.

6. Connect your source to the appropriate input module. See page 23: Input and Communication.

7. Zoom and shift the lens until the image is properly projected on the screen, Do this by using the “ZOOM” and “FOCUS”

ring on the lens. If necessary, level the projector from side to side by turning the adjustable feet in or out. See page 16:

Lens zoom. or adjust the Lens Shift manually. See page 36: Adjusting the lens by horizontal and vertical lens shift

PFWX-51B/PFWU-51B 10/02/2014

12

3.Physical Installation

3. PHYSICAL INSTALLATION

About this projector

This chapter describes how the mechanical set up of the projector has to be done and how to realize the electrical

connections.

Overview

• Remote control unit (RCU)

• Lenses

• Connecting the projector with the power net

• Alignment of a table mounted projector

• Mounting the ceiling mount

3.1 Remote control unit (RCU)

Introduction

Remove the cover by sliding it in the

direction indicated by the arrow.

Insert two new AAA

batteries (observe the polarity).

Replace the cover.

´ ´

Notes for the Remote control unit

• Be sure to insert the batteries in the corresponding orientations to match the polarities.

• Do not mix new batteries with used batteries as it would shorten the life of new batteries or cause leakage.

• Only used AAA batteries as instructed; do not attempt to insert different types of batteries into the remote control.

• If the remote is going to be unused for long periods of time, be sure to remove the batteries to prevent leakage, which

could damage the remote control.

• The liquid contents in the batteries is harmful to the skin; do not touch the leakage with your bare hands directly. When

installing fresh batteries, be sure to clean up the leakage thoroughly.

• Under most circumstances, you only need to point the remote control towards the screen and the IR signal would be

reflected off the screen and picked up by the IR sensor on the projector.But under specific circumstances, the projector may

fail to receive signals from the remote control due to environmental factors.When this happens, orient the remote control

at the projector and try again.

• If the range of effective remote control signal reception decreases or if the remote control stops working, replace the

batteries.

• If the infrared receiver is exposed to fluorescent lamp or strong sunlight, the remote control may not operate normally.

• Refer to the regulations enforced by your local government on the disposal of used batteries; improper disposal could

damage the environment.

PFWX-51B/PFWU-51B 10/02/2014 13

3.Physical Installation

Remote Control overview

ON/OFF

HOME

OK

ARROW RIGHT

ARROW UP

ARROW LEFT

ARROW DOWN

LED INDICATION

BATTERY COMPARTMENT

IR LED'S

Basic Remote Command result RCU Lite action

start the projector press "ON/OFF"

turn off the projector press "ON/OFF" >

show main menu on screen press "HOME"

move through menu press "arrow keys"

select button press "OK"

select and return to previous menu press "OK"

return to previous menu without

selecting press "HOME"

clear OSD Lite of screen press "HOME"

PFWX-51B/PFWU-51B 10/02/2014

14

3.Physical Installation

3.2 Lenses

Available lenses for the PFWX-51B/PFWU-51B projector

PWFX-51B

Lens standard Lens short throw Lens long throw

R9832757 R9832758 R9832759

F lens (1.62-2.03:1) F lens (0.81:1) F lens (2.03-3.05:1)

PWFU-51B

Lens standard Lens short throw Lens long throw

R9832757 R9832758 R9832759

F lens (1.54-1.93:1) F lens (0.77:1) F lens (1.93-2.89:1)

Projection lenses are optional accessories. Please contact your local dealer to acquire the projection lens

that suits your need most.

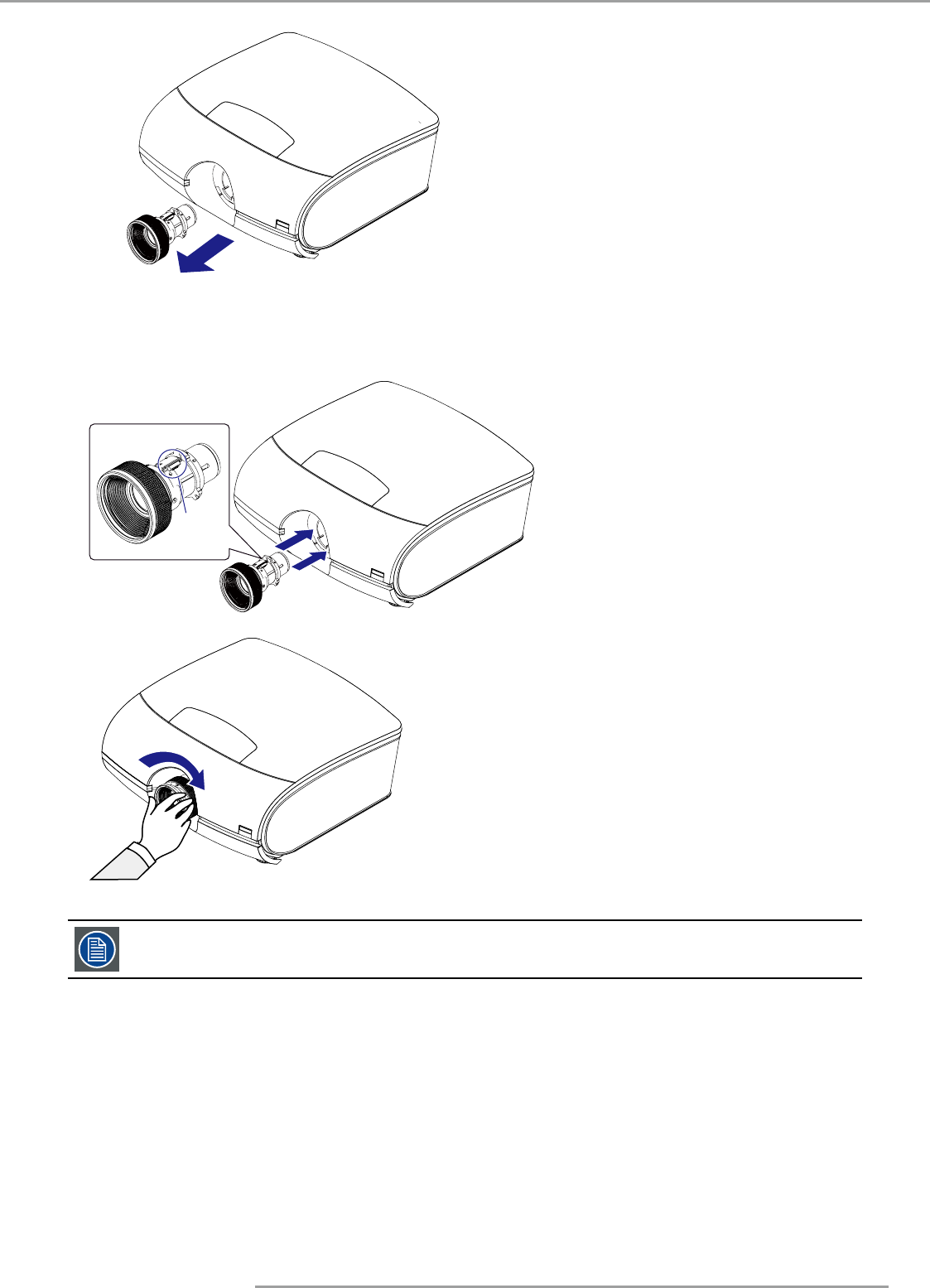

Removing the Existing Lens From the Projector

1. Push down and release the lens shift cover to open.

2. Push the LENS RELEASE button to the unlock position.

3. Grasp the lens.

4. Rotate the lens counterclockwise. The lens disengages.

5. Carefully pull out the lens.

PFWX-51B/PFWU-51B 10/02/2014 15

3.Physical Installation

Installing a New Lens

Remove both end caps from the lens.

1. Align the notches and correctly position the electrical contact pad as shown in the picture.

Electrical

contact

pins

2. Rotate the lens clockwise until it clicks in place.

Electrical contact pins should be in the direction as shown in the picture.

PFWX-51B/PFWU-51B 10/02/2014

16

3.Physical Installation

Lens focus

Sharpen the picture by rotating the focus ring.

—>

Lens zoom

Adjust the projected picture to the size that you need using the zoom ring.

Original image size Zoom out Zoom in

PFWX-51B/PFWU-51B 10/02/2014 17

3.Physical Installation

Lens Shift

In addition to using the adjustable feet to adjust projection angle, you can also use the Lens Shift function to adjust the

projected image.

• Moving the lens vertically

The distance of vertical lens movement is +110% , -30% of half the screen height in both directions.For instance, if you are

using a 80" × 50" screen, you will be able to move the image upwards no more than 27.5'' or downwards no more than 7.5''.

Range of vertical

lens shift adjustment

Range of vertical

lens shift

adjustment

This illustration shows normal vertical

lens shift without the use of special

specification lens or projector.

Please make sure the center of lens is retangular to the center of the screen.

• Moving the lens horizontally

The distance of horizontal lens movement is 10% of half the screen width in both directions. For instance, if you are using

a 80" × 50" screen, you will be able to move the image left or right by no more than 4".

Range of

horizontal

lens shift

adjustment

Range of

horizontal

lens shift

adjustment

This illustration shows normal horizontal lens shift without the use of special specification lens or projector.

PFWX-51B/PFWU-51B 10/02/2014

18

3.Physical Installation

3.3 Connecting the projector with the power net

CAUTION: Use only the power cord provided with the projector.

1. Connect the female side of the power cord with the power input socket of the projector (1).

2. Secure the power plug by locking the plug holder clamp (2).





Connect to Wall plug

3. Connect the male side of the power cord to the local power net.

This power cord for Europe

and Korea

This power cord for USA This power cord for China

PFWX-51B/PFWU-51B 10/02/2014 19

3.Physical Installation

CAUTION: Ensure that the power net meets the power requirements of the projector.

WARNING: Do not attempt operation if the AC supply and cord are not within the specified voltage and

power range.

CAUTION: Once the projector is switched to standby, the lamp cooling fans will continue to run for approx-

imately five minutes to ensure that the projector and lamp have sufficiently cooled, at which point the fans

will automatically decrease to standby. To avoid thermal stress that can lead to premature lamp failure,

never unplug the power cord while the lamp cooling fans are running. Never unplug the power cord to

power down the projector, first switch off the power switch and then unplug the power cord.

3.4 Alignment of a table mounted projector

How to align the projector

1. Place the projector in the desired location. Take into account the zoom range of the used lens and the size of the screen.

2. Project one of the internal grid patterns on the screen.

3. Turn the adjustable feet in or out until the projected grid pattern has a perfect rectangle shape and is leveled.

PFWX-51B/PFWU-51B 10/02/2014

20

3.Physical Installation

When this is achieved, the projector is set horizontal and vertical at right angles to the screen.

SCREENSCREEN

Angle adjustment

Angle adjustment

PFWX-51B/PFWU-51B 10/02/2014 21

3.Physical Installation

3.5 Mounting the Ceiling mount

Necessary tools

Open wrench 17 mm

How to mount

1. Turn the projector upside down.

2. Adjustment knob to the back of the projector. Make sure that the mounting holes matches the holes in the projector.

3. Insert a bolt in each corner and turn in these bolts.

110.00

130.00

110.00

130.00

26.50

165.00

CEILING MOUNT SCREW M M4*0.7*12 PA

N

NOte: Please check your support system for compatability.

PFWX-51B/PFWU-51B 10/02/2014

22

4.Projector Parts and Functions

4. PROJECTOR PARTS AND FUNCTIONS

Overview

• Projector front view

• Projector Rear view

• Input and Communication

• Status lights of LED

• Connecting the projector to other devices

4.1 Projector front view

Lens

LED indicator

Infrared receiver

Adjustable foot

Adjust the height and

angle of the projector

with the adjustable foot

Ventilation outlet

The internal cooling fan draws hot

air vis the ventilation outlet to the

projector.

Lamp

Len Shoft Cover

4.2 Projector Rear view

Infrared sensor

Ventilation slot

The hot air generated

inside the projector is

dispersed through the

ventilation slot. Make sure

the ventilation slot is free

from obstruction.

PFWX-51B/PFWU-51B 10/02/2014 23

4.Projector Parts and Functions

4.3 Input and Communication

11 10

15

14

9

13

12

5

6

7

8

3

142

1. HDMI

HDCP compatible digital image input; connects to sources using HDMI or DVI.

2. DVI-D

The projector can be connected to a PC or other device with a DVI-D output to the DVI-D connector.

3. DISPLAYPORT

The projector can be connected to a display device with a displayport output to the displayport connector to video, audio, USB

and data.

PFWX-51B/PFWU-51B 10/02/2014

24

4.Projector Parts and Functions

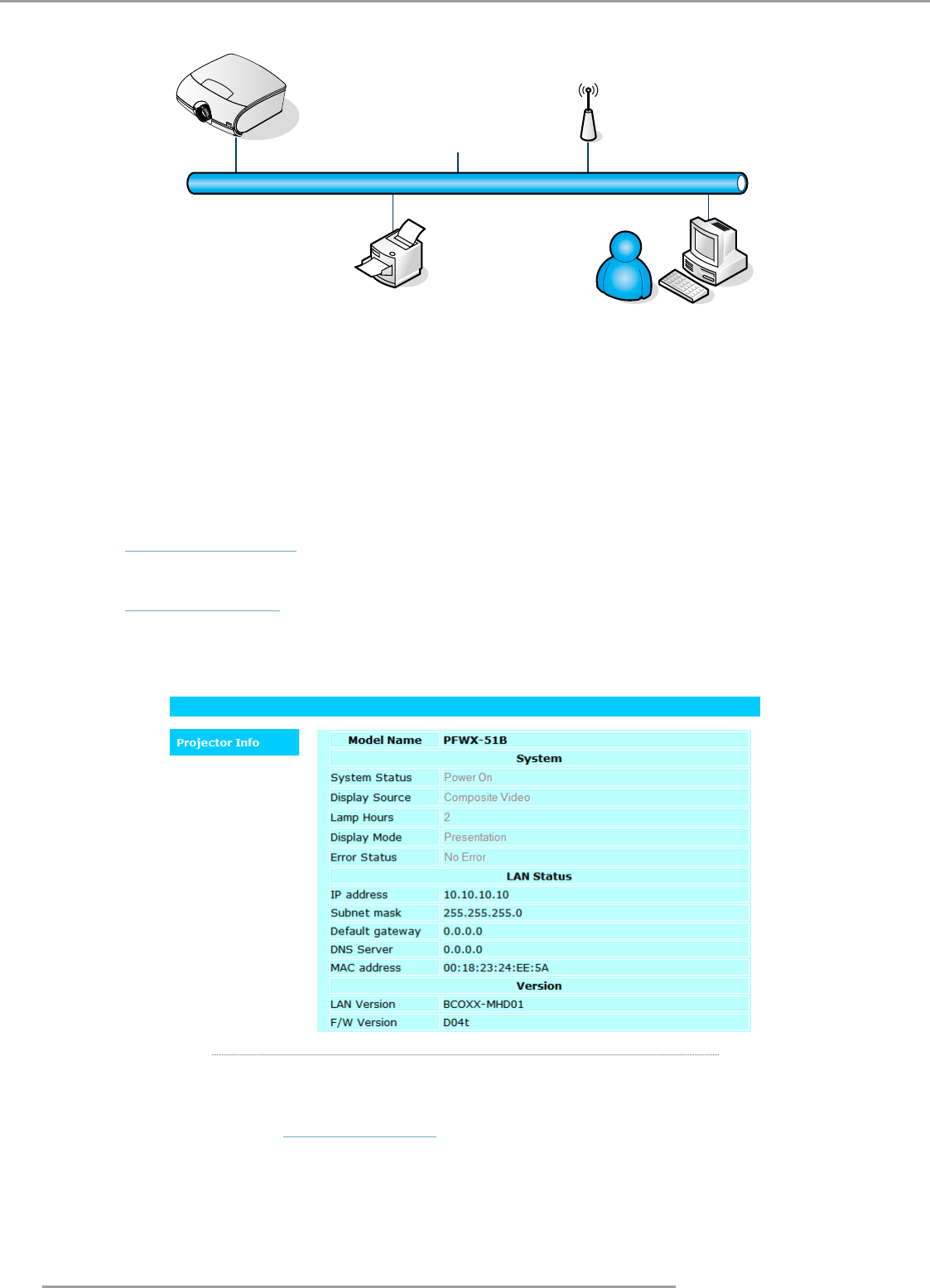

4. RJ-45

Ethernet port

The projector can be connected to a LAN (local area network) using the Ethernet port on the communication interface. Once

connected to the LAN, users are capable of accessing the projector from any location, inside or outside (if allowed) their

company network using the control software: Projector Toolset. This toolset locates the projector on the network in case

there is a DHCP server or the user can insert the correct IP-address of the projector to access the projector. Once accessed, it

is possible to check and manipulate all the projector settings. Remote diagnostics, control and monitoring of the projector can

then become a daily and very simple operation. The network connectivity permits to detect potential errors and consequently

improve the time to servicing.

The connector used for the Ethernet ports (E) are of rugged Neutrik EtherCon RJ45 type, which is compatible

with standard RJ45 cable connector. Straight (most common) as well as cross linked network cables can be

used.

RJ45 port

PIN Description

1RXD+

2RXD-

3 -

4 -

5 -

6 -

7TXD+

8TXD-

5. USB CHARGE(1.5A)

The projector can be connected to mobile device through the USB connector to provide battery charging function. USB cable is

not included.

6. AUDIO OUT

The projector can be connected to a device with an audio input to the audio out connector to relay an audio signal.

7. SERVICE

The projector is connected through the port for servicing.

PFWX-51B/PFWU-51B 10/02/2014 25

4.Projector Parts and Functions

8. RS232

RS232 input

The communication interface of the PFWX-51B/PFWU-51B projector supports RS232 serial communication.

You can use the RS232 input to connect a local PC to your PFWX-51B/PFWU-51B projector. By this way you can configure and

control your PFWX-51B/PFWU-51B projector from your local PC.

Advantages of using RS232 serial communication:

• easy adjustment of the projector via PC (or MAC).

• allow storage of multiple projector configurations and set ups.

• wide range of control possibilities.

• sending data to the projector (update).

• copying data from the projector (backup).

RS232 input (Sub-D) port

PIN Signal

1(No connection)

2RD

3TD

4(No connection)

5Ground

6(No connection)

7RTS

8CTS

9(No connection)

RS232

An Electronic Industries Association (EIA) serial digital interface standard specifying the characteristics of

the communication path between two devices using either D-SUB 9 pins or D-SUB 25 pins connectors. This

standard is used for relatively short-range communications and does not specify balanced control lines.

RS-232 is a serial control standard with a set number of conductors, data rate, word length and type of

connector to be used. The standard specifies component connection standards with regard to computer

interface. It is also called RS-232-C, which is the third version of the RS-232 standard, and is functionally

identical to the CCITT V.24 standard. Logical ’0’ is > + 3V, Logical ’1’ is < -3V. The range between -3V an d

+3V is the transition zone.

9. VGA OUT

Connect the RGB cable to a display (Loop thru only for VGA1).

10. VIDEO

Connects to VCR, laser disc players or other component image sources.Also connects to the composite image synchronized

input from RGBS input source.

11. S-VIDEO

Standard S-Video input that connects to DVD players, satellite receiver or Super VHS (S-VHS) VCR.

12. YPbPr

Standard and high definition (480i/480p/576i/576p/720p/1080i/1080p) component input, connects to DVD/HD-DVD/BD

player, HD set-top-box or other SD/HD input source.

PFWX-51B/PFWU-51B 10/02/2014

26

4.Projector Parts and Functions

13. RGBHV

Optional multi purpose input which can be inserted in the free slots.

Input (Sub-D) port

Input Signal G/Y B/Pb R/Pr H V

RGBHV G B R H V

Component Video YPb Pr - -

14. VGA

Standard 15-pin VGA connection socket to connect to RGB, high-definition component input or PC.The projector will

automatically detect the resolution of the input signal.

15. 3D SYNC OUT(5V)

The projector can be connected to a 3D emitter to send an infrared signal to 3D glasses (not supplied).

Connect to a 3D IR emitter to allow for wireless synchronization with 3D glasses devices.

4.4 Status lights of LED

Status LED location

OFF/STAND BY

The LED indicator shows solid RED when the projector is off and at standby mode.

ON

The LED indicator is off when the projector is on.

ERROR

The LED indicator is blinking at a 0.25 second interval when there is error occurred in projector. Please contact authorized

service personnel for help.

During start-up

The LED indicator is blinking at a 2 seconds interval when the projector power on.

1 sec 1 sec 1 sec 1 sec 1 sec

OFF/Standby

ON

Error

During Start-Up

PFWX-51B/PFWU-51B 10/02/2014 27

4.Projector Parts and Functions

4.5 Opening the I/O cover

How to open the I/O cover

1. Loosen the 3 screws from cover.

2. Pull out the right cover.

3. Push to release the left cover. And pull out the left cover.

4. Lift up the I/O cover.

5. Connect the desired input source.

6. Install the right and left cover back and tighten 3 screws.

PFWX-51B/PFWU-51B 10/02/2014

28

4.Projector Parts and Functions

4.6 Connecting the projector to other devices

HDMI connection

Signals from image source offer the best projection image quality when sent through HDMI. Therefore, try to use input

devices with HDMI output as the source of image.

HDMI/DVI input source

(BD/HD-DVD/DVD player, HD set-top-box,

gaming consoles and so forth)

DVI-D

Input devices using DVI-D output, such as: desktop, notebook, or all-in-one computers, can be connected through the DVI-D

port.

Both DVI and HDCP DVI are supported and can be connected to the DVI connector of this projector.

In case a HDCP DVI signal is connected to the DVI input, the DVI output image will not show the image of

this source. A gray window will be displayed instead.

PFWX-51B/PFWU-51B 10/02/2014 29

4.Projector Parts and Functions

DISPLAYPORT

Connect your notebook and desktop computer or display device to the displayport connector to transmit video, audio, USB or

data signals.

AUDIO OUT (for HDMI, DISPLAYPORT source)

Connect the projector to a device with an audio input port to relay the audio signal between the projector and the audio

device.

3D SYNC OUT (5V): Connect 3D IR glasses transmitter

Connect a 3D emitter device to the Displayport port to allow for the synchronization between the projector and 3D glasses.

3D IR glasses

3D IR Emitter

PFWX-51B/PFWU-51B 10/02/2014

30

4.Projector Parts and Functions

USB CHARGE (1.5A)

Connect your handheld device to the USB port to use the power charging function (1.5A). Device charging cable not included.

VGA connection

Connect your PC or other devices with VGAoutput to the VGAinput connectors on the projector to be used as the source of

image input.

RGBHV connection

G/YB/PbR/PrH V

Desk Top

or Notebook

PFWX-51B/PFWU-51B 10/02/2014 31

4.Projector Parts and Functions

VGA OUT (Loop thru only for VGA1)

Connect the 15-pin D-sub cable and connect one end to the projector's VGA out port. Connect the other end to a monitor to

use the loop-through function.

YPbPr connection

Take the 3 cabled RGB component video connectors from the source equipment to the projector’s jacks.

DTV set-top-box or other component

(YPbPr) input source

Y Pb Pr

S-VIDEO/VIDEO

If the image input device offers both S-Video and Video connection, it is recommended that you choose S-Video to obtain

better image quality. If both the S-Video and Video inputs are connected to the projector, the projector will prioritize SVideo

signal input and image from the Video input will not be played.

PFWX-51B/PFWU-51B 10/02/2014

32

4.Projector Parts and Functions

RJ-45

Connect the RJ45 cable from a network device to the projector's RJ45 port.

The Ethernet (RJ45) cable is not provided.

(Ethernet)

SERVICE: (Engineering use only)

Connect the projector's service port to a PC using the supplied cable to perform maintenance. The port is for service only.

RS-232C

Connect a PC or home theater control/automation system (if present) to the RS-232 port on the PFWX-51B/PFWU-51B. Use a

standard, 9-pin serial cable, wired straight-through.

PFWX-51B/PFWU-51B 10/02/2014 33

5.Getting Started

5. GETTING STARTED

Overview

• RCU

• Using the Remote Control and OSD Lite on Screen

• Power on projector

• Power off projector

• Range of effective remote control signal reception

• Source selection

• Changing OSD language

• Adjusting the lens by horizontal and vertical lens shift

• Introduction the OSD Lite on screen

5.1 RCU & Local keypad

How controlling the projector?

The projector can be controlled by the remote control unit.

Remote control functions.

This remote control includes a battery powered infrared (IR) transmitter that allows the user to control the projector remotely.

This remote control is used for source selection, control, adaptation and set up.

5.2 Remote Control and OSD Lite on Screen

Using Remote control and OSD Lite on Screen

Basic OSD Lite naviagtion

result

RCU Lite

action

OSD Lite

on screen

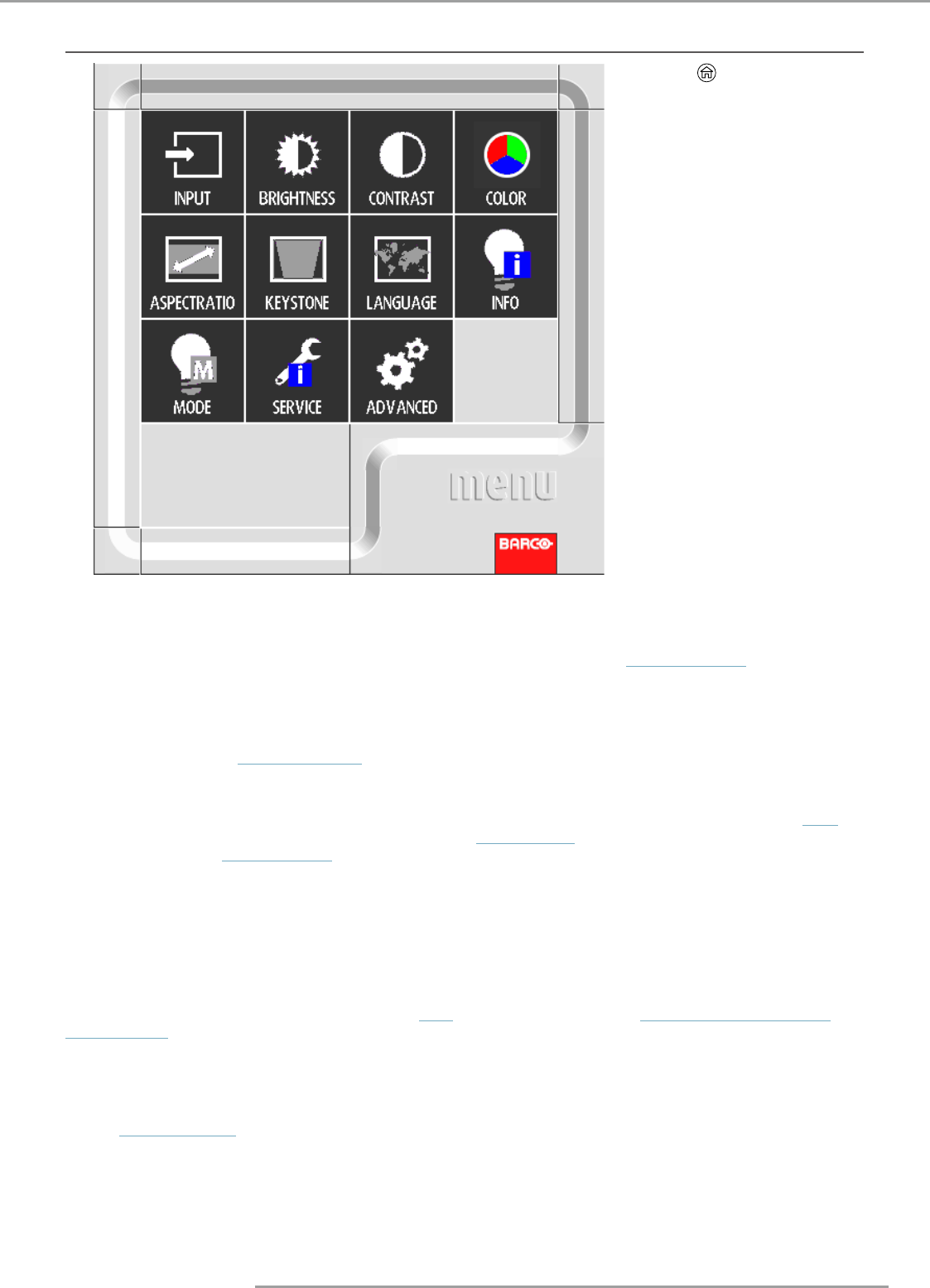

show main menu of OSD Lite on

screen press "HOME" main menu appears in bottom right corner

To move through the OSD Lite press "arrow keys" button will turn red when the function is available

go to desired function press "OK" the menu of the desired function will appear

leave the menu or clear the screen press "HOME" the main menu will be displayed or when you are

in the main menu the screen will be cleared

Hotkey / Short Cut Remo

result

RCU Lite ->OSD Lite

action -> on screen

mute picture on the projector >

unmute picture on the projector press any key

PFWX-51B/PFWU-51B 10/02/2014

34

5.Getting Started

Main menu is on screen.

go to button

result

RCU Lite -> OSD LIte

action -> on screen

select input manually > go to input desired (default setting = auto select) >

make the image brighter

or darker use arrow keys to slide default setting= middle >

adapt the contrast

between light/dark areas use arrow keys to slide default setting= middle

>

select color preset most

fitted for your image

best condition to view “computer” images

(default setting=PRESENTATION or VIDEO)

best option to view movies

100% bright

adjust aspect ratio > go to aspect ratio desired (default setting = FILL) >

adjust keystone

>

select language > go to language desired (default setting = ENGLISH) >

show lamp info >

show lamp mode > go to lamp mode desired (default setting = POWER) >

show projector info >

enter advanced menu > contact your service technician to enter the advanced menu >

5.3 Power on projector

How to power on.

Press on the remote control.

The startup screen will display in approximately 30 seconds.

When the projector is turned off, it is required to wait for at least 90 seconds to re-start the projector to

complete the cooling of lamp.

PFWX-51B/PFWU-51B 10/02/2014 35

5.Getting Started

5.4 Power off projector

How to power off

1. Press key of the remote, a message displays on the projector's screen.

2. Press key again to confirm, otherwise the message disappears after 5 seconds.

3. Let cool down the projector until the fan stop. At least 15 seconds for cooling cycle.

4. Disconnect the power cord from the power net.

CAUTION: Never disconnect the power cord before the fan stop.

5.5 Range of effective remote control signal reception

The diagram below illustrates the range of effective remote control signal reception.

12m

40°

40°

12m

Avoid placing the remote control at places of high temperature or humidity as it could cause the remote

control to malfunction.

5.6 Source selection

Press HOME on the remote control to activate OSD Lite on Screen, then select "

INPUT

" for the desired source.

PFWX-51B/PFWU-51B 10/02/2014

36

5.Getting Started

5.7 Changing OSD language

By factory default, the OSD menu of the projector is displayed in English. If you wish to switch to a different language, Press

the button on the remote control , select the language you prefer for the OSD.

5.8 Adjusting the lens by horizontal and vertical lens shift

1. Push down and release the top cover to open.

2. Turn the Horizontal and Vertical lens shift knobs to shift the lens horizontally or vertically.

3. Push the top cover down to close.

Horizontal Lens Shift Lever

Vertical Lens Shift Lever

PFWX-51B/PFWU-51B 10/02/2014 37

5.Getting Started

5.9 Introduction the OSD Lite on screen

Press the button on the remote

control, you can see the OSD Lite on

screen as above picture.

INPUT

Use this function to select the input souce. You can choice

AUTO SELECT, HDMI, DVI, VGA.

BRIGHTNESS

Adjust the level of black in the image to increas or decrease

image brightness. Refer to page 41: Brightness.

CONTRAST

Adjust the level of white in the image to increase or decrease

image contrast. Refer to page 41: Contrast.

COLOR

Use this menu to select the display mode.

ASPECT RATIO

You can select differnt aspect via this function. Refer to page

50: Aspect Ratio.

KEYSTONE

Use this function to adjust the from the tilt to not inclined.

Refer to page 52: Keystone.

LANGUAGE

Use this function to select the different language of the OSD

Lite on screen. Refer to page 52: Language.

INFO

Show the information of lamp.

MODE

Select ECO, Normal, POWER mode of lamp. Refer to page

56: Lamp Mode.

SERVICE

Display this projector's information.

Advanced

This function is for futher adjust the projector. For

professional use. Refer to page 38: Advanced OSD Menu.

PFWX-51B/PFWU-51B 10/02/2014

38

6.Advanced OSD Menu

6. ADVANCED OSD MENU

The advanced menu only available for Professional use. Need enter the password to use this function.

Overview

The Advanced menu is the further function to control and align the projector, the following functions can be done:

• Advanced OSD introduction.

• Image adjustment: these adjustments are organized per image source and contain the aspect ratio, timings and image

settings.

• Settings 1: The Settings 1 menu allows you to save and access customized settings.

• Settings 2: The Settings 2 menu allows you to save and access customized settings.

6.1 How to activate the Advanced OSD menu

Press the button on the remote control to call the Basic OSD Lite on screen.

Select the “ADVANCED” and press the password then the screen will show the advance OSD as below:

The password for the advanced OSD is "left, left, right, down".

PFWX-51B/PFWU-51B 10/02/2014 39

6.Advanced OSD Menu

6.2 How to navigate in the Advanced menu structure?

Once in the Advanced menu structure, use the or key on the remote control or on the local keypad to scroll through the

items in the displayed menu. The selected item will get a background color. To activate a selected submenu or function, press

on the remote.

When on a submenu, to return one step to the parent menu, press HOME. To escape the menu structure when on a menu,

press HOME.

How to make an OSD adjustment?

With the remote control navigate through the Advanced menu structure until the desired item is selected. Press the or

key until the desired item is reached. Press to finalize the adjustment.

With the remote control, press the or key until the desired value (setup) is reached. Press EXIT to finalize the adjustment.

Direct adjustment within the menu:

Use the or key to directly adjust the current value.

or, Via bar scale adjustment :

Once an item is selected, press to open the bar scale menu.

Use the or key to adjust the current value. The bar scale will move accordingly.

Press to finalize the adjustment. or,

When the bar scale is displayed, via direct input. Press to activate the input field.

6.3 Advanced menu memory

Each menu with sub menus, remembers its last selected sub item value even when leaving the menu structure and that as

long as the projector is running.

PFWX-51B/PFWU-51B 10/02/2014

40

7.Image

7. IMAGE

Overview

• Image menu overview

• Display Mode

• Brightness

• Contrast

• Computer

• Auto Image

• Advanced

• Input Balance

7.1 Image menu overview


Display Mode Presentation, Bright,

Video, User1

Brightness 0~100

Contrast 0~100

Computer

Auto Image Execute

Advanced

Input Balance

Image Computer

Horizontal Position -5~5

Vertical Position -5~5

Frequency 0~31

Tracking -5~5

Image Advanced

Brilliant Color -5~5

Sharpness -5~5

Gamma 0~31

Color Temperature Warm, Normal, Cold

Video AGC On, Off

Video Saturation 0~100

Video Tint 0~100

Input Configuration Auto, YUV HD, YUV STD,

RGB-PC, RGB-Video

Input Balance

Image Input

Balance

Black Balance Offset

White Balance

Image Input

Balance Black

Balance Offset

Red Offset -1023~1023

Green Offset -1023~1023

Blue Offset -1023~1023

Image Input

Balance White

Balance

Red Gain 0~200

Green Gain 0~200

Blue Gain 0~20 0

Depending on the type of the connected source, some settings are grayed out.

PFWX-51B/PFWU-51B 10/02/2014 41

7.Image

7.2 Display Mode

There are many factory presets optimized for various types of images.

• Presentation: Good color and brightness from PC input.

• Bright: Maximum brightness from PC input.

• Movie: For home theater.

• User 1: User’s own settings.

7.3 Brightness

The brightness function is used to adjust the black level in the input picture. It adds or subtracts an offset, or bias in to the

red, green and blue signals.

Brightness adjustment can be done with the Brightness key on the RCU or via the menu structure.

It is recommended that you adjust the image to the following status:

• The darkest black bar of the image should disappear into the background.

• The dark gray area should be barely visible.

• The light gray area should be clearly visible.

• The white area should appear real and mellow.

• The image should only display black, gray and white (with no other colors).

7.4 Contrast

The contrast function is used to adjust the contrast between the light and the dark areas of the displayed image. It applies a

gain to the red, green and blue signals.

Contrast adjustment can be done with the Contrast key on the RCU or via the menu structure.

The following image illustrates the results of direct contrast adjustment using a random image:

Lowered contrast Enhanced contrast Original image

Contrast and Brightness are interrelated options that affect one another; when you adjust one of them, you

might have to fine tune other settings to get the best projection results.

PFWX-51B/PFWU-51B 10/02/2014

42

7.Image

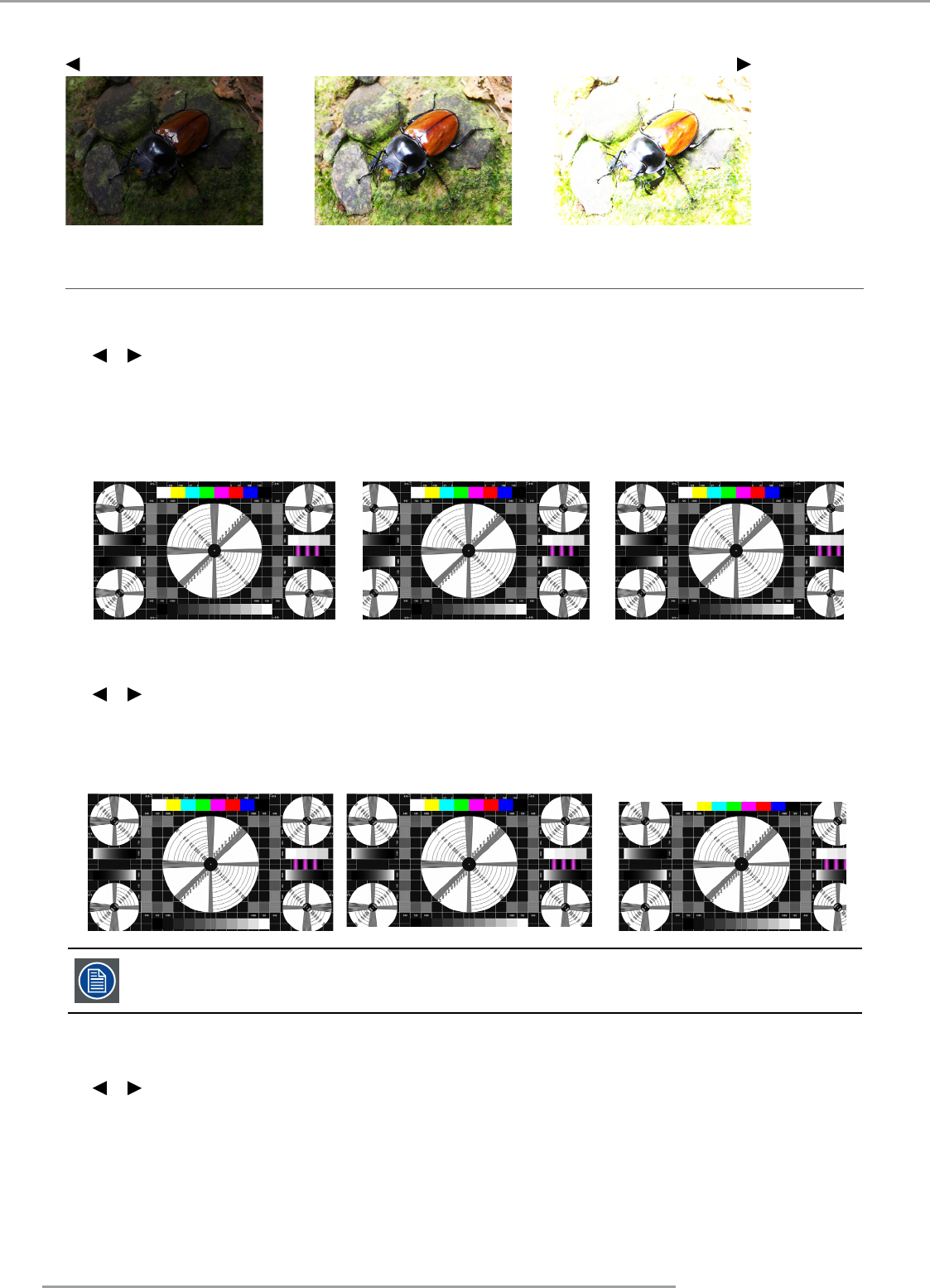

The following image illustrates the results of direct brightness adjustment using a random image:

Reduced brightness Enhanced brightness Original image

7.5 Computer

Horizontal Position

Use or to adjust the projected image’s horizontal position.

If the projected image is not at the center of the screen (i.e. shifted to right or left) and ends up being cropped, use this

function to adjust the image’s horizontal position.The following image is an example of test image from an external signal

source:

Native picture Skewed left Skewed right

Vertical Position

Use or to adjust the projected image’s vertical position.

If the projected image is not at the center of the screen (i.e. shifted up or down) and ends up being cropped, use this function

to adjust the image’s vertical position.The following image is an example of test image from an external signal source:

原始圖面 圖面下偏 圖面上偏

Native picture Skewed down Skewed Up

It is recommended that when adjusting the image, the horizontal total should be adjusted before the

horizontal phase. However, if the image still flickers even after you have adjusted both, try lowering the

image noise.

Frequency

Use or to adjust the projected image’s phase.

Use this function to adjust the phase of pixel sampling clock (relative to input signal). Should the image still flicker or show

noise (i.e. edges on texts) after optimization, adjust phase accordingly.

PFWX-51B/PFWU-51B 10/02/2014 43

7.Image

Tracking

Press or to adjust the horizontal total.

Use this function to adjust the clock frequency of pixel sampling (horizontal pixel frequency of the analog input source

generated by the ADC). If you notice flickering or verticle lines in the image, it means that the pixel sampling frequency is

insufficient. You can use this function to adjust the frequency to achieve consistent image quality.

The following image is an example of test image from an external signal source:

²

Adjust image quality by changing the

value of horizontal total to smoothen

the image.

In order to adjust timings the pattern should be used is pixel (on/off)

For saving usage.

If user needs to clear those Signal info saving function: (Available for VGA and BNC sources.)

When a signal is locked and one of those settings(Horizontal Position/ Vertical Position/ Frequency/

Tracking) is adjusted, the current timing info and the settings will be auto stored into memory. If again,

when a new timing has been locked and which is the same as one of the previously stored timings in

memory, system will auto load and apply those settings for this timing which has been stored in the

memory. Each source has 20 memory locations settings of current timing, please execute the Auto Image

which is located at Advanced Menu->Image menu page to clear the current timing settings.

NOte: An execution of Reset All will clear all of saved timing info.

7.6 Auto Image

When Auto Image was selected in the Advanced menu, press OK to execute the automatic image adjustment function.

By executing this function, the projector will resync the image. Use this function when the image source is unstable or when

you notice deterioration in image quality and the projector will automatically adjust the image size, phase and timing. (The

adjustment also applies to PIP input source).

NOte: If user needs to clear Hor.Position, Ver.Position, Frequency, Tracking settings stored in memory of

current timing, please execute the Auto Image which is located at Advanced Menu > Image menu page.

This function will use auto locked result as setting value instead.

PFWX-51B/PFWU-51B 10/02/2014

44

7.Image

7.7 Advanced

Brilliant Color

This feature utilizes a new color processing algorithm and system level enhancements to enable higher brightness while

providing truer, more vibrant colors in picture. It enable a greater than 50% brightness increase in mid-tone images, which

are common in video and natural senes, so the projector reproduces images in realistic and true colors.

Sharpness

The adjustment of sharpness primarily changes the value of high frequency detail. You can connect the projector to an

external image source to display an image resembling the one shown below to adjust the image sharpness.

The following image illustrates the results of direct sharpness adjustment using a random image:

Reduced sharpness Enhancedsharpness Original image

Gamma

Different Gamma settings will affect viewers' perception of the image. Generally speaking, for images that are darker, it

is recommended that Gamma be set higher to yield better image quality in darker regions by sacrificing details in brighter

areas. In contrast, when projecting brighter images, you can set the Gamma lower to give up details in the darker areas to

make the brighter areas (i.e. clouds) more visible.

You can choose from five different gamma settings (1.8, 2.0, 2.2, 2.4, B&W, Linear) on the projector. The projector's default

gamma value is at 2.2.

Every setting has precisely defined phases to display all primary colors (red, green, blue) and secondary colors (yellow, cyan,

magenta) in millions of pixels. Changing any number in the setting will change the resulting color and rearrange the color

"triangle".

Color Temperature

You can choose from Warm, Normal and Cold.

Color temperature refers to the change in light color under different energies that is perceived by the naked eye.

The change of color temperature from Warm to Cold for visible light goes from orange red Ò white Ò blue

The projector’s default color temperature is set at Normal and it is suitable for most situations. As color temperature change

to Cold, the image will appear to be more blue; as it change to Warm, the image will appear redder. When you choose “Native”,

the projector will disable the white adjustment function of the input device.

PFWX-51B/PFWU-51B 10/02/2014 45

7.Image

Video AGC

Video AGC refers to automatic gain correction function. When enabled, the AGC function applies gain corrections on the input

necessary to display correct output colors.

Video Saturation

Press or to adjust the saturation of the projected image.If the color of the projected image seems to be overly bright

and vivid, decrease the color saturation; if the color seems white and washed out, increase the color saturation.

Video Tint

Press or to adjust the tint (balance between magenta and green) of the projected image. Lowering the value will make

the image appear greener; increasing the value will make the image appear redder.

Input Configuration

Press or to adjust the Input Configuration. This function adjusts the signal color space and output range level (Limit/Full

range).

7.8 Input Balance

Black Balance Offset

This function involves the adjustment of the following red, green and blue offsets. The text itself is decorative.

• Red Offset

Press or to adjust the offset of red in dark scales.

• Green Offset

Press or to adjust the offset of green in dark scales.

• Blue Offset

Press or to adjust the offset of blue in dark scales.

White Balance

This function involves the adjustment of the following red, green and blue gains. The text itself is decorative.

• Red Gain

Press or to adjust the gain of red in bright scales.

• Green Gain

Press or to adjust the gain of green in bright scales.

• Green Gain

Press or to adjust the gain of blue in bright scales.

Unbalanced color signals

When transporting signals, there is always a risk of deterioration of the information contained in the signals.

In case of information contained in the amplitude of the signals which is the case of data color signals (R, G, B),image 9-29 ,

we are quite sure that the amplitude of these color signals is subject to alterations.

An example of alteration may be a DC component added to the signal, in the form of a DC offset repositioning the black level,

since this black level (“brightness”) will become crucial later on (clamping circuit) it will result in “black not being black”.

Another value that is subject to alteration is the amplitude of the signal, resulting in an altered “Gain” of the signal (“white

level” or contrast).

PFWX-51B/PFWU-51B 10/02/2014

46

7.Image

The alterations of the three color signals will happen independently i.e. the colors will end to be unbalanced, image 9-30

B

Black level

0.7V

Image 9-29

Black level

∆

G

∆Β

∆

R

R

GB

One can conclude here that a good color tracking can only be met by using three previously (input)

balanced color signals

Analog Digital Conversion

The analog color signals must pass through an Analog/Digital conversion circuit prior to any digital processing in the PMP. A

typical ADC transforms the analog value into an 8 bit coded digital signal.

The graphic shows that when converting a signal containing a DC offset component the range of the converter is not optimally

used.

Black level

∆

R

ADC

0

255

i1 : superfluous information

i2 : video information

One can conclude here that a good data conversion can only be met by using three previously (input)

balanced color signals

The objective of input balancing

The objective in input balancing is to “set” the same black level and the same white level for the three colors of a particular

input source.

Black level setting : brightness

White level setting : contrast

The same absolute black and white level for the three colors allows the same reference for Brightness and Contrast control of

the picture !

These two references also set the range in which the ADC will work for that particular source (this explains also why each

input balance setting is linked to a particular source and thus saved in the image file).

PFWX-51B/PFWU-51B 10/02/2014 47

7.Image

Adjusting the input balance

To balance the three color signals of a particular source there are conditions; in fact we must know the black and the white

level of the source i.e.:

1. The source in question must be able to generate a white signal, ideally a 100% white (background) full screen pattern

2. The source in question must be able to generate a black signal, ideally a 100% black (background) full screen pattern

A B

White balance : In the projector, we will set the contrast for each color until we get a 100% light output picture when

projecting a 100% white image (image A)

Black balance : In the projector, we will set the brightness for each color until we get a 0% light output picture when

projecting a 100% black image (image B).

The changeover from min to max is indicated by the apparition of bright spots also called “digital noise”

An alternative to a full screen White/black pattern is the standard gray scale pattern, the white bar will be

used for white balance and the black bar for black balance.

PFWX-51B/PFWU-51B 10/02/2014

48

8.Settings 1

8. SETTINGS 1

Overview

• Settings 1 menu overview

• Source

• Projection

• Aspect Ratio

• Keystone

• Digital Zoom

• Advanced 1

• Advanced 2

8.1 Settings 1 menu overview

Settings 1

Source

Projection

Front_Floor,

Rear_Floor,

Front_Ceiling,

Rear_Ceiling

Aspect Ratio Fill, 4:3, 16:9, Letter Box,

Native, 2.35:1

Keystone -40~40

Digital Zoom -10~10

Advanced 1

Advanced 2

Settings 1 Source Source

DVI,

HDMI,

Display Port,

VGA1,

VGA2,

BNC,

Component Video,

S-Video,

Composite Video

Settings 1

Advanced 1

Language

ENGLISH,

FRENCH,

SIMPLIFIED_CHINESE,

JAPANESE,

GERMAN,

SPANISH,

KOREAN,

RUSSIAN

TURKISH

Security Lock On, Off

Blank Screen Blank, Red, Green, Blue,

White

Splash Logo Std., Off, User

Closed Captioning On, Off

3D Setting

Screen Capture

PFWX-51B/PFWU-51B 10/02/2014 49

8.Settings 1

Settings 1

Advanced 1 3D

Setting

3D Off, DLP-Link, IR

3D Sync Invert Off, On

3D Format

Frame Sequential,

Top/Bottom,

Side-By-Side,

Frame Packing (3D

FramePacking HDMI

source only)

Settings 1

Advanced 2

Test Pattern None, Grid, White, Red,

Green, Blue, Black

H Image Shift -50~50

V Image Shift -50~50

8.2 Source

Use this function to specify the source of image connected to the rear of the projector. For instance, if you have connected

your PC as the video input source, you can choose RGB D-15(RGB-HV/SOG) to be the input for image projection. Options of

input available on the projector include: DVI, HDMI, DisplayPort, VGA 1, VGA 2, BNC, Component Video, S-Video, Compositive

Video.

8.3 Projection

By default, the projector is configured for “frontal projection - desktop installation”. If you choose to install your projector in

other setups, be sure to adjust the screen orientation to achieve the correct projection mode.

Front projection - ceiling mode

Press HOME  OSD Lite MENU  ADVANCED  Enter Password  Settings 1  Projection  ; the projector is now

configured for “frontal projection - ceiling mode”.





Correct Picture

canoe

canoe

canoe

PFWX-51B/PFWU-51B 10/02/2014

50

8.Settings 1

Rear projection - desktop installation

Press HOME  OSD Lite MENU  ADVANCED  Enter Password  Settings 1  Projection  ; the projector is now

configured for “rear projection - desktop installation”.



canoe

Correct Picture

canoe



canoe

Rear projection - ceiling mode

Press HOME  OSD Lite MENU  ADVANCED  Enter Password  Settings 1  Projection  ; the projector is now

configured for "rear projection-ceiling mode".

canoe

canoe





Correct Picture

canoe

Front projection - desktop installation

Press HOME  OSD Lite MENU  ADVANCED  Enter Password  Settings 1  Projection  ; the projector is now

configured for "frontal projection - desktop installation".

8.4 Aspect Ratio

Relation between the horizontal & vertical dimension in which the window will be displayed, e.g. 4 by 3

or 16 by 9. Can also be expressed as a decimal number, such as 1.77. The larger the ratio or decimal, the

wider the image (or the less the image is squared).

The aspect ratio setting forces the projector to project an image using a defined aspect ratio.

Aspect ratio Description

Fill Scale image to fill the screen vertically and add horizontal pillar-boxing.

4:3 Standard television format

16:9 Wide screen television format / anamorphic format

Letterbox 1.33:1

Native Scale image to fit screen

2.35:1 Film format

The projector’s full image size is 16:10 (1280x800, 1920×1200 dots).The following diagram illustrates the difference in various

aspect ratio settings:

PFWX-51B/PFWU-51B 10/02/2014 51

8.Settings 1

Native input

16:10

Output aspect ratio

16:9

Output aspect ratio

2.35

Output aspect ratio

4:3

Output aspect ratio

Native

Output aspect ratio

Letterbox

Native input

4:3

Output aspect ratio

16:9

Output aspect ratio

2.35

Output aspect ratio

4:3

Output aspect ratio

Native

Output aspect ratio

Letterbox

Cropped portion of the image

That when used for commercial purposes, including: projection of image in movie theaters, hotels,

cafeteria and other public venues, compression or extension of image achieved through the change of

aspect ratio may constitute copyright infringement to the rightful owner of the image. Please do so at your

own discretion.

PFWX-51B/PFWU-51B 10/02/2014

52

8.Settings 1

8.5 Keystone

Vertical Keystone

Use this function to correct keystoning caused by projection angle.

—>

The summation of the absolute value vertical keystone is limited to less than or equal to 40

8.6 Digital Zoom

Press to digitally reduce the size of the image.

Press to digitally magnify the size of the image.

8.7 Advanced 1

Language

The user can change the language of the on screen menus and the local display menus to one of the available languages.

You can choose from the following nine languages: English, French, Spanish, German, Simplified Chinese, Japanese, Korean,

Russian and Turkish.

Security Lock

Press or to enable or disable security lock function.

The password menu displays when Security Lock is On. Use the following keys , , or to setup a password.. Press

HOME to cancel.

Reset password

If you need to reset password, please contact your service technician.

Blank Screen

Press or to select different color to blank the screen.

Splash Logo

You can use this function to have the projector display the Barco logo in the start up screen. Set Std to display the Barco logo

during start up and Off to display a blank image. If no screen has been captured, the BARCO logo will be the start logo during

start up when set to User.

PFWX-51B/PFWU-51B 10/02/2014 53

8.Settings 1

Closed Captioning

Select the screen to display closed captioning.

3D Setting

Enter the 3D menu. Select 3D options such as 3D, 3D Sync Invert, and 3D Format.

3D

• Off: Close 3D mode.

• DLP Link: Select DLP Link to use optimized settings for DLP Link 3D Glasses.

• IR: Select IR to use optimized settings for IR-based 3D images.

When Input source is HDMI 1.4a with AVI info frame, Default Value is DLP Link. Possible value is

DLP-Link/IR.

When Input source is VGA/DVI/Video/Svideo/HDMI 3D no Info frame, Default Value is Off. Possible value

is Off/DLP-Link/IR.

3D Sync Invert

Press or to enable or disable the 3D Sync invert function to invert images.

3D Format

• Frame Sequential: Display 3D signal in Frame Sequential format.

• Top/Bottom: Display 3D signal in Top and Bottom format.

• Side-By-Side: Display 3D signal in Side-by-Side format.

• Frame Packing (only for 3D source): The left and right images are packed into one video frame (twice the normal

bandwith).

Screen Capture

Execute the Screen Capture function. After the screen has been successfully captured, the Splash Logo function will be set to

User automatically and the logo will be replaced with this captured screen during start up.

8.8 Advanced 2

Test Patterns

The projector comes with some standard built-in patterns for testers to calibrate the equipment. These include: None, Grid,

White, Red, Green, Blue, Black.

H Image Shift

Shifts the projected image position horizontally.

• Press to move the image left on the projected screen.

• Press to move the image right on the projected screen.

V Image Shift

Shifts the projected image position vertically.

• Press to move the image up on the projected screen.

• Press to move the image down on the projected screen.

PFWX-51B/PFWU-51B 10/02/2014

54

9.Settings 2

9. SETTINGS 2

Overview

• Settings 2 menu overview

• Auto Source

• No Signal Power Off

• Auto Power On

• Lamp Mode

• Reset All

• Status

• Advanced 1

• Advanced 2

9.1 Settings 2 menu overview

Settings 2

Auto Source Off, On

No Signal Power Off Off, On

Auto Power On Off, On

Lamp Mode ECO, Normal, POWER

Reset All

Status

Advanced 1

Advanced 2

Settings 2 Status

Active Source

Video Information

Lamp Hours (ECO,

Normal, POWER)

Software Version

Serial Number

Settings 2

Advanced 1

Menu Position

Left,

Right,

Center,

Down,

Up

Translucent Menu

0%,

25%,

50%,

75%,

100%

Low Power Mode Off,

Low Power

Fan Speed Normal,

High

Lamp Hour Reset

Network

PFWX-51B/PFWU-51B 10/02/2014 55

9.Settings 2

Settings 2

Advanced 1

Network

Network State Connect,

Disconnect

DHCP Off, On

IP Address 0~255, 0~255, 0~255,

0~255

Subnet Mask 0~255, 0~255, 0~255,

0~255

Gateway 0~255, 0~255, 0~255,

0~255

DNS 0~255, 0~255, 0~255,

0~255

Apply OK / Cancel

Settings 2

Advanced 2

Sleep Timer 0~600

Source Filter

Settings 2

Advanced 1

Network

DVI Disable, Enable

HDMI Disable, Enable

DisplayPort Disable, Enable

VGA1 Disable, Enable

VGA2 Disable, Enable

BNC Disable, Enable

Component Video Disable, Enable

S-Video Disable, Enable

Composite Video Disable, Enable

9.2 Auto Source

On

Defaul setting. By enabling this function, the projector will automatically determine the source of input every time it is turned

on so that the user will not have to make the selection on the OSD Menu.

Setting the function off will require the user to specify source of image input on the OSD Menu in order for the projector to

display the intended image.

PFWX-51B/PFWU-51B 10/02/2014

56

9.Settings 2

9.3 No Signal Power Off

Automatically shut off when no signal. (in minutes). If siwitch to On, the projector will automatically shut off after 15 minutes

when no signal.

9.4 Auto Power On

Automatically power on when AC power applied.

9.5 Lamp Mode

When the lamp is set to ECO mode, the lamp is running at 280W. If the ambient temperature is higher than 35 degree Celsius,

lamp will operate at ECO mode. In this case, lamp mode selection is unavailable. Lamp mode selection is available once the

ambient temperature drops below 35 degree Celsius.

• ECO

When set to Eco mode, the wattage of the lamp will be at 280W. If the surrounding environment is sufficiently dark or if

you do not require intense brightness, you can set the lamp to Eco mode to prolong its usage life.

• Normal

When set to Normal mode, the wattage of the lamp will be at 370W. If the projection environment requires brighter

image, you can set the lamp to Normal for the highest projection brightness.

• POWER

When set to Power mode, the wattage of lamp will be at 330W. you can set the lamp to Power mode to prolong its usage

life.

9.6 Reset All

All settings of the projector will be set to the original factory settings. All user settings are erased with this operation.

This function will not apply to items including no signal, network, Projector control, startup Logo, language,

High Altitute mode and lamp hours

When Factory Reset is executed, all source memories created by the projector (i.e. timings files) will be

erased

9.7 Status

Active Source

To show which source is activated

Video Information

Showing resolution/H, V information at RGB mode. Showing color standard at Video mode.

Lamp Hours (ECO, Normal, POWER)

Lamp hour used information. ECO, Normal and POWER counter are separated.

Software Version

Showing system software version.

Serial Number

Showing serial number of this projector.

PFWX-51B/PFWU-51B 10/02/2014 57

9.Settings 2

9.8 Advanced 1

Menu Position

You can use this function to designate which area on the image the OSD Menu will appear.

As you can see from the diagram below, there are five positions where you can choose to have the OSD Menu displayed.The

default setting is “Center”.

UP

Center

Down

RightLeft

Translucent Menu

Press or to select OSD background translucent level.

Low Power Mode

The projector can be connected to a network via its RS232 and/or RJ45 port for remote operation with two separate boards to

control the signal source from RS-232 and/or RJ45 ports.

For complete remote operation of the projector over RJ45 port, it is recommended the "Low power mode" of OSD to be "Off"

option, even if the projector in "Standby" state.

By setting "Low power mode" being "Off" option, user would not be able o conserve power consumption in "Standby" state.

Fan Speed

Use this function to control the projector's cooling fan. You can set it to Normal or High. The default setting is Normal.

Under normal circumstances, the projector will operate normally with this function set to Normal. By default, the projector

will detect the temperature of the surrounding environment to regulate the speed of the cooling fan. When the ambient

temperature rises, fan speed will increase (generates louder noise) to make sure the heat inside the projector gets discharged

and keep the projector working normally.

However, if you were to operate the projector in environment of excessive heat or in areas of high altitude, the projector may

automatically shut down. When this happens, you can enable this function by setting it to High to force the cooling fan to

work at a higher speed to regulate the temperature inside the projector.

• High altitude region refers to area with elevation over 1500 meters (4900 feet).

• When operating in normal altitude environments, the projector will adjust the cooling fan according to the temperature of

the working environment. When the temperature rises above 30C, the projector will automatically increase fan speed.

• According to the product specification, the maximum operating altitude for the projector is at 3000m@25C.This means that

you should not be operating the projector in high altitudes when the working environment is over 25C.

(Due to the air thinning substantially at high altitudes, the result of cooling achieved by the cooling fan is significantly

reduced compared to operation on level ground. With low atmospheric pressure and high operating temperature, the

cooling fan will not be able to disperse the heat adequately)

Lamp Hour Reset

Use this function to reset the hours for lamp to zero.

After replacing the lamp, remember to reset the lamp hours to ensure the accuracy of lamp hours

displayed in the OSD Menu

PFWX-51B/PFWU-51B 10/02/2014

58

9.Settings 2

Network

Projector

(Ethernet)

Wired LAN Terminal functionalites

Remote control and monitoring of a projector from a PC (or Laptop) via wired LAN is also possible. Compatibility with Crestron

/ AMX (Device Discovery) / Extron control boxes enables not only collective projector management on a network but also

management from a control panel on a PC (or Laptop) browser screen.

• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.

• Barco's Projector Toolset is a registered trademark of Barco, Inc. / Barco Federal Systems, LLC.

Supported External Devices

This projector is supported by the specified commands of the Crestron Electronics controller and related software (ex,

RoomView®).

http://www.crestron.com/

This projector is supported by Barco's Projector Toolset.

http://www.barco.com/

For more detail of information about the diverse types of external devices which can be connected to the LAN/RJ45 port and

remote/control the projector, as well as the related control commands supporting for each external device, kindly please get

contact with the Support-Service team directly.

Herewith the Web-Information of Projector status.

By factory default, the network configuration is DHCP On. As well, projector can support to change to settings, DHCP Off.

For more information, please visit http://www.barco.com/.

IP Address

Internet Protocol. The network layer of TCP/IP. Required for communication with the internet.

PFWX-51B/PFWU-51B 10/02/2014 59

9.Settings 2

Can only be used with a wireless network module installed.

Subnet mask

A number that is used to identify a subnetwork so that IP addresses can be shared on a local area network.

Can only be used with a wireless network module installed.

Subnet for Wired and Wifi must be different !

Gateway

A router that serves as an entry point into and exit point out of a network. For example, a local network (LAN) may need a

gateway to connect it to a wide area network (WAN) or to the Internet.

Can only be used with a wireless network module installed.

DHCP

Dynamic host configuration protocol. DHCP is a communications protocol that lets network administrators manage centrally

and automate the assignment of IP addresses in an organization’s network. Using the Internet Protocol, each machine that

can connect to the Internet needs a unique IP address. When an organization sets up its computer users with a connection

to the Internet, an IP address must be assigned to each machine. Without DHCP, the IP address must be entered manually at

each computer and, if computers move to another location in another part of the network, a new IP address must be entered.

DHCP lets a network administrator supervise and distribute IP addresses from a central point and automatically sends a new

IP address when a computer is plugged into a different place in the network.

Can only be used with a wireless network module installed.

9.9 Advanced 2

Sleep Timer

Set the Sleep Timer interval. The projector powers off after the specified time period of inactivity (regardless of signal).

Source Filter

Press or to select the input sourcee,and press or to enable or disable the automatic input searching..

PFWX-51B/PFWU-51B 10/02/2014

60

10.Maintenance

10. MAINTENANCE

10.1 Lamp Replacement

The lifecycle of ordinary projection lamp typically lasts for 3500 hours before requiring replacement (different lamp

configurations will affect lamp life). From the OSD Menu, you can go to " page 57: Lamp Hour Reset ". To check how long a

lamp has been used. You should also replace the lamp when the projected image gets noticeably darker. Contact your local

dealer to purchase new certified lamps for your projector.

This procedure may only be performed by qualified technical service personnel.

How to replace the projector lamp

WARNING: Unplug the power cord before starting the procedure.

Keep all flammable items away from lamp

Never to remodel or disassembly on lamp housing

Lamp contains mercury. If lamp bursts during operation. Keep yourself in sufficiently ventilate area in order

to avoid inhaling mercury.

1. Turn off the projector and unplug the power cord. Let the projector cool for approximately 60 minutes before removing

the lamp module for replacement.

When you turn off the projector, the lamp inside the projector will still be very hot (approximately 200 ~

300°C). If you attempt to replace the lamp without allowing the projector to cool, you could risk scalding

yourself. This is why you should wait for no less than 60 minutes for the lamp to cool down in order to

perform the replacement safely.

2. Loosen the screws from cover.

3. Pull out the right cover.

4. Use a screw driver to loosen the screws as shwon in the illustration. Grasp the metal rod on the lamp cover and pull the

lamp out.

PFWX-51B/PFWU-51B 10/02/2014 61

10.Maintenance

5. Insert the new lamp in the direction shown in the illustration into the lamp assembly; tighten the two screws using a

screw diver and make sure the lamp is firmly secured to prevent the lamp from shaking or poor contact.

6. Replace the right cover and tighten the screw.

7. Reconnect power to the projector and reset the lamp usage timer. Refer to page 57: Lamp Hour Reset.

PFWX-51B/PFWU-51B 10/02/2014

62

10.Maintenance

10.2 Clean the dust

1. Remove most contamination with a vacuum cleaner.

2. Blow remaining dust away with compressed air in an other room or outside.

10.3 Cleaning the lens

To minimize the possibility of damage to optical coatings, or scratches to lens surfaces, we have developed

recommendations for cleaning. FIRST, we recommend you try to remove any material from the lens by

blowing it off with clean, dry deionized air. DO NOT use any liquid to clean the lenses.

Necessary tools

TorayseeTM cloth (delivered together with the lens kit). Order number: R379058.

How to clean the lens?

1. Always wipe lenses with a CLEAN TorayseeTM cloth.

2. Wipe lenses in a one single direction.

Warning: Do not wipe back and forwards across the lens surface as this tends to grind dirt into the coating.

3. Do not leave the cleaning cloth in either an open room or lab coat pocket, as doing so can contaminate the cloth.

4. If smears occur when cleaning lenses, replace the cloth. Smears are the first indication of a dirty cloth.

CAUTION: Do not use fabric softener when washing the cleaning cloth or softener sheets when drying the

cloth.

Do not use liquid cleaners on the cloth as doing so will contaminate the cloth.

Other lenses can also be cleaned safely with this TorayseeTM cloth.

10.4 Cleaning the exterior of the projector

How to clean the exterior of the projector?

1. Power off the projector and unplug the projector from the mains power net.

2. Clean the housing of the projector with a damp cloth. Stubborn stains may be removed with a cloth lightly dampened

with a mild detergent solution.

PFWX-51B/PFWU-51B 10/02/2014 63

10.Maintenance

10.5 Simple troubleshooting

The following table offers a list of common problems with projectors and how to troubleshoot. If the recommended solutions

fail to resolve your problem, contact your local dealer to arrange for servicing; do not attempt to service the projector by

yourself.

Problem Possible cause Solution

You cannot turn on the

projector

1. The projector may be unplugged.

2. The AC socket may be faulty.

3. The lens cover is not replaced properly.

1. Plug the projector's power cord into a wall

outlet.

2. Make sure the AC socket is working

properly.

3. Make sure the lens cover has been

properly replaced.

You cannot turn on the

projector after turning it off

You will not be able to turn on the projector

within two minutes after you have just

turned it off.

This feature is designed to protect the lamp.

Wait for the projector to cool down

completely before starting it up again

(the projector's STAND BY indicator will turn

blue)

You have connected the

projector to a DVD player as

the input source but the image

appears broken or split in

halves.

The DVD player is connected to the projector

through component cables and you have set

it to progressive scan.

Disable the progress scanning function on

the DVD player.

The picture looks dim

1. The image brightness, contrast, color and

tint might need proper adjustment.

2. The lamp is due for replacement.

1. Adjust the image brightness, contrast,

color and tint.

2. Replace the projector lamp.

The remote control does not

operate normally

1. The battery might have run out.

2. You might have inserted the batteries in

the wrong orientations.

3. You may be operating the remote control

too far away from the projector's IR sensor

or exceeded the maximum angle of signal

reception ; there might be an obstacle

between the projector and the remote

control or there might be a source of

intense light near the IR receiver.

4. The remote control's address is not

consistent with the projector's address.

1. Replace new batteries.

2. Make sure the batteries are inserted in the

right orientation.

3. Adjust the distance/angle between the

projector and the remote control and try

again; if there are obstacles between the

projector and the remote or source of

intense light near the IR sensor resolve

these situations and try again.

4. Press the OK button on the remote control

followed by the Address button until the

panel of the remote control flashes once

(approximately 5 seconds) and try again.

You are able to turn on the

projector and access the OSD

Menu but no picture appears.

1. The projector may not be turned on

properly or you have not selected the

correct input source.

2. You might not have connected the source

device correctly or the source might not be

connected to the projector at all.

1. Make sure the projector is turned on

properly and select the correct input

source.

2. Check the connection between the

projector and the input device.

The image is too bright or the

bright areas are blurry

The contrast might have been set too high. Lower contrast settings.

The image appears washed out

or the dark areas appear too

bright

The image brightness might have been set

too high.

Lower brightness settings.

The image is blurry

1. The lens may not be in focus.

2. The temperature or humidity of the

projector's working environment may have

changed in mid operation (i.e. going from

cold to warm or dry to humid), leading

to condensation of moisture inside the

projector.

1. Adjust Lines focus.

2. Turn of the projector first and wait for the

moisture in the projector to evaporate.

PFWX-51B/PFWU-51B 10/02/2014

64

10.Maintenance

Problem Possible cause Solution

The color of the image looks

pale.

The input signal type (RGBHV/YUV) might

not have been connected properly.

Check to make sure that the connections

between the projector and the input device

are correct.

The image flashes occasionally.

1. The cables might not have been properly

connected or the input device itself may

be faulty.

2. If the problem persists, it may also mean

the lamp might be faulty.

1. Make sure the connector and the input

device have been properly connected;

check to see if the input device is in normal

working order.

2. Replace the projector lamp.

The colors of the projected

image are out of place (i.e.

displaying red as blue).

The G/Y, R/Pr, B/Pb cables from the input

might have been incorrectly connected to

the input.

Please make sure the input source has been

correctly connected to the projector.

The noise from the cooling fan

suddenly grew louder.

The temperature inside the projector might

have risen.

When the temperature inside the projector

rises, the cooling fan will operate at a higher

speed to discharge the internal heat more

rapidly.

The LED indicator on the

projector’s front panel is

blinking in red.

The lamp or the cooling fan could be faulty. Refer to the definition of page 26: Status

lights of LED.

1. During projection, the lamp

suddenly goes off and the

picture disappears.

2. The lamp does not turn on

even when the projector has

been turned on.

The lamp might have been damaged; check

the LED indicator on the rear panel of the

projector and see if it is blinking in red.

The lamp has reached the end of its service

life; please replace it.

PFWX-51B/PFWU-51B 10/02/2014 65

11.Projector Specication

11. PROJECTOR SPECIFICATION

11.1 PFWU-51B Specifications

Description Specications

Projector type Single-chip DLP projector

Technology 0.67" DMD

Color Wheel 5-segment (RGBWY)

Brightness* 4650 ANSI lumen

Brightness (eco-mode)* 3450 ANSI lumen

Resolution WUXGA 1920 × 1200

Micro display DLP 0.67" DMD

Contrast ratio 1800 : 1

Brightness uniformity ANSI 0.85%

Aspect Ratio 67%

Lens type F LENS

Lamp 1 x 370W P-VIP

Lamp lifetime (ECO/Bright) 3500/1500

Transport with lamp Yes

Orientation table - ceiling

Integrated web server Yes

3D Yes

Keystone Correction ±40° Vertical

Ease of Use Simplified OSD menu + Remote control

Input Resolutions Up to WUXGA (1920x1200) 60Hz

Software tools Projection Toolset

Control IR; RS232; RJ45

Network connection 10/100 Base-T, RJ-45 connection

Projection lens - projection ratio

• R9832757: F lens (1.54-1.93:1, 1.25X)

• R9832758: F lens (0.77:1 FIX)

• R9832759: F lens (1.93-2.89:1, 1.5X)

Horizontal Lens Shift Range -10%~+10%

Vertical Lens Shift Range -30%~+110%

Input/Output ports

1 x HDMI

1 x DVI-D

1 x DISPLAYPORT

2 x VGA IN

1 x VGA OUT

1 x RGBHV

1 x YUV

1 x S-VIDEO

1 x VIDEO

1 x RJ-45

1 x 3D SYNC OUT

Power requirements AC Input 100V - 240V (±10%) (auto ranging)

Power consumption in Bright mode 480W@100V/460W@240V

Power consumption in ECO mode 365W@100VAC/355W@240VAC

Power consumption in standby mode <0.5W

PFWX-51B/PFWU-51B 10/02/2014

66

11.Projector Specication

Description Specications

Noise level Bright mode

(typical at 25°C/77°F) 42dBA

Noise level ECO mode

(typical at 25°C/77°F) 37dBA

Operational ambient temperature 5-35°C or 41-95°F

Operating humidity 10-85%

Dimensions (WxLxH) 460mmX446mmX209mm

Weight ±12kg (±26.5 lb.)

Shipping Dimensions 594X568X355mm

Shipping Weight from Factory 16.8kg

Certifications

CB test certificate

US emc

US safety

CE emc and safety

CCC emc and safety

Warranty 3 years standard warranty**

(*) Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

(**) Warranty and service conditions can differ from region to region. Contact your local sales or service representative for

more details.

PFWX-51B/PFWU-51B 10/02/2014 67

11.Projector Specication

11.2 PFWX-51B Specifications

Description Specications

Projector type Single-chip DLP projector

Technology 0.65" DMD

Color Wheel 5-segment (RGBWY)

Brightness* 4750 ANSI lumen

Brightness (eco-mode)* 3300 ANSI lumen

Resolution WXGA 1280 x 800

Micro display DLP 0.65" DMD

Contrast ratio 1800 : 1

Brightness uniformity ANSI 0.85

Aspect Ratio 67%

Lens type F LENS

Lamp 1 x 370W P-VIP

Lamp lifetime (ECO/Bright) 3500/1500

Transport with lamp Yes

Orientation table - ceiling

Integrated web server Yes

3D Yes

Keystone Correction ±40° Vertical

Ease of Use Simplified OSD menu + Remote control

Input Resolutions Up to WUXGA (1920x1200) 60Hz

Software tools Projection Toolset

Control IR; RS232; RJ45

Network connection 10/100 Base-T, RJ-45 connection

Projection lens - projection ratio

• R9832757: F lens (1.62-2.03:1, 1.25X)

• R9832758: F lens (0.81:1 FIX)

• R9832759: F lens (2.02-3.03:1, 1.5X)

Horizontal Lens Shift Range -10%~+10%

Vertical Lens Shift Range -30%~+110%

Input/Output ports

1 x HDMI

1 x DVI-D

1 x DISPLAYPORT

2 x VGA IN

1 x VGA OUT

1 x RGBHV

1 x YUV

1 x S-VIDEO

1 x VIDEO

1 x RJ-45

1 x 3D SYNC OUT

Power requirements AC Input 100V - 240V (±10%) (auto ranging)

Power consumption in Bright mode 480W@100V/460W@240V

Power consumption in ECO mode 365W@100VAC/355W@240VAC

Power consumption in standby mode <0.5W

Noise level Bright mode

(typical at 25°C/77°F) 42dBA

PFWX-51B/PFWU-51B 10/02/2014

68

11.Projector Specication

Description Specications

Noise level ECO mode

(typical at 25°C/77°F) 37dBA

Operational ambient temperature 5-35°C or 41-95°F

Operating humidity 10-85%

Dimensions (WxLxH) 460mmX446mmX209mm

Weight ±12kg (±26.5 lb.)

Shipping Dimensions 594X568X355mm

Shipping Weight from Factory 16.8kg

Certifications

CB test certificate

US emc

US safety

CE emc and safety

CCC emc and safety

Warranty 3 years standard warranty**

(*) Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

(**) Warranty and service conditions can differ from region to region. Contact your local sales or service representative for

PFWX-51B/PFWU-51B 10/02/2014 69

11.Projector Specication

more details.

11.3 Standard Source Files

The unit automatically determines PC signals to select the appropriate resolution

Some signals may require manual adjustment.

Signal Resolution H-SYNC (KHz) V-SYNC (Hz) COMPOSITE RGB (Analog) DP/H D M I

(Digital)

S_VIDEO COMPONENT

NTSC -15.734 60 ¡---

PAL/SECAM -15.625 50 ¡---

PC

640 x 400 37.9 85.08 - - ¡ ¡

# 720 x 400 31.5 70.1 - - ¡ ¡

# 720 x 400 37.9 85.04 - - ¡ ¡

640 x 480 31.5 60 - - ¡ ¡

640 x 480 37.9 72.8 - - ¡ ¡

640 x 480 37.5 75 - - ¡ ¡

640 x 480 43.3 85 - - ¡ ¡

800 x 600 35.2 56.3 - - ¡ ¡

* 800 x 600 37.9 60.3 - - ¡ ¡

800 x 600 46.9 75 - - ¡ ¡

800 x 600 48.1 72.2 - - ¡ ¡

800 x 600 53.7 85.1 - - ¡ ¡

** 800 x 600 76.3 120 - - ¡ ¡

1024 x 576 35.8 60 - - ¡ ¡

1024 x 600 37.3 60 - - ¡ ¡

1024 x 600 41.5 65 - - ¡ ¡

* 1024 x 768 48.4 60 - - ¡ ¡

1024 x 768 56.5 70.1 - - ¡ ¡

1024 x 768 60 75 - - ¡ ¡

1024 x 768 68.7 85 - - ¡ ¡

** 1024 x 768 97.6 120 - - ¡ ¡

1024 x 768 99 120 - - ¡ ¡

1152 x 864 67.5 75 - - ¡ ¡

* 1280 x 720 45 60 - - ¡ ¡

* 1280 x 720 90 120 - - ¡ ¡

1280 x 768 47.4 60 - - ¡ ¡

* 1280 x 768 47.8 59.9 - - ¡ ¡

* 1280 x 800 49.7 59.8 - - ¡ ¡

1280 x 800 62.8 74.9 - - ¡ ¡

1280 x 800 71.6 84.9 - - ¡ ¡

** 1280 x 800 101.6 119.9 - - ¡ ¡

*** 1280 x 1024 64 60 - - ¡ ¡

1280 x 1024 80 75 - - ¡ ¡

#1280 x 1024 91.1 85 - - ¡ ¡

*** 1280 x 960 60 60 - - ¡ ¡

1280 x 960 85.9 85 - - ¡ ¡

*** 1360 x 768 47.7 60 - - ¡ ¡

*** 1400 x 1050 65.3 60 - - ¡ ¡

1440 x 900 55.5 59.9 - - ¡ ¡

*** 1440 x 900 55.9 59.9 - - ¡ ¡

1440 x 900 70.6 75 - - ¡ ¡

## 1600 x1200 75 60 - - ¡ ¡

## 1680 x 1050 64.7 59.9 - - ¡ ¡

## 1680 x 1050 65.3 60 - - ¡ ¡

## 1920 x 1200 74 60 - - ¡ ¡

## 1920 x 1080 67.5 60 - - ¡ ¡

PFWX-51B/PFWU-51B 10/02/2014

70

11.Projector Specication

Signal Resolution H-SYNC (KHz) V-SYNC (Hz) COMPOSITE RGB (Analog) DP/H D M I

(Digital)

S_VIDEO COMPONENT

Apple Macintosh

640 x 480 35 66.7 - - ¡ ¡

832 x 624 49.7 74.5 - - ¡ ¡

1024 x 768 60.2 74.9 - - ¡ ¡

## 1152 x 870 68.7 75.1 - - ¡ ¡

SDTV ## 480i 15.734 60 -¡-¡

## 576i 15.625 50 -¡-¡

EDTV ## 576p 31.3 50 -¡-¡

## 480p 31.5 60 -¡-¡

HDTV

## 720p 37.5 50 -¡-¡

## 720p 45 60 -¡-¡

## 1080i 33.8 60 -¡-¡

## 1080i 28.1 50 -¡-¡

## 1080p 27 24 -¡-¡

## 1080p 28 25 -¡-¡

## 1080p 33.7 30 -¡-¡

## 1080p 56.3 50 -¡-¡

## 1080p 67.5 60 -¡-¡

¡: Supported frequency

-: Not Supported frequency

• "#" It means Displayable only. (4:3 only).

• "##" It means may have a little noise is acceptable, Because video mode sync don’t auto adjustment.

*3D note:

• “*” It means the timing can support non-3D and 3D signal with Frame Sequential and Top-Bottom format.

• “**” It means the timing can support non-3D and 3D signal with Frame Sequential format.

• “***” It means the timing can support non-3D and 3D signal with Top-Bottom format.

There 3D timing showing depend the EDID file and display card. It is possible that user cannot choose the above 3D timings

on display card.

Table of Supported Frequency For 3D mode in detailed

The unit automatically determines PC signals to select the appropriate resolution.

Some signals may require manual adjustment.

Input Signal for D-SUB

Signal Resolution Refresh Rate (Hz)

SVGA 800 x 600 60/120

XGA 1024 x 768 60/120

HDTV (720p) 1280 x 720 60/120

Input Signal for HDMI/DVI-D

Signal Resolution Refresh Rate (Hz)

SVGA 800 x 600 60/120

XGA 1024 x768 60/120

WSVGA (1024 x 600) 1024 x 600 60

HDTV (720p) 1280 x 720 60/120

True 3D Video Compatibility table

PFWX-51B/PFWU-51B 10/02/2014 71

11.Projector Specication

Input Resolutions Input timing

HDMI 1.4a 3D Input

1280 x 720P @ 50Hz Top - and - Bottom

1280 x 720P @ 60Hz Top - and - Bottom

1280 x 720P @ 50Hz Frame packing

1280 x 720P @ 60Hz Frame packing

1920 x 1080i @50 Hz Side- by-Side (Half)

1920 x 1080i @60 Hz Side- by-Side (Half)

1920 x 1080P @24 Hz Top - and - Bottom

1920 x 1080P @24 Hz Frame packing

HDMI 1.3

1920 x 1080i @ 50Hz

Side-by-Side(Half) SBS mode is on

1920 x1080i @ 60Hz

1280 x 720P @50Hz

1280 x 720P @60Hz

1920 x 1080i @ 50Hz

Top-and-Bottom TAB mode is on

1920 x1080i @ 60Hz

1280 x 720P @50Hz

1280 x 720P @60Hz

480i HQFS 3D format is Frame sequential

*Please make sure your 3D glasses has 144hz function.

*The native resolution of the panel is 1280 x 800 (for WXGA)/1920 x 1200(for WUXGA).

Resolution others than native resolution may be display with uneven size of text or line.

*HDTV timing main check tool is DVD player, VG828 is secondary.

PFWX-51B/PFWU-51B 10/02/2014

72

11.Projector Specication

11.4 Dimension

446.00

208.60

460.55m

m

453.00 mm

PFWX-51B/PFWU-51B 10/02/2014 73

12.Environmental Information

12. ENVIRONMENTAL INFORMATION

12.1 Disposal information

Disposal Information

Waste Electrical and Electronic Equipment

This symbol on the product indicates that, under the European Directive 2002/96/EC governing waste from electrical

and electronic equipment, this product must not be disposed of with other municipal waste. Please dispose of your waste

equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items

from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

For more information about recycling of this product, please contact your local city office or your municipal waste disposal

service. For details, please visit the Barco website at: http://www.barco.com/en/AboutBarco/weee

Disposal of batteries in the product

This product contains batteries covered by the Directive 2006/66/EC which must be collected and disposed of

separately from municipal waste.

If the battery contains more than the specified values of lead (Pb), mercury (Hg) or cadmium (Cd), these chemical symbols

will appear below the crossed-out wheeled bin symbol.

By participating in separate collection of batteries, you will help to ensure proper disposal and to prevent potential negative

effects on the environment and human health.

Mercury Notice

Hg

LAMP CONTAINS MERCURY,

DISPOSE ACCORDING TO

STATE/LOCAL LAW.

This Barco product consists of materials that may contain mercury, which must be recycled or disposed of in accordance with

local, state, or country laws:

· Within this system, the lamp in the projector contains mercury.

12.2 Rohs compliance

Turkey RoHS compliance

Türkiye Cumhuriyeti: EEE Yönetmeli ine Uygundur.

[Republic of Turkey: In conformity with the EEE Regulation]

中国大陆 RoHS (Information for China ROHS compliance)

根据中国大陆《电子信息产品污染控制管理办法》( 也称为中国大陆 RoHS)，以下部份列出了本产品中可能包

含的有毒有害物质或 元 素的名称和含量。

Table of toxic and hazardous substances/elements and their content, as required by China’s management methods for

controlling pollution by electronic information products.

PFWX-51B/PFWU-51B 10/02/2014

74

12.Environmental Information

本产品中包含的有毒有害物质/成分的名称和含量。

Pb Hg Cd Cr(VI) PBB PBDE

( ) X O O O O O

X O O O O O

X X O O O O

X O O O O O

()X O O O O O

X O O O O O

O O X O O O

O O X O O O

X O O O O O

,X O O O O O

X O O O O O

X O O O O O

(, ) X O O O O O

X O O O O O

SJ/T11363-2006

RoHS RoHS ( ),

"X" ROHS

“

SJ/T11363-2006

PFWX-51B/PFWU-51B 10/02/2014 75

12.Environmental Information

12.3 Production address

Factories

Barco nv Entertainment Division

Noordlaan 5, B-8520 Kuurne

Phone: +32 56.36.82.11

Fax: +32 56.36.883.86

Support: www.barco.com/esupport

Visit us at the web: www.barco.com
