Bartec USA DBL DBL TPMS Hand Held Tool User Manual

Bartec USA LLC. DBL TPMS Hand Held Tool Users Manual

Users Manual

DBL TPMS Hand Held Tool

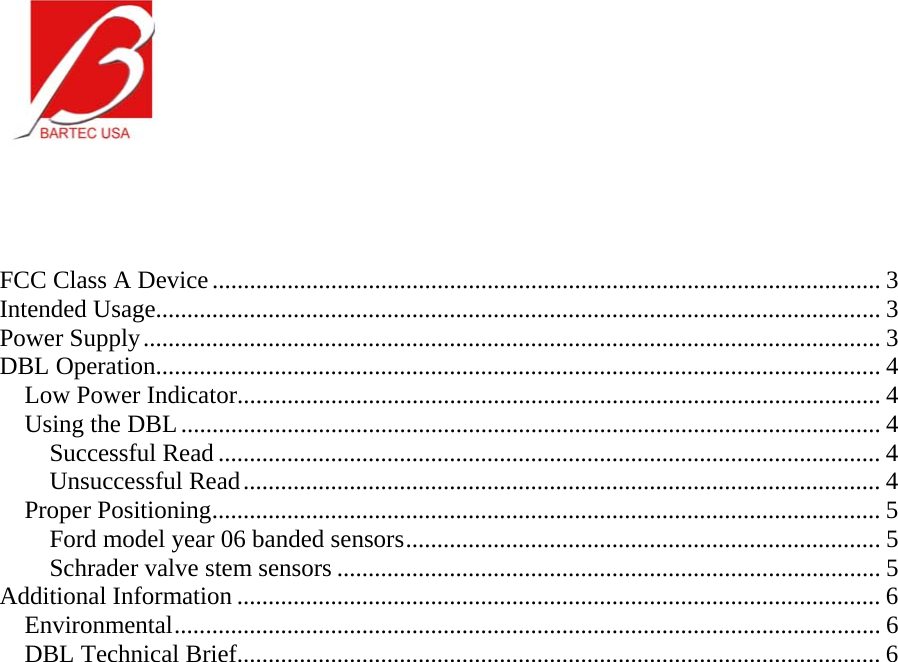

FCC Class A Device........................................................................................................... 3 Intended Usage.................................................................................................................... 3 Power Supply...................................................................................................................... 3 DBL Operation.................................................................................................................... 4 Low Power Indicator....................................................................................................... 4 Using the DBL................................................................................................................ 4 Successful Read .......................................................................................................... 4 Unsuccessful Read...................................................................................................... 4 Proper Positioning........................................................................................................... 5 Ford model year 06 banded sensors............................................................................ 5 Schrader valve stem sensors ....................................................................................... 5 Additional Information ....................................................................................................... 6 Environmental................................................................................................................. 6 DBL Technical Brief....................................................................................................... 6

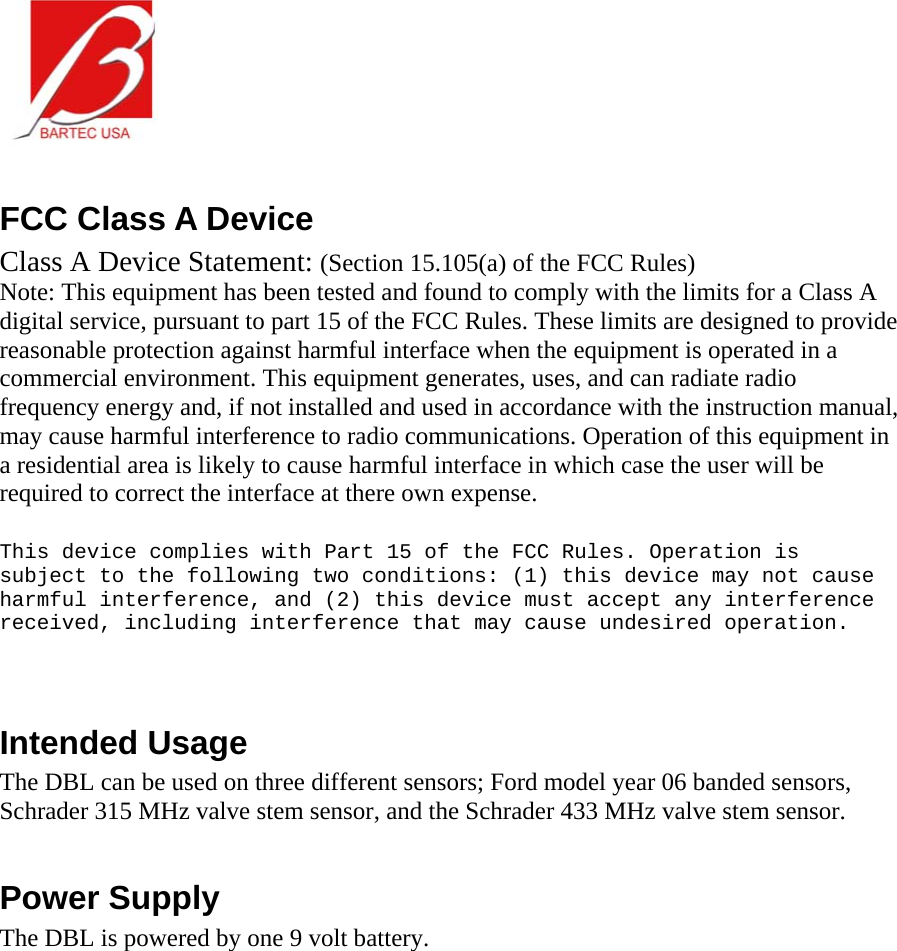

FCC Class A Device Class A Device Statement: (Section 15.105(a) of the FCC Rules) Note: This equipment has been tested and found to comply with the limits for a Class A digital service, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interface when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interface in which case the user will be required to correct the interface at there own expense. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Intended Usage The DBL can be used on three different sensors; Ford model year 06 banded sensors, Schrader 315 MHz valve stem sensor, and the Schrader 433 MHz valve stem sensor. Power Supply The DBL is powered by one 9 volt battery.

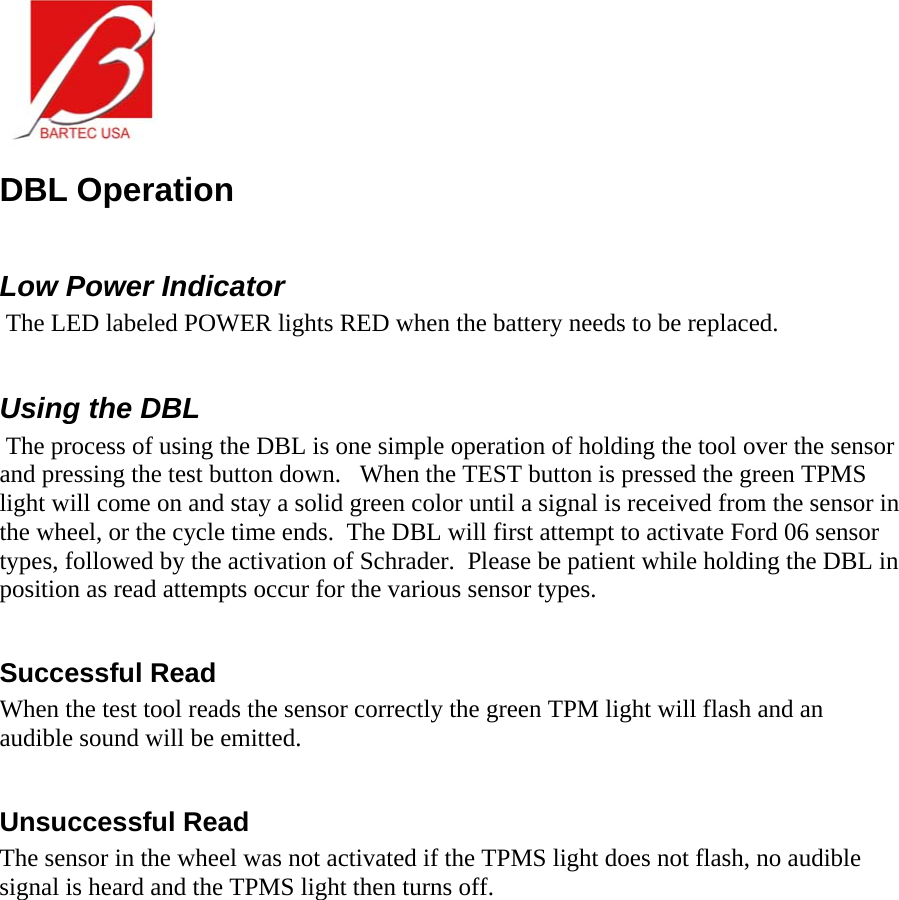

DBL Operation Low Power Indicator The LED labeled POWER lights RED when the battery needs to be replaced. Using the DBL The process of using the DBL is one simple operation of holding the tool over the sensor and pressing the test button down. When the TEST button is pressed the green TPMS light will come on and stay a solid green color until a signal is received from the sensor in the wheel, or the cycle time ends. The DBL will first attempt to activate Ford 06 sensor types, followed by the activation of Schrader. Please be patient while holding the DBL in position as read attempts occur for the various sensor types. Successful Read When the test tool reads the sensor correctly the green TPM light will flash and an audible sound will be emitted. Unsuccessful Read The sensor in the wheel was not activated if the TPMS light does not flash, no audible signal is heard and the TPMS light then turns off.

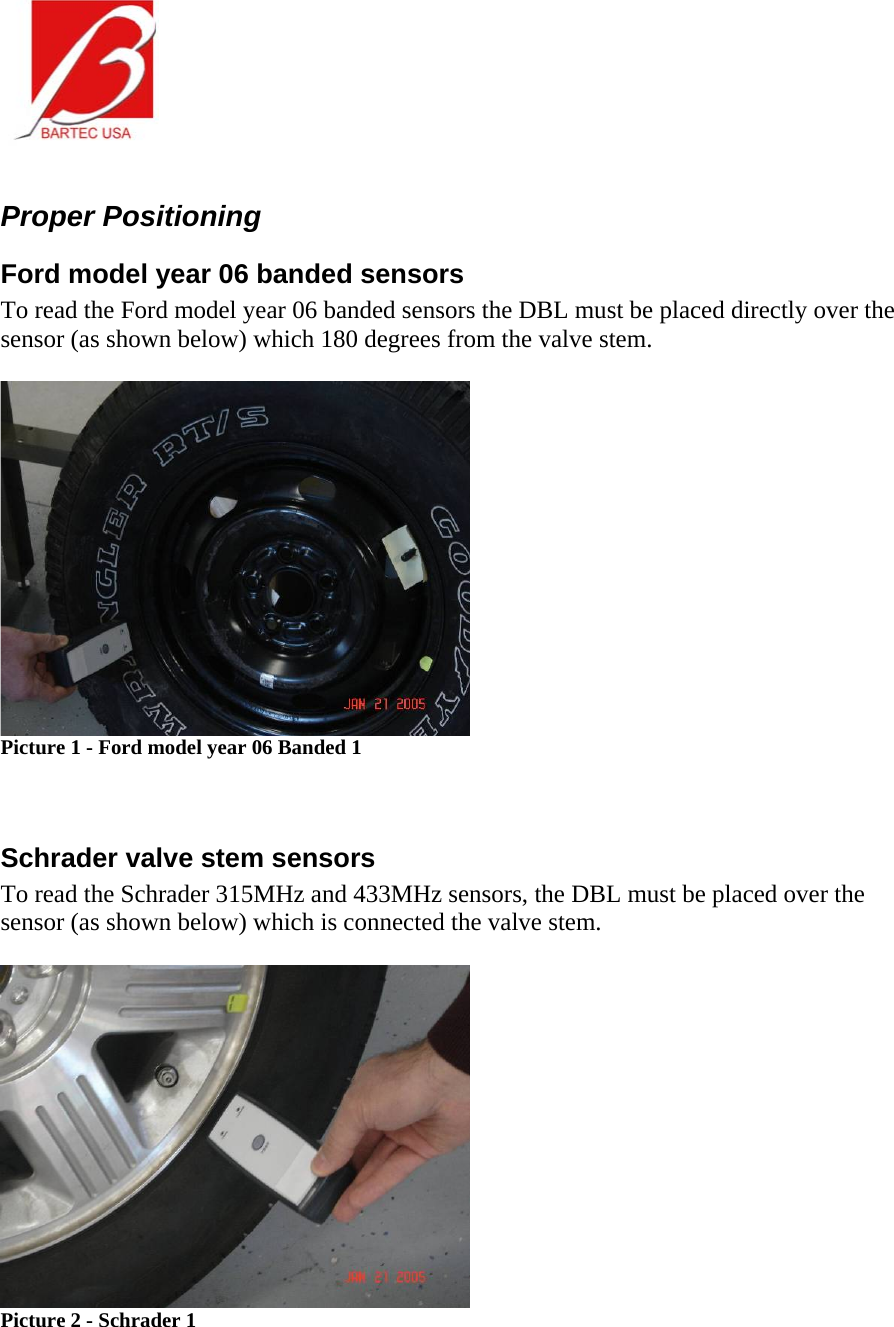

Proper Positioning Ford model year 06 banded sensors To read the Ford model year 06 banded sensors the DBL must be placed directly over the sensor (as shown below) which 180 degrees from the valve stem. Picture 1 - Ford model year 06 Banded 1 Schrader valve stem sensors To read the Schrader 315MHz and 433MHz sensors, the DBL must be placed over the sensor (as shown below) which is connected the valve stem. Picture 2 - Schrader 1

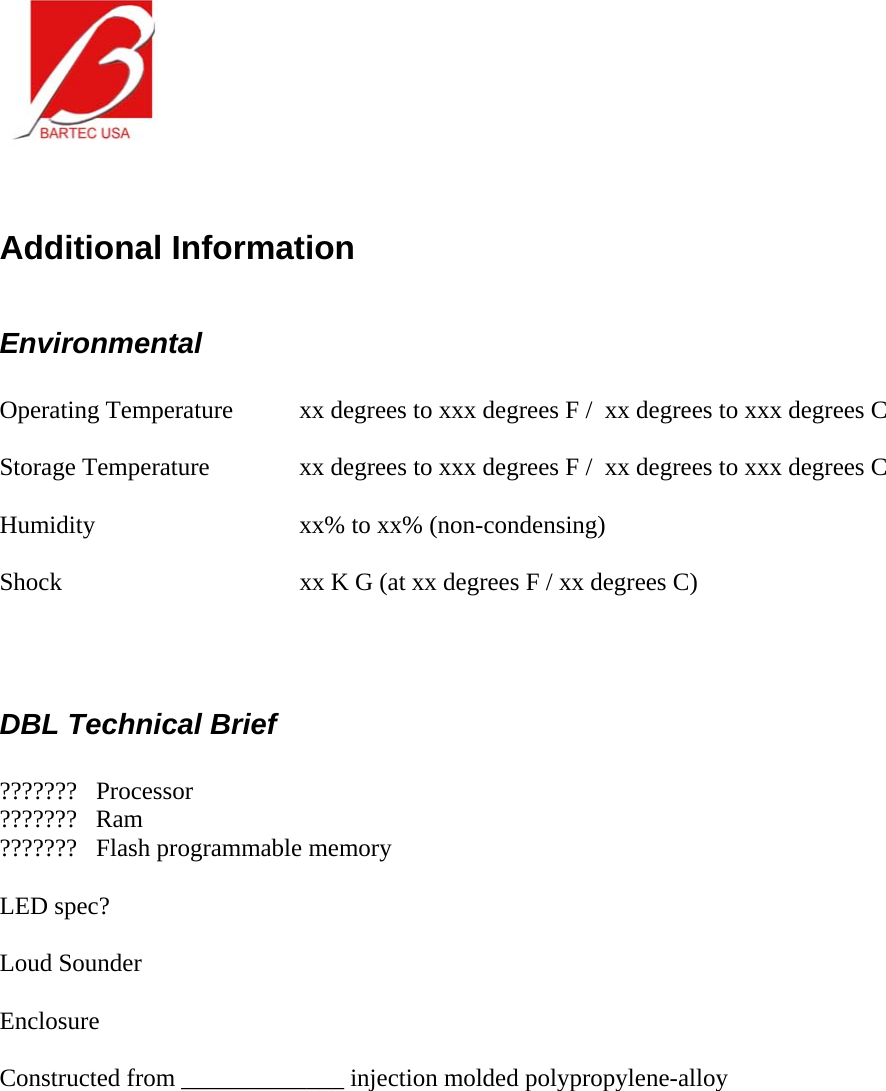

Additional Information Environmental Operating Temperature xx degrees to xxx degrees F / xx degrees to xxx degrees C Storage Temperature xx degrees to xxx degrees F / xx degrees to xxx degrees C Humidity xx% to xx% (non-condensing) Shock xx K G (at xx degrees F / xx degrees C) DBL Technical Brief ??????? Processor ??????? Ram ??????? Flash programmable memory LED spec? Loud Sounder Enclosure Constructed from _____________ injection molded polypropylene-alloy
