Beats Electronics 81000057 Portable Stereo Sound System User Manual Pill UserGuide 071812 REV4

Beats Electronics, LLC Portable Stereo Sound System Pill UserGuide 071812 REV4

User manual

BeatsPill Active Ingredients: (Portable Stereo Bluetooth Speaker)8.5HR

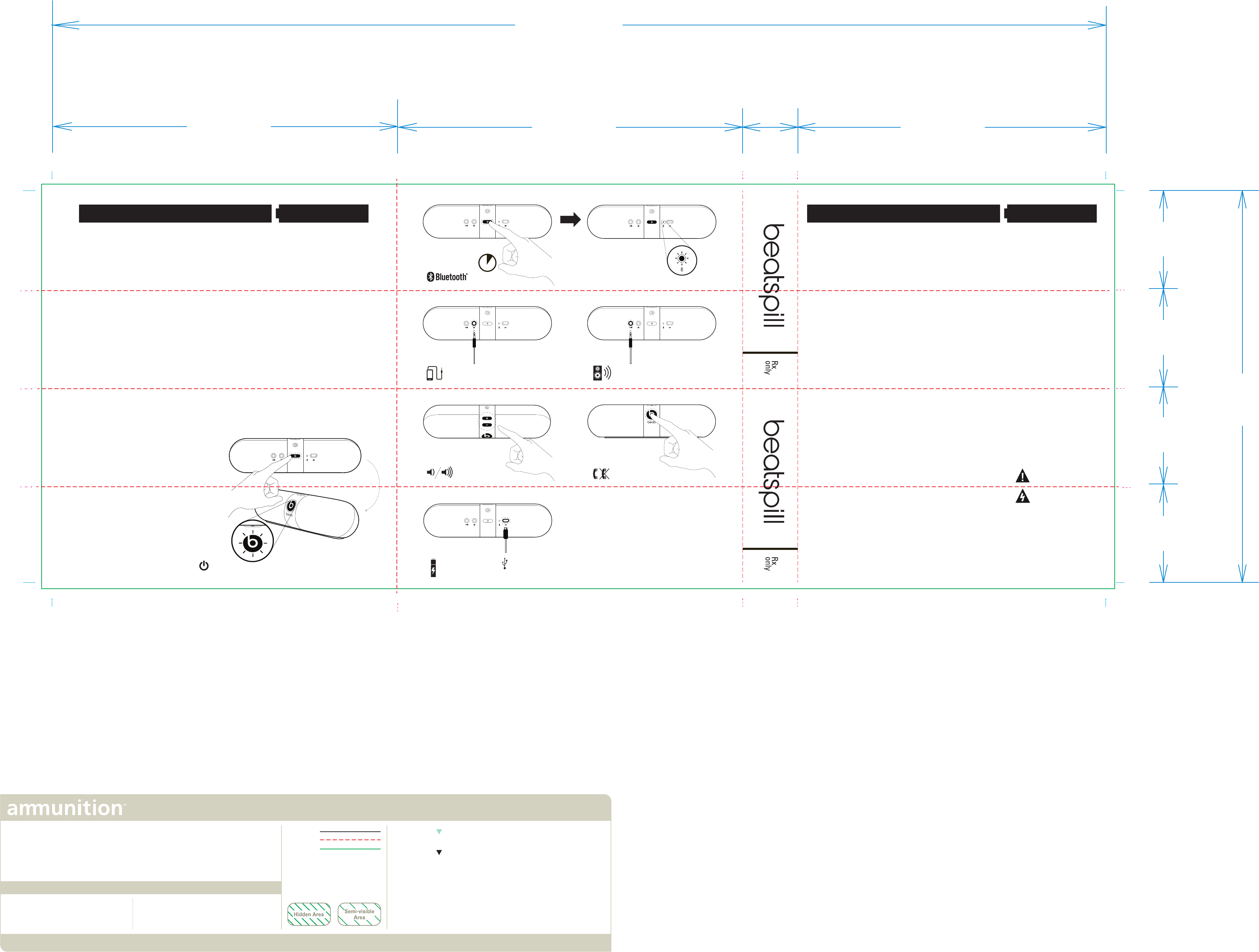

EN 1. POWER ON/OFF
To Turn on BeatsPill, firmly press and release the power
button, the Beats logo will light and after a brief startup
period, an audio cue will indicate the system is on. To
turn Beatspill off, firmly press and release the power
button. The Beats logo will fade out and an audio cue
will indicate power off.
2. CONNECTED
To pair Beatspill with a compatible bluetooth device for
A2DP (stereo audio) and/or HFP (phone calls), press
and hold the rear power button for a full 5 sec. The rear
BT LED will blink WHITE rapidly, indicating that
Beatspill is in pairing mode and is discoverable by a
source device. Pairing mode can be cancelled by
pressing the power button. Beatspill will remain in
pairing mode for approx. 3 minutes. If no pair is
achieved, it will enter an unconnected state and pairing
mode must be reinitiated.
Connected
When Beatspill is successfully paired and connected
to a Bluetooth device, the rear BT LED will be solid
WHITE. When Beatspill is not connected to any BT
device, the rear BT LED will be unlit. Beatspill can
remember up to eight paired devices in its memory and
will automatically try to connect with the most recently
connected device , however, HFP (telephone) devices
will take priority over stereo audio devices when
Beatspill searches for an auto connection.
Stealing
If Beatspill is paired to two or more compatible devices
and automatically connects to a non-preferred device,
you can “steal” the connection with your preferred
device by selecting “beatspill” in your devices BT list
IMPORTANT SAFETY INFORMATION
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8. DO NOT install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. PROTECT the power cord from being walked on or
pinched, particularly at the plugs and the point where it
exits from the apparatus.
10. ONLY USE attachments/accessories specified by the
manufacturer.
11. UNPLUG this apparatus during lightning storms or
when unused for long periods of time.
12. DO NOT expose this apparatus to dripping or
splashing and ensure that no objects filled with liquids,
such as vases, are placed on the apparatus.
13. To completely disconnect this apparatus from the AC
mains, disconnect the power supply cord plug from the
AC receptacle.
14. The mains plug of the power supply cord shall remain
readily operable.
and initiating a connection.
3. AUX INPUT
To play audio using the supplied 3.5mm cable, simply
plug the cable into the music source device into the
“audio in” jack on the Beatspill.
4. AUDIO OUT
The audio output of the Beatspill can be used to
connect to the line in of an alternate audio system, such
as a home theater, or BeatsbyDre Beatbox. This allows
the pill to act as a Bluetooth receiver for audio playback
devices that do not have Bluetooth capability. When
audio out jack is used, the Beatspill internal speakers
will be disabled and the volume controls are also
inactive. When a phone call is received while also using
the audio out, audio out will be temporarily disabled and
phone call functionality will be enabled on the Beatspill.
5. VOLUME
When using BT or Aux in as the audio source, the
Beatspill volume can be adjusted with the volume up
and down buttons on the front top surface of the
Beatspill. To quickly adjust the volume, press and hold
the up or down volume button. *Volume buttons are
disabled when Audio out is used.
6. BLUETOOTH CONTROLS
Audio play and pause
When listening to stereo audio wirelessly thru a
connected bluetooth device (A2DP) music can be
paused and un-paused by pressing the front B logo
multifunction button (MFB).
Phone Calls
Beatspill can be used to make and receive phone calls
when connected to a HFP1.6 Bluetooth compatible
handset. Audio playback will be paused when a
phone call is in progress. To answer a call when
connected to a BT compatible handset, press the front
MFB. This will accept an incoming call. To Reject an
incoming call, press and hold the MFB. To Hang up a
call in progress, press the front MFB. To answer an
incoming call when already on a call in progress: press
the front MFB. This will answer the incoming call and
put the current call on hold. To Reject an incoming
call when already on a call in progress: press and hold
the MFB. This will reject the incoming call and current
call will remain active. To switch between an active
call and a call on hold: press the front MFB. Pressing
again will switch back to the previous call. To Switch
the audio output back to the handset instead of
Beatspill: press the MFB twice quickly when on an
active call.
7. CHARGING AND BATTERY
To charge the Beatspill, plug the USB cable into the
rear USB port and into a USB compatible power
supply/ source. Charging will be indicated by a solid
RED ring around the USB port. When full charge is
reached, the ring around the USB port will change to
solid GREEN. Battery life should be approximately
8.5 hrs at moderate listening levels. When Beatspill
detects that it has 20% battery life remaining and USB
cable is unplugged, USB port will blink, indicating that
power source should be connected.
8. TECHNICAL SPECIFICATIONS
Weight: 325g
Battery Life: 8.5 hours (average at 80dB)
Power Adapter Output Rating: 5Vdc, 2.1A
Power Adapter Input Rating: 100-240V ~ 50/60Hz, 0.5A
BeatsPill Active Ingredients: (Portable Stereo Bluetooth Speaker)8.5HR
EN 1. POWER ON/OFF
To Turn on BeatsPill, firmly press and release the power
button, the Beats logo will light and after a brief startup
period, an audio cue will indicate the system is on. To
turn Beatspill off, firmly press and release the power
button. The Beats logo will fade out and an audio cue
will indicate power off.
2. CONNECTED
To pair Beatspill with a compatible bluetooth device for
A2DP (stereo audio) and/or HFP (phone calls), press
and hold the rear power button for a full 5 sec. The rear
BT LED will blink WHITE rapidly, indicating that
Beatspill is in pairing mode and is discoverable by a
source device. Pairing mode can be cancelled by
pressing the power button. Beatspill will remain in
pairing mode for approx. 3 minutes. If no pair is
achieved, it will enter an unconnected state and pairing
mode must be reinitiated.
Connected
When Beatspill is successfully paired and connected
to a Bluetooth device, the rear BT LED will be solid
WHITE. When Beatspill is not connected to any BT
device, the rear BT LED will be unlit. Beatspill can
remember up to eight paired devices in its memory and
will automatically try to connect with the most recently
connected device , however, HFP (telephone) devices
will take priority over stereo audio devices when
Beatspill searches for an auto connection.
Stealing
If Beatspill is paired to two or more compatible devices
and automatically connects to a non-preferred device,
you can “steal” the connection with your preferred
device by selecting “beatspill” in your devices BT list
FCC STATEMENT
FCC-ID: COW81000057
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
FCC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or
transmitter. This equipment should be installed and
operated with a minimum distance of 20 centimeters
between the radiator and your body.
This equipment complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
CAUTION
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to
this equipment. Such modifications could void the user
authority to operate the equipment.

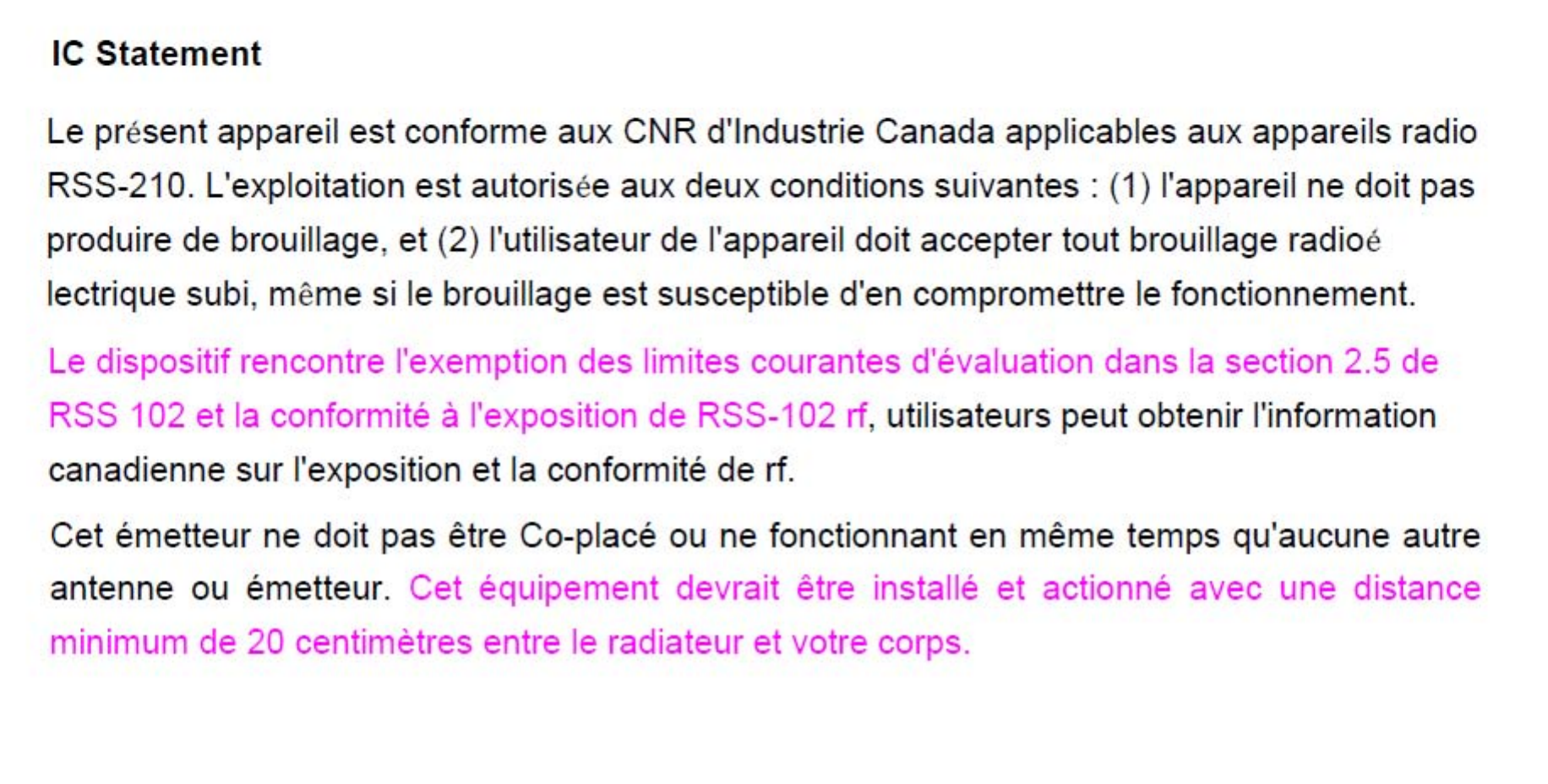

CANADA STATEMENT
This device complies with Industry Canada RSS-210.
Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of the
device. The device meets the exemption from the
routine evaluation limits in section 2.5 of RSS 102 and
compliance with RSS-102 RF exposure, users can
obtain Canadian information on RF exposure and
compliance.
IMPORTANT SAFETY INFORMATION
The exclamation point, within an
equilateral triangle, is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying the product.
The lightning flash with arrowhead
symbol within an equilateral triangle is
intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electrical
shock.
WARNING: To reduce the risk of fire or electrical shock,
do not expose this apparatus to rain or moisture.
WARNING: No naked flame sources – such as candles
– should be placed on the product.
WARNING: Batteries (battery pack or batteries
installed shall not be exposed to excessive heat such as
sunshine, fire or the like.
Place the equipment near a main power supply outlet
and make sure that you can easily access the power
breaker switch.
CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent
type.
and initiating a connection.
3. AUX INPUT
To play audio using the supplied 3.5mm cable, simply
plug the cable into the music source device into the
“audio in” jack on the Beatspill.
4. AUDIO OUT
The audio output of the Beatspill can be used to
connect to the line in of an alternate audio system, such
as a home theater, or BeatsbyDre Beatbox. This allows
the pill to act as a Bluetooth receiver for audio playback
devices that do not have Bluetooth capability. When
audio out jack is used, the Beatspill internal speakers
will be disabled and the volume controls are also
inactive. When a phone call is received while also using
the audio out, audio out will be temporarily disabled and
phone call functionality will be enabled on the Beatspill.
5. VOLUME
When using BT or Aux in as the audio source, the
Beatspill volume can be adjusted with the volume up
and down buttons on the front top surface of the
Beatspill. To quickly adjust the volume, press and hold
the up or down volume button. *Volume buttons are
disabled when Audio out is used.
6. BLUETOOTH CONTROLS
Audio play and pause
When listening to stereo audio wirelessly thru a
connected bluetooth device (A2DP) music can be
paused and un-paused by pressing the front B logo
multifunction button (MFB).
Phone Calls
Beatspill can be used to make and receive phone calls
when connected to a HFP1.6 Bluetooth compatible
handset. Audio playback will be paused when a
phone call is in progress. To answer a call when
connected to a BT compatible handset, press the front
MFB. This will accept an incoming call. To Reject an
incoming call, press and hold the MFB. To Hang up a
call in progress, press the front MFB. To answer an
incoming call when already on a call in progress: press
the front MFB. This will answer the incoming call and
put the current call on hold. To Reject an incoming
call when already on a call in progress: press and hold
the MFB. This will reject the incoming call and current
call will remain active. To switch between an active
call and a call on hold: press the front MFB. Pressing
again will switch back to the previous call. To Switch
the audio output back to the handset instead of
Beatspill: press the MFB twice quickly when on an
active call.
7. CHARGING AND BATTERY
To charge the Beatspill, plug the USB cable into the
rear USB port and into a USB compatible power
supply/ source. Charging will be indicated by a solid
RED ring around the USB port. When full charge is
reached, the ring around the USB port will change to
solid GREEN. Battery life should be approximately
8.5 hrs at moderate listening levels. When Beatspill
detects that it has 20% battery life remaining and USB
cable is unplugged, USB port will blink, indicating that
power source should be connected.
8. TECHNICAL SPECIFICATIONS
Weight: 325g
Battery Life: 8.5 hours (average at 80dB)
Power Adapter Input Rating: 100-240V ~ 50/60Hz, 0.5A
3.
2.
4.
5. 6.
7.
1.
Cut
Cut
Cut
Cut
Cut
Cut
Cut
Cut
Fold
Fold
Fold
Fold
Fold
Fold
Fold Fold
Fold Fold
Fold
Fold
BEATSPILL USER GUIDE - xx
196
[7.716]
49.4
[1.945]
27.5
[1.082]
526.5
[20.73]
172.5
[6.791]
49.4
[1.945]
49.4
[1.945]
49.4
[1.945]
154
[6.063]
172.5
[6.791]
FRONT
LANGUAGE PANEL 1
ILLUSTRATED INSTRUCTIONS FRONT
LANGUAGE PANEL 2
Black
FILE NAME:
DIELINE:
PROJECT:
MANAGER:
DESIGNER:
VIEW:
DESIGNER:
AMENDED BY:
REVISION:
ARTWORK INFO:
DIELINE INFO:
REVISION:
1500 Sansome Street, Roundhouse One, San Francisco, CA 94111 | 415.632.1170 | www.ammunitiongroup.com
CLIENT: JOB NO: DATE:
FINISHES:
INKS USED:
CUT
CREASE
BLEED
07/12/2012Beats LLC
Pill_UserGuide_071212.ai
xx
BeatsPill User Guide
Hamish Thain
Katie King Rumford Katie King Rumford
Front Hamish Thain
xxxx
01 01
CLIENT REF:
N/A
:05
Power Adapter Output Rating: 5Vdc, 2.1A

Navigation menu
