Beckwith Electric M2911 DSS Universal Data Transceiver User Manual M 2911 SP 00

Beckwith Electric Co., Inc. DSS Universal Data Transceiver M 2911 SP 00

Contents

users manual

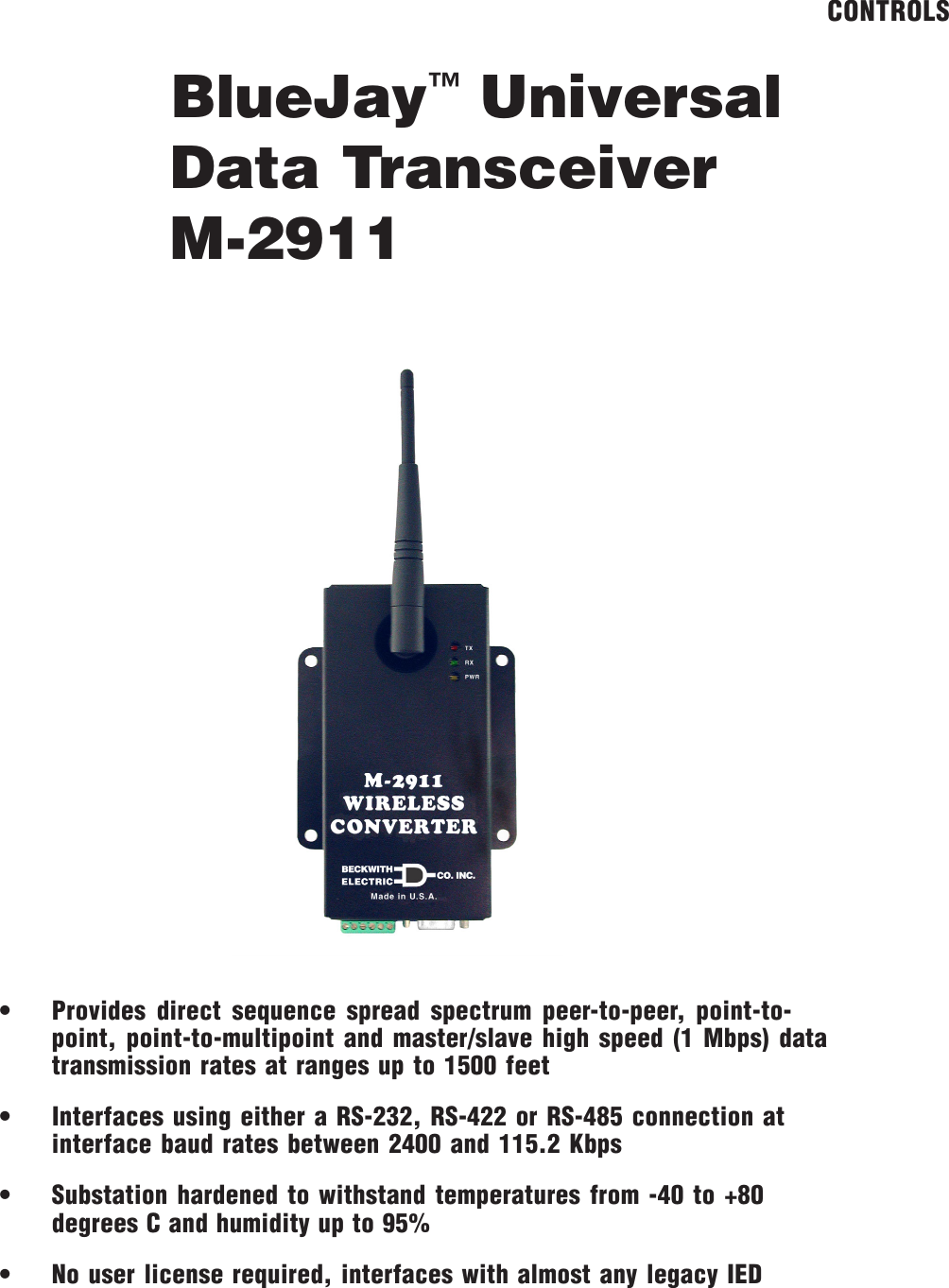

BlueJay™ UniversalData TransceiverM-2911CONTROLS• Provides direct sequence spread spectrum peer-to-peer, point-to-point, point-to-multipoint and master/slave high speed (1 Mbps) datatransmission rates at ranges up to 1500 feet• Interfaces using either a RS-232, RS-422 or RS-485 connection atinterface baud rates between 2400 and 115.2 Kbps• Substation hardened to withstand temperatures from -40 to +80degrees C and humidity up to 95%• No user license required, interfaces with almost any legacy IED

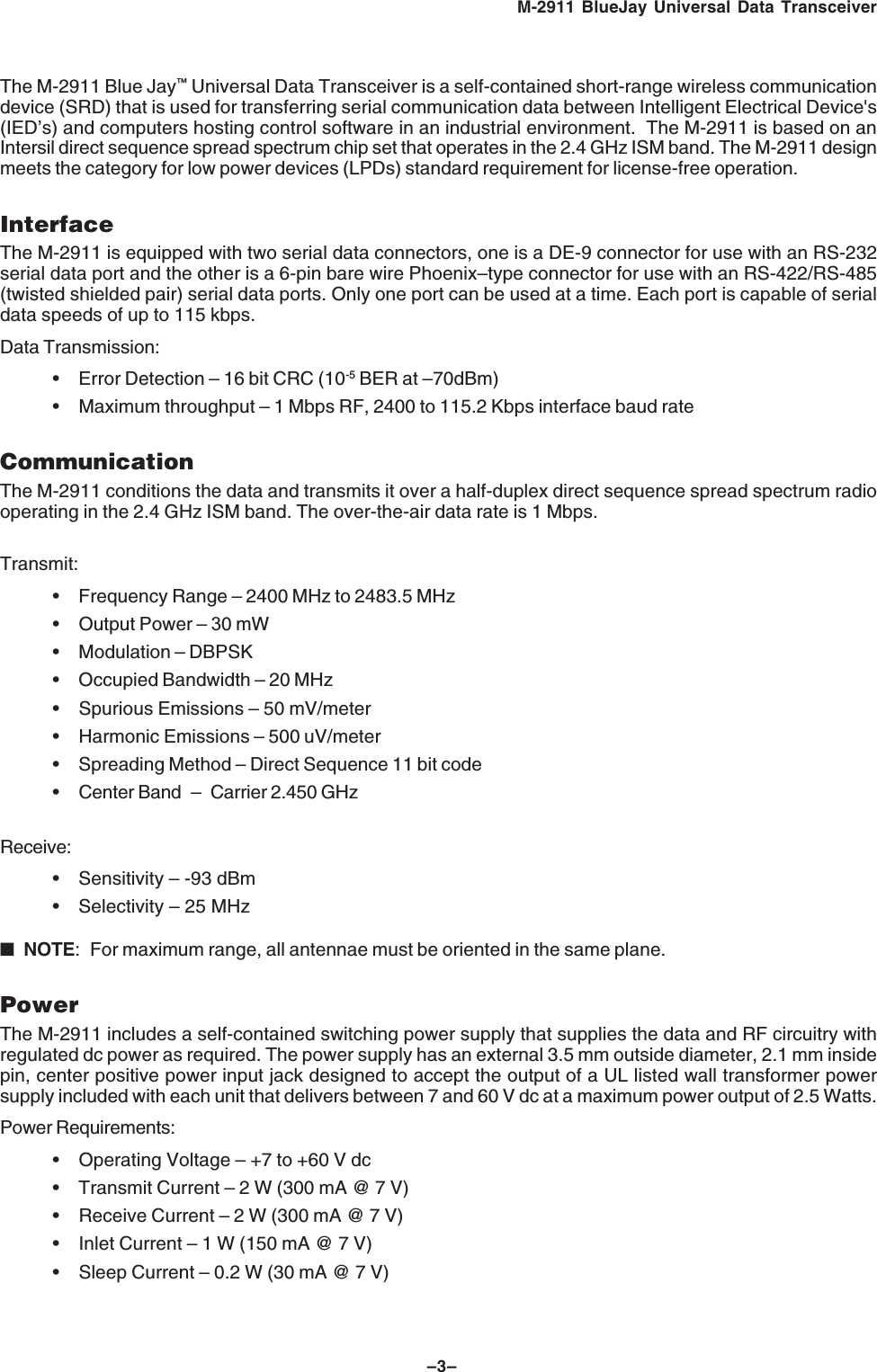

–3–M-2911 BlueJay Universal Data TransceiverThe M-2911 Blue Jay™ Universal Data Transceiver is a self-contained short-range wireless communicationdevice (SRD) that is used for transferring serial communication data between Intelligent Electrical Device's(IED’s) and computers hosting control software in an industrial environment. The M-2911 is based on anIntersil direct sequence spread spectrum chip set that operates in the 2.4 GHz ISM band. The M-2911 designmeets the category for low power devices (LPDs) standard requirement for license-free operation.InterfaceThe M-2911 is equipped with two serial data connectors, one is a DE-9 connector for use with an RS-232serial data port and the other is a 6-pin bare wire Phoenix–type connector for use with an RS-422/RS-485(twisted shielded pair) serial data ports. Only one port can be used at a time. Each port is capable of serialdata speeds of up to 115 kbps.Data Transmission:• Error Detection – 16 bit CRC (10-5 BER at –70dBm)• Maximum throughput – 1 Mbps RF, 2400 to 115.2 Kbps interface baud rateCommunicationThe M-2911 conditions the data and transmits it over a half-duplex direct sequence spread spectrum radiooperating in the 2.4 GHz ISM band. The over-the-air data rate is 1 Mbps. Transmit:• Frequency Range – 2400 MHz to 2483.5 MHz• Output Power – 30 mW• Modulation – DBPSK• Occupied Bandwidth – 20 MHz• Spurious Emissions – 50 mV/meter• Harmonic Emissions – 500 uV/meter• Spreading Method – Direct Sequence 11 bit code• Center Band – Carrier 2.450 GHzReceive:• Sensitivity – -93 dBm• Selectivity – 25 MHz■NOTE: For maximum range, all antennae must be oriented in the same plane.PowerThe M-2911 includes a self-contained switching power supply that supplies the data and RF circuitry withregulated dc power as required. The power supply has an external 3.5 mm outside diameter, 2.1 mm insidepin, center positive power input jack designed to accept the output of a UL listed wall transformer powersupply included with each unit that delivers between 7 and 60 V dc at a maximum power output of 2.5 Watts.Power Requirements:• Operating Voltage – +7 to +60 V dc• Transmit Current – 2 W (300 mA @ 7 V)• Receive Current – 2 W (300 mA @ 7 V)• Inlet Current – 1 W (150 mA @ 7 V)• Sleep Current – 0.2 W (30 mA @ 7 V)
M-2911 BlueJay Universal Data Transceiver–4–ConfigurationThe M-2911 is configurable with the following parameters:• Unit (Transmit/Receive) Address: 1 to 250• Destination (Transmit): 1 to 255• Multicast (Receive) Address: 251 to 254• Baud Rate: Selectable from 2400 to 115,200• Parity: Even/Odd/No Parity• Transmit Retry: 0 to 9 times• Interface: RS-232/RS-422/RS-485• RS-232 RTS/CTS: FIXED/AUTO/FLOW-THRU• RS-422/485 Tx:Gating: 0 to 10 charactersLead Time: 0 to 10 mSHold Time: 0 to 10 mS• Intercharacter Timeout: 1 to 10 character times/1 to 100 mS• Maximum Packet Size: 1 to 60 charactersConfiguring the M-2911To configure the M-2911, the unit must be put in the AT-Command Mode. To put the unit in AT-CommandMode:1. Connect the unit (using an RS-232 cable) to a PC or laptop computer running a terminal emulatorprogram (such as Microsoft HyperTerminal) set to 9600 bps, No Parity, One Stop Bit.2. Apply power to the unit.3. After 1–2 seconds, type "+++", and pause for 1 second or more. The M-2911 will enterAT-Command Mode and respond with "OK". The user can then enter any of the AT Commandslisted below.■NOTE: After each command, the unit will return "OK" if the command was valid, or "???" if invalid or out-of-range.AT CommandsUnit (Transmit/Receive) Address Configuration: ATS=nnn<ENTER>, where nnn is 1 to 250Destination (Transmit) Address Configuration: ATD=nnn<ENTER>, where nnn is 1 to 255Multicast (Receive) Address Configuration: ATM=nnn<ENTER>, where nnn is 251 to 254Baud Rate Select: ATB=nnnnnn<ENTER>, where nnnnnn is 2400, 4800, 9600, 19200, 38400, 76800, or115200Parity Select: ATP=x, where x is E for Even Parity, O for Odd Parity, or N for No ParityTransmit Retries Configuration: ATR=n<ENTER>, where nn is 0 to 9Interface Selection: RS-232, RS-422, or RS-485ATI=RS232<ENTER>ATI=RS422<ENTER>ATI=RS485<ENTER>RS-232 RST Configuration:ATI=RTSx<ENTER>, where x is 0 for Low, 1 for High, F for Flow-ThruATI=CTSx<ENTER>, where x is 0 for Ignore, 1 for Obey, F for Flow-Thru

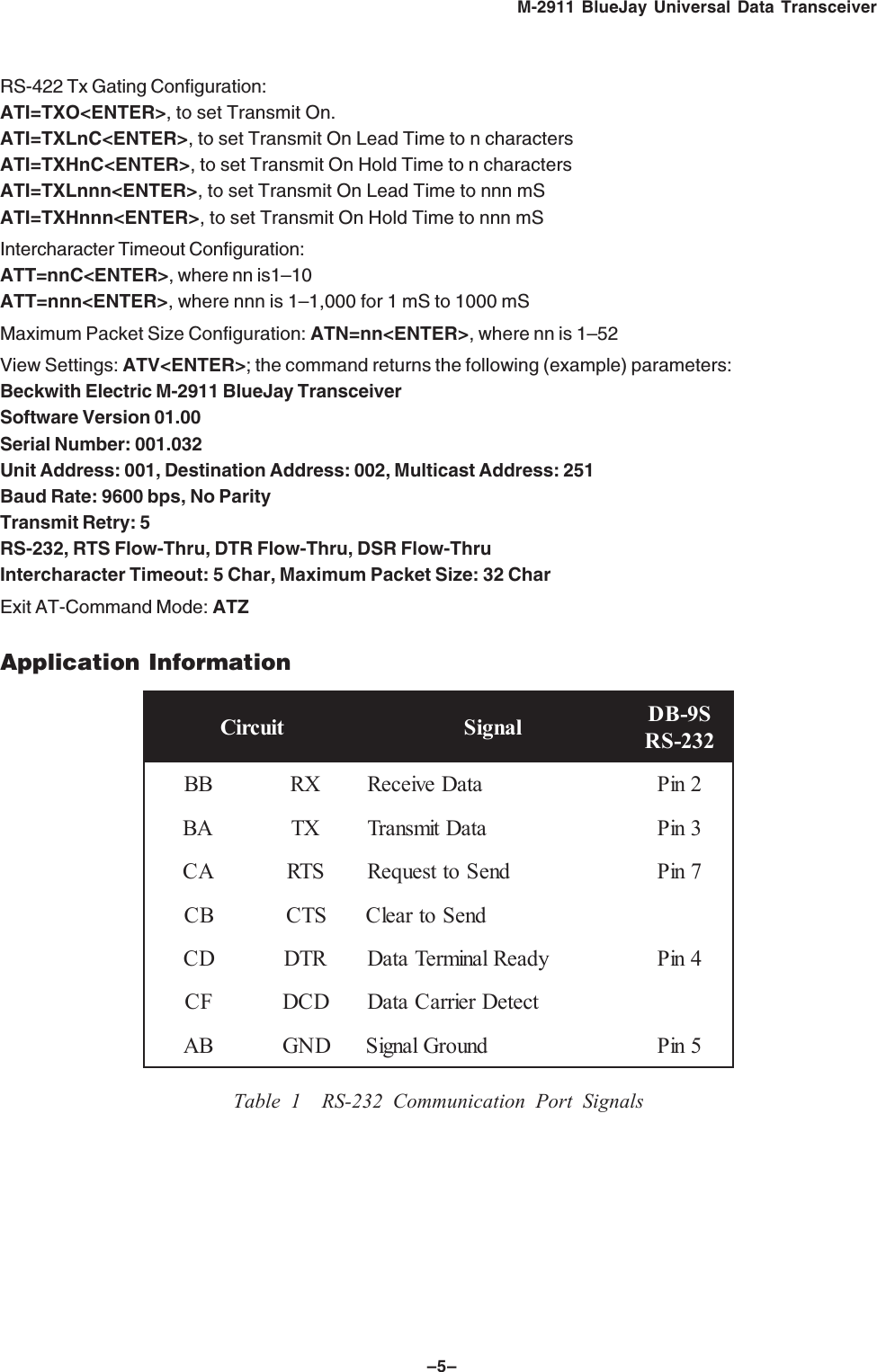

–5–M-2911 BlueJay Universal Data TransceiverRS-422 Tx Gating Configuration:ATI=TXO<ENTER>, to set Transmit On.ATI=TXLnC<ENTER>, to set Transmit On Lead Time to n charactersATI=TXHnC<ENTER>, to set Transmit On Hold Time to n charactersATI=TXLnnn<ENTER>, to set Transmit On Lead Time to nnn mSATI=TXHnnn<ENTER>, to set Transmit On Hold Time to nnn mSIntercharacter Timeout Configuration:ATT=nnC<ENTER>, where nn is1–10ATT=nnn<ENTER>, where nnn is 1–1,000 for 1 mS to 1000 mSMaximum Packet Size Configuration: ATN=nn<ENTER>, where nn is 1–52View Settings: ATV<ENTER>; the command returns the following (example) parameters:Beckwith Electric M-2911 BlueJay TransceiverSoftware Version 01.00Serial Number: 001.032Unit Address: 001, Destination Address: 002, Multicast Address: 251Baud Rate: 9600 bps, No ParityTransmit Retry: 5RS-232, RTS Flow-Thru, DTR Flow-Thru, DSR Flow-ThruIntercharacter Timeout: 5 Char, Maximum Packet Size: 32 CharExit AT-Command Mode: ATZApplication InformationtiucriC langiS S9-BD232-SRBBXRataDevieceR2niPABXTataDtimsnarT3niPACSTRdneSottseuqeR7niPBCSTCdneSotraelCDCRTDydaeRlanimreTataD4niPFCDCDtceteDreirraCataDBADNGdnuorGlangiS5niPTable 1 RS-232 Communication Port Signals
M-2911 BlueJay Universal Data Transceiver–6–RS-232 Communication123456789123456789RXTXSGNDRTSCTSRXTXSGNDRTSCTSM-2911DB9SPCDB9PFigure 1 RS-232 Pin-outRS-232 is point-to-point (four wires plus shield) from M-2911 to one IED.RS-422 Communication123456SGNDD-D+D-D+SGNDM-29116 Pin TerminalBlock P1RS-422Connection123456SGNDD-D+D-D+SGNDShielded Twisted PairRXTXTXRXFigure 2 RS-422 Pin-out

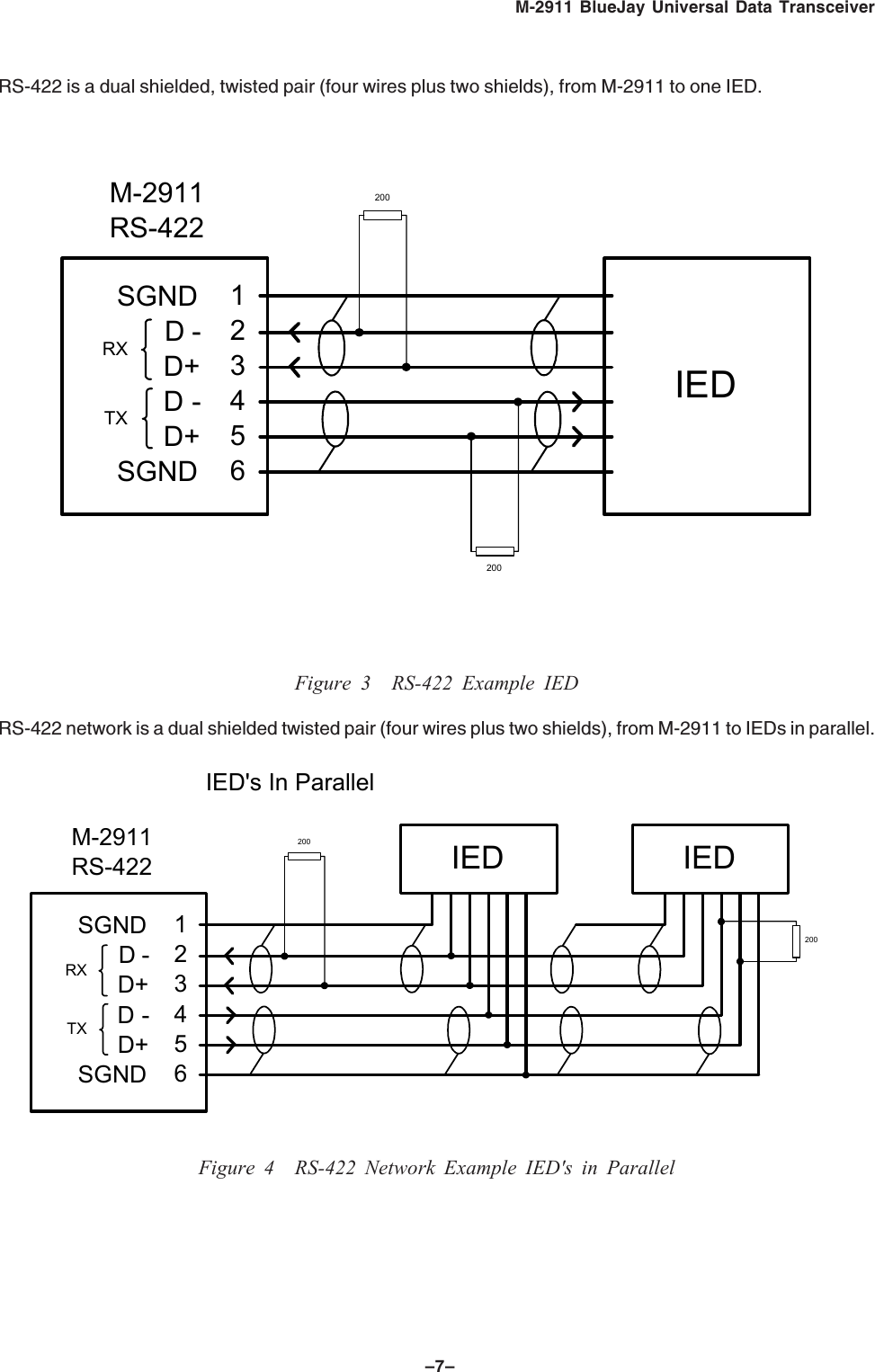

–7–M-2911 BlueJay Universal Data TransceiverRS-422 is a dual shielded, twisted pair (four wires plus two shields), from M-2911 to one IED.123456SGNDD-D+D-D+SGNDM-2911RS-422RXTXIED200 200 Figure 3 RS-422 Example IEDRS-422 network is a dual shielded twisted pair (four wires plus two shields), from M-2911 to IEDs in parallel.123456SGNDD-D+D-D+SGNDM-2911RS-422RXTX200 200 IED's In ParallelIEDIEDFigure 4 RS-422 Network Example IED's in Parallel

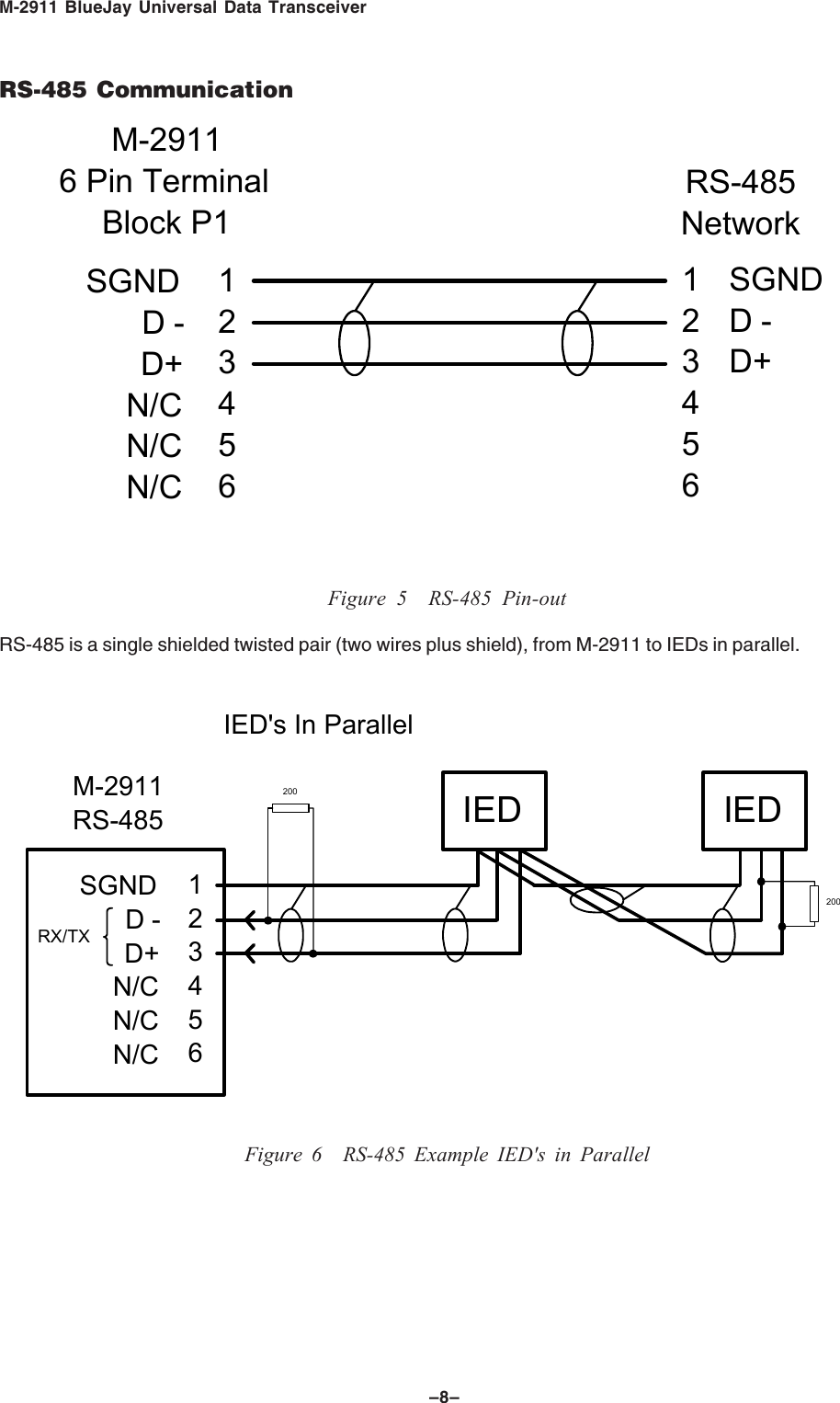

M-2911 BlueJay Universal Data Transceiver–8–RS-485 Communication123456SGNDD-D+N/CN/CN/CM-29116 Pin TerminalBlock P1RS-485Network123456SGNDD-D+Figure 5 RS-485 Pin-outRS-485 is a single shielded twisted pair (two wires plus shield), from M-2911 to IEDs in parallel.123456SGNDD-D+N/CN/CN/CM-2911RS-485RX/TX200 200 IED's In ParallelIEDIEDFigure 6 RS-485 Example IED's in Parallel

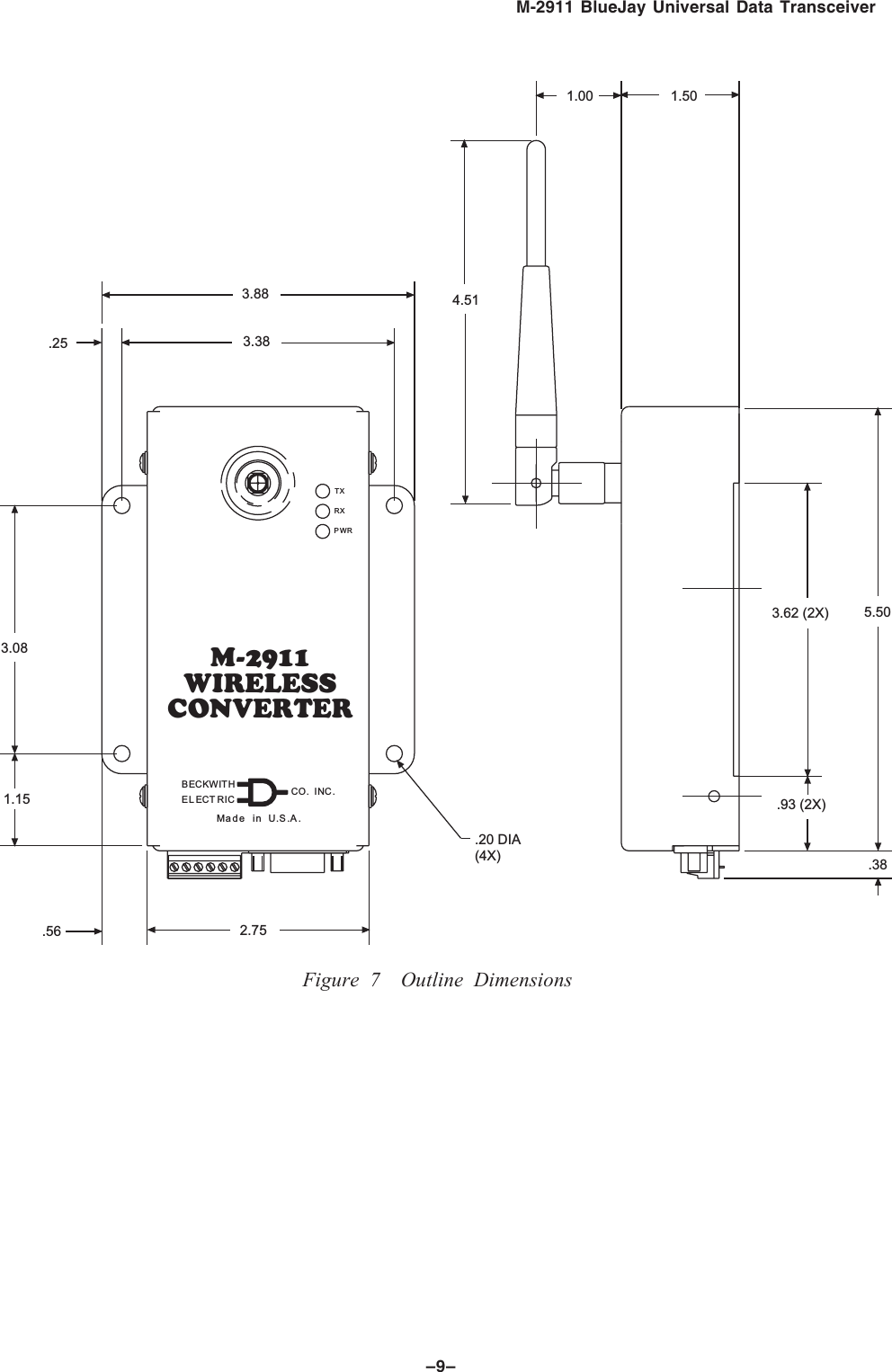

–9–M-2911 BlueJay Universal Data TransceiverM-2911WIRELESSCONVERTERMade in U.S.A..25PWRRXTX1.152.753.083.383.88.93 (2X).381.003.62 (2X) 5.501.504.51.56.20 DIA(4X)CO. INC.ELECT RICBECKWITHFigure 7 Outline Dimensions

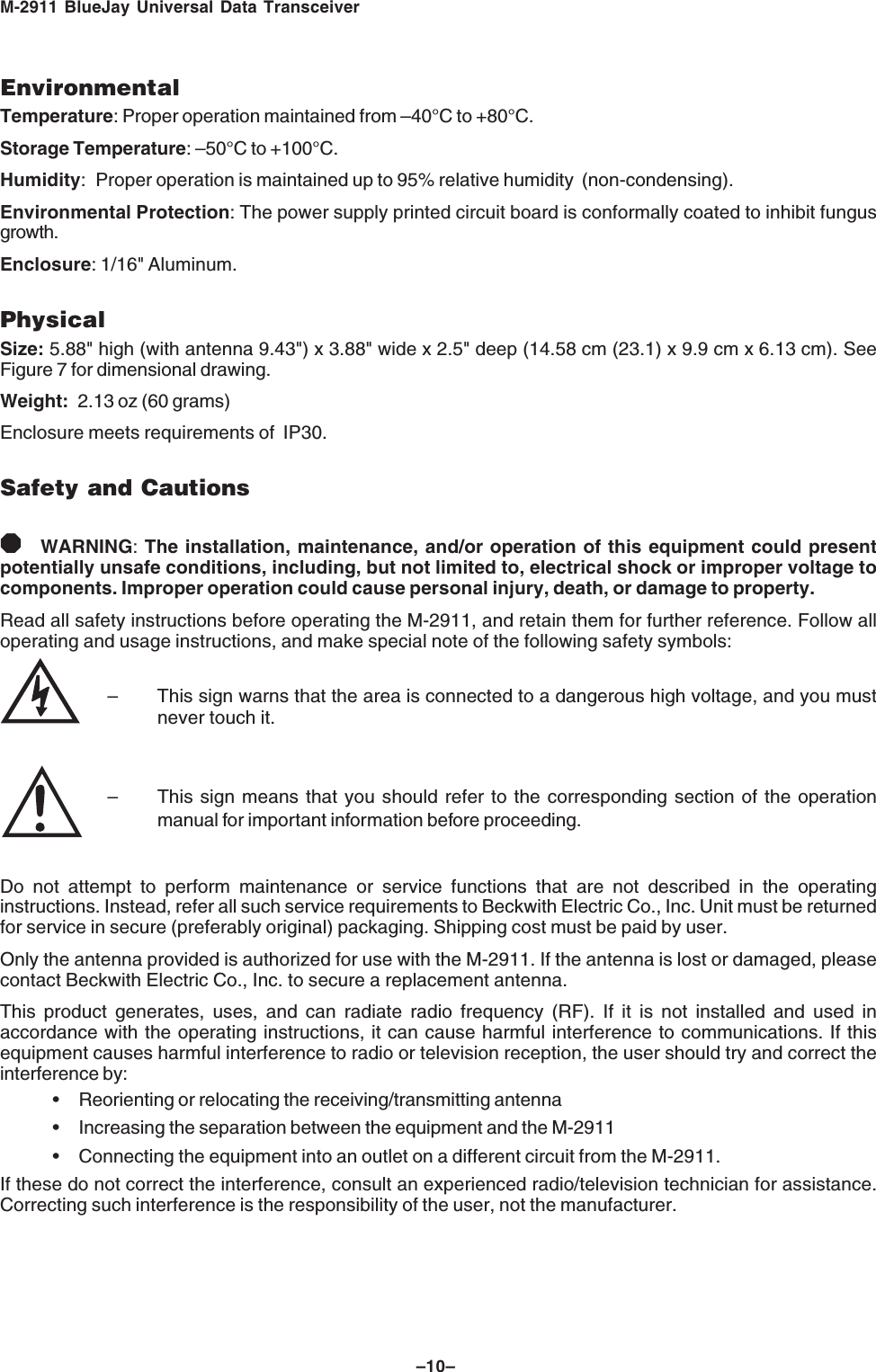

M-2911 BlueJay Universal Data Transceiver–10–EnvironmentalTemperature: Proper operation maintained from –40°C to +80°C.Storage Temperature: –50°C to +100°C.Humidity: Proper operation is maintained up to 95% relative humidity (non-condensing).Environmental Protection: The power supply printed circuit board is conformally coated to inhibit fungusgrowth.Enclosure: 1/16" Aluminum.PhysicalSize: 5.88" high (with antenna 9.43") x 3.88" wide x 2.5" deep (14.58 cm (23.1) x 9.9 cm x 6.13 cm). SeeFigure 7 for dimensional drawing.Weight: 2.13 oz (60 grams)Enclosure meets requirements of IP30.Safety and Cautions8WARNING: The installation, maintenance, and/or operation of this equipment could presentpotentially unsafe conditions, including, but not limited to, electrical shock or improper voltage tocomponents. Improper operation could cause personal injury, death, or damage to property.Read all safety instructions before operating the M-2911, and retain them for further reference. Follow alloperating and usage instructions, and make special note of the following safety symbols:– This sign warns that the area is connected to a dangerous high voltage, and you mustnever touch it.– This sign means that you should refer to the corresponding section of the operationmanual for important information before proceeding.Do not attempt to perform maintenance or service functions that are not described in the operatinginstructions. Instead, refer all such service requirements to Beckwith Electric Co., Inc. Unit must be returnedfor service in secure (preferably original) packaging. Shipping cost must be paid by user.Only the antenna provided is authorized for use with the M-2911. If the antenna is lost or damaged, pleasecontact Beckwith Electric Co., Inc. to secure a replacement antenna.This product generates, uses, and can radiate radio frequency (RF). If it is not installed and used inaccordance with the operating instructions, it can cause harmful interference to communications. If thisequipment causes harmful interference to radio or television reception, the user should try and correct theinterference by:• Reorienting or relocating the receiving/transmitting antenna• Increasing the separation between the equipment and the M-2911• Connecting the equipment into an outlet on a different circuit from the M-2911.If these do not correct the interference, consult an experienced radio/television technician for assistance.Correcting such interference is the responsibility of the user, not the manufacturer.

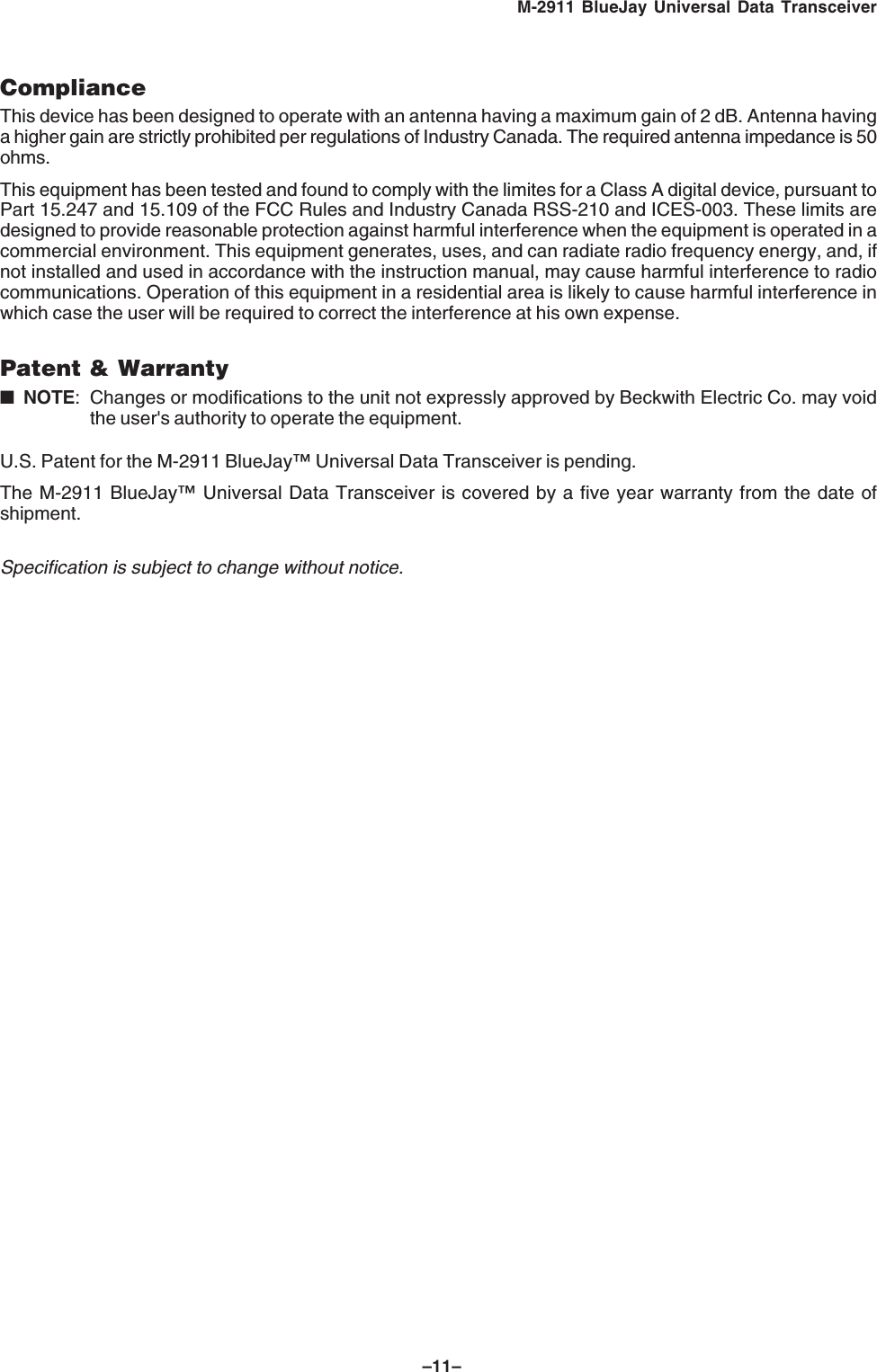

–11–M-2911 BlueJay Universal Data TransceiverComplianceThis device has been designed to operate with an antenna having a maximum gain of 2 dB. Antenna havinga higher gain are strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50ohms.This equipment has been tested and found to comply with the limites for a Class A digital device, pursuant toPart 15.247 and 15.109 of the FCC Rules and Industry Canada RSS-210 and ICES-003. These limits aredesigned to provide reasonable protection against harmful interference when the equipment is operated in acommercial environment. This equipment generates, uses, and can radiate radio frequency energy, and, ifnot installed and used in accordance with the instruction manual, may cause harmful interference to radiocommunications. Operation of this equipment in a residential area is likely to cause harmful interference inwhich case the user will be required to correct the interference at his own expense.Patent & Warranty■NOTE: Changes or modifications to the unit not expressly approved by Beckwith Electric Co. may voidthe user's authority to operate the equipment.U.S. Patent for the M-2911 BlueJay™ Universal Data Transceiver is pending.The M-2911 BlueJay™ Universal Data Transceiver is covered by a five year warranty from the date ofshipment.Specification is subject to change without notice.

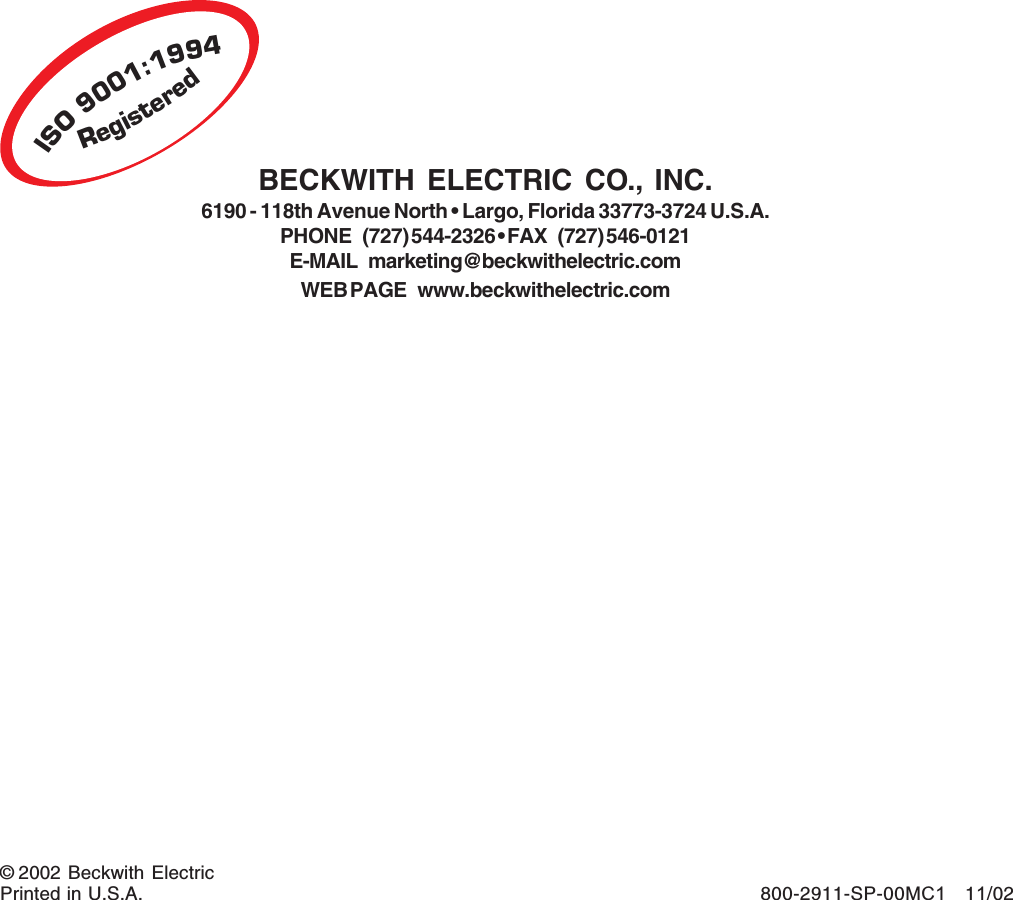

ISO9001:1994Registered800-2911-SP-00MC1 11/02© 2002 Beckwith ElectricPrinted in U.S.A. (08.30.02)BECKWITH ELECTRIC CO., INC.6190 - 118th Avenue North • Largo, Florida 33773-3724 U.S.A.PHONE (727) 544-2326 • FAX (727) 546-0121E-MAIL marketing@beckwithelectric.comWEB PAGE www.beckwithelectric.com
