User Manual

Wireless Office Desktop

Manual

Article No.: 40620

http://www.typhoonline.com/

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices

Important Information

Battery Installation

When battery power gets too low, please change keyboard or mouse

batteries according to following instructions:

1. Open the battery compartment cover on the bottom of the

keyboard and mouse.

2. Follow the indication inside to place in keyboard and mouse

batteries.

3. Place the battery compartment cover back and proceed with ID

setting of the devices.

Important:

 We recommend using alkaline batteries for a longer battery life.

 Always change batteries when battery low icon appears.

 Install keyboard and mouse driver first to ensure the battery

power is monitored.

 Don't mix different types of batteries or new and old batteries

together. Always replace old batteries with new and same type

batteries.

 Remove batteries after long periods of non-use. Battery

leakage or corrosion may damage the device quality and cause

danger.

Receiver cable positioning

1. Don't warp receiver cable around monitor or LCD panel

base.

2. Don't intertwine receiver cable with power cables.

3. Don't bundle or bind receiver cable with other signal cables.

4. Don't extend receiver cable unless absolutely necessary,

and let receiver cable run free from other cables.

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices 3

Introduction

Congratulations on your purchase of this wireless RF keyboard and mouse! This keyboard and

mouse will finally free you of the constraints of your desktop by providing a wireless connection

between your keyboard/mouse and your PC. Pass around the keyboard or mouse during

meetings without having to bother about a cable blocking your way or write e-mails and surf the

Internet from the comfort of your living room couch!

This keyboard and mouse kit consists of a keyboard, a mouse and a receiver. The receiver is

connected to your PC through a cable with both a keyboard and mouse connector. The keyboard

and mouse can operate freely within a radius of at least 3.28 feet (about 1 meter) from the

receiver, which itself has a maximum range from your PC of around 3.28 feet (about 1 meter).

Because the keyboard and mouse use radio frequencies to transmit the wireless signal, it has no

constrictions on viewing angles such as with infrared devices like your TV’s remote control, etc.

Besides providing unprecedented freedom of movement when operating the keyboard or mouse,

the kit also offers more extra functionality by introducing dedicated buttons for often used Internet

browser functions. (Please note: The Internet keys work only under Microsoft Internet Explorer

5.0 or later version!).

In order to enjoy your keyboard and mouse to their full potential we recommended you read this

manual carefully prior to installation.

What's in this package

 A Wireless keyboard with palmrest

 A Wireless mouse

 A Receiver

 A Driver CD with Manual

 Batteries (4 pcs of AA alkaline batteries)

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices

System Requirements

 Microsoft Windows 95, Windows 98SE, Windows ME, Windows 2000 or

Windows XP operating system

 Microsoft Internet Explorer 5.0 or later version (for the Internet keys)

 CD-ROM drive (for CD and Video operation)

 Standard sound card (for CD and Video operation)

 Available PS/2 & USB port.

Please refer to table below for the other system requirements for the features.

Operating System

Function Description

Windows 95 / Windows 98 Windows ME / Windows 2000 /

Windows XP

Wireless

Functionality

Available immediately after

hardware installation

Available immediately after

hardware installation

Keyboard Extra

Hotkey Functions

Driver is need for activated these

hotkey functions

Available immediately after

hardware installation (*)

Keyboard Battery

Low Indication

Available immediately after

hardware installation (**)

Available immediately after

hardware installation (**)

Mouse Battery Low

Indication

Available immediately after

hardware installation (**)

Available immediately after

hardware installation (**)

F-Lock Key

Function

Driver is need for activated these

hotkey functions (***)

Driver is need for activated these

hotkey functions (***)

(*): Driver is still needed for Word, Excel, and PowerPoint.

(**)

1. The flashing LED on receiver or under mouse scroll wheel shows keyboard or mouse battery

low indication.

2. After the driver installed, there will be a battery low icon or appears on Windows system

tray besides KeyMaestro Driver icon .

(***):

After the driver is installed, the default status of F-Lock Key is disabled when you plug the

receiver connector into your PC. Press it again to make the Enhanced Function (F1-F12) keys

start Office functions. Please refer to P.9 for more information.

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices 5

Hardware Installation

 Connecting and Battery Information

 For USB Model:

Just directly plug the receiver’s USB connector into PC USB port.

 For Combo Model:

1. Please turn off your PC system.

2. Firstly, connect the keyboard adaptor (USB to PS/2) with the receiver USB

connector.

3. Plug in the receiver’s PS/2 mouse connector (green) into the mouse port of your

PC and the PS/2 keyboard connector into the keyboard port.

Mouse PS/2 Connecto

Keyboard USB to PS/2

Connector + USB Connector

Front View of USB Connector

board USB to PS/2 adaptor

USB Connector

Mouse PS/2 adaptor

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices

4. Take the keyboard and make sure the batteries on the back are installed correctly.

(Follow the polarity signs in the battery compartment.)

5. Take the mouse and make sure the batteries on the back are installed correctly.

(Follow the polarity signs in the battery compartment.)

6. Turn on your PC, and PC system would auto-detective this RF keyboard kit.

Remarks:

1. Both the keyboard and mouse use 2pcs standard UM-3 (AA) 1.5V alkaline batteries.

2. Keyboard battery life is about 2-3 months, and mouse battery life is about 1-1.5

months, depending on the intensity of usage.

3. Make sure the receiver is placed in a location relatively free of strong electromagnetic

or transmission sources in order to ensure optimal reception of the keyboard and

mouse signal.

 Detachable Palmrest

At your discretion, you may choose to connect the palmrest with keyboard.

Detach the palmrest from up to down (↓) direction, when the palmrest is set, a click sound

would be heard.

Bottom View of Keyboard

Bottom View of Mouse

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices 7

 ID Setting

This wireless optical mouse contains 256 sets ID. The ID-recognition function helps to

protect against interference from other RF products in the same environment. Remember to

reset ID when other RF products affect your keyboard kit.

 The ID button (with Typhoon Logo) locates on the top of the receiver with a LED

under to show the connecting condition.

 The mouse should be able to work after you first install it. If it can’t work, please follow

the steps below to process ID setting of this mouse.

1. Firstly, press the ID button on the bottom of the mouse once.

2. Next, press the ID button on the top of the receiver once.

ID Button on Receiver

(With a LED under)

Mouse ID button

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices

3. Then press the ID button on the bottom of the keyboard once.

Note: The whole procedure should be complete within 25 seconds.

Remarks:

1. Please choose only USB or PS/2 system to install your RF keyboard kit, do not mix USB

and PS/2 port under the same system, or it may cause harm to your keyboard kit or PC

system.

 If you choose USB system, only plug in the USB connector into your PC system.

 If you choose PS/2 system, use the keyboard USB to PS/2 adaptor enclosed in the

package to switch the USB port to keyboard PS/2 port.

2. You must follow the procedure above to set the ID. Once the receiver ID button is

pressed you have 25 seconds to complete the entire process, or you will need to begin

again.

3. When the receiver is plugged in, the LED under the receiver ID button will flash. Once the

ID is set, it will remain steadily lit.

4. When changing the batteries of keyboard or mouse, please proceed ID setting (mouse→

receiver or keyboard→receiver) again to ensure the usage of this keyboard kit.

board ID butto

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices 9

Software Installation

 USB Device Driver

The USB device driver is included in Windows system.

When the first time you plug in the USB mouse, the system will automatically detect a new

hardware connected and then bring up "Add New Hardware Wizard" dialogue box. Please

follow the Wizard's USB driver installation steps. Once this installation step is completed the

basic functions of the mouse will work under the operating system.

 KeyMaestro Input Device Driver

1. Insert the CD labeled "KeyMaestro Input Device Driver" into your CD-ROM.

2. Run "SetupKey.exe" in the driver CD.

3. Follow the on-screen instruction to install the driver.

4. The default installation path is set to c:\Program Files\KMaestro. You have the option

to change the install path during setup.

5. The driver icon will show on Windows system tray when the driver is loaded.

 LED Indication

Num Lock: KeyMaestro driver icon will show as when pressing NumLock button.

Caps Lock: KeyMaestro driver icon will show as when pressing CapsLock button.

Scroll Lock: KeyMaestro driver icon will show as when pressing Scroll Lock button.

 Battery Low Indication

 By Hardware:

When the LED under receiver ID button flashes but there is no transmission between

receiver & keyboard or mouse, please check the situation under and change

keyboard or mouse batteries. Please prepare batteries and change them when

keyboard or mouse can’t transmit signals.

1. Mouse battery low:

When both LED indicators under receiver ID button flashes and mouse scroll

wheel flash, means mouse batteries are low.

2. Keyboard battery low:

 When the LED under receiver ID button flashes but the LED under mouse

scroll wheel doesn’t flash, means keyboard batteries are low.

 If the LED under receiver ID button still flashes after changing mouse

batteries, means keyboard batteries are low.

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices

 By Software:

1. When keyboard batteries are low, the battery low icon will show on the

right-bottom corner on the Windows taskbar.

2. When mouse batteries are low, the battery low icon will show on the

right-bottom corner on the Windows taskbar.

Note: After changing new batteries, battery low icon or will disappear.

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices 11

Using the Keyboard

Besides the usual keys, this keyboard also has extra-dedicated keys, which provide multimedia,

Internet, and Office functions.

These hot keys are reprogrammable, except Volume Down / Up and Mute. They can be

configured as a string, a combination key, a web site, an existing file, or a function the driver

pre-defines for you. To reconfigure these keys, click KeyMaestro icon on Windows system tray to

select "Commands in the Menu."

In order to use these keys under Windows® 95 and Windows® 98, it is necessary to have

"KeyMaestro Input Device Driver" installed.

 Hot Key Functions

There is a row of hot keys on the top of keyboard. The functions are described as below:

WWW / Home

To start your Microsoft Internet Explorer 5.0 (or above)

and bring up the homepage you set.

Note: You can select “Tools→Internet Options→

Programs” to change the default settings of Internet

Browser.

WWW Search To gain access to a number of search providers.

WWW Favorites To select a web page from your favorite lists

E-Mail

To open the default program you use for mail.

Note: You can select “Tools→Internet Options→

Programs→Email” to change the default settings of

E-mail system.

Play / Pause Play file in the current track. Press again to pause.

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices

Volume Control To raise or lower the volume

Note: This key can’t be reprogrammable.

Mute Mute or resume sound output

Note: This key can’t be reprogrammable.

Word Opens Microsoft Word.

Note: Driver installation is necessary.

Excel Opens Microsoft Excel.

Note: Driver installation is necessary.

PowerPoint Opens Microsoft PowerPoint.

Note: Driver installation is necessary.

 ACPI Key:

Your keyboard has the power management “Sleep” key. It also can be called ACPI

(Advanced Configuration and Power Interface) key.

As the ACPI key is performed not completely under Windows® 95 and Windows® 98;

KeyMaestro driver provides an option to enable the Sleep key. When the option is enabled,

the driver will take Windows place to process this key.

Sleep

Puts your system into sleep (power-saving) mode.

To make this key function, press it at least 3 seconds.

Any key will wake up your system and return to the previous working

status.

 Enhanced Function Keys Block

Note: To make these enhanced function keys work, KeyMaestro Driver is needed.

Enhanced function keys block consists of 12 embedded Office keys, they share with the

keys of F1~F12 for 12 keys block. Pressing the F-Lock key toggles this dual function

block.

The status of F-Lock Key is shown by KeyMaestro Driver icon .

The KeyMaestro icon would show like when F-Lock Key function is disabled.

The KeyMaestro icon would show like when F-Lock Key function is enabled.

F1: New Creates a new, blank file in program.

Note: In Spanish, Portuguese and Brazil Windows, F2 function is

designed for "Bold".

F2: Reply Replies to the e-mail in Microsoft Outlook or Outlook Express.

F3: Forward Forwards the e-mail in Microsoft Outlook or Outlook Express.

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices 13

F4: Send Sends the e-mail in Microsoft Outlook or Outlook Express.

F5: Undo Reverses the last command or deletes the last entry you typed or

action.

F6: Redo Reverses the action of the Undo command.

F7: Print Prints the file in the active window.

F8: Save Saves the active file with current file name, location and file format.

F9: My Comp Opens “My Computer”.

F10: My Doc Opens “My Document”.

F11: My Pic Opens “My Pictures”.

Note: If “My Pictures” is not supported by your PC system, “Paint”

would popup instead when pressing this key.

F12: My Music Opens “My Music”.

Note: If “My Music” is not supported by your PC system, “Microsoft

Multi Media Player” would popup instead when pressing this key.

Note: Microsoft Windows operating system and applications must support different language

for different countries. It limits the functions of embedded office keys. So, some embedded

functions are only for target language usage. The descriptions of the embedded office keys'

functions are for reference and may not reflect your keyboard exactly.

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices

Mouse Buttons

Besides normal mouse left and right key, this mouse also provides a scroll wheel, the 4th and 5th

key for other features.

 Scroll Wheel: Page up

Page Down Scroll page up or down.

 The 4th Key: Back Return to the last page you

viewed.

 The 5th Key: Forward View the next page you

viewed before.

 Important Information

1. This optical mouse uses light to sense movement. It cannot work on a glass,

translucent, dark color, or reflective surface.

2. Use the mouse only on a clean, flat, non-slippery, and opaque surface in order to

ensure smooth and accurate cursor action.

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices 15

Commands in the Menu

If you right-click on KeyMaestro icon on taskbar, a menu will pop up with the following

commands.

 Configure

Click on this command, a customization dialogue box will pop up with following functions.

1. Select a Hotkey

This function contains the default function of a key. You can click on "Display Label" to

re-define the key functions. When you click it, a Configure Button box will appear.

* Label

In "Button Label" box, type the name of application that the button will launch, or any

name that will help you remember the function of the button. This label will appear on

screen each time you press the button.

* Functions

You can see a list of pre-defined functions and set one of it for the button.

* Launch Application or Website

Type in the path to an often-used application or click the Browse button to select any

file in your computer. If you want to attach a web page to the button, just simply type in

the website address in the dialogue box.

* Combination Key

In many Windows application, there are many hot keys to execute some often-used

commands. Some of the hot keys are combined with two keys pressed simultaneously,

and some are three. It is not easy to press and to remember those hot keys. Now you

can define those complicated hot keys you always forgot. Any kind of combination is

available. For example,

[Alt] + [F4] = close window,

[Ctrl] + [A] = select all.

* String

You may define the button as a string of texts that needs to be input often. The

maximum characters are 500. Taking good advantages of this function can save much

your text input time and makes your works more efficient.

2. Enable Display Label

This command is to show or hide OSD (On Screen Display). When OSD is enabled,

each time you press any one of the multimedia buttons, its function name (button label)

will show on the right-bottom corner on the screen. The default of this function is enabled.

3. Enable Taskbar Icon

This command is to show or hide taskbar driver icon. When the function is enabled, you

can see a driver icon its function name (button label) will show on the right-bottom

corner of the screen. If you want to reload it again, you can select Start => Program =>

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices

Configure to launch it. The default of this function is enabled.

4. Enable Auto Play

This command is to show or hide the auto play function. When the function is enabled,

Microsoft Media Player will show on the screen after you press the “Play” key of the

multimedia keys. For Winamp user, you can use the multimedia keys to control Winamp

function after you call out Winamp and disable Auto play function. The default of this

function is enabled.

 Exit

Select this command to exit from this driver program, but not to remove (uninstall). After

you restart your system, the driver will be loaded again.

In case you have some troubles on installing other programs, we recommend you to exit

this Input Device Driver firstly in order to have a cleaner system environment.

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices 17

Troubleshooting

If you are experiencing problems with your keyboard or mouse please check the following:

1. Make sure the receiver connector is inserted into the right port.

2. Check to see if the batteries in the keyboard and mouse are installed correctly. Make sure

the polarity of the batteries corresponds with the polarity signs in the battery compartment.

3. Replace the batteries on time to make sure the batteries are not low in power. After

replacing the batteries of keyboard or mouse, please also remember to set the ID. There is

no need to reset all the ID’s. Simply reset one of them.

4. Please remember to set the ID when your keyboard kits do not work properly.

5. It is strongly recommended to place the receiver in front of the monitor in order to prevent

signal disturbance from the monitor.

6. If your PC system’s BIOS setup has options for the keyboard or mouse - make sure they are

set to default settings. If you are not familiar with the BIOS, refer to your PC’s manual for

more information.

7. Use the mouse only on a clean, flat, non-slippery surface in order to ensure smooth and

accurate cursor action.

8. Keep all items away from direct sunlight, moisture, dirt, extreme heat and abrasive chemical

(cleaning) solutions.

9. Should the receiver, the keyboard or mouse become accidentally immersed or splashed by

liquids, switch off your PC immediately, unplug all items and refer to your dealer for further

assistance. In these cases please refrain from using any of the items before consulting with

your dealer!

10. The enhance function keys（embedded office keys） do not work

It will give the F1-F12 keys new functions if the F-Lock LED indicator is on. The new

functions can support under Microsoft Office (Microsoft Outlook, Word, Excel, and Power

Point), IE and other newer applications almost. If the new enhance function keys are used

under any older versions or other applications, unexpected results may occur or some

enhance function key will not work at all. However, in the meantime Microsoft recommends

that all software applications should support Microsoft shortcut combination keys. We

recommend using Office2000, XP (2002) and IE5, IE6 or later versions.

Older software applications that do not support enhance function keys（embed office keys）,

for example:

 Applications such as Notepad or WordPad do not include the “Redo” function and

therefore not supported by embed “Redo” key.

 The embedded “Redo” key function cannot support “repeat input text” whilst using

Microsoft Excel on some language versions. It just supports “command Redo” function

(example: repeat redo Add line, row, cut, paste…).

 Special Skill for giving the enhance function keys （embed office keys） optimum

compatibility:

The different “Microsoft Outlook” application version require different shortcut keys to

support, this in case you have found that some enhance function keys do not work in

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices

“Microsoft Outlook”. You should change the setup for “Microsoft Outlook” (mail format)

that will give the enhance function keys optimum compatibility. To change the setup, you

should proceed as follows:

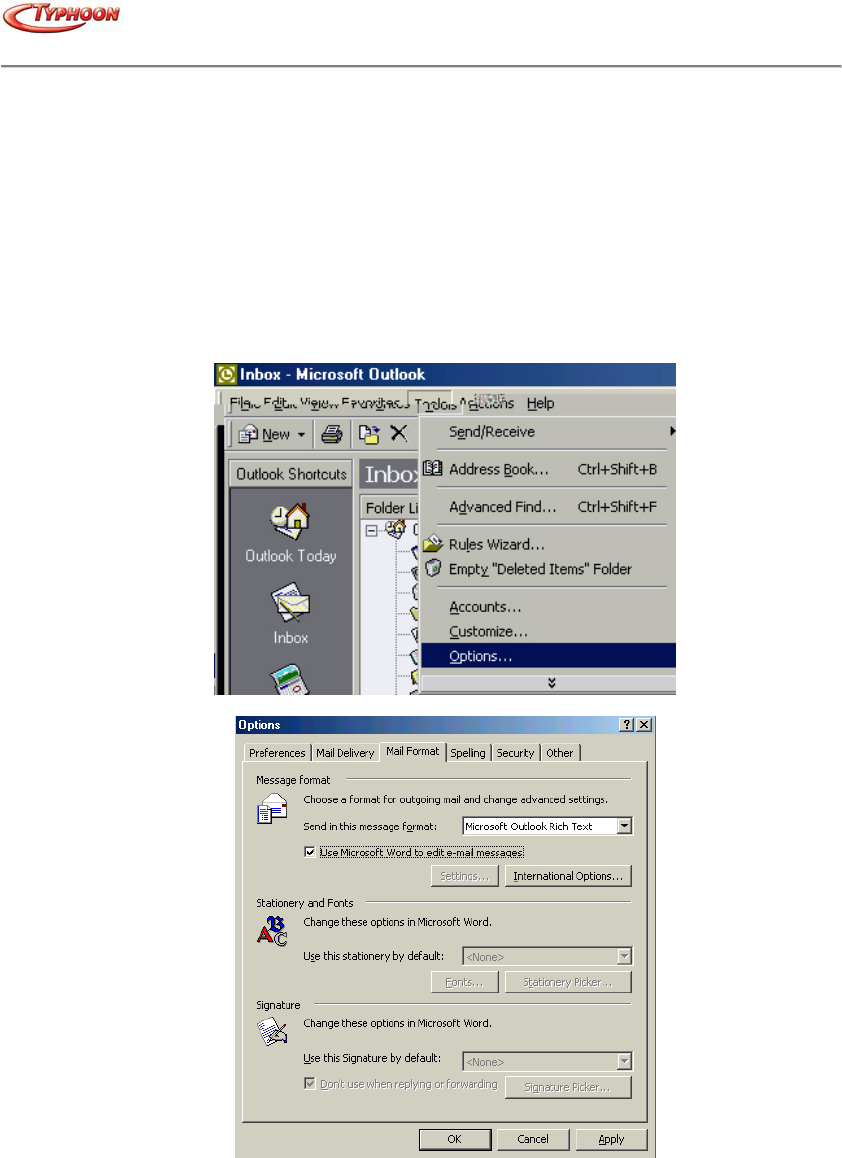

Click “Microsoft Outlook”----“Tools” & “Options” and highlight the menu item “Use

Microsoft Word to edit email messages”. Click “OK” to close the dialog box. The

“Microsoft Outlook2000” setup screen is shown below for reference. (The Microsoft

Outlook2002 default is highlighted already). On testing these enhance function keys

when the setup process is completed; they should be found to function properly. If the

problem cannot be fixed, you should go to Microsoft web site and find the “Microsoft

Office service pack” for an upgrade. Recommend applications are Office2000 or Office

2002 (XP). The Office2000 service pack3 & Office2002 service pack2 have already been

released.

11. The embedded SEND key function does not work

In few case and with some European languages, the SEND key cannot work in “Microsoft

Outlook2000 or Outlook2002” when the Microsoft Outlook menu item “Use Microsoft

Word to edit email messages” is highlighted. To assign the shortcut key for the SEND

function, you should carry out the following steps:

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices 19

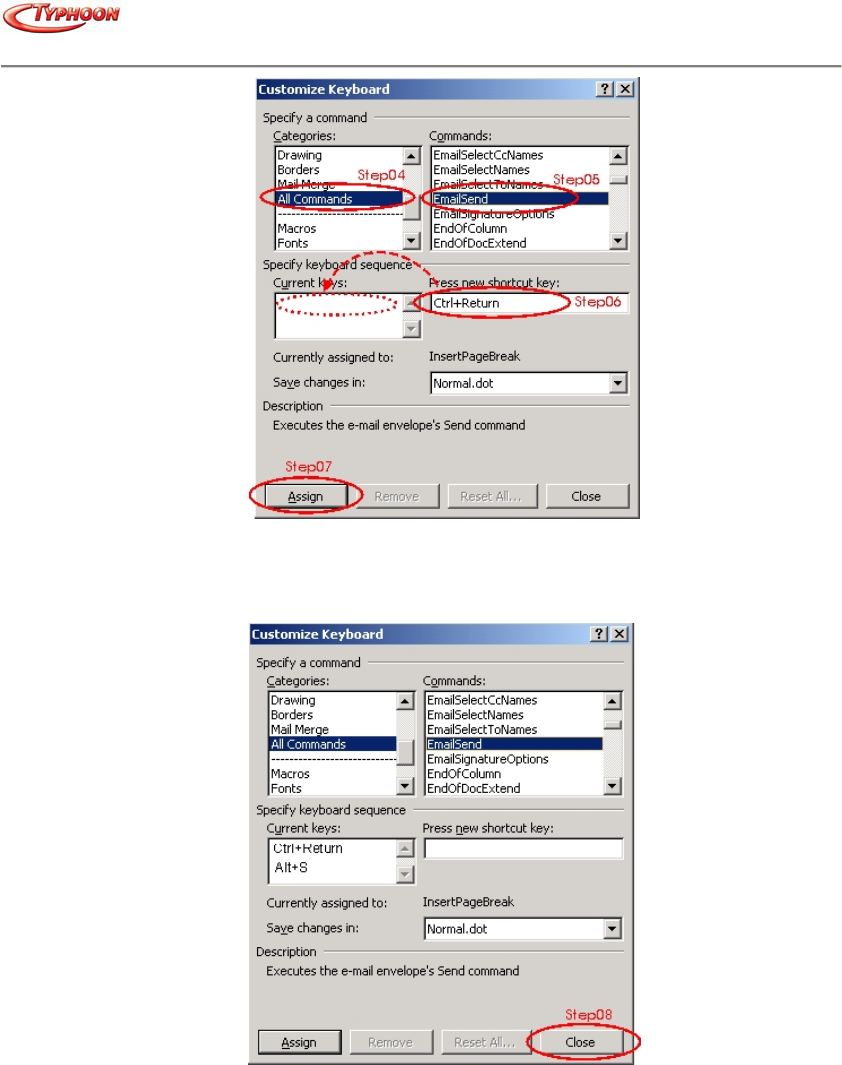

1. Open “Microsoft Word” application and click on “Tools”, “Customize”.

2. Click on “Commands” and “Keyboard”.

3. Select “All Commands” from “Categories” and “EmailSend” from “Commands”.

Click and move cursor to “Press new shortcut key” blank area then Press the SEND

key (the SEND key build on the Keyboard, that is; please make sure Keyboard

office lock indicator is already enabled). You will see the “Ctrl+Return” or “Alt+S”

replace blank area after you press the SEND key. When you click the “Assign” select

item, the “Ctrl+Return” or “Alt+S” will show under “Current keys”.

Typhoon Wireless Office Desktop

Article No.: 40620

All specifications and information are subject to changes without further notices

4. Click on “Close” and “Word” application to complete the setup process. Re-test the

SEND key function under “Microsoft Outlook”；The SEND key function should now be

working properly.

Warning: Please don’t click the “Reset All” select item; or you will lose all shortcut key

functions.

Note: It is the best way of using the SEND key. You should press “Shift+Tab” to let the

cursor jump to “Subject” after completing your email edit, and then press the “SEND”

key. Otherwise the “SEND” sometimes fails to work.

If above troubleshooting suggestions still do not solve your problem then please refer to your

direct dealer for technical support.

FCC GUIDELINES

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

 Use only shielded cables to connect I/O devices to this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, (2) this device must accept any interference received,

including interference that may cause undesired operation.

Information to user:

The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or

modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the

equipment.

Behavior Tech Computer KB9128CRF Wireless Keyboard User Manual

Behavior Tech Computer Corporation Wireless Keyboard

User Manual

Navigation menu

Namespaces

Views

Navigation
