Behringer Macao Commercial Offshore F09131 DIGITAL PIANO User Manual
Behringer Macao Commercial Offshore Limited DIGITAL PIANO Users Manual
Users Manual
ENGLISH
www.behringer.com
A50-A8230-08001
User Manual
CONCERT
CDP2400USB
Enjoy the Sound of a Concert
Grand - Play Straight Away
with Included Piano Learning
Software and USB Interface

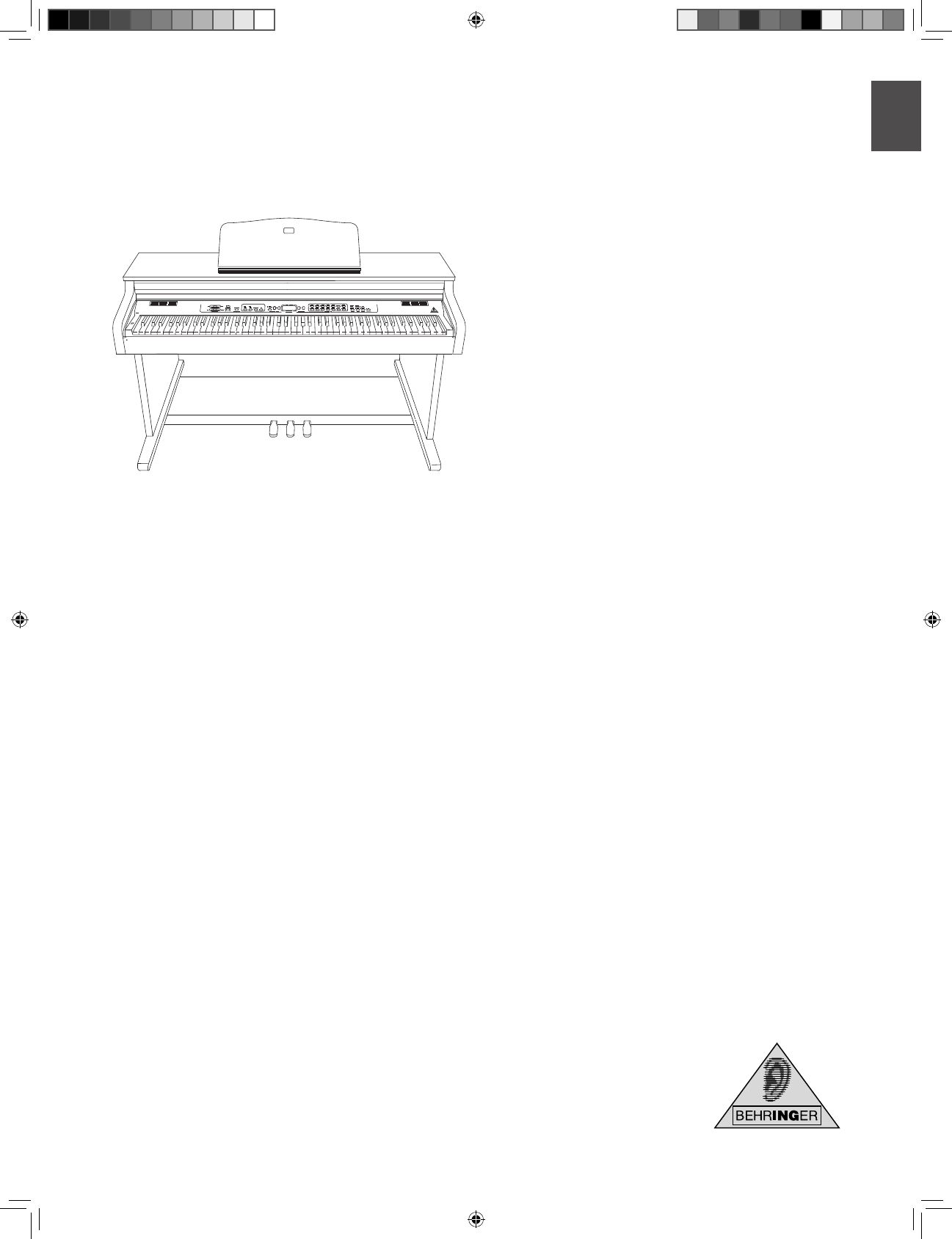

Thank you
Thank you for choosing the CONCERT digital piano from
BEHRINGER. This versatile instrument combines the sound and
feel of an authentic acoustic piano with the fl exibility of modern
technology such as RSM tone generation, digital eff ects and
2 track sequencing. 88 full-size, weighted, hammer-action keys,
elegant fi nish and foot pedals give a professional look and feel for
the home or stage. The addition of USB audio/MIDI connectivity
opens up a whole new world of recording, performing and
podcasting options. The keyboard also comes with a bench, power
cable, USB cable and DVD that contains a bundle of software
such as eMedia Starter Piano and Keyboard Lessons, energyXT2.5
Compact BEHRINGER Edition and numerous podcasting programs.
The CDP2400USB is the ideal piano for home or stage use.
Table of Contents
Thank you ..................................................................... 1
Important Safety Instructions ................................... 2
1. Before you get started ........................................... 3
2. Quick Start ............................................................... 3

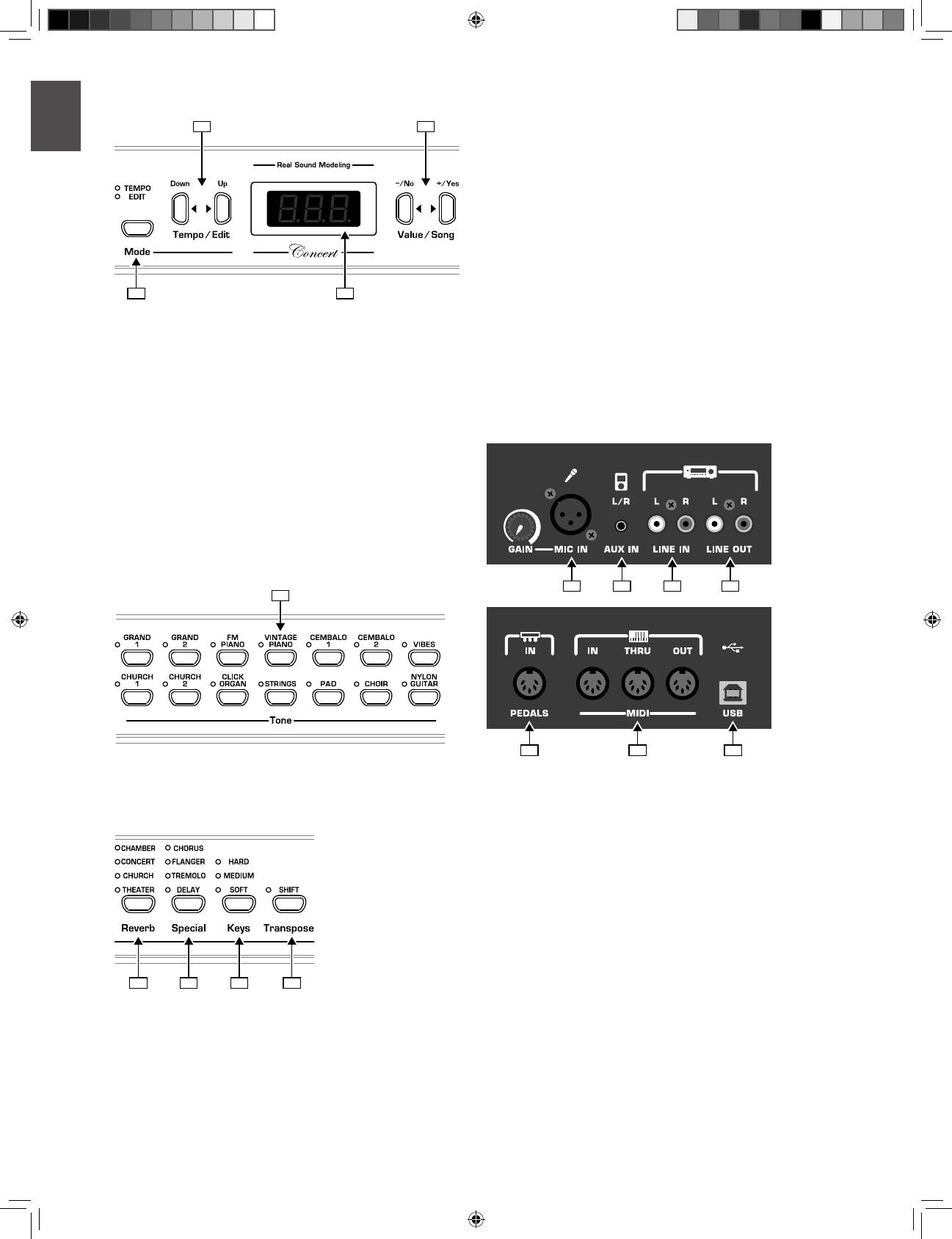

3. Control elements and connections ...................... 5
4. Basic operation ....................................................... 7
5. Advanced operation ............................................. 10
6. Connection to external equipment .................... 20
7. Troubleshooting ................................................... 26
8. Specifi cations ........................................................ 27
9. Appendix ............................................................... 28
Limited Warranty ....................................................... 33
Legal Disclaimer ........................................................ 35
ENGLISH
CONCERT CDP2400USB User Manual
2
Important Safety Instructions
Caution*
This symbol, wherever it appears, alerts you to the presence
of uninsulated dangerous voltage inside the enclosure -
voltage that may be suffi cient to constitute a risk of shock.
Caution*
This symbol, wherever it appears, alerts you to important
operating and maintenance instructions in the
accompanying literature. Please read the manual.
Caution !
To reduce the risk of electric shock, do not remove the top
◊
◊
cover (or the rear section). No user serviceable parts inside.
Refer servicing to qualifi ed personnel.
To reduce the risk of fi re or electric shock, do not expose
◊
◊
this appliance to rain and moisture. The apparatus shall not
be exposed to dripping or splashing liquids and no objects
fi lled with liquids, such as vases, shall be placed on the
apparatus.
These service instructions are for use by qualifi ed service
◊
◊
personnel only. To reduce the risk of electric shock do not
perform any servicing other than that contained in the
operation instructions. Repairs have to be performed by
qualifi ed service personnel.
Caution !
The sound quality may diminish within the range of
◊
◊
powerful broadcasting stations and high-frequency
sources. Increase the distance between the transmitter and
the device and use shielded cables for all connections.
Caution !
Read these instructions.{1}
Keep these instructions.{2}
Heed all warnings.{3}
Follow all instructions.{4}
Do not use this apparatus near water.{5}
Clean only with dry cloth.{6}
Do not block any ventilation openings. Install in accordance with the {7}
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, {8}
or other apparatus (including amplifi ers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A {9}
polarized plug has two blades with one wider than the other. A grounding-
type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fi t into
your outlet, consult an electrician for replacement of the obsolete outlet.
Place the power cord so that it is protected from being walked on and [10]
sharp edges. Be sure that the power cord is protected particularly at plugs,
convenience receptacles and the point where it exits from the apparatus.
The apparatus shall be connected to a MAINS socket outlet with a protective [11]
earthing connection.
Where the MAINS plug or an appliance coupler is used as the disconnect [12]
device, the disconnect device shall remain readily operable.
Only use attachments/accessories specifi ed by the manufacturer.[13]
Use only with the cart, stand, tripod, bracket, or [14]
table specifi ed by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long [15]
periods of time.
Refer all servicing to qualifi ed service personnel. Servicing is required when [16]
the apparatus has been damaged in any way, such as power supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
ENGLISH
CONCERT CDP2400USB User Manual 3
Before you get started1.
Shipment1.1
Your CDP2400USB was carefully packed at the factory, and the
packaging was designed to protect the unit from rough handling.
Nevertheless, we recommend that you carefully examine the
packaging and its contents for any signs of physical damage that
may have occurred during transit.
If the unit is damaged, please do NOT return it to
◊
◊
BEHRINGER. Instead, notify your dealer and the shipping
company immediately. Otherwise, claims for damage or
replacement may not be honored.
Always use the original packing carton to prevent damage
◊
◊
during storage or transport.
Make sure that no children are left unsupervised with the
◊
◊
CDP2400USB or its packaging.
Please ensure proper disposal of all packing materials.
◊
◊
Initial operation1.2
Be sure that there is enough space around the unit for cooling and
please do not place the CDP2400USB on high temperature devices
such as radiators etc. to avoid overheating.
Blown fuses must be replaced by fuses of the same type and
◊
◊
rating! Please refer to the “SPECIFICATIONS” for details.
The mains connection of the CDP2400USB is made by using the
enclosed mains cable and a standard IEC receptacle. It meets all of
the international safety certifi cation requirements.
Please make sure that all units have a proper ground
◊
◊
connection. For your own safety, never remove or disable
the ground conductor from the unit or of the AC power
cord.
The CDP2400USB is an electronic piano. Unlike an acoustic
◊
◊
piano, this instrument does not need to be tuned.
The sound quality may diminish within the range of
◊
◊
powerful broadcasting stations and high-frequency
sources. Increase the distance between the transmitter and
the device and use shielded cables for all connections.
Online registration1.3
Please do remember to register your new BEHRINGER equipment
right after your purchase by visiting http://www.behringer.com
(alternatively www. behringer. de) and kindly read the terms and
conditions of our warranty carefully.
Should your BEHRINGER dealer not be located in your vicinity, you
may contact the BEHRINGER distributor for your country listed
under “Support” at www.behringer.com. Should your country
not be listed, please check if your problem can be dealt with by
our “Online Support” which may also be found under “Support”
at www.behringer.com. Alternatively, please submit an online
warranty claim at www.behringer.com BEFORE returning the
product.
Registering your purchase and equipment with us helps us process
your repair claims quicker and more effi ciently.
Thank you for your cooperation!
Quick Start2.
Power on/off 2.1
The CDP2400USB is a digital, i.e. electronic, piano. Therefore,
mains power is required to operate the instrument and it has to be
switched on or off . The following section describes how to connect
the unit to the mains.
The POWER switch to the left of the keyboard must be in the
◊
◊
“off ” position when you connect the unit to the mains.
FUSE HOLDER / IEC RECEPTACLE
The CDP2400USB is connected to the mains using a standard IEC
receptacle. All required safety regulations have been adhered to. A
matching power cable is included with the unit. Blown fuses must
be replaced with a fuse of the same type and rating.
Connect the power cable supplied with the unit to the 1)
connector provided on the underside of the instrument and
to a wall socket
Press the POWER switch to the left of the keyboard to switch 2)
the instrument on or off . The LED on the front panel lights up
when the CDP2400USB is ready for operation.
After playing, switch off the unit with the POWER switch.
◊
◊
The POWER LED on the front panel will go out. Please note:
Merely switching the unit off does not mean that it is fully
disconnected from the mains. If you do not plan to use your
piano for a prolonged period of time, please disconnect it
from the mains by unplugging the power cable from the
wall outlet.
ENGLISH
CONCERT CDP2400USB User Manual
4

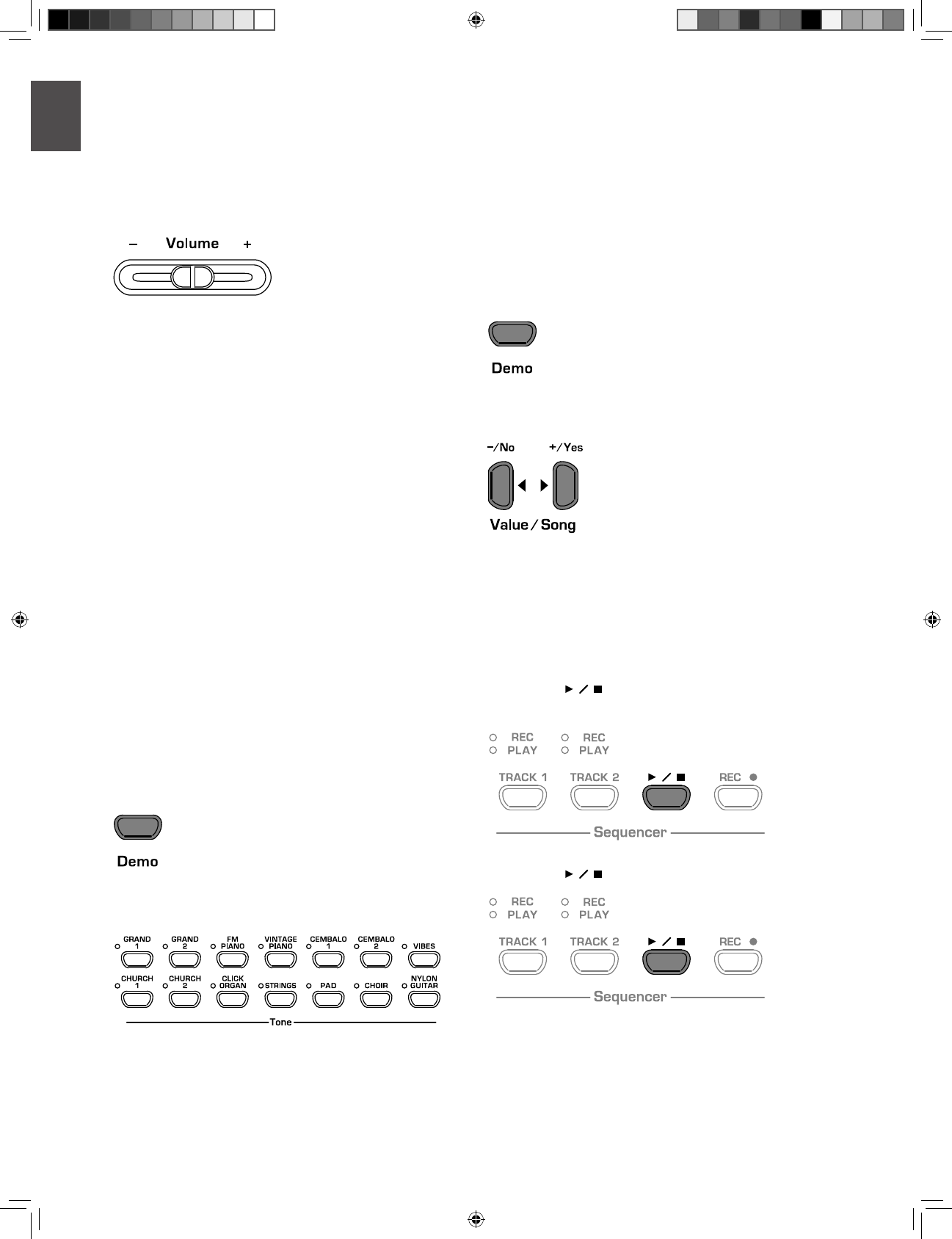

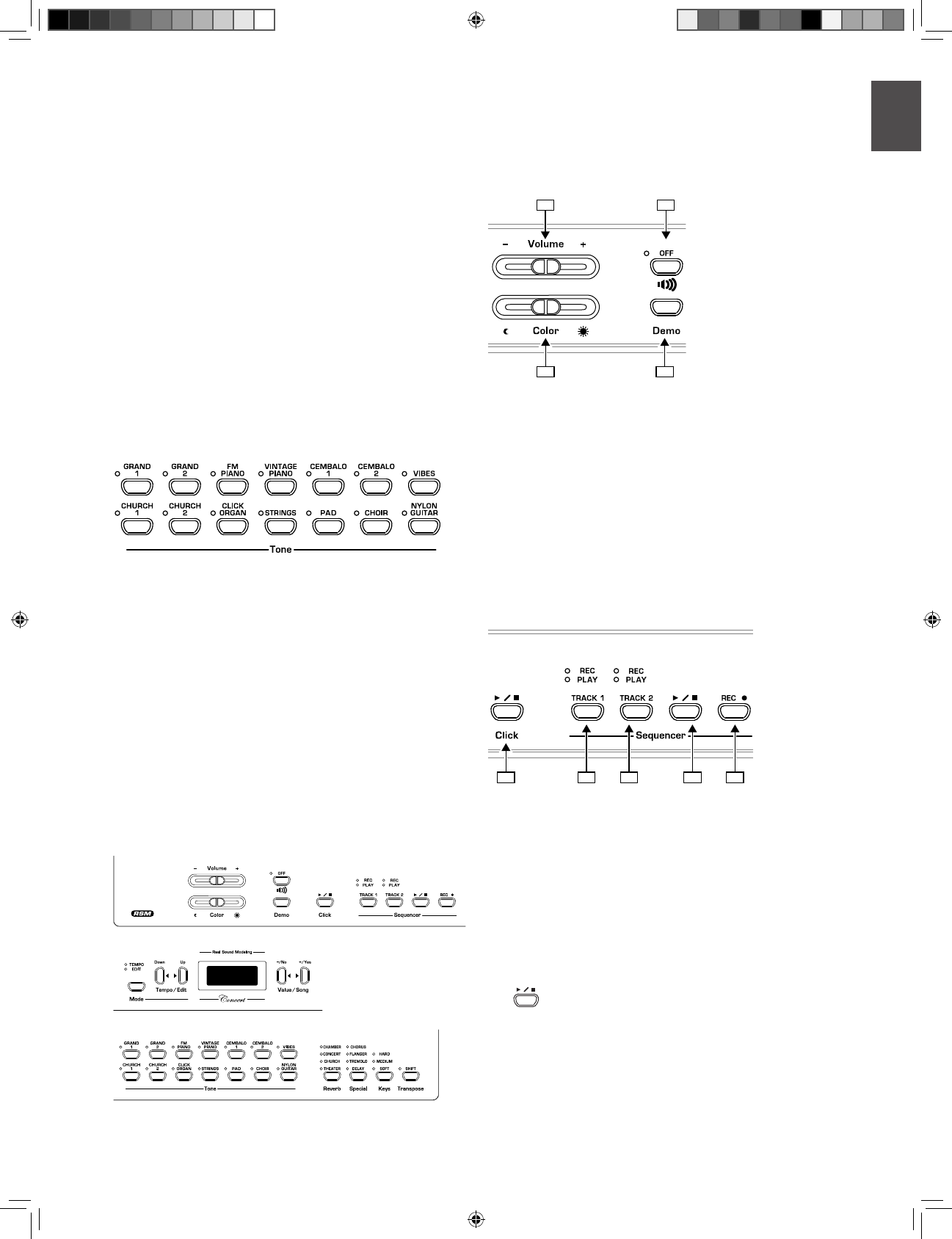

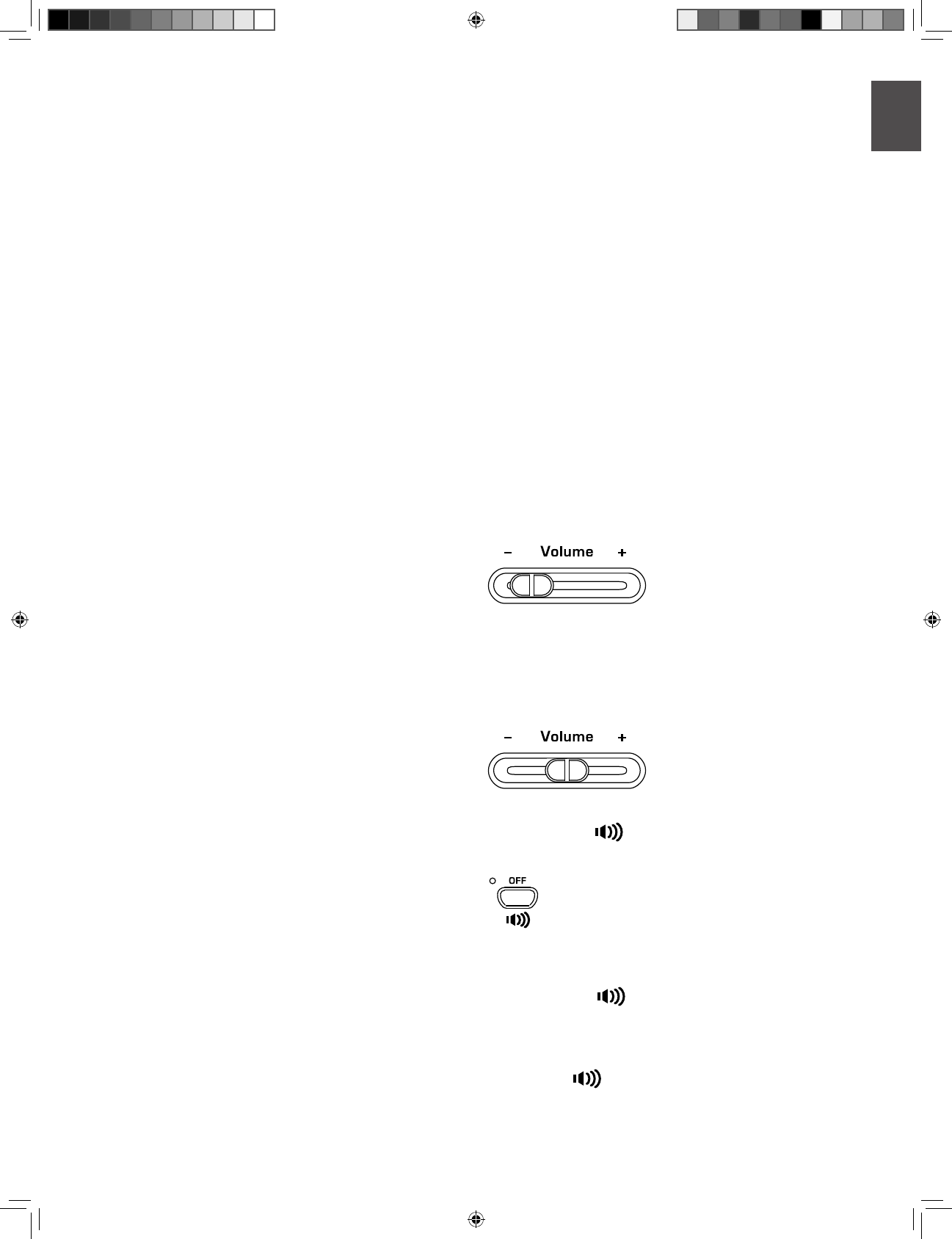

Adjusting the volume2.2
The volume of the built-in loudspeakers and headphones can be
adjusted as follows:
Set the VOLUME control to mid-travel position, between MIN 1)
and MAX.
Adjust the volume as desired by moving the control to the 2)
right (up) or left (down).
Caution !
The CDP2400USB is capable of producing extreme volumes.
◊
◊
Please bear in mind that high sound pressures not only
temporarily aff ect your sense of hearing, but can also
cause permanent damage. Be careful to select a suitable
volume at all times, particularly when you are playing
with headphones.
Demo playback2.3
The CDP2400USB off ers you 14 sound and 15 piano music demos.
These music pieces give you an impression of the instrument’s
versatility and range of sounds.
Playing back the sound demos2.3.1
This section describes how to play back the 14 sound demos.
These demos are specially designed to highlight the various
sounds and their features and show you what can be done with
your instrument.
Press the DEMO button.1)
Press one of the 14 buttons in the TONE section to play back 2)
an audio demo of the selected sound color.
Press the DEMO button again to quit DEMO mode.
◊
◊
During demo playback, the CDP2400USB does not receive
◊
◊
or send MIDI data.
The music sequencer (see chapter 5.5) must not be set
◊
◊
to playback or record-ready mode when you switch to
DEMO mode.
Playing back the piano music demos2.3.2
The following section describes how to play back the 15 piano
music demos. These demos show you the versatility of the GRAND
PIANO sounds.
Press the DEMO button.1)

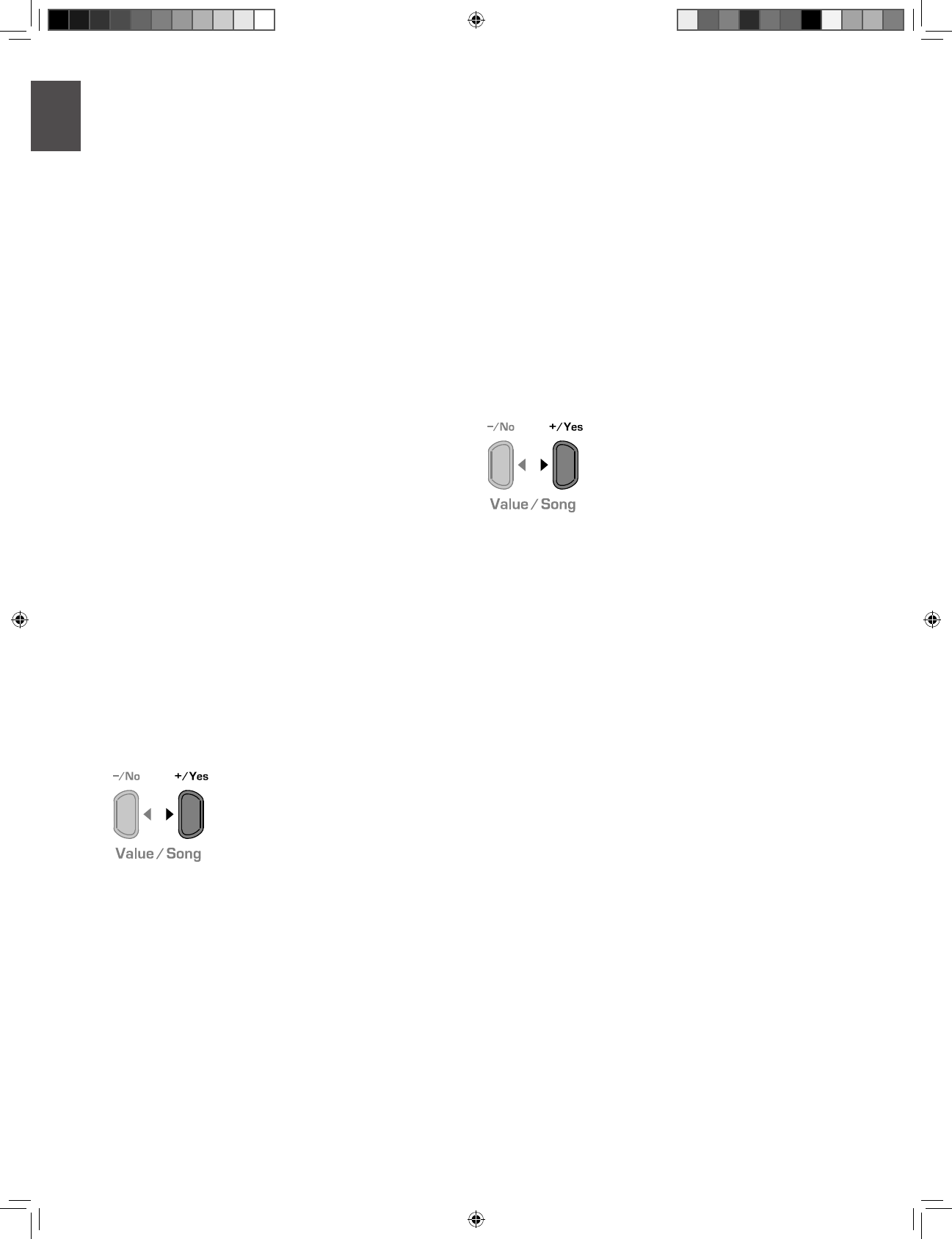

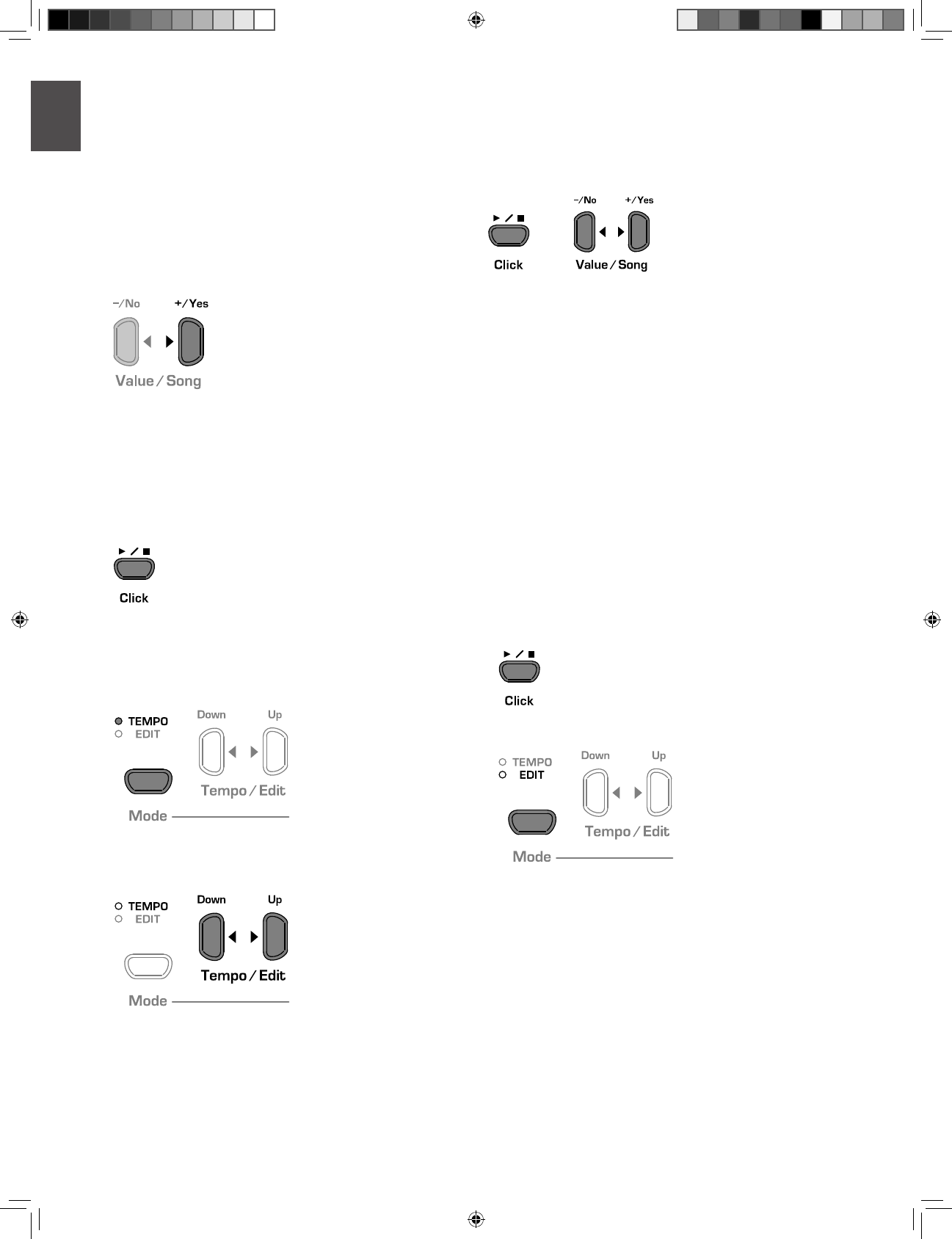

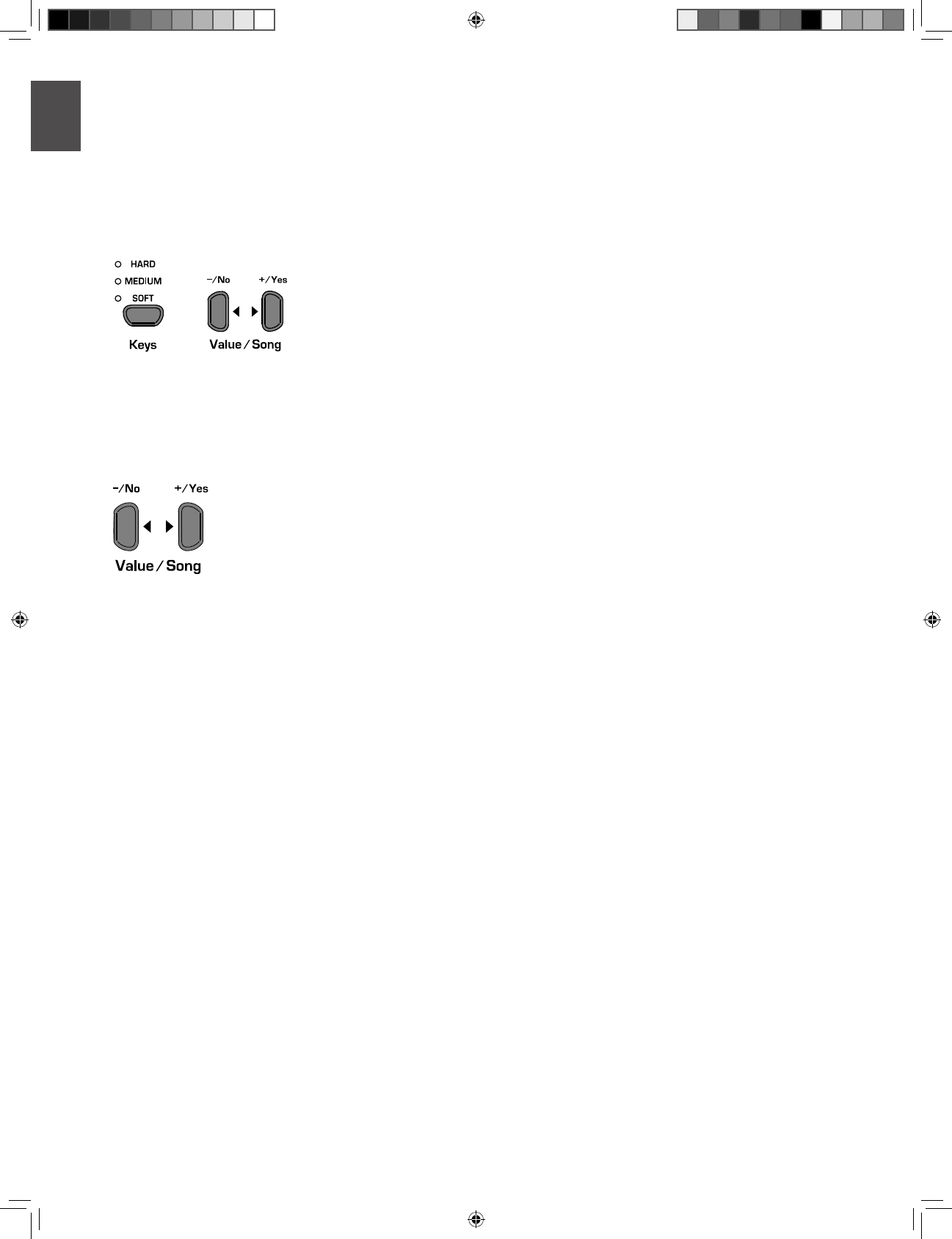

Use the -/NO and +/YES buttons in the VALUE/SONG section 2)
to select the music piece of your choice.
The display reads:
1 . . . 15: Number of the selected music piece.
All: Playback of all music pieces. The pieces are played
in chronological order.
SHF: Playback of all music pieces. The pieces are played
in random order.
Press the 3) button in the SEQUENCER section to start
playback.
Press the 4) button again to stop playback.
Repeat steps 2 to 4 to play back other pieces.5)
Press the DEMO button again to quit DEMO mode.
◊
◊
A list of all the music pieces can be found in chapter 9.3.
◊
◊
ENGLISH
CONCERT CDP2400USB User Manual 5
The music sequencer (see chapter 5.5) must not be set
◊
◊
to playback or record-ready mode when you switch to
DEMO mode.
You can adjust the playback tempo of the piano music
◊
◊
demos (see chapter 5.4).
Select any sound you like to accompany the piano music
◊
◊
demos; you can also add the room, modulation and
brilliance eff ects (see chapter 4.2). Select and set the sound
colour before you enter DEMO mode.
Selecting and playing sounds2.4
The CDP2400USB comes with 14 diff erent sound colours covering
a wide spectrum of sounds. You can select a sound in the TONE
section.
Press one of the 14 buttons in the TONE section to select the 1)
sound of your choice.
The LED above the sound button lights up to show that the
corresponding sound has been selected. The selected sound can
be played over the entire keyboard.
The volume of the sound depends on how heavily you play
◊
◊
the keys (not applicable to CEMBALO 1 and 2, CHURCH 1
and 2, and CLICK ORGAN).
TIP: You can also select two sounds at the same time.
◊
◊
Control elements and 3.
connections
Control panel3.1
Fig. 3.1: Control elements of the CDP2400USB
The control elements of the CDP2400USB are described below. To
give you a clear overview of the control panel, its elements have
been grouped in separate sections.
VOLUME:
{ 1 } Is used to adjust the volume of the built-in
loudspeakers, headphone outputs and LINE OUT jacks.
COLOR:
{ 2 } Varies the sound character from soft (left) to bright
(right).
SPEAKERS OFF:
{ 3 } Switches the built-in loudspeakers on
and off . The MUTE LED lights up only when the built-in
loudspeakers are switched off . When you insert your
headphones this will automatically switch off the built-in
loudspeakers.
DEMO:
{ 4 } Enables/disables DEMO mode.
CLICK:
{ 5 } Is used to start/stop the metronome click.
TRACK 1:

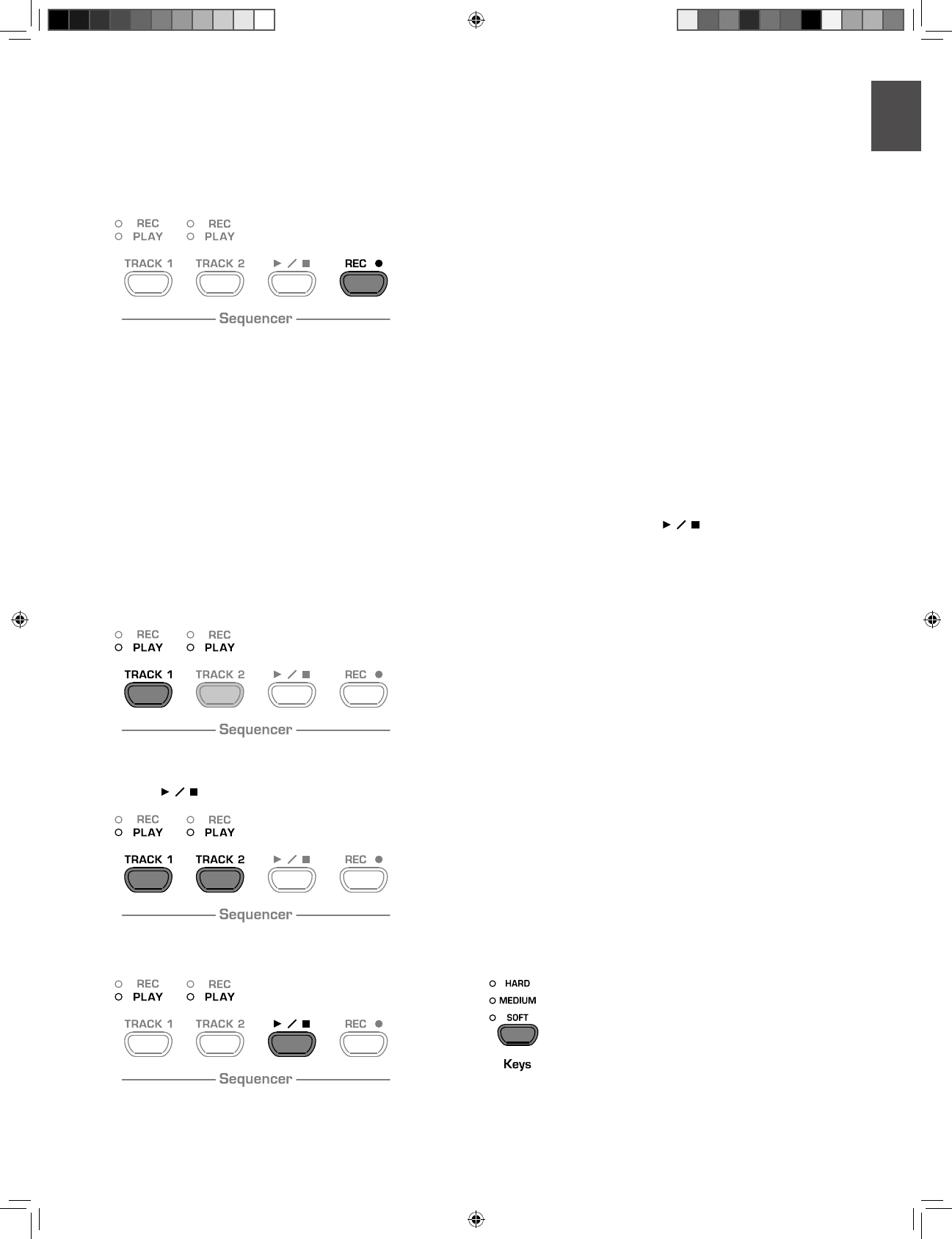

{ 6 } Selects track 1 for playback or recording. The
REC LED lights up when the track has been activated for
recording. The PLAY LED lights up when the track has been
set for playback and already contains musical data.
TRACK 2:
{ 7 } Selects track 2 for playback or recording. The
REC LED lights up when the track has been activated for
recording. The PLAY LED lights up when the track has been
set for playback and already contains musical data.
{ 8 } Is used to start/stop playback or recording of the music
sequencer.
REC:
{ 9 } Activates record mode.
1 2
2 4
56
789
ENGLISH
CONCERT CDP2400USB User Manual
6

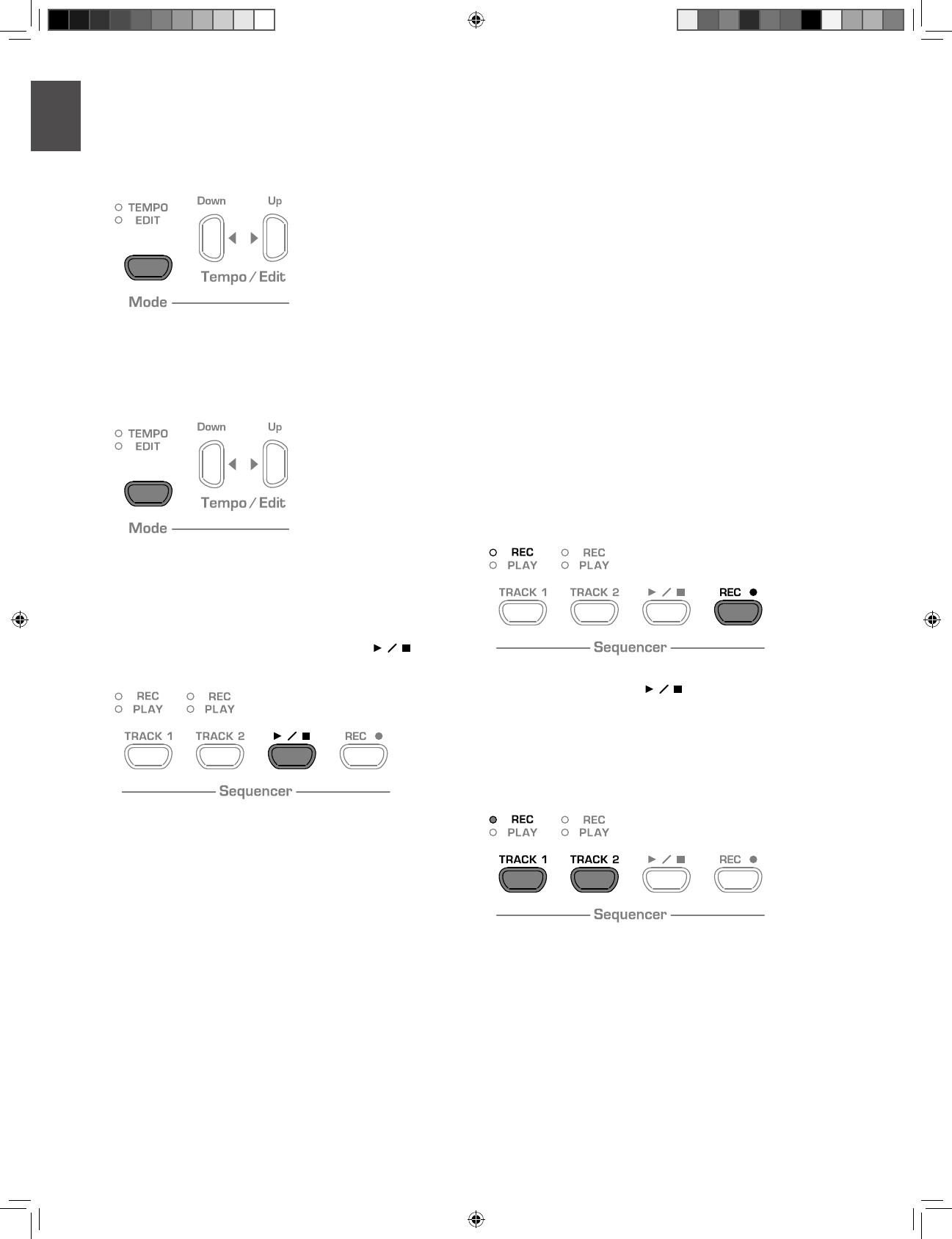

MODE:
[ 10 ] Selects the TEMPO parameter and menu pages for
EDIT mode. The EDIT MODE LED shows in EDIT mode, the
TEMPO LED in TEMPO mode.
Down/Up:
[ 11 ] Depending on which mode you have selected
with the MODE button, these two buttons can be used to
enter the tempo or to scroll through the EDIT mode menu
pages.
Display:
[ 12 ] Depending on the function used, the display reads
the tempo, menu numbers or parameter values.
-/NO, +/YES:
[ 13 ] Is used to raise/lower the parameter values
shown in the display. Additionally, the +/YES button
executes certain EDIT functions.
TONE:
[ 14 ] These 14 buttons are used for sound selection. In
DEMO mode they are used to select individual sound
color demos.
REVERB:
[ 15 ] Selects one of four room eff ects (CHAMBER,
CONCERT, CHURCH, THEATER) for the selected sound. An
LED shows which eff ect is currently active. If no LED lights
up, no room eff ect is active.
SPECIAL:
[ 16 ] Is used to select one of four modulation eff ects
(CHORUS, FLANGER, TREMOLO, DELAY) for the selected
sound. An LED shows which eff ect is currently active. If no
LED lights up, no modulation eff ect is active.
KEYS:
[ 17 ] Is used to set the key velocity to SOFT, MEDIUM or
HARD. An LED shows which setting is currently active. If no
LED lights up, no key velocity has been selected and playing
a key always triggers a fi xed volume level, irrespective of
how hard you play the key.
TRANSPOSE:
[ 18 ] Is used for setting keyboard/pitch
transposition.
Connectors3.2
The connectors of the CDP2400USB are located on the back panel
of the keyboard.
Fig. 3.2: Connectors of the CDP2400USB
MIC IN:
[ 19 ] Connect a dynamic or condenser microphone to
this input using a standard XLR cable. The jack automatically
supplies 15V of phantom power. Adjust the input sensitivity
with the adjacent GAIN control.
NOTE: If the microphone signal begins to distort, turn the GAIN
knob counter-clockwise.

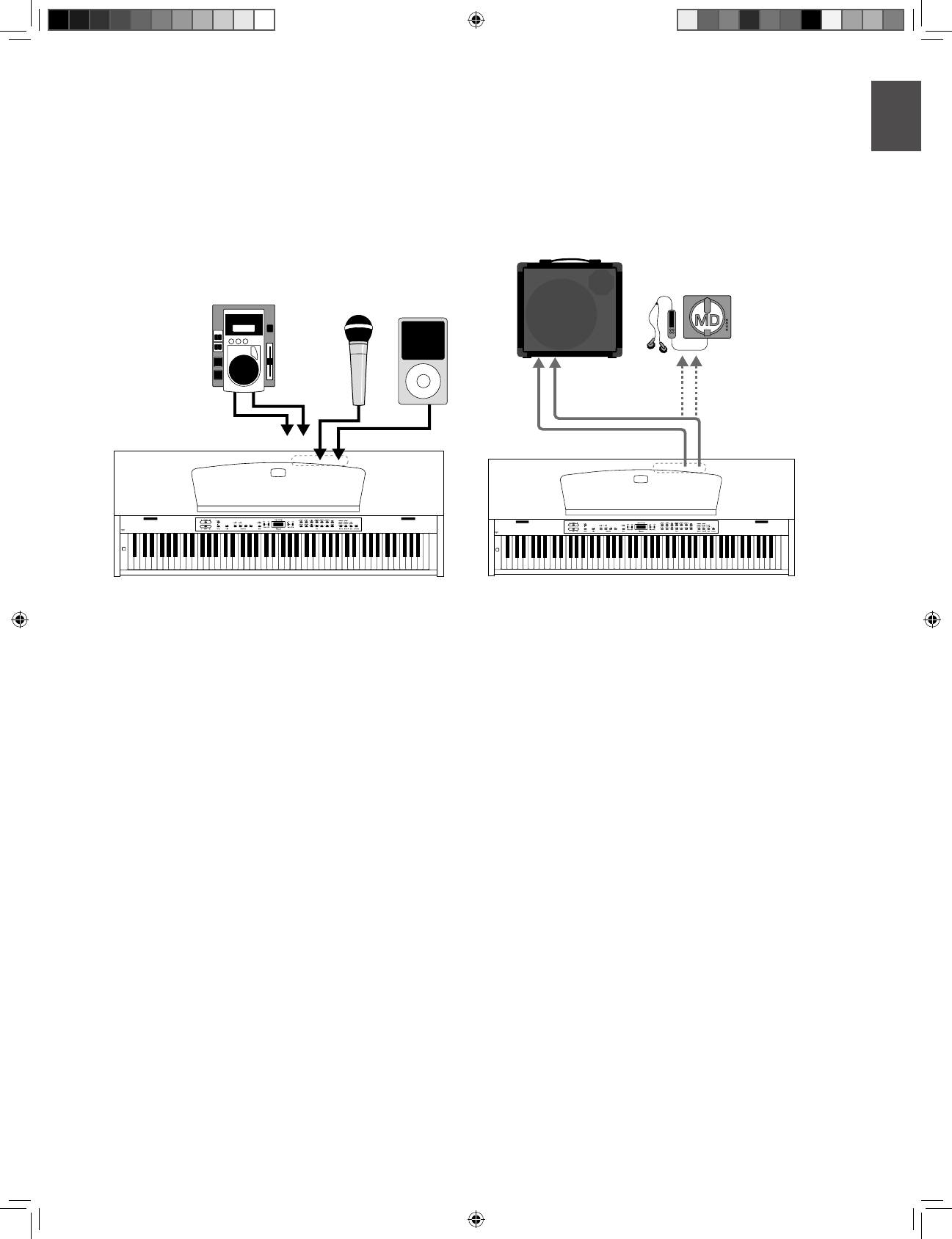

AUX IN:
[ 20 ] Connect external sound sources such as a CD or
MP3 player using a ⁄" plug.
LINE IN:
[ 21 ] Connect external sound sources such as CD players,
mixers or drum machines using RCA cables.
LINE OUT:
[ 22 ] Connect the CDP2400USB to an external sound
system or recording device using RCA cables.
PEDALS:
[ 23 ] Connect the foot pedals of the CDP2400USB to this
jack using the included 5-pin cable.
13
11
10 12
14
15 16 17 18
19 20 21 22
23 24 25
ENGLISH
CONCERT CDP2400USB User Manual 7
MIDI
[ 24 ] : Connect external devices such as synthesizers,
sequencers, etc. to the CDP2400USB's using 5-pin DIN cables
(MIDI cables).
MIDI IN receives data that controls the CDP2400USB's
•
•
internal sound generator.
MIDI OUT sends controlling data from the CDP2400USB's
•
•
keys and pedals to other MIDI devices.
MIDI THRU transmits data from the MIDI IN jack to other
•
•
MIDI devices without altering the data.
USB:
[ 25 ] Connect the CDP2400USB to a computer using a type B
USB connector. This connection will transmit both the audio
from the internal sound generator as well as MIDI data. You
may use this to record performances or control software on
your computer via MIDI.

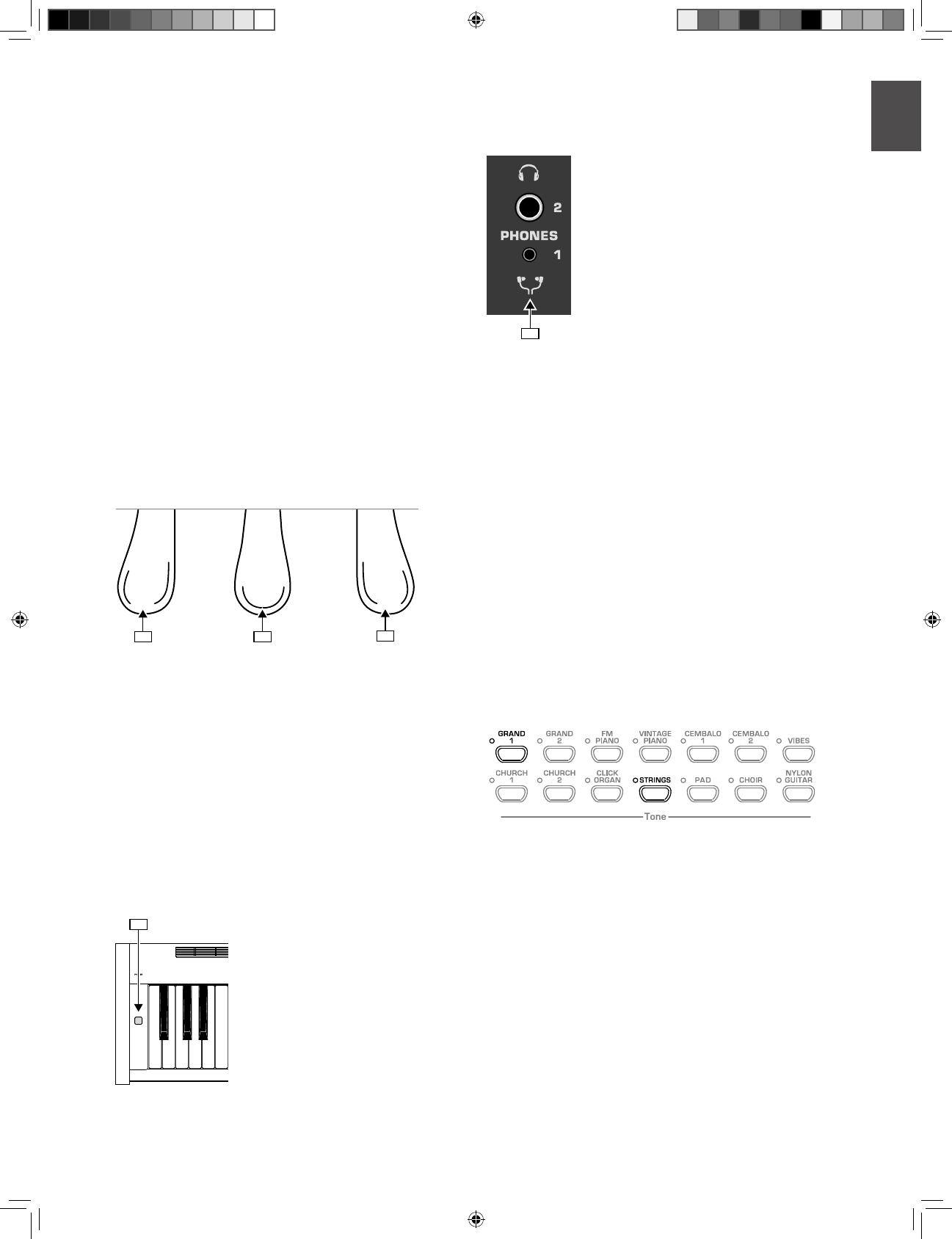

Foot pedals3.3
The CDP2400USB has three pedals similar to those found on
acoustic grand pianos.
Soft/Piano pedal:
[ 26 ] Use this to reduce the volume of a
particular passage.
Sostenuto pedal:
[ 27 ] This pedal sustains notes that allow
distinct advantages:
Play a note or chord on the keys
•
•
While holding the note(s), press the sostenuto pedal
•
•
Notes played before the pedal was pressed will continue
•
•
to sustain, while those played after the pedal was pressed
decay normally
Damper/Forte pedal:
[ 28 ] All notes sustain when the damper/
forte pedal is pressed, even if you release the key(s).
Power:
[ 29 ] Press this button to turn the CDP2400USB on and off .

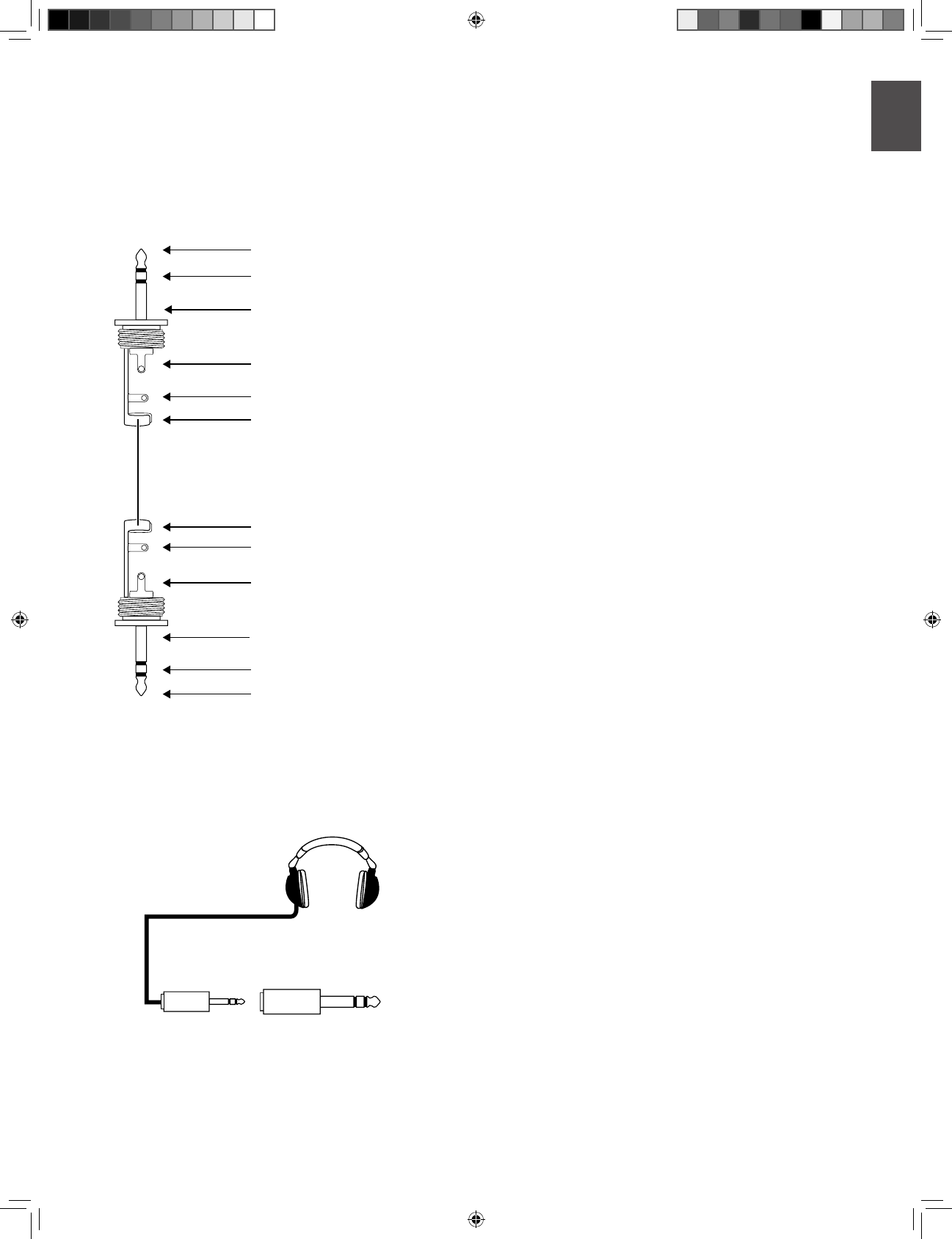

Phones jacks:
[ 30 ] Connect headphones to these jacks using ¼"
and/or ⁄" plugs. The jacks may be used simultaneously, but
the volume cannot be controlled separately.
Basic operation4.
The following chapters describe some further basic functions which
you can use in addition to those already explained.

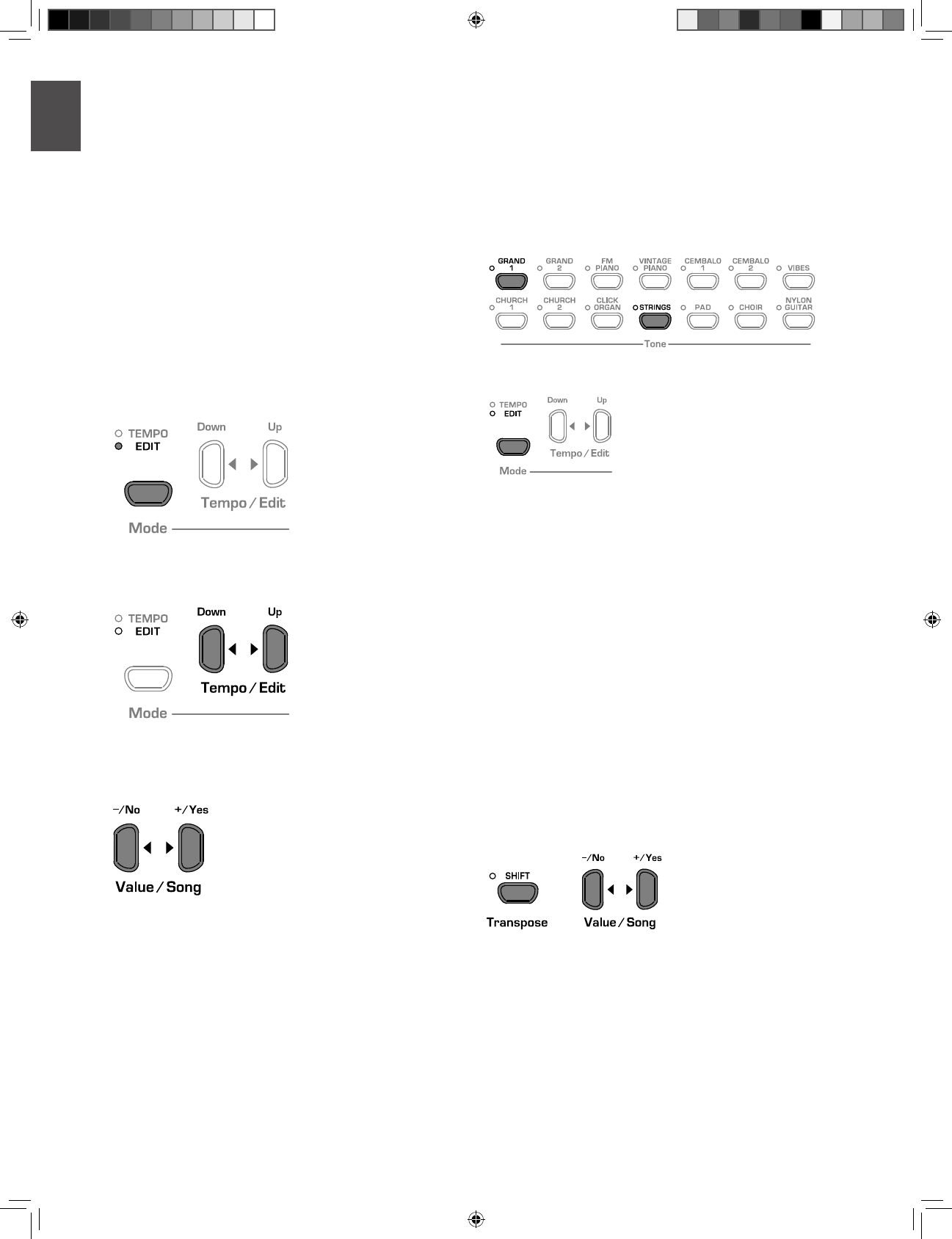

Using two sounds (layer mode)4.1
Instead of a single sound you can also play two sounds
simultaneously on the CDP2400USB. These sounds are layered and
can be played together over the entire keyboard.
In the TONE section, simultaneously press the buttons of the 1)
sounds to be layered.
The LEDs above the buttons light up to show that the associated
sounds have been selected.

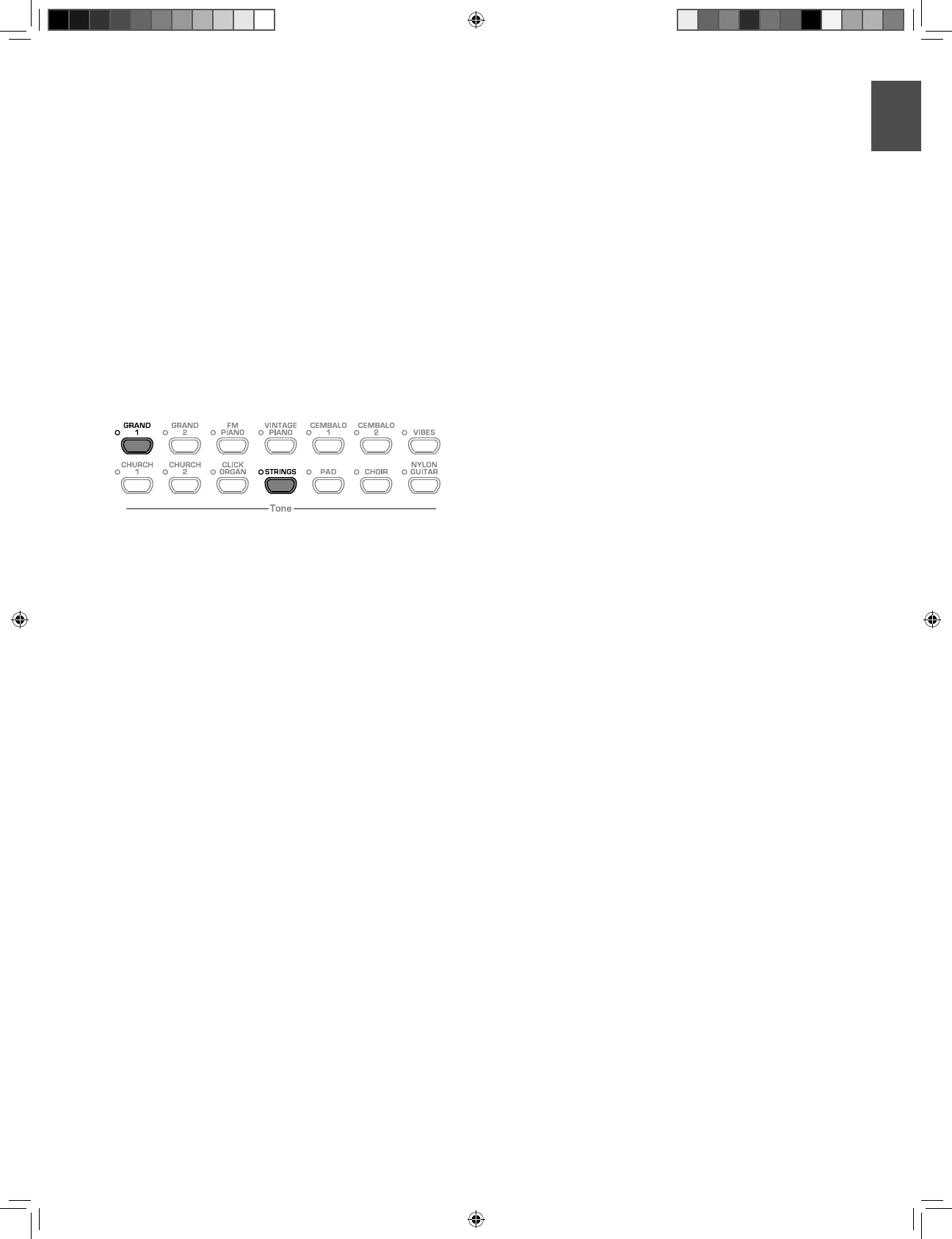

In our example the sounds “GRAND 1” and “STRINGS” are layered.
To quit layer mode, press any button in the TONE section.
◊
◊
This will also select one single sound again.
Changing the sound character4.2
You can change the sound character by using a room and a
modulation eff ect as well as a brightness equalizer.
26 27 28
29
30
ENGLISH
CONCERT CDP2400USB User Manual
8

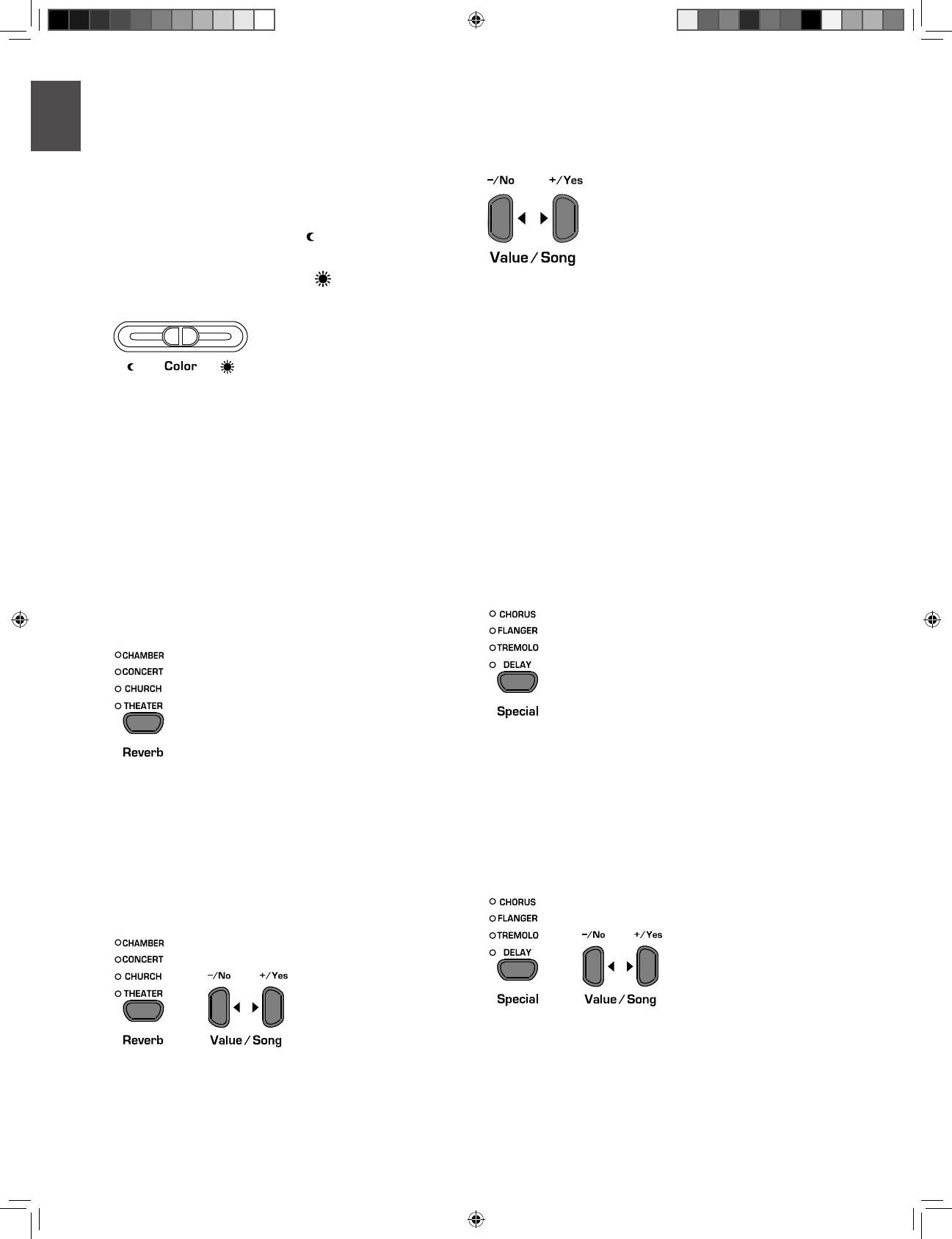

Color equalizer4.2.1
Use the Color equalizer to change the sound character and make it
softer or more brilliant.
Change the sound character with the COLOR control as 1)
follows:
Move the control to the left (
•
•
) for a softer sound that is
darker in tone.
Move the control to the right (
•
•
) for a more brilliant
sound.
Room eff ects4.2.2
The CDP2400USB provides room eff ects simulating four reverb
rooms of diff erent sizes. When you select a sound, the CDP2400USB
also selects an appropriate eff ect. If required, however, you
can always select any other eff ect. The following reverb room
simulations are available:
CHAMBER: Simulates a small room.
CONCERT: Simulates a small concert hall.
CHURCH: Simulates a large concert hall.
THEATER: Simulates a typical stage ambience.
Keep pressing the REVERB button until the eff ect of your 1)
choice has been selected.
The active eff ect is shown by an LED lighting up next to the eff ect
name.
If none of the four LEDs lights up, the room eff ect is
◊
◊
disabled.
Keep the REVERB button pressed while adjusting the original 2)
vs. eff ect signal ratio in the VALUE/SONG section using the
-/ NO and +/YES buttons.
The display reads:
0 . . . 20: Eff ect intensity
(0 = no eff ect, 20 = maximum eff ect)
If you want to restore the default settings, keep the REVERB3)
button pressed, then press -/NO and +/YES simultaneously.
Modulation eff ects
The CDP2400USB provides a modulation eff ect featuring four
diff erent types of eff ect. When you select a sound, the CDP2400USB
automatically adds an appropriate eff ect for some of the sounds.
If required, however, you can always select any other eff ect. The
following modulation eff ects are available:
CHORUS: Chorus eff ect. ”widens” the sound.
FLANGER: Time-shifted layering of sounds. Produces a
“fl oating” sound.
TREMOLO: Rapid, constantly repeated changes in the volume
of the sound.
DELAY: Echo eff ect. Produces time-shifted repetitions of
the sound that decay over time.
Keep pressing the SPECIAL button until the eff ect of your 1)
choice has been selected.
The selected eff ect is shown by an LED lighting up next to the
eff ect name.
If none of the four LEDs lights up, the modulation eff ect is
◊
◊
disabled.
Keep the SPECIAL button pressed while adjusting the original 2)
vs. eff ect signal ratio in the VALUE/SONG section using the
-/ NO and +/YES buttons.
The display reads:
0 . . . 20: Eff ect intensity
(0 = no eff ect, 20 = maximum eff ect)
If you want to restore the default settings, keep the SPECIAL 3)
button pressed, then press -/NO and +/YES simultaneously
+
+
ENGLISH
CONCERT CDP2400USB User Manual 9
Using the pedals4.3
The CDP2400USB is equipped with three foot pedals performing
the same functions as the pedals on an acoustic grand piano.
Normally, the pedals are used in accordance with the instructions
given in the music, where they are marked by special symbols. It
is useful to know how sound is produced on an acoustic piano to
better understand how the pedals work.
When you strike a key, a hammer hits several strings for each note;
the strings produce a tone with a defi ned pitch. When you let go
of the key, a damper felt falls down on the strings to stop them
from vibrating any longer. As a result, the tone decays quickly.
However, if the key is held down, the tone is sustained for a while
before it decays completely. In this case, the tone decays only after
a certain time.
This decay characteristic can be infl uenced using the three
foot pedals.
Soft/piano pedal (left):
•
•
The soft pedal produces a soft and
intimate sound. Use this pedal for particularly soft musical
passages (pianissimo).
On an acoustic piano this soft sound results from a smaller
distance between hammer and strings. On a grand piano,
however, the position of the hammer changes, so that the
hammer does not hit all strings.
Press the pedal to dampen all tones played afterwards with 1)
the pedal down.
Let go of the pedal for normal playing.2)
You can adjust the eff ect of the damper pedal
◊
◊
(see chapter 5.6.2).
Sostenuto pedal (middle):
•
•
Use the sostenuto pedal to
sustain individual tones. The notes already played – as
long as they have not yet decayed – will be sustained
as soon as you press the pedal. All notes played
subsequently will be dampened as described above.
This allows you to play and sustain a certain note using
the pedal, while all subsequent tones will be played in a
staccato (detached) manner.
When you sustain single notes on an acoustic piano using
the sostenuto pedal, the damper felts of the notes already
played do not dampen the strings when you release the
keys, but are held in their position.
Play the notes to be sustained.1)
Press the pedal to sustain the tones you just played. 2)
Play the next notes. These are played with normal decay.3)
Release the pedal for normal playing.4)
Damper/Forte pedal (right): The damper pedal allows
•
•
you to sustain the notes already played (and held) plus all
subsequent notes, without having to hold the keys down.
The damper pedal is often used to achieve a richer sound.
This is the pedal that is used most often. You can also
use it very subtly, for example, by holding it down only
half-way.
On the acoustic piano notes are sustained by keeping
all the damper felts in their raised position even after
releasing the keys. This allows the notes played to decay
quite naturally.
Play the notes to be sustained.1)
Press the pedal to sustain the notes you just played plus all 2)
subsequent notes.
Release the pedal for normal playing.3)
Using headphones4.4
The CDP2400USB is equipped with two headphone jacks located
on the underside of the playing console (front left). Headphones
are ideal for practicing without disturbing others. The second
headphone jack allows another person, for example a music
teacher, to listen as well so that piano lessons can also be held using
headphones. Both ¼" and /" inputs are available.
Use the VOLUME control to turn the volume down (move the 1)
slide control to the left half of its control range).
Connect your headphones to a free headphone jack on the 2)
underside of the playing console.
While playing, adjust the volume as desired using the3)
VOLUME control.
If required, the 4) button allows you to switch the built-in
loudspeakers of the CDP2400USB on or off .
The built-in loudspeakers of the CDP2400USB are switched
◊
◊
off as soon as you connect a pair of headphones; the MUTE
LED above the button lights up.
When you disconnect your headphone from the
◊
◊
headphones jack, the built-in loudspeakers of the
CDP2400USB are switched on again and the MUTE LED
above the button goes out.
ENGLISH
CONCERT CDP2400USB User Manual
10
Advanced operation5.
The following chapters provide information on advanced operating
functions of the CDP2400USB.
Using EDIT mode5.1
Many advanced operating functions of the CDP2400USB are
available in EDIT mode. The following sections describe how to
adjust these functions in EDIT mode.
Whenever you are prompted to enter EDIT mode, please
◊
◊
follow the step-by-step instructions given below to select a
function and adjust its parameters.
Keep pressing the MODE button in the TEMPO/EDIT MODE 1)
section until the EDIT MODE LED lights up.
Scroll through the functions using the Down/Up buttons, until 2)
the appropriate function (e.g. E1) has been selected.
Use the -/NO- and +/YES buttons in the VALUE/SONG section 3)
to adjust the value of your choice.
Quick access to layer mode functions5.1.1
Use the following operating procedure for direct access to the layer
mode menu pages.
Press and hold down the two sound buttons selected for layer 1)
mode (e.g. GRAND 1 and STRINGS) and press the MODE
button in the TEMPO/EDIT MODE section.
The EDIT LED lights up and the EDIT page E3.1 is displayed.
Transposition5.2
The sounds produced by the CDP2400USB can be transposed up
or down by half-tones (key by key). This is useful, for example if you
want to play a piece in a key that is easier to play because it has few
or no accidentals at all (e.g. C major), but intend the piece to sound
in a diffi cult key with lots of accidentals (e.g. D fl at major).
Example: D fl at major has fi ve fl ats (accidentals). In this key you
would have to play a lot of black keys. However, if you transpose
the sounds up by one half-tone, you can easily play the piece on
the white keys (C major). It can be helpful to transpose the
keyboard by an octave (12 halftones), for example to play low notes
in the middle register where they can be played more comfortably.
Press and hold the TRANSPOSE button and use the -/NO and 1)
+/YES buttons in the VALUE/SONG section to adjust the
transposition value of your choice in half-tone steps.
The display reads:
0: No transposition (default setting)
1 ... 12: Keyboard is transposed up by the number of half-
tones selected.
-1 ... -12: Keyboard is transposed down by the number of
half-tones selected.
Release the TRANSPOSE button when the desired value has 2)
been selected.
+
+
ENGLISH
CONCERT CDP2400USB User Manual 11
The LED above the TRANSPOSE button lights up when the
◊
◊
transposition feature is active, i.e. when a value other than
zero has been set.
If a transposition interval has already been set, you can
◊
◊
enable/disable the transposition function using the
TRANSPOSE button.
Layer mode settings5.3
In layer mode you can eff ect additional settings for advanced
playing with two sounds at the same time.
All sounds are numbered internally from 1 through 14. This order of
sounds determines which sound is addressed internally as voice #1,
voice #2, etc., which in turn is important for making changes to the
sounds selected.
In our example the two sounds GRAND 1 and STRINGS are being
used in layer mode. Internally, GRAND 1 is #1, STRINGS is #11. The
sound with the lower number is addressed internally as voice #1
(here: GRAND 1), the sound with the higher number as voice #2
(here: STRINGS).
Please note the order of voices used in the sound
◊
◊
combination selected, in order to understand which
settings apply to which voice in the examples below.
A layer combination consisting of two sounds must be set
◊
◊
up before you can adjust the following functions
(see chapter 4.1).
Volume ratio5.3.1
Use this function to adjust the volume ratio of the selected sounds.
Please enter EDIT mode (see chapter 5.1) and select the
◊
◊
following function.
Function: E3.1
Value: 0 . . . 20
Description:
10: Same volume for voice #1 and voice #2
<10: Voice #2 louder than voice #1
>10: Voice #1 louder than voice #2
Detune5.3.2
This function allows you to detune the selected sounds slightly
against each other.
Please enter EDIT mode (see chapter 5.1) and select the
◊
◊
following function.
Function: E3.2
Value: -10 . . . 10
Description:
0: Same pitch for voice #1 and voice #2
<0: Voice #2 higher than voice #1
>0: Voice #1 higher than voice #2
Transposition5.3.3
Use this function to transpose the selected sounds up or down
by one octave. Depending on which sounds are used in a
combination, the tranpose function can help make the sounds
more homogeneous.
Example:
In a combination of GRAND 1 and STRINGS, the STRINGS sound
too low. In this case, it helps to transpose the STRINGS up by one
octave.
Please enter EDIT mode (see chapter 5.1) and select the
◊
◊
following function.
Function: E3.3 (voice #1 transposed by an octave)
E3.4 (voice #2 transposed by an octave)
Value: -1 . . . 1
Description:
0: No transposition
-1: Transposition down by one octave
1: Transposition up by one octave
Eff ect intensity5.3.4
This function allows you to edit the eff ect intensity of the
modulation eff ect for the selected sounds.
Please enter EDIT mode (see chapter 5.1) and select the
◊
◊
following function.
Function: E3.5 (eff ect intensity voice #1)
E3.6 (eff ect intensity voice #2)
Value: 0 . . . 20
Description:
1 . . . 20: Eff ect intensity (default setting)
0: No eff ect
1234567
8 9 10 11 12 13 14
ENGLISH
CONCERT CDP2400USB User Manual
12
Reset5.3.5
Use this function to reset all settings in layer mode.
Please enter EDIT mode (see chapter 5.1) and select the
◊
◊
following function.
Function: E3.7
Value: -
Description:
Press the +/YES button to execute this function.
Using the metronome
The CDP2400USB features a built-in metronome which can be
used for practising or to make recordings with the internal music
sequencer.
To use the metronome, please proceed as follows :

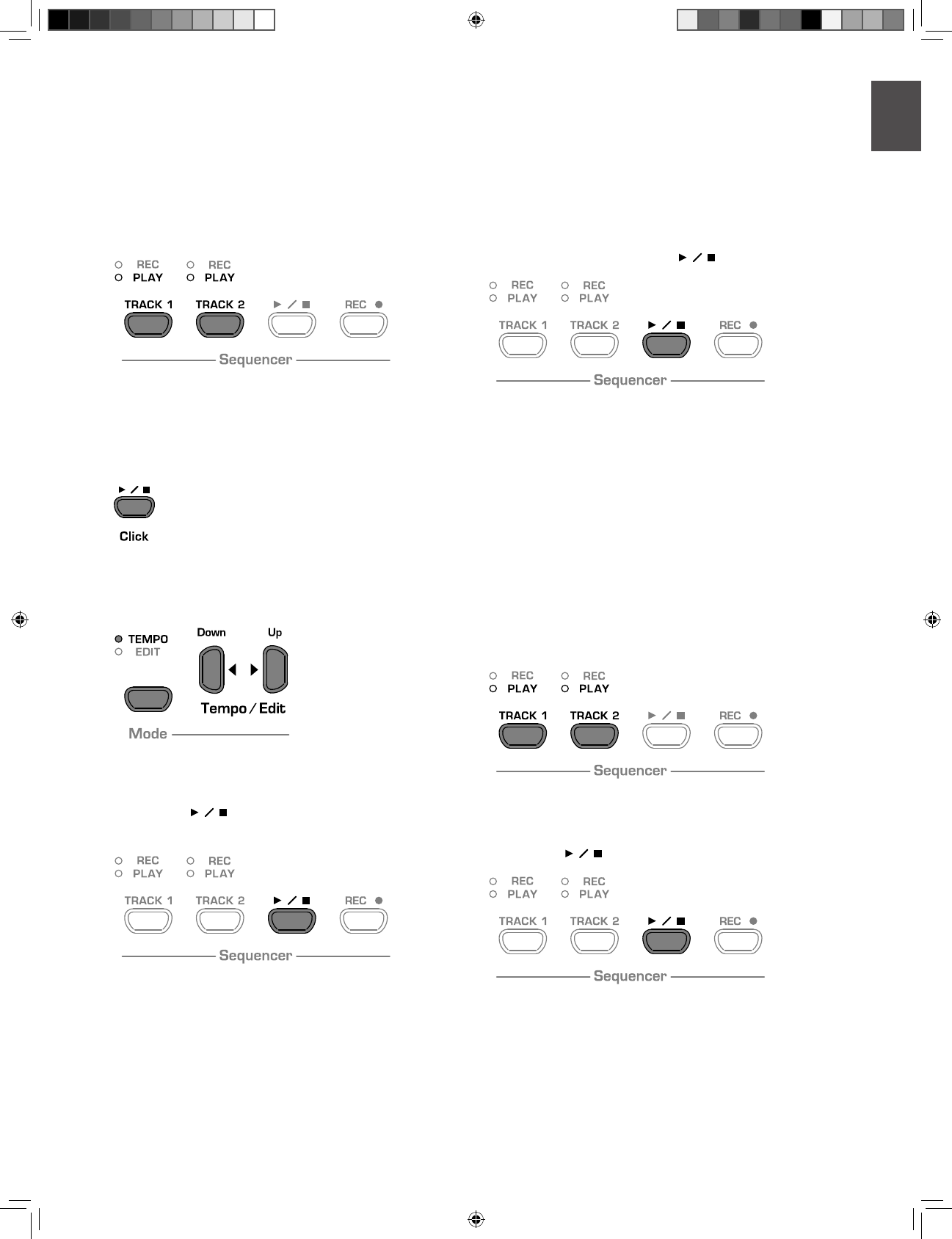

Press the CLICK button to start or stop the metronome.1.
The metronome beats are shown by fl ashing dots on the display.
At the beginning of a measure all dots light up simultaneously.
Keep pressing the MODE button in the TEMPO/EDIT MODE 2)
section until the TEMPO LED lights up.
Use the two Down/Up buttons to adjust a tempo of your 3)
choice.
Press and hold the CLICK button while adjusting the number 4)
of beats per measure using the -/NO and +/YES button in the
VALUE/SONG section.
The display reads:
04: No stressed beats (default setting)
24, 34, 44, 54, 64, 74: Quarter meter (e. g. 2/4)
38, 68, 78, 98, 128: Eighth-note meter (e. g. 3/8)
Metronome volume5.3.6
Use this function to adjust the metronome volume.
Please enter EDIT mode (see chapter 5.1) and select the
◊
◊
following function.
Function: E5
Value: 1 . . . 20
Description:
1 . . . 20: Metronome volume (1 = low, 20 = high)
Proceed as follows for direct access to the metronome volume
menu page.
Press and hold the CLICK button, then hit the MODE button in 1)
the TEMPO/EDIT MODE section.
The EDIT MODE LED lights up and the EDIT page E5 is displayed.
Music sequencer5.4
The CDP2400USB provides a built-in 2-track sequencer which
allows you to record and play back a piece of music . For each of
the two tracks you can select one or two sounds for recording. This
means that the music sequencer can play back up to four sounds at
the same time. While playing back a music piece you can also play
on the keyboard to produce complex performances with up to six
diff erent sounds.
What is more, you can use the music sequencer for practicing. For
example, you could record the left and right-hand parts of a piece
+
+
ENGLISH
CONCERT CDP2400USB User Manual 13
separately on the two tracks. During playback, switch off one track
(=hand) and play the muted part yourself. Thus, you can practice
each part individually within its musical context.

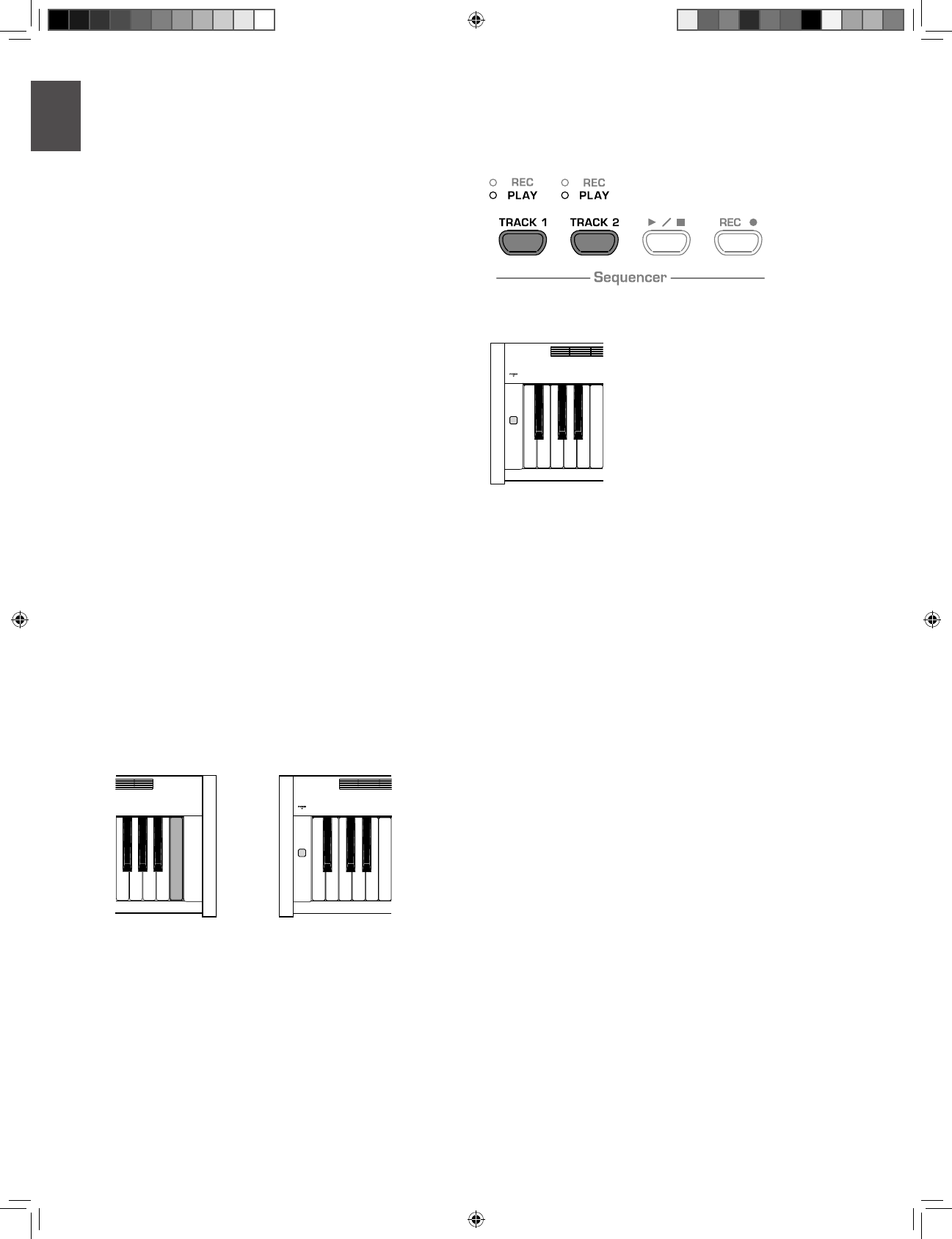

Recording pieces of music5.4.1
This section describes how to record music pieces with the built-in
music sequencer.

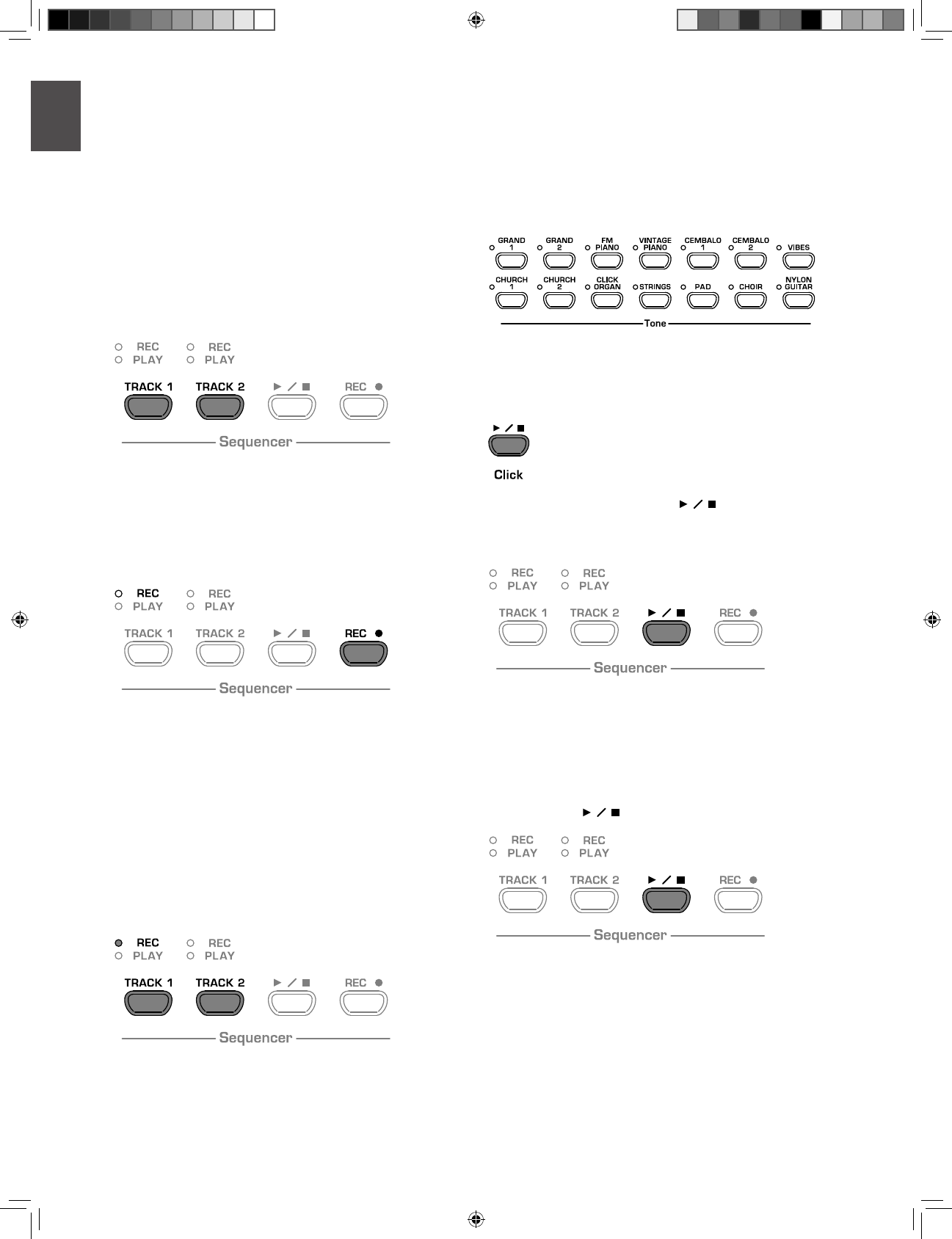

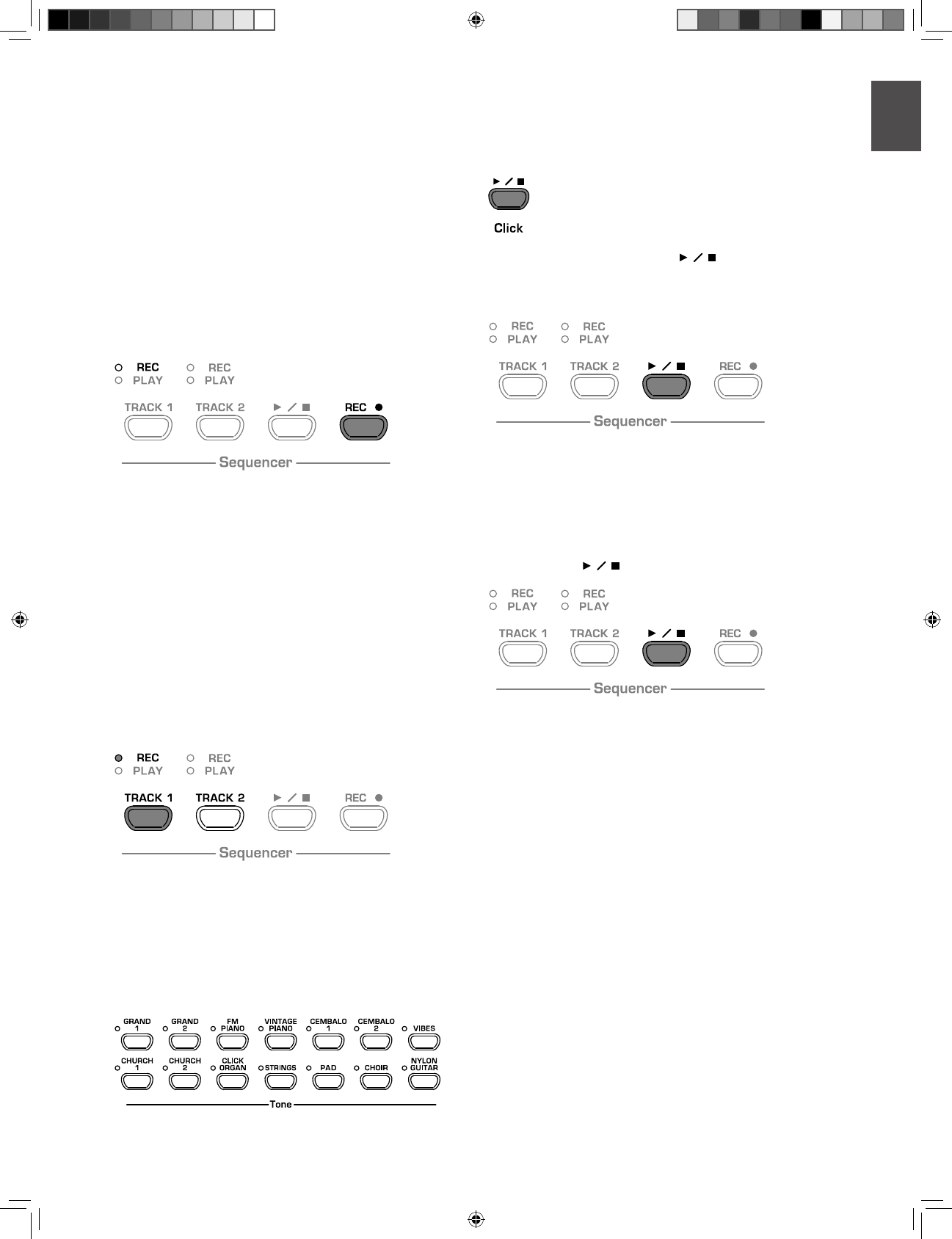

Press the REC button. The REC LED above the TRACK-1 or 1)
TRACK-2 button lights up. The dots in the display start fl ashing
in the adjusted metronome tempo, thus indicating the beat.
Now, the CDP2400USB is set to record mode.
The memory of the music sequencer can store up to 10,000
◊
◊
notes. However, this number can decrease depending on
how much pedaling information is stored.
You can quit record mode by pressing the REC button again.
◊
◊
If necessary, adjust the metronome tempo and meter as 2)
described in chapter 5.4.
Keep pressing the TRACK-1 button until the REC LED above 3)
the corresponding button lights up red. Now, track 1 is
selected for recording. If you did a recording take before, the
last track selected will be used for recording. Depending on
which track is currently used, you will have to select the other
track for recording.
TIP: If the PLAY LED for one of the tracks lights up, this warns
◊
◊
you that notes have already been recorded on this track. If
you select this track again for recording (REC LED lights up
red), the previous recording will be lost.
Select a sound in the TONE section. You can also use a sound 4)
combination (see chapter 4.1) for recording.
Switch on the acoustic CLICK signal by pressing the CLICK 5)
button, if you want to make a metronome backed recording.
Start recording by pressing the 6) button or simply start
playing on the keyboard. The current meter is counted in the
display.
If the display starts fl ashing during recording and reads the
◊
◊
message FUL, this is to warn you that the recording memory
has been used up. All data recorded up to this point will be
stored, but the recording process will be terminated.
Once your recording is fi nished stop the sequencer by 7)
pressing the button again.
Recording mode will thus be canceled automatically.
◊
◊
Repeat the whole procedure to record a second track. This 8)
time, however, select TRACK 2 instead of TRACK 1 in step #3.
TIP: If the right-hand part of a music piece you want to
◊
◊
practice has been recorded on track 2 and the left-hand
part on track 1 (for example, by your piano teacher), you can
mute one of the two tracks during playback to practice the
corresponding part.
TIP: Press the CLICK button again to stop the
◊
◊
metronome click.
Editing pieces of music5.4.2
This section describes how to edit a recording by replacing a
recorded track with a new recording. What is more, you can see
how to record a track without playing back the second track, which
can be useful when you record two diff erent pieces of music.
You must have recorded at least one track before you can
◊
◊
carry out the steps described below.
ENGLISH
CONCERT CDP2400USB User Manual
14
If you are not sure whether a track has been recorded or not,
◊
◊
check this by pressing the TRACK 1 and TRACK 2 button,
BEFORE you enter record mode. If one of the PLAY LEDs
above the TRACK buttons light up, this shows you that
something has been recorded on this track.
If you do not want to hear the previously recorded track while 1)
you record the second one, press the TRACK button of the
track until its green PLAY LED goes out. Do this BEFORE you
enter record mode. If you want to hear the previously
recorded track, continue with step #2.
Press the REC button. The REC LED above the TRACK 1 or 2)
TRACK 2 button lights up. The dots on the display start
fl ashing in the metronome tempo that has been set, thus
indicating the beat. Now, the CDP2400USB is set to record
mode.
The memory of the music sequencer can store up to 10,000
◊
◊
notes. However, this number can decrease depending on
how much pedaling information is stored.
You can quit record mode by pressing the REC button again.
◊
◊
Press the TRACK button of the track you want to record until 3)
the REC LED above the button lights up red. Now the selected
track is record-ready. If you did a recording take before, the last
track selected will be used for recording. Depending on which
track is currently used, you will have to select the other track
for recording.
Tip: If you select a track for recording, which already
◊
◊
contains note information, all previously recorded notes on
this track will be erased!
Select a sound in the TONE section. You can also use a sound 4)
combination (see chapter 4.1) for recording.
Switch on the acoustic metronome signal by pressing the 5)
CLICK button, if you want to make a metronome-backed
recording.
Start recording by pressing the 6) button or simply start
playing on the keyboard. The current meter is constantly
shown in the display.
If the display starts fl ashing during recording and reads the
◊
◊
message FUL, this is to warn you that the recording memory
has been used up. All data recorded up to this point will be
stored, however, but recording process will be terminated.
Once your recording is fi nished stop the sequencer by 7)
pressing the button again.
Recording mode will thus be canceled automatically.
◊
◊
ENGLISH
CONCERT CDP2400USB User Manual 15
Playing back pieces of music5.4.3
This section describes how to play back the music piece you have
just recorded.
Press the TRACK 1 and TRACK 2 buttons until the green PLAY 1)
LED above the buttons lights up. This is to activate the tracks
for playback.
You can only activate those tracks for playback which
◊
◊
actually contain note information.
If you want to have a metronome-backed playback, press the 2)
CLICK button to switch on the metronome.
Press the MODE button in the TEMPO/EDIT MODE section 3)
until the TEMPO LED lights up, then use the two Down/Up
buttons to adjust the playback tempo.
You can play back a recording at its original tempo by
◊
◊
pressing the two Down/Up buttons at the same time.
Press the 4) button to play back the recording. The
current meter is constantly shown in the display.
During playback the two tracks can be switched on/off at
◊
◊
any time.
You can accompany the music sequencer playback with the
◊
◊
currently selected sound.
TIP: If the right-hand part has been recorded on track 2 and
◊
◊
the left-hand part on track 1, you can switch off either of the
tracks and practice its part live during playback. The volume
of the muted track is adjustable. If necessary you can play it
back in the background at low volume for support
(see chapter 5.5.5).
To stop the playback, press the 5) button
Repeating musical passages for 5.4.4
practicing
The following section describes how to play back a specifi c
passage of a recorded music piece repeatedly. This function is
ideal for practicing a specifi c diffi cult passage recorded by your
piano teacher.
To make the best use of this function, the left and righthand
◊
◊
parts should be recorded separately on tracks 1 and 2. In
this case, you can play back one part only with the music
sequencer, while you practice the other part.
Select the track to be played back, so that the PLAY LED above 1)
the corresponding TRACK button lights up.
The volume of a muted track is adjustable (see chapter
◊
◊
5.5.5).
Press the 2) button to play back the selected track.
ENGLISH
CONCERT CDP2400USB User Manual
16
Press the MODE button in the TEMPO/EDIT MODE section 3)
when the playback has reached the point from which you
want to start repeating a passage.
The display reads:
A-: Starting point of the loop is set.
Press the MODE button again when the playback reaches the 4)
point where you want to end the repetition of a passage.
The display reads:
A-b: Ending point of the loop is set.
The musical passage is now repeated continuously, so that you can
practice it to perfection
When you want to stop practicing, press the 5) button
again to stop the playback.
Press the MODE button again to quit repetition mode.
◊
◊
The passage marked as a loop for repetition is automatically
◊
◊
erased when you quit music sequencer mode.
Setting the volume of muted tracks5.4.5
This function allows you to set the volume of muted tracks. 1)
Please enter EDIT mode (see chapter 5.1) and select the
◊
◊
following function.
Function: E6
Value: 0 . . . 20
Description:
1 . . . 20: Volume of muted track
0: Muted tracks are not audible
Editing the music sequencer settings5.4.6
The following paragraphs explain how to edit the playback settings
of recordings made with the music sequencer.
The following settings can be edited separately for each of the
two tracks:
Sound (see chapter 2.4)
•
•
Room eff ect intensity (see chapter 4.2.2)
•
•
Modulation eff ect intensity (see chapter 4.2.3)
•
•
Layered sounds (see chapters 4.1 and 5.3)
•
•
The following global settings can be made for the whole music
piece:
Tempo (see chapter 5.4)
•
•
Meter (see chapter 5.4)
•
•
Type of room eff ect (see chapter 4.2.2)
•
•
Type of modulation eff ect (see chapter 4.2.3)
•
•
Press the REC button in the SEQUENCER section to enter 1)
record mode. The REC LED above the TRACK 1 or TRACK 2
buttons lights up and the dots in the display start fl ashing in
the rhythm of the selected metronome tempo, thus indicating
the beat.
Be sure not to press the
◊
◊
button during the following
steps. Otherwise, a new recording would be made on the
selected track erasing all the data recorded before.
Use the TRACK button to select the track whose settings you 2)
wish to edit. If you want to edit global settings (e.g. tempo,
measure, etc.) you can select either one of the two tracks.
ENGLISH
CONCERT CDP2400USB User Manual 17
Edit the settings as described in the chapters mentioned 3)
above.
If necessary, repeat step 2 for the second track.4)
Press the REC button to quit record mode.5)
The changes made have now been stored in the music sequencer.
When you play back the music piece, the new settings will be
eff ective. All previous settings are deleted.
Sync start5.4.7
You can set the music sequencer playback-ready, so that it will start
playback as soon as you play a key on the keyboard. This function
can be very helpful when the music sequencer is used as an
“accompanist”. The function is also available in DEMO mode.
Make sure that the playback tracks are active (PLAY LED above 1)
the corresponding TRACK button lights up green). If necessary,
activate the tracks by pressing their TRACK buttons in the
SEQUENCER section.
Press and hold one of the active TRACK buttons, then press 2)
the button in the SEQUENCER section.
A dot in the lower right-hand corner of the display starts fl ashing in
the tempo of the metronome, thus signaling that the instrument
is set to sync start mode. The sequencer starts playback as soon as
you play a key on the keyboard.
If you want to quit sync start mode, simply repeat step 2.
◊
◊
Start the music sequencer with foot pedal5.4.8
This function allows you to reprogram the left soft pedal, so that it
can be used to start/stop the music sequencer. This is useful when
you are playing a music piece live and want to start a sequencer
accompaniment at a later point during the piece. When the pedal
has been set accordingly, you can also use it to start/stop playback
in DEMO mode.
Please enter EDIT mode (see chapter 5.1) and select the
◊
◊
following function.
Function: E4.1
Value: 1, 2
Description:
1: Soft pedal function (default setting)
2: Music sequencer
System settings5.5
The CDP2400USB provides several setting options to control
the global functions of the instrument. Please read below which
options are available and how you can edit their settings.
Key velocity5.5.1
This parameter determines the volume of the sounds with
reference to the key velocity applied, i.e. you can set here how hard
you have to strike a key to achieve maximum volume.
The following section describes how to change the key velocity.
Press the KEYS button to select one of the following settings:1)
HARD: The keys must be played very hard to achieve
maximum volume.
MEDIUM: The keys must be played with medium velocity to
achieve maximum volume (default setting).
SOFT: The keys must be played only lightly to achieve
maximum volume.
OFF: If none of the LEDs lights up, each key stroke will
produce a defi ned volume, irrespective of how hard
you play the keys.
+
ENGLISH
CONCERT CDP2400USB User Manual
18
An LED above the button lights up to show the current setting. If all
LEDs are out, key velocity is switched off . In this case you can adjust
a fi xed volume level as follows:
Press and hold the KEYS button, then use the -/NO and +/YES 2)
buttons to set the volume level to be produced when you play
a key on the keyboard, irrespective of the key velocity applied.
The display reads:
1 . . . 127: Fixed volume level produced when you play a key
on the keyboard (default setting: 64)
Keep the KEYS button pressed, then press the -/NO and +/YES 3)
buttons simultaneously to recall the standard setting.
The key velocity setting has no eff ect on the following
◊
◊
sounds: CEMBALO 1 and 2, CHURCH 1 and 2, and CLICK
ORGAN.
TIP: young pianists might fi nd it easier to use a SOFT key
◊
◊
velocity setting.
Soft pedal intensity5.5.2
Use this function to adjust the intensity of the soft pedal eff ect.
Please enter EDIT mode (see chapter 5.1) and select the
◊
◊
following function.
Function: E4.2
Value: 1 . . . 5
Description:
3: Normal soft pedal intensity (default setting)
1: Low soft pedal intensity
5: High soft pedal intensity
The function will be eff ective only if the left pedal is used as
◊
◊
a soft pedal, but NOT to start/stop the music sequencer (see
chapter 5.5.8).
Fine tuning5.5.3
The CDP2400USB can be detuned slightly to adapt it to other
instruments or tunings. The setting made here aff ects the pitch
of all keys.
The following section describes how to adjust the fi ne tuning of
the CDP2400USB. The tuning shown in the display is referenced
to the concert pitch “A” in Hertz (Hz).
Please enter EDIT mode (see chapter 5.1) and select the
◊
◊
following function.
Function: E1
Value: 427 . . . 453
Description:
440: Western European equal tuning (default setting)
453: Maximum detuning upwards
427: Maximum detuning downwards
1/5-Hz steps are shown as follows (fi gures separated by one or
two dots):
440: 440 Hz
4.40: 440,2 Hz
44.0: 440,4 Hz
440.: 440,6 Hz
4.40.: 440,8 Hz
Tunings5.5.4
The CDP2400USB provides diff erent tunings developed during
the past few centuries. The tuning used most often today is called
equal tuning and has been a characteristic element of the music
composed from the 19th century up to the present. However, for
some baroque pieces (e.g. by J. S. Bach) it can be interesting to use
an older tuning system.
In the history of music, the development of the individual tunings
can be traced back to the development of scales and polyphony
and the resulting adaptation of instruments and their tuning.
Apart from these historical reasons, the limited tuning aids
available in former times played an important role for the practical
implementation of tunings.
The CDP2400USB provides the following tunings:
Equal tuning (default setting)
•
•
Equal tuning divides one octave into twelve intervals of equal size
or spacing. Thus, each half-tone is detuned slightly to the same
extent, with the octave being the only perfect interval. This has
been the most common tuning since the 19th century, as it makes
it possible to play all twelve major/minor keys.
+
ENGLISH
CONCERT CDP2400USB User Manual 19
Pure major/minor intonation
•
•
This tuning is based on the perfect tuning of the seven notes of one
scale (e.g. C major). Triads played one fi fth above or below are also
perfect, since they use the notes of the basic key. However, all other
keys are not playable, since their frequency relationships change
depending on the basic note.
This tuning can only be used for music that strictly follows a
classical cadence comprising tonic, dominant and subdominant.
Pythagorean tuning
•
•
The Pythagorean tuning is based on perfect fi fths. As a
consequence, all thirds are impure.
This tuning was used for early music up to the late Middle Ages. The
homophonic or two-part polyphonic music of the time did not use
any thirds, but only perfect unison, fourth, fi fth and octave intervals.
Meantone tuning
•
•
Meantone tuning resulted from the change in the perception of
dissonant intervals during the Renaissance period and from the
beginnings of chromaticism and polyphony. Polyphony made the
third the most important interval in music. Therefore, meantone
tuning is based on perfect thirds rather than perfect fi fths to tune
the twelve notes of a scale. However, this also means that some
scales are unplayable.
Today, the meantone tuning can still be used for works from the
early 16th and 17th centuries (e.g. G. F. Handel).
Werckmeister/Kirnberger tuning
•
•
The Werkmeister and Kirnberger tunings result from fi rst attempts
to realize a well-tempered tuning which – unlike the Pythagorean
and meantone tunings – allows for playing in all twelve keys. The
advantages of the Pythagorean and meantone tunings, i.e. the
slight detuning of some fi fth intervals, have also been included in
the Werkmeister/Kirnberger tunings.
Both tunings are interesting to use for works from the baroque
period (e.g. J. S. Bach). Werkmeister is a popular tuning for
organ works.
The following section describes how to change the tuning of the
CDP2400USB.
Please enter EDIT mode (see chapter 5.1) and select the
◊
◊
following function.
Function: E2.1
Value: 1 . . . 7
Description:
1: Equal tuning (default setting)
2: Pure major tuning
3: Pure minor tuning
4: Pythagorean tuning
5: Meantone tuning
6: Werckmeister tuning
7: Kirnberger tuning
With the exception of equal tuning, all tunings must be marked by
a basic note.
Here’s how to set the basic note:
Function: E2.2
Value: C . . . B
Description:
Altered notes are marked by dashes above or below the note name.
A dash above the note name raises a note, a dash below the note
lowers it.
The display shows:
c-: c sharp (C#)
e-: e fl at (Eb)
Saving parameter settings5.5.5
The CDP2400USB allows you to save the changes made to the
instrument’s settings, so that they won’t get lost when the unit is
powered down. When the save function is not active, all changes
made to the settings – except for the music sequencer data – will
be lost when you switch the piano off . When switched back on, the
CDP2400USB recalls the factory default settings.
The save function can be activated separately for the following
groups of functions: sounds, MIDI, tuning and damper pedal.
Please enter EDIT mode (see chapter 5.1) and select the
◊
◊
following function.
Sounds
•
•
You can save the following settings for this group of functions:
Sounds (see chapter 2.4)
•
•
Layer mode settings (see chapters 4.1 and 5.3)
•
•
Type of room eff ect and intensity (see chapter 4.2.2)
•
•
Type of modulation eff ect and intensity (see chapter 4.2.3)
•
•
Key velocity (see chapter 5.6.1)
•
•
Metronome meter and tempo (see chapter 5.4)
•
•
Dimmed volume (see chapter 5.5.5)
•
•
Function: E8.1
Value: On, Off
Description:
Off: Save function for sounds is disabled
(default setting)
On: Save function for sounds is enabled
MIDI
•
•
You can save the following settings for this group of functions:
All MIDI settings (see chapter 6.3.3)
•
•
Function: E8.2
Value: On, Off
Description:
Off: Save function for MIDI settings is disabled
(default setting)
On: Save function for MIDI settings is enabled
ENGLISH
CONCERT CDP2400USB User Manual
20
Tuning
•
•
You can save the following settings for this group of functions:
Transposition (see chapter 5.2)
•
•
Fine tuning (see chapter 5.6.3)
•
•
Tuning (see chapter 5.6.4)
•
•
Function: E8.3
Value: On, Off
Description:
Off: Save function for tuning settings is disabled
(default setting)
On: Save function for tuning settings is enabled
Soft pedal
•
•
You can save the following settings for this group of functions:
Soft pedal function (see chapter 5.5.8)
•
•
Soft pedal intensity (see chapter 5.6.2)
•
•
Function: E8.4
Value: On, Off
Description:
Off: Save function for soft pedal settings is disabled
(default setting)
On: Save function for soft pedal settings is enabled
Restoring the factory default settings5.5.6
Use the following procedure to recall the factory default settings.
Tip: All saved parameters as well as the music sequencer
◊
◊
data will be lost during either one of the following
procedures.
Use the POWER switch to switch the instrument off (if not 1)
already done).
Play and hold down the top C key on the keyboard, then 2)
switch the CDP2400USB back on.
An alternative procedure is described below:
Use the POWER switch to switch the instrument off (if not 1)
already done).
Press and hold down the TRACK 1 and TRACK 2 buttons, then 2)
switch the CDP2400USB back on.
Let go of the TRACK buttons after about 5 seconds.3)
Connection to external 6.
equipment
The CDP2400USB provides a variety of connectors for connecting
the instrument to external devices.
Caution !
Be sure that all devices are switched off before you make
◊
◊
any connection.
NEVER connect the LINE IN connectors of the CDP2400USB
◊
◊
to its LINE OUT connectors. This will cause a feedback loop
producing high volume levels which could damage both
the instrument and your hearing!
Connecting external sound sources6.1
The CDP2400USB is equipped with a stereo LINE IN connector
for connecting external sound sources to your digital piano.
These signals are reproduced through the internal loudspeakers
and connected headphones. If you wish to practice with musical
accompaniment, you can use this input to connect a CD player or
drum computer. In the same way, you could connect an external
synthesizer or sound module and use its sound generator with your
instrument. An additional MIDI connection enables you to play an
external sound generator from the keyboard of the CDP2400USB
(see chapter 6.3.1). The keyboard also has a MIC input for the
connection of dynamic or condenser microphones, and an AUX IN
jack for sound sources that use /" plugs.
+
+
ENGLISH
CONCERT CDP2400USB User Manual 21
LINE IN jacks6.1.1
The LINE IN jacks can be used to connect external sound sources
such as CD players, DVD players, or external sound modules that
are being controlled by the CONCERT’s MIDI function (see fi g. 6.3).
The following diagram shows a wiring example comprising the
CDP2400USB and a CD player. You need one or two cables fi tted
with RCA plugs (see chapter 9.1.3). As an alternative, you can also
use a ¼" cable with an appropriate adapter plug.
Fig. 6.1: Connecting external signal sources
Connect the outputs of the CD player to the LINE IN jacks of 1)
the CDP2400USB.
AUX IN jack6.1.2
This /" jack is ideal for the connection of MP3 players, portable
CD players, MD players, etc. Most applications will require a /" TRS
cable, but adaptors may also be used.
MIC IN jack6.1.3
Connect a microphone to the MIC IN jack using a standard XLR
cable. You may use dynamic (handheld) or condenser microphones.
The jack always supplies 15V of phantom power to enable the use
of most condenser mics.
Adjust the input signal of the microphone with the GAIN knob. If
your voice begins to distort, turn the GAIN knob down.
NOTE: The internal eff ects do not aff ect the microphone input.
Connection to amplifi ers and 6.2
recording equipment
The CDP2400USB is equipped with LINE OUT connectors for
connecting the digital piano to external keyboard amplifi ers, P.A.
systems or home stereo systems. For performances in larger rooms
(e.g. stages, hall) it can be necessary to use external amplifi ers.
You can also use the outputs to connect recording equipment (e.g.
computer, cassette recorder, MD recorder). Unlike the built-in music
sequencer, recording on external audio equipment gives you the
advantage that you can play back your music completely
independently of the CDP2400USB. For example, you can give your
friends a recorded CD or MP3 or archive music pieces on any
recording medium.
Fig. 6.2: Connecting amplifi ers and recording equipment
Connect the LINE OUT jacks to the inputs of an external 1)
amplifi er or recording device.
Caution !
Be sure to switch the CDP2400USB on BEFORE you switch
◊
◊
on the external amplifi er, so as to avoid switch-on thumps
being amplifi ed. Such signals could damage the amplifi er
and the loudspeakers. Switch off the equipment in
reverse order.
MIDI functions6.3
MIDI is an interface and protocol for transmitting of playing data to
other MIDI equipment. The most important playing data are pitch
and length of notes, key velocity and channel volume, program
changes and various controller data generated, for example, by
controllers such as the pedals.
The MIDI interface does not transmit electrical audio signals but
control data only . The MIDI protocol provides for the transmission
of data on 16 independent channels. Playing data are always
channel-specifi c data.
The CDP2400USB is equipped with three MIDI jacks for connecting
additional MIDI sound modules or software/hardware sequencers:
CD Player
LINE IN
MIC IN
AUX IN
Digital Piano
Microphone MP3 Player
LINE OUT
Digital Piano
MD recorder
Keyboard amplifier
ENGLISH
CONCERT CDP2400USB User Manual
22
Use the MIDI OUT to connect additional synthesizers or a
•
•
music computer receiving MIDI data from the CDP2400USB
Use the MIDI IN to send playing data from other MIDI
•
•
controller keyboards or a music computer to the sound
generator of the CDP2400USB.
The MIDI THRU jacks passes on the MIDI data received via
•
•
the MIDI IN jack without modifi cation. In combination with a
music computer you can thus integrate another keyboard or
sound module into the MIDI chain comprising CDP2400USB
and music computer.
MIDI connection to other sound modules6.3.1
You can use the CDP2400USB to control external sound modules
via MIDI. This allows you to use the keyboard and pedals of the
digital piano to control the sound generators of other synthesizers
or sound modules not equipped with a keyboard. When you also
connect the audio signal of the external sound module to the
CDP2400USB, as described in chapter 6.1, all sounds played in
addition to the sounds of the CDP2400USB can be heard through
the internal loudspeakers.
The following illustration shows a set-up comprising the
CDP2400USB and an external sound module.

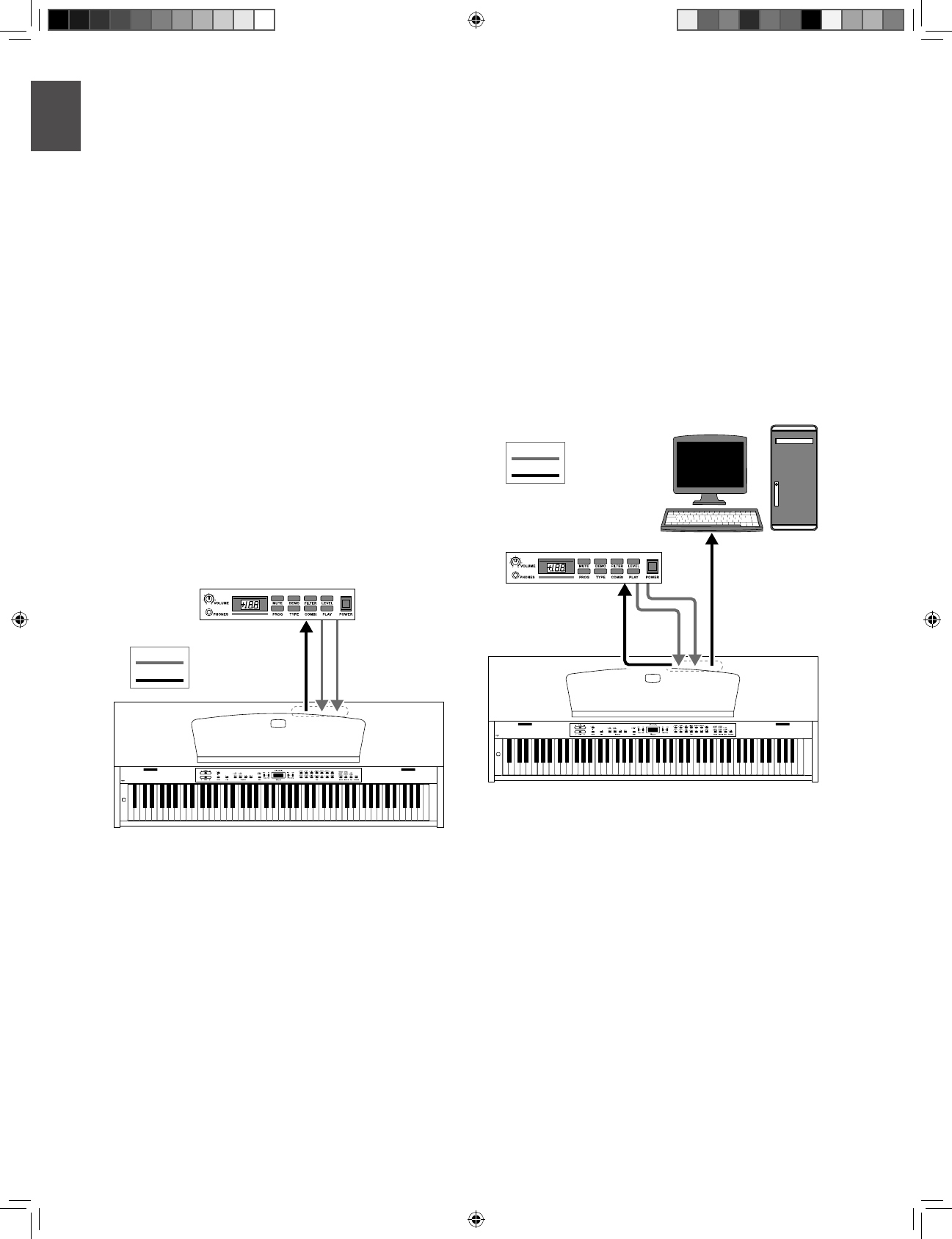

Fig. 6.3: Controlling external MIDI sound modules
Connect the MIDI OUT jack of the CONCERT to the MIDI IN jack 1)
of the external sound module.
Be sure to set the MIDI transmit/receive channels of both 2)
instruments to the same number (see chapter 6.3.3).
Connect the audio outputs of the sound module to the 3)
LINE IN jacks of the CDP2400USB, if you want to play back
the sounds of the external device through the digital piano
loudspeakers.
USB connection to a computer with 6.3.2
sequencing software
You can operate the CDP2400USB in combination with a
sequencing program such as “Cubase”, “Logic” or the included
“energyXT2.5 Compact BEHRINGER Edition.” Sequencing software
gives you a wealth of powerful functions to record and process
MIDI data. For example, you can record several tracks to create
complex music pieces. Additional options are the production of
sheet music or playback of music pieces. What is more, you can
transfer the data of the built-in music sequencer to your computer
for permanent archiving.
The following illustration shows a set-up comprising the
CDP2400USB and a music computer. The connection of an
external sound module is optional.
Fig. 6.4: USB connection with an external sound module.
Connect the piano's USB jack on the CONCERT to a free USB 1)
port on your computer.
Connect the MIDI IN jack of the sound module to the MIDI 2)
OUT jack of the CONCERT.
Connect the audio outputs of the sound module to the LINE 3)
IN jacks of the CONCERT if you want to play back the sounds of
the external device through the digital piano loudspeakers.
MIDI settings6.3.3
The CDP2400USB provides eight diff erent functions to determine
how the instrument processes MIDI information.
Please enter EDIT mode (see chapter 5.1) and select the
◊
◊
following functions.
LINE INMIDI OUT
Digital Piano
Sound module
Audio
MIDI
Digital Piano
USB
Sound module
LINE INMIDI OUT
Audio
MIDI
ENGLISH
CONCERT CDP2400USB User Manual 23
Setting the MIDI transmit channel
•
•
Use this function to set the transmit channel on which the
CDP2400USB is to send MIDI data. MIDI devices must send and
receive on the same MIDI channels to ensure successful MIDI
communication.
Function: E7.1
Value: 1 ... 16, Off
Description:
1 . . . 16: The CDP2400USB transmits MIDI data on the
specifi ed MIDI channel. (Default setting: 1)
Off: The CDP2400USB transmits no MIDI data
In layer mode voice #1 transmits MIDI data on the specifi ed
◊
◊
MIDI channel, while voice #2 transmits on the next higher
channel.
Demo song and music sequencer data are not transmitted
◊
◊
via the MIDI output. However, you can transmit a music
piece recorded with the built-in music sequencer using the
MIDI dump feature (see “Sending music sequencer data”
below).
Setting the MIDI receive channel
•
•
Use this function to set the receive channel on which the
CDP2400USB is to receive MIDI data. MIDI devices must transmit
and receive on the same MIDI channels to ensure successful MIDI
communication. Select the default setting ALL for proper operation
in combination with a music computer.
Function: E7.2
Value: All, 1-2, 1 . . . 16
Description:
All: Simultaneous multi-timbral reception of MIDI data
on all 16 MIDI channels. Also known as "Omni"
mode. (Default setting)
1-2: Reception of MIDI data on channels 1 and 2
1 . . . 16: Reception of MIDI data on the specifi ed MIDI
channel
The multi-timbral reception of MIDI data allows you to
◊
◊
use the CDP2400USB in combination with a sequencing
program as a sound generator for multi-track recordings
(see chapter 6.3.2).
Enable/disable sound generator (Local on/off )
•
•
This function allows you to determine whether the built-in sound
generator directly plays the notes you play on the keyboard or
whether it only responds to MIDI note information received via
the MIDI IN jack. The latter setting is quite useful, for example, in
sequencer mode. A closed MIDI chain may cause the CDP2400USB
to play the same sound twice, before and after it is sent to an
external device.
When the CDP2400USB is set to Local Off , the MIDI data is only sent
to the sequencer. The notes are played only once when the MIDI
signals come back from the sequencer.
Function: E7.3
Value: On, Off
Description:
On: Sound generator responds to keyboard and MIDI
notes (default setting)
Off: Sound generator does not respond to the keyboard
but to MIDI notes only
Accept/ignore program changes
•
•
Use this function to determine how the CDP2400USB responds
to MIDI program change commands. These commands are
used, for example, to select sounds of the CDP2400USB using
MIDI commands sent from a sequencing program. Conversely,
program change commands can be sent via the MIDI output of the
CDP2400USB whenever you select a sound in the TONE section
(see chapter 9.2).
Function: E7.4
Value: On, Off
Description:
On: Program change commands are sent and received
(default setting)
Off: Program change commands are neither sent nor
received
Accept/ignore MIDI controller information
•
•
Use this function to determine how the CDP2400USB responds to
MIDI controller data. MIDI uses a variety of controller informaiton to
control sound changes (e.g. pedal status, volume, eff ect intensity).
Function: E7.5
Value: On, Off
Description:
On: Controller data are sent and received (default
setting)
Off: Controller data are neither sent nor received
The CDP2400USB only responds to the commands listed
◊
◊
in the MIDI implementation chart if controller data are
enabled (see chapter 9.4).
ENGLISH
CONCERT CDP2400USB User Manual
24
MIDI transposition
•
•
This function determines whether outgoing MIDI data are
transposed independently of the built-in sound generator. This
can be useful to play the sounds of an external sound module
whose sound generator is controlled from the keyboard of the
CDP2400USB in a diff erent pitch than the internal sounds of the
CDP2400USB.
Function: E7.6
Value: -12 ... 12
Description:
0: No transposition of the pitch at the MIDI output
(default setting)
1 ...12: Pitch is transposed up by the number of halftones
selected
-1 ... -12: Pitch is transposed down by the number of
halftones selected
This setting has no eff ect on the sound generator of the
◊
◊
CONCERT.
Send control panel settings (snapshot)
•
•
Use this function to transmit the current settings of the CONCERT
(e.g. sounds and eff ects, channel volume) via the MIDI output. This
type of transmission only includes systemexclusive data packages
(MIDI dump).
Function: E7.7
Value: -
Description:
Connect the CONCERT to a computer or hardware sequencer 1)
as described in chapter 6.3.2.
Set the MIDI sequencer to reception-ready mode. 2)
Select the function 3) E7.7 in EDIT mode.
Press the +/YES button to execute the transmission.4)
When the transmission is complete, the display shows End.
You can send the data back to the CONCERT at a later date.
◊
◊
To do this, use the MIDI IN jack to connect the CONCERT
to the device that received the data before. As soon as
you start the transmission from the MIDI sequencer, the
CONCERT will automatically receive the data. Make sure
that neither DEMO, EDIT or music sequencer mode is active!
Sending music sequencer data
•
•
Use this function to send music sequencer data via the MIDI output
of the CONCERT. This allows you to archive recorded music pieces
on your music computer or hardware MIDI sequencer. This type
of transmission is only for system-exclusive data packages (MIDI
dump), but not for MIDI playing data.
Function: E7.8
Value: -
Description:
Connect the CDP2400USB to a computer or hardware 1)
sequencer as described in chapter 6.3.2.
Set the MIDI sequencer to reception-ready mode.2)
Select the function 3) E7.8 in EDIT mode.
Press the +/YES button to execute the transmission.4)
When the transmission is complete, the display shows End.
You can send the data back to the CDP2400USB at a
◊
◊
later date. To do this, use the MIDI IN jack to connect the
CDP2400USB to the device that received the data before. As
soon as you start the transmission from the MIDI sequencer,
the CDP2400USB will automatically receive the data. Make
sure that neither DEMO, EDIT or music sequencer mode is
active!
USB connection6.4
The CDP2400USB features a built-in USB audio/MIDI interface to
open up a world of computer software compatibility. The audio
portion allows you to record your performances using studio
software such as the included energyXT2.5 Compact BEHRINGER
Edition, as well as play back audio from your computer through the
keyboard’s speakers. You can also send MIDI data to a sequencer
software program on your computer to trigger synth tones, drum
beats, transport functions, etc. The USB connection can also receive
MIDI data from the computer, allowing your sequencer software to
utilize the CDP2400USB's sound generator and speakers.
Audio routing6.4.1
The USB audio output of the CDP2400USB includes the tones
generated by the keys and internal sound generator, as well as
the signals connected to the LINE IN, AUX IN and MIC IN jacks.
However, the VOLUME control and SPEAKERS OFF button do not
aff ect this signal.
ENGLISH
CONCERT CDP2400USB User Manual 25
The USB audio input returning from the computer is not aff ected
by the CDP2400USB's sound generator or eff ects engine, and goes
directly to the LINE OUT jacks, PHONES jacks and internal speakers.
The VOLUME control and SPEAKERS OFF button only aff ect the
PHONES and speakers.
USB audio and MIDI settings6.4.2
When you connect the CDP2400USB to your computer for the fi rst
time, you will likely need to perform certain setup procedures in
your software to ensure proper audio and MIDI interface. Once
the USB cable is connected, the computer will recognize two
diff erent USB devices: Audio and MIDI. This example will use the
included energyXT2.5 Compact software, but most recording and
sequencing programs use a similar procedure.
NOTE: PC users are encouraged to install the ASIO driver for low-
latency USB connection. The driver is included on the DVD. Mac
computers do not require any additional drivers to achieve low-
latency operation.
Follow these steps to connect the CDP2400USB to your computer.
Connect the included USB cable to the CDP2400USB and to a 1.
free USB port on your computer.
Your computer should automatically recognize the USB audio 2.
and MIDI connection. If so, you may continue to the software
setup. If not, you must manually select the audio and MIDI
connections.
If using a PC, click on the Start menu and select Control Panel.3.
When the new window opens, select Sounds and Audio 4.
Devices.
In the next window, click the Audio tab. 5.
Select USB AUDIO DEVICE in the Sound playback, Sound 6.
recording and MIDI music playback menus. Your computer is
now set to send and receive audio and MIDI signals from the
CDP2400USB.
Follow these steps to set up the audio connection in your music
software.
Open energyXT2.5 Compact BEHRINGER Edition.1.
Click the ‘File’ tab and select ‘Setup.’2.
A window will pop up with several options. Click the ‘Audio’ tab.3.
Select ‘ASIO’ in the ‘Device’ pull down menu. In the next menu, 4.
select the ‘BEHRINGER USB Audio’ driver.
In the ‘Sample Rate’ menu, we recommend selecting ‘44100.’5.
In the ‘Record’ menu, select ‘16-bit.’6.
In the ‘Audio inputs’ menu, select ‘USB AUDIO DEVICE.’7.
In the ‘Audio outputs’ menu, select ‘USB AUDIO DEVICE.’8.
Follow these steps to set up the MIDI connection for the CONCERT.
Repeat steps 1 and 2 above.1.
Once the Setup window appears, click the ‘MIDI’ tab.2.
For both MIDI inputs and MIDI outputs, select ‘USB AUDIO 3.
DEVICE.’
NOTE: When USB MIDI is connected to the CDP2400USB, it
overrides the MIDI IN and THRU jacks. Only the MIDI OUT jack can
be used in conjunction with USB MIDI.
ENGLISH
CONCERT CDP2400USB User Manual
26
Troubleshooting7.
Problem Remedy
The instrument cannot be switched on Check the connection between mains plug and wall outlet (see chapter 2.1). •
No sound
Check the position of the VOLUME control (see chapter 2.2). •
Check the SPEAKER OFF button status (see chapter 4.4). •
Check that the sound generator is switched on (see chapter 6.3.3). •
The foot pedals do not work properly Check that the pedal cable is properly connected to the PEDAL jack on the underside of the piano •
(see chapter 3.3).
The left foot pedal has no eff ect Check in EDIT menu E4.1 that the soft pedal function is enabled (see chapter 5.4.8). •
Audio signal is distorted Cut back the volume using the VOLUME control. •
Sound is too low/high Check whether the LED above the TRANSPOSE switch is lit. If so, transposition is active. Press the button to •
switch if off .
Eff ect is not audible Perhaps no eff ect has been selected or its intensity is too low. Check that the REVERB and SPECIAL LEDs are lit •
and select an appropriate eff ect intensity (see chapters 4.2.2).
Music sequencer/DEMO mode cannot be selected DEMO mode must not be active when you switch to music sequencer mode. Conversely, the music sequencer •
must be off before you can switch to DEMO mode.
The music recorded with the music sequencer has been lost When you re-record a track,this will automatically erase the previously recorded data on this track. •
Music sequencer playback cannot be started
Playback can only be started when the memory of the music sequencer contains data. •
Perhaps no data has been recorded. •
Perhaps no tracks have been activated for playback. Proceed as described in chapter 5.4.3. •
The music sequencer has not stored the entire recording
The music sequencer is limited in its capacity (approx. 10,000 notes). When the memory is full, all further •
data will be lost. Play only as many notes as the sequencer can store before the display starts fl ashing, thus
signaling that the memory is full.
The display shows FUL
The memory of the music sequencer is full. If you do not want to erase/re-record your recording, be sure •
to save the recorded song via MIDI to a music computer (see chapters 6.3.2 and 6.3.3) before you start a
new recording.
The music piece recorded on the music sequencer plays back
too slow/fast
The playback tempo of the music sequencer follows the current tempo setting. Press the MODE button until •
the TEMPO LED lights up, then simultaneously press the DOWN and UP buttons to play back the recording at
its original tempo.
The tuning of the instrument does not match the tuning of
other instruments
Check the settings in the EDIT menus E1 and E2.1 and adjust them if necessary, as described in chapter 5.5.3 •
and 5.5.4. Standard setting: 440 Hz, equal tuning.
Key velocity does not work properly
Check whether one of the LEDs above the KEYS button is lit. If necessary activate the dynamic response of your •
choice by pressing the KEYS button (see chapter 5.5.1).
Some sounds do not respond to key velocity (see chapter 9.2). •
When the instrument is switched off all settings are lost When fi rst switched on, the piano always uses the default settings. To save your personal settings please set •
the memory function as described in chapter 5.5.5.
The piano does not play back notes received via MIDI IN Set the receive channel on which the piano is to receive MIDI data in the EDIT menu •E7.2, as described in
chapter 6.3.3.
The piano does not transmit MIDI data via MIDI OUT Set the transmit channel, on which the piano is to send MIDI data, in the EDIT menu •E7.1, as described in
chapter 6.3.3. Demo and music sequencer data are not transmitted via MIDI.
The piano does not respond to all MIDI commands The piano supports only those commands listed in the MIDI Implementation Chart. •
Be sure that the device sending MIDI data and the piano do not have a MIDI fi lter activated (see chapter 6.3.3). •
The piano sounds strange
Check whether one of the LEDs above the SPECIAL button is lit, i.e. whether a modulation eff ect is active. If so, •
press the button until all LEDs are off , i.e. no eff ect is active.
Perhaps you have selected two sounds at the same time. Press one of the sound buttons in the TONE section to •
select a single sound.
The display shows ERR
An internal error has occurred. Switch the instrument off , wait for about 30 seconds, then switch it back on. •
If the error message shows again, please contact your BEHRINGER support desk. Further information can be
found at: www. behringer. com.
ENGLISH
CONCERT CDP2400USB User Manual 27
Specifi cations8.
Keyboard
88 weighted keys with hammer action (A-1 to C7)
Sound generation
RSM (Real Sound Modeling) dynamic stereo sampling, 16 MB ROM
Polyphony
64 notes max.
Sounds
14
Eff ects
Room eff ects 4 types
(CHAMBER, CONCERT, CHURCH, THEATER)
Modulation eff ects 4 types (CHORUS, FLANGER, TREMOLO, DELAY)
Sequencer
Type 2-track
Memory 1 Song, approx. 10,000 notes
Pedals
3 (soft-, sostenuto-, damper)
MIC IN
Connector XLR, balanced
Phantom Power 15V
AUX IN
Connector /" TRS jack
LINE IN
Connectors RCA jacks, unbalanced
Impedance approx. 10 kΩ
LINE OUT
Connectors RCA, unbalanced
Impedance approx. 100 Ω, unbalanced
Max. output level +7 dBu
Phones
Connectors ¼" TRS jack, /" TRS jack
Max. output level +13 dBu/120mW @ 100 Ω load
MIDI
Connectors IN, OUT, THRU
USB
Connector Type B
Converter 16-bit
Sample Rate 48 kHz
MIDI IN, OUT
Audio Stereo In/Out
Amplifi er
Output power 2 x 40 W
Power supply
Mains voltages and fuse values 100 - 120 V~, 50/60 Hz T 2,50 A H 250 V
220 - 230 V~, 50/60 Hz T 1,25 A H 250 V
Power consumption approx. 135 W
Dimensions/Weight
Dimensions (H x W x D) approx. 880 x 1,405 x 525 mm
approx. 34.65" x 55.31" x 20.67"
Weight approx. 68.8 kg
approx. 151.7 lbs
ENGLISH
CONCERT CDP2400USB User Manual
28
Appendix9.

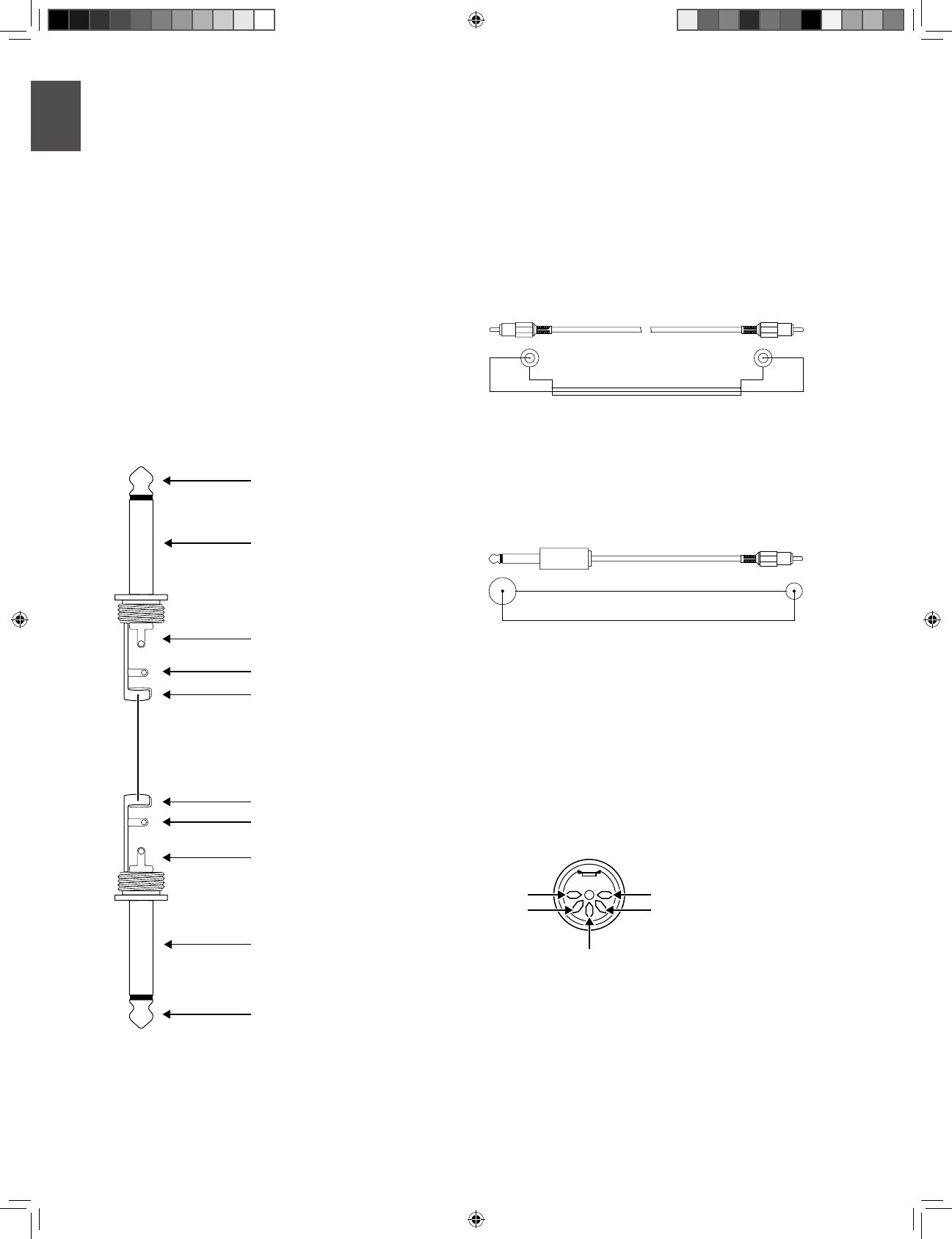

Cables9.1
Below you will fi nd an overview of all cables you need to connect
your digital piano. The cables are not supplied with the piano.
Depending on the intended use, adapter cables will be necessary
to interface the various connectors. You can use adapter cables or
plugs (e.g. ¼" to RCA). Cable adapters are better than adapter plugs,
as the latter may aff ect the signal quality due to insuffi cient contact
of the plugs with each other.
Unbalanced ¼" cable9.1.1
Unbalanced ¼" cables are equipped with a ¼" TS plugs at each end.
They are used to connect external keyboard amps and devices with
¼" outputs (e.g. synthesizers, drum computers) to the CDP2400USB.
Fig. 9.1: Unbalanced ¼" cable with ¼" TS plugs
RCA cables9.1.2
RCA cables are often used for hi-fi applications to connect CD
players, MD recorders and other devices to home stereo systems.
You will need this type of cable to connect the CDP2400USB to hi-fi
recording equipment. Usually, these cables are supplied in pairs to
form one stereo cable. The plugs are in most cases red (right) and
white (left). Make sure that the wiring between recording device
and CDP2400USB follows this color code, so as not to mix up the
left/right signals.
Fig. 9.2: Hi-fi RCA cable
¼" to RCA cable9.1.3
¼" to RCA cables are required for connecting a hi-fi playback device
(e.g. CD player) to the CDP2400USB. As an alternative, you can also
use an unbalanced ¼" cable with an appropriate RCA adapter.
Fig. 9.3: ¼" to RCA cable
MIDI cables9.1.4
MIDI cables are required for connecting MIDI equipment. These
cables have a 5-pin DIN plug at each end. Be sure to use cables
marked as MIDI cables (wiring as shown), since there are also similar
cables with a diff erent wiring available for hi-fi equipment. MIDI
cable lengths should be as short as possible. Avoid cable lengths
exceeding 10 m, as these could lead to errors during the
transmission of signals.
Fig. 9.4: MIDI plug pin assignment
strain relief clamp
strain relief clamp
sleeve
sleeve
tip
tip
sleeve
ground/shield
sleeve
ground/shield
tip
signal
tip
signal
shield sleevesleeve
tip tip
SleeveSleeve
TipTip
Unused
Unused
Pin 3
Pin 1
(ground)
Pin 2
ENGLISH
CONCERT CDP2400USB User Manual 29
9.1.5 /" TRS cable
A /" to /" TRS cable is necessary to connect a CD or MP3 player to
the CDP2400USB AUX IN jack. This carries a stereo signal in a single
cable.
strain relief clamp
strain relief clamp
sleeve
sleeve
tip
tip
sleeve ground/shield
sleeve ground/shield
tip left signal
ring right signal
ring right signal
tip left signal
Headphones9.1.6
The PHONES inputs of the CDP2400USB accept both /" and /"
plugs. To use both jacks simultaneously, you may need an adapter.
ENGLISH
CONCERT CDP2400USB User Manual
30
Presets on the CDP2400USB9.2
Sound Description Stereo
samples
Key
velocity
Dynamic
samples
Release
samples
MIDI commands
MSB/LSB
Program
change
commands
GRAND 1 Classic sound of a concert grand
piano with a soft tonal character 99 0/122 0
GRAND 2 Brilliant sound of a concert grand
piano, particularly suited to pop
and rock music 99 0/112 0
FM PIANO Typical bell-like
FM electric piano
of the 80's 90/122 5
VINTAGE PIANO Nostalgic retro sound of a classic
electric piano 99 0/122 4
CEMBALO 1 Typical sound of a baroque
harpsichord 99
0/122 6
CEMBALO 2 Full dual-octave harpsichord
sound 99
0/123 6
VIBES Extremely dynamic vibraphone
sound 99 0/122 11
CHURCH 1 Soft wooden pipe sound of a small
baroque organ
0/123 19
CHURCH 2 Sound of full-size church organ
with all registers
0/122 19
CLICK ORGAN Sound of a typical jazz organ with
percussive attack
0/122 16
STRINGS Natural sound of a big string
orchestra 99 0/122 48
PAD Soft sound of a string ensemble
with slow attack 99 0/122 49
CHOIR Mixed choir with pitch-dependent
combination of voices 90/122 52
NYLON GUITAR Sound of a classical concert guitar
with a warm character 99 0/122 24
ENGLISH
CONCERT CDP2400USB User Manual 31
List of demo music pieces included9.3
No. Piece Composer
1Invention no. 1, C major, BWV 772 Johann Sebastian Bach
2Piano sonata no. 16, 1st movement, C major, KV 545 Wolfgang Amadeus Mozart
3Piano sonata, op. 13, no. 8 "Pathétique", 2nd mvt., A fl at major Ludwig van Beethoven
4Piano sonata, op. 49, no. 2, 1st movement, G major Ludwig van Beethoven
5Impromptu, op. 90, no.. 2, E fl at major Franz Schubert
6Frühlingslied ("Spring Song"), op. 62, no. 6, A major Felix Mendelssohn Bartholdy
7Fantasie Impromptu, op. 66, c sharp minor Frédéric Chopin
8Prelude, op.28, no. 15 "Raindrop", D fl at major Frédéric Chopin
9Etude, op. 10, no. 12 "Revolution", c minor Frédéric Chopin
10 Waltz, op. 64, no. 1 "Minute Waltz/Petit chien", D fl at major Frédéric Chopin
11 Waltz, op. 64, no. 2, c sharp minor Frédéric Chopin
12 Liebestraum no. 3, A fl at major Franz Liszt
13 Arabesque no. 1, E major Claude Debussy
14 Children´s Corner: Golliwog´s Cakewalk, E fl at major Claude Debussy
15 Maple Leaf Rag, A fl at major Scott Joplin
MIDI implementation chart9.4
Function Transmitted Recognized Remarks
Basic Channel Default
Changed
1
1 - 16
1
1 - 16
Mode
Default
Messages
Altered
3
X
X
1
X
X
Poly mode only
Note Number True Voice 9-120, v=1-127
X
0-127, v=1-127
0-127
Velocity Note ON
Note OFF
O
X
O
X
After Touch Keys
Channels
X
X
X
X
Pitch Bend X X
Control Change 0.32 O O Bank select
7 O O Volume
11 O O Expression
64 O O Damper
66 O O Sostenuto
67 O O Soft pedal
91 O O Reverb depth
94 O O Eff ect depth
Program Change O O
System Exclusive O O
System Common
Song Pos.
Song Sel.
Tune
X
X
X
X
X
X
System
Real Time
Clock
Commands
O
O
O
O
Aux Messages
Local ON/OFF
All notes OFF
Active Sense
Reset
All sound off
Reset all ctrl
X
O
O
X
O
O
O (122)
O (123-125)
OX
O (120, 126, 127)
O (121)
Notes
O = YES, X = NO
Mode 1:
Mode 3:
OMNI ON, POLY
OMNI OFF, POLY
ENGLISH
CONCERT CDP2400USB User Manual
32
EDIT parameter9.5
Category Abbreviated name Description Function Values Default setting
Tuning Fine tuning General fi ne tuning in 1/5-Hz steps E1 427 - 453 440
Tuning Tuning Selection of temperament (scale) E2.1 1 ... 7 1
(equal temper)
Basic note Selection of basic note of temperament E2.2 C ... B C
Layer mode Volume Volume ratio of voice #1 vs. voice #2 E3.1 0 ... 20 -
Detune Detuning of voice #1 vs. voice #2 E3.2 -10 ... 10 -
Octave transposition voice #1 Octave position of voice #1 E3.3 -1, 0, 1 -
Octave transposition voice #2 Octave position of voice #2 E3.4 -1, 0, 1 -
Eff ect intensity voice #1 Portion of voice #1 volume channeled
to the eff ect E3.5 0 ... 20 -
Eff ect intensity voice #2 Portion of voice #2 volume channeled
to the eff ect E3.6 0 ... 20 -
Reset Reset of layer mode settings E3.7 - -
Soft pedal Function Function of soft pedal:1) soft pedal, 2)
music sequencer E4.1 1, 2 1
Eff ect Intensity of soft pedal on sound E4.2 1 ... 5 3
Metronome Volume Volume of metronome click E5 1 ... 20 10
Sequencer Dimmed volume Volume of the muted track in music
sequencer mode E6 0 ... 20 0
MIDI Transmit channel MIDI channel on which MIDI data are
transmitted E7.1 1 ... 16, OFF 1
Receive channel MIDI channel on which MIDI data are
received E7.2 All, 1-2, 1 ... 16 All
Sound generator
(Local on/off )
Enables/disables the built-in sound
generator for keyboard data E7.3 On, Off On
Program change Accept or ignore program change data
(send/receive) E7.4 On, Off On
Controller commands Accept or ignore controller commands
(send/receive) E7.5 On, Off On
Transposition Transposition of notes during MIDI
transmission E7.6 -12 ... 12 0
Control panel settings MIDI transmission of all current settings
(dump) E7.7 - -
Music sequencer data MIDI transmission of music sequencer
data (dump) E7.8 - -
Save Sounds Permanent saving of sound settings E8.1 On, Off Off
MIDI Permanent saving of MIDI settings E8.2 On, Off Off
Tuning Permanent saving of transposition and
tunings E8.3 On, Off Off
Soft pedal Permanent saving of soft pedal settings E8.4 On, Off Off
*Default settings depend on the selected sound combination
ENGLISH
CONCERT CDP2400USB User Manual 33
Limited Warranty
Warranty § 1
This limited warranty is valid only if you purchased the product [1]
from a BEHRINGER authorized dealer in the country of purchase.
A list of authorized dealers can be found on BEHRINGER’s website
www.behringer.com under “Where to Buy”, or you can contact the
BEHRINGER offi ce closest to you.
BEHRINGER* warrants the mechanical and electronic components of this
[2]
product to be free of defects in material and workmanship if used under
normal operating conditions for a period of one (1) year from the original
date of purchase (see the Limited Warranty terms in § 4 below), unless a
longer minimum warranty period is mandated by applicable local laws. If
the product shows any defects within the specifi ed warranty period and
that defect is not excluded under § 4, BEHRINGER shall, at its discretion,
either replace or repair the product using suitable new or reconditioned
product or parts. In case BEHRINGER decides to replace the entire
product, this limited warranty shall apply to the replacement product
for the remaining initial warranty period, i.e., one (1) year (or otherwise
applicable minimum warranty period) from the date of purchase of the
original product.
Upon validation of the warranty claim, the repaired or replacement
[3]
product will be returned to the user freight prepaid by BEHRINGER.
Warranty claims other than those indicated above are expressly excluded.
[4]
PLEASE RETAIN YOUR SALES RECEIPT. IT IS YOUR PROOF OF PURCHASE
COVERING YOUR LIMITED WARRANTY. THIS LIMITED WARRANTY IS VOID
WITHOUT SUCH PROOF OF PURCHASE.
Online registration§ 2
Please do remember to register your new BEHRINGER equipment right after
your purchase at www.behringer.com under “Support” and kindly read the
terms and conditions of our limited warranty carefully. Registering your
purchase and equipment with us helps us process your repair claims quicker
and more effi ciently. Thank you for your cooperation!
Return authorization number § 3
To obtain warranty service, please contact the retailer from whom the [1]
equipment was purchased. Should your BEHRINGER dealer not be
located in your vicinity, you may contact the BEHRINGER distributor
for your country listed under “Support” at www.behringer.com If your
country is not listed, please check if your problem can be dealt with
by our “Online Support” which may also be found under “Support” at
www.behringer.com. Alternatively, please submit an online warranty
claim at www.behringer.com BEFORE returning the product. All inquiries
must be accompanied by a description of the problem and the serial
number of the product. After verifying the product’s warranty eligibility
with the original sales receipt, BEHRINGER will then issue a Return
Materials Authorization (“RMA”) number.
Subsequently, the product must be returned in its original shipping
[2]
carton, together with the return authorization number to the address
indicated by BEHRINGER.
Shipments without freight prepaid will not be accepted.[3]
Warranty Exclusions § 4
This limited warranty does not cover consumable parts including, but not [1]
limited to, fuses and batteries. Where applicable, BEHRINGER warrants
the valves or meters contained in the product to be free from defects
in material and workmanship for a period of ninety (90) days from date
of purchase.
This limited warranty does not cover the product if it has been
[2]
electronically or mechanically modifi ed in any way. If the product needs
to be modifi ed or adapted in order to comply with applicable technical
or safety standards on a national or local level, in any country which is
not the country for which the product was originally developed and
manufactured, this modifi cation/adaptation shall not be considered
a defect in materials or workmanship. This limited warranty does not
cover any such modifi cation/adaptation, regardless of whether it was
carried out properly or not. Under the terms of this limited warranty,
BEHRINGER shall not be held responsible for any cost resulting from such
a modifi cation/adaptation.
This limited warranty covers only the product hardware. It does not cover
[3]
technical assistance for hardware or software usage and it does not cover
any software products whether or not contained in the product. Any such
software is provided “AS IS” unless expressly provided for in any enclosed
software limited warranty.
This limited warranty is invalid if the factory-applied serial number [4]
has been altered or removed from the product.
Free inspections and maintenance/repair work are expressly excluded [5]
from this limited warranty, in particular, if caused by improper handling
of the product by the user. This also applies to defects caused by normal
wear and tear, in particular, of faders, crossfaders, potentiometers, keys/
buttons, tubes, guitar strings, illuminants and similar parts.
Damage/defects caused by the following conditions are not covered by
[6]
this limited warranty:
improper handling, neglect or failure to operate the unit in compliance
•
•
with the instructions given in BEHRINGER user or service manuals;
connection or operation of the unit in any way that does not comply
•
•
with the technical or safety regulations applicable in the country
where the product is used;
damage/defects caused by acts of God/Nature (accident, fi re, fl ood,
•
•
etc) or any other condition that is beyond the control of BEHRINGER.
Any repair or opening of the unit carried out by unauthorized
•
•
personnel (user included) will void the limited warranty.
ENGLISH
CONCERT CDP2400USB User Manual
34
Any repair or opening of the unit carried out by unauthorized personnel [7]
(user included) will void the limited warranty.
If an inspection of the product by BEHRINGER shows that the defect in
[8]
question is not covered by the limited warranty, the inspection costs are
payable by the customer.
Products which do not meet the terms of this limited warranty will be
[9]
repaired exclusively at the buyer’s expense. BEHRINGER or its authorized
service center will inform the buyer of any such circumstance. If the buyer
fails to submit a written repair order within 6 weeks after notifi cation,
BEHRINGER will return the unit C.O.D. with a separate invoice for freight
and packing. Such costs will also be invoiced separately when the buyer
has sent in a written repair order.
Authorized BEHRINGER dealers do not sell new products directly in
{10}
online auctions. Purchases made through an online auction are on a
“buyer beware” basis. Online auction confi rmations or sales receipts are
not accepted for warranty verifi cation and BEHRINGER will not repair or
replace any product purchased through an online auction.
Warranty transferability § 5
This limited warranty is extended exclusively to the original buyer (customer
of authorized retail dealer) and is not transferable to anyone who may
subsequently purchase this product. No other person (retail dealer, etc.) shall
be entitled to give any warranty promise on behalf of BEHRINGER.
Claim for damage§ 6
Subject only to the operation of mandatory applicable local laws, BEHRINGER
shall have no liability to the buyer under this warranty for any consequential or
indirect loss or damage of any kind. In no event shall the liability of BEHRINGER
under this limited warranty exceed the invoiced value of the product.
Limitation of liability§ 7
This limited warranty is the complete and exclusive warranty between you and
BEHRINGER. It supersedes all other written or oral communications related to
this product. BEHRINGER provides no other warranties for this product.
Other warranty rights and national law§ 8
This limited warranty does not exclude or limit the buyer’s statutory rights [1]
as a consumer in any way.
The limited warranty regulations mentioned herein are applicable unless
[2]
they constitute an infringement of applicable mandatory local laws.
This warranty does not detract from the seller’s obligations in regard to
[3]
any lack of conformity of the product and any hidden defect.
Amendment§ 9
Warranty service conditions are subject to change without notice. For the
latest warranty terms and conditions and additional information regarding
BEHRINGER’s limited warranty, please see complete details online at
www.behringer.com.
* BEHRINGER Macao Commercial Off shore Limited of Rue de Pequim No. 202-A, Macau Finance
Centre 9/J, Macau, including all BEHRINGER group companies
ENGLISH
CONCERT CDP2400USB User Manual 35
Legal Disclaimer
Technical specifi cations and appearance are subject to change
without notice. The information contained herein is correct at the
time of printing. All trademarks (except BEHRINGER, the BEHRINGER
logo, JUST LISTEN, CONCERT and RSM) mentioned belong to their
respective owners, and such use neither constitutes a claim of the
trademarks by BEHRINGER nor affi liation of the trademark owners
with BEHRINGER. BEHRINGER accepts no liability for any loss which
may be suff ered by any person who relies either wholly or in part
upon any description, photograph or statement contained herein.
Colors and specifi cations may vary slightly from product. Our
Products are sold through authorized dealers only. Distributors
and dealers are not agents of BEHRINGER and have absolutely
no authority to bind BEHRINGER by any express or implied
undertaking or representation. This manual is copyrighted. No part
of this manual may be reproduced or transmitted in any form or by
any means, electronic or mechanical, including photocopying and
recording of any kind, for any purpose, without the express written
permission of Red Chip Company Ltd.
ALL RIGHTS RESERVED. © 2009 Red Chip Company Ltd.
Trident Chambers, Wickhams Cay, P.O. Box 146,
Road Town, Tortola, British Virgin Islands
ENGLISH
CONCERT CDP2400USB User Manual
www.behringer.com
complies/comply with the FCC rules as mentioned in the following paragraph:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Important information:
Changes or modifi cations to the equipment not expressly approved by BEHRINGER USA can void
the user’s authority to use the equipment.
FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION
Responsible party name: BEHRINGER USA, Inc.
Address: 18912 North Creek Parkway, Suite 200
Bothell, WA 98011, USA
Phone/Fax No.: Phone: +1 425 672 0816,
Fax: +1 425 763 7647
hereby declares that the product(s)
www.behringer.com
CONCERT
CDP2400USB
CONCERT CDP2400USB
A57 A8204 17001
