7 Port USB Hub User’s Manual
Introduction
This product confirms to USB Specification Rev. 1.1 and HID class definition
Rev.1.0.The HUB topology supports up to 127 physical devices in a tired-star
configuration.
Features
! Confirms to USB Specification Revision 1.1 and HID Class Definition Rev.1.0.
! Plug and play compatible.
! A maximum of 127 devices can be supported.
! A maximum 5 meter connection cable can be used between two hubs.
! Powered by self-powered or Bus powered.
! All downstream ports are supported with over current protection.
! Both low speed and high speed devices are supported.
! LED displays indicate power on and connection to each port.
System Requirement
! IBM PC Compatible
! Supports Windows 95 OSR 2.1, 98, 98 SE and 2000 Professional
Installation

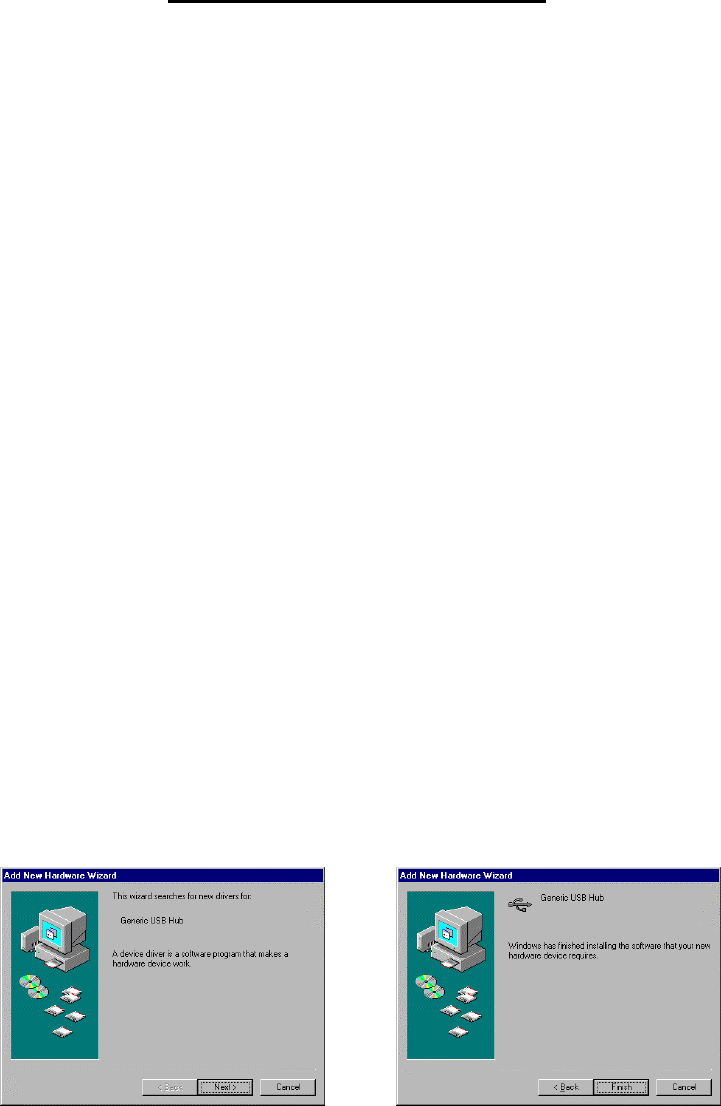

! When connecting this unit for the first time a message box will display :
“Searching for unknown hardware device, searching software for installation”
! Your computer will then start up the Device Driver Wizard, and will install the
unit. This product is recognized as “generic USB Hub”
! Once your computer has confirmed installation, you can then connect any USB
devices you wish to the Hub.
Packing List
! USB HUB
! Power
! USB Cable (1.8m , Connector Type-A to Connector Type-B)
! This manual
Specification
Page 2 - 2
Standard USB Spec Rev.1.1 and HID class definition Rev 1.0
Topology Star type
Transmission speed 12Mbps
Transmission media USB cable
Interface Up stream port (type B): 1 port
Down stream port (type A): 7 ports
Power Self-powered or Bus-powered
Operating Environment 0 C to 40 C
Operating humidity 5%~90% RH (non-condensing)
Storage temp -5C to 70 C
Dimension 165 x 90 x 28 mm
Weight 970 g
Notice:
For a Class B digital device or peripheral. The instructions furnished the user shall
include the following or similar statement, placed in a prominent location in the text
of the manual:
Note; This equipment has bean tested and found to comply with the limits for a
Class B digital device, pursuant to part 16 of the FCC Rules, These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
