Belkin Components F5U100 7 Port USB Hub User Manual

Belkin Components 7 Port USB Hub Users Manual

Users Manual

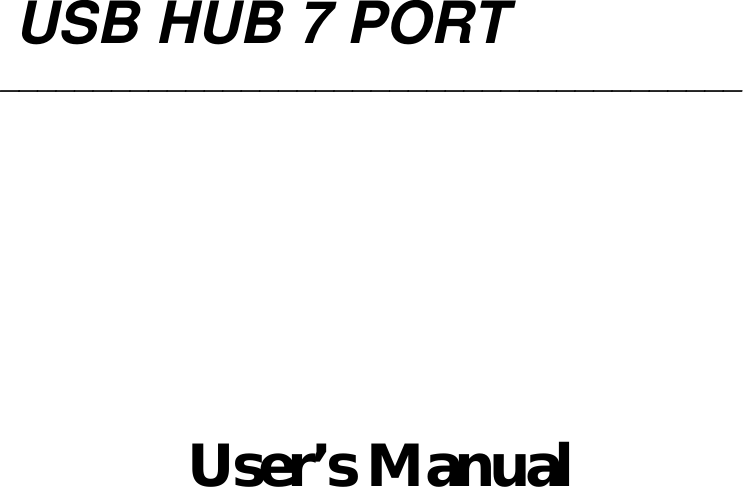

USB HUB 7 PORT ________________________________________User’s Manual

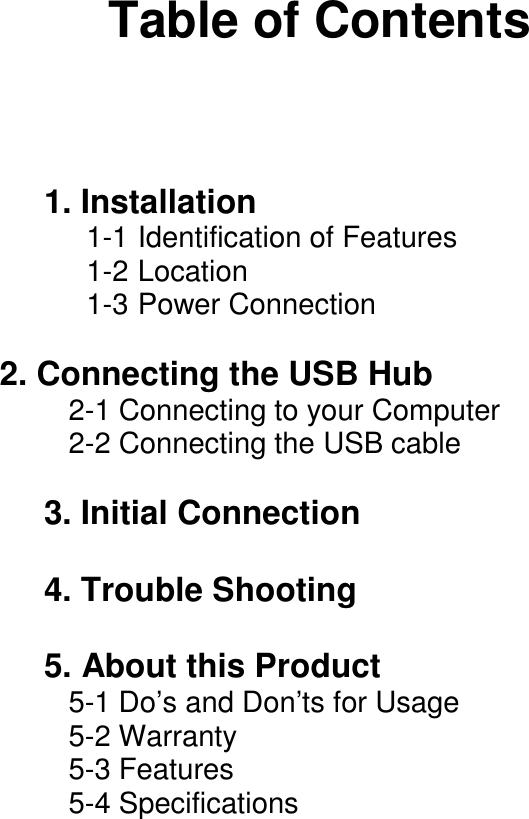

Table of Contents1. Installation1-1 Identification of Features1-2 Location1-3 Power Connection 2. Connecting the USB Hub 2-1 Connecting to your Computer 2-2 Connecting the USB cable3. Initial Connection4. Trouble Shooting5. About this Product 5-1 Do’s and Don’ts for Usage 5-2 Warranty 5-3 Features 5-4 Specifications

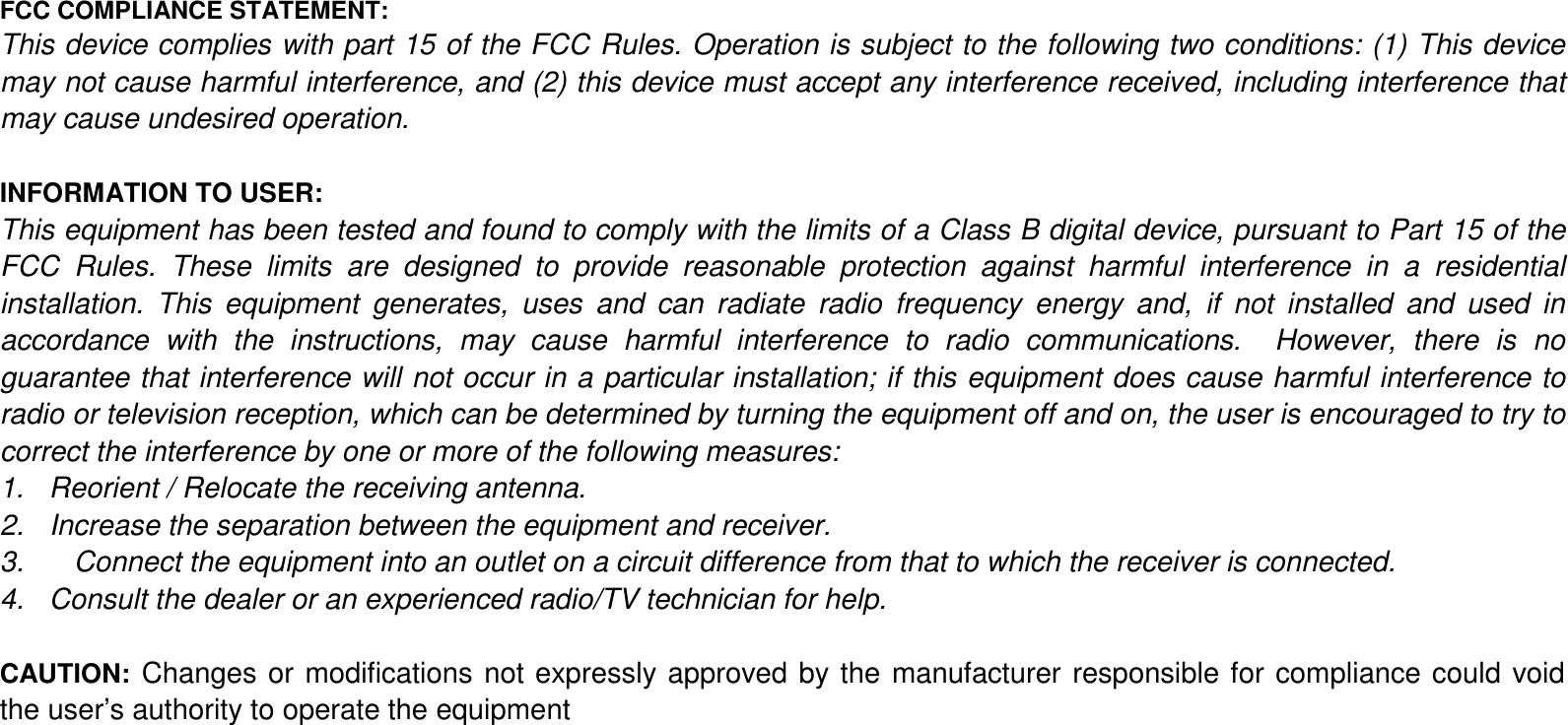

FCC COMPLIANCE STATEMENT:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This devicemay not cause harmful interference, and (2) this device must accept any interference received, including interference thatmay cause undesired operation.INFORMATION TO USER:This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of theFCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference toradio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measures:1. Reorient / Relocate the receiving antenna.2. Increase the separation between the equipment and receiver.3. Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could voidthe user’s authority to operate the equipment

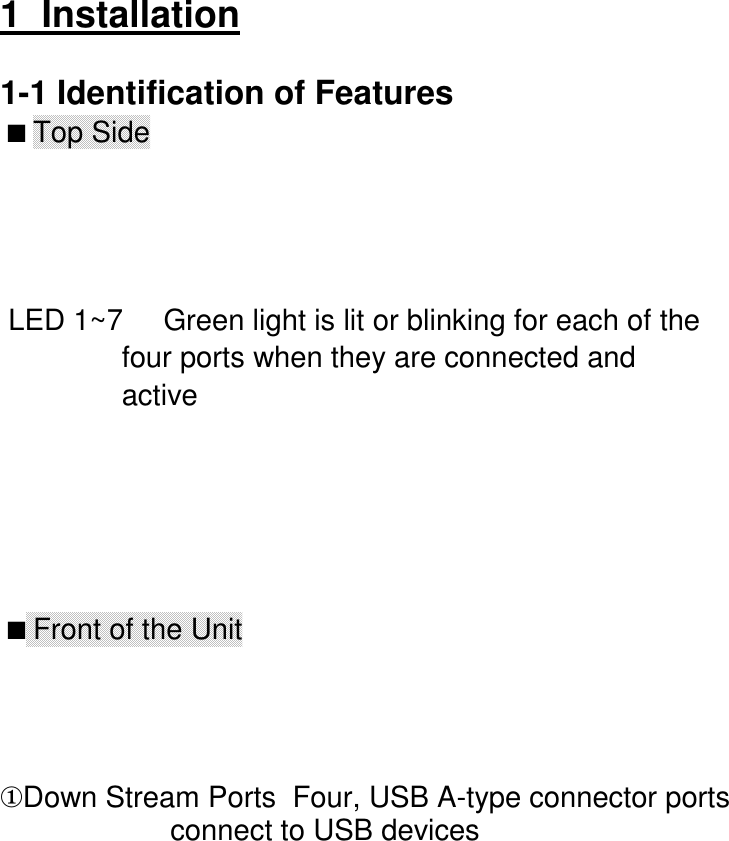

1 Installation1-1 Identification of Features ■ Top Side LED 1~7 Green light is lit or blinking for each of the four ports when they are connected and active ■ Front of the Unit①Down Stream Ports Four, USB A-type connector ports connect to USB devices

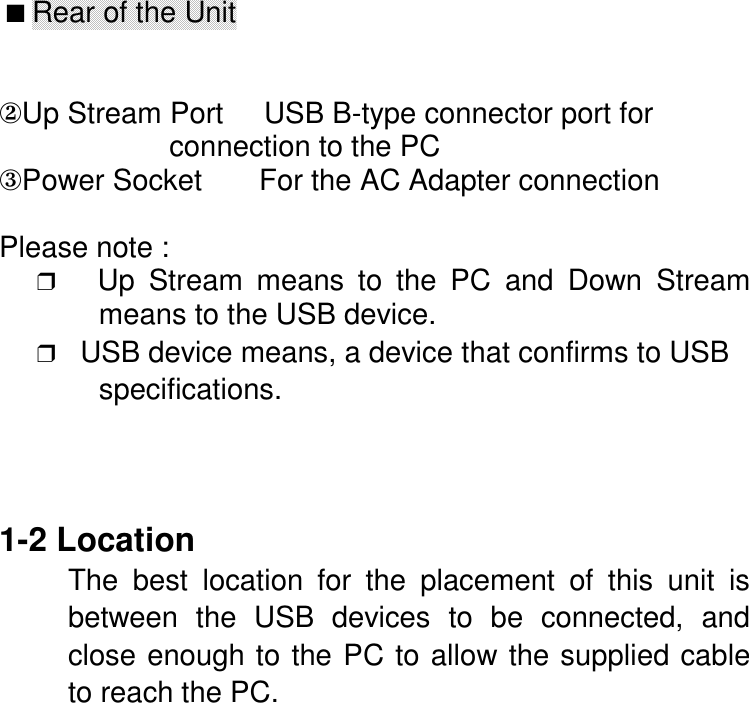

■ Rear of the Unit②Up Stream Port USB B-type connector port for connection to the PC③Power Socket For the AC Adapter connectionPlease note :❒ Up Stream means to the PC and Down Streammeans to the USB device.❒ USB device means, a device that confirms to USBspecifications.1-2 LocationThe best location for the placement of this unit isbetween the USB devices to be connected, andclose enough to the PC to allow the supplied cableto reach the PC.

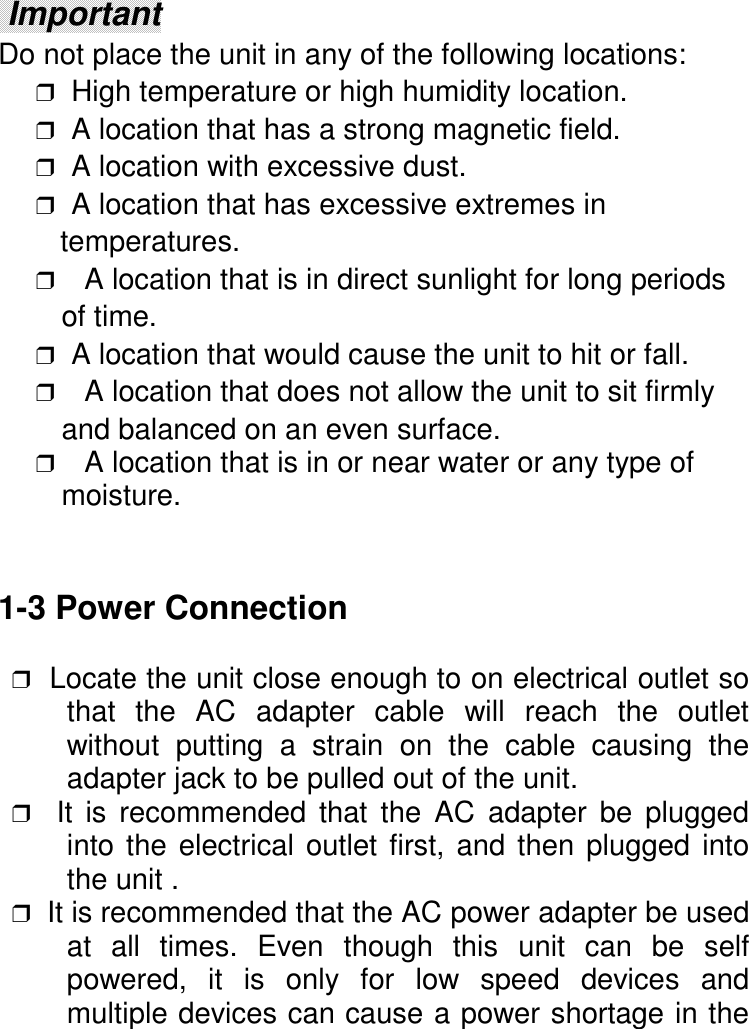

ImportantDo not place the unit in any of the following locations:❒ High temperature or high humidity location.❒ A location that has a strong magnetic field.❒ A location with excessive dust.❒ A location that has excessive extremes in temperatures.❒ A location that is in direct sunlight for long periods of time.❒ A location that would cause the unit to hit or fall.❒ A location that does not allow the unit to sit firmly and balanced on an even surface.❒ A location that is in or near water or any type of moisture.1-3 Power Connection ❒ Locate the unit close enough to on electrical outlet sothat the AC adapter cable will reach the outletwithout putting a strain on the cable causing theadapter jack to be pulled out of the unit. ❒ It is recommended that the AC adapter be pluggedinto the electrical outlet first, and then plugged intothe unit . ❒ It is recommended that the AC power adapter be usedat all times. Even though this unit can be selfpowered, it is only for low speed devices andmultiple devices can cause a power shortage in the

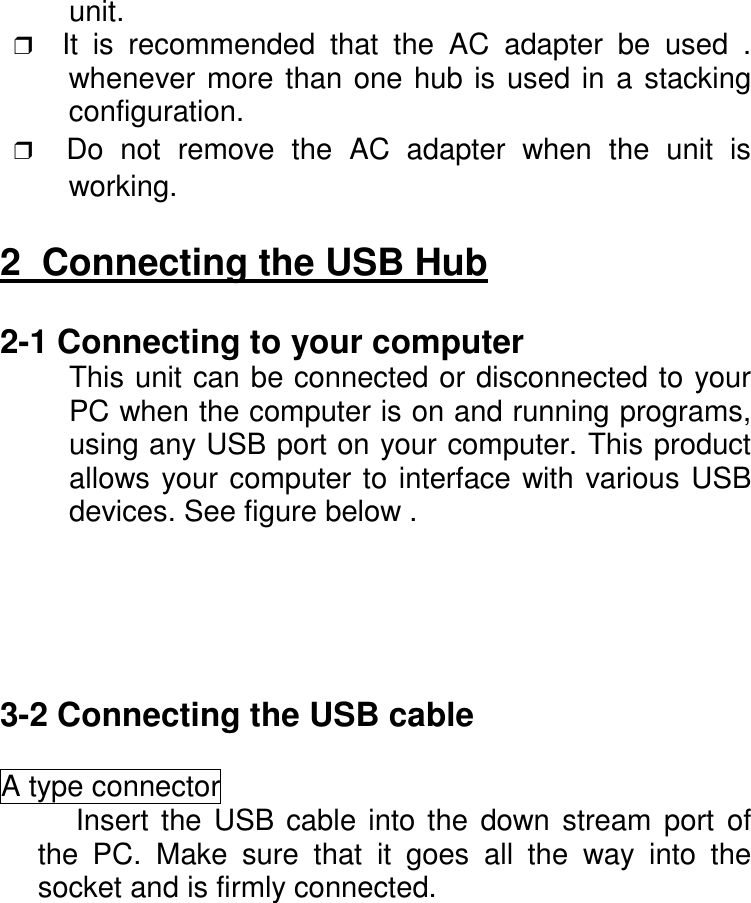

unit. ❒ It is recommended that the AC adapter be used .whenever more than one hub is used in a stackingconfiguration. ❒ Do not remove the AC adapter when the unit isworking.2 Connecting the USB Hub2-1 Connecting to your computerThis unit can be connected or disconnected to yourPC when the computer is on and running programs,using any USB port on your computer. This productallows your computer to interface with various USBdevices. See figure below .3-2 Connecting the USB cableA type connectorInsert the USB cable into the down stream port ofthe PC. Make sure that it goes all the way into thesocket and is firmly connected.

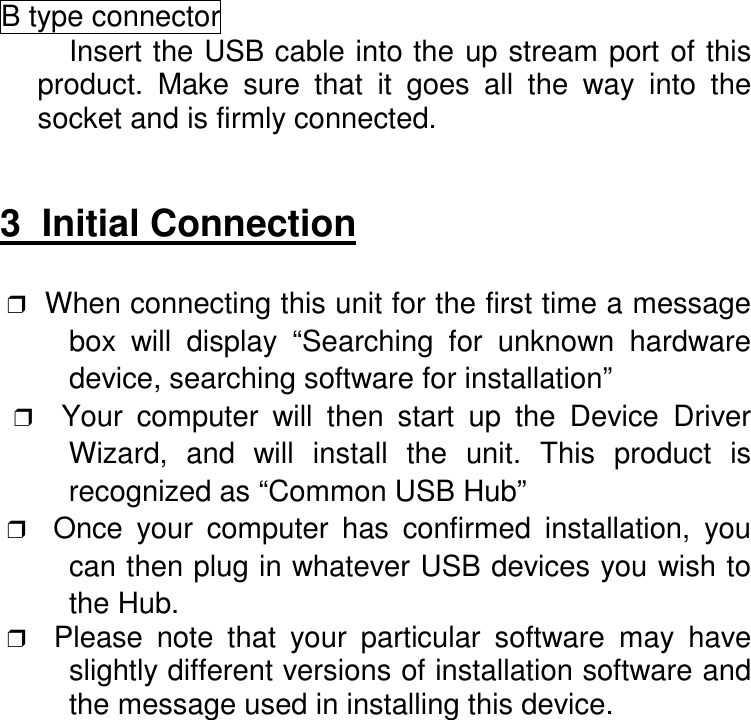

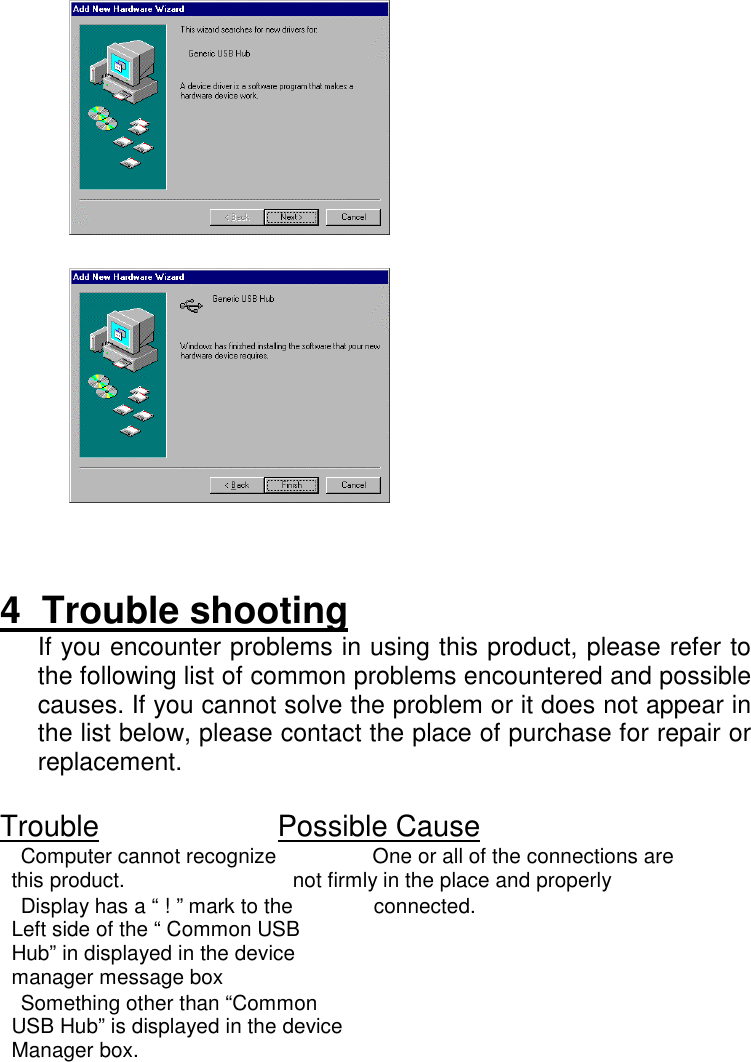

B type connectorInsert the USB cable into the up stream port of thisproduct. Make sure that it goes all the way into thesocket and is firmly connected.3 Initial Connection ❒ When connecting this unit for the first time a messagebox will display “Searching for unknown hardwaredevice, searching software for installation” ❒ Your computer will then start up the Device DriverWizard, and will install the unit. This product isrecognized as “Common USB Hub” ❒ Once your computer has confirmed installation, youcan then plug in whatever USB devices you wish tothe Hub. ❒ Please note that your particular software may haveslightly different versions of installation software andthe message used in installing this device.
4 Trouble shootingIf you encounter problems in using this product, please refer tothe following list of common problems encountered and possiblecauses. If you cannot solve the problem or it does not appear inthe list below, please contact the place of purchase for repair orreplacement.Trouble Possible CauseComputer cannot recognize One or all of the connections are this product. not firmly in the place and properlyDisplay has a “ ! ” mark to the connected. Left side of the “ Common USB Hub” in displayed in the device manager message boxSomething other than “Common USB Hub” is displayed in the device Manager box.

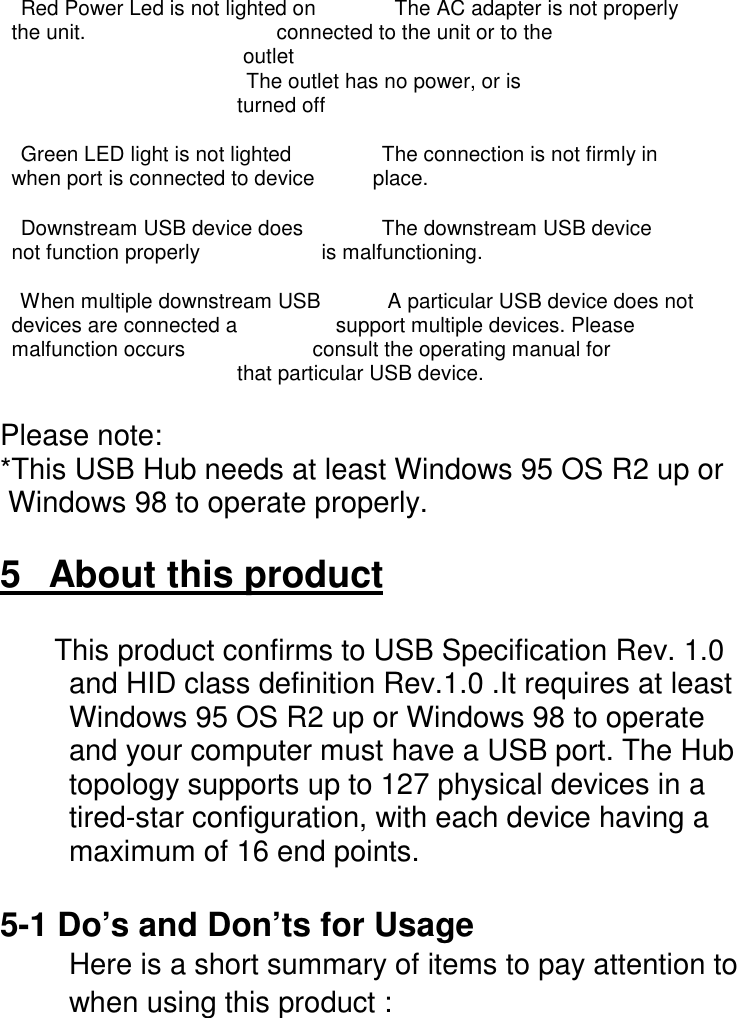

Red Power Led is not lighted on The AC adapter is not properly the unit. connected to the unit or to the outlet The outlet has no power, or is turned offGreen LED light is not lighted The connection is not firmly in when port is connected to device place.Downstream USB device does The downstream USB device not function properly is malfunctioning.When multiple downstream USB A particular USB device does not devices are connected a support multiple devices. Please malfunction occurs consult the operating manual for that particular USB device.Please note:*This USB Hub needs at least Windows 95 OS R2 up or Windows 98 to operate properly.5 About this product This product confirms to USB Specification Rev. 1.0and HID class definition Rev.1.0 .It requires at leastWindows 95 OS R2 up or Windows 98 to operateand your computer must have a USB port. The Hubtopology supports up to 127 physical devices in atired-star configuration, with each device having amaximum of 16 end points.5-1 Do’s and Don’ts for UsageHere is a short summary of items to pay attention towhen using this product :

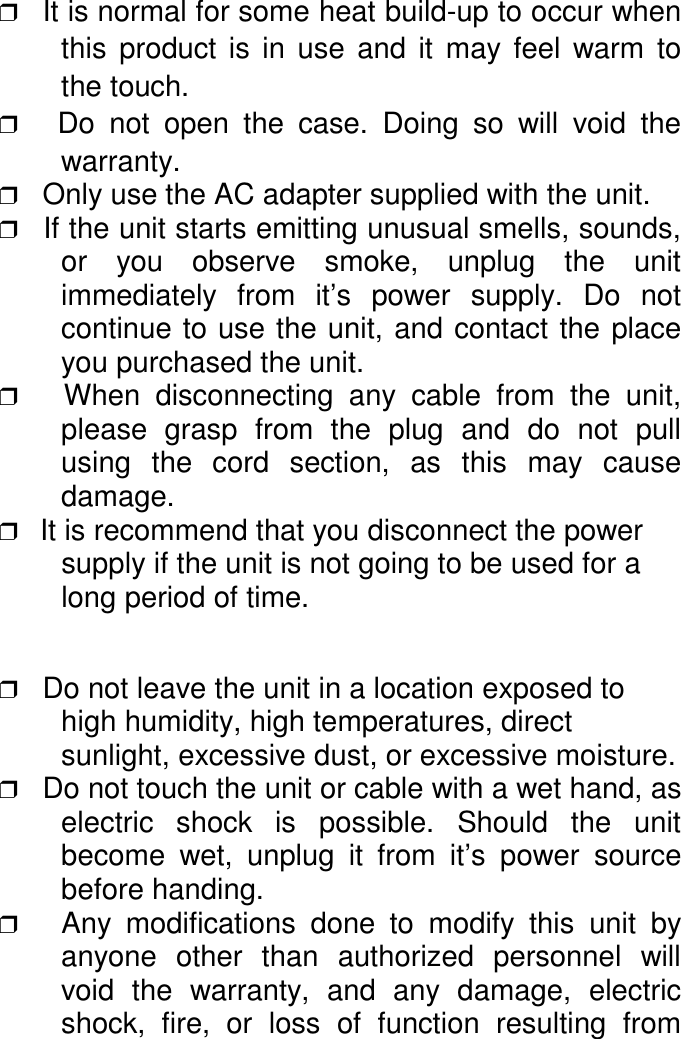

❒ It is normal for some heat build-up to occur whenthis product is in use and it may feel warm tothe touch.❒ Do not open the case. Doing so will void thewarranty.❒ Only use the AC adapter supplied with the unit.❒ If the unit starts emitting unusual smells, sounds,or you observe smoke, unplug the unitimmediately from it’s power supply. Do notcontinue to use the unit, and contact the placeyou purchased the unit.❒ When disconnecting any cable from the unit,please grasp from the plug and do not pullusing the cord section, as this may causedamage.❒ It is recommend that you disconnect the powersupply if the unit is not going to be used for along period of time.❒ Do not leave the unit in a location exposed tohigh humidity, high temperatures, directsunlight, excessive dust, or excessive moisture.❒ Do not touch the unit or cable with a wet hand, aselectric shock is possible. Should the unitbecome wet, unplug it from it’s power sourcebefore handing.❒ Any modifications done to modify this unit byanyone other than authorized personnel willvoid the warranty, and any damage, electricshock, fire, or loss of function resulting from

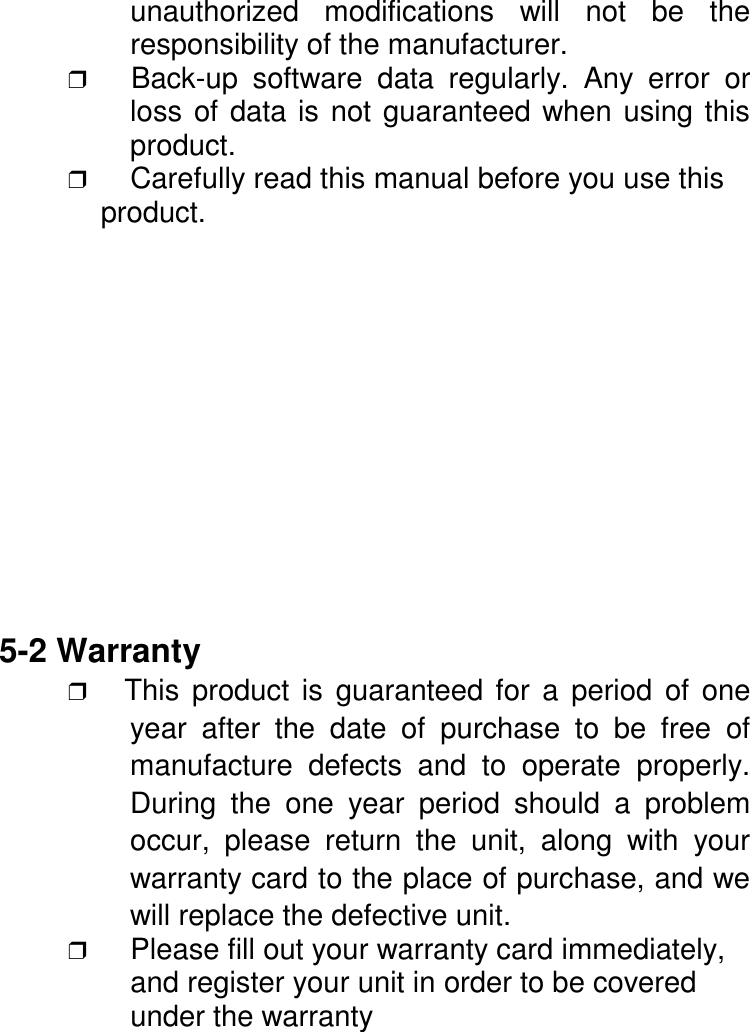

unauthorized modifications will not be theresponsibility of the manufacturer.❒ Back-up software data regularly. Any error orloss of data is not guaranteed when using thisproduct.❒ Carefully read this manual before you use this product.5-2 Warranty❒ This product is guaranteed for a period of oneyear after the date of purchase to be free ofmanufacture defects and to operate properly.During the one year period should a problemoccur, please return the unit, along with yourwarranty card to the place of purchase, and wewill replace the defective unit.❒ Please fill out your warranty card immediately,and register your unit in order to be coveredunder the warranty

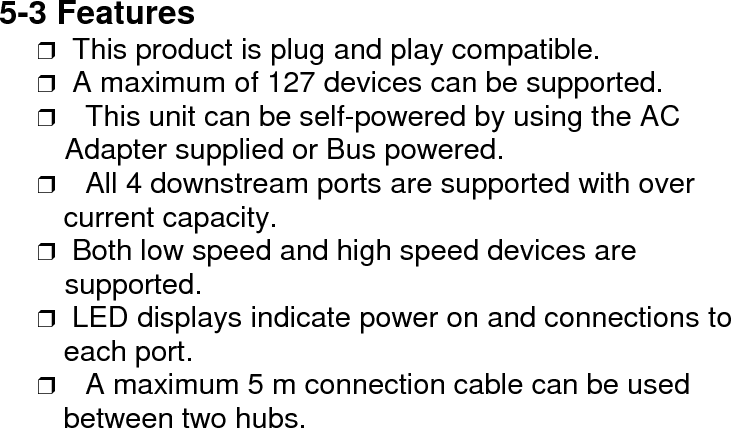

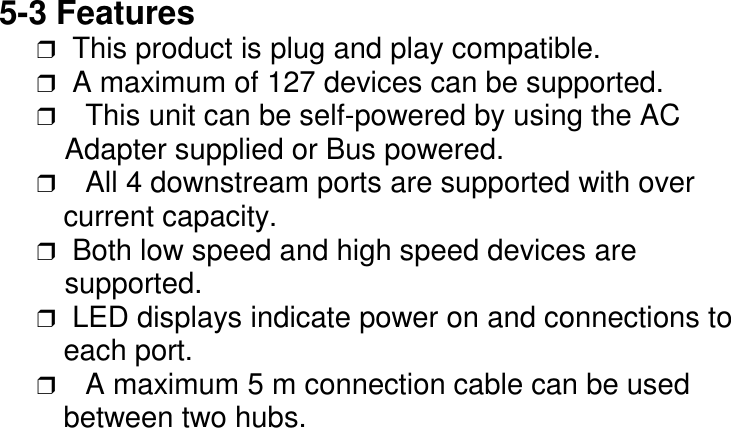

5-3 Features❒ This product is plug and play compatible.❒ A maximum of 127 devices can be supported.❒ This unit can be self-powered by using the AC Adapter supplied or Bus powered.❒ All 4 downstream ports are supported with over current capacity.❒ Both low speed and high speed devices are supported.❒ LED displays indicate power on and connections to each port.❒ A maximum 5 m connection cable can be used between two hubs.
❒ This product confirms to USB Specification Revision 1.0 and HID Class Definition Rev.1.0.

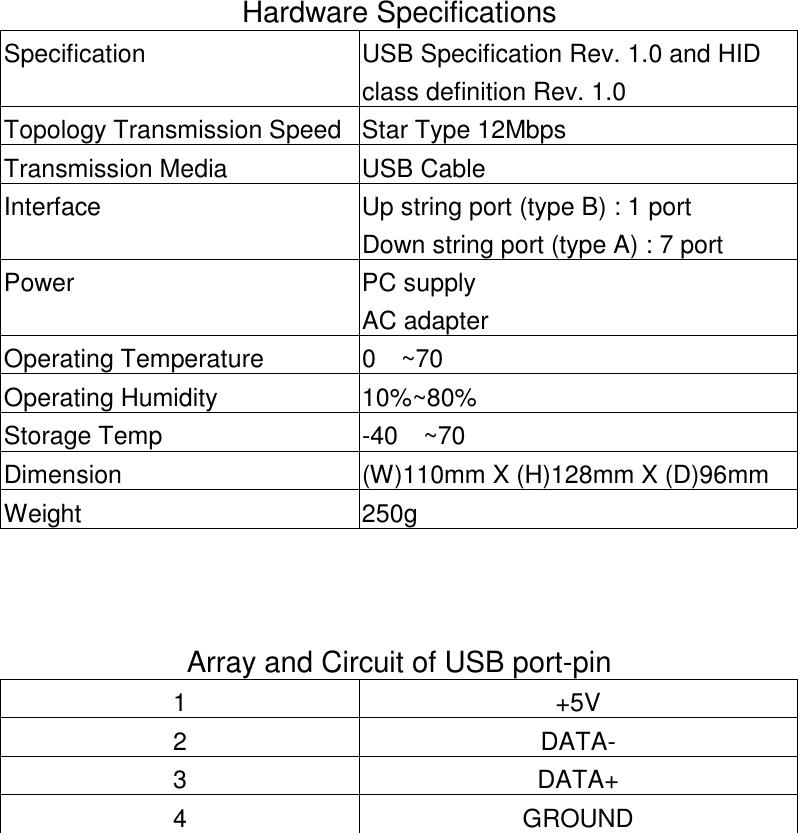

Hardware SpecificationsSpecification USB Specification Rev. 1.0 and HIDclass definition Rev. 1.0Topology Transmission Speed Star Type 12MbpsTransmission Media USB CableInterface Up string port (type B) : 1 portDown string port (type A) : 7 portPower PC supplyAC adapterOperating Temperature 0~70Operating Humidity 10%~80%Storage Temp -40~70Dimension (W)110mm X (H)128mm X (D)96mmWeight 250gArray and Circuit of USB port-pin1+5V2 DATA-3 DATA+4 GROUND
