user manual model 3

F5D7051 Manual_20071012 Page 1 of 32
(Changes from P74471-D)
Belkin
Wireless G Plus USB Network Adapter
Connect your desktop or notebook computer to a wireless network
User Manual
Table of Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Benefits of a Home Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Advantages of a Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . x
Placement of your Wireless Networking
Hardware for Optimal Performance . . . . . . . . . . . . . . . . . . . . . . . . x
2 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Applications and Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Package Contents……………………………………………………….x
3 Knowing your Wireless G Plus USB Network Adapter………………..x
4 Installing and Setting up the USB Network Adapter . . . . . . . . . . . x
Step 1: Install the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx
Step 2: Connect the USB Adapter to your PC . . . . . . . . . . . . . . . . xx
Step 3: Let Windows Finish the Installation
5 Uninstalling the Software and Drivers……………………………xx
6 Using the Belkin Wireless LAN Monitor Utility. . . . . . . . . . . . . . . . . . . . . xx
7 Securing your Wi-Fi Network . . . . . . . . . . . . . . . . . . . . . . . . . . . xx
8 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx
9 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx
F5D7051 Manual_20071012 Page 2 of 32
Introduction (header for section 1)
Thank you for purchasing the Belkin Wireless G Plus USB Network Adapter (the
Adapter). Now you can take advantage of this great new technology and gain the
freedom to network your home and office computers wirelessly. This Adapter
allows you to connect a desktop or notebook computer to your network. The easy
installation and setup will have you networking wirelessly in minutes. Please be
sure to read through this User Manual completely, and pay special attention to
the section entitled “Placement of your Wireless Networking Hardware for
Optimal Performance” on page 2.
Benefits of a Home Network
Your Belkin Home Network will allow you to:
• Share one high-speed Internet connection with all the computers
in your home
• Share resources, such as files, and hard drives among all the
connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet email,
and chat
Advantages of a Wireless Network
Here are some of the advantages of setting up a Belkin wireless network:
• Mobility –you’ll no longer need a dedicated “computer room”— now you can
work on a networked laptop or desktop computer anywhere within your wireless
range
• Easy installation – Belkin Easy Installation Wizards make setup simple
• Flexibility – set up and access printers, computers, and other networking
devices from anywhere in your home
• Easy expansion – the wide range of Belkin networking products let you expand
your network to include devices such as printers and gaming consoles
• No cabling required – you can spare the expense and hassle of retrofitting
Ethernet cabling throughout the home or office
• Widespread industry acceptance – choose from a wide range of
interoperable networking products
Placement of your Wireless Networking Hardware for Optimal Performance
F5D7051 Manual_20071012 Page 3 of 32
Your wireless connection will be stronger the closer your computer is to your
wireless router (or access point). Typical indoor operating range for your wireless
devices is between 300 and 400 feet. In the same way, your wireless connection
and performance will degrade somewhat as the distance between your wireless
router (or access point) and connected devices increases. This may or may not
be noticeable to you. As you move farther from your wireless router (or access
point), connection speed may decrease. Factors that can weaken signals simply
by getting in the way of your network’s radio waves are metal appliances or
obstructions, and walls.
If you have concerns about your network’s performance that might be related to
range or obstruction factors, try moving the computer to a position between five
and 10 feet away from the wireless router (or access point) in order to see if
distance is the problem. If difficulties persist even at close range, please contact
Belkin Technical Support.
Note: While some of the items listed below can affect network performance, they
will not prohibit your wireless network from functioning; if you are concerned that
your network is not operating at its maximum effectiveness, this checklist may
help.
1. Placement of your Wireless Router (or Access Point)
Place your wireless router (or access point), the central connection point of your
network, as close as possible to the center of your wireless network devices.
To achieve the best wireless network coverage for your “wireless clients,” (i.e.
computers enabled by Belkin Wireless Notebook Cards, Wireless Desktop Cards,
and Wireless USB Adapters):
• Ensure that your wireless router’s (or access point’s) antennas are parallel to
each other, and are positioned vertically (toward the ceiling). If your wireless
router (or access point) itself is positioned vertically, point the antennas as much
as possible in an upward direction.
• In multistory homes, place the wireless router (or access point) on a floor that is
as close to the center of the home as possible. This may mean placing the
wireless router (or access point) on an upper floor.
• Try not to place the wireless router (or access point) near a cordless 2.4GHz
phone
2. Avoid Obstacles and Interference
Avoid placing your wireless router (or access point) near devices that may emit
radio “noise”, such as microwave ovens. Other objects that can inhibit wireless
communication can include:
F5D7051 Manual_20071012 Page 4 of 32
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based, UV-tinted windows
If your wireless signal seems weak in some spots, make sure that objects such
as these are not blocking the signal’s path between your computers and wireless
router (or access point).
3. Cordless Phone Placement
If the performance of your wireless network is impaired after attending to the
above issues, and you have a cordless phone:
• Try moving cordless phones away from the wireless router (or access point)
and your wireless-enabled computers.
• Unplug and remove the battery from any cordless phone that operates on the
2.4GHz band (check manufacturer’s information). If this fixes the problem, your
phone may be interfering.
• If your phone supports channel selection, change the channel on the phone to
the farthest channel from your wireless network as possible. For example,
change the phone to channel 1 and move your wireless router (or access point)
to channel 11. (Your channel selection will vary depending on your region.) See
your phone’s user manual for detailed instructions.
• If necessary, consider switching to a 900MHz or 5GHz cordless phone.
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as apartment
buildings or office complexes, there may be wireless networks nearby that can
conflict with yours. Use the Site Survey capabilities of your Wireless Setup Utility
to locate any other wireless networks, and move your wireless router (or access
point) and computers to a channel as far away from other networks as possible.
Experiment with more than one of the available channels, in order to find the
clearest connection and avoid interference from neighboring cordless phones or
other wireless devices.
For more Belkin wireless networking products, use the detailed Site Survey and
wireless channel information included in your User Manual.
F5D7051 Manual_20071012 Page 5 of 32
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and password, and are used
where security is important. Secure connections include:
• Virtual Private Network (VPN) connections, often used to connect remotely to
an office network
• The “Bring Your Own Access” program from America Online (AOL), which lets
you use AOL through broadband provided by another cable or DSL service
• Most online banking websites
• Many commercial websites that require a user name and password to access
your account
Secure connections can be interrupted by a computer’s power management
setting, which causes it to “go to sleep.” The simplest solution to avoid this is to
simply reconnect by re-running the VPN or AOL software, or by re-logging into
the secure website.
A second alternative is to change your computer’s power management settings
so it does not go to sleep; however, this may not be appropriate for portable
computers. To change your power management setting in Windows, see the
“Power Options” item in the Control Panel.
If you continue to have difficulty with Secure Connections, VPNs, and AOL,
please review steps 1–4 above to be sure you have addressed these issues.
These guidelines should allow you to cover the maximum possible area with your
wireless router. Should you need to cover an even wider area, we suggest the
Belkin Wireless Range Extender/Access Point.
For more information regarding our networking products, visit our website at
www.belkin.com/networking or call Belkin Technical Support.
Overview (header for section 2)
Product Features
The Wireless G Plus USB Network Adapter complies with the IEEE 802.11g
standard in order to communicate with other 802.11g-compliant wireless devices
at 54Mbps or the faster G Plus.
• 2.4GHz ISM (Industrial, Science, and Medical) band operation
• Integrated, easy-to-use profile manager for storing multiple wireless network
settings for work, school, home, or any other setup
• USB 2.0 interface, for Plug-and-Play installation and convenience in virtually
any desktop or notebook computer
F5D7051 Manual_20071012 Page 6 of 32
• WPA security (Windows XP only), 64-bit WEP or 128-bit encryption
• Wireless access to networked resources
• Support for both infrastructure and ad-hoc (peer-to-peer) networking modes
• Packet transfer rate of up to 54Mbps
• Easy installation and use
• LED link/activity indicator
• Desktop stand allows you to position your Adapter for optimal wireless
performance
Applications and Advantages
• Wireless roaming with a laptop around the home or office
Offers the freedom of networking—without cables
• Connection rates of up to 54Mbps
Provides immediate wireless connectivity at home, work, and hotspot locations
without compromising the use of existing 802.11b and 802.11g products
• Compatibility with 802.11b products
802.11g wireless LAN solutions are backward-compatible with existing Wi-Fi
(IEEE 802.11b) products and with other products that display the 54g™ logo
• Difficult-to-wire environments
Enables networking in buildings with solid or finished walls, or open areas where
wiring is difficult to install
• Frequently changing environments
Adapts easily in offices or environments that frequently rearrange or change
locations
• Temporary LANs for special projects or peak time
Sets up temporary networks such as at trade shows, exhibitions, and
construction sites, which need networks on a short-term basis; also companies
who need additional workstations for a peak activity period
• SOHO (Small Office/Home Office) networking needs
Provides the easy and quick, small network installation SOHO
users need
Product Specifications
Host Interface: USB 2.0
This product is compatible with the USB 1.1 and USB 2.0 specification. To
achieve maximum networking speeds (54Mbps), this device must be connected
F5D7051 Manual_20071012 Page 7 of 32
to a USB 2.0 host port on a PC. Connection of this device to a USB 1.1 host port
will yield a maximum of 11Mbps networking speed.
Power Consumption: 500mA (max)
Certification: FCC Class B, CE Mark, C-Tick
Operating Temperature: 32–131° F (0–55° C)
Storage Temperature: -13–158° F (-25–70° C)
Typical Operating Range: Up to 200 ft.*
*Distance and connection speeds will vary depending on your networking
environment
System Requirements
• PC with one available USB port
• Windows® 2000, XP, or Vista
Package Contents
• Belkin Wireless G Plus USB Network Adapter with Desktop Stand (and
attached USB cable)
• Quick Installation Guide
• Installation Software CD
• User Manual
Knowing your Wireless G Plus USB Network Adapter (header of section 3)
(Designer please use image found on P74845uk page 8)
Protective Cap
Activity LED
Indicates wireless activity when blinking
Blinking Green: Scanning
Off: No Activity
On: Connected to Network
USB Adapter
Desktop Stand
(Optional Use)
The cap snaps over the USB connector for protection. It can be stored on the
opposite end of the USB connector.
Installing and Setting up the USB Network Adapter (header for section 4)
Step 1: Install the Software
WARNING: Install the Software before Inserting the Adapter
1.1 Insert the CD into your CD-ROM drive.
F5D7051 Manual_20071012 Page 8 of 32
1.2 The Belkin Wireless Setup Utility screen will automatically appear. If it does
not appear within 15–20 seconds, then select your CD-ROM drive and double-
click on the folder named “Files”. Next double-click on the icon named “Start.exe”.
1.3 In the menu window, click “install” to start the software installation program.
1.4 The installer will start. Click “Next” to continue.
(Designer please use image found on P74845uk page 9)
1.5 When the installer is done installing the software, you will see the following
screen. Click “Finish”.
(Designer please use image found on P74845uk page 10)
Step 2: Connect the USB Adapter to your PC
2.1 After the software installation is finished, the message “You can plug in your
WLAN adapter now” will appear. Plug the Adapter into an available USB port on
your desktop or notebook computer.
(Designer please use images found on P74845uk page 10)
For desktops: For notebooks:
Product Placement
The best location for your Adapter is on top of your computer’s monitor. Placing
the Adapter on your desktop is acceptable; however, avoid placing the Adapter
near metal objects such as a computer case or speakers. Any object that is metal
has the ability to block the radio signals from the Adapter.
Step 3: Let Windows Finish the Installation
F5D7051 Manual_20071012 Page 9 of 32
3.1 After you connect your Adapter, Windows will detect that new hardware has
been installed. Depending on your version of Windows, a window similar to the
one pictured here will appear. Select the option “Install the software automatically
(Recommended)” and click “Next”.
(Designer please use image found on P74845uk page 11)
3.2 If you are using Windows 98SE or Me, you will be asked to restart your
computer. Select “Restart”. Click “Finish”.
(Designer please use image found on P74471 page 11)
3.3 When the installation is complete, the Belkin Wireless LAN Monitor Utility
icon will appear on your taskbar. To open the Utility, double-click on this icon.
(Designer please use image found on P74471-C page 11)
3.4 A small icon in your system tray (bottom right corner of most screens) will
appear. This is your shortcut to the Belkin Wireless LAN Monitor Utility. It also
indicates the status of your connection:
Red: No connection to a wireless network
(Designer please use image found on P74845uk page 12)
Blue: Connected to a wireless network
(Designer please use image found on P74845uk page 12)
If you already have a wireless router (or an access point) in your home or office,
the Adapter will automatically attempt to connect to your wireless network. In
most cases, the Adapter will be able to connect to your network automatically. If
you are using encryption, you will have to set the encryption settings of your
Adapter to match that of your wireless router (or access point), before the
Adapter can successfully connect to your wireless network. For information about
configuring your Adapter, see the section in this User Manual called “Profile Tab:
Creating a Profile” on page XX.
Uninstalling the Software and Drivers (header for section 5)
If you need to remove the software and drivers for any reason, you can easily
accomplish this in one of two ways. You can insert the software CD and click on
the “Uninstall” option in the menu, or you can go to the Windows Control Panel
and select the “Add/Remove Programs” option. The Belkin Wizard will walk you
through the removal process.
F5D7051 Manual_20071012 Page 10 of 32
Using the Belkin Wireless LAN Monitor Utility (header for section 6)
To launch the Wireless LAN Monitor Utility, double-click the icon in the system
tray (right side of taskbar). The window below appears.
(Designer please use image found on P74845uk page 14)
Double-clicking on the icon in the system tray will open the “Wireless Monitor”
window.
Status Tab
When you see the Utility icon on your taskbar, you can control your USB Adapter
through it. Double-click on the icon to open the Utility. The first tab—“Status”—is
visible. From this tab you can see your current connection status on the screen.
In the illustration below, the display of numerals 1 and 0 between the computer
and the wireless router (or access point) indicates an active connection. This
diagram also shows that there is a connection to the Internet by displaying the
numerals 1 and 0 between the wireless router (or access point) and the Internet.
(Designer please use image found on P74845uk page 14)
The display of numerals “1” and “0” here indicates a connection.
If there is no connection between the computer and wireless router (or access
point), and/or the Internet, an “X” will be displayed.
(a) Current Profile String
This indicates the name of the profile you are currently using, if any. If a question
mark appears next to the text in this box, there is no profile set up for the network
to which you are currently connected. If this is the case, the name of that network
will be displayed in this box.
(b) More Button
Press the “More” button to see details—including the name, signal strength,
signal-link quality, IP information—for the network to which you are connected
(see image below).
(Designer please use image found on P74845uk page 15)
F5D7051 Manual_20071012 Page 11 of 32
Access Point (AP) List Tab
To view a list of all available networks in your area, select the “AP List” tab. In
this window, you will be presented with a list of the available networks.
(Designer please use image found on P74845uk page 16)
(a) Network Name
This column shows you the name of the wireless network that is available. On
the left side of the network name are small icons that advise you of specific
details about the network. A blue circle around the network icon (e) indicates that
you are currently connected to this network. A small padlock icon (f) next to a
network name indicates that this network is secured (either by WEP or WPA
encryption). It is not possible to connect to a secured network without the proper
network key.
(b) Band
This column indicates on which band the network is operating. “G” indicates that
it is an 802.11g-based network. “B” indicates it is an 802.11b-based network.
(c) Signal
This column indicates the signal strength of the wireless network. Typically, the
stronger the signal strength, the closer the network is to your physical location.
The lower the signal strength, the farther away from the network you are.
(d) Site Information
When you highlight a network name in the AP list by clicking on it once, the
detailed information about that network will be available here. You will see what
type of network it is (Access Point or Peer-to-Peer), what channel the network is
operating on, the status of encryption (security) (On or Off), and (below
“Surveyed at:”) the MAC address of that wireless network.
How to connect to a wireless network in the Access Point (AP) list:
There are two ways to connect to a network that appear in the AP list.
1. Highlight the network name by clicking on it once, then click the “Connect”
button on the bottom of the window.
or
2. Double-click a network name that is in the AP list. This will connect you to the
network automatically.
Note: If the network to which you are attempting to connect is using encryption,
you will be prompted to create a profile with the encryption settings.
How to Update the Access Point (AP) List Information
F5D7051 Manual_20071012 Page 12 of 32
Pressing the “Refresh” (g) button will make the USB Adapter scan the
“air” for available wireless networks. The list will be updated.
Profile Tab: Creating a Profile
Using profiles allows you to save configurations for different wireless
networks. For instance, if you use your Adapter at your place of work and also at
your home, your wireless network settings may be different for each location.
Profiles let you store settings for each location and name them for easy
identification. You can quickly change from one profile to another profile without
having to remember the particular settings of a certain network.
(Designer please use image found on P74845uk page 17)
Creating a New Profile
1. Click “Add” to open the new profile screen. Type in a name for the profile. The
name can be anything you want. You should pick something easy to remember
like “Work”, for your work network or “Home”, for your home network. Click “Next”
to continue.
(Designer please use image found on P74845uk page 18)
2. The next screen you will see allows you to type in the name of the network you
will be connecting to and the type of network it is. It gives you the option of
setting the data rate for that network.
(Designer please use image found on P74845uk page 18)
(a) In the “Network Name” box, type in the exact name of the network you will be
connecting to. The “Network Name” is the same as the network SSID.
(b) In the “Network Type” box, select the type of network to which you will be
connecting. Select “Access Point” if it is a network with a wireless router or
access point (this is most common). Select “Peer-to-Peer” if this is a direct
connection to another computer.
(c) We suggest that you leave the “Transfer Rate” box set on “Automatic” unless
there is a specific need to change this setting.
(Designer please use image found on P74845uk page 19)
Click “Next” to continue.
3. The next screen allows you to input security encryption settings for the
network. If the network is not encrypted, then leave the mode set to “Off” and
click “Complete”.
F5D7051 Manual_20071012 Page 13 of 32
If the network is encrypted, you will need to have the network key and key type
(open or shared). This information is the same as it is for your wireless router or
access point. In a larger-office setting, this information is typically available from
the network administrator.
TIP: Most networks with WEP use the “Open System” key type. For more
detailed information, go to the section titled “Securing your Wireless Network” on
page xx in this User Manual.
(a) Select the “Authentication Mode” from the drop-down menu.
(Designer please use image found on P74845uk page 19)
(b) After selecting the “Authentication Mode”, select the encryption type your
network uses from the “Encryption” drop-down menu. Please see the section of
this User Manual titled “Securing your Wireless Network” on page xx for
information on which type of WEP encryption to use. Click “Next”.
(Designer please use image found on P74845uk page 20)
(c) The next screen allows you to select the key input method: either ASCII,
Hexadecimal, or Passphrase. The method you choose will be determined by, and
should be the same as, the method used by your wireless router or access point.
TIP: Most keys are Hexadecimal (consists of letters and numbers from 0–9 and
A–F). (Designer please use image found on P74845uk page 20)
(d) Enter the key in the “Key” box and select the key to use in the “Key Index”
drop-down menu. Your network administrator should provide this information.
TIP: Most keys use Key Index 1.
(Designer please use image found on P4845uk page 21)
(e) Click “Complete” to save the profile. To begin using your new profile, highlight
the profile name by clicking on the name one time, then click “Connect”.
(Designer please use image found on P74845uk page 21)
How to Find and Connect to a Wireless Network
1. Open the “Wireless Monitor” window by double-clicking the icon in your system
tray.
2. Click on the “AP List” tab (a). This will display a list of all of the networks in
your area.
(Designer please use image found on P74845uk page 22)
F5D7051 Manual_20071012 Page 14 of 32
3. Double-click on the network to which you want to connect. A blue circle (b)
(Designer please use image found on P74845uk page 22) should appear around
the network icon next to the name of the network you selected. This means you
are connected to the network. If the network is using encryption security, you will
be prompted to make a profile for that network in order to connect. See the
section of this User Manual called “Profile Tab: Creating a Profile” on page xx [fill
in correct page no.] for information.
Windows XP Users
If you are using Windows XP, please read this section. (Designer please bold
text)
Windows XP integrates a wireless management utility referred to as Windows XP
Wireless Zero Configuration service (WZC). The WZC can be used to control
your Adapter or you can use the Belkin Wireless LAN Monitor Utility. We suggest
that you use the Belkin Utility to control your Adapter. If you choose to use the
WZC, directions for operation of the WZC are available in the Windows XP help
file. When you first install the Adapter, the Belkin Utility will be enabled. If you
want to disable the Belkin Utility in order to use the WZC, follow the steps below
to disable the Belkin Utility.
Disabling the Windows Zero Configuration (WZC) in Windows XP
1. Right-click on the system tray icon.
(Designer please use image found on P74845uk page23)
2. In the menu, select “Enable Windows Zero Configuration (WZC)”.
(Designer please use image found on P74471-C page 23)
3. To enable the Belkin Utility, right-click on the system tray icon.
4. In the menu, select “Disable Windows Zero Configuration (WZC)”
(Designer please use image found on P74471-C page 23)
Setting up Windows XP Wireless Network Utility to use WPA-PSK
In order to use WPA-PSK, ensure that you are using “Windows Wireless Network
Utility” by doing the following:
1. Right-click on “Wireless Network Connection” and select “Properties”.
2. Clicking on the “Wireless Networks” tab will display the following screen.
Ensure the “Use Windows to configure my wireless network settings” box is
checked.
F5D7051 Manual_20071012 Page 15 of 32
3. Clicking the “Configure” button will allow you to choose your Network
Authentication type.
(Designer please use image found on P74845uk page 24)
4. For home or small business users, select “WPA-PSK” under “Network
Authentication”.
(Designer please use image found on P74845uk page 25)
Note: Select WPA if you are using this computer to connect to a corporate
network that supports an authentication server such as a radius server. Please
consult your network administrator for further information.
5. Select “TKIP” or “AES” under “Data Encryption”. This setting must be identical
to the wireless router that you set up.
6. Type your encryption key into the “Network key” box.
Important: Enter your pre-shared key. This can be from eight to 63 characters
and can be letters, numbers, or symbols. This same key must be used on all of
the clients that you set up.
7. Click “OK” to apply settings.
Setting up Windows XP WZC Utility to use WPA
Note: If you have not done so already, you must download the WPA update from
Microsoft Windows Update to enable WPA support. This can be found at the
Microsoft website by searching for the term “WPA Wireless”. Locate the update
called “KB826942”, download it, and update your operating system.
Securing your Wi-Fi® Network (header for section 7)
Here are a few different ways to maximize the security of your wireless network
and protect your data from unwanted intrusions. This section is intended for the
home, home office, and small office user. At the time of publication, four
encryption methods are available.
Encryption Methods:
Name 64-Bit Wired
Equivalent
Privacy
128-Bit
Encryption Wi-Fi
Protected
Access
Wi-Fi
Protected
Access
F5D7051 Manual_20071012 Page 16 of 32
Acronym 64-bit WEP 128-bit WPA-TKIP WPA-AES
Security Good Better Best Best
Features Static keys Static keys Dynamic key
encryption
and mutual
authentication
Dynamic key
encryption
and mutual
authentication
Encryption
keys
based on RC4
algorithm
(typically
40-bit keys)
Added
security
over 64-bit
WEP using a
key length of
104 bits, plus
24 additional
bits of system-
generated
data
TKIP
(Temporal
Key Integrity
Protocol)
added so
that keys are
rotated and
encryption is
strengthened
AES
(Advanced
Encryption
Standard)
does not
cause any
throughput
loss
Securing your Wireless Network
Most wireless products ship with security turned off. This means that once you
have your network working, you may need to activate WEP or WPA and make
sure all your wireless devices are sharing the same network key.
The following diagram shows the effect of not having the correct network key
throughout your network.
(Designer please use chart found on P74845uk page 27)
[image – computer]
Network Key=
MyPassword
[image – router]
Network Key=
MyPassword
[image – computer]
Network Key=
MyPassword
[image – computer]
Network Key=
WRONG Password
The Adapter cannot access the network because it uses a different network key
than the one configured on the wireless router.
F5D7051 Manual_20071012 Page 17 of 32
Setting up your Belkin Wireless Router (or Access Point) to use Security
To start using security, you need to first enable WEP or WPA for your wireless
router (or access point). For Belkin Wireless Routers and Access Points, these
security features can be configured by using the web-based interface. (See your
wireless router’s (or access point’s) manual for directions on how to access the
management interface.)
Your Dynex wireless adapter is equipped with the latest security standard
called Wi-Fi Protected Access 2 (WPA2™) and the legacy security standard
called Wired Equivalent Privacy (WEP). It also supports the Wi-Fi Protected
Setup (WPS) specification, which simplifies the setup of a wireless network.
WPS uses familiar methodologies, such as typing in a Personal
Identification Number (PIN) or pushing a button, to enable users to
automatically configure network names and strong WPA/WPA2 data
encryption and authentication.

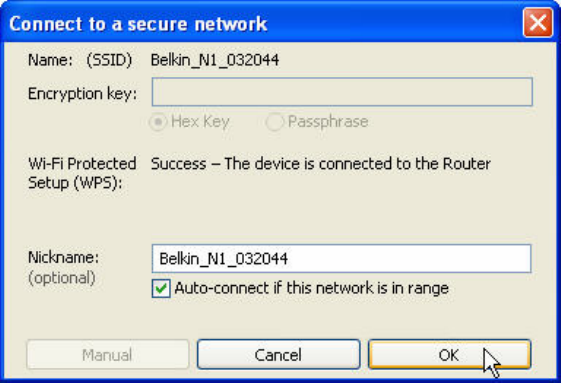

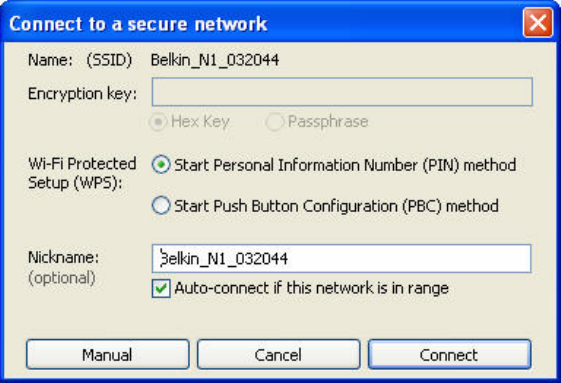

Using Wi-Fi Protected Setup
1. Encryption key if not using WPS
2. Personal Identification Number (PIN) Method: In this method, your
wireless adapter will generate a PIN to be entered into your router
3. Push Button Configuration (PBC) Method: Your wireless adapter can also
connect by using the software push button.
4. Manual Configuration Method: This section lists the default security
settings to be set up if not using WPS.
WPS uses WPA2 (described below) for encryption. It does not provide additional
security, but rather, standardizes the method for securing your wireless network.
F5D7051 Manual_20071012 Page 18 of 32
On your client utility, WPS-enabled networks are denoted with the key icon. You
may use either the Push Button Configuration (PBC) method or PIN method to
allow a device access to your wireless network. Conceptually, the two methods
work as follows:
PBC: Push and hold the WPS button located on the back of your router for three
seconds. Then, initiate the WPS procedure on the client utility within two minutes.
Select the network name in the utility and click “Connect”. Your client will
automatically exchange the security information and be added to your wireless
network. The Push Button Configuration method can also be initiated from the
client side.
PIN: Your client device has an eight digit PIN number that is associated with
WPS. Select the WPS-enabled network and click “Connect” to start the WPS
process. Choose the PIN method option and complete the WPS procedure on
your router. The client will be automatically enrolled into your wireless network
within two minutes.
(insert WPS image)
WEP Setup
64-Bit WEP Encryption
1. Select “64-bit WEP” from the drop-down menu.
2. After selecting your WEP encryption mode, you can enter your key by typing in
the hex key manually, or you can type in a passphrase in the “Passphrase” field
and click “Generate” to create a key.
A hex (hexadecimal) key is a combination of numbers and letters from A–F and
0–9. For 64-bit WEP, you need to enter 10 hex keys.
F5D7051 Manual_20071012 Page 19 of 32
For instance:
AF 0F 4B C3 D4 = 64-bit WEP key
(Designer please use chart found on P74845uk page 28)
3. Click “Apply Changes” to finish. Encryption in the Wireless Router (or Access
Point) is now set. Each of your computers on your wireless network will now
need to be configured with the same security settings.
WARNING: If you are using a wireless client to turn on the security settings in
your Wireless Router (or Access Point), you will temporarily lose your wireless
connection until you activate security on your wireless client.
128-Bit WEP Encryption
1. Select “128-bit WEP” from the drop-down menu.
2. After selecting your WEP encryption mode, you can enter your key manually
by typing in the hex key manually, or you can type in a passphrase in the
“Passphrase” field and click “Generate” to create a key.
A hex (hexadecimal) key is a combination of numbers and letters from A–F and
0–9. For 128-bit WEP, you need to enter 26 hex keys.
For instance:
C3 03 0F AF 0F 4B B2 C3 D4 4B C3 D4 E7 = 128-bit WEP key
3. Click “Apply Changes” to finish. Encryption in the Wireless Router (or Access
Point) is now set. Each of the computers on your wireless network will now need
to be configured with the same security settings.
WARNING: If you are using a wireless client to turn on the security settings in
your Wireless Router (or Access Point), you will temporarily lose your wireless
connection until you activate security on your wireless client.
WPA-PSK (no server)
Choose this setting if your network does not use a radius server. WPA-PSK (no
server) is typically used in home and small office networking.
1. From the “Security Mode” drop-down menu, select “WPA-PSK (no server)”.
2. Enter your network key. This can be from eight to 63 characters and can be
letters, numbers, or symbols. This same key must be used on all of the clients
(network cards) that you want to include in your network.
3. Click “Apply Changes” to finish. You must now set all clients (network cards
and adapters) to match these settings.
F5D7051 Manual_20071012 Page 20 of 32
WPA (with server) Settings
Choose this setting if your network uses a radius server to distribute keys to the
clients (network cards and adapters). This is typically used in business networks.
1. From the “Security Mode” drop-down menu, select “WPA (with
server)”.
2. Enter the IP address of the radius server into the “Radius
Server” fields.
3. Enter the radius key into the “Radius Key” field.
4. Enter the key interval. The key interval is how often the keys are
distributed (in packets).
5. Click “Apply Changes” to finish.
Connecting your Computer to a Wireless Router (or Access Point) that
Requires a 64-Bit or 128-Bit WEP Key
1. Double-click the Signal Indicator icon to bring up the “Wireless Network”
screen. The “Advanced” button will allow you to view and configure more options
of your Adapter.
2. Under the “Wireless Network” tab, select a network name from the AP list and
click “Configure”.
3. Under “Data Encryption” select “WEP”.
4. Ensure that the check box “Network key is provided for me automatically” at
the bottom is unchecked. If you are using this computer to connect to a corporate
network, please consult your network administrator if this box needs to be
checked.
5. Type your WEP key in the “Network key” and “Confirm key” boxes.
Important: A WEP key is a combination of numbers and letters from A–F and 0–9.
For 128-bit WEP, you need to enter 26 keys. For 64-bit WEP, you need to enter
10 keys. This network key needs to match the key you assign to your wireless
router (or access point).
6. Click “OK”, and then “Apply” to save the settings.
Connecting your Computer to a Wireless Router (or Access Point) that
uses WPA-PSK (no server)
1. Double-click the Signal Indicator icon to bring up the
“Wireless Network Properties” screen. The “Advanced” button will allow you to
view and configure more options of your Adapter.
F5D7051 Manual_20071012 Page 21 of 32
2. Under the “Wireless Networks” tab, select a network name from the AP list and
click “Configure”.
3. Under “Network Authentication” select “WPA-PSK”.
4. Type your WPA key in the “Network key” box.
Important: WPA-PSK is a combination of numbers and letters from
A–Z and 0–9. For WPA-PSK, you can enter eight to 63 keys. This network key
needs to match the key you assign to your wireless router (or access point).
5. Click “OK”, then “Apply” to save the settings.
Connecting your Computer to a Wireless Router (or Access Point)
that uses WPA
1. Double-click the Signal Indicator icon to bring up the “Wireless Network
Properties” screen. The “Advanced” button will allow you to view and configure
more options of your Adapter.
2. Under the “Wireless Networks” tab, select a network name from the AP list and
click “Configure”.
3. Under “Network Authentication” select “WPA”.
4. Under the “Authentication” tab, select the settings that are indicated by your
network administrator.
5. Click “OK”, and then “Apply” to save the settings.
Setting up WPA for Wireless Adapters that are not Manufactured by Belkin
For WPA wireless desktop and wireless notebook cards and adapters that are
NOT manufactured by Belkin, which are not equipped with WPA-enabled
software, a free download from Microsoft called “Windows XP Support Patch for
Wireless Protected Access” is available.
Please Note: The download that Microsoft has made available works ONLY with
Windows XP. Other operating systems are not supported at this time.
Important: You also need to ensure that the wireless card manufacturer
supports WPA and that you have downloaded and installed the latest driver from
their support site.
Supported Operating Systems:
• Windows XP Professional
• Windows XP Home Edition
F5D7051 Manual_20071012 Page 22 of 32
Setting up Windows XP Wireless Network Utility to use WPA-PSK
In order to use WPA-PSK, ensure that you are using the “Windows
Wireless Network Utility” by doing the following:
1. Under Windows XP, click “Start > Control Panel > Network Connections”.
2. Right-click on “Wireless Network Connection” and select “Properties”.
3. Clicking on the “Wireless Networks” tab will display the following screen.
Ensure the “Use Windows to configure my wireless network settings” box is
checked.
4. Clicking the “Configure” button will allow you to choose your network
authentication type.
5. For home or small business users, select “WPA-PSK” under “Network
Authentication”.
Note: Select WPA if you are using this computer to connect to a corporate
network that supports an authentication server such as a radius server. Please
consult your network administrator for further information.
6. Select “TKIP” or “AES” under “Data Encryption”. This setting will have to be
identical to the wireless router that you set up.
7. Type in your encryption key in the “Network key” box. Important: Enter your
pre-shared key. This can be from eight to 63 characters and can be letters,
numbers, or symbols. This same key must be used on all of the clients that you
set up.
8. Click “OK” to apply settings.
Troubleshooting (header for section 8)
I can’t connect to the Internet wirelessly.
If you are unable to connect to the Internet from a wireless computer, please
check the following items:
1. Look at the lights on your wireless router. If you are using a Belkin Wireless
Router, the lights should be as follows:
• The “Power” light should be on.
• The “Connected” light should be on, and not blinking.
• The “WAN” light should be either on or blinking.
If your Belkin Wireless Router’s lights match these descriptions, go to number 2,
below.
F5D7051 Manual_20071012 Page 23 of 32
If this is NOT the case, please contact Belkin technical support.
If you are not using a Belkin Wireless Router, consult that router manufacturer’s
user guide.
2. Open your Wireless Setup Utility software by clicking on the icon in the system
tray at the bottom right-hand corner of the screen. If you are using a Belkin
Wireless Adapter, the tray icon should look like this (the icon may be red or
green):
(Designer please use chart found on P74845uk page 30)
3. The exact window that opens will vary depending on the model of Wireless
Adapter you have; however, any of the utilities should list “Available Networks”,
that is, networks to which you can connect.
If you are using a Belkin Wireless G or Wireless G Plus Router, “Belkin54g” is the
default name.
If you are using a Belkin 802.11b Router, the default name should be “WLAN”.
If you are NOT using a Belkin Router, please consult your router manufacturer’s
user manual for the default name.
The name of your wireless network appears in the AP list.
If the correct network name is listed in the AP list, please follow the steps below
to connect wirelessly:
1. Click on the correct network name in the AP list.
2. If the network has security (encryption) enabled, you will need to enter the
network key. For more information regarding security, please see “Securing your
Wi-Fi Network” on page XX [insert correct pg. no.] of this User Manual.
3. Within a few seconds, the tray icon in the lower right-hand corner of your
screen should turn green, indicating a successful connection to the network.
If you are still unable to access the Internet after connecting to the wireless
network, please contact Belkin Technical Support.
The name of your wireless network DOES NOT appear in the AP list.
If the correct network name is not listed in the AP list in the Wireless Utility,
please attempt the following troubleshooting steps:
F5D7051 Manual_20071012 Page 24 of 32
1. Temporarily move computer, if possible, to five to 10 feet away from the
wireless router (or access point). Close the Wireless Utility, and reopen it.
If the correct network name now appears in the AP list, you may have a
range or interference problem. Please see the suggestions listed in the
“Placement of your Wireless Networking Hardware for Optimal
Performance” section on page 2.
2. Using a computer that is connected to the wireless router (or access point)
via a network cable (as opposed to wirelessly), ensure that “Broadcast
SSID” is enabled. This setting is found on the router’s wireless “Channel
and SSID” configuration page. For detailed instructions on accessing this
page and changing settings, please see your wireless router’s (or access
point’s) user manual.
If you are still unable to access the Internet after completing these steps, please
contact Belkin Technical Support.
Installation CD-ROM does not start Wireless Setup Utility.
If the CD-ROM does not start the Wireless Setup Utility automatically, it could be
that the computer is running other applications that are interfering with the CD
drive.
If the Wireless Setup Utility screen does not appear within 15-20 seconds, open
up your CD-ROM drive by double-clicking on the “My Computer” icon. Next,
double-click on the CD-ROM drive that the Installation CD has been placed in to
start the installation. Then double-click on the folder named “Files”. Next, double-
click on
the icon named “setup.exe”.
Power LED does not come ON; Adapter is not working.
If the LED indicators are not ON, the problem may be that the Adapter is not
connected or installed properly.
Verify that the Adapter’s USB cable (attached to desktop stand) is plugged firmly
into the USB slot of your computer. Check to see that the drivers for the Adapter
have been installed. Right-click on the “My Computer” icon on your desktop.
Choose “Properties” and navigate to the “Device Manager” and see if your
Adapter is listed without any errors. If an error is indicated, contact Belkin
Technical Support.
Link LED is blinking slowly; cannot connect to a wireless network or the
Internet.
F5D7051 Manual_20071012 Page 25 of 32
If your Adapter appears to be functioning properly, but you cannot connect to a
network or you have a red wireless icon at the bottom of your screen, the
problem may be that there is a mismatch between the network name (SSID)
settings in your wireless network properties.
Check the SSID settings to see if they match. The SSID is case-sensitive and the
spelling on each computer must be exactly the same in order for the Adapter to
connect to the wireless router (or access point).
Note: To check the Adapter settings or look for an available network, double-click
the Signal Indicator icon to bring up the “Wireless Monitors” screen. Click the “AP
List” if you do not see the network you are trying to connect to. Click the
“Refresh” button to scan the “air” for wireless networks.
For more information about setting up an SSID, please refer to your router
manufacturer’s user manual.
If issues persist even at close range, please contact Belkin Technical Support.
Link LED is solid but I cannot connect to the Internet.
If you have a signal but can’t get online or obtain an IP address, the problem may
be that there is a mismatch between the encryption key settings in your computer
and wireless router (or access point).
Check the WEP key settings to see if they match. The key is case-sensitive and
the spelling on each computer and wireless router (or access point) must be
exactly the same in order for the Adapter to connect to the router. For more
information about encryption, please see the “Securing your Wi-Fi Network”
section in this User Manual.
If issues persist even at close range, please contact Belkin Technical Support.
Data transfer is sometimes slow.
Wireless technology is radio-based, which means connectivity and the
throughput performance between devices decreases when the distance between
devices increases. Other factors that will cause signal degradation (metal is
generally the worst culprit) are obstructions such as walls and metal appliances.
As a result, the typical indoor range of your wireless devices will be between 100
F5D7051 Manual_20071012 Page 26 of 32
to 200 feet. Note also that connection speed may decrease as you move farther
from the wireless router (or access point).
In order to determine if wireless issues are related to range, we suggest
temporarily moving the computer, if possible, to five to 10 feet away from the
wireless router (or access point). Please see the section titled “Placement of your
Wireless Networking Hardware for Optimal Performance” in this User Manual.
If issues persist even at close range, please contact Belkin Technical Support.
Why are there two wireless utilities in my system tray? Which one should I
use?
There are several features and advantages to using the Belkin Wireless Setup
Utility over the Windows XP Wireless Zero Configuration utility. We offer a site
survey, detailed link information, and adapter diagnosis, to name a few.
It’s essential to know which utility is managing your Adapter. We recommend
using the Belkin Wireless Setup Utility. To use the Belkin Wireless Setup Utility,
follow the steps below:
Step 1 Right-click on the network status icon in the system tray and select “View
Available Wireless Networks”.
Step 2 Click on the “Advanced” button in the lower left-hand corner of the
“Available Wireless Networks” window.
Step 3 From the “Advanced” tab, uncheck “Use Windows to configure my
wireless network”. Once the box is unchecked, click
“OK” to close the window.
You are now using the Belkin Wireless Setup Utility to configure the Adapter.
What’s the difference between 802.11b, 802.11g, 802.11a, and Pre-N?
Currently there are four levels of wireless networking standards, which transmit
data at very different maximum speeds. Each is based on the designation for
certifying network standards. The most common wireless networking standard,
802.11b, transmits information at 11Mbps; 802.11a and 802.11g work at 54Mbps;
and Pre-N works at 108Mbps. Pre-N, the precursor to the upcoming 802.11n
release, promises speeds that exceed 802.11g, and up to twice the wireless
coverage area. See the following chart for more detailed information.
F5D7051 Manual_20071012 Page 27 of 32
Wireless Comparison Chart
Wireless
Technology 802.11b 802.11g 802.11a Belkin Pre-N
Speed 11Mbps 54Mbps 54Mbps 600% faster
than standard
802.11g*
Frequency Common
household
devices such
as cordless
phones and
microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
Common
household
devices such
as cordless
phones and
microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
5GHz—
uncrowded
band
Common
household
devices such
as cordless
phones and
microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
Compatibility Compatible
with 802.11g Compatible
with 802.11b Incompatible
with 802.11b
or 802.11g
Compatible
with 802.11g
or 802.11b
Coverage* Depends on
interference—
typically 100–
200 ft. indoors
Depends on
interference—
typically 300–
400 ft. indoors
Interference
range is
typically 50–
100 ft.
Up to 800%
wider
coverage than
standard
802.11g*
Advantage Mature—
legacy
technology
Common—
widespread
use for
Internet
sharing
Less
interference—
great for
multimedia
application
Leading
edge—best
coverage and
throughput
*Distance and connection speeds will vary depending on your networking
environment.
Technical Support
You can find technical support information at www.belkin.com or
www.belkin.com/networking. If you want to contact technical support
F5D7051 Manual_20071012 Page 28 of 32
by phone, please call:
US: 877-736-5771
Europe: 00 800 223 55 460
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 800 616 1790
Information (header for section 9)
Wi-Fi® Interoperability Certificate
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES
FOR ELECTROMAGNETIC COMPATIBILITY
Belkin declares that F5D7051 (FCC ID: K7SF5D7051D) is limited in CH1-CH11
by specified firmware controlled in U.S.A.
We, Belkin Corporation, of 501 West Walnut Street,
Compton, CA 90220, declare under our sole responsibility that the product,
F5D7051 to which this declaration relates, complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference
received, including
interference that may cause undesired operation.
Caution: Exposure to Radio Frequency Radiation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this
equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This device complies with FCC RF Exposure limits set
forth for an uncontrolled environment, under 47 CFR 2.1093 paragraph (d)(2).
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. This equipment has been SAR-evaluated for use in
laptops (notebooks) with side slot configuration. The average SAR value of CCK
is 0.013W/kg; the average SAR value of OFDM is 0.00809W/kg.
Operation of this product marketed in the USA is firmware-limited to 2.4GHz
channel 1 to 11.
F5D7051 Manual_20071012 Page 29 of 32
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try and correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications to
this device that are not expressly approved by Belkin Corporation may void
the user’s authority to operate the equipment.
Canada-Industry Canada (IC)
To prevent radio interference to the licensed service, this device is intended to be
operated indoors and away from windows to provide maximum shielding.
Equipment (or its transmit antenna) that is installed outdoors is subject to
licensing.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may
cause undesired operation of the device.
The wireless radio of this device complies with RSS 139 & RSS 210 Industry
Canada. This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B conforme á la norme NMB-003
du Canada.
Europe-European Union Notice
Radio products with the CE 0682 or CE alert marking comply with the R&TTE
Directive (1995/5/EC) issued by the Commission of the European Community.
Compliance with this directive implies conformity to the following European
Norms (in brackets are the equivalent international standards).
• EN 60950 (IEC60950) – Product Safety
F5D7051 Manual_20071012 Page 30 of 32
• EN 300 328 Technical requirement for radio equipment
• ETS 300 826 General EMC requirements for radio equipment
To determine the type of transmitter, check the identification label on your
Belkin product. Products with the CE marking comply with the EMC Directive
(89/336/EEC) and the Low Voltage Directive (72/23/EEC) issued by the
Commission of the European Community. Compliance with these directives
implies conformity
to the following European Norms (in brackets are the equivalent international
standards).
• EN 55022 (CISPR 22) – Electromagnetic Interference
• EN 55024 (IEC61000-4-2,3,4,5,6,8,11)- Electromagnetic Immunity
• EN 61000-3-2 (IEC610000-3-2) - Power Line Harmonics
• EN 61000-3-3 (IEC610000) – Power Line Flicker
• EN 60950 (IEC60950) – Product Safety
Products that contain the radio transmitter are labeled with CE 0682 or CE alert
marking and may also carry the CE logo.
Belkin Corporation Limited Lifetime Product Warranty
What this warranty covers.
Belkin Corporation warrants to the original purchaser of this Belkin product that
the product shall be free of defects in design, assembly, material, or
workmanship.
What the period of coverage is.
Belkin Corporation warrants the Belkin product for the lifetime of the product.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product free of charge
(except for shipping charges for the product).
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is not provided to
Belkin Corporation for inspection upon Belkin’s request at the sole expense of
the purchaser, or if Belkin Corporation determines that the Belkin product has
been improperly installed, altered in any way, or tampered with. The Belkin
Product Warranty does not protect against acts of God (other than lightning) such
as flood, earthquake, war, vandalism, theft, normal-use wear and tear, erosion,
depletion, obsolescence, abuse, damage due to low voltage disturbances (i.e.
brownouts or sags), non-authorized program, or system equipment modification
or alteration.
How to get service.
To get service for your Belkin product you must take the following steps:
F5D7051 Manual_20071012 Page 31 of 32
1. Contact Belkin Corporation at 501 W. Walnut St., Compton CA 90220,
Attn: Customer Service, or call (800)-223-5546, within 15 days of the
Occurrence. Be prepared to provide the following information:
a. The part number of the Belkin product.
b. Where you purchased the product.
c. When you purchased the product.
d. Copy of original receipt.
2. Your Belkin Customer Service Representative will then instruct you on
how to forward your receipt and Belkin product and how to proceed with
your claim.
Belkin Corporation reserves the right to review the damaged Belkin product. All
costs of shipping the Belkin product to Belkin Corporation for inspection shall be
borne solely by the purchaser. If Belkin determines, in its sole discretion, that it is
impractical to ship the damaged equipment to Belkin Corporation, Belkin may
designate, in its sole discretion, an equipment repair facility to inspect and
estimate the cost to repair such equipment. The cost, if any, of shipping the
equipment to and from such repair facility and of such estimate shall be borne
solely by the purchaser. Damaged equipment must remain available for
inspection until the claim is finalized. Whenever claims are settled, Belkin
Corporation reserves the right to be subrogated under any existing insurance
policies the purchaser may have.
How state law relates to the warranty.
THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN
CORPORATION, THERE ARE NO OTHER WARRANTIES, EXPRESSED OR,
EXCEPT AS REQUIRED BY LAW, IMPLIED, INCLUDING THE IMPLIED
WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY,
ARE LIMITED IN DURATION TO THE TERM OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so
the above limitations may not apply to you.
IN NO EVENT SHALL BELKIN CORPORATION BE LIABLE FOR INCIDENTAL,
SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES
SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT
OF THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
This warranty gives you specific legal rights, and you may also have other rights, which
may vary from state to state. Some states do not allow the exclusion or limitation of
incidental, consequential, or other damages, so the above limitations may not apply to
you.
F5D7051 Manual_20071012 Page 32 of 32
Designer please use chart found on P74845uk page 39)
Belkin Tech Support
US: 877-736-5771
310-898-1100 ext. 2263
Europe: 00 800 223 55 460
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 800 616 1790
Belkin Corporation
501 West Walnut Street
Los Angeles, CA 90220, USA
310-898-1100
310-898-1111 fax
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL, United Kingdom
+44 (0) 1933 35 2000
+44 (0) 1933 31 2000 fax
Belkin Ltd.
7 Bowen Crescent, West Gosford
NSW 2250, Australia
+61 (0) 2 4372 8600
+61 (0) 2 4372 8603 fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, The Netherlands
+31 (0) 20 654 7300
+31 (0) 20 654 7349 fax
© 2006 Belkin Corporation. All rights reserved. All trade names are registered
trademarks of respective manufacturers listed. 54g is a trademark of Broadcom
Corporation in the United States and/or other countries. The mark Wi-Fi is a
registered mark of the Wi-Fi Alliance. The “Wi-Fi CERTIFIED” logo is a
certification mark of the Wi-Fi Alliance.
P74845

Navigation menu
