Belkin F5D7231B Wireless G Plus Router User Manual P74490 D F5D7231 4 man indd
Belkin International, Inc. Wireless G Plus Router P74490 D F5D7231 4 man indd
Belkin >
Contents
User Manual 1
Belkin Ltd.
7 Bowen Crescent, West Gosford
NSW 2250, Australia
+61 (0) 2 4372 8600
+61 (0) 2 4372 8603 fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, The Netherlands
+31 (0) 20 654 7300
+31 (0) 20 654 7349 fax
Belkin Tech Support
US: 877-736-5771
310-898-1100 ext. 2263
Europe: 00 800 223 55 460
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 800 616 1790
Belkin Corporation
501 West Walnut Street
Los Angeles, CA 90220, USA
310-898-1100
310-898-1111 fax
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL, United Kingdom
+44 (0) 1933 35 2000
+44 (0) 1933 31 2000 fax
© 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of
respective manufacturers listed. Apple, AirPort, Mac, Mac OS, and AppleTalk are trademarks
of Apple Computer, Inc., registered in the U.S. and other countries.
P74490-D
Wireless G Plus
Router
F5D7231-4
Share your broadband
Internet connection
User Manual
Wireless G Plus
Router
User Manual
�
�
�
�
Table of Contents
3
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Benefits of a Home Network. . . . . . . . . . . . . . . . . . . . . . . . . 1
Advantages of a Wireless Network . . . . . . . . . . . . . . . . . . . . 1
Placement of your Router for Optimal Performance . . . . . . . 2
2 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Knowing your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Easy Install Wizard Software System Requirements . . . . . . . 9
4 Connecting and Configuring your Router. . . . . . . . . . . . . . . . 14
5 Alternate Setup Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6 Using the Web-Based Advanced User Interface . . . . . . . . . . 40
Changing LAN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Viewing the DHCP Client List Page. . . . . . . . . . . . . . . . . . 43
Configuring the Wireless Network Settings. . . . . . . . . . . . 43
Securing your Wi-Fi Network . . . . . . . . . . . . . . . . . . . . . . . 48
WEP Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
WPA Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
WPA2 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Using the Access Point Mode. . . . . . . . . . . . . . . . . . . . . . . 63
Configuring the Firewall . . . . . . . . . . . . . . . . . . . . . . . . . 64
Setting MAC Address Filtering . . . . . . . . . . . . . . . . . . . . 67
Enabling the DMZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Utilities Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Restarting the Router. . . . . . . . . . . . . . . . . . . . . . . . . . 71
Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . . . 76
7 Manually Configuring Network Settings . . . . . . . . . . . . . . . . 84
8 Recommended Web Browser Settings . . . . . . . . . . . . . . . . . 88
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
10 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
1
Thank you for purchasing the Belkin Wireless G Plus Router (the
Router). The following two short sections discuss the benefits of home
networking and outline best practices for maximizing your wireless home
network range and performance. Please be sure to read through this
User Manual completely, and pay special attention to the section entitled
“Placement of your Router for Optimal Performance” on page 2.
Benefits of a Home Network
• Share one high-speed Internet connection with all the computers
in your home
• Share resources, such as files and hard drives among all the
connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet email, and chat
Advantages of a Wireless Network
• Mobility – you no longer need a dedicated “computer
room”—now you can work on a networked laptop or desktop
computer anywhere within your wireless range
• Easy installation – The Belkin Easy Installation Wizard makes
setup simple
• Flexibility – set up and access printers, computers, and other
networking devices from anywhere in your home
• Easy expansion – the wide range of Belkin networking products
let you expand your network to include devices such as printers
and gaming consoles
• No cabling required – you can spare the expense and hassle of
retrofitting Ethernet cabling throughout the home or office
• Widespread industry acceptance – choose from a wide range
of interoperable networking products
Introduction
2
1
3
4
5
6
7
8
9
10
11
section
1
32
Introduction
32
Introduction
Placement of your Router for Optimal Performance
Important Factors for Placement and Setup
Your wireless connection will be stronger the closer your computer is
to your Router. Typical indoor operating range for wireless devices is
between 100 and 200 feet.
In the same way, your wireless connection and performance will
degrade somewhat as the distance between your Router and
connected devices increases. This may or may not be noticeable
to you. As you move farther from your Router, connection speed
may decrease. Factors that can weaken signals simply by getting
in the way of your network’s radio waves are metal appliances or
obstructions, and walls.
If you have concerns about your network’s performance that might be
related to range or obstruction factors, try moving the computer to a
position between five and 10 feet away from the Router in order to see
if distance is the problem. If difficulties persist even at close range,
please contact Belkin Technical Support.
Note: While some of the items listed below can affect network
performance, they will not prohibit your wireless network from
functioning; if you are concerned that your network is not operating at
its maximum effectiveness, this checklist may help.
1. Wireless Router Placement
Place your Router, the central connection point of your
network, as close as possible to the center of your wireless
network devices.
To achieve the best wireless network coverage for your “wireless
clients” (i.e., computers enabled by Belkin Wireless Notebook
Network Cards, Wireless Desktop Network Cards, and Wireless
USB Adapters):
• Ensure that your Router’s networking antennas are parallel
to each other, and are positioned vertically (toward the
ceiling). If your Router itself is positioned vertically, point the
antennas as much as possible in an upward direction.
• In multistory homes, place the Router on a floor that is as
close to the center of the home as possible. This may mean
placing the Router on an upper floor.
• Try not to place the Router near a cordless phone.
3
Introduction
Introduction
3
Introduction
2
1
3
4
5
6
7
8
9
10
11
section
2. Avoid Obstacles and Interference
Avoid placing your Router near devices that may emit radio
“noise,” such as microwave ovens. Dense objects that can inhibit
wireless communication include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based, UV-tinted windows
If your wireless signal seems weak in some spots, make sure that
objects such as these are not blocking the signal’s path (between
your computers and Router).
3. Cordless Phones
If the performance of your wireless network is impaired after
attending to the above issues, and you have a cordless phone:
• Try moving cordless phones away from the Router and your
wireless-enabled computers.
• Unplug and remove the battery from any cordless phone
that operates on the 2.4GHz band (check the manufacturer’s
information). If this fixes the problem, your phone may
be interfering.
• If your phone supports channel selection, change the
channel on the phone to the farthest channel from your
wireless network. For example, change the phone to channel
1 and move your Router to channel 11. See your phone’s user
manual for detailed instructions.
• If necessary, consider switching to a 900MHz cordless phone.
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as
apartment buildings or office complexes, there may be wireless
networks nearby that can conflict with yours.
Use the Site Survey capabilities found in the wireless utility
of your wireless adapter or card to locate any other wireless
networks that are available (see your wireless adapter’s or card’s
user manual), and move your Router and computers to a channel
as far away from other networks as possible.
54
Introduction
54
Introduction
• Experiment with more than one of the available channels in
order to find the clearest connection and avoid interference
from neighboring cordless phones or other wireless devices.
• For Belkin wireless networking products, use the detailed Site
Survey and wireless channel information included with your
Wireless Network Card. See your Network Card’s user guide
for more information.
These guidelines should allow you to cover the maximum
possible area with your Router. Should you need to cover an
even wider area, we suggest the Belkin Wireless G Range
Extender/Access Point.
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and password,
and are used where security is important. Secure
connections include:
• Virtual Private Network (VPN) connections, often used to
connect remotely to an office network
• The “Bring Your Own Access” program from America Online
(AOL), which lets you use AOL through broadband provided by
another cable or DSL service
• Most online banking websites
• Many commercial websites that require a user name and
password to access your account
Secure connections can be interrupted by a computer’s power
management setting, which causes it to “go to sleep.” The
easiest solution to avoid this is to simply reconnect by
rerunning the VPN or AOL software, or by re-logging into
the secure website.
A second alternative is to change your computer’s power
management settings so it does not go to sleep; however, this
may not be appropriate for portable computers. To change your
power management setting under Windows, see the “Power
Options” item in the Control Panel.
If you continue to have difficulty with secure connections, VPNs,
and AOL, please review the steps above to be sure you have
addressed these issues.
5
Introduction
Introduction
5
Introduction
2
1
3
4
5
6
7
8
9
10
11
section
For more information regarding our networking products, visit our website
at www.belkin.com/networking or call Belkin Technical Support at:
US: 877-736-5771
310-898-1100 ext. 2263
Europe: 00 800 223 55 460
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 800 616 1790
76
Product Overview
76
Product Overview
Product Features
In minutes you will be able to share your Internet connection and
network your computers. The following is a list of features that make
your new Belkin Wireless G Plus Router an ideal solution for your
home or small office network.
Works with Both PCs and Mac® Computers
The Router supports a variety of networking environments including
Mac OS® X v10.x, AppleTalk®, Linux®, Windows® 98, Me, NT®, 2000,
and XP, and others. All that is needed is an Internet browser and
a network adapter that supports TCP/IP (the standard language of
the Internet).
Front-Panel LED Display
Lighted LEDs on the front of the Router indicate which functions
are in operation. You’ll know at-a-glance whether your Router is
connected to the Internet. This feature eliminates the need for
advanced software and status-monitoring procedures.
Web-Based Advanced User Interface
You can set up the Router’s advanced functions easily through your
web browser, without having to install additional software onto the
computer. There are no disks to install or keep track of and, best
of all, you can make changes and perform setup functions from any
computer on the network quickly and easily.
NAT IP Address Sharing
Your Router employs Network Address Translation (NAT) to share the
single IP address assigned to you by your Internet Service Provider
while saving the cost of adding IP addresses to your Internet
service account.
SPI Firewall
Your Router is equipped with a firewall that will protect your network
from a wide array of common hacker attacks including IP Spoofing,
Land Attack, Ping of Death (PoD), Denial of Service (DoS), IP with
zero length, Smurf Attack, TCP Null Scan, SYN flood, UDP flooding,
Tear Drop Attack, ICMP defect, RIP defect, and fragment flooding.
7
Product Overview
7
2
1
3
4
5
6
7
8
9
10
11
section
Integrated 10/100 4-Port Switch
The Router has a built-in, 4-port network switch to allow your wired
computers to share printers, data and MP3 files, digital photos,
and much more. The switch features automatic detection so it will
adjust to the speed of connected devices. The switch will transfer
data between computers and the Internet simultaneously without
interrupting or consuming resources.
Universal Plug-and-Play (UPnP) Compatibility
UPnP (Universal Plug-and-Play) is a technology that offers seamless
operation of voice messaging, video messaging, games, and other
applications that are UPnP-compliant.
Support for VPN Pass-Through
If you connect to your office network from home using a VPN
connection, your Router will allow your VPN-equipped computer to
pass through the Router and to your office network.
Built-In Dynamic Host Configuration Protocol (DHCP)
Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes
for the easiest possible connection of a network. The DHCP server
will assign IP addresses to each computer automatically so there is
no need for a complicated networking setup.
Easy Install Wizard
The Easy Install Wizard takes the guesswork out of setting up your
Router. This automatic software determines your network settings for
you and sets up the Router for connection to your Internet Service
Provider (ISP). In a matter of minutes, your Wireless Router will be up
and running on the Internet.
NOTE: Easy Install Wizard software is compatible with Windows
98SE, Me, 2000, XP, and Mac OS X. If you are using another
operating system, the Wireless G Plus Router can be set up using the
Alternate Setup Method described in this User Manual (see page 22).
8
8
Product Overview
G Plus Mode*
G Plus Mode, a 54g performance enhancement, provides the
fastest wireless connectivity for 802.11g-capable networks in
real-world environments. It is designed for home networks that
require additional bandwidth for applications such as sharing digital
pictures. G Plus makes 802.11g WLANs more efficient without
affecting the performance of neighboring networks, and is compatible
at high speeds with leading brands.
*When operating in 125 G Plus Mode, this Wi-Fi device achieves
an actual throughput of up to 34.1Mbps, which is the equivalent
throughput of a system following 802.11g protocol and operating at a
signaling rate of 125Mbps. Actual throughput will vary depending on
environmental, operational, and other factors.
Integrated 802.11g Wireless Access Point
802.11g is an exciting new wireless technology that achieves data
rates up to 54Mbps, nearly five times faster than 802.11b.
MAC Address Filtering
For added security, you can set up a list of MAC addresses (unique
client identifiers) that are allowed access to your network. Every
computer has its own MAC address. Simply enter these MAC
addresses into a list using the Web-Based Advanced User Interface
and you can control access to your network.
9
Package Contents
• Belkin Wireless G Plus Router
• Quick Installation Guide
• Belkin Easy Install Wizard Software CD with User Manual
• Belkin RJ45 Ethernet Networking Cable
• Power Supply
System Requirements
• Broadband Internet connection such as a cable or DSL modem
with RJ45 (Ethernet) connection
• At least one computer with an installed network interface adapter
• TCP/IP networking protocol installed on each computer
• RJ45 Ethernet networking cable
• Internet browser
Easy Install Wizard Software System Requirements
• A PC running Windows 98SE, Me, 2000, or XP, or a Mac
computer running Mac OS X
• Minimum 64MB RAM
• Internet browser
Knowing your Router
9
section
2
1
3
4
5
6
7
8
9
10
1110
Knowing your Router
1110
Knowing your Router

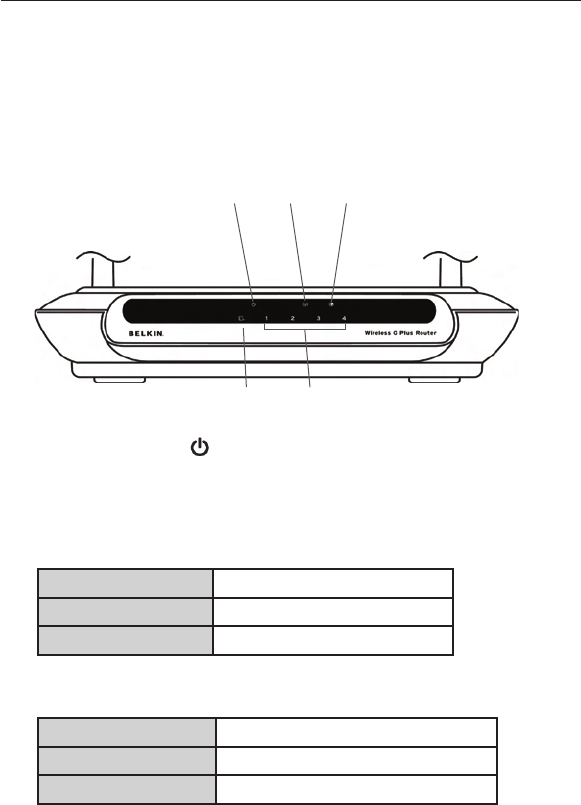

The Router has been designed to be placed on a desktop. All of the
cables exit from the rear of the Router for better organization and
utility. The LED indicators are easily visible on the front of the Router
to provide you with information about network activity and status.
1. Power/Ready LED
When you apply power to the Router or restart it, a short period
of time elapses while the Router boots up. During this time,
the Power/Ready LED blinks. When the Router has completely
booted up, the Power/Ready LED becomes a SOLID light,
indicating the Router is ready for use.
OFF Router is OFF
Blinking Green Router is Booting Up
Solid Green Router is Ready
2. Wireless Network LED
OFF Wireless Network is OFF
Green Wireless Network is Ready
Blinking Indicates Wireless Activity
3. Wired Computer Status LEDs
These LEDs are labeled 1–4 and correspond to the numbered ports
on the rear of the Router. When a computer is properly connected
to one of the wired computer ports on the rear of the Router, the
(1) (2)
(3)
(4)
(5)
11
Knowing your Router
11
section
2
1
3
4
5
6
7
8
9
10
11
LED will light. GREEN means a 10Base-T device is connected,
AMBER means a 100Base-T device is connected. When
information is being sent over the port, the LED blinks rapidly.
OFF No Device is Linked to the Port
Green 10Base-T Device Connected
Orange 100Base-Tx Device Connected
Blinking
(Orange or Green)
Port Activity
4. Modem Status LED
This LED lights in GREEN to indicate that your modem is
connected properly to the Router. It blinks rapidly when
information is being sent over the port between the Router and
the modem.
OFF No WAN Link
Solid Green Good WAN Link
Blinking Green WAN Activity
5. Internet LED
This unique LED shows you when the Router is connected to the
Internet. When the light is OFF, the Router is NOT connected to
the Internet. When the light is blinking, the Router is attempting
to connect to the Internet. When the light is solid GREEN, the
Router is connected to the Internet. When using the “Disconnect
after x minutes” feature, this LED becomes extremely useful in
monitoring the status of your Router’s connection.
OFF Router is not Connected to the Internet
Blinking Green Router is Attempting to Connect to the
Internet
Solid Green Router is Connected to the Internet
1312
Knowing your Router
1312
Knowing your Router

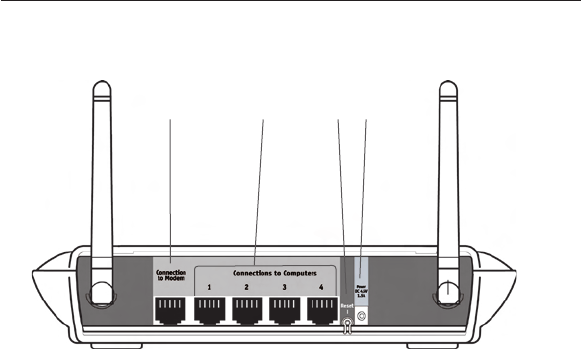

6. Power Jack
Connect the included 5V DC power supply to this jack.
7. Connections to Computers (Wired Computer Ports) - BLUE
Connect your wired (non-wireless) computers to these ports.
These ports are RJ45, 10/100 auto-negotiation, auto-uplinking
ports for standard UTP category 5 or 6 Ethernet cable. The ports
are labeled 1 through 4. These ports correspond to the numbered
LEDs on the front of the Router.
8. Connection to Modem (Modem Port) - GREEN
This port is for connection to your cable or DSL modem. Use the
cable that was provided with the modem to connect the modem
to this port. Use of a cable other than the cable supplied with the
cable modem may not work properly.
9. Reset Button
The “Reset” button is used in rare cases when the Router may
function improperly. Resetting the Router will restore the Router’s
normal operation while maintaining the programmed settings. You
can also restore the factory default settings by using the “Reset”
button. Use the restore option in instances where you may have
forgotten your custom password.
a. Resetting the Router
Push and release the “Reset” button. The lights on the
(6)(7)(8) (9)
13
Knowing your Router
13
section
2
1
3
4
5
6
7
8
9
10
11
Router will momentarily flash. The Power/Ready light will
begin to blink. When the Power/Ready light becomes solid
again, the reset is complete.
b. Restoring the Factory Defaults
Press and hold the “Reset” button for at least 10 seconds,
then release it. The lights on the Router will momentarily
flash. The “Power/Ready” light will begin to blink. When
the “Power/Ready” light becomes solid again, the restore
is complete.
1514
Connecting and Configuring your Router
1514
Connecting and Configuring your Router
Verify the contents of your box. You should have the following:
• Belkin Wireless G Plus Router
• Quick Installation Guide
• Belkin Easy Install Wizard Software CD with User Manual
• RJ45 Ethernet Networking Cable (for connection of the
Router to the computer)
• Power Supply
Modem Requirements

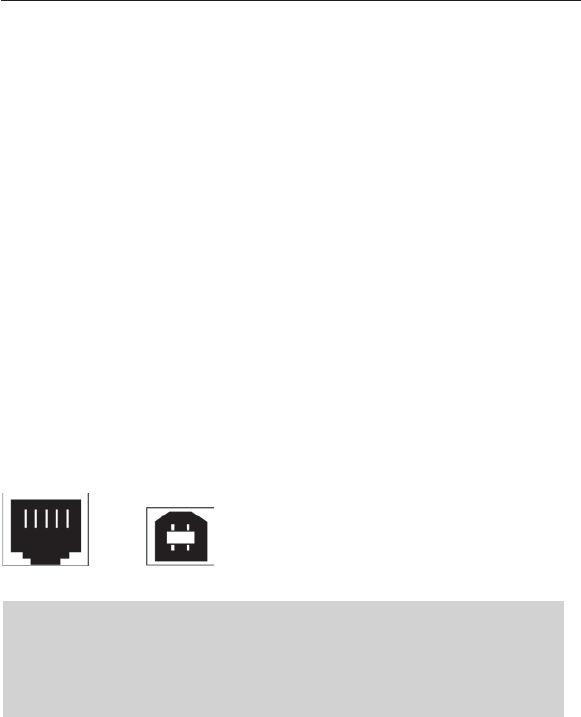

Your cable or DSL modem must be equipped with an RJ45 Ethernet
port. Many modems have both an RJ45 Ethernet port and a USB
connection. If you have a modem with both Ethernet and USB, and
are using the USB connection at this time, you will be instructed to
use the RJ45 Ethernet port during the installation procedure. If your
modem has only a USB port, you can request a different type of
modem from your ISP, or you can, in some cases, purchase a modem
that has an RJ45 Ethernet port on it.
ALWAYS INSTALL YOUR ROUTER FIRST! IF YOU ARE INSTALLING
NUMEROUS NETWORK DEVICES FOR THE FIRST TIME, IT IS
IMPORTANT THAT YOUR ROUTER IS CONNECTED AND RUNNING
BEFORE ATTEMPTING TO INSTALL OTHER NETWORK COMPONENTS
SUCH AS NOTEBOOK CARDS AND DESKTOP CARDS.

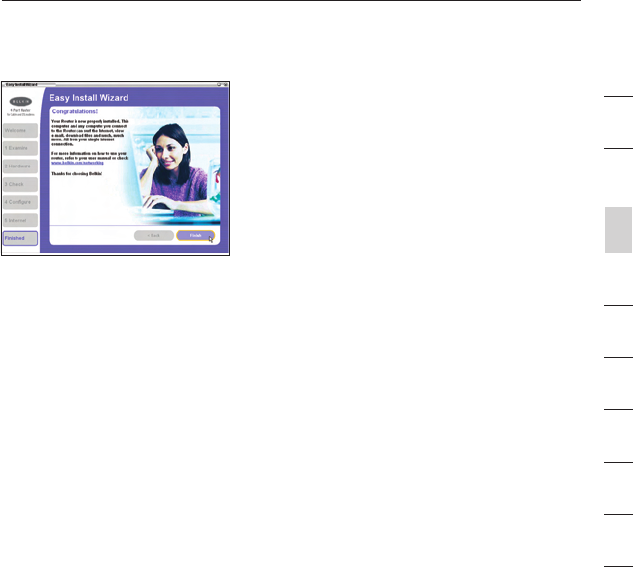

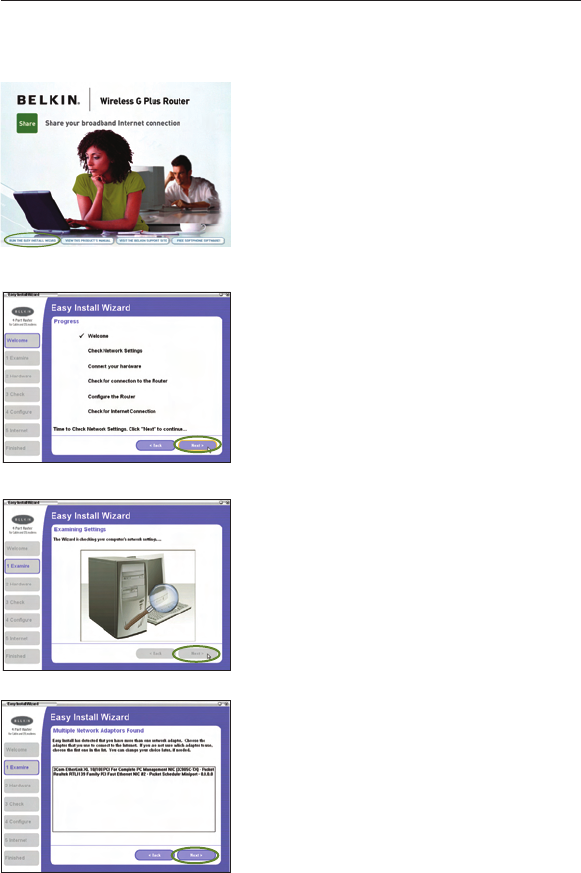

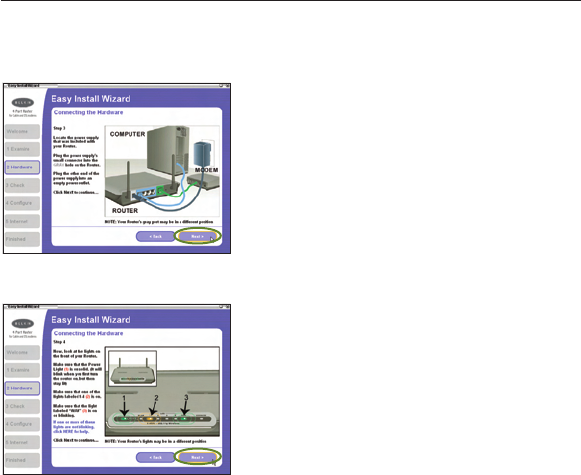

Easy Install Wizard
Belkin has provided our Easy Install Wizard software to make
installing your Router a simple and easy task. You can use it to get
your Router up and running in minutes.
The Easy Install Wizard requires that your Windows 98SE, Me, 2000,
XP, or Mac OS X v10.1.x computer be connected directly to your
cable or DSL modem and that the Internet connection is active and
working at the time of installation. If it is not, you must use the
Ethernet USB
15
Connecting and Configuring your Router
15
section
2
1
3
4
5
6
7
8
9
10
“Alternate Setup Method” section of this User Manual to configure
your Router. Additionally, if you are using an operating system other
than Windows 98SE, Me, 2000, or XP, you must set up the Router
using the “Alternate Setup Method” section of this User Manual.
IMPORTANT: Run the Easy Install Wizard software from the
computer that is directly connected to the cable or DSL modem.
DO NOT CONNECT THE ROUTER AT THIS TIME.
Step 1 Run the Easy Install Wizard Software
1.1. Shut down any programs that are running on your computer at
this time.
1.2 Make sure you have the following items at the computer that is
now directly connected to the cable or DSL modem. DO NOT
CONNECT THE ROUTER AT THIS TIME.
• Quick Installation Guide
• The Easy Install Wizard Software CD with User Manual
• The Router
• The Router’s Power Supply
• RJ45 Ethernet Networking Cable
1.3 Turn off any firewall or Internet-connection-sharing software on
your computer.
1.4 Insert the Easy Install Wizard software CD into your CD-ROM
drive. The Easy Installation Wizard screen will automatically
appear on your screen within 15 seconds. If it does not, select
your CD-ROM drive from “My Computer” and double-click on the
file named “EasyInstall.exe” on the CD-ROM.
1716
Connecting and Configuring your Router
1716
Connecting and Configuring your Router
Welcome Screen
After you insert the CD into your
CD-ROM drive, the Wizard’s welcome
screen will appear. Make sure you have
not connected the Router at this point.
If you have connected your Router,
please reconnect your computer directly
to the modem. Click “Run the Easy
Install Wizard” when you are ready to
move on.
Progress Screen
The Easy Install Wizard will show you
a progress screen each time a step in
the setup has been completed. Each
time you see the progress screen, click
“Next” when you are ready to move to
the next step.
Examining Settings
The Wizard will now examine your
computer’s network settings and gather
information needed to complete the
Router’s connection to the Internet.
When the Wizard is finished examining
your computer, click “Next” to continue.
Multiple Network Adapters
Found Screen
If you have more than one network
adapter installed in your computer, this
screen will appear. If you have more
than one network adapter installed in
your computer, the Wizard will need
to know which adapter is connected
to your modem. Select the network
adapter that is connected to your
modem from the list and click “Next”.
17
Connecting and Configuring your Router
17
section
2
1
3
4
5
6
7
8
9
10
Step 2 Set up the Hardware
The Wizard will walk you through connecting your Router to your
computer and modem. Follow the steps on the screen using the
pictures as a guide.
2.1 This step instructs you to locate
the cable connected between your
modem and the networking port on
your computer. Unplug this cable
from the computer and plug it into
the GREEN port on the Router.
Click “Next” to continue.
If you are not sure which adapter to choose, select the adapter at the
top of the list. If you mistakenly choose the wrong adapter now, you
will be able to choose a different one later.
2.2 This step instructs you to locate
the BLUE cable that is included
with your Router. Plug one end
of this cable into ANY one of the
BLUE ports on your Router. Plug
the other end of the cable into the
networking port on your computer.
Click “Next” to continue.
1918
Connecting and Configuring your Router
1918
Connecting and Configuring your Router
2.3 This step instructs you to locate
the power supply that is included
with your Router. Plug the power
supply’s small connector into the
power port on the Router. Plug the
power supply into an empty power
outlet. Click “Next” to continue.
2.4 This step instructs you to look
at the lights on the front of your
Router. Make sure the appropriate
lights are ON. Refer to the Easy
Install Wizard software on your
computer’s screen for more details.
Click “Next” to continue.
Note: The Easy Install Wizard may
ask you to reboot your computer. If
it does, reboot your computer and
proceed with the installation.
19
Connecting and Configuring your Router
19
section
2
1
3
4
5
6
7
8
9
10
Step 3 Check the Connection
3.1 Once you have completed
connecting the Router, the Wizard
will check the connection to the
Router and then go on to determine
what type of Internet connection
you have.
3.2 User Name and Password Needed
If you have a connection type
that requires a user name and a
password, the Wizard will ask you
to type in your user name and
password. If your connection type
does not require a user name and
password, you will not see
this screen.
Your user name and password is
provided to you by your Internet
Service Provider. If you have to
type in a user name and password
to connect to the Internet, then
type that same user name and
password in here. Your user
name looks something like
“jsmith@myisp.com” or simply
“jsmith”. The service name is
optional and is very rarely required
by your ISP. If you don’t know your
service name, leave this blank.
When you have entered your
information, click “Next” to
move on.
2120
Connecting and Configuring your Router
2120
Connecting and Configuring your Router
3.3 Wireless Setup
This step is optional. Click “Next”
if you want to skip it.
Using this step, you can customize
your wireless network settings if
you want to. Follow the steps on
the screen to complete this step.
Click “Next” to continue.
Step 4 Configure the Router
The Wizard will now transfer all of the configuration information to the
Router. This will take approximately one minute. During this time, do
not turn off the Router or computer. The Router will restart itself at the
end of this step.
4.1 Checking Internet
The Wizard will now check for an
Internet connection. This can take
a few minutes. The Wizard may not
detect a connection right away. If
not, it will retry a number of times.
The “Connected” light on the front
panel of the Router will flash during
this time. Please be patient through
this process.
21
Connecting and Configuring your Router
21
section
2
1
3
4
5
6
7
8
9
10
4.2 Finished
When the Internet connection
is complete, the Wizard will tell
you that you are finished. The
“Connected” LED on the front of
the Router will be solid GREEN,
indicating that the Router is now
connected to the Internet.
Your Router is now connected to the Internet. Now you can begin
surfing the Internet by opening your browser and going to your
favorite web page.
Congratulations. You have finished installing your new Belkin Router.
You are ready to set up the other computers in your home. You can
also add computers to your Router anytime you want.
2322
Alternate Setup Method
2322
Alternate Setup Method
The Web-Based Advanced User Interface is a web-based tool that
you can use to set up the Router if you don’t want to use the Easy
Install Wizard. You can also use it to manage advanced functions of
the Router. From the Web-Based Advanced User Interface, you can
perform the following tasks:
• View the Router’s current settings and status
• Configure the Router to connect to your ISP with the settings that
they provided you
• Change the current network settings such as the Internal IP
address, the IP address pool, DHCP settings, and more
• Set the Router’s firewall to work with specific applications
(port forwarding)
• Set up security features such as client restrictions, MAC address
filtering, WEP, and WPA
• Enable the DMZ feature for a single computer on your network
• Change the Router’s internal password
• Enable/Disable UPnP (Universal Plug-and-Play)
• Reset the Router
• Back up your configuration settings
• Reset the Router’s default settings
• Update the Router’s firmware
Step 1 Connect your Router
1.1 Turn off the power to your modem by unplugging the power
supply from the modem.
1.2 Locate the network cable that is connected between your modem
and your computer and unplug it from your computer, leaving the
other end connected to your modem.
1.3 Plug the loose end of the cable you just unplugged into the port
on the back of the Router labeled “Modem”.
1.4 Connect a new network cable (not included) from the back of
the computer to one of the wired computers ports labeled “1–4”.
Note: It does not matter which numbered port you choose.
