Part 2
5150
Manually Configuring your Router
Manually Configuring your Router
51
Manually Configuring your Router
section
2
1
3
4
5
6
7
8
9
10
11
12
Connecting your Computer to a Wireless Network that Requires
WPA (with radius server)

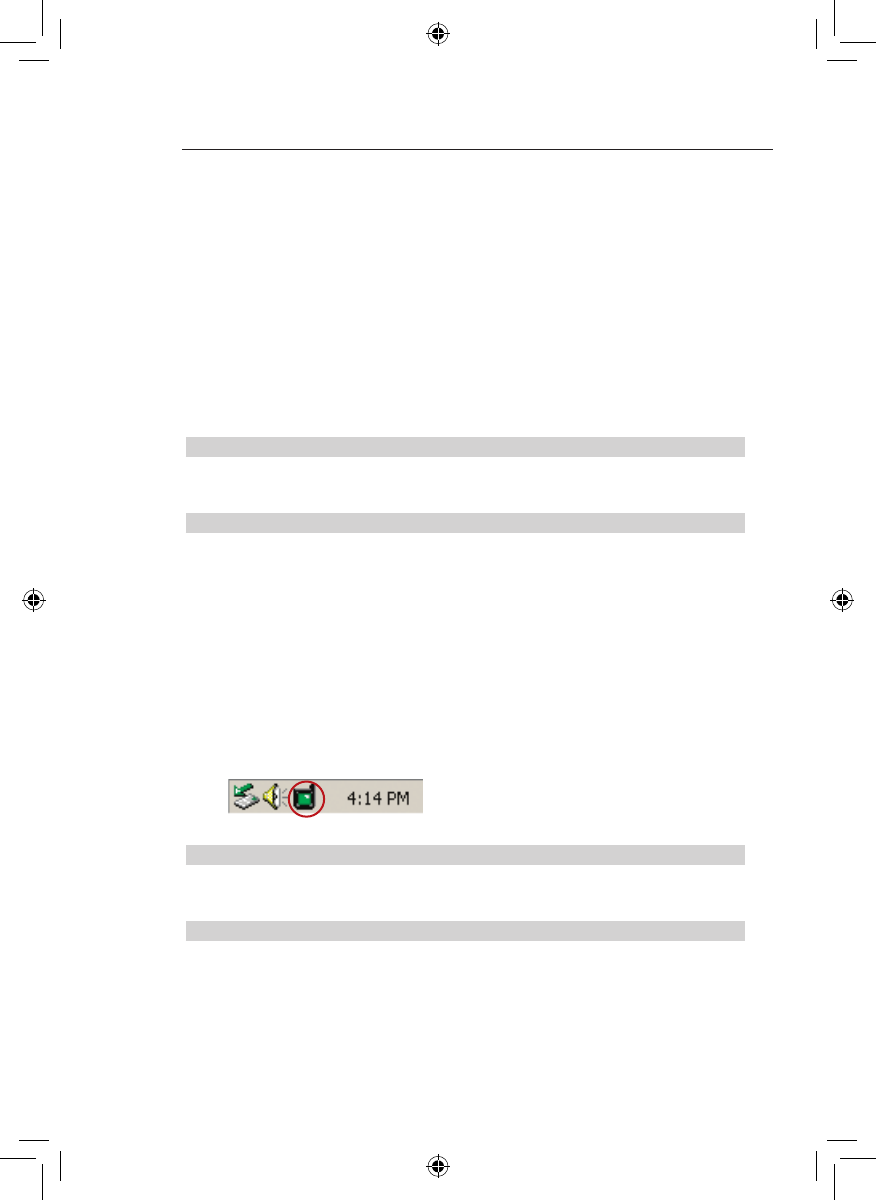

1. Double-click the “Signal Indicator” icon to bring up the “Wireless
Network” screen. The “Advanced” button will allow you to view
and configure more options of your wireless card.
2. Under the “Wireless Networks” tab, select a network name from
the “Available networks” list and click “Configure”.
3. Under “Network Authentication” select WPA.

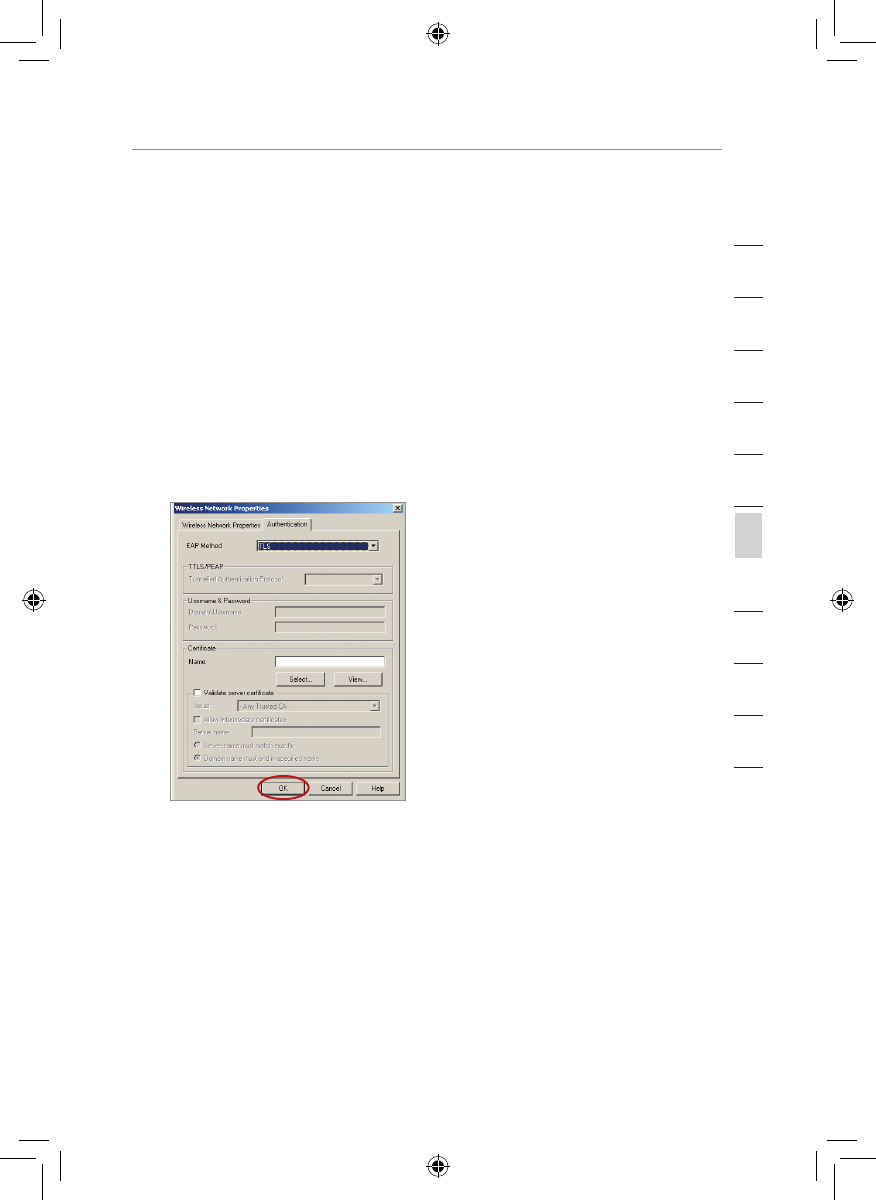

4. Under the “Authentication” tab, select the settings that are
indicated by your network administrator.
5. Click “OK” to save the settings.
Setting Up WPA for a Non-Belkin Wireless Desktop and Wireless
Notebook Cards
For non-Belkin WPA Wireless Desktop and Wireless Notebook
Cards that are not equipped with WPA-enabled software, a file from
Microsoft called “Windows XP Support Patch for Wireless Protected
Access” is available as a free download.
Please Note: The file that Microsoft has made available works only
with Windows XP. Other operating systems are not supported at
this time.
5352
Manually Configuring your Router
53
Manually Configuring your Router
Important: You also need to ensure that the wireless card
manufacturer supports WPA and that you have downloaded and
installed the latest driver from their support site.
Supported Operating Systems:
• Windows XP Professional
• Windows XP Home Edition
Setting Up Windows XP Wireless Network Utility to Use WPA-PSK
In order to use WPA-PSK, ensure you are using Windows Wireless
Network Utility by doing the following:
1. Under Windows XP, click “Start > Control Panel >
Network Connections”.
2. Right-click on “Wireless Network Connection”, and
select “Properties”.

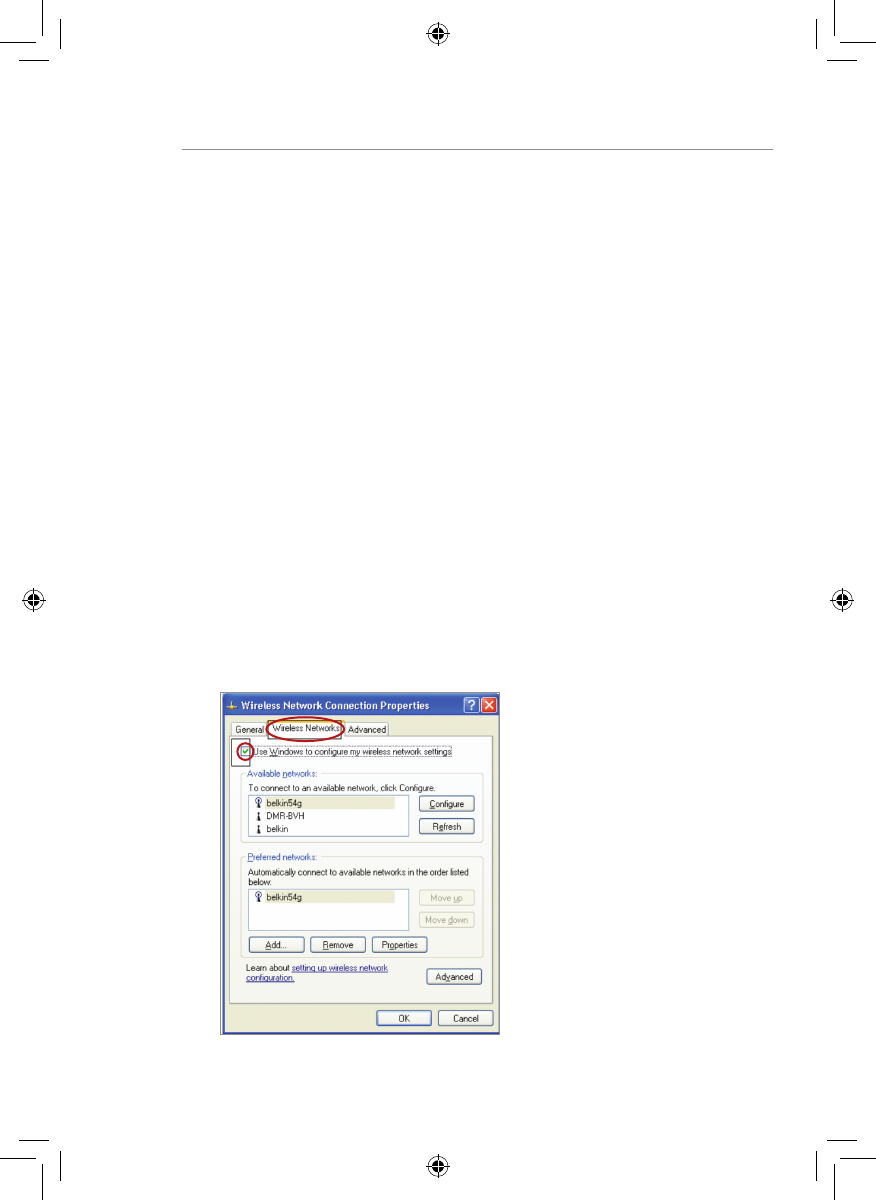

3. Clicking on the “Wireless Networks” tab will display the following
screen. Ensure the “Use Windows to configure my wireless
network settings” check box is checked.
5352
Manually Configuring your Router
Manually Configuring your Router
53
Manually Configuring your Router
section
2
1
3
4
5
6
7
8
9
10
11
12

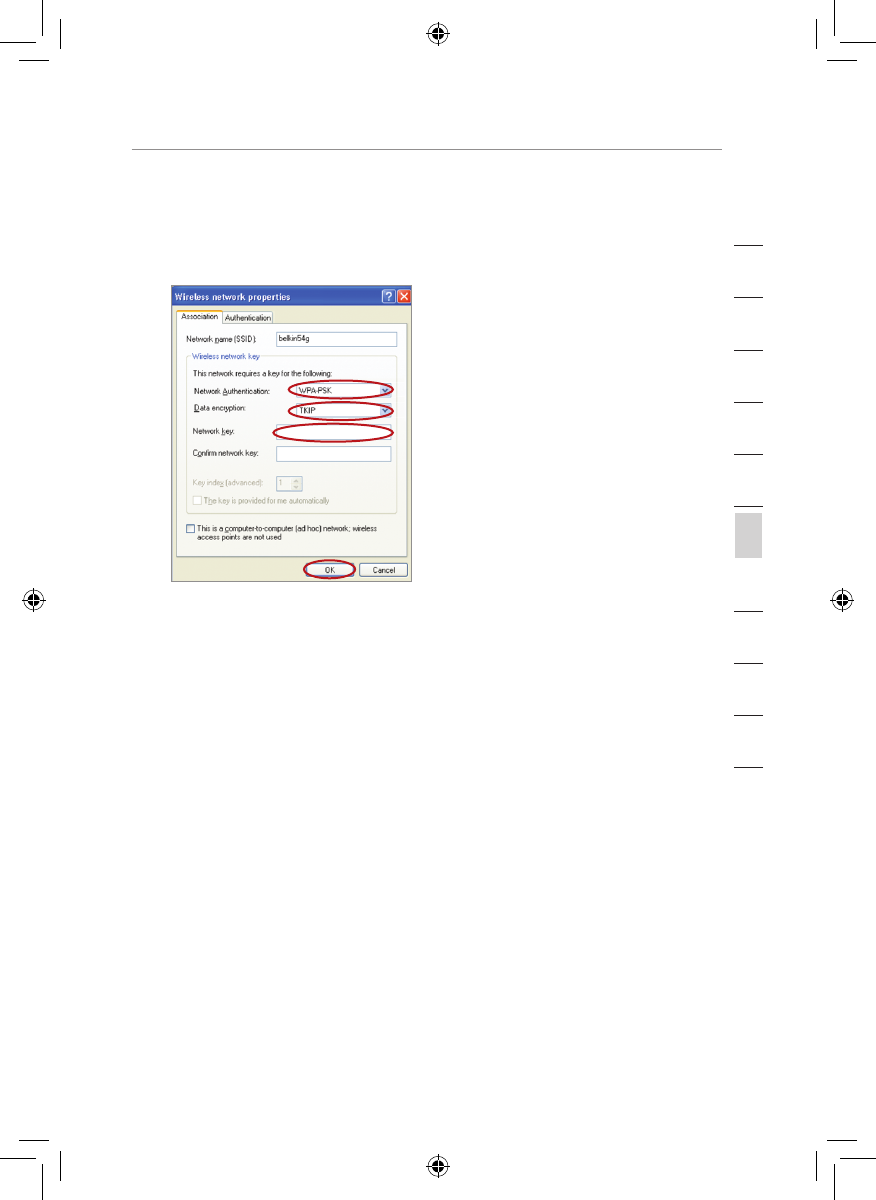

4. Under the “Wireless Networks” tab, click the “Configure” button,
and you will see the following screen.
5. For a home or small business user, select “WPA-PSK” under
“Network Authentication”.
Note: Select “WPA” if you are using this computer to connect to a
corporate network that supports an authentication server such as a
radius server. Please consult your network administrator for further
information.
6. Select “TKIP” or “AES” under “Data Encryption”. This setting will
have to be identical to the Router that you set up.
7. Type in your encryption key in the “Network Key” box.
Important: Enter your Pre-Shared key. This can be from eight to 63
characters and can be letters, numbers, or symbols. This same key
must be used on all of the clients that you set up.
8. Click “OK” to apply settings.
5554
Manually Configuring your Router
55
Manually Configuring your Router

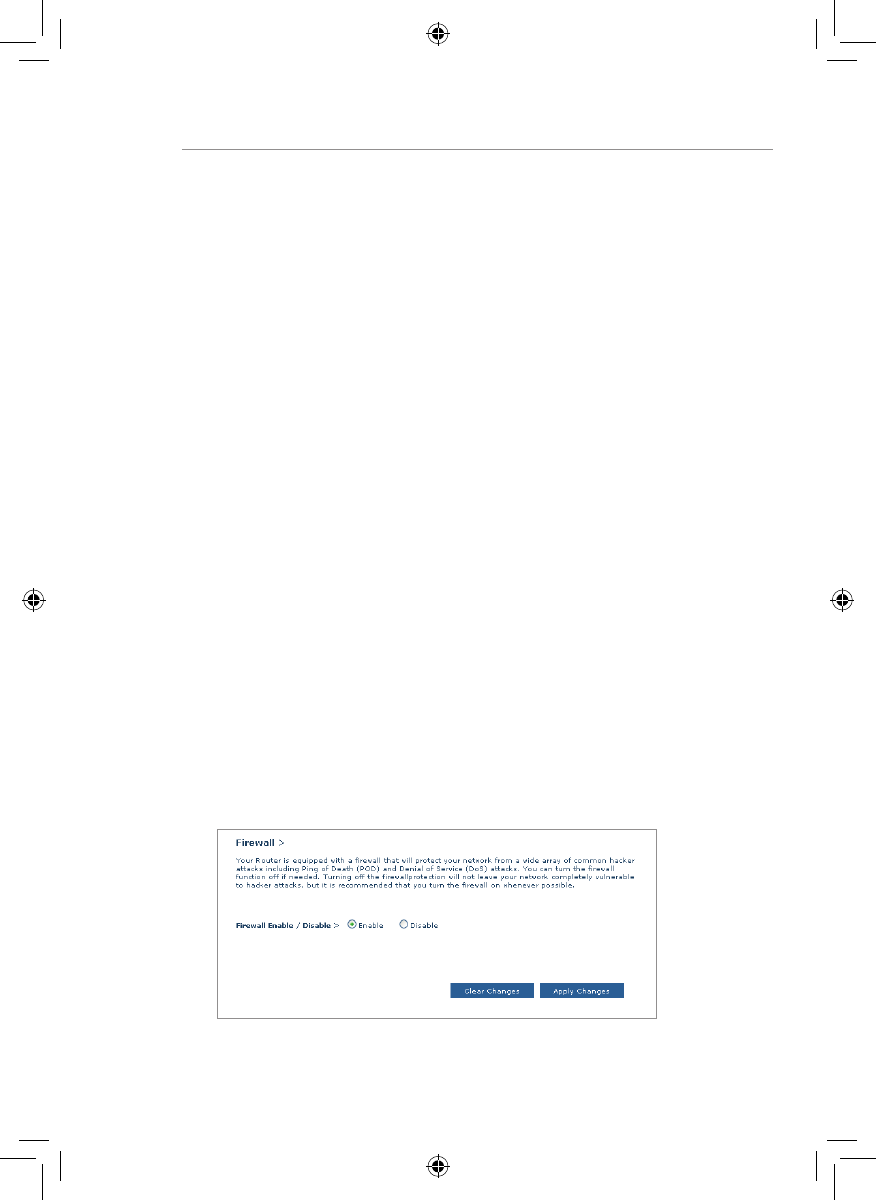

Firewall
Your Router is equipped with a firewall that will protect your network
from a wide array of common hacker attacks including:
• IP Spoofing
• Land Attack
• Ping of Death (PoD)
• Denial of Service (DoS)
• IP with zero length
• Smurf Attack
• TCP Null Scan
• SYN flood
• UDP flooding
• Tear Drop Attack
• ICMP defect
• RIP defect
• Fragment flooding
The firewall also masks common ports that are frequently used to
attack networks. These ports appear to be “Stealth”, meaning that
essentially they do not exist to a would-be hacker. You can turn the
firewall function off if needed; however, it is recommended that you
leave the firewall enabled. Disabling the firewall protection will not
leave your network completely vulnerable to hacker attacks, but it is
recommended that you leave the firewall enabled.
5554
Manually Configuring your Router
Manually Configuring your Router
55
Manually Configuring your Router
section
2
1
3
4
5
6
7
8
9
10
11
12

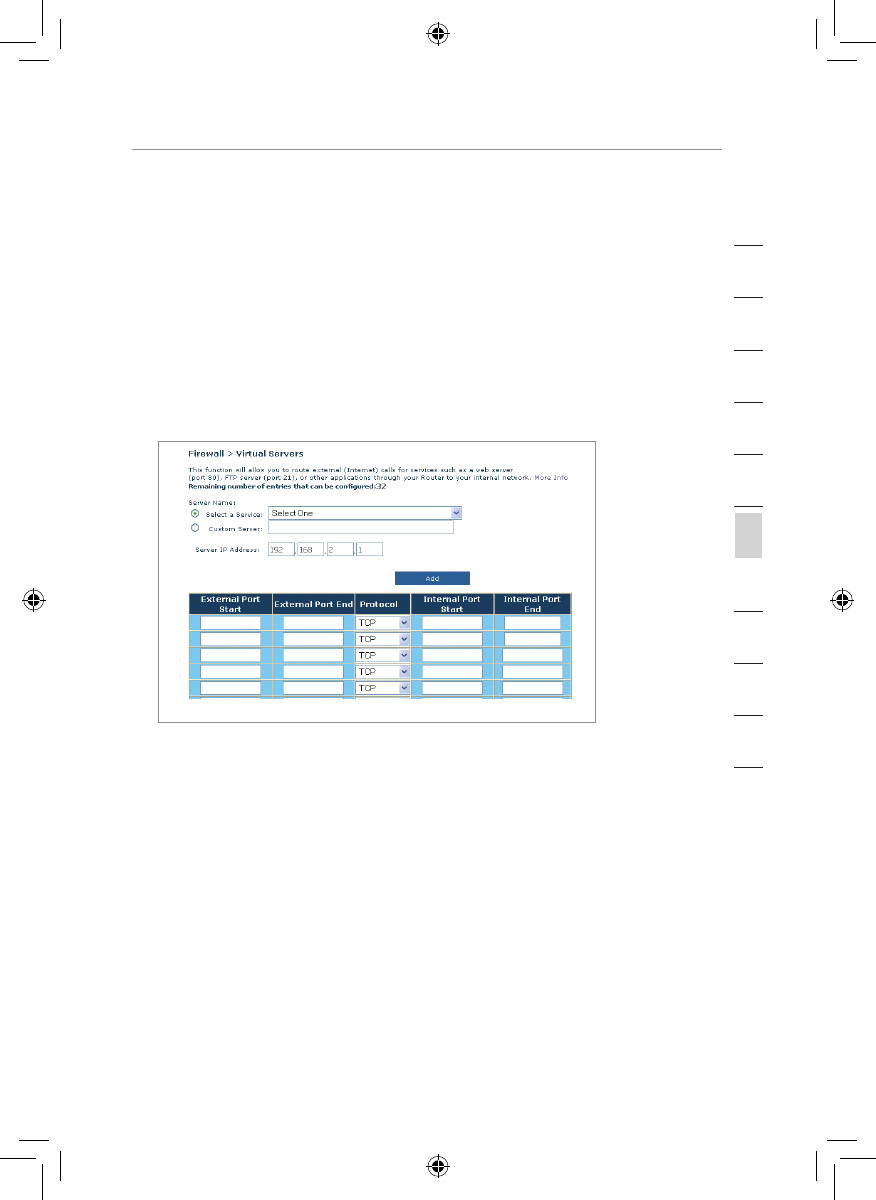

Virtual Servers
Virtual servers allow you to route external (Internet) calls for services such
as a web server (port 80), FTP server (Port 21), or other applications,
through your Router to your internal network. Since your internal
computers are protected by a firewall, machines from the Internet cannot
get to them because they cannot be “seen”. If you need to configure the
virtual server function for a specific application, you will need to contact
the application vendor to find out which port settings you need. You can
manually input this port information into the Router.
Choosing an Application
A list of popular applications has been included to choose from. Click
on “Select a Service” then select your application from the drop-down
list. The settings will be transferred to the first row available. Click
“Add” to save the setting for that application.
Manually Entering Settings into the Virtual Server
To manually enter settings, click on “Custom Server” and enter a
name for the server. Enter the Server IP address in the space provided
for the internal machine and the port(s) required to pass. Then select
the protocol type (TCP or UDP), and then click “Add”.
Opening ports in your firewall can pose a security risk. You can enable
and disable settings very quickly. It is recommended that you disable
the settings when you are not using a specific application.
5756
Manually Configuring your Router
57
Manually Configuring your Router

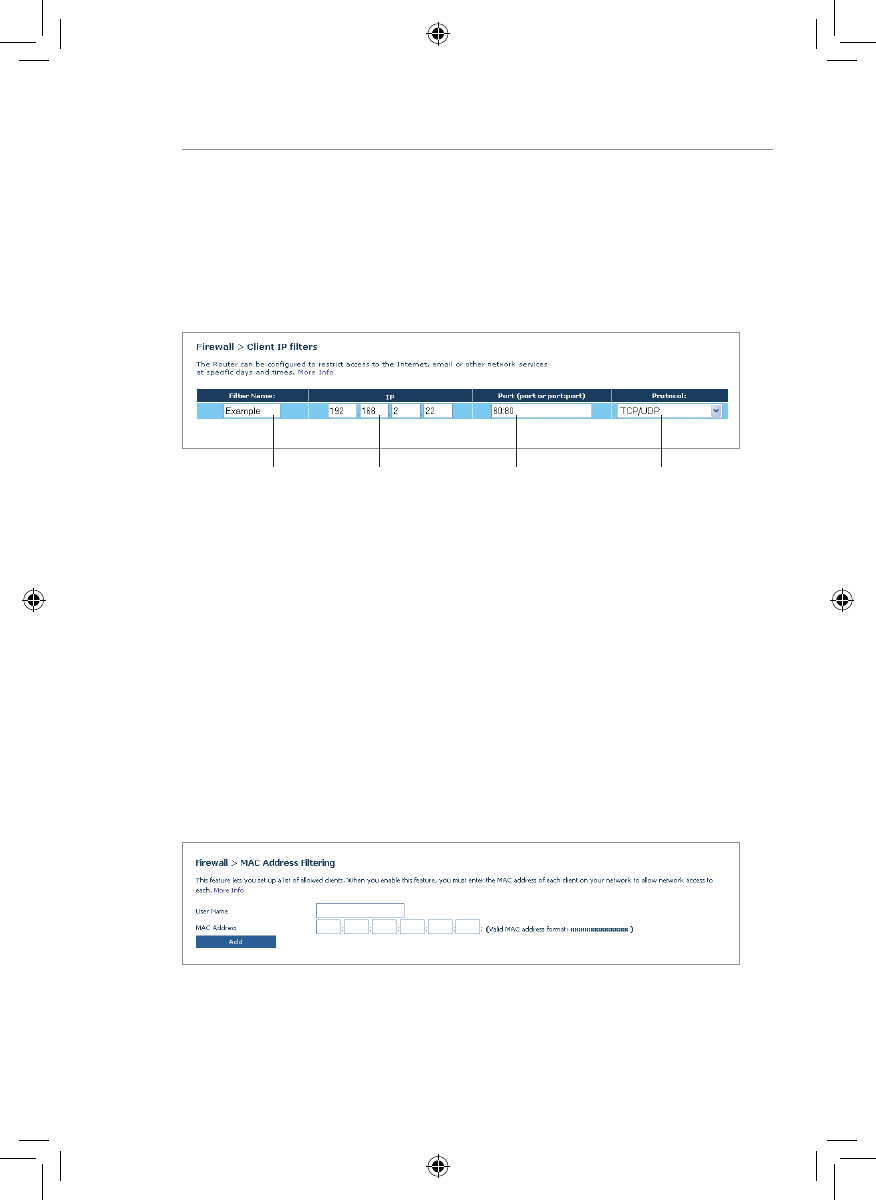

Client IP Filters
The Router can be configured to restrict access to the Internet, email, or
other network services at specific days and times. Restriction can be set
for a single computer, a range of computers, or multiple computers.
To restrict Internet access to a single computer for example, enter
a name of the filter in “Filter Name” box (1) and IP address of the
computer you wish to restrict access to in the IP field (2). Next, enter
“80:80” in the Port field (3). Select protocol from the “Protocol”
drop-down box (4). Click “Apply Changes”. The computer at the IP
address you specified will now be blocked from Internet access.
MAC Address Filtering
The MAC address filter is a powerful security feature that allows you
to specify which computers are allowed on the network. Any computer
attempting to access the network that is not specified in the filter list
will be denied access. When you enable this feature, you must enter a
name for the user and the MAC address of each client on your network
to allow network access. Next, click “Add” to save the settings.
(1) (2) (3) (4)
5756
Manually Configuring your Router
Manually Configuring your Router
57
Manually Configuring your Router
section
2
1
3
4
5
6
7
8
9
10
11
12

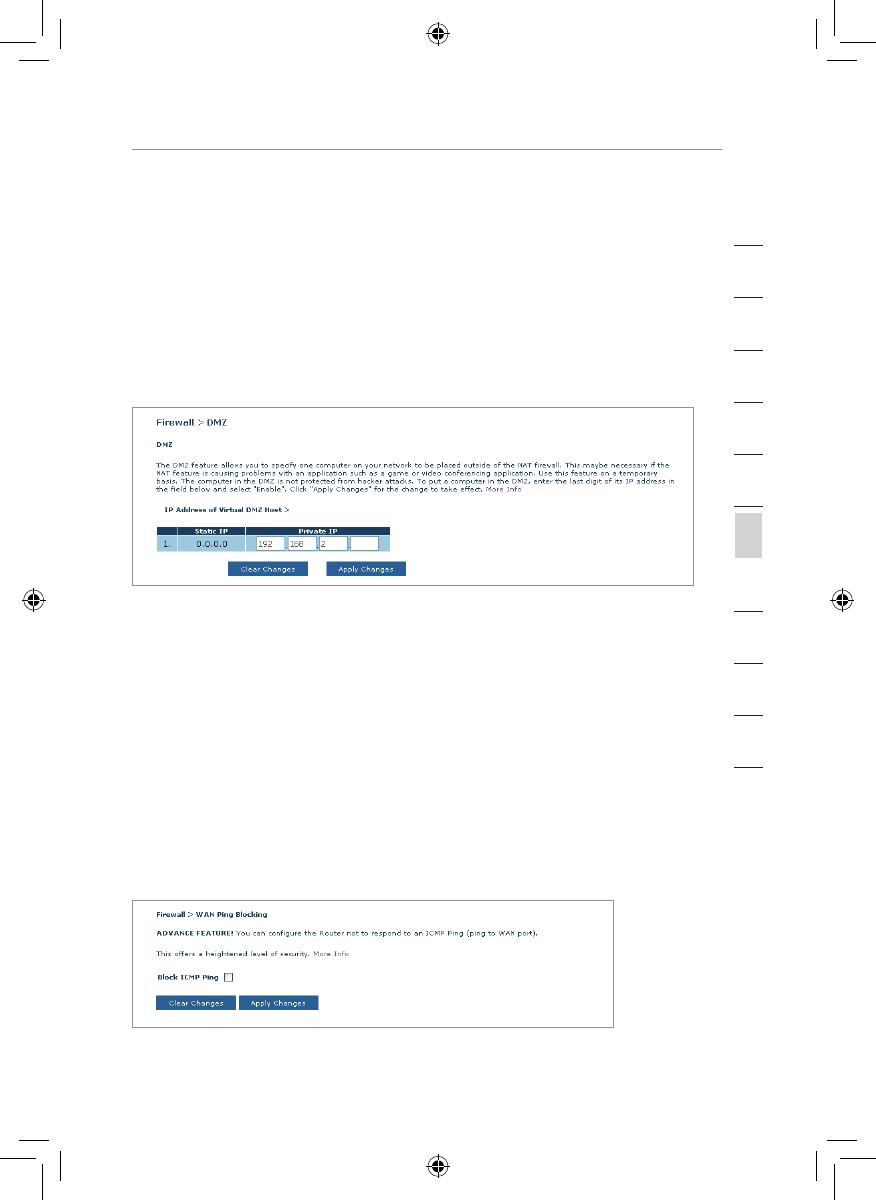

DMZ (Demilitarized Zone)
If you have a client PC that cannot run an Internet application
properly from behind the firewall, you can open the client up to
unrestricted two-way Internet access. This may be necessary if the
NAT feature is causing problems with an application such as a game
or video conferencing application. Use this feature on a temporary
basis. The computer in the DMZ is not protected from
hacker attacks.
To put a computer in the DMZ, enter its LAN IP address in the “Private
IP” field and click “Apply Changes” for the change to take effect.
Blocking an ICMP Ping
Computer hackers use what is known as “pinging” to find potential
victims on the Internet. By pinging a specific IP address and
receiving a response from the IP address, a hacker can determine
that something of interest might be there. The Router can be set
up so it will not respond to an ICMP ping from the outside. This
heightens the level of security of your Router.
To turn off the ping response, select “Block ICMP Ping” (1) and click
“Apply Changes”. The Router will not respong to an ICMP Ping.
5958
Manually Configuring your Router
59
Manually Configuring your Router
Utilities
The “Utilities” screen lets you manage different parameters of the
Router and perform certain administrative functions.
Restart Router
Sometimes it may be necessary to restart or reboot the Router if it
begins working improperly. Restarting or rebooting the Router will
NOT delete any of your configuration settings.
5958
Manually Configuring your Router
Manually Configuring your Router
59
Manually Configuring your Router
section
2
1
3
4
5
6
7
8
9
10
11
12

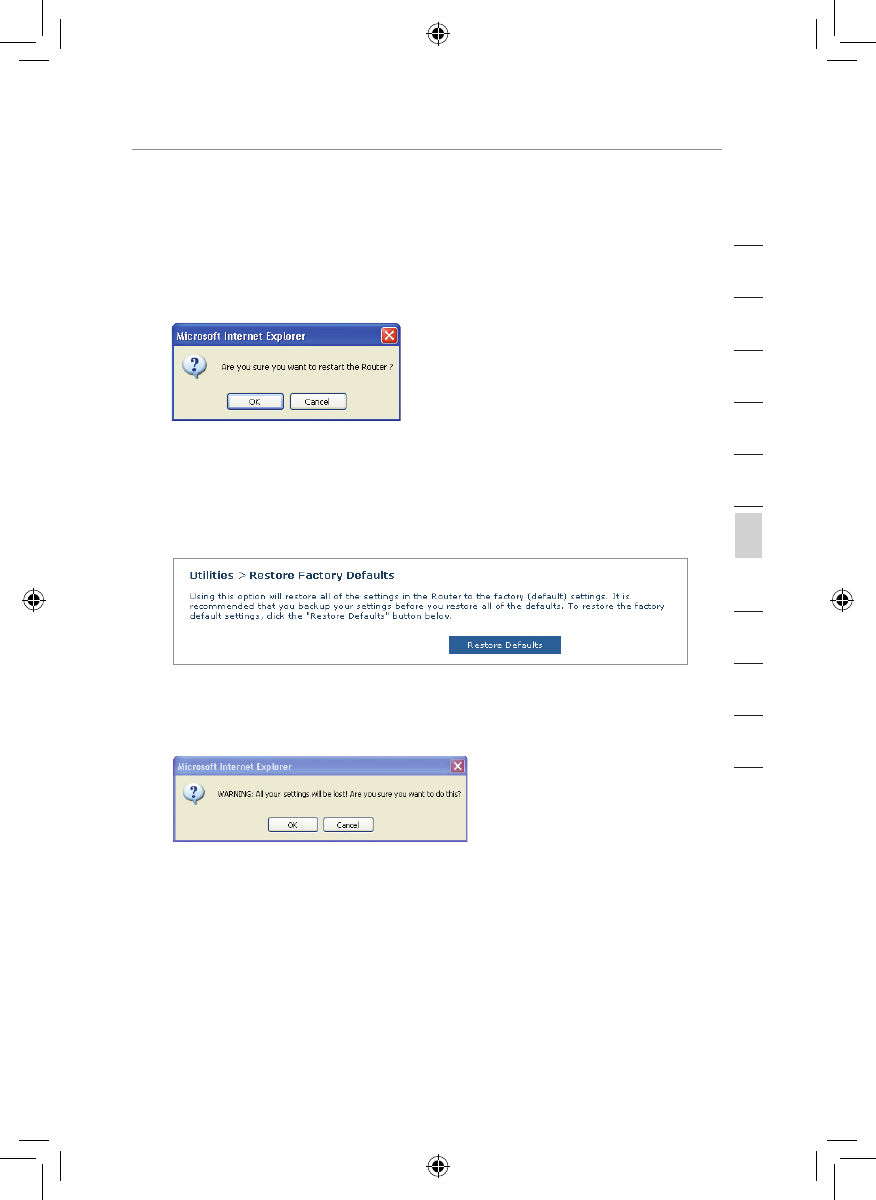

Restarting the Router to Restore Normal Operation
1. Click the “Restart Router” button.
2. The following message will appear. Click “OK” to restart your Router.
Restore Factory Defaults
Using this option will restore all of the settings in the Router to the
factory (default) settings. It is recommended that you back up your
settings before you restore all of the defaults.
1. Click the “Restore Defaults” button.
2. The following message will appear. Click “OK” to restore factory defaults.
6160
Manually Configuring your Router
61
Manually Configuring your Router

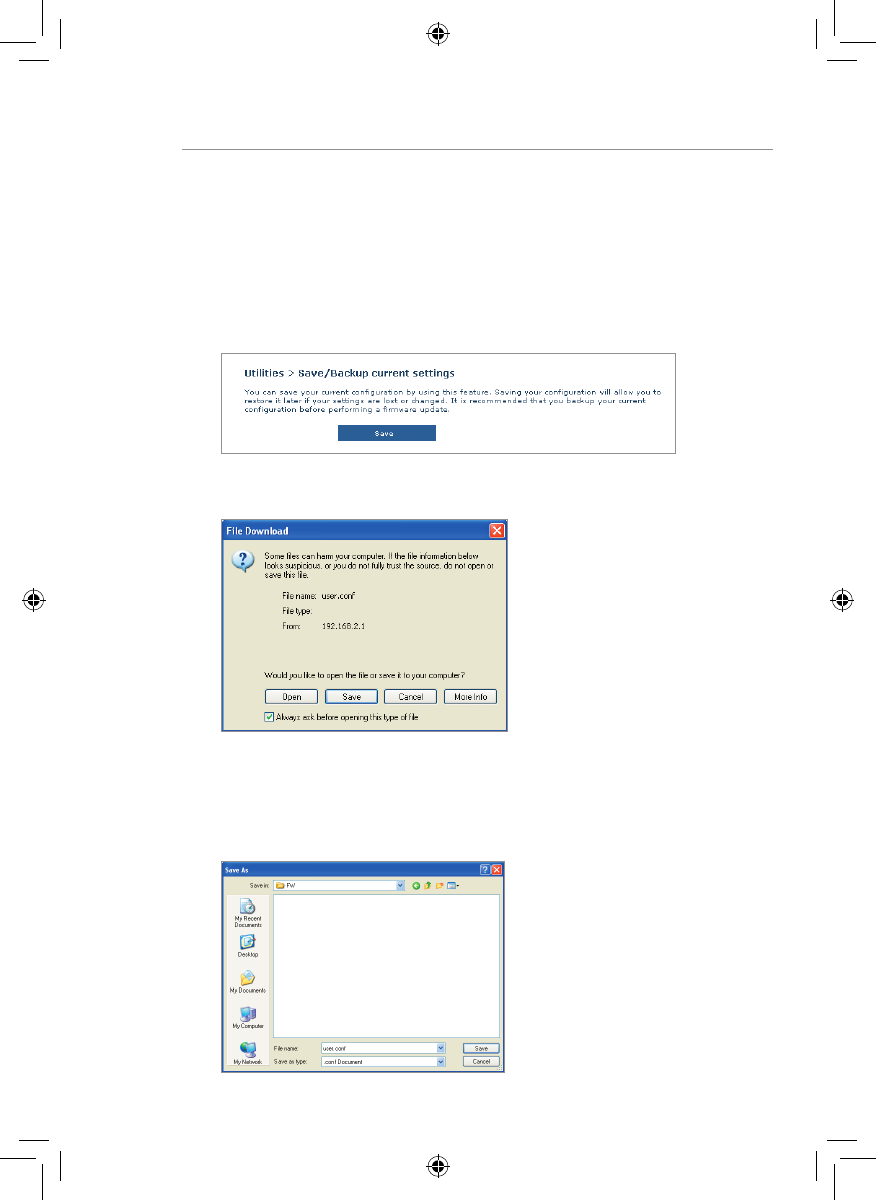

Saving/Backup Current Settings
You can save your current configuration by using this feature. Saving
your configuration will allow you to restore it later if your settings are
lost or changed. It is recommended that you back up your current
configuration before performing a firmware update.
1. Click “Save”. A window called “File Download” will open. Click “Save”.
2. A window will open that allows you to select the location in
which to save the configuration file. Select a location. There are
no restrictions on the file name, however, be sure to name the file
so you can locate it yourself later. When you have selected the
location and entered the file name, click “Save”.
6160
Manually Configuring your Router
Manually Configuring your Router
61
Manually Configuring your Router
section
2
1
3
4
5
6
7
8
9
10
11
12

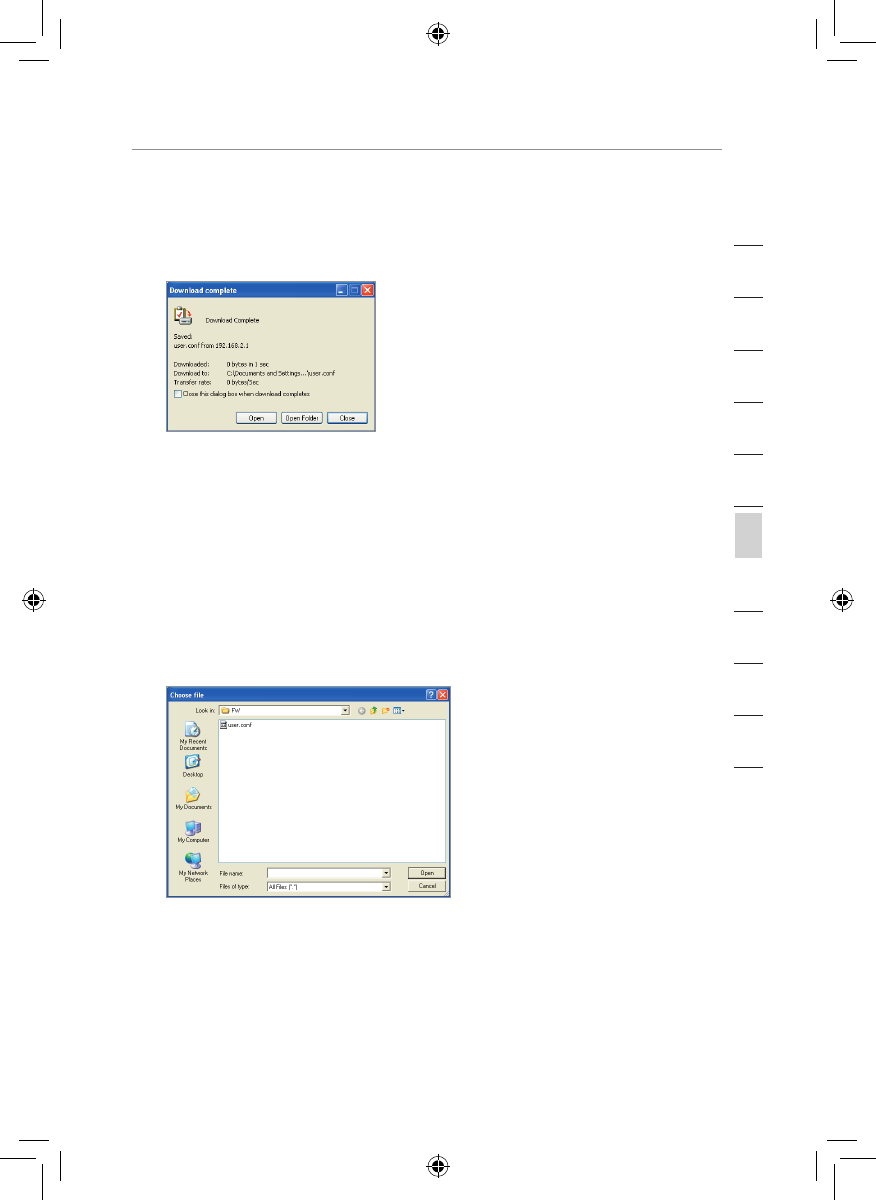

3. When the save is complete, you will see the window below.
Click “Close”.
The configuration is now saved.
Restore Previous Settings
This option will allow you to restore a previously saved configuration.
1. Click “Browse”. A window will open that allows you to select the
location of the configuration file. All configuration files end with
a “.bin”. Locate the configuration file you want to restore and
double-click on it.
2. Then, click “Open”.
6362
Manually Configuring your Router
63
Manually Configuring your Router
Firmware Update
From time to time, Belkin may release new versions of the Router’s
firmware. Firmware updates contain feature improvements and fixes to
problems that may have existed. When Belkin releases new firmware,
you can download the firmware from the Belkin update website and
update your Router’s firmware to the latest version.
Updating the Router’s Firmware

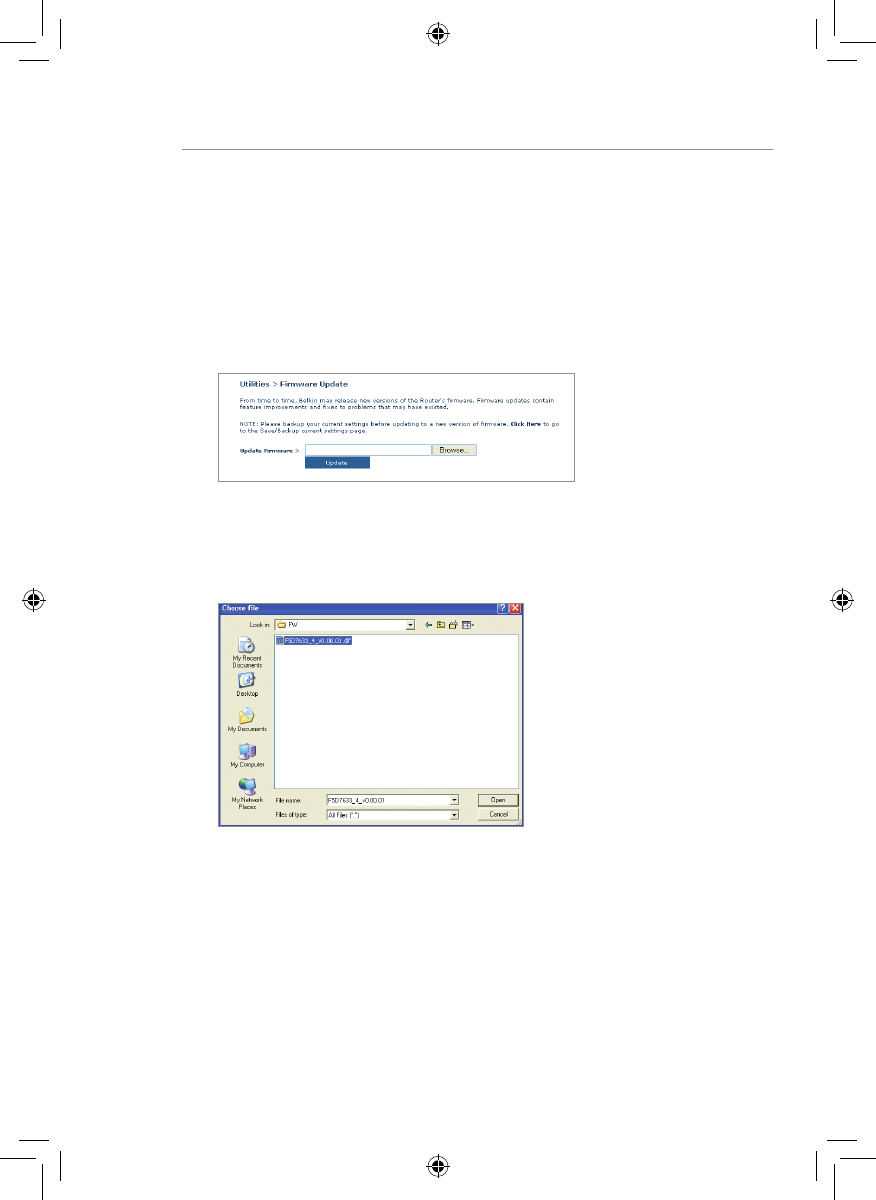

1. In the “Firmware Update” page, click “Browse”. A window will
open that allows you to select the location of the firmware
update file.
2. Browse to the firmware file you downloaded. Select the file by
double-clicking on the file name.
3. Click “Update” to upgrade to the latest firmware version.
6362
Manually Configuring your Router
Manually Configuring your Router
63
Manually Configuring your Router
section
2
1
3
4
5
6
7
8
9
10
11
12
System Settings

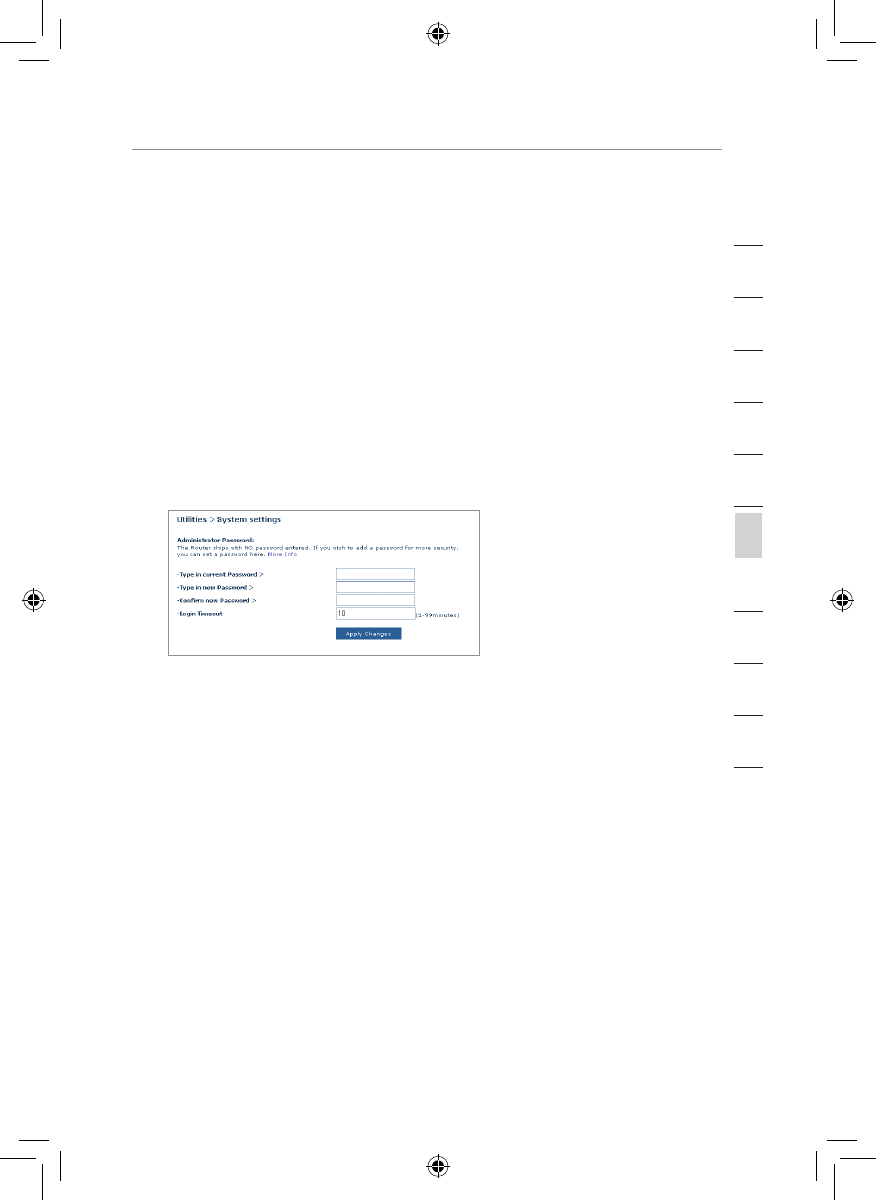

The “System Settings” page is where you can enter a new
administrator password, set the time zone, enable remote
management, and turn on and off the UPnP function of the Router.
Setting or Changing the Administrator Password
The Router ships with NO password entered. If you wish to add a
password for greater security, you can set a password here. Write
down your password and keep it in a safe place, as you will need it if
you need to log into the Router in the future. It is also recommended
that you set a password if you plan to use the remote management
feature of your Router.
Changing the Login Time-Out Setting
The login time-out option allows you to set the period of time that
you can be logged into the Router’s advanced setup interface. The
timer starts when there has been no activity. For example, you have
made some changes in the advanced setup interface, then left your
computer alone without clicking “Logout”. Assuming the time-out is
set to 10 minutes, then 10 minutes after you leave, the login session
will expire. You will have to log into the Router again to make any
more changes. The login time-out option is for security purposes and
the default is set to 10 minutes.
Note: Only one computer can be logged into the Router’s advanced
setup interface at one time.
6564
Manually Configuring your Router
65
Manually Configuring your Router
Setting the Time and Time Zone

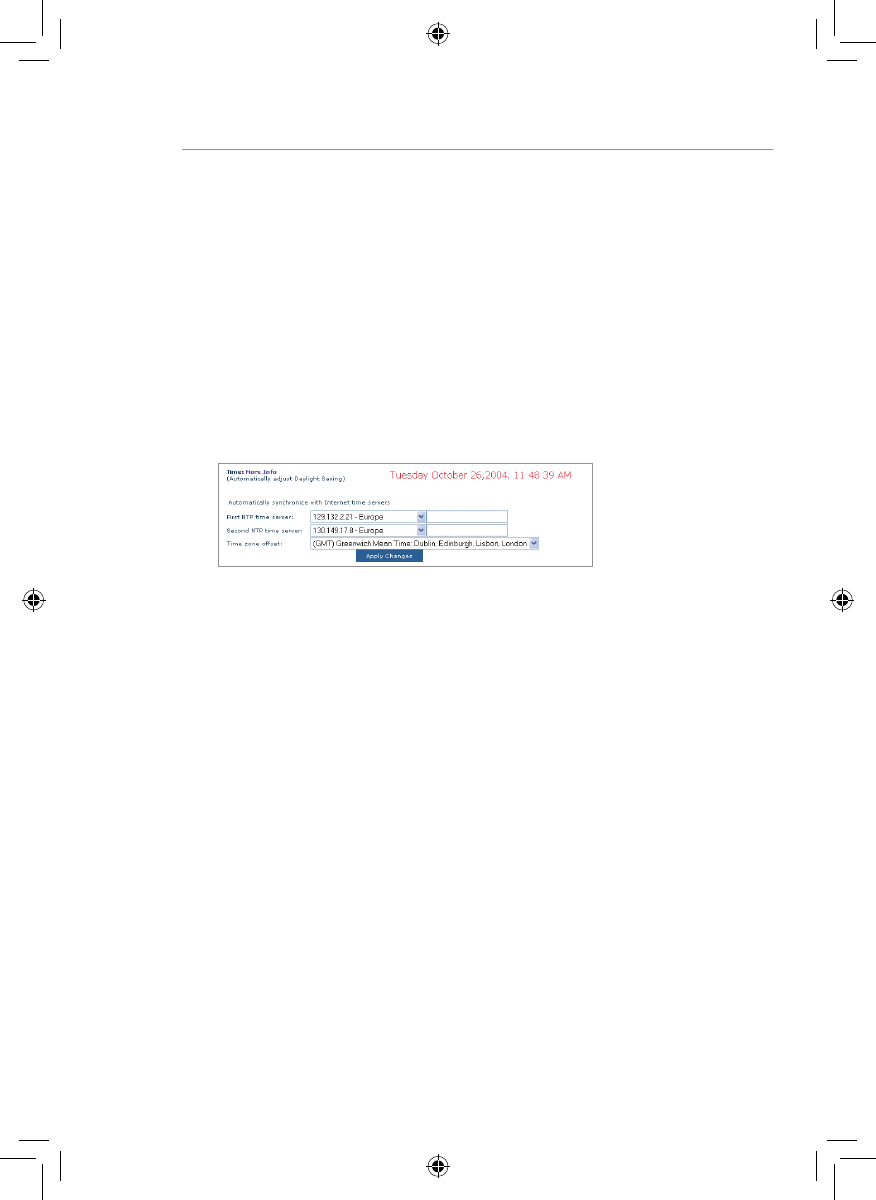

The Router keeps time by connecting to a Simple Network Time
Protocol (SNTP) server. This allows the Router to synchronize the
system clock to the global Internet. The synchronized clock in the
Router is used to record the security log and control client filtering.
Select desired NTP time servers and the time zone that you reside
in, then click “Apply Changes”. The system clock may not update
immediately. Allow at least 15 minutes for the Router to contact the
time servers on the Internet and get a response. You cannot set the
clock yourself.
Enabling Remote Management
Before you enable this advanced feature of your Belkin Router, MAKE
SURE YOU HAVE SET THE ADMINISTRATOR PASSWORD. Remote
management allows you to make changes to your Router’s settings
from anywhere on the Internet.

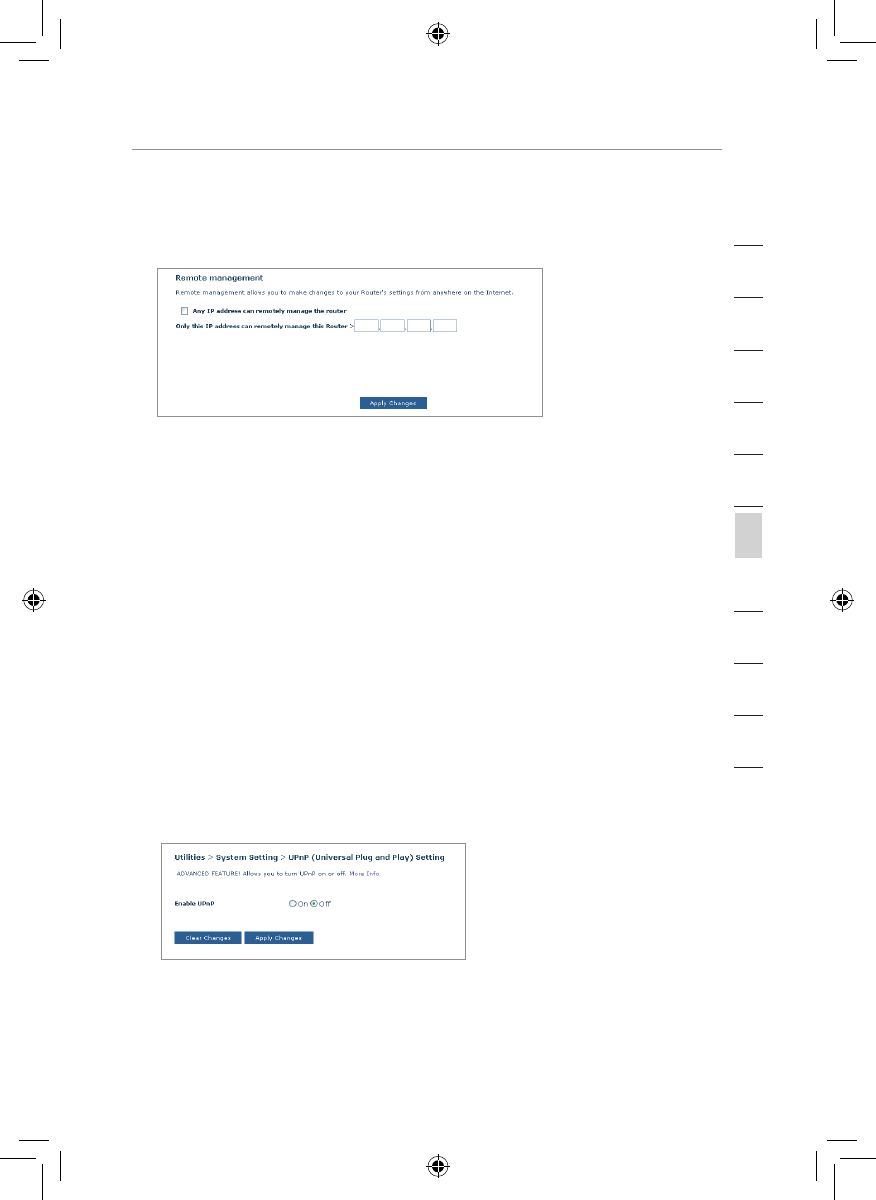

Click on the “Change Settings” button to bring up the “Remote
Management” page.
There are two methods of remotely managing the Router. The first
is to allow access to the Router from anywhere on the Internet by
selecting “Any IP address can remotely manage the Router”. By
typing in your WAN IP address from any computer on the Internet,
you will be presented with a login screen where you need to type in
the password of your Router.
The second method is to allow a specific IP address only to remotely
manage the Router. This is more secure, but less convenient. To use
this method, enter the IP address you know you will be accessing the
Router from in the space provided and select “Only this IP address
can remotely manage the Router”. Before you enable this function,
it is STRONGLY RECOMMENDED that you set your administrator
password. Leaving the password empty will potentially open your
Router to intrusion.
6564
Manually Configuring your Router
Manually Configuring your Router
65
Manually Configuring your Router
section
2
1
3
4
5
6
7
8
9
10
11
12
Click on the “Apply Changes” button to save your settings.
Enabling/Disabling UPnP
UPnP (Universal Plug-and-Play) is yet another advanced feature
offered by your Belkin Router. It is a technology that offers seamless
operation of voice messaging, video messaging, games, and other
applications that are UPnP-compliant. Some applications require
the Router’s firewall to be configured in a specific way to operate
properly. This usually requires opening TCP and UDP ports, and in
some instances, setting trigger ports. An application that is UPnP-
compliant has the ability to communicate with the Router, basically
“telling” the Router which way it needs the firewall configured. The
Router ships with the UPnP feature disabled. If you are using any
applications that are UPnP-compliant, and wish to take advantage of
the UPnP features, you can enable the UPnP feature.
Click on the “Change Setting” button to bring up the “UPnP Setting”
page. Then select “On” for “Enable UPnP”. Click on the “Apply
Changes” button to save your settings.
6766
Troubleshooting
67
Problem:
The ADSL LED is not on.
Solution:
1. Check the connection between the Router and ADSL line. Make
sure the cable from the ADSL line is connected to the port on
the Router labeled “DSL Line”.
2. Make sure the Router has power. The Power LED on the front
panel should be illuminated.
Problem:
The Internet LED is not on.
Solution:
1. Make sure the cable from the ADSL line is connected to the port
on the Router labeled “DSL Line” and the ADSL LED is on.
2. Make sure you have the correct VPI/VCI, user name, and password
from your ISP provider.
Problem:
My connection type is static IP address. I can’t connect to
the Internet.
Solution:
Since your connection type is static IP address, your ISP must assign
you the IP address, subnet mask, and gateway address. Instead of using
the Wizard, go to “Connection Type”, and then select your connection
type. Click “Next”, select “Static IP”, and enter your IP address, subnet
mask, and default gateway information.
Problem:
I’ve forgotten or lost my password.
Solution:
Press and hold the “Reset” button on the rear panel for at least six
seconds to restore the factory defaults.
6766
Troubleshooting
Troubleshooting
67
section
2
1
3
4
5
6
7
8
9
10
11
12
Problem:
My wireless PC cannot connect to the Router.
Solution:
1. Make sure the wireless PC has the same SSID settings as the
Router, and you have the same security settings on the clients
such as WPA or WEP encryption.
2. Make sure the distance between the Router and wireless PC are
not too far away.
Problem:
The wireless network is often interrupted.
Solution:
1. Move your wireless PC closer to the Router to find a better signal.
2. There may also be interference, possibly caused by a microwave
oven or 2.4GHz cordless phones. Change the location of the
Router or use a different wireless channel.
Problem:
I can’t connect to the Internet wirelessly.
Solution:
If you are unable to connect to the Internet from a wireless computer,
please check the following items:
1. Look at the lights on your Router. If you are using a Belkin Router,
the lights should be as follows:
• The “Power” light should be on.
• The “Connected” light should be on, and not blinking.
• The “WAN” light should be either on or blinking.
2. Open your wireless utility software by clicking on the icon in
the system tray at the bottom right-hand corner of the screen.
If you’re using a Belkin Wireless Card, the tray icon should look
like this. The icon may be red or green.
3. The exact window that opens will vary depending on the model of
wireless card you have; however, any of the utilities should have
a list of “Available Networks”— those wireless networks it can
connect to.
6968
Troubleshooting
69
Does the name of your wireless network appear in
the results?
Yes, my network name is listed—go to the troubleshooting
solution titled “I can’t connect to the Internet wirelessly, but my
network name is listed”.
No, my network name is not listed—go to the troubleshooting
solution titled “I can’t connect to the Internet wirelessly, and my
network name is not listed”.
Problem:
I can’t connect to the Internet wirelessly, but my network name
is listed.
Solution:
If the name of your network is listed in the “Available Networks” list,
please follow the steps below to connect wirelessly:
1. Click on the correct network name in the “Available
Networks” list.
2. If the network has security (encryption) enabled, you will need to
enter the network key. For more information regarding security,
see the page entitled: “Changing the Wireless Security Settings”.
3. Within a few seconds, the tray icon in the lower left-hand
corner of your screen should turn green, indication a successful
connection to the network.
Problem:
I can’t connect to the Internet wirelessly, and my network name is
not listed.
Solution
If the correct network name is not listed under “Available
Networks” in the wireless utility, please attempt the following
troubleshooting steps:
1. Temporarily move computer, if possible, five to 10 feet from
the Router. Close the wireless utility, and re-open it. If the
6968
Troubleshooting
Troubleshooting
69
section
2
1
3
4
5
6
7
8
9
10
11
12
correct network name now appears under “Available Networks”,
you may have a range or interference problem. Please see the
suggestions discussed in Appendix B entitled “Important Factors
for Placement and Setup”.
2. Using a computer that is connected to the Router via a network
cable (as opposed to wirelessly), ensure that “Broadcast SSID” is
enabled. This setting is found on the Router’s wireless “Channel
and SSID” configuration page.
If you are still unable to access the Internet after completing
these steps, please contact Belkin Technical Support.
Problem:
My wireless network performance is inconsistent.
Data transfer is sometimes slow.
Signal strength is poor.
Difficulty establishing and/or maintaining a Virtual Private Network
(VPN) connection.
Solution:
Wireless technology is radio-based, which means connectivity and
the throughput performance between devices decreases when
the distance between devices increases. Other factors that will
cause signal degradation (metal is generally the worst culprit) are
obstructions such as walls and metal appliances. As a result, the
typical indoor range of your wireless devices will be between 100
to 200 feet. Note also that connection speed may decrease as you
move farther from the Router or access point.
In order to determine if wireless issues are related to range, we
suggest temporarily moving the computer, if possible, five to 10 feet
from the Router.
Changing the wireless channel - Depending on local wireless
traffic and interference, switching the wireless channel of your
network can improve performance and reliability. The default
channel the Router is shipped with is channel 11, you may choose
from several other channels depending on your region; see the
section entitled “Changing the Wireless Channel” on page 37 for
instructions on how to choose other channels.
7170
Troubleshooting
71
Limiting the wireless transmit rate - Limiting the wireless transmit
rate can help improve the maximum wireless range, and connection
stability. Most wireless cards have the ability to limit the transmission
rate. To change this property, go to the Windows Control Panel,
open “Network Connections” and double-click on your wireless
card’s connection. In the “Properties” dialog, select the “Configure”
button on the “General” tab (Windows 98 users will have to select the
wireless card in the list box and then click “Properties”), then choose
the “Advanced” tab and select the rate property. Wireless client cards
are usually set to automatically adjust the wireless transmit rate for
you, but doing so can cause periodic disconnects when the wireless
signal is too weak; as a rule, slower transmission rates are more
stable. Experiment with different connection rates until you find the
best one for your environment; note that all available transmission
rates should be acceptable for browsing the Internet. For more
assistance, see your wireless card’s user manual.
Problem:
I am having difficulty setting up Wired Equivalent Privacy (WEP)
security on a Belkin Router or Belkin Access Point.
Solution
1. Log into your Wireless Router or access point.
2. Open your web browser and type in IP address of the Wireless
Router or access point. (The Router default is 192.168.2.1, the
802.11g access point is 192.168.2.254 ). Log into your Router by
clicking on the “Login” button in the top right-hand corner of the
screen. You will be asked to enter your password. If you never
set a password, leave the password field blank and
click “Submit”.
3. Click the “Wireless” tab on the left of your screen. Select
the “Encryption” or “Security” tab to get to the security
settings page.
4. Select “128-bit WEP” from the drop-down menu.
5. After selecting your WEP encryption mode, you can type in
your hex WEP key manually, or you can type in a passphrase
in the “Passphrase” field and click “Generate” to create a WEP
key from the passphrase. Click “Apply Changes” to finish. You
must now set all of your clients to match these settings. A hex
(hexadecimal) key is a mixture of numbers and letters from A-F
7170
Troubleshooting
Troubleshooting
71
section
2
1
3
4
5
6
7
8
9
10
11
12
and 0-9. For 128-bit WEP, you need to enter 26 hex keys.
For example:
C3 03 0F AF 4B B2 C3 D4 4B C3 D4 E7 E4 = 128-bit key
6. Click “Apply Changes” to finish. Encryption in the Wireless
Router is now set. Each of your computers on your wireless
network will now need to be configured with the same
security settings.
WARNING: If you are configuring the Wireless Router or Access
Point from a computer with a wireless client, you will need to ensure
that security is turned on for this wireless client. If this is not done,
you will lose your wireless connection.
Note to Mac users: Original Apple AirPort® products support
64-bit encryption only. Apple AirPort 2 products can support
64-bit or 128-bit encryption. Please check your Apple AirPort
product to see which version you are using. If you cannot configure
your network with 128-bit encryption, try 64-bit encryption.
Problem:
I am having difficulty setting up Wired Equivalent Privacy (WEP)
security on a Belkin Wireless Card.
Solution:
The Wireless Card must use the same key as the Wireless Router or
access point. For instance, if your Wireless Router or access point
uses the key 00112233445566778899AABBCC, then the Wireless
Card must be set to the exact same key.
1. Double-click the “Signal Indicator” icon to bring up the Wireless
“Network” screen. The “Advanced” button will allow you to view
and configure more options of your Card.
2. The “Advanced” button will allow you to view and configure
more options of the Card.
3. Once the “Advanced” button is clicked, the Belkin Wireless LAN
Utility will appear. This Utility will allow you to manage all the
advanced features of the Belkin Wireless Card.
4. Under the “Wireless Network Properties” tab, select a
network name from the “Available networks” list and click the
“Properties” button.
7372
Troubleshooting
73
5. Under “Data Encryption” select “WEP”.
6. Ensure the check box “The key is provided for me automatically”
at the bottom is unchecked. If you are using this computer to
connect to a corporate network, please consult your network
administrator if this box needs to be checked.
7. Type your WEP key in the “Network key” box.
Important: A WEP key is a mixture of numbers and letters from
A–F and 0–9. For 128-bit WEP, you need to enter 26 keys. This
Network key needs to match the key you assign to your Wireless
Router or access point.
For example:
C3 03 0F AF 4B B2 C3 D4 4B C3 D4 E7 E4 = 128-bit key
8. Click “OK”, and then “Apply” to save the settings.
If you are NOT using a Belkin Wireless Card, please consult the
manufacturer for that wireless client card’s user manual.
Problem:
Do Belkin products support WPA?
Solution
Note: To use WPA security, all your clients must be upgraded
to drivers and software that support it. At the time of this FAQ
publication, a security patch download is available, for free,
from Microsoft. This patch works only with the Windows XP
operating system.
Download the patch here:
http://www.microsoft.com/downloads/details.
aspx?FamilyID=009d8425-ce2b-47a4-abec-274845dc9e91&displayl
ang=en
You also need to download the latest driver for your Belkin Wireless
802.11g Desktop or Notebook Network Card from the Belkin
support site. Other operating systems are not supported at this
time. Microsoft’s patch only supports devices with WPA-enabled
drivers such as Belkin 802.11g products.
Download the latest driver at:
http://web.belkin.com/support/networkingsupport.asp.
7372
Troubleshooting
Troubleshooting
73
section
2
1
3
4
5
6
7
8
9
10
11
12
Problem:
I am having difficulty setting up Wi-Fi Protected Access (WPA)
security on a Belkin Wireless Router or Belkin Access Point for a
home network.
Solution:
1. From the “Security Mode” drop-down menu, select “WPA-PSK
(no server)”.
2. For “Encryption Technique”, select “TKIP” or “AES”. This setting
will have to be identical on the clients that you set up.
3. Enter your pre-shared key. This can be from eight to 63
characters and can be letters, numbers, or symbols or spaces.
This same key must be used on all of the clients that you set up.
For example, your PSK might be something like: “Smith family
network key”.
4. Click “Apply Changes” to finish. You must now set all clients to
match these settings.
Problem:
I am having difficulty setting up Wi-Fi Protected Access (WPA)
security on a Belkin Wireless Router or Belkin Access Point for
a business.
Solution:
If your network uses a radius server to distribute keys to the clients,
use this setting. This is typically used in a business environment.
1. From the “Security Mode” drop-down menu, select “WPA
(with server)”.
2. For “Encryption Technique”, select “TKIP” or “AES”. This setting
will have to be identical on the clients that you set up.
3. Enter the IP address of the radius server into the “Radius
Server” fields.
4. Enter the radius key into the “Radius Key” field.
5. Enter the key interval. Key interval is how often the keys are
distributed (in packets).
6. Click “Apply Changes” to finish. You must now set all clients to
match these settings.
7574
Troubleshooting
75
Problem:
I am having difficulty setting up Wi-Fi Protected Access (WPA)
security on a Belkin Wireless Card for a home network.
Solution:
Clients must use the same key that the wireless router or access point
uses. For instance if the key is “Smith Family Network Key” in the wireless
router or access point, the clients must also use that same key.
1. Double-click the “Signal Indicator” icon to bring up the “Wireless
Network” screen. The “Advanced” button will allow you to view
and configure more options of your Card.
2. The “Advanced” button will allow you to view and configure more
options of the Card.
3. Once the “Advanced” button is clicked, the Belkin Wireless LAN
Utility will appear. This Utility will allow you to manage all the
advanced features of the Belkin Wireless Card.
4. Under the “Wireless Network Properties” tab, select a network name
from the “Available networks” list and click the “Properties” button.
5. Under “Network Authentication” select “WPA-PSK (no server)”.
6. Type your WPA key in the “Network key” box.
Important: WPA-PSK is a mixture of numbers and letters from
A–Z and 0–9. For WPA-PSK you can enter eight to 63 characters.
This network key needs to match the key you assign to your
Wireless Router or access point.
7. Click “OK, then “Apply” to save the settings.
Problem:
I am having difficulty setting up Wi-Fi Protected Access (WPA)
security on a Belkin Wireless Card for a business.
Solution:
1. Double-click the “Signal Indicator” icon to bring up the “Wireless
Network” screen. The “Advanced” button will allow you to view
and configure more options of your Card.
2. The “Advanced” button will allow you to view and configure more
options of the Card.
3. Once the “Advanced” button is clicked, the Belkin Wireless LAN
7574
Troubleshooting
Troubleshooting
75
section
2
1
3
4
5
6
7
8
9
10
11
12
Utility will appear. This Utility will allow you to manage all the
advanced features of the Belkin Wireless Card.
4. Under the “Wireless Network Properties” tab, select a network
name from the “Available networks” list and click the
“Properties” button.
5. Under “Network Authentication” select “WPA”.
6. In the “Authentication” tab, select the settings that are indicated
by your network administrator.
7. Click “OK, then “Apply” to save the settings.
Problem:
I am having difficulty setting up Wi-Fi Protected Access (WPA) security
and I am NOT using a Belkin Wireless Card for a home network.
Solution:
If you are NOT using a Belkin Wireless Desktop or Wireless
Notebook Network Card and it is not equipped with WPA-enabled
software, a file from Microsoft called “Windows XP Support Patch
for Wireless Protected Access” is available for free download.
Download the patch from Microsoft by searching the knowledge
base for Windows XP WPA.
Note: The file that Microsoft has made available works only with
Windows XP. Other operating systems are not supported at this
time. You also need to ensure that the wireless card manufacturer
supports WPA and that you have downloaded and installed the
latest driver from their support site.
Supported Operating Systems:
• Windows XP Professional
• Windows XP Home Edition
Enabling WPA-PSK (no server)
1. Under Windows XP, click “Start > Control Panel > Network
Connections”.
2. Right-clicking on the “Wireless Networks” tab will display the
following screen. Ensure the “Use Windows to configure my
wireless network settings” check box is checked.
7776
Troubleshooting
77
3. Under the “Wireless Networks” tab, click the “Configure” button,
and you will see the following screen.
4. For a home or small business user, select “WPA-PSK” under
“Network Administration”.
Note: Select WPA (with radius server) if you are using this
computer to connect to a corporate network that supports an
authentication server such as a radius server. Please consult
your network administrator for further information.
5. Select “TKIP” or “AES” under “Date Encryption”. This setting will
have to be identical to the wireless router or access point that
you set up.
6. Type in your encryption key in the “Network Key” box.
Important: Enter your pre-shared key. This can be from eight
to 63 characters and can be letters, numbers, or symbols. This
same key must be used on all of the clients that you set up.
7. Click “OK” to apply settings.
What’s the difference between 802.11b, 802.11g,
802.11a, and Pre-N?
Currently there are four levels of wireless networking standards, which
transmit data at very different maximum speeds. Each is based on
the designation 802.11(x), so named by the IEEE, the board that is
responsible for certifying networking standards. The most common
wireless networking standard, 802.11b, transmits information at 11Mbps;
802.11a and 802.11g work at 54Mbps; and Pre-N works at 108Mbps.
Pre-N, the precursor to the upcoming 802.11n release, promises speeds
that exceed 802.11g, and up to twice the wireless coverage area. See
the following chart for more detailed information.
7776
Troubleshooting
Troubleshooting
77
section
2
1
3
4
5
6
7
8
9
10
11
12
Wireless Comparison Chart
Wireless
Technology
802.11b
802.11g
802.11a
Belkin
Pre-N
Speed 11Mbps 54Mbps 54Mbps 108Mbps
Frequency
Common
household
devices such as
cordless phones
and microwave
ovens may
interfere with the
unlicensed band
2.4GHz
Common
household
devices such as
cordless phones
and microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
5GHz -
uncrowded
band
Common
household
devices such as
cordless phones
and microwave
ovens may
interfere with the
unlicensed
band 2.4GHz
Compatibility
Compatible
with 802.11g
Compatible
with 802.11b
Incompatible
with 802.11b
or 802.11g
Compatible with
802.11g
or 802.11b
Coverage
Depends on
interference
- typically
100–200 ft.
indoors
Depends on
interference
- typically 100–
200 ft. indoors
Less
interference
- range is
typically
50-100 ft.
8x the
coverage of
standard 802.11g
Adoption
Mature –
widely adopted
Expected
to continue
to grow in
popularity
Slow adoption
for consumers
-
more popular
in business
environments
Expected to
continue to grow
in popularity
7978
Technical Support Information
79
Technical Support
For latest software updates or if you have any further questions
regarding installation of this product, please visit
www.belkin.com/networking or contact:
US: 877-736-5771 or
310-898-1100 ext. 2263
Europe: 00 800 223 55 460
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 800 616 1790
7978
Technical Support Information
79
section
2
1
3
4
5
6
7
11
12
Appendixes
9
8
10
Appendix A: Glossary
IP Address
The “IP address” is the internal IP address of the Router. To access
the advanced setup interface, type this IP address into the address
bar of your browser. This address can be changed if needed. To
change the IP address, type in the new IP address and click “Apply
Changes”. The IP address you choose should be a non-routable IP.
Examples of a non-routable IP are:
192.168.x.x (where x is anything between 0 and 255)
10.x.x.x (where x is anything between 0 and 255)
Subnet Mask
Some networks are far too large to allow all traffic to flood all its parts.
These networks must be broken down into smaller, more manageable
sections, called subnets. The subnet mask is the network address plus
the information reserved for identifying the “subnetwork”.
DNS
DNS is an acronym for Domain Name Server. A Domain Name Server
is a server located on the Internet that translates URLs (Universal
Resource Links) like www.belkin.com to IP addresses. Many ISPs
do not require you to enter this information into the Router. If you
are using a static IP connection type, then you may need to enter
a specific DNS address and secondary DNS address for your
connection to work properly. If your connection type is Dynamic or
PPPoE, it is likely that you do not have to enter a DNS address.
PPPoE
Most ADSL providers use PPPoE as the connection type. If you use
an ADSL modem to connect to the Internet, your ISP may use PPPoE
to log you into the service.
Your connection type is PPPoE if:
1. Your ISP gave you a user name and password which is required
to connect to the Internet.
2. Your ISP gave you software such as WinPoET or Enternet300 that
you use to connect to the Internet.
8180
Appendixes
81
3. You have to double-click on a desktop icon other than your
browser to get on the Internet.
To set the Router to use PPPoE, type in your user name and
password in the spaces provided. After you have typed in your
information, click “Apply Changes”.
After you apply the changes, the “Internet Status” indicator will read
“connection OK” if your Router is set up properly.
PPPoA
Enter the PPPoA information in the provided spaces, and click “Next”.
Click “Apply” to activate your settings.
1. User name - Enter the user name. (Assigned by your ISP).
2. Password - Enter your password. (Assigned by your ISP).
3. Retype Password - Confirm the password. (Assigned by your ISP).
4. VPI/VCI - Enter your Virtual Path Identifier (VPI) and Virtual Circuit
Identifier (VCI) parameter here. (Assigned by your ISP).
Disconnect after X...
This feature is used to automatically disconnect the Router from
your ISP when there is no activity for a specified period of time. For
instance, placing a check mark next to this option and entering “5”
into the minute field will cause the Router to disconnect from the
Internet after five minutes of no Internet activity. This option should
be used if you pay for your Internet service by the minute.
Channel and SSID
To change the channel of operation of the Router, select the desired
channel from the drop-down menu and select your channel. Click
“Apply Changes” to save the setting. You can also change the SSID.
The SSID is the equivalent to the wireless network’s name. You can
make the SSID anything you want to. If there are other wireless
networks in your area, you should give your wireless network a unique
name. Click inside of the SSID box and type in a new name. Click
“Apply Changes” to make the change.
8180
Appendixes
Appendixes
81
section
2
1
3
4
5
6
7
8
9
10
11
12
ESSID Broadcast
Many wireless network adapters currently on the market possess
a feature known as site survey. It scans the air for any available
network and allows each computer to automatically select a network
from the survey. This occurs if the computer’s SSID is set to “ANY”.
Your Belkin Router can block this random search for a network. If
you disable the “ESSID Broadcast” feature, the only way a computer
can join your network is by its SSID being set to the specific name of
the network (like WLAN). Be sure that you know your SSID (network
name) before enabling this feature. It is possible to make your
wireless network nearly invisible. By turning off the broadcast of the
SSID, your network will not appear in a site survey. Obviously, turning
off the broadcast feature of the SSID helps increase security.
Encryption
Setting encryption can help keep your network secure. The Router
uses Wired Equivalent Privacy (WEP) encryption to protect your data
and features two rates of encryption: 64-bit and 128-bit. Encryption
works on a system of keys. The key on the computer must match the
key on the Router, and there are two ways to make a key. The easiest
is to let the Router’s software convert a passphrase you’ve created
into a key. The advanced method is to enter the keys manually.
Virtual Servers
This function will allow you to route external (Internet) calls for
services such as a web server (port 80), FTP server (Port 21), or other
applications through your Router to your internal network. Since your
internal computers are protected by a firewall, machines from the
Internet cannot get to them because they cannot be “seen”. If you
need to configure the virtual server function for a specific application,
you will need to contact the application vendor to find out which port
settings you need.
To manually enter settings, enter the IP address in the space provided
for the internal machine, the port type (TCP or UDP), and the LAN
and public port(s) required to pass. Then select “Enable” and click
“Set”. You can only pass one port per internal IP address. Opening
ports in your firewall can pose a security risk. You can enable and
disable settings very quickly. It is recommended that you disable the
settings when you are not using a specific application.
8382
Appendixes
83
Client IP Filters
The Router can be configured to restrict access to the Internet,
email, or other network services at specific days and times.
Restriction can be set for a single computer, a range of computers,
or multiple computers.
URL Blocking
To configure the URL blocking feature, specify the websites (www.
somesite.com) and/or keywords you want to filter on your network.
Click “Apply Changes” to activate the change. To complete this
configuration, you will need to create or modify an access rule in the
client IP filters section. To modify an existing rule, click the “Edit”
option next to the rule you want to modify. To create a new rule, click
on the “Add PC” option. From the “Access Control Add PC” section,
check the option for “WWW with URL Blocking” in the “Client PC
Service” table to filter out the websites and keywords specified.
Schedule Rule
To configure the schedule rule, specify the name, comment, start
time, and end time that you want to filter on your network. This page
defines schedule rule names and activates the schedule for use in
the “Access Control” page.
MAC Address Filtering
The MAC address filter is a powerful security feature that allows
you to specify which computers are allowed on the network. Any
computer attempting to access the network that is not specified in
the filter list will be denied access. When you enable this feature, you
must enter the MAC address of each client on your network to allow
network access to each or copy the MAC address by selecting the
name of the computer from the “DHCP Client List”. To enable this
feature, select “Enable”. Next, click “Apply Changes” to save
the settings.
DMZ
If you have a client PC that cannot run an Internet application
properly from behind the firewall, you can open the client up to
unrestricted two-way Internet access. This may be necessary if the
8382
Appendixes
Appendixes
83
section
2
1
3
4
5
6
7
8
9
10
11
12
NAT feature is causing problems with an application such as a game
or video conferencing application. Use this feature on a temporary
basis. The computer in the DMZ is not protected from hacker
attacks. To put a computer in the DMZ, enter the last digits of its
LAN IP address in the “Static IP” field and click “Apply Changes” for
the change to take effect.
If you have only one public (WAN) IP address, then you can leave
the public IP to “0.0.0.0”. If you are using multiple public (WAN) IP
addresses, it is possible to select which public (WAN) IP address the
DMZ host will be directed to. Type in the public (WAN) IP address
you wish the DMZ host to direct to, enter the last two digits of the IP
address of the DMZ host computer, and click “Apply Changes”.
Administrator Password
The Router ships with NO password entered. If you wish to add
a password for more security, you can set a password from your
Router’s web-based user interface. Keep your password in a safe
place as you will need this password if you need to log into the
Router in the future. It is STRONGLY RECOMMENDED that you set
a password if you plan to use the remote management feature. The
login time-out option allows you to set the period of time that you can
be logged into the Router’s advanced setup interface. The timer starts
when there has been no activity. For example, you have made some
changes in the advanced setup interface, then left your computer
alone without clicking “Logout”.
Assuming the time-out is set to 10 minutes, then 10 minutes after
you leave, the login session will expire. You will have to log into the
Router again to make any more changes. The login time-out option
is for security purposes and the default is set to 10 minutes. Note,
only one computer can be logged into the Router’s advanced setup
interface at a time.
Time and Time Zone
The Router keeps time by connecting to a Simple Network Time
Protocol (SNTP) server. This allows the Router to synchronize the
system clock to the global Internet. The synchronized clock in the
Router is used to record the security log and control client filtering.
Select the time zone that you reside in. If you reside in an area that
observes daylight saving time, then place a check mark in the box
next to “Enable Daylight Saving”. The system clock may not update
8584
Appendixes
85
immediately. Allow at least 15 minutes for the Router to contact the
time servers on the Internet and get a response. You cannot set the
clock yourself.
Remote Management
Before you enable this function, MAKE SURE YOU HAVE SET THE
ADMINISTRATOR PASSWORD. Remote management allows you to
make changes to your Router’s settings from anywhere on
the Internet.
UPnP
UPnP (Universal Plug-and-Play) is a technology that offers seamless
operation of voice messaging, video messaging, games, and other
applications that are UPnP-compliant. Some applications require
the Router’s firewall to be configured in a specific way to operate
properly. This usually requires opening TCP and UDP ports and in
some instances setting trigger ports. An application that is
UPnP-compliant has the ability to communicate with the Router,
basically “telling” the Router which way it needs the firewall
configured. The Router ships with the UPnP feature disabled. If
you are using any applications that are UPnP-compliant, and wish
to take advantage of the UPnP features, you can enable the UPnP
feature. Simply select “Enable” in the “UPnP Enabling” section of the
“Utilities” page. Click “Apply Changes” to save the change.
8584
Appendixes
Appendixes
85
section
2
1
3
4
5
6
7
8
9
10
11
12
Appendix B: Important Factors for Placement and Setup
Note: While some of the items listed below can affect network
performance, they will not prohibit your wireless network from
functioning; if you are concerned that your network is not operating
at its maximum effectiveness, this checklist may help.
1. Wireless Router (or Access Point) Placement
Place your Wireless Router (or access point), the central
connection point of your network, as close as possible to the
center of your wireless network devices.
To achieve the best wireless network coverage for your “wireless
clients” (i.e., computers enabled by Belkin Wireless Notebook
Network Cards, Wireless Desktop Network Cards, and Wireless
USB Adapters):
• Ensure that your Wireless Router’s (or access point’s)
networking antennas are parallel to each other, and are
positioned vertically (toward the ceiling). If your Wireless
Router (or access point) itself is positioned vertically, point the
antennas a much as possible in an upward direction.
• In multistory homes, place the Wireless Router (or access
point) on a floor that is as close to the center of the home
as possible. This may mean placing the Wireless Router (or
access point) on an upper floor.
• Try not to place the Wireless Router (or access point) near a
cordless 2.4GHz phone.
2. Avoid Obstacles and Interference
Avoid placing your Wireless Router (or access point) near devices
that may emit radio “noise,” such as microwave ovens. Dense
objects that can inhibit wireless communication include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based UV tinted windows
8786
Appendixes
87
If your wireless signal seems weak in some spots, make sure that
objects such as these are not blocking the signal’s path (between
your computers and Wireless Router or access point).
3. Cordless Phones
If the performance of your wireless network is impaired after
attending to the above issues, and you have a cordless phone:
• Try moving cordless phones away from Wireless Routers (or
access points) and your wireless-enabled computers.
• Unplug and remove the battery from any cordless phone
that operates on the 2.4GHz band (check manufacturer’s
information). If this fixes the problem, your phone may
be interfering.
• If your phone supports channel selection, change the channel
on the phone to the farthest channel from your wireless
network. For example, change the phone to channel 1 and
move your Wireless Router (or access point) to channel 11.
See your phone’s user manual for detailed instructions.
• If necessary, consider switching to a 900MHz or 5GHz
cordless phone.
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as
apartment buildings or office complexes, there may be wireless
networks nearby that can conflict with yours.
Use the Site Survey capabilities found in the Wireless LAN Utility
of your wireless adapter to locate any other wireless networks
that are available (see your wireless adapter’s manual), and
move your Wireless Router (or access point) and computers to a
channel as far away from other networks as possible.
Experiment with more than one of the available channels, in
order to find the clearest connection and avoid interference from
neighboring cordless phones or other wireless devices.
For Belkin wireless networking products, use the detailed Site
Survey and wireless channel information included in your
User Manual.
8786
Appendixes
Appendixes
87
section
2
1
3
4
5
6
7
8
9
10
11
12
These guidelines should allow you to cover the maximum
possible area with your Wireless Router (or access point). Should
you need to cover an even wider area, we suggest the Belkin
Wireless Range Extender/Access Point.
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and password, and
are used where security is important. Secure connections include:
• Virtual Private Network (VPN) connections, often used to
connect remotely to an office network
• The “Bring Your Own Access” program from America Online
(AOL), which lets you use AOL through broadband provided by
another cable or DSL service
• Most online banking websites
• Many commercial websites that require a user name and
password to access your account
Secure connections can be interrupted by a computer’s power
management setting, which causes it to “go to sleep.” The
simplest solution to avoid this is to simply reconnect by rerunning
the VPN or AOL software, or by re-logging into the secure website.
A second alternative is to change your computer’s power
management settings so it does not go to sleep; however, this
may not be appropriate for portable computers. To change your
power management setting under Windows, see the “Power
Options” item in the Control Panel.
If you continue to have difficulty with Secure Connections, VPNs,
and AOL, please review the steps in the previous pages to be
sure you have addressed these issues.
Appendix C: Internet Connection Setting Table
The table on the next page provides references to select and configure
Internet connection in setting up your ADSL connection. Many ISPs
use different settings depending on the region and equipment they use.
You may try the setting for the ISPs in your region. If it does not work,
please contact your ISP for your specific setting.
8988
89
Country Connection
Protocol VPI/VCI Encapsulation ISPs
Europe
France PPPoE 8/35 LLC Various
Germany PPPoE 1/32 LLC T-Online,
various
Holland 1483
Bridged 0/35
0/32
0/34
LLC
LLC
LLC
BBNed, XS4all
Versatel DHCP
Baby XL,
Tiscali (start/
Surf/ Family/
Live)
PPPoA 8/48 VC MUX KPN, Hetnet,
HCCNet,
Tiscali (lite/
Basis/Plus)
Wanadoo
PPPoA 0/32 VC MUX Versatel PPP,
Zonnet
PPPoE 8/35 LLC Various
Belgium PPPoA 8/35 LLC Belgacom,
Tiscali, Scarlet
Italy PPPoE or
PPPoA 8/35 VC MUX TIN
Spain PPPoE or
1483
Bridged
8/32 LLC Telefonica
Sweden 1483
Bridged 3/35 LLC Telia
UK PPPoA 0/38 VC MUX BT, Freeserve,
Tiscali, AOL*
Asia
Australia PPPoE or
PPPoA 8/35 LLC Various
New Zealand PPPoE or
PPPoA 0/100 VC MUX Various
Singapore PPPoE 0/100 LLC SingNet,
Pacific Internet
Appendixes
8988
Information
89
section
2
1
3
4
5
6
7
8
9
10
11
12
Appendixes
Caution: Exposure to Radio Frequency Radiation.
The radiated output power of this device is far below the FCC radio
frequency exposure limits. Nevertheless, the device shall be used in such a
manner that the potential for human contact during normal operation
is minimized.
When connecting an external antenna to the device, the antenna shall be
placed in such a manner to minimize the potential for human contact during
normal operation. In order to avoid the possibility of exceeding the FCC radio
frequency exposure limits, human proximity to the antenna shall not be less
than 20cm (8 inches) during normal operation.
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try and correct the interference by one or more of the
following measures:
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street,
Compton, CA 90220, declare under our sole
responsibility that the product,
F5D7633-4
to which this declaration relates,
complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device
must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
9190
Information
91
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications to
this device that are not expressly approved by Belkin Corporation may void
the user’s authority to operate the equipment.
Canada-Industry Canada (IC)
The wireless radio of this device complies with RSS 139 & RSS 210 Industry
Canada. This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada.
Europe-European Union Notice
Radio products with the CE 0682 or CE alert marking
comply with the R&TTE Directive (1995/5/EC) issued by the
Commission of the European Community.
Compliance with this directive implies conformity to the following European
Norms (in brackets are the equivalent international standards).
• EN 60950 (IEC60950) – Product Safety
• EN 300 328 Technical requirement for radio equipment
• ETS 300 826 General EMC requirements for radio equipment.
To determine the type of transmitter, check the identification label
on your Belkin product.
Products with the CE marking comply with the EMC Directive (89/336/EEC)
and the Low Voltage Directive (72/23/EEC) issued by the Commission of the
European Community. Compliance with these directives implies conformity
to the following European Norms (in brackets are the equivalent international
standards).
• EN 55022 (CISPR 22) – Electromagnetic Interference
• EN 55024 (IEC61000-4-2,3,4,5,6,8,11) – Electromagnetic Immunity
• EN 61000-3-2 (IEC610000-3-2) – Power Line Harmonics
• EN 61000-3-3 (IEC610000) – Power Line Flicker
• EN 60950 (IEC60950) – Product Safety
Products that contain the radio transmitter are labeled with CE 0682
or CE alert marking and may also carry the CE logo.
9190
Information
Information
91
section
2
1
3
4
5
6
7
8
9
10
11
12
Belkin Corporation Limited Lifetime Product Warranty
Belkin Corporation warrants this product against defects in materials and
workmanship for its lifetime. If a defect is discovered, Belkin will, at its
option, repair or replace the product at no charge provided it is returned
during the warranty period, with transportation charges prepaid, to the
authorized Belkin dealer from whom you purchased the product. Proof of
purchase may be required.
This warranty does not apply if the product has been damaged by accident,
abuse, misuse, or misapplication; if the product has been modified without
the written permission of Belkin; or if any Belkin serial number has been
removed or defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE
IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED
OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
No Belkin dealer, agent, or employee is authorized to make any modification,
extension, or addition to this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF
WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT
NOT LIMITED TO, LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO
OR REPROGRAMMING OR REPRODUCING ANY PROGRAM OR DATA
STORED IN, OR USED WITH, BELKIN PRODUCTS.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or exclusions of implied warranties, so the above
limitations or exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that vary from state
to state.
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL, United Kingdom
Tel: +44 (0) 1933 35 2000
Fax: +44 (0) 1933 31 2000
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, The Netherlands
Tel: +31 (0) 20 654 7300
Fax: +31 (0) 20 654 7349
Belkin GmbH
Hanebergstrasse 2
80637 Munich, Germany
Tel: +49 (0) 89 143405 0
Fax: +49 (0) 89 143405 100
Belkin SAS
5 Rue du Petit Robinson, 3ème étage
78350 Jouy en Josas, France
Tel: +33 (0) 1 34 58 14 00
Fax: +33 (0) 1 39 46 62 89
© 2004 Belkin Corporation. All rights reserved. All trade names are registered trademarks
of respective manufacturers listed. Apple, AirPort, Mac, Mac OS, and AppleTalk are trade-
marks of Apple Computer, Inc., registered in the U.S. and other countries. The mark “Wi-Fi”
is a registered mark of the Wi-Fi Alliance. 54g is a trademark of Broadcom Corporation. P74730uk
ADSL Modem
with High-Speed Mode
Wireless G Router
Designed to Meet ADSL2+ Specification
Belkin Tech Support
Europe: 00 800 223 55 460
