Manual Part 3
Using the Belkin Wireless Networking Utility
section
31
1
2
3
4
5
6
WARNING:
If you are using a wireless client to turn on the security
settings in your wireless router (or access point), you will temporarily
lose your wireless connection until you activate security on your
wireless client. Please record the key prior to applying changes in the
wireless router (or access point). If you don’t remember the hex key,
your client will be locked out of the wireless router (or access point).
128-Bit WEP Encryption
1.
Select “WEP” from the drop-down menu.
2.
After selecting your WEP encryption mode, you can enter your
key by typing in the hex key manually.
A hex (hexadecimal) key is a combination of numbers and letters
from A–F and 0–9. For 128-bit WEP, you need to enter 26 hex keys.
For instance:
C3
03
0F
AF
0F
4B
B2
C3
D4
4B
C3
D4
E7
= 128-bit WEP key
Using the Belkin Wireless Networking Utility
32
3.
Click “Save” to finish. Encryption in the wireless router
(or access point) is now set. Each of the computers on your
wireless network will now need to be configured with the same
security settings.
WARNING:
If you are using a wireless client to turn on the security
settings in your wireless router (or access point), you will temporarily
lose your wireless connection until you activate security on your
wireless client. Please record the key prior to applying changes in the
wireless router (or access point). If you don’t remember the hex key,
your client will be locked out of the wireless router (or access point).

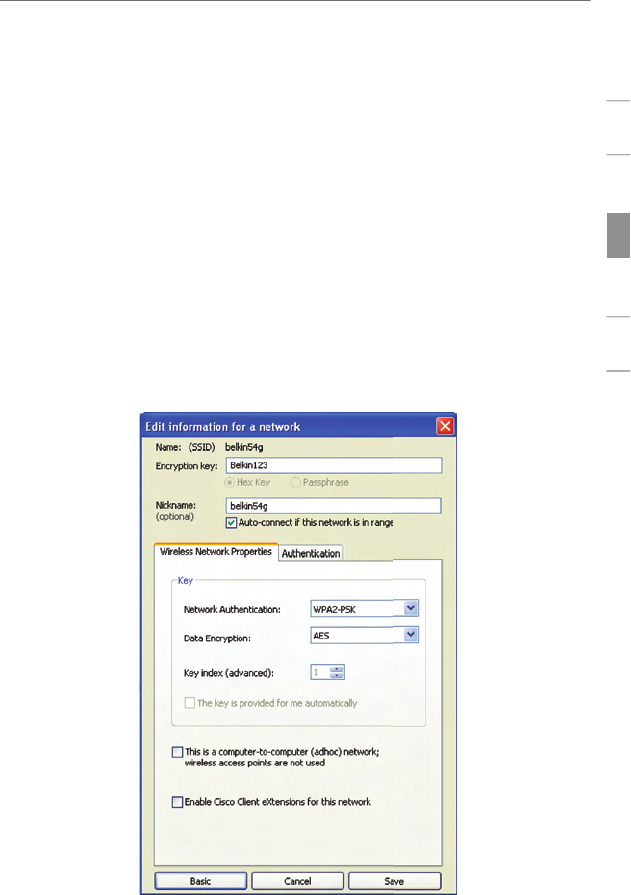

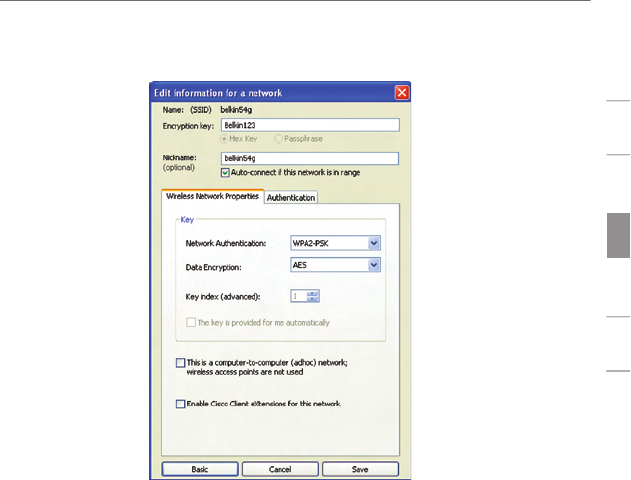

WPA-PSK (no server)
Choose this setting if your network does not use a radius server. WPA-PSK
(no server) is typically used in home and small office networking.
1.
From the “Network Authentication” drop-down menu, select
“WPA-PSK (no server)”.
2.
Enter your network key. This can be from eight to 63 characters
and can be letters, numbers, or symbols. This same key must be
used on all of the clients (network cards) that you want to include
in your wireless network.
Using the Belkin Wireless Networking Utility
section
33
1
2
3
4
5
6
3.
Click “Save” to finish. You must now set all clients
(network cards) to match these settings.
Using the Belkin Wireless Networking Utility
34
Wireless Networking Utility Options
The “Options” tab on the WNU provides the user the ability to
customize his or her WNU settings.
Wireless Networking Utility Help
The WNU “Help” tab provides users with access to online and
telephone support, as well as advanced diagnostic tools.
Using the Belkin Wireless Networking Utility
section
35
1
2
3
4
5
6

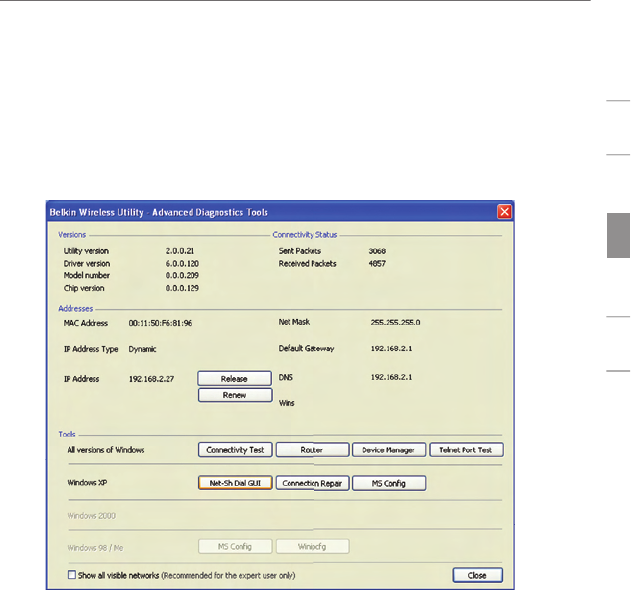

Advanced Diagnostic Tools
The “Advanced Diagnostic Tools” section is the central control panel
for all the settings of the hardware and software components of
the wireless network. It provides an array of tests and connectivity
services to ensure optimal network performance.
Troubleshooting
36
I can’t connect to the Internet wirelessly.
If you are unable to connect to the Internet from a wireless
computer, please check the following items:
1.
Look at the lights on your wireless router. If you’re using a
Belkin Wireless Router, the lights should be as follows:
• The “Power” light should be on.
• The “Connected” light should be on, and not blinking.
• The “WAN” light should be either on or blinking.
If your Belkin Wireless Router’s lights have the above
characteristics, go to number
2
below.
If this is
NOT
the case, make sure:
• The router’s power cord is plugged in.
• All cables are connected between the router and
the modem.
• All the modem’s LEDs are functioning correctly. If not, see
your modem’s user manual.
• Reboot the router.
• Reboot the modem.
If you continue to have issues, please contact Belkin
Technical Support.
If you are not using a Belkin Wireless Router, consult that router
manufacturer’s user guide.
2.

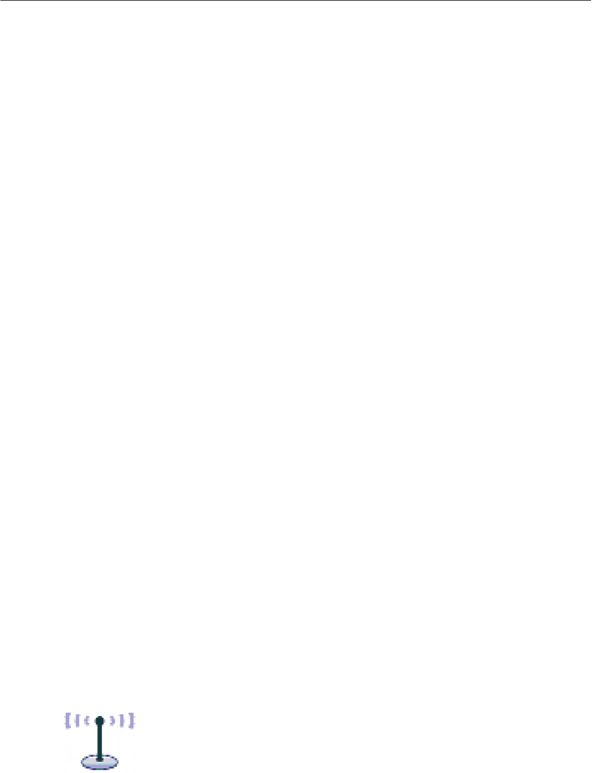

Open your wireless utility software by clicking on the icon in
the system tray at the bottom right-hand corner of the screen.
If you’re using a Belkin Wireless Card, the tray icon should
look like this (the icon may be red or green):
Troubleshooting
section
37
1
2
3
4
5
6
3.
The exact window that opens will vary depending on the
model of wireless card you have; however, any of the utilities
should have a list of “Available Networks”.
Available networks are wireless networks to which you can connect.
If you are using a Belkin 802.11g (G Plus) Router, or Belkin 802.11g
(54g) Router, “Belkin54g” is the default name.
If you are using a Belkin 802.11b Router, the default name should
be “WLAN”. If you are NOT using a Belkin Router, please consult
your router manufacturer’s user manual for the default name.
The name of your wireless network appears in
“Available Networks”.
If the correct network name is listed in the “Available Networks”
list, please follow the steps below to connect wirelessly:
1.
Click on the correct network name in the “Available
Networks” list.
2.
If the network has security (encryption) enabled, you
will need to enter the network key. Click “Connect”.
For more information regarding security, see the page
entitled: “Securing your Wi-Fi Network” on page 19 of
this User Manual.
3.
Within a few seconds, the tray icon in the lower right-hand
corner of your screen should turn green, indicating a
successful connection to the network.
If you are still unable to access the Internet after connecting to
the wireless network, please contact Belkin Technical Support.
Troubleshooting
38
The name of your wireless network DOES NOT appear in the list
of “Available Networks”.
If the correct network name is not listed, check the SSID settings
to see if they match. The SSID is case-sensitive and the spelling on
each computer must be exactly the same in order for the Card to
connect to the wireless router (or access point).
Note:
To check the SSID settings or look for an available
network, double-click the Signal Indicator icon to bring up the
“Wireless Networks” screen. Click “Add” if you do not see the
network you are trying to connect to and type in the SSID. For
more information about setting up an SSID, please reference your
router manufacturer’s user manual.
If issues persist even at close range, please contact
Belkin Technical Support.
Installation CD-ROM does not start Belkin Wireless
Networking Utility.
If the CD-ROM does not start the Belkin Wireless Networking
Utility automatically, it could be that the computer is running
other applications that are interfering with the CD drive. If the
Belkin Wireless Networking Utility screen does not appear within
15-20 seconds, open up your CD-ROM drive by double-clicking
on the “My Computer” icon. Next, double-click on the CD-ROM
drive that the Installation CD has been placed in to start the
installation. Then double-click on the folder named “Files”. Next,
double-click on the icon named “setup.exe”.
Power LED does not come ON; Card is not working.
If the LED indicators are not ON, the problem may be that the
Card is not connected or installed properly. Verify that the Card is
plugged firmly into the CardBus slot of your computer. Check to
see that the drivers for the Card have been installed. Right-click
on the “My Computer” icon on your desktop. Choose “Properties”
and navigate to the “Device Manager” and see if your CardBus
Card is listed without any errors. If an error is indicated, contact
Belkin Technical Support.
Troubleshooting
section
39
1
2
3
4
5
6
Link LED is blinking slowly; I cannot connect to a
wireless network or the Internet.
If your Card appears to be functioning properly, but you cannot
connect to a network or you have a red wireless icon at the
bottom of your screen, the problem may be that there is a
mismatch between the network name (SSID) settings in your
wireless network properties.
Check the SSID settings to see if they match. The SSID is case-sensitive
and the spelling on each computer must be exactly the same in order for
the Card to connect to the wireless router (or access point).
Note:
To check the SSID settings or look for an available
network, double-click the Signal Indicator icon to bring up the
“Wireless Networks” screen. Click “Add” if you do not see the
network you are trying to connect to and type in the SSID.
For
more information about setting up an SSID, please reference your
router manufacturer’s user manual. If issues persist even at close
range, please contact Belkin Technical Support.
Link LED is solid but I cannot connect to the Internet.
If you have a signal but can’t get online or obtain an IP address,
the problem may be that there is a mismatch between the
encryption key settings in your computer and wireless router (or
access point). Check the WEP, WPA, or WPA2 key settings to see
if they match. The key is case-sensitive and the spelling on each
computer and wireless router (or access point) must be exactly
the same in order for the Card to connect to the router. For more
information about encryption, please see “Securing your Wi-Fi
Network” on page 19 of this User Manual.
If issues persist even at close range, please contact Belkin
Technical Support.
Troubleshooting
40
Data transfer is sometimes slow.
Wireless technology is radio-based, which means connectivity
and the throughput performance between devices decreases
when the distance between devices increases. Other factors that
will cause signal degradation (metal is generally the worst culprit)
are obstructions such as walls and metal appliances. As a result,
the typical indoor range of your wireless devices will be between
100 to 200 feet. Note also that connection speed may decrease
as you move farther from the wireless router (or access point).
In order to determine if wireless issues are related to range, we
suggest temporarily moving the computer, if possible, to five to
10 feet away from the wireless router (or access point). Please
see the section titled “Placement of your Wireless Networking
Hardware for Optimal Performance” on page 2 of this User
Manual. If issues persist even at close range, please contact
Belkin Technical Support.
Signal strength is poor.
Wireless technology is radio-based, which means connectivity
and the throughput performance between devices
decreases
when the distance between devices
increases
. Other factors that
will cause signal degradation (metal is generally the worst culprit)
are obstructions such as walls and metal appliances. As a result,
the typical indoor range of your wireless devices will be between
100 to 200 feet. Note also that connection speed may decrease
as you move farther from the wireless router (or access point).
In order to determine if wireless issues are related to range, we
suggest temporarily moving the computer, if possible, to five to
10 feet away from wireless router (or access point).
Changing the wireless channel –
Depending on local wireless
traffic and interference, switching the wireless channel of your
network can improve performance and reliability. The default
channel the router is shipped with is channel 6. You may choose
from several other channels depending on your region; see your
router’s (or access point’s) user manual for instructions on how
to choose other channels.
Troubleshooting
section
41
1
2
3
4
5
6
Limiting the wireless transmit rate –
Limiting the wireless
transmit rate can help improve the maximum wireless range, and
connection stability. Most wireless cards have the ability to limit
the transmission rate. To change this property, go to the Windows
Control Panel, open “Network Connections” and double-click
on your Card’s connection. In the “Properties” dialog, select the
“Configure” button on the “General” tab (Windows 98 users will
have to select the Wireless Card in the list box and then click
“Properties”), then choose the “Advanced” tab and select the rate
property. Wireless client cards are usually set to automatically
adjust the wireless transmit rate for you, but doing so can cause
periodic disconnects when the wireless signal is too weak; as a
rule, slower transmission rates are more stable. Experiment with
different connection rates until you find the best one for your
environment; note that all available transmission rates should be
acceptable for browsing the Internet. For more assistance, see
your wireless card’s literature.
If issues persist even at close range, please contact Belkin
Technical Support.
Why are there two wireless utilities in my system tray?
Which one do I use?
There are several features and advantages from using the Belkin
Wireless Networking Utility over the Windows XP Wireless
Zero Configuration utility. We offer a site survey, detailed link
information, and adapter diagnosis, to name a few.
It’s essential to know which utility is managing your Card. We
recommend using the Belkin Wireless Networking Utility. To use
the Belkin Wireless Networking Utility, follow the steps below:
Step 1
Right-click on the network status icon in the system tray
and select the “Status” tab.
Step 2
From the “Status” tab, uncheck the “Use Windows to
configure my wireless network settings” box. Once the box is
unchecked, click the “Close” button to close the window.
You are now using the Belkin Wireless Networking Utility to
configure the Card.
Troubleshooting
42
Card does not perform or connection is unstable when computer has a
second built-in wireless network card (such as a mini PCI or
Intel
®
Centrino
™
).
This condition occurs if your computer has a built-in wireless card
while your Belkin Wireless Card is also active. This happens because
Windows must now handle two active wireless connections.
You need to disable the built-in wireless card from your computer
under “Network Adapters” in the Device Manager.
Card does not perform or connection is slow when computer has a
built-in wired Ethernet card.
This condition occurs if your computer has an active Ethernet card
while your Wireless Card is also active. This happens because
Windows must now handle two active network connections. You need
to disable the Ethernet card from your computer under “Network
Adapters” in the Device Manager.
What’s the difference between 802.11g and draft 802.11n?
Currently there are three commonly used wireless networking
standards, which transmit data at very different maximum speeds.
Each is based on the designation for certifying network standards.
The most common wireless networking standard, 802.11g, can
transmit information up to 54Mbps; 802.11a also supports up to
54Mbps, but in the 5GHz frequency; and 802.11n draft specification
can connect at up to 300Mbps. See the chart on the next page for
more detailed information.
Troubleshooting
section
43
1
2
3
4
5
6
Belkin Wireless Comparison Chart
Wireless
Technology
G
(802.11g)
G Plus MIMO
(802.11g with
MIMO MRC)
N MIMO
(draft 802.11n
with MIMO)
N1 MIMO
(draft 802.11n
with MIMO)
Speed/Data
Rate*
Up to 54Mbps*
Up to 54Mbps*
Up to
300Mbps*
Up to
300Mbps*
Frequency
Common
household
devices such
as cordless
phones and
microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
Common
household
devices such
as cordless
phones and
microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
Common
household
devices such
as cordless
phones and
microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
Common
household
devices such
as cordless
phones and
microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
Compatibility
Compatible
with 802.11b/g
Compatible
with 802.11b/g
Compatible
with draft
802.11n** and
802.11b/g
Compatible
with draft
802.11n** and
802.11b/g
Coverage*
Up to 400 ft.*
Up to 1,000 ft.*
Up to 1,200 ft.*
Up to 1,400 ft.*
Advantage
Common—
widespread
use for Internet
sharing
Better coverage
and consistent
speed and
range
Enhanced
speed and
coverage
Leading edge—
best coverage
and throughput
*Distance and connection speeds will vary depending on your networking environment.
**This Card is compatible with products based on the same version of the draft 802.11n
specifications and may require a software upgrade for best results.
Troubleshooting
444444
Technical Support
You can find technical support information at
www.belkin.com/
networking
. If you want to contact technical support by phone,
please call:
US: 877-736-5771
800-223-5546 ext. 2263
310-898-1100 ext. 2263
UK: 0845 607 77 87
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 65 64857620
Europe:
www.belkin.com/support
Information
46
Modifications
The FCC requires the user to be notified that any changes or modifications to
this device that are not expressly approved by Belkin International, Inc., may
void the user’s authority to operate the equipment.
Belkin International, Inc., Limited Lifetime Product Warranty
What this warranty covers.
Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this
Belkin product that the product shall be free of defects in design, assembly,
material, or workmanship.
What the period of coverage is.
Belkin warrants the Belkin product for the lifetime of the product.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product free of charge
(except for shipping charges for the product).
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is not provided
to Belkin for inspection upon Belkin’s request at the sole expense of
the purchaser, or if Belkin determines that the Belkin product has been
improperly installed, altered in any way, or tampered with. The Belkin Product
Warranty does not protect against acts of God such as flood, earthquake,
lightning, war, vandalism, theft, normal-use wear and tear, erosion,
depletion, obsolescence, abuse, damage due to low voltage disturbances
(i.e. brownouts or sags), non-authorized program, or system equipment
modification or alteration.
How to get service.
To get service for your Belkin product you must take the following steps:
1. Contact Belkin International, Inc., at 501 W. Walnut St., Compton CA
90220, Attn: Customer Service, or call (800)-223-5546, within 15 days of
the Occurrence. Be prepared to provide the following information:
a. The part number of the Belkin product.
b. Where you purchased the product.
c. When you purchased the product.
d. Copy of original receipt.
2.
Your Belkin Customer Service Representative will then instruct you on
how to forward your receipt and Belkin product and how to proceed with
your claim.
Information
section
47
1
2
3
4
5
6
Belkin reserves the right to review the damaged Belkin product. All costs of
shipping the Belkin product to Belkin for inspection shall be borne solely by
the purchaser. If Belkin determines, in its sole discretion, that it is impractical
to ship the damaged equipment to Belkin, Belkin may designate, in its sole
discretion, an equipment repair facility to inspect and estimate the cost to
repair such equipment. The cost, if any, of shipping the equipment to and
from such repair facility and of such estimate shall be borne solely by the
purchaser. Damaged equipment must remain available for inspection until the
claim is finalized. Whenever claims are settled, Belkin reserves the right to be
subrogated under any existing insurance policies the purchaser may have.
How state law relates to the warranty.
THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN. THERE
ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED
BY LAW, IMPLIED, INCLUDING THE IMPLIED WARRANTY OR CONDITION
OF QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY, ARE LIMITED IN
DURATION TO THE TERM OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts,
so the above limitations may not apply to you.
IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL,
DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS,
BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT OF
THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
This warranty gives you specific legal rights, and you may also have other
rights, which may vary from state to state. Some states do not allow the
exclusion or limitation of incidental, consequential, or other damages, so the
above limitations may not apply to you.
Canada Statement
Operation is subject to the following two conditions
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
SAR compliance has been established in typical laptop (notebook)
computers with an USB port, and the product may
be used in typical laptop (notebook) computers with USB port.
Other applications like handheld PC or similar device have not been
verified and may not be in compliance
with RF exposure regulations. Maximum reported SAR: 0.700 W/kg (Body).
Regulatory Approvals
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this equipment.
(Example - use only shielded interface cables when connecting to computer or peripheral
devices).
Channel
The Wireless Channel sets the radio frequency used for communication.
•Access Points use a fixed Channel. You can select the Channel used. This allows you to
choose a Channel which provides the least interference and best performance. In the USA
and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent
Access Points use different Channels to reduce interference.
• In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an
Access Point. If more than one Access Point can be used, the one with the strongest
signal is used. (This can only happen within an ESS.)
• If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the
same Channel. However, most Wireless stations will still scan all Channels to see if there
is an existing "Ad-hoc" group they can join.
This device has been tested and meets the FCC RF exposure guidelines.
The maximum SAR value reported is 0.700w/kg(Body)
