N1 Wireless
Router
User Manual
F5D8231-4
N1 Wireless
Router
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Advantages of a Wireless Network . . . . . . . . . . . . . . . . . . . . 1
Placement of your N1 Wireless Router . . . . . . . . . . . . . . . . . 3
2. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3. Knowing your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setup Assistant Software System Requirements . . . . . . . . 10
4. Connecting and Configuring your Router . . . . . . . . . . . . . . . 15
5. Alternate Setup Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6. Using the Web-Based Advanced User Interface . . . . . . . . . . 38
Changing LAN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Viewing the DHCP Client List Page. . . . . . . . . . . . . . . . . . 41
Configuring the Wireless Network Settings. . . . . . . . . . . . 41
Setting WPA Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Setting WEP Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Using the Access Point Mode. . . . . . . . . . . . . . . . . . . . . . . 52
Setting MAC Address Control. . . . . . . . . . . . . . . . . . . . . . 53
Configuring the Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Using Dynamic DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Restarting the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
7. Manually Configuring Network Settings. . . . . . . . . . . . . . . . 74
8. Recommended Web Browser Settings . . . . . . . . . . . . . . . . . 79
9. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
10. Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Table of Contents
2
Introduction
1
2
1
Thank you for purchasing the Belkin N1 Wireless Router (the Router).
Following are two short sections—the first discusses the benefits of home
networking, and the other outlines best practices that maximize your
wireless home network range and performance. Please be sure to read
through this User Manual completely, and pay special attention to the
section entitled “Placement of your N1 Wireless Router” on the next page.
By following our simple setup instructions you will be able to use your
Belkin Home Network to:
• Share one high-speed Internet connection with all the computers in
your home
• Share resources, such as files and hard drives among all the
connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet email, and chat
Advantages of a Wireless Network
Here are some of the advantages of setting up a Belkin
Wireless Network:
• Mobility – you’ll no longer need a dedicated “computer
room”—now you can work on a networked laptop or desktop
computer anywhere within your wireless range
• Easy installation – Belkin’s Easy Installation Wizard makes
setup simple
• Flexibility – set up and access printers, computers, and other
networking devices from anywhere in your home
• Easy expansion – the wide range of Belkin networking products let
you expand your network to include devices such as printers and
gaming consoles
• No cabling required – you can spare the expense and hassle of
retrofitting Ethernet cabling throughout the home or office
• Widespread industry acceptance – choose from a wide range of
interoperable networking products
2
Introduction
2
2
1
3
4
5
6
7
8
9
10
section
Revolutionary N1 Wireless Technology with MIMO (N1 MIMO)
Your Belkin N1 Wireless Router uses a new smart-antenna technology
called Multiple Input Multiple Output (MIMO). N1 MIMO complies
with the IEEE draft 802.11n specification. It increases speed, range,
reliability, and spectral efficiency for wireless networking systems.
The element that makes Belkin’s N1 MIMO technology different
from a conventional radio is the use of multiple antennas and two
simultaneous data streams to deliver wireless transfers around your
home or office. A conventional radio uses one antenna to transmit
a data stream. Belkin’s N1 MIMO, on the other hand, uses three
antennas. This design helps combat distortion and interference.
Belkin’s N1 MIMO is multidimensional. It builds on one-dimensional
smart-antenna technology by simultaneously transmitting two data
streams through the same channel, which increases wireless capacity.
Another element that enhances Belkin’s N1 MIMO is the use of
aggregation as specified in the draft 802.11n specification. By
shortening the space between packets and combining multiple smaller
packets into one larger packet, Belkin’s N1 MIMO can transmit more
data through available bandwidth.
Think of conventional radio transmission as a two-lane highway. The
speed limit governs the maximum allowable flow of traffic through
that lane. Compared with conventional radios, one-dimensional smart
antenna systems help move traffic through that lane faster and more
reliably—analogous to a four-lane road on which traffic consistently
moves at a rate closer to the speed limit. Belkin’s N1 MIMO helps
traffic move at the speed limit and opens more lanes—to become the
superhighway in this example. The rate of traffic flow is multiplied by
the number of lanes that are opened.
43
Introduction
43
Introduction
Placement of your N1 Wireless Router
Important Factors for Placement and Setup
Your wireless connection will be stronger the closer your computer is
to your Router. Typical indoor operating range for wireless devices is
between 100 and 200 feet.
In the same way, your wireless connection and performance will
degrade somewhat as the distance between your Router and
connected devices increases. This may or may not be noticeable
to you. As you move further from your Router, connection speed
may decrease. Factors that can weaken signals simply by getting
in the way of your network’s radio waves are metal appliances or
obstructions, and walls.
If you have concerns about your network’s performance that might
be related to range or obstruction factors, try moving the computer
to a position between five and 10 feet from the Router in order to see
if distance is the problem. If difficulties persist even at close range,
please contact Belkin Technical Support.
Note: While some of the items listed below can affect network
performance, they will not prohibit your wireless network from
functioning; if you are concerned that your network is not operating at
its maximum effectiveness, this checklist may help.
1. Router Placement
Place your Router, the central connection point of your
network, as close as possible to the center of your wireless
network devices.
To achieve the best wireless network coverage for your “wireless
clients” (i.e., computers enabled by Belkin Wireless Notebook
Network Cards, Wireless Desktop Network Cards, and Wireless
USB Adapters):
• Ensure that your Router’s networking antennas are parallel
to each other, and are positioned vertically (toward the
ceiling). If your Router itself is positioned vertically, point the
antennas as much as possible in an upward direction.
• In multistory homes, place the Router on a floor that is as
close to the center of the home as possible. This may mean
placing the Router on an upper floor.
• Try not to place the Router near a cordless 2.4GHz phone.
4
Introduction
Introduction
4
Introduction
2
1
3
4
5
6
7
8
9
10
section
2. Avoid Obstacles and Interference
Avoid placing your Router near devices that may emit radio
“noise,” such as microwave ovens. Dense objects that can inhibit
wireless communication include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based, UV-tinted windows
If your wireless signal seems weak in some spots, make sure that
objects such as these are not blocking the signal’s path (between
your computers and Router).
3. Cordless Phones
If the performance of your wireless network is impaired after
attending to the above issues, and you have a cordless phone:
• Try moving cordless phones away from your Router and your
wireless-enabled computers.
• Unplug and remove the battery from any cordless phone
that operates on the 2.4GHz band (check manufacturer’s
information). If this fixes the problem, your phone may
be interfering.
• If your phone supports channel selection, change the channel
on the phone to the farthest channel from your wireless
network. For example, change the phone to channel 1 and
move your Router to channel 11. See your phone’s user
manual for detailed instructions.
• If necessary, consider switching to a 900MHz or 5GHz
cordless phone.
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as
apartment buildings or office complexes, there may be wireless
networks nearby that can conflict with yours.
Use the Site Survey capabilities found in the Wireless Utility of
your wireless adapter to locate any other wireless networks that
are available (see your wireless adapter’s user manual), and move
your Router and computers to a channel as far away from other
networks as possible.
65
Introduction
65
Introduction
• Experiment with more than one of the available channels, in
order to find the clearest connection and avoid interference
from neighboring cordless phones or other wireless devices.
• For Belkin wireless networking products, use the detailed Site
Survey and wireless channel information included with your
wireless network card. See your network card’s user guide for
more information.
These guidelines should allow you to cover the maximum
possible area with your Router. Should you need to cover an
even wider area, we suggest the Belkin Wireless Range
Extender/Access Point.
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and
password, and are used where security is important. Secure
connections include:
• Virtual Private Network (VPN) connections, often used to
connect remotely to an office network
• The “Bring Your Own Access” program from America Online
(AOL), which lets you use AOL through broadband provided by
another cable or DSL service
• Most online banking websites
• Many commercial websites that require a user name and
password to access your account
Secure connections can be interrupted by a computer’s
power management setting, which causes it to “go to sleep.”
The simplest solution to avoid this is to simply reconnect by
rerunning the VPN or AOL software, or by re-logging into the
secure website.
A second alternative is to change your computer’s power
management settings so it does not go to sleep; however, this
may not be appropriate for portable computers. To change your
power management setting under Windows, see the “Power
Options” item in the Control Panel.
If you continue to have difficulty with Secure Connections, VPNs,
and AOL, please review the steps above to be sure you have
addressed these issues.
6
Introduction
Introduction
6
Introduction
2
1
3
4
5
6
7
8
9
10
section
For more information regarding our networking products, visit our website
at www.belkin.com/networking or call Belkin Technical Support at:
US: 877-736-5771
310-898-1100 ext. 2263
UK: 0845 607 77 87
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 800 616 1790
Europe: www.belkin.com/support
87
Product Overview
87
Product Overview
Product Features
In minutes you will be able to share your Internet connection and
network your computers. The following is a list of features that make
your new Belkin N1 Wireless Router an ideal solution for your home or
small office network.
Works with Both PCs and Mac® Computers
The Router supports a variety of networking environments including
Mac OS® 8.x, 9.x, X v10.x, Linux®, Windows® 98, Me, NT®, 2000, XP,
Vista™, and others. All that is needed is an Internet browser and
a network adapter that supports TCP/IP (the standard language of
the Internet).
Patent-Pending Network Status Display
Lighted LEDs on the front of the Router indicate which functions
are in operation. You’ll know at-a-glance whether your Router is
connected to the Internet. This feature eliminates the need for
advanced software and status-monitoring procedures.
Web-Based Advanced User Interface
You can set up the Router’s advanced functions easily through your
web browser, without having to install additional software onto the
computer. There are no disks to install or keep track of and, best
of all, you can make changes and perform setup functions from any
computer on the network quickly and easily.
NAT IP Address Sharing
Your Router employs Network Address Translation (NAT) to share the
single IP address assigned to you by your Internet Service Provider
while saving the cost of adding additional IP addresses to your
Internet service account.
SPI Firewall
Your Router is equipped with a firewall that will protect your network
from a wide array of common hacker attacks including IP Spoofing,
Land Attack, Ping of Death (PoD), Denial of Service (DoS), IP with
zero length, Smurf Attack, TCP Null Scan, SYN flood, UDP flooding,
Tear Drop Attack, ICMP defect, RIP defect, and fragment flooding.
8
Product Overview
8
2
1
3
4
5
6
7
8
9
10
section
Integrated 10/100 4-Port Switch
The Router has a built-in, four-port network switch to allow your
wired computers to share printers, data and MP3 files, digital photos,
and much more. The switch features automatic detection so it will
adjust to the speed of connected devices. The switch will transfer
data between computers and the Internet simultaneously without
interrupting or consuming resources.
Universal Plug and Play (UPnP)
UPnP is a technology that offers seamless operation of voice
messaging, video messaging, games, and other applications that
are UPnP-compliant.
Support for VPN Pass-Through
If you connect to your office network from home using a VPN
connection, your Router will allow your VPN-equipped computer to
pass through the Router and to your office network.
Built-In Dynamic Host Configuration Protocol (DHCP)
Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes
for the easiest possible connection of a network. The DHCP server
will assign IP addresses to each computer automatically so there is
no need for a complicated networking setup.
Setup Assistant
The Setup Assistant, second generation of Belkin’s renowned Easy
Install Wizard, takes the guesswork out of setting up your Router.
This automatic software determines your network settings for you
and sets up the Router for connection to your Internet Service
Provider (ISP). In a matter of minutes, your Router will be up and
running on the Internet.
Note: Setup Assistant software is compatible with Windows 2000 and
XP. If you are using another operating system, the Router can be set
up using the Alternate Setup Method described in this User Manual
(see page 23).
Product Overview
Integrated N1 Wireless Access Point
N1 MIMO is an exciting new wireless technology based on the draft
IEEE 802.11n specification. It employs MIMO (Multiple Input Multiple
Output) smart-antenna technology that achieves data rates of up to
300Mbps.* Actual throughput is typically lower than the connected
data rate and will vary depending on your networking environment.
*NOTE: The standard transmission rate—300Mbps—is the physical
data rate. Actual data throughput will be lower.
MAC Address Filtering
For added security, you can set up a list of MAC addresses (unique
client identifiers) that are allowed access to your network. Every
computer has its own MAC address. Simply enter these MAC
addresses into a list using the Web-Based Advanced User Interface
and you can control access to your network.
109
Package Contents
• Belkin N1 Wireless Router
• Quick Installation Guide
• Belkin Setup Assistant Software CD
• RJ45 Ethernet Networking Cable
• Power Supply
• User Manual
• Network Status Display Guide
• Wireless Security Setup Guide
System Requirements
• Broadband Internet connection such as a cable or DSL modem
with RJ45 (Ethernet) connection
• At least one computer with an installed network interface adapter
• TCP/IP networking protocol installed on each computer
• RJ45 Ethernet networking cable
• Internet browser
Setup Assistant Software System Requirements
• A PC running Windows® 2000, XP, or Vista™
• Minimum 500MHz processor and 128MB RAM
• Internet browser
Knowing your Router
10
section
2
1
3
4
5
6
7
8
9
10
1211
Knowing your Router
1211
Knowing your Router
The Router has been designed to be placed on a desktop. All of the
cables exit from the rear of the Router for better organization and
utility. The Network Status Display is easily visible on the FRONT
of the Router to provide you with information about network activity
and status. See the Network Status Display Guide for more
detailed information.

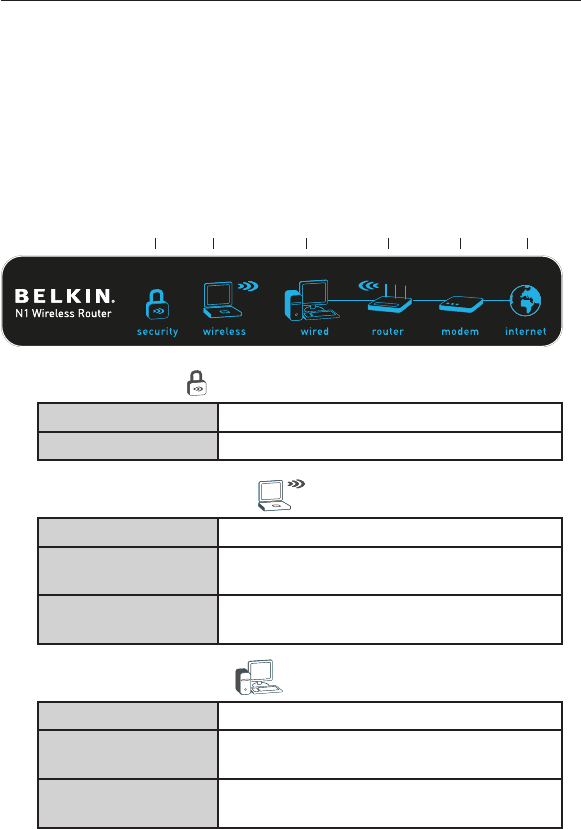

(A) (B) (C) (D/E) (F) (G)
A. Wireless Security
OFF Wireless security is off
Solid Blue Wireless security is on
B. Wireless-Computer Status
OFF Wireless computer is not present
Solid Blue Wireless computer is connected to
the Router
Blinking Amber Problem with wireless computer
connecting properly to the Router
C. Wired-Computer Status
OFF Wired computer is not present
Solid Blue Wired computer is connected to
the Router
Blinking Amber Problem with wired computer connecting
properly to the Router
12
Knowing your Router
12
section
2
1
3
4
5
6
7
8
9
10

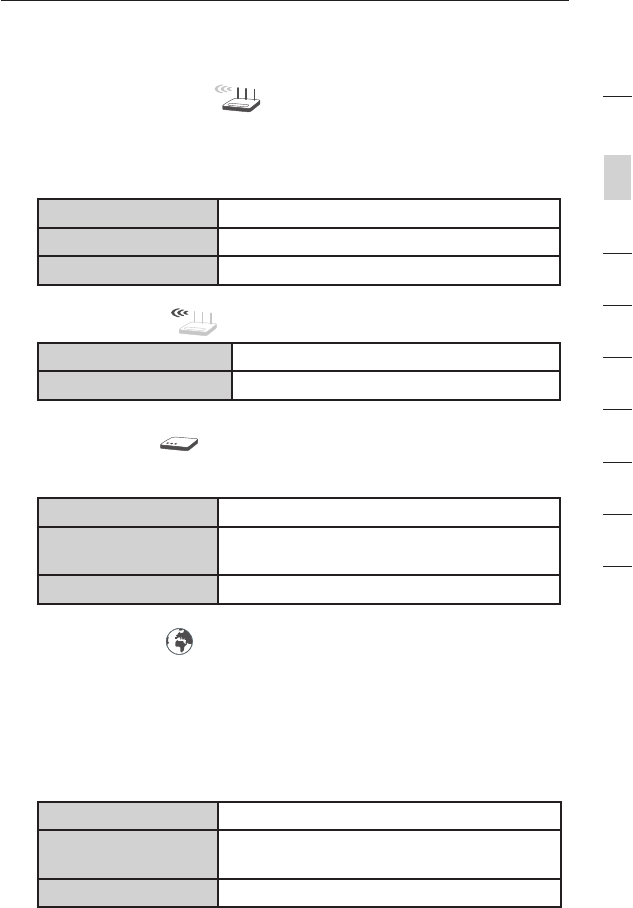

D. Router/Power Status
When you apply power to the Router or restart it, a short period of
time elapses while the Router boots up. During this time, the “router”
icon blinks. When the Router has completely booted up, the “router”
icon becomes a solid light, indicating the Router is ready for use.
OFF Router is off
Blinking Blue Router is booting up
Solid Blue Router is on and ready
E. Wireless Status
OFF Wireless is off
Solid Blue Wireless is on
F. Modem Status
This icon lights in blue to indicate that your modem is connected
properly to the Router. It turns amber when problem is detected.
OFF Router is NOT connected to modem
Solid Blue Router is connected to modem and
functioning properly
Blinking Amber Problem with modem
G. Internet Status
This unique icon shows you when the Router is connected to the
Internet. When the light is off, the Router is NOT connected to the
Internet. When the light is blinking amber, the Router is attempting
to connect to the Internet. When the light is solid blue, the Router
is connected to the Internet. When using the “Disconnect after x
minutes” feature, this icon becomes extremely useful in monitoring
the status of your Router’s connection.
OFF Router is NOT connected to the Internet
Blinking Amber Router is attempting to connect to
the Internet
Solid Blue Router is connected to the Internet
1413
Knowing your Router
1413
Knowing your Router

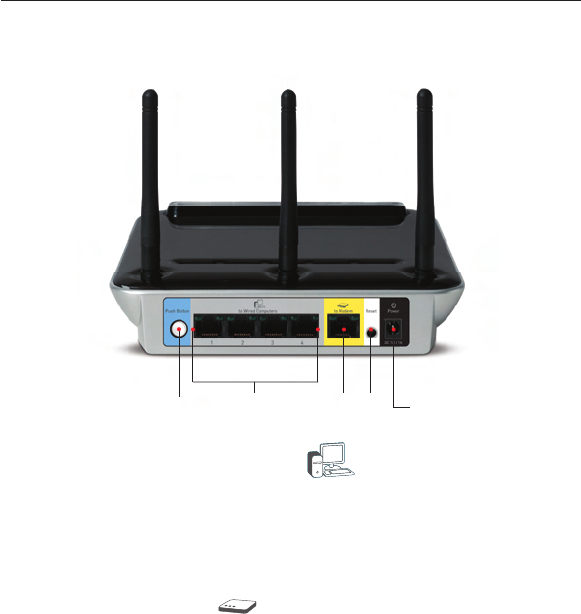

H. Connections to Wired Computers - Gray
Connect your wired (non-wireless) computers to these ports.
These ports are RJ45, 10/100 auto-negotiation, auto-uplinking
ports for standard UTP category 5 or 6 Ethernet cable. The ports
are labeled 1 through 4, with onboard LEDs on the connectors.
I. Connection to Modem - Yellow
This port is for connection to your cable or DSL modem. Use the
cable that was provided with the modem to connect the modem
to this port. Use of a cable other than the one supplied with the
cable modem may not work properly.
(K)
(I)(H) (J)
(L)
14
Knowing your Router
14
section
2
1
3
4
5
6
7
8
9
10
J. Reset Button
The “Reset” button is used in rare cases when the Router may
function improperly. Resetting the Router will restore the Router’s
normal operation while maintaining the programmed settings. You
can also restore the factory default settings by using the “Reset”
button. Use the restore option in instances where you may have
forgotten your custom password.
i. Resetting the Router
Push and release the “Reset” button. The lights on the
Router will momentarily flash. The “Power/Ready” light will
begin to blink. When the “Power/Ready” light becomes solid
again, the reset is complete.
ii. Restoring the Factory Defaults
Press and hold the “Reset” button for at least 10 seconds,
then release it. The lights on the Router will momentarily
flash. The “Power/Ready” light will begin to blink. When
the “Power/Ready” light becomes solid again, the restore
is complete.
K. Power Jack – Black
Connect the included 12V/1A DC power supply to this jack.
L. Push Button
This button is set aside for future upgradeable features. Please
check for the latest firmware updates at www.belkin.com/support.
1615
Connecting and Configuring your Router
1615
Connecting and Configuring your Router
Verify the contents of your box. You should have the following:
• Belkin N1 Wireless Router
• RJ45 Ethernet Networking Cable
• Power Supply
• Belkin Setup Assistant Software CD
• User Manual
• Network Status Display Guide
• Wireless Security Setup Guide
Modem Requirements
Your cable or DSL modem must be equipped with an RJ45 Ethernet
port. Many modems have both an RJ45 Ethernet port and a USB
connection. If you have a modem with both Ethernet and USB, and
are using the USB connection at this time, you will be instructed to
use the RJ45 Ethernet port during the installation procedure. If your
modem has only a USB port, you can request a different type of
modem from your ISP, or you can, in some cases, purchase a modem
that has an RJ45 Ethernet port on it.

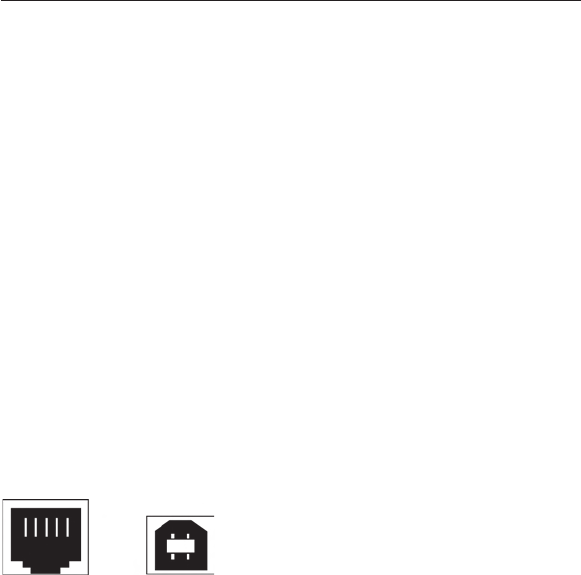

Ethernet USB
Setup Assistant
Belkin has provided our Setup Assistant software to make installing
your Router a simple and easy task. You can use it to get your Router
up and running in minutes. The Setup Assistant requires that your
Windows 2000 or XP computer be connected directly to your cable
or DSL modem and that the Internet connection is active and working
at the time of installation. If it is not, you must use the “Alternate
Setup Method” section of this User Manual to configure your Router.
Additionally, if you are using an operating system other than Windows
2000 or XP, you must set up the Router using the “Alternate Setup
Method” section of this User Manual.
16
Connecting and Configuring your Router
16
section
2
1
3
4
5
6
7
8
9
10
Step 1
Hardware Connections – Follow the Quick Installation
Guide (QIG)
A. Unplug your modem’s power
cord. Put the Router next to
the modem. Raise the Router’s
antennas.
B. Locate the networking cable
that connects your modem and
computer. Unplug that cable from
your modem, and plug it into
any gray port on the back of
the Router.
C. Find your new networking cable
(included in the box with your
Router) and connect it to the
yellow port on the back of the
Router. Connect the other end to
your modem, in the port that’s
now free.
D. Plug in your modem’s power cord.
Wait 60 seconds for the modem
to start up. Plug the Router’s
power supply into the black port
on the back. Plug the other end
into the wall outlet.
E. Wait 20 seconds for the Router to
start up. Look at the display on
the front of the Router. Make sure
the “Wired” and “Router” icons
are lit up in blue. If they are not,
recheck your connections.



1817
Connecting and Configuring your Router
1817
Connecting and Configuring your Router
Step 2 Set Up the Router – Run the Setup Assistant Software
A. Shut down any programs that
are running on your computer
at this time.
Turn off any firewall or
Internet-connection-sharing
software on your computer.

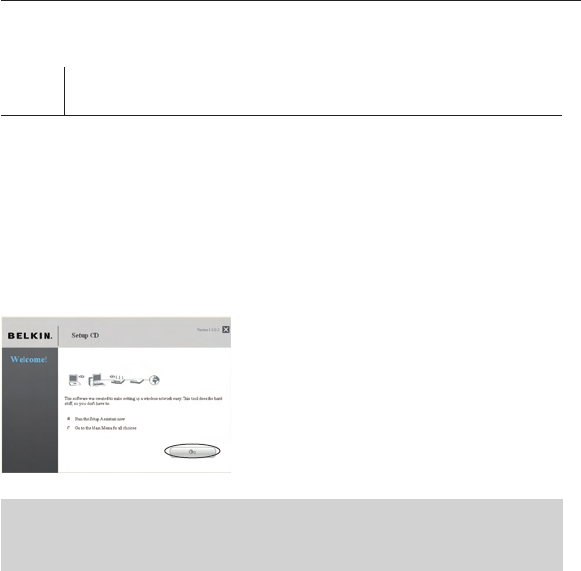

B. Insert the CD into your computer.
The Setup Assistant will
automatically appear on your
computer’s screen within 15
seconds. Click on “Go” to run
the Setup Assistant. Follow the
instructions there.
IMPORTANT: Run the Setup Assistant from the computer that is
directly connected to the Router from Step 1 – B.
Note for Windows Users: If the
Setup Assistant does not start
up automatically, select your
CD-ROM drive from “My
Computer” and double-click on
the file named “SetupAssistant”
to start the Setup Assistant.
18
Connecting and Configuring your Router
18
section
2
1
3
4
5
6
7
8
9
10
Confirmation Screen
Verify that you have completed all QIG
steps by checking the box to the right
of the arrow. Click “Next” to continue.
Progress Screen
Setup Assistant will show you a
progress screen each time a step in
the setup has been completed.
1.1 Checking Settings
The Setup Assistant will now
examine your computer’s network
settings and gather information
needed to complete the Router’s
connection to the Internet.
2019
Connecting and Configuring your Router
2019
Connecting and Configuring your Router
1.2 Verifying Hardware Connections
The Setup Assistant will now
verify your hardware connection.

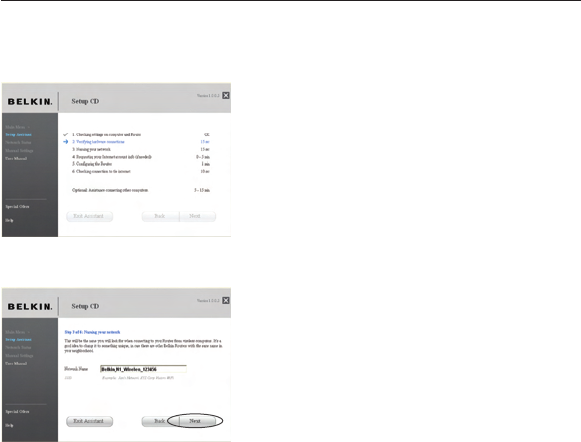

1.3 Naming your Wireless Network
The Setup Assistant will display
the default wireless network name
or Service Set Identifier (SSID).
This is the name of your wireless
network to which your computers
or devices with wireless network
adapters will connect. You can
either use the default or change it
to something unique. Write down
this name for future reference.
Click “Next” to continue.
20
Connecting and Configuring your Router
20
section
2
1
3
4
5
6
7
8
9
10

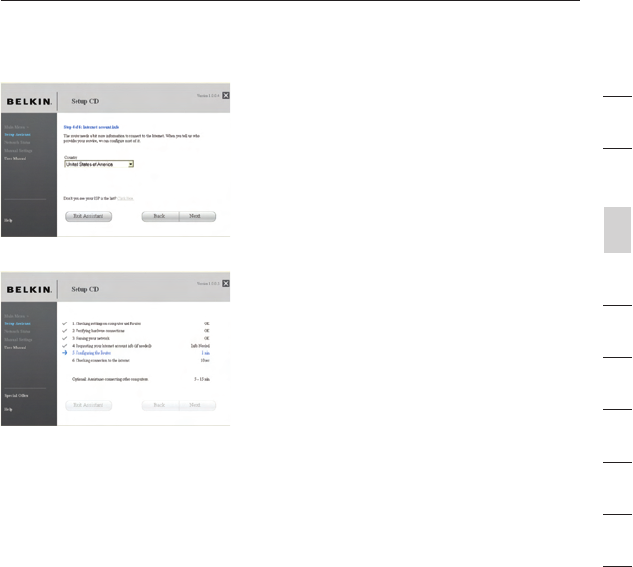

1.4 Requesting Internet Account
Info (if needed)
If your Internet account requires
a login and password, you will
be prompted with a screen similar
to the one on the left. Select
your country or ISP from the
drop-down boxes.
1.5 Configuring the Router
The Setup Assistant will now
configure your Router by
sending data to the Router
and restarting it. Wait for the
on-screen instructions.
Note: Do not disconnect any
cable or power off the Router
while the Router is rebooting.
Doing so will render your
Router inoperable.
2221
Connecting and Configuring your Router
2221
Connecting and Configuring your Router

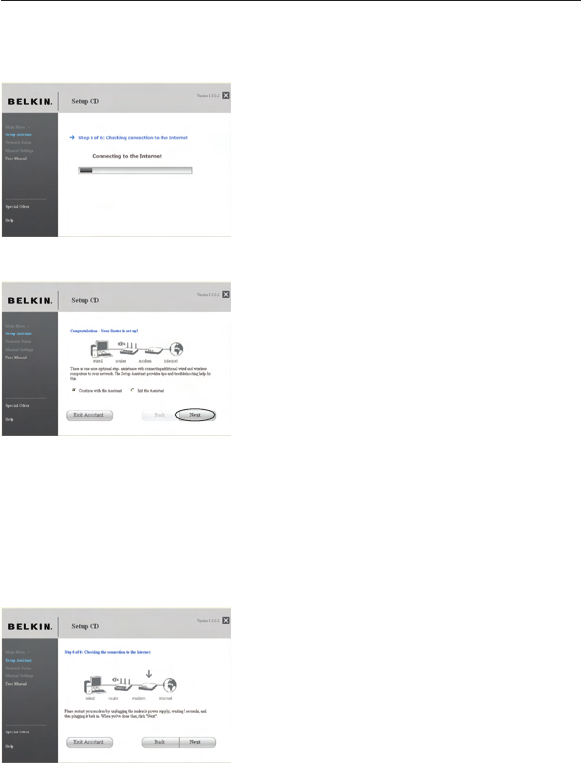

1.6 Checking Internet Connection
We are almost done. The Setup
Assistant will now check your
connection to the Internet.
Congratulations
You have finished installing your
new Belkin Router. You will see the
Congratulations screen when your
Router can connect to the Internet.
You can begin surfing by opening your
browser and going to any website.
You can use the Setup Assistant to
set up your other wired and wireless
computers to connect to the Internet
by clicking “Next”. If you decide to
add computers to your Router later,
select “Exit the Assistant” and then
click “Next”.
Troubleshooting
If the Setup Assistant is not able to
connect to the Internet, you will
see this screen. Follow the on-screen
instructions to go through the
troubleshooting steps.
22
Connecting and Configuring your Router
22
section
2
1
3
4
5
6
7
8
9
10

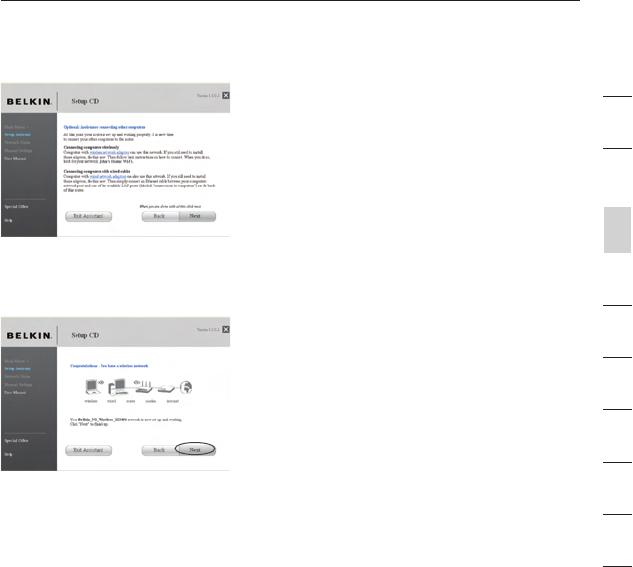

1.7 Optional: Assistance
Connecting Other Computers
This optional step will help you
to connect additional wired
and wireless computers to your
network. Follow the on-screen
instructions.
Congratulations
Once you have verified that your other
wired and wireless computers are
properly connected, your network is set
up and working. You can now surf the
Internet. Click “Next” to take you back
to the main menu.
2423
Alternate Setup Method
2423
Alternate Setup Method
Step 1
Hardware Connections – Follow the
Quick Installation Guide (QIG)
See the QIG or Step 1: Hardware Connections from the
previous section.
Step 2
Set your Computer’s Network Settings to Work
with a DHCP Server
See the section in this User Manual called “Manually Configuring
Network Settings” for directions.
Step 3
Configuring the Router Using the Web-Based Advanced
User Interface

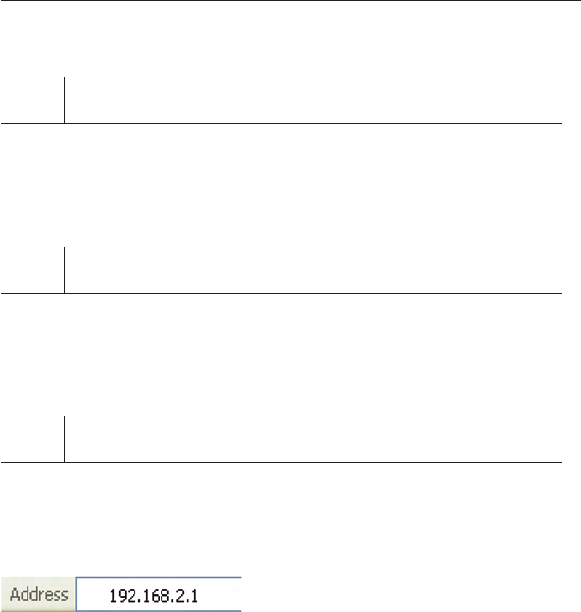

Using your Internet browser, you can access the Router’s Web-Based
Advanced User Interface. In your browser, type “192.168.2.1” (do
not type in anything else such as “http://” or “www”). Then press
the “Enter” key.
24
Alternate Setup Method
24
section
2
1
3
4
5
6
7
8
9
10

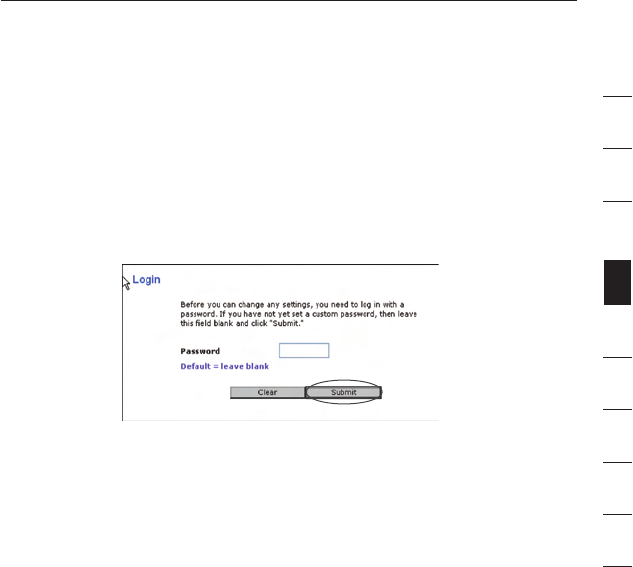

Logging into the Router
You will see the Router’s home page in your browser window. The
home page is visible to any user who wants to see it. To make any
changes to the Router’s settings, you have to log in. Clicking the
“Login” button or clicking on any one of the links on the home page
will take you to the login screen. The Router ships with no password
entered. In the login screen, leave the password blank and click the
“Submit” button to log in.
Logging out of the Router
One computer at a time can log into the Router for the purposes
of making changes to the settings of the Router. Once a user has
logged in to make changes, there are two ways that the computer
can be logged out. Clicking the “Logout” button will log the
computer out. The second method is automatic. The login will time
out after a specified period of time. The default login time-out is
10 minutes. This can be changed from one to 99 minutes. For more
information, see the section in this manual titled “Changing the Login
Time-Out Setting”.
Understanding the Web-Based Advanced User Interface
The home page is the first page you will see when you access the
Advanced User Interface (UI). The home page shows you a quick view
of the Router’s status and settings. All advanced setup pages can be
reached from this page.
2625
Alternate Setup Method
2625
Alternate Setup Method
(10) (5) (4) (3)
(7)
(6)
(1)
(2)
(9)
(8)
1. Quick-Navigation Links
You can go directly to any of the Router’s advanced UI pages by
clicking directly on these links. The links are divided into logical
categories and grouped by tabs to make finding a particular
setting easier to find. Clicking on the purple header of each tab
will show you a short description of the tab’s function.
2. Home Button
The home button is available in every page of the UI. Pressing
this button will take you back to the home page.
3. Internet-Status Indicator
This indicator is visible in all pages of the Router, indicating
the connection status of the Router. When the indicator says
“Connected” in blue, the Router is connected to the Internet.
When the Router is not connected to the Internet, the indicator
will read “No Connection” in RED. The indicator is automatically
updated when you make changes to the settings of the Router.
26
Alternate Setup Method
26
section
2
1
3
4
5
6
7
8
9
10
4. Login/Logout Button
This button enables you to log in and out of the Router with the
press of one button. When you are logged into the Router, this
button will change to read “Logout”. Logging into the Router will
take you to a separate login page where you will need to enter a
password. When you are logged into the Router, you can make
changes to the settings. When you are finished making changes,
you can log out of the Router by clicking the “Logout” button.
For more information about logging into the Router, see the
section called “Logging into the Router”.
5. Help Button
The “Help” button gives you access to the Router’s help pages.
Help is also available on many pages by clicking “more info” next
to certain sections of each page.
6. LAN Settings
Shows you the settings of the Local Area Network (LAN) side of
the Router. Changes can be made to the settings by clicking on
any one of the links (IP Address, Subnet Mask, DHCP Server) or
by clicking the “LAN” quick-navigation link on the left side of
the screen.
7. Features
Shows the status of the Router’s NAT, firewall, and wireless
features. Changes can be made to the settings by clicking on any
one of the links or by clicking the quick-navigation links on the
left side of the screen.
8. Internet Settings
Shows the settings of the Internet/WAN side of the Router that
connects to the Internet. Changes to any of these settings can
be made by clicking on the links or by clicking on the “Internet/
WAN” quick-navigation link on the left side of the screen.
9. Version Info
Shows the firmware version, boot-code version, hardware
version, and serial number of the Router.
10. Page Name
The page you are on can be identified by this name. This User
Manual will sometimes refer to pages by name. For instance
“LAN > LAN Settings” refers to the “LAN Settings” page.
2827
Alternate Setup Method
2827
Alternate Setup Method
Step 4
Configuring your Router for Connection to your Internet
Service Provider (ISP)

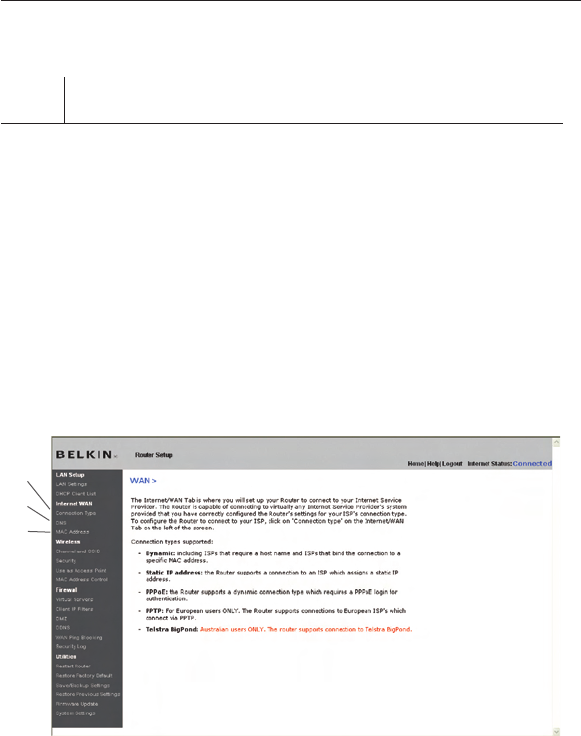

The “Internet/WAN” tab is where you will set up your Router to
connect to your Internet Service Provider (ISP). The Router is capable
of connecting to virtually any ISP’s system provided you have
correctly configured the Router’s settings for your ISP’s connection
type. Your ISP connection settings are provided to you by your ISP.
To configure the Router with the settings that your ISP gave you,
click “Connection Type” (A) on the left side of the screen. Select
the connection type you use. If your ISP gave you DNS settings,
clicking “DNS” (B) allows you to enter DNS address entries for ISPs
that require specific settings. Clicking “MAC Address” (C) will let you
clone your computer’s MAC address or type in a specific WAN MAC
address, if required by your ISP. When you have finished making
settings, the “Internet Status” indicator will read “connection OK” if
your Router is set up properly.
(A)
(B)
(C)
28
Alternate Setup Method
28
section
2
1
3
4
5
6
7
8
9
10

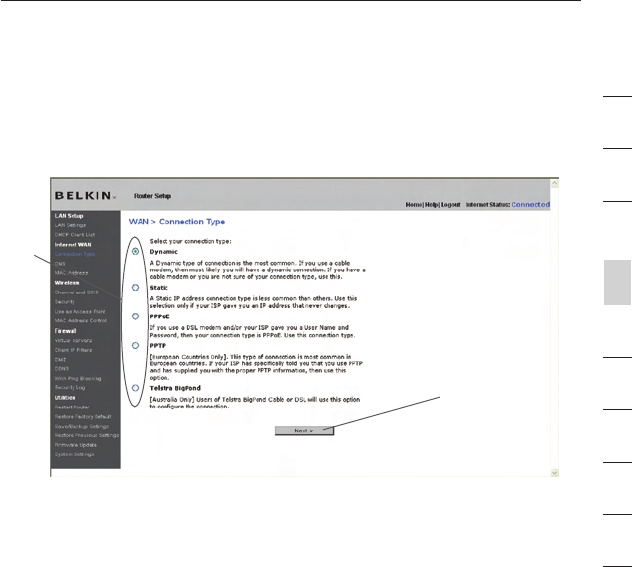

Setting your Connection Type
From the “Connection Type” page, you can select the type of connection
you use. Select the type of connection you use by clicking the button (1)
next to your connection type and then clicking “Next” (2).
(2)
(1)
3029
Alternate Setup Method
3029
Alternate Setup Method

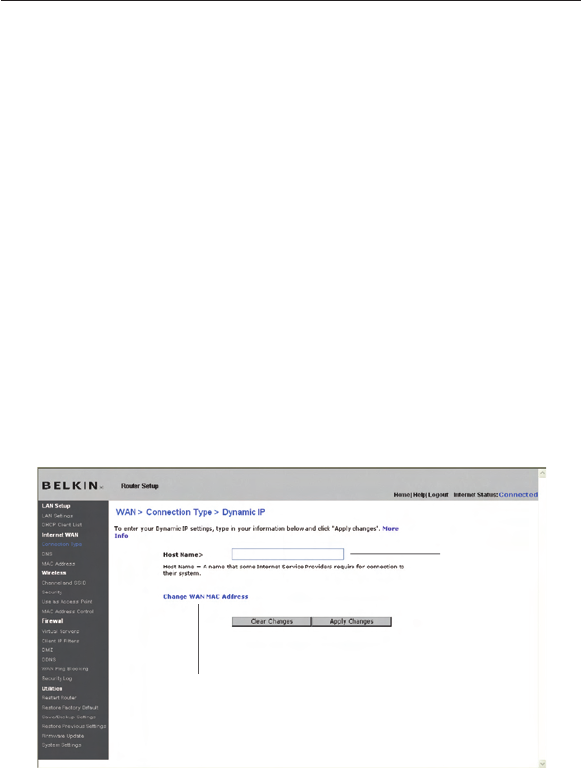

Setting your Internet Service Provider (ISP) Connection
Type to Dynamic IP
A dynamic connection type is the most common connection type found with
cable modems. Setting the connection type to “dynamic” in many cases is
enough to complete the connection to your ISP. Some dynamic connection
types may require a host name. You can enter your host name in the space
provided if you were assigned one. Your host name is assigned by your ISP.
Some dynamic connections may require that you clone the MAC address of
the PC that was originally connected to the modem.
1. Host Name
This space is provided to enter a host name that needs to be
visible to your ISP. Enter your host name here and click “Apply
Changes” (3). If your ISP did not assign you a host name, or you
are not sure, leave this blank.
2. Change WAN MAC Address
If your ISP requires a specific MAC address to connect to the
service, you can enter a specific MAC address or clone the
current computer’s MAC address through this link.
(2)
(1)
30
Alternate Setup Method
30
section
2
1
3
4
5
6
7
8
9
10

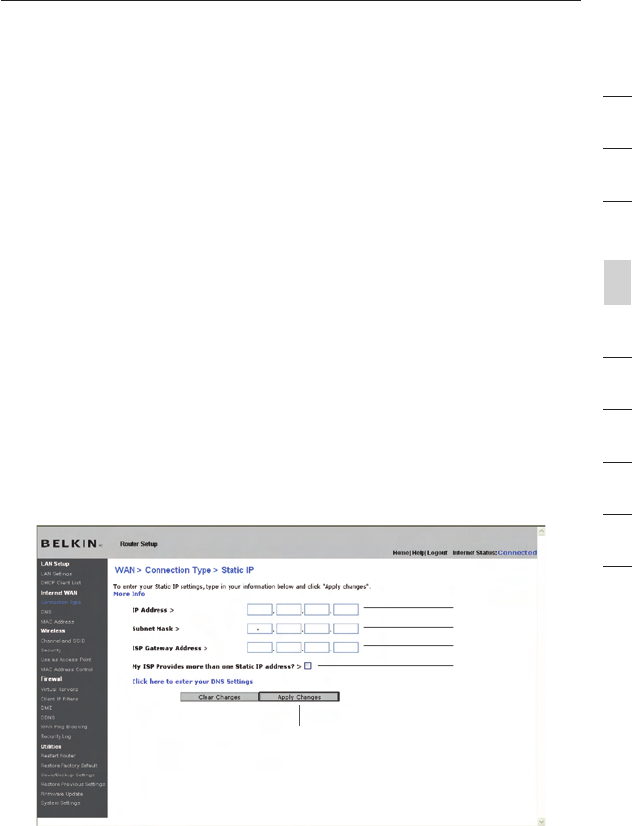

Setting your Internet Service Provider (ISP) Connection Type to Static IP
A static IP address connection type is less common than other
connection types. If your ISP uses static IP addressing, you will
need your IP address, subnet mask, and ISP gateway address. This
information is available from your ISP or on the paperwork that your
ISP left with you. Type in your information, then click “Apply Changes”
(5). After you apply the changes, the Internet Status indicator will
read “connection OK” if your Router is set up properly.
1. IP Address
Provided by your ISP. Enter your IP address here.
2. Subnet Mask
Provided by your ISP. Enter your subnet mask here.
3. ISP Gateway Address
Provided by your ISP. Enter the ISP gateway address here.
4. My ISP Provides More Than One Static IP Address
If your ISP assigns you more than one static IP address, your
Router is capable of handling up to five static WAN IP addresses.
Select “My ISP provides more than one static IP address” and
enter your additional addresses.
(1)
(2)
(3)
(4)
(5)
3231
Alternate Setup Method
3231
Alternate Setup Method

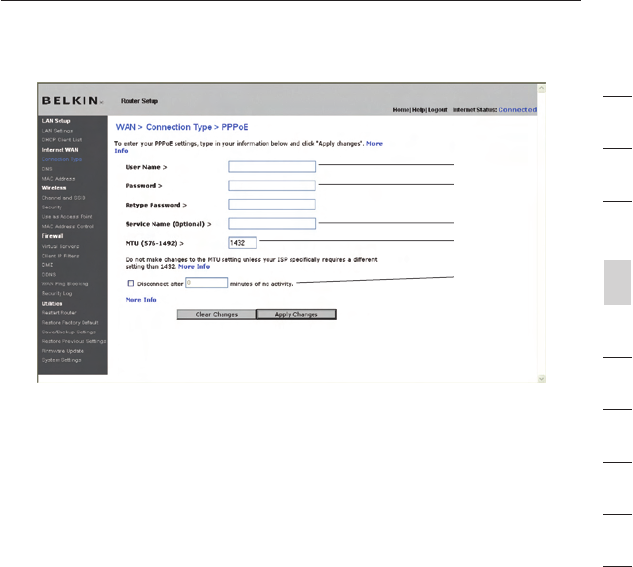

Setting your ISP Connection Type to PPPoE
Most DSL providers use PPPoE as the connection type. If you use a
DSL modem to connect to the Internet, your ISP may use PPPoE to
log you into the service. If you have an Internet connection in your
home or small office that doesn’t require a modem, you may also
use PPPoE.
Your connection type is PPPoE if:
1) Your ISP gave you a user name and password, which is required
to connect to the Internet.
2) Your ISP gave you software such as WinPOET or Enternet300
that you use to connect to the Internet.
3) You have to double-click on a desktop icon other than your
browser to get on the Internet.
32
Alternate Setup Method
32
section
2
1
3
4
5
6
7
8
9
10
(1)
(2)
(3)
(4)
(5)
1. User Name
This space is provided to type in your user name that was
assigned by your ISP.
2. Password
Type in your password and retype it into the “Retype Password”
box to confirm it.
3. Service Name
A service name is rarely required by an ISP. If you are not sure if
your ISP requires a service name, leave this blank.
4. MTU
The MTU setting should never be changed unless your ISP gives
you a specific MTU setting. Making changes to the MTU setting
can cause problems with your Internet connection including
disconnection from the Internet, slow Internet access, and
problems with Internet applications working properly.
5. Disconnect after X...
The “Disconnect” feature is used to automatically disconnect the
Router from your ISP when there is no activity for a specified
period of time. For instance, placing a check mark next to this
option and entering “5” into the minute field will cause the Router
to disconnect from the Internet after five minutes of no Internet
activity. This option should be used if you pay for your Internet
service by the minute.
3433
Alternate Setup Method
3433
Alternate Setup Method

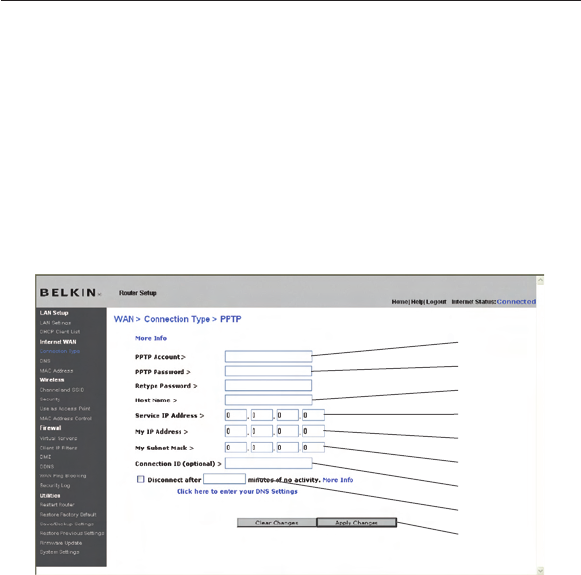

Setting your Internet Service Provider (ISP) Connection Type to
Point-to-Point Tunneling Protocol (PPTP)
[European Countries Only].
Some ISPs require a connection using PPTP protocol, a type of
connection most common in European countries. This sets up a direct
connection to the ISP’s system. Type in the information provided
by your ISP in the space provided. When you have finished, click
“Apply Changes” (9). After you apply the changes, the Internet Status
indicator will read “connection OK” if your Router is set up properly.
(1)
(2)
(4)
(5)
(7)
(3)
(6)
(8)
(9)
1. PPTP Account
Provided by your ISP. Enter your PPTP account name here.
2. PPTP Password
Type in your password and retype it into the “Retype Password”
box to confirm it.
3. Host Name
Provided by your ISP. Enter your host name here.
4. Service IP Address
Provided by your ISP. Enter your service IP address here.
5. My IP Address
Provided by your ISP. Enter the IP address here.
34
Alternate Setup Method
34
section
2
1
3
4
5
6
7
8
9
10
6. My Subnet Mask
Provided by your ISP. Enter the IP address here.
7. Connection ID (optional)
Provided by your ISP. If your ISP did not give you a connection
ID, leave this blank.
8. Disconnect after X....
The “Disconnect” feature is used to automatically disconnect the
Router from your ISP when there is no activity for a specified
period of time. For instance, placing a check mark next to this
option and entering “5” into the minute field will cause the Router
to disconnect from the Internet after five minutes of no Internet
activity. This option should be used if you pay for your Internet
service by the minute.
3635
Alternate Setup Method
3635
Alternate Setup Method

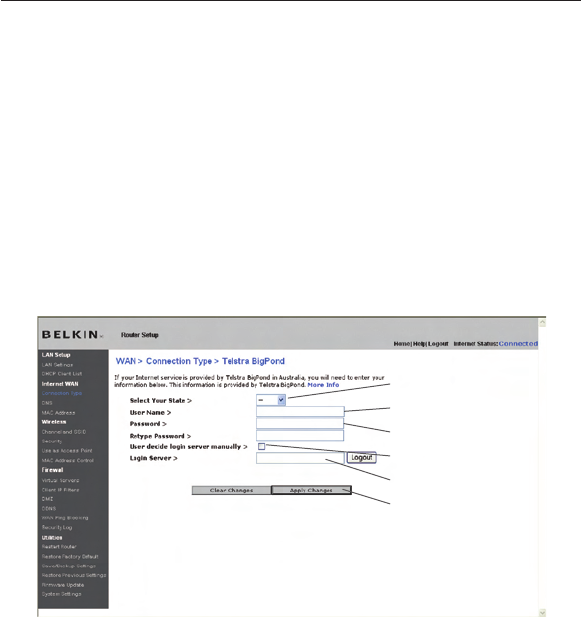

Setting your Connection Type if you are a Telstra® BigPond User
[Australia Only]. Your user name and password are provided to you by
Telstra BigPond. Enter this information below. Choosing your state
from the drop-down menu (1) will automatically fill in your login server
IP address. If your login server address is different than one provided
here, you may manually enter the login server IP address by placing a
check in the box next to “User decide login server manually” (4) and
type in the address next to “Login Server” (5). When you have entered
all of your information, click “Apply Changes” (6). After you apply the
changes, the Internet Status indicator will read “connection OK” if
your Router is set up properly.
(1)
(2)
(4)
(5)
(3)
(6)
1. Select your State
Select your state from the drop-down menu (1). The “Login
Server” box will automatically be filled in with an IP address.
If for some reason this address does not match the address
that Telstra has given, you can manually enter the login server
address. See “User decide login server manually” (4).
2. User Name
Provided by your ISP. Type in your user name here.
3. Password
Type in your password and retype it into the “Retype Password”
box to confirm it.
36
Alternate Setup Method
36
section
2
1
3
4
5
6
7
8
9
10
4. User Decide Login Server Manually
If your login server IP address is not available in the “Select Your
State” drop-down menu (1), you may manually enter the login
server IP address by placing a check in the box next to “User
decide login server manually” and type in the address next to
“Login Server” (5).

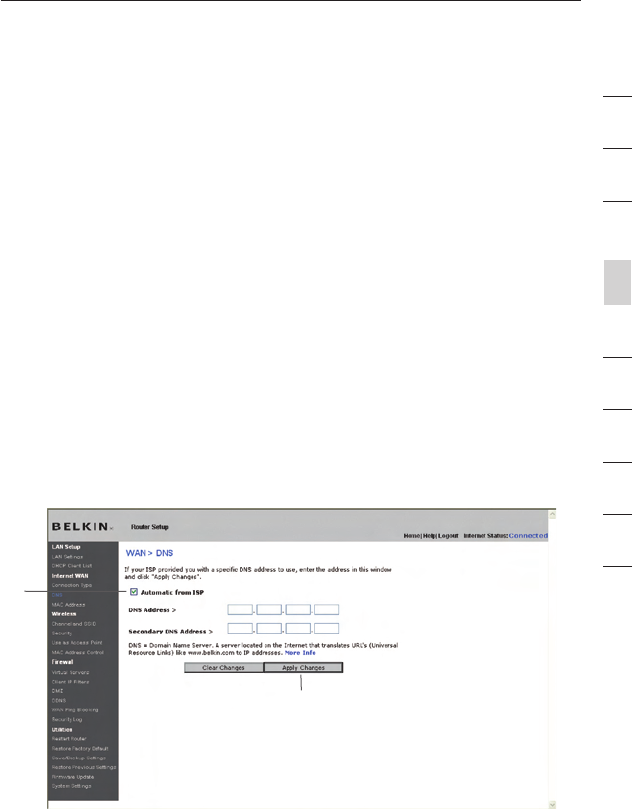

Setting Custom Domain Name Server (DNS) Settings
A “Domain Name Server” is a server located on the Internet that
translates Universal Resource Locaters (URLs) like “www.belkin.com”
to IP addresses. Many Internet Service Providers (ISPs) do not require
you to enter this information into the Router. The “Automatic from
ISP” box (1) should be checked if your ISP did not give you a specific
DNS address. If you are using a static IP connection type, then you may
need to enter a specific DNS address and secondary DNS address for
your connection to work properly. If your connection type is dynamic
or PPPoE, it is likely that you do not have to enter a DNS address.
Leave the “Automatic from ISP” box checked. To enter the DNS address
settings, uncheck the “Automatic from ISP” box and enter your DNS
entries in the spaces provided. Click “Apply Changes” (2) to save
the settings.
(1)
(2)

Navigation menu
