Bluetooth Music Receiver
F8Z492
Belkin International, Inc.
Confidential
2
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
The Bluetooth Music Receiver must be installed and used in strict accordance with the
manufacturer’s instructions. This device complies with the following radio frequency and
safety standards.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received,
including interference that may cause undesired operation
of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This device must not be co-located or operating in conjunction with
any other antenna or transmitter.
Your device contains a low power transmitter. When device is transmitted it sends out Radio
Frequency (RF) signal. Use only with supplied antenna. Unauthorized antenna, modification,
or attachments could damage the transmitter and may violate FCC regulations.
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
Belkin International, Inc.
Confidential
3
Industry Canada (IC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the IC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference and
2) This device must accept any interference received, including interference that may cause
undesired operation of the device.
IC RF Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This device must not be co-located or operating in conjunction with
any other antenna or transmitter.
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
Belkin International, Inc.
Confidential
4
Overview
The F8Z492 is a class 2 Bluetooth V2.1+EDR music receiver.
It allows you enjoy music that is streamed from your portable player device or
Bluetooth enabled notebook/ PC to your stereo speaker.
Features
(1) Fully compliant Bluetooth V2.1+EDR system
(2) Bluetooth Advanced Audio Distribution Profile v 1.0
(3) Bluetooth Class 2 RF output
(4) 2.4GHz~2.4835GHz ISM band
(5) RoHS Compliant
Belkin International, Inc.
Confidential
5
Quick Start Guide
Bluetooth Music Receiver (F8Z492)
Installation
1. Connect one end of an audio cable to Earphone Jack in Bluetooth Music Receiver and
another end to your Stereo System.
2. Power on the Bluetooth Music Receiver.
a. Connect the power adapter into Bluetooth Music Receiver power jack.
b. The LED light will flash (light on and then off ) one time to indicate the unit is
powered.
c. It is ready for mobile phone* to link to it now.
3. Go to Bluetooth manager of your mobile phone, i.e. iPhone to find the Bluetooth Music
Receiver.
a. Search Bluetooth audio device and find Bluetooth Music Receiver.
b. Select the found Receiver and enter pin code “0000” to add the Bluetooth Music
Receiver into the paired list of mobile phone.
c. The LED light will turn on and off gradually one time.
4. Select Bluetooth Music Receiver in the paired list of mobile phone.
a. Confirm to connect it.
b. The LED light will be constantly ON to indicate that the link is OK.
5. Play the music in mobile phone and you can listen to music from your Stereo System.
If Out of Range
1. If you walk away and out of range the LED light will turn off gradually to indicate
that it is out of range and no more signals are received.
2. If you walk back within 15 seconds it will link again automatically and the LED light
will turn on gradually.
3. If it is over 15 seconds you need to re-do step 4 in Installation to link to it again.

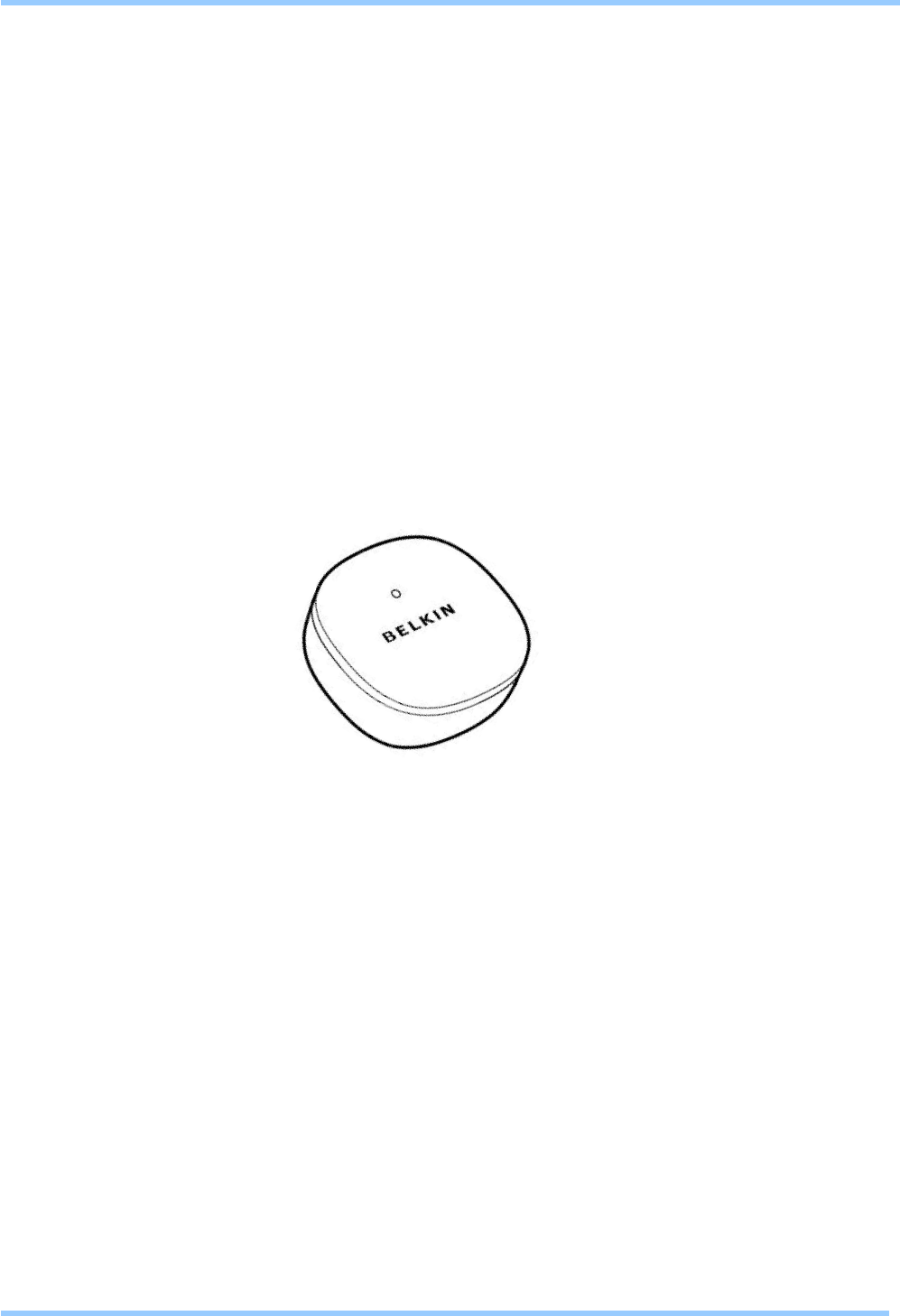

LED light indicator
Earphone Jack
Power Jack
Belkin International, Inc.
Confidential
6
New mobile phone
If you want to connect new mobile phone with Bluetooth Receiver, make sure that the unit
is not in use and then do the step 3 in Installation.
LED Indication List
Status LED Indication
Power on Flash (on then off) one time
Pair Bluetooth Receiver Turn on then off gradually one time
Device Linked On
Standby Off
Out of Range Off
*Note: The mobile phone has to support Bluetooth AADP profile.
Belkin International, Inc.
Confidential
7
Specifications
Product Name Bluetooth Music Receiver
Model Number F8Z492
Standard Bluetooth V2.1+EDR
Bluetooth Profiles AADP, GAVDP
Bluetooth Chip BlueCore5-Multimedia External
Frequency Band 2.4GHz ~ 2.4835GHz unlicensed ISM band
Modulation Method GFSK for 1Mbps; π/4-DQPSK for 2Mbps;
8DPSK for 3Mbps
Spread Spectrum FHSS (Frequency Hopping Spread Spectrum)
RF Output Power Class 2 (under 4 dBm)
Audio Output 3.5mm Audio Jack
Antenna terminal 50 Ohms
AC power 115V or 230V
Dimension 45.6(L) x 45.6(W) x 21.8(H) (mm)
Weight 36.5g (Main body)
Operating Temperature -20℃~ +60℃
Storage Temperature -10 ~ +70℃
Humidity 5 ~ 90% (non-condensing)
