User Manual
F9K1106v1 8820-00923 Rev. A01
Dual-BanD WIRElESS
Range Extender
TABLE OF CONTENTS
Getting Started ........................................... 1
What’s in the Box ............................................1
Initial Setup .................................................2
Getting to Know Your Dual-Band Wireless Range Extender ... 5
Front Panel .................................................5
Back Panel ..................................................6
Technical Details ......................................... 7
Technical Features ...........................................7
System Requirements ........................................7
Advanced Settings ....................................... 8
Resetting the Dual-Band Wireless Range Extender .......... 16
Troubleshooting, Support, and Warranty ................... 18
Troubleshooting ............................................18
Technical Support ...........................................20
Belkin International, Inc., Limited 2-Year Product Warranty ........21
Regulatory Information ..................................23
FCC Statement .............................................23
![](/img.php?id=1528871&img=bg3.png)
1
GETTING STARTED
Congratulations on buying a Dual-Band Wireless Range Extender
(the Range Extender). This device will enable you to extend the range
of your dual-band router to eliminate “dead spots” in your wireless
network. Belkin’s MultiBeam technology gives enhanced coverage
and performance to the areas of your house that need it. Lastly, the
dual-band feature extends both your 2.4GHz and 5GHz networks.
What’s in the Box
Dual-Band Wireless Range Extender
Installation Guide
Power Supply
Networking Cable
User Manual on CD
![](/img.php?id=1528871&img=bg4.png)
2
GETTING STARTED

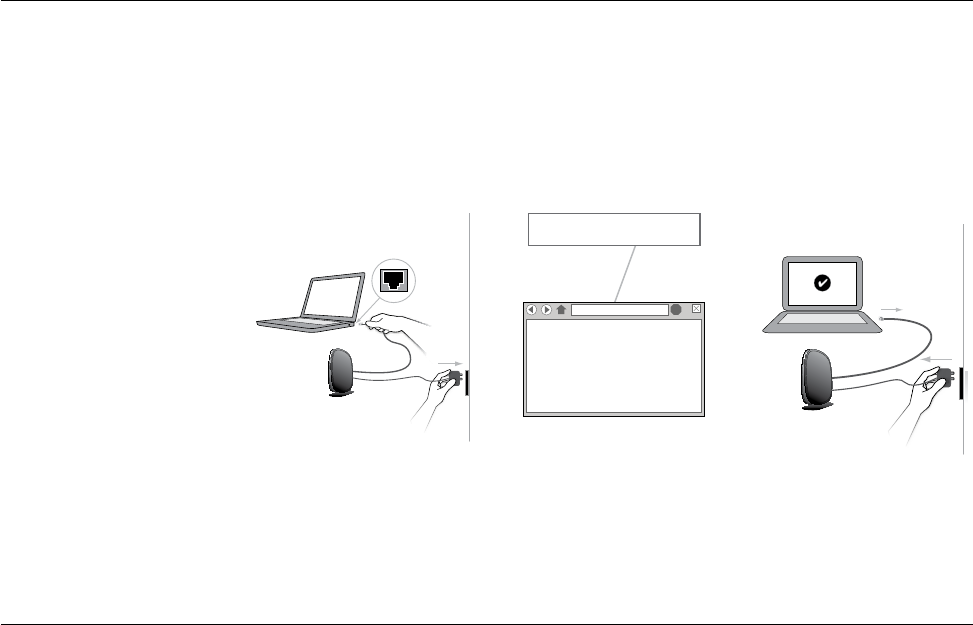

Step 1: Connect the cable to the
Ethernet port on your PC, and
then plug in the power supply.
Step 2: Open a browser, visit
http://Belkin.range, and follow
the onscreen instructions.
Step 3: Once the Range
Extender has successfully
joined the wireless network,
disconnect it from the PC, and
unplug the power supply.
http://Belkin.range|
Initial Setup
To get started, you will need:
• Yourprimarywirelessrouter,
its network name (SSID), and
password. If it’s a dual-band
router, please be sure you have
both SSIDs and passwords.
• Apersonalcomputer
with a web browser
![](/img.php?id=1528871&img=bg5.png)
3
GETTING STARTED

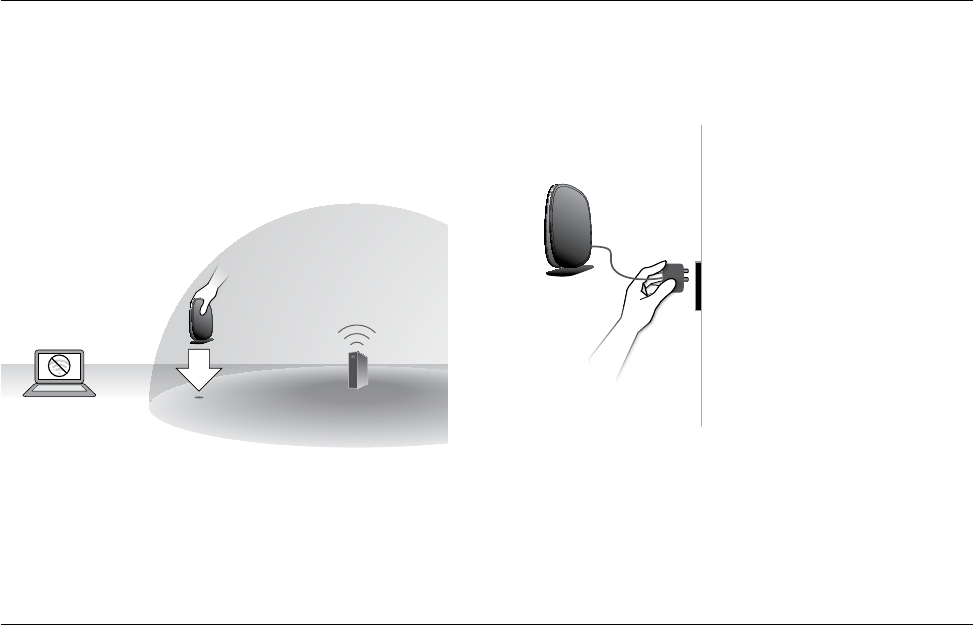

Step 5: Plug in the power supply.Step 4: Place the Range Extender in an area where you can still
access your wireless network without problems, but close to the
area where you want to establish your extended network.
![](/img.php?id=1528871&img=bg6.png)
4
GETTING STARTED

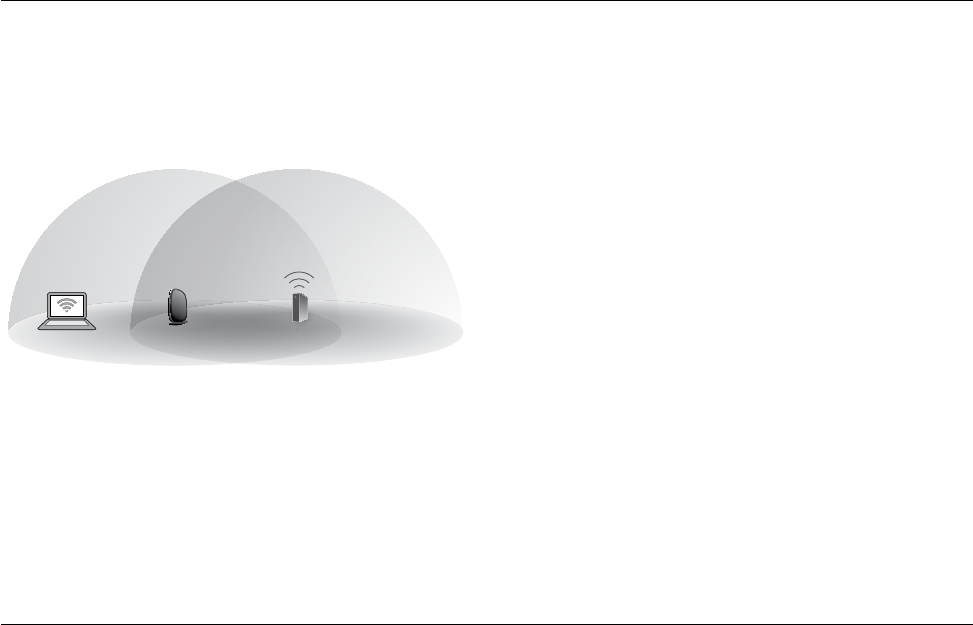

Step 6: Join your new extended wireless network.
![](/img.php?id=1528871&img=bg7.png)
5

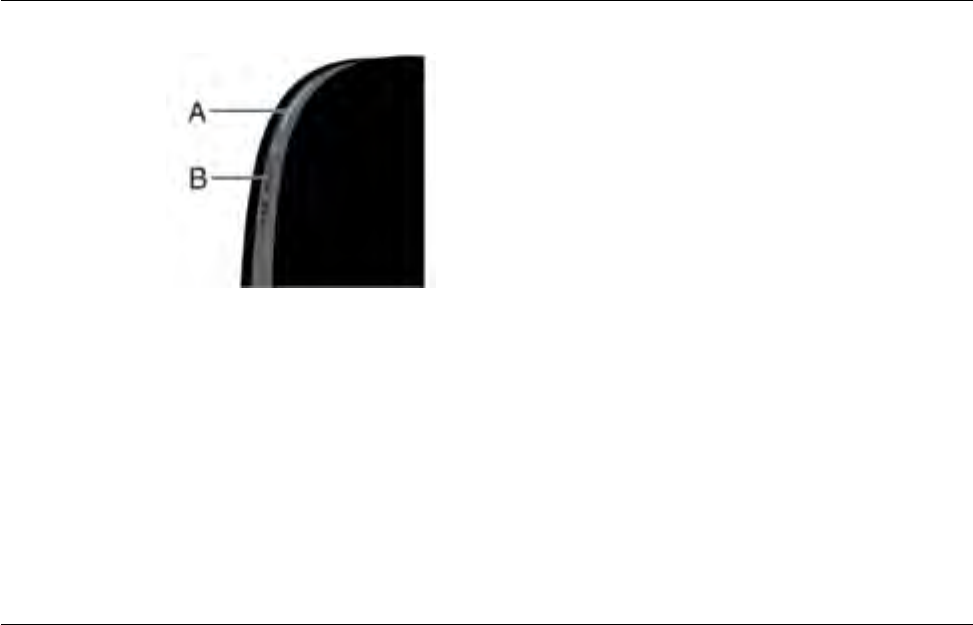

Your Range Extender’s status is shown by the light on the front.
Off: The Range Extender is not plugged into a power source.
The Range Extender is starting up.
The Range Extender is connected to the Wi-Fi® network.
The Range Extender is connected to the
Wi-Fi network but is experiencing a weak signal. The weak
signal may be either the 2.4GHz or 5GHz band. A weak
signal may lead to performance problems. Consider moving
the Range Extender closer to the wireless router.
The Range Extender is not connected
to the Wi-Fi network. Check to make sure that your
wireless router is functioning properly, and/or move the
Range Extender closer to the wireless router.
The Range Extender is ready
to be set up. (Refer to “Getting Started” for instructions
on how to set up your Range Extender.)
The WPS button on the front of your Range Extender can be
used to help establish a secure connection between your Range
Extender and other WPS-enabled Wi-Fi devices such as computers.
To use the WPS feature on your Range Extender, see “Getting
Started > Adding Computers to Your Network > Using the WPS
Button.” The small light near the WPS button shows what is
happening while you are using WPS to establish a connection.
Off: Idle
The Range Extender is listening for
a WPS-enabled computer or other device.
The Range Extender has made a secure
connection with the computer or other device.
A connection was not created.
![](/img.php?id=1528871&img=bg8.png)
6

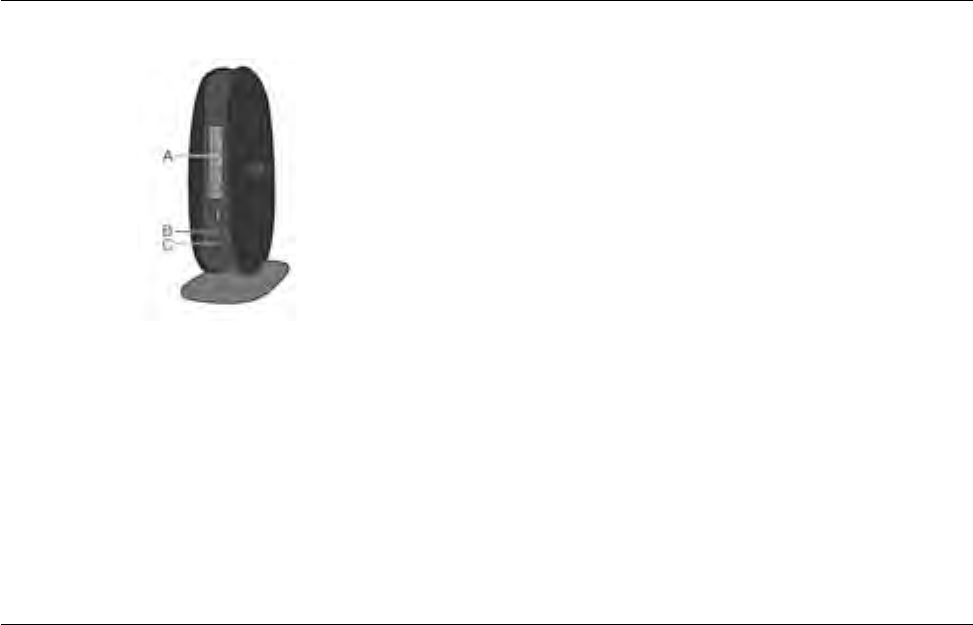

Connect AV devices such as a TV, Blu-ray™ player, gaming console,
and other wired devices to these ports using Ethernet cables.
This button is used to restart your Range Extender in rare
cases when it functions incorrectly. Resetting the Range
Extender will preserve your settings. This button may also
be used to restore the factory default settings. Please see
the Troubleshooting section for more information.
Connect the included power supply to this jack.
![](/img.php?id=1528871&img=bg9.png)
7
TECHNICAL DETAILS
Specifications
Wireless Standards with Link Rate
• IEEE802.11n(upto300Mbpsfor2.4GHzand5GHz*)
• IEEE802.11g(upto54Mbps*)
• IEEE802.11a(upto54Mbps*)
• IEEE802.11b(upto11Mbps*)
WirelessOperatingSpectrum:
• SimultaneousDual-Band
• 2.4GHzand5GHz
WirelessSecurity:
• Wi-FiProtectedSetup™
• 256-bitWPA®/WPA2®encryption
• 64/128-bitWEPencryption
VPNSupport:
• PPTP
• IPSecpass-through
Ports:
• 4LANFastEthernetports
System Requirements
• 802.11a/b/g/n2.4GHzand/or5GHzwireless
routerwithbroadbandInternetconnection
• Atleastonecomputerwith:
InstalledwirelessnetworkinterfacecardandTCP/IPprotocol
Windows®XP32(SP3orgreater),WindowsVista®32/64,
orWindows732/64;orMacOS®Xv10.5or10.6
InternetExplorer®v7orabove,Firefox®,
GoogleChrome™,orSafari®
Minimum1.8GHzprocessor
Minimum512MBRAM
![](/img.php?id=1528871&img=bga.png)
8
1. Quick-Navigation Links
You can go directly to any of the Range Extender’s
advanced UI pages by clicking directly on these links.
2. Language
Shows the active language for the Advanced User Interface. Select
the desired language by clicking one of the available languages.
3. Page Name
The page you are on can be identified by this name. This User
Manual will sometimes refer to pages by name. For instance,
“LAN > LAN Settings” refers to the “LAN Settings” page.
4. Version Info
The Version Info section gives you information on the
hardware part number, version number, firmware version,
and serial number. Belkin Technical Support may ask you
for this information in certain troubleshooting situations.
5. Features
This section details whether the WPS function is enabled or
disabled, and for which extended network (2.4GHz or 5GHz).
6. and 7.
These sections provide detailed information on
the 2.4GHz and 5GHz extended networks.

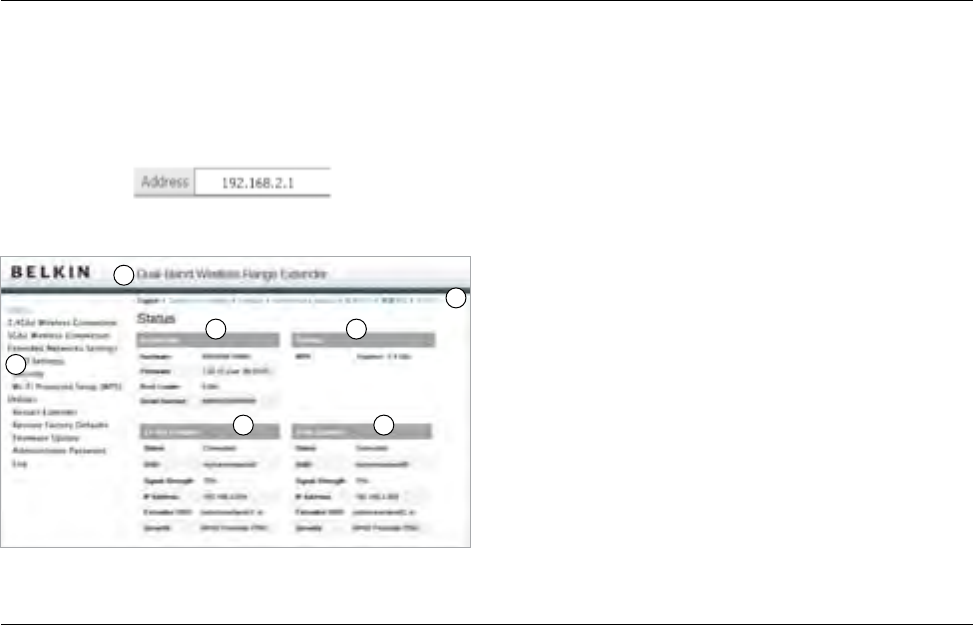

The Status Page
ADVANCED SETTINGS
Connecting to the Web Interface
Using your Internet browser, you can access the Range
Extender’s Web-Based Advanced User Interface (UI). In your
browser, type “belkin.range.” Then press the “Enter” key.
1
3
2
4
6
5
7
This page shows the detailed status of your Range Extender.
The meaning of the various items is detailed on the right.
![](/img.php?id=1528871&img=bgb.png)
9
ADVANCED SETTINGS

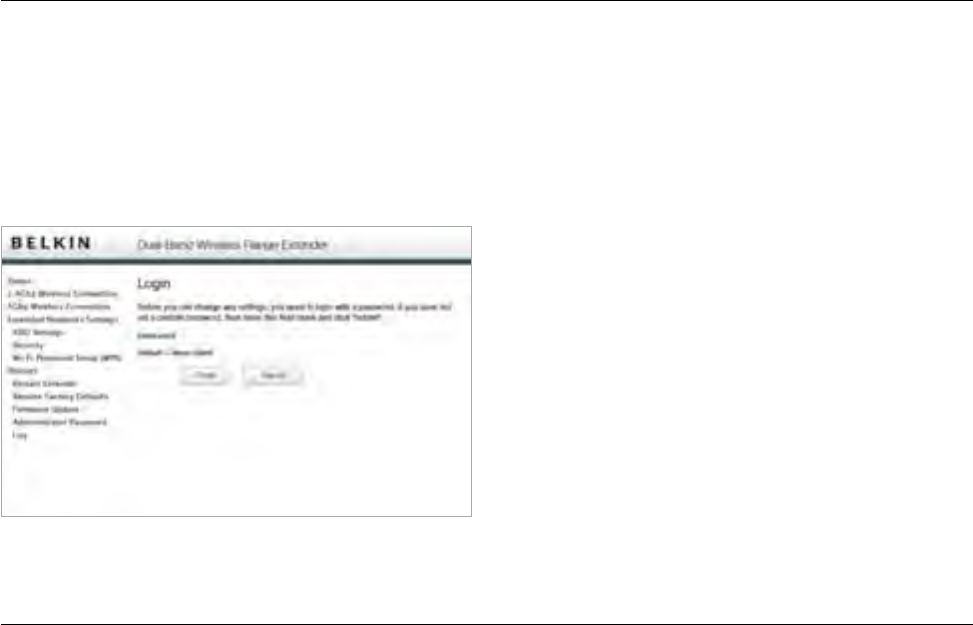

Logging into the Firmware
The Range Extender’s home page is visible to any user who
wants to see it. To make any changes to the Range Extender’s
settings, you have to log in. Clicking on any one of the links on
the home page will take you to the login screen. The Range
Extender ships with no password entered. In the login screen,
leave the password blank and click the “Submit” button to log in.
9
![](/img.php?id=1528871&img=bgc.png)
10
ADVANCED SETTINGS
The Range Extender will provide the following options:
Network Name (SSID)
This is the name of the 2.4GHz network you wish to extend.
Security Type
You must specify the type of security for your Range
Extender (WPA2, WPA, WEP, or None).
Password (Key)
This is the password or passkey that you normally
use to connect to your wireless router.

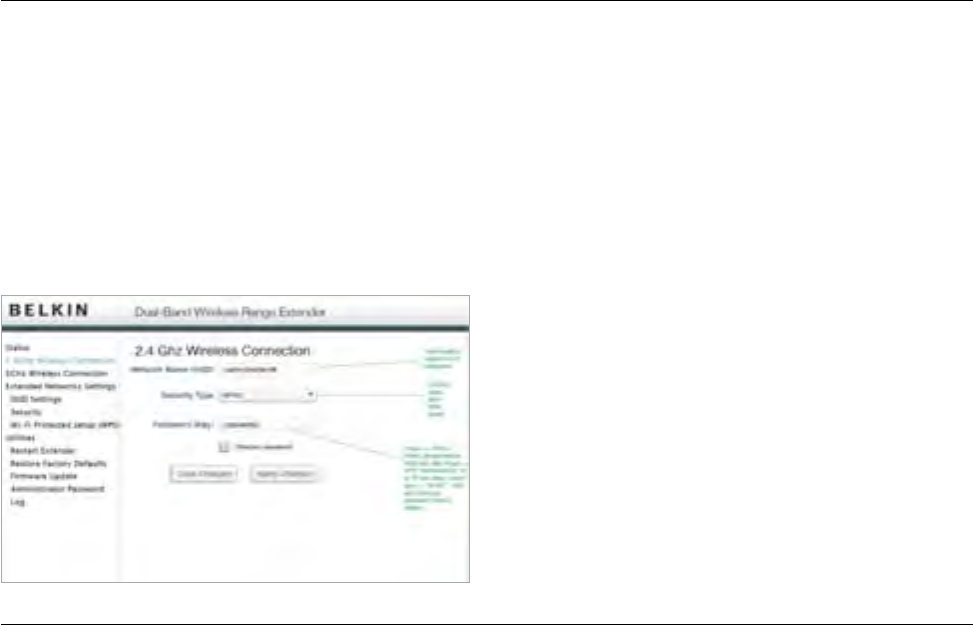

Configuring the 2.4GHz Wireless Connection
This option will change the settings for the Range Extender’s
connection to your main 2.4GHz network. You can use this
option for the following tasks:
• Connectingtoadifferentwirelessnetwork
• Updatingthesettingsafteryou’vechangedthewirelesssettings
(e.g., security type or password) on your Range Extender
Click on the “2.4GHz Wireless Connection” link on the
left side of the screen.
![](/img.php?id=1528871&img=bgd.png)
11
ADVANCED SETTINGS
The Range Extender will provide the following options:
Network Name (SSID)
This is the name of the 5GHz network you wish to extend.
Security Type
You must specify the type of security for your
router (WPA2, WPA, WEP, or None).
Password (Key)
This is the password or passkey that you normally
use to connect to your wireless router.

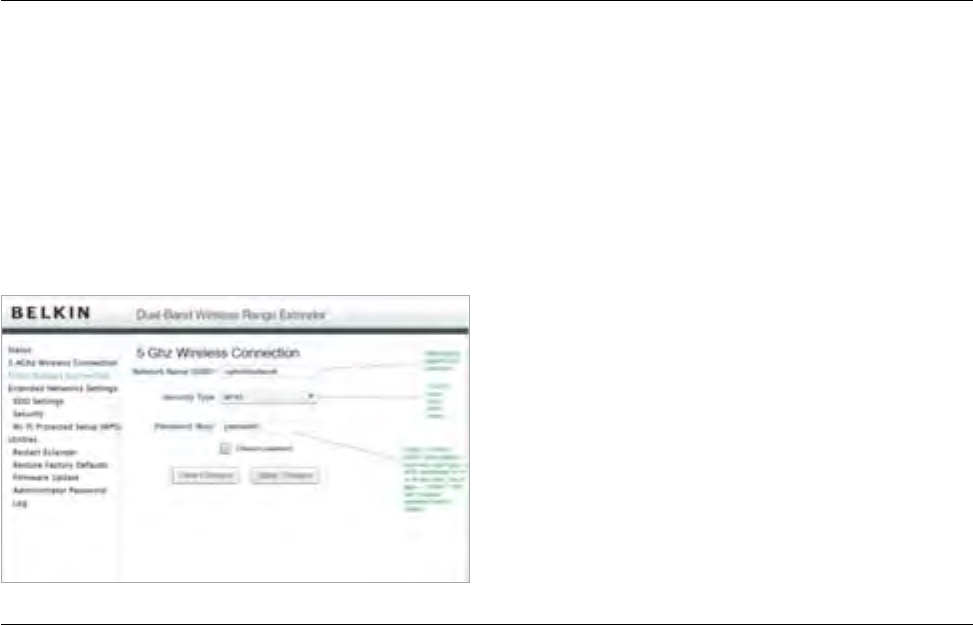

Configuring the 5GHz Wireless Connection
This option will change the settings for the Range Extender’s
connection to your main 5GHz network. You can use this
option for the following tasks:
• Connectingtoadifferentwirelessnetwork
• Updatingthesettingsafteryou’vechangedthewirelesssettings
(e.g., security type or password) on your Range Extender
Click on the “5GHz Wireless Connection” option on the
left side of the screen.
![](/img.php?id=1528871&img=bge.png)
12
ADVANCED SETTINGS
We recommend accepting the default values here, which will
mirror your main network. However, if you wish to change
settings for the Extended Network, you can do so here.
The screen is arranged in two columns, one for your 2.4GHz
Extended Network and the second for the 5GHz Extended Network.
For each network, you may configure the following:
Network Name (SSID)
This is the name of your extended wireless Range Extender as it
will show up when you try to connect to it from a laptop, tablet, etc.
Broadcast SSID
Note: This advanced feature should be employed by advanced users
only. For security, you can choose not to broadcast your extended
network’s SSID. Doing so will keep your network name hidden
from computers that are scanning for the presence of wireless
networks. To turn off the broadcast of the SSID, remove the check
mark from the box next to “Broadcast SSID”, and then click “Apply
Changes.” The change is immediate. Each wireless computer or
device now needs to be set to connect to your specific SSID. Refer
to the documentation of your computer, tablet, or other device.
Extended Network Settings
These options enable you to configure your Extended Networks.
SSID Settings
This screen enables you to configure the SSID, security,
and other features of your Extended Network.
![](/img.php?id=1528871&img=bgf.png)
13
ADVANCED SETTINGS

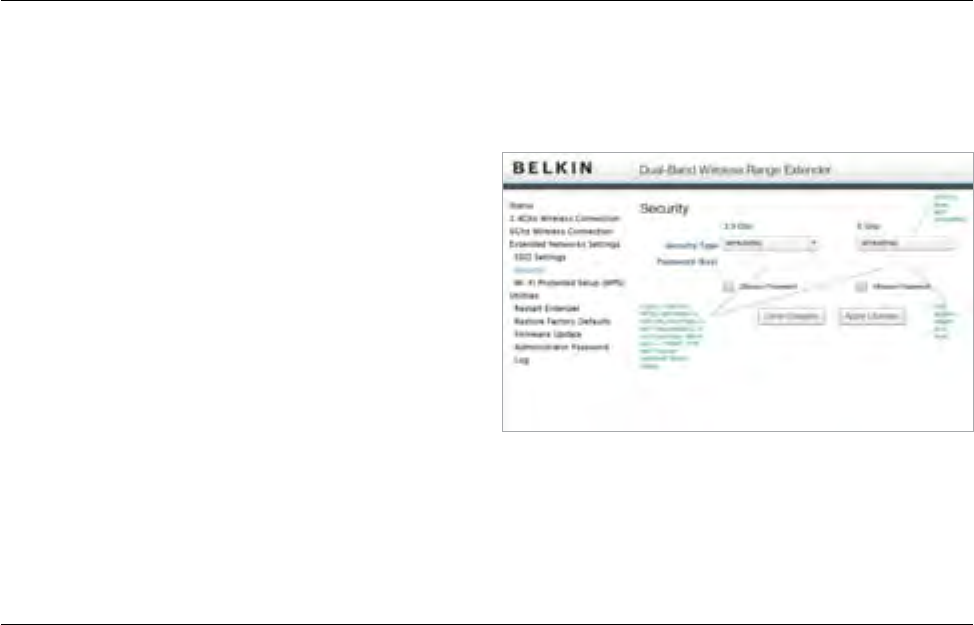

Security
This screen enables you to change the wireless
security settings such as WPA or WEP.
Protected Mode
Protected mode ensures proper operation of draft 802.11n-compliant
devices on your wireless network when 802.11g or 802.11b devices
are present or when there is heavy 802.11g or 802.11b traffic in
the operating environment. Use protected mode if your network
consists of a mix of Belkin Double N+ Wireless Cards and 802.11g or
802.11b cards. If you are in an environment that includes little to no
802.11g or 802.11b wireless network traffic, you will achieve the best
wireless performance with protected mode OFF. Conversely, in an
environment with HEAVY 802.11g or 802.11b traffic or interference,
you will achieve the best wireless performance with protected
mode ON. This will ensure wireless performance is not affected.
802.11e/WMM QoS
802.11e/WMM QoS is a feature that prioritizes the traffic
on your wireless network based on the type of traffic. We
recommend leaving this enabled for optimal performance.
We recommend leaving the settings you used when you went
through the Setup Wizard. By default, your Range Extender
will use the same security settings as your main network.
However, if you wish, you may specify different security settings
here. The screen is arranged in two columns, one for your
2.4GHz network and the other for your 5GHz network.
![](/img.php?id=1528871&img=bg10.png)
14
ADVANCED SETTINGS
Security Type: You may specify the type of security here. Available
options are WPA2/WPA, WEP, and None (no security). We
recommend you use the same type of security as your main router.
Password(Key)
For WPA2 security, this can be any set of characters from 8
to 63 characters in length. For WEP security, this must be a
string of “hex characters” (0-9 or A-F). (If you specify “None”
for the security, this field will be hidden.) We recommend
you use the same password as your main router.
Obscure password
If this box is checked, the password will be obscured in your
browser so that others cannot see it when you type it in.
Wi-Fi Protected Setup
Your Dual-Band Wireless Range Extender supports the Wi-Fi
Protected Setup™ (WPS) specification, which simplifies the setup
of a wireless network. WPS uses familiar methodologies, such
as typing in a Personal Identification Number (PIN) or pushing a
button, to enable users to automatically configure network names
and strong WPA/WPA2 data encryption and authentication.
![](/img.php?id=1528871&img=bg11.png)
15
ADVANCED SETTINGS
Using Wi-Fi Protected Setup™
Belkin recommends that you set up WPA2 as your wireless security.
WPS does not provide additional security, but rather simplifies
the addition of wireless devices to your wireless network. You
may use either the Push Button Configuration (PBC) method or
PIN method to allow a device access to your wireless network.
PBC
Push and hold the WPS button located on the front of your
Range Extender for two seconds and the security LED will
flash, indicating that WPS has been initiated. Then, initiate
WPS on the client device within two minutes (refer to your
client’s documentation on this procedure). The wireless
device and Range Extender will automatically exchange
a security key and establish a secure connection.

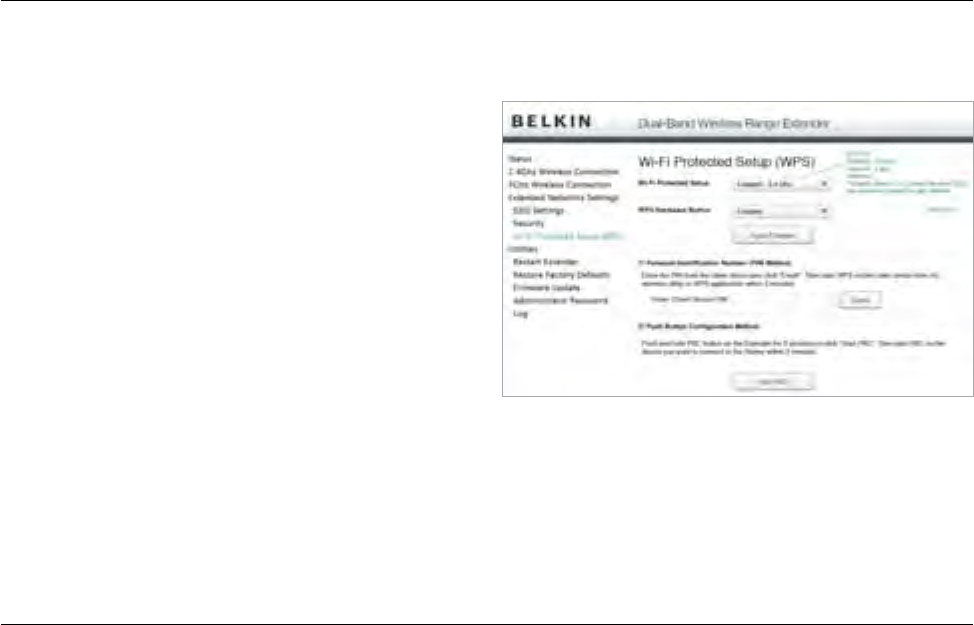

PIN
The client device has a WPS PIN number (eight digits) that will
be provided to you when you initiate the connection to the Range
Extender. Enable WPS through the screen illustrated to the
below. Enter the client’s PIN into the Range Extender’s internal
registrar (accessed through this screen). The client will be
securely enrolled into your wireless network within two minutes.
![](/img.php?id=1528871&img=bg12.png)
16
In some situations, it may be necessary to restore factory
defaults; this will restore the unit to the settings when you pulled
it out of the box. If you do this, you’ll need to set it up again.
![](/img.php?id=1528871&img=bg13.png)
17
The following steps show you how to update your Dual-Band
Wireless Range Extender’s firmware using its web interface.
17
Click the button to “Check for Firmware Updates.” This will
show you whether there is new firmware available.
Download the firmware file and save it to your PC.
Click “Choose Update File”; a box will open up.
Select the firmware file you just downloaded.
Click “Update Firmware.”
![](/img.php?id=1528871&img=bg14.png)
18
Troubleshooting
Belkin Setup cannot find my Dual-Band
Wireless Range Extender.
If Belkin Setup is not able to communicate with your
Dual-Band Wireless Range Extender during the
installation process, please make sure that the Range
Extender is turned on and has Internet connectivity.
The Range Extender is having trouble connecting to
your wireless network.
Blinking Amber LED
This indicates that the Dual-Band Wireless Range
Extender is not connected to your wireless network. Please
move the Range Extender closer to your router.
Solid Amber LED
This indicates that the Dual-Band Wireless Range Extender
is connected to your wireless network but the signal is
weak. You might experience slower performance. Please
move the Range Extender closer to your router.
TROUBLESHOOTING, SUPPORT, AND WARRANTY
My wireless network performance is slow, inconsistent,
suffers from weak signal, or I’m having difficulty
maintaining a connection with my wireless network.
Wireless technology is radio-based, which means connectivity and
the throughput performance between devices decreases when
the distance between devices increases. Other factors that will
cause signal degradation (metal is generally the worst culprit) are
obstructions such as walls and metal appliances. Note also that
connection speed may decrease as you move your computer farther
away from the Range Extender. Finally, note that all your wireless
devices are sharing the same network. So, if you have another device
that is generating a lot of network traffic (for example, transferring
large files) that will compromise the performance of other devices
on the network. Try moving high-traffic devices closer to the Range
Extender, or try wiring them to your router with an Ethernet cable.
![](/img.php?id=1528871&img=bg15.png)
19
TROUBLESHOOTING, SUPPORT, AND WARRANTY
Reset Button
The “Reset” button is used in rare cases when the Range
Extender may function improperly. Resetting the Range Extender
will restore the Router’s normal operation while maintaining the
programmed settings. You can also restore the factory default
settings by using the “Reset” button. Use the restore option in
instances where you may have forgotten your custom password.
Resetting the Dual-Band Wireless Range Extender
Push and release the “Reset” button. The light on the
Range Extender will momentarily flash and then become
solid again, indicating that the reset is complete.
Restoring Your Range Extender to Factory Defaults
Press and hold the “Reset” button for at least 10 seconds,
and then release it. The light on the Range Extender will
momentarily flash and then will begin to blink. When the
light becomes solid again, the restore is complete.
![](/img.php?id=1528871&img=bg16.png)
20
TROUBLESHOOTING, SUPPORT, AND WARRANTY
Technical Support
US
http://www.belkin.com/support
UK
http://www.belkin.com/uk/support
Australia
http://www.belkin.com/au/support
New Zealand
http://www.belkin.com/au/support
Singapore
1800 622 1130
Europe
http://www.belkin.com/uk/support
![](/img.php?id=1528871&img=bg17.png)
21
TROUBLESHOOTING, SUPPORT, AND WARRANTY
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is not
provided to Belkin for inspection upon Belkin’s request at the sole
expense of the purchaser, or if Belkin determines that the Belkin
product has been improperly installed, altered in any way, or tampered
with. The Belkin Product Warranty does not protect against acts
of God such as flood, lightning, earthquake, war, vandalism, theft,
normal-use wear and tear, erosion, depletion, obsolescence, abuse,
damage due to low voltage disturbances (i.e. brownouts or sags),
non-authorized program, or system equipment modification
or alteration.
How to get service
To get service for your Belkin product you must take the
following steps:
1. Contact Belkin International, Inc., at 12045 E. Waterfront
Drive, Playa Vista, CA 90094, Attn: Customer Service,
or call 800-223-5546, within 15 days of the Occurrence.
Be prepared to provide the following information:
a. The part number of the Belkin product.
b. Where you purchased the product.
c. When you purchased the product.
d. Copy of original receipt.
2. Your Belkin Customer Service Representative will then
instruct you on how to forward your receipt and Belkin
product and how to proceed with your claim.
Belkin International, Inc., Limited
2-Year Product Warranty
What this warranty covers.
Belkin International, Inc. (“Belkin”) warrants to the original
purchaser of this Belkin product that the product shall be free
of defects in design, assembly, material, or workmanship.
What the period of coverage is.
Belkin warrants the Belkin product for two years.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product
free of charge (except for shipping charges for the product).
Belkin reserves the right to discontinue any of its products without
notice, and disclaims any limited warranty to repair or replace any
such discontinued products. In the event that Belkin is unable to
repair or replace the product (for example, because it has been
discontinued), Belkin will offer either a refund or a credit toward
the purchase of another product from Belkin.com in an amount
equal to the purchase price of the product as evidenced on the
original purchase receipt as discounted by its natural use.
![](/img.php?id=1528871&img=bg18.png)
22
TROUBLESHOOTING, SUPPORT, AND WARRANTY
Some states do not allow limitations on how long an implied
warranty lasts, so the above limitations may not apply to you.
IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL,
SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR
MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO,
LOST BUSINESS OR PROFITS ARISING OUT OF THE
SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
This warranty gives you specific legal rights, and you may also have
other rights, which may vary from state to state. Some states do
not allow the exclusion or limitation of incidental, consequential,
or other damages, so the above limitations may not apply to you.
Belkin reserves the right to review the damaged Belkin product.
All costs of shipping the Belkin product to Belkin for inspection
shall be borne solely by the purchaser. If Belkin determines,
in its sole discretion, that it is impractical to ship the damaged
equipment to Belkin, Belkin may designate, in its sole discretion,
an equipment repair facility to inspect and estimate the cost to
repair such equipment. The cost, if any, of shipping the equipment
to and from such repair facility and of such estimate shall be
borne solely by the purchaser. Damaged equipment must remain
available for inspection until the claim is finalized. Whenever
claims are settled, Belkin reserves the right to be subrogated
under any existing insurance policies the purchaser may have.
How state law relates to the warranty
THIS WARRANTY CONTAINS THE SOLE WARRANTY OF
BELKIN. THERE ARE NO OTHER WARRANTIES, EXPRESSED
OR, EXCEPT AS REQUIRED BY LAW, IMPLIED, INCLUDING
THE IMPLIED WARRANTY OR CONDITION OF QUALITY,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY, ARE
LIMITED IN DURATION TO THE TERM OF THIS WARRANTY.
![](/img.php?id=1528871&img=bg19.png)
23
REGULATORY INFORMATION
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES
FOR ELECTROMAGNETIC COMPATIBILITY
We, Belkin International, Inc., of 12045 E. Waterfront Drive, Playa
Vista, CA 90094, declare under our sole responsibility that the device,
F9K1106v1, complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution: Exposure to Radio Frequency Radiation
The device shall be used in such a manner that the potential
for human contact normal operation is minimized.
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum
distance of 20cm between the radiator and your body.
Operations in the 5.15-5.25GHz band are
restricted to indoor usage only.
Federal Communications Commission Notice
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try and
correct the interference by one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasethedistancebetweentheequipmentandthereceiver.
• Connecttheequipmenttoanoutletonacircuitdifferent
from that to which the receiver is connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or transmitter.
![](/img.php?id=1528871&img=bg1a.png)
24
REGULATORY INFORMATION
lndustry Canada Statement:
This device complies with RSS-210 of the lndustry Canada
Rules. Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d’industrie
Canada applicable aux appareils radio exempts de licence. Son
fonctionnement est sujet aux deux conditions suivantes: (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce
dispositif doit accepter tout brouillage reçu, y compris un brouillage
susceptible de provoquer un fonctionnement indésirable.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with lC radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance
of 20cm between the radiator and your body.
Caution:
The device for the band 5150-5250MHz is only for indoor usage to
reduce potential for harmful interference to co-channel mobile satellite
systems. High-power radars are allocated as primary users (meaning
they have priority) of 5250-5350MHz and 5650-5850MHz and these
radarscouldcauseinterferenceand/ordamagetoLE-LANdevices.
NOTE IMPORTANTE: (Pour l’utilisation de dispositifs mobiles)
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux
rayonnements lC établies pour un environnement non contrôlé.
Cet équipement doit être installé et utilisé avec un minimum de
20cm de distance entre la source de rayonnement et votre corps.
Avertissement:
Ledispositiffonctionnantdanslabande5150-5250MHzest
réservéuniquementpouruneutilisationàl’intérieurafinde
réduire les risques de brouillage préjudiciable aux systèmes de
satellitesmobilesutilisantlesmêmescanaux.Lesutilisateursde
radars de haute puissance sont désignés utilisateurs principaux
(c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350MHz
et 5650-5850MHz et que ces radars pourraient causer du
brouillageet/oudesdommagesauxdispositifsLAN-EL.
![](/img.php?id=1528871&img=bg1b.png)
© 2011 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of
respective manufacturers listed. Mac OS and Safari are trademarks of Apple Inc., registered in
the U.S. and other countries. Windows, Windows Vista, and Internet Explorer are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
