TABLE OF CONTENTS

Getting Started

What’s in the Box

Initial Setup

Manually Set Up Your Internet Connection

Additional Capabilities

Adding Other USB Devices

USB Print and Storage Manager

Guest Access

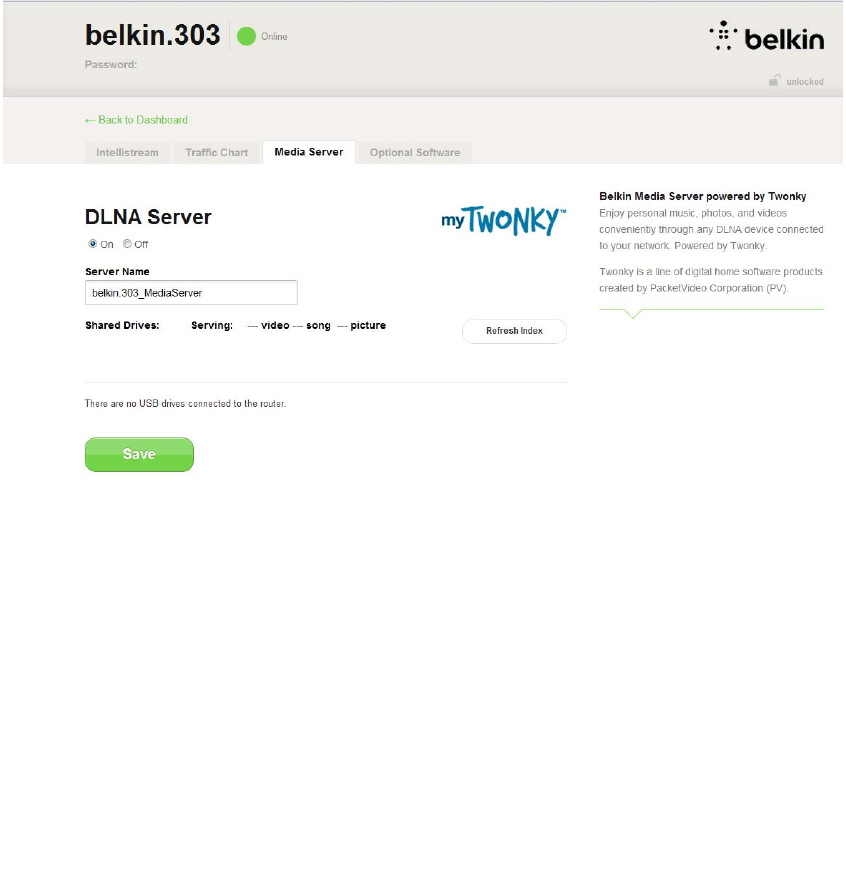

Media Server by myTwonky

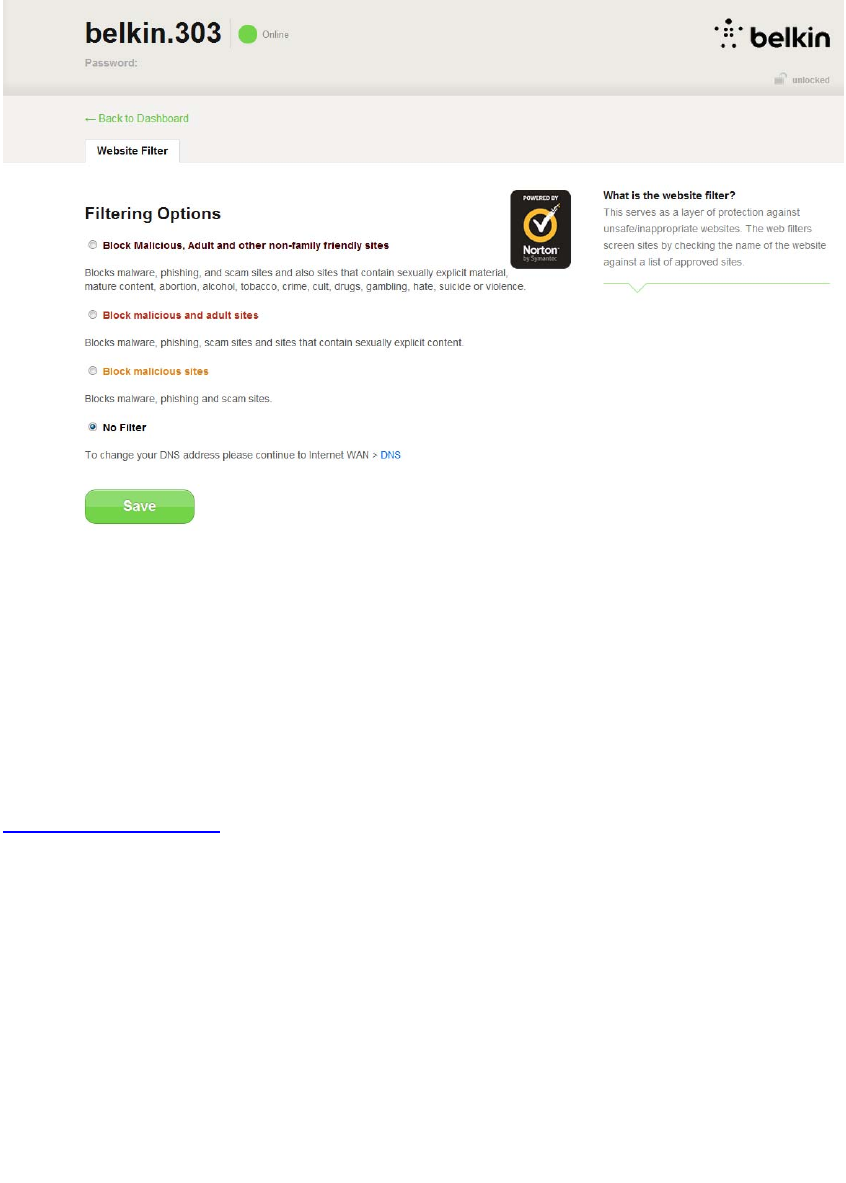

Content Filtering by Norton

Intellistream QoS

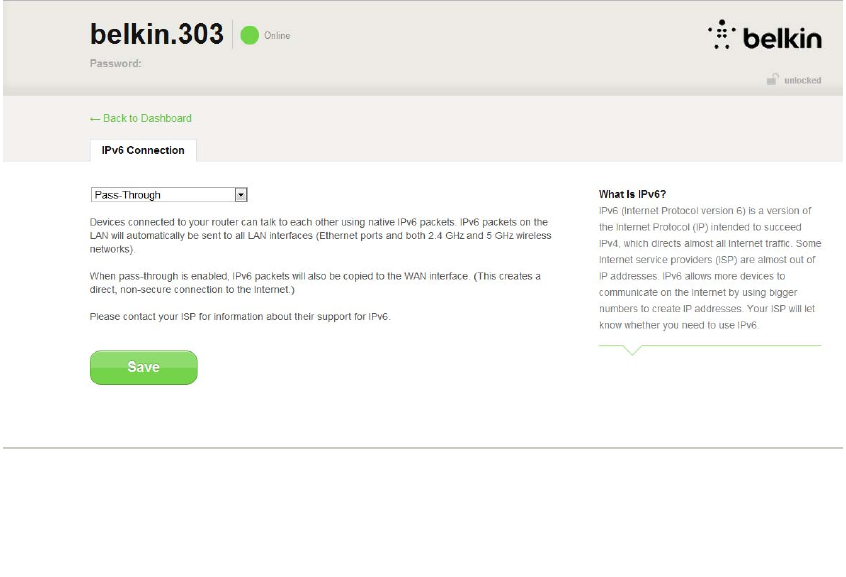

IPv6 Configuration

Getting to Know Your Router

Front Panel

Back Panel

Technical Details

Technical Features

System Requirements

Using Your Router

Enabling Auto Update on Your Router

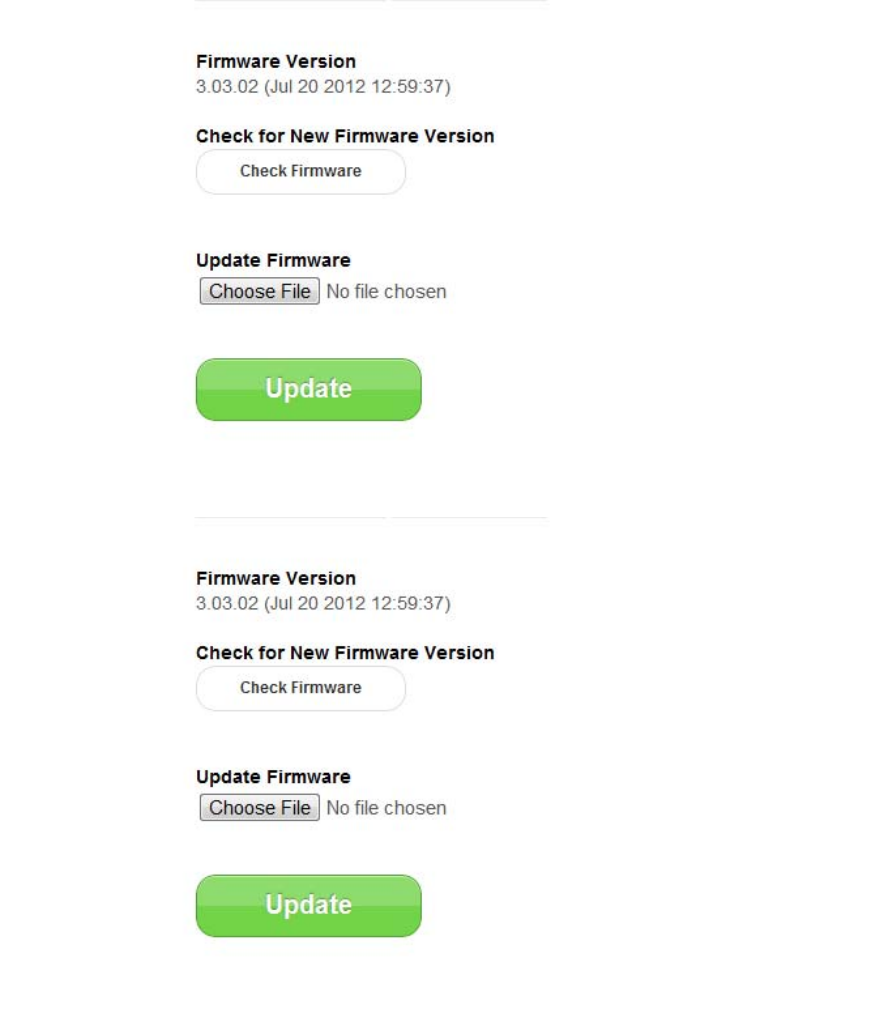

Updating the Router’s Firmware via the Web Interface

Resetting the Router

Restoring your Router to Factory Default

Troubleshooting, Support, and Warranty

Troubleshooting

Technical Support

Belkin International, Inc., Limited 2-Year Product Warranty

Regulatory Information

FCC Statement

Getting Started

What’s in the Box

AC1750 DB Wi-Fi Dual-Band AC+ Gigabit Router

Ethernetcable(attachedtorouter)

Powersupply(attachedtorouter)

Networkinformationcard(attachedtorouter)

Quick Setup Guide

Initial Setup

WheretoPlaceYourRouter

Forthebestresults,placetheRouternexttoyourmodeminan

openlocation,awayfromlargemetalobjectsandmagnetssuchas

thosefoundinspeakers.RaisingtheRouterabovefloorlevelcan

improvethestrengthofyourwirelesssignal.

HowtoSetItUp

Connect Your AC1750 DB Router

Turn off your modem by disconnecting its power supply. Some modems have a battery backup;

this will need to be disconnected at this time as well.

Connect your Router to your modem using the cable (already attached).

Power up your modem by plugging in its power supply. If your modem has a battery backup, it

can be reconnected at this time; you may need to hold the reset button for 10 seconds.

Power up your Router by plugging in its power supply.

Connect to Your Router

Retrieve the network ID card from the foot of your new Belkin

Router.

[Diagram of bottom of the router showing service card – can be

obtained from “Tested QIG 2011 07 14.pdf” provided]

Can’t find the card? The default network name and password are also printed on the foot of

the Router.

Use your computer, tablet, or smartphone to connect to the

wireless network shown on the network ID card.

For information on how to connect your wireless devices, please see the “Connect Your

Wireless Devices” section on page 20.

When requested, please enter the password (security key) provided

on the card.

When your device has connected to the Router, use a

browser to visit http://router/. The router homepage will

appear.

If the page does not load, then try visiting http://192.168.2.1 to see

the router homepage.

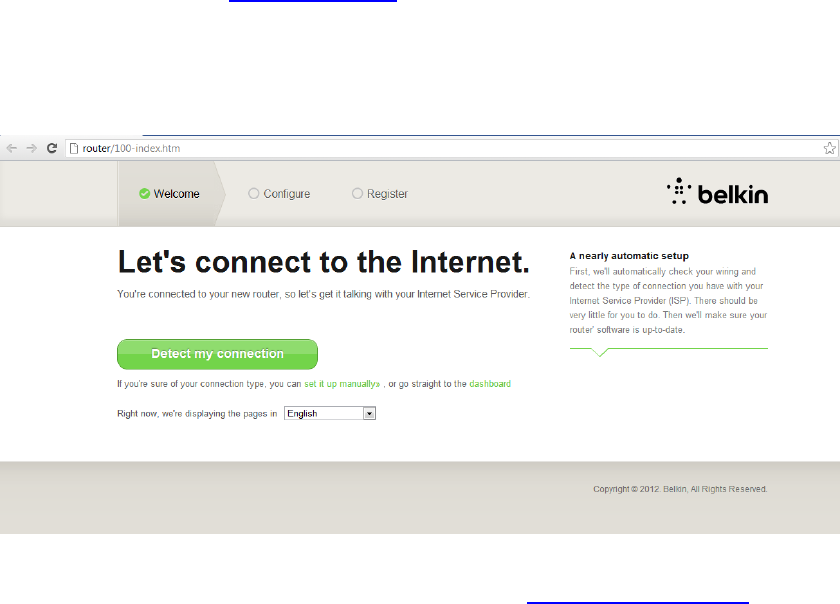

Click the “Detect my connection” button in green. (If you would

rather set up the Router manually, click the “set it up manually”

link and proceed to page 10.)

After several moments, your Router should automatically detect

your Internet connection and restart. This can take anywhere from

30 seconds to 3 minutes depending on your connection type.

If your Router is unable to establish an Internet connection on its

own, you may be asked to restart your modem or provide a

username and password if your connection requires one. Follow

the on-screen instructions provided.

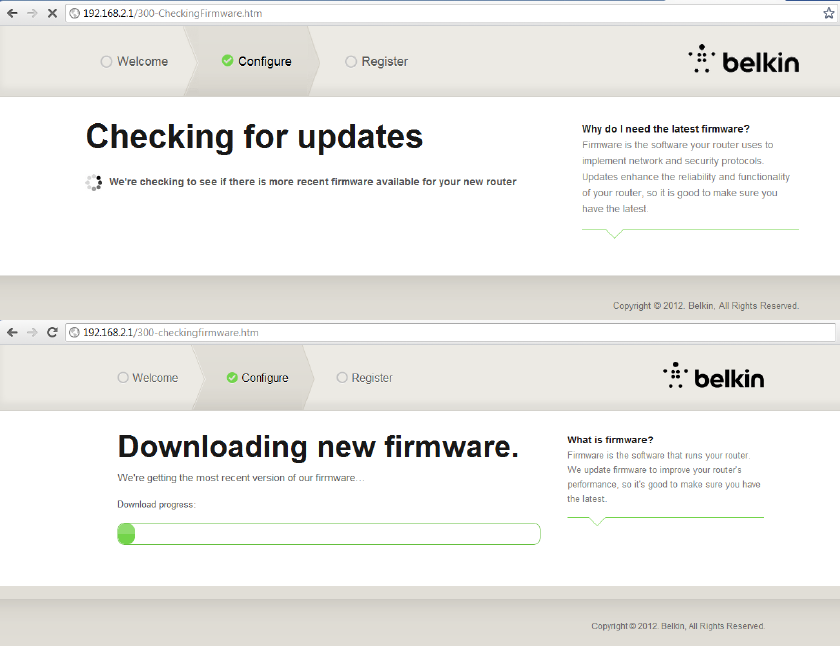

Once your Router is online, it will determine if there is a firmware

update available and offer to install it. Please allow up to 5 minutes

for the firmware to update.

If there are no updates available, then setup will proceed.

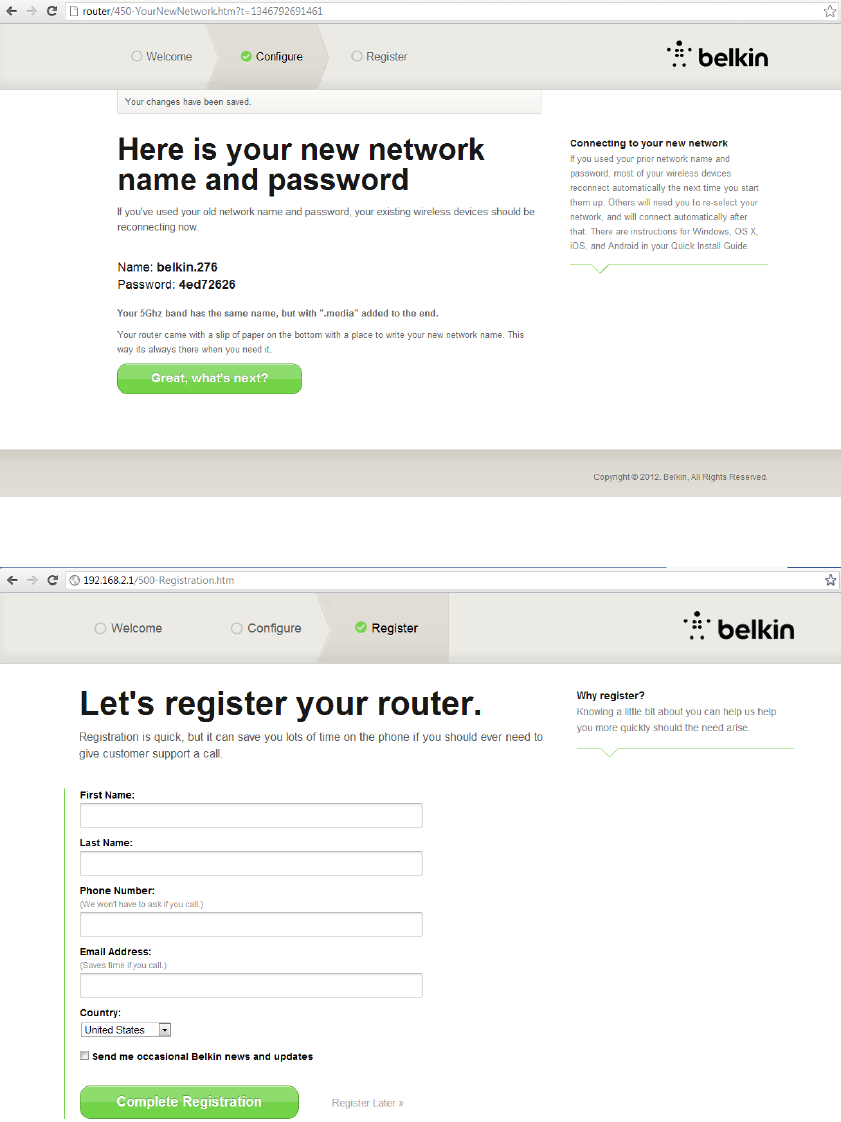

At the next screen you will be invited to change your network

name and password. Re-using your previous network name (SSID)

and password makes connecting your existing devices to the new

router much easier.

If you decide to change these settings, then enter the new values

and click “Save and Continue.” (Note: The password must be at

least 8 characters long.)

If you changed your network name and password, make note of it

on the service card located on the foot of the Router. You will then

have to connect to the new network.

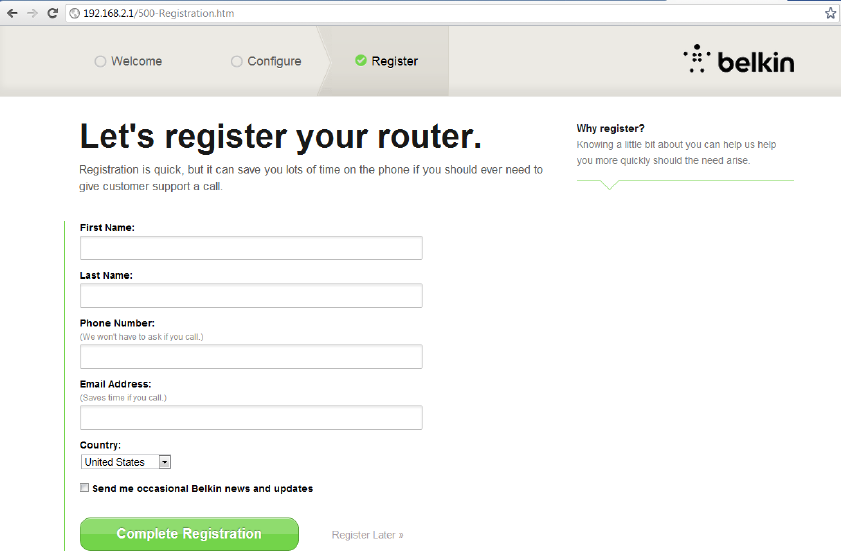

Please take this opportunity to register your Router. This will help

technical support if there is a problem with your Router.

Simply complete each of the required fields and click “Complete

Registration.” If you don’t want to register right now, click

“Register Later” to proceed.

At the next screen you can download optional software that was

bundled with your Router.

This screen shows you optional software that is available for your

Router, such as the USB software to allow you to print through the

Router’s USB port. If you wish to download and install any of

these software programs, simply click on the button appropriate for

your device.

When finished installing optional software, click “Thanks, take me

to the dashboard.”

Congratulations! You are now at your Router’s dashboard. Your

Router is set up and ready to use.

UsingtheWPSButton

1)StartWPSPushButtonConnection(WPSPBC)onyour

computerorotherWi‐Fidevicethatyouwouldliketo

connectwirelesslytoyourRouter.Oftentherewillbea

buttonforthispurposeinsoftwarethatcamewiththedevice,

oraphysical“WPS,”“PBC,”or“Security”buttononthedevice

itself.

2)Withintwominutes,presstheWPSbuttononyourRouter

andholdfortwoseconds.

TheWPSlight(smalllightaboveWPSbutton)willblinkblue

whileitlistensforyourWi‐Fidevice.Onceaconnectionis

established,thelightwillturnblueandthengoout.Ifa

connectionisnotestablished,thelightwillblinkamber.You

mayrepeattheprocesstotryagain.

YoucanrepeatthisprocessforeachWPS‐enableddeviceyou’d

liketoaddtoyournetwork.

Manually Set Up Your Internet

Connection

Use a browser to visit http://router/. You can also try visiting http://192.168.2.1/. The

Router’s Welcome page should appear.

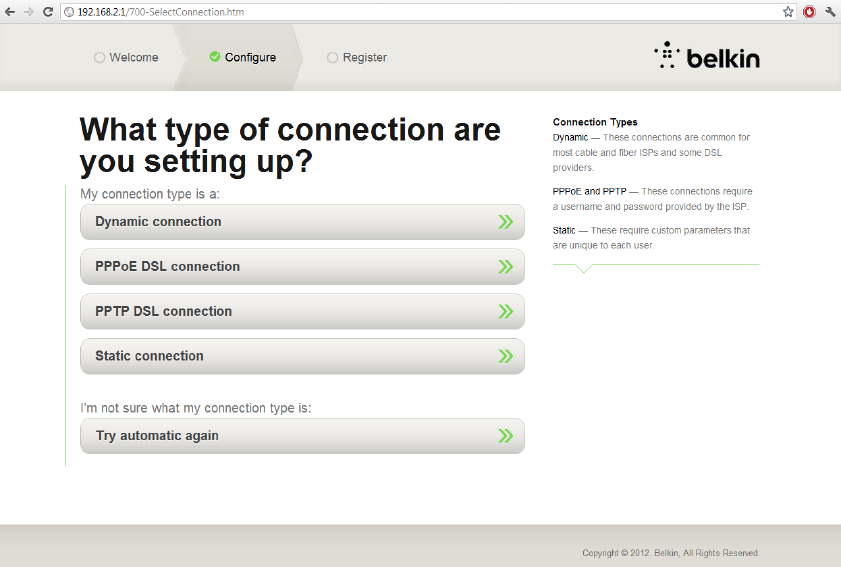

Click the “Set it up manually” link. Please select the type of connection your ISP

provides. Refer to page 15 for a description of the connection types.

If the selected connection type requires additional information

(such as an ISP username and password), the system will ask you

for it.

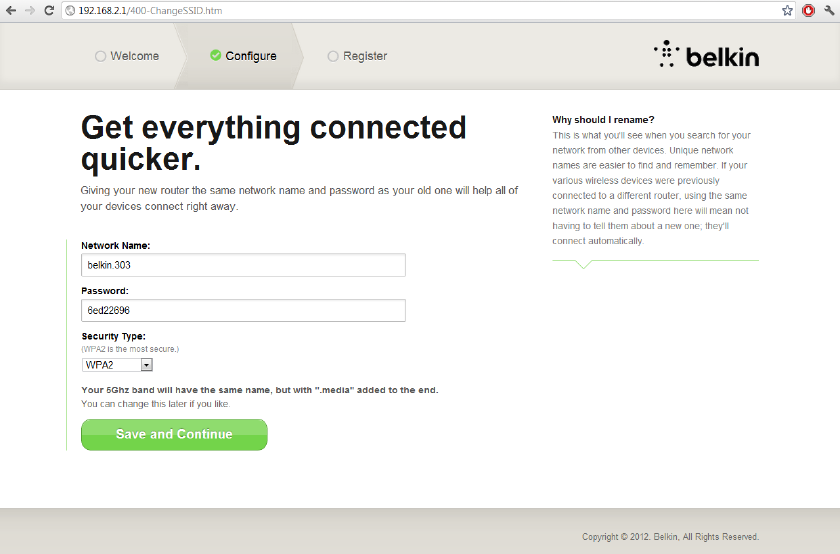

At the next screen you will be invited to change your network

name and password. Reusing your previous network name (SSID)

and password makes connecting your existing devices to the new

router much easier.

If you decide to change these settings, then enter the new values

and click “Save and Continue.” (Note: The password must be at

least 8 characters long.)

If you changed your network name and password, make note of it

on the service card located on the foot of the Router. You will then

have to connect to the new network. Please refer to page 20 to do

this.

Click “Great, what’s next?”

Please take this opportunity to register your Router. This will help

technical support if there is a problem with your Router.

Simply complete each of the required fields and click “Complete

Registration.” If you don’t want to register right now, click

“Register Later” to proceed.

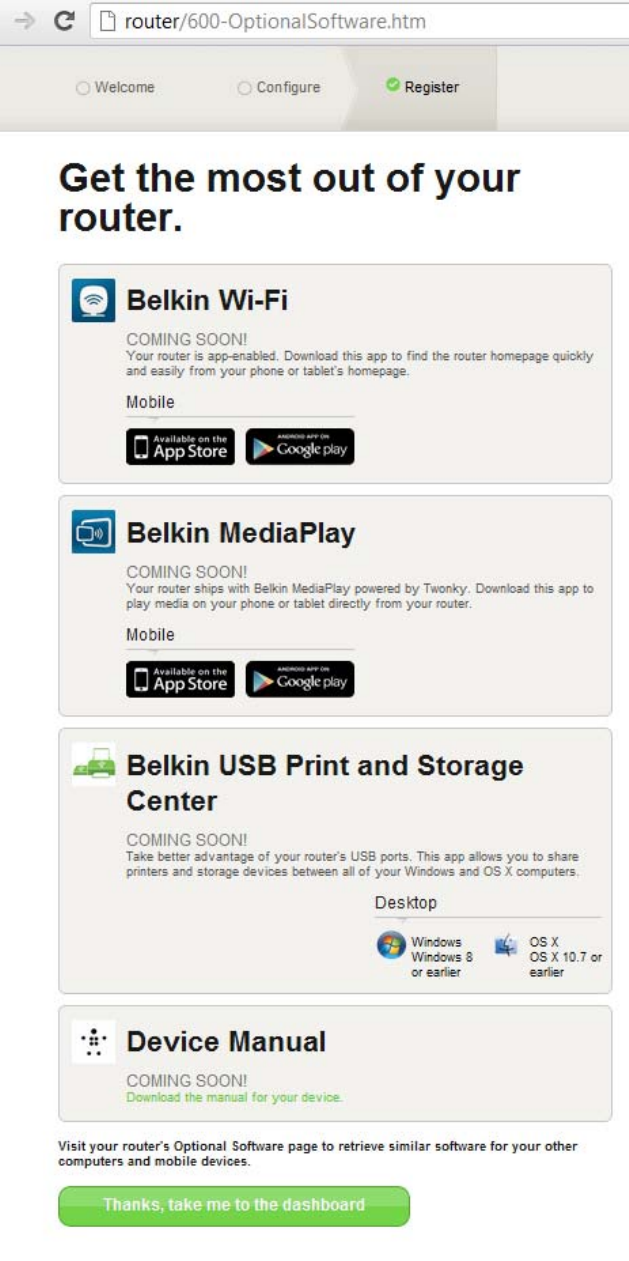

At the next screen you can download optional software that was

bundled with your Router.

This screen shows you optional software that is available for your

Router, such as the USB software to allow you to print through the

Router’s USB port. If you wish to download and install any of

these software programs, simply click on the button appropriate for

your device.

When finished installing optional software, click “Thanks, take me

to the dashboard.”

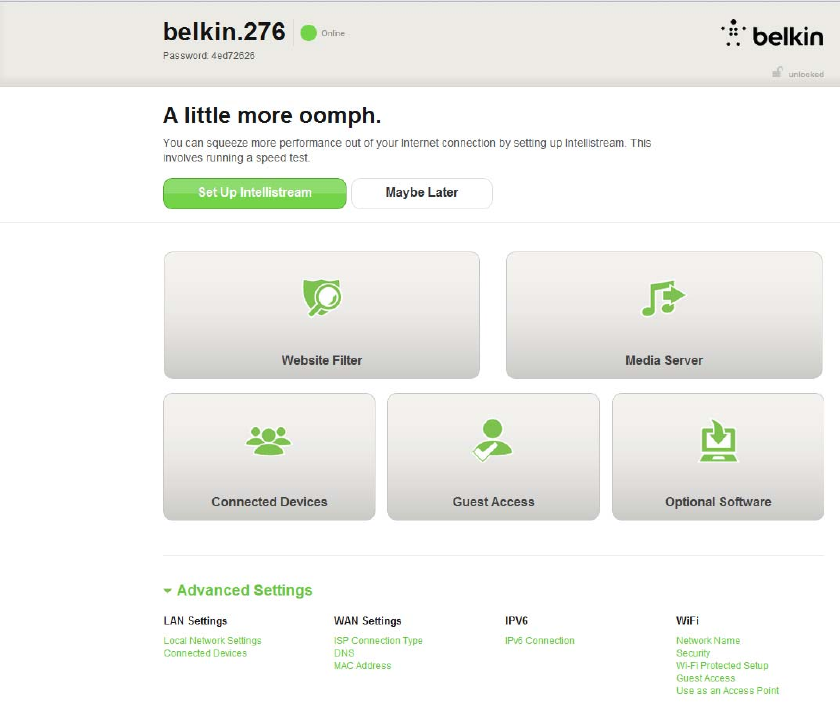

Congratulations! You are now at your Router’s dashboard. Your

Router is now set up and ready to use.

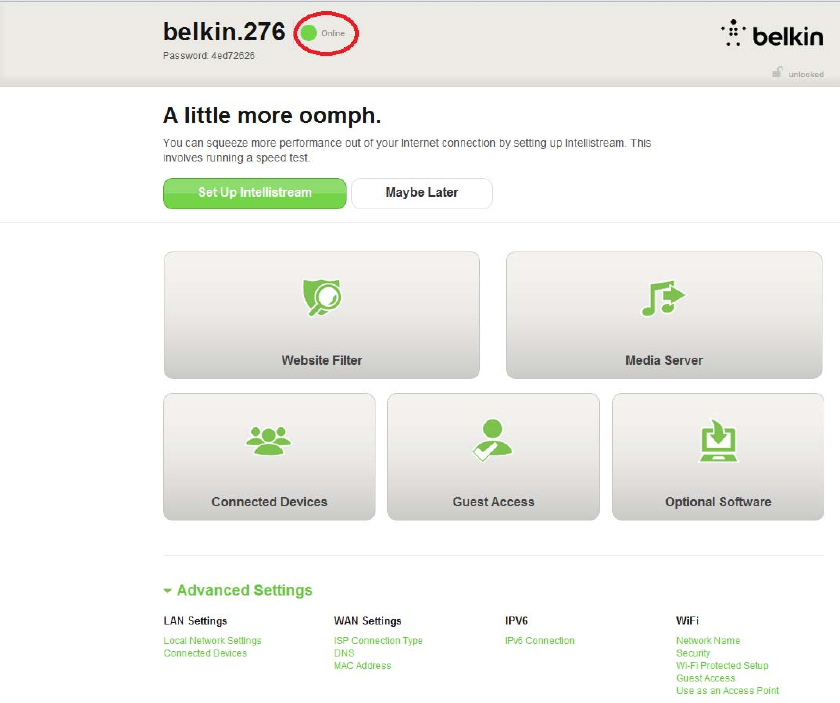

The status of your Internet connection is shown in the

upper left corner of the Router’s homepage.

If it does not say “Online,” troubleshooting information will be

displayed.

Manually Configuring Your Router’s

Internet from the Dashboard

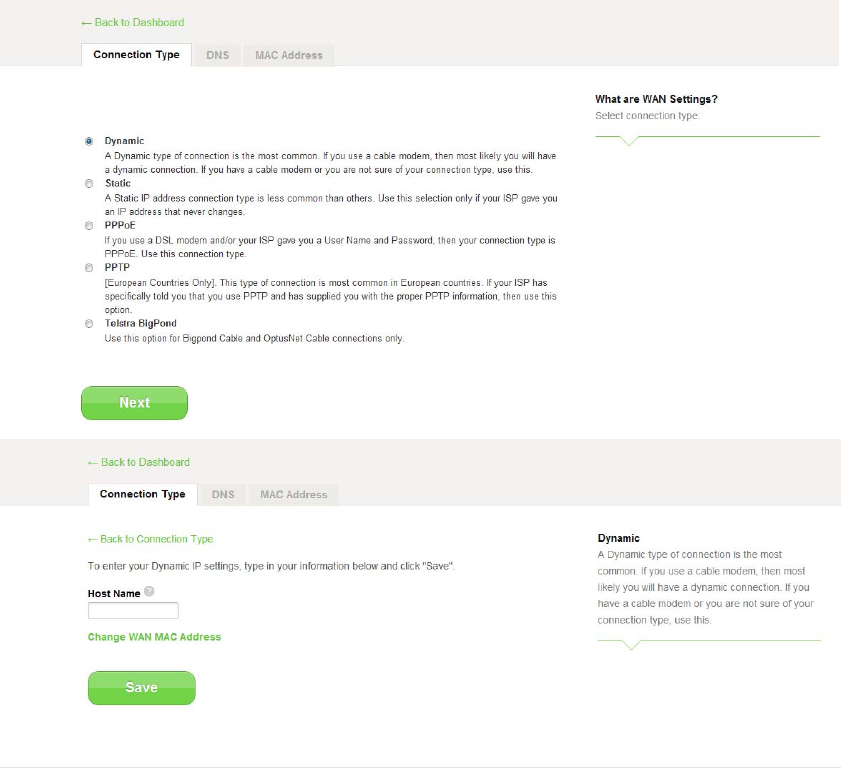

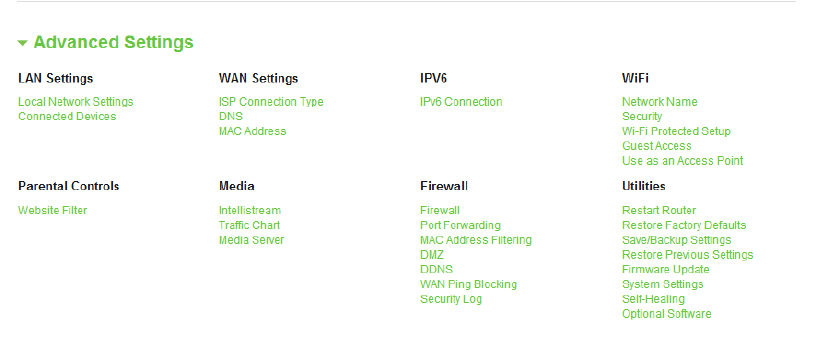

To set up your ISP connection manually, select “ISP Connection

Type” from the list under the header “WAN Settings.”

Dynamic Connection

Cable and fiber customers generally require a dynamic

connection. Some DSL customers require a PPPoE

connection. Let’s try dynamic first. Select “Dynamic” from the

menu that appears and press “Next.”

A host name is generally not required. Hit “Save.” The Router will

restart.

If after a few minutes your Internet Status says “Online,” you’re

done! You can surf the Internet.

If these steps do not work, try restarting your modem and

repeating the process.

If not, we’ll try a PPPoE connection next.

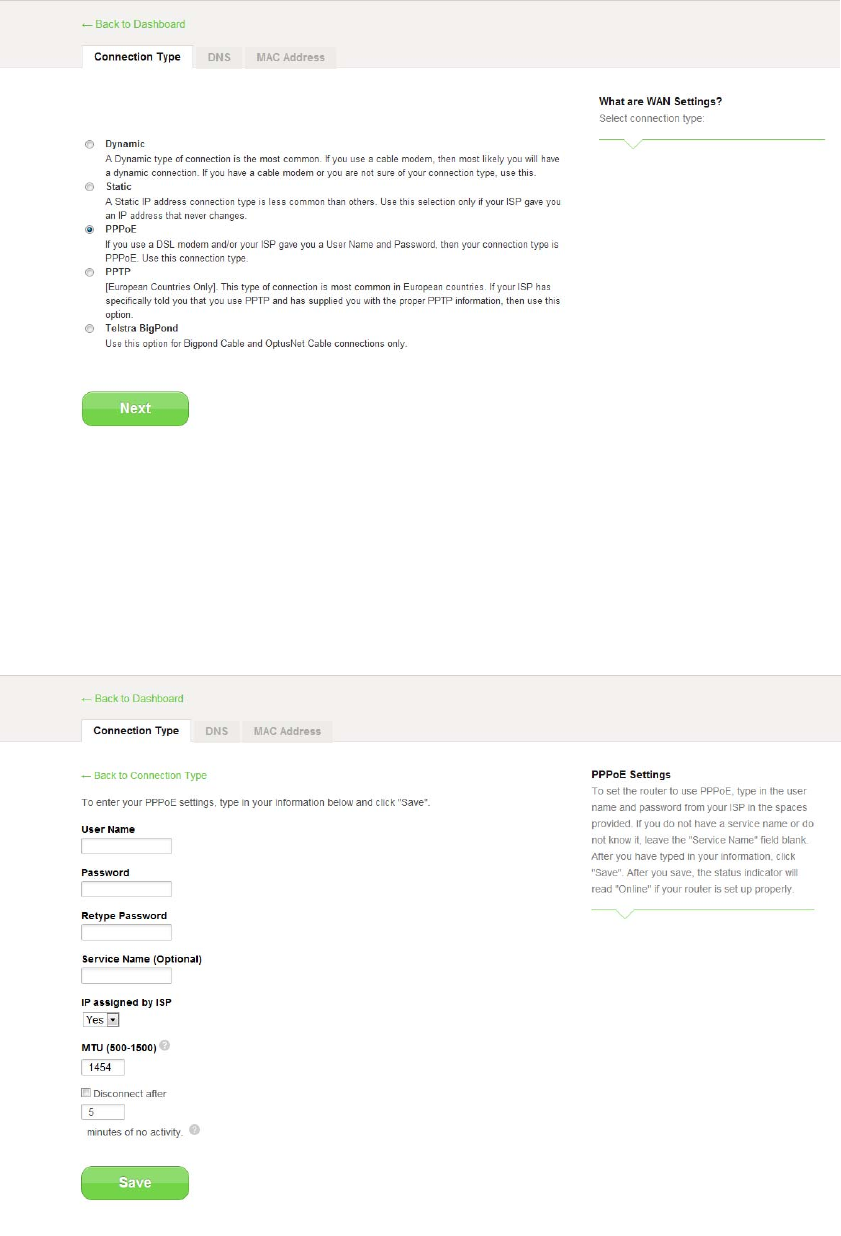

PPPoE Connection

Some DSL customers require a PPPoE connection. Select

PPPoE this time and press “Next.”

Enter the username and password supplied by your Internet

provider and click “Save.” Ignore the other fields unless required

by your ISP. The Router will restart.

If after a few minutes your Internet Status says “Connected,”

you’re done! You can surf the Internet.

If these steps do not work, try restarting your modem and

repeating the process.

Connect Your Wireless Devices

iOS <Add iOS icon from welcome card>

(iPhone, iPad, and iPod touch)

1. Open the Settings app and select the Wi-Fi menu item.

2. Select your wireless network from the list that appears there. If

asked to do so, enter the network password.

Mac OS® X <add Mac icon from welcome card>

Your Mac® provides a menu of available wireless networks at the right

end of the menu bar.

1. Click on the icon showing wireless waves.

2. Select your wireless network from the list that appears there. If

asked to do so, enter the network password.

Android™ <add android icon from welcome card>

(phones and tablets)

1. Open the Settings app and select Wireless and Network.

2. From there, select Wi-Fi to see the list of available networks.

3. Select your wireless network from the list. If asked to do so, enter

your network password

Windows® 7 <add win7 icon from welcome card>

Your computer provides a menu of available wireless networks at the

right end of the task bar.

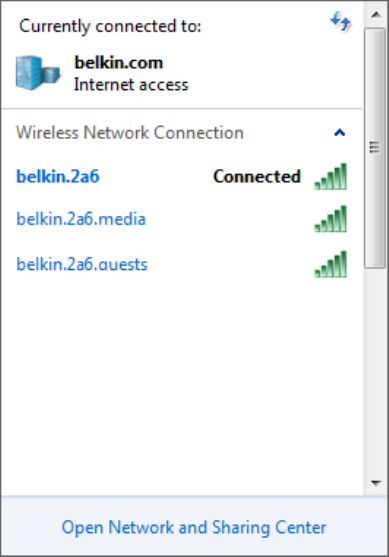

1. Left-click on the icon that looks like signal strength bars.

2. Select your wireless network from the list. If asked, enter your

network password (network key).

Windows Vista® and Windows XP

Your device provides a menu of available wireless networks at the

right end of the task bar.

1. Right-click on the icon that shows a computer with wireless

waves (XP) or two computers (Windows Vista).

2. Choose “View Available Wireless Networks (XP)” or “Connect to a

network (Vista)” from the menu.

3. Select your wireless network from the list. If asked, enter your

network password (network key).

Additional Capabilities

Adding USB Devices

[USBINVITATIONDIAGRAM(TBD)]

AddingaDrive

YoucanshareaUSBharddriveorflashdrivetoyournetworkvia

yourRouter’sUSBport.Onceconnected,youcansharefilesand

musicwithothercomputersanddeviceswithinyournetwork.

PlugyourUSBharddriveintotheUSBportonthebackofyour

Router.

Youcanmanuallycheckthestatusofyourshareddriveby

visitingtheUSBPrintandStorageManager.Ifyouhave

difficultysharingadriveonyournetwork,pleaseseethe

“Troubleshooting”sectionofthismanual.

A few USB hard disks require more power than the Router’s USB port provides. In these

cases, you may notice the drive failing to come on or remaining on for a short time. If

your disk has an optional power supply, please use it while the disk is attached to your

Router.

AddingaPrinter

YoucanaddaprintertoyournetworkviayourRouter’sUSBport.

Onceconnected,youcanprintfromvariouscomputersand

wirelessdeviceswithinyournetwork.

Plugyourprinter’sUSBcableintotheUSBportlocatedontheback

ofyourRouter.

Youcanmanuallycheckthestatusofyourprinterbyvisitingthe

USBPrintandStorageManager,foundundertheBelkinicon

displayedinyoursystemtray(Windows)ormenubar(Mac).Ifyou

havedifficultysharingaprinteronyournetwork,pleaseseethe

“Troubleshooting”sectionofthismanual.

Note:Eachcomputerthatwillusetheprintermusthaveboththe

Belkinsoftwareandtheprinter’sdriverinstalled.Iftheprint

driverisnotinstalled,youwillbeaskedtoinstallitbytheBelkin

USBPrintandStorageManager.

AddingOtherUSBDevices

OtherUSBdevicesmayalsobesharedviayourRouter.Plugyour

deviceintotheUSBportlocatedonthebackofyourRouter.

ComputersrunningtheBelkinUSBPrintandStorageManagerwill

beabletomakeuseoftheshareddevice.

Optional Software

USBPrintandStorageCenter

TheUSBPrintandStorageCenterhelpstomanageandmonitorthe

useofyourUSBprinters,scanners,harddrives,andotherdevices

thatareconnectedtoyourRouter’sUSBportandsharedacross

yournetwork.

Additional Capabilities

GuestAccess

YoucanallowgueststouseyourInternetconnectionwithout

joiningyourpersonalnetwork.Thenetworknameandpassword

fortheguestnetworkislocatedonthenetworkinformationcard

foundunderthefootofyourRouter.

Apersonusingyourguestnetworkwillbeabletojoinwithouta

password,butwillbeshownaloginpagewhentheyattempttosurf

theWeb.Theywillneedtoentertheguestpasswordintothispage

tocontinue.

Media Server by myTwonky

Media Server by myTwonky lets your Router stream music, movies, and photos

to different DLNA/UPnP devices on your network.

In order to use Media Server by myTwonky, you will need to insert a USB

storage device with media content into a free USB port on the back of your

Router. Your Router will begin to make your content available to other devices on

your network automatically.

If you want to configure Media Server by myTwonky, visit http://router/ and

choose “Media Server.”

There are several settings in the configuration page:

DLNA Server: Enables or disables your media server

Server Name: The name under which other devices will see your content

Refresh: Re-scans your USB storage devices for media content

Shared Drives: Shows information about and status of each of your attached

drives. You can see the name of the drive, its capacity, and whether media is

being served from it or not.

When you click “Save,” your Router will save your changes.

Website Filters. Powered by Norton

Web filters provide a first layer of whole-home Internet protection to guard you

from unsafe and inappropriate websites on any device on your network.

There are four different filtering options:

1. Block malicious, adult, and other non-family-friendly sites

2. Block malicious and adult sites

3. Block malicious sites

4. No filters

If you think a site should be added to the filtering list, submit a request at

safeweb.norton.com.

Content filtering may not work as intended if:

1. You are connecting through a VPN router.

2. You are routing traffic through a proxy server.

3. You have previously visited the site and it has been stored in your cache.

4. You manually set the DNS servers on your computer, tablet, or

smartphone.

Intellistream QoS

Intellistream prioritizes video and gaming traffic for a better online entertainment

experience.

There are two ways to enable Intellistream:

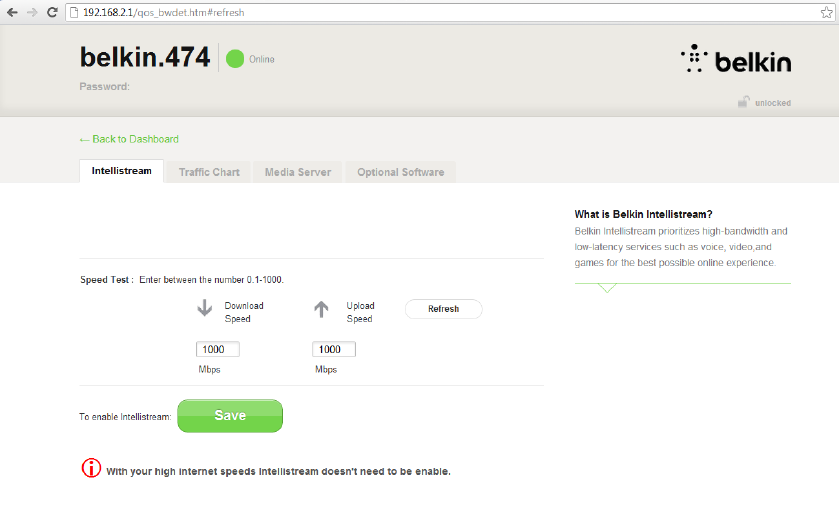

Run a Speed Test:

In order for Intellistream to provide you the best media experience, your Router

needs to know what your approximate Internet speeds are.

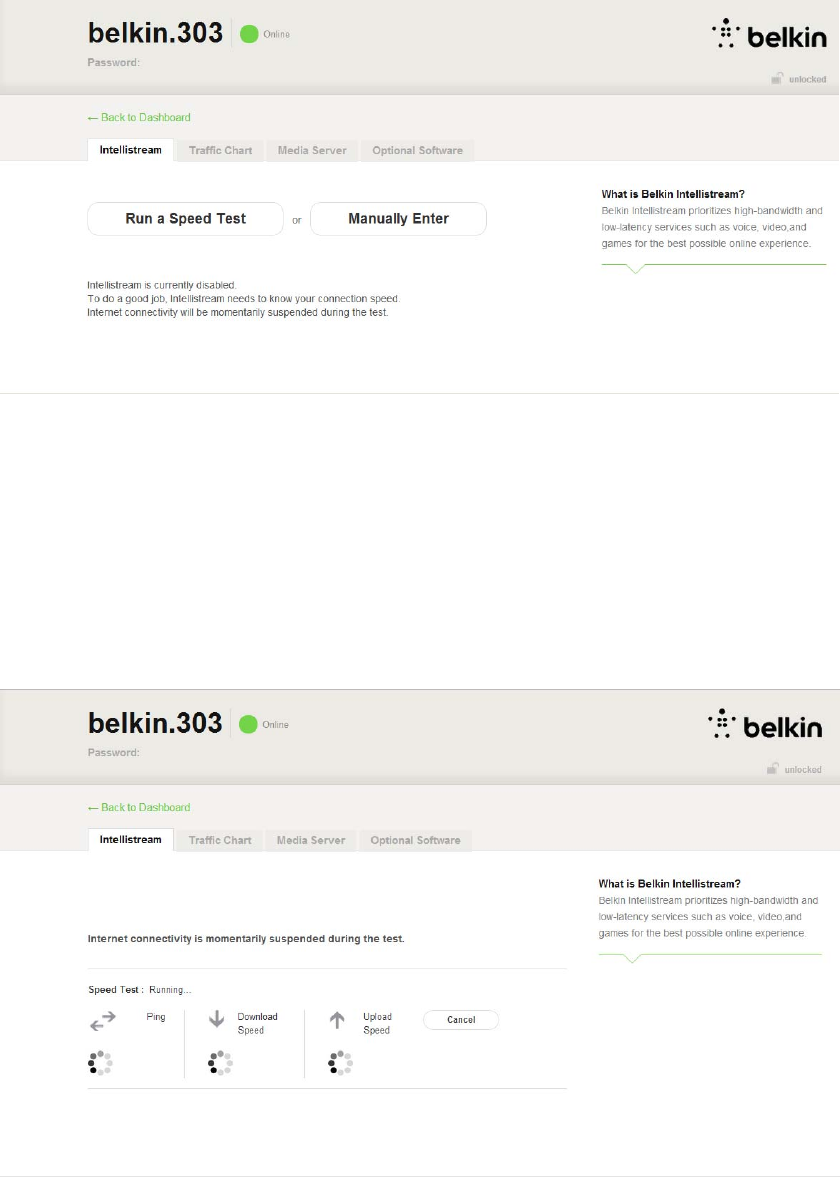

Click “Run a Speed Test” and the test will begin.

Once complete you will see the results.

If your Internet speed is greater than 70Mbps when downloading, Intellistream

QoS will only improve your uploading experience.

Refresh – This will retest your Internet speed.

When you click “Save,” your Router will save your changes.

Manual set – This will let you set your approximate Internet speeds. If you do not

know your Internet speeds, contact your ISP.

When you click “Save,” your Router will save your changes.

Intellistream is now enabled.

IPv6 Configuration

A new version of Internet Protocol (IP) uses a 128-bit address to implement

additional features that are not present in current IP addresses.

Contact your ISP to inquire about their support for IPv6.

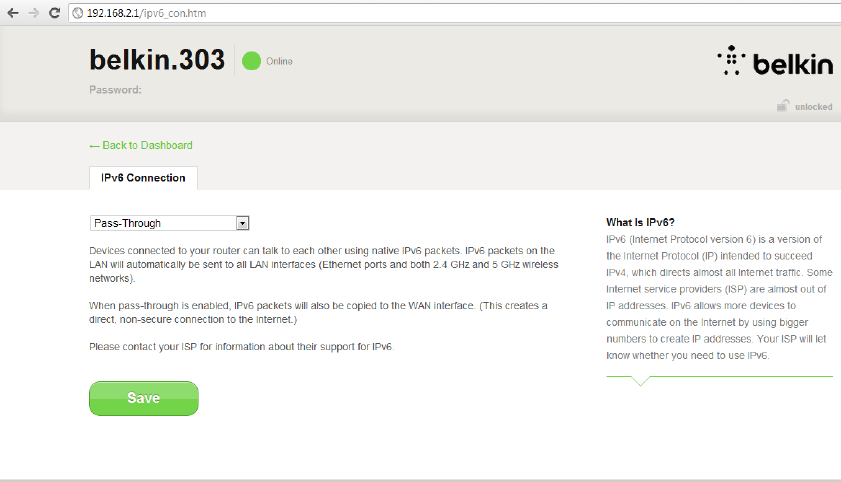

Pass-Through

Devices connected to your Router can talk to each other using

native IPv6 packets, but information will be sent to all connected

devices. Pass-through is not efficient and is not recommended for

consistent use.

Getting to Know Your Router

Front Panel

[DIAGRAMfront.ai]

A)RouterStatusLight

YourRouter’sstatusisshownbythelightonthefront.

Off:TheRouterisnotpluggedintoapowersource.

BlinkingBlue:TheRouterisstartingup.

SolidBlue:TheRouterisconnectedtotheInternet.

BlinkingAmber:TheRoutercan’tdetectthemodem.Eitherthemodemis

off,isnotpluggedintotheRouter,orisunresponsive.

B)Wi‐FiProtectedSetup(WPS)LightandButton

TheWPSbuttononthefrontofyourRoutercanbeusedtohelp

establishasecureconnectionbetweenyourRouterandotherWPS‐

enabledWi‐Fidevicessuchascomputers.TouseWPS,referto

page9.

ThesmalllightneartheWPSbuttonshowswhatishappening

whileyouareusingWPStoestablishaconnection.

Off:Idle

BlinkingBlue:TheRouterislisteningforaWPS‐enabledcomputeror

otherdevice.

SolidBlue:TheRouterhasmadeasecureconnectionwiththecomputeror

otherdevice.

Amber:Aconnectionwasnotcreated.

Back Panel

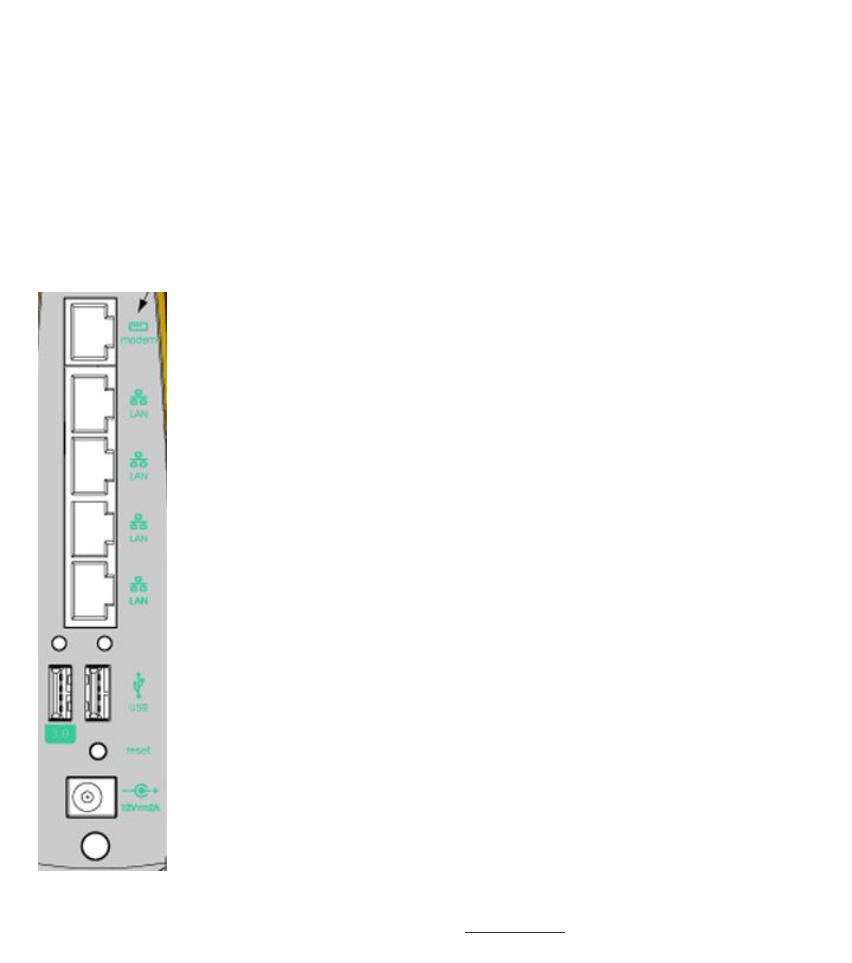

[RDIAGRAMFORSHAREANDPLAYr_shareplay_back.ai]

A)Modem(WAN)Connector

ConnectyourmodemtothisportusinganEthernetcable.

B)Wired(LAN)Connectors

Connectcomputersandotherwirednetworkdevicestotheseports

usingEthernetcables.

C)USBPort

USBprinters,disks,andotherUSBdevicespluggedintothisport

willbesharedonyournetwork.EachUSBporthasalightthat

indicatesitsstatus.

Off:NoUSBdeviceisconnectedortheattachedUSBdeviceisnotinuse.

Blinking:Pleasewaittounplugthedeviceuntilthelightturnsoff.

On:TheUSBdeviceisconnectedandbeingsharedonyournetwork.

D)ResetButton

ThisbuttonisusedtorestartyourRouterinrarecaseswhenit

functionsincorrectly.ResettingtheRouterwillpreserveyour

settings.Thisbuttonmayalsobeusedtorestorethefactorydefault

settings.PleaseseetheTroubleshootingsectionformore

information.

E)PowerConnector

Connecttheincludedpowersupplytothisjack.

Technical Details

Technical Features

Integrated 802.11n Wireless Access Point

Utilizing Dual-Band Network technology, your Router creates two

separate networks (one at 2.4GHz band and the other at 5GHz band),

allowing increased bandwidth to all your connected wireless devices and

computers.

NAT IP Address Sharing

To save you the cost of adding IP addresses per computer in your house,

your Belkin Router uses Network Address Translation (NAT) technology,

allowing you to share a single IP address across your network.

SPI Firewall

Your Router is equipped with a firewall that will protect your network

from a wide array of common attacks and viruses.

Universal Plug-and-Play (UPnP) Compatibility

UPnP offers seamless operation of voice and video messaging, games, and

other applications that are UPnP-compliant.

Web-Based Advanced User Interface

You can easily make changes to your Router’s advanced settings through

your web browser. These changes can be made from any computer on your

network.

Integrated 4-Port 10/100 Switch

Your Router has a built-in, 4-port network switch to allow your wired

computers to share: printers, data, MP3 files, digital photos, and much

more.

USB Port

The USB port lets you plug in printers, hard drives, and other USB

devices to share across your network.

System Requirements

Router

Broadband Internet connection such as a cable or DSL modem with RJ45

(Ethernet) connection

At least one computer with an installed network interface adapter

TCP/IP networking protocol installed on each computer

RJ45 Ethernet networking cable

Internet browser

Setup

A computer running Internet Explorer® 8 or higher, Firefox®, Google

Chrome™, or Safari®

Minimum 1GHz processor and 512MB RAM

Or a smart device running iOS or Android operating systems

USB Print and Storage Manager

Windows XP SP3 or higher, Windows Vista, or Windows 7; or Mac OS X

v10.5 or above

Minimum 1GHz processor and 512MB RAM

50MB of free hard-drive space for installation

Using Your Router

Auto Update on Your Belkin Router

The Router will automatically check for a newer version of firmware every time you log into the

dashboard and alert you with a message at the top of the screen if there is an update

available. You can choose to download the new version or ignore it.

You will see a series of prompts warning you that the firmware is about to be updated. Please

do not disconnect the power from the Router at this time as it could cause the system to fail.

Updating the Router’s Firmware via the Web Interface

The following steps show you how to update your Router’s firmware using its web interface.

You do not need to be connected to the Internet as this interface is built into the Router

itself.

Setup steps:

1. Locate and download the firmware file from the Belkin support site. (Type your part

number into the search box in the top right corner and look for “Firmware” in the title.)

2. Save the file to a location on your computer where you can get to it easily, such as your

desktop.

3. Connect the computer to one of the four LAN ports on the Router (refer to image).

4. Open a web browser on the computer.

5. In the address bar of the web browser, type “http://router” or “http://192.168.2.1” and

press “Enter” on your keyboard.

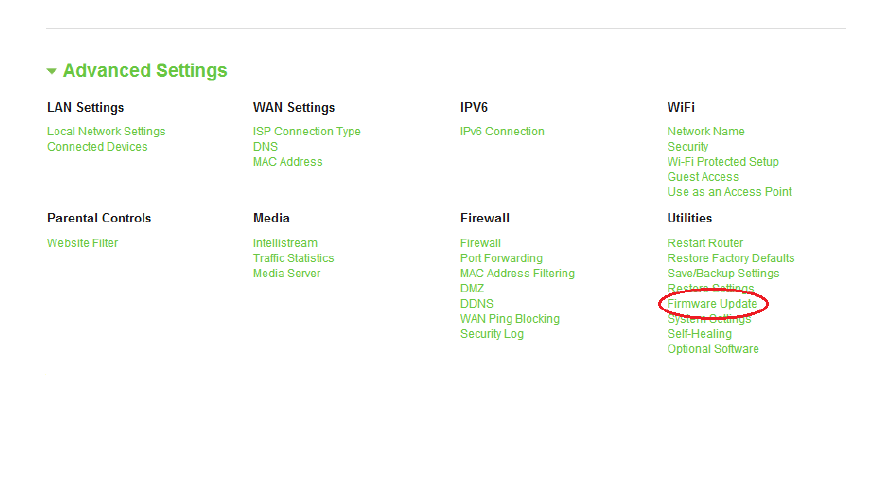

6. Click on “Firmware Update” toward the bottom.

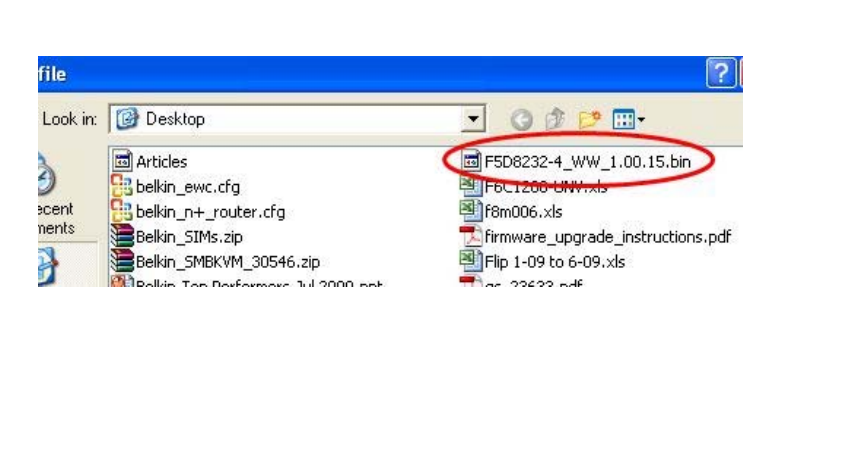

7. Click the “Choose File” button toward the middle of the screen to search for the file you

saved previously.

Note: The firmware version in the image above is depicted as an example. Your file name will

vary depending on your model and version.

8. Select the firmware file by left-clicking on it and then click the “Open” button in the lower-

right corner of the window. This will take you back into the Router’s interface.

9. Click the “Update” button.

10. A prompt asking, “Are you sure you want to continue with upgrading?” will appear. Click

“OK”.

11. A second prompt will open telling you the Router will not respond during the upgrade and

warning you not to remove the power supply from the Router. Click “OK” once more.

Congratulations. The firmware has been updated successfully.

Resetting the Router

Reset Button – Red

The “Reset” button is used in rare cases when the Router may function improperly. Resetting the

Router will restore the Router’s normal operation while maintaining the programmed settings. You

can also restore the factory default settings by using the “Reset” button. Use the restore option in

instances where you may have forgotten your custom password.

Resetting the Router

Push and release the “Reset” button. The lights on the Router will momentarily flash. The

“Router” light will begin to blink. When the “Router” light becomes solid again, the reset is

complete.

Restoring Your Router to Factory Defaults

Press and hold the “Reset” button for at least 5 seconds, and then release it. The lights on the

Router will momentarily flash. The “Router” light will begin to blink. When the “Router” light

becomes solid again, the restore is complete.

Restoring the Router to Default Settings Using the Web Interface

Symptoms

You need to restore the factory defaults using the web interface. This may be because the

Router is not performing as expected or you wish to remove all previously configured

settings.

Setup steps:

1. Open a web browser on the computer.

2. In the address bar of the web browser, type “http://router” or “http://192.168.2.1”.

3. Click on “Restore Factory Defaults” in the left-hand column under the “Utilities”

heading.

4. Click on the “Restore Defaults” button.

5. A warning box will open that says, “Warning: All your settings will be lost. Are you sure

you want to do this?” Click “OK”.

6. The Router will begin the restoring process. Once the restore is complete, the Router will

reboot.

Note: This may take several minutes.

Your Router has successfully been restored to its factory settings.

Troubleshooting, Support, and Warranty

Troubleshooting

Ican’tconnecttotheInternetwirelessly.

IfthelightonthefrontoftheRouterissolidblue,thenyourRouter

isconnectedtotheInternet.Youmaynotbeconnectedtothe

Router’swirelessnetwork.Pleasereferto“ConnectYourWireless

Devices”onpage20ofthismanualforinstructions.

If your Windows XP computer is running SP2, you will not be able to set up the Router

via the wireless setup process. You will need to either update to Windows XP SP3 or

complete the setup via a wired connection.

Ican’tconnecttotheInternetwirelesslyandmynetworknameisnotlistedin

AvailableNetworks.

1)VerifythatyourRouterisonandthefront‐panellightshows

solidblue.

2)IfyouarefarfromtheRouter,youmighttrymovingcloserto

seeifyoumighthavebeenoutofrange.

3)UsingacomputerattachedtotheRouterviaanetworkcable,

visithttp://router/andensurethat“BroadcastSSID”isON.

Thissettingisfoundonthe“ChannelandSSID”page.

Mywirelessnetworkperformanceisslow,inconsistent,suffersfromweak

signal,orI’mhavingdifficultymaintainingaVPNconnection.

Wireless technology is radio-based, which means connectivity

and the throughput performance between devices decreases

when the distance between devices increases. Other factors that

will cause signal degradation (metal is generally the worst

culprit) are obstructions such as walls and metal appliances.

Note also that connection speed may decrease as you move

farther away from the Router.

In order to determine if wireless issues are related to range, we

suggest temporarily moving the computer within 10 feet from

the Router if possible.

Changing the wireless channel—Depending on local wireless traffic and

interference, switching the wireless channel of your network can

improve performance and reliability. See the section titled

“Changing the Wireless Channel” for instructions on how to

choose other channels.

Limiting the wireless transmit rate—Limiting the wireless transmit rate can

help improve range and connection stability. Most wireless

cards have the ability to limit the transmission rate. To change

this property in Windows, go to the Windows Control Panel,

open “Network Connections”, and double-click on your wireless

card’s connection. In the properties dialog, select the

“Configure” button on the “General” tab, then choose the

“Advanced” tab and select the rate property.

Wireless client cards are usually set to automatically adjust the

wireless transmit rate for you, but doing so can cause periodic

disconnects when the wireless signal is too weak; as a rule,

slower transmission rates are more stable. Experiment with

different connection rates until you find the best one for your

environment. Note that all available transmission rates should

be acceptable for browsing the Internet. For more assistance,

see your wireless card’s user manual.

I’veinstalledthisnewRouterandsomeofmynetworkclients(computers,

gameconsoles,etc.)arenowunabletoconnect.

YournewRoutercamepre‐configuredwithanetworknameand

password,foundprintedonanattachedcard.Allclientsmustuse

thisnetworknameandpasswordtoconnectwirelesslytoyour

Router.Youwillneedtofindthenetworksettingsonyourclient,

selectthenetworknameprintedonthecardfromthelistof

availablenetworks,andenterthepasswordwhenpromptedtojoin

thewirelessnetwork.

DoestheRoutersupportWirelessProtectedAccess(WPA)security?

TheRoutershipswithWPA/WPA2securityturnedon.WindowsXP

andsomeoldernetworkhardwaremayrequireasoftwareupdate

tosupportWPA/WPA2.

IamhavingdifficultysettingupWPAsecurityonmyRouter.

1)LogintoyourRouterbyvisiting“http://router/”or

“http://192.168.2.1”withyourwebbrowser.Click“Security”

undertheWiFiheading.YoushouldnowbeontheSecurity

page.

2)UnderSecurityMode,selectWPA/WPA2‐Personal(PSK).

3)Select“WPA/WPA2”

fromthedrop‐downmenuundertheAuthenticationheading

4).Enterapassword.Thiscanbefrom8–63charactersofyour

choice,includingspacesandpunctuation,ORa64‐digit

hexadecimalnumber(usingonlythenumbers0–9andletters

A–F).

5)Click“Save”tofinish.Yourwirelessconnectionisnow

encrypted.Eachcomputerusingyourwirelessnetworkwill

needtousethenewkey.

Note:IfyouareconfiguringtheRouteroverawireless

connection,youwillhavetore‐connecttotheRouterafter

changinganysecuritysettings.

Note:SomeoldernetworkinghardwaresupportsonlyWEP

encryption.Ifyouroldercomputerscannotconnecttoyour

network,try128‐bitor64‐bitWEP,orseeksoftwareupdates

fromtheirmanufacturers.

IamhavingdifficultysettingupWiredEquivalentPrivacy(WEP)securityonmy

Router.

1)LogintoyourRouter.Visit“http://router/”or

“http://192.168.2.1”withyourwebbrowser.Click

“Security” under the WiFi heading. You should now be on

the Security page.

2)UnderSecurityMode,selectthe“128‐bitWEP”option.

3)YoumaytypeinaWEPkeymanually,orgenerateonefroma

passphrase.Typeaphraseinthe“Passphrase”fieldandclick

the“Generate”button.AWEPkeyiscomposedof26

hexadecimaldigits(0–9,A–F).Forexample,C3030FAF4B

B2C3D44BC3D4EE74isavalid128‐bitWEPkey.

4)Click“Save”tofinish.Yourwirelessactivityisnowencrypted.

Eachcomputerusingyourwirelessnetworkwillneedtouse

thenewkey.

Note:IfyouareconfiguringtheRouteroverawireless

connection,youwillhavetore‐connecttotheRouterafter

changinganysecuritysettings.

Note:Someoldernetworkinghardwaresupportsonly64‐bit

WEPencryption.Ifyouroldercomputerscannotconnectto

yournetwork,try64‐bitWEP.

AdiskIpluggedintotheUSBportisnotshowinguponmycomputer.

1)Tryunpluggingandre‐pluggingthedisk.Pleasecheckthat

theUSBconnectorisfirmlypluggedintotheRouter.

2)Ifyourdiskhasanoptionalpowersupply,pleaseuseitwhile

thediskisattachedtoyourRouter.

3)TheRoutersupportsFAT16,FAT32‐,orNTFS‐formatteddisks.

DisksinotherformatswillnotappearintheFinder(MacOS

X)orWindowsInternetExplorer®.

AdiskIpluggedintotheUSBportisnotcomingonorremainsononlyfora

shorttime.

SomedrivesrequiremorepowerthantheRouter’sUSBportprovides.If

yourdiskhasanoptionalpowersupply,pleaseuseitwhilethediskis

attachedtoyourRouter.



AprinterIpluggedintotheUSBportisnotshowinguponmycomputer.

1)Tryunpluggingandre‐pluggingtheprinter.Pleasecheckthat

theUSBconnectorisfirmlypluggedintotheRouter.

2)ToprinttoaprinterattachedtotheRouter,yourcomputer

musthavethatprinter’sdriverinstalled.Pleasecheckthat

thedriverisinstalled.

3)Theprintermaynotbesettoauto‐connect.OpentheUSB

PrintandStorageCenter.Checkthattheprinterappearsin

thelistofavailabledevices.Viewthepropertiesoftheprinter,

andcheckthat“auto‐connect”isselected.

AdifferentsortofUSBdevicethatIpluggedintotheUSBportisnotshowingup

onmycomputer.

MostUSBdevicesotherthandisksandprintersmustbe

accessedviatheUSBPrintandStorageCenter.

1)Tryunpluggingandre‐pluggingthedevice.Pleasecheckthat

theUSBconnectorisfirmlypluggedintotheRouter.

2)OpentheUSBPrintandStorageCenter.Checkthatthedevice

appearsinthelistofavailabledevices.

3)Selectthedeviceandclickthe“Use”button.Thedevicewill

bevirtuallyconnectedtoyourcomputeruntilyouchooseto

“StopUsing”thedevice,oranotherpersonrequestsuseofthe

device.

Technical Support

US

http://www.belkin.com/support

UK

http://www.belkin.com/uk/support

Australia

http://www.belkin.com/au/support

NewZealand

http://www.belkin.com/au/support

Singapore

1800 622 1130

Europe

http://www.belkin.com/uk/support

Belkin International, Inc., Limited 2-Year Product Warranty

What this warranty covers.

Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this

Belkin product that the product shall be free of defects in design, assembly,

material, or workmanship.

What the period of coverage is.

Belkin warrants the Belkin product for two years.

What will we do to correct problems?

Product Warranty.

Belkin will repair or replace, at its option, any defective product free of charge

(except for shipping charges for the product). Belkin reserves the right to

discontinue any of its products without notice, and disclaims any limited warranty

to repair or replace any such discontinued products. In the event that Belkin is

unable to repair or replace the product (for example, because it has been

discontinued), Belkin will offer either a refund or a credit toward the purchase of

another product from Belkin.com in an amount equal to the purchase price of the

product as evidenced on the original purchase receipt as discounted by its

natural use.

What is not covered by this warranty?

All above warranties are null and void if the Belkin product is not provided to

Belkin for inspection upon Belkin’s request at the sole expense of the purchaser,

or if Belkin determines that the Belkin product has been improperly installed,

altered in any way, or tampered with. The Belkin Product Warranty does not

protect against acts of God such as flood, lightning, earthquake, war, vandalism,

theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse,

damage due to low voltage disturbances (i.e. brownouts or sags), non-authorized

program, or system equipment modification or alteration.

How to get service.

To get service for your Belkin product you must take the following steps:

1. Contact Belkin International, Inc., at 12045 E. Waterfront Drive, Playa

Vista, CA 90094, Attn: Customer Service, or call (800)-223-5546, within 15 days

of the Occurrence. Be prepared to provide the following information:

a. The part number of the Belkin product.

b. Where you purchased the product.

c. When you purchased the product.

d. Copy of original receipt.

2. Your Belkin Customer Service Representative will then instruct you on

how to forward your receipt and Belkin product and how to proceed with your

claim.

Belkin reserves the right to review the damaged Belkin product. All costs of

shipping the Belkin product to Belkin for inspection shall be borne solely by the

purchaser. If Belkin determines, in its sole discretion, that it is impractical to ship

the damaged equipment to Belkin, Belkin may designate, in its sole discretion, an

equipment repair facility to inspect and estimate the cost to repair such

equipment. The cost, if any, of shipping the equipment to and from such repair

facility and of such estimate shall be borne solely by the purchaser. Damaged

equipment must remain available for inspection until the claim is finalized.

Whenever claims are settled, Belkin reserves the right to be subrogated under

any existing insurance policies the purchaser may have.

How state law relates to the warranty.

THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN. THERE

ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED

BY LAW, IMPLIED, INCLUDING THE IMPLIED WARRANTY OR CONDITION

OF QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY, ARE LIMITED IN

DURATION TO THE TERM OF THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so

the above limitations may not apply to you.

IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL,

DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS,

BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT OF THE

SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

This warranty gives you specific legal rights, and you may also have

other rights, which may vary from state to state. Some states do not

allow the exclusion or limitation of incidental, consequential, or other

damages, so the above limitations may not apply to you.

*Regulatory Information

FCC Statement

DECLARATION OF CONFORMITY WITH FCC RULES FOR

ELECTROMAGNETIC COMPATIBILITY

We, Belkin International, Inc., of 12045 E. Waterfront Drive, Playa Vista, CA

90094, declare under our sole responsibility that the device, F9K1115V2,

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this

equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

For product available in the USA/Canada market, only channel 1~11 can be

operated. Selection of other channels is not possible.

This device and it's antennas(s) must not be co-located or operating in

conjunction with any other antenna or transmitter except in accordance with FCC

multi-transmitter product procedures.

This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in

indoor environment only.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

Modifications

The FCC requires the user to be notified that any changes or modifications to this

device that are not expressly approved by Belkin International, Inc., may void the

user’s authority to operate the equipment.

Industry Canada Statement

This device complies with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne

doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

For product available in the USA/Canada market, only channel 1~11 can be

operated. Selection of other channels is not possible.

Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent

être exploités. Sélection d'autres canaux n'est pas possible.

This device and it's antennas(s) must not be co-located or operating in conjunction with any other

antenna or transmitter except in accordance with IC multi-transmitter product procedures.

Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association

avec une autre antenne ou transmetteur.

Under Industry Canada regulations, this radio transmitter may only operate using

an antenna of a type and maximum (or lesser) gain approved for the transmitter

by Industry Canada. To reduce potential radio interference to other users, the

antenna type and its gain should be so chosen that the equivalent isotropically

radiated power (e.i.r.p.) is not more than that necessary for successful

communication.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut

fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour

l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique

à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la

puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à

l'établissement d'une communication satisfaisante.

The device for the band 5150-5250 MHz is only for indoor usage to reduce

potential for harmful interference to co-channel mobile satellite systems;

les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une

utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de

satellites mobiles utilisant les mêmes canaux;

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limits set forth for

an uncontrolled environment. This equipment should be installed and operated

with minimum distance 20cm between the radiator & your body.

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour

un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un

minimum de 20 cm de distance entre la source de rayonnement et votre corps.

*Back cover

registered trademarks of respective manufacturers listed. iPad, iPhone, iPod

touch, Mac, Mac OS, and Safari are trademarks of Apple Inc., registered in the

U.S. and other countries. Windows, Windows Vista, Internet Explorer, and

DirectX are either registered trademarks or trademarks of Microsoft Corporation

in the United States and/or other countries. Android and Google Chrome are

trademarks of Google Inc.

Belkin F9K1115V2 AC1750 DB WI-FI DUAL-BAND AC+ GIGABIT ROUTER User Manual

Belkin International, Inc. AC1750 DB WI-FI DUAL-BAND AC+ GIGABIT ROUTER

User Manual

Navigation menu

Namespaces

Views

Navigation
