BE2022 Maxi Pro TV streamer
About the TV streamer
The Maxi Pro TV streamer enables you to hear the television
at a volume that suits you, without aecting the volume for
anyone else in the room. It streams the sound in full stereo via
Bluetooth to your Maxi Pro personal amplier.

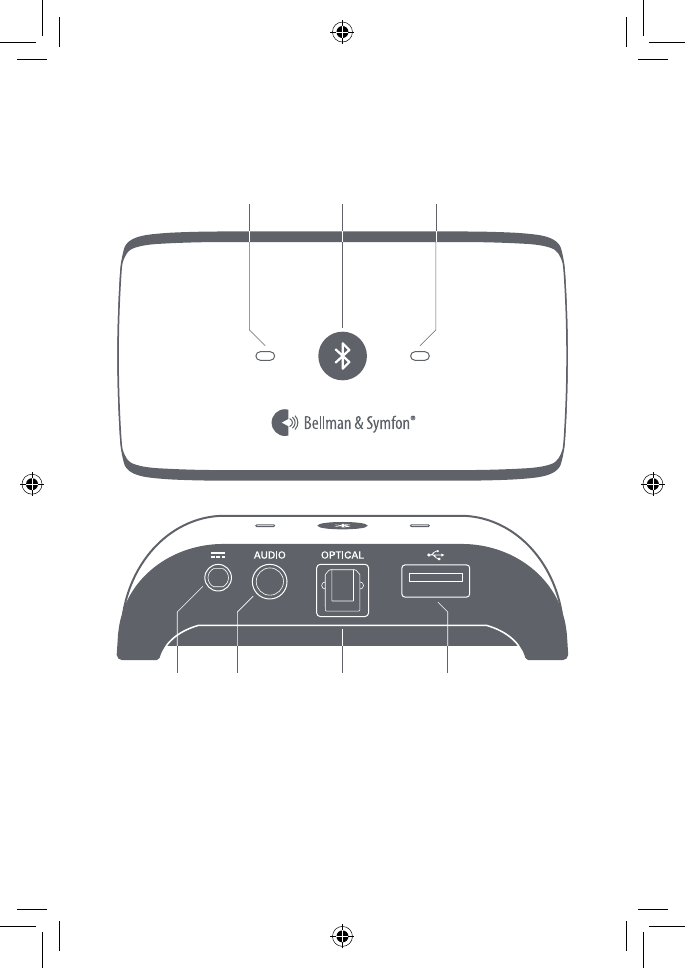

Power
indicator
Bluetooth
indicator
Bluetooth
button
Power
input
Audio
input
Optical
input
USB charging
output
L
AUDIO OUTPUT HEADPHONES OPTICAL
R
What you need to get started
To set up your TV streamer, you also need:
A TV with an RCA, headphone
or optical audio port
What’s in the box

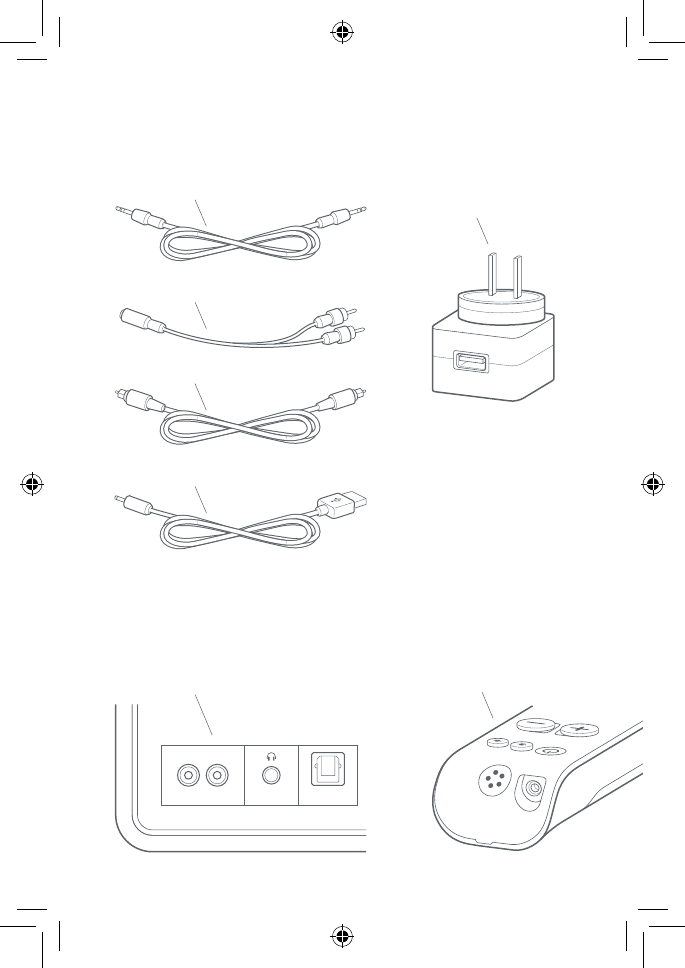

Along with the TV streamer, the following items are included:
A mini-stereo cable
A mini-stereo-to-RCA adapter
A ber optic cable
A power adapter
(Your plug may look dierent)
A Maxi Pro
personal amplier
A DC-connector-to-USB cord
Setting up the TV streamer
Step 1: Connecting audio
There are several ways to connect the TV streamer to your TV.
It depends on what type of audio ports your TV has.

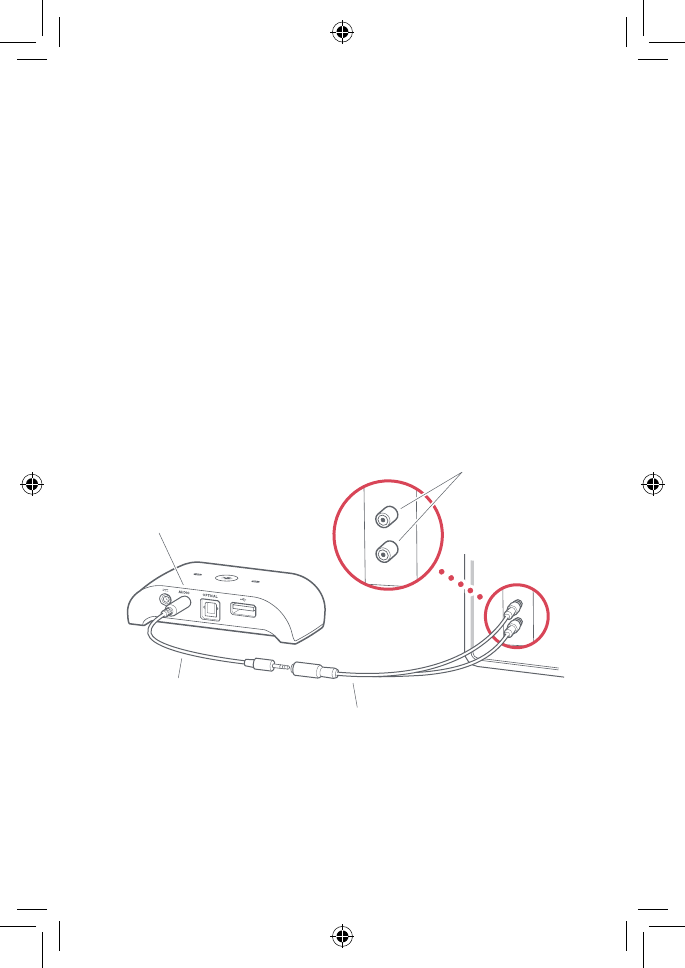

Using the TV’s RCA output
1 Connect one end of the mini-stereo cable to the audio
input on the back of the TV streamer.
2 Connect the other end to the mini-stereo-to-RCA adapter.
3 Connect the RCA plugs to the audio output on your TV.
Note: You can also connect the mini-stereo cable directly to
the headphone output on your TV. Please note that this may
mute the speakers on some TV models.
Audio input
Mini-stereo cable
Mini-stereo-to RCA adapter
Television
RCA left & right
audio output

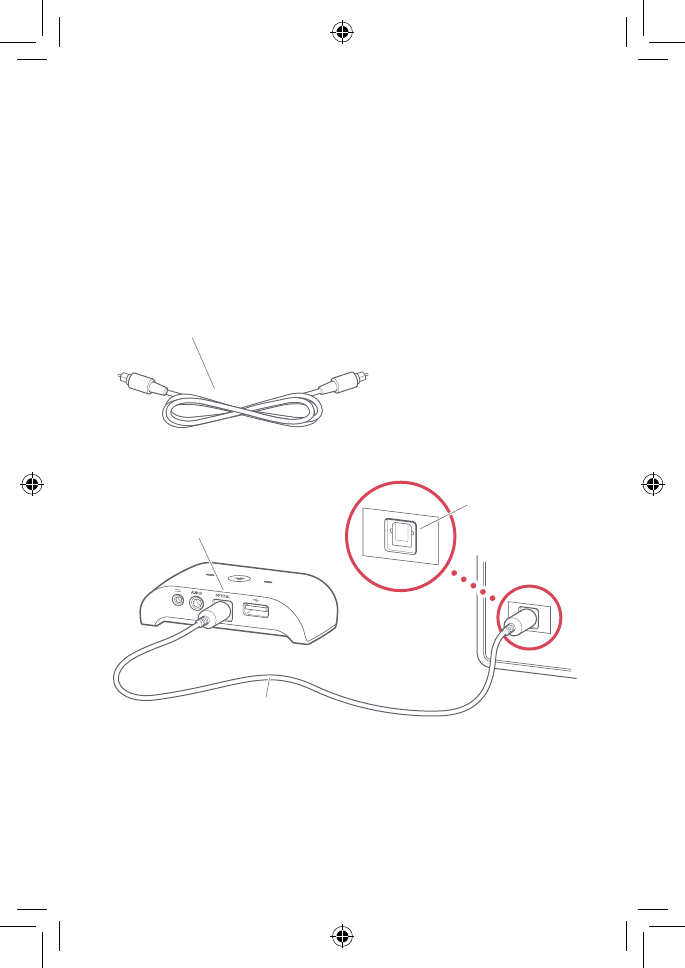

Using the TV’s optical output
If your TV features an optical output, you can use the ber
optic cable to connect the TV streamer to your TV. Here is
how you connect it:
1 Connect one end of the cable to the optical input on the
back of the TV streamer.
2 Connect the other end to the optical output on your TV.
Fiber optic cable
RCA left & right
audio output
Optical input
Fiber optic cable Television
Optical output

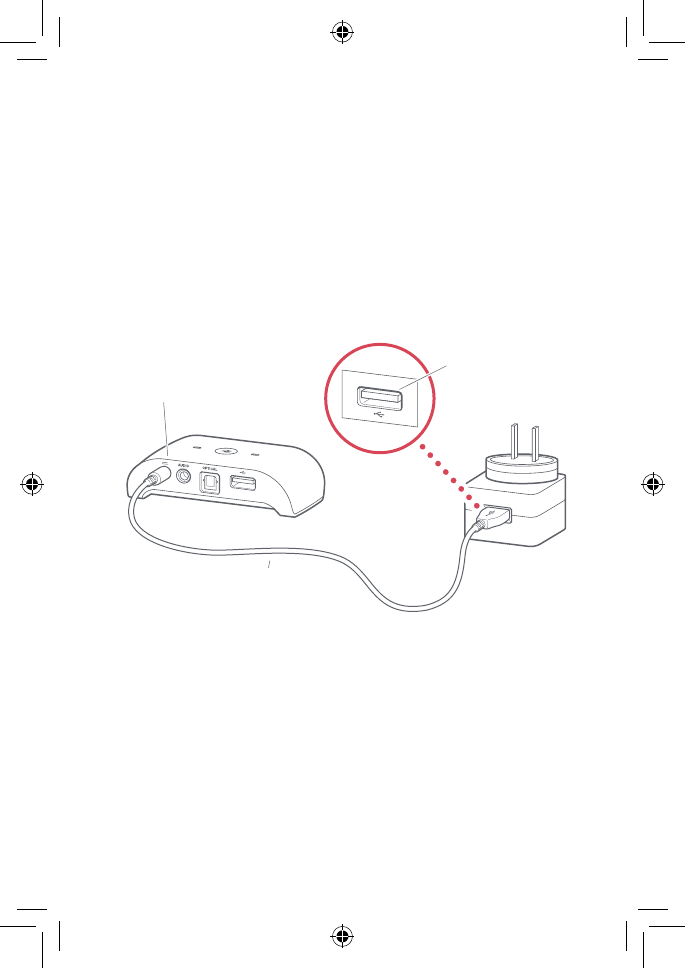

Step 2: Connecting the power cord
1 Connect the DC plug to the power input on the back of
the TV streamer.
2 Connect the USB plug to the power adapter.
3 Fit the adapter plug to the power adapter and check that it
is properly locked before connecting it to the power outlet.
The power indicator on the TV streamer lights up in green.
Note: You can power your TV streamer from your TV by
connecting the USB plug directly to a USB output on your TV.
Step 3: Pairing
Note: If the TV streamer came with your Maxi, you don’t
need to pair the units.
1 On the TV streamer: Press and hold the Bluetooth button
until the Bluetooth indicator starts to blink in blue.
2 On your Maxi: Press the microphone selector. Press and
hold the Bluetooth selector until the Bluetooth indicator
starts to blink in blue.
3 Both Bluetooth indicators will emit a steady blue light to
show that the pairing was successful.
Power input
Power
adapter
USB output
DC-connector-to-USB
power cord
Using your TV streamer
Turning it on
1 Press the Bluetooth button to start the TV streamer. The
power indicator lights up in green.
2 During startup, the TV streamer will automatically
reconnect to your Maxi Pro. Both Bluetooth indicators will
light up in blue to show that the units are connected.
Switching it o
The TV streamer will switch o automatically if no audio
signal or Bluetooth connection is detected for 15 minutes.

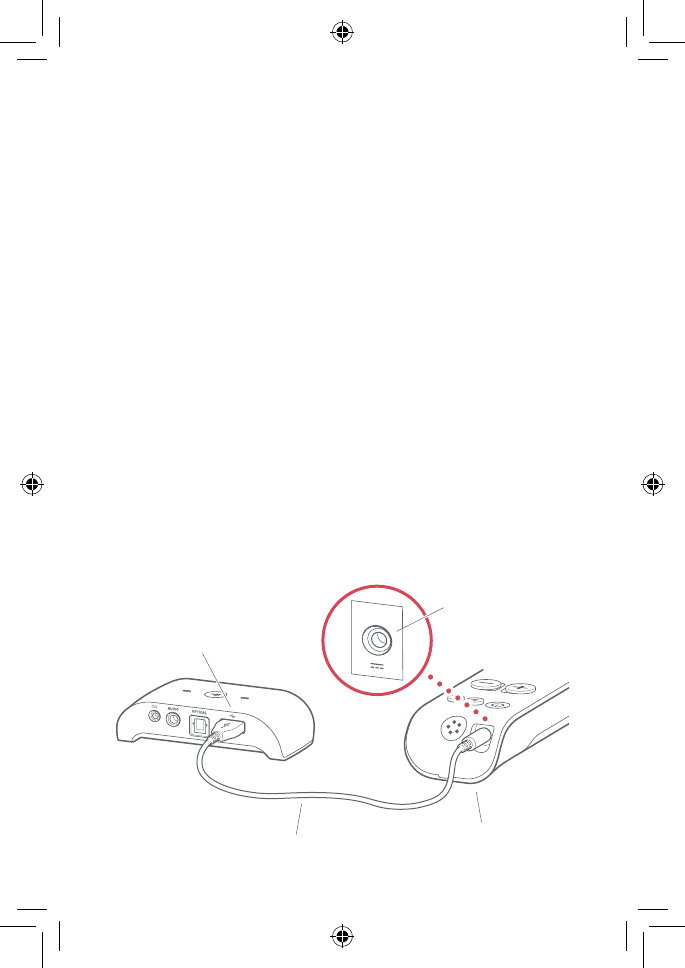

Charging your Maxi Pro
You can charge your Maxi Pro from the TV streamer.
1 Connect the USB end of the Maxi charging cable to the
USB charging output on the back of the TV streamer.
2 Connect the other end to the Maxi charger jack.
3 The Maxi battery indicator blinks in green during charging.
USB charging
output
Maxi charging cable Maxi Pro
Charger jack
Care and maintenance
Operate the product in a dry environment where the
temperature is always between 0° and 35° C.
Clean the product with a soft, lint-free cloth. Avoid getting
moisture in openings. Don’t use window cleaners, household
cleaners, solvents, alcohol, ammonia, or abrasives.
If the product appears to be damaged or doesn’t function
properly, follow the instructions in this leaet. If the product
still doesn’t function as intended, contact your local dealer.
for information on service and warranty.
Troubleshooting
If Try this
Nothing happens when
I press the TV streamer
Bluetooth button.
• Make sure that the TV streamer
is connected to power, see
Connecting the power cord.
I don’t hear the sound
of the TV in my head-
phones.
• Make sure Maxi Pro is within
range and paired with your TV
streamer, see Pairing.
The TV sound disappears
when I connect the
mini-stereo cable to the
headphones output.
• This is a feature on some TV
models. Use the RCA or optical
output on your TV instead, see
Connecting audio.
European oce
Bellman & Symfon AB
Sodra Langebergsgatan 30
436 32 Askim, Sweden
Phone +46 31 68 28 20
E-mail info@bellman.com bellman.com
BE2022_007MAN003
Support centers
Europe
Bellman & Symfon AB
Södra Långebergsgatan 30
Askim, Västra Götaland
436 32, Sweden
Call +46 31 7483750
E-mail info@bellman.com
North America
Bellman & Symfon Service Center
1081 West Innovation Drive
Kearney, MO 64060, U.S.A
Call +1 877 720 3401 Toll Free
Germany
Bellman & Symfon Deutschland
Uelzener Str. 14
21335 Lüneburg
Call +49 800 7433338
E-mail info@bellman.de
Asia Pacic
Bellman & Symfon Asia
339 Huanshi Dong Rd
Guangzhou, China, 510095
Call +86 20 8318 2950
E-mail info.cn@bellman.com
BE2022_024WCD002
© and TM 2018 Bellman & Symfon AB. All rights reserved.
BE2022_024WCD002_Maxi-Pro-warranty-card.indd 1 2017-12-20 08:46:25
ENGLISH
Warranty card
BE2022_024WCD002_Maxi-Pro-warranty-card.indd 2 2017-12-20 08:46:25
Product disposal and recycling information
The symbol to the left means that according to local laws and
regulations your product should be disposed of separately
from household waste. When this product reaches its end of
life, take it to a collection point designated by local authorities.
Battery disposal information
This symbol indicates that the product contains batteries that
according to local laws and regulations must be disposed of
separately from household waste. Take used batteries to a
collection point designated by the authorities.
EU Declaration of conformity
Hereby, Bellman & Symfon AB declares that this wireless
device is in compliance with the essential requirements
and other relevant provisions of the R&TTE Directive.
A copy of the EU Declaration of Conformity may be consulted at:
Bellman & Symfon, Södra Långebergsgatan 30, 436 32 Askim,
Sweden.
FCC compliance statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Warning: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Canadian compliance statement
This device complies with Industry Canada licence-exempt RSS stan-
dard(s). Operation is subject to the following two conditions: (1)this
device may not cause interference, and(2) this device must accept
any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables auxappareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes :(1) l’appareil ne doit pas
produire de brouillage, et(2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre lefonctionnement.
This Class B digital apparatus complies with the Canadian ICES-003.
Bluetooth® certied
This device includes a Bluetooth module which has passed the BQB
certicate. The Bluetooth word mark and logos are owned by the
Bluetooth SIG, Inc., and any use of such marks by Bellman & Symfon
is under licenses.
Important safety instructions
This section contains important information about safety, handling,
disposal, recycling and warranty.
Note: Read all safety information and instructions below
before using the product. Keep the user manual for future use.
Warning!
Failure to follow these safety instructions could result in re,
electric shock, or other injury or damage to the product or other
property.
Do not use or store this product near any heat sources such as
naked ames, radiators, ovens or other devices that produce heat.
Protect the cable from any potential source of damage.
Use only power adapters and accessories specied in this manual.
Only refer a damaged or faulty product to qualied service
personnel.
Do not dismantle the product; there is a risk of electric shock.
Tampering with or dismantling the product will void warranty.
This product is designed for indoor use only.
Do not expose the product to moisture.
Protect the product from shocks during storage and transport.
Care and cleaning
Note: Failure to follow these care and cleaning instructions
could result in damage to the product and void the warranty.
Battery charging and replacement
Warning! The Maxi Pro is powered by a rechargeable lithi-
um-polymer battery. Do not expose the battery to re or
to direct sunlight. The battery should only be changed by Bellman &
Symfon or an authorized service center. There is a risk of explosion if
the battery is not replaced correctly. The battery should be charged
fully before using the product for the rst time. Only charge the
battery in a temperature between 0°– 35°C, 32°– 95° F.
Using the product
Operate the product in a dry environment where the temperature
is always between 0°– 35° C, 32°– 95° F. Do not use or store the
products near a heat source. If the product gets wet or is exposed
to moisture, it should no longer be regarded as reliable and should
therefore be replaced.
Cleaning
Use a soft, lint-free cloth. Avoid getting moisture in openings. Don’t
use window cleaners, household cleaners, aerosol sprays, solvents,
alcohol, ammonia, or abrasives.
Service and Warranty
If the product appears to be damaged or doesn’t function properly,
follow the instructions in this leaet. If the product still doesn’t
function as intended, contact your local dealer for information on
service and warranty.
Warranty Conditions
Bellman & Symfon guarantees this product for two years from date of
purchase against any defects that are due to faulty materials or work-
manship. This guarantee only applies to normal conditions of use,
and does not include damage resulting from accident, neglect, mis-
use, unauthorized dismantling, or contamination howsoever caused.
This guarantee excludes incidental and consequential damage.
Model, type and classication
The information is available at the back of the product.
BE2022_024WCD002_Maxi-Pro-warranty-card.indd 3 2017-12-20 08:46:25
Technical specications
BE2021 Maxi Pro
Intended Use
Assistive listening device that enhances speech to
facilitate listening during conversations, telephone
calls and television viewing.
Dimensions and Weight
Size: 140 27 45 mm, 5.5 1.1 1.8"
Weight: 127g, 4.3 oz.
Frequency and Coverage
Bluetooth frequency: 2402 – 2480 MHz
Coverage: Up to 25 m, 27.5 yd, free eld.
Connectivity: Bluetooth® aptX®-LL
Power Supply
Battery power: 2 3.7V 750mAh Li-on
Operating time: Up to 70 h
Power consumption: 18 mA
Connections
Headphones input: 3.5 mm jack
Charger input: 2.5 mm connector, 5V DC, 1000mA
Microphone
Built-in omnidirectional microphone
Output signal
Output level with BE9124:
135dB@1kHz (SPL90)
136dB (HF Ave.SPL90)
Full-on gain: 49dB@1kHz,
Ref. test gain: 49dB@1kHz (SPL70)
Output level with BE9122:
122dB@1kHz (SPL90)
127dB (HF Ave.SPL90)
Full-on gain: 36dB@1kHz,
Ref. test gain: 36dB@1kHz (SPL70)
Output level with BE9125:
136dB@1kHz (SPL90)
133dB (HF Ave.SPL90)
Full-on gain: 43dB@1K,
Ref. test gain: 43dB@1kHz (SPL70)
Mic SNR:
53dB @1kHz 1%THD (electrical)
Distortion:
0.2% THD@1kHz -6dB@1% THD (Mic electrical)
Bluetooth SNR:
85dB @1kHz 1%THD (BT with TV streamer)
Freq. range: 20Hz-8kHz (Mic), 20Hz-20kHz (Bluetooth)
Output power: Max 82mW @1kHz/16Ω (THD=1%)
Environmental Requirements
Operating temperature: 0°-35° C, 32°-95° F
Relative humidity: 5% - 95% (non condensing)
Standard accessories
BE9254 Bellman Audio Charger Cable
BE9273 Bellman Audio Universal Charger
Optional accessories
BE9122 Bellman Audio Headphones
BE9124 Bellman Audio Earphones
BE9233 Bellman Audio Headset with Microphone
BE9229 Bellman Audio Earphones with Microphone
BE9125 Bellman Audio Stetoclips
BE9159 Bellman Audio Neck loop
BE9161 Bellman Audio Neck loop
BE9262 Bellman Audio Universal Charger
BE9176 Bellman Audio Universal Charger
BE9139 Bellman Audio Charger Cable
BE2022 Maxi TV streamer
Intended Use
Television streamer device to be used at home in
combination with the Maxi Pro assistive listening
device for television volume amplication.
Dimensions and Weight
Size: 88 24 48 mm, 3.5 0.9 1.9"
Weight: 70 g, 2.5 oz.
Frequency and Coverage
Bluetooth frequency: 2402–2480 MHz
Coverage: Up to 25 m, 27.5 yd, free eld.
Connectivity: Bluetooth® aptX®-LL
Power
Power consumption: 31 mA
Connections
Audio input: 3.5 mm jack
Audio input sensitivity @ max 2Vrms: +6 dBV
Optical input: 44.1KHz, 48KHz
Optical input sensitivity: 0 dBFS
Charger input: 2.5 mm connector, 5V DC, 1000mA
Charging output: USB type A
Environmental Requirements
Operating temperature: 0°-35° C, 32°-95° F
Relative humidity: 5% - 95% (non condensing)
Standard accessories
BE9123 Bellman Audio Cable Kit
BE9228 Bellman Audio Optical Cable
BE9254 Bellman Audio Charger Cable
Optional accessories
BE9273 Bellman Audio Universal Charger
BE9262 Bellman Audio Universal Charger
BE9176 Bellman Audio Universal Charger
BE9139 Bellman Audio Charger Cable
BE2022_024WCD002_Maxi-Pro-warranty-card.indd 4 2017-12-20 08:46:25
