BenQ Mobile and OHG HHB100 Headset Bluetooth HHB-100 User Manual 1

BenQ Mobile GmbH & Co. OHG Headset Bluetooth HHB-100 1

Manual

Headset Bluetooth HHB-100 Brand Name: BenQ-Siemens Model Name: HHB-100

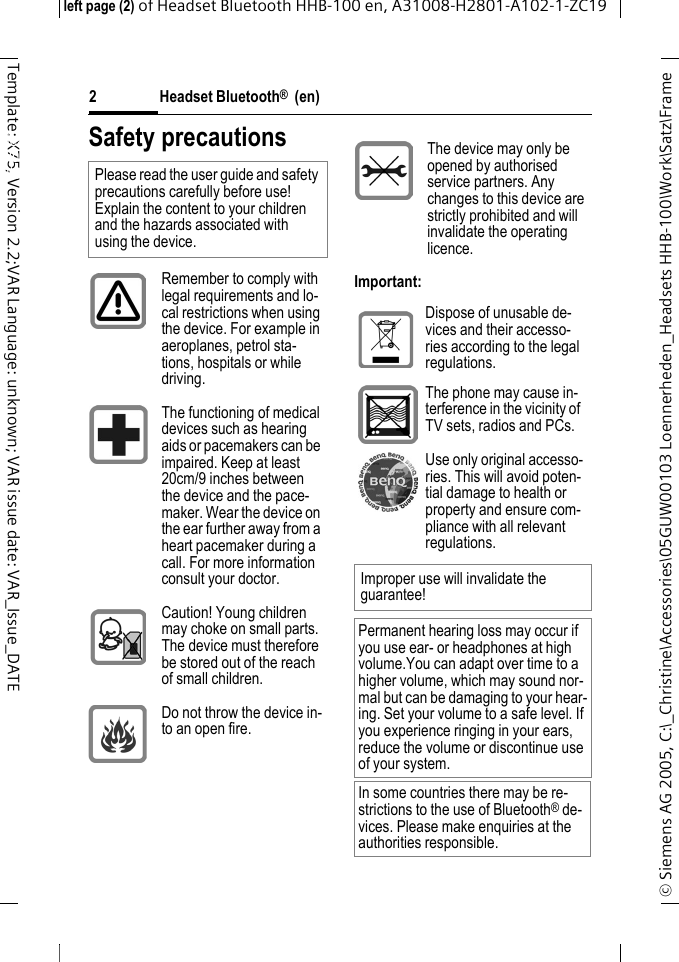

Headset Bluetooth® (en)© Siemens AG 2005, C:\_Christine\Accessories\05GUW00103 Loennerheden_Headsets HHB-100\Work\Satz\Frame left page (2) of Headset Bluetooth HHB-100en, A31008-H2801-A102-1-ZC192Template: X75, Version 2.2;VAR Language: unknown; VAR issue date: VAR_Issue_DATEHeadset Bluetooth® HHB-100 (en)Safety precautionsImportant:Please read the user guide and safety precautions carefully before use! Explain the content to your children and the hazards associated with using the device.Remember to comply with legal requirements and lo-cal restrictions when using the device. For example in aeroplanes, petrol sta-tions, hospitals or while driving.The functioning of medical devices such as hearing aids or pacemakers can be impaired. Keep at least 20cm/9 inches between the device and the pace-maker. Wear the device on the ear further away from a heart pacemaker during a call. For more information consult your doctor.Caution! Young children may choke on small parts. The device must therefore be stored out of the reach of small children.Do not throw the device in-to an open fire.The device may only be opened by authorised service partners. Any changes to this device are strictly prohibited and will invalidate the operating licence.Dispose of unusable de-vices and their accesso-ries according to the legal regulations.The phone may cause in-terference in the vicinity of TV sets, radios and PCs.Use only original accesso-ries. This will avoid poten-tial damage to health or property and ensure com-pliance with all relevant regulations.Improper use will invalidate the guarantee!Permanent hearing loss may occur if you use ear- or headphones at high volume.You can adapt over time to a higher volume, which may sound nor-mal but can be damaging to your hear-ing. Set your volume to a safe level. If you experience ringing in your ears, reduce the volume or discontinue use of your system.In some countries there may be re-strictions to the use of Bluetooth® de-vices. Please make enquiries at the authorities responsible.

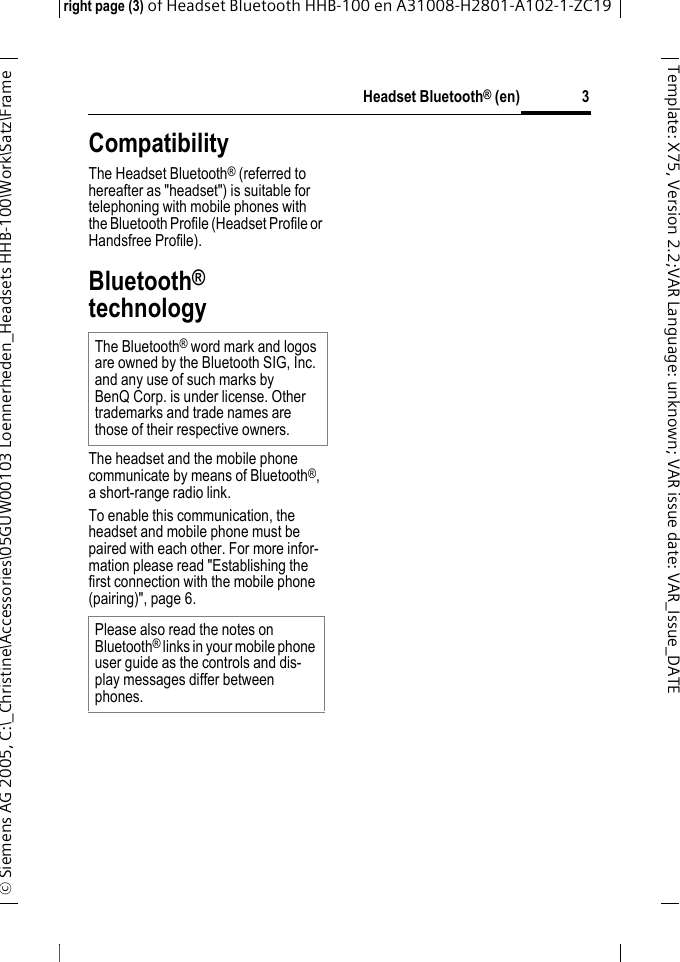

Headset Bluetooth® (en)right page (3) of Headset Bluetooth HHB-100en A31008-H2801-A102-1-ZC19© Siemens AG 2005, C:\_Christine\Accessories\05GUW00103 Loennerheden_Headsets HHB-100\Work\Satz\Frame 3Template: X75, Version 2.2;VARLanguage: unknown;VARissuedate:VAR_Issue_DATECompatibilityThe Headset Bluetooth® (referred to hereafter as "headset") is suitable for telephoning with mobile phones with the Bluetooth Profile (Headset Profile or Handsfree Profile).Bluetooth® technologyThe headset and the mobile phone communicate by means of Bluetooth®, a short-range radio link. To enable this communication, the headset and mobile phone must be paired with each other. For more infor-mation please read "Establishing the first connection with the mobile phone (pairing)", page 6.The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by BenQ Corp. is under license. Other trademarks and trade names are those of their respective owners. Please also read the notes on Bluetooth® links in your mobile phone user guide as the controls and dis-play messages differ between phones.

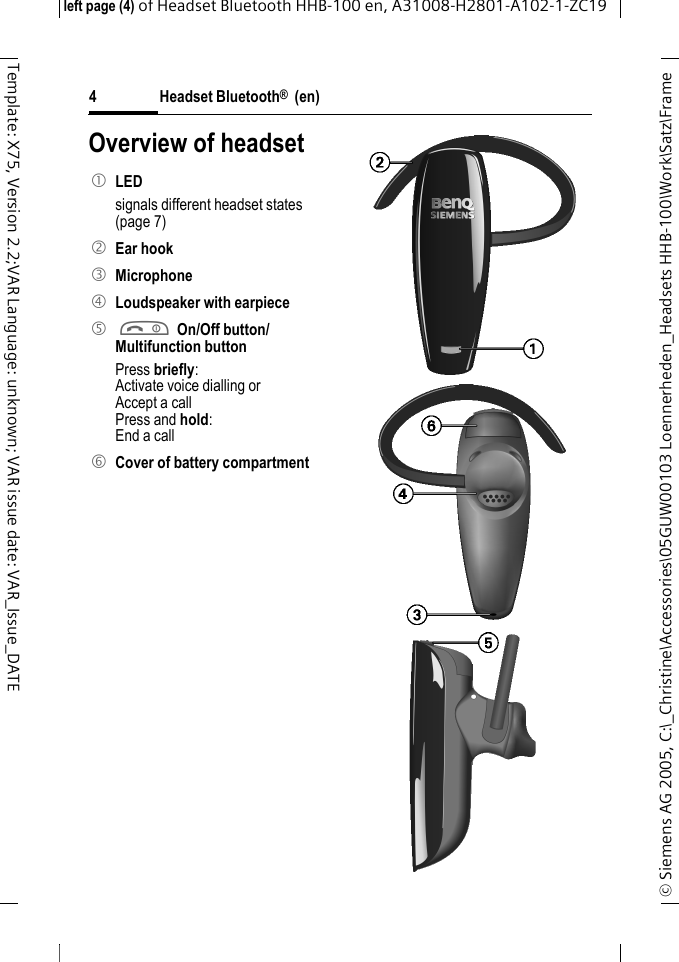

Headset Bluetooth® (en)© Siemens AG 2005, C:\_Christine\Accessories\05GUW00103 Loennerheden_Headsets HHB-100\Work\Satz\Frame left page (4) of Headset Bluetooth HHB-100en, A31008-H2801-A102-1-ZC194Template: X75, Version 2.2;VAR Language: unknown; VAR issue date: VAR_Issue_DATEOverview of headset1 LED signals different headset states (page 7)2 Ear hook3 Microphone4 Loudspeaker with earpiece5 a On/Off button/Multifunction button Press briefly:Activate voice dialling orAccept a callPress and hold:End a call6 Cover of battery compartment

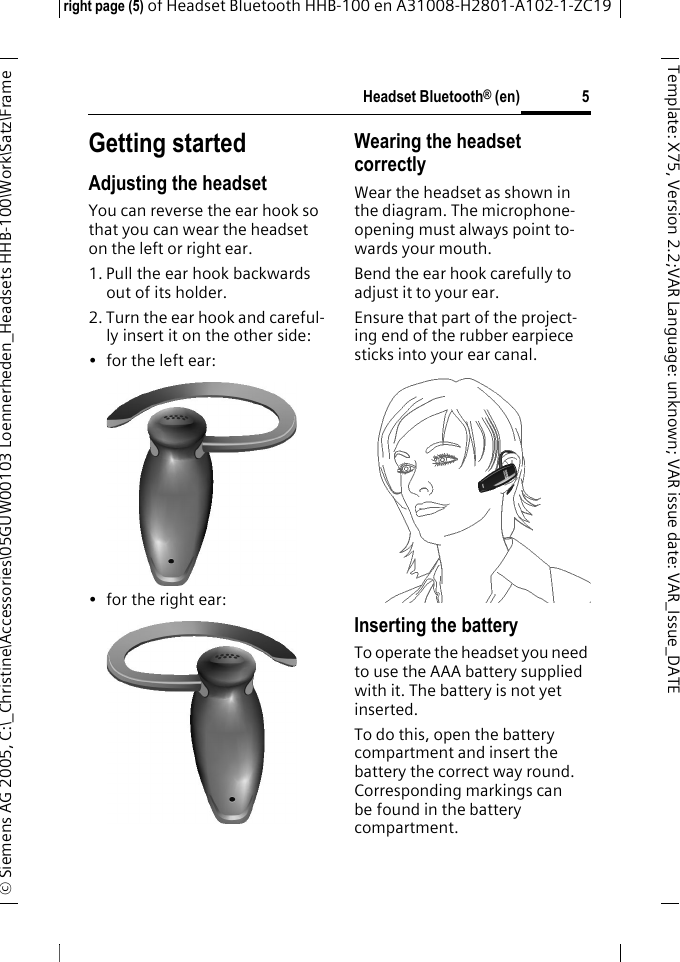

Headset Bluetooth® (en)right page (5) of Headset Bluetooth HHB-100en A31008-H2801-A102-1-ZC19© Siemens AG 2005, C:\_Christine\Accessories\05GUW00103 Loennerheden_Headsets HHB-100\Work\Satz\Frame 5Template: X75, Version 2.2;VARLanguage: unknown;VARissuedate:VAR_Issue_DATEGetting startedAdjusting the headsetYou can reverse the ear hook so that you can wear the headset on the left or right ear. 1. Pull the ear hook backwards out of its holder.2. Turn the ear hook and careful-ly insert it on the other side:• for the left ear: • for the right ear:Wearing the headset correctlyWear the headset as shown in the diagram. The microphone-opening must always point to-wards your mouth.Bend the ear hook carefully to adjust it to your ear.Ensure that part of the project-ing end of the rubber earpiece sticks into your ear canal.Inserting the batteryTo operate the headset you need to use the AAA battery supplied with it. The battery is not yet inserted.To do this, open the battery compartment and insert the battery the correct way round. Corresponding markings can be found in the battery compartment.

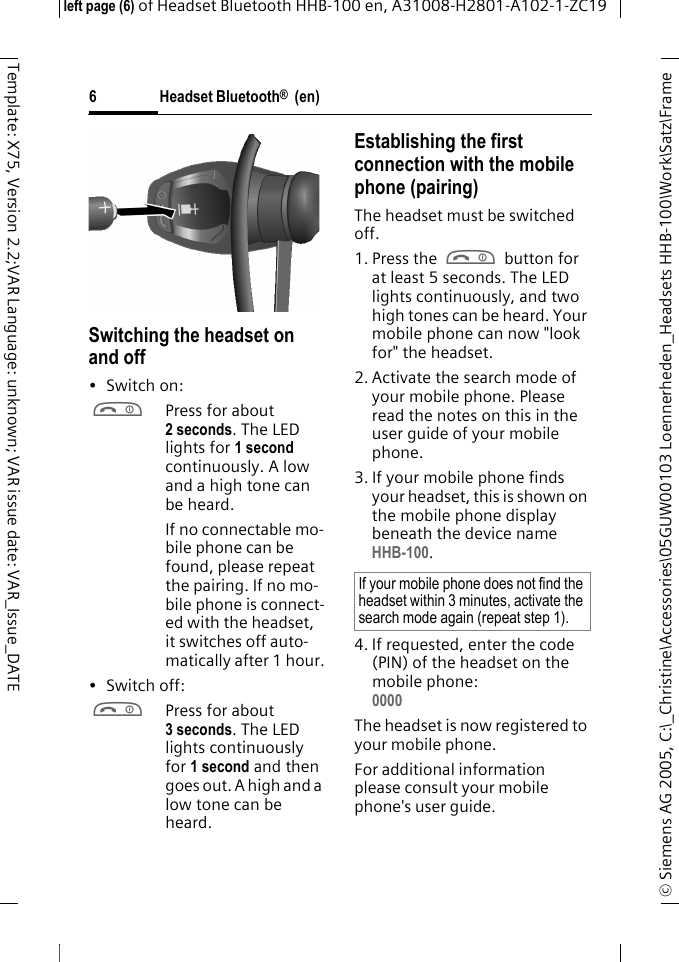

Headset Bluetooth® (en)© Siemens AG 2005, C:\_Christine\Accessories\05GUW00103 Loennerheden_Headsets HHB-100\Work\Satz\Frame left page (6) of Headset Bluetooth HHB-100en, A31008-H2801-A102-1-ZC196Template: X75, Version 2.2;VAR Language: unknown; VAR issue date: VAR_Issue_DATESwitching the headset on and off•Switch on: aPress for about 2 seconds. The LED lights for 1 second continuously. A low and a high tone can be heard.If no connectable mo-bile phone can be found, please repeat the pairing. If no mo-bile phone is connect-ed with the headset, it switches off auto-matically after 1 hour.• Switch off: aPress for about 3 seconds. The LED lights continuously for 1 second and then goes out. A high and a low tone can be heard.Establishing the first connection with the mobile phone (pairing)The headset must be switched off.1. Press the a button for at least 5 seconds. The LED lights continuously, and two high tones can be heard. Your mobile phone can now "look for" the headset.2. Activate the search mode of your mobile phone. Please read the notes on this in the user guide of your mobile phone.3. If your mobile phone finds your headset, this is shown on the mobile phone display beneath the device name HHB-100.4. If requested, enter the code (PIN) of the headset on the mobile phone:0000 The headset is now registered to your mobile phone. For additional information please consult your mobile phone's user guide.If your mobile phone does not find the headset within 3 minutes, activate the search mode again (repeat step 1).

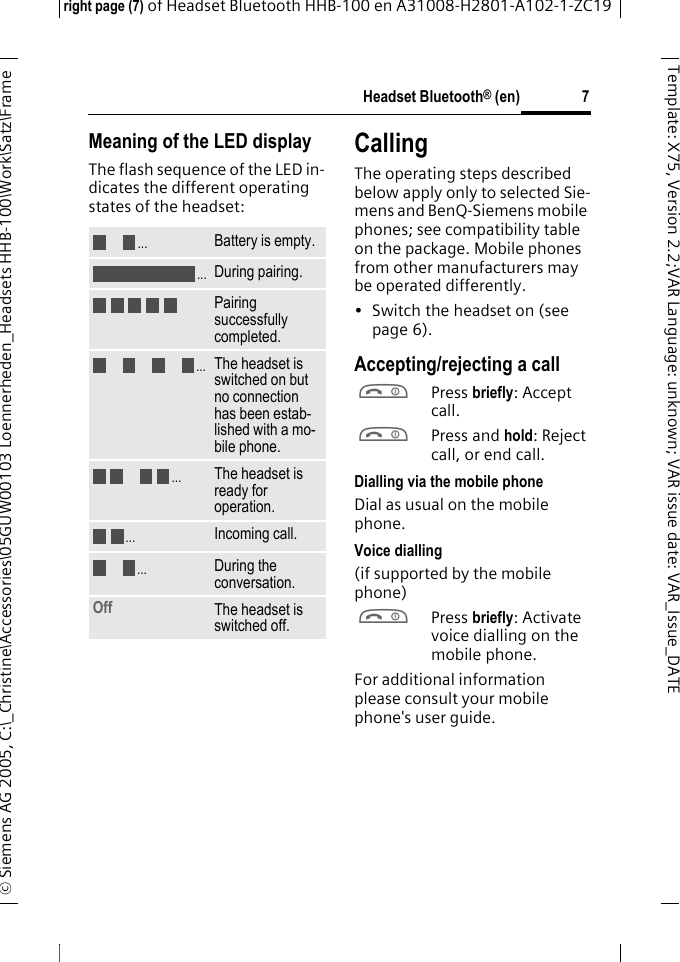

Headset Bluetooth® (en)right page (7) of Headset Bluetooth HHB-100en A31008-H2801-A102-1-ZC19© Siemens AG 2005, C:\_Christine\Accessories\05GUW00103 Loennerheden_Headsets HHB-100\Work\Satz\Frame 7Template: X75, Version 2.2;VARLanguage: unknown;VARissuedate:VAR_Issue_DATEMeaning of the LED displayThe flash sequence of the LED in-dicates the different operating states of the headset:CallingThe operating steps described below apply only to selected Sie-mens and BenQ-Siemens mobile phones; see compatibility table on the package. Mobile phones from other manufacturers may be operated differently.• Switch the headset on (see page 6).Accepting/rejecting a callaPress briefly: Accept call.aPress and hold: Reject call, or end call.Dialling via the mobile phoneDial as usual on the mobile phone.Voice dialling (if supported by the mobile phone)aPress briefly: Activate voice dialling on the mobile phone.For additional information please consult your mobile phone's user guide.Battery is empty.During pairing.Pairing successfully completed.The headset is switched on but no connection has been estab-lished with a mo-bile phone.The headset is ready for operation.Incoming call.During the conversation.Off The headset is switched off...................

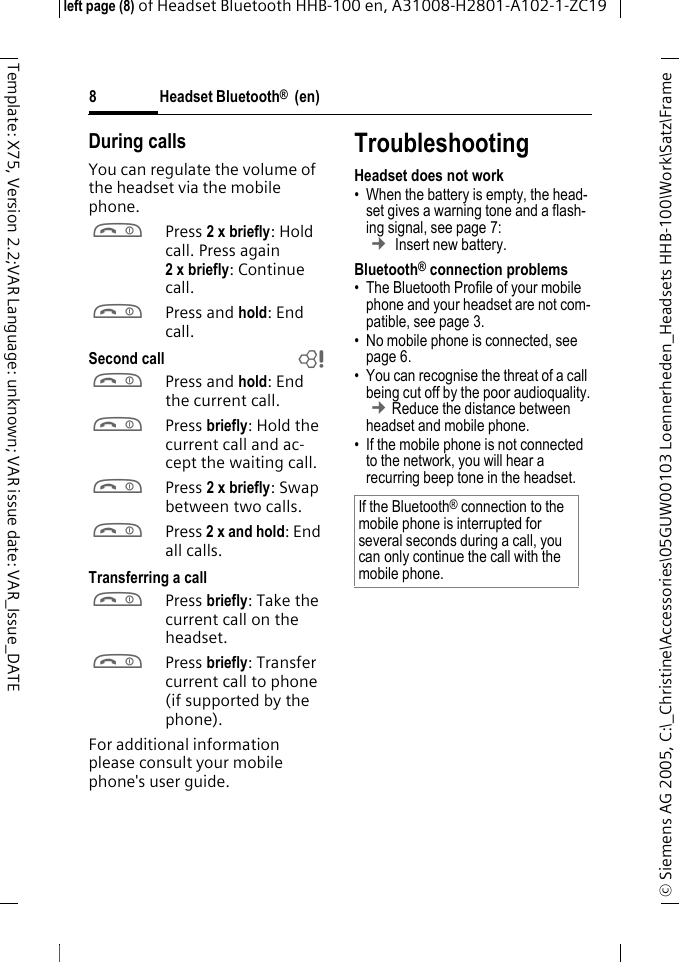

Headset Bluetooth® (en)© Siemens AG 2005, C:\_Christine\Accessories\05GUW00103 Loennerheden_Headsets HHB-100\Work\Satz\Frame left page (8) of Headset Bluetooth HHB-100en, A31008-H2801-A102-1-ZC198Template: X75, Version 2.2;VAR Language: unknown; VAR issue date: VAR_Issue_DATEDuring callsYou can regulate the volume of the headset via the mobile phone.aPress 2 x briefly: Hold call. Press again 2xbriefly: Continue call.aPress and hold: End call.Second call baPress and hold: End the current call.aPress briefly: Hold the current call and ac-cept the waiting call.aPress 2 x briefly: Swap between two calls.aPress 2 x and hold: End all calls.Transferring a callaPress briefly: Take the current call on the headset. aPress briefly: Transfer current call to phone (if supported by the phone). For additional information please consult your mobile phone's user guide.TroubleshootingHeadset does not work• When the battery is empty, the head-set gives a warning tone and a flash-ing signal, see page 7: ¢ Insert new battery.Bluetooth® connection problems• The Bluetooth Profile of your mobile phone and your headset are not com-patible, see page 3.• No mobile phone is connected, see page 6.• You can recognise the threat of a call being cut off by the poor audioquality. ¢Reduce the distance between headset and mobile phone. • If the mobile phone is not connected to the network, you will hear a recurring beep tone in the headset.If the Bluetooth® connection to the mobile phone is interrupted for several seconds during a call, you can only continue the call with the mobile phone.

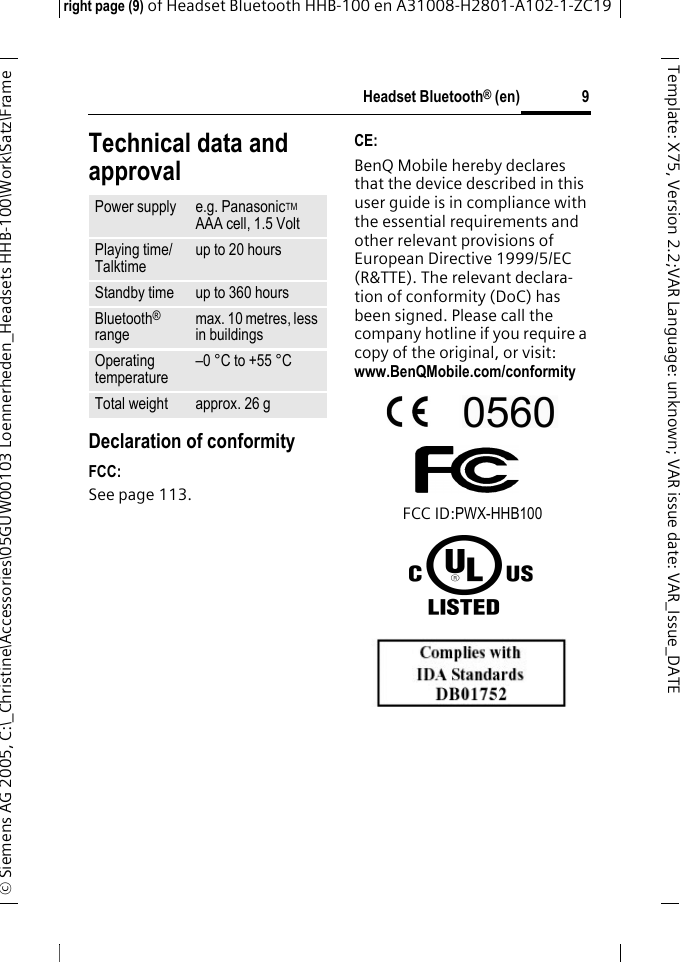

Headset Bluetooth® (en)right page (9) of Headset Bluetooth HHB-100en A31008-H2801-A102-1-ZC19© Siemens AG 2005, C:\_Christine\Accessories\05GUW00103 Loennerheden_Headsets HHB-100\Work\Satz\Frame 9Template: X75, Version 2.2;VARLanguage: unknown;VARissuedate:VAR_Issue_DATETechnical data and approvalDeclaration of conformityFCC:See page 113.CE:BenQ Mobile hereby declares that the device described in this user guide is in compliance with the essential requirements and other relevant provisions of European Directive 1999/5/EC (R&TTE). The relevant declara-tion of conformity (DoC) has been signed. Please call the company hotline if you require a copy of the original, or visit: www.BenQMobile.com/conformity FCC ID:PWX-HHB100Power supply e.g. PanasonicTM AAA cell, 1.5 VoltPlaying time/Talktimeup to 20 hoursStandby time up to 360 hoursBluetooth® rangemax. 10 metres, less in buildingsOperating temperature–0 °C to +55 °CTotal weight approx. 26 g

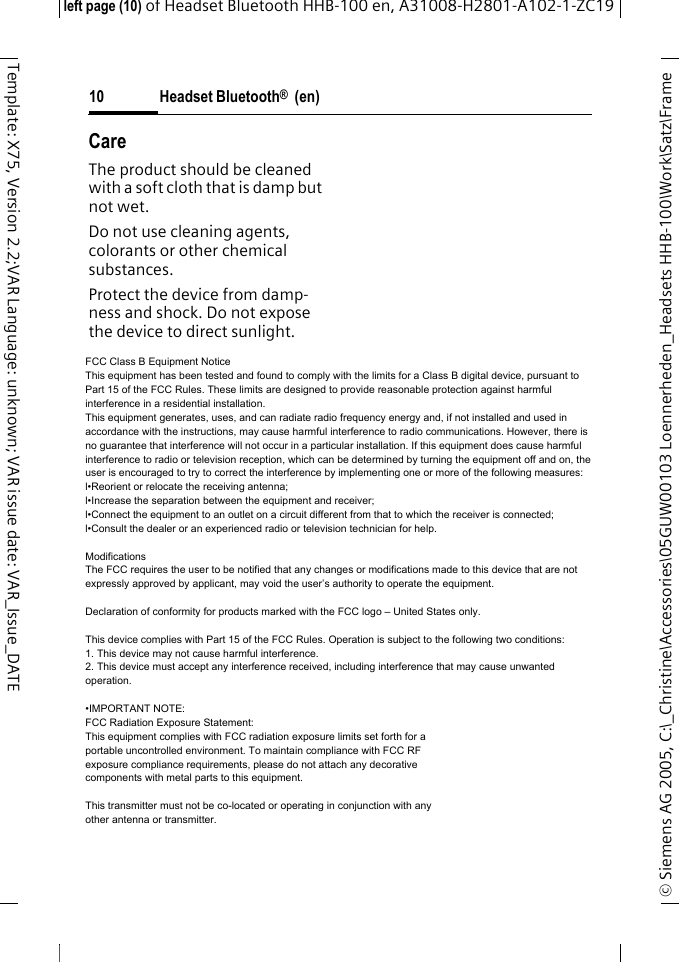

Headset Bluetooth® (en)© Siemens AG 2005, C:\_Christine\Accessories\05GUW00103 Loennerheden_Headsets HHB-100\Work\Satz\Frame left page (10) of Headset Bluetooth HHB-100en, A31008-H2801-A102-1-ZC1910Template: X75, Version 2.2;VAR Language: unknown; VAR issue date: VAR_Issue_DATECareThe product should be cleaned with a soft cloth that is damp but not wet.Do not use cleaning agents, colorants or other chemical substances.Protect the device from damp-ness and shock. Do not expose the device to direct sunlight.Customer serviceSee Customer Care, page 111.FCC Class B Equipment NoticeThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by implementing one or more of the following measures:l•Reorient or relocate the receiving antenna;l•Increase the separation between the equipment and receiver;l•Connect the equipment to an outlet on a circuit different from that to which the receiver is connected;l•Consult the dealer or an experienced radio or television technician for help.ModificationsThe FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by applicant, may void the user’s authority to operate the equipment.Declaration of conformity for products marked with the FCC logo – United States only.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference.2. This device must accept any interference received, including interference that may cause unwanted operation.•IMPORTANT NOTE:FCC Radiation Exposure Statement:This equipment complies with FCC radiation exposure limits set forth for a portable uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please do not attach any decorative components with metal parts to this equipment.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
