BenQ Mobile and OHG HKW100 HKW-100 CK Bluetooth Easy User Manual Car Kit BT Easy en

BenQ Mobile GmbH & Co. OHG HKW-100 CK Bluetooth Easy Car Kit BT Easy en

User Manual

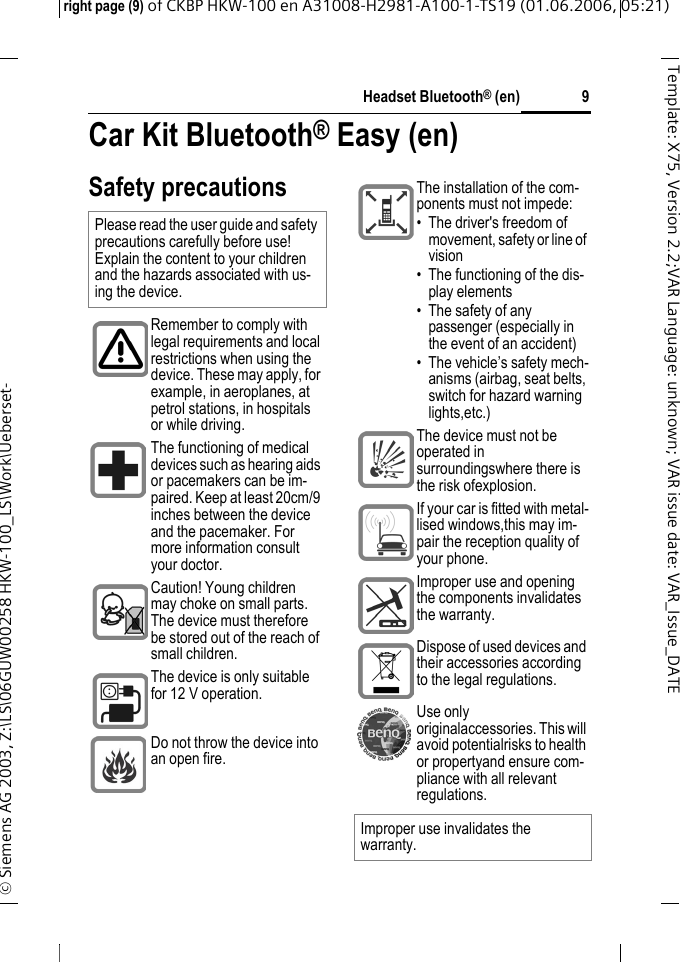

Headset Bluetooth® (en)right page (9) of CKBP HKW-100 en A31008-H2981-A100-1-TS19 (01.06.2006, 05:21)© Siemens AG 2003, Z:\LS\06GUW00258 HKW-100_LS\Work\Ueberset-9Template: X75, Version 2.2;VARLanguage: unknown;VARissuedate:VAR_Issue_DATECar Kit Bluetooth® Easy (en)Car Kit Bluetooth® Easy (en)Safety precautionsPlease read the user guide and safety precautions carefully before use! Explain the content to your children and the hazards associated with us-ing the device.Remember to comply with legal requirements and local restrictions when using the device. These may apply, for example, in aeroplanes, at petrol stations, in hospitals or while driving.The functioning of medical devices such as hearing aids or pacemakers can be im-paired. Keep at least 20cm/9 inches between the device and the pacemaker. For more information consult your doctor.Caution! Young children may choke on small parts. The device must therefore be stored out of the reach of small children.The device is only suitable for 12 V operation. Do not throw the device into an open fire.The installation of the com-ponents must not impede:• The driver's freedom of movement, safety or line of vision• The functioning of the dis-play elements• The safety of any passenger (especially in the event of an accident)• The vehicle’s safety mech-anisms (airbag, seat belts, switch for hazard warning lights,etc.)The device must not be operated in surroundingswhere there is the risk ofexplosion.If your car is fitted with metal-lised windows,this may im-pair the reception quality of your phone.Improper use and opening the components invalidates the warranty.Dispose of used devices and their accessories according to the legal regulations. Use only originalaccessories. This will avoid potentialrisks to health or propertyand ensure com-pliance with all relevant regulations.Improper use invalidates the warranty.
Headset Bluetooth®  (en)© Siemens AG 2003, Z:\LS\06GUW00258 HKW-100_LS\Work\Ueberset-left page (10) of CKBP HKW-100 en, A31008-H2981-A100-1-TS19 (01.06.2006, 05:21)10Template: X75, Version 2.2;VAR Language: unknown; VAR issue date: VAR_Issue_DATEFor additional information please consult your mobile phone's user guide.CompatibilityThe Car Kit Bluetooth® Easy (referred to hereafter as "Car Kit") is suitable for telephoning with mobile phones with the Bluetooth Profile (Handsfree Pro-file). It is intended for use in the 12 V cigarette lighter socket.The following phones are suitable:• BenQ-Siemens mobile phones withBluetooth® interface. Depending on the device, functionality may be restricted. • Mobile phones from other manufac-turers which have a Bluetooth "Handsfree Profile" interface. Depending on the device, functionali-ty may be restricted. Bluetooth® technologyThe Car Kit and the mobile phone communicate via Bluetooth®, a short range radio link. To enable this communication, the Car Kit and mobile phone must be paired with each other. For more information please read "S. 13", Establishing the first connection with the phone (pairing).Permanent hearing loss may occur if you use the device at high volume. With time you could become so ac-customed to the high volume that it appears normal to you. But it can cause damage to your hearing. So re-duce the volume to a safe level. If you experience ringing in your ears, reduce the volume or discontinue use of your system.In some countries there may be restrictions to the use of Bluetooth® devices. Please make enquiries to the authorities responsible.Manufactured by BenQ Mobile GmbH & Co. OHG under trademark license of Siemens AG.The rights to the Bluetooth® word-mark and the Bluetooth® logos are owned by the Bluetooth® SIG, Inc. Any use of such marks by BenQ Corp. is under licence.Other trademarks and trade names are those of their respective owners.Please also read the notes on Blue-tooth® connectivity in your mobile phone user guide as the controls and display messages differ between phones.

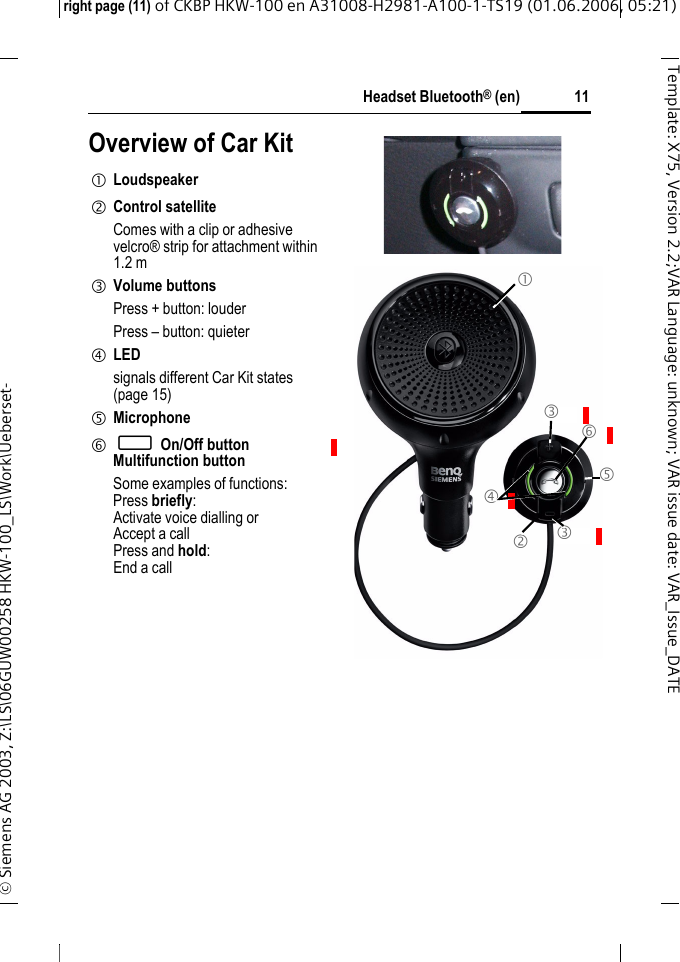

Headset Bluetooth® (en)right page (11) of CKBP HKW-100 en A31008-H2981-A100-1-TS19 (01.06.2006, 05:21)© Siemens AG 2003, Z:\LS\06GUW00258 HKW-100_LS\Work\Ueberset-11Template: X75, Version 2.2;VARLanguage: unknown;VARissuedate:VAR_Issue_DATEOverview of Car Kit1 Loudspeaker2 Control satelliteComes with a clip or adhesive velcro® strip for attachment within 1.2 m3 Volume buttonsPress + button: louderPress – button: quieter4 LEDsignals different Car Kit states (page 15)5 Microphone6 ‰ On/Off buttonMultifunction buttonSome examples of functions:Press briefly:Activate voice dialling orAccept a callPress and hold:End a call Placeholder 3 4 5 6 1 2 3

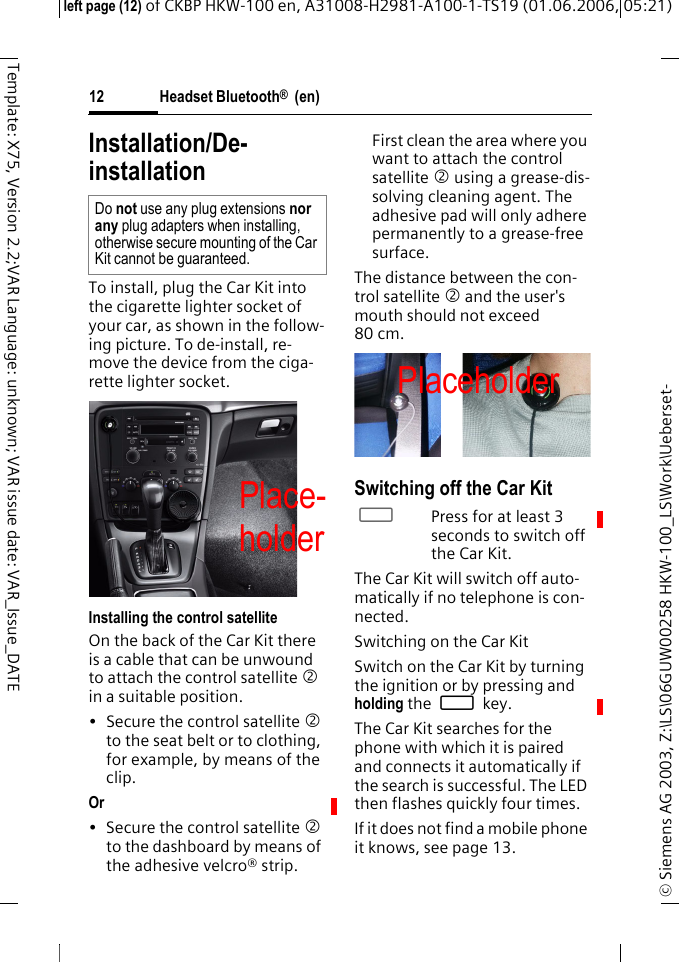

Headset Bluetooth®  (en)© Siemens AG 2003, Z:\LS\06GUW00258 HKW-100_LS\Work\Ueberset-left page (12) of CKBP HKW-100 en, A31008-H2981-A100-1-TS19 (01.06.2006, 05:21)12Template: X75, Version 2.2;VAR Language: unknown; VAR issue date: VAR_Issue_DATEInstallation/De-installationTo install, plug the Car Kit into the cigarette lighter socket of your car, as shown in the follow-ing picture. To de-install, re-move the device from the ciga-rette lighter socket.Installing the control satelliteOn the back of the Car Kit there is a cable that can be unwound to attach the control satellite 2 in a suitable position.• Secure the control satellite 2 to the seat belt or to clothing, for example, by means of the clip. Or • Secure the control satellite 2 to the dashboard by means of the adhesive velcro® strip.First clean the area where you want to attach the control satellite 2 using a grease-dis-solving cleaning agent. The adhesive pad will only adhere permanently to a grease-free surface.The distance between the con-trol satellite 2 and the user's mouth should not exceed 80 cm.Switching off the Car Kit‰Press for at least 3 seconds to switch off the Car Kit.The Car Kit will switch off auto-matically if no telephone is con-nected.Switching on the Car KitSwitch on the Car Kit by turning the ignition or by pressing and holding the ‰ key.The Car Kit searches for the phone with which it is paired and connects it automatically if the search is successful. The LED then flashes quickly four times.If it does not find a mobile phone it knows, see page 13. Do not use any plug extensions nor any plug adapters when installing, otherwise secure mounting of the Car Kit cannot be guaranteed.PlaceholderPlace-holderPlaceholder

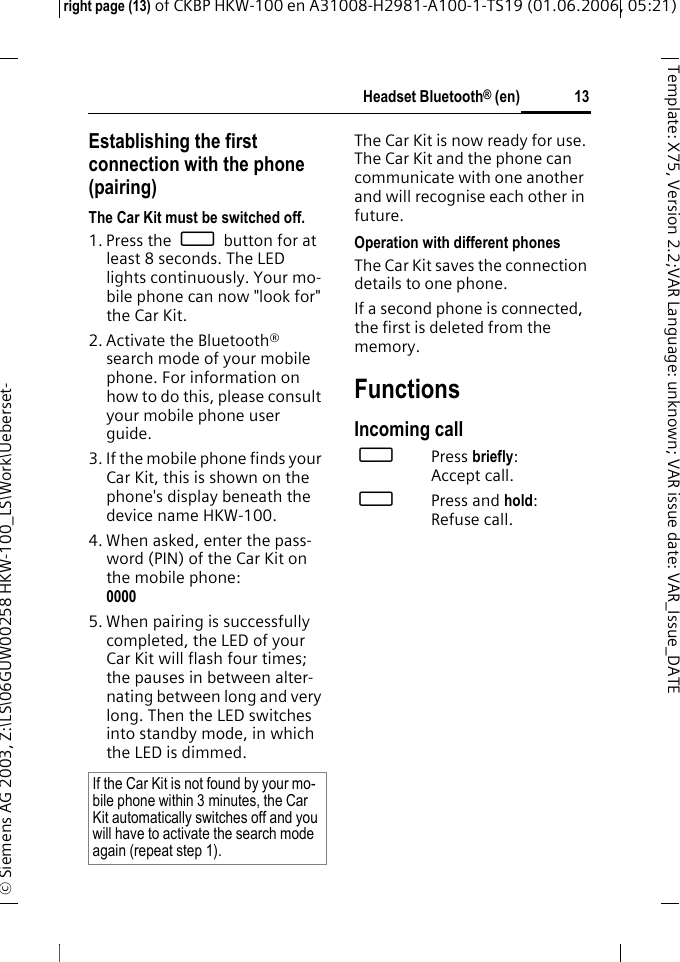

Headset Bluetooth® (en)right page (13) of CKBP HKW-100 en A31008-H2981-A100-1-TS19 (01.06.2006, 05:21)© Siemens AG 2003, Z:\LS\06GUW00258 HKW-100_LS\Work\Ueberset-13Template: X75, Version 2.2;VARLanguage: unknown;VARissuedate:VAR_Issue_DATEEstablishing the first connection with the phone (pairing)The Car Kit must be switched off.1. Press the ‰ button for at least 8 seconds. The LED lights continuously. Your mo-bile phone can now "look for" the Car Kit.2. Activate the Bluetooth® search mode of your mobile phone. For information on how to do this, please consult your mobile phone user guide.3. If the mobile phone finds your Car Kit, this is shown on the phone's display beneath the device name HKW-100. 4. When asked, enter the pass-word (PIN) of the Car Kit on the mobile phone:0000 5. When pairing is successfully completed, the LED of your Car Kit will flash four times; the pauses in between alter-nating between long and very long. Then the LED switches into standby mode, in which the LED is dimmed.The Car Kit is now ready for use. The Car Kit and the phone can communicate with one another and will recognise each other in future. Operation with different phonesThe Car Kit saves the connection details to one phone.If a second phone is connected, the first is deleted from the memory. FunctionsIncoming call ‰Press briefly: Accept call.‰Press and hold: Refuse call.If the Car Kit is not found by your mo-bile phone within 3 minutes, the Car Kit automatically switches off and you will have to activate the search mode again (repeat step 1).

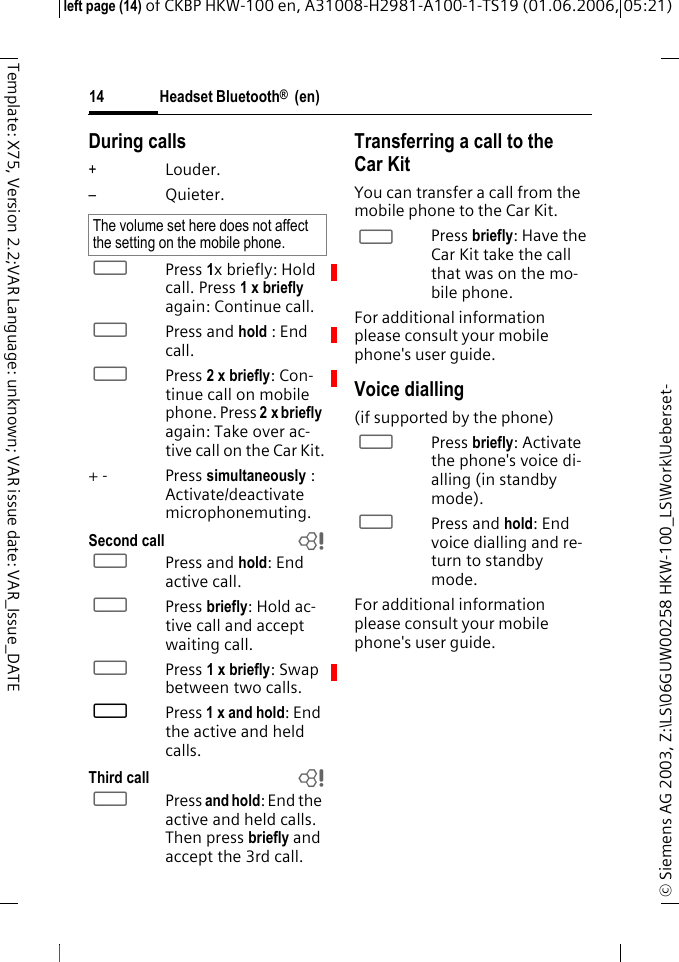

Headset Bluetooth®  (en)© Siemens AG 2003, Z:\LS\06GUW00258 HKW-100_LS\Work\Ueberset-left page (14) of CKBP HKW-100 en, A31008-H2981-A100-1-TS19 (01.06.2006, 05:21)14Template: X75, Version 2.2;VAR Language: unknown; VAR issue date: VAR_Issue_DATEDuring calls+Louder.–Quieter.‰Press 1x briefly: Hold call. Press 1 x briefly again: Continue call.‰Press and hold : End call.‰Press 2 x briefly: Con-tinue call on mobile phone. Press 2x briefly again: Take over ac-tive call on the Car Kit.+ - Press simultaneously : Activate/deactivate microphonemuting. Second call b‰Press and hold: End active call.‰Press briefly: Hold ac-tive call and accept waiting call.‰Press 1 x briefly: Swap between two calls.‰Press 1 x and hold: End the active and held calls.Third call b‰Press and hold: End the active and held calls. Then press briefly and accept the 3rd call.Transferring a call to the Car KitYou can transfer a call from the mobile phone to the Car Kit.‰Press briefly: Have the Car Kit take the call that was on the mo-bile phone.For additional information please consult your mobile phone's user guide.Voice dialling (if supported by the phone)‰Press briefly: Activate the phone's voice di-alling (in standby mode).‰Press and hold: End voice dialling and re-turn to standby mode.For additional information please consult your mobile phone's user guide.The volume set here does not affect the setting on the mobile phone.

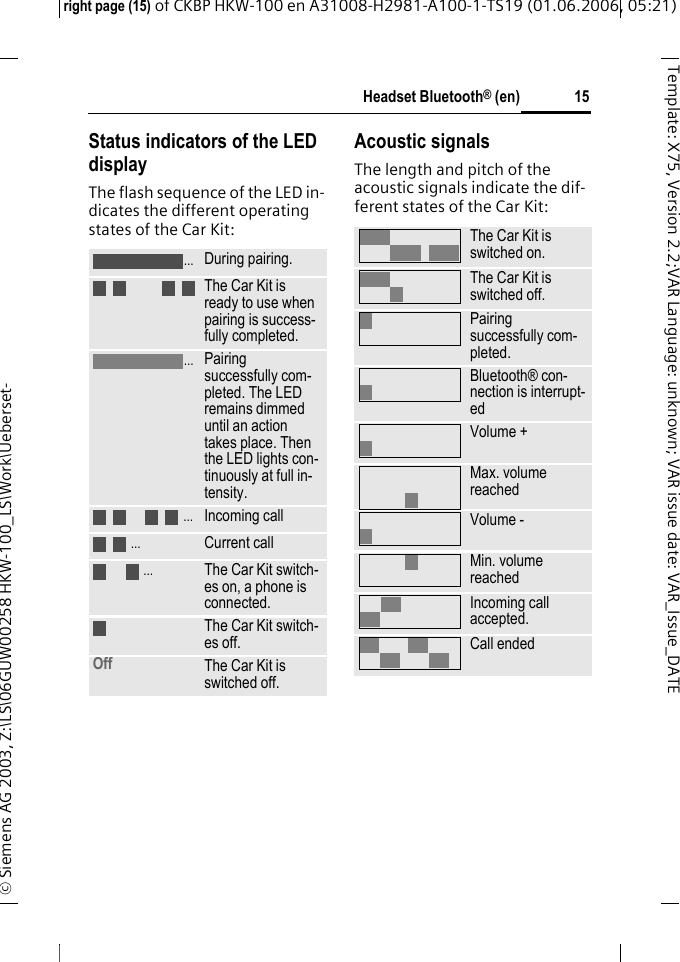

Headset Bluetooth® (en)right page (15) of CKBP HKW-100 en A31008-H2981-A100-1-TS19 (01.06.2006, 05:21)© Siemens AG 2003, Z:\LS\06GUW00258 HKW-100_LS\Work\Ueberset-15Template: X75, Version 2.2;VARLanguage: unknown;VARissuedate:VAR_Issue_DATEStatus indicators of the LED displayThe flash sequence of the LED in-dicates the different operating states of the Car Kit:Acoustic signalsThe length and pitch of the acoustic signals indicate the dif-ferent states of the Car Kit:During pairing.The Car Kit is ready to use when pairing is success-fully completed.Pairing successfully com-pleted. The LED remains dimmed until an action takes place. Then the LED lights con-tinuously at full in-tensity.Incoming callCurrent callThe Car Kit switch-es on, a phone is connected. The Car Kit switch-es off. Off The Car Kit is switched off................The Car Kit is switched on.The Car Kit is switched off.Pairing successfully com-pleted. Bluetooth® con-nection is interrupt-edVolume + Max. volume reachedVolume - Min. volume reachedIncoming call accepted.Call ended

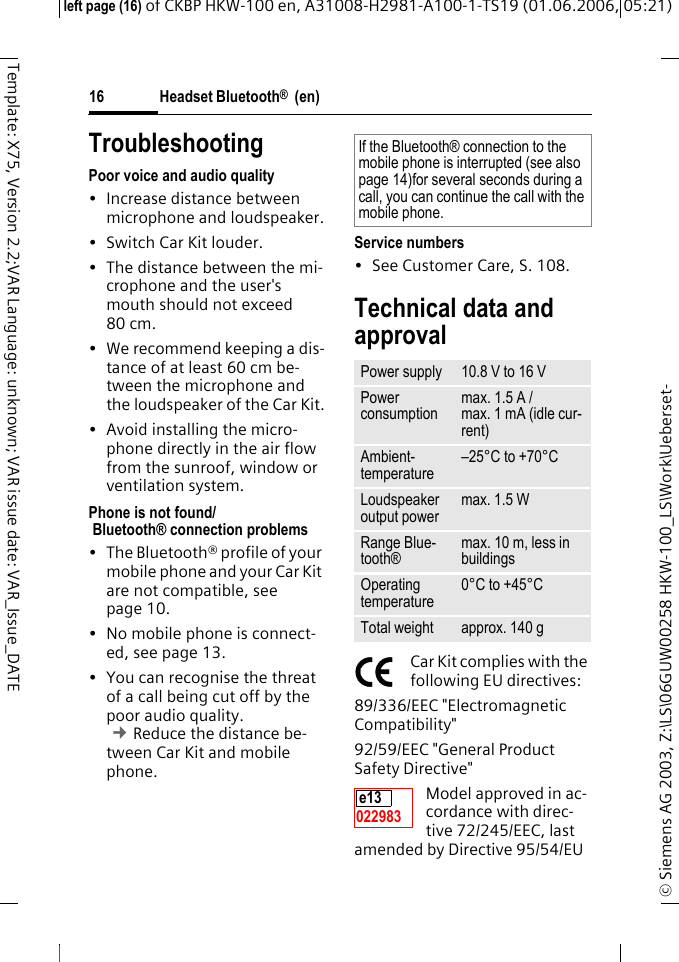

Headset Bluetooth®  (en)© Siemens AG 2003, Z:\LS\06GUW00258 HKW-100_LS\Work\Ueberset-left page (16) of CKBP HKW-100 en, A31008-H2981-A100-1-TS19 (01.06.2006, 05:21)16Template: X75, Version 2.2;VAR Language: unknown; VAR issue date: VAR_Issue_DATETroubleshootingPoor voice and audio quality• Increase distance between microphone and loudspeaker.• Switch Car Kit louder.• The distance between the mi-crophone and the user's mouth should not exceed 80 cm.• We recommend keeping a dis-tance of at least 60 cm be-tween the microphone and the loudspeaker of the Car Kit.• Avoid installing the micro-phone directly in the air flow from the sunroof, window or ventilation system.Phone is not found/ Bluetooth® connection problems• The Bluetooth® profile of your mobile phone and your Car Kit are not compatible, see page 10.• No mobile phone is connect-ed, see page 13.• You can recognise the threat of a call being cut off by the poor audio quality. ¢Reduce the distance be-tween Car Kit and mobile phone. Service numbers • See Customer Care, S. 108.Technical data and approvalCar Kit complies with the following EU directives:89/336/EEC "Electromagnetic Compatibility"92/59/EEC "General Product Safety Directive"Model approved in ac-cordance with direc-tive 72/245/EEC, last amended by Directive 95/54/EU If the Bluetooth® connection to the mobile phone is interrupted (see also page 14)for several seconds during a call, you can continue the call with the mobile phone.Power supply 10.8 V to 16 VPower consumptionmax. 1.5 A /max. 1 mA (idle cur-rent)Ambient-temperature–25°C to +70°CLoudspeaker output powermax. 1.5 W Range Blue-tooth®max. 10 m, less in buildingsOperating temperature0°C to +45°CTotal weight approx. 140 ge13 022983

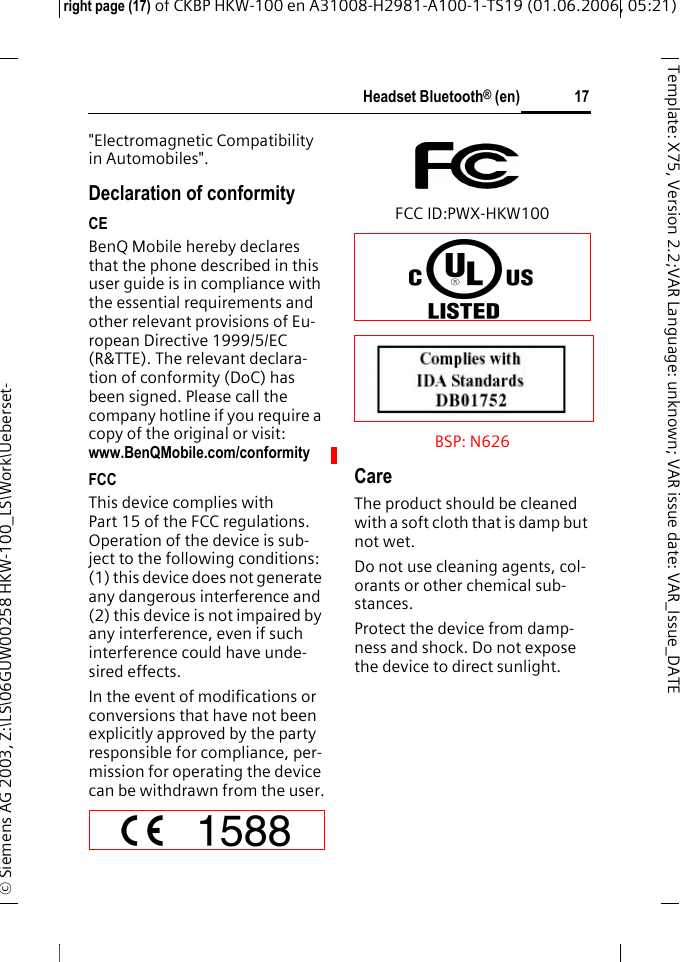

Headset Bluetooth® (en)right page (17) of CKBP HKW-100 en A31008-H2981-A100-1-TS19 (01.06.2006, 05:21)© Siemens AG 2003, Z:\LS\06GUW00258 HKW-100_LS\Work\Ueberset-17Template: X75, Version 2.2;VARLanguage: unknown;VARissuedate:VAR_Issue_DATE"Electromagnetic Compatibility in Automobiles".Declaration of conformityCEBenQ Mobile hereby declares that the phone described in this user guide is in compliance with the essential requirements and other relevant provisions of Eu-ropean Directive 1999/5/EC (R&TTE). The relevant declara-tion of conformity (DoC) has been signed. Please call the company hotline if you require a copy of the original or visit: www.BenQMobile.com/conformity FCCThis device complies with Part 15 of the FCC regulations. Operation of the device is sub-ject to the following conditions: (1) this device does not generate any dangerous interference and (2) this device is not impaired by any interference, even if such interference could have unde-sired effects. In the event of modifications or conversions that have not been explicitly approved by the party responsible for compliance, per-mission for operating the device can be withdrawn from the user.FCC ID:PWX-HKW100BSP: N626 CareThe product should be cleaned with a soft cloth that is damp but not wet.Do not use cleaning agents, col-orants or other chemical sub-stances.Protect the device from damp-ness and shock. Do not expose the device to direct sunlight.

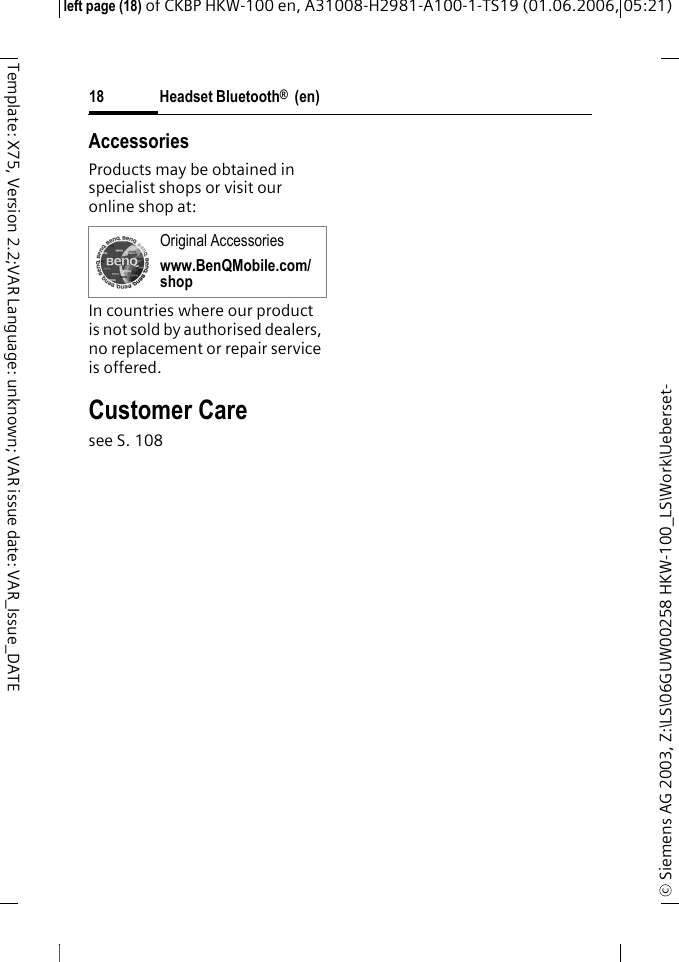

Headset Bluetooth®  (en)© Siemens AG 2003, Z:\LS\06GUW00258 HKW-100_LS\Work\Ueberset-left page (18) of CKBP HKW-100 en, A31008-H2981-A100-1-TS19 (01.06.2006, 05:21)18Template: X75, Version 2.2;VAR Language: unknown; VAR issue date: VAR_Issue_DATEAccessoriesProducts may be obtained in specialist shops or visit our online shop at: In countries where our product is not sold by authorised dealers, no replacement or repair service is offered.Customer Caresee S. 108Original Accessorieswww.BenQMobile.com/shop

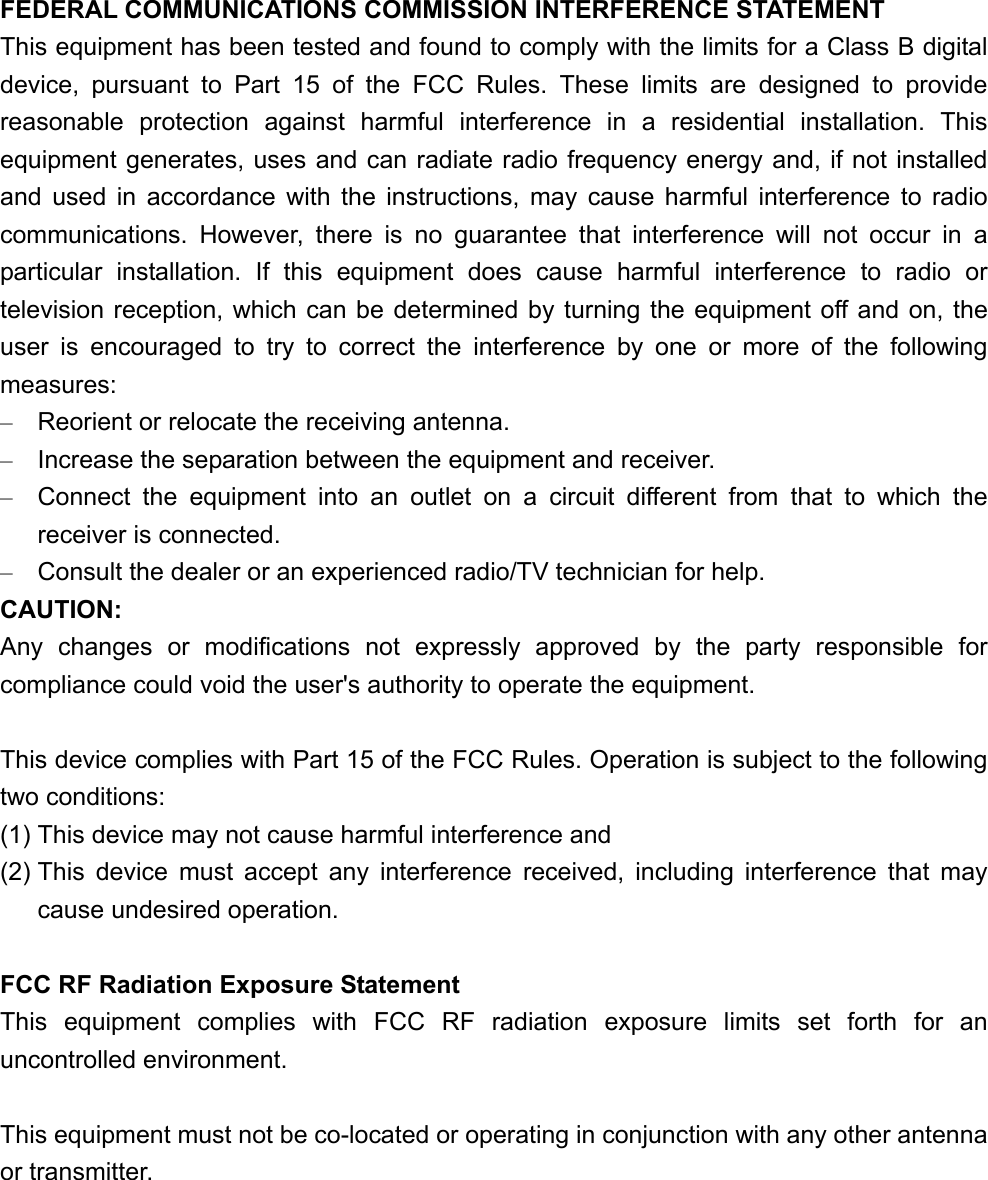

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –  Reorient or relocate the receiving antenna. –  Increase the separation between the equipment and receiver. –  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –  Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation.  FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.  This equipment must not be co-located or operating in conjunction with any other antenna or transmitter.
