BenQ Mobile and OHG S46 S46 User Manual i37 ger

BenQ Mobile GmbH & Co. OHG S46 i37 ger

manual

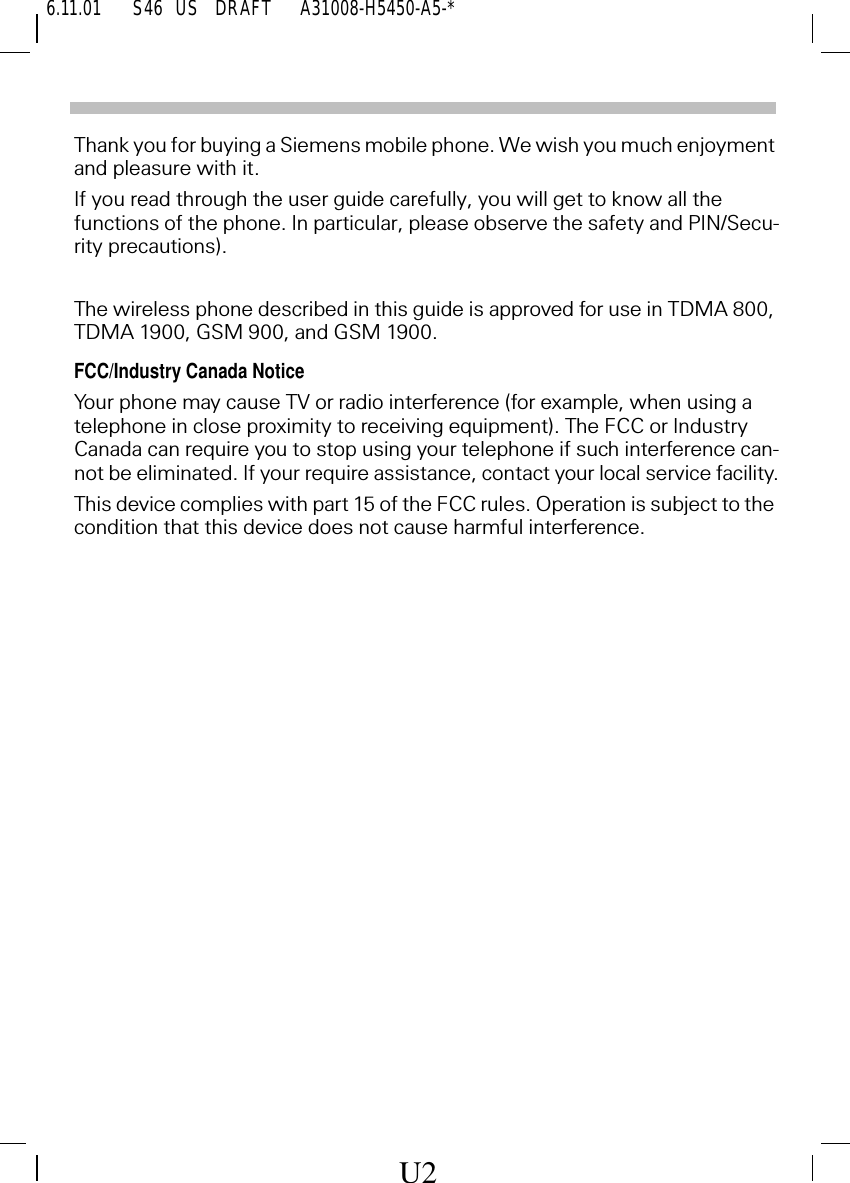

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*Thank you for buying a Siemens mobile phone. We wish you much enjoyment and pleasure with it.If you read through the user guide carefully, you will get to know all the functions of the phone. In particular, please observe the safety and PIN/Secu-rity precautions).The wireless phone described in this guide is approved for use in TDMA 800, TDMA 1900, GSM 900, and GSM 1900.FCC/Industry Canada NoticeYour phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference can-not be eliminated. If your require assistance, contact your local service facility.This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference.U2

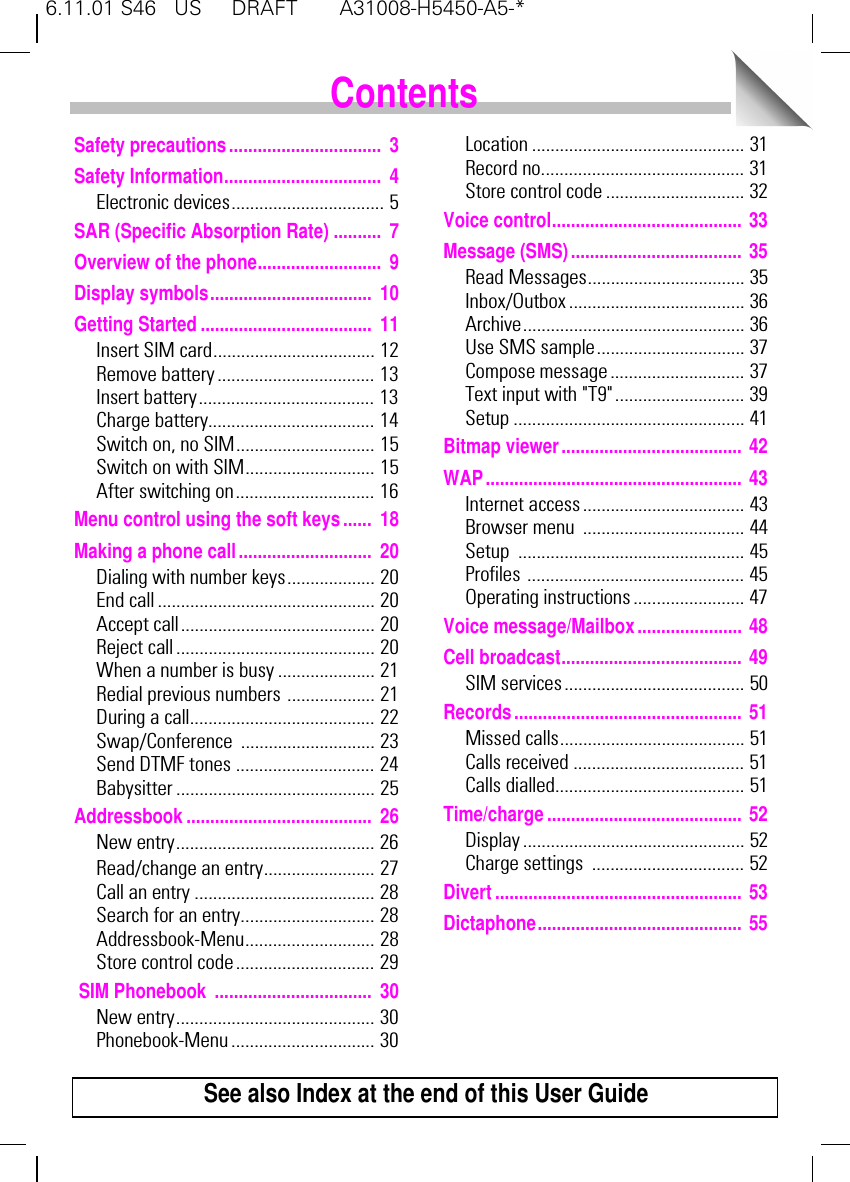

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*1Safety precautions................................ 3Safety Information................................. 4Electronic devices................................. 5SAR (Specific Absorption Rate) .......... 7Overview of the phone.......................... 9Display symbols.................................. 10Getting Started.................................... 11Insert SIM card................................... 12Remove battery .................................. 13Insert battery...................................... 13Charge battery.................................... 14Switch on, no SIM.............................. 15Switch on with SIM............................ 15After switching on.............................. 16Menu control using the soft keys...... 18Making a phone call............................ 20Dialing with number keys................... 20End call ............................................... 20Accept call.......................................... 20Reject call........................................... 20When a number is busy ..................... 21Redial previous numbers ................... 21During a call........................................ 22Swap/Conference ............................. 23Send DTMF tones .............................. 24Babysitter ........................................... 25Addressbook....................................... 26New entry........................................... 26Read/change an entry........................ 27Call an entry ....................................... 28Search for an entry............................. 28Addressbook-Menu............................ 28Store control code .............................. 29 SIM Phonebook ................................. 30New entry........................................... 30Phonebook-Menu ............................... 30Location .............................................. 31Record no............................................ 31Store control code .............................. 32Voice control........................................ 33Message (SMS).................................... 35Read Messages.................................. 35Inbox/Outbox ...................................... 36Archive................................................ 36Use SMS sample................................ 37Compose message ............................. 37Text input with "T9"............................ 39Setup .................................................. 41Bitmap viewer...................................... 42WAP...................................................... 43Internet access................................... 43Browser menu  ................................... 44Setup ................................................. 45Profiles ............................................... 45Operating instructions ........................ 47Voice message/Mailbox...................... 48Cell broadcast...................................... 49SIM services....................................... 50Records................................................ 51Missed calls........................................ 51Calls received ..................................... 51Calls dialled......................................... 51Time/charge......................................... 52Display................................................ 52Charge settings  ................................. 52Divert.................................................... 53Dictaphone........................................... 55ContentsSee also Index at the end of this User Guide

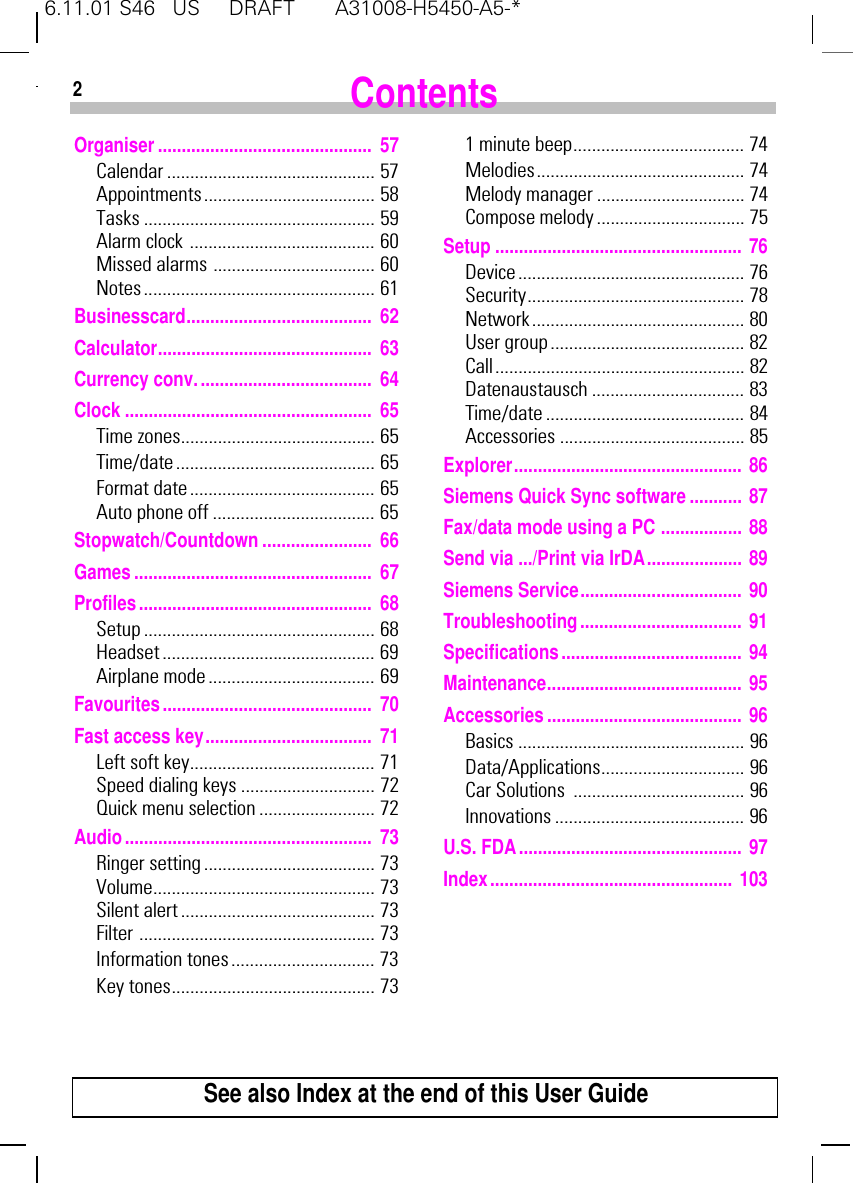

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*2Organiser............................................. 57Calendar ............................................. 57Appointments..................................... 58Tasks .................................................. 59Alarm clock ........................................ 60Missed alarms ................................... 60Notes.................................................. 61Businesscard....................................... 62Calculator............................................. 63Currency conv..................................... 64Clock .................................................... 65Time zones.......................................... 65Time/date ........................................... 65Format date ........................................ 65Auto phone off ................................... 65Stopwatch/Countdown....................... 66Games.................................................. 67Profiles................................................. 68Setup.................................................. 68Headset.............................................. 69Airplane mode .................................... 69Favourites............................................ 70Fast access key................................... 71Left soft key........................................ 71Speed dialing keys ............................. 72Quick menu selection ......................... 72Audio.................................................... 73Ringer setting..................................... 73Volume................................................ 73Silent alert.......................................... 73Filter ................................................... 73Information tones............................... 73Key tones............................................ 731 minute beep..................................... 74Melodies............................................. 74Melody manager ................................ 74Compose melody ................................ 75Setup .................................................... 76Device................................................. 76Security............................................... 78Network.............................................. 80User group .......................................... 82Call...................................................... 82Datenaustausch ................................. 83Time/date ........................................... 84Accessories ........................................ 85Explorer................................................ 86Siemens Quick Sync software........... 87Fax/data mode using a PC ................. 88Send via .../Print via IrDA.................... 89Siemens Service.................................. 90Troubleshooting.................................. 91Specifications...................................... 94Maintenance......................................... 95Accessories......................................... 96Basics ................................................. 96Data/Applications............................... 96Car Solutions  ..................................... 96Innovations ......................................... 96U.S. FDA............................................... 97Index................................................... 103ContentsSee also Index at the end of this User Guide

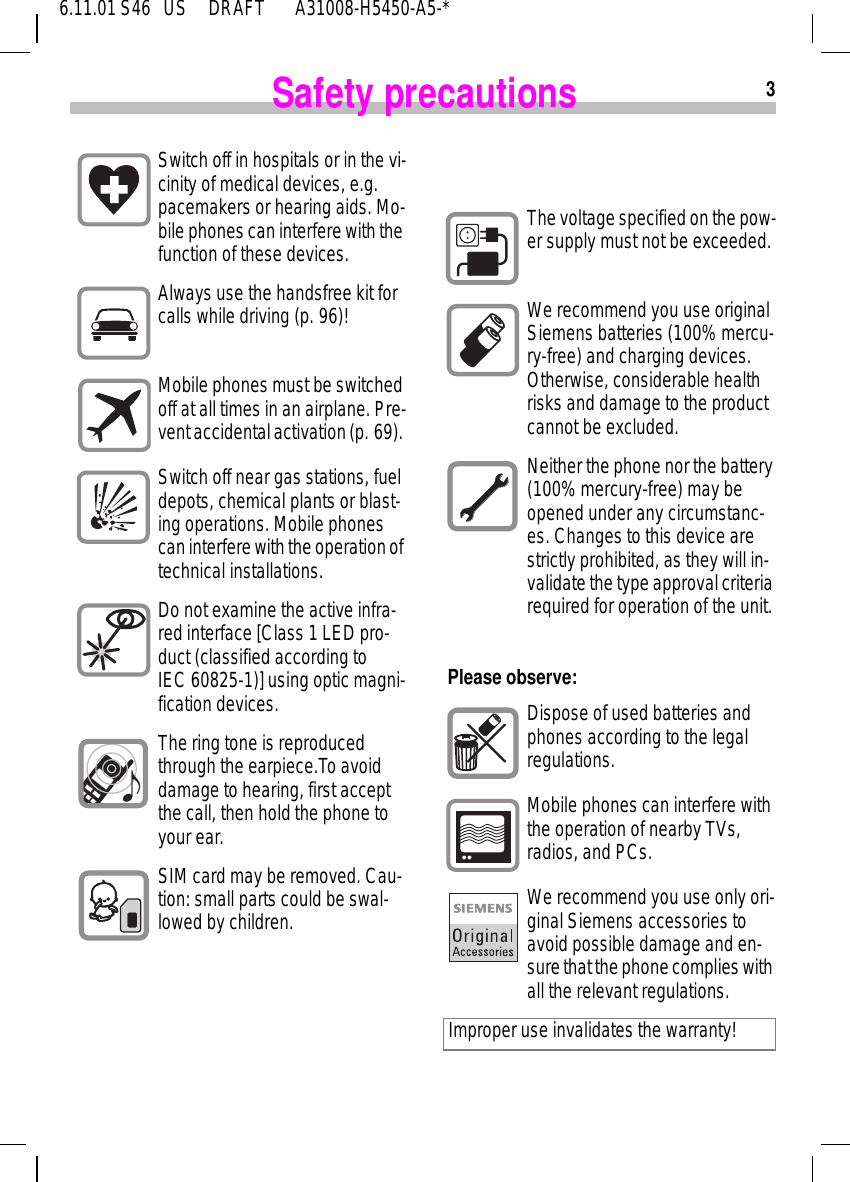

36.11.01 S46   US     DRAFT       A31008-H5450-A5-*Safety precautionsSwitch off in hospitals or in the vi-cinity of medical devices, e.g. pacemakers or hearing aids. Mo-bile phones can interfere with the function of these devices.Always use the handsfree kit for calls while driving (p. 96)!Mobile phones must be switched off at all times in an airplane. Pre-vent accidental activation (p. 69). Switch off near gas stations, fuel depots, chemical plants or blast-ing operations. Mobile phones can interfere with the operation of technical installations.Do not examine the active infra-red interface [Class 1 LED pro-duct (classified according to IEC 60825-1)] using optic magni-fication devices.The ring tone is reproduced through the earpiece.To avoid damage to hearing, first accept the call, then hold the phone to your ear.SIM card may be removed. Cau-tion: small parts could be swal-lowed by children. Please observe:  The voltage specified on the pow-er supply must not be exceeded.We recommend you use original Siemens batteries (100% mercu-ry-free) and charging devices. Otherwise, considerable health risks and damage to the product cannot be excluded.Neither the phone nor the battery (100% mercury-free) may be opened under any circumstanc-es. Changes to this device are strictly prohibited, as they will in-validate the type approval criteria required for operation of the unit.Dispose of used batteries and phones according to the legal regulations.Mobile phones can interfere with the operation of nearby TVs, radios, and PCs.We recommend you use only ori-ginal Siemens accessories to avoid possible damage and en-sure that the phone complies with all the relevant regulations. Improper use invalidates the warranty!

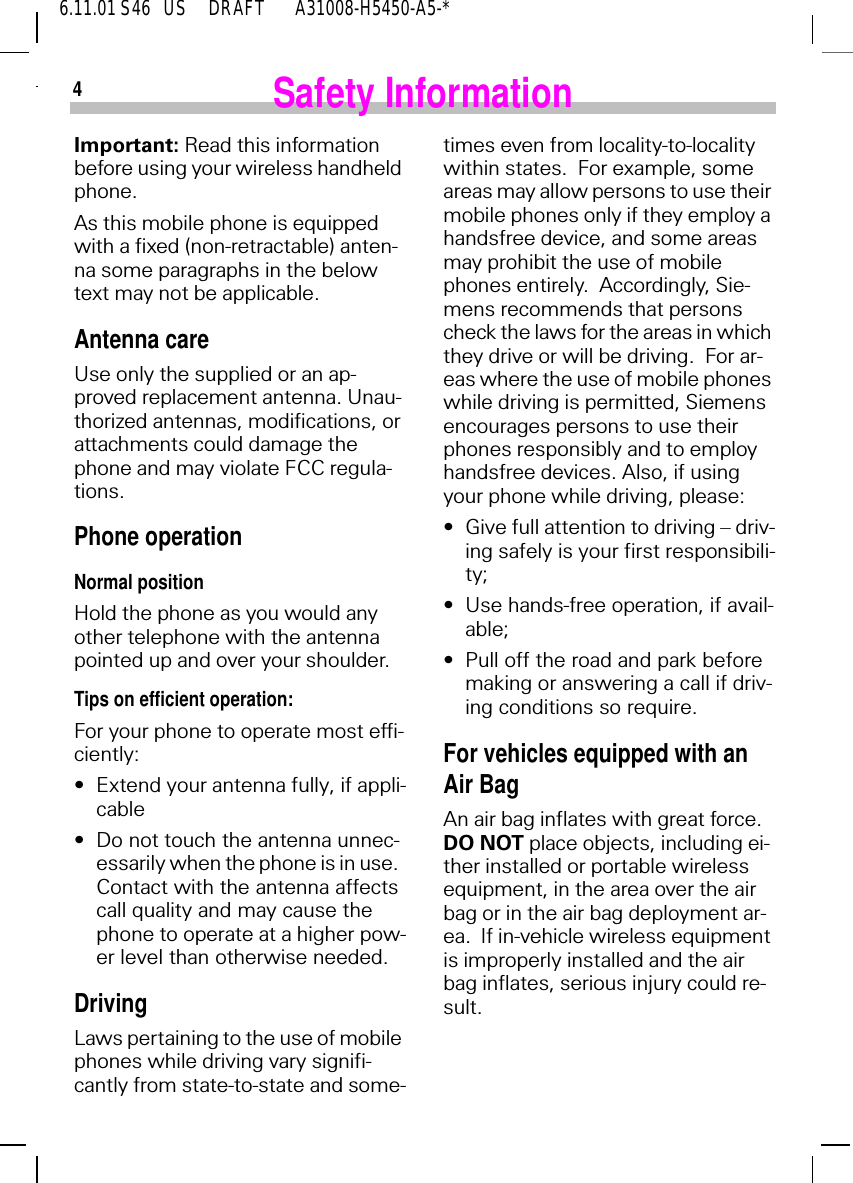

46.11.01 S46   US     DRAFT       A31008-H5450-A5-*Safety InformationImportant: Read this information before using your wireless handheld phone.As this mobile phone is equipped with a fixed (non-retractable) anten-na some paragraphs in the below text may not be applicable. Antenna careUse only the supplied or an ap-proved replacement antenna. Unau-thorized antennas, modifications, or attachments could damage the phone and may violate FCC regula-tions.Phone operationNormal positionHold the phone as you would any other telephone with the antenna pointed up and over your shoulder.Tips on efficient operation:For your phone to operate most effi-ciently:• Extend your antenna fully, if appli-cable• Do not touch the antenna unnec-essarily when the phone is in use.  Contact with the antenna affects call quality and may cause the phone to operate at a higher pow-er level than otherwise needed.DrivingLaws pertaining to the use of mobile phones while driving vary signifi-cantly from state-to-state and some-times even from locality-to-locality within states.  For example, some areas may allow persons to use their mobile phones only if they employ a handsfree device, and some areas may prohibit the use of mobile phones entirely.  Accordingly, Sie-mens recommends that persons check the laws for the areas in which they drive or will be driving.  For ar-eas where the use of mobile phones while driving is permitted, Siemens encourages persons to use their phones responsibly and to employ handsfree devices. Also, if using your phone while driving, please:• Give full attention to driving – driv-ing safely is your first responsibili-ty;• Use hands-free operation, if avail-able;• Pull off the road and park before making or answering a call if driv-ing conditions so require.For vehicles equipped with an Air BagAn air bag inflates with great force.  DO NOT place objects, including ei-ther installed or portable wireless equipment, in the area over the air bag or in the air bag deployment ar-ea.  If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could re-sult.

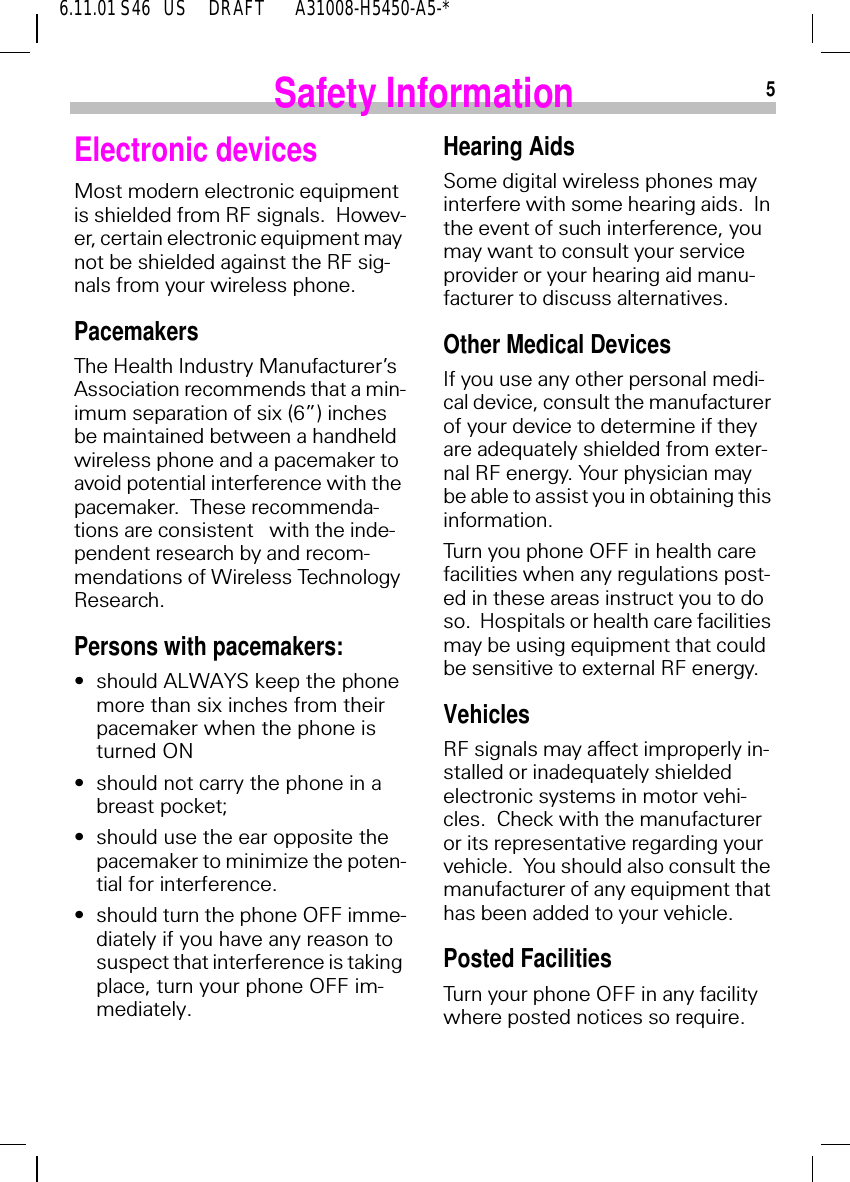

56.11.01 S46   US     DRAFT       A31008-H5450-A5-*Safety InformationElectronic devicesMost modern electronic equipment is shielded from RF signals.  Howev-er, certain electronic equipment may not be shielded against the RF sig-nals from your wireless phone.PacemakersThe Health Industry Manufacturer’s Association recommends that a min-imum separation of six (6”) inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker.  These recommenda-tions are consistent   with the inde-pendent research by and recom-mendations of Wireless Technology Research.Persons with pacemakers:•should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned ON•should not carry the phone in a breast pocket;•should use the ear opposite the pacemaker to minimize the poten-tial for interference.•should turn the phone OFF imme-diately if you have any reason to suspect that interference is taking place, turn your phone OFF im-mediately.Hearing AidsSome digital wireless phones may interfere with some hearing aids.  In the event of such interference, you may want to consult your service provider or your hearing aid manu-facturer to discuss alternatives.Other Medical DevicesIf you use any other personal medi-cal device, consult the manufacturer of your device to determine if they are adequately shielded from exter-nal RF energy. Your physician may be able to assist you in obtaining this information.Turn you phone OFF in health care facilities when any regulations post-ed in these areas instruct you to do so.  Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly in-stalled or inadequately shielded electronic systems in motor vehi-cles.  Check with the manufacturer or its representative regarding your vehicle.  You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesTurn your phone OFF in any facility where posted notices so require.

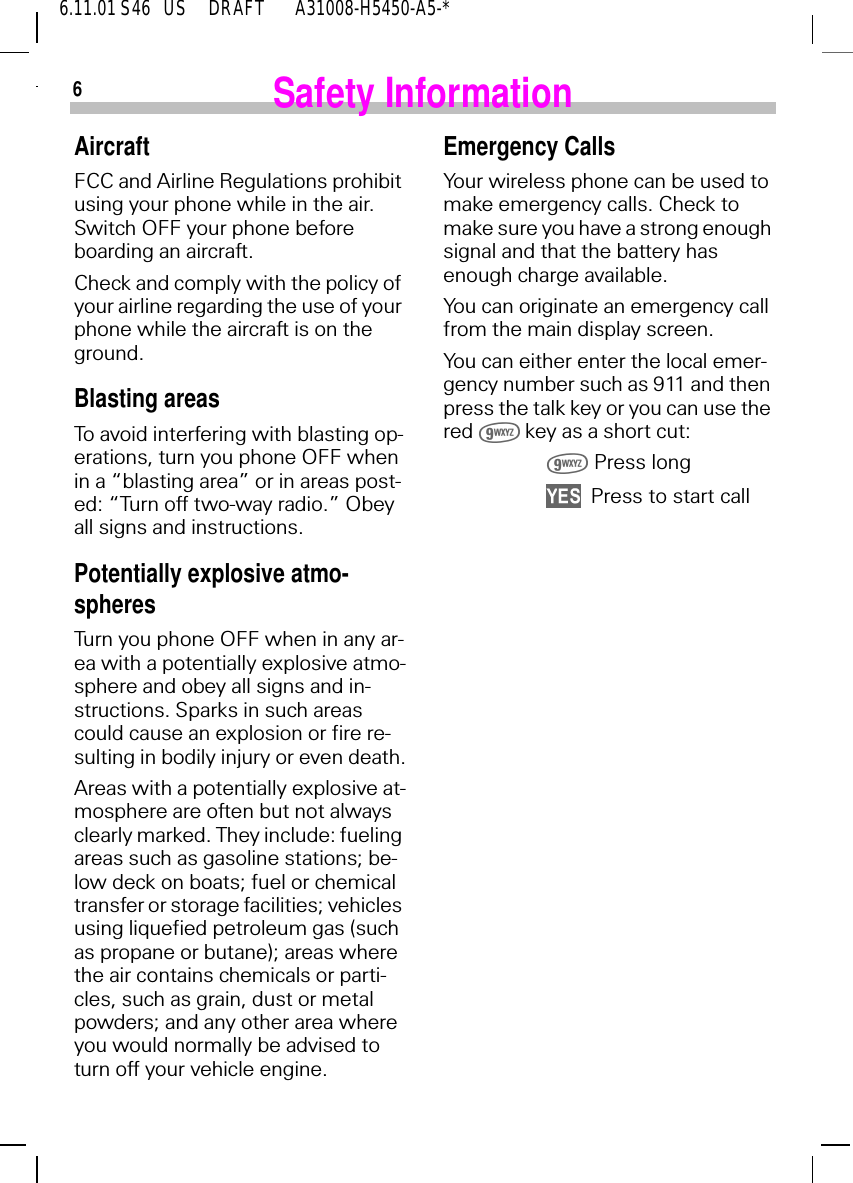

66.11.01 S46   US     DRAFT       A31008-H5450-A5-*Safety InformationAircraftFCC and Airline Regulations prohibit using your phone while in the air.  Switch OFF your phone before boarding an aircraft.Check and comply with the policy of your airline regarding the use of your phone while the aircraft is on the ground.Blasting areasTo avoid interfering with blasting op-erations, turn you phone OFF when in a “blasting area” or in areas post-ed: “Turn off two-way radio.” Obey all signs and instructions.Potentially explosive atmo-spheresTurn you phone OFF when in any ar-ea with a potentially explosive atmo-sphere and obey all signs and in-structions. Sparks in such areas could cause an explosion or fire re-sulting in bodily injury or even death.Areas with a potentially explosive at-mosphere are often but not always clearly marked. They include: fueling areas such as gasoline stations; be-low deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such as propane or butane); areas where the air contains chemicals or parti-cles, such as grain, dust or metal powders; and any other area where you would normally be advised to turn off your vehicle engine.Emergency CallsYour wireless phone can be used to make emergency calls. Check to make sure you have a strong enough signal and that the battery has enough charge available.You can originate an emergency call from the main display screen.You can either enter the local emer-gency number such as 911 and then press the talk key or you can use the red   key as a short cut:  Press long  Press to start call

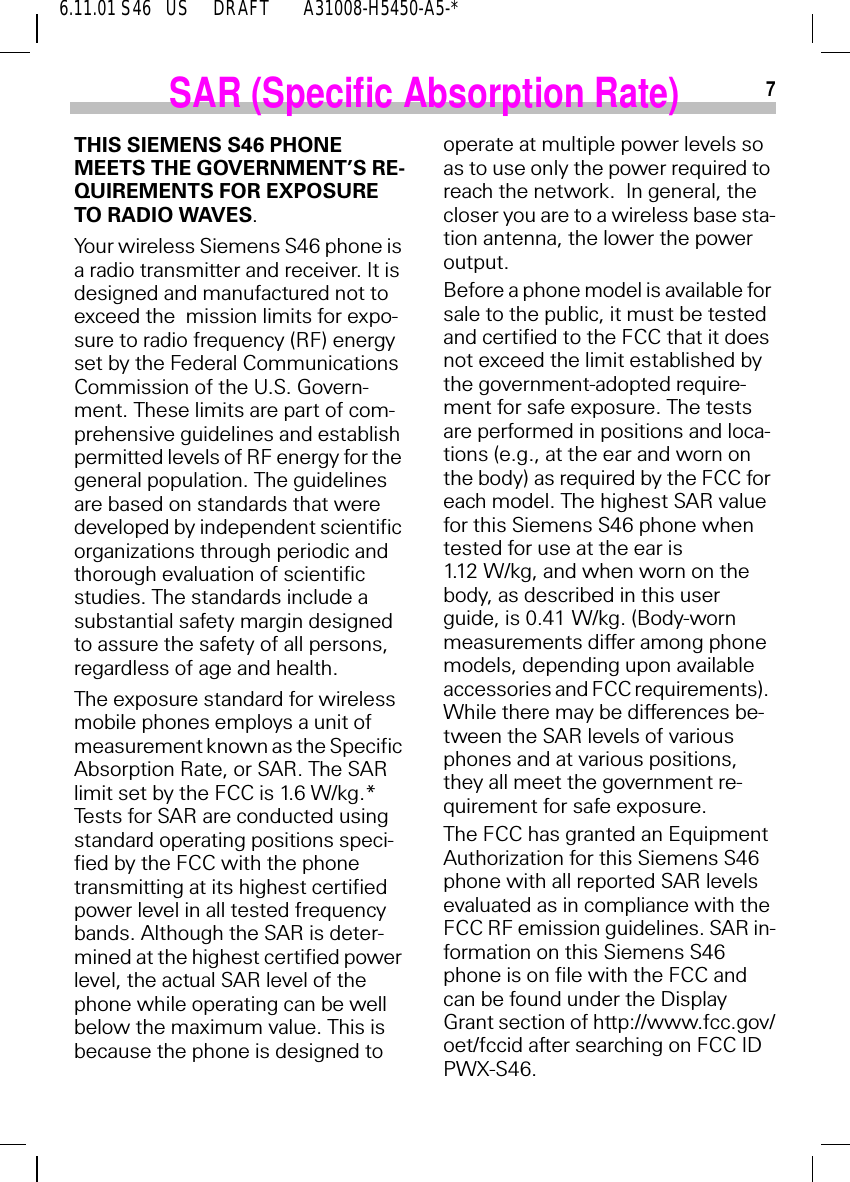

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*7SAR (Specific Absorption Rate)THIS SIEMENS S46 PHONE MEETS THE GOVERNMENT’S RE-QUIREMENTS FOR EXPOSURE TO RADIO WAVES.Your wireless Siemens S46 phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the  mission limits for expo-sure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Govern-ment. These limits are part of com-prehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.*  Tests for SAR are conducted using standard operating positions speci-fied by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is deter-mined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network.  In general, the closer you are to a wireless base sta-tion antenna, the lower the power output.Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted require-ment for safe exposure. The tests are performed in positions and loca-tions (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this Siemens S46 phone when tested for use at the ear is 1.12 W/kg, and when worn on the body, as described in this user guide, is 0.41 W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements).  While there may be differences be-tween the SAR levels of various phones and at various positions, they all meet the government re-quirement for safe exposure.The FCC has granted an Equipment Authorization for this Siemens S46 phone with all reported SAR levels  evaluated as in compliance with the FCC RF emission guidelines. SAR in-formation on this Siemens S46 phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID PWX-S46.

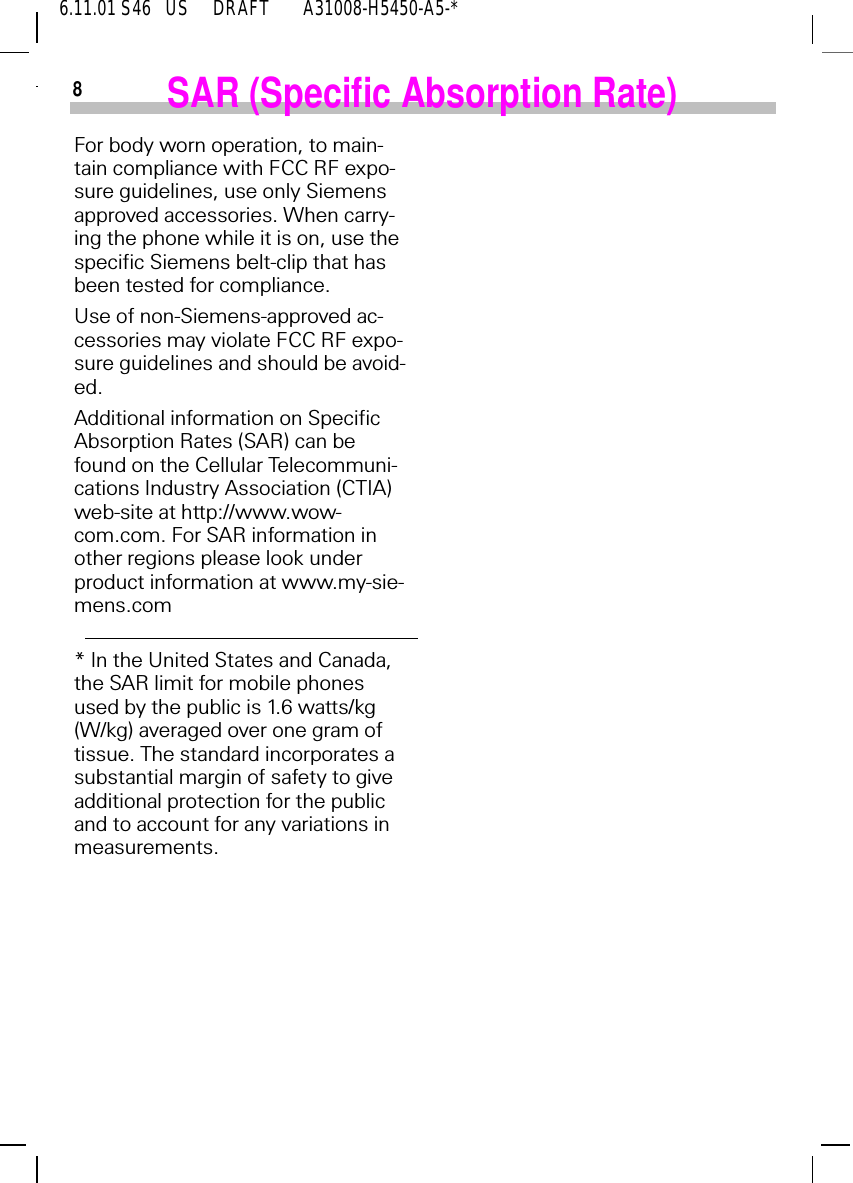

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*8SAR (Specific Absorption Rate)For body worn operation, to main-tain compliance with FCC RF expo-sure guidelines, use only Siemens approved accessories. When carry-ing the phone while it is on, use the specific Siemens belt-clip that has been tested for compliance.Use of non-Siemens-approved ac-cessories may violate FCC RF expo-sure guidelines and should be avoid-ed.Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommuni-cations Industry Association (CTIA) web-site at http://www.wow-com.com. For SAR information in other regions please look under product information at www.my-sie-mens.com* In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

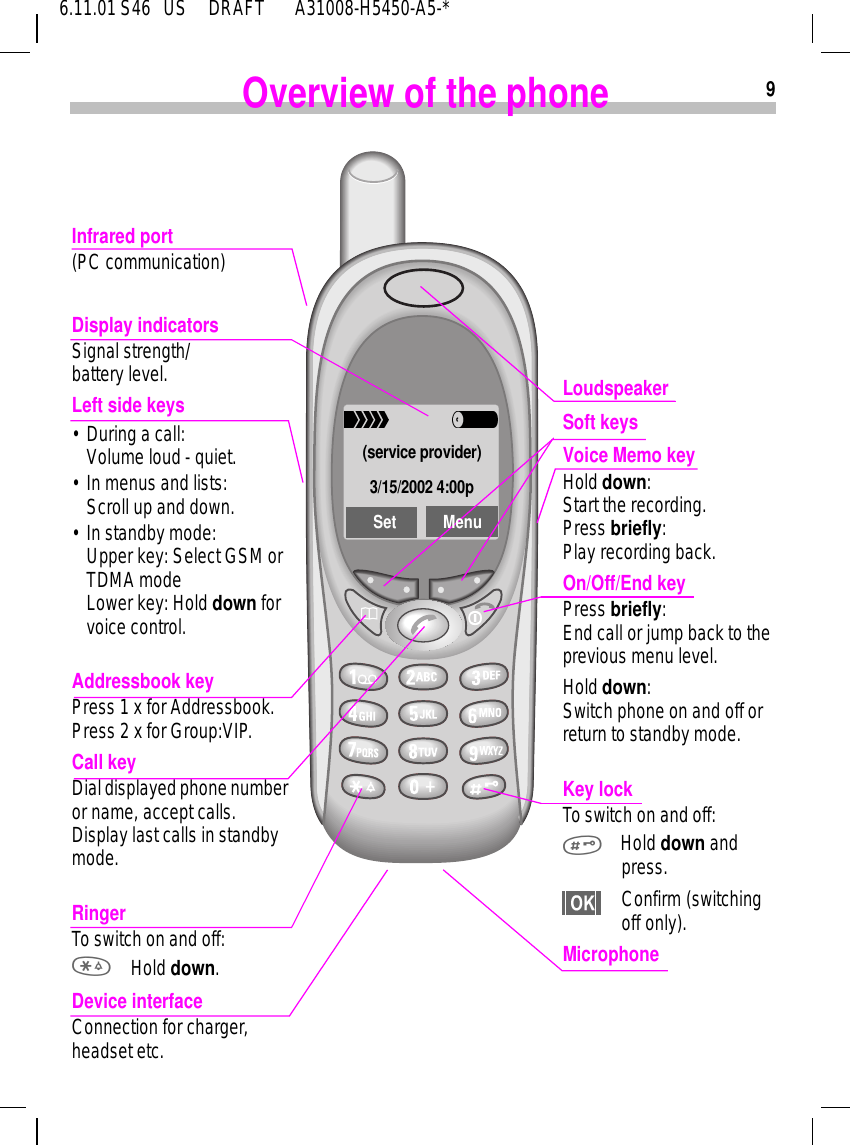

96.11.01 S46   US     DRAFT       A31008-H5450-A5-*(service provider)3/15/2002 4:00pSet MenuInfrared port (PC communication)Display indicatorsSignal strength/battery level.Left side keys• During a call:Volume loud - quiet. • In menus and lists: Scroll up and down. • In standby mode: Upper key: Select GSM or TDMA modeLower key: Hold down for voice control.Addressbook key Press 1 x for Addressbook.Press 2 x for Group:VIP.Call key Dial displayed phone number or name, accept calls. Display last calls in standby mode.RingerTo switch on and off: Hold down.Device interfaceConnection for charger, headset etc.Overview of the phoneLoudspeakerSoft keys Voice Memo keyHold down: Start the recording. Press briefly: Play recording back.On/Off/End keyPress briefly: End call or jump back to the previous menu level.Hold down: Switch phone on and off or return to standby mode.Key lock To switch on and off:   Hold down and press.Confirm (switching off only).Microphone

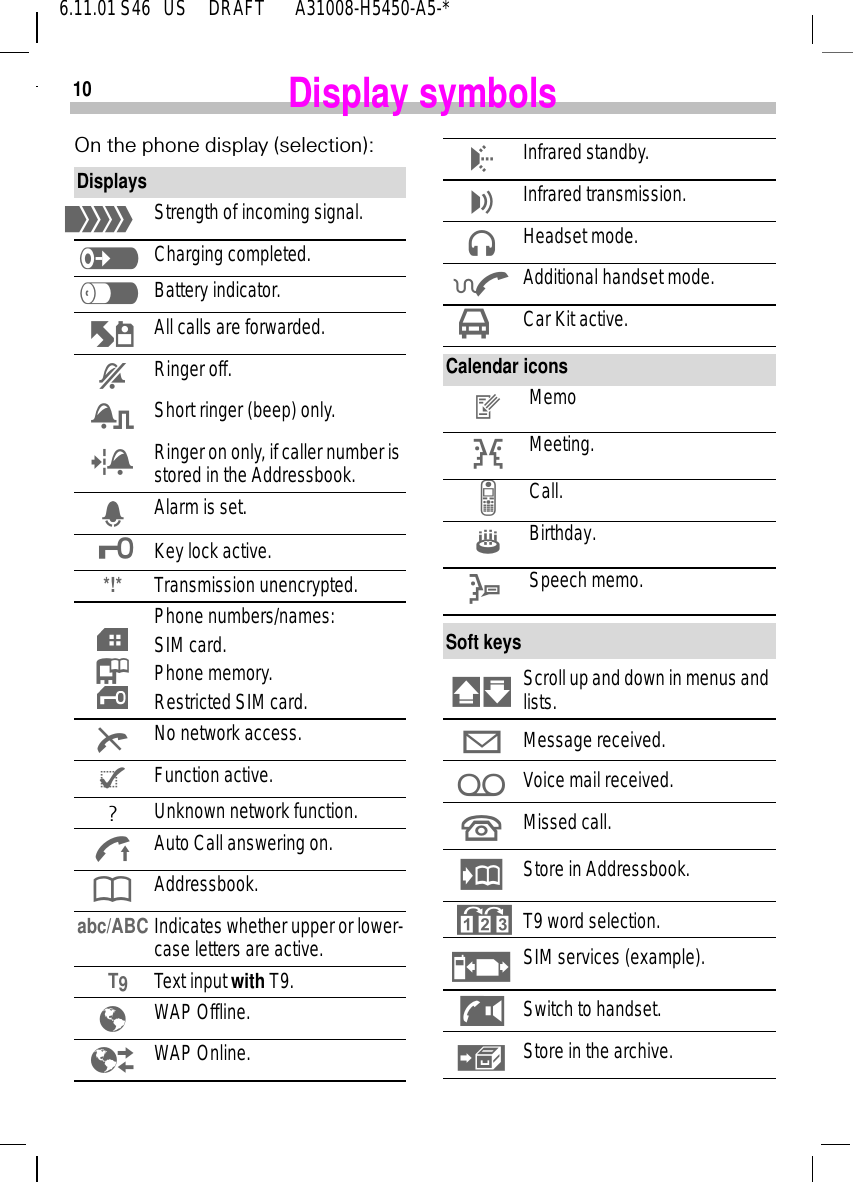

106.11.01 S46   US     DRAFT       A31008-H5450-A5-*Display symbolsOn the phone display (selection):Displays +Strength of incoming signal. PCharging completed. TBattery indicator. NAll calls are forwarded. 3Ringer off. 2Short ringer (beep) only. 1Ringer on only, if caller number is stored in the Addressbook. 4Alarm is set.  zKey lock active.*!* Transmission unencrypted.  . Phone numbers/names:SIM card.Phone memory.Restricted SIM card. KNo network access. {Function active.?Unknown network function. JAuto Call answering on. BAddressbook.abc/ABC Indicates whether upper or lower-case letters are active.T9Text input with T9. mWAP Offline. nWAP Online. 6Infrared standby. 7Infrared transmission. wHeadset mode. xAdditional handset mode. v Car Kit active.Calendar icons gMemo IMeeting. =Call. HBirthday. ESpeech memo.Soft keys #" Scroll up and down in menus and lists. 9Message received.  iVoice mail received.  LMissed call.  Store in Addressbook.  T9 word selection. hSIM services (example). WO Switch to handset. Store in the archive.

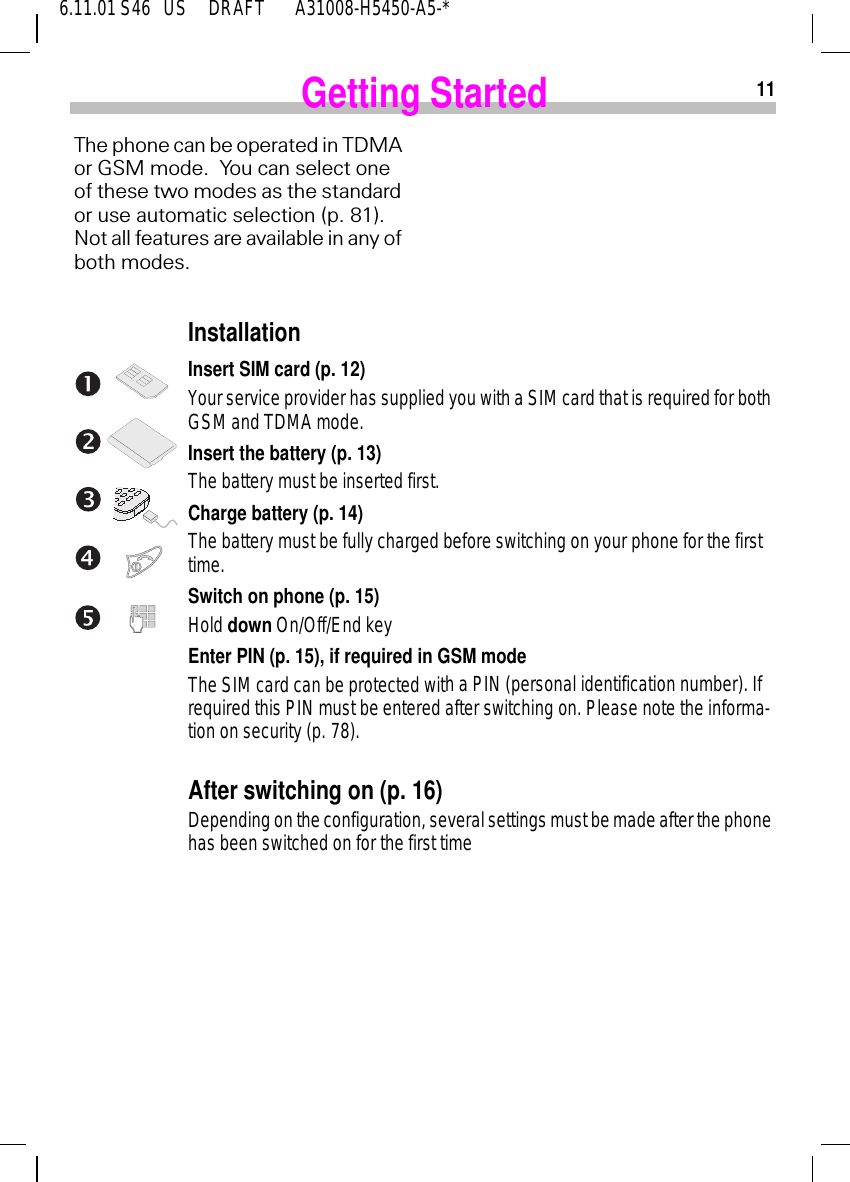

116.11.01 S46   US     DRAFT       A31008-H5450-A5-*Getting StartedThe phone can be operated in TDMA or GSM mode.  You can select one of these two modes as the standard or use automatic selection (p. 81). Not all features are available in any of both modes.Procedure TDMA installatInstallationInsert SIM card (p. 12)Your service provider has supplied you with a SIM card that is required for both GSM and TDMA mode.Insert the battery (p. 13)The battery must be inserted first.Charge battery (p. 14)The battery must be fully charged before switching on your phone for the first time.Switch on phone (p. 15)Hold down On/Off/End keyEnter PIN (p. 15), if required in GSM modeThe SIM card can be protected with a PIN (personal identification number). If required this PIN must be entered after switching on. Please note the informa-tion on security (p. 78).After switching on (p. 16)Depending on the configuration, several settings must be made after the phone has been switched on for the first time

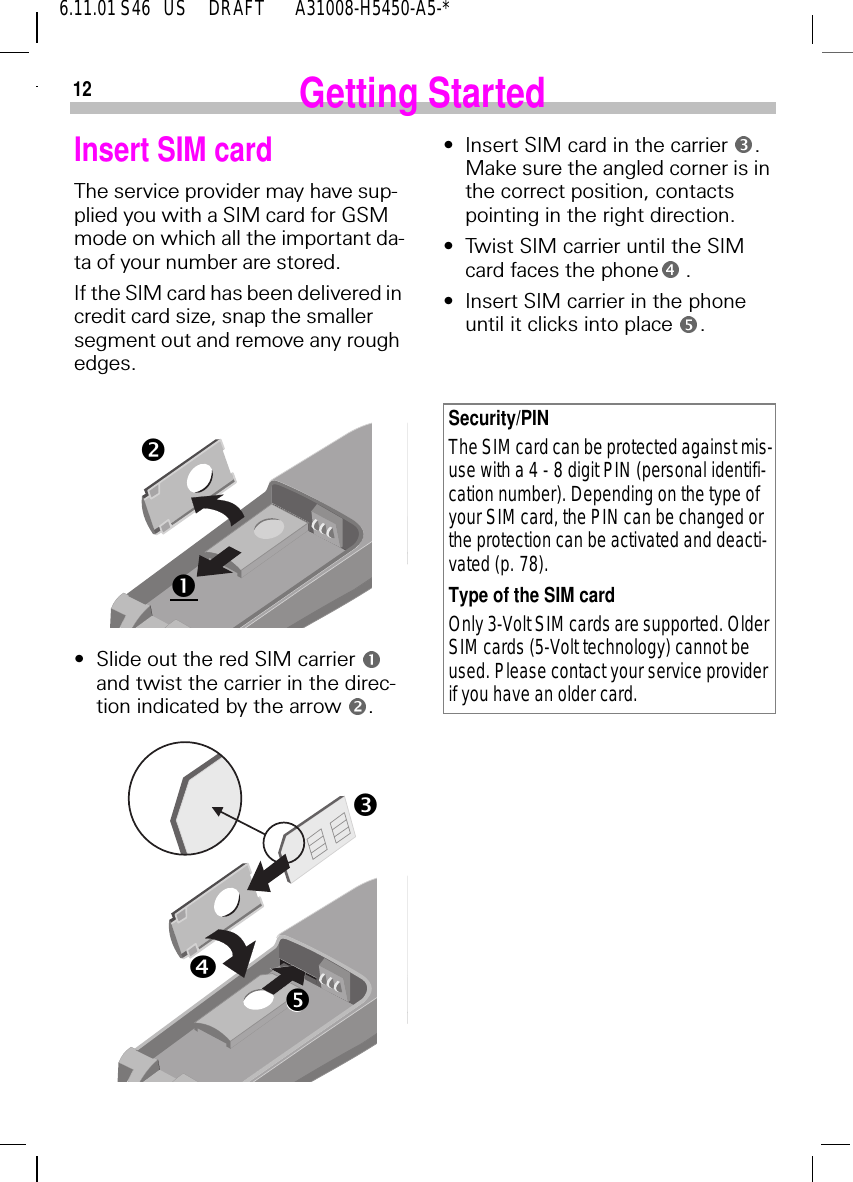

126.11.01 S46   US     DRAFT       A31008-H5450-A5-*Getting StartedInsert SIM cardThe service provider may have sup-plied you with a SIM card for GSM mode on which all the important da-ta of your number are stored. If the SIM card has been delivered in credit card size, snap the smaller segment out and remove any rough edges.•Slide out the red SIM carrier and twist the carrier in the direc-tion indicated by the arrow  .noprG•Insert SIM card in the carrier  . Make sure the angled corner is in the correct position, contacts pointing in the right direction.•Twist SIM carrier until the SIM card faces the phone  .•Insert SIM carrier in the phone until it clicks into place  .Security/PINThe SIM card can be protected against mis-use with a 4 - 8 digit PIN (personal identifi-cation number). Depending on the type of your SIM card, the PIN can be changed or the protection can be activated and deacti-vated (p. 78).Type of the SIM cardOnly 3-Volt SIM cards are supported. Older SIM cards (5-Volt technology) cannot be used. Please contact your service provider if you have an older card.

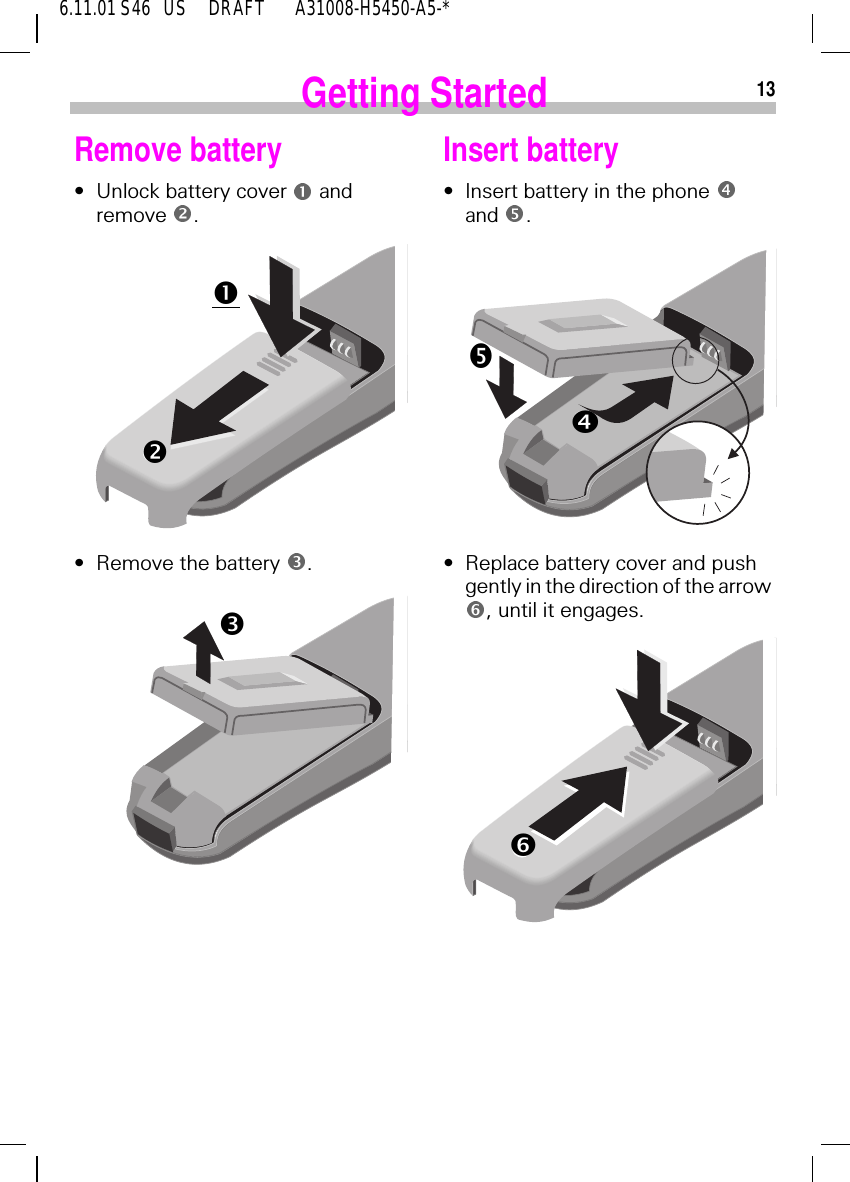

136.11.01 S46   US     DRAFT       A31008-H5450-A5-*Getting StartedRemove battery•Unlock battery cover   and remove  .•Remove the battery  . nopInsert battery•Insert battery in the phone and  .•Replace battery cover and push gently in the direction of the arrow , until it engages. GHI

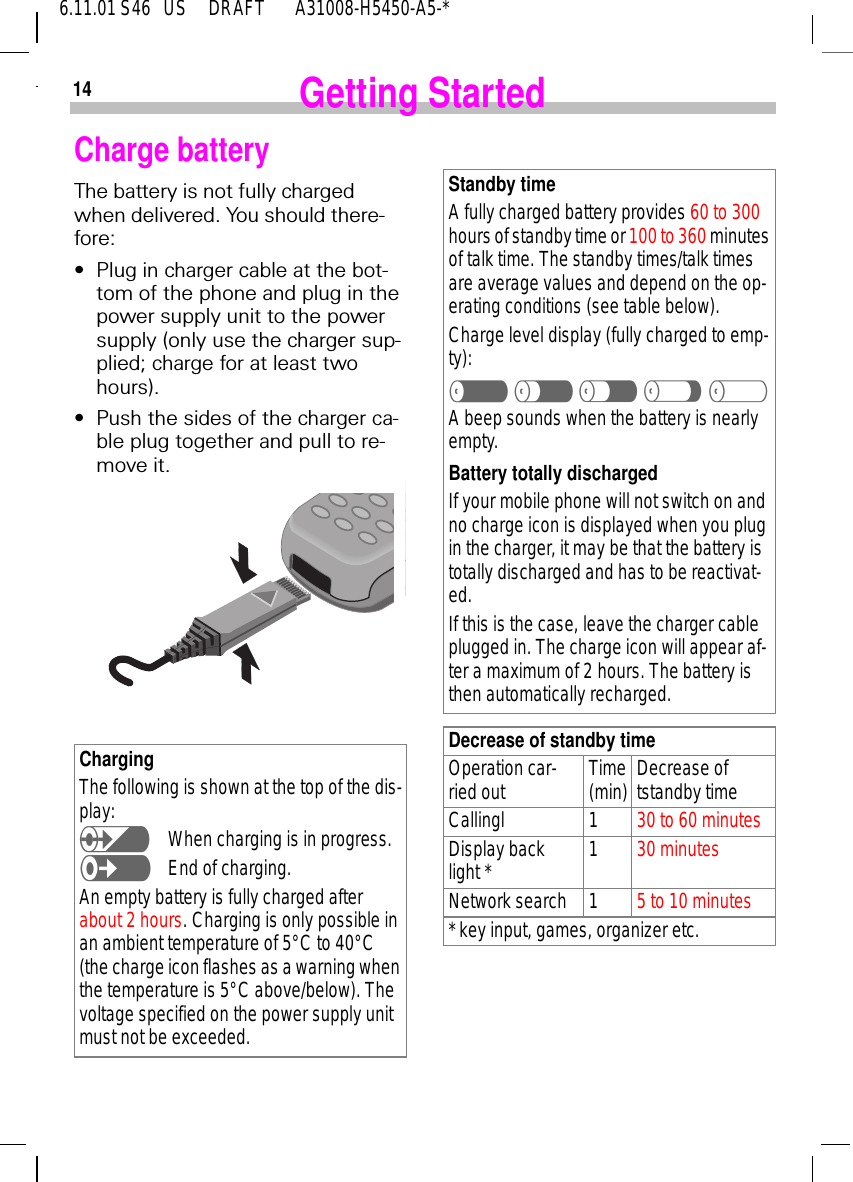

146.11.01 S46   US     DRAFT       A31008-H5450-A5-*Getting StartedCharge batteryThe battery is not fully charged when delivered. You should there-fore:•Plug in charger cable at the bot-tom of the phone and plug in the power supply unit to the power supply (only use the charger sup-plied; charge for at least two hours).•Push the sides of the charger ca-ble plug together and pull to re-move it.ChargingThe following is shown at the top of the dis-play: QWhen charging is in progress. PEnd of charging.An empty battery is fully charged after about 2 hours. Charging is only possible in an ambient temperature of 5°C to 40°C (the charge icon flashes as a warning when the temperature is 5°C above/below). The voltage specified on the power supply unit must not be exceeded. Standby time A fully charged battery provides 60 to 300 hours of standby time or 100 to 360 minutes of talk time. The standby times/talk times are average values and depend on the op-erating conditions (see table below).Charge level display (fully charged to emp-ty): R  S  T  U  VA beep sounds when the battery is nearly empty. Battery totally dischargedIf your mobile phone will not switch on and no charge icon is displayed when you plug in the charger, it may be that the battery is totally discharged and has to be reactivat-ed.If this is the case, leave the charger cable plugged in. The charge icon will appear af-ter a maximum of 2 hours. The battery is then automatically recharged.Decrease of standby timeOperation car-ried out Time (min) Decrease of tstandby timeCallingl 1 30 to 60 minutesDisplay back light * 130 minutesNetwork search 1 5 to 10 minutes* key input, games, organizer etc.

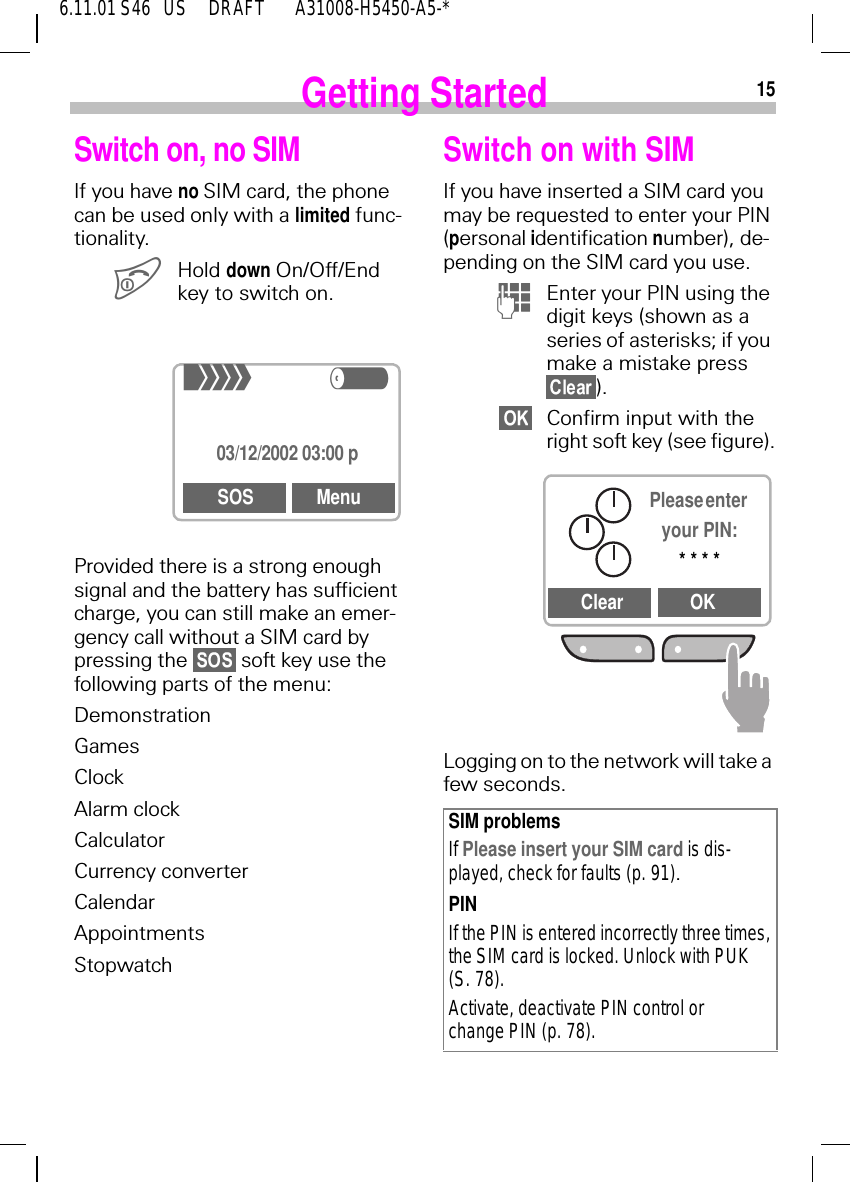

156.11.01 S46   US     DRAFT       A31008-H5450-A5-*Getting StartedSwitch on, no SIMIf you have no SIM card, the phone can be used only with a limited func-tionality. Hold down On/Off/End key to switch on.Provided there is a strong enough signal and the battery has sufficient charge, you can still make an emer-gency call without a SIM card by pressing the   soft key use the following parts of the menu:DemonstrationGamesClockAlarm clockCalculatorCurrency converterCalendarAppointmentsStopwatch+R03/12/2002 03:00 pSOS MenuSwitch on with SIMIf you have inserted a SIM card you may be requested to enter your PIN (personal identification number), de-pending on the SIM card you use. (Enter your PIN using the digit keys (shown as a series of asterisks; if you make a mistake press ).Confirm input with the right soft key (see figure).Logging on to the network will take a few seconds.SIM problemsIf Please insert your SIM card is dis-played, check for faults (p. 91).PINIf the PIN is entered incorrectly three times, the SIM card is locked. Unlock with PUK (S. 78).Activate, deactivate PIN control or change PIN (p. 78).Please enter your PIN:* * * *Clear OK

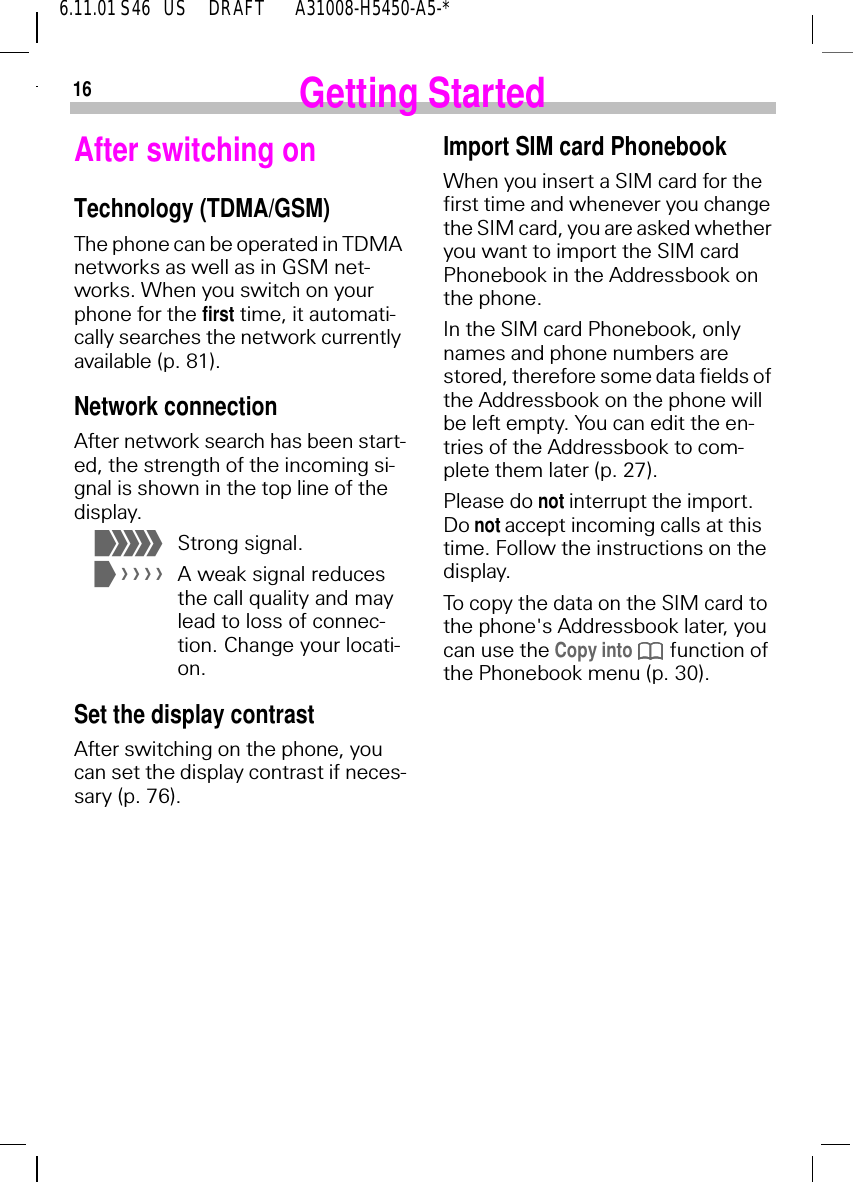

166.11.01 S46   US     DRAFT       A31008-H5450-A5-*Getting StartedAfter switching onTechnology (TDMA/GSM)The phone can be operated in TDMA networks as well as in GSM net-works. When you switch on your phone for the first time, it automati-cally searches the network currently available (p. 81).Network connectionAfter network search has been start-ed, the strength of the incoming si-gnal is shown in the top line of the display. +Strong signal. *A weak signal reduces the call quality and may lead to loss of connec-tion. Change your locati-on.Set the display contrastAfter switching on the phone, you can set the display contrast if neces-sary (p. 76).Import SIM card PhonebookWhen you insert a SIM card for the first time and whenever you change the SIM card, you are asked whether you want to import the SIM card Phonebook in the Addressbook on the phone.In the SIM card Phonebook, only names and phone numbers are stored, therefore some data fields of the Addressbook on the phone will be left empty. You can edit the en-tries of the Addressbook to com-plete them later (p. 27).Please do not interrupt the import. Do not accept incoming calls at this time. Follow the instructions on the display. To copy the data on the SIM card to the phone's Addressbook later, you can use the Copy into   function of the Phonebook menu (p. 30).

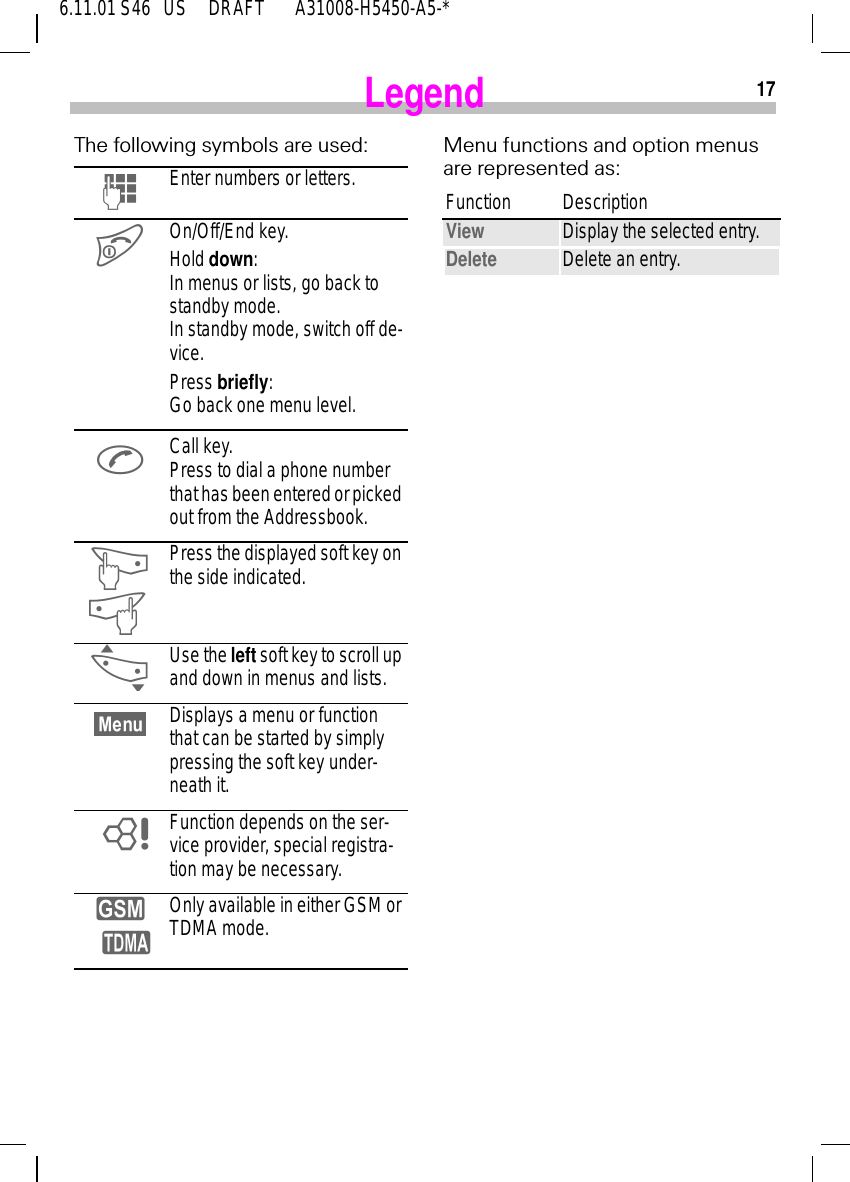

176.11.01 S46   US     DRAFT       A31008-H5450-A5-*LegendThe following symbols are used: (Enter numbers or letters. On/Off/End key. Hold down: In menus or lists, go back to standby mode.In standby mode, switch off de-vice.Press briefly:Go back one menu level. Call key. Press to dial a phone number that has been entered or picked out from the Addressbook. ] aPress the displayed soft key on the side indicated. _Use the left soft key to scroll up and down in menus and lists.Displays a menu or function that can be started by simply pressing the soft key under-neath it. 8Function depends on the ser-vice provider, special registra-tion may be necessary. y qOnly available in either GSM or TDMA mode.Menu functions and option menus are represented as: Function DescriptionView Display the selected entry.Delete Delete an entry.
186.11.01 S46   US     DRAFT       A31008-H5450-A5-*Menu control using the soft keysExample: Composing an SMS To describe the steps for menu ac-cess in this user guide, the following abbreviated notation is used: Messages   New SMSThis is how you proceed on the phone: Open menuFrom standby mode by pres-sing the right soft key.  _Scroll to messages.Press the left soft key on the right side to scroll down.+R(service provider)03/12/2002   03:00 pSet MenubanMenuHelpMessagesRecords# " Select^`oPress.Start the Messages submenu by pressing the right soft key.  _Scroll to New SMS.Press the left soft key on the left side to scroll up. Press.Start the text editor for New SMS by pressing the right soft key.MenusettingsMessagesCall lists# " SelectbapMessages------------------------------------New SMSUse SMS sample# " Select]`qMessagesHelpNew SMSUse SMS sample# " Selectbar
196.11.01 S46   US     DRAFT       A31008-H5450-A5-*Menu control using the soft keys  (Write your message.   OK Start the option menu.Start the Options submenu by pressing the right soft key.Using "T9" to quickly write a text (p. 39):"T9" deduces the correct word from the indi-vidual key entries. You simply press the key where the relevant letters are located once only. Since the display changes as you pro-ceed it is best if you finish a word without looking at the display. Inserting a blank ends word. ^Going to the right ends a word. $Delete a word letter for letter. Select new word suggestion.abc SMS 140Meeting  ! $ OKsabc SMS 140 Meeting at 08a h  ! $ OKatPress. (Enter phone numberor  Select from the Address-book.Send message.Send the message to the service center for trans-mission.wIf Message type, Validity pe-riod or Service centre are requested, (p. 41). Press to save the mes-sage after it has been sent. Hold down.Go back to standby mode.Options------------------------------------SendSave# " Selectbau123  RecipientSend to:  ! $ OKv

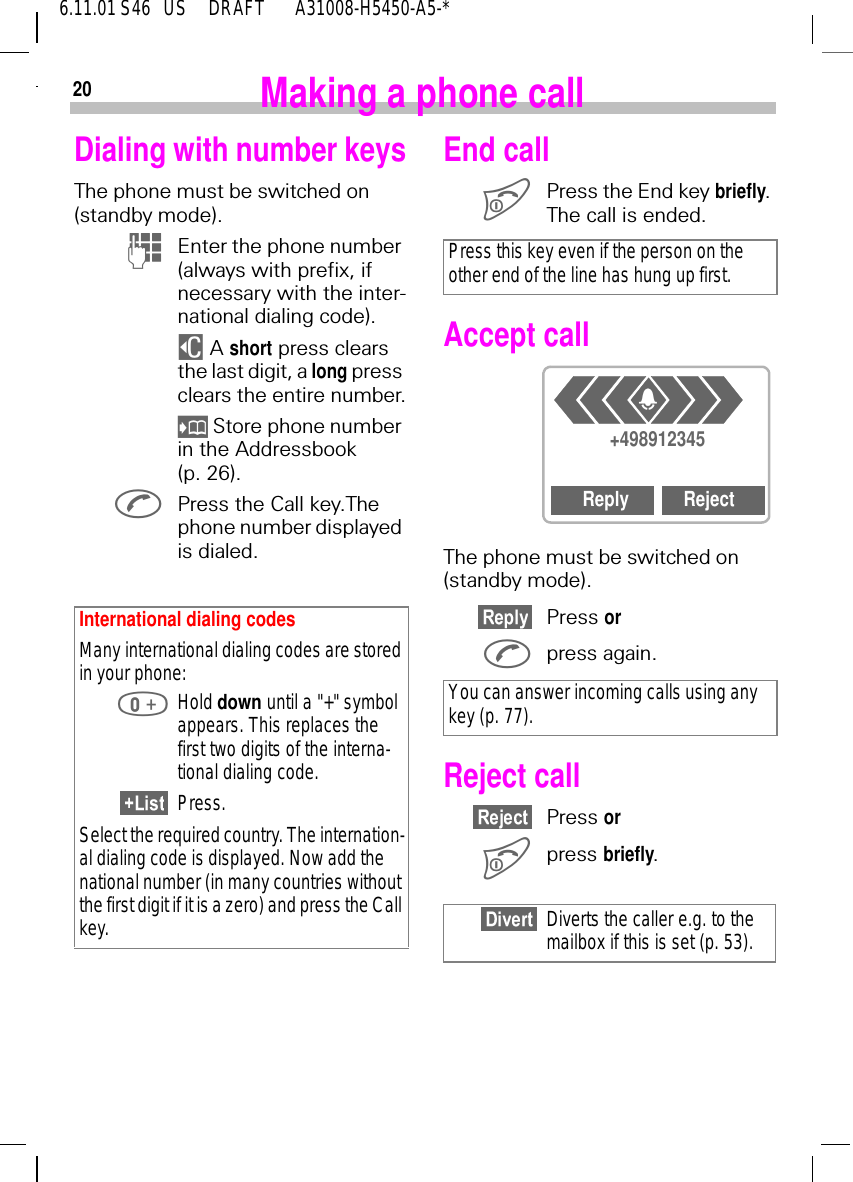

206.11.01 S46   US     DRAFT       A31008-H5450-A5-*Making a phone callDialing with number keysThe phone must be switched on (standby mode). (Enter the phone number (always with prefix, if necessary with the inter-national dialing code). $ A short press clears the last digit, a long press clears the entire number.  Store phone number in the Addressbook (p. 26). Press the Call key.The phone number displayed is dialed.International dialing codes Many international dialing codes are stored in your phone: Hold down until a "+" symbol appears. This replaces the first two digits of the interna-tional dialing code.Press.Select the required country. The internation-al dialing code is displayed. Now add the national number (in many countries without the first digit if it is a zero) and press the Call key.End call Press the End key briefly. The call is ended.Accept callThe phone must be switched on (standby mode).Press or press again.Reject callPress or press briefly.Press this key even if the person on the other end of the line has hung up first.You can answer incoming calls using any key (p. 77).Diverts the caller e.g. to the mailbox if this is set (p. 53).+498912345Reply Reject4

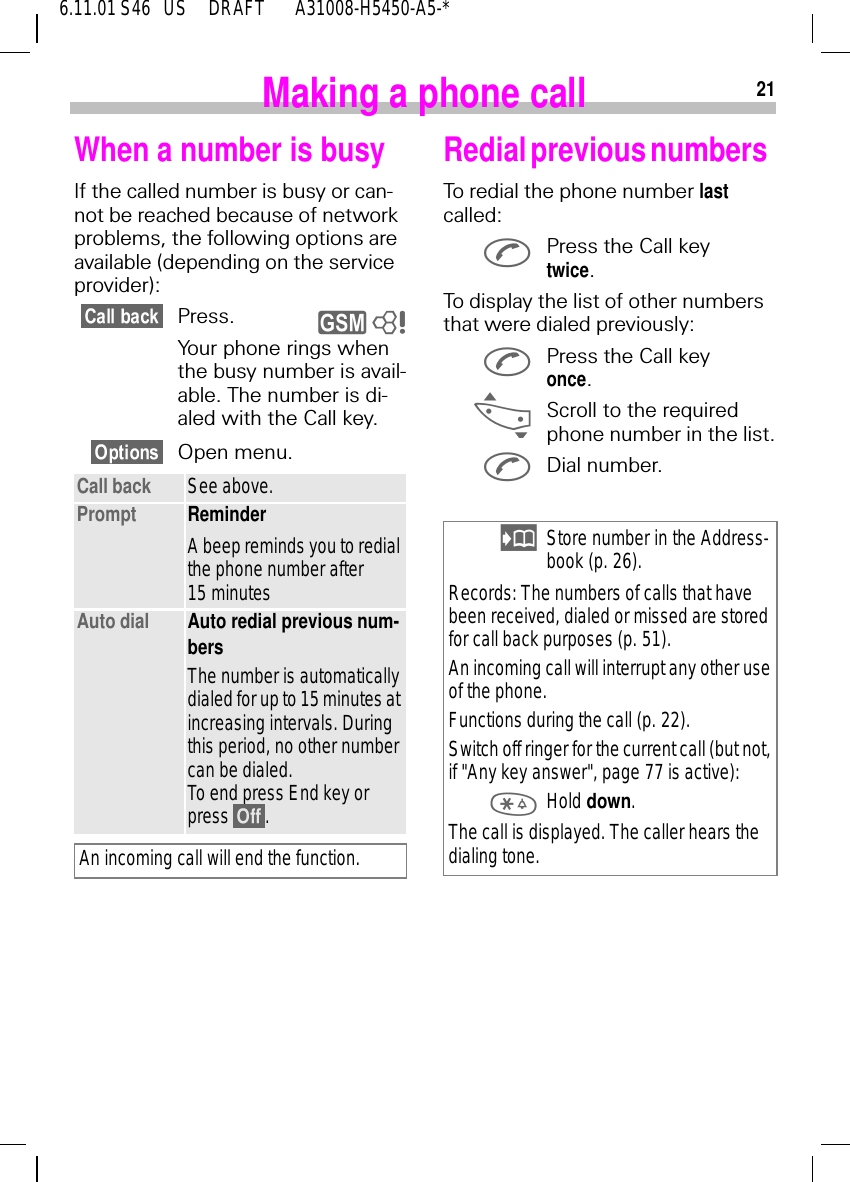

216.11.01 S46   US     DRAFT       A31008-H5450-A5-*Making a phone callWhen a number is busyIf the called number is busy or can-not be reached because of network problems, the following options are available (depending on the service provider):Press. Your phone rings when the busy number is avail-able. The number is di-aled with the Call key. Open menu.Call back See above.Prompt ReminderA beep reminds you to redial the phone number after 15 minutesAuto dial Auto redial previous num-bersThe number is automatically dialed for up to 15 minutes at increasing intervals. During this period, no other number can be dialed. To end press End key or press  .An incoming call will end the function.y 8Redial previous numbers  To redial the phone number last called: Press the Call key twice.To display the list of other numbers that were dialed previously: Press the Call key once. _Scroll to the required phone number in the list. Dial number.  Store number in the Address-book (p. 26).Records: The numbers of calls that have been received, dialed or missed are stored for call back purposes (p. 51).An incoming call will interrupt any other use of the phone.Functions during the call (p. 22).Switch off ringer for the current call (but not, if "Any key answer", page 77 is active): Hold down.The call is displayed. The caller hears the dialing tone.

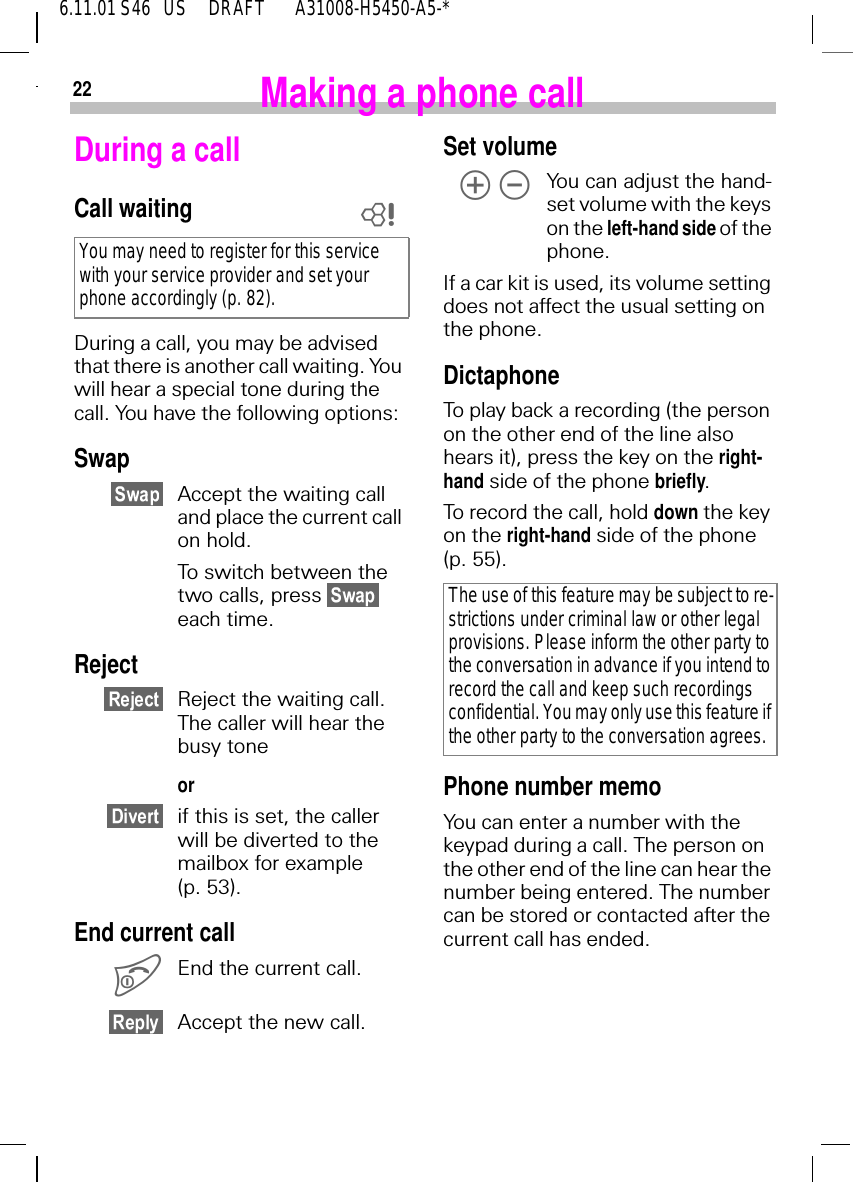

226.11.01 S46   US     DRAFT       A31008-H5450-A5-*Making a phone callDuring a callCall waitingDuring a call, you may be advised that there is another call waiting. You will hear a special tone during the call. You have the following options:SwapAccept the waiting call and place the current call on hold.To switch between the two calls, press   each time.RejectReject the waiting call. The caller will hear the busy tone orif this is set, the caller will be diverted to the mailbox for example (p. 53).End current call End the current call.Accept the new call.You may need to register for this service with your service provider and set your phone accordingly (p. 82).ZSet volume   Yo u  c a n  adjust the hand-set volume with the keys on the left-hand side of the phone.If a car kit is used, its volume setting does not affect the usual setting on the phone.DictaphoneTo play back a recording (the person on the other end of the line also hears it), press the key on the right-hand side of the phone briefly.To record the call, hold down the key on the right-hand side of the phone (p. 55).Phone number memoYou can enter a number with the keypad during a call. The person on the other end of the line can hear the number being entered. The number can be stored or contacted after the current call has ended.The use of this feature may be subject to re-strictions under criminal law or other legal provisions. Please inform the other party to the conversation in advance if you intend to record the call and keep such recordings confidential. You may only use this feature if the other party to the conversation agrees.

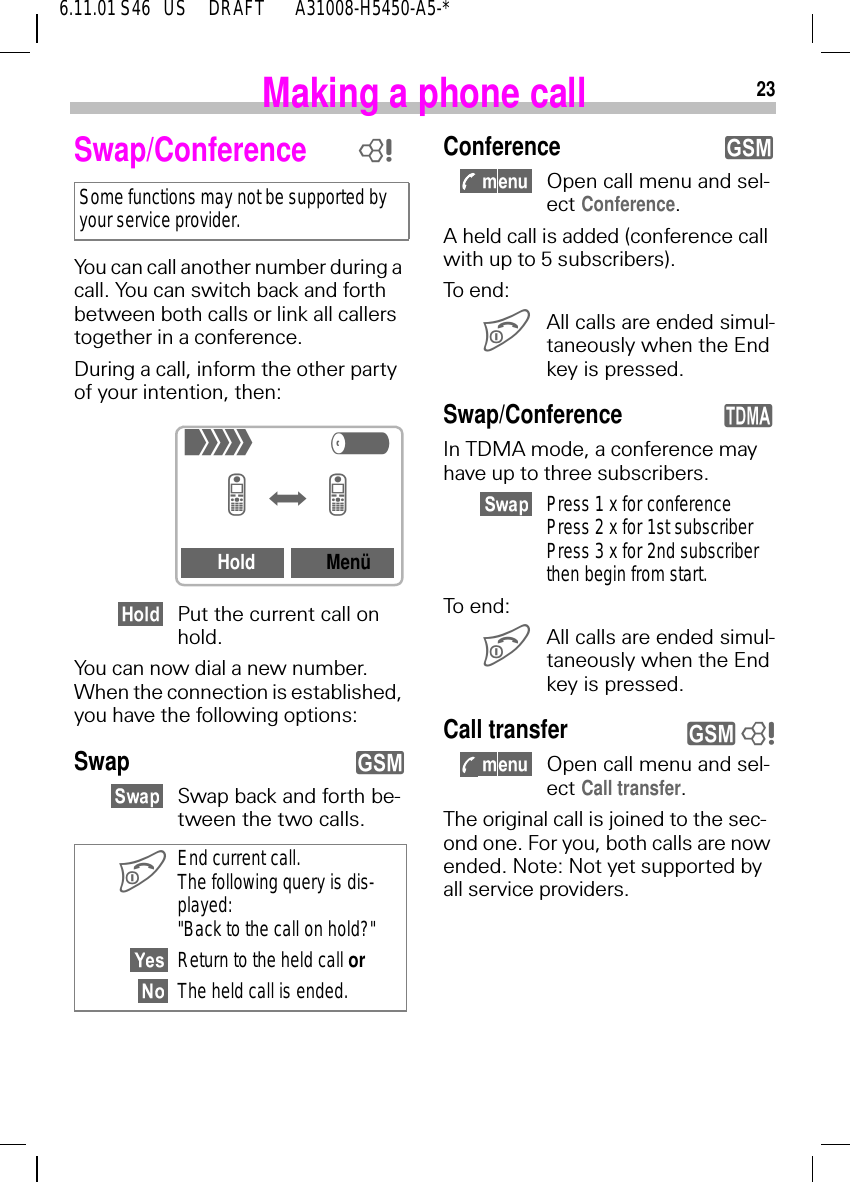

236.11.01 S46   US     DRAFT       A31008-H5450-A5-*Making a phone callSwap/Conference You can call another number during a call. You can switch back and forth between both calls or link all callers together in a conference.During a call, inform the other party of your intention, then:Put the current call on hold.You can now dial a new number. When the connection is established, you have the following options:SwapSwap back and forth be-tween the two calls.Some functions may not be supported by your service provider. End current call. The following query is dis-played: "Back to the call on hold?"Return to the held call orThe held call is ended.8+R=f=Hold MenüyConference Open call menu and sel-ect Conference.A held call is added (conference call with up to 5 subscribers).To end: All calls are ended simul-taneously when the End key is pressed.Swap/ConferenceIn TDMA mode, a conference may have up to three subscribers.Press 1 x for conferencePress 2 x for 1st subscriberPress 3 x for 2nd subscriberthen begin from start.To end: All calls are ended simul-taneously when the End key is pressed.Call transfer  Open call menu and sel-ect Call transfer.The original call is joined to the sec-ond one. For you, both calls are now ended. Note: Not yet supported by all service providers.yqy 8

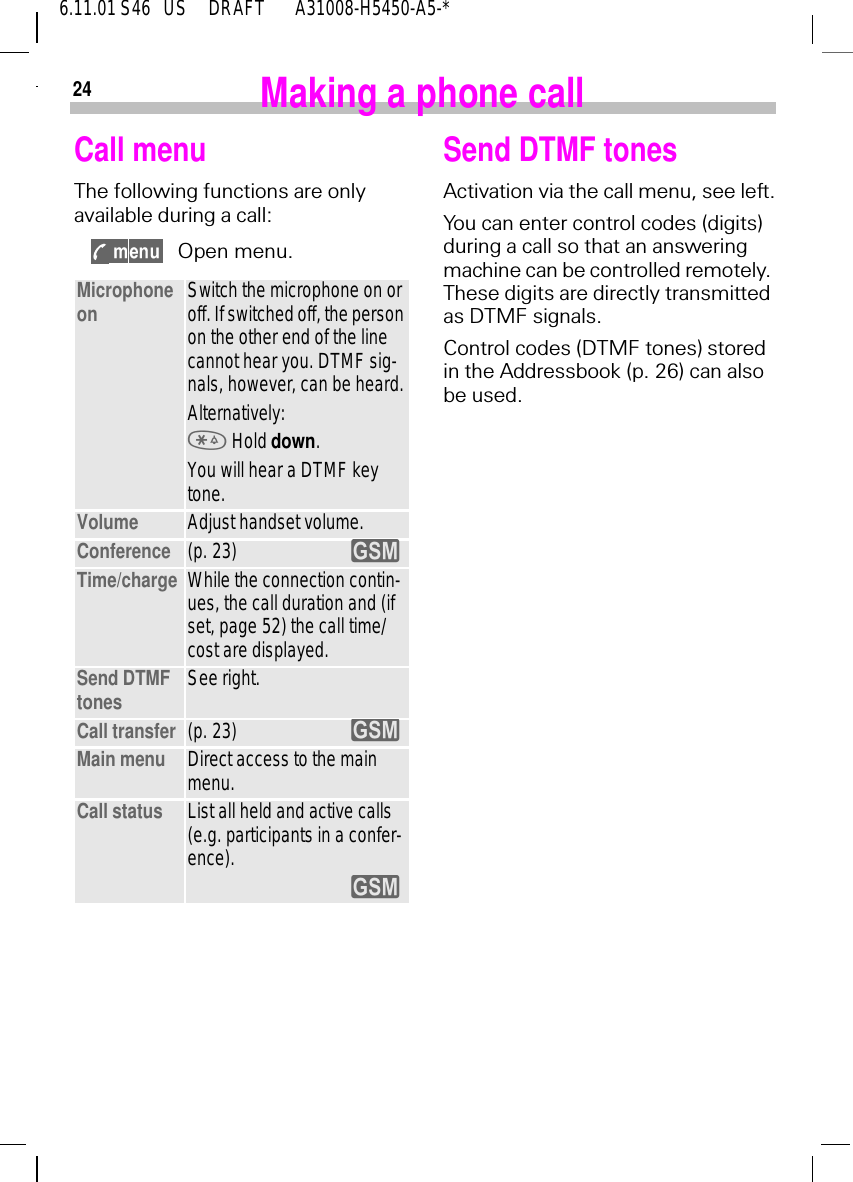

246.11.01 S46   US     DRAFT       A31008-H5450-A5-*Making a phone callCall menuThe following functions are only available during a call: Open menu.Microphone on Switch the microphone on or off. If switched off, the person on the other end of the line cannot hear you. DTMF sig-nals, however, can be heard.Alternatively:  Hold down.You will hear a DTMF key tone.Volume Adjust handset volume.Conference (p. 23)Time/charge While the connection contin-ues, the call duration and (if set, page 52) the call time/cost are displayed.Send DTMF tones See right.Call transfer (p. 23)  Main menu Direct access to the main menu.Call status List all held and active calls (e.g. participants in a confer-ence).yyySend DTMF tones Activation via the call menu, see left.You can enter control codes (digits) during a call so that an answering machine can be controlled remotely. These digits are directly transmitted as DTMF signals.Control codes (DTMF tones) stored in the Addressbook (p. 26) can also be used.

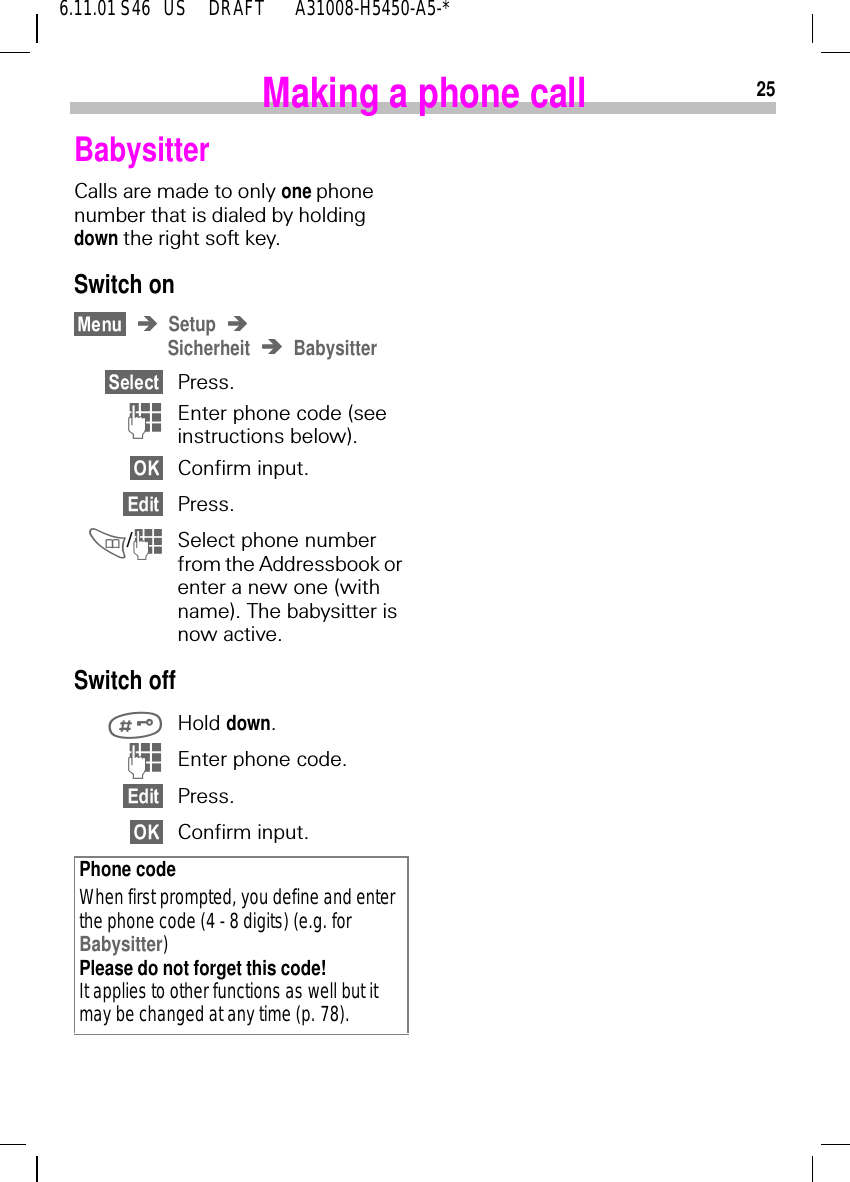

256.11.01 S46   US     DRAFT       A31008-H5450-A5-*Making a phone callBabysitterCalls are made to only one phone number that is dialed by holding down the right soft key.Switch onSetupSicherheit BabysitterPress. (Enter phone code (see instructions below).Confirm input.Press. / (Select phone number from the Addressbook or enter a new one (with name). The babysitter is now active.Switch off Hold down. (Enter phone code.Press.Confirm input.Phone codeWhen first prompted, you define and enter the phone code (4 - 8 digits) (e.g. for Babysitter)Please do not forget this code! It applies to other functions as well but it may be changed at any time (p. 78).

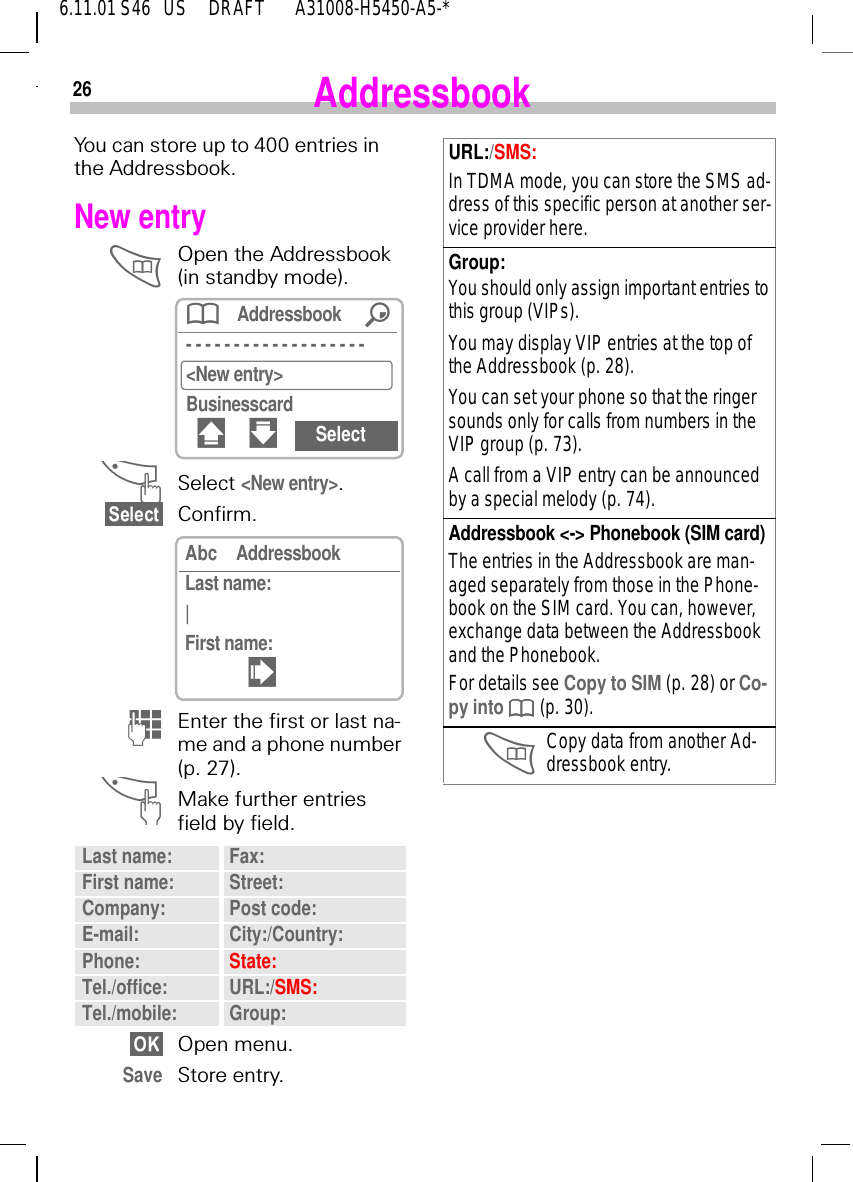

266.11.01 S46   US     DRAFT       A31008-H5450-A5-*AddressbookYou can store up to 400 entries in the Addressbook.New entry Open the Addressbook (in standby mode). ^Select <New entry>.Confirm. (Enter the first or last na-me and a phone number (p. 27). ^Make further entries field by field.Open menu.Save Store entry.Last name: Fax:First name: Street:Company: Post code:E-mail: City:/Country:Phone: State:Tel./office: URL:/SMS:Tel./mobile: Group:Addressbook /- - - - - - - - - - - - - - - - - - - <New entry>Businesscard# " SelectAbc AddressbookLast name:|First name:!URL:/SMS:In TDMA mode, you can store the SMS ad-dress of this specific person at another ser-vice provider here.Group:You should only assign important entries to this group (VIPs). You may display VIP entries at the top of the Addressbook (p. 28).You can set your phone so that the ringer sounds only for calls from numbers in the VIP group (p. 73).A call from a VIP entry can be announced by a special melody (p. 74).Addressbook <-> Phonebook (SIM card)The entries in the Addressbook are man-aged separately from those in the Phone-book on the SIM card. You can, however, exchange data between the Addressbook and the Phonebook. For details see Copy to SIM (p. 28) or Co-py into   (p. 30). Copy data from another Ad-dressbook entry.

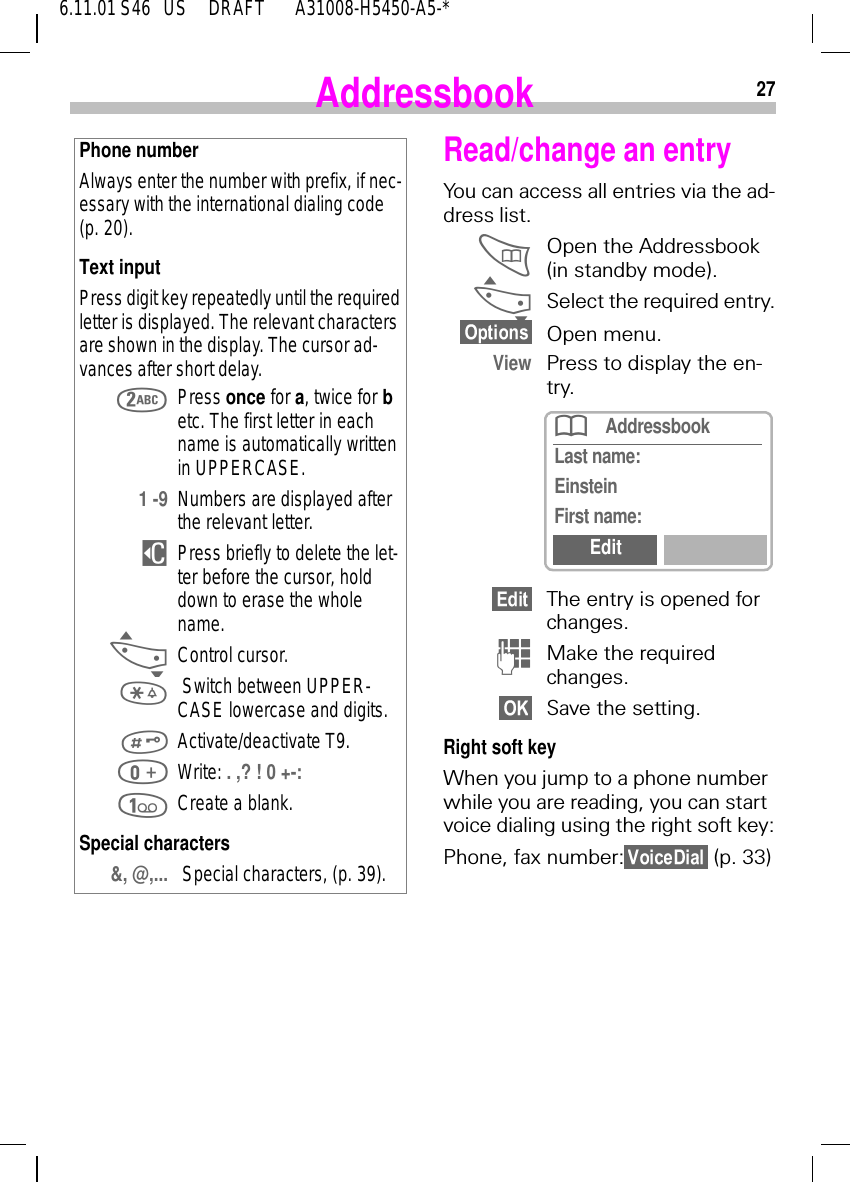

276.11.01 S46   US     DRAFT       A31008-H5450-A5-*AddressbookPhone numberAlways enter the number with prefix, if nec-essary with the international dialing code (p. 20).Text inputPress digit key repeatedly until the required letter is displayed. The relevant characters are shown in the display. The cursor ad-vances after short delay. Press once for a, twice for b etc. The first letter in each name is automatically written in UPPERCASE.1 -9 Numbers are displayed after the relevant letter. $Press briefly to delete the let-ter before the cursor, hold down to erase the whole name. _Control cursor.  Switch between UPPER-CASE lowercase and digits. Activate/deactivate T9. Write: . ,? ! 0 +-:  Create a blank.Special characters&, @,...  Special characters, (p. 39).Read/change an entryYou can access all entries via the ad-dress list. Open the Addressbook (in standby mode). _Select the required entry.Open menu.View Press to display the en-try.The entry is opened for changes. (Make the required changes.Save the setting.Right soft keyWhen you jump to a phone number while you are reading, you can start voice dialing using the right soft key:Phone, fax number:  (p. 33)AddressbookLast name:EinsteinFirst name:Edit

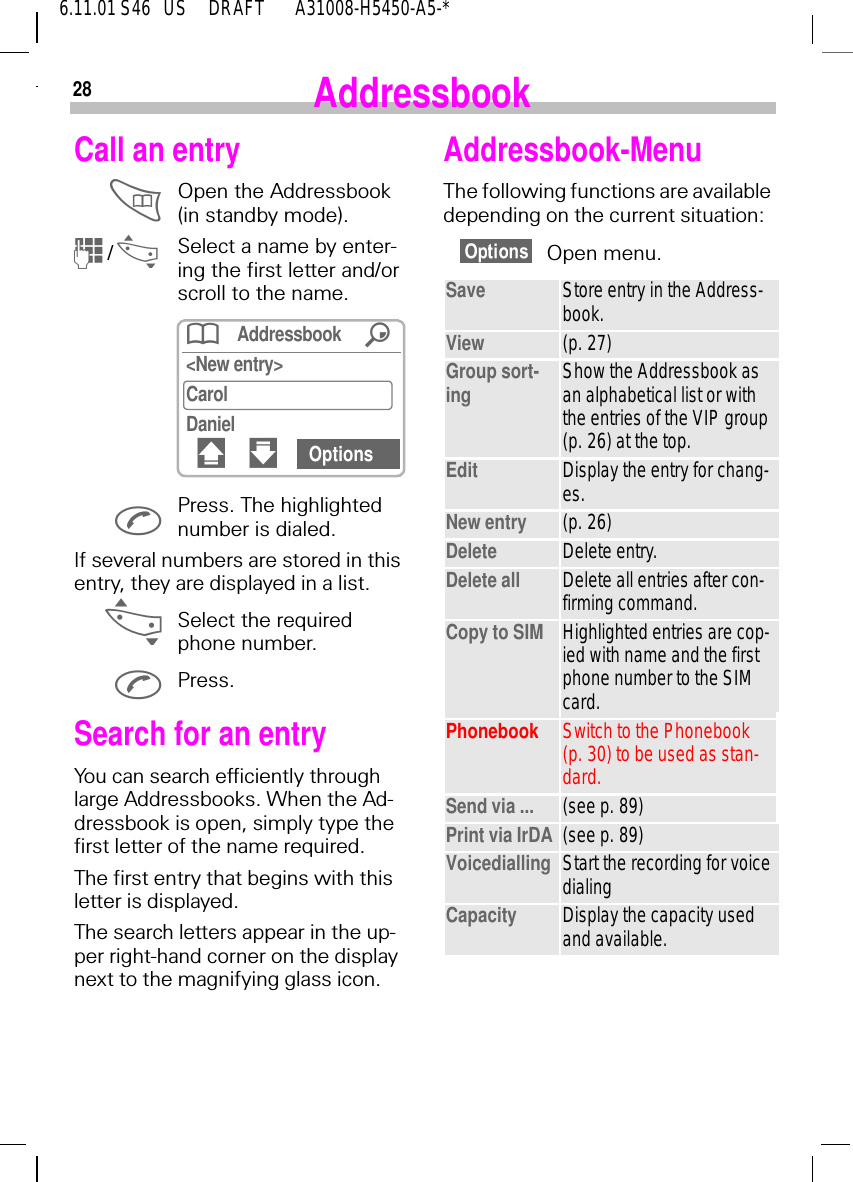

286.11.01 S46   US     DRAFT       A31008-H5450-A5-*AddressbookCall an entry Open the Addressbook (in standby mode).   (/ _Select a name by enter-ing the first letter and/or scroll to the name. Press. The highlighted number is dialed.If several numbers are stored in this entry, they are displayed in a list. _Select the required phone number. Press.Search for an entryYou can search efficiently through large Addressbooks. When the Ad-dressbook is open, simply type the first letter of the name required.The first entry that begins with this letter is displayed.The search letters appear in the up-per right-hand corner on the display next to the magnifying glass icon.Addressbook /<New entry>CarolDaniel# " OptionsAddressbook-MenuThe following functions are available depending on the current situation:Open menu.Save Store entry in the Address-book.View (p. 27)Group sort-ing Show the Addressbook as an alphabetical list or with the entries of the VIP group (p. 26) at the top.Edit Display the entry for chang-es.New entry (p. 26)Delete Delete entry.Delete all Delete all entries after con-firming command.Copy to SIM Highlighted entries are cop-ied with name and the first phone number to the SIM card.Phonebook Switch to the Phonebook (p. 30) to be used as stan-dard.Send via ... (see p. 89)Print via IrDA (see p. 89)Voicedialling Start the recording for voice dialingCapacity Display the capacity used and available.

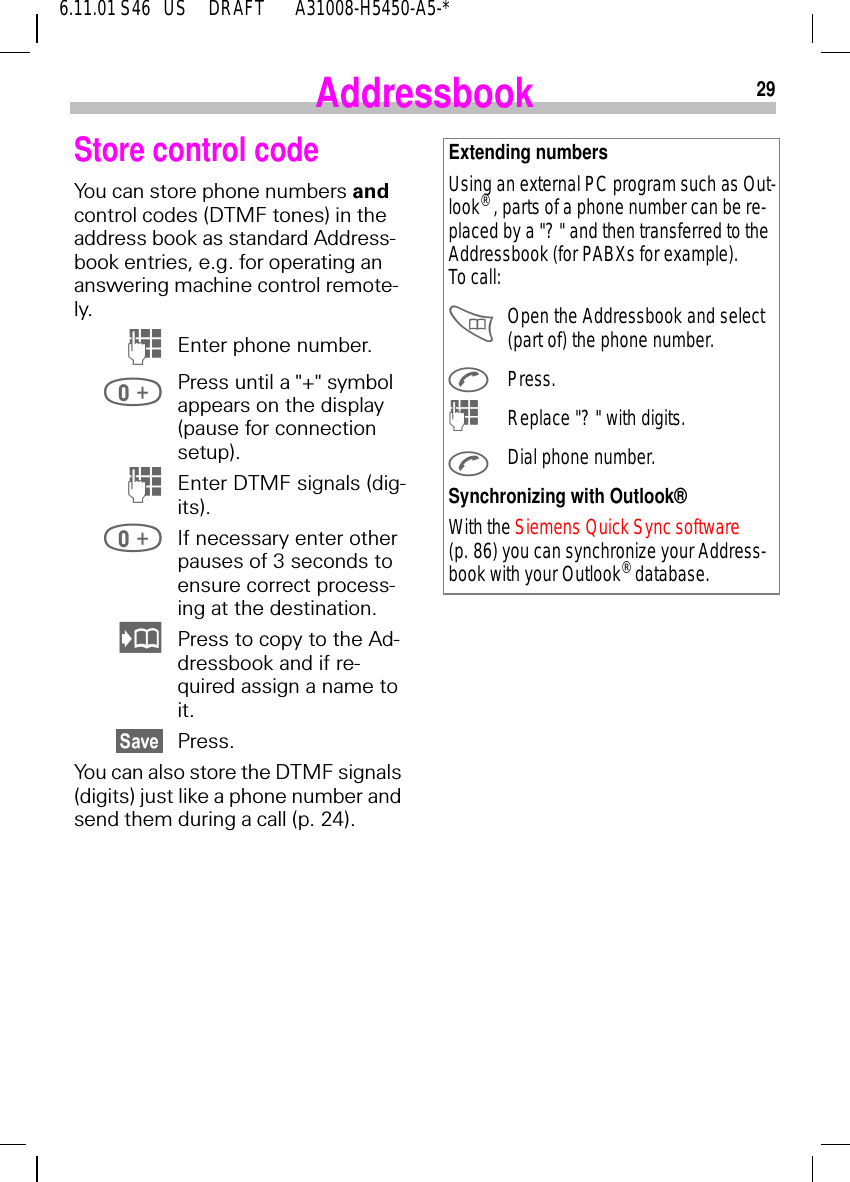

296.11.01 S46   US     DRAFT       A31008-H5450-A5-*AddressbookStore control codeYou can store phone numbers and control codes (DTMF tones) in the address book as standard Address-book entries, e.g. for operating an answering machine control remote-ly.  (Enter phone number. Press until a "+" symbol appears on the display (pause for connection setup).  (Enter DTMF signals (dig-its). If necessary enter other pauses of 3 seconds to ensure correct process-ing at the destination. Press to copy to the Ad-dressbook and if re-quired assign a name to it.Press.You can also store the DTMF signals (digits) just like a phone number and send them during a call (p. 24).Extending numbersUsing an external PC program such as Out-look® , parts of a phone number can be re-placed by a "? " and then transferred to the Addressbook (for PABXs for example). To call: Open the Addressbook and select (part of) the phone number. Press. (Replace "? " with digits. Dial phone number.Synchronizing with Outlook®With the Siemens Quick Sync software (p. 86) you can synchronize your Address-book with your Outlook® database.

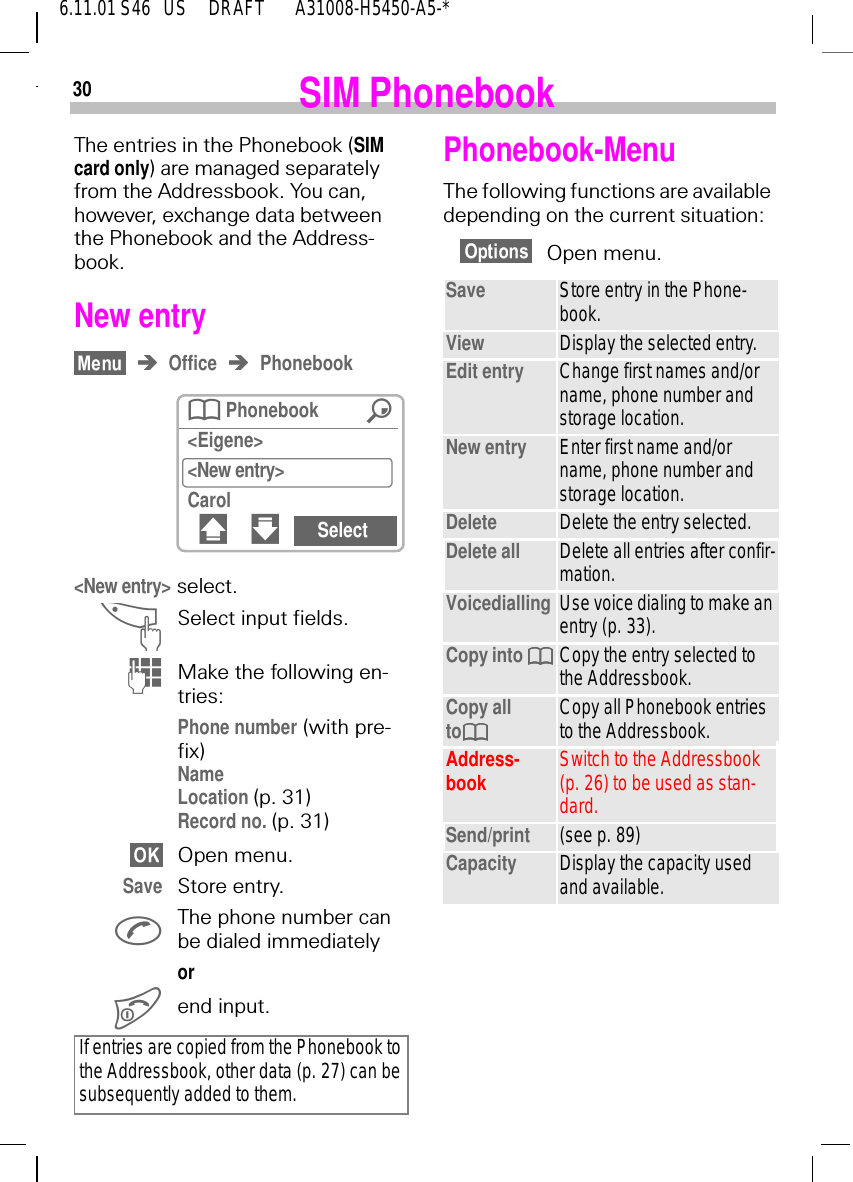

306.11.01 S46   US     DRAFT       A31008-H5450-A5-* SIM Phonebook The entries in the Phonebook (SIM card only) are managed separately from the Addressbook. You can, however, exchange data between the Phonebook and the Address-book. New entryOffice Phonebook<New entry> select. ^Select input fields. (Make the following en-tries:Phone number (with pre-fix) NameLocation (p. 31)Record no. (p. 31) Open menu.Save Store entry. The phone number can be dialed immediately or end input.If entries are copied from the Phonebook to the Addressbook, other data (p. 27) can be subsequently added to them. Phonebook /<Eigene><New entry>Carol# " SelectPhonebook-MenuThe following functions are available depending on the current situation:Open menu.Save Store entry in the Phone-book.View Display the selected entry.Edit entry Change first names and/or name, phone number and storage location.New entry Enter first name and/or name, phone number and storage location.Delete Delete the entry selected.Delete all Delete all entries after confir-mation.Voicedialling Use voice dialing to make an entry (p. 33).Copy into  Copy the entry selected to the Addressbook.Copy all to Copy all Phonebook entries to the Addressbook.Address-book Switch to the Addressbook (p. 26) to be used as stan-dard.Send/print (see p. 89)Capacity Display the capacity used and available.

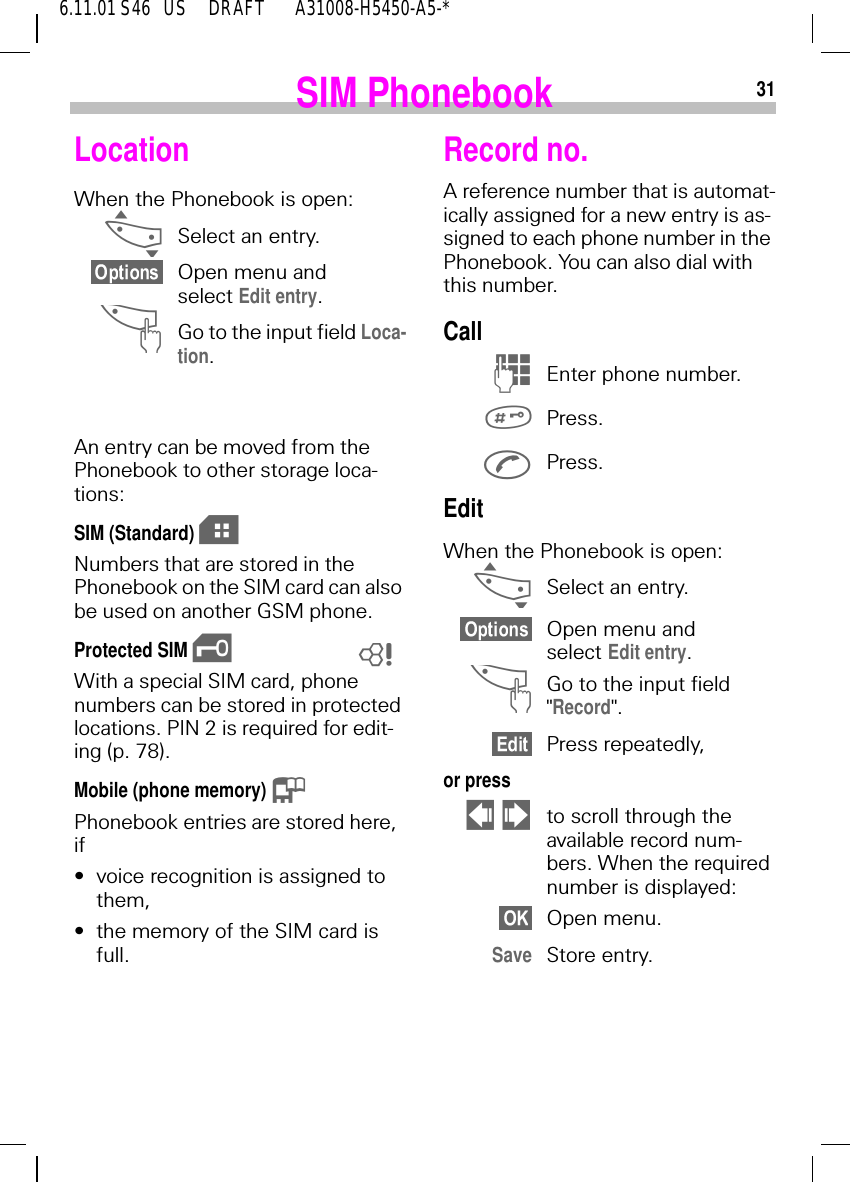

316.11.01 S46   US     DRAFT       A31008-H5450-A5-*SIM PhonebookLocation When the Phonebook is open: _Select an entry.Open menu and select Edit entry. ^Go to the input field Loca-tion. An entry can be moved from the Phonebook to other storage loca-tions:SIM (Standard)  eNumbers that are stored in the Phonebook on the SIM card can also be used on another GSM phone.Protected SIM  \With a special SIM card, phone numbers can be stored in protected locations. PIN 2 is required for edit-ing (p. 78).Mobile (phone memory)  .Phonebook entries are stored here, if•voice recognition is assigned to them,•the memory of the SIM card is full.8Record no.A reference number that is automat-ically assigned for a new entry is as-signed to each phone number in the Phonebook. You can also dial with this number.Call  )Enter phone number. Press. Press.EditWhen the Phonebook is open: _Select an entry.Open menu and select Edit entry. ^Go to the input field "Record".Press repeatedly,or press    !to scroll through the available record num-bers. When the required number is displayed:Open menu.Save Store entry.

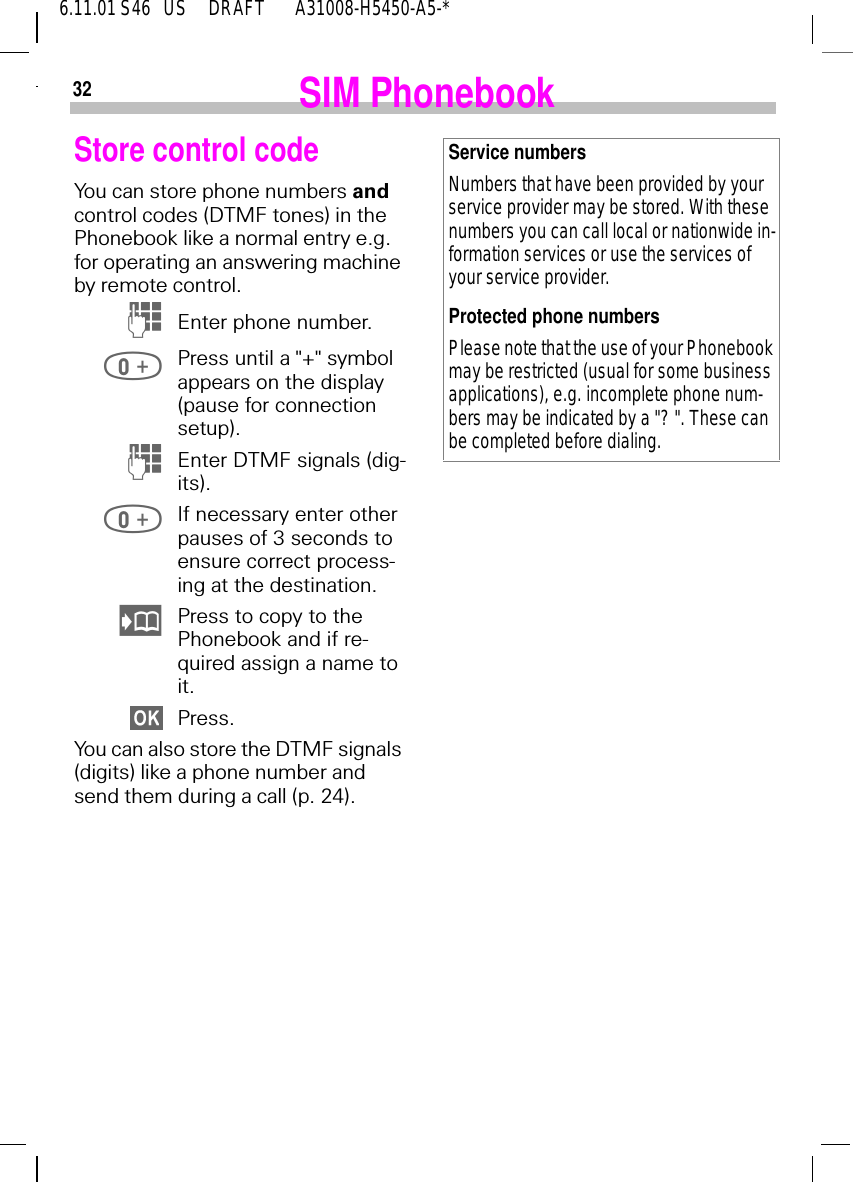

326.11.01 S46   US     DRAFT       A31008-H5450-A5-* SIM PhonebookStore control codeYou can store phone numbers and control codes (DTMF tones) in the Phonebook like a normal entry e.g. for operating an answering machine by remote control. (Enter phone number. Press until a "+" symbol appears on the display (pause for connection setup). (Enter DTMF signals (dig-its). If necessary enter other pauses of 3 seconds to ensure correct process-ing at the destination. Press to copy to the Phonebook and if re-quired assign a name to it.Press.You can also store the DTMF signals (digits) like a phone number and send them during a call (p. 24).Service numbersNumbers that have been provided by your service provider may be stored. With these numbers you can call local or nationwide in-formation services or use the services of your service provider.Protected phone numbersPlease note that the use of your Phonebook may be restricted (usual for some business applications), e.g. incomplete phone num-bers may be indicated by a "? ". These can be completed before dialing.

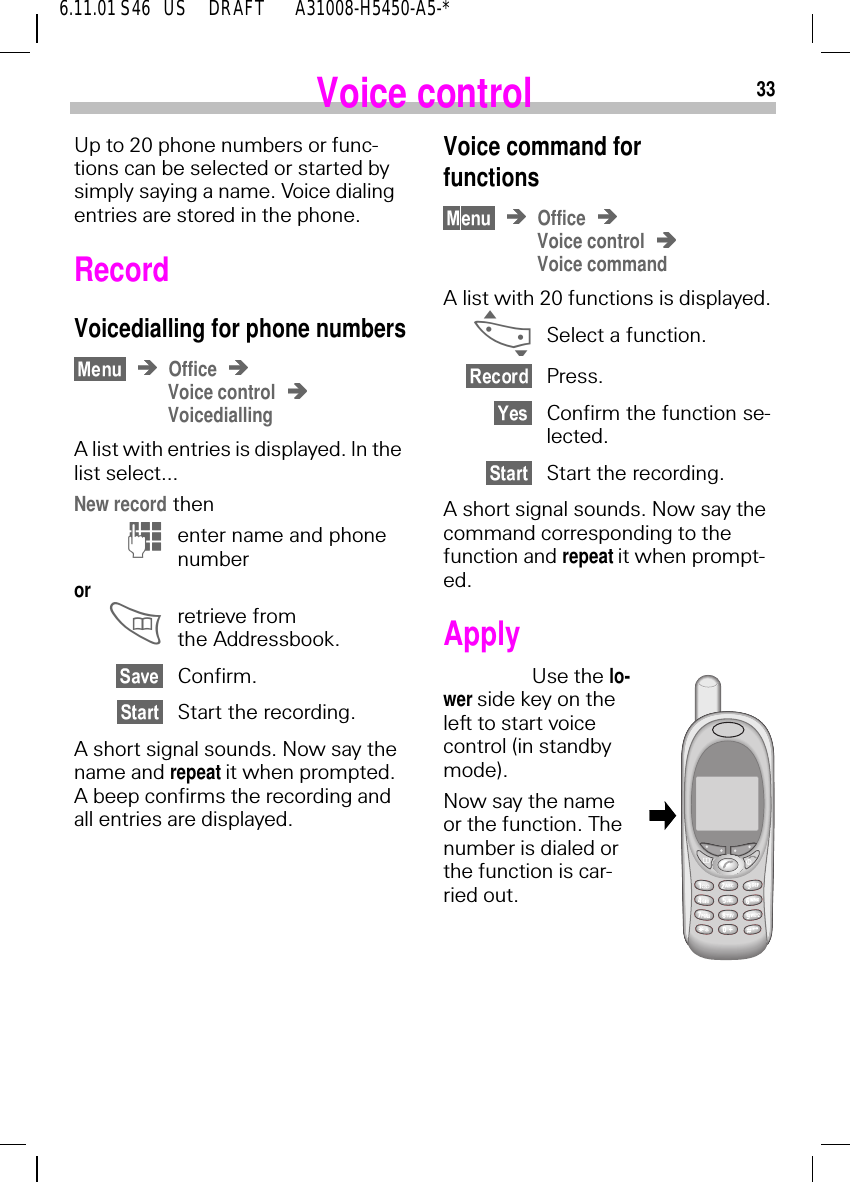

336.11.01 S46   US     DRAFT       A31008-H5450-A5-*Voice controlUp to 20 phone numbers or func-tions can be selected or started by simply saying a name. Voice dialing entries are stored in the phone.RecordVoicedialling for phone numbersOfficeVoice controlVoicediallingA list with entries is displayed. In the list select...New record then (enter name and phone number or  retrieve from the Addressbook.Confirm.Start the recording.A short signal sounds. Now say the name and repeat it when prompted. A beep confirms the recording and all entries are displayed.Voice command forfunctionsOfficeVoice controlVoice commandA list with 20 functions is displayed. _Select a function.Press.Confirm the function se-lected.Start the recording.A short signal sounds. Now say the command corresponding to the function and repeat it when prompt-ed.ApplyUse the lo-wer side key on the left to start voice control (in standby mode).Now say the name or the function. The number is dialed or the function is car-ried out.

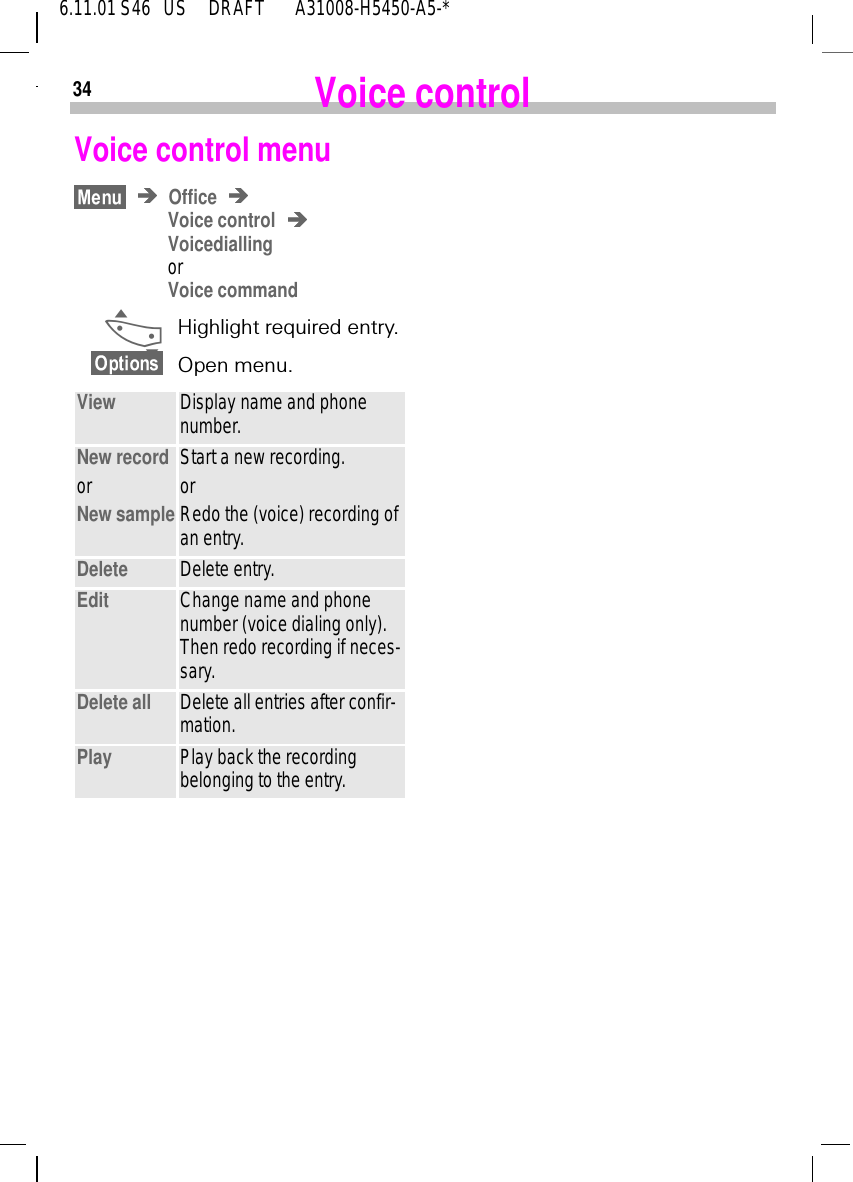

346.11.01 S46   US     DRAFT       A31008-H5450-A5-*Voice controlVoice control menuOfficeVoice controlVoicedialling or Voice command _Highlight required entry.Open menu. View  Display name and phone number.New recordorNew sampleStart a new recording.orRedo the (voice) recording of an entry.Delete Delete entry.Edit Change name and phone number (voice dialing only). Then redo recording if neces-sary.Delete all Delete all entries after confir-mation.Play Play back the recording belonging to the entry.

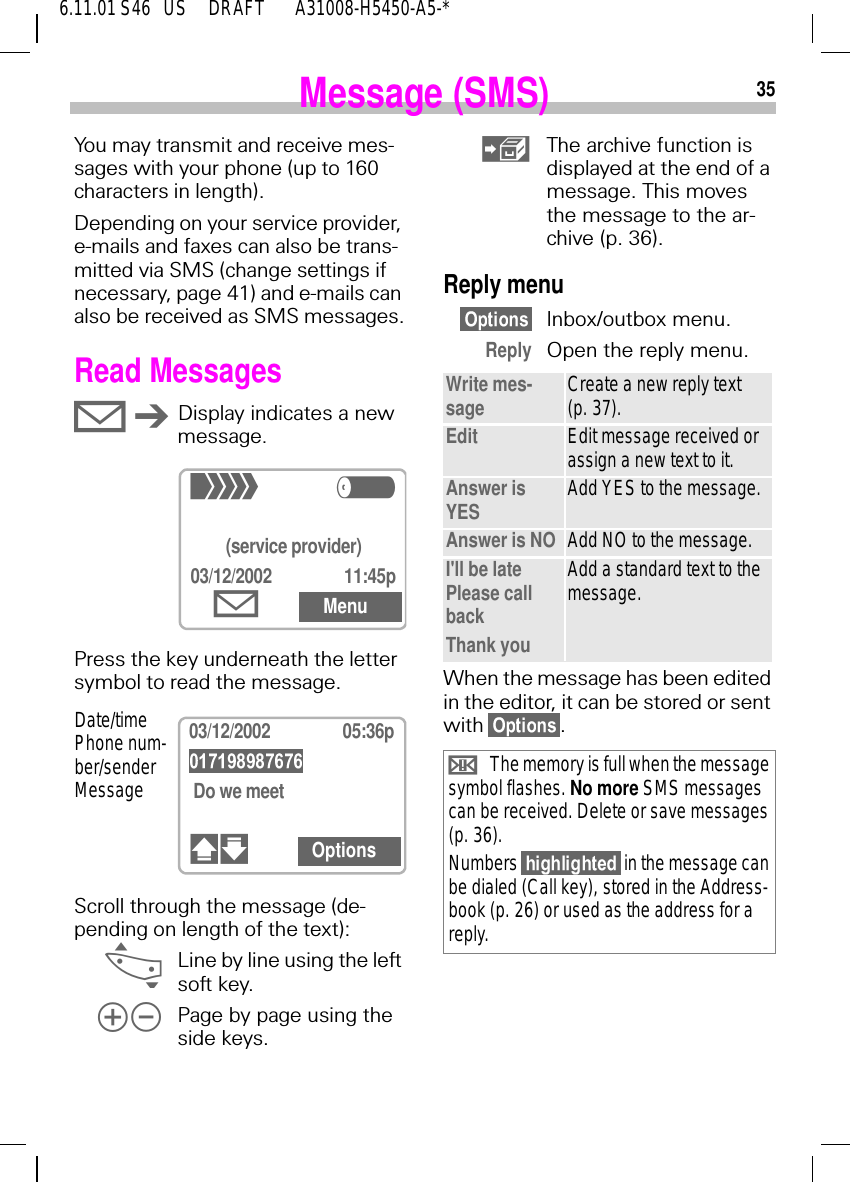

356.11.01 S46   US     DRAFT       A31008-H5450-A5-*Message (SMS)You may transmit and receive mes-sages with your phone (up to 160 characters in length).Depending on your service provider, e-mails and faxes can also be trans-mitted via SMS (change settings if necessary, page 41) and e-mails can also be received as SMS messages.Read Messages 9 D Display indicates a new message.Press the key underneath the letter symbol to read the message.Scroll through the message (de-pending on length of the text): _Line by line using the left soft key. $% Page by page using the side keys.+R(service provider)03/12/2002 11:45p9Menu03/12/2002 05:36p Do we meet8.00a in the hotel?#" OptionsDate/time Phone num-ber/sender Message The archive function is displayed at the end of a message. This moves the message to the ar-chive (p. 36).Reply menuInbox/outbox menu.Reply Open the reply menu.When the message has been edited in the editor, it can be stored or sent with  .Write mes-sage Create a new reply text (p. 37).Edit Edit message received or assign a new text to it.Answer is YES Add YES to the message.Answer is NO Add NO to the message.I'll be late Please call backThank youAdd a standard text to the message.  dThe memory is full when the message symbol flashes. No more SMS messages can be received. Delete or save messages (p. 36).Numbers   in the message can be dialed (Call key), stored in the Address-book (p. 26) or used as the address for a reply.

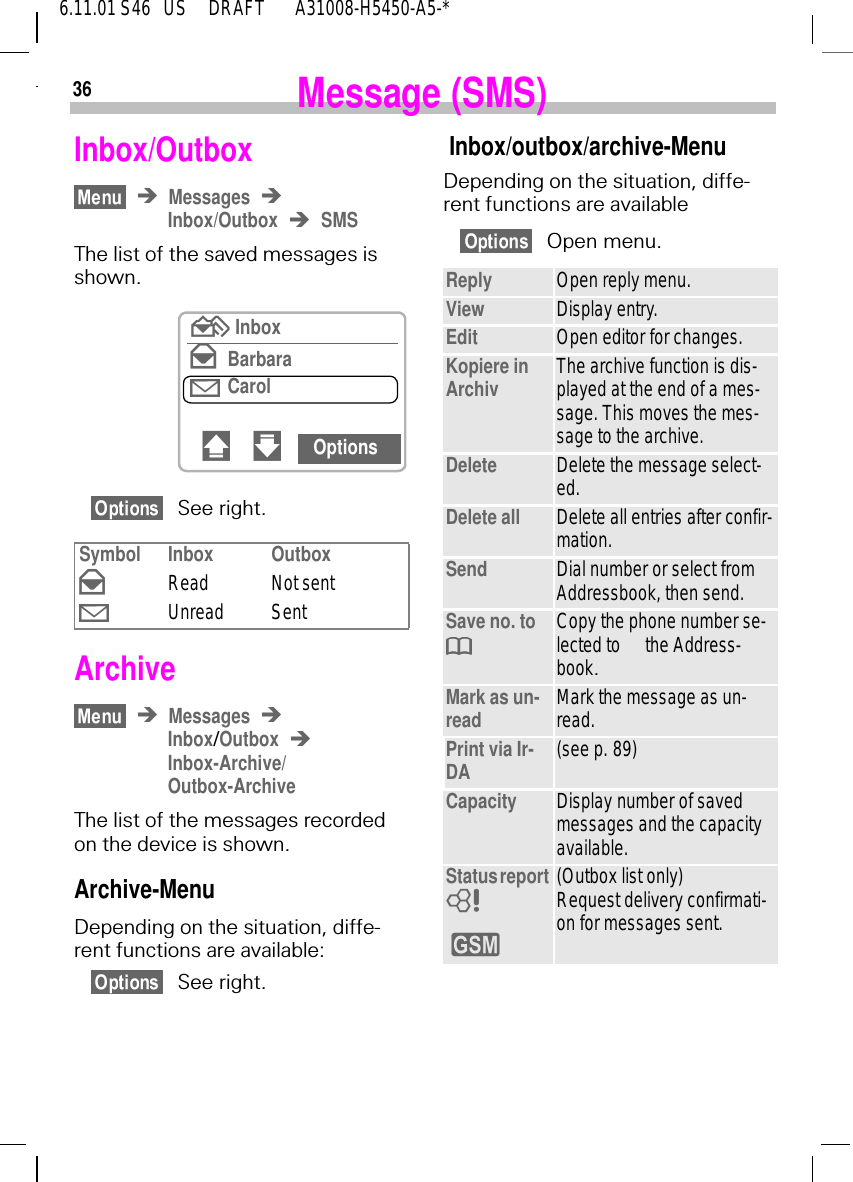

366.11.01 S46   US     DRAFT       A31008-H5450-A5-*Message (SMS)Inbox/OutboxMessagesInbox/Outbox SMSThe list of the saved messages is shown.See right.ArchiveMessagesInbox/OutboxInbox-Archive/Outbox-ArchiveThe list of the messages recorded on the device is shown. Archive-MenuDepending on the situation, diffe-rent functions are available:See right.Symbol Inbox Outbox :Read Not sent Unread Sent; Inbox: BarbaraCarol# " Options Inbox/outbox/archive-MenuDepending on the situation, diffe-rent functions are availableOpen menu.Reply Open reply menu.View Display entry.Edit Open editor for changes.Kopiere in Archiv The archive function is dis-played at the end of a mes-sage. This moves the mes-sage to the archive.Delete Delete the message select-ed.Delete all Delete all entries after confir-mation.Send Dial number or select from Addressbook, then send.Save no. to  Copy the phone number se-lected to the Address-book.Mark as un-read Mark the message as un-read.Print via Ir-DA (see p. 89)Capacity Display number of saved messages and the capacity available.Status report  8(Outbox list only) Request delivery confirmati-on for messages sent.y

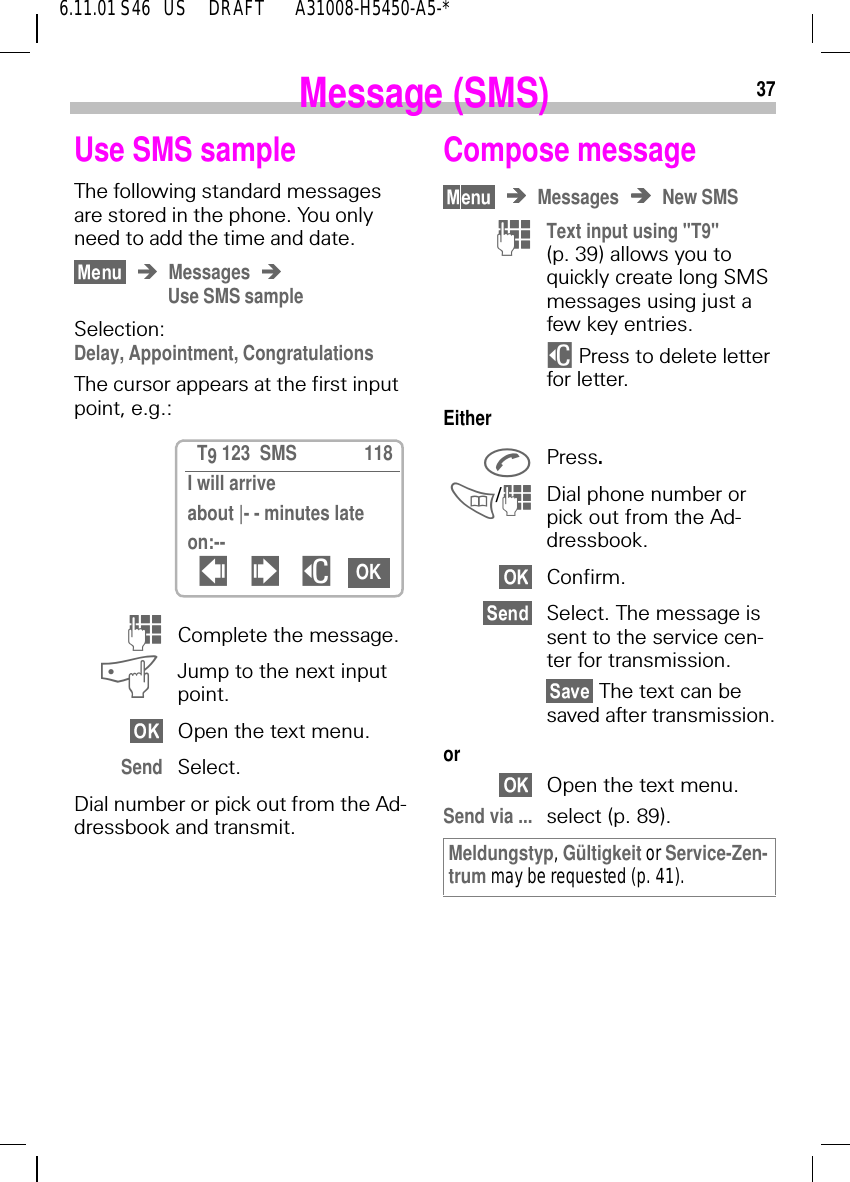

376.11.01 S46   US     DRAFT       A31008-H5450-A5-*Message (SMS)Use SMS sample The following standard messages are stored in the phone. You only need to add the time and date.MessagesUse SMS sampleSelection: Delay, Appointment, CongratulationsThe cursor appears at the first input point, e.g.: (Complete the message. aJump to the next input point.Open the text menu.Send Select.Dial number or pick out from the Ad-dressbook and transmit.  T9 123  SMS 118I will arrive about |- - minutes lateon:--  ! $ OKCompose messageMessages New SMS (Text input using "T9" (p. 39) allows you to quickly create long SMS messages using just a few key entries. $ Press to delete letter for letter.Either Press. / (Dial phone number or pick out from the Ad-dressbook.Confirm.Select. The message is sent to the service cen-ter for transmission. The text can be saved after transmission.orOpen the text menu.Send via ... select (p. 89).Meldungstyp, Gültigkeit or Service-Zen-trum may be requested (p. 41).

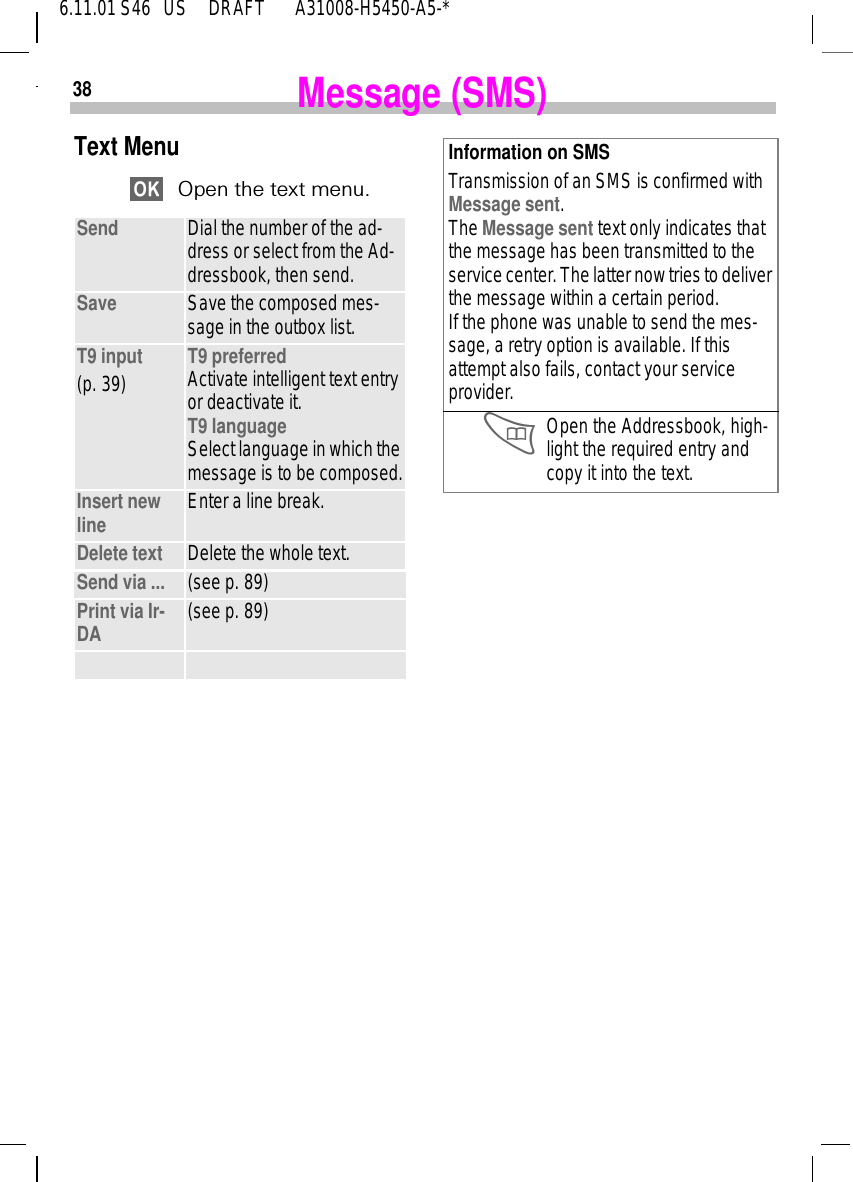

386.11.01 S46   US     DRAFT       A31008-H5450-A5-*Message (SMS)Text MenuOpen the text menu.Send Dial the number of the ad-dress or select from the Ad-dressbook, then send.Save Save the composed mes-sage in the outbox list.T9 input(p. 39) T9 preferred Activate intelligent text entry or deactivate it.T9 languageSelect language in which the message is to be composed.Insert new line Enter a line break.Delete text  Delete the whole text.Send via ... (see p. 89)Print via Ir-DA (see p. 89)Information on SMSTransmission of an SMS is confirmed with Message sent. The Message sent text only indicates that the message has been transmitted to the service center. The latter now tries to deliver the message within a certain period.If the phone was unable to send the mes-sage, a retry option is available. If this attempt also fails, contact your service provider. Open the Addressbook, high-light the required entry and copy it into the text.

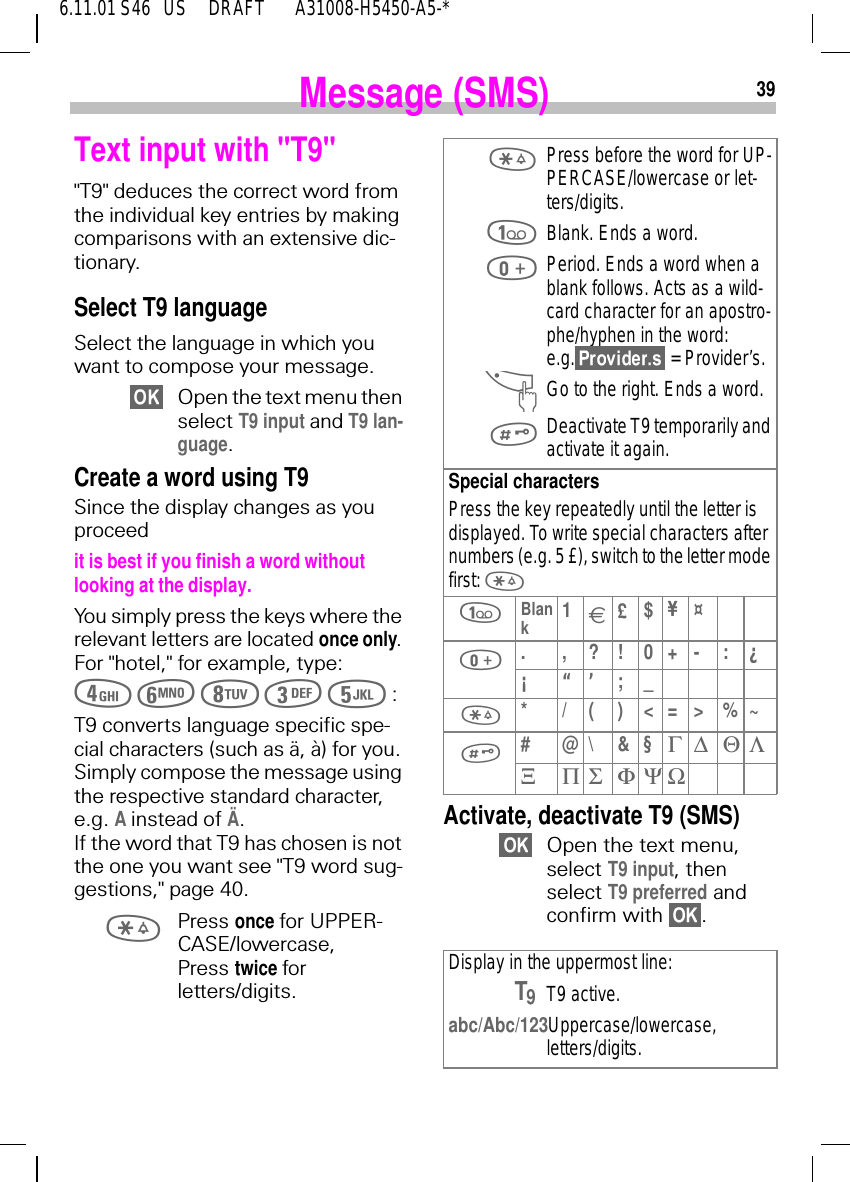

396.11.01 S46   US     DRAFT       A31008-H5450-A5-*Message (SMS)Text input with "T9""T9" deduces the correct word from the individual key entries by making comparisons with an extensive dic-tionary.Select T9 languageSelect the language in which you want to compose your message.Open the text menu then select T9 input and T9 lan-guage.Create a word using T9Since the display changes as you proceedit is best if you finish a word without looking at the display.You simply press the keys where the relevant letters are located once only. For "hotel," for example, type:          :T9 converts language specific spe-cial characters (such as ä, à) for you. Simply compose the message using the respective standard character, e.g. A instead of Ä. If the word that T9 has chosen is not the one you want see "T9 word sug-gestions," page 40. Press once for UPPER-CASE/lowercase,Press twice forletters/digits. Activate, deactivate T9 (SMS)Open the text menu,select T9 input, then select T9 preferred and confirm with  .  Press before the word for UP-PERCASE/lowercase or let-ters/digits. Blank. Ends a word. Period. Ends a word when a blank follows. Acts as a wild-card character for an apostro-phe/hyphen in the word:e.g.  = Provider’s. ^Go to the right. Ends a word. Deactivate T9 temporarily and activate it again.Special charactersPress the key repeatedly until the letter is displayed. To write special characters after numbers (e.g. 5 £), switch to the letter mode first:   Blank1€£$¥¤ .,?!0+-:¿¡“’;_ * / ( ) < = > % ~ #@\&§Γ ∆ Θ ΛΞΠΣΦΨΩDisplay in the uppermost line:T9T9 active.abc/Abc/123 Uppercase/lowercase, letters/digits.

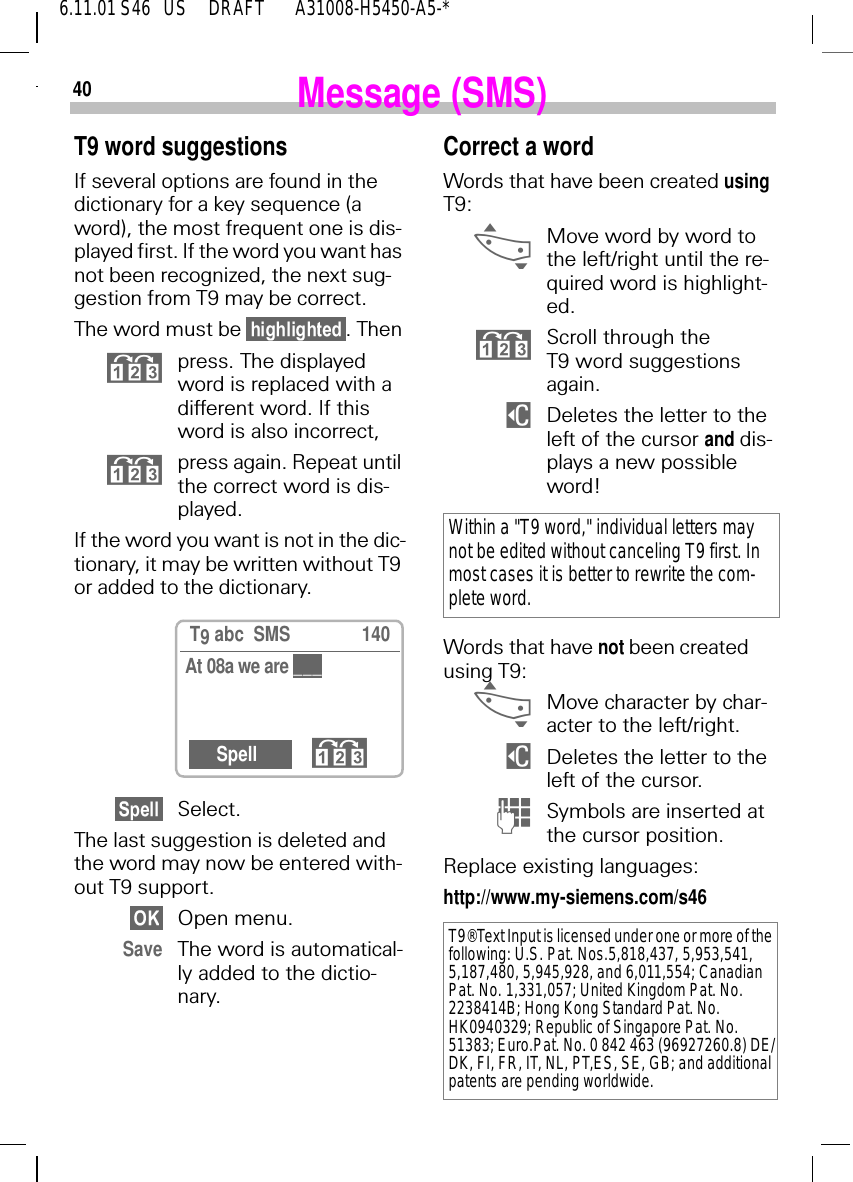

406.11.01 S46   US     DRAFT       A31008-H5450-A5-*Message (SMS)T9 word suggestionsIf several options are found in the dictionary for a key sequence (a word), the most frequent one is dis-played first. If the word you want has not been recognized, the next sug-gestion from T9 may be correct.The word must be . Then press. The displayed word is replaced with a different word. If this word is also incorrect, press again. Repeat until the correct word is dis-played.If the word you want is not in the dic-tionary, it may be written without T9 or added to the dictionary.Select.The last suggestion is deleted and the word may now be entered with-out T9 support.Open menu.Save The word is automatical-ly added to the dictio-nary. T9 abc  SMS 140At 08a we are Spell Correct a wordWords that have been created using T9: _Move word by word to the left/right until the re-quired word is highlight-ed. Scroll through the T9 word suggestions again. $  Deletes the letter to the left of the cursor and dis-plays a new possible word!Words that have not been created using T9: _Move character by char-acter to the left/right. $  Deletes the letter to the left of the cursor. (Symbols are inserted at the cursor position.Replace existing languages:http://www.my-siemens.com/s46Within a "T9 word," individual letters may not be edited without canceling T9 first. In most cases it is better to rewrite the com-plete word.T9®Text Input is licensed under one or more of the following: U.S. Pat. Nos.5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT, NL, PT,ES, SE, GB; and additional patents are pending worldwide.

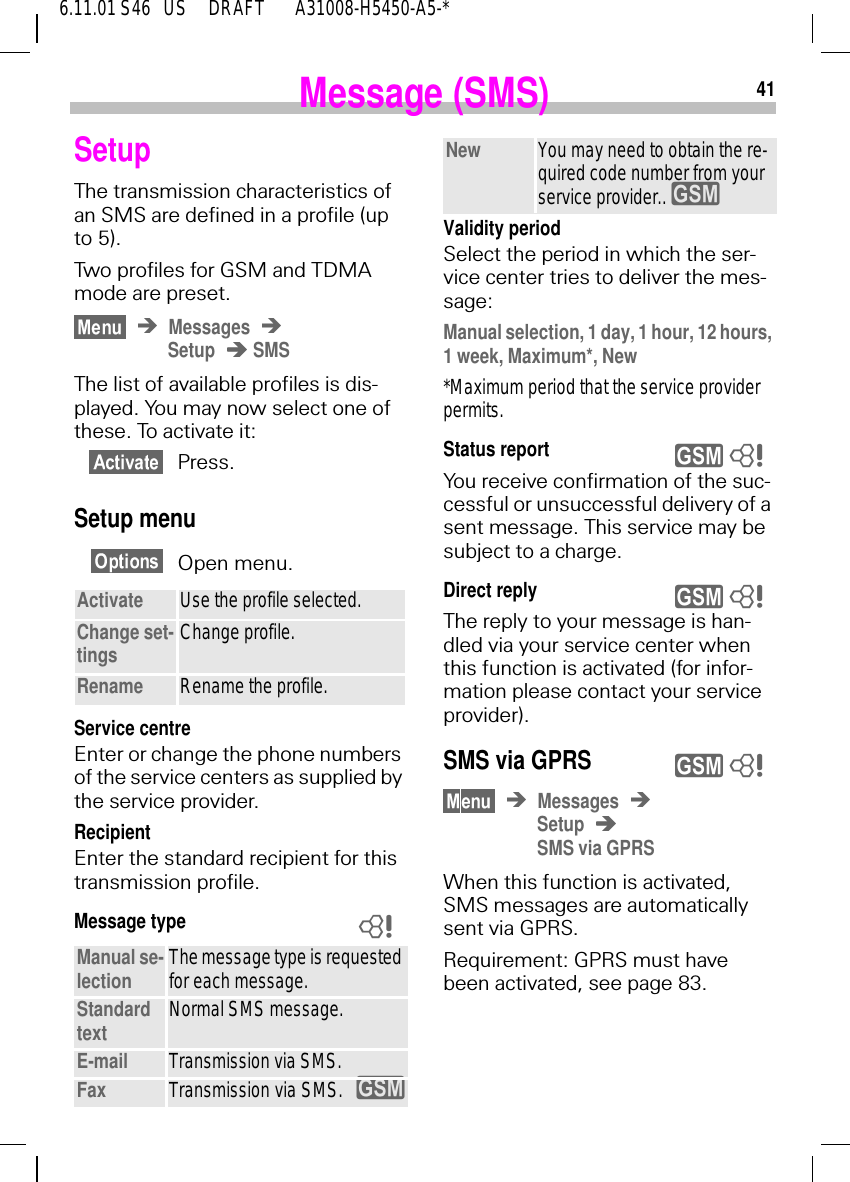

416.11.01 S46   US     DRAFT       A31008-H5450-A5-*Message (SMS)SetupThe transmission characteristics of an SMS are defined in a profile (up to 5). Two profiles for GSM and TDMA mode are preset.MessagesSetup  SMSThe list of available profiles is dis-played. You may now select one of these. To activate it:Press.Setup menuOpen menu.Service centreEnter or change the phone numbers of the service centers as supplied by the service provider.RecipientEnter the standard recipient for this transmission profile.Message typeActivate Use the profile selected.Change set-tings Change profile.Rename Rename the profile.Manual se-lection The message type is requested for each message.Standard text Normal SMS message.E-mail Transmission via SMS.Fax Transmission via SMS. y8Validity periodSelect the period in which the ser-vice center tries to deliver the mes-sage:Manual selection, 1 day, 1 hour, 12 hours, 1 week, Maximum*, New*Maximum period that the service provider permits.Status reportYou receive confirmation of the suc-cessful or unsuccessful delivery of a sent message. This service may be subject to a charge.Direct reply The reply to your message is han-dled via your service center when this function is activated (for infor-mation please contact your service provider).SMS via GPRSMessagesSetupSMS via GPRSWhen this function is activated, SMS messages are automatically sent via GPRS. Requirement: GPRS must have been activated, see page 83.New You may need to obtain the re-quired code number from your service provider..  yy 8y 8y 8

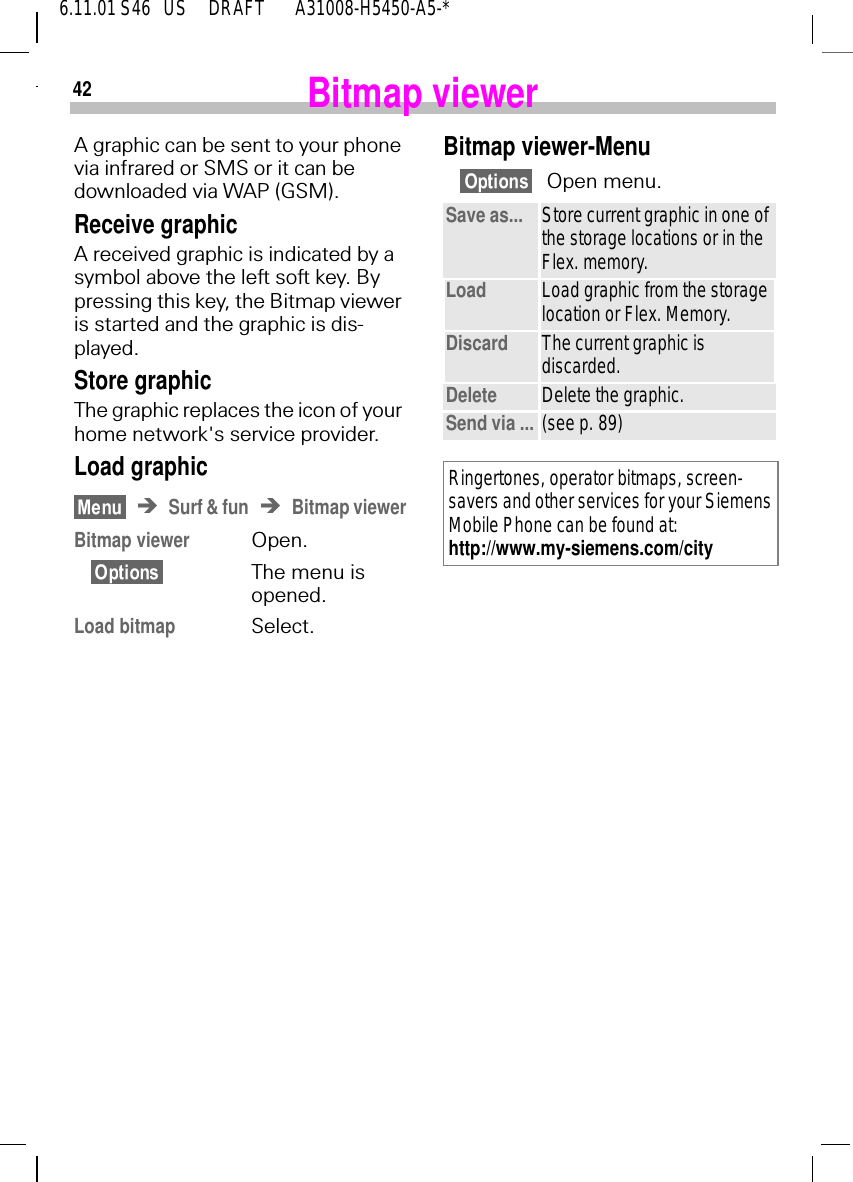

426.11.01 S46   US     DRAFT       A31008-H5450-A5-*Bitmap viewerA graphic can be sent to your phone via infrared or SMS or it can be downloaded via WAP (GSM). Receive graphicA received graphic is indicated by a symbol above the left soft key. By pressing this key, the Bitmap viewer is started and the graphic is dis-played.Store graphicThe graphic replaces the icon of your home network's service provider.Load graphicSurf & fun Bitmap viewerBitmap viewer Open.The menu isopened.Load bitmap Select.Bitmap viewer-MenuOpen menu.Save as... Store current graphic in one of the storage locations or in the Flex. memory.Load Load graphic from the storage location or Flex. Memory. Discard The current graphic is discarded.Delete Delete the graphic.Send via ... (see p. 89)Ringertones, operator bitmaps, screen-savers and other services for your Siemens Mobile Phone can be found at: http://www.my-siemens.com/city

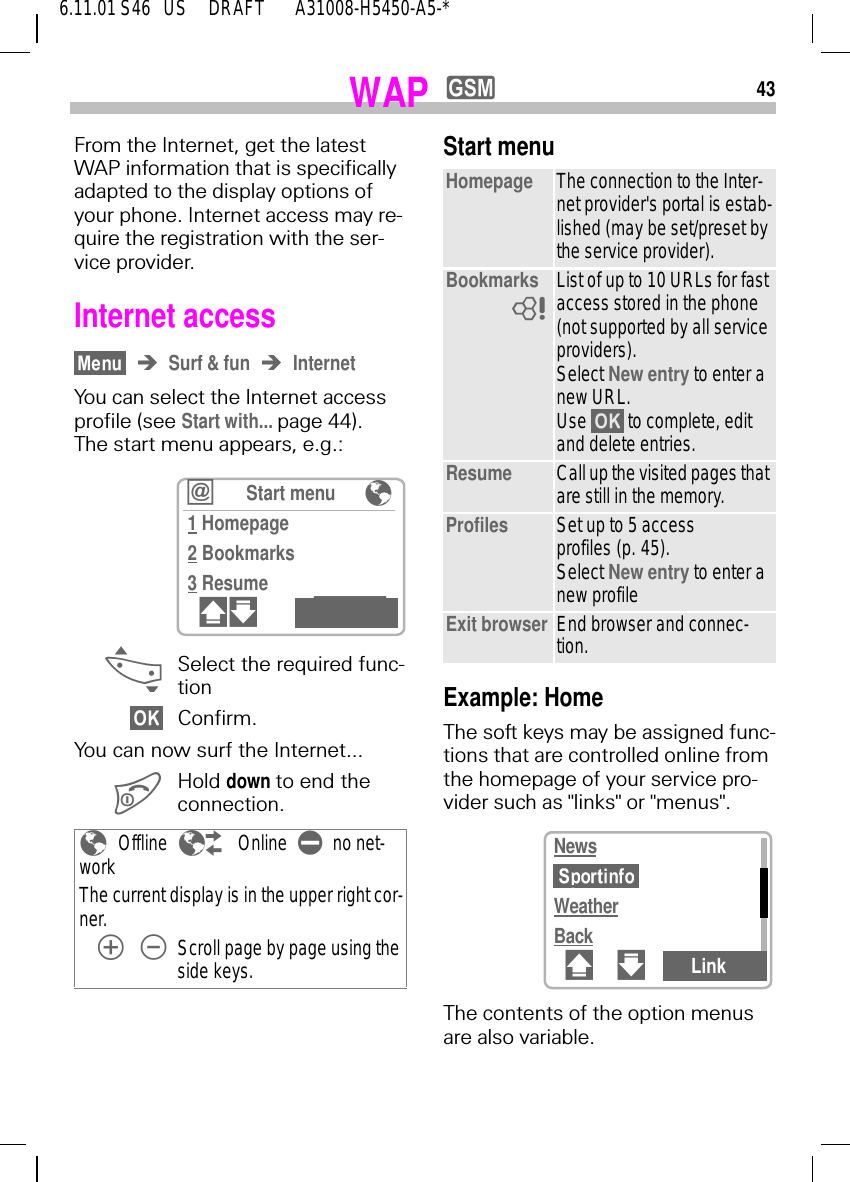

436.11.01 S46   US     DRAFT       A31008-H5450-A5-*WAP yFrom the Internet, get the latest WAP information that is specifically adapted to the display options of your phone. Internet access may re-quire the registration with the ser-vice provider.Internet accessSurf & fun InternetYou can select the Internet access profile (see Start with... page 44). The start menu appears, e.g.: _Select the required func-tion Confirm.You can now surf the Internet... Hold down to end the connection. mOffline nOnline ono net-workThe current display is in the upper right cor-ner.   Scroll page by page using the side keys. kStart menu m1 Homepage2 Bookmarks3 Resume#" _Start menuExample: HomeThe soft keys may be assigned func-tions that are controlled online from the homepage of your service pro-vider such as "links" or "menus".The contents of the option menus are also variable.Homepage The connection to the Inter-net provider's portal is estab-lished (may be set/preset by the service provider).Bookmarks List of up to 10 URLs for fast access stored in the phone (not supported by all service providers).Select New entry to enter a new URL.Use   to complete, edit and delete entries. Resume Call up the visited pages that are still in the memory.Profiles Set up to 5 access profiles (p. 45).Select New entry to enter a new profileExit browser End browser and connec-tion.8NewsWeatherBack# " Link

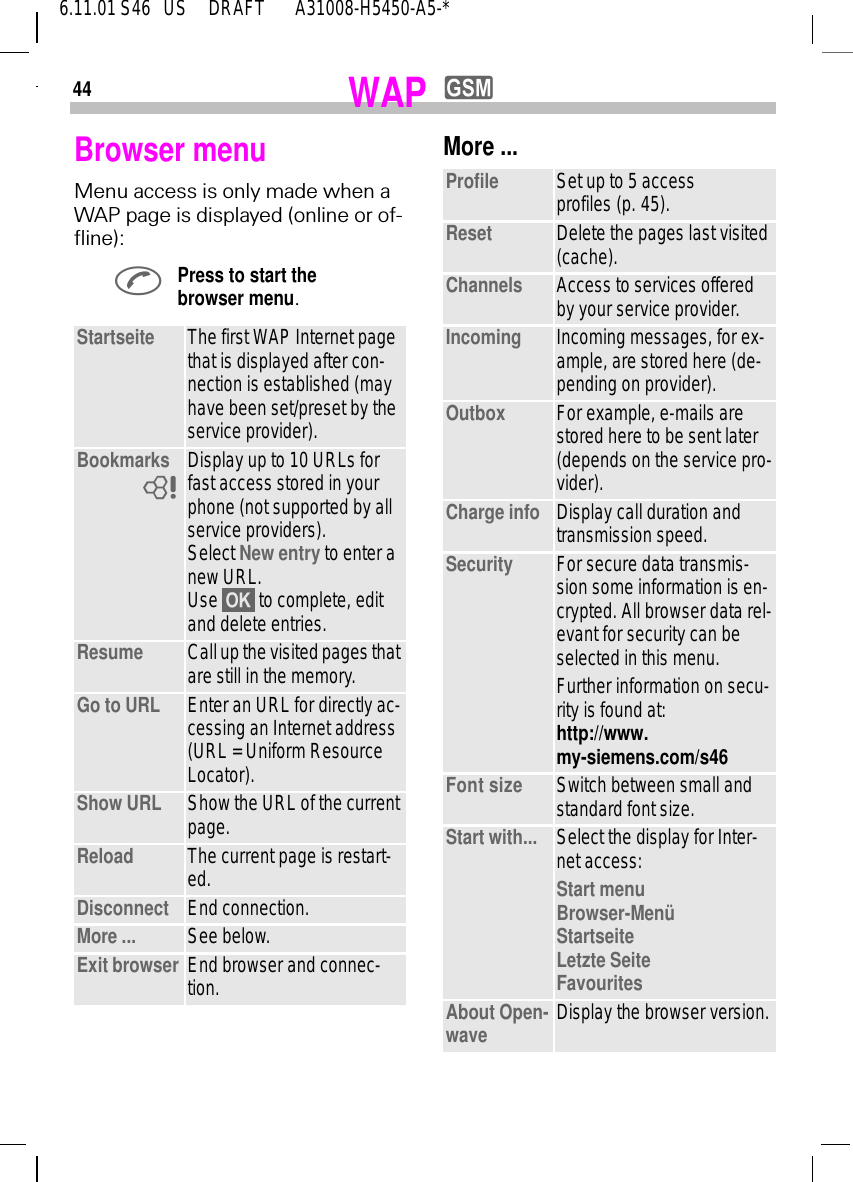

446.11.01 S46   US     DRAFT       A31008-H5450-A5-*WAP yBrowser menu Menu access is only made when a WAP page is displayed (online or of-fline): Press to start the browser menu.Startseite The first WAP Internet page that is displayed after con-nection is established (may have been set/preset by the service provider).Bookmarks Display up to 10 URLs for fast access stored in your phone (not supported by all service providers). Select New entry to enter a new URL.Use   to complete, edit and delete entries.Resume Call up the visited pages that are still in the memory.Go to URL Enter an URL for directly ac-cessing an Internet address (URL = Uniform Resource Locator).Show URL Show the URL of the current page.Reload The current page is restart-ed.Disconnect End connection.More ... See below.Exit browser End browser and connec-tion.8More ... Profile Set up to 5 access profiles (p. 45).Reset Delete the pages last visited (cache).Channels Access to services offered by your service provider.Incoming Incoming messages, for ex-ample, are stored here (de-pending on provider).Outbox For example, e-mails are stored here to be sent later (depends on the service pro-vider).Charge info Display call duration and transmission speed.Security For secure data transmis-sion some information is en-crypted. All browser data rel-evant for security can be selected in this menu.Further information on secu-rity is found at:http://www.my-siemens.com/s46Font size Switch between small and standard font size.Start with... Select the display for Inter-net access:Start menuBrowser-MenüStartseiteLetzte SeiteFavouritesAbout Open-wave Display the browser version.

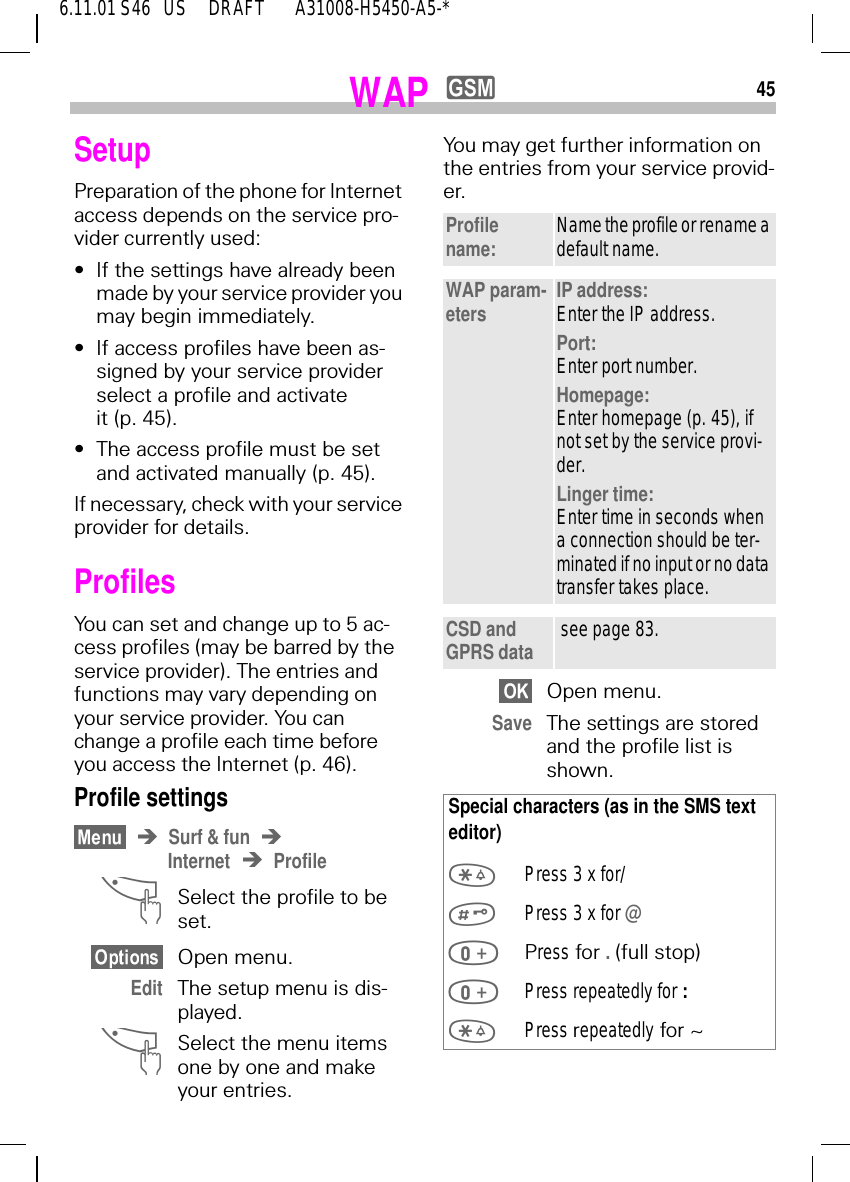

456.11.01 S46   US     DRAFT       A31008-H5450-A5-*WAP ySetup Preparation of the phone for Internet access depends on the service pro-vider currently used:•If the settings have already been made by your service provider you may begin immediately.•If access profiles have been as-signed by your service provider select a profile and activate it (p. 45).•The access profile must be set and activated manually (p. 45).If necessary, check with your service provider for details.Profiles You can set and change up to 5 ac-cess profiles (may be barred by the service provider). The entries and functions may vary depending on your service provider. You can change a profile each time before you access the Internet (p. 46).Profile settingsSurf & funInternet Profile ^Select the profile to be set.Open menu.Edit The setup menu is dis-played. ^Select the menu items one by one and make your entries.You may get further information on the entries from your service provid-er.  Open menu.Save The settings are stored and the profile list is shown.Profile name: Name the profile or rename a default name.WAP param-eters IP address:Enter the IP address.Port:Enter port number.Homepage:Enter homepage (p. 45), if not set by the service provi-der.Linger time:Enter time in seconds when a connection should be ter-minated if no input or no data transfer takes place.CSD and GPRS data  see page 83.Special characters (as in the SMS text editor) Press 3 x for/ Press 3 x for @ Press for . (full stop) Press repeatedly for :  Press repeatedly for ~

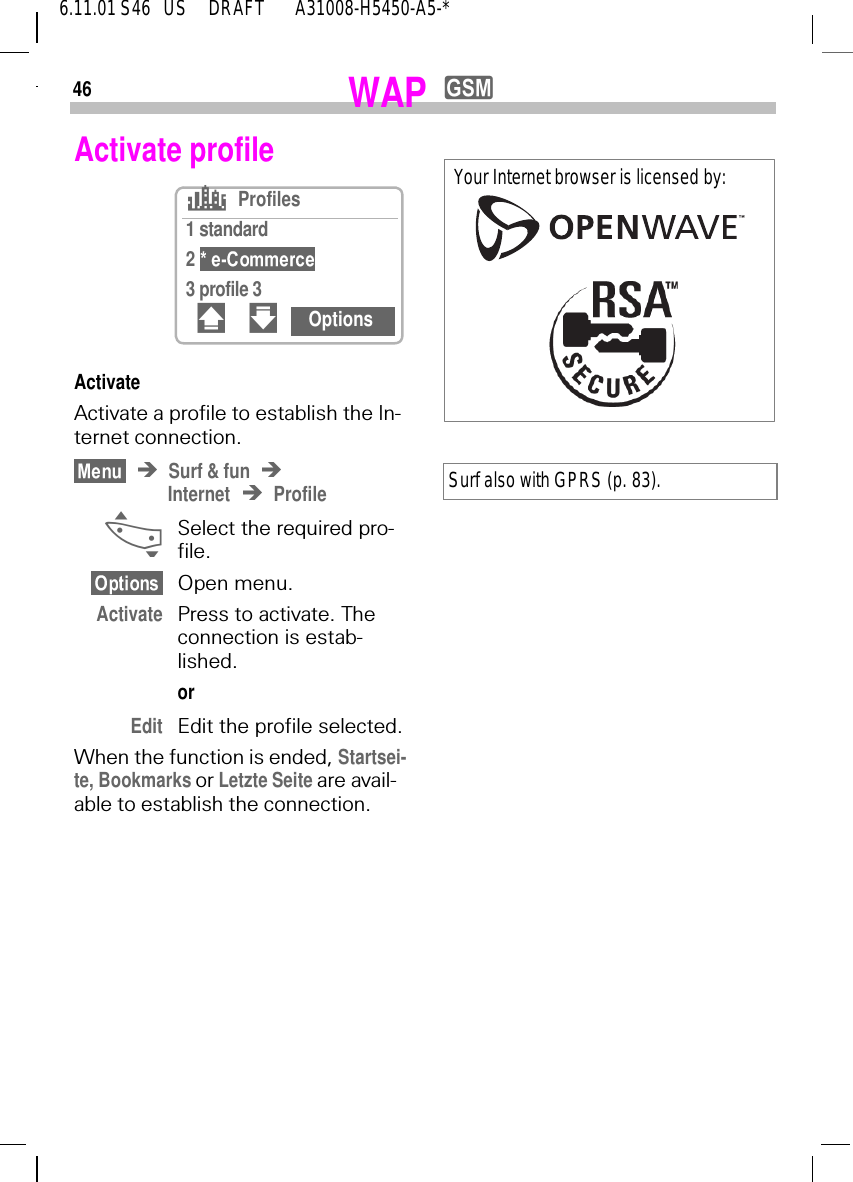

466.11.01 S46   US     DRAFT       A31008-H5450-A5-*WAP yActivate profileActivateActivate a profile to establish the In-ternet connection.Surf & funInternet Profile _  Select the required pro-file.Open menu.Activate Press to activate. The connection is estab-lished.orEdit Edit the profile selected.When the function is ended, Startsei-te, Bookmarks or Letzte Seite are avail-able to establish the connection.sProfiles1 standard2 3 profile 3# " OptionsSurf also with GPRS (p. 83).Your Internet browser is licensed by:

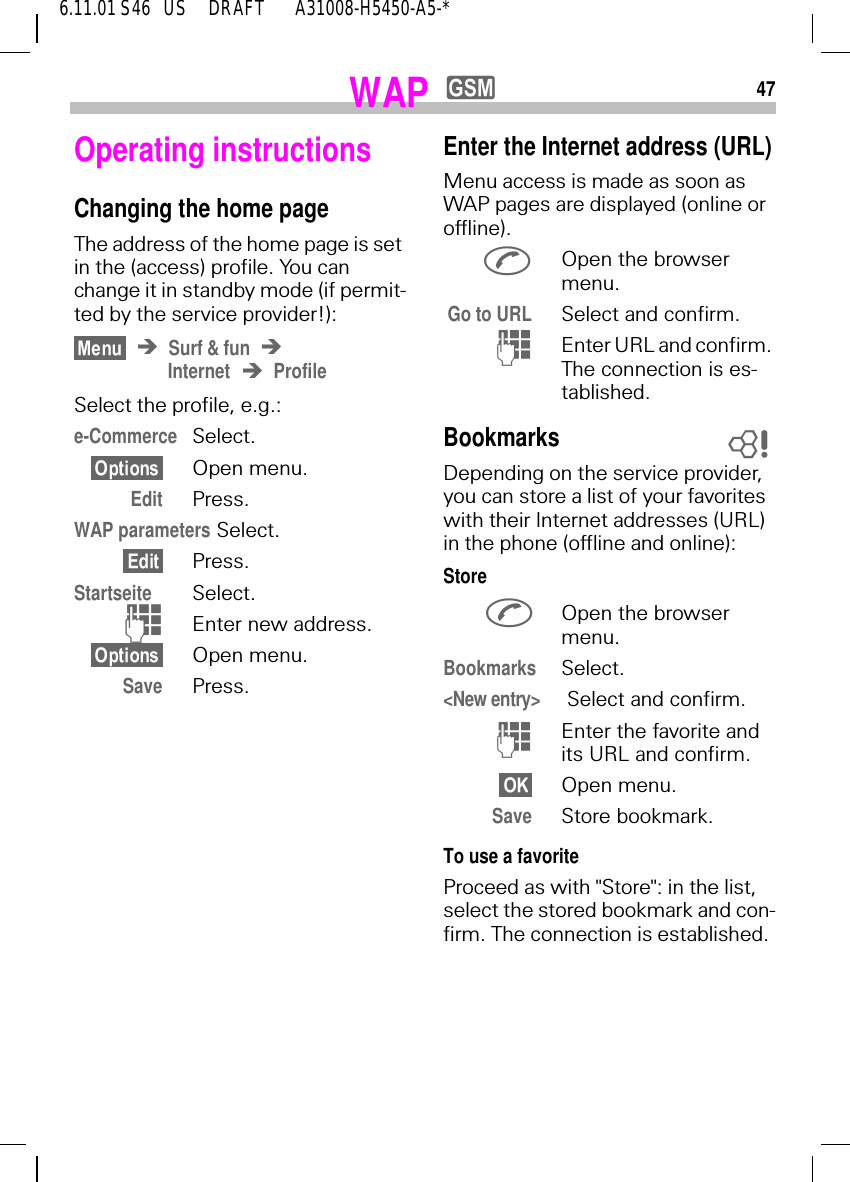

476.11.01 S46   US     DRAFT       A31008-H5450-A5-*WAP yOperating instructionsChanging the home pageThe address of the home page is set in the (access) profile. You can change it in standby mode (if permit-ted by the service provider!):Surf & funInternet ProfileSelect the profile, e.g.:e-Commerce Select.Open menu.Edit Press.WAP parameters Select.Press.Startseite Select. )Enter new address. Open menu.Save Press.Enter the Internet address (URL)Menu access is made as soon as WAP pages are displayed (online or offline). Open the browser menu.Go to URL Select and confirm. (Enter URL and confirm. The connection is es-tablished.BookmarksDepending on the service provider, you can store a list of your favorites with their Internet addresses (URL) in the phone (offline and online):Store Open the browser menu.Bookmarks Select.<New entry>  Select and confirm. (Enter the favorite and its URL and confirm.Open menu.Save Store bookmark.To use a favoriteProceed as with "Store": in the list, select the stored bookmark and con-firm. The connection is established.8

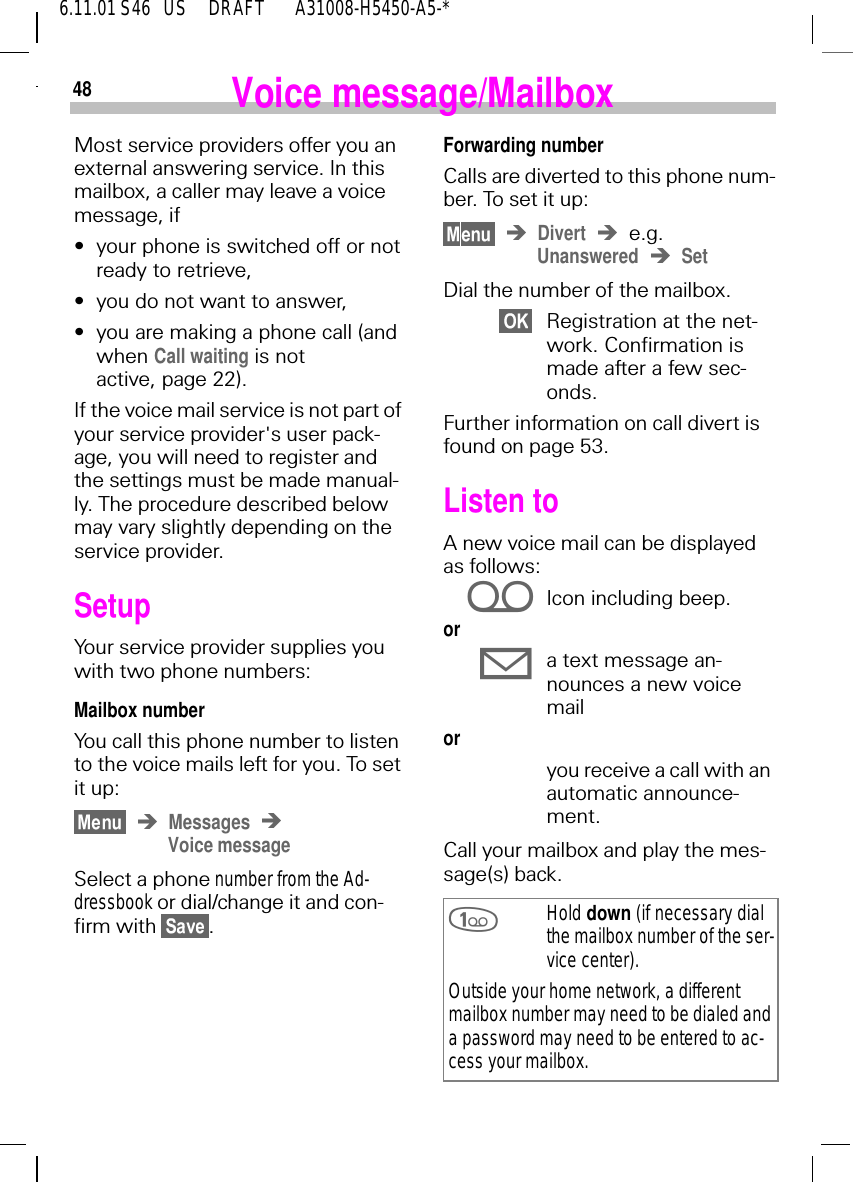

486.11.01 S46   US     DRAFT       A31008-H5450-A5-*Voice message/MailboxMost service providers offer you an external answering service. In this mailbox, a caller may leave a voice message, if•your phone is switched off or not ready to retrieve,•you do not want to answer,•you are making a phone call (and when Call waiting is not active, page 22).If the voice mail service is not part of your service provider's user pack-age, you will need to register and the settings must be made manual-ly. The procedure described below may vary slightly depending on the service provider.SetupYour service provider supplies you with two phone numbers:Mailbox numberYou call this phone number to listen to the voice mails left for you. To set it up:MessagesVoice messageSelect a phone number from the Ad-dressbook or dial/change it and con-firm with  .Forwarding numberCalls are diverted to this phone num-ber. To set it up:Divert e.g. Unanswered SetDial the number of the mailbox.Registration at the net-work. Confirmation is made after a few sec-onds.Further information on call divert is found on page 53.Listen toA new voice mail can be displayed as follows: iIcon including beep.or 9a text message an-nounces a new voice mail or you receive a call with an automatic announce-ment.Call your mailbox and play the mes-sage(s) back. Hold down (if necessary dial the mailbox number of the ser-vice center).Outside your home network, a different mailbox number may need to be dialed and a password may need to be entered to ac-cess your mailbox.

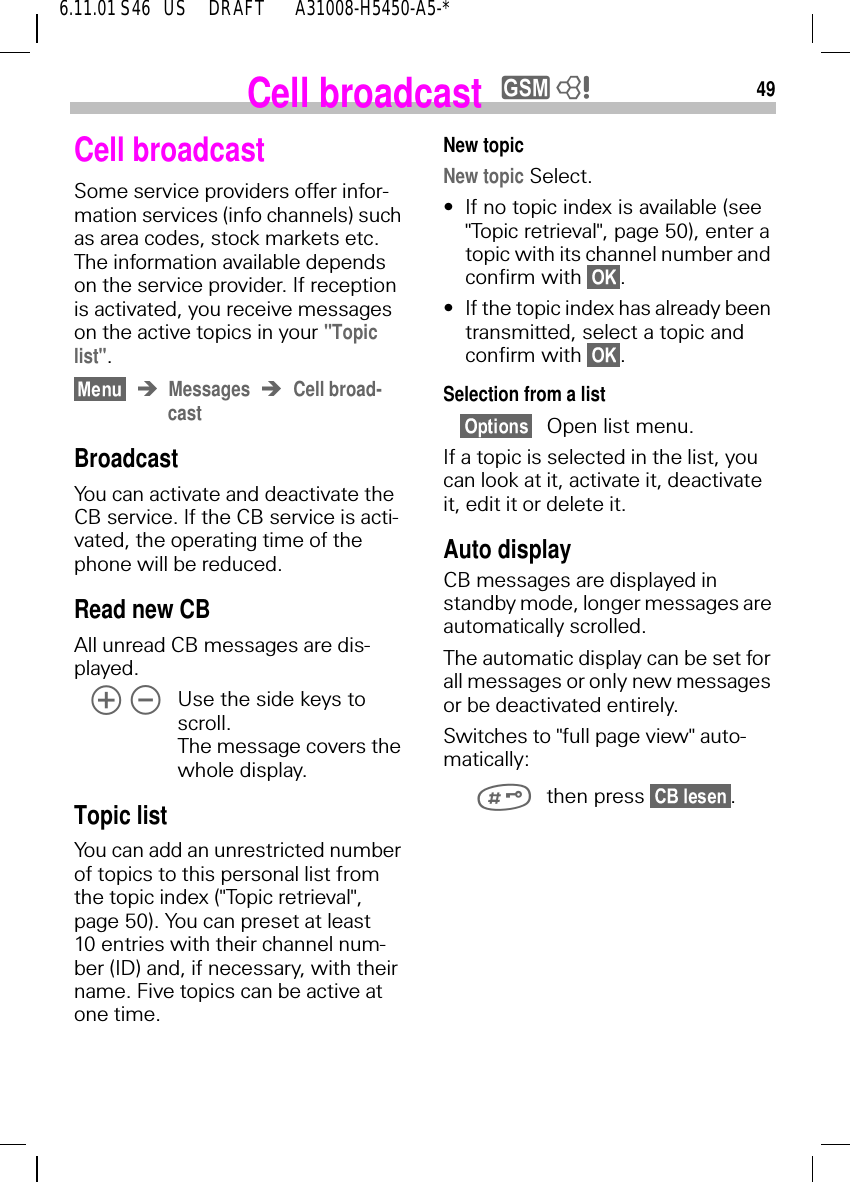

496.11.01 S46   US     DRAFT       A31008-H5450-A5-*Cell broadcasty 8Cell broadcastSome service providers offer infor-mation services (info channels) such as area codes, stock markets etc. The information available depends on the service provider. If reception is activated, you receive messages on the active topics in your "Topic list". Messages Cell broad-castBroadcastYou can activate and deactivate the CB service. If the CB service is acti-vated, the operating time of the phone will be reduced.Read new CBAll unread CB messages are dis-played.   Use the side keys to scroll. The message covers the whole display.Topic list You can add an unrestricted number of topics to this personal list from the topic index ("Topic retrieval", page 50). You can preset at least 10 entries with their channel num-ber (ID) and, if necessary, with their name. Five topics can be active at one time.New topicNew topic Select.•If no topic index is available (see "Topic retrieval", page 50), enter a topic with its channel number and confirm with  .•If the topic index has already been transmitted, select a topic and confirm with  .Selection from a list Open list menu.If a topic is selected in the list, you can look at it, activate it, deactivate it, edit it or delete it.Auto displayCB messages are displayed in standby mode, longer messages are automatically scrolled.The automatic display can be set for all messages or only new messages or be deactivated entirely.Switches to "full page view" auto-matically: then press  .

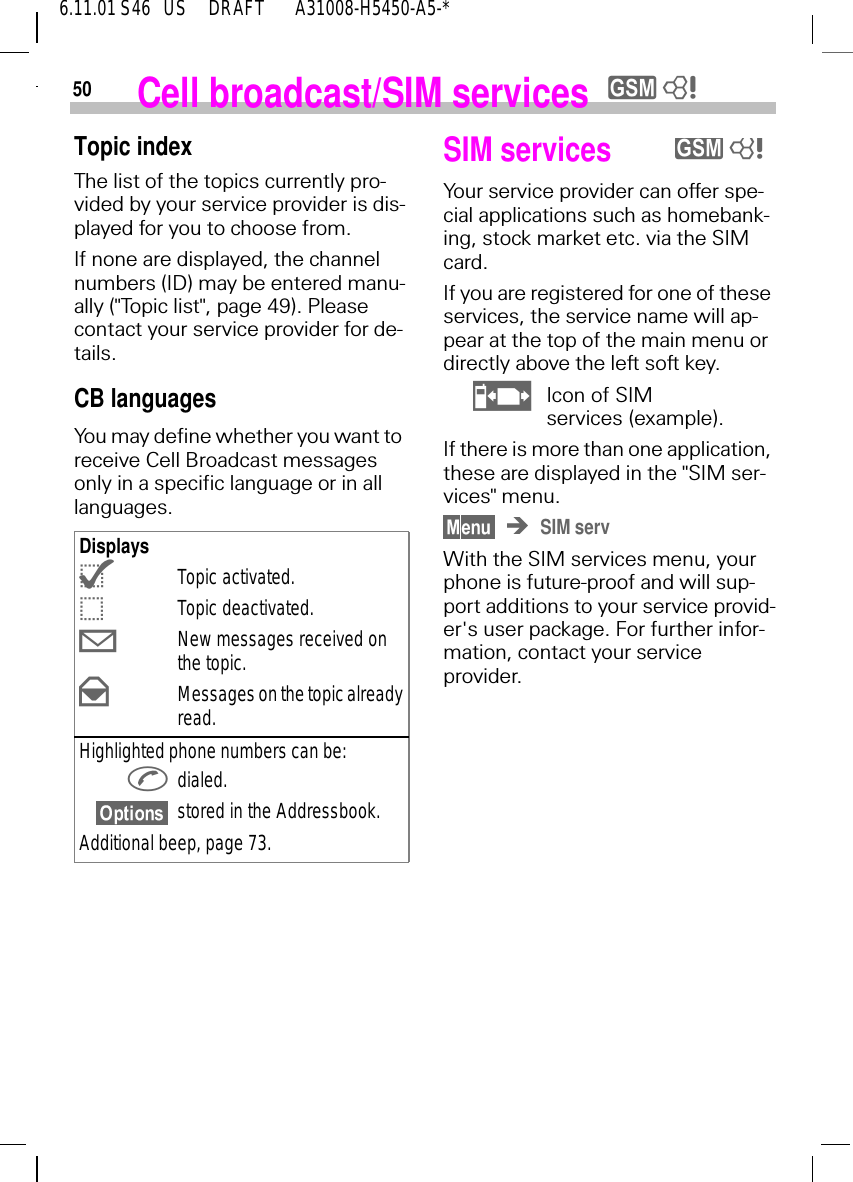

506.11.01 S46   US     DRAFT       A31008-H5450-A5-*Cell broadcast/SIM services  y 8Topic indexThe list of the topics currently pro-vided by your service provider is dis-played for you to choose from.If none are displayed, the channel numbers (ID) may be entered manu-ally ("Topic list", page 49). Please contact your service provider for de-tails.CB languagesYou may define whether you want to receive Cell Broadcast messages only in a specific language or in all languages.Displays {Topic activated. |Topic deactivated. 9New messages received on the topic. :Messages on the topic already read.Highlighted phone numbers can be: dialed.stored in the Addressbook.Additional beep, page 73.SIM servicesYour service provider can offer spe-cial applications such as homebank-ing, stock market etc. via the SIM card. If you are registered for one of these services, the service name will ap-pear at the top of the main menu or directly above the left soft key. hIcon of SIMservices (example).If there is more than one application, these are displayed in the "SIM ser-vices" menu.SIM servWith the SIM services menu, your phone is future-proof and will sup-port additions to your service provid-er's user package. For further infor-mation, contact your service provider.y 8

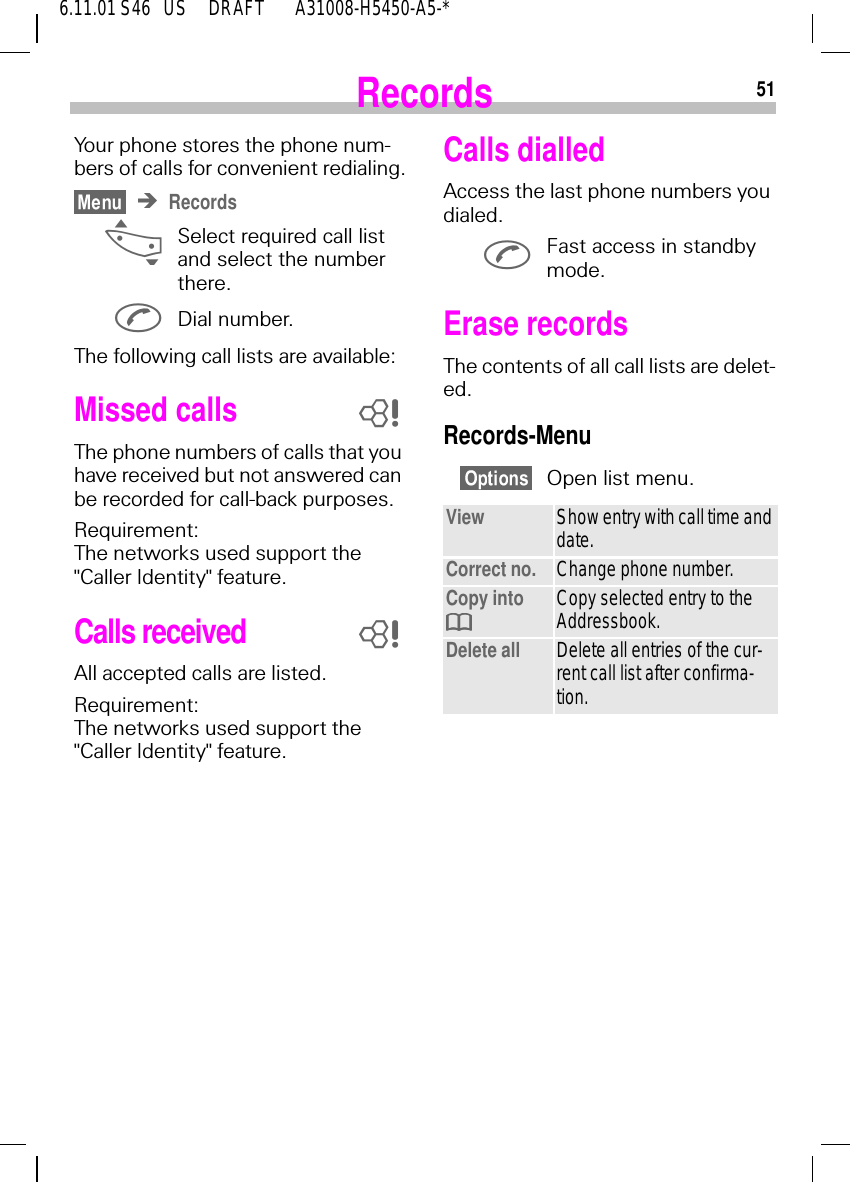

516.11.01 S46   US     DRAFT       A31008-H5450-A5-*RecordsYour phone stores the phone num-bers of calls for convenient redialing.Records _Select required call list and select the number there. Dial number.The following call lists are available:Missed callsThe phone numbers of calls that you have received but not answered can be recorded for call-back purposes.Requirement: The networks used support the "Caller Identity" feature.Calls receivedAll accepted calls are listed.Requirement: The networks used support the "Caller Identity" feature.88Calls dialledAccess the last phone numbers you dialed. Fast access in standby mode.Erase recordsThe contents of all call lists are delet-ed.Records-MenuOpen list menu.View Show entry with call time and date.Correct no. Change phone number.Copy into  Copy selected entry to the Addressbook.Delete all Delete all entries of the cur-rent call list after confirma-tion.

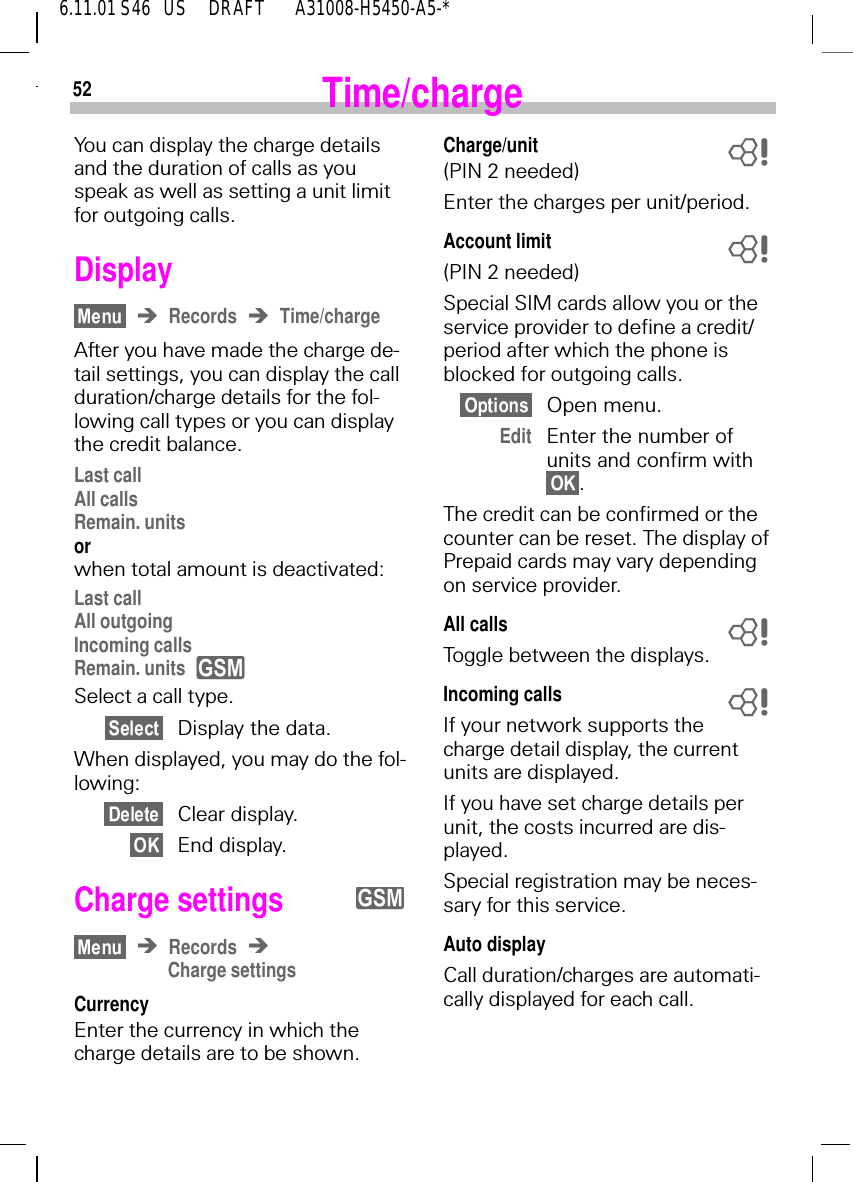

526.11.01 S46   US     DRAFT       A31008-H5450-A5-*Time/chargeYou can display the charge details and the duration of calls as you speak as well as setting a unit limit for outgoing calls.DisplayRecords Time/chargeAfter you have made the charge de-tail settings, you can display the call duration/charge details for the fol-lowing call types or you can display the credit balance.Last callAll callsRemain. unitsor when total amount is deactivated:Last callAll outgoingIncoming callsRemain. units Select a call type.Display the data.When displayed, you may do the fol-lowing:Clear display.End display.Charge settings RecordsCharge settingsCurrencyEnter the currency in which the charge details are to be shown.yyCharge/unit(PIN 2 needed)Enter the charges per unit/period.Account limit(PIN 2 needed)Special SIM cards allow you or the service provider to define a credit/period after which the phone is blocked for outgoing calls.Open menu.Edit Enter the number of units and confirm with .The credit can be confirmed or the counter can be reset. The display of Prepaid cards may vary depending on service provider.All callsToggle between the displays.Incoming callsIf your network supports the charge detail display, the current units are displayed.If you have set charge details per unit, the costs incurred are dis-played.Special registration may be neces-sary for this service.Auto displayCall duration/charges are automati-cally displayed for each call.8888

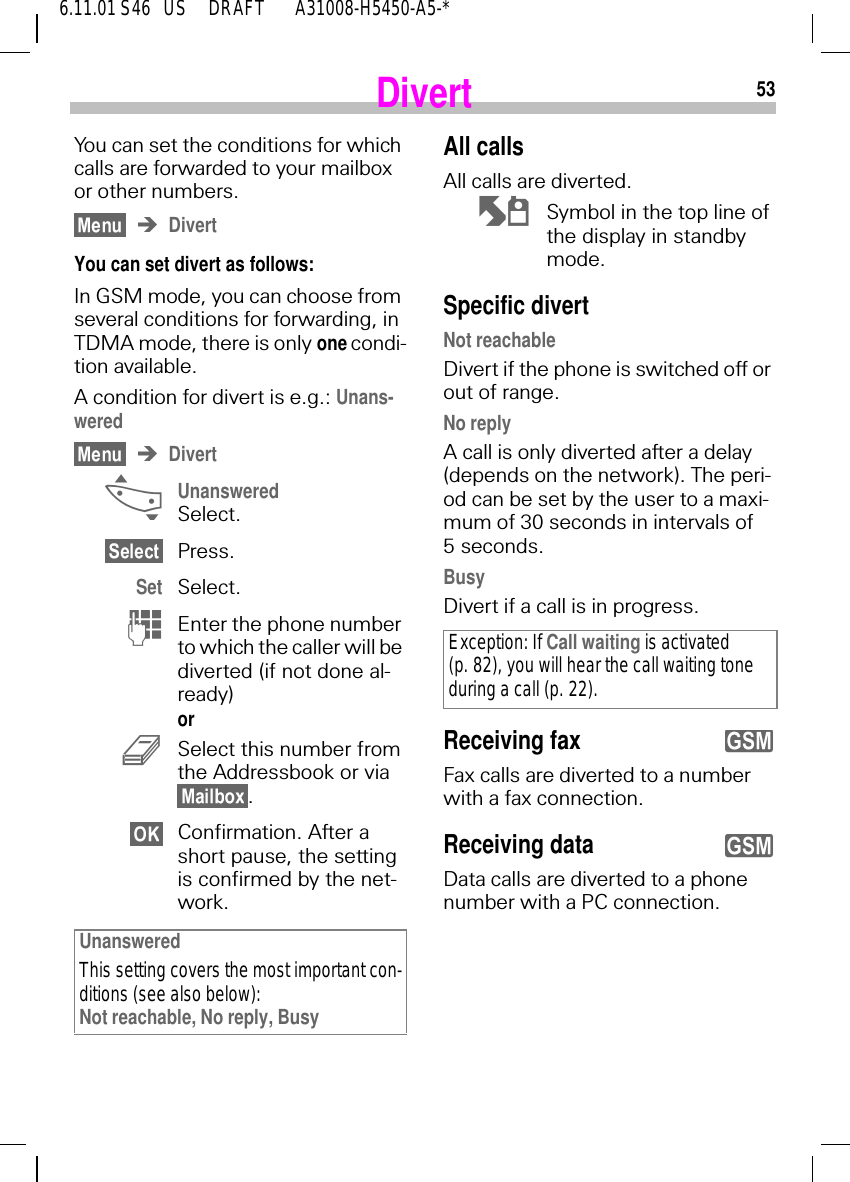

536.11.01 S46   US     DRAFT       A31008-H5450-A5-*DivertYou can set the conditions for which calls are forwarded to your mailbox or other numbers.DivertYou can set divert as follows:In GSM mode, you can choose from several conditions for forwarding, in TDMA mode, there is only one condi-tion available.A condition for divert is e.g.: Unans-weredDivert _Unanswered Select.Press.Set Select. (Enter the phone number to which the caller will be diverted (if not done al-ready)or  3Select this number from the Addressbook or via .Confirmation. After a short pause, the setting is confirmed by the net-work.UnansweredThis setting covers the most important con-ditions (see also below):Not reachable, No reply, BusyAll callsAll calls are diverted. N  Symbol in the top line of the display in standby mode.Specific divertNot reachableDivert if the phone is switched off or out of range.No replyA call is only diverted after a delay (depends on the network). The peri-od can be set by the user to a maxi-mum of 30 seconds in intervals of 5 seconds.BusyDivert if a call is in progress. Receiving faxFax calls are diverted to a number with a fax connection.Receiving dataData calls are diverted to a phone number with a PC connection. Exception: If Call waiting is activated (p. 82), you will hear the call waiting tone during a call (p. 22).yy

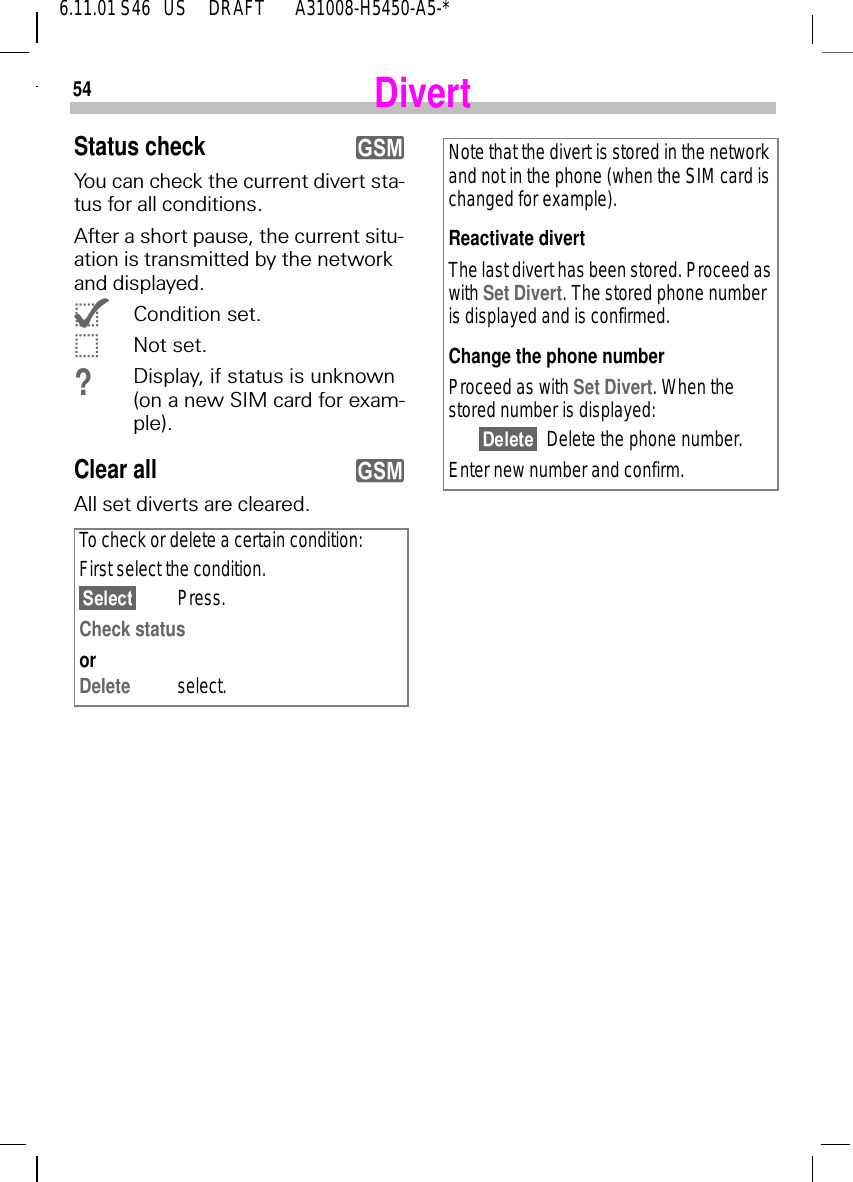

546.11.01 S46   US     DRAFT       A31008-H5450-A5-*DivertStatus checkYou can check the current divert sta-tus for all conditions.After a short pause, the current situ-ation is transmitted by the network and displayed. {Condition set. |Not set.?Display, if status is unknown (on a new SIM card for exam-ple).Clear allAll set diverts are cleared.To check or delete a certain condition:First select the condition.Press.Check status orDelete select.yyNote that the divert is stored in the network and not in the phone (when the SIM card is changed for example).Reactivate divertThe last divert has been stored. Proceed as with Set Divert. The stored phone number is displayed and is confirmed.Change the phone numberProceed as with Set Divert. When the stored number is displayed:Delete the phone number.Enter new number and confirm.

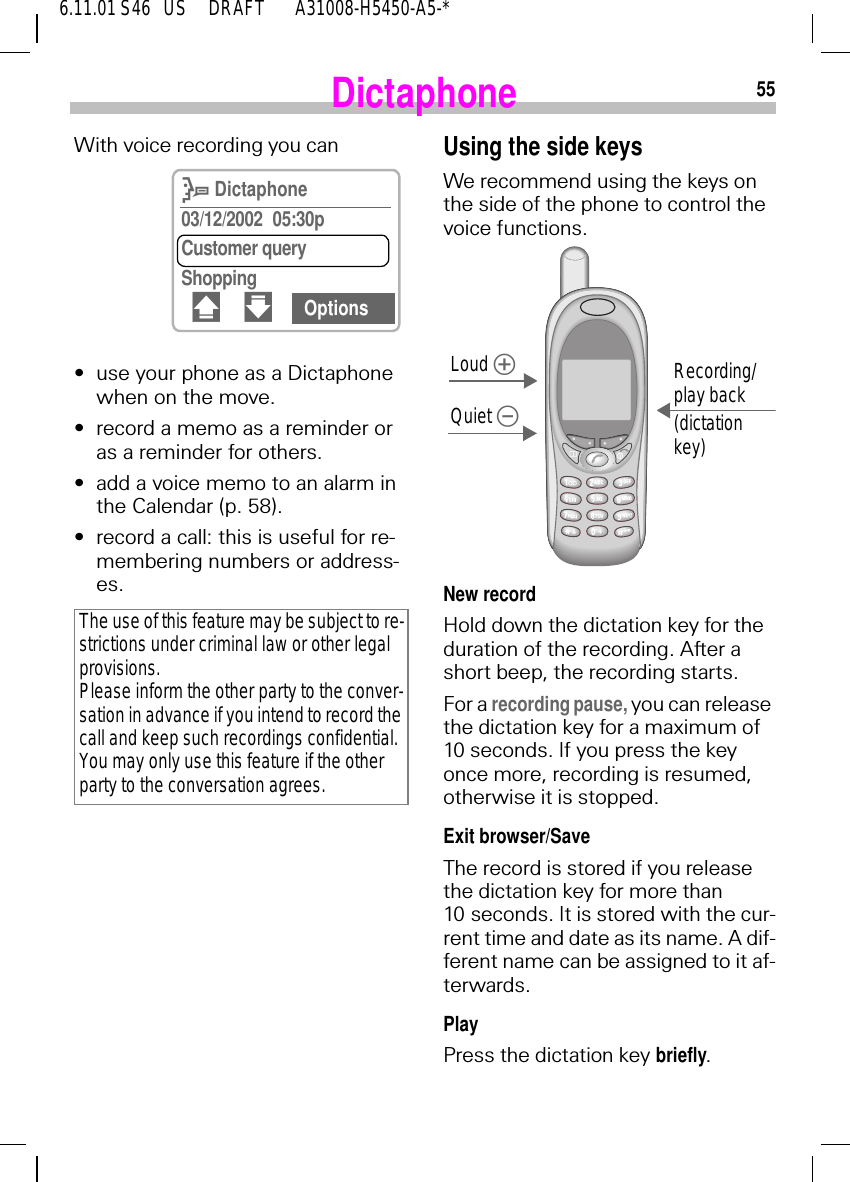

556.11.01 S46   US     DRAFT       A31008-H5450-A5-*DictaphoneWith voice recording you can•use your phone as a Dictaphone when on the move.•record a memo as a reminder or as a reminder for others.•add a voice memo to an alarm in the Calendar (p. 58).•record a call: this is useful for re-membering numbers or address-es.The use of this feature may be subject to re-strictions under criminal law or other legal provisions. Please inform the other party to the conver-sation in advance if you intend to record the call and keep such recordings confidential. You may only use this feature if the other party to the conversation agrees.E Dictaphone03/12/2002 05:30pCustomer queryShopping# " OptionsUsing the side keysWe recommend using the keys on the side of the phone to control the voice functions.New recordHold down the dictation key for the duration of the recording. After a short beep, the recording starts.For a recording pause, you can release the dictation key for a maximum of 10 seconds. If you press the key once more, recording is resumed, otherwise it is stopped.Exit browser/SaveThe record is stored if you release the dictation key for more than 10 seconds. It is stored with the cur-rent time and date as its name. A dif-ferent name can be assigned to it af-terwards.PlayPress the dictation key briefly.Loud Quiet Recording/play back(dictation key)

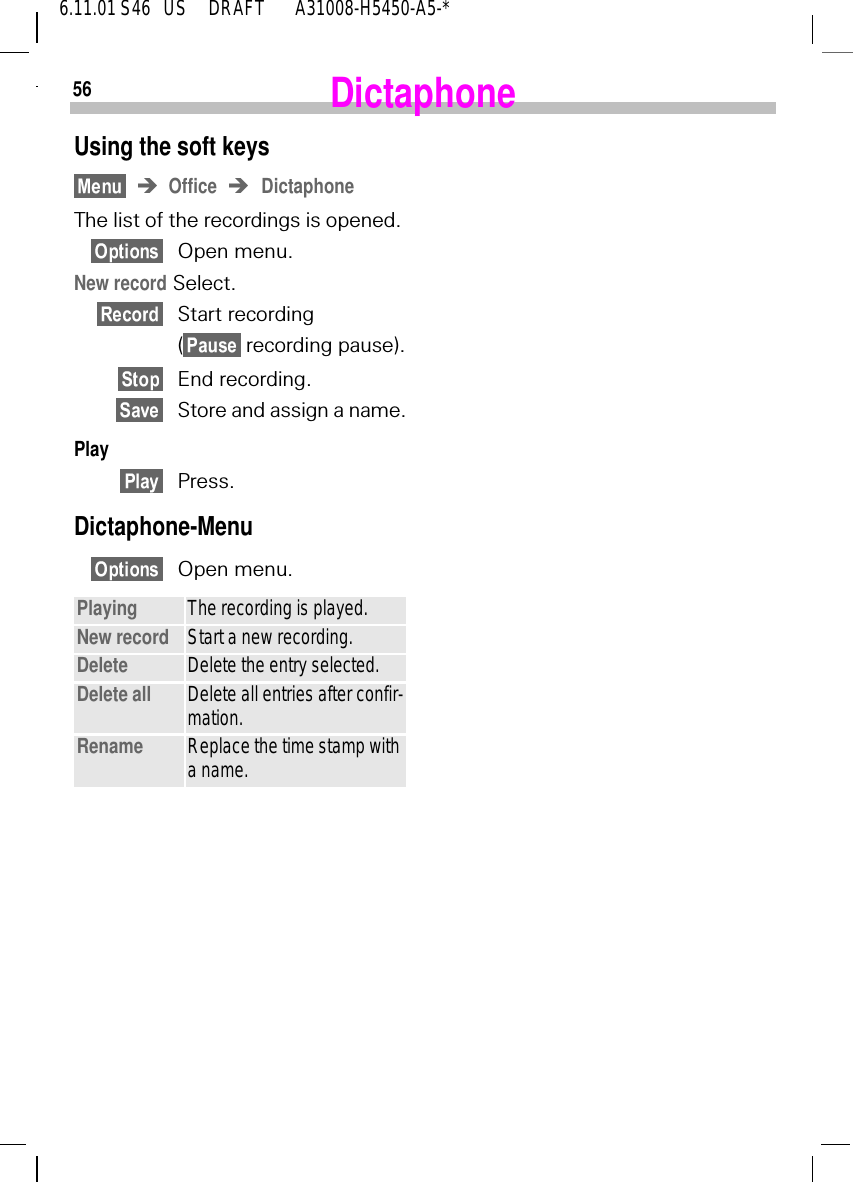

566.11.01 S46   US     DRAFT       A31008-H5450-A5-*DictaphoneUsing the soft keysOffice DictaphoneThe list of the recordings is opened.Open menu.New record Select.Start recording( recording pause).End recording.Store and assign a name.PlayPress.Dictaphone-MenuOpen menu.Playing The recording is played.New record Start a new recording.Delete Delete the entry selected.Delete all Delete all entries after confir-mation.Rename Replace the time stamp with a name.

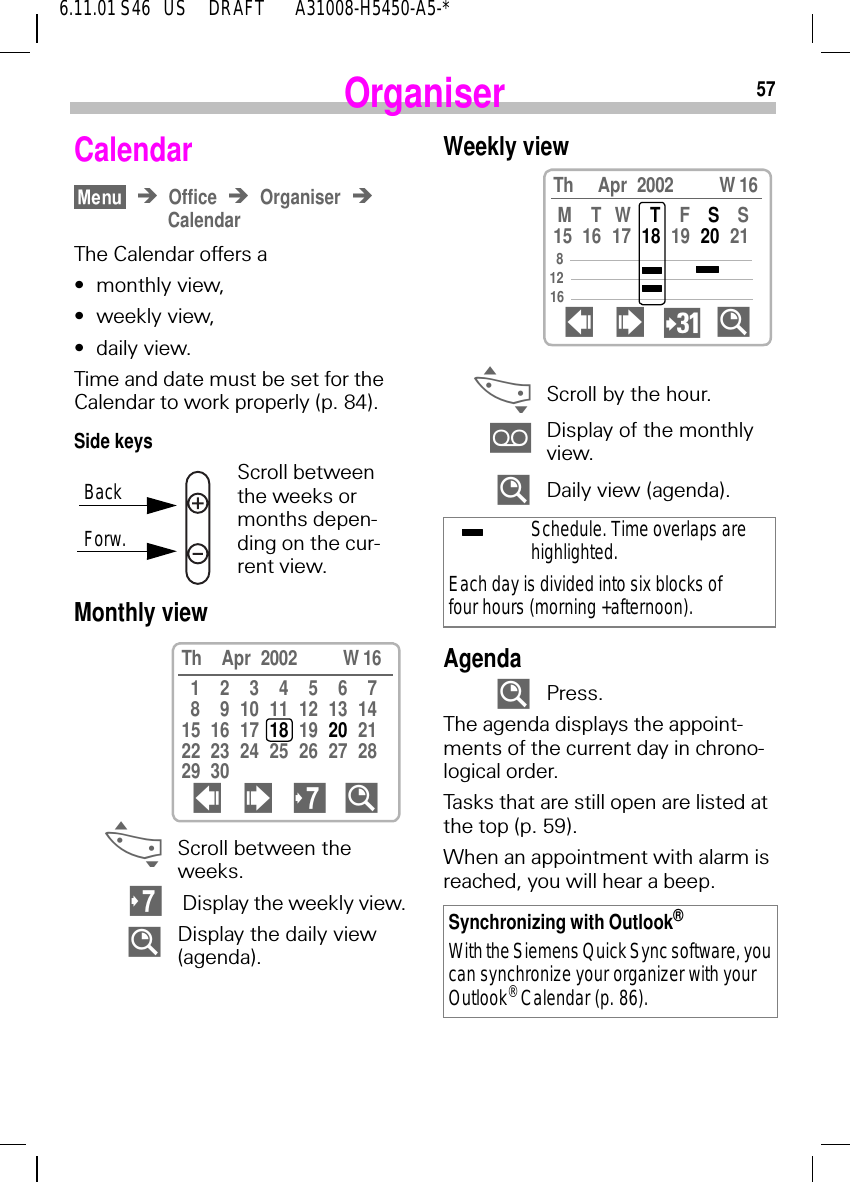

576.11.01 S46   US     DRAFT       A31008-H5450-A5-*OrganiserCalendarOffice OrganiserCalendarThe Calendar offers a•monthly view,•weekly view,•daily view.Time and date must be set for the Calendar to work properly (p. 84).Side keysScroll between the weeks or months depen-ding on the cur-rent view.Monthly view  _Scroll between the weeks.  Display the weekly view. %Display the daily view (agenda).BackForw.Th Apr 2002       W 1612345678 9 10 11 12 13 1415 16 17 18 19  20 2122 23 24 25 26 27 2829 30  !  %Weekly view _Scroll by the hour. Display of the monthly view. %Daily view (agenda).Agenda %Press.The agenda displays the appoint-ments of the current day in chrono-logical order.Tasks that are still open are listed at the top (p. 59).When an appointment with alarm is reached, you will hear a beep.Schedule. Time overlaps are highlighted.Each day is divided into six blocks of four hours (morning +afternoon).Synchronizing with Outlook®With the Siemens Quick Sync software, you can synchronize your organizer with your Outlook® Calendar (p. 86).Th Apr 2002       W 16MTWTFSS15 16 17 18 19 20 21  ! ?%81216

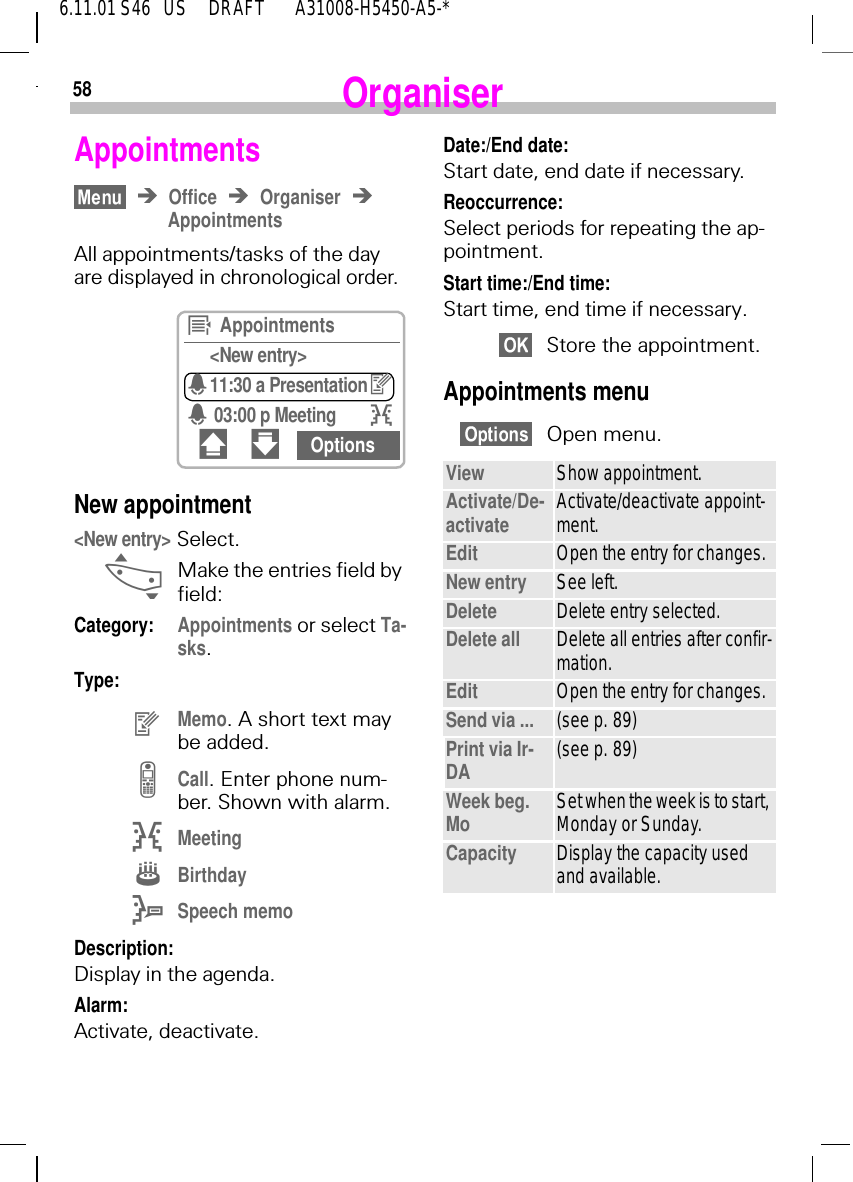

586.11.01 S46   US     DRAFT       A31008-H5450-A5-*OrganiserAppointmentsOffice OrganiserAppointmentsAll appointments/tasks of the day are displayed in chronological order. New appointment <New entry> Select. _Make the entries field by field:Category: Appointments or select Ta-sks.Type: gMemo. A short text may be added. =Call. Enter phone num-ber. Shown with alarm. IMeeting HBirthday ESpeech memoDescription: Display in the agenda.Alarm: Activate, deactivate.~  Appointments<New entry>411:30 a Presentationg4 03:00 p Meeting I# " OptionsDate:/End date: Start date, end date if necessary.Reoccurrence: Select periods for repeating the ap-pointment.Start time:/End time: Start time, end time if necessary.Store the appointment.Appointments menuOpen menu. View Show appointment.Activate/De-activate Activate/deactivate appoint-ment.Edit Open the entry for changes.New entry See left.Delete Delete entry selected.Delete all Delete all entries after confir-mation.Edit Open the entry for changes.Send via ... (see p. 89)Print via Ir-DA (see p. 89)Week beg. Mo Set when the week is to start, Monday or Sunday.Capacity Display the capacity used and available.

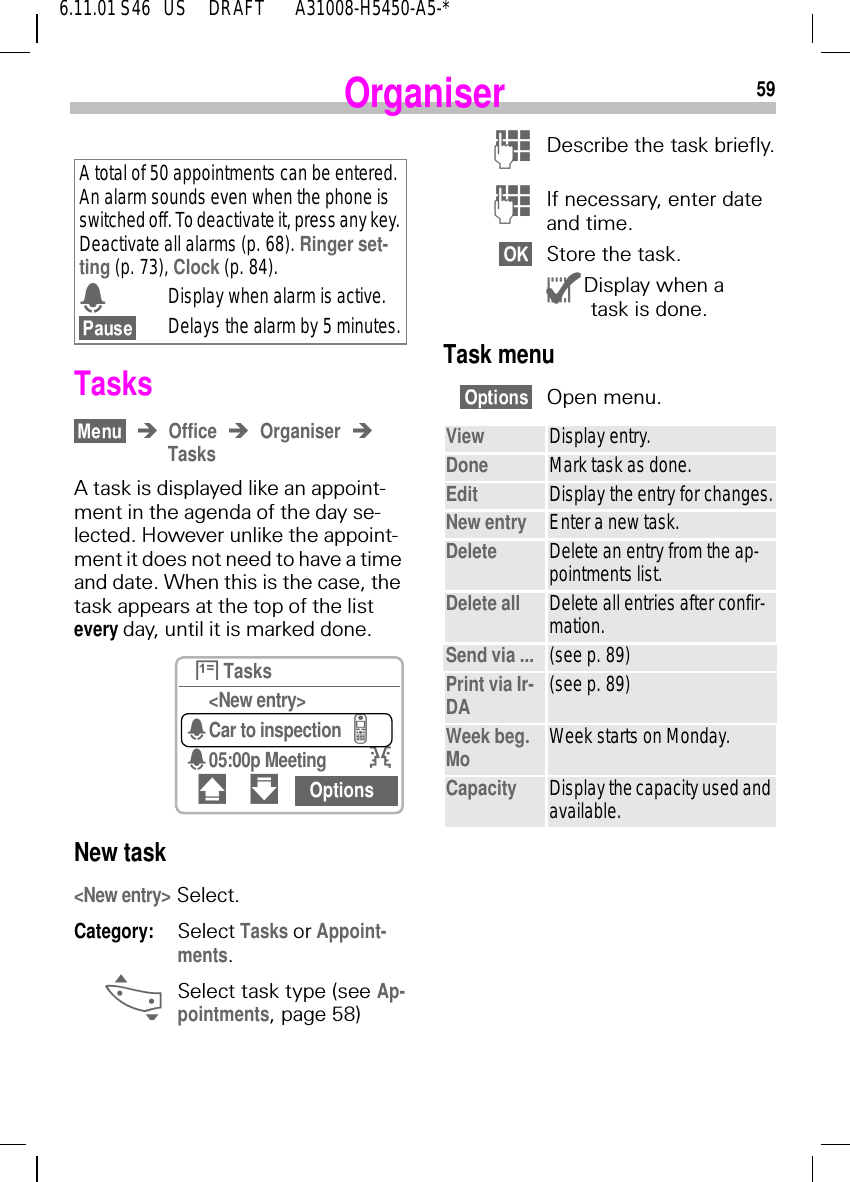

596.11.01 S46   US     DRAFT       A31008-H5450-A5-*OrganiserTasksOffice OrganiserTasksA task is displayed like an appoint-ment in the agenda of the day se-lected. However unlike the appoint-ment it does not need to have a time and date. When this is the case, the task appears at the top of the list every day, until it is marked done.New task <New entry> Select.Category: Select Tasks or Appoint-ments. _Select task type (see Ap-pointments, page 58) A total of 50 appointments can be entered. An alarm sounds even when the phone is switched off. To deactivate it, press any key. Deactivate all alarms (p. 68). Ringer set-ting (p. 73), Clock (p. 84). 4Display when alarm is active.Delays the alarm by 5 minutes. }Tasks<New entry>4Car to inspection=405:00p Meeting I# " Options )Describe the task briefly. )If necessary, enter date and time.Store the task. {Display when a {task is done.Task menuOpen menu. View Display entry.Done Mark task as done.Edit Display the entry for changes.New entry Enter a new task.Delete Delete an entry from the ap-pointments list.Delete all Delete all entries after confir-mation.Send via ... (see p. 89)Print via Ir-DA (see p. 89)Week beg. Mo Week starts on Monday.Capacity Display the capacity used and available.

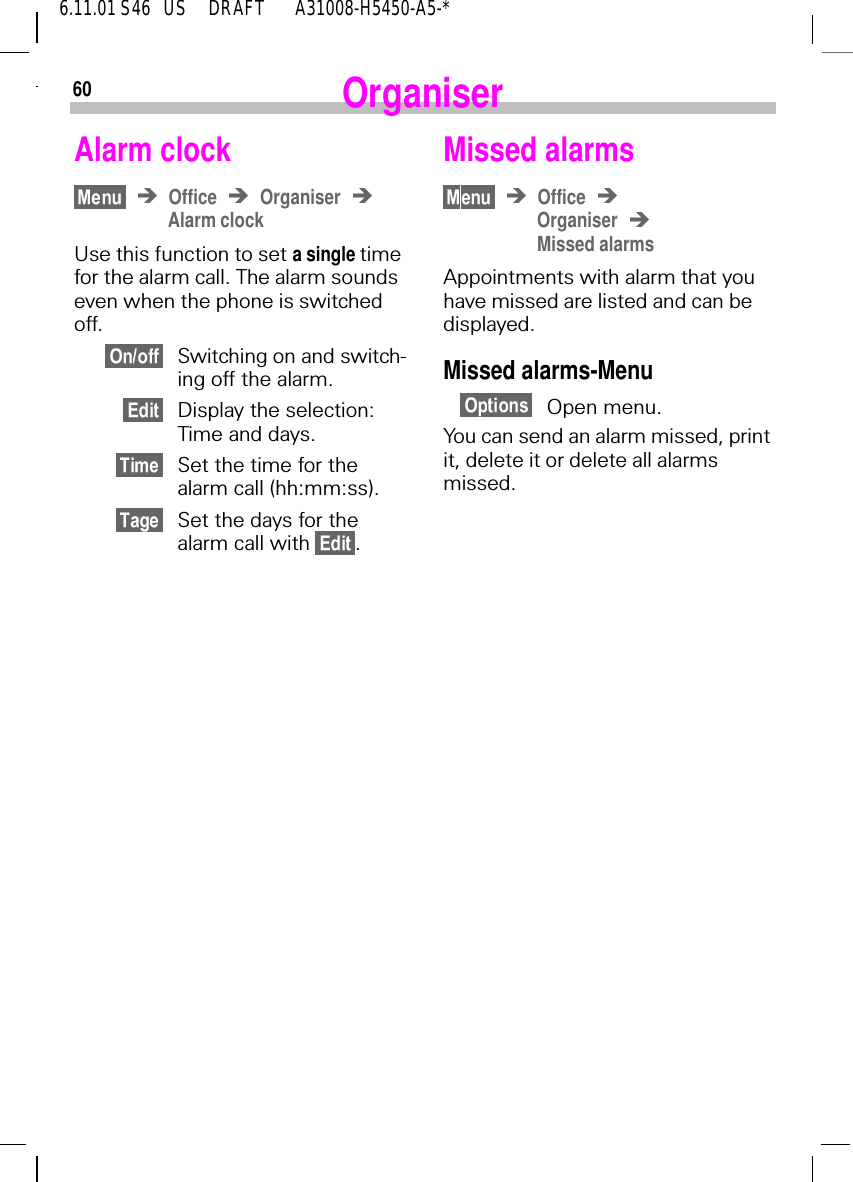

606.11.01 S46   US     DRAFT       A31008-H5450-A5-*OrganiserAlarm clock Office OrganiserAlarm clockUse this function to set a single time for the alarm call. The alarm sounds even when the phone is switched off.Switching on and switch-ing off the alarm.Display the selection: Time and days.Set the time for the alarm call (hh:mm:ss).Set the days for the alarm call with  .Missed alarms OfficeOrganiserMissed alarmsAppointments with alarm that you have missed are listed and can be displayed.Missed alarms-MenuOpen menu.You can send an alarm missed, print it, delete it or delete all alarms missed.

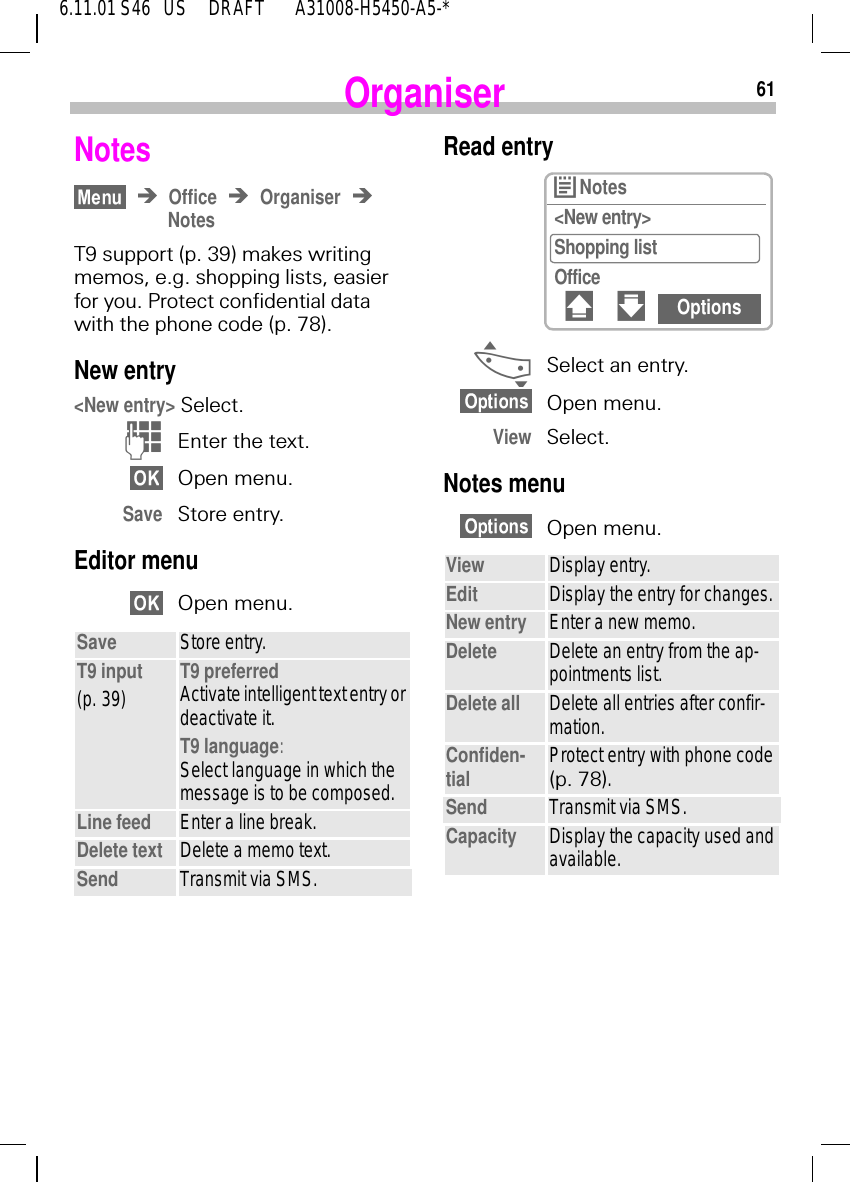

616.11.01 S46   US     DRAFT       A31008-H5450-A5-*OrganiserNotesOffice OrganiserNotes T9 support (p. 39) makes writing memos, e.g. shopping lists, easier for you. Protect confidential data with the phone code (p. 78).New entry<New entry> Select. )Enter the text.Open menu.Save Store entry.Editor menuOpen menu.Save Store entry.T9 input(p. 39) T9 preferredActivate intelligent text entry or deactivate it.T9 language: Select language in which the message is to be composed.Line feed Enter a line break.Delete text Delete a memo text.Send Transmit via SMS.Read entry _Select an entry.Open menu.View Select.Notes menuOpen menu.View Display entry.Edit Display the entry for changes.New entry Enter a new memo.Delete Delete an entry from the ap-pointments list.Delete all Delete all entries after confir-mation.Confiden-tial Protect entry with phone code (p. 78).Send Transmit via SMS.Capacity Display the capacity used and available.r Notes<New entry>Shopping listOffice# " Options

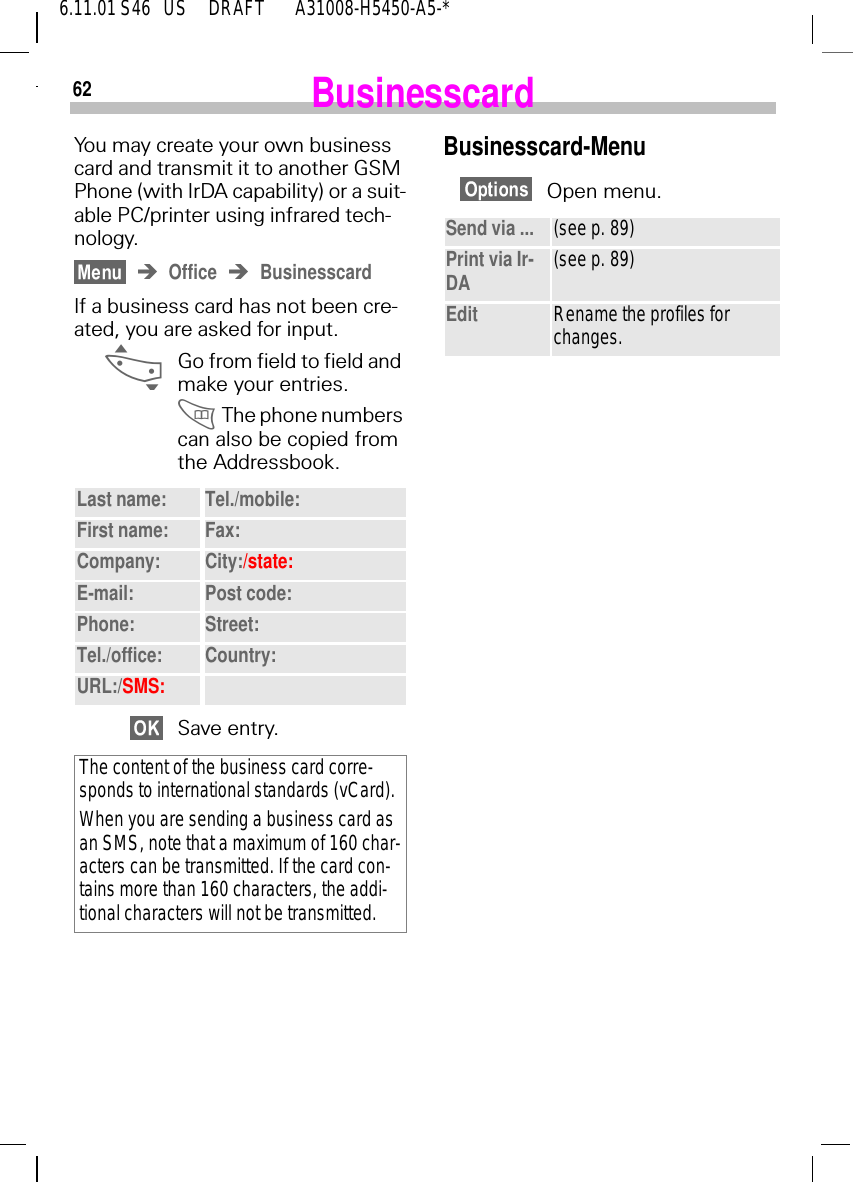

626.11.01 S46   US     DRAFT       A31008-H5450-A5-*BusinesscardYou may create your own business card and transmit it to another GSM Phone (with IrDA capability) or a suit-able PC/printer using infrared tech-nology.Office BusinesscardIf a business card has not been cre-ated, you are asked for input. _Go from field to field and make your entries. The phone numbers can also be copied from the Addressbook.Save entry.Last name: Tel./mobile:First name: Fax:Company: City:/state:E-mail: Post code:Phone: Street:Tel./office: Country:URL:/SMS:The content of the business card corre-sponds to international standards (vCard).When you are sending a business card as an SMS, note that a maximum of 160 char-acters can be transmitted. If the card con-tains more than 160 characters, the addi-tional characters will not be transmitted.Businesscard-MenuOpen menu.Send via ... (see p. 89)Print via Ir-DA (see p. 89)Edit Rename the profiles for changes.

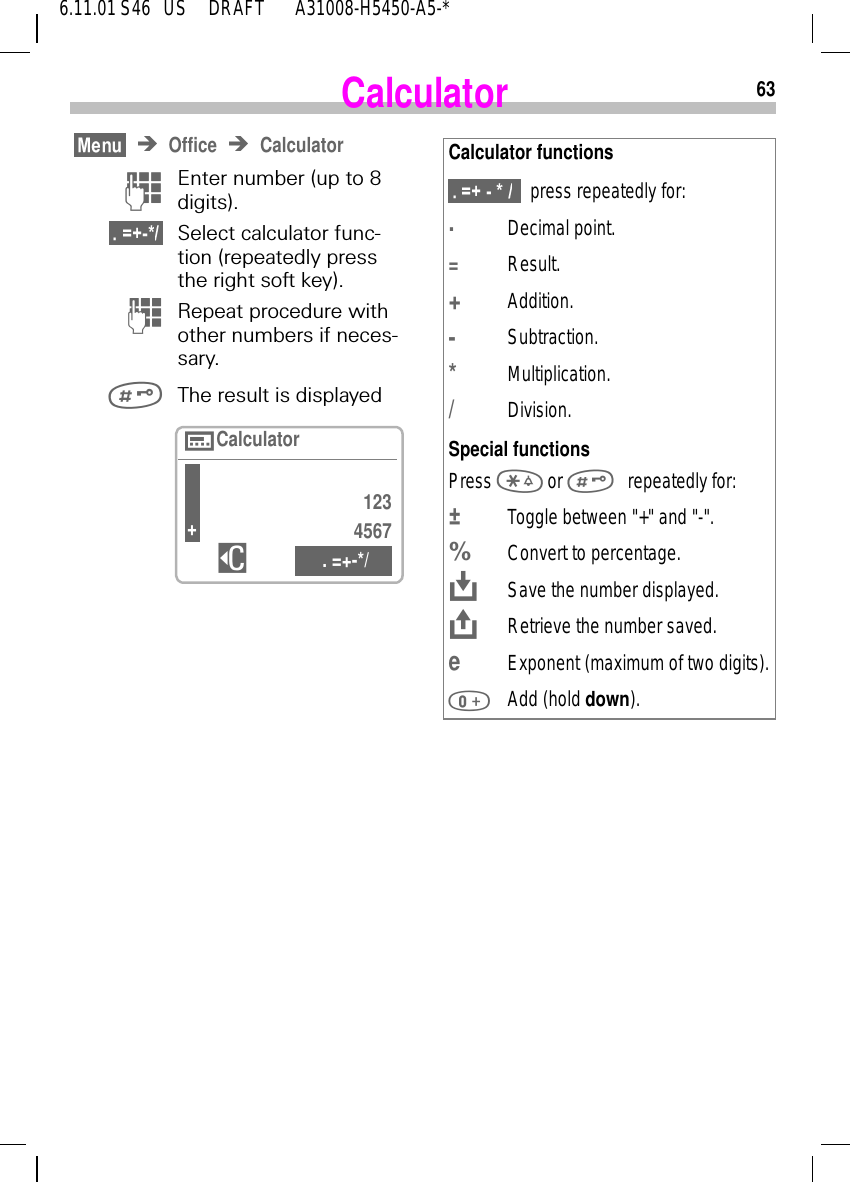

636.11.01 S46   US     DRAFT       A31008-H5450-A5-*CalculatorOffice Calculator )Enter number (up to 8 digits).  Select calculator func-tion (repeatedly press the right soft key). (Repeat procedure with other numbers if neces-sary. The result is displayed  1234567$ . =+-*/nCalculator+Calculator functions  press repeatedly for:.Decimal point.=Result.+Addition.-Subtraction.*Multiplication./Division.Special functionsPress   or  repeatedly for:±  Toggle between "+" and "-".%Convert to percentage. KSave the number displayed. JRetrieve the number saved.eExponent (maximum of two digits). Add (hold down).

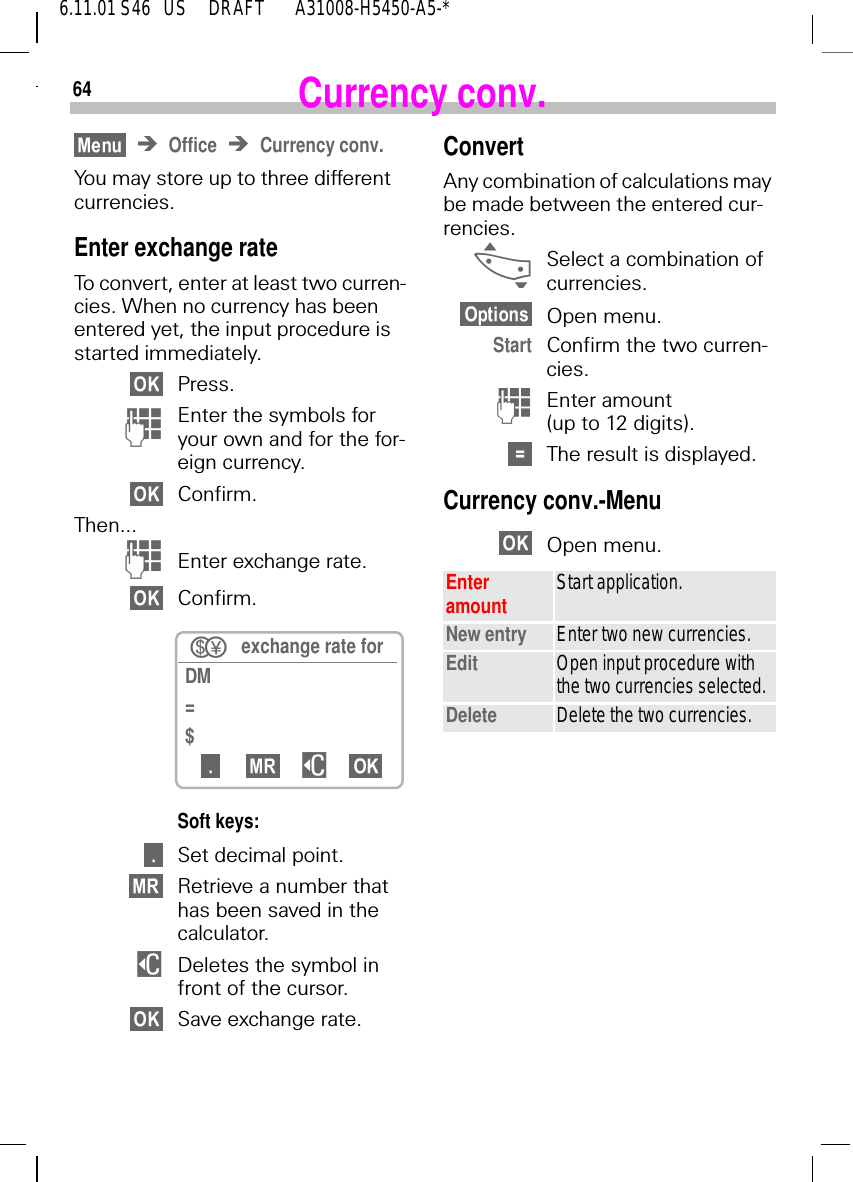

646.11.01 S46   US     DRAFT       A31008-H5450-A5-*Currency conv.Office Currency conv.You may store up to three different currencies.Enter exchange rateTo convert, enter at least two curren-cies. When no currency has been entered yet, the input procedure is started immediately.Press. )Enter the symbols for your own and for the for-eign currency.Confirm.Then... )Enter exchange rate.Confirm.Soft keys:Set decimal point.Retrieve a number that has been saved in the calculator. $Deletes the symbol in front of the cursor.Save exchange rate. exchange rate for DM=$$ConvertAny combination of calculations may be made between the entered cur-rencies. _Select a combination of currencies.Open menu.Start Confirm the two curren-cies. (Enter amount (up to 12 digits).The result is displayed.Currency conv.-MenuOpen menu. Enter amount Start application.New entry Enter two new currencies.Edit Open input procedure with the two currencies selected.Delete Delete the two currencies.

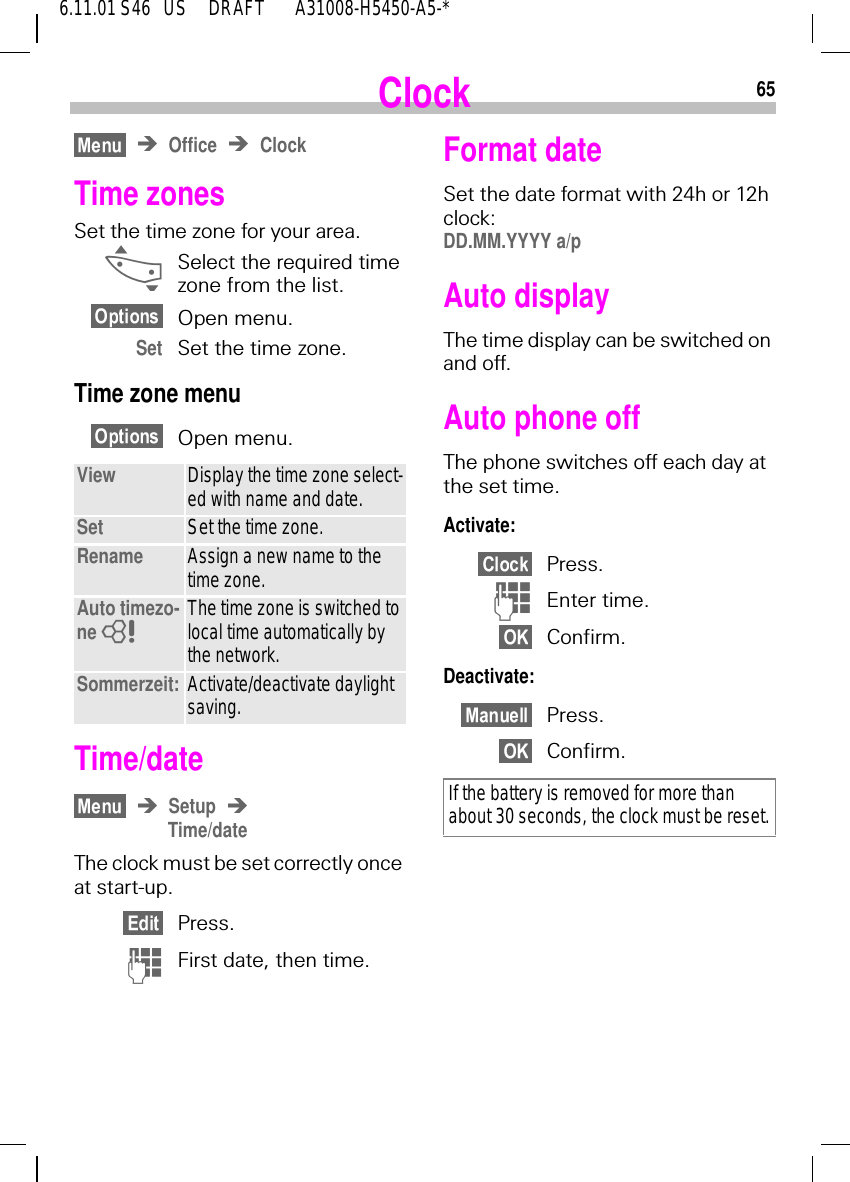

656.11.01 S46   US     DRAFT       A31008-H5450-A5-*ClockOffice ClockTime zonesSet the time zone for your area. _Select the required time zone from the list.Open menu.Set Set the time zone.Time zone menuOpen menu. Time/dateSetupTime/dateThe clock must be set correctly once at start-up.Press. (First date, then time.View Display the time zone select-ed with name and date.Set Set the time zone.Rename Assign a new name to the time zone.Auto timezo-ne  8The time zone is switched to local time automatically by the network.Sommerzeit: Activate/deactivate daylight saving.Format dateSet the date format with 24h or 12h clock: DD.MM.YYYY a/pAuto displayThe time display can be switched on and off.Auto phone offThe phone switches off each day at the set time.Activate:Press. )Enter time.Confirm.Deactivate:Press.Confirm.If the battery is removed for more than about 30 seconds, the clock must be reset.

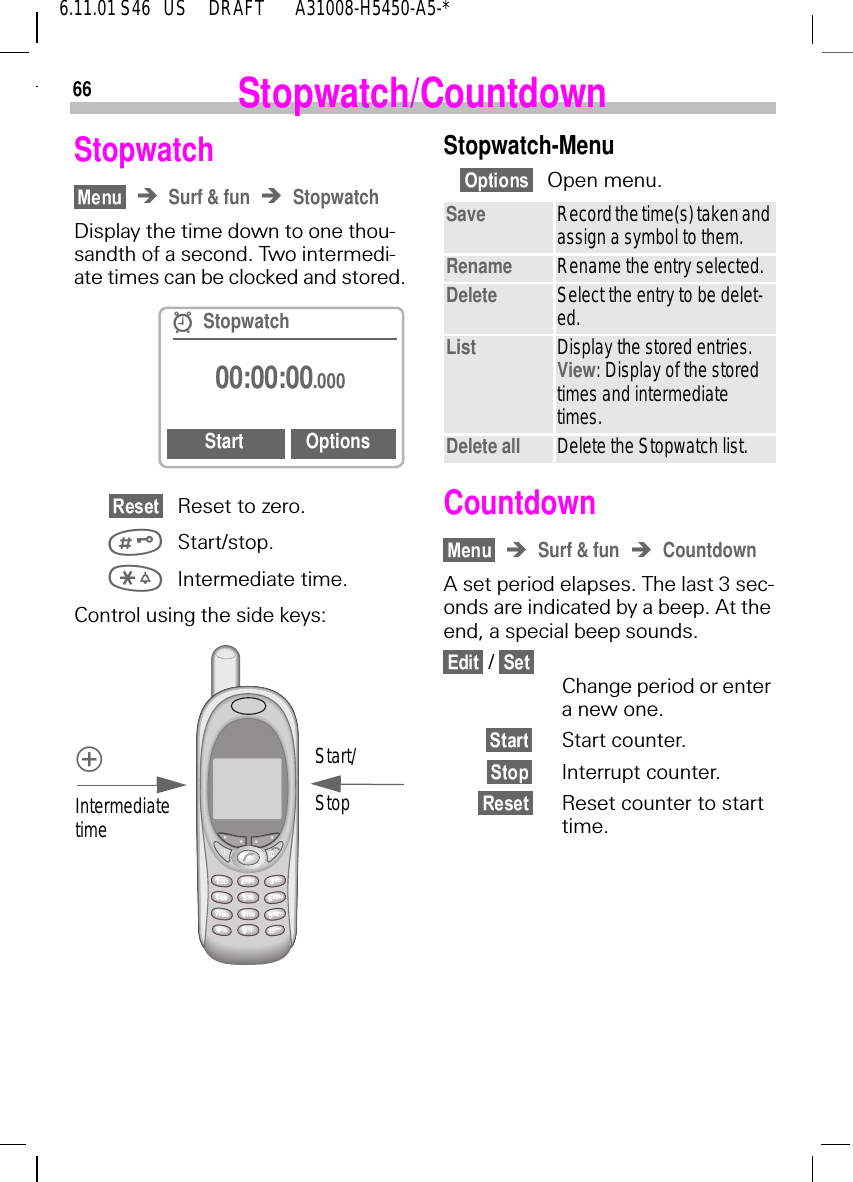

666.11.01 S46   US     DRAFT       A31008-H5450-A5-*Stopwatch/CountdownStopwatchSurf & fun StopwatchDisplay the time down to one thou-sandth of a second. Two intermedi-ate times can be clocked and stored.Reset to zero. Start/stop. Intermediate time.Control using the side keys: CStopwatch00:00:00.000Start OptionsIntermediate timeStart/StopStopwatch-MenuOpen menu.Countdown Surf & fun CountdownA set period elapses. The last 3 sec-onds are indicated by a beep. At the end, a special beep sounds. / Change period or enter a new one.Start counter.Interrupt counter.Reset counter to start time.Save Record the time(s) taken and assign a symbol to them.Rename Rename the entry selected.Delete Select the entry to be delet-ed.List Display the stored entries. View: Display of the stored times and intermediate times.Delete all Delete the Stopwatch list.

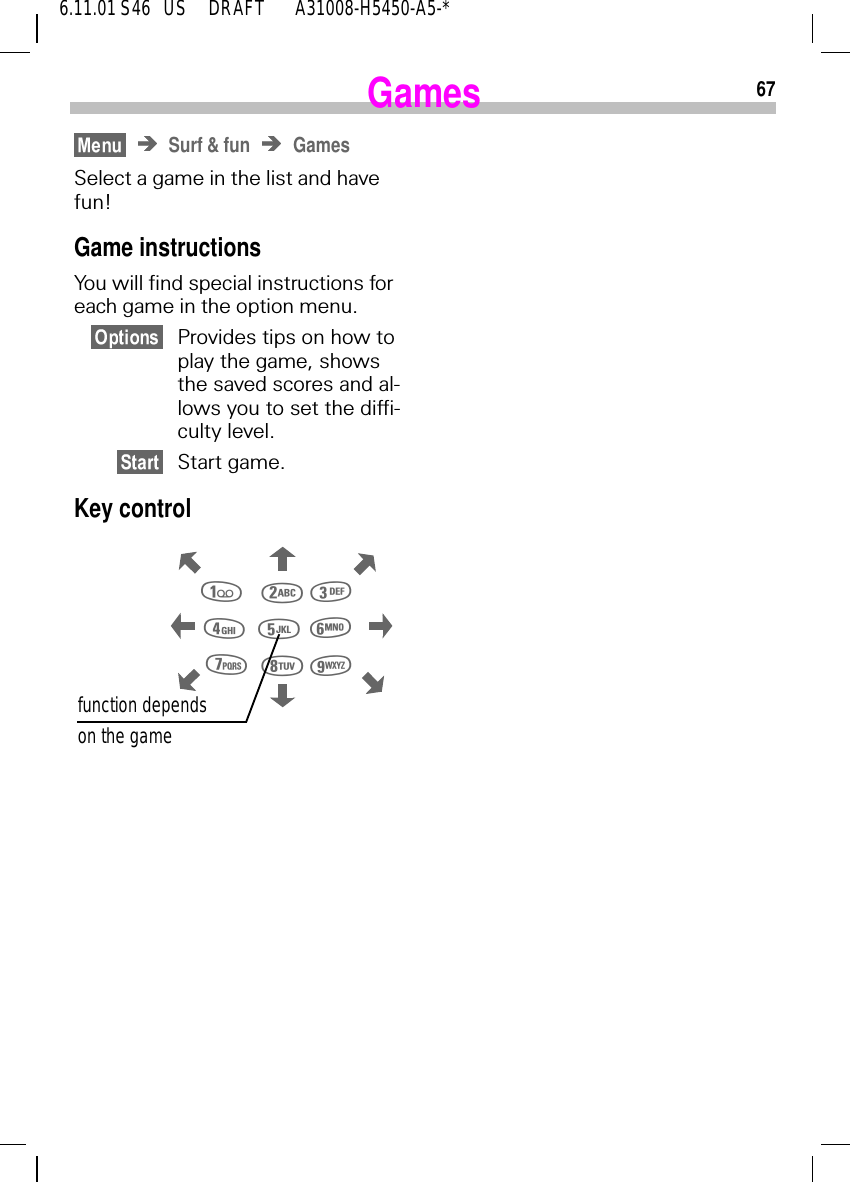

676.11.01 S46   US     DRAFT       A31008-H5450-A5-*GamesSurf & fun GamesSelect a game in the list and have fun!Game instructionsYou will find special instructions for each game in the option menu.Provides tips on how to play the game, shows the saved scores and al-lows you to set the diffi-culty level.Start game.Key control  function dependson the game

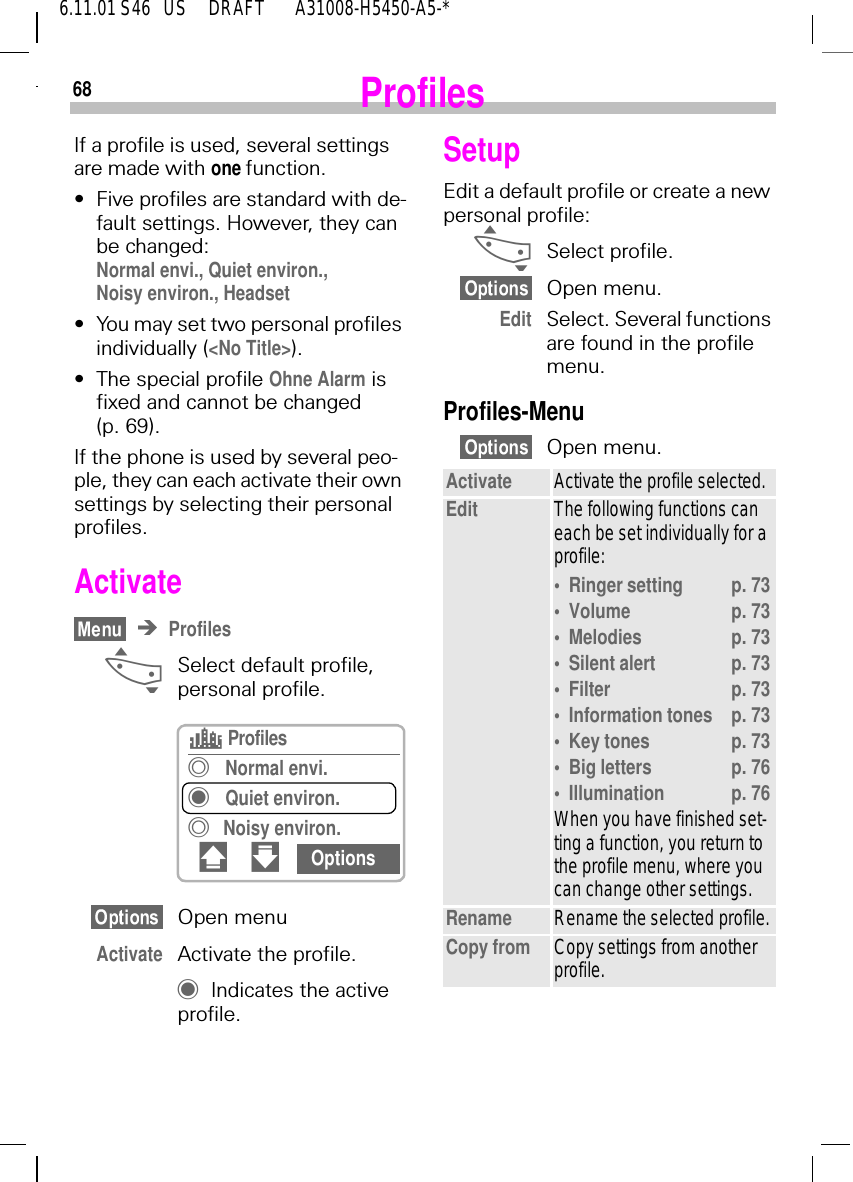

686.11.01 S46   US     DRAFT       A31008-H5450-A5-*ProfilesIf a profile is used, several settings are made with one function.•Five profiles are standard with de-fault settings. However, they can be changed: Normal envi., Quiet environ., Noisy environ., Headset•You may set two personal profiles individually (<No Title>).•The special profile Ohne Alarm is fixed and cannot be changed (p. 69).If the phone is used by several peo-ple, they can each activate their own settings by selecting their personal profiles.ActivateProfiles _Select default profile, personal profile.Open menuActivate Activate the profile. uIndicates the active profile.s ProfilestNormal envi.uQuiet environ.tNoisy environ.# " OptionsSetupEdit a default profile or create a new personal profile: _Select profile.Open menu.Edit Select. Several functions are found in the profile menu.Profiles-MenuOpen menu.Activate Activate the profile selected.Edit The following functions can each be set individually for a profile:•Ringer setting p. 73•Volume p. 73•Melodies p. 73•Silent alert p. 73•Filter p. 73•Information tones p. 73•Key tones p. 73•Big letters p. 76•Illumination p. 76When you have finished set-ting a function, you return to the profile menu, where you can change other settings.Rename Rename the selected profile.Copy from Copy settings from another profile.

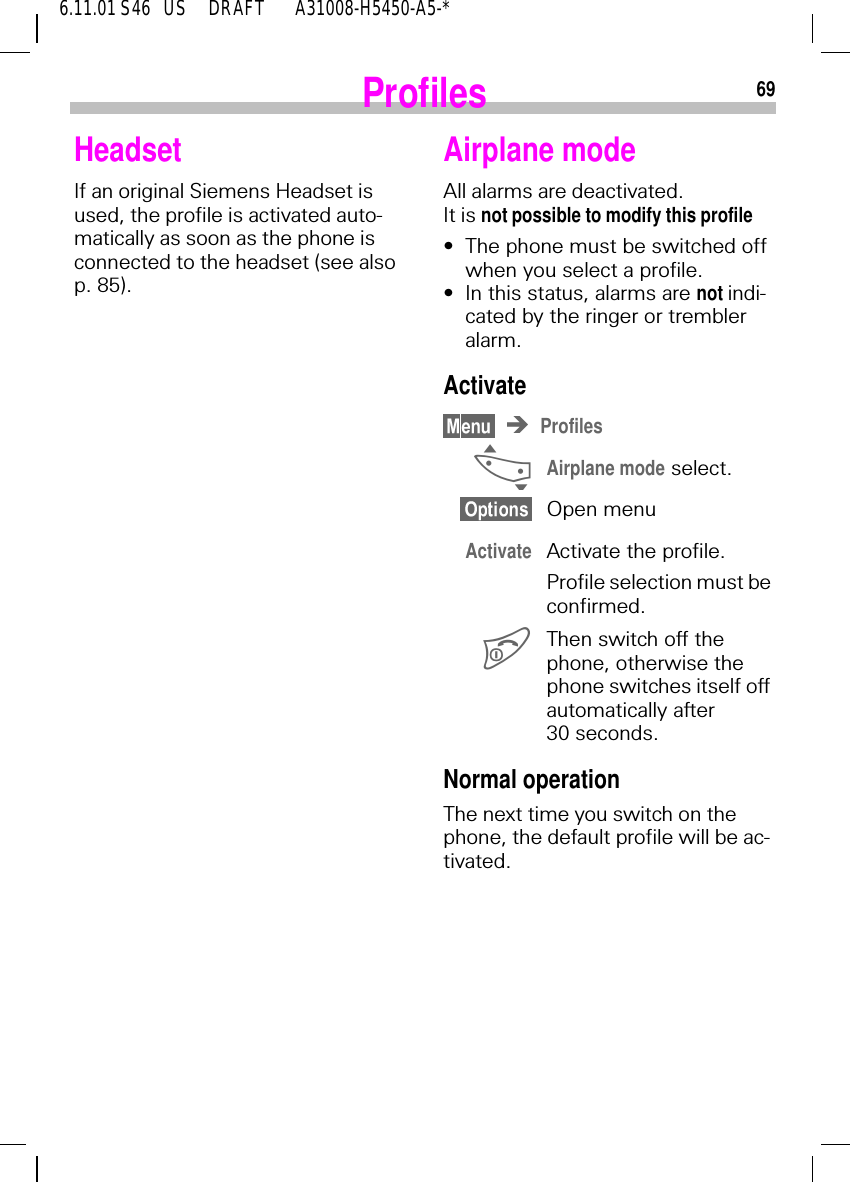

696.11.01 S46   US     DRAFT       A31008-H5450-A5-*ProfilesHeadsetIf an original Siemens Headset is used, the profile is activated auto-matically as soon as the phone is connected to the headset (see also p. 85).Airplane modeAll alarms are deactivated. It is not possible to modify this profile•The phone must be switched off when you select a profile.•In this status, alarms are not indi-cated by the ringer or trembler alarm.ActivateProfiles _Airplane mode select.Open menuActivate Activate the profile.Profile selection must be confirmed. Then switch off the phone, otherwise the phone switches itself off automatically after 30 seconds.Normal operationThe next time you switch on the phone, the default profile will be ac-tivated.

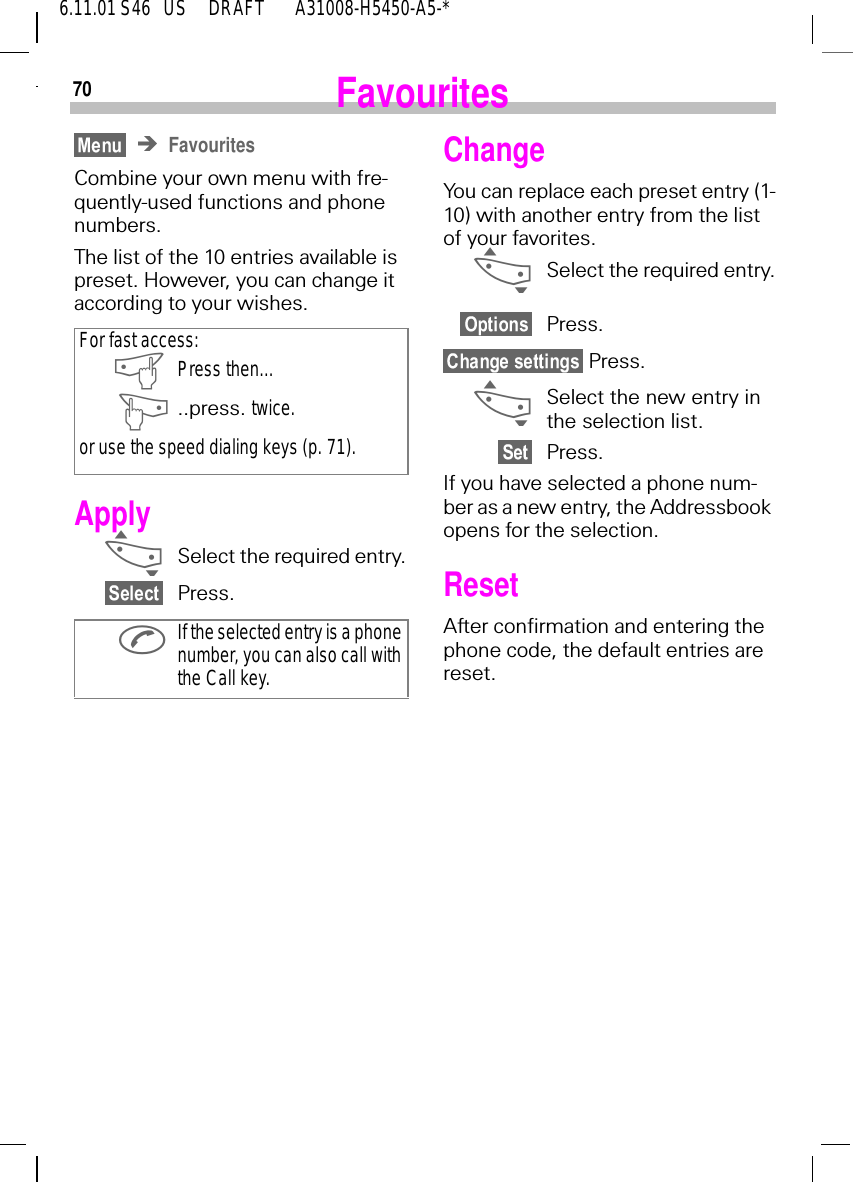

706.11.01 S46   US     DRAFT       A31008-H5450-A5-*FavouritesFavouritesCombine your own menu with fre-quently-used functions and phone numbers. The list of the 10 entries available is preset. However, you can change it according to your wishes.Apply _Select the required entry.Press.For fast access: aPress then... ]..press. twice.or use the speed dialing keys (p. 71). If the selected entry is a phone number, you can also call with the Call key.ChangeYou can replace each preset entry (1-10) with another entry from the list of your favorites. _Select the required entry.Press. Press. _Select the new entry in the selection list.Press.If you have selected a phone num-ber as a new entry, the Addressbook opens for the selection.ResetAfter confirmation and entering the phone code, the default entries are reset.

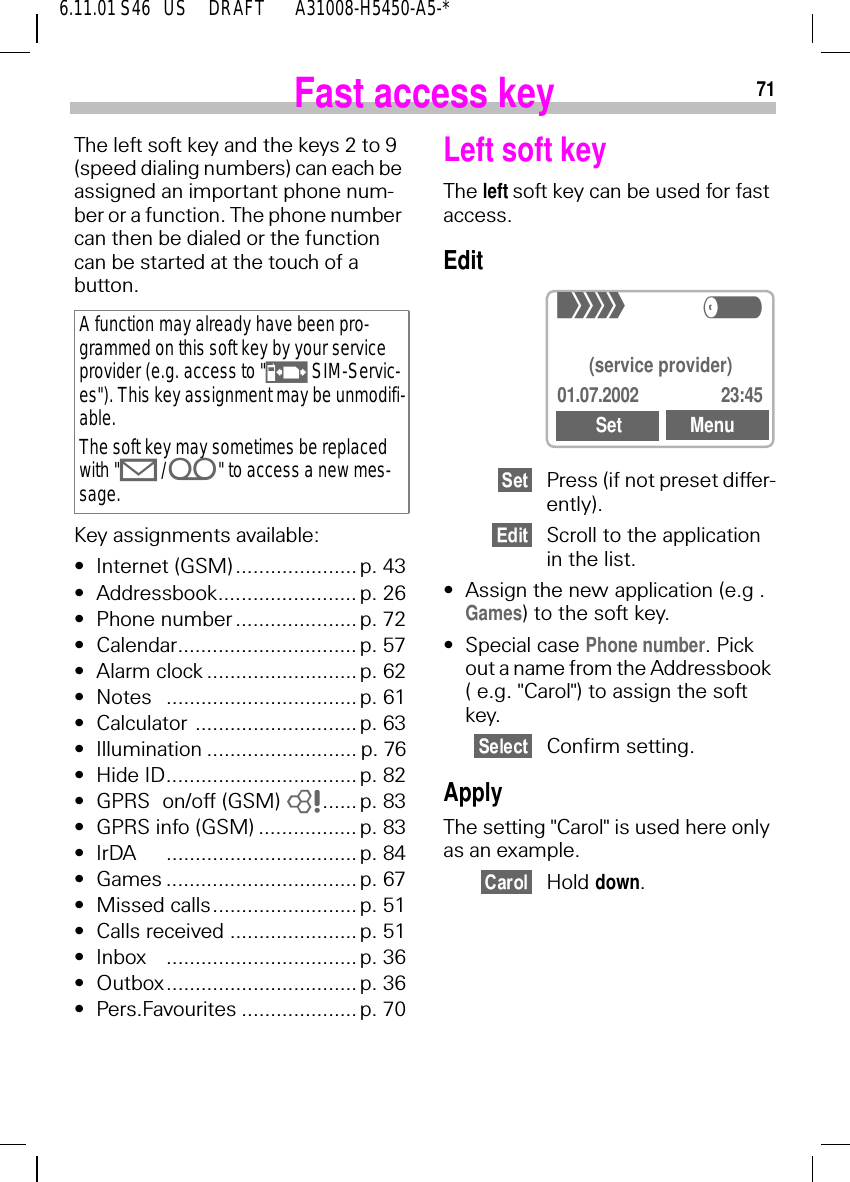

716.11.01 S46   US     DRAFT       A31008-H5450-A5-*Fast access keyThe left soft key and the keys 2 to 9 (speed dialing numbers) can each be assigned an important phone num-ber or a function. The phone number can then be dialed or the function can be started at the touch of a button.Key assignments available:•Internet (GSM) ..................... p. 43•Addressbook........................ p. 26•Phone number ..................... p. 72•Calendar............................... p. 57•Alarm clock .......................... p. 62•Notes ................................. p. 61•Calculator ............................ p. 63•Illumination .......................... p. 76•Hide ID................................. p. 82•GPRS on/off (GSM)  8...... p. 83•GPRS info (GSM) ................. p. 83•IrDA ................................. p. 84•Games ................................. p. 67•Missed calls......................... p. 51•Calls received ...................... p. 51•Inbox ................................. p. 36•Outbox................................. p. 36•Pers.Favourites .................... p. 70A function may already have been pro-grammed on this soft key by your service provider (e.g. access to " h SIM-Servic-es"). This key assignment may be unmodifi-able.The soft key may sometimes be replaced with " 9 / i" to access a new mes-sage.Left soft keyThe left soft key can be used for fast access.Edit Press (if not preset differ-ently).Scroll to the application in the list.•Assign the new application (e.g . Games) to the soft key.•Special case Phone number. Pick out a name from the Addressbook ( e.g. "Carol") to assign the soft key.Confirm setting.ApplyThe setting "Carol" is used here only as an example.Hold down.+R(service provider)01.07.2002 23:45Set Menu

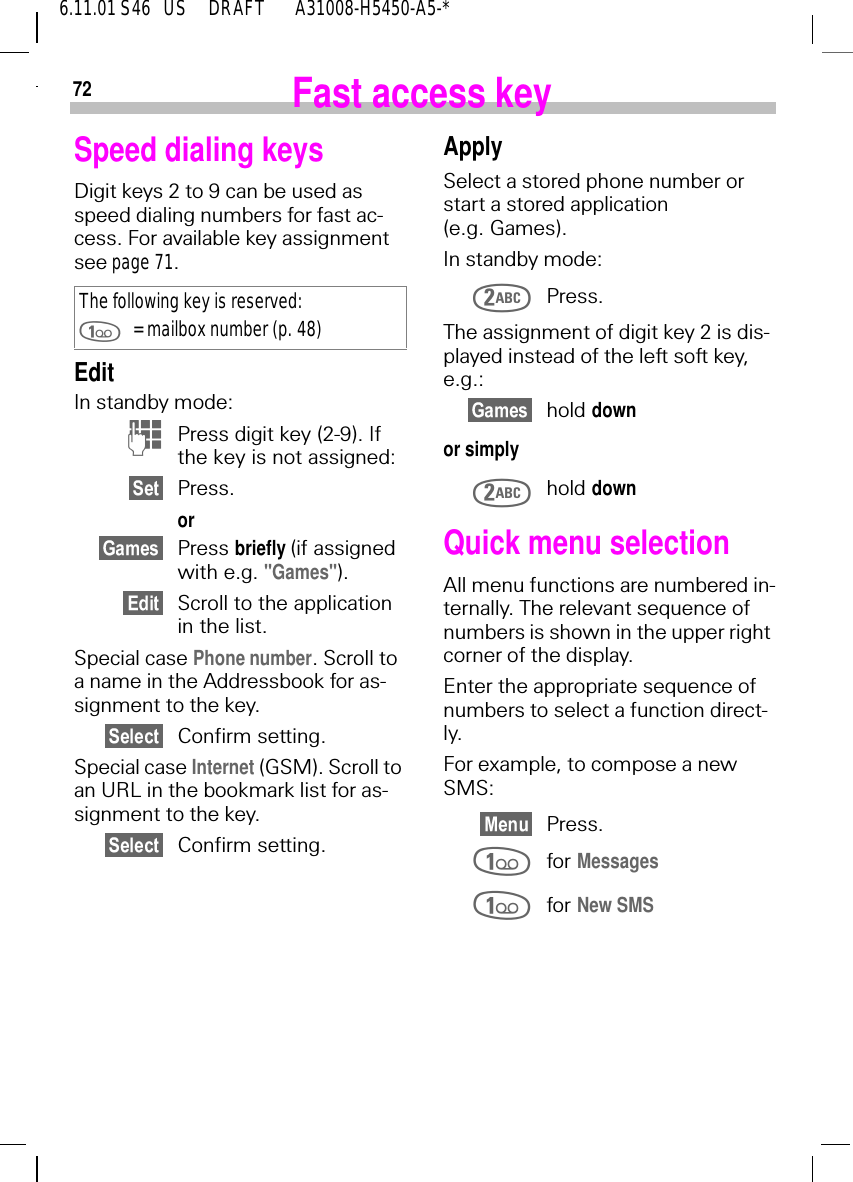

726.11.01 S46   US     DRAFT       A31008-H5450-A5-*Fast access keySpeed dialing keysDigit keys 2 to 9 can be used as speed dialing numbers for fast ac-cess. For available key assignment see page 71. EditIn standby mode: (Press digit key (2-9). If the key is not assigned:Press.or Press briefly (if assigned with e.g. "Games").Scroll to the application in the list.Special case Phone number. Scroll to a name in the Addressbook for as-signment to the key.Confirm setting.Special case Internet (GSM). Scroll to an URL in the bookmark list for as-signment to the key.Confirm setting.The following key is reserved: = mailbox number (p. 48)ApplySelect a stored phone number or start a stored application (e.g. Games).In standby mode: Press.The assignment of digit key 2 is dis-played instead of the left soft key, e.g.:hold downor simply hold downQuick menu selectionAll menu functions are numbered in-ternally. The relevant sequence of numbers is shown in the upper right corner of the display.Enter the appropriate sequence of numbers to select a function direct-ly.For example, to compose a new SMS:Press. for Messages for New SMS

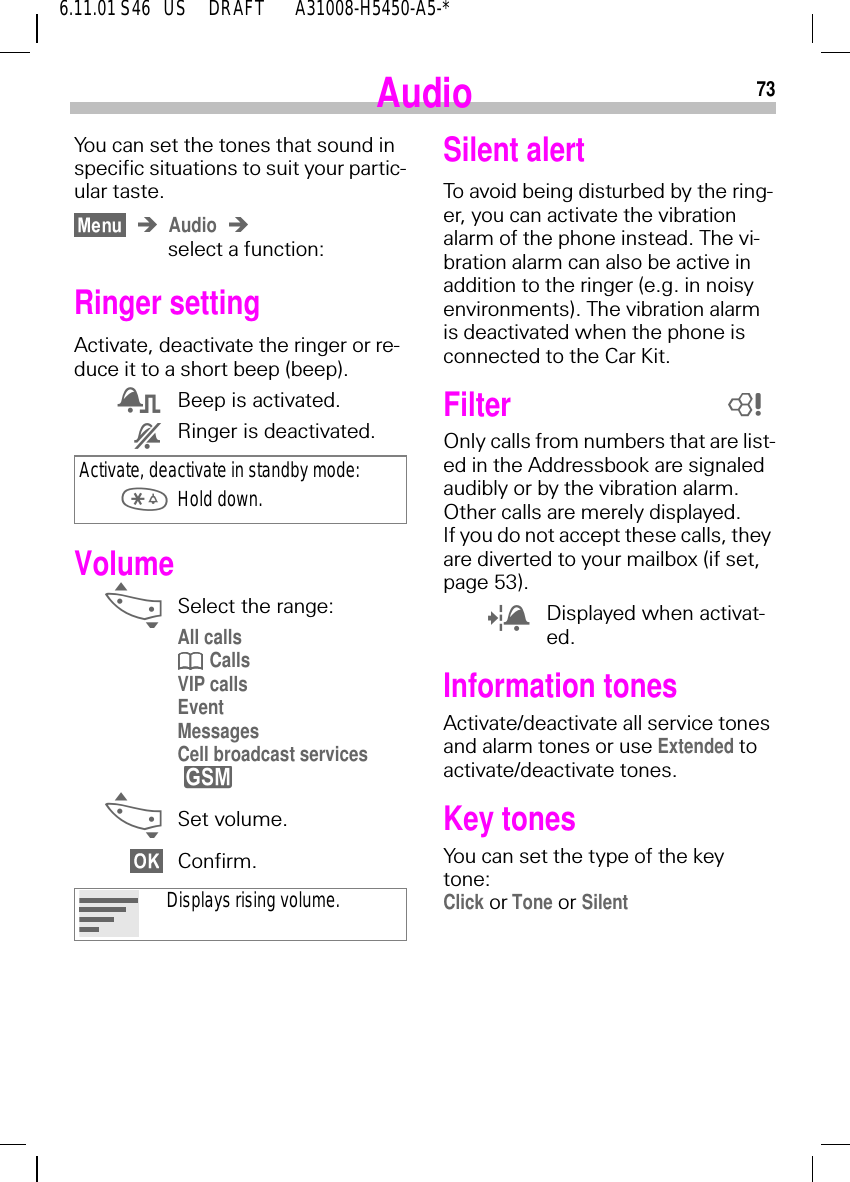

736.11.01 S46   US     DRAFT       A31008-H5450-A5-*AudioYou can set the tones that sound in specific situations to suit your partic-ular taste.Audioselect a function:Ringer settingActivate, deactivate the ringer or re-duce it to a short beep (beep). 2Beep is activated. 3Ringer is deactivated.Volume _Select the range:All calls  CallsVIP callsEventMessagesCell broadcast services  _Set volume.Confirm.Activate, deactivate in standby mode:  Hold down.Displays rising volume.ySilent alertTo avoid being disturbed by the ring-er, you can activate the vibration alarm of the phone instead. The vi-bration alarm can also be active in addition to the ringer (e.g. in noisy environments). The vibration alarm is deactivated when the phone is connected to the Car Kit.Filter Only calls from numbers that are list-ed in the Addressbook are signaled audibly or by the vibration alarm. Other calls are merely displayed.If you do not accept these calls, they are diverted to your mailbox (if set, page 53). 1Displayed when activat-ed.Information tonesActivate/deactivate all service tones and alarm tones or use Extended to activate/deactivate tones.Key tonesYou can set the type of the key tone:Click or Tone or Silent8

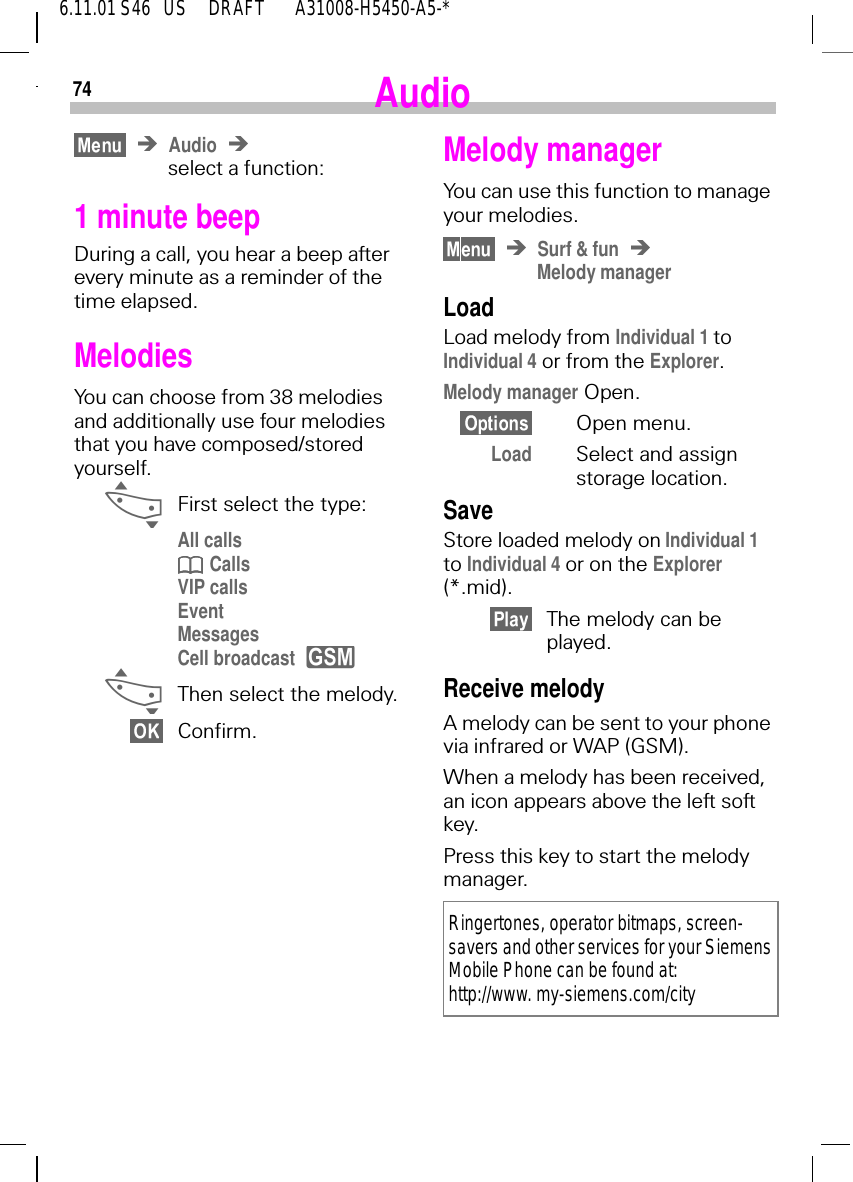

746.11.01 S46   US     DRAFT       A31008-H5450-A5-*AudioAudioselect a function:1 minute beepDuring a call, you hear a beep after every minute as a reminder of the time elapsed.MelodiesYou can choose from 38 melodies and additionally use four melodies that you have composed/stored yourself. _First select the type:All calls  CallsVIP callsEventMessagesCell broadcast  _Then select the melody.Confirm.yMelody managerYou can use this function to manage your melodies.Surf & funMelody managerLoadLoad melody from Individual 1 toIndividual 4 or from the Explorer.Melody manager Open.Open menu.Load Select and assign storage location.SaveStore loaded melody on Individual 1 to Individual 4 or on the Explorer (*.mid).The melody can be played.Receive melodyA melody can be sent to your phone via infrared or WAP (GSM).When a melody has been received, an icon appears above the left soft key. Press this key to start the melody manager. Ringertones, operator bitmaps, screen-savers and other services for your Siemens Mobile Phone can be found at: http://www. my-siemens.com/city

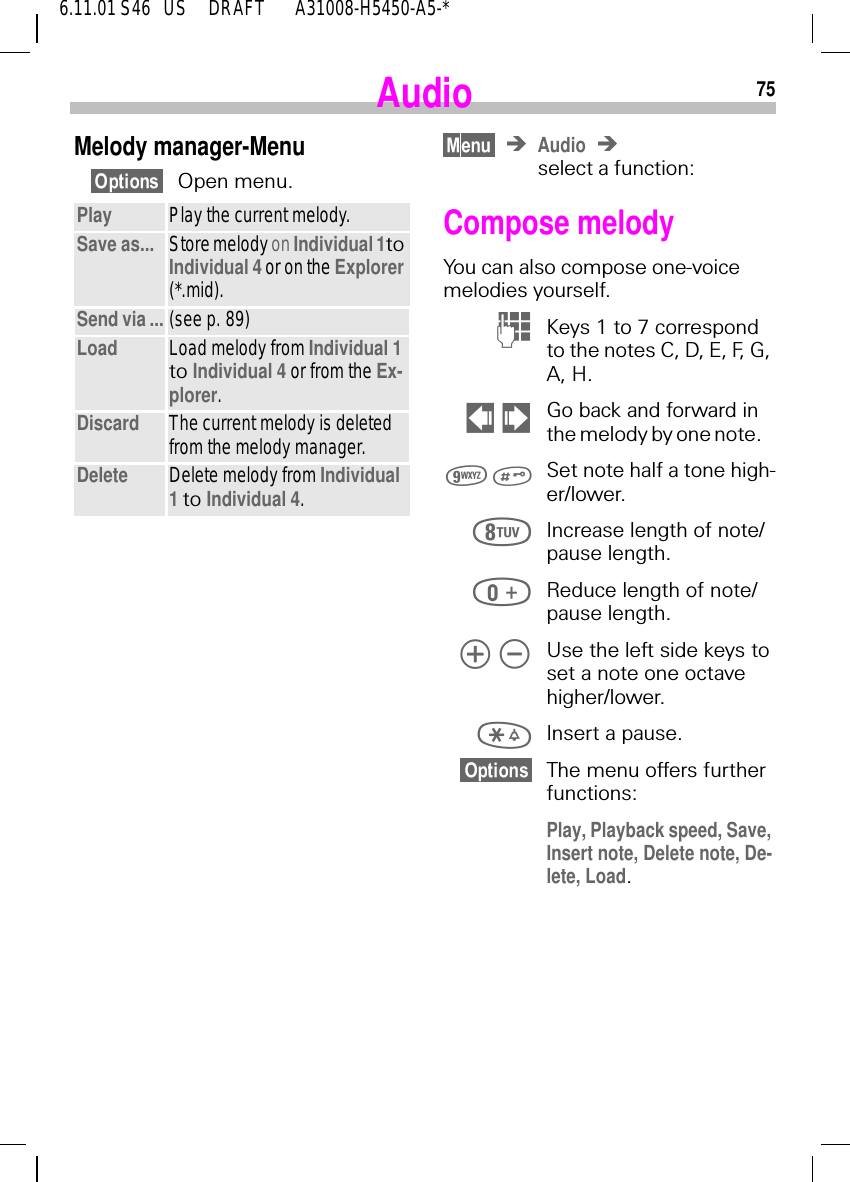

756.11.01 S46   US     DRAFT       A31008-H5450-A5-*AudioMelody manager-MenuOpen menu.Play Play the current melody.Save as... Store melody on Individual 1to Individual 4 or on the Explorer (*.mid).Send via ... (see p. 89)Load Load melody from Individual 1 to Individual 4 or from the Ex-plorer. Discard The current melody is deleted from the melody manager.Delete Delete melody from Individual 1 to Individual 4.Audioselect a function:Compose melodyYou can also compose one-voice melodies yourself. (Keys 1 to 7 correspond to the notes C, D, E, F, G, A, H.    !Go back and forward in the melody by one note.    Set note half a tone high-er/lower. Increase length of note/pause length. Reduce length of note/pause length.   Use the left side keys to set a note one octave higher/lower. Insert a pause.The menu offers further functions: Play, Playback speed, Save, Insert note, Delete note, De-lete, Load.

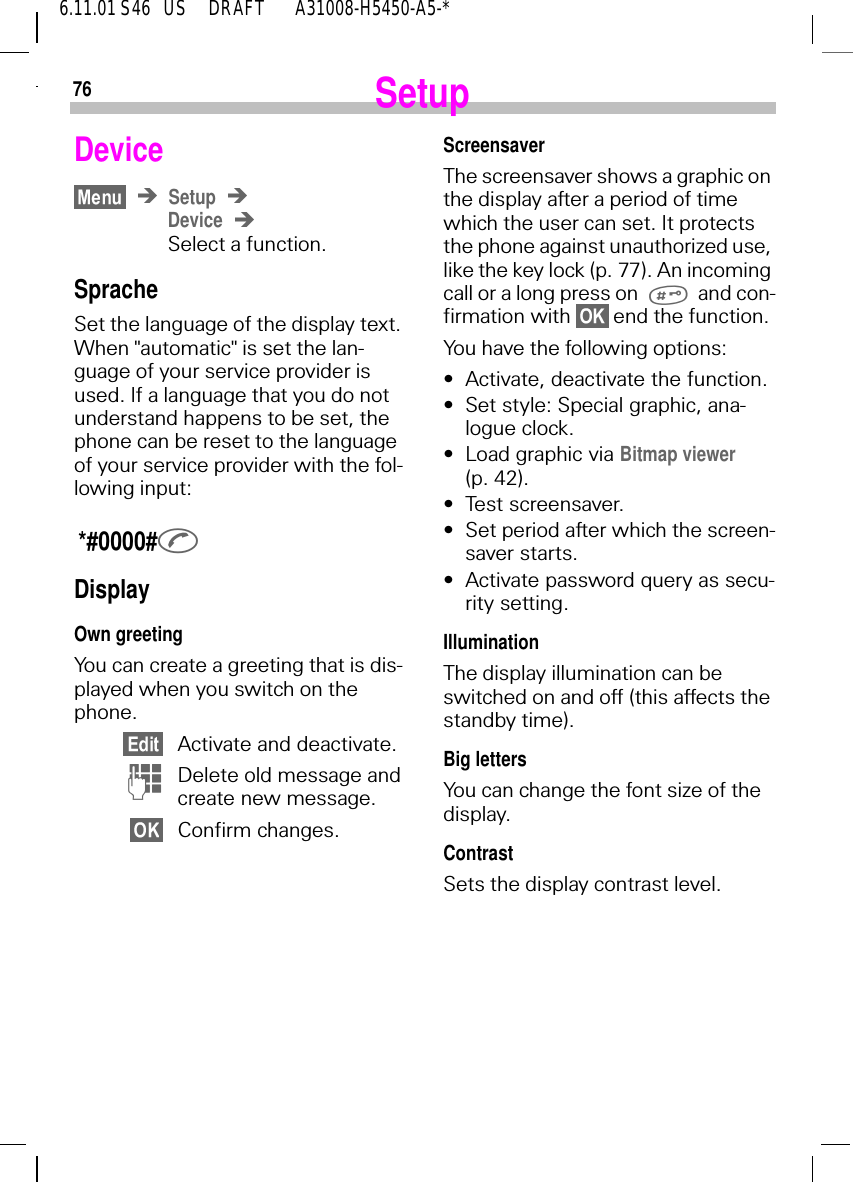

766.11.01 S46   US     DRAFT       A31008-H5450-A5-*SetupDeviceSetupDeviceSelect a function.SpracheSet the language of the display text. When "automatic" is set the lan-guage of your service provider is used. If a language that you do not understand happens to be set, the phone can be reset to the language of your service provider with the fol-lowing input: *#0000# DisplayOwn greetingYou can create a greeting that is dis-played when you switch on the phone.Activate and deactivate. (Delete old message and create new message.Confirm changes.ScreensaverThe screensaver shows a graphic on the display after a period of time which the user can set. It protects the phone against unauthorized use, like the key lock (p. 77). An incoming call or a long press on and con-firmation with   end the function.You have the following options:•Activate, deactivate the function.•Set style: Special graphic, ana-logue clock.•Load graphic via Bitmap viewer (p. 42).•Test screensaver.•Set period after which the screen-saver starts.•Activate password query as secu-rity setting.IlluminationThe display illumination can be switched on and off (this affects the standby time).Big lettersYou can change the font size of the display.ContrastSets the display contrast level.

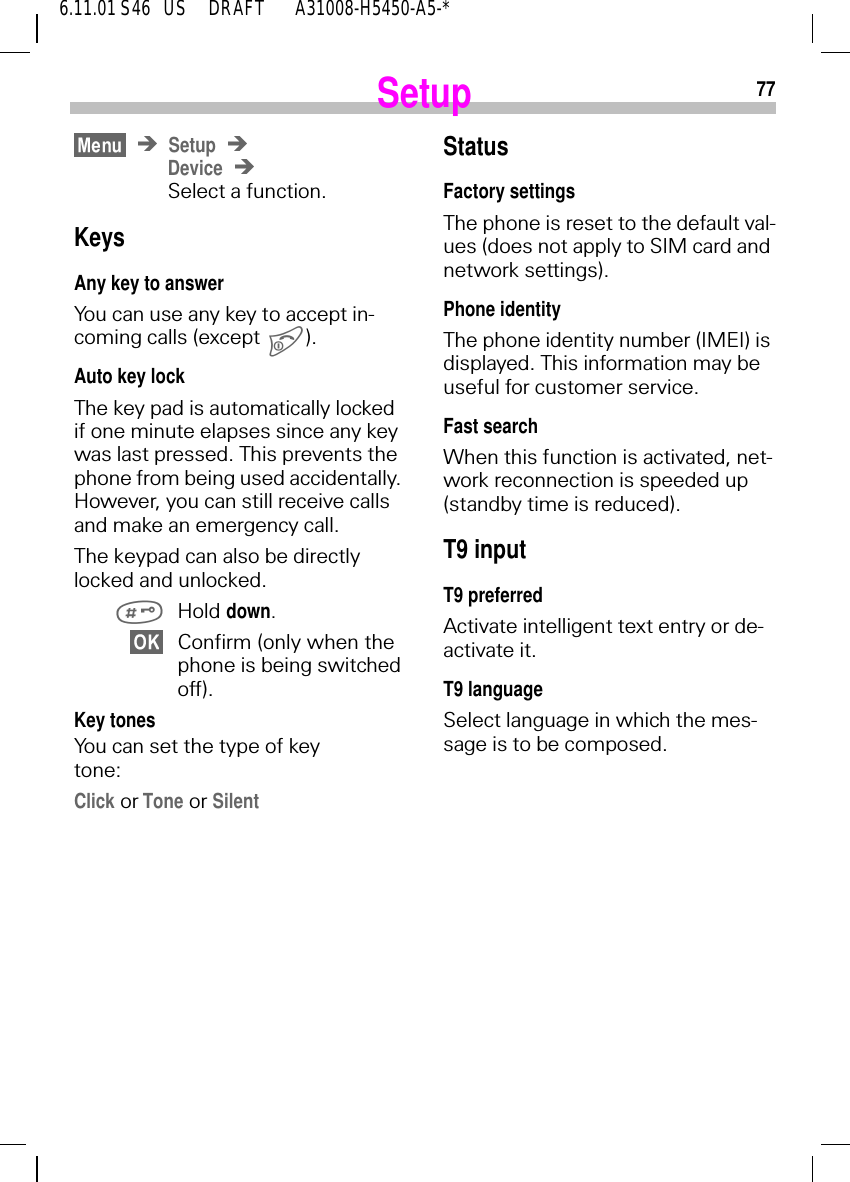

776.11.01 S46   US     DRAFT       A31008-H5450-A5-*SetupSetupDeviceSelect a function.KeysAny key to answerYou can use any key to accept in-coming calls (except ).Auto key lockThe key pad is automatically locked if one minute elapses since any key was last pressed. This prevents the phone from being used accidentally. However, you can still receive calls and make an emergency call.The keypad can also be directly locked and unlocked. Hold down.Confirm (only when the phone is being switched off).Key tonesYou can set the type of key tone:Click or Tone or SilentStatusFactory settingsThe phone is reset to the default val-ues (does not apply to SIM card and network settings).Phone identityThe phone identity number (IMEI) is displayed. This information may be useful for customer service.Fast searchWhen this function is activated, net-work reconnection is speeded up (standby time is reduced).T9 inputT9 preferredActivate intelligent text entry or de-activate it.T9 languageSelect language in which the mes-sage is to be composed.

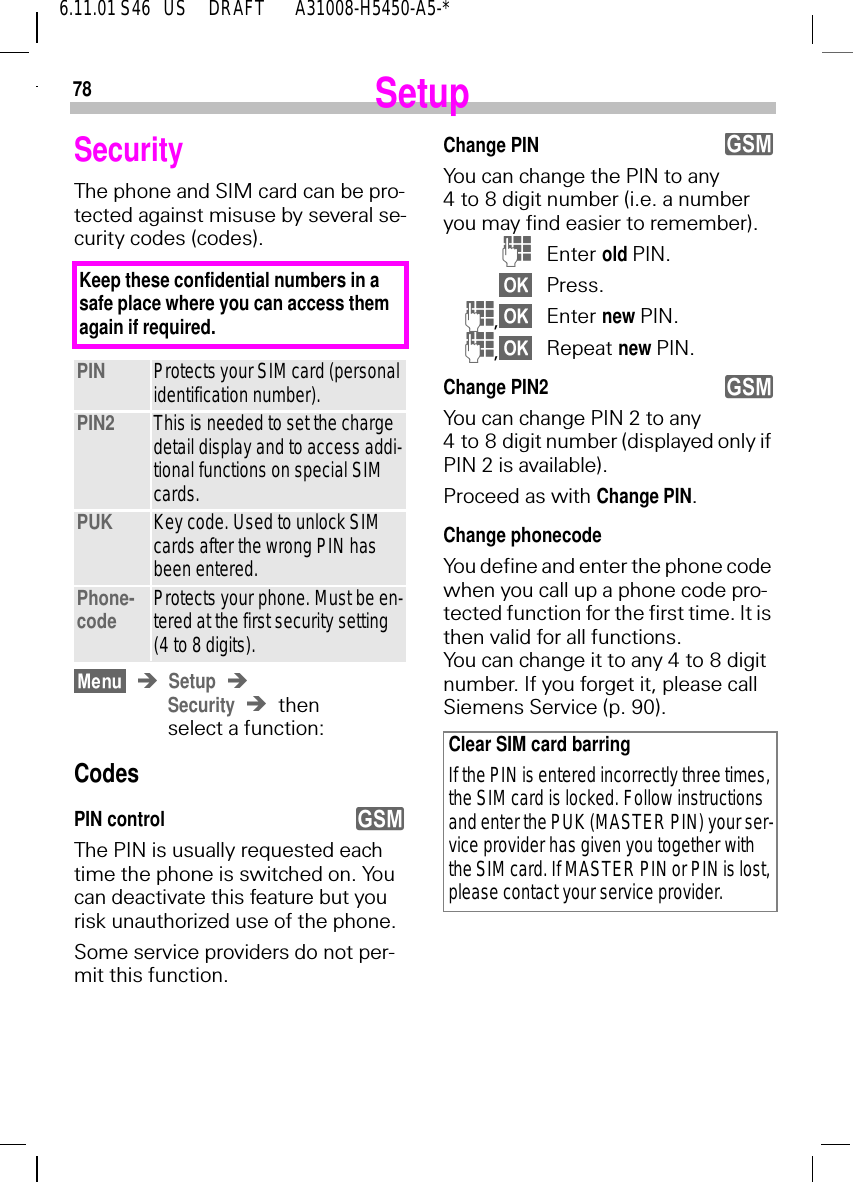

786.11.01 S46   US     DRAFT       A31008-H5450-A5-*SetupSecurityThe phone and SIM card can be pro-tected against misuse by several se-curity codes (codes). SetupSecurity then select a function:CodesPIN controlThe PIN is usually requested each time the phone is switched on. You can deactivate this feature but you risk unauthorized use of the phone.Some service providers do not per-mit this function.PIN Protects your SIM card (personal identification number).PIN2 This is needed to set the charge detail display and to access addi-tional functions on special SIM cards.PUK Key code. Used to unlock SIM cards after the wrong PIN has been entered.Phone-code Protects your phone. Must be en-tered at the first security setting (4 to 8 digits).Keep these confidential numbers in a safe place where you can access them again if required.yChange PINYou can change the PIN to any 4 to 8 digit number (i.e. a number you may find easier to remember). (Enter old PIN.Press. (,Enter new PIN. (,Repeat new PIN.Change PIN2You can change PIN 2 to any 4 to 8 digit number (displayed only if PIN 2 is available).Proceed as with Change PIN.Change phonecodeYou define and enter the phone code when you call up a phone code pro-tected function for the first time. It is then valid for all functions. You can change it to any 4 to 8 digit number. If you forget it, please call Siemens Service (p. 90).Clear SIM card barringIf the PIN is entered incorrectly three times, the SIM card is locked. Follow instructions and enter the PUK (MASTER PIN) your ser-vice provider has given you together with the SIM card. If MASTER PIN or PIN is lost, please contact your service provider.yy

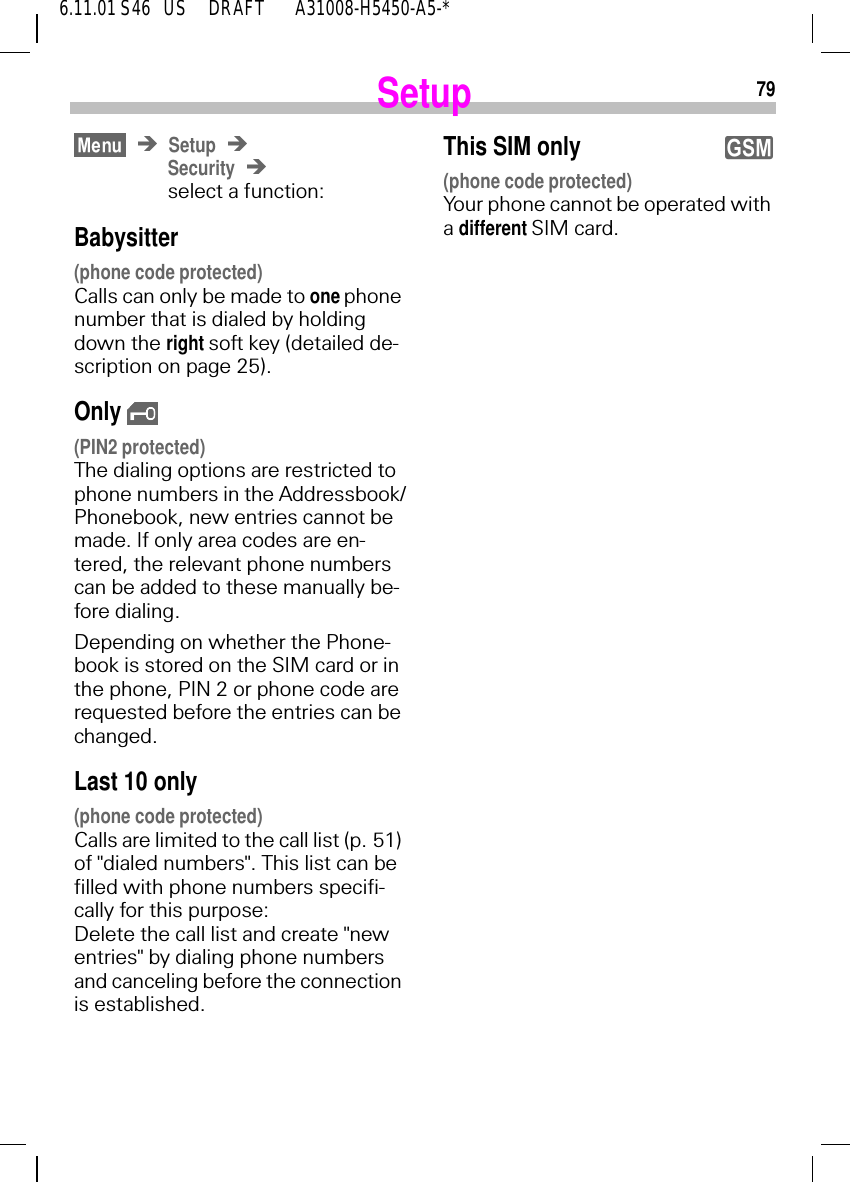

796.11.01 S46   US     DRAFT       A31008-H5450-A5-*SetupSetupSecurityselect a function: Babysitter(phone code protected)Calls can only be made to one phone number that is dialed by holding down the right soft key (detailed de-scription on page 25).Only  (PIN2 protected)The dialing options are restricted to phone numbers in the Addressbook/Phonebook, new entries cannot be made. If only area codes are en-tered, the relevant phone numbers can be added to these manually be-fore dialing.Depending on whether the Phone-book is stored on the SIM card or in the phone, PIN 2 or phone code are requested before the entries can be changed.Last 10 only(phone code protected)Calls are limited to the call list (p. 51) of "dialed numbers". This list can be filled with phone numbers specifi-cally for this purpose: Delete the call list and create "new entries" by dialing phone numbers and canceling before the connection is established.This SIM only (phone code protected)Your phone cannot be operated with a different SIM card.y

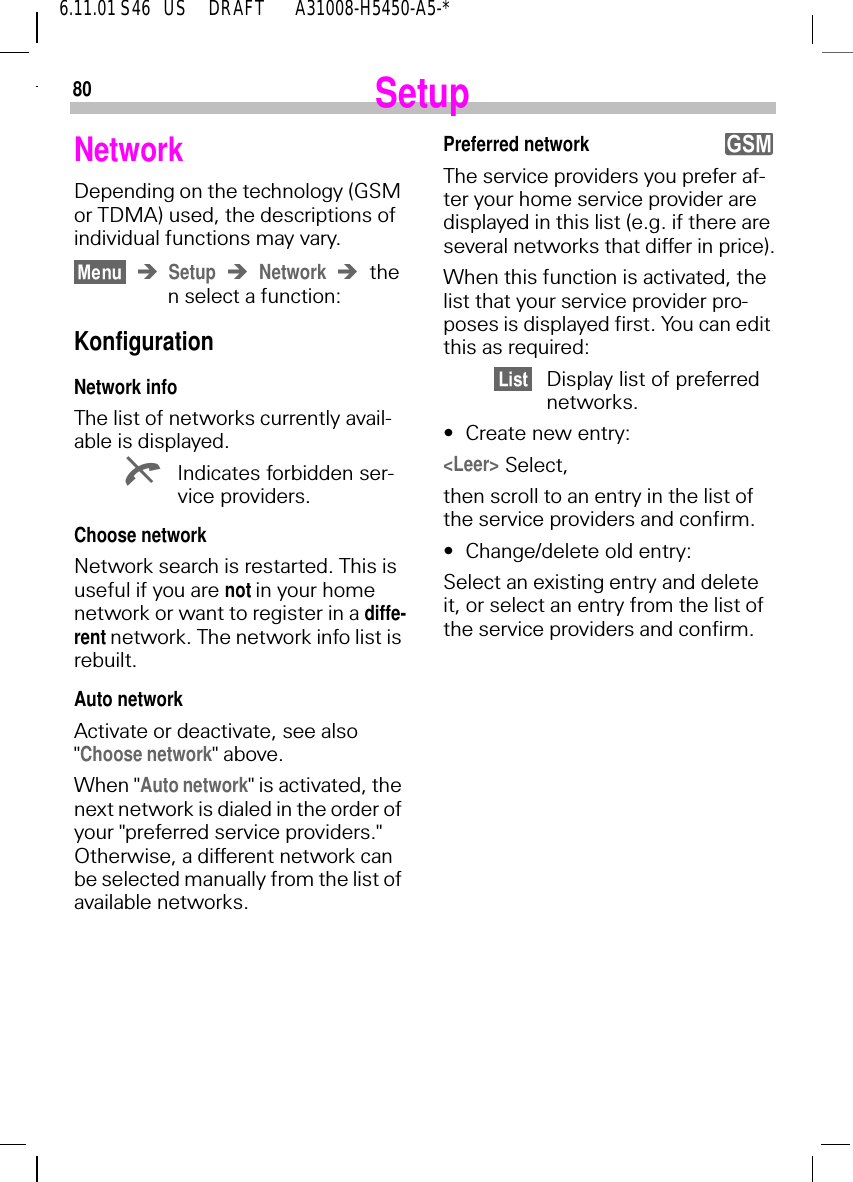

806.11.01 S46   US     DRAFT       A31008-H5450-A5-*SetupNetworkDepending on the technology (GSM or TDMA) used, the descriptions of individual functions may vary.Setup Network then select a function:KonfigurationNetwork infoThe list of networks currently avail-able is displayed. KIndicates forbidden ser-vice providers.Choose networkNetwork search is restarted. This is useful if you are not in your home network or want to register in a diffe-rent network. The network info list is rebuilt.Auto networkActivate or deactivate, see also "Choose network" above.When "Auto network" is activated, the next network is dialed in the order of your "preferred service providers." Otherwise, a different network can be selected manually from the list of available networks.Preferred networkThe service providers you prefer af-ter your home service provider are displayed in this list (e.g. if there are several networks that differ in price).When this function is activated, the list that your service provider pro-poses is displayed first. You can edit this as required:Display list of preferred networks.•Create new entry:<Leer> Select, then scroll to an entry in the list of the service providers and confirm.•Change/delete old entry:Select an existing entry and delete it, or select an entry from the list of the service providers and confirm.y

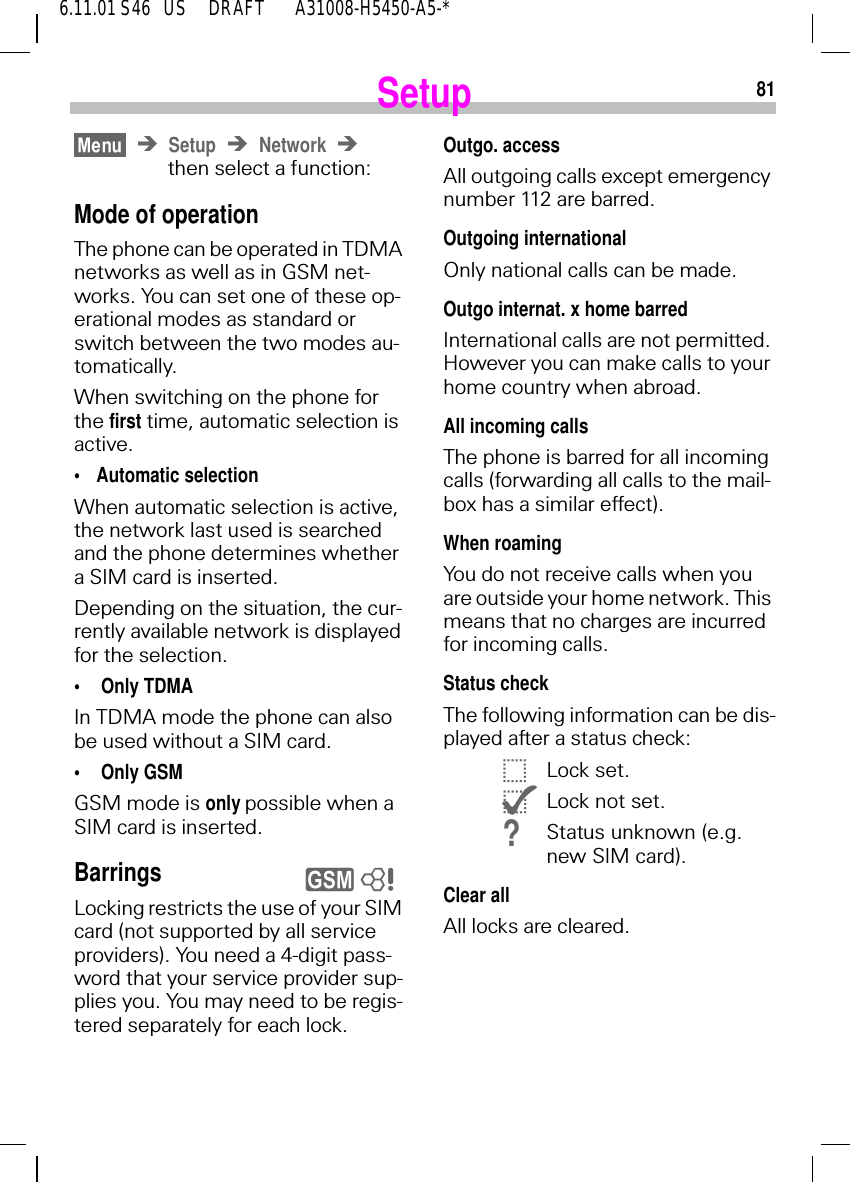

816.11.01 S46   US     DRAFT       A31008-H5450-A5-*SetupSetup Networkthen select a function:Mode of operationThe phone can be operated in TDMA networks as well as in GSM net-works. You can set one of these op-erational modes as standard or switch between the two modes au-tomatically. When switching on the phone for the first time, automatic selection is active.•Automatic selectionWhen automatic selection is active, the network last used is searched and the phone determines whether a SIM card is inserted. Depending on the situation, the cur-rently available network is displayed for the selection.• Only TDMAIn TDMA mode the phone can also be used without a SIM card. • Only GSMGSM mode is only possible when a SIM card is inserted.BarringsLocking restricts the use of your SIM card (not supported by all service providers). You need a 4-digit pass-word that your service provider sup-plies you. You may need to be regis-tered separately for each lock.y 8Outgo. accessAll outgoing calls except emergency number 112 are barred.Outgoing internationalOnly national calls can be made.Outgo internat. x home barredInternational calls are not permitted. However you can make calls to your home country when abroad.All incoming callsThe phone is barred for all incoming calls (forwarding all calls to the mail-box has a similar effect).When roamingYou do not receive calls when you are outside your home network. This means that no charges are incurred for incoming calls.Status checkThe following information can be dis-played after a status check: |Lock set. {Lock not set.?Status unknown (e.g. new SIM card).Clear allAll locks are cleared.

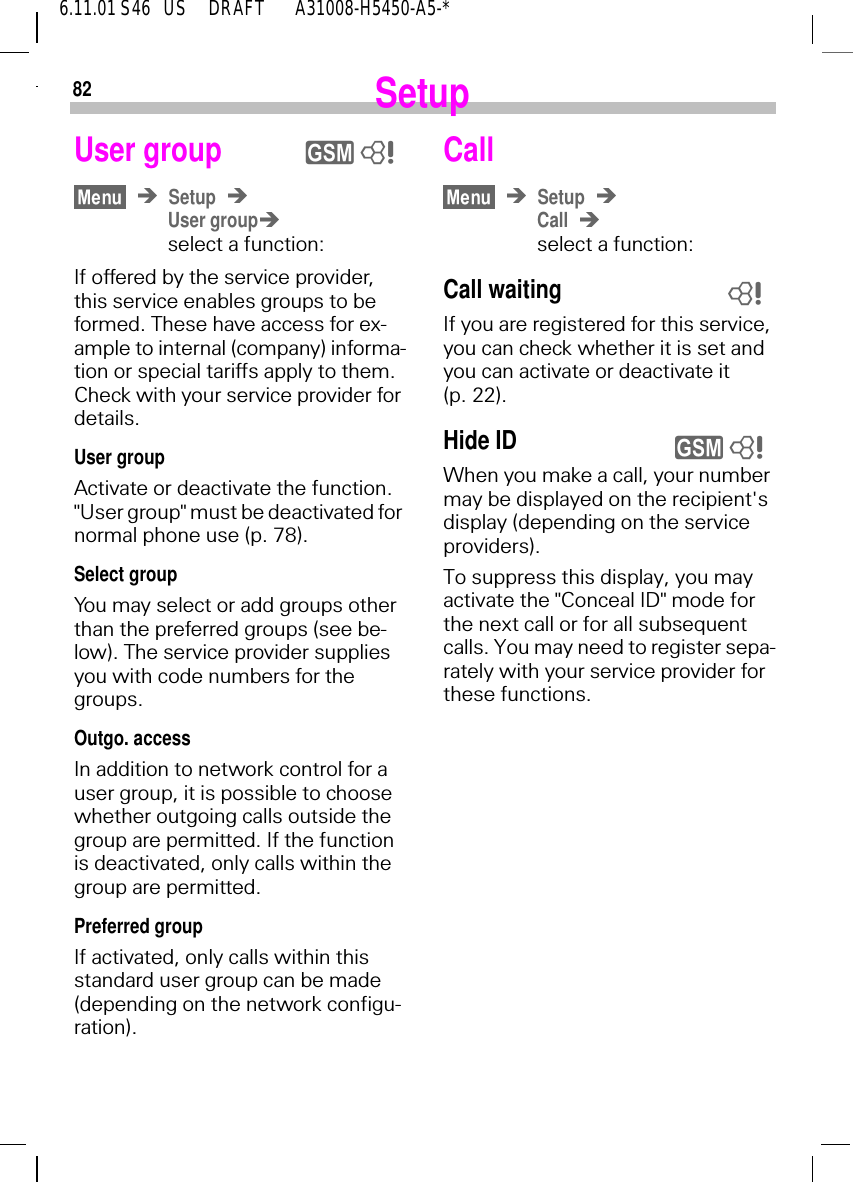

826.11.01 S46   US     DRAFT       A31008-H5450-A5-*SetupUser groupSetupUser groupselect a function:If offered by the service provider, this service enables groups to be formed. These have access for ex-ample to internal (company) informa-tion or special tariffs apply to them. Check with your service provider for details.User group Activate or deactivate the function. "User group" must be deactivated for normal phone use (p. 78).Select groupYou may select or add groups other than the preferred groups (see be-low). The service provider supplies you with code numbers for the groups.Outgo. accessIn addition to network control for a user group, it is possible to choose whether outgoing calls outside the group are permitted. If the function is deactivated, only calls within the group are permitted.Preferred groupIf activated, only calls within this standard user group can be made (depending on the network configu-ration).y 8CallSetupCallselect a function:Call waitingIf you are registered for this service, you can check whether it is set and you can activate or deactivate it (p. 22).Hide ID  When you make a call, your number may be displayed on the recipient's display (depending on the service providers).To suppress this display, you may activate the "Conceal ID" mode for the next call or for all subsequent calls. You may need to register sepa-rately with your service provider for these functions.8y 8

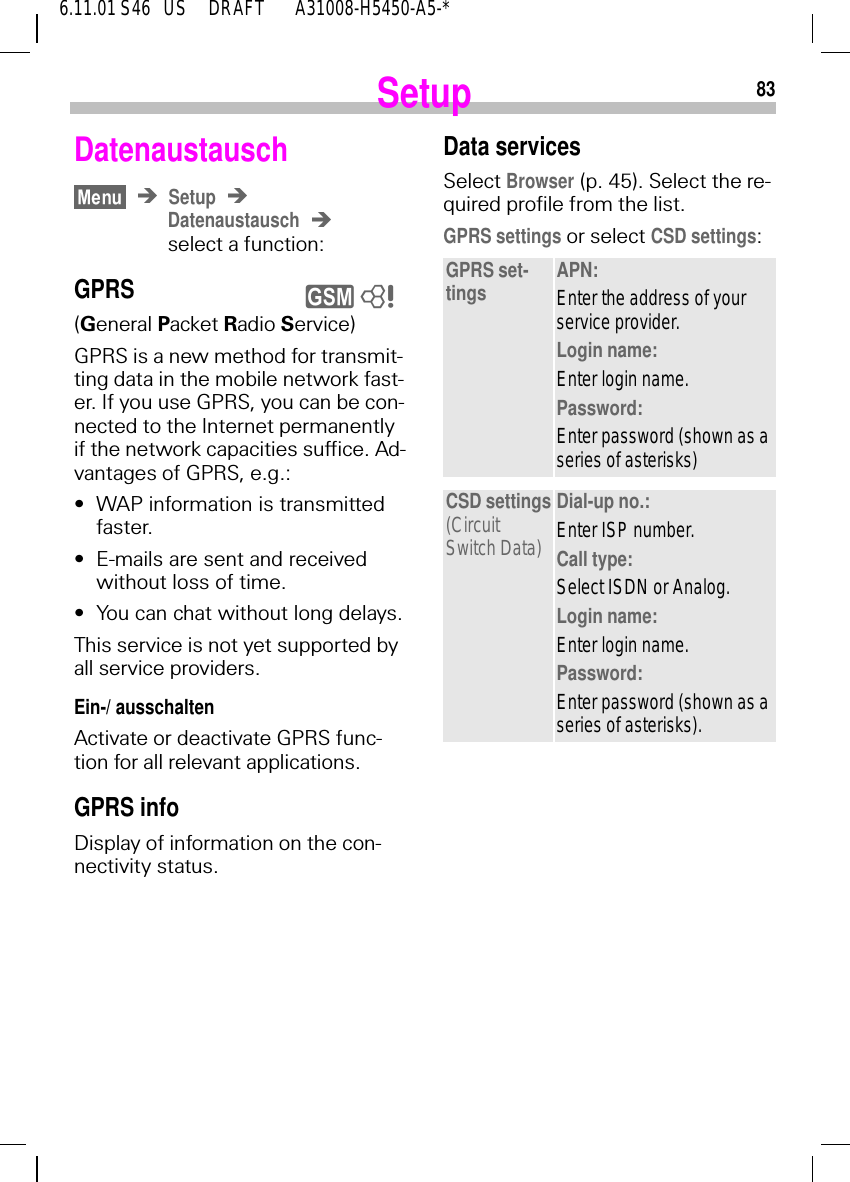

836.11.01 S46   US     DRAFT       A31008-H5450-A5-*SetupDatenaustauschSetupDatenaustauschselect a function:GPRS (General Packet Radio Service)GPRS is a new method for transmit-ting data in the mobile network fast-er. If you use GPRS, you can be con-nected to the Internet permanently if the network capacities suffice. Ad-vantages of GPRS, e.g.:•WAP information is transmitted faster.•E-mails are sent and received without loss of time.•You can chat without long delays.This service is not yet supported by all service providers.Ein-/ ausschaltenActivate or deactivate GPRS func-tion for all relevant applications.GPRS infoDisplay of information on the con-nectivity status.y 8Data servicesSelect Browser (p. 45). Select the re-quired profile from the list.GPRS settings or select CSD settings:GPRS set-tings APN:Enter the address of your service provider.Login name:Enter login name.Password:Enter password (shown as a series of asterisks)CSD settings(Circuit Switch Data)Dial-up no.:Enter ISP number.Call type:Select ISDN or Analog.Login name:Enter login name.Password:Enter password (shown as a series of asterisks).

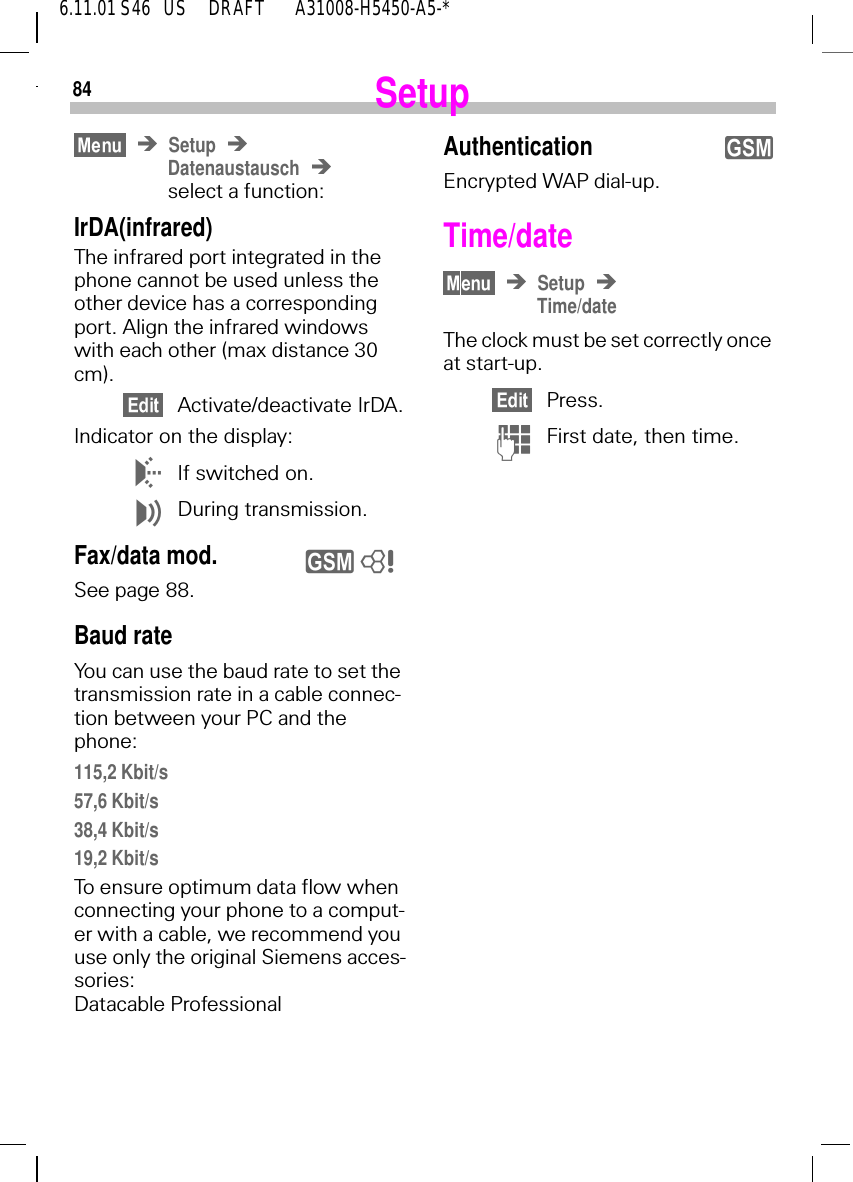

846.11.01 S46   US     DRAFT       A31008-H5450-A5-*SetupSetupDatenaustauschselect a function:IrDA(infrared)The infrared port integrated in the phone cannot be used unless the other device has a corresponding port. Align the infrared windows with each other (max distance 30 cm).Activate/deactivate IrDA.Indicator on the display: 6If switched on. 7During transmission.Fax/data mod.See page 88.Baud rate  You can use the baud rate to set the transmission rate in a cable connec-tion between your PC and the phone:115,2 Kbit/s57,6 Kbit/s38,4 Kbit/s19,2 Kbit/sTo ensure optimum data flow when connecting your phone to a comput-er with a cable, we recommend you use only the original Siemens acces-sories: Datacable Professional y 8AuthenticationEncrypted WAP dial-up.Time/date SetupTime/dateThe clock must be set correctly once at start-up.Press. (First date, then time. y

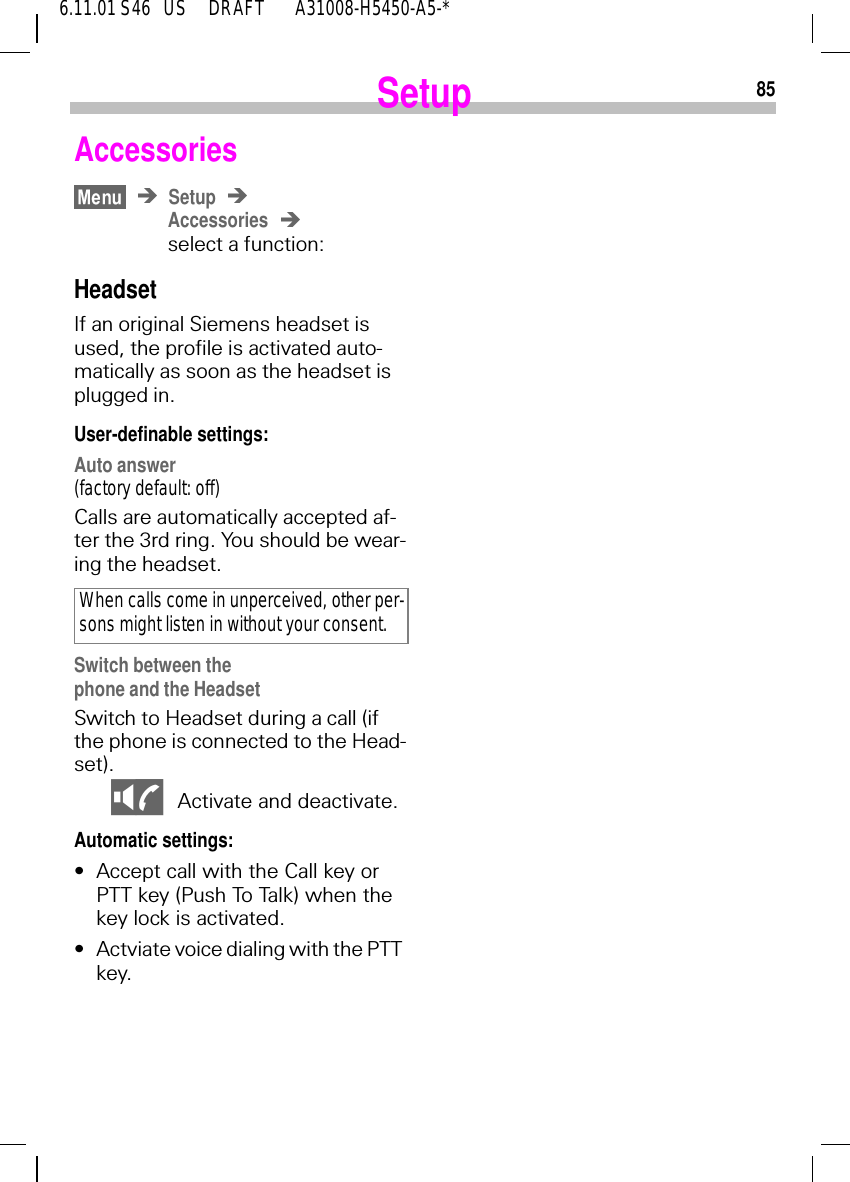

856.11.01 S46   US     DRAFT       A31008-H5450-A5-*SetupAccessoriesSetupAccessoriesselect a function:HeadsetIf an original Siemens headset is used, the profile is activated auto-matically as soon as the headset is plugged in. User-definable settings:Auto answer(factory default: off)Calls are automatically accepted af-ter the 3rd ring. You should be wear-ing the headset.Switch between the phone and the HeadsetSwitch to Headset during a call (if the phone is connected to the Head-set). OW Activate and deactivate.Automatic settings:•Accept call with the Call key or PTT key (Push To Talk) when the key lock is activated.•Actviate voice dialing with the PTT key.When calls come in unperceived, other per-sons might listen in without your consent.

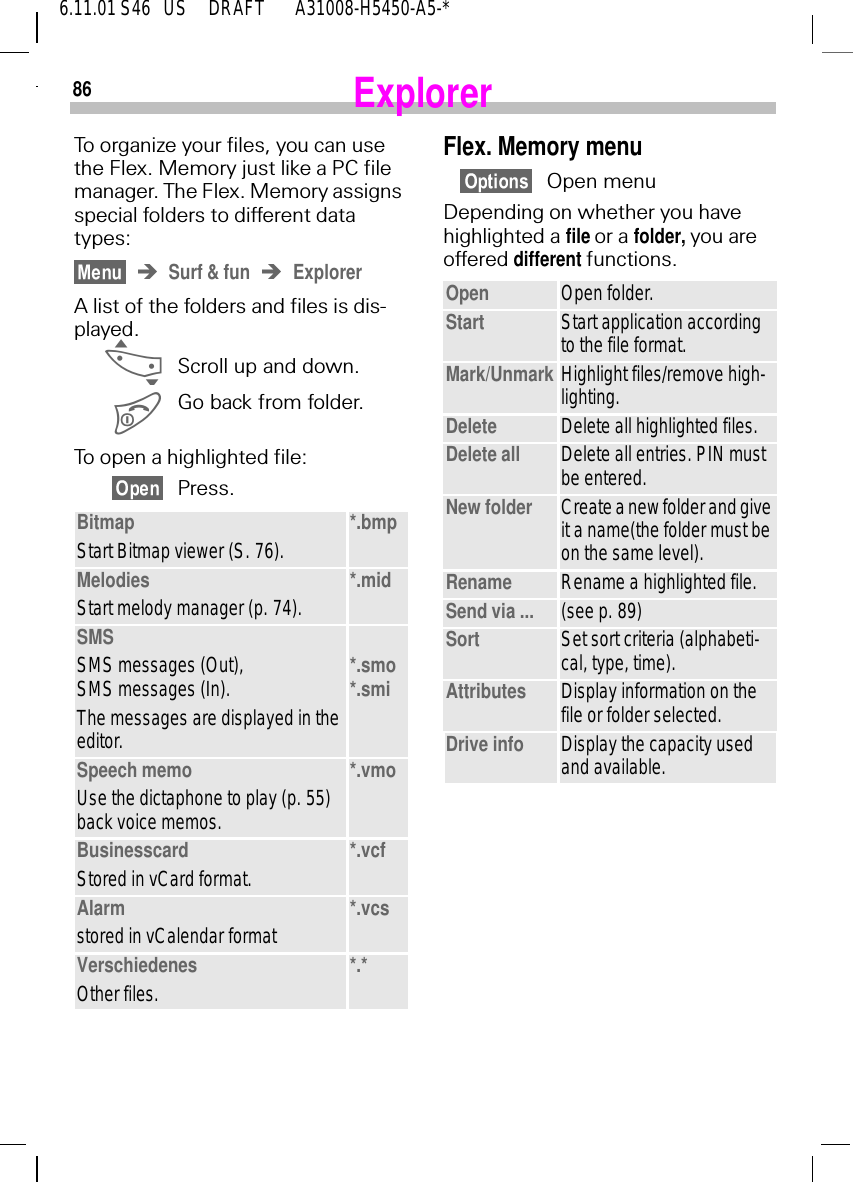

866.11.01 S46   US     DRAFT       A31008-H5450-A5-*ExplorerTo organize your files, you can use the Flex. Memory just like a PC file manager. The Flex. Memory assigns special folders to different data types:Surf & fun ExplorerA list of the folders and files is dis-played. _Scroll up and down. Go back from folder. To open a highlighted file:Press.BitmapStart Bitmap viewer (S. 76). *.bmpMelodiesStart melody manager (p. 74). *.midSMSSMS messages (Out),SMS messages (In).The messages are displayed in the editor.*.smo*.smiSpeech memoUse the dictaphone to play (p. 55) back voice memos.*.vmoBusinesscardStored in vCard format. *.vcfAlarmstored in vCalendar format *.vcsVerschiedenesOther files. *.*Flex. Memory menuOpen menuDepending on whether you have highlighted a file or a folder, you are offered different functions.Open Open folder.Start Start application according to the file format.Mark/Unmark Highlight files/remove high-lighting.Delete Delete all highlighted files.Delete all Delete all entries. PIN must be entered.New folder Create a new folder and give it a name(the folder must be on the same level).Rename Rename a highlighted file.Send via ... (see p. 89)Sort Set sort criteria (alphabeti-cal, type, time).Attributes Display information on the file or folder selected.Drive info Display the capacity used and available.

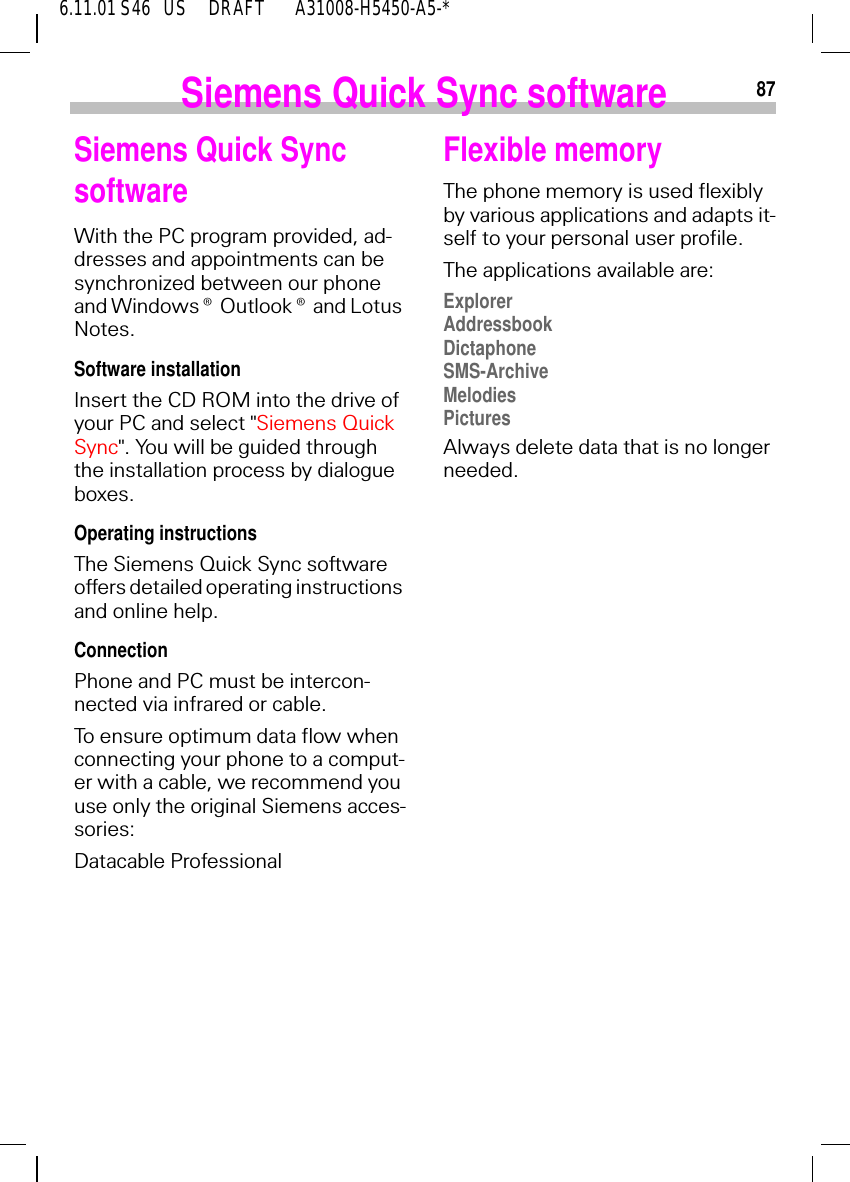

876.11.01 S46   US     DRAFT       A31008-H5450-A5-*Siemens Quick Sync softwareSiemens Quick Sync software With the PC program provided, ad-dresses and appointments can be synchronized between our phone and Windows® Outlook® and Lotus Notes.Software installationInsert the CD ROM into the drive of your PC and select "Siemens Quick Sync". You will be guided through the installation process by dialogue boxes.Operating instructionsThe Siemens Quick Sync software offers detailed operating instructions and online help. Connection Phone and PC must be intercon-nected via infrared or cable.To ensure optimum data flow when connecting your phone to a comput-er with a cable, we recommend you use only the original Siemens acces-sories: Datacable ProfessionalFlexible memoryThe phone memory is used flexibly by various applications and adapts it-self to your personal user profile. The applications available are:ExplorerAddressbookDictaphoneSMS-ArchiveMelodiesPicturesAlways delete data that is no longer needed.

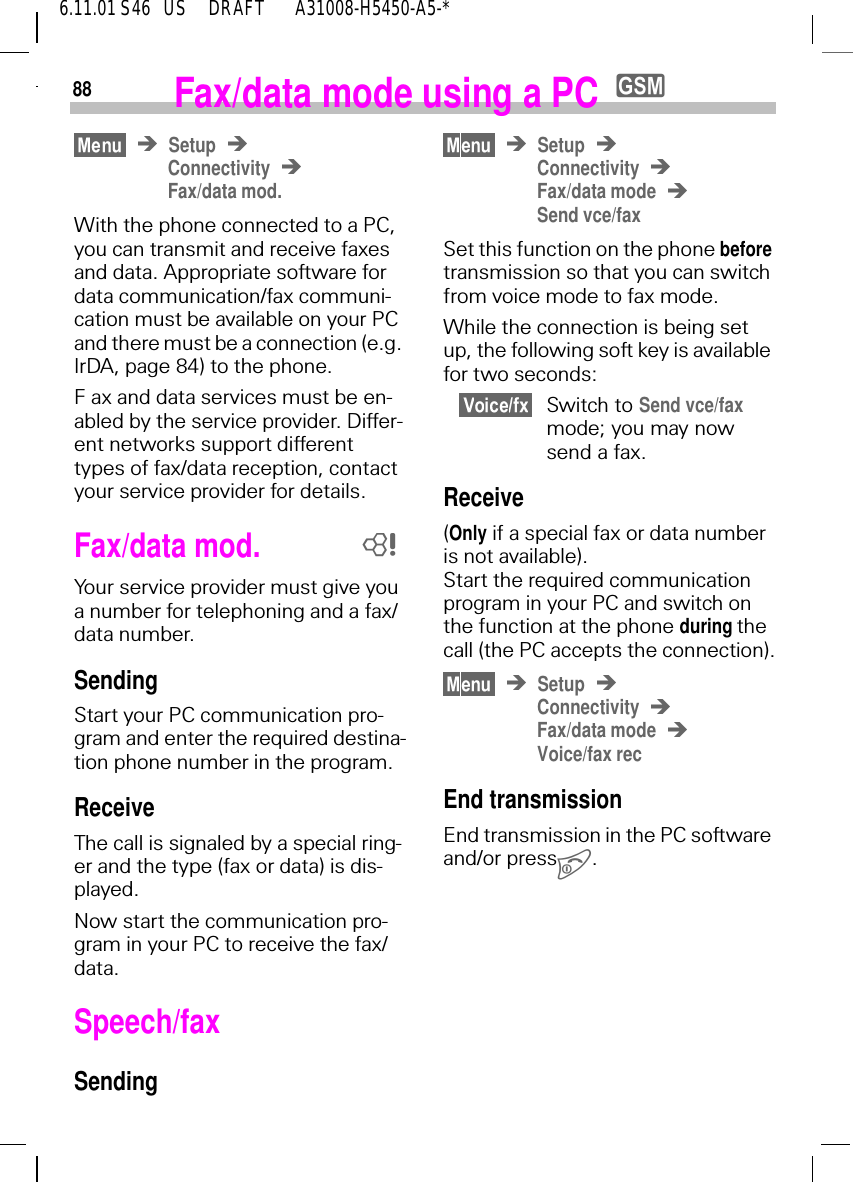

886.11.01 S46   US     DRAFT       A31008-H5450-A5-*Fax/data mode using a PC ySetupConnectivityFax/data mod.With the phone connected to a PC, you can transmit and receive faxes and data. Appropriate software for data communication/fax communi-cation must be available on your PC and there must be a connection (e.g. IrDA, page 84) to the phone. F ax and data services must be en-abled by the service provider. Differ-ent networks support different types of fax/data reception, contact your service provider for details.Fax/data mod.Your service provider must give you a number for telephoning and a fax/data number.SendingStart your PC communication pro-gram and enter the required destina-tion phone number in the program.ReceiveThe call is signaled by a special ring-er and the type (fax or data) is dis-played.Now start the communication pro-gram in your PC to receive the fax/data.Speech/fax Sending8SetupConnectivityFax/data modeSend vce/faxSet this function on the phone before transmission so that you can switch from voice mode to fax mode.While the connection is being set up, the following soft key is available for two seconds:Switch to Send vce/fax mode; you may now send a fax.Receive(Only if a special fax or data number is not available). Start the required communication program in your PC and switch on the function at the phone during the call (the PC accepts the connection).SetupConnectivityFax/data modeVoice/fax recEnd transmissionEnd transmission in the PC software and/or press .

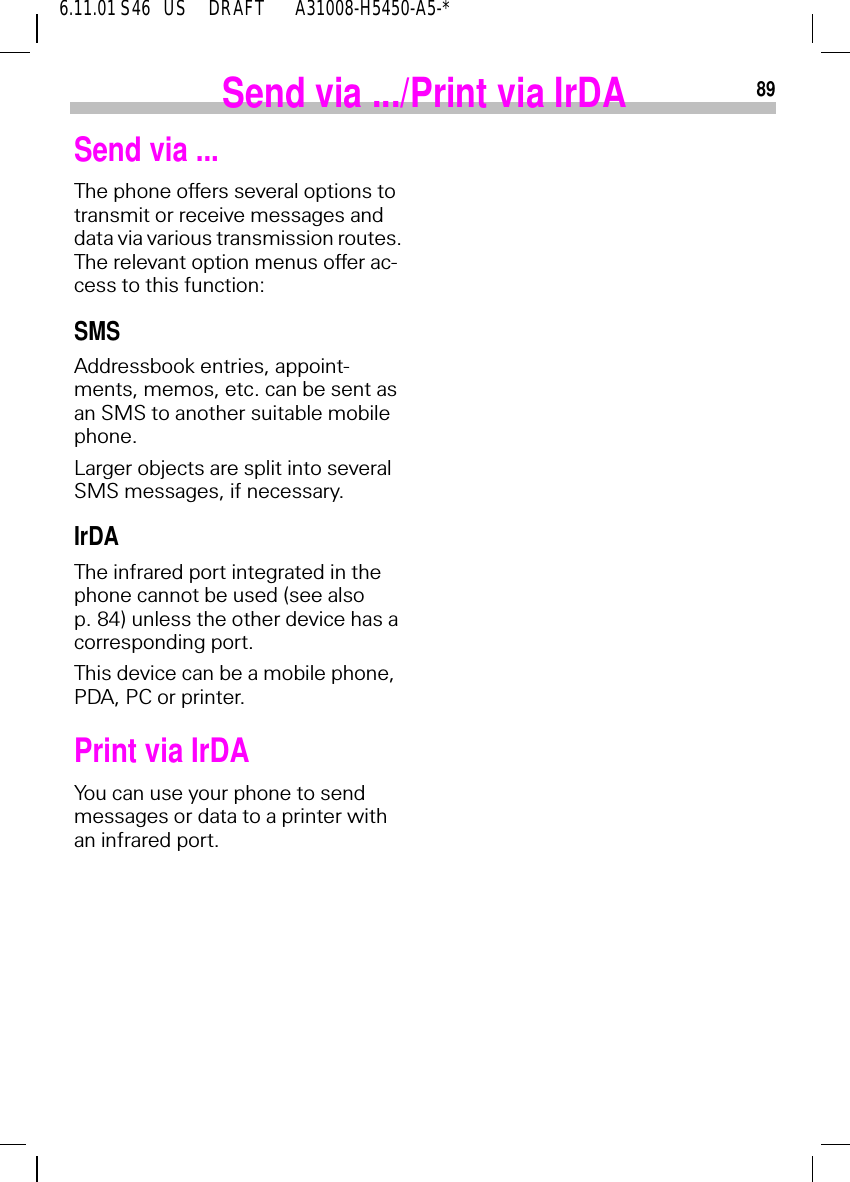

896.11.01 S46   US     DRAFT       A31008-H5450-A5-*Send via .../Print via IrDASend via ...The phone offers several options to transmit or receive messages and data via various transmission routes. The relevant option menus offer ac-cess to this function:SMSAddressbook entries, appoint-ments, memos, etc. can be sent as an SMS to another suitable mobile phone.Larger objects are split into several SMS messages, if necessary.IrDAThe infrared port integrated in the phone cannot be used (see also p. 84) unless the other device has a corresponding port. This device can be a mobile phone, PDA, PC or printer.Print via IrDAYou can use your phone to send messages or data to a printer with an infrared port.

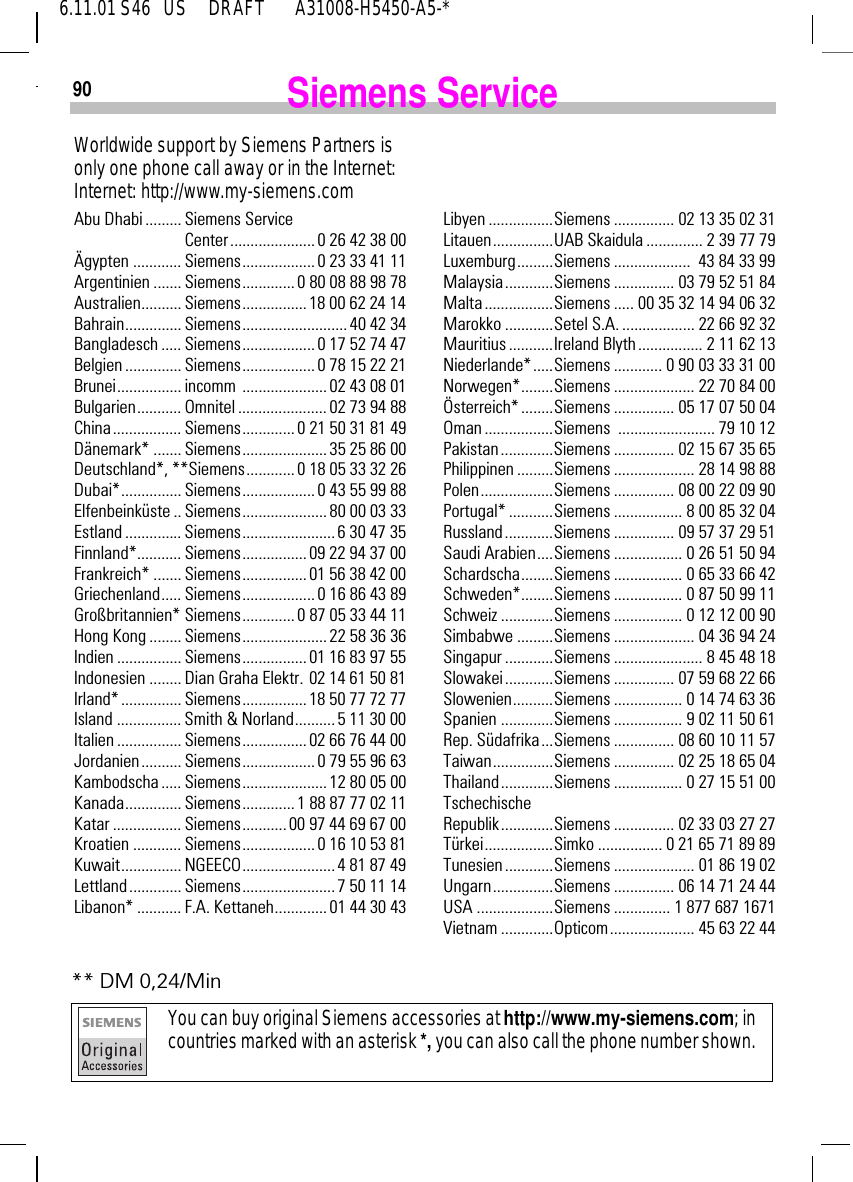

906.11.01 S46   US     DRAFT       A31008-H5450-A5-*Siemens ServiceWorldwide support by Siemens Partners is only one phone call away or in the Internet:Internet: http://www.my-siemens.comAbu Dhabi ......... Siemens Service Center..................... 0 26 42 38 00Ägypten ............ Siemens.................. 0 23 33 41 11Argentinien ....... Siemens............. 0 80 08 88 98 78Australien.......... Siemens................ 18 00 62 24 14Bahrain.............. Siemens.......................... 40 42 34Bangladesch ..... Siemens.................. 0 17 52 74 47Belgien .............. Siemens.................. 0 78 15 22 21Brunei................ incomm  .....................02 43 08 01Bulgarien........... Omnitel ...................... 02 73 94 88China................. Siemens............. 0 21 50 31 81 49Dänemark* ....... Siemens..................... 35 25 86 00Deutschland*, **Siemens............ 0 18 05 33 32 26Dubai*............... Siemens.................. 0 43 55 99 88Elfenbeinküste .. Siemens.....................80 00 03 33Estland .............. Siemens.......................6 30 47 35Finnland*........... Siemens................ 09 22 94 37 00Frankreich* ....... Siemens................ 01 56 38 42 00Griechenland..... Siemens.................. 0 16 86 43 89Großbritannien* Siemens............. 0 87 05 33 44 11Hong Kong ........ Siemens..................... 22 58 36 36Indien ................ Siemens................ 01 16 83 97 55Indonesien ........ Dian Graha Elektr. 02 14 61 50 81Irland* ............... Siemens................ 18 50 77 72 77Island ................ Smith & Norland.......... 5 11 30 00Italien ................ Siemens................ 02 66 76 44 00Jordanien.......... Siemens.................. 0 79 55 96 63Kambodscha ..... Siemens..................... 12 80 05 00Kanada.............. Siemens.............1 88 87 77 02 11Katar ................. Siemens...........00 97 44 69 67 00Kroatien ............ Siemens.................. 0 16 10 53 81Kuwait............... NGEECO....................... 4 81 87 49Lettland............. Siemens.......................7 50 11 14Libanon* ........... F.A. Kettaneh............. 01 44 30 43Libyen ................Siemens ............... 02 13 35 02 31Litauen...............UAB Skaidula .............. 2 39 77 79Luxemburg.........Siemens ...................  43 84 33 99Malaysia............Siemens ............... 03 79 52 51 84Malta .................Siemens ..... 00 35 32 14 94 06 32Marokko ............Setel S.A. .................. 22 66 92 32Mauritius ...........Ireland Blyth................ 2 11 62 13Niederlande*.....Siemens ............ 0 90 03 33 31 00Norwegen*........Siemens .................... 22 70 84 00Österreich*........Siemens ............... 05 17 07 50 04Oman .................Siemens ........................ 79 10 12Pakistan.............Siemens ............... 02 15 67 35 65Philippinen .........Siemens .................... 28 14 98 88Polen..................Siemens ............... 08 00 22 09 90Portugal* ...........Siemens ................. 8 00 85 32 04Russland............Siemens ............... 09 57 37 29 51Saudi Arabien....Siemens ................. 0 26 51 50 94Schardscha........Siemens ................. 0 65 33 66 42Schweden*........Siemens ................. 0 87 50 99 11Schweiz .............Siemens ................. 0 12 12 00 90Simbabwe .........Siemens .................... 04 36 94 24Singapur ............Siemens ...................... 8 45 48 18Slowakei............Siemens ............... 07 59 68 22 66Slowenien..........Siemens ................. 0 14 74 63 36Spanien .............Siemens ................. 9 02 11 50 61Rep. Südafrika...Siemens ............... 08 60 10 11 57Taiwan...............Siemens ............... 02 25 18 65 04Thailand.............Siemens ................. 0 27 15 51 00Tschechische Republik.............Siemens ............... 02 33 03 27 27Türkei.................Simko ................ 0 21 65 71 89 89Tunesien ............Siemens .................... 01 86 19 02Ungarn...............Siemens ............... 06 14 71 24 44USA ...................Siemens .............. 1 877 687 1671Vietnam .............Opticom..................... 45 63 22 44** DM 0,24/MinYou can buy original Siemens accessories at http://www.my-siemens.com; in countries marked with an asterisk *, you can also call the phone number shown.

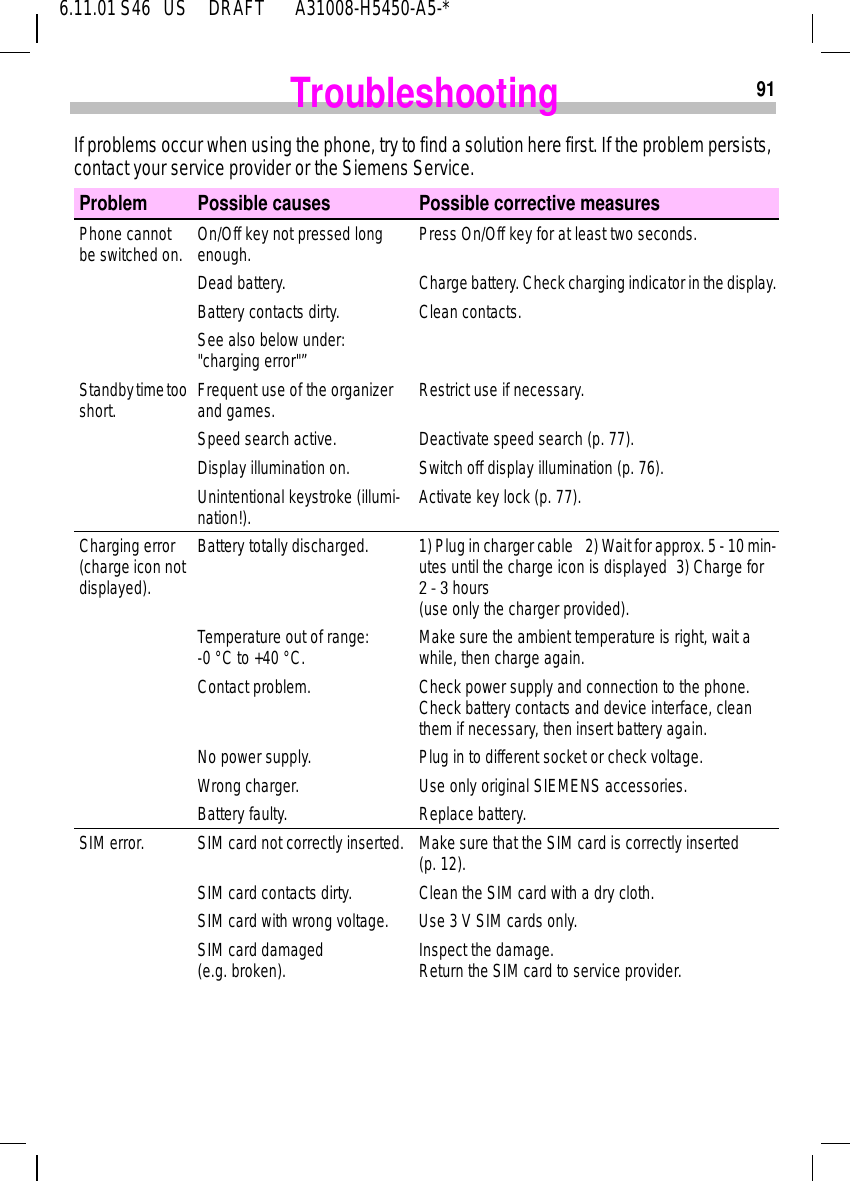

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*91TroubleshootingIf problems occur when using the phone, try to find a solution here first. If the problem persists, contact your service provider or the Siemens Service.Problem Possible causes Possible corrective measuresPhone cannot be switched on. On/Off key not pressed long enough. Press On/Off key for at least two seconds.Dead battery. Charge battery. Check charging indicator in the display.Battery contacts dirty. Clean contacts.See also below under:"charging error"”Standby time too short. Frequent use of the organizer and games. Restrict use if necessary.Speed search active. Deactivate speed search (p. 77).Display illumination on. Switch off display illumination (p. 76).Unintentional keystroke (illumi-nation!). Activate key lock (p. 77).Charging error (charge icon not displayed).Battery totally discharged. 1) Plug in charger cable  2) Wait for approx. 5 - 10 min-utes until the charge icon is displayed 3) Charge for 2-3 hours(use only the charger provided).Temperature out of range: -0 °C to +40 °C. Make sure the ambient temperature is right, wait a while, then charge again.Contact problem. Check power supply and connection to the phone. Check battery contacts and device interface, clean them if necessary, then insert battery again.No power supply. Plug in to different socket or check voltage.Wrong charger. Use only original SIEMENS accessories.Battery faulty. Replace battery.SIM error. SIM card not correctly inserted. Make sure that the SIM card is correctly inserted (p. 12).SIM card contacts dirty. Clean the SIM card with a dry cloth.SIM card with wrong voltage. Use 3 V SIM cards only.SIM card damaged (e.g. broken). Inspect the damage. Return the SIM card to service provider.

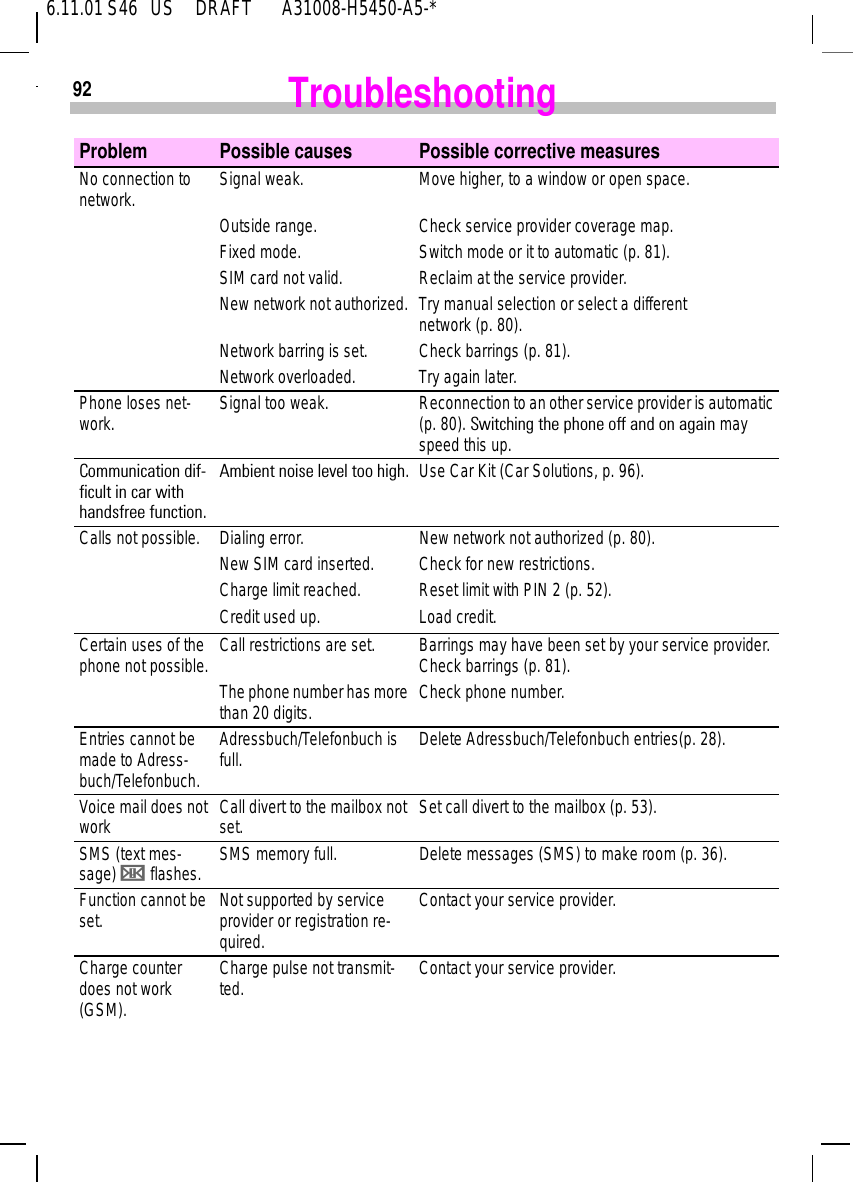

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*92 TroubleshootingProblem Possible causes Possible corrective measuresNo connection to network. Signal weak. Move higher, to a window or open space.Outside range. Check service provider coverage map.Fixed mode. Switch mode or it to automatic (p. 81).SIM card not valid. Reclaim at the service provider.New network not authorized. Try manual selection or select a different network (p. 80).Network barring is set. Check barrings (p. 81).Network overloaded. Try again later.Phone loses net-work. Signal too weak. Reconnection to an other service provider is automatic (p. 80). Switching the phone off and on again may speed this up.Communication dif-ficult in car with handsfree function.Ambient noise level too high. Use Car Kit (Car Solutions, p. 96).Calls not possible. Dialing error. New network not authorized (p. 80).New SIM card inserted. Check for new restrictions.Charge limit reached. Reset limit with PIN 2 (p. 52).Credit used up. Load credit.Certain uses of the phone not possible. Call restrictions are set. Barrings may have been set by your service provider. Check barrings (p. 81).The phone number has more than 20 digits. Check phone number.Entries cannot be made to Adress-buch/Telefonbuch.Adressbuch/Telefonbuch is full. Delete Adressbuch/Telefonbuch entries(p. 28).Voice mail does not work Call divert to the mailbox not set. Set call divert to the mailbox (p. 53).SMS (text mes-sage)  d flashes. SMS memory full. Delete messages (SMS) to make room (p. 36).Function cannot be set. Not supported by service provider or registration re-quired.Contact your service provider.Charge counter does not work (GSM).Charge pulse not transmit-ted. Contact your service provider.

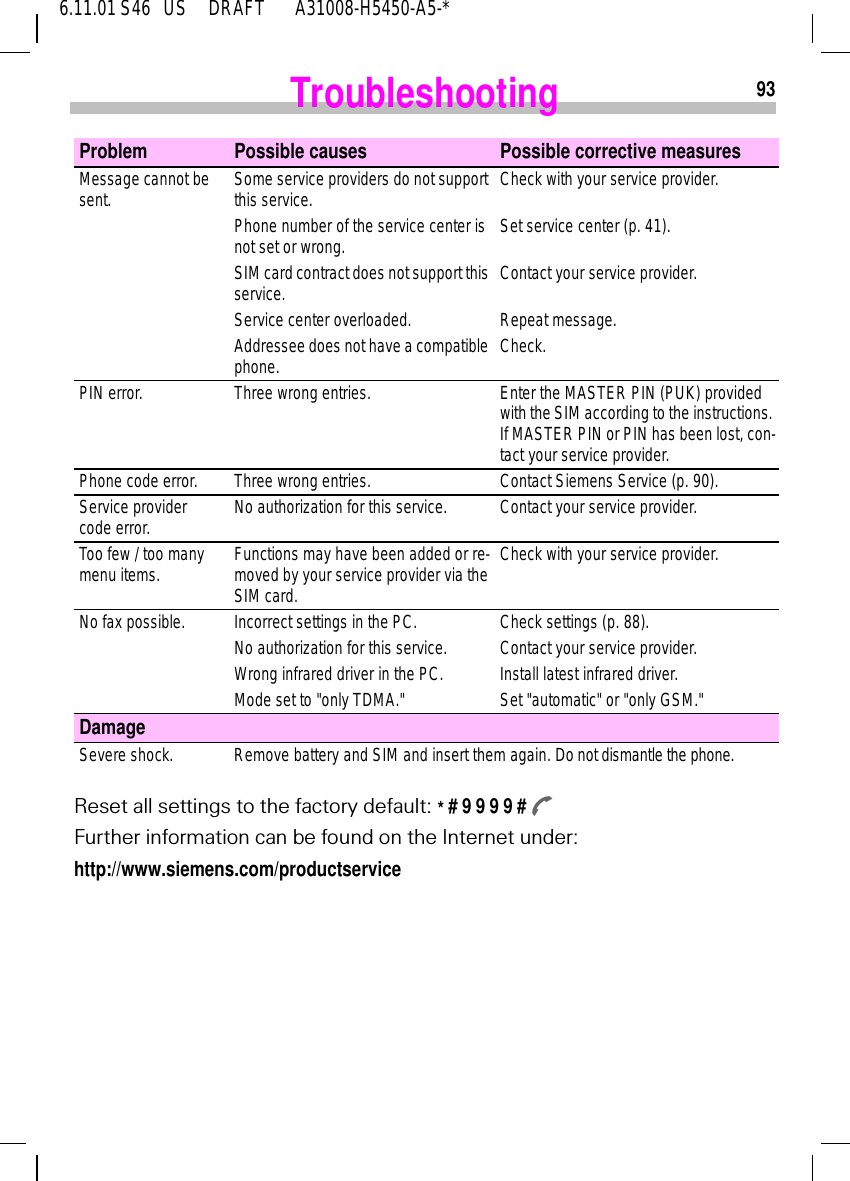

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*93TroubleshootingReset all settings to the factory default: * # 9 9 9 9 #  GFurther information can be found on the Internet under:http://www.siemens.com/productserviceProblem Possible causes Possible corrective measuresMessage cannot be sent. Some service providers do not support this service. Check with your service provider.Phone number of the service center is not set or wrong. Set service center (p. 41).SIM card contract does not support this service. Contact your service provider.Service center overloaded. Repeat message.Addressee does not have a compatible phone. Check.PIN error. Three wrong entries. Enter the MASTER PIN (PUK) provided with the SIM according to the instructions. If MASTER PIN or PIN has been lost, con-tact your service provider.Phone code error. Three wrong entries. Contact Siemens Service (p. 90).Service provider code error. No authorization for this service. Contact your service provider.Too few / too many menu items. Functions may have been added or re-moved by your service provider via the SIM card.Check with your service provider.No fax possible. Incorrect settings in the PC. Check settings (p. 88).No authorization for this service. Contact your service provider.Wrong infrared driver in the PC. Install latest infrared driver.Mode set to "only TDMA." Set "automatic" or "only GSM."DamageSevere shock. Remove battery and SIM and insert them again. Do not dismantle the phone.

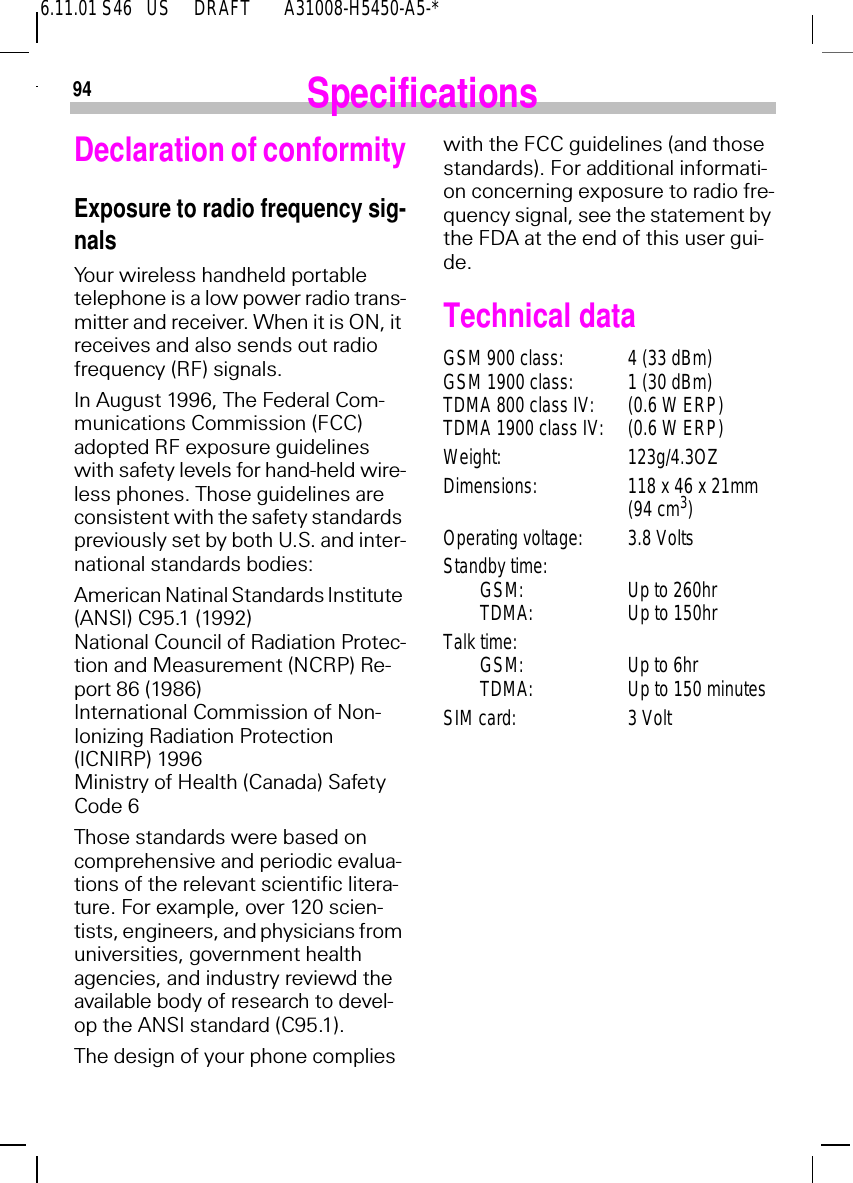

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*94 SpecificationsDeclaration of conformityExposure to radio frequency sig-nalsYour wireless handheld portable telephone is a low power radio trans-mitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.In August 1996, The Federal Com-munications Commission (FCC) adopted RF exposure guidelines with safety levels for hand-held wire-less phones. Those guidelines are consistent with the safety standards previously set by both U.S. and inter-national standards bodies:American Natinal Standards Institute (ANSI) C95.1 (1992)National Council of Radiation Protec-tion and Measurement (NCRP) Re-port 86 (1986)International Commission of Non-Ionizing Radiation Protection (ICNIRP) 1996Ministry of Health (Canada) Safety Code 6Those standards were based on comprehensive and periodic evalua-tions of the relevant scientific litera-ture. For example, over 120 scien-tists, engineers, and physicians from universities, government health agencies, and industry reviewd the available body of research to devel-op the ANSI standard (C95.1).The design of your phone complies with the FCC guidelines (and those standards). For additional informati-on concerning exposure to radio fre-quency signal, see the statement by the FDA at the end of this user gui-de.Technical dataGSM 900 class: 4 (33 dBm)GSM 1900 class: 1 (30 dBm)TDMA 800 class IV: (0.6 W ERP)TDMA 1900 class IV: (0.6 W ERP)Weight: 123g/4.3OZDimensions: 118 x 46 x 21mm(94 cm3)Operating voltage: 3.8 VoltsStandby time:GSM: Up to 260hrTDMA: Up to 150hrTalk time:GSM: Up to 6hrTDMA: Up to 150 minutesSIM card: 3 Volt

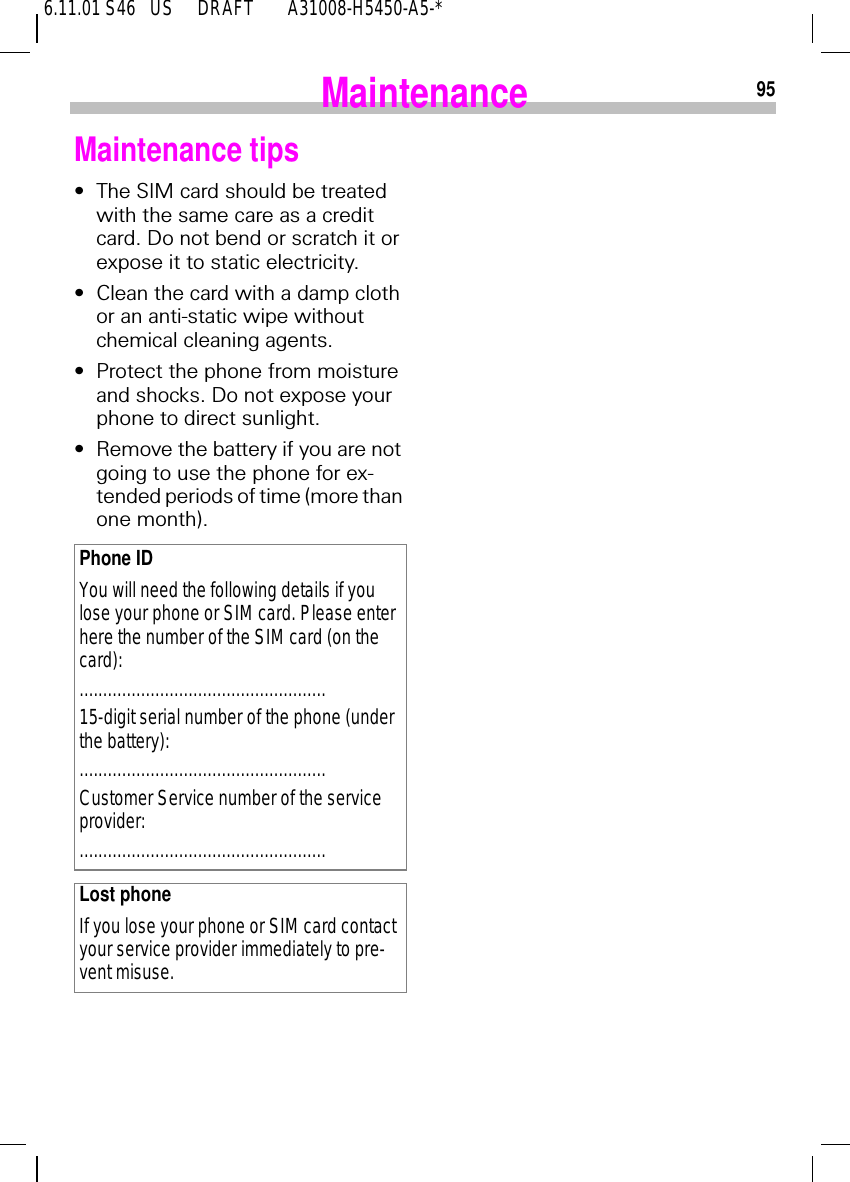

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*95MaintenanceMaintenance tips•The SIM card should be treated with the same care as a credit card. Do not bend or scratch it or expose it to static electricity.•Clean the card with a damp cloth or an anti-static wipe without chemical cleaning agents.•Protect the phone from moisture and shocks. Do not expose your phone to direct sunlight.•Remove the battery if you are not going to use the phone for ex-tended periods of time (more than one month).Phone IDYou will need the following details if you lose your phone or SIM card. Please enter here the number of the SIM card (on the card):....................................................15-digit serial number of the phone (under the battery):....................................................Customer Service number of the service provider:....................................................Lost phoneIf you lose your phone or SIM card contact your service provider immediately to pre-vent misuse.

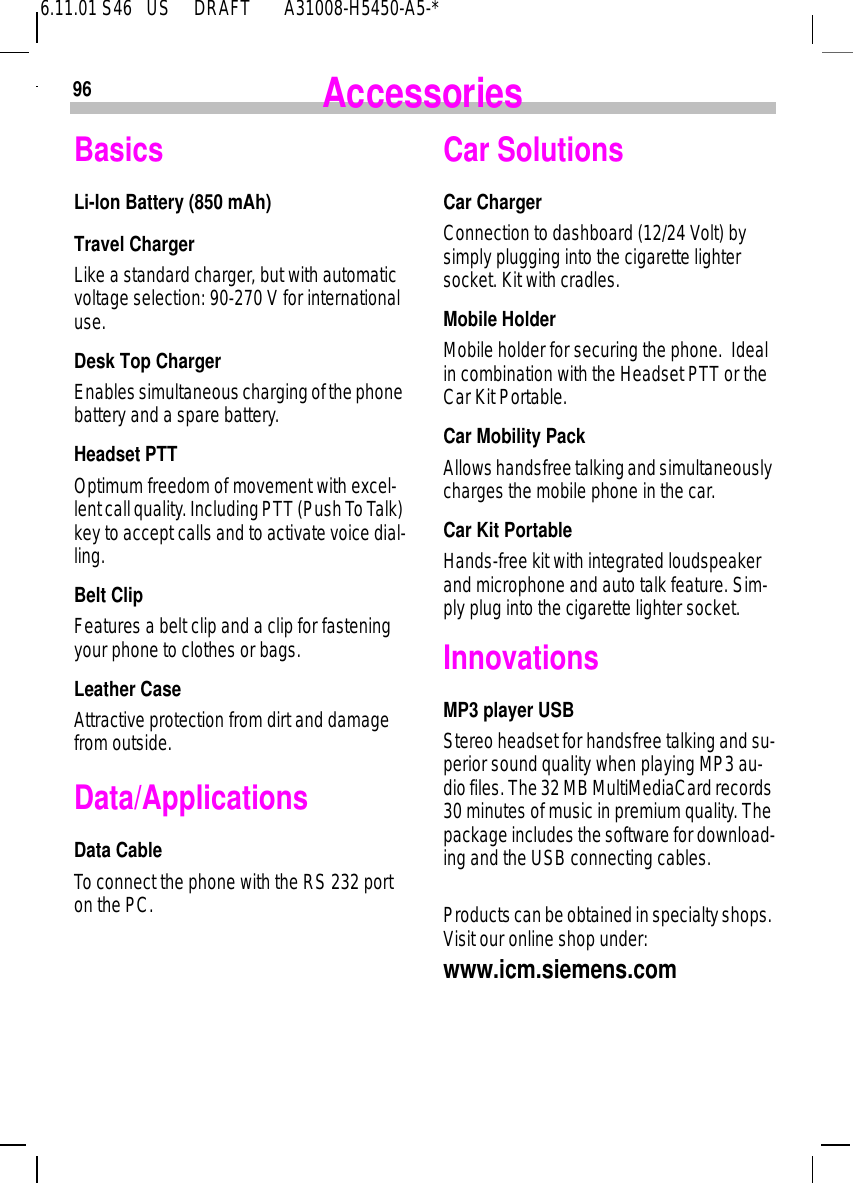

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*96 AccessoriesBasicsLi-Ion Battery (850 mAh)Travel ChargerLike a standard charger, but with automatic voltage selection: 90-270 V for international use. Desk Top ChargerEnables simultaneous charging of the phone battery and a spare battery. Headset PTT Optimum freedom of movement with excel-lent call quality. Including PTT (Push To Talk) key to accept calls and to activate voice dial-ling.Belt ClipFeatures a belt clip and a clip for fastening your phone to clothes or bags.Leather CaseAttractive protection from dirt and damage from outside.Data/ApplicationsData CableTo connect the phone with the RS 232 port on the PC.Car Solutions Car ChargerConnection to dashboard (12/24 Volt) by simply plugging into the cigarette lighter socket. Kit with cradles.Mobile HolderMobile holder for securing the phone.  Ideal in combination with the Headset PTT or the Car Kit Portable.Car Mobility PackAllows handsfree talking and simultaneously charges the mobile phone in the car.Car Kit PortableHands-free kit with integrated loudspeaker and microphone and auto talk feature. Sim-ply plug into the cigarette lighter socket. InnovationsMP3 player USBStereo headset for handsfree talking and su-perior sound quality when playing MP3 au-dio files. The 32 MB MultiMediaCard records 30 minutes of music in premium quality. The package includes the software for download-ing and the USB connecting cables.Products can be obtained in specialty shops. Visit our online shop under: www.icm.siemens.com

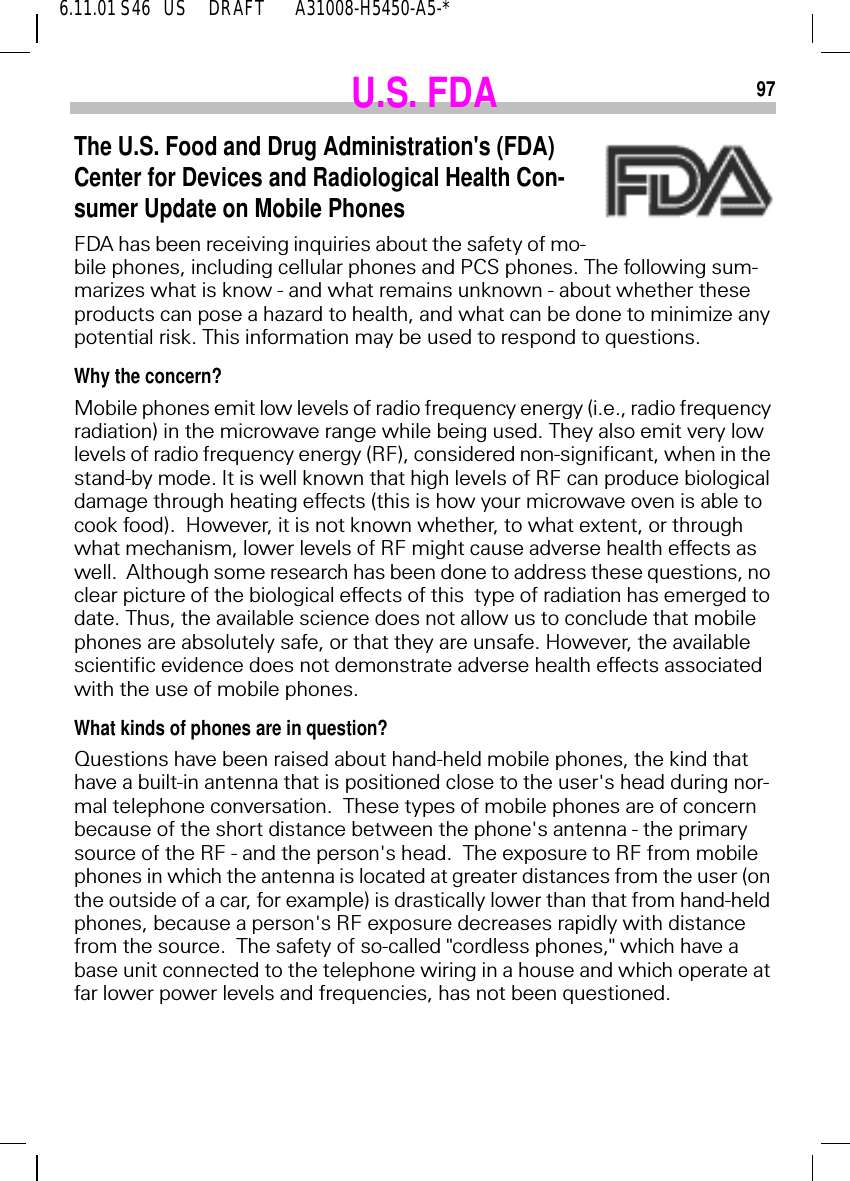

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*97U.S. FDAThe U.S. Food and Drug Administration's (FDA) Center for Devices and Radiological Health Con-sumer Update on Mobile PhonesFDA has been receiving inquiries about the safety of mo-bile phones, including cellular phones and PCS phones. The following sum-marizes what is know - and what remains unknown - about whether these products can pose a hazard to health, and what can be done to minimize any potential risk. This information may be used to respond to questions.Why the concern?Mobile phones emit low levels of radio frequency energy (i.e., radio frequency radiation) in the microwave range while being used. They also emit very low levels of radio frequency energy (RF), considered non-significant, when in the stand-by mode. It is well known that high levels of RF can produce biological damage through heating effects (this is how your microwave oven is able to cook food).  However, it is not known whether, to what extent, or through what mechanism, lower levels of RF might cause adverse health effects as well.  Although some research has been done to address these questions, no clear picture of the biological effects of this  type of radiation has emerged to date. Thus, the available science does not allow us to conclude that mobile phones are absolutely safe, or that they are unsafe. However, the available scientific evidence does not demonstrate adverse health effects associated with the use of mobile phones.What kinds of phones are in question?Questions have been raised about hand-held mobile phones, the kind that have a built-in antenna that is positioned close to the user's head during nor-mal telephone conversation.  These types of mobile phones are of concern because of the short distance between the phone's antenna - the primary source of the RF - and the person's head.  The exposure to RF from mobile phones in which the antenna is located at greater distances from the user (on the outside of a car, for example) is drastically lower than that from hand-held phones, because a person's RF exposure decreases rapidly with distance from the source.  The safety of so-called "cordless phones," which have a base unit connected to the telephone wiring in a house and which operate at far lower power levels and frequencies, has not been questioned.

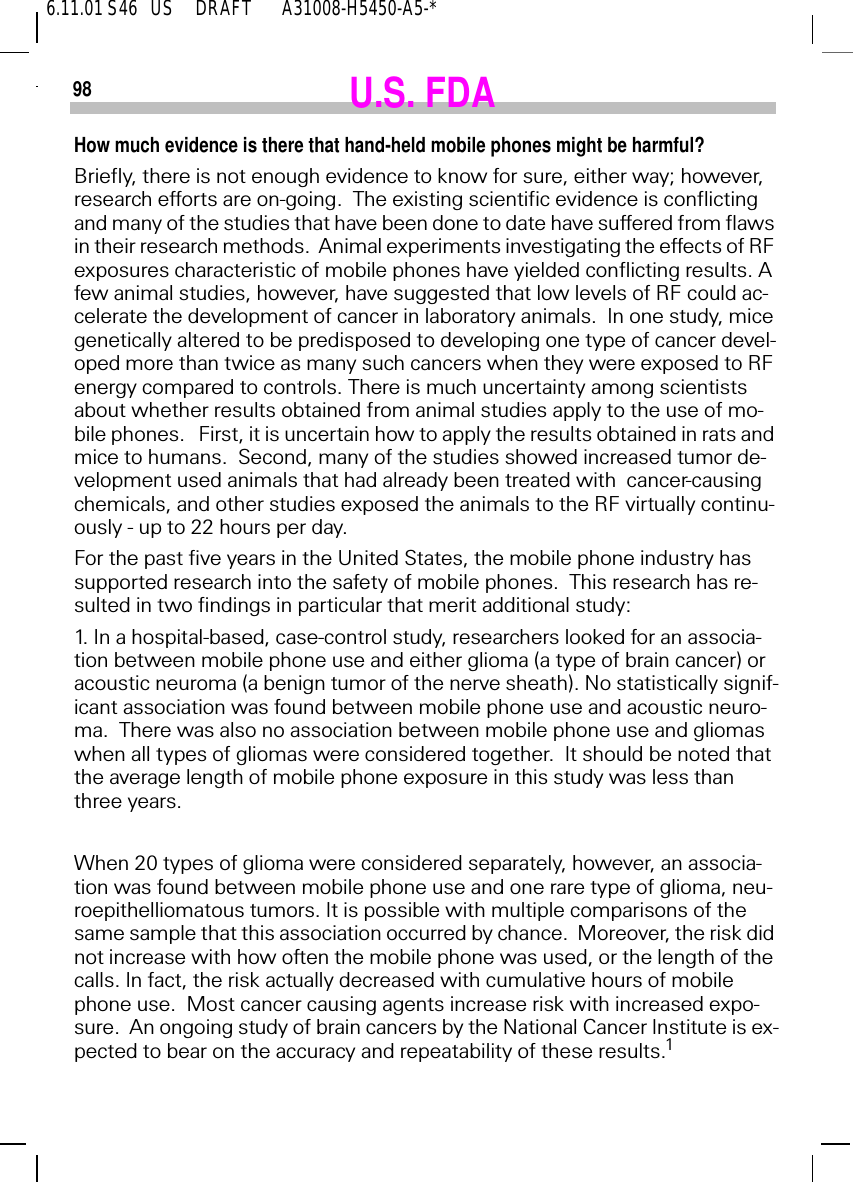

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*98 U.S. FDAHow much evidence is there that hand-held mobile phones might be harmful?Briefly, there is not enough evidence to know for sure, either way; however, research efforts are on-going.  The existing scientific evidence is conflicting and many of the studies that have been done to date have suffered from flaws in their research methods.  Animal experiments investigating the effects of RF exposures characteristic of mobile phones have yielded conflicting results. A few animal studies, however, have suggested that low levels of RF could ac-celerate the development of cancer in laboratory animals.  In one study, mice genetically altered to be predisposed to developing one type of cancer devel-oped more than twice as many such cancers when they were exposed to RF energy compared to controls. There is much uncertainty among scientists about whether results obtained from animal studies apply to the use of mo-bile phones.   First, it is uncertain how to apply the results obtained in rats and mice to humans.  Second, many of the studies showed increased tumor de-velopment used animals that had already been treated with  cancer-causing chemicals, and other studies exposed the animals to the RF virtually continu-ously - up to 22 hours per day.For the past five years in the United States, the mobile phone industry has supported research into the safety of mobile phones.  This research has re-sulted in two findings in particular that merit additional study:1. In a hospital-based, case-control study, researchers looked for an associa-tion between mobile phone use and either glioma (a type of brain cancer) or acoustic neuroma (a benign tumor of the nerve sheath). No statistically signif-icant association was found between mobile phone use and acoustic neuro-ma.  There was also no association between mobile phone use and gliomas when all types of gliomas were considered together.  It should be noted that the average length of mobile phone exposure in this study was less than  three years.When 20 types of glioma were considered separately, however, an associa-tion was found between mobile phone use and one rare type of glioma, neu-roepithelliomatous tumors. It is possible with multiple comparisons of the same sample that this association occurred by chance.  Moreover, the risk did not increase with how often the mobile phone was used, or the length of the calls. In fact, the risk actually decreased with cumulative hours of mobile phone use.  Most cancer causing agents increase risk with increased expo-sure.  An ongoing study of brain cancers by the National Cancer Institute is ex-pected to bear on the accuracy and repeatability of these results.1

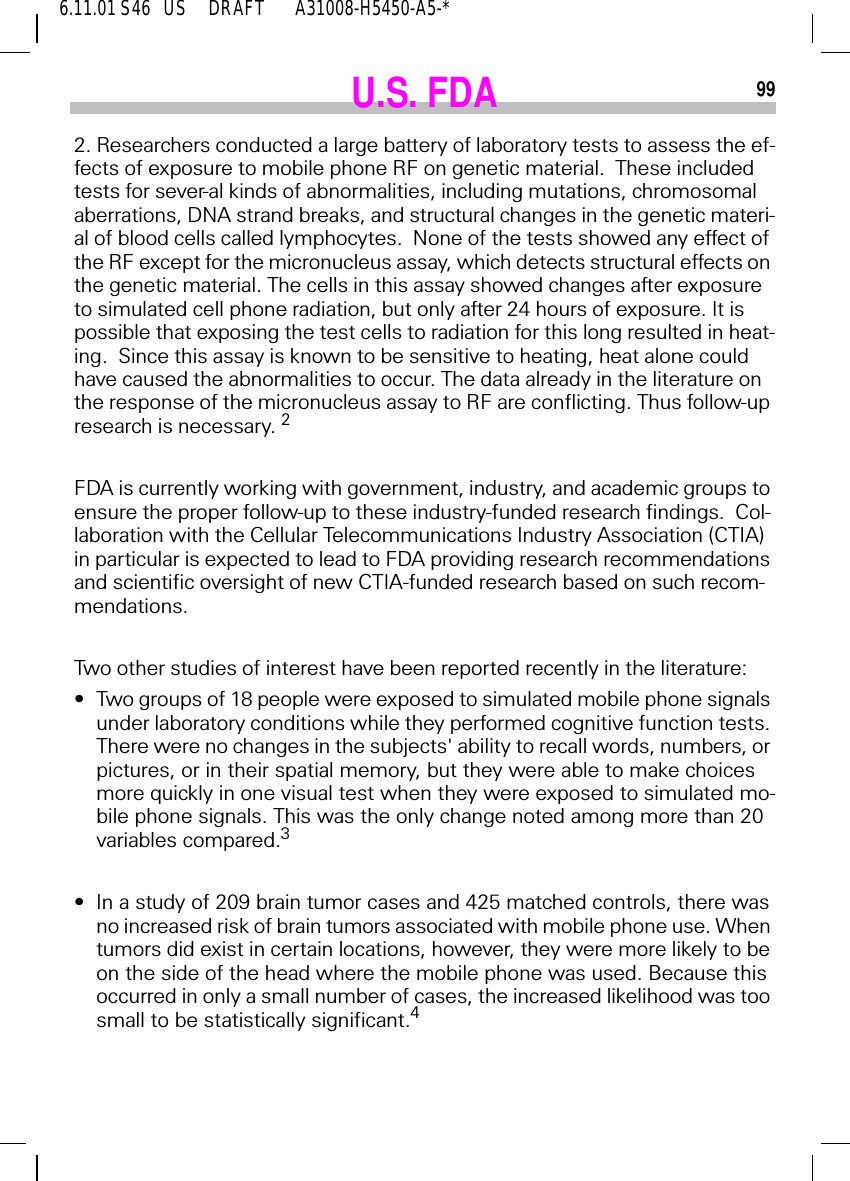

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*99U.S. FDA2. Researchers conducted a large battery of laboratory tests to assess the ef-fects of exposure to mobile phone RF on genetic material.  These included tests for sever-al kinds of abnormalities, including mutations, chromosomal aberrations, DNA strand breaks, and structural changes in the genetic materi-al of blood cells called lymphocytes.  None of the tests showed any effect of the RF except for the micronucleus assay, which detects structural effects on the genetic material. The cells in this assay showed changes after exposure to simulated cell phone radiation, but only after 24 hours of exposure. It is possible that exposing the test cells to radiation for this long resulted in heat-ing.  Since this assay is known to be sensitive to heating, heat alone could have caused the abnormalities to occur. The data already in the literature on the response of the micronucleus assay to RF are conflicting. Thus follow-up research is necessary. 2FDA is currently working with government, industry, and academic groups to ensure the proper follow-up to these industry-funded research findings.  Col-laboration with the Cellular Telecommunications Industry Association (CTIA) in particular is expected to lead to FDA providing research recommendations and scientific oversight of new CTIA-funded research based on such recom-mendations.Two other studies of interest have been reported recently in the literature:•Two groups of 18 people were exposed to simulated mobile phone signals under laboratory conditions while they performed cognitive function tests. There were no changes in the subjects' ability to recall words, numbers, or pictures, or in their spatial memory, but they were able to make choices more quickly in one visual test when they were exposed to simulated mo-bile phone signals. This was the only change noted among more than 20 variables compared.3•In a study of 209 brain tumor cases and 425 matched controls, there was no increased risk of brain tumors associated with mobile phone use. When tumors did exist in certain locations, however, they were more likely to be on the side of the head where the mobile phone was used. Because this occurred in only a small number of cases, the increased likelihood was too small to be statistically significant.4

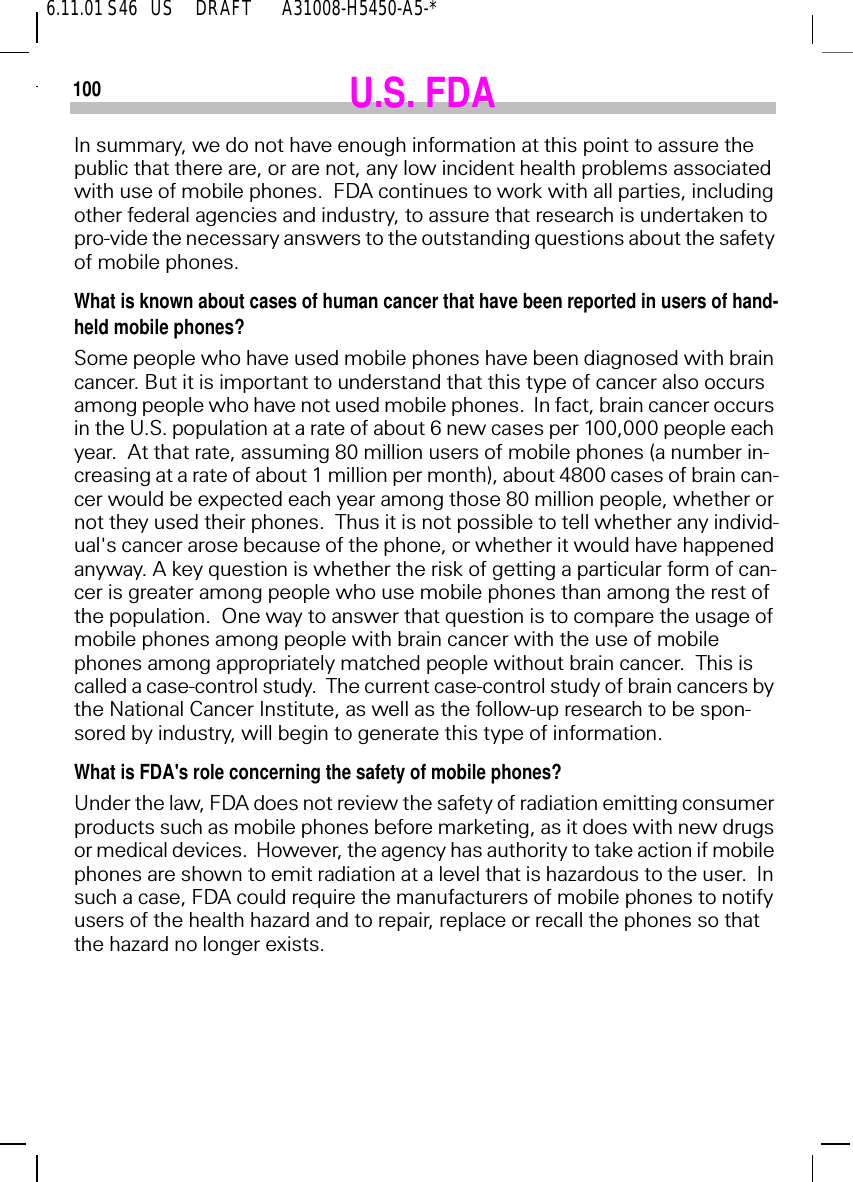

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*100 U.S. FDAIn summary, we do not have enough information at this point to assure the public that there are, or are not, any low incident health problems associated with use of mobile phones.  FDA continues to work with all parties, including other federal agencies and industry, to assure that research is undertaken to pro-vide the necessary answers to the outstanding questions about the safety of mobile phones.What is known about cases of human cancer that have been reported in users of hand-held mobile phones?Some people who have used mobile phones have been diagnosed with brain cancer. But it is important to understand that this type of cancer also occurs among people who have not used mobile phones.  In fact, brain cancer occurs in the U.S. population at a rate of about 6 new cases per 100,000 people each year.  At that rate, assuming 80 million users of mobile phones (a number in-creasing at a rate of about 1 million per month), about 4800 cases of brain can-cer would be expected each year among those 80 million people, whether or not they used their phones.  Thus it is not possible to tell whether any individ-ual's cancer arose because of the phone, or whether it would have happened anyway. A key question is whether the risk of getting a particular form of can-cer is greater among people who use mobile phones than among the rest of the population.  One way to answer that question is to compare the usage of mobile phones among people with brain cancer with the use of mobile phones among appropriately matched people without brain cancer.  This is called a case-control study.  The current case-control study of brain cancers by the National Cancer Institute, as well as the follow-up research to be spon-sored by industry, will begin to generate this type of information.What is FDA's role concerning the safety of mobile phones?Under the law, FDA does not review the safety of radiation emitting consumer products such as mobile phones before marketing, as it does with new drugs or medical devices.  However, the agency has authority to take action if mobile phones are shown to emit radiation at a level that is hazardous to the user.  In such a case, FDA could require the manufacturers of mobile phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.

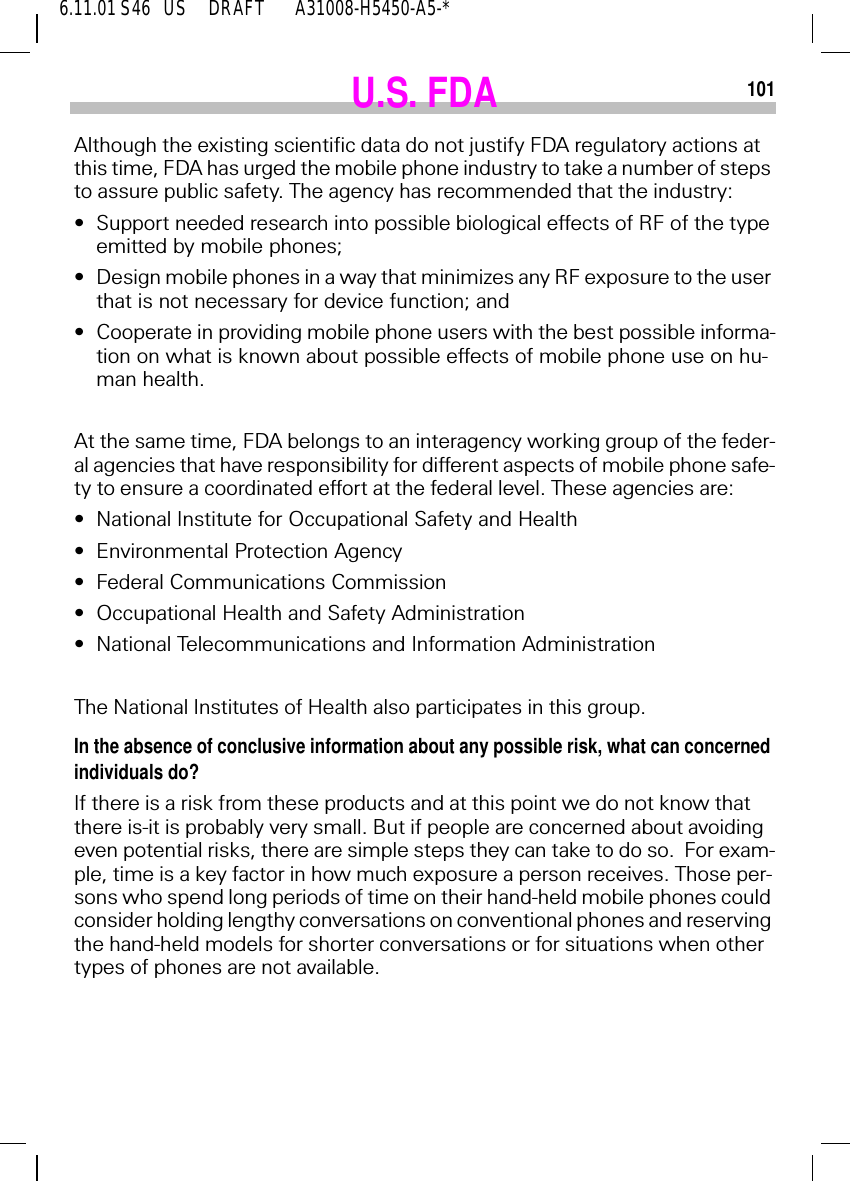

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*101U.S. FDAAlthough the existing scientific data do not justify FDA regulatory actions at this time, FDA has urged the mobile phone industry to take a number of steps to assure public safety. The agency has recommended that the industry:•Support needed research into possible biological effects of RF of the type emitted by mobile phones;•Design mobile phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and•Cooperate in providing mobile phone users with the best possible informa-tion on what is known about possible effects of mobile phone use on hu-man health.At the same time, FDA belongs to an interagency working group of the feder-al agencies that have responsibility for different aspects of mobile phone safe-ty to ensure a coordinated effort at the federal level. These agencies are:•National Institute for Occupational Safety and Health•Environmental Protection Agency•Federal Communications Commission•Occupational Health and Safety Administration•National Telecommunications and Information AdministrationThe National Institutes of Health also participates in this group.In the absence of conclusive information about any possible risk, what can concerned individuals do?If there is a risk from these products and at this point we do not know that there is-it is probably very small. But if people are concerned about avoiding even potential risks, there are simple steps they can take to do so.  For exam-ple, time is a key factor in how much exposure a person receives. Those per-sons who spend long periods of time on their hand-held mobile phones could consider holding lengthy conversations on conventional phones and reserving the hand-held models for shorter conversations or for situations when other types of phones are not available.

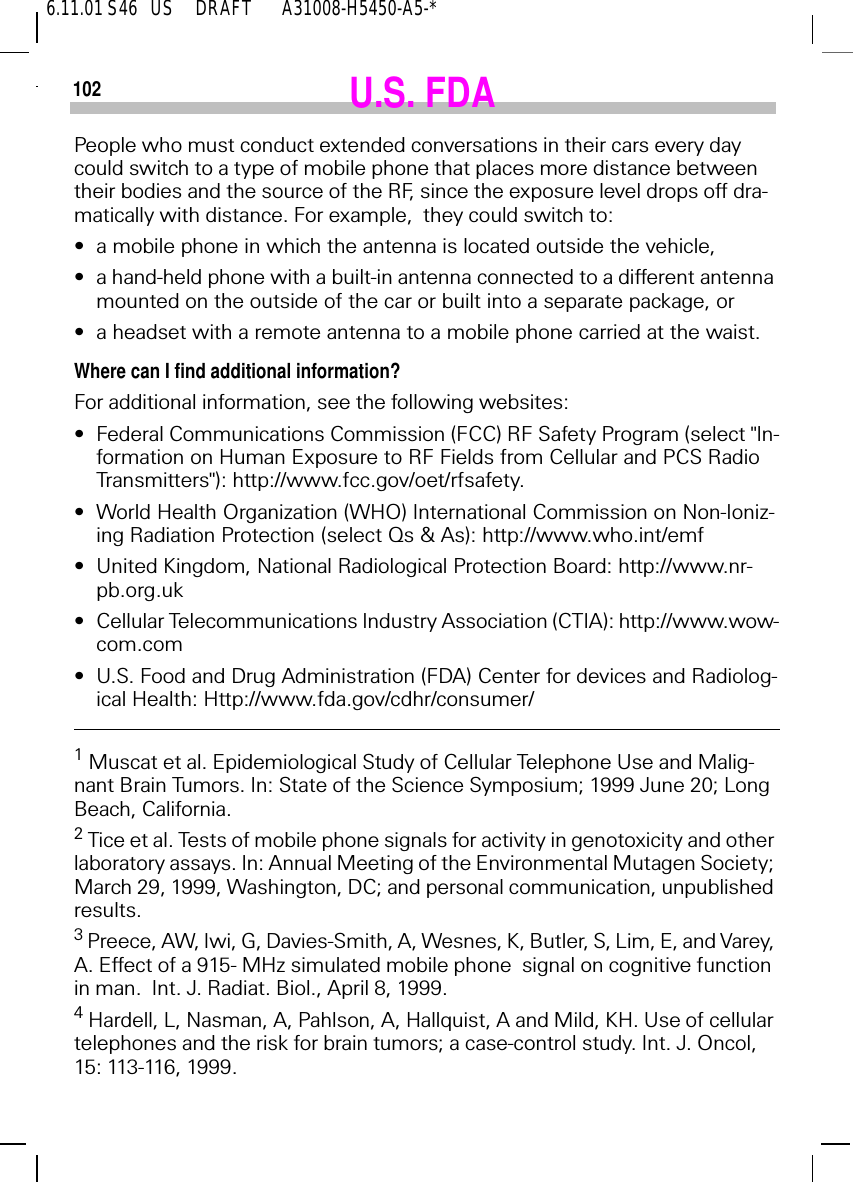

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*102 U.S. FDAPeople who must conduct extended conversations in their cars every day could switch to a type of mobile phone that places more distance between their bodies and the source of the RF, since the exposure level drops off dra-matically with distance. For example,  they could switch to:•a mobile phone in which the antenna is located outside the vehicle,•a hand-held phone with a built-in antenna connected to a different antenna mounted on the outside of the car or built into a separate package, or•a headset with a remote antenna to a mobile phone carried at the waist.Where can I find additional information?For additional information, see the following websites:•Federal Communications Commission (FCC) RF Safety Program (select "In-formation on Human Exposure to RF Fields from Cellular and PCS Radio Transmitters"): http://www.fcc.gov/oet/rfsafety.•World Health Organization (WHO) International Commission on Non-Ioniz-ing Radiation Protection (select Qs & As): http://www.who.int/emf•United Kingdom, National Radiological Protection Board: http://www.nr-pb.org.uk•Cellular Telecommunications Industry Association (CTIA): http://www.wow-com.com•U.S. Food and Drug Administration (FDA) Center for devices and Radiolog-ical Health: Http://www.fda.gov/cdhr/consumer/1 Muscat et al. Epidemiological Study of Cellular Telephone Use and Malig-nant Brain Tumors. In: State of the Science Symposium; 1999 June 20; Long Beach, California.2 Tice et al. Tests of mobile phone signals for activity in genotoxicity and other laboratory assays. In: Annual Meeting of the Environmental Mutagen Society; March 29, 1999, Washington, DC; and personal communication, unpublished results.3 Preece, AW, Iwi, G, Davies-Smith, A, Wesnes, K, Butler, S, Lim, E, and Varey, A. Effect of a 915- MHz simulated mobile phone  signal on cognitive function in man.  Int. J. Radiat. Biol., April 8, 1999.4 Hardell, L, Nasman, A, Pahlson, A, Hallquist, A and Mild, KH. Use of cellular telephones and the risk for brain tumors; a case-control study. Int. J. Oncol, 15: 113-116, 1999.

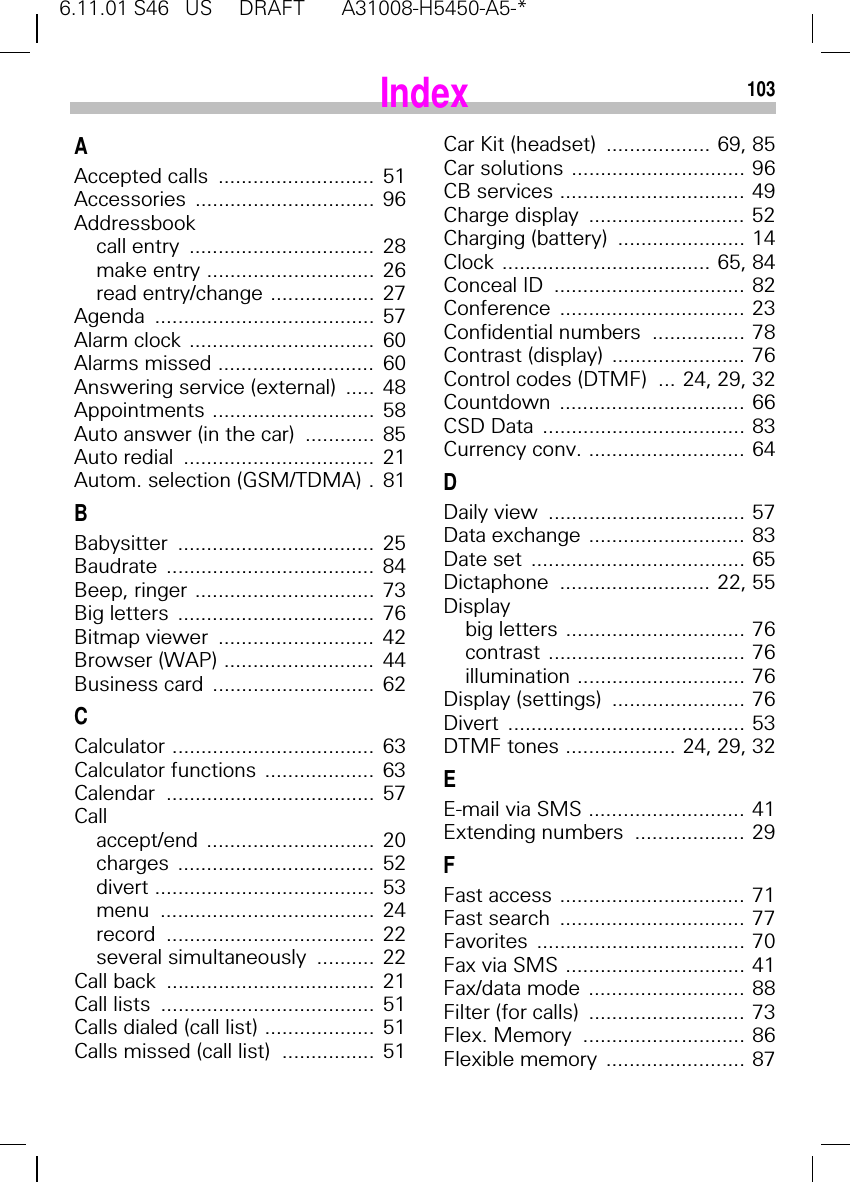

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*103AAccepted calls  ...........................  51Accessories ...............................  96Addressbookcall entry  ................................  28make entry .............................  26read entry/change ..................  27Agenda ......................................  57Alarm clock ................................  60Alarms missed ...........................  60Answering service (external)  .....  48Appointments ............................  58Auto answer (in the car)  ............  85Auto redial  .................................  21Autom. selection (GSM/TDMA) .  81BBabysitter ..................................  25Baudrate ....................................  84Beep, ringer ...............................  73Big letters  ..................................  76Bitmap viewer  ...........................  42Browser (WAP) ..........................  44Business card  ............................  62CCalculator ...................................  63Calculator functions ...................  63Calendar ....................................  57Callaccept/end .............................  20charges ..................................  52divert ......................................  53menu .....................................  24record ....................................  22several simultaneously  ..........  22Call back  ....................................  21Call lists  .....................................  51Calls dialed (call list) ...................  51Calls missed (call list)  ................  51Car Kit (headset)  .................. 69, 85Car solutions .............................. 96CB services ................................ 49Charge display  ........................... 52Charging (battery)  ...................... 14Clock .................................... 65, 84Conceal ID  ................................. 82Conference ................................ 23Confidential numbers  ................ 78Contrast (display)  ....................... 76Control codes (DTMF)  ... 24, 29, 32Countdown ................................ 66CSD Data  ................................... 83Currency conv. ........................... 64DDaily view  .................................. 57Data exchange ........................... 83Date set  ..................................... 65Dictaphone  .......................... 22, 55Displaybig letters ............................... 76contrast .................................. 76illumination ............................. 76Display (settings)  ....................... 76Divert ......................................... 53DTMF tones ................... 24, 29, 32EE-mail via SMS ........................... 41Extending numbers  ................... 29FFast access ................................ 71Fast search  ................................ 77Favorites .................................... 70Fax via SMS ............................... 41Fax/data mode  ........................... 88Filter (for calls)  ........................... 73Flex. Memory  ............................ 86Flexible memory  ........................ 87Index

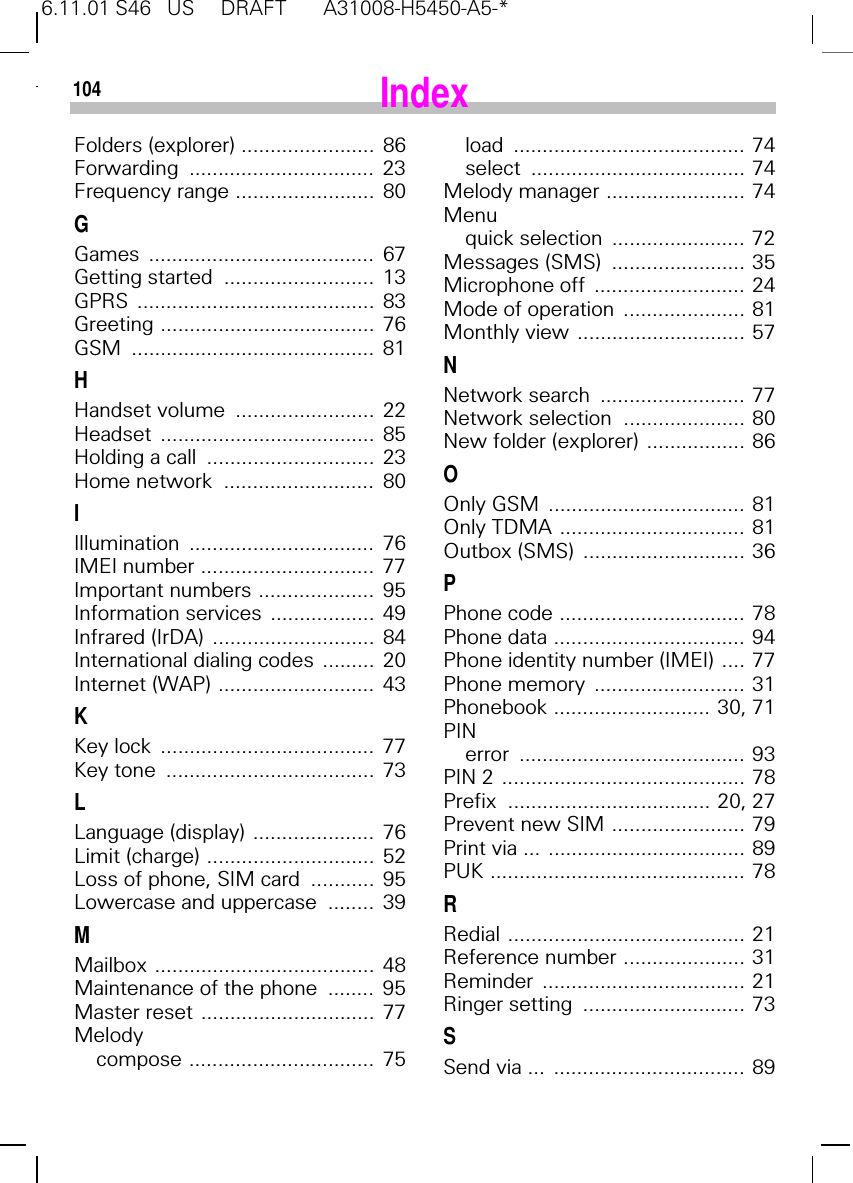

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*104Folders (explorer) .......................  86Forwarding ................................  23Frequency range ........................  80GGames .......................................  67Getting started  ..........................  13GPRS .........................................  83Greeting .....................................  76GSM ..........................................  81HHandset volume  ........................  22Headset .....................................  85Holding a call  .............................  23Home network  ..........................  80IIllumination ................................  76IMEI number ..............................  77Important numbers ....................  95Information services  ..................  49Infrared (IrDA)  ............................  84International dialing codes  .........  20Internet (WAP) ...........................  43KKey lock  .....................................  77Key tone  ....................................  73LLanguage (display) .....................  76Limit (charge) .............................  52Loss of phone, SIM card  ...........  95Lowercase and uppercase  ........  39MMailbox ......................................  48Maintenance of the phone  ........  95Master reset ..............................  77Melodycompose ................................  75load ........................................ 74select ..................................... 74Melody manager ........................ 74Menuquick selection  ....................... 72Messages (SMS)  ....................... 35Microphone off  .......................... 24Mode of operation  ..................... 81Monthly view ............................. 57NNetwork search  ......................... 77Network selection  ..................... 80New folder (explorer) ................. 86OOnly GSM  .................................. 81Only TDMA ................................ 81Outbox (SMS)  ............................ 36PPhone code ................................ 78Phone data ................................. 94Phone identity number (IMEI) .... 77Phone memory  .......................... 31Phonebook ........................... 30, 71PINerror ....................................... 93PIN 2 .......................................... 78Prefix  ................................... 20, 27Prevent new SIM ....................... 79Print via ... .................................. 89PUK ............................................ 78RRedial ......................................... 21Reference number ..................... 31Reminder ................................... 21Ringer setting  ............................ 73SSend via ...  ................................. 89Index

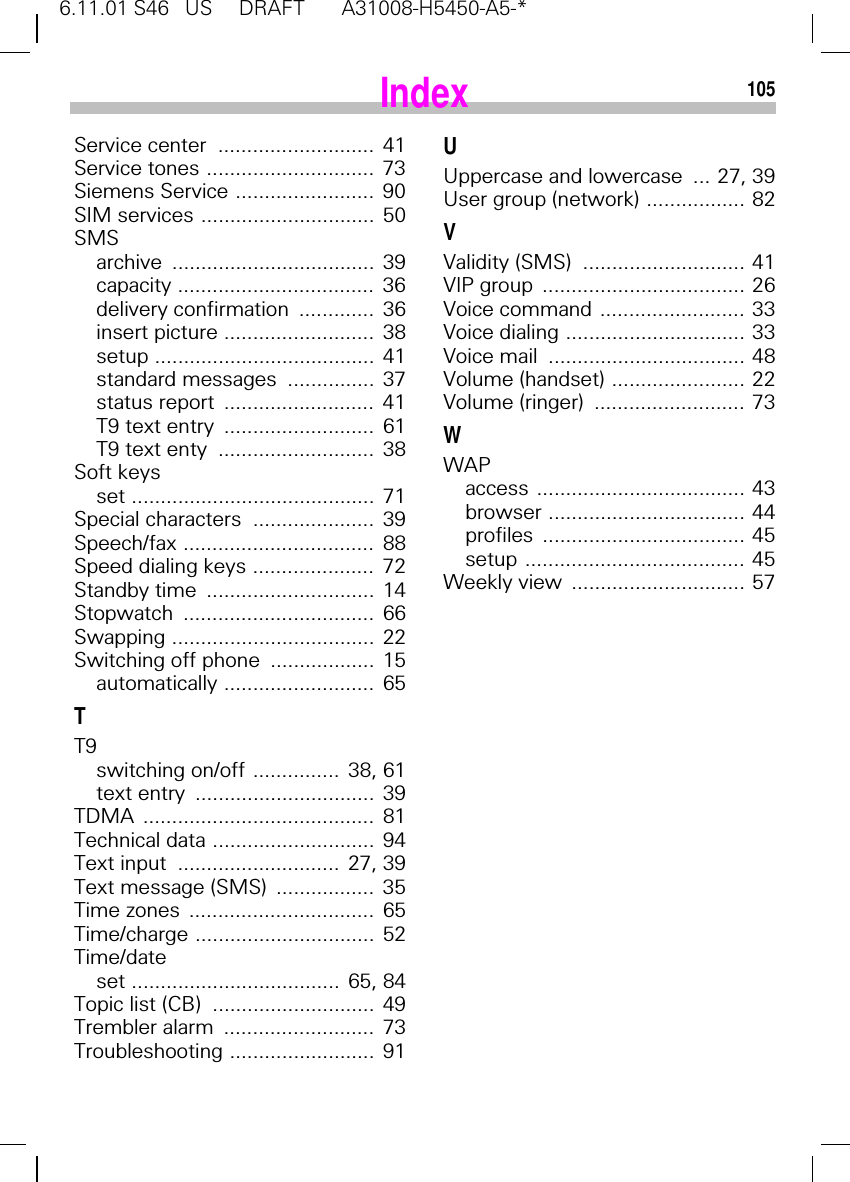

6.11.01 S46   US     DRAFT       A31008-H5450-A5-*105Service center  ...........................  41Service tones .............................  73Siemens Service ........................  90SIM services ..............................  50SMSarchive ...................................  39capacity ..................................  36delivery confirmation  .............  36insert picture ..........................  38setup ......................................  41standard messages  ...............  37status report  ..........................  41T9 text entry  ..........................  61T9 text enty  ...........................  38Soft keysset ..........................................  71Special characters  .....................  39Speech/fax .................................  88Speed dialing keys .....................  72Standby time  .............................  14Stopwatch .................................  66Swapping ...................................  22Switching off phone  ..................  15automatically ..........................  65TT9switching on/off ...............  38, 61text entry  ...............................  39TDMA ........................................  81Technical data ............................  94Text input  ............................  27, 39Text message (SMS)  .................  35Time zones  ................................  65Time/charge ...............................  52Time/dateset ....................................  65, 84Topic list (CB)  ............................  49Trembler alarm  ..........................  73Troubleshooting .........................  91UUppercase and lowercase  ... 27, 39User group (network) ................. 82VValidity (SMS)  ............................ 41VIP group  ................................... 26Voice command ......................... 33Voice dialing ............................... 33Voice mail  .................................. 48Volume (handset) ....................... 22Volume (ringer)  .......................... 73WWAPaccess .................................... 43browser .................................. 44profiles ................................... 45setup ...................................... 45Weekly view  .............................. 57Index
