Benq EF91 Multi Band Flip Phone with Bluetooth User Manual SafetyInfo

Benq Corporation Multi Band Flip Phone with Bluetooth SafetyInfo

UserManual.wiki >

EF91 User Manual

Manual

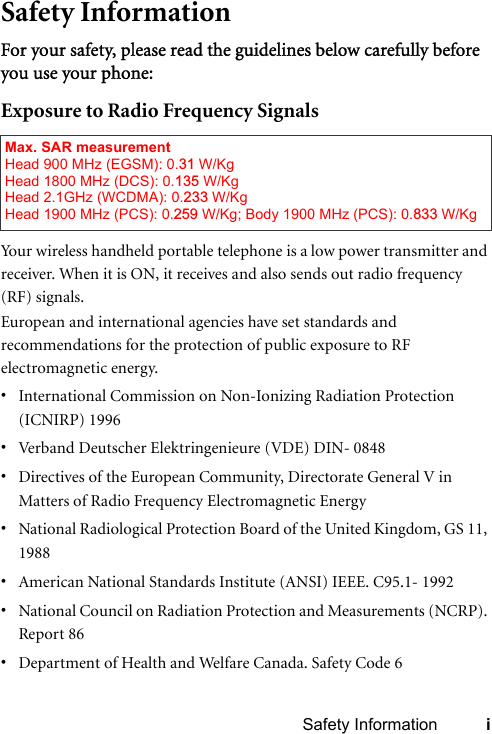

Safety Information iSafety InformationFor your safety, please read the guidelines below carefully before you use your phone:Exposure to Radio Frequency SignalsYour wireless handheld portable telephone is a low power transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.European and international agencies have set standards and recommendations for the protection of public exposure to RF electromagnetic energy.•International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996•Verband Deutscher Elektringenieure (VDE) DIN- 0848•Directives of the European Community, Directorate General V in Matters of Radio Frequency Electromagnetic Energy•National Radiological Protection Board of the United Kingdom, GS 11, 1988•American National Standards Institute (ANSI) IEEE. C95.1- 1992•National Council on Radiation Protection and Measurements (NCRP). Report 86•Department of Health and Welfare Canada. Safety Code 6Max. SAR measurementHead 900 MHz (EGSM): 0.31 W/KgHead 1800 MHz (DCS): 0.135 W/KgHead 2.1GHz (WCDMA): 0.233 W/KgHead 1900 MHz (PCS): 0.259 W/Kg; Body 1900 MHz (PCS): 0.833 W/Kg

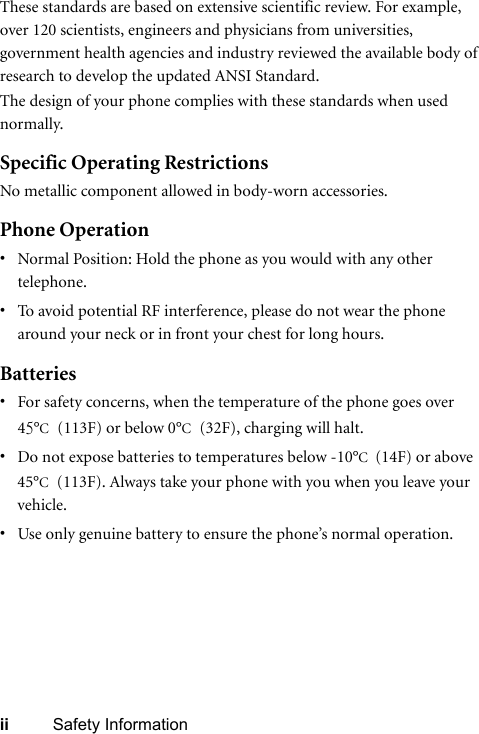

ii Safety InformationThese standards are based on extensive scientific review. For example, over 120 scientists, engineers and physicians from universities, government health agencies and industry reviewed the available body of research to develop the updated ANSI Standard.The design of your phone complies with these standards when used normally.Specific Operating RestrictionsNo metallic component allowed in body-worn accessories.Phone Operation•Normal Position: Hold the phone as you would with any other telephone.•To avoid potential RF interference, please do not wear the phone around your neck or in front your chest for long hours.Batteries•For safety concerns, when the temperature of the phone goes over 45°C (113F) or below 0°C (32F), charging will halt. •Do not expose batteries to temperatures below -10°C (14F) or above 45°C (113F). Always take your phone with you when you leave your vehicle.•Use only genuine battery to ensure the phone’s normal operation.

Safety Information iiiAll batteries can cause property damage, injury or burns if a conductive material such as jewelry, keys or beaded chains touches exposed terminals. The material may complete electrical circuit and become quite hot. To protect against such unwanted current drain, exercise care in handling any charged battery, particularly when placing it inside your pocket, purse or other container with metal objects. When battery is detached from the phone, your batteries are packed with a protective battery cover; please use this cover for storing your batteries when not in use.DrivingCheck the laws and regulations on the use of wireless telephones in the areas where you drive. Always obey them. Also, if using your phone while driving, please:•Give full attention to driving--driving safety is your first responsibility.•Use hands-free operation, if available.•Pull off the road and park before making or answering a call if driving conditions so require.Electronic DevicesMost modern electronic equipment is shielded from RF signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone.PacemakersThe Health Industry Manufacturers Association recommends that a minimum separation of six (6") inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research.Persons with pacemakers:

iv Safety Information•Should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned ON.•Should not carry the phone in a breast pocket.•Should use the ear opposite the pacemaker to minimize the potential for interference.If you have any reason to suspect that the interference is taking place, turn your phone OFF immediately.Hearing AidsSome digital wireless phones may interfere with some hearing aids. In the event of such interference you may want to consult your hearing aid manufacturer to discuss alternatives.Other Medical DevicesIf you use any other personal medical device, consult the manufacturer of your device to determine if they are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information.Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesTurn your phone OFF in any facility where posted notice so requires.

Safety Information vAircraftFCC regulations prohibit using your phone while in the air. Switch OFF your phone before boarding an aircraft.Blasting AreasTo avoid interfering with blasting operations, turn your phone OFF when in a “blasting area” or in area posted “TURN OFF TWO-WAY RADIO.” Obey all signs and instructions.Potentially Explosive AtmospheresTurn your phone OFF and do not remove the battery when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks, from your battery, in such areas could cause an explosion or fire resulting in bodily injury or even death.Areas with a potentially explosive atmosphere are often, but not always clearly marked. They include fueling areas such as gasoline stations; below deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such as propane or butane); areas where the air contains chemicals or particles, such as grain, dust, or metal powders; and any other area where you would normally be advised to turn off your vehicle engine.For Vehicles Equipped with an Air BagAn air bag inflates with great force. DO NOT place objects, including both installed or portable wireless equipment, in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.

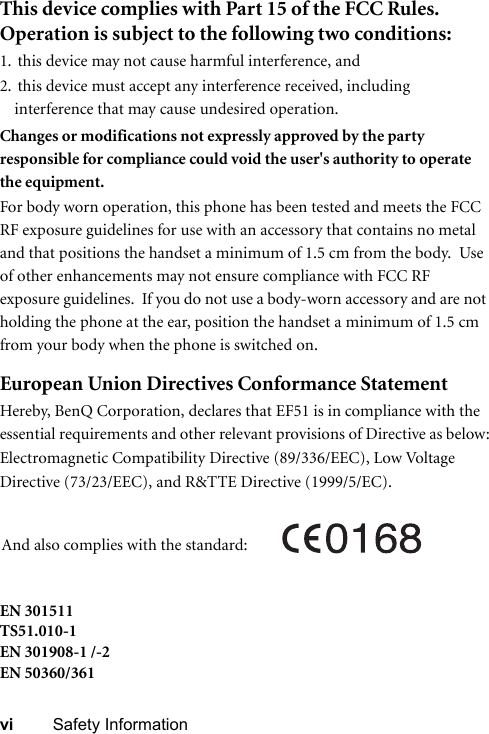

vi Safety InformationThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. this device may not cause harmful interference, and2. this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other enhancements may not ensure compliance with FCC RF exposure guidelines. If you do not use a body-worn accessory and are not holding the phone at the ear, position the handset a minimum of 1.5 cm from your body when the phone is switched on.European Union Directives Conformance StatementHereby, BenQ Corporation, declares that EF51 is in compliance with the essential requirements and other relevant provisions of Directive as below:EN 301511TS51.010-1EN 301908-1 /-2EN 50360/361Electromagnetic Compatibility Directive (89/336/EEC), Low Voltage Directive (73/23/EEC), and R&TTE Directive (1999/5/EC).And also complies with the standard:

Safety Information viiEN 60950-1EN 301489-1&-7EN 301489-1&-24EN 301489-1&-17EN55022EN55024EN300328Permanent hearing loss may occur if you use ear- or head-phones at high volume. You can adapt over time to a higher volume, which may sound normal but can be damaging to your hearing. Set your volume to a safe level. If you experience ringing in your ears, reduce the volume or discontinue use of your system.Dispose of unwanted batteries and phones as permitted by the laws in your countries.

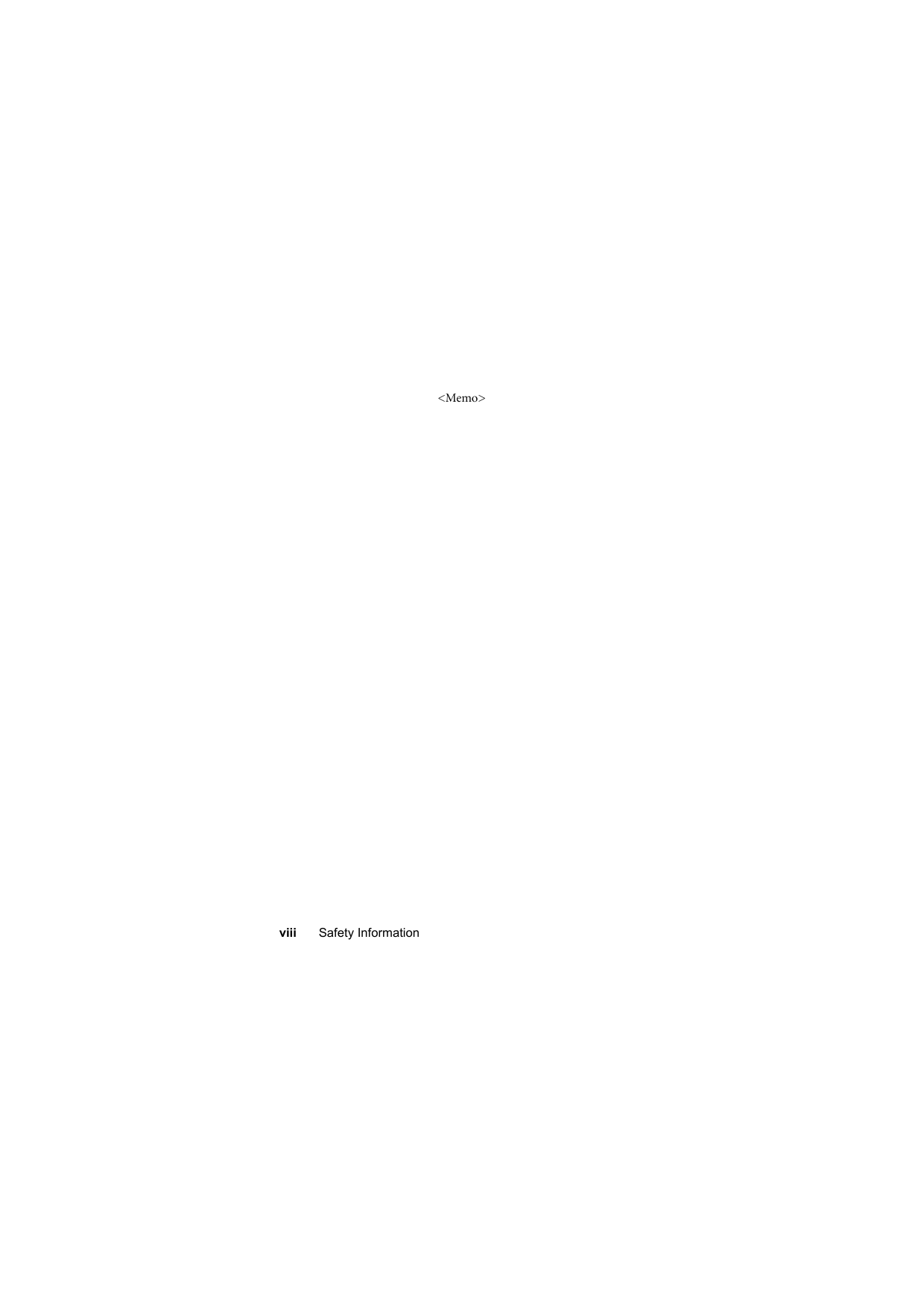

viii Safety Information<Memo>

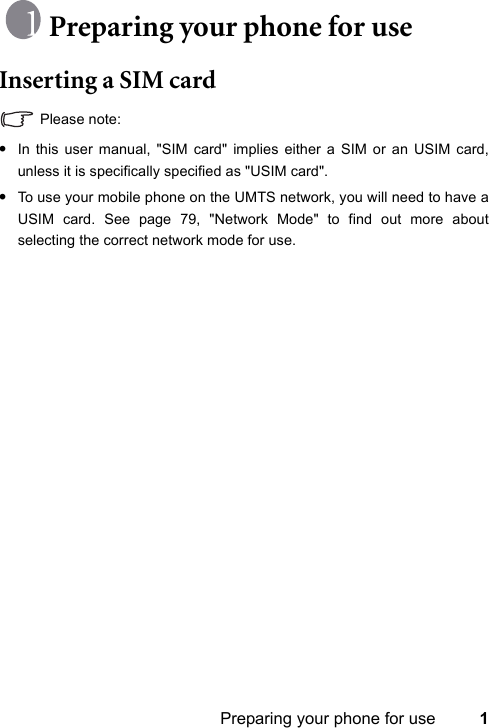

Preparing your phone for use 1Preparing your phone for useInserting a SIM cardPlease note:•In this user manual, "SIM card" implies either a SIM or an USIM card,unless it is specifically specified as "USIM card".•To use your mobile phone on the UMTS network, you will need to have aUSIM card. See page 79, "Network Mode" to find out more aboutselecting the correct network mode for use.

2Preparing your phone for use1. Insert the SIM card into the SIM card slot with its metal contactsfacing downwards and the cut corner at the bottom right. To remove the SIM card, you must first press down the locking tab,then push the SIM card out of the slot.A SIM card can be easily damaged if its metal contacts becomescratched. Therefore, take special care when holding or inserting it.SIM card SIM card Locking tab

Preparing your phone for use 3Installing the batteryWith the battery's metal contacts facing downwards, align theprotruding tabs on the end with the holes in the battery bay. Then pushthe battery toward the end of the bay to insert the battery's tabs into theholes. Press down to click the battery into place. Do not remove the battery when the phone is on. Doing so couldcause you to lose personal settings or data stored either on your SIMcard or in the phone's memory.

4Preparing your phone for useCharging the phone1. Insert the charger connector fully into the charger socket on theupper-left side of the phone..2. Plug the charger into a power outlet.3. Once the phone is fully charged, remove the charger from both thepower outlet and the phone.Please note:•It takes approximately 4 hours to fully charge a battery.•When the battery is weak, the phone will play an alert sound.•When the battery is discharged, the charging may not start immediatelywhen you plug in the connector. Wait 10 to 15 minutes for the phone tobegin charging.Do not remove the battery while the phone is charging.

Preparing your phone for use 5Turning the phone on1. Press and hold to turn the phone on. The phone will display thewelcome animation.2. Enter your PIN and press to confirm.The PIN (Personal Identification Number) is the password providedby your network operator. You need this password in order to useyour SIM card. To activate/disable PIN authentication, go to Settings > PhoneSettings > Security > PIN Code > PIN1 Code. See page 73. 3. When the PIN entered has been accepted, the phone willautomatically search for the designated network. This search processmay take a few seconds.4. The idle screen will be displayed as well as network signal strengthand the name of your network operator. You can now use the phone.If the phone is not able to detect the designated network or links to anetwork that you are not authorized to use, the signal strength meterwill show no bars. You will only be able to make emergency calls.If you enter the PIN incorrectly three times in a row, the SIM card willbe locked. You must now enter the PUK (Personal Unblocking Key)for that SIM card in order to unlock it. Please contact your networkoperator to obtain a PUK.

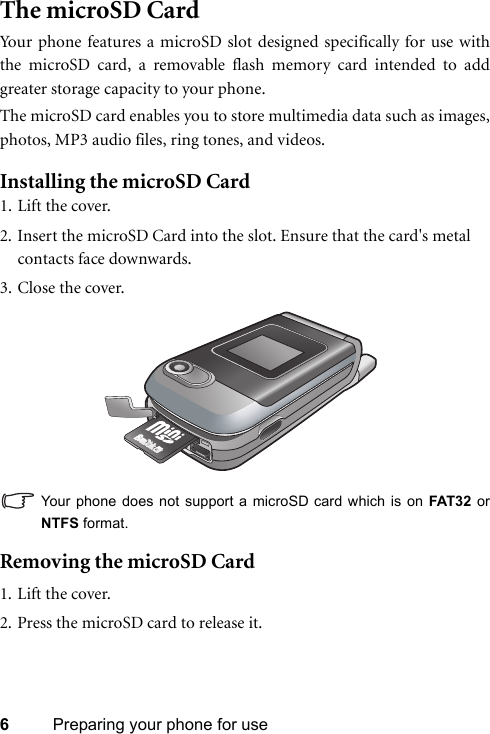

6Preparing your phone for useThe microSD CardYour phone features a microSD slot designed specifically for use withthe microSD card, a removable flash memory card intended to addgreater storage capacity to your phone.The microSD card enables you to store multimedia data such as images,photos, MP3 audio files, ring tones, and videos.Installing the microSD Card Your phone does not support a microSD card which is on FAT32 orNTFS format.Removing the microSD Card1. Lift the cover.2. Press the microSD card to release it.1. Lift the cover.2. Insert the microSD Card into the slot. Ensure that the card's metal contacts face downwards.3. Close the cover.

Getting to know your phone 7Getting to know your phoneYour phone at a glanceFront and side views To view what is behind the rubber cover, lift the cover and twist it to theleft. Infrared portRubber coverAntennaExternal displayFront Camera Camera flashCharger socketmicroSD slotHands-free headset / Data cable jack

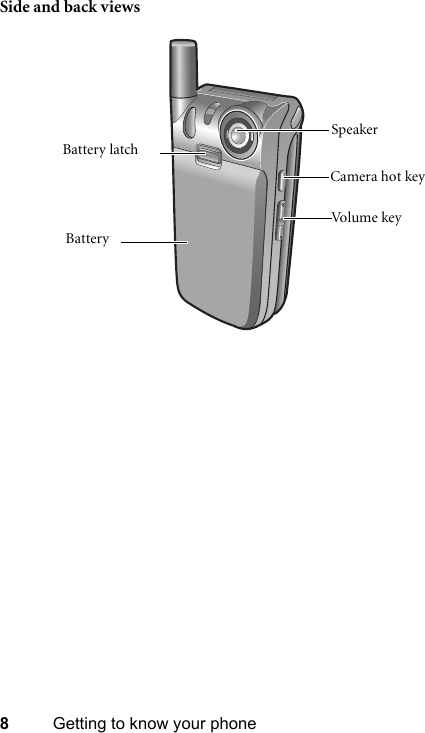

8Getting to know your phoneSide and back views SpeakerBatteryBattery latchCamera hot keyVol u m e ke y

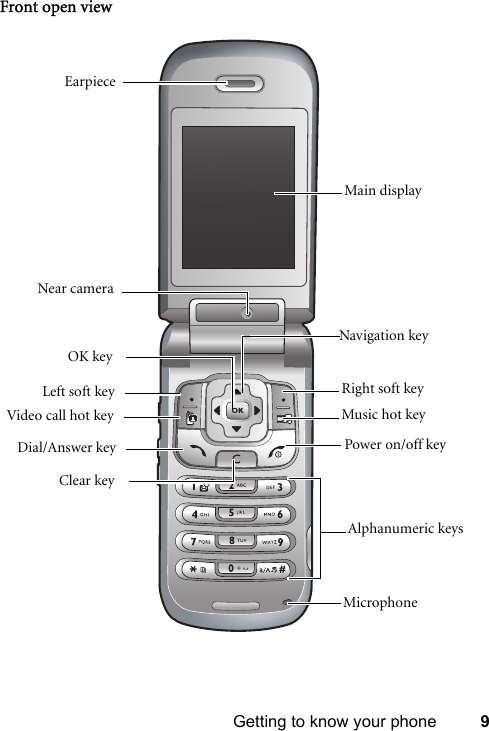

Getting to know your phone 9Front open view EarpieceMain displayRight soft keyOK keyDial/Answer keyAlphanumeric keysPower on/off keyLeft soft keyMicrophoneVideo call hot key Music hot keyClear keyNavigation keyNear camera

10 Getting to know your phoneExternal displayWhen the flip is closed, the external display's status bar will show iconsfor network strength, battery power, the current time and the currentprofile in use. The external display will also alert you to incoming calls,new messages and missed calls.Idle screen •To set the wallpaper of the display, go to Settings > DisplaySettings > Wallpaper. Alternatively, you can go to My Files >Pictures. See page 58 and page 74.•To set the current time and date, as well as the format to beshown, go to Settings > Phone Settings > Date & Time. Seepage 71.Status barName of network operatorPress to enter the indicated function.Press to enter the main menu.Press to connect theindicated function.

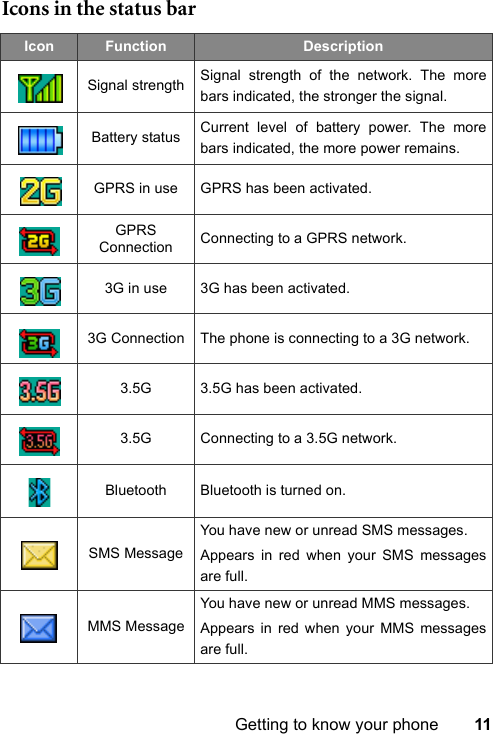

Getting to know your phone 11Icons in the status bar Icon Function DescriptionSignal strength Signal strength of the network. The morebars indicated, the stronger the signal.Battery status Current level of battery power. The morebars indicated, the more power remains.GPRS in use GPRS has been activated.GPRS Connection Connecting to a GPRS network.3G in use 3G has been activated.3G Connection The phone is connecting to a 3G network.3.5G 3.5G has been activated.3.5G Connecting to a 3.5G network.Bluetooth Bluetooth is turned on.SMS MessageYou have new or unread SMS messages.Appears in red when your SMS messagesare full.MMS MessageYou have new or unread MMS messages.Appears in red when your MMS messagesare full.

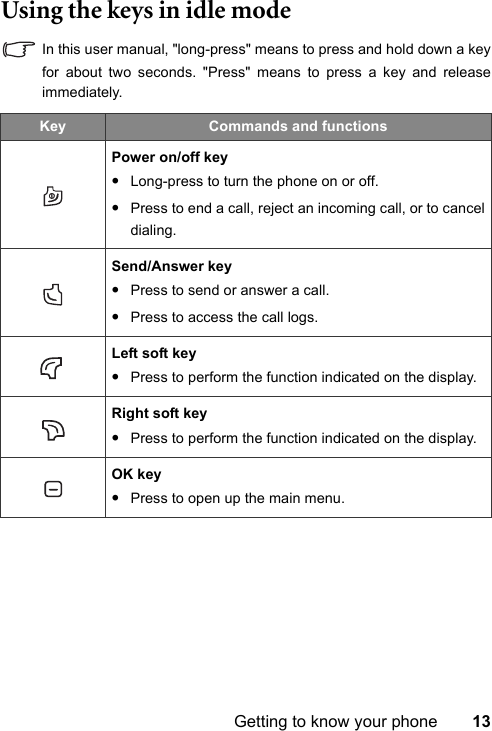

Getting to know your phone 13Using the keys in idle modeIn this user manual, "long-press" means to press and hold down a keyfor about two seconds. "Press" means to press a key and releaseimmediately. Key Commands and functionsPower on/off key•Long-press to turn the phone on or off.•Press to end a call, reject an incoming call, or to canceldialing.Send/Answer key•Press to send or answer a call.•Press to access the call logs.Left soft key•Press to perform the function indicated on the display.Right soft key•Press to perform the function indicated on the display.OK key•Press to open up the main menu.

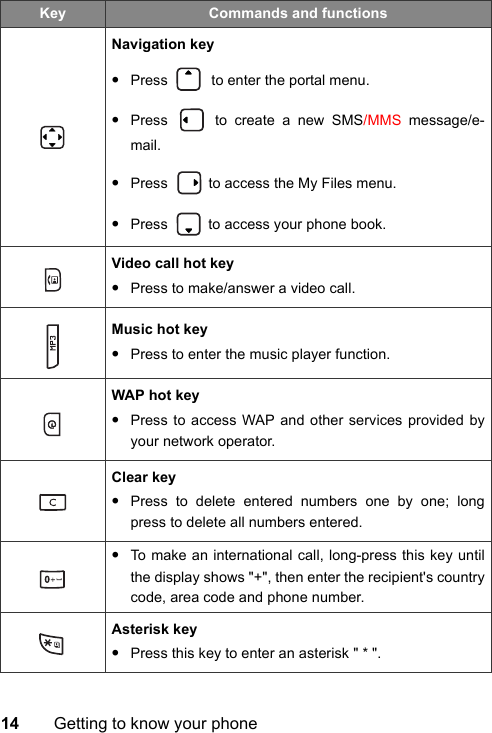

14 Getting to know your phoneNavigation key•Press to enter the portal menu.•Press to create a new SMS/MMS message/e-mail.•Press to access the My Files menu.•Press to access your phone book.Video call hot key•Press to make/answer a video call.Music hot key•Press to enter the music player function.WAP hot key•Press to access WAP and other services provided byyour network operator.Clear key•Press to delete entered numbers one by one; longpress to delete all numbers entered.•To make an international call, long-press this key untilthe display shows "+", then enter the recipient's countrycode, area code and phone number.Asterisk key•Press this key to enter an asterisk " * ".Key Commands and functions

16 Getting to know your phone2. Use to scroll to the Settings menu's icon, for example, thenpress or (Select) to enter its menu.3. Use to scroll to the desired submenu Phone Settings, forexample, then press or (Select) to enter the submenu.4. To return to the idle screen, press (Back) the appropriatenumber of times, or press once.

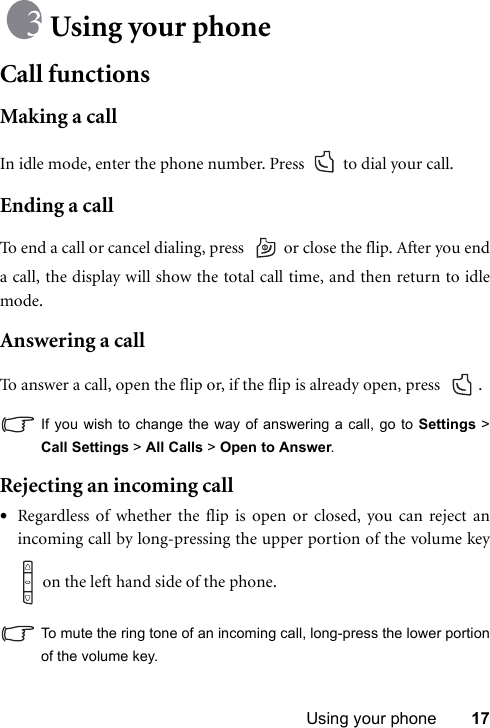

Using your phone 17Using your phoneCall functionsMaking a callIn idle mode, enter the phone number. Press to dial your call.Ending a callTo end a call or cancel dialing, press or close the flip. After you enda call, the display will show the total call time, and then return to idlemode.Answering a callTo answer a call, open the flip or, if the flip is already open, press .If you wish to change the way of answering a call, go to Settings >Call Settings > All Calls > Open to Answer.Rejecting an incoming call•Regardless of whether the flip is open or closed, you can reject anincoming call by long-pressing the upper portion of the volume key on the left hand side of the phone.To mute the ring tone of an incoming call, long-press the lower portionof the volume key.

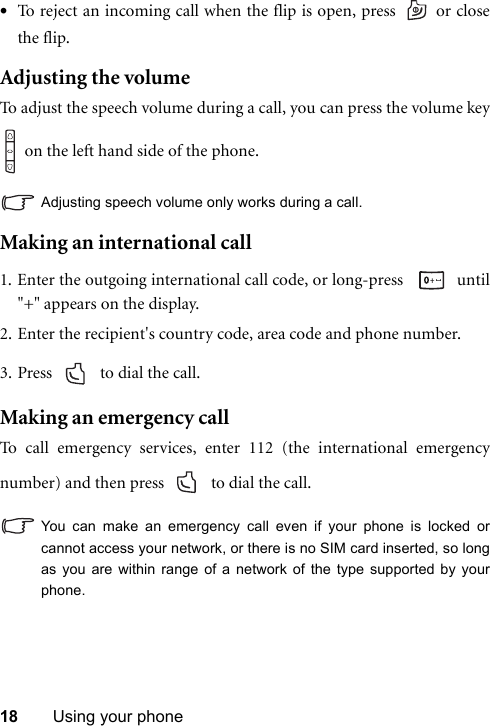

18 Using your phone•To reject an incoming call when the flip is open, press or closethe flip.Adjusting the volumeTo adjust the speech volume during a call, you can press the volume key on the left hand side of the phone.Adjusting speech volume only works during a call.Making an international call1. Enter the outgoing international call code, or long-press until"+" appears on the display.2. Enter the recipient's country code, area code and phone number.3. Press to dial the call.Making an emergency callTo call emergency services, enter 112 (the international emergencynumber) and then press to dial the call.You can make an emergency call even if your phone is locked orcannot access your network, or there is no SIM card inserted, so longas you are within range of a network of the type supported by yourphone.

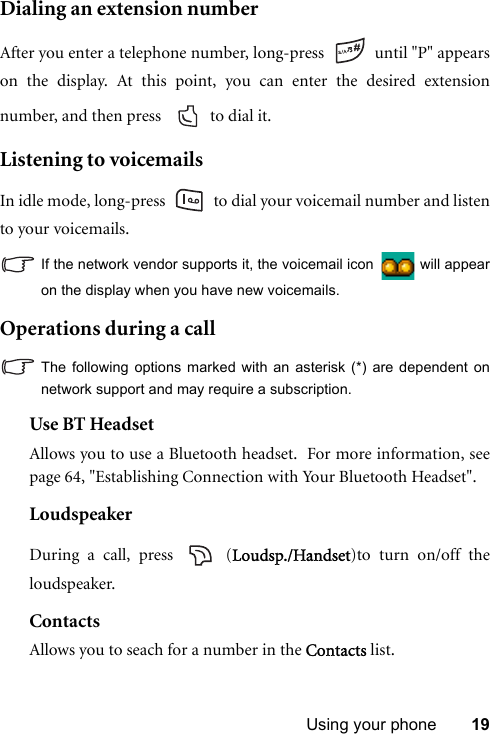

Using your phone 19Dialing an extension numberAfter you enter a telephone number, long-press until "P" appearson the display. At this point, you can enter the desired extensionnumber, and then press to dial it.Listening to voicemailsIn idle mode, long-press to dial your voicemail number and listento your voicemails.If the network vendor supports it, the voicemail icon will appearon the display when you have new voicemails.Operations during a callThe following options marked with an asterisk (*) are dependent onnetwork support and may require a subscription.Use BT HeadsetAllows you to use a Bluetooth headset. For more information, seepage 64, "Establishing Connection with Your Bluetooth Headset".LoudspeakerDuring a call, press (Loudsp./Handset)to turn on/off theloudspeaker.ContactsAllows you to seach for a number in the Contacts list.

20 Using your phoneCall LogsAllows you to to view the call logs of the most recent missed, dialed,and received calls.Conference*Conference calls allow you to converse with more than oneparty at a time.JoinAdds a party that is on hold to the current conference call.Hold/Unhold/SwapToggles the call status.TransferAllows two parties to connect, while ending one's own call(one of the two parties may be involved in an active callwhile the other is either on hold or being dialed), so as toallow the two parties to have their own call.Send DTMFWhen the phone is connected with other devices or services,you can send DTMF (Dual Tone Multi-Frequency) strings.DTMF strings are keypad tones that can be sent via themicrophone as you dial another number. Your phone will emitthe tones in order to communicate with answering machines,pagers, computerized telephone services, and so forth.Enter the number and then press to send the DTMFstring.

Using your phone 21End CallEnd AllEnds all calls, whether active or on hold.End ActiveEnds only the active call.End HoldEnds only a call or calls on hold.End OneEnds only a single call by the number or the contact.PrivateIsolates a single party in a conference call and puts all otherparties on hold.Hold/Unhold/SwapToggles the call status.Mute/UnmuteActivates/cancels the silent mode.Message Allows you to enter the Messaging menu during a call. Fordetails, see page 41, "Messaging".CalculatorAllows you to use the calculator. For details, see page 67,"Calculator".DTMF On/OffAllows you to

22 Using your phoneMaking a video callA video call allows you to have a real-time, two-way video between youand the recipient. The video image captured either by the near or thefront camera will be shown on the recipient's phone.To be able to use the video call services, you need to have a USIMcard and be in the coverage of a UMTS network. For subscription anddetails of video call services, please contact your network operator.To make a video call, enter the phone number and then press tomake a video call. The video call is successfully connected when you cansee the two video images and can hear the sound through the speaker.For details about video call settings, see page 23, "Video call settings".Answering a Video CallTo answer a video call, press or .Video call maindisplayVideo call sub displayPress to switch betweenthe main and sub displaysCall timePress to zoomin or out your videoimage.

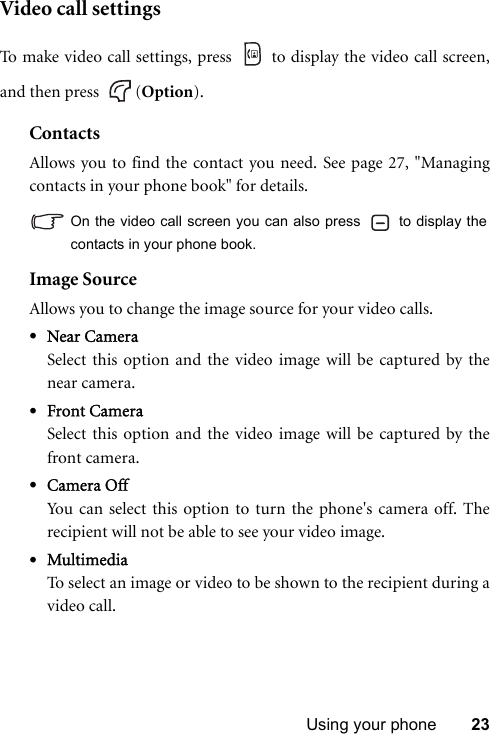

Using your phone 23Video call settingsTo make video call settings, press to display the video call screen,and then press (Option).ContactsAllows you to find the contact you need. See page 27, "Managingcontacts in your phone book" for details.On the video call screen you can also press to display thecontacts in your phone book.Image SourceAllows you to change the image source for your video calls.•Near CameraSelect this option and the video image will be captured by thenear camera.•Front CameraSelect this option and the video image will be captured by thefront camera.•Camera OffYou can select this option to turn the phone's camera off. Therecipient will not be able to see your video image.•MultimediaTo select an image or video to be shown to the recipient during avideo call.

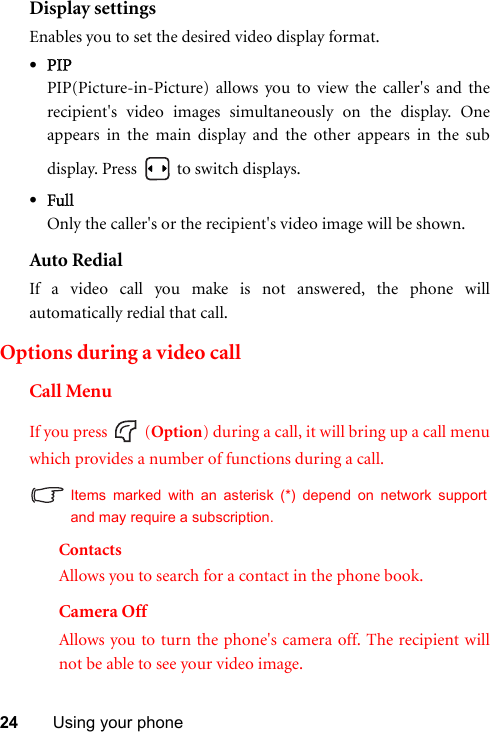

24 Using your phoneDisplay settingsEnables you to set the desired video display format.•PIPPIP(Picture-in-Picture) allows you to view the caller's and therecipient's video images simultaneously on the display. Oneappears in the main display and the other appears in the subdisplay. Press to switch displays.•FullOnly the caller's or the recipient's video image will be shown.Auto RedialIf a video call you make is not answered, the phone willautomatically redial that call.Options during a video callCall MenuIf you press (Option) during a call, it will bring up a call menuwhich provides a number of functions during a call.Items marked with an asterisk (*) depend on network supportand may require a subscription.ContactsAllows you to search for a contact in the phone book.Camera OffAllows you to turn the phone's camera off. The recipient willnot be able to see your video image.

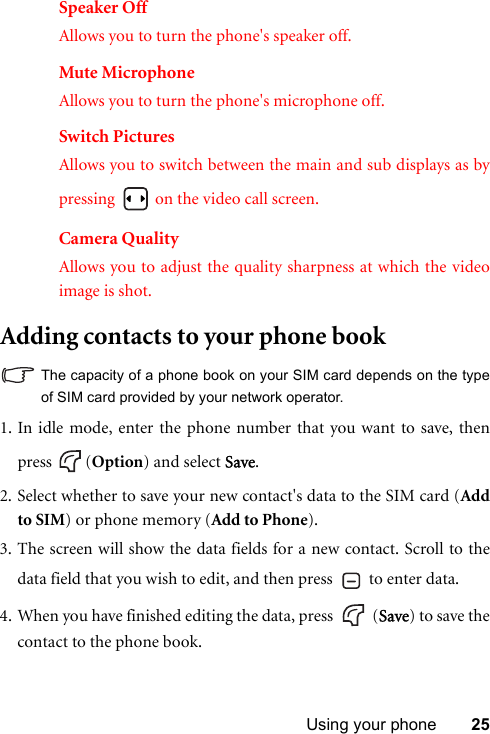

Using your phone 25Speaker OffAllows you to turn the phone's speaker off.Mute MicrophoneAllows you to turn the phone's microphone off.Switch PicturesAllows you to switch between the main and sub displays as bypressing on the video call screen.Camera QualityAllows you to adjust the quality sharpness at which the videoimage is shot.Adding contacts to your phone bookThe capacity of a phone book on your SIM card depends on the typeof SIM card provided by your network operator.1. In idle mode, enter the phone number that you want to save, thenpress (Option) and select Save.2. Select whether to save your new contact's data to the SIM card (Addto SIM) or phone memory (Add to Phone).3. The screen will show the data fields for a new contact. Scroll to thedata field that you wish to edit, and then press to enter data.4. When you have finished editing the data, press (Save) to save thecontact to the phone book.

26 Using your phonePhone book data fields on SIM card memory Phone book data fields on phone memory Name The contact's name.Number The contact's phone number.Name The contact's name.Mobile Number The contact's mobile phone number.Home Number The contact's home phone number.Office Number The contact's office phone number.E-mail The contact's e-mail address.Street & No. The contact's residence address.Postal Code The contact's postal code.City The city where the contact lives.State/Province The state/province where the contact lives.Country The country where the contact lives.Caller ImageUsed to set the image, photo or video that willappear on the display when there is anincoming call from the contact.Selecting Camera enables you to takea new photo to use as the contact's callerimage.

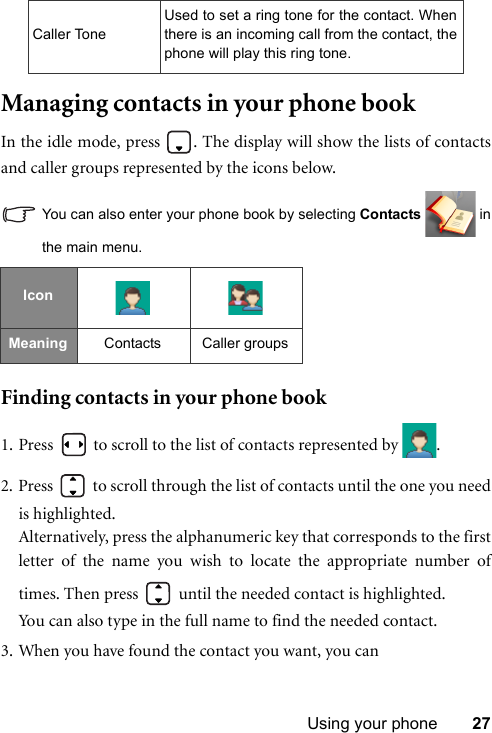

Using your phone 27Managing contacts in your phone bookIn the idle mode, press . The display will show the lists of contactsand caller groups represented by the icons below.You can also enter your phone book by selecting Contacts inthe main menu.Finding contacts in your phone book1. Press to scroll to the list of contacts represented by .2. Press to scroll through the list of contacts until the one you needis highlighted.Alternatively, press the alphanumeric key that corresponds to the firstletter of the name you wish to locate the appropriate number oftimes. Then press until the needed contact is highlighted.You can also type in the full name to find the needed contact.3. When you have found the contact you want, you canCaller ToneUsed to set a ring tone for the contact. Whenthere is an incoming call from the contact, thephone will play this ring tone.IconMeaning Contacts Caller groups

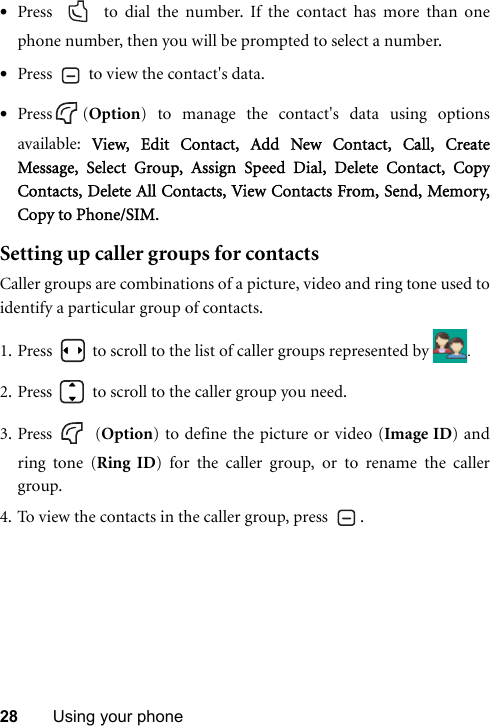

28 Using your phone•Press to dial the number. If the contact has more than onephone number, then you will be prompted to select a number.•Press to view the contact's data.•Press (Option) to manage the contact's data using optionsavailable: View, Edit Contact, Add New Contact, Call, CreateMessage, Select Group, Assign Speed Dial, Delete Contact, CopyContacts, Delete All Contacts, View Contacts From, Send, Memory,Copy to Phone/SIM.Setting up caller groups for contactsCaller groups are combinations of a picture, video and ring tone used toidentify a particular group of contacts.1. Press to scroll to the list of caller groups represented by .2. Press to scroll to the caller group you need.3. Press (Option) to define the picture or video (Image ID) andring tone (Ring ID) for the caller group, or to rename the callergroup.4. To view the contacts in the caller group, press .

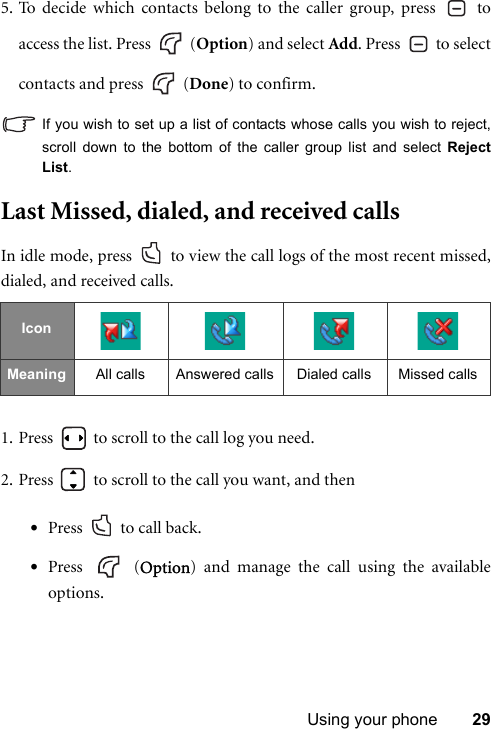

Using your phone 295. To decide which contacts belong to the caller group, press toaccess the list. Press (Option) and select Add. Press to selectcontacts and press (Done) to confirm.If you wish to set up a list of contacts whose calls you wish to reject,scroll down to the bottom of the caller group list and select RejectList.Last Missed, dialed, and received callsIn idle mode, press to view the call logs of the most recent missed,dialed, and received calls.1. Press to scroll to the call log you need.2. Press to scroll to the call you want, and then•Press to call back.•Press (Option) and manage the call using the availableoptions.IconMeaning All calls Answered calls Dialed calls Missed calls

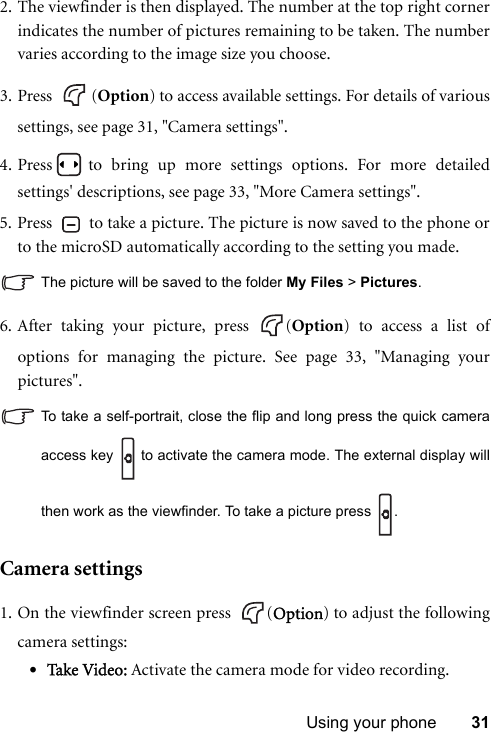

Using your phone 312. The viewfinder is then displayed. The number at the top right cornerindicates the number of pictures remaining to be taken. The numbervaries according to the image size you choose.3. Press (Option) to access available settings. For details of varioussettings, see page 31, "Camera settings".4. Press to bring up more settings options. For more detailedsettings' descriptions, see page 33, "More Camera settings".5. Press to take a picture. The picture is now saved to the phone orto the microSD automatically according to the setting you made.The picture will be saved to the folder My Files > Pictures.6. After taking your picture, press (Option) to access a list ofoptions for managing the picture. See page 33, "Managing yourpictures".To take a self-portrait, close the flip and long press the quick cameraaccess key to activate the camera mode. The external display willthen work as the viewfinder. To take a picture press .Camera settings1. On the viewfinder screen press (Option) to adjust the followingcamera settings:•Take Video: Activate the camera mode for video recording.

32 Using your phone•Size: Set the size of the photo.•Shooting Mode: Select between single shot and panorama shot.Options vary depending on the image size. •Self Timer: A picture is taken a few seconds after you press theshutter button. Choose between 2 or 10 seconds, or turn theoption off.•Self Snap: Swicth the viewfinder to the External/Internal display. •Exposure: Adjust the exposure value.•Use Macro/Normal Focus:Use the macro mode to shoot smallobjects at very close distance.•Tur n On Flash/Turn Off Fla sh: Turn the flash on or off.•Use External/Internal Camera: Switch to the external/internalcamera.•Quality: Set the quality sharpness at which the photo is taken.•Metering: Measures the amount of light in the scene andcalculates the best-fit exposure value. Matrix metering modeoffers the best exposure in most circumstances. Use Spotmetering mode for brightly backlit, macro, and moon shots•Contrast: Adjust the contrast level.•Flicker-Free: Select a suitable frequency to eliminate theflickering effects resulting from fluorescent lights.•Turn On Sound/Turn Off Sound: Turn the shot tone on or off.•Save to microSD/Phone: Determine where your photos will besaved.•Go to Images: Go to the Images folder where photos previouslytaken are stored.2. Scroll to the desired option and then press to save the setting.

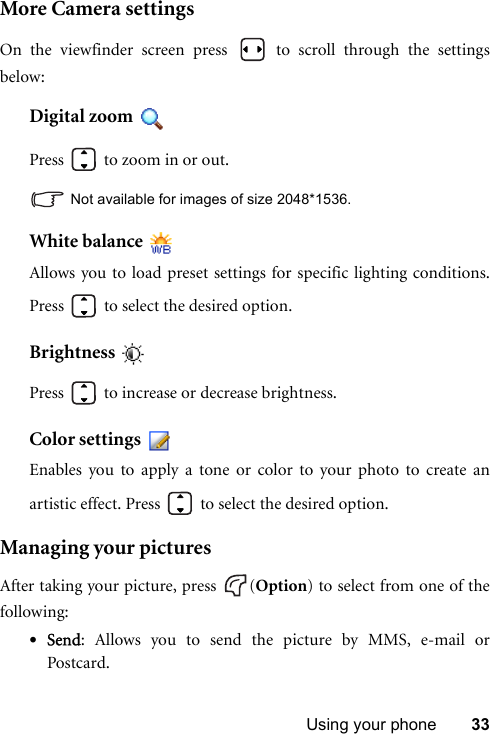

Using your phone 33More Camera settingsOn the viewfinder screen press to scroll through the settingsbelow:Digital zoom Press to zoom in or out. Not available for images of size 2048*1536.White balance Allows you to load preset settings for specific lighting conditions.Press to select the desired option.Brightness Press to increase or decrease brightness.Color settings Enables you to apply a tone or color to your photo to create anartistic effect. Press to select the desired option.Managing your picturesAfter taking your picture, press (Option) to select from one of thefollowing:•Send: Allows you to send the picture by MMS, e-mail orPostcard.

34 Using your phone•Set as: Allows you to set the picture as a wallpaper or a callerimage.•Rename: Allows you to rename the taken picture.•Delete: Allows you to delete the picture.•Go To Images: Takes you to the Images folder where yourpictures are stored. For information on using the Images folder,see page 58, "Pictures"CamcorderYour phone features a camcorder for you to shoot video clips. You canthen send the video clips through MMS messages.Shooting a video clip1. Enter the camera mode by long-pressing the camera hot key inidle mode or by choosing Camera in the main menu.2. Press (Option) and select Take Vid eo to activate the video mode.3. The video mode viewfinder is then displayed.4. Press (Option) to access available settings. For details of varioussettings, see page 35, "Camcorder settings". Press (Back) toreturn to the viewfinder.5. Press to bring up more options of settings. For more detailedsettings' descriptions, see page 36, "More camcorder settings".6. Press to start recording.

Using your phone 357. To stop recording press . The video clip is saved to the phone orto the microSD automatically according to the setting you made.The video clip will be saved to the folder My Files > Videos.Playing a video clip1. To playback the video clip you have just shot, press or press (Option) and select Play.2. To pause/resume playback, press .3. To fast-forward press ; to rewind press .4. To stop playback press (Stop). Press (Option) to access a listof options for managing the video, see page 37, "Managing yourvideos".Camcorder settings1. In the viewfinder mode press (Option) to access the followingcamcorder settings.•Take Pi ct ure :•Size: Allows you to set the size of the video clip you wish toshoot.Video is set to MMS Video Clip by default. When you finishrecording, you can directly send the video to others in a MMSmessage.•Exposure•Use Internal Camera

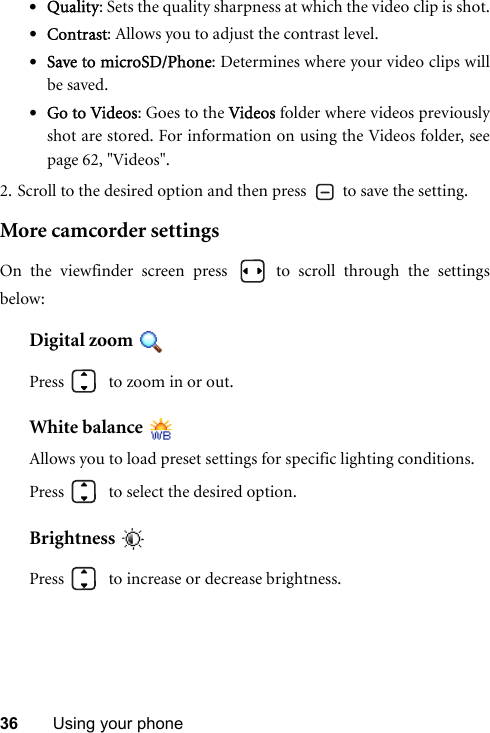

36 Using your phone•Quality: Sets the quality sharpness at which the video clip is shot.•Contrast: Allows you to adjust the contrast level.•Save to microSD/Phone: Determines where your video clips willbe saved.•Go to Videos: Goes to the Videos folder where videos previouslyshot are stored. For information on using the Videos folder, seepage 62, "Videos".2. Scroll to the desired option and then press to save the setting.More camcorder settingsOn the viewfinder screen press to scroll through the settingsbelow:Digital zoom Press to zoom in or out.White balance Allows you to load preset settings for specific lighting conditions.Press to select the desired option.Brightness Press to increase or decrease brightness.

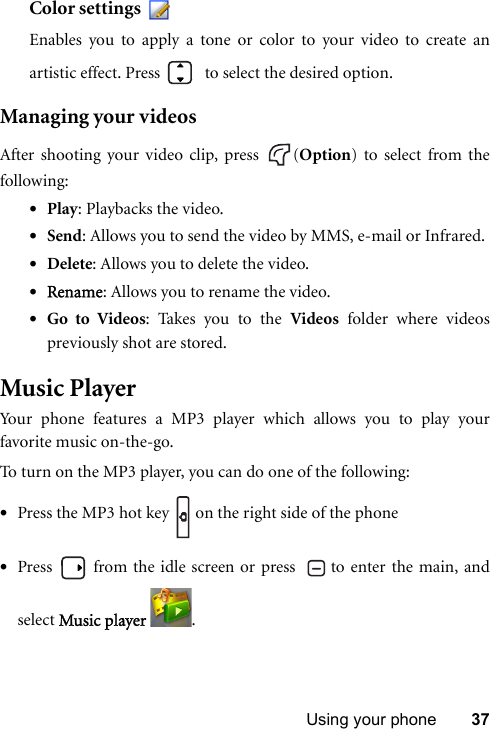

Using your phone 37Color settings Enables you to apply a tone or color to your video to create anartistic effect. Press to select the desired option.Managing your videosAfter shooting your video clip, press (Option) to select from thefollowing:•Play: Playbacks the video.•Send: Allows you to send the video by MMS, e-mail or Infrared. •Delete: Allows you to delete the video.•Rename: Allows you to rename the video.•Go to Videos: Takes you to the Videos folder where videospreviously shot are stored.Music PlayerYour phone features a MP3 player which allows you to play yourfavorite music on-the-go.To turn on the MP3 player, you can do one of the following:•Press the MP3 hot key on the right side of the phone•Press from the idle screen or press to enter the main, andselect Music player .

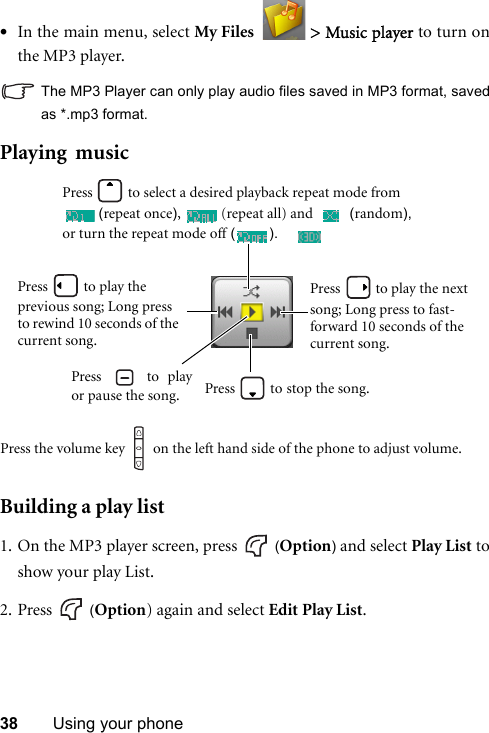

38 Using your phone•In the main menu, select My Files > Music player to turn onthe MP3 player.The MP3 Player can only play audio files saved in MP3 format, savedas *.mp3 format.Playing music Building a play list1. On the MP3 player screen, press (Option) and select Play List toshow your play List.2. Press (Option) again and select Edit Play List.Press to playor pause the song.Press to play the previous song; Long press to rewind 10 seconds of the current song.Press to select a desired playback repeat mode from (repeat once), (repeat all) and (random), or turn the repeat mode off (). Press to stop the song. Press to play the next song; Long press to fast-forward 10 seconds of the current song.Press the volume key on the left hand side of the phone to adjust volume.

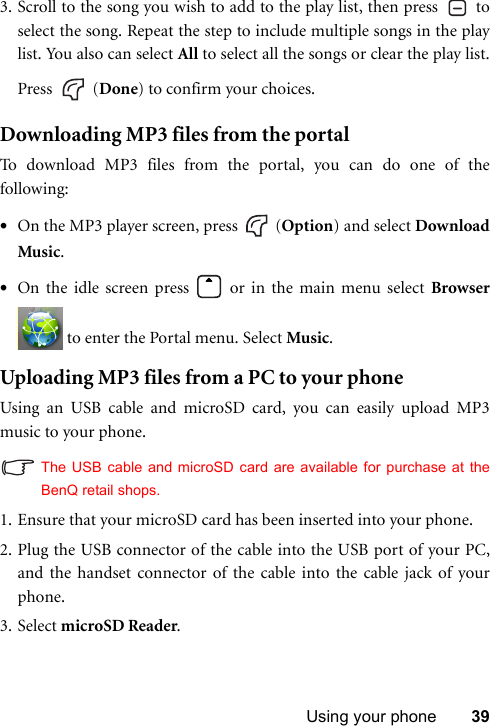

Using your phone 393. Scroll to the song you wish to add to the play list, then press toselect the song. Repeat the step to include multiple songs in the playlist. You also can select All to select all the songs or clear the play list.Press (Done) to confirm your choices.Downloading MP3 files from the portalTo download MP3 files from the portal, you can do one of thefollowing:•On the MP3 player screen, press (Option) and select DownloadMusic.•On the idle screen press or in the main menu select Browser to enter the Portal menu. Select Music.Uploading MP3 files from a PC to your phoneUsing an USB cable and microSD card, you can easily upload MP3music to your phone.The USB cable and microSD card are available for purchase at theBenQ retail shops.1. Ensure that your microSD card has been inserted into your phone.2. Plug the USB connector of the cable into the USB port of your PC,and the handset connector of the cable into the cable jack of yourphone.3. Select microSD Reader.

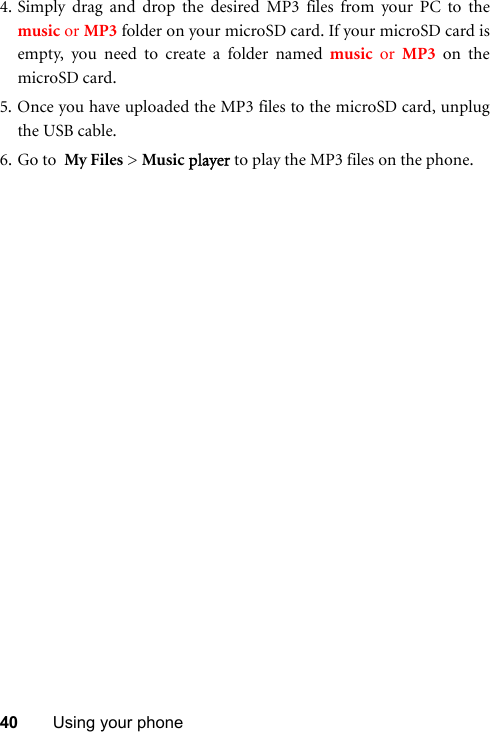

40 Using your phone4. Simply drag and drop the desired MP3 files from your PC to themusic or MP3 folder on your microSD card. If your microSD card isempty, you need to create a folder named music or MP3 on themicroSD card.5. Once you have uploaded the MP3 files to the microSD card, unplugthe USB cable.6. Go to My Files > Music player to play the MP3 files on the phone.

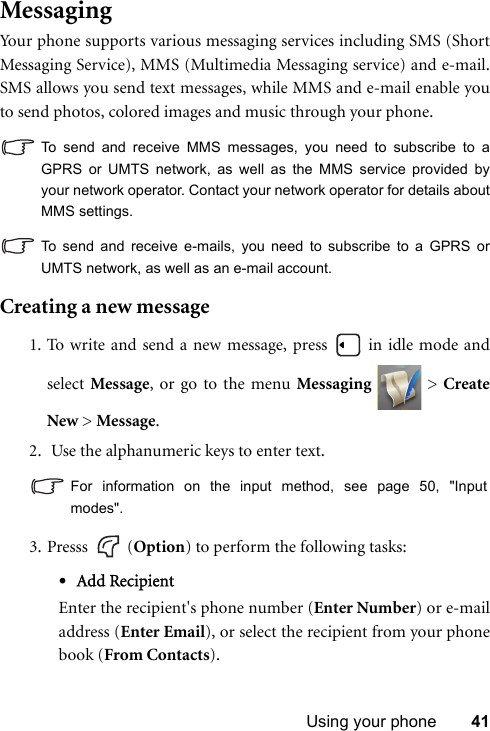

Using your phone 41MessagingYour phone supports various messaging services including SMS (ShortMessaging Service), MMS (Multimedia Messaging service) and e-mail.SMS allows you send text messages, while MMS and e-mail enable youto send photos, colored images and music through your phone.To send and receive MMS messages, you need to subscribe to aGPRS or UMTS network, as well as the MMS service provided byyour network operator. Contact your network operator for details aboutMMS settings.To send and receive e-mails, you need to subscribe to a GPRS orUMTS network, as well as an e-mail account.Creating a new message1. To write and send a new message, press in idle mode andselect Message, or go to the menu Messaging > CreateNew > Message.2. Use the alphanumeric keys to enter text.For information on the input method, see page 50, "Inputmodes".3. Presss (Option) to perform the following tasks:•Add RecipientEnter the recipient's phone number (Enter Number) or e-mailaddress (Enter Email), or select the recipient from your phonebook (From Contacts).

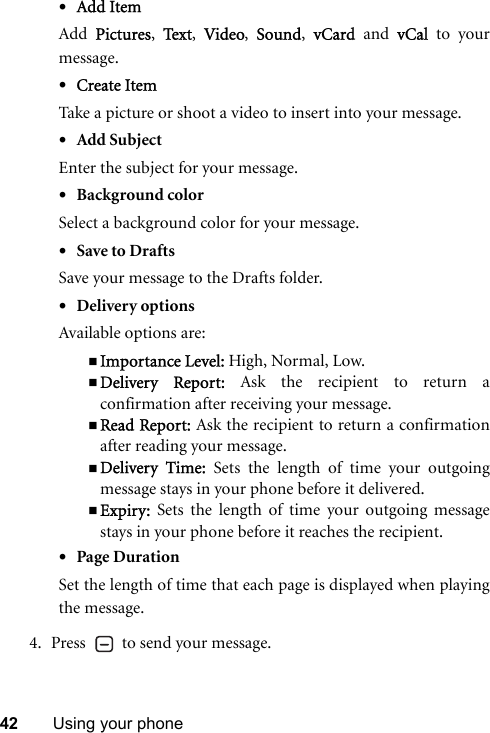

42 Using your phone•Add ItemAdd Pictures, Tex t, Video, Sound, vCard and vCal to yourmessage.•Create ItemTake a picture or shoot a video to insert into your message.•Add SubjectEnter the subject for your message.•Background colorSelect a background color for your message.•Save to DraftsSave your message to the Drafts folder.•Delivery optionsAvailable options are:Importance Level: High, Normal, Low.Delivery Report: Ask the recipient to return aconfirmation after receiving your message.Read Report: Ask the recipient to return a confirmationafter reading your message.Delivery Time: Sets the length of time your outgoingmessage stays in your phone before it delivered.Expiry: Sets the length of time your outgoing messagestays in your phone before it reaches the recipient.•Page DurationSet the length of time that each page is displayed when playingthe message.4. Press to send your message.

Using your phone 43E-mail1. To write and send a new e-mail, press in idle mode andselect E-Mail, or go to the menu Messaging > CreateNew > E-Mail.2. Perform the following tasks:•ToEnter the recipient's e-mail address or select a contact's e-mailaddress from your phone book by pressing (Contacts). Tosend your message, this field cannot be left blank.•SubjectAllows you to enter the subject for your e-mail.•ContentAllows you to edit the e-mail content. Press to open themessage editing screen. Press (Option) to insert thefollowing items in your e-mail:•Insert TextInsert preset texts to the message.•AttachmentsPress (Option) and select Insert. The option allows youto insert images, videos, audio files, a new picture (Camera),a contact's business card (vCard), or a scheduled event inyour calendar (vCalendar) and other files.•CcAllows you to send the e-mail as a carbon copy to others.

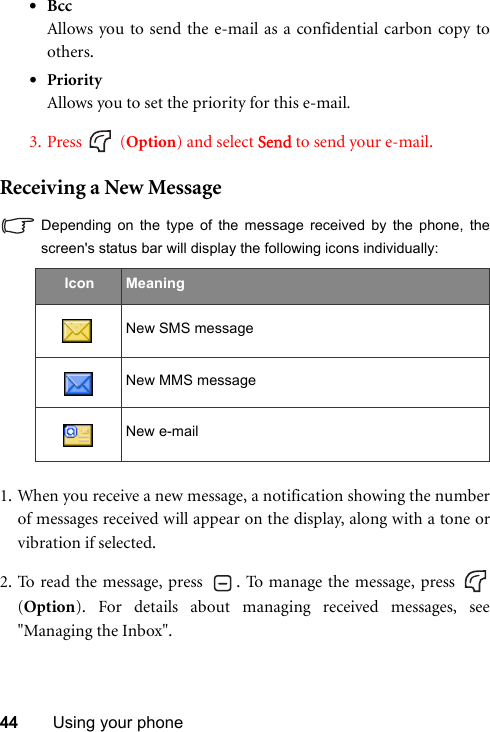

44 Using your phone•BccAllows you to send the e-mail as a confidential carbon copy toothers.•PriorityAllows you to set the priority for this e-mail.3. Press (Option) and select Send to send your e-mail.Receiving a New MessageDepending on the type of the message received by the phone, thescreen's status bar will display the following icons individually: 1. When you receive a new message, a notification showing the numberof messages received will appear on the display, along with a tone orvibration if selected.2. To read the message, press . To manage the message, press (Option). For details about managing received messages, see"Managing the Inbox". Icon MeaningNew SMS messageNew MMS messageNew e-mail

Using your phone 45Managing the InboxYour phone saves received messages in the Inbox. To manage Inboxmessages, go to Messaging > Inbox.In the Inbox, messages are stored according to their message type:To read a message,1. Press to scroll to the correct message type.2. Press to scroll to the desired message.A message may be marked by one the following icons, depending onthe type and status of the message: IconMeaning SMS MMS E-mail Icon MeaningUnread SMS message saved on the phone.Unread SMS message saved on the SIM.Read SMS message saved on the phone.

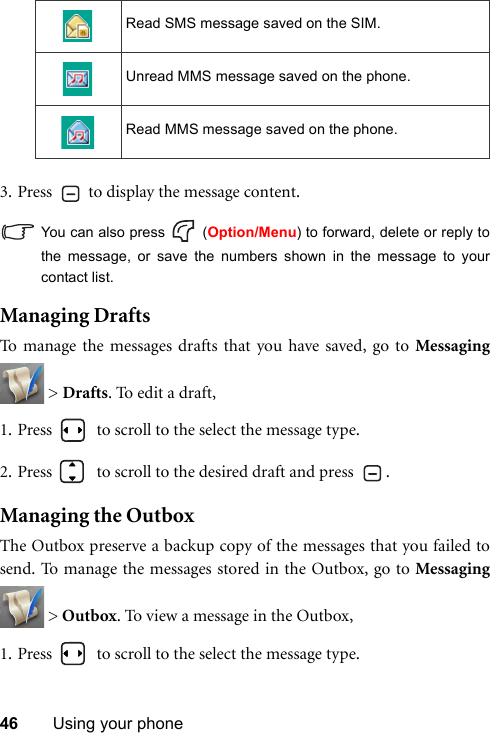

46 Using your phone3. Press to display the message content.You can also press (Option/Menu) to forward, delete or reply tothe message, or save the numbers shown in the message to yourcontact list.Managing DraftsTo manage the messages drafts that you have saved, go to Messaging > Drafts. To edit a draft,1. Press to scroll to the select the message type.2. Press to scroll to the desired draft and press .Managing the OutboxThe Outbox preserve a backup copy of the messages that you failed tosend. To manage the messages stored in the Outbox, go to Messaging > Outbox. To view a message in the Outbox,1. Press to scroll to the select the message type.Read SMS message saved on the SIM.Unread MMS message saved on the phone.Read MMS message saved on the phone.

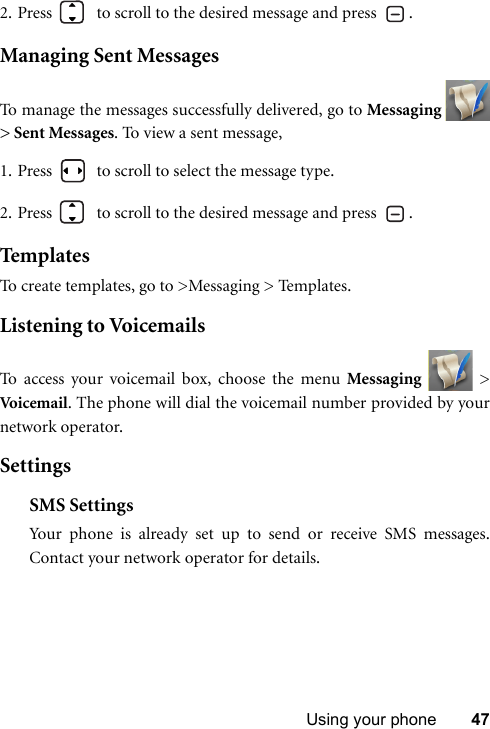

Using your phone 472. Press to scroll to the desired message and press .Managing Sent MessagesTo manage the messages successfully delivered, go to Messaging > Sent Messages. To view a sent message,1. Press to scroll to select the message type.2. Press to scroll to the desired message and press .TemplatesTo create templates, go to >Messaging > Templates.Listening to VoicemailsTo access your voicemail box, choose the menu Messaging >Voi cem ai l. The phone will dial the voicemail number provided by yournetwork operator.SettingsSMS SettingsYour phone is already set up to send or receive SMS messages.Contact your network operator for details.

48 Using your phoneMMSMMS ServerYour MMS server is already configured to send and receiveMMS messages. Contact your network operator for details.Size LimitSets the maximum size for a message that the phone receives. Ifan incoming message exceeds this size, the phone will not beable to download that message.NotifySelect Auto Download if you want an incoming MMS to beimmediately downloaded. Select Notify Me First if you wish todecide whether to download the MMS or not uponnotification.DeliveryAsks the recipient to return a delivery/read confirmation afteryou send a MMS message to someone.ExpirySets the length of time your outgoing MMS message stays onthe server before it reaches the recipient successfully.

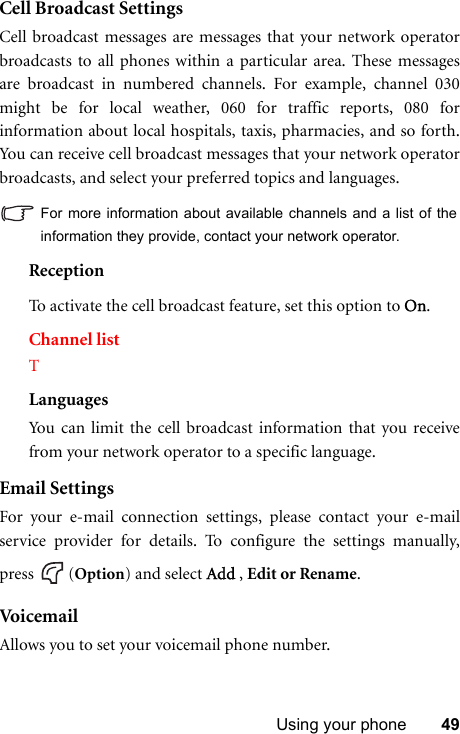

Using your phone 49Cell Broadcast SettingsCell broadcast messages are messages that your network operatorbroadcasts to all phones within a particular area. These messagesare broadcast in numbered channels. For example, channel 030might be for local weather, 060 for traffic reports, 080 forinformation about local hospitals, taxis, pharmacies, and so forth.You can receive cell broadcast messages that your network operatorbroadcasts, and select your preferred topics and languages.For more information about available channels and a list of theinformation they provide, contact your network operator.ReceptionTo activate the cell broadcast feature, set this option to On.Channel listTLanguagesYou can limit the cell broadcast information that you receivefrom your network operator to a specific language.Email SettingsFor your e-mail connection settings, please contact your e-mailservice provider for details. To configure the settings manually,press (Option) and select Add , Edit or Rename.Vo i c e m a i l Allows you to set your voicemail phone number.

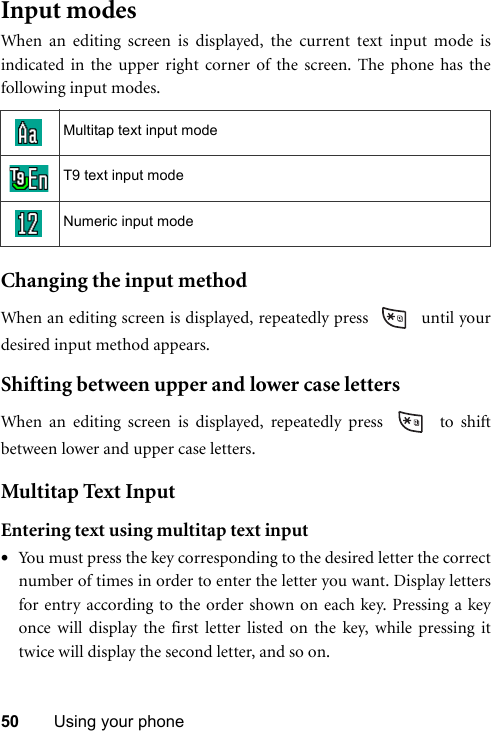

50 Using your phoneInput modesWhen an editing screen is displayed, the current text input mode isindicated in the upper right corner of the screen. The phone has thefollowing input modes. Changing the input methodWhen an editing screen is displayed, repeatedly press until yourdesired input method appears.Shifting between upper and lower case lettersWhen an editing screen is displayed, repeatedly press to shiftbetween lower and upper case letters.Multitap Text InputEntering text using multitap text input •You must press the key corresponding to the desired letter the correctnumber of times in order to enter the letter you want. Display lettersfor entry according to the order shown on each key. Pressing a keyonce will display the first letter listed on the key, while pressing ittwice will display the second letter, and so on.Multitap text input modeT9 text input modeNumeric input mode

Using your phone 51•When you have entered a letter and wish to enter the next letter,either wait for two seconds until the cursor moves to the next textentry position, or immediately press the key for the next letter.•Short press to enter a spaces.•While entering text, use the arrow (scroll) keys to move thecursor. Press (Clear) once to delete a character; long-press(Clear) to delete all entered text.T9 Text InputEntering text using T9 text input•Press each key associated with the letter you want to enter only once.The letters you have entered appear on the display. The candidatewords will change with each key you press.•If the first highlighted word is not the word you want, scroll tohighlight the desired word.•Once the correct word is highlighted or is entered, press to enterthe word.•Short press to enter a spaces.•While entering text, use the arrow (scroll)keys to move the cursor.Press (Clear) once to delete a character; long-press (Clear)to delete all entered text.Numeric InputThe numeric input method allows you to use the alphanumeric keys to to enter numbers.

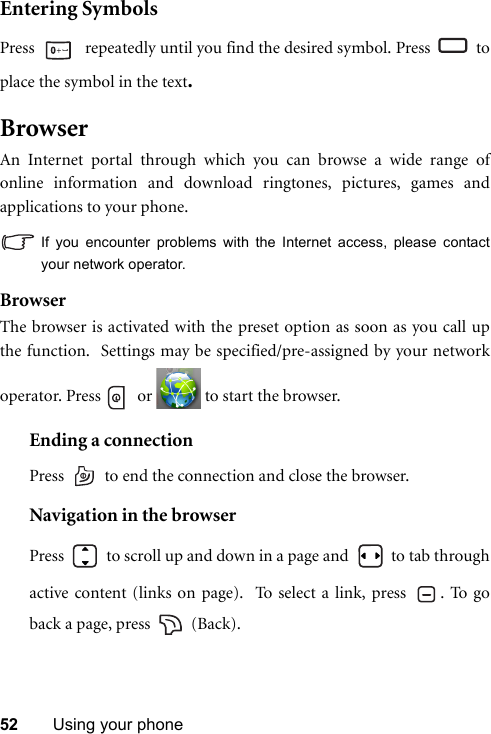

52 Using your phoneEntering SymbolsPress repeatedly until you find the desired symbol. Press toplace the symbol in the text.BrowserAn Internet portal through which you can browse a wide range ofonline information and download ringtones, pictures, games andapplications to your phone.If you encounter problems with the Internet access, please contactyour network operator.BrowserThe browser is activated with the preset option as soon as you call upthe function. Settings may be specified/pre-assigned by your networkoperator. Press or to start the browser.Ending a connectionPress to end the connection and close the browser.Navigation in the browserPress to scroll up and down in a page and to tab throughactive content (links on page). To select a link, press . To goback a page, press (Back).

54 Using your phone•AboutDisplay information on browser, e.g. version.BookmarksDisplay the list of bookmarks stored in the phone. Press to scrollto the desired bookmark and press to confirm.HistoryDisplay the of most recently visited Internet domains and pages. Press to select the history entry and press to call up the URL. SettingsChange the setting of the browser. Press to select one of thefollowing functions:•MultimediaChoose whether or not to download images and sounds on theInternet pages. •Connection Time Set the maximun wait time for the web response. Select from 60Secs/ 90 Secs/ No Timeout.•CookiesSelect Enable/Disabled to activate/disactivate cookies. •CertificatesCurrent: Display the current certificate information.

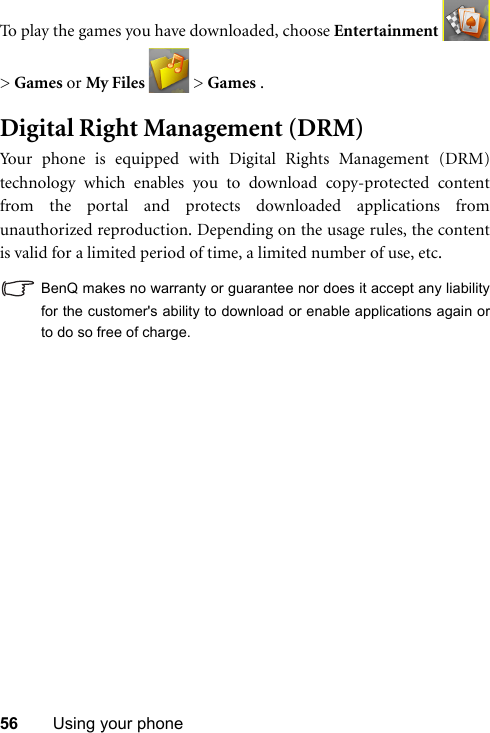

56 Using your phoneTo play the games you have downloaded, choose Entertainment > Games or My Files > Games .Digital Right Management (DRM)Your phone is equipped with Digital Rights Management (DRM)technology which enables you to download copy-protected contentfrom the portal and protects downloaded applications fromunauthorized reproduction. Depending on the usage rules, the contentis valid for a limited period of time, a limited number of use, etc.BenQ makes no warranty or guarantee nor does it accept any liabilityfor the customer's ability to download or enable applications again orto do so free of charge.

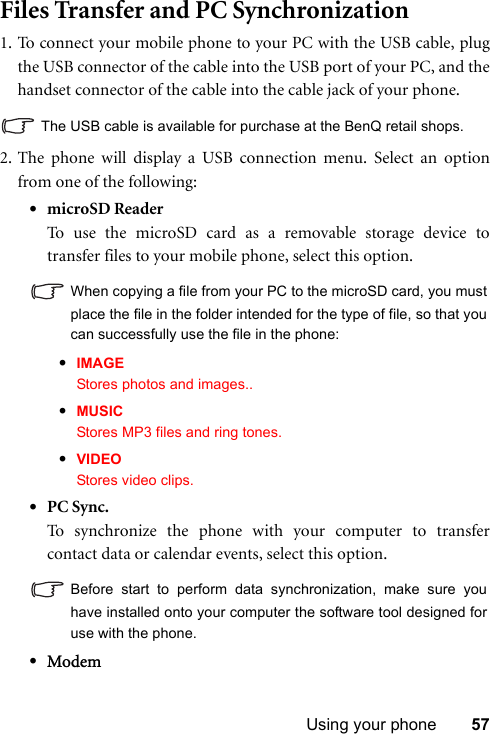

Using your phone 57Files Transfer and PC Synchronization1. To connect your mobile phone to your PC with the USB cable, plugthe USB connector of the cable into the USB port of your PC, and thehandset connector of the cable into the cable jack of your phone.The USB cable is available for purchase at the BenQ retail shops.2. The phone will display a USB connection menu. Select an optionfrom one of the following:•microSD ReaderTo use the microSD card as a removable storage device totransfer files to your mobile phone, select this option.When copying a file from your PC to the microSD card, you mustplace the file in the folder intended for the type of file, so that youcan successfully use the file in the phone:•IMAGEStores photos and images..•MUSICStores MP3 files and ring tones.•VIDEOStores video clips.•PC Sync.To synchronize the phone with your computer to transfercontact data or calendar events, select this option.Before start to perform data synchronization, make sure youhave installed onto your computer the software tool designed foruse with the phone.•Modem

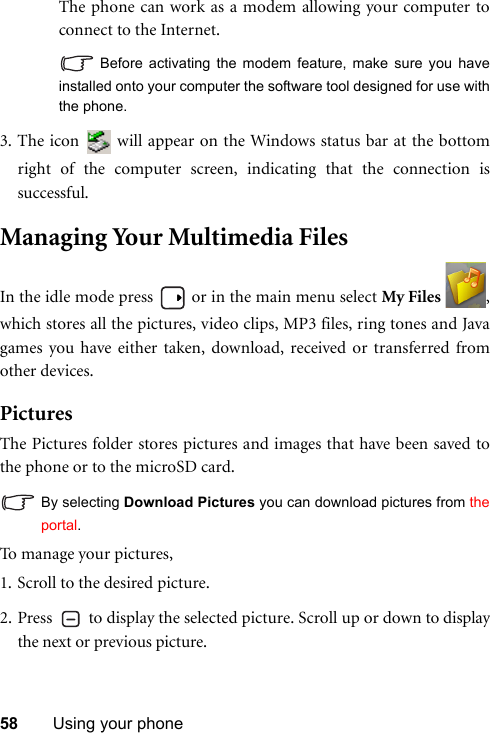

58 Using your phoneThe phone can work as a modem allowing your computer toconnect to the Internet.Before activating the modem feature, make sure you haveinstalled onto your computer the software tool designed for use withthe phone.3. The icon will appear on the Windows status bar at the bottomright of the computer screen, indicating that the connection issuccessful.Managing Your Multimedia FilesIn the idle mode press or in the main menu select My Files ,which stores all the pictures, video clips, MP3 files, ring tones and Javagames you have either taken, download, received or transferred fromother devices.PicturesThe Pictures folder stores pictures and images that have been saved tothe phone or to the microSD card.By selecting Download Pictures you can download pictures from theportal.To ma n age yo u r p i c tu r es ,1. Scroll to the desired picture.2. Press to display the selected picture. Scroll up or down to displaythe next or previous picture.

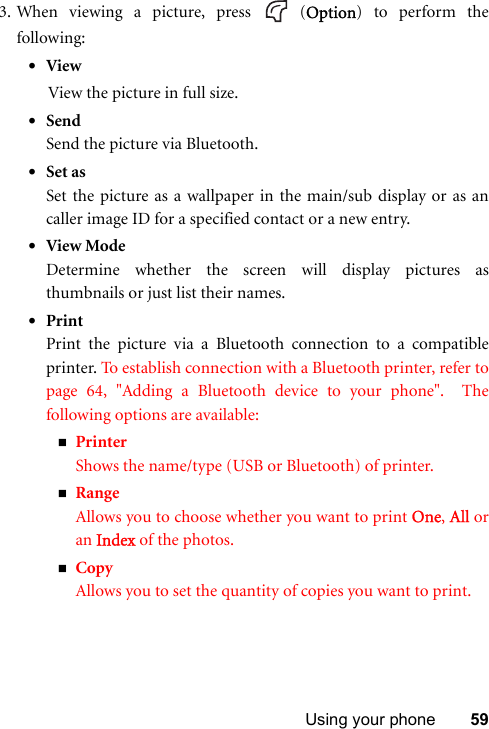

Using your phone 593. When viewing a picture, press (Option) to perform thefollowing:•View View the picture in full size.•SendSend the picture via Bluetooth.•Set asSet the picture as a wallpaper in the main/sub display or as ancaller image ID for a specified contact or a new entry.•View ModeDetermine whether the screen will display pictures asthumbnails or just list their names.•PrintPrint the picture via a Bluetooth connection to a compatibleprinter. To establish connection with a Bluetooth printer, refer topage 64, "Adding a Bluetooth device to your phone". Thefollowing options are available: PrinterShows the name/type (USB or Bluetooth) of printer. RangeAllows you to choose whether you want to print One, All oran Index of the photos.CopyAllows you to set the quantity of copies you want to print.

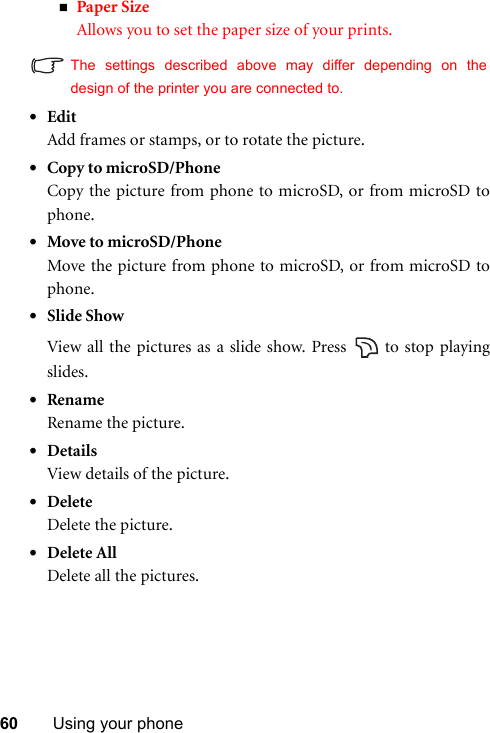

60 Using your phonePaper SizeAllows you to set the paper size of your prints.The settings described above may differ depending on thedesign of the printer you are connected to.•EditAdd frames or stamps, or to rotate the picture.•Copy to microSD/PhoneCopy the picture from phone to microSD, or from microSD tophone.•Move to microSD/PhoneMove the picture from phone to microSD, or from microSD tophone.•Slide ShowView all the pictures as a slide show. Press to stop playingslides.•RenameRename the picture.•DetailsView details of the picture.•DeleteDelete the picture.•Delete AllDelete all the pictures.

Using your phone 61RingtonesThe Ringtones folder stores audio files including ringtones and MP3s.The audio file formats supported by the phone are .mp3, .mid, .mmf,.arm, .acc, .imy, .pmd, .qcp and .wav.By selecting Download Ringtones you can download ringtones fromthe portal.To ma n age yo u r a u d io f il e s ,1. Scroll to the desired audio file.2. Press to play/pause the music. Press the volume key to adjustvolume of the music.3. Press (Stop) to stop playback.4. When playback stops, press (Option) to perform the following:•PlayPlay the ringtone.•Set asSet the audio file as the ringtone for incoming calls, or as a ringID for a specified contact or a new entry.•DetailsView details of the audio file.

62 Using your phoneGamesFor information on the Games folder, see page 55, "DownloadingGames from the portal".Music PlayerBy selecting the Music Player folder you can turn on the MP3 player toplay MP3 files stored in the phone. For details, see page 37, "MusicPlayer".VideosThe Videos folder contains video clips stored in the phone or on themicroSD card.The video formats supported by the phone are .mp4 and .3gp.By selecting Download Videos you can download video clips fromthe portal.To ma n age yo u r v i d e o c l ip s ,1. Scroll to the desired video clip.2. Press to start/pause playback.3. Press (Stop) to stop playback.4. Press the volume key to adjust volume of the video.5. When playback stops, press (Option) to perform the following:•PlayPlay the selected video.•SendSend the video via a message, via e-mail, or via Bluetooth.

Using your phone 63•DeleteDelete the video.•Set As Caller ImageAllows you to set this video as an image caller ID for a specifiedcontact or a new entry.•Move to microSD/PhoneAllows you move the video from phone to microSD, or frommicroSD to phone.•Copy to microSD/PhoneAllows you to copy the video from phone to microSD, or frommicroSD to phone.•RenameAllows you to rename the video.•DetailsShows details of the video.ApplicationsJava applications offered on the portal can be downloaded and saved inthis folder.DocumentsFiles not supported by the phone are stored here.Using BluetoothYour phone features the Bluetooth function that allows you to establisha wireless connection between your mobile phone and your Bluetoothheadset.

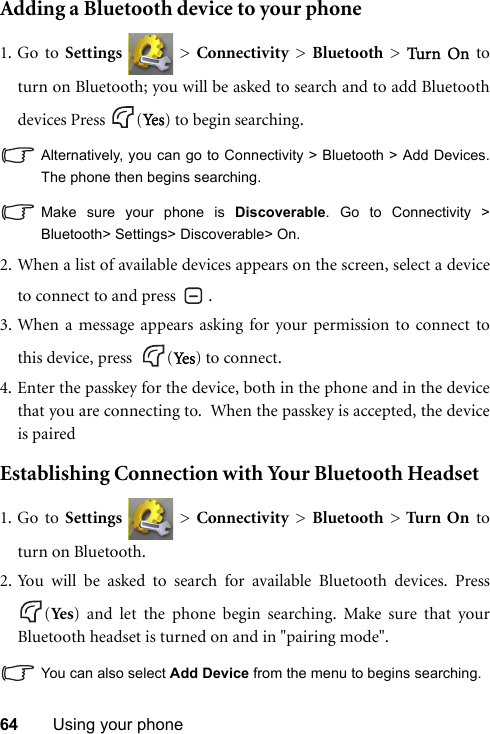

64 Using your phoneAdding a Bluetooth device to your phone1. Go to Settings > Connectivity > Bluetooth > Tur n On toturn on Bluetooth; you will be asked to search and to add Bluetoothdevices Press (Ye s) to begin searching.Alternatively, you can go to Connectivity > Bluetooth > Add Devices.The phone then begins searching.Make sure your phone is Discoverable. Go to Connectivity >Bluetooth> Settings> Discoverable> On.2. When a list of available devices appears on the screen, select a deviceto connect to and press .3. When a message appears asking for your permission to connect tothis device, press (Ye s) to connect.4. Enter the passkey for the device, both in the phone and in the devicethat you are connecting to. When the passkey is accepted, the deviceis pairedEstablishing Connection with Your Bluetooth Headset1. Go to Settings > Connectivity > Bluetooth > Tu rn On toturn on Bluetooth.2. You will be asked to search for available Bluetooth devices. Press(Ye s ) and let the phone begin searching. Make sure that yourBluetooth headset is turned on and in "pairing mode".You can also select Add Device from the menu to begins searching.

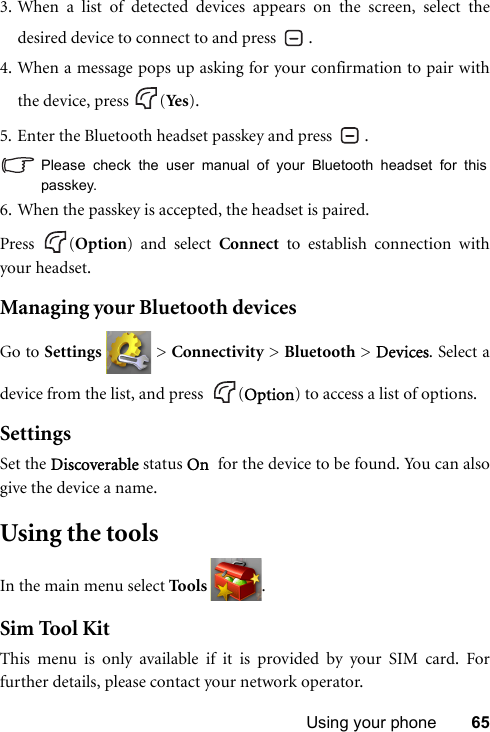

Using your phone 653. When a list of detected devices appears on the screen, select thedesired device to connect to and press .4. When a message pops up asking for your confirmation to pair withthe device, press (Ye s ).5. Enter the Bluetooth headset passkey and press .Please check the user manual of your Bluetooth headset for thispasskey.6. When the passkey is accepted, the headset is paired.Press (Option) and select Connect to establish connection withyour headset.Managing your Bluetooth devicesGo to Settings > Connectivity > Bluetooth > Devices. Select adevice from the list, and press (Option) to access a list of options.SettingsSet the Discoverable status On for the device to be found. You can alsogive the device a name.Using the toolsIn the main menu select Tools .Sim Tool KitThis menu is only available if it is provided by your SIM card. Forfurther details, please contact your network operator.

66 Using your phoneMy ApplicationsJava applications offered on the portal can be downloaded and saved inthis folder.Alarm ClockTo set an alarm, follow the steps below:1. Select an alarm.2. Press to turn the status on.3. Scroll to and change the following settings as needed.TimeAllows you enter the time for the alarm to sound.FrequencyAllows you to set how often the alarm sounds. Alarm DurationAllows you to set the length of time the alarm sounds.Alarm ToneAllows you to set the ringtone for the alarm.4. To save all your current alarm settings, press (Save).5. When setting is saved, will appear in the display's status bar.

Using your phone 67CalendarCalendar allows you to keep track of upcoming events. You may set thealarm to ring when it comes to the date.Creating a new memo1. When you open the Calendar, the phone will show the calendarfor the current date. Scroll to the date you want to write a memoon. You can also press (Option) and select the Go to Date.2. When the desired date is highlighted, press (Option) andselect Add to open the memo editor.3. Edit the data fields in the memo editor as needed. Press(Save) to save the memo.CalculatorAllows you to use the phone as a calculator.1. Enter numbers using alphanumeric keys.2. Press to perform + (add); press to perform - (subtract);press to perform / (divide); press to perform x (multiply).Press to get the result (equal).3. Press to delete numbers and symbols entered. Press toenter a decimal point. Press (Back) to leave the calculatorscreen.

68 Using your phoneConverterThe converter allows you to convert currencies and set the exchangerate.1. To set the currencies for conversion, press (Option) and selecteither Currency 1 (to set the currency at the top of the screen) orCurrency 2 (to set the currency at the bottom of the screen).2. To set the exchange rate, press (Option) and select Rate Setting.3. On the converter screen, enter the amount of currency to convert andpress . The result will appear in the other currency field.FlashlightPress (OK) to switch on the flashlight. Press (Back) to switchit off.Service Number

72 Using your phoneDefault URLAllows you to set the default site for downloading Javaapplications to your phone.MemoryShows the amount of memory available for Java applications.Java VersionShows the version of the Java virtual machine on your phone.ConnectionsAllows you to configure connection settings for downloadingJava applications to your phone.SecurityYou can use various codes and locks to prevent unauthorized use ofthe phone.PIN Code The PIN (Personal Identification Number) is the passwordprovided by your network operator. You need this password inorder to use the SIM card.If you enter the PIN incorrectly three times in a row, theSIM card will be locked. You must now enter the PUK(Personal Unblocking Key) for that SIM card in order tounlock it. Please contact your network operator to obtaina PUK.

Using your phone 73•PIN1 CodeUsed to activate, deactivate or change PIN authentication.To change your PIN, Select Set Status and set to On. Thenselect Change Password and enter PIN.In some networks PIN authentication cannot be deactivated.•PIN2 CodeUsed to change the PIN2 code. The procedure is the same aswith the PIN1 Code.Phone LockOnce the phone lock is set to On, you will be required to enterthe phone code when the phone is turned on. You must enterthe correct code to unlock it (the default phone code is 1234).When the phone is locked, you will only be able to makeemergency calls. Select Change Password to change the phonelock code.Master ResetRestores all the phone settings to their factory default.Requires the entry of the phone code (The default phone code is1234).

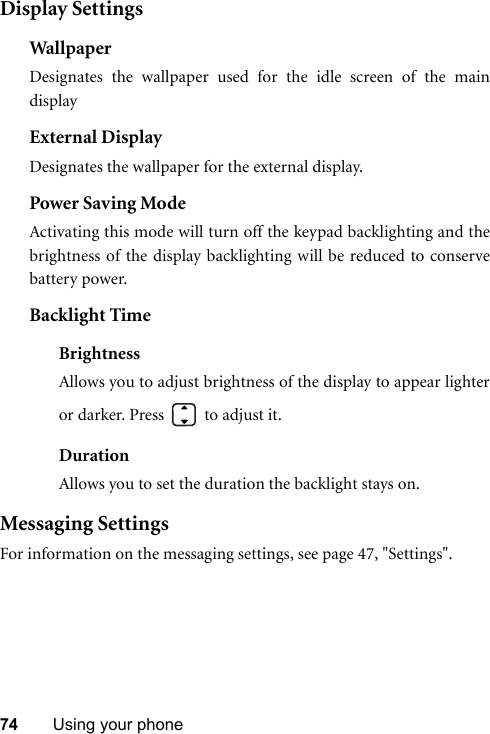

74 Using your phoneDisplay SettingsWal lpaperDesignates the wallpaper used for the idle screen of the maindisplayExternal DisplayDesignates the wallpaper for the external display.Power Saving ModeActivating this mode will turn off the keypad backlighting and thebrightness of the display backlighting will be reduced to conservebattery power.Backlight TimeBrightnessAllows you to adjust brightness of the display to appear lighteror darker. Press to adjust it.DurationAllows you to set the duration the backlight stays on.Messaging SettingsFor information on the messaging settings, see page 47, "Settings".

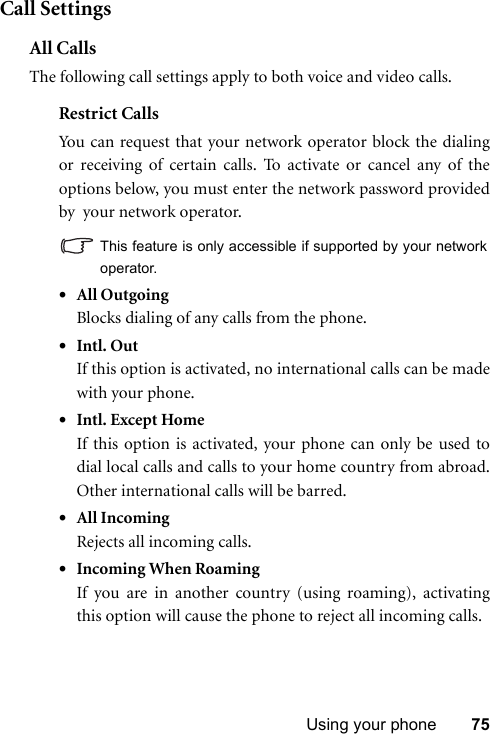

Using your phone 75Call SettingsAll CallsThe following call settings apply to both voice and video calls.Restrict CallsYou can request that your network operator block the dialingor receiving of certain calls. To activate or cancel any of theoptions below, you must enter the network password providedby your network operator.This feature is only accessible if supported by your networkoperator.•All OutgoingBlocks dialing of any calls from the phone.•Intl. OutIf this option is activated, no international calls can be madewith your phone.•Intl. Except HomeIf this option is activated, your phone can only be used todial local calls and calls to your home country from abroad.Other international calls will be barred.•All IncomingRejects all incoming calls.•Incoming When RoamingIf you are in another country (using roaming), activatingthis option will cause the phone to reject all incoming calls.

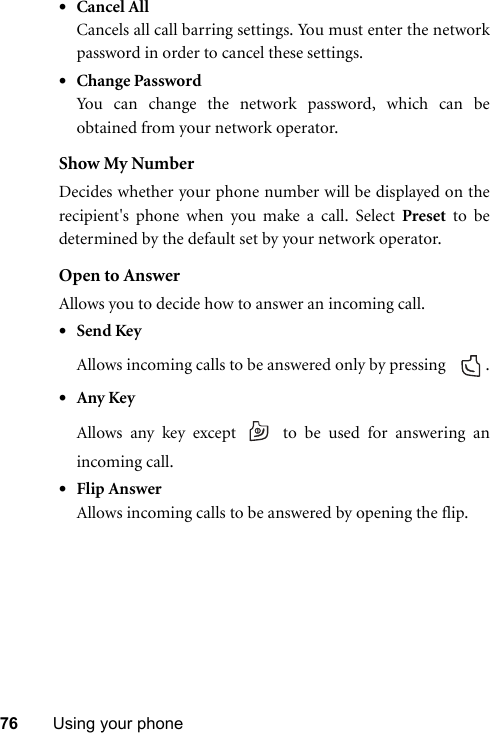

76 Using your phone•Cancel AllCancels all call barring settings. You must enter the networkpassword in order to cancel these settings.•Change PasswordYou can change the network password, which can beobtained from your network operator.Show My NumberDecides whether your phone number will be displayed on therecipient's phone when you make a call. Select Preset to bedetermined by the default set by your network operator.Open to AnswerAllows you to decide how to answer an incoming call.•Send KeyAllows incoming calls to be answered only by pressing .•Any KeyAllows any key except to be used for answering anincoming call.•Flip AnswerAllows incoming calls to be answered by opening the flip.

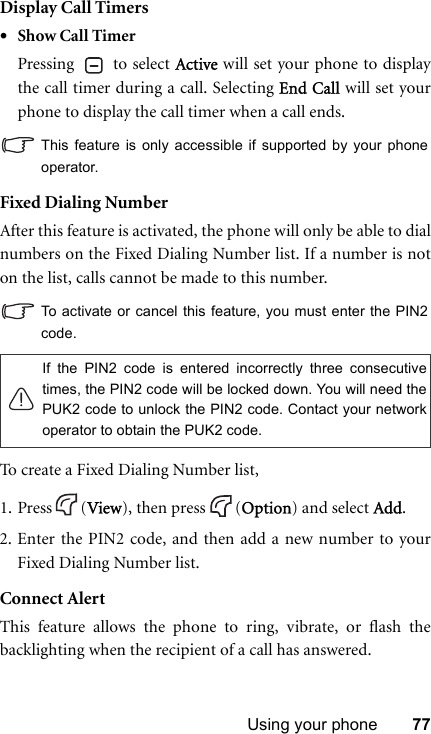

Using your phone 77Display Call Timers•Show Call TimerPressing to select Active will set your phone to displaythe call timer during a call. Selecting End Call will set yourphone to display the call timer when a call ends.This feature is only accessible if supported by your phoneoperator.Fixed Dialing NumberAfter this feature is activated, the phone will only be able to dialnumbers on the Fixed Dialing Number list. If a number is noton the list, calls cannot be made to this number.To activate or cancel this feature, you must enter the PIN2code.To create a Fixed Dialing Number list, 1. Press (View), then press (Option) and select Add. 2. Enter the PIN2 code, and then add a new number to yourFixed Dialing Number list.Connect AlertThis feature allows the phone to ring, vibrate, or flash thebacklighting when the recipient of a call has answered.If the PIN2 code is entered incorrectly three consecutivetimes, the PIN2 code will be locked down. You will need thePUK2 code to unlock the PIN2 code. Contact your networkoperator to obtain the PUK2 code.

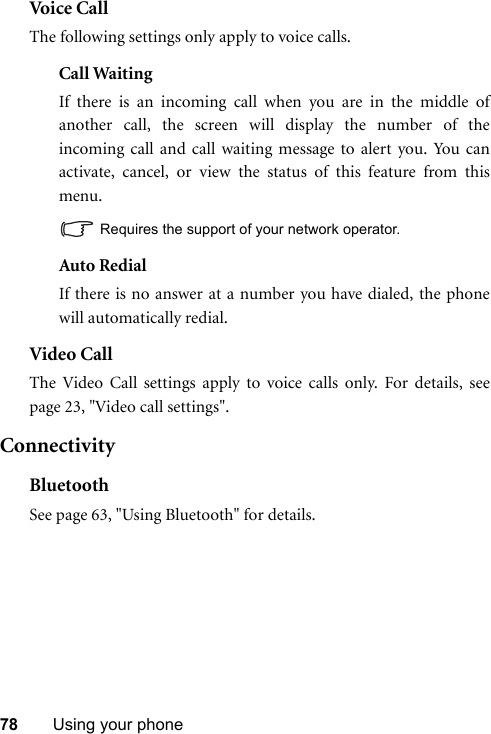

78 Using your phoneVoic e Cal lThe following settings only apply to voice calls.Call WaitingIf there is an incoming call when you are in the middle ofanother call, the screen will display the number of theincoming call and call waiting message to alert you. You canactivate, cancel, or view the status of this feature from thismenu.Requires the support of your network operator.Auto RedialIf there is no answer at a number you have dialed, the phonewill automatically redial.Video CallThe Video Call settings apply to voice calls only. For details, seepage 23, "Video call settings".ConnectivityBluetoothSee page 63, "Using Bluetooth" for details.

Using your phone 79Connection ProfileGenerally speaking, the network that your phone uses is configuredautomatically. When turned on, the phone will automaticallyconnect to the network provided by your network operator, or willautomatically connect to the roaming network when you areoutside the coverage of your regular network. When outside thecoverage of your regular network, you can manually select the localnetwork system.Requires the support of your network operator.Network SelectionAllows you to set the network searching automatic or manual.•AutomaticIf this option is selected, when outside the coverage of yourregular network, the phone will automatically search for theavailable network.•ManualIf this option is selected, when outside the coverage of yourregular network, the phone will list all the networks of telecomvendors and allow you to choose.Network ModeAllows you to set the type of networks that the phone willsearch for when it is turned on.•AutomaticIf this option is selected, the phone will search for availableUMTS and GSM networks. Select this option if you use aUSIM card on your phone.

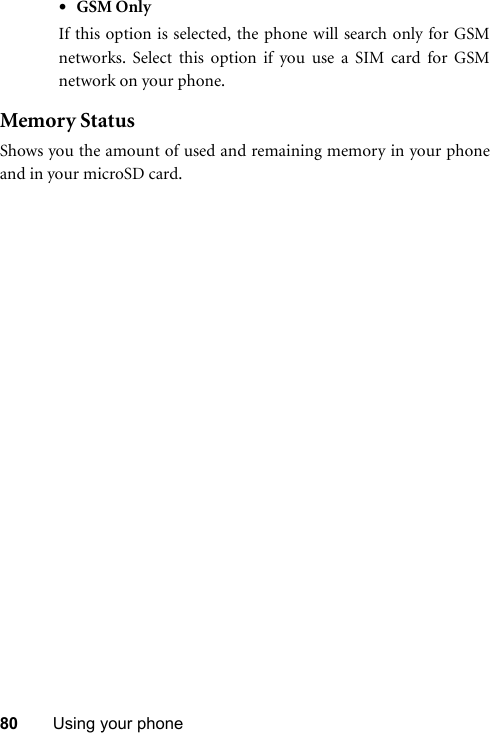

80 Using your phone•GSM OnlyIf this option is selected, the phone will search only for GSMnetworks. Select this option if you use a SIM card for GSMnetwork on your phone.Memory StatusShows you the amount of used and remaining memory in your phoneand in your microSD card.

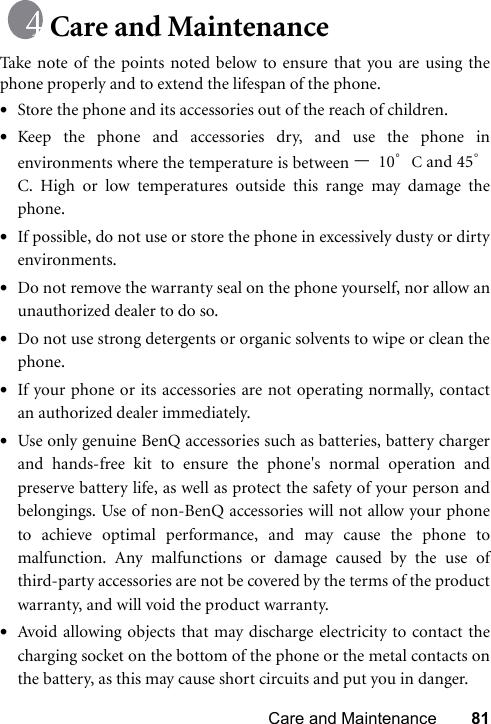

Care and Maintenance 81Care and MaintenanceTake note of the points noted below to ensure that you are using thephone properly and to extend the lifespan of the phone.•Store the phone and its accessories out of the reach of children.•Keep the phone and accessories dry, and use the phone inenvironments where the temperature is between –10°C and 45°C. High or low temperatures outside this range may damage thephone.•If possible, do not use or store the phone in excessively dusty or dirtyenvironments.•Do not remove the warranty seal on the phone yourself, nor allow anunauthorized dealer to do so.•Do not use strong detergents or organic solvents to wipe or clean thephone.•If your phone or its accessories are not operating normally, contactan authorized dealer immediately.•Use only genuine BenQ accessories such as batteries, battery chargerand hands-free kit to ensure the phone's normal operation andpreserve battery life, as well as protect the safety of your person andbelongings. Use of non-BenQ accessories will not allow your phoneto achieve optimal performance, and may cause the phone tomalfunction. Any malfunctions or damage caused by the use ofthird-party accessories are not be covered by the terms of the productwarranty, and will void the product warranty.•Avoid allowing objects that may discharge electricity to contact thecharging socket on the bottom of the phone or the metal contacts onthe battery, as this may cause short circuits and put you in danger.

82 TroubleshootingTroubleshootingIf you encounter problems while using the phone, or if it performserratically, you can consult the information in the chart below. If yourparticular problem cannot be resolved using the information in thechart, contact the dealer where you purchased the phone.Problem Possible cause SolutionPoor reception•The network signal is tooweak at your currentlocation —for example, ina basement or near a tallbuilding-because wirelesstransmissions can noteffectively reach it. Move to a location where thenetwork signal can beproperly received.•The network is busy atthe current time (forexample, during peaktimes, there may be toomuch network traffic tohandle additional calls).Avoid using the phone atsuch times, or try again afterwaiting a short time.•You are too far away froma base station for yournetwork operator.You can request a servicearea map from your networkoperator.Echo or noise•Poor network trunk qualityon the part of yournetwork operator.Hang up the phone and dialagain. You may be switchedto a better-quality networktrunk or phone line.•Poor local telephone linequality.

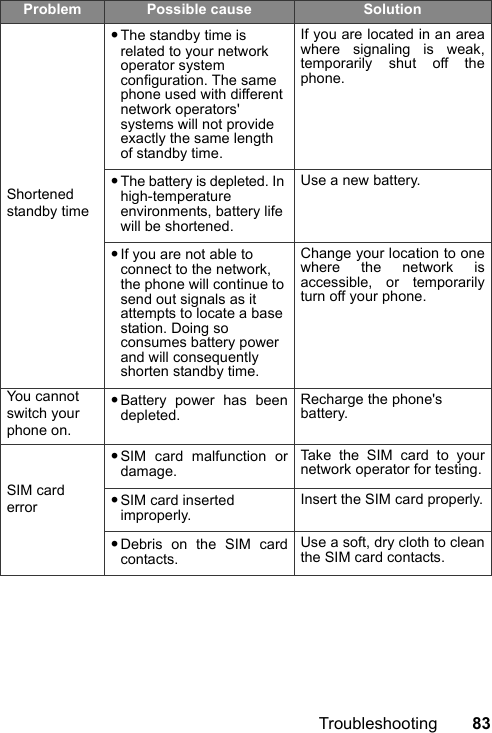

Troubleshooting 83Shortened standby time•The standby time is related to your network operator system configuration. The same phone used with different network operators' systems will not provide exactly the same length of standby time.If you are located in an areawhere signaling is weak,temporarily shut off thephone.•The battery is depleted. In high-temperature environments, battery life will be shortened.Use a new battery.•If you are not able to connect to the network, the phone will continue to send out signals as it attempts to locate a base station. Doing so consumes battery power and will consequently shorten standby time.Change your location to onewhere the network isaccessible, or temporarilyturn off your phone.You cannot switch your phone on.•Battery power has beendepleted.Recharge the phone's battery.SIM card error•SIM card malfunction ordamage.Take the SIM card to yournetwork operator for testing.•SIM card inserted improperly.Insert the SIM card properly.•Debris on the SIM cardcontacts.Use a soft, dry cloth to cleanthe SIM card contacts.Problem Possible cause Solution

84 TroubleshootingUnable to connect to the network.•SIM card invalid. Contact your network operator.•You are not within thenetwork's service area.Check the service area with your network operator.•Poor signal. Move to an open space, or if you are inside a building, move closer to a window.You cannot answer incoming calls.•The calls come from the contacts listed in the Reject List.In the the Reject List, remove the contacts whose calls you want to answer.•You have activated theRestrict Calls feature.Go to Settings > Call Settings > All Calls > Restrict Calls, and then select Cancel All.You cannot make outgoing calls.•You have activated theRestrict Calls feature.Go to Settings > Call Settings > All Calls > Restrict Calls, and then select Cancel All.•You have activated the Fixed Dialing Number feature.Go to Settings > Call Settings > All Calls > Fixed Dialing Number to turn this feature off.PIN Code is blocked.•You have entered an incorrect PIN code three consecutive times.Contact your network operator. If your network operator provides the SIM card's PUK code, use the PUK code to unlock the SIM card.Problem Possible cause Solution

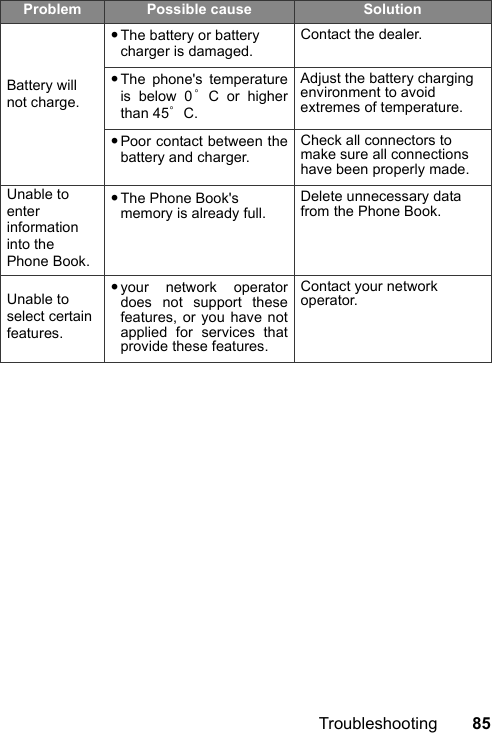

Troubleshooting 85Battery will not charge.•The battery or battery charger is damaged.Contact the dealer.•The phone's temperatureis below 0°C or higherthan 45°C.Adjust the battery charging environment to avoid extremes of temperature.•Poor contact between thebattery and charger.Check all connectors to make sure all connections have been properly made.Unable to enter information into the Phone Book.•The Phone Book's memory is already full.Delete unnecessary data from the Phone Book.Unable to select certain features.•your network operatordoes not support thesefeatures, or you have notapplied for services thatprovide these features.Contact your network operator.Problem Possible cause Solution

86 Troubleshooting
