Installation Manual

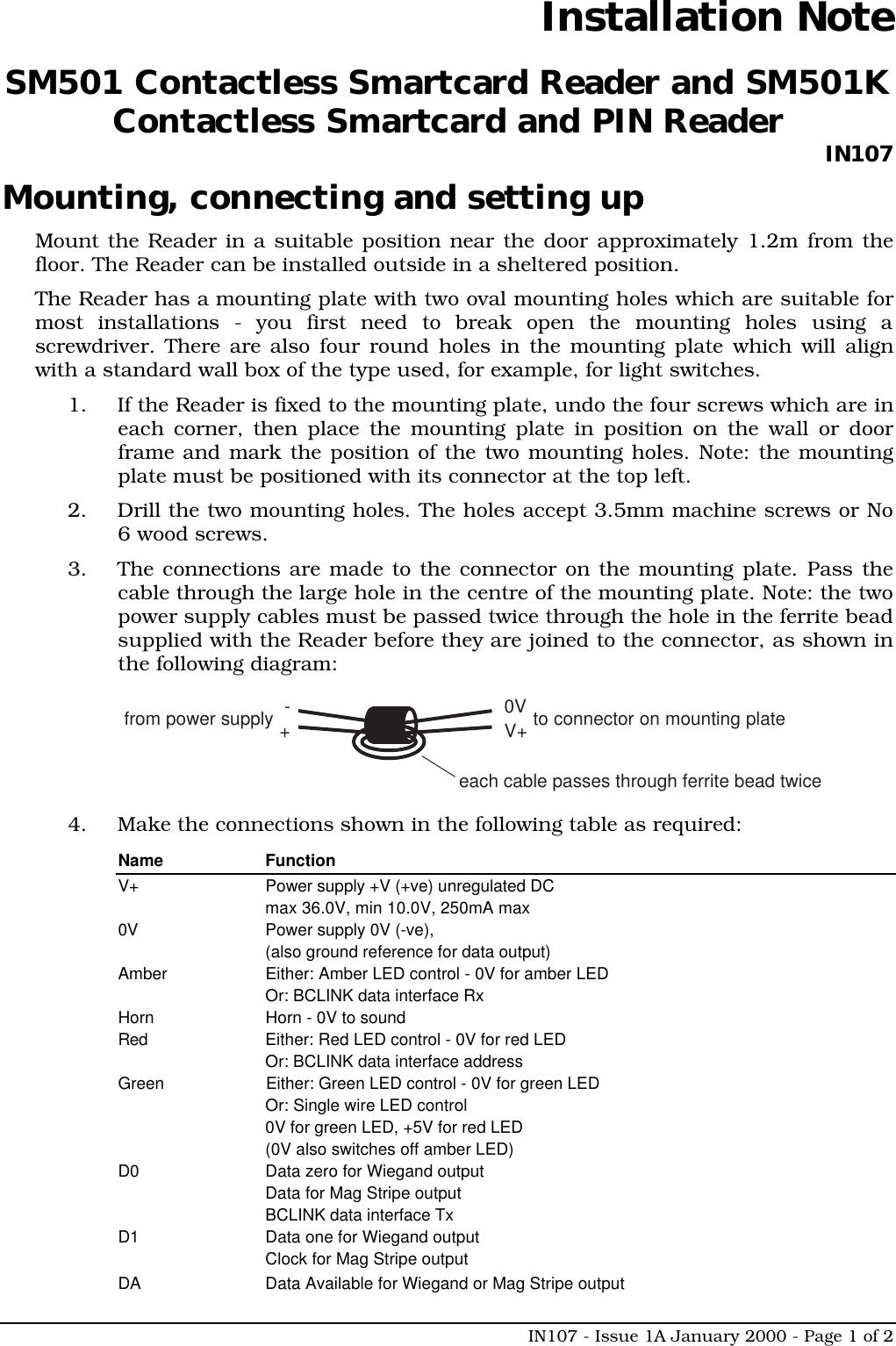

IN107 - Issue 1A January 2000 - Page 1 of 2Installation NoteSM501 Contactless Smartcard Reader and SM501KContactless Smartcard and PIN Reader IN107Mounting, connecting and setting upMount the Reader in a suitable position near the door approximately 1.2m from thefloor. The Reader can be installed outside in a sheltered position.The Reader has a mounting plate with two oval mounting holes which are suitable formost installations - you first need to break open the mounting holes using ascrewdriver. There are also four round holes in the mounting plate which will alignwith a standard wall box of the type used, for example, for light switches.1. If the Reader is fixed to the mounting plate, undo the four screws which are ineach corner, then place the mounting plate in position on the wall or doorframe and mark the position of the two mounting holes. Note: the mountingplate must be positioned with its connector at the top left.2. Drill the two mounting holes. The holes accept 3.5mm machine screws or No6 wood screws.3. The connections are made to the connector on the mounting plate. Pass thecable through the large hole in the centre of the mounting plate. Note: the twopower supply cables must be passed twice through the hole in the ferrite beadsupplied with the Reader before they are joined to the connector, as shown inthe following diagram:-+from power supplyeach cable passes through ferrite bead twice0VV+ to connector on mounting plate4. Make the connections shown in the following table as required:Name FunctionV+ Power supply +V (+ve) unregulated DCmax 36.0V, min 10.0V, 250mA max0V Power supply 0V (-ve),(also ground reference for data output)Amber Either: Amber LED control - 0V for amber LEDOr: BCLINK data interface RxHorn Horn - 0V to soundRed Either: Red LED control - 0V for red LEDOr: BCLINK data interface addressGreen Either: Green LED control - 0V for green LEDOr: Single wire LED control0V for green LED, +5V for red LED(0V also switches off amber LED)D0 Data zero for Wiegand outputData for Mag Stripe outputBCLINK data interface TxD1 Data one for Wiegand outputClock for Mag Stripe outputDA Data Available for Wiegand or Mag Stripe output

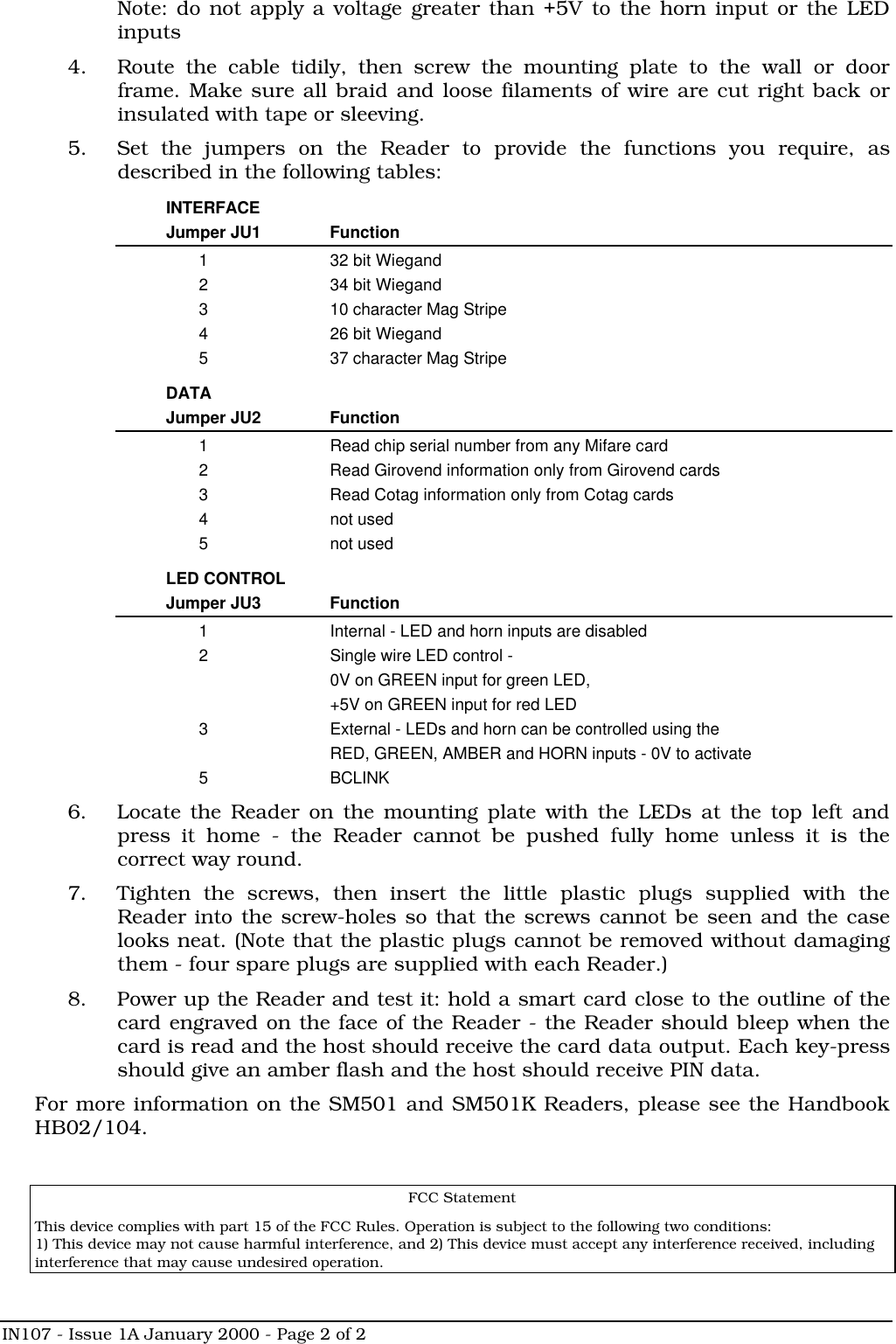

IN107 - Issue 1A January 2000 - Page 2 of 2Note: do not apply a voltage greater than +5V to the horn input or the LEDinputs4. Route the cable tidily, then screw the mounting plate to the wall or doorframe. Make sure all braid and loose filaments of wire are cut right back orinsulated with tape or sleeving.5. Set the jumpers on the Reader to provide the functions you require, asdescribed in the following tables:INTERFACEJumper JU1 Function1 32 bit Wiegand2 34 bit Wiegand3 10 character Mag Stripe4 26 bit Wiegand5 37 character Mag StripeDATAJumper JU2 Function1 Read chip serial number from any Mifare card2 Read Girovend information only from Girovend cards3 Read Cotag information only from Cotag cards4 not used5 not usedLED CONTROLJumper JU3 Function1 Internal - LED and horn inputs are disabled2 Single wire LED control -0V on GREEN input for green LED,+5V on GREEN input for red LED3 External - LEDs and horn can be controlled using theRED, GREEN, AMBER and HORN inputs - 0V to activate5 BCLINK6. Locate the Reader on the mounting plate with the LEDs at the top left andpress it home - the Reader cannot be pushed fully home unless it is thecorrect way round.7. Tighten the screws, then insert the little plastic plugs supplied with theReader into the screw-holes so that the screws cannot be seen and the caselooks neat. (Note that the plastic plugs cannot be removed without damagingthem - four spare plugs are supplied with each Reader.)8. Power up the Reader and test it: hold a smart card close to the outline of thecard engraved on the face of the Reader - the Reader should bleep when thecard is read and the host should receive the card data output. Each key-pressshould give an amber flash and the host should receive PIN data.For more information on the SM501 and SM501K Readers, please see the HandbookHB02/104.FCC StatementThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:1) This device may not cause harmful interference, and 2) This device must accept any interference received, includinginterference that may cause undesired operation.
