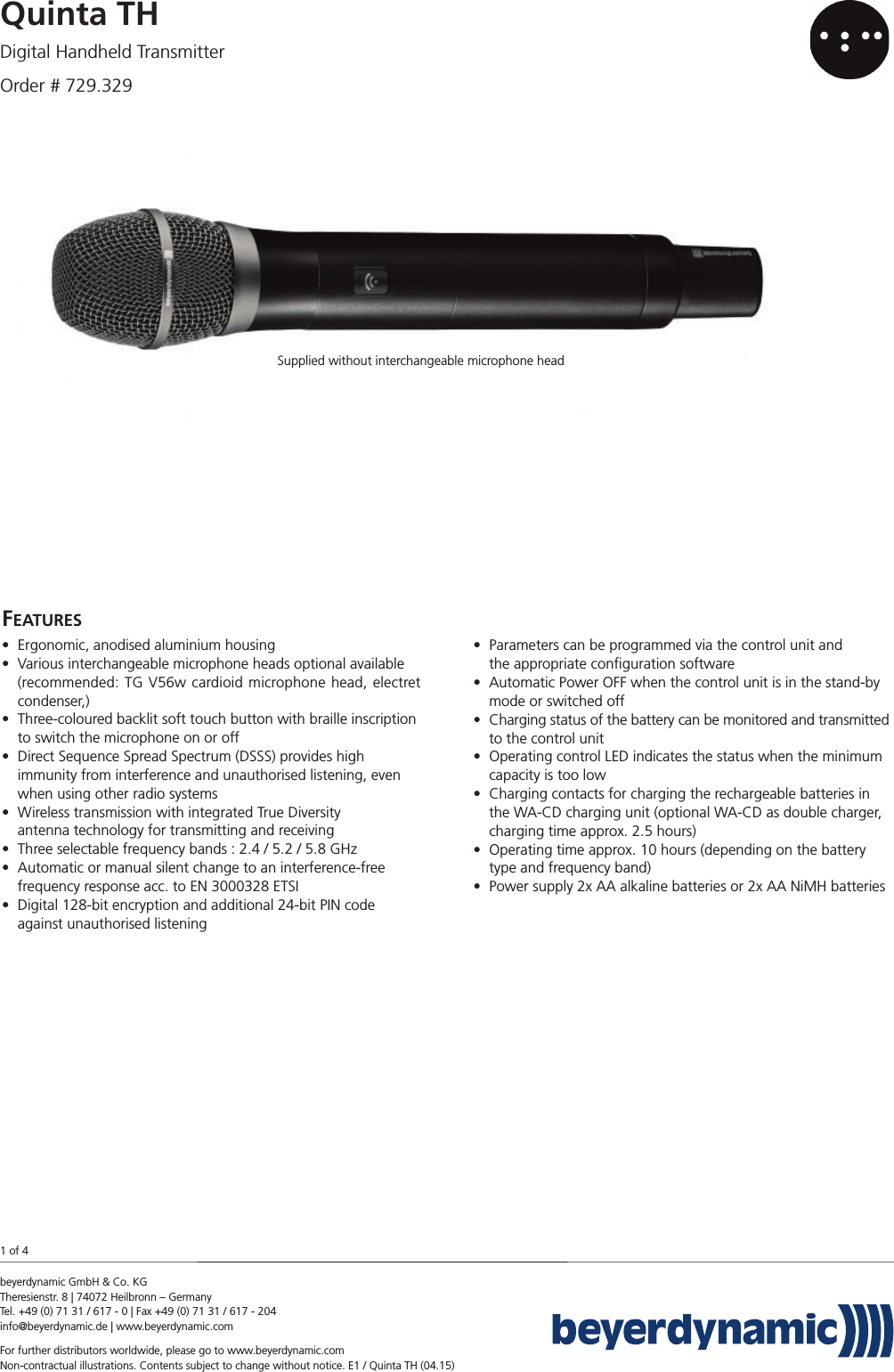

beyerdynamic GmbH & Co. KG Theresienstr. 8 | 74072 Heilbronn – GermanyTel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204info@beyerdynamic.de | www.beyerdynamic.comFor further distributors worldwide, please go to www.beyerdynamic.comNon-contractual illustrations. Contents subject to change without notice. E1 / Quinta TH (04.15)Quinta THDigital Handheld TransmitterOrder # 729.329FEATURES• Ergonomic, anodised aluminium housing• Various interchangeable microphone heads optional available(recommended: TG V56w cardioid microphone head, electretcondenser,)• Three-coloured backlit soft touch button with braille inscriptionto switch the microphone on or off• Direct Sequence Spread Spectrum (DSSS) provides high immunity from interference and unauthorised listening, evenwhen using other radio systems• Wireless transmission with integrated True Diversity antenna technology for transmitting and receiving• Three selectable frequency bands : 2.4 / 5.2 / 5.8 GHz• Automatic or manual silent change to an interference-free frequency response acc. to EN 3000328 ETSI• Digital 128-bit encryption and additional 24-bit PIN codeagainst unauthorised listening• Parameters can be programmed via the control unit and the appropriate configuration software• Automatic Power OFF when the control unit is in the stand-bymode or switched off• Charging status of the battery can be monitored and transmittedto the control unit• Operating control LED indicates the status when the minimumcapacity is too low• Charging contacts for charging the rechargeable batteries inthe WA-CD charging unit (optional WA-CD as double charger,charging time approx. 2.5 hours)• Operating time approx. 10 hours (depending on the batterytype and frequency band)• Power supply 2x AA alkaline batteries or 2x AA NiMH batteries1 of 4Supplied without interchangeable microphone head

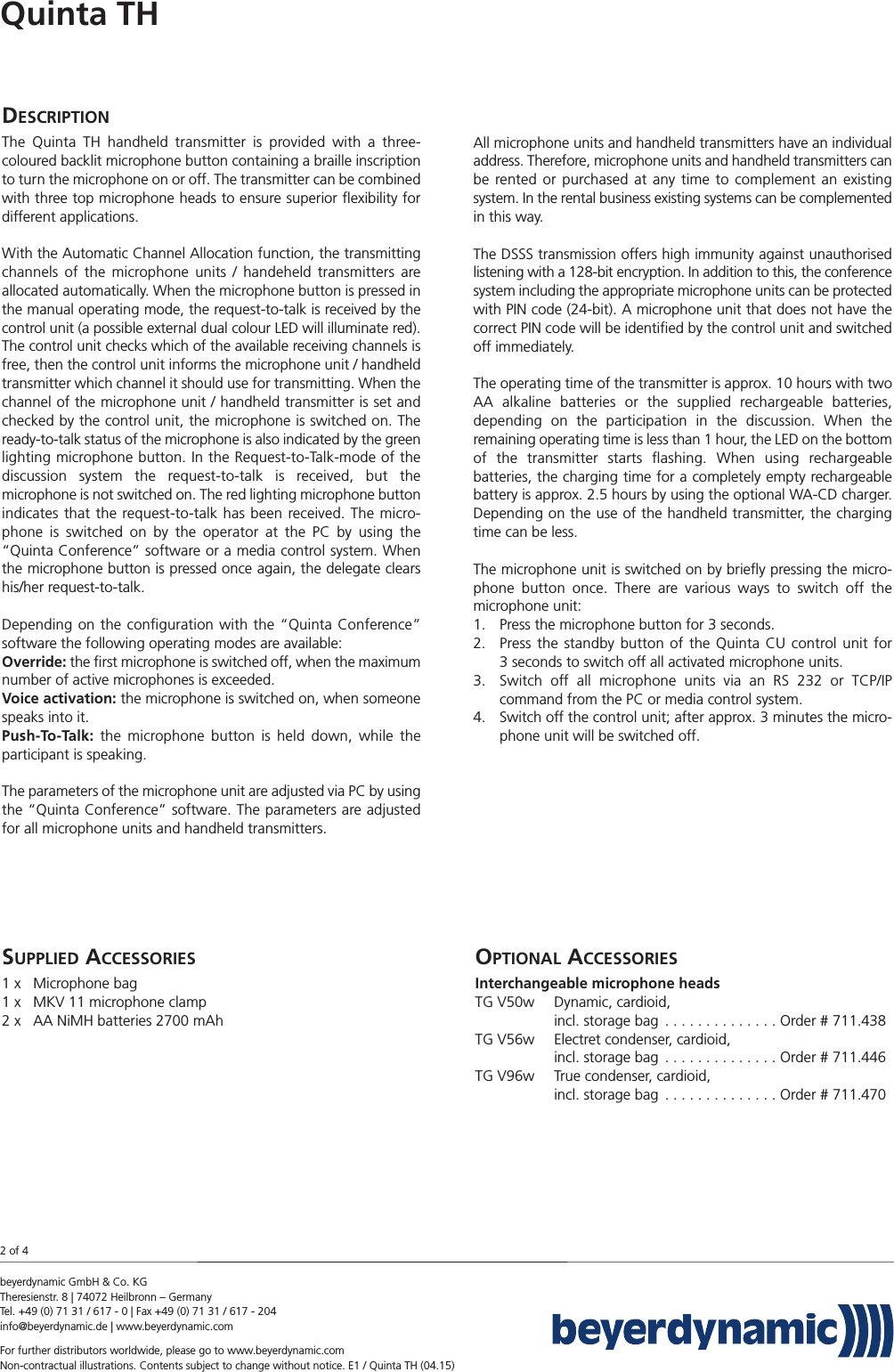

Quinta THDESCRIPTIONThe Quinta TH handheld transmitter is provided with a three- coloured backlit microphone button containing a braille inscriptionto turn the microphone on or off. The transmitter can be combinedwith three top microphone heads to ensure superior flexibility for different applications.With the Automatic Channel Allocation function, the transmittingchannels of the microphone units / handeheld transmitters are allocated automatically. When the microphone button is pressed inthe manual operating mode, the request-to-talk is received by thecontrol unit (a possible external dual colour LED will illuminate red).The control unit checks which of the available receiving channels isfree, then the control unit informs the microphone unit / handheldtransmitter which channel it should use for transmitting. When thechannel of the microphone unit / handheld transmitter is set andchecked by the control unit, the microphone is switched on. Theready-to-talk status of the microphone is also indicated by the greenlighting microphone button. In the Request-to-Talk-mode of the discussion system the request-to-talk is received, but the microphone is not switched on. The red lighting microphone buttonindicates that the request-to-talk has been received. The micro-phone is switched on by the operator at the PC by using the“Quinta Conference” software or a media control system. Whenthe microphone button is pressed once again, the delegate clearshis/her request-to-talk. Depending on the configuration with the “Quinta Conference”software the following operating modes are available:Override: the first microphone is switched off, when the maximumnumber of active microphones is exceeded.Voice activation: the microphone is switched on, when someonespeaks into it.Push-To-Talk: the microphone button is held down, while the participant is speaking.The parameters of the microphone unit are adjusted via PC by usingthe “Quinta Conference” software. The parameters are adjustedfor all microphone units and handheld transmitters.All microphone units and handheld transmitters have an individualaddress. Therefore, microphone units and handheld transmitters canbe rented or purchased at any time to complement an existing system. In the rental business existing systems can be complementedin this way. The DSSS transmission offers high immunity against unauthorisedlistening with a 128-bit encryption. In addition to this, the conferencesystem including the appropriate microphone units can be protectedwith PIN code (24-bit). A microphone unit that does not have thecorrect PIN code will be identified by the control unit and switchedoff immediately. The operating time of the transmitter is approx. 10 hours with twoAA alkaline batteries or the supplied rechargeable batteries, depending on the participation in the discussion. When the remaining operating time is less than 1 hour, the LED on the bottomof the transmitter starts flashing. When using rechargeable batteries, the charging time for a completely empty rechargeablebattery is approx. 2.5 hours by using the optional WA-CD charger.Depending on the use of the handheld transmitter, the chargingtime can be less. The microphone unit is switched on by briefly pressing the micro-phone button once. There are various ways to switch off the microphone unit:1. Press the microphone button for 3 seconds. 2. Press the standby button of the Quinta CU control unit for 3 seconds to switch off all activated microphone units. 3. Switch off all microphone units via an RS 232 or TCP/IP command from the PC or media control system.4. Switch off the control unit; after approx. 3 minutes the micro-phone unit will be switched off.beyerdynamic GmbH & Co. KG Theresienstr. 8 | 74072 Heilbronn – GermanyTel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204info@beyerdynamic.de | www.beyerdynamic.comFor further distributors worldwide, please go to www.beyerdynamic.comNon-contractual illustrations. Contents subject to change without notice. E1 / Quinta TH (04.15)2 of 4OPTIONAL ACCESSORIESInterchangeable microphone headsTG V50w Dynamic, cardioid,incl. storage bag . . . . . . . . . . . . . . Order # 711.438TG V56w Electret condenser, cardioid,incl. storage bag . . . . . . . . . . . . . . Order # 711.446TG V96w True condenser, cardioid,incl. storage bag . . . . . . . . . . . . . . Order # 711.470SUPPLIED ACCESSORIES1 x Microphone bag1 x MKV 11 microphone clamp2 x AA NiMH batteries 2700 mAh

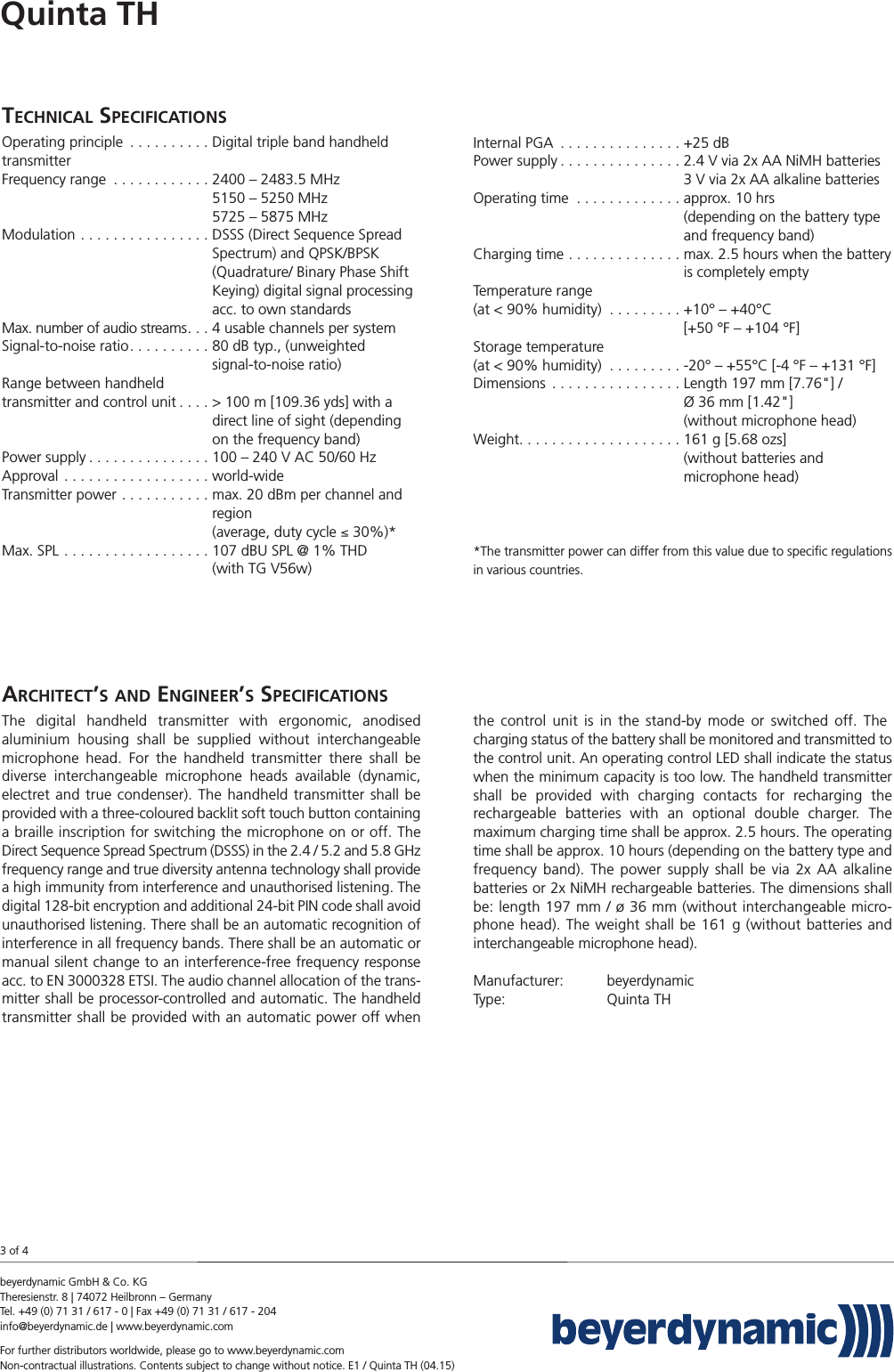

TECHNICAL SPECIFICATIONSOperating principle . . . . . . . . . . Digital triple band handheldtransmitterFrequency range . . . . . . . . . . . . 2400 – 2483.5 MHz5150 – 5250 MHz5725 – 5875 MHzModulation . . . . . . . . . . . . . . . . DSSS (Direct Sequence Spread Spectrum) and QPSK/BPSK (Quadrature/ Binary Phase Shift Keying) digital signal processing acc. to own standardsMax. number of audio streams. . . 4 usable channels per systemSignal-to-noise ratio. . . . . . . . . . 80 dB typ., (unweighted signal-to-noise ratio)Range between handheld transmitter and control unit . . . . > 100 m [109.36 yds] with a direct line of sight (depending on the frequency band)Power supply . . . . . . . . . . . . . . . 100 – 240 V AC 50/60 HzApproval . . . . . . . . . . . . . . . . . . world-wideTransmitter power . . . . . . . . . . . max. 20 dBm per channel and region (average, duty cycle ≤ 30%)*Max. SPL . . . . . . . . . . . . . . . . . . 107 dBU SPL @ 1% THD (with TG V56w)Internal PGA . . . . . . . . . . . . . . . +25 dBPower supply . . . . . . . . . . . . . . . 2.4 V via 2x AA NiMH batteries3 V via 2x AA alkaline batteriesOperating time . . . . . . . . . . . . . approx. 10 hrs (depending on the battery type and frequency band)Charging time . . . . . . . . . . . . . . max. 2.5 hours when the battery is completely emptyTemperature range (at < 90% humidity) . . . . . . . . . +10° – +40°C [+50 °F – +104 °F] Storage temperature (at < 90% humidity) . . . . . . . . . -20° – +55°C [-4 °F – +131 °F] Dimensions . . . . . . . . . . . . . . . . Length 197 mm [7.76"] / Ø 36 mm [1.42"] (without microphone head)Weight. . . . . . . . . . . . . . . . . . . . 161 g [5.68 ozs] (without batteries and microphone head)*The transmitter power can differ from this value due to specific regulationsin various countries.Quinta THbeyerdynamic GmbH & Co. KG Theresienstr. 8 | 74072 Heilbronn – GermanyTel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204info@beyerdynamic.de | www.beyerdynamic.comFor further distributors worldwide, please go to www.beyerdynamic.comNon-contractual illustrations. Contents subject to change without notice. E1 / Quinta TH (04.15)3 of 4ARCHITECT’S AND ENGINEER’SSPECIFICATIONSThe digital handheld transmitter with ergonomic, anodised aluminium housing shall be supplied without interchangeable microphone head. For the handheld transmitter there shall be diverse interchangeable microphone heads available (dynamic, electret and true condenser). The handheld transmitter shall be provided with a three-coloured backlit soft touch button containinga braille inscription for switching the microphone on or off. TheDirect Sequence Spread Spectrum (DSSS) in the 2.4 / 5.2 and 5.8 GHz frequency range and true diversity antenna technology shall providea high immunity from interference and unauthorised listening. Thedigital 128-bit encryption and additional 24-bit PIN code shall avoidunauthorised listening. There shall be an automatic recognition ofinterference in all frequency bands. There shall be an automatic ormanual silent change to an interference-free frequency responseacc. to EN 3000328 ETSI. The audio channel allocation of the trans-mitter shall be processor-controlled and automatic. The handheldtransmitter shall be provided with an automatic power off whenthe control unit is in the stand-by mode or switched off. The charging status of the battery shall be monitored and transmitted tothe control unit. An operating control LED shall indicate the statuswhen the minimum capacity is too low. The handheld transmittershall be provided with charging contacts for recharging the rechargeable batteries with an optional double charger. The maximum charging time shall be approx. 2.5 hours. The operatingtime shall be approx. 10 hours (depending on the battery type andfrequency band). The power supply shall be via 2x AA alkaline batteries or 2x NiMH rechargeable batteries. The dimensions shallbe: length 197 mm / ø 36 mm (without interchangeable micro-phone head). The weight shall be 161 g (without batteries and interchangeable microphone head). Manufacturer: beyerdynamic Type: Quinta TH
Quinta THbeyerdynamic GmbH & Co. KG Theresienstr. 8 | 74072 Heilbronn – GermanyTel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204info@beyerdynamic.de | www.beyerdynamic.comFor further distributors worldwide, please go to www.beyerdynamic.comNon-contractual illustrations. Contents subject to change without notice. E1 / Quinta TH (04.15)4 of 4MICROPHONE HEADSTG V50w• Dynamic microphone head• Cardioid polar pattern• Very wide pick-up area• High gain before feedbackThe dynamic TGV 50 W is an excellent microphone head for live vocals both on stage and inrehearsal rooms. The TGV 50 W features a balanced, powerful and natural sound, a very widepick-up area due to a cardioid polar pattern and a high gain before feedback.TG V56w• Condenser microphone head• Cardioid polar pattern• Discreet treble boost• High gain before feedbackThe TGV 56 W microphone head provides many opportunities for singing on stage and in rehearsal rooms. With the typical fine resolution of condenser microphones it is suitable forthe most diverse requirements and provides room for different types of vocal and musicalstyle. The discreet treble boost ensures a very transparent signal and the complex decouplingof the capsule minimises handling noise.TG V50wTG V56wTG V96w• Condenser microphone head• Cardioid polar pattern• Natural reproduction• High gain before feedback The true condenser microphone head features an impressive natural sound. It provides a subtle treble boost for an open, fine and unobtrusive sound. The 5-layer pop filter made ofmetal mesh wire with different mesh size and a sintered plate is easy to clean and ensures anoptimal suppression of plosives as well as a significant improvement in rear attenuation.TECHNICAL SPECIFICATIONSType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TG V50w . . . . . . . . . . . . . . . . . TG V56w . . . . . . . . . . . . . . . . . TG V70wPolar pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cardioid. . . . . . . . . . . . . . . . . . . Cardioid. . . . . . . . . . . . . . . . . . . CardioidTransducer type . . . . . . . . . . . . . . . . . . . . . . . . . . Dynamic . . . . . . . . . . . . . . . . . . Condenser . . . . . . . . . . . . . . . . . CondenserDimensionsHead diameter. . . . . . . . . . . . . . . . . . . . . . . . . . . 54 mm. . . . . . . . . . . . . . . . . . . . 48 mm. . . . . . . . . . . . . . . . . . . . 48 mmShaft diameter. . . . . . . . . . . . . . . . . . . . . . . . . . . 36 mm. . . . . . . . . . . . . . . . . . . . 36 mm. . . . . . . . . . . . . . . . . . . . 36 mmLength. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 mm. . . . . . . . . . . . . . . . . . . . 88 mm. . . . . . . . . . . . . . . . . . . . 91 mmWeight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146 g. . . . . . . . . . . . . . . . . . . . . 88 g. . . . . . . . . . . . . . . . . . . . . . 160 g
