Beyerdynamic TG1000H Wireless Microphone and handheld transmitter User Manual TG1000 BA E short

Beyerdynamic Wireless Microphone and handheld transmitter TG1000 BA E short

Contents

UserNotice.pdf

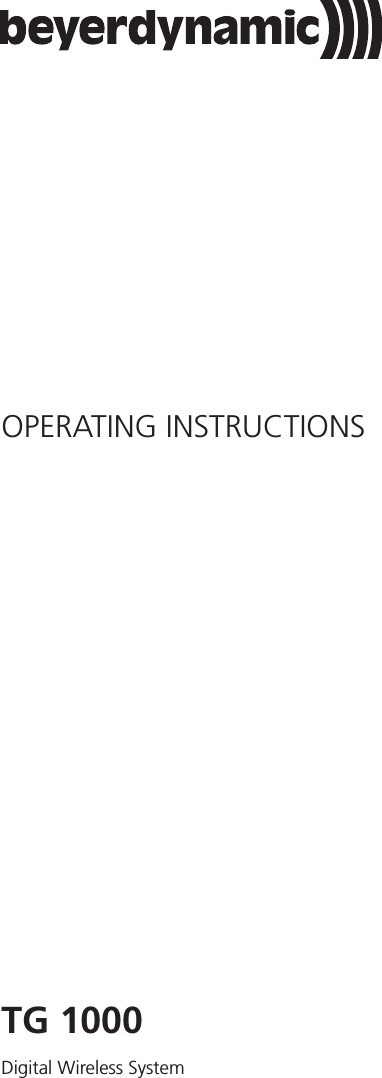

TG 1000Digital Wireless SystemOPERATING INSTRUCTIONS

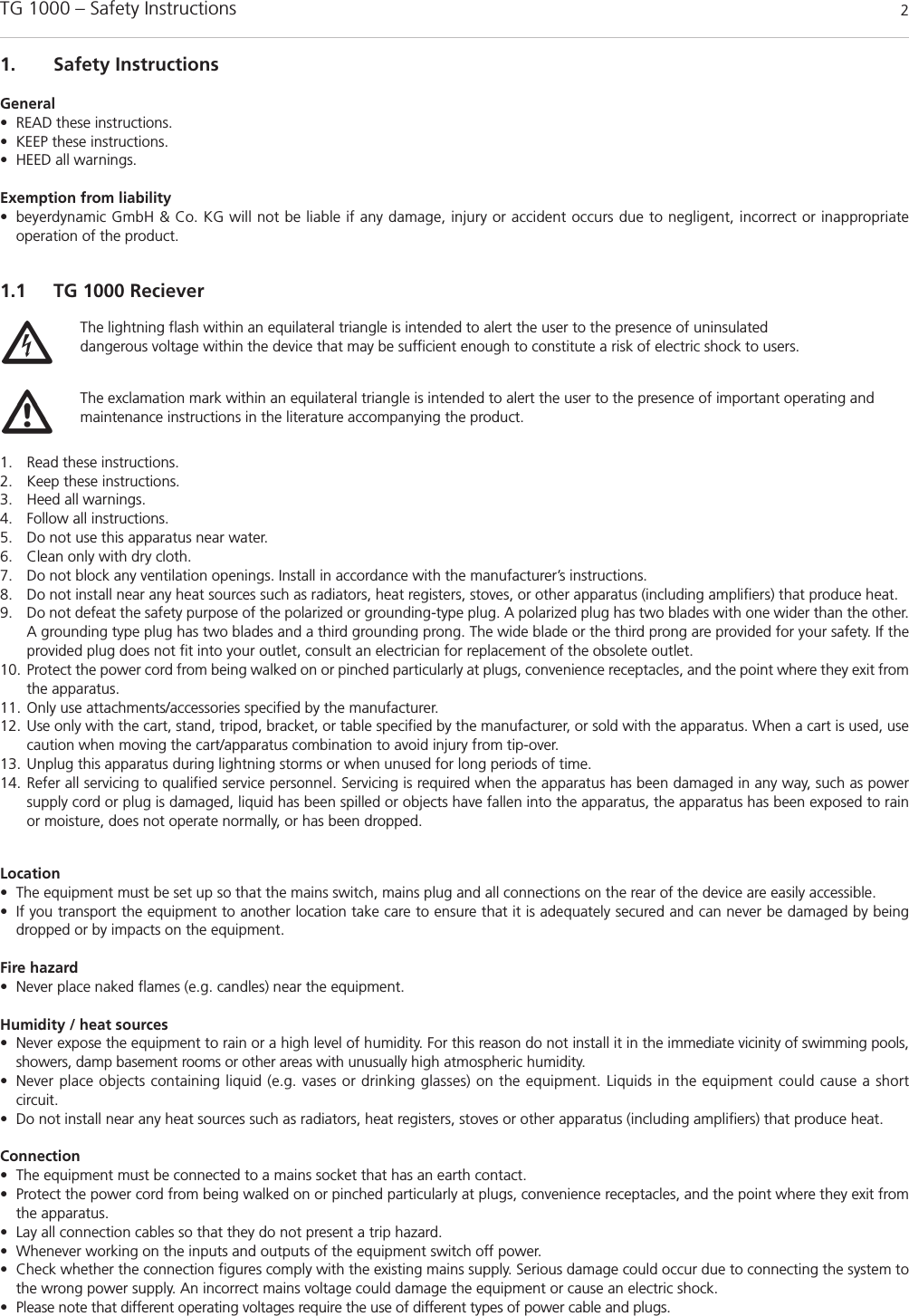

TG 1000 – Safety Instructions 21. Safety InstructionsGeneral• READ these instructions.• KEEP these instructions.• HEED all warnings.Exemption from liability• beyerdynamic GmbH & Co. KG will not be liable if any damage, injury or accident occurs due to negligent, incorrect or inappropriate operation of the product.1.1 TG 1000 Reciever1. Read these instructions.2. Keep these instructions. 3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If theprovided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit fromthe apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, usecaution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rainor moisture, does not operate normally, or has been dropped.Location• The equipment must be set up so that the mains switch, mains plug and all connections on the rear of the device are easily accessible. • If you transport the equipment to another location take care to ensure that it is adequately secured and can never be damaged by being dropped or by impacts on the equipment. Fire hazard• Never place naked flames (e.g. candles) near the equipment.Humidity / heat sources• Never expose the equipment to rain or a high level of humidity. For this reason do not install it in the immediate vicinity of swimming pools,showers, damp basement rooms or other areas with unusually high atmospheric humidity. • Never place objects containing liquid (e.g. vases or drinking glasses) on the equipment. Liquids in the equipment could cause a short circuit. • Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.Connection• The equipment must be connected to a mains socket that has an earth contact. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit fromthe apparatus.• Lay all connection cables so that they do not present a trip hazard. • Whenever working on the inputs and outputs of the equipment switch off power. • Check whether the connection figures comply with the existing mains supply. Serious damage could occur due to connecting the system tothe wrong power supply. An incorrect mains voltage could damage the equipment or cause an electric shock.• Please note that different operating voltages require the use of different types of power cable and plugs.The lightning flash within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the device that may be sufficient enough to constitute a risk of electric shock to users.The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating andmaintenance instructions in the literature accompanying the product.

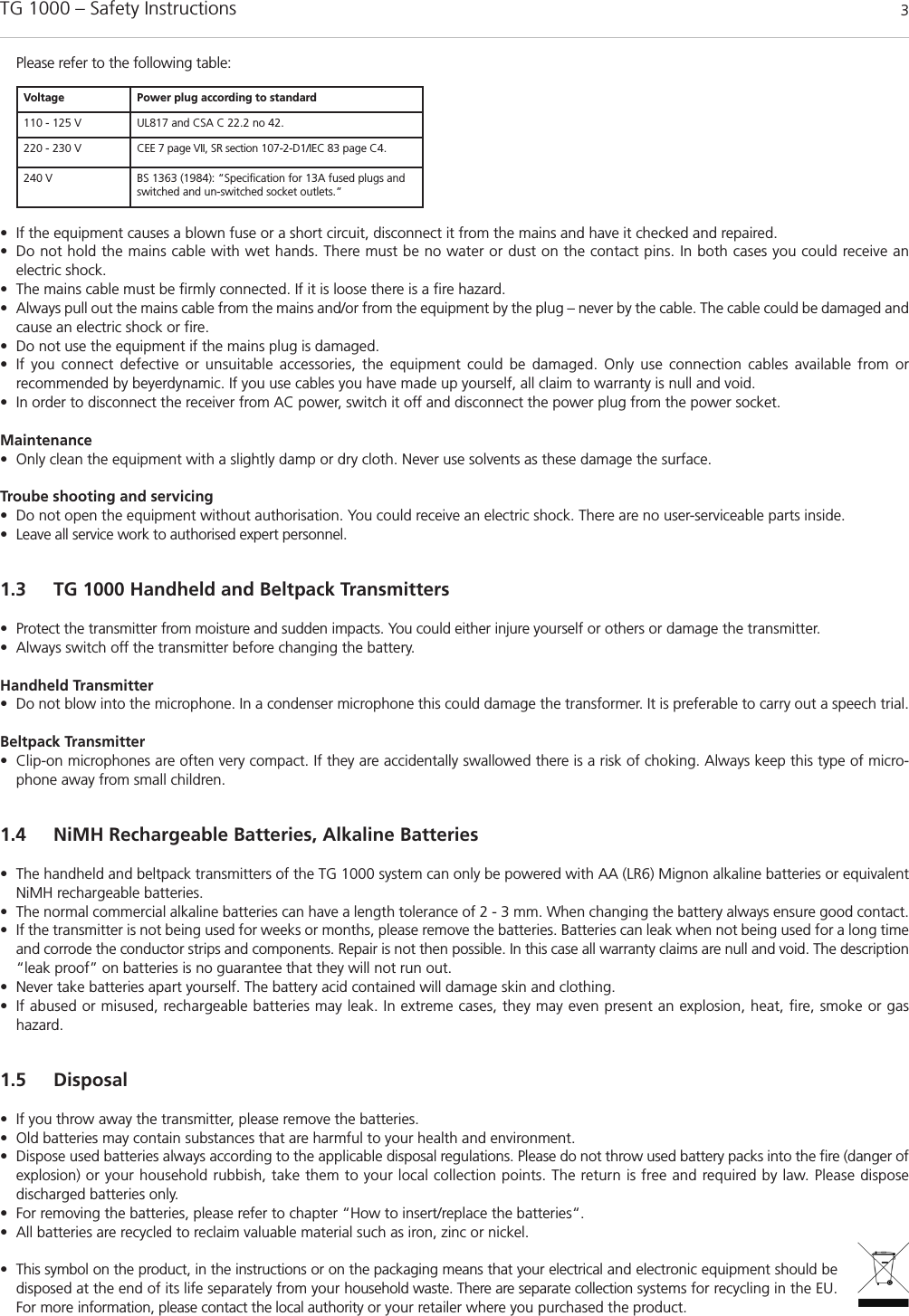

TG 1000 – Safety Instructions 3Please refer to the following table:• If the equipment causes a blown fuse or a short circuit, disconnect it from the mains and have it checked and repaired. • Do not hold the mains cable with wet hands. There must be no water or dust on the contact pins. In both cases you could receive an electric shock. • The mains cable must be firmly connected. If it is loose there is a fire hazard. • Always pull out the mains cable from the mains and/or from the equipment by the plug – never by the cable. The cable could be damaged andcause an electric shock or fire. • Do not use the equipment if the mains plug is damaged. • If you connect defective or unsuitable accessories, the equipment could be damaged. Only use connection cables available from or recommended by beyerdynamic. If you use cables you have made up yourself, all claim to warranty is null and void. • In order to disconnect the receiver from AC power, switch it off and disconnect the power plug from the power socket.Maintenance• Only clean the equipment with a slightly damp or dry cloth. Never use solvents as these damage the surface.Troube shooting and servicing• Do not open the equipment without authorisation. You could receive an electric shock. There are no user-serviceable parts inside.• Leave all service work to authorised expert personnel. 1.3 TG 1000 Handheld and Beltpack Transmitters• Protect the transmitter from moisture and sudden impacts. You could either injure yourself or others or damage the transmitter. • Always switch off the transmitter before changing the battery. Handheld Transmitter • Do not blow into the microphone. In a condenser microphone this could damage the transformer. It is preferable to carry out a speech trial. Beltpack Transmitter • Clip-on microphones are often very compact. If they are accidentally swallowed there is a risk of choking. Always keep this type of micro-phone away from small children. 1.4 NiMH Rechargeable Batteries, Alkaline Batteries• The handheld and beltpack transmitters of the TG 1000 system can only be powered with AA (LR6) Mignon alkaline batteries or equivalentNiMH rechargeable batteries.• The normal commercial alkaline batteries can have a length tolerance of 2 - 3 mm. When changing the battery always ensure good contact. • If the transmitter is not being used for weeks or months, please remove the batteries. Batteries can leak when not being used for a long timeand corrode the conductor strips and components. Repair is not then possible. In this case all warranty claims are null and void. The description“leak proof” on batteries is no guarantee that they will not run out. • Never take batteries apart yourself. The battery acid contained will damage skin and clothing. • If abused or misused, rechargeable batteries may leak. In extreme cases, they may even present an explosion, heat, fire, smoke or gas hazard.1.5 Disposal• If you throw away the transmitter, please remove the batteries. • Old batteries may contain substances that are harmful to your health and environment. • Dispose used batteries always according to the applicable disposal regulations. Please do not throw used battery packs into the fire (danger ofexplosion) or your household rubbish, take them to your local collection points. The return is free and required by law. Please dispose discharged batteries only. • For removing the batteries, please refer to chapter “How to insert/replace the batteries“. • All batteries are recycled to reclaim valuable material such as iron, zinc or nickel. • This symbol on the product, in the instructions or on the packaging means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.For more information, please contact the local authority or your retailer where you purchased the product.Voltage Power plug according to standard110 - 125 V UL817 and CSA C 22.2 no 42.220 - 230 V CEE 7 page VII, SR section 107-2-D1/IEC 83 page C4.240 V BS 1363 (1984): “Specification for 13A fused plugs andswitched and un-switched socket outlets.”
TG 1000 – Technical Specifications 48. Technical SpecificationsDigital UHF Diversity ReceiverOperating principle . . . . . . . Digital UHF true diversity receiverFrequency rangeRegion A . . . . . . . . . . . . . . . 470 – 789 MHzRegion B . . . . . . . . . . . . . . . 470 – 698 MHz without 608 - 614 MHz (US TV channel 37)Region C . . . . . . . . . . . . . . . 690 – 720 MHzRegion D . . . . . . . . . . . . . . . 470 – 628 MHz 710 – 716 MHzFrequency response . . . . . . . 20 – 20,000 Hz Dynamic range . . . . . . . . . . 110 dB (122 dB with -12 dB level decrease in the beltpack transmitter)Output level . . . . . . . . . . . . max. + 18 dBu balanced (XLR and jack output)0 to 30dB digital gain + 12dB analogue boostHeadphone output . . . . . . . switchable with volume control Latency . . . . . . . . . . . . . . . . 2.1 ms (overall latency from transmitter to receiver)Encryption & Audio CODEC . . . . . . . . . . . switchable, proprietary 16-bit encryption; “Triple-Play” CODEC with low latency and high error resilienceDisplay . . . . . . . . . . . . . . . . OLEDMains connection . . . . . . . . 100 V – 240 V ACPower consumption. . . . . . . 12 W (typ.)Ambient temperature . . . . . 0 to +55 °CWeight . . . . . . . . . . . . . . . . 3200 gDimensions . . . . . . . . . . . . . 420x242x43 mmAntenna connection . . . . . . 2 x BNC input/2 x BNC outputDigital UHF Handheld TransmitterOperating principle . . . . . . . Digital UHF handheld transmitterFrequency rangeRegion A . . . . . . . . . . . . . . . 470 – 789 MHzRegion B . . . . . . . . . . . . . . . 470 – 698 MHz without 608 – 614 MHz (US TV channel 37)Region C . . . . . . . . . . . . . . . 690 – 720 MHzRegion D . . . . . . . . . . . . . . . 470 – 628 MHz 710 – 716 MHzFrequency response . . . . . . . 20 – 20,000 Hz Encryption & Audio CODEC . . . . . . . . . . . switchable, proprietary 16-bit encryption; “Triple-Play” CODEC with low latency and high error resilienceTransmitter power . . . . . . . . 10mW („RF Power Standard“)/ 50 mW („RF Power High“)Display . . . . . . . . . . . . . . . . OLEDTransmission range . . . . . . . up to 300 metres under optimal conditionsOperating time . . . . . . . . . . approx. 8 hrs. (NiMH 2100 mAh, RF Power Standard)Weight . . . . . . . . . . . . . . . . 115 g without batteries and microphone capsule Dimensions . . . . . . . . . . . . . Length 200 mm / Ø 36 mmDigital UHF Beltpack TransmitterOperating principle . . . . . . . Digital UHF beltpack transmitterFrequency rangeRegion A . . . . . . . . . . . . . . . 470 – 789 MHzRegion B . . . . . . . . . . . . . . . 470 – 698 MHz without 608 – 614 MHz (US TV channel 37)Region C . . . . . . . . . . . . . . . 690 – 720 MHzRegion D . . . . . . . . . . . . . . . 470 – 628 MHz 710 – 716 MHzFrequency response . . . . . . . 20 – 20,000 Hz Antenna connection . . . . . . SMAEncryption & Audio CODEC . . . . . . . . . . . switchable, proprietary 16-bit encryption; “Triple-Play” CODEC with low latency and high error resilienceTransmitter power . . . . . . . . 10mW („RF Power Standard“)/ 50 mW („RF Power High“)Display . . . . . . . . . . . . . . . . OLEDTransmission range . . . . . . . up to 300 metres under optimal conditionsOperating time . . . . . . . . . . approx. 8 hrs. (NiMH 2100 mAh, RF Power Standard)Input level . . . . . . . . . . . . . . max. + 18 dBuWeight . . . . . . . . . . . . . . . . 102 g without batteriesDimensions . . . . . . . . . . . . . 94x59x26 mmPin assignment of 4-pinconnector . . . . . . . . . . . . . . Pin 1 = ground, pin 2 = IN1, pin 3 = IN2, pin 4 = +5 V

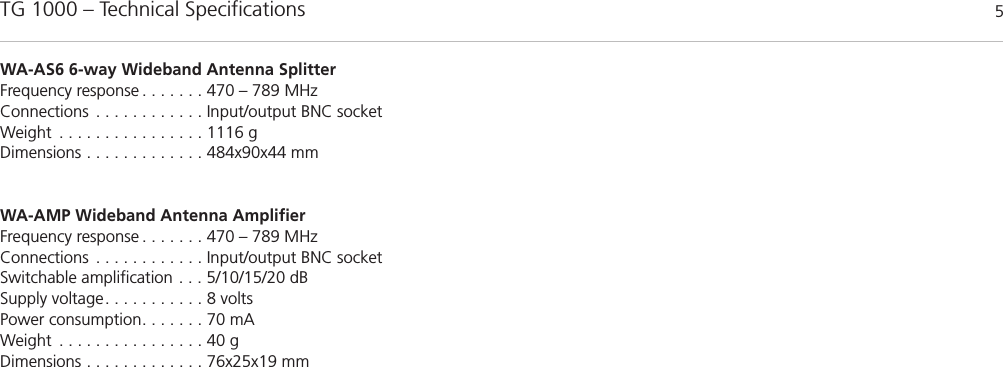

TG 1000 – Technical Specifications 5WA-AS6 6-way Wideband Antenna SplitterFrequency response . . . . . . . 470 – 789 MHzConnections . . . . . . . . . . . . Input/output BNC socketWeight . . . . . . . . . . . . . . . . 1116 gDimensions . . . . . . . . . . . . . 484x90x44 mmWA-AMP Wideband Antenna AmplifierFrequency response . . . . . . . 470 – 789 MHzConnections . . . . . . . . . . . . Input/output BNC socketSwitchable amplification . . . 5/10/15/20 dBSupply voltage. . . . . . . . . . . 8 voltsPower consumption. . . . . . . 70 mAWeight . . . . . . . . . . . . . . . . 40 gDimensions . . . . . . . . . . . . . 76x25x19 mm

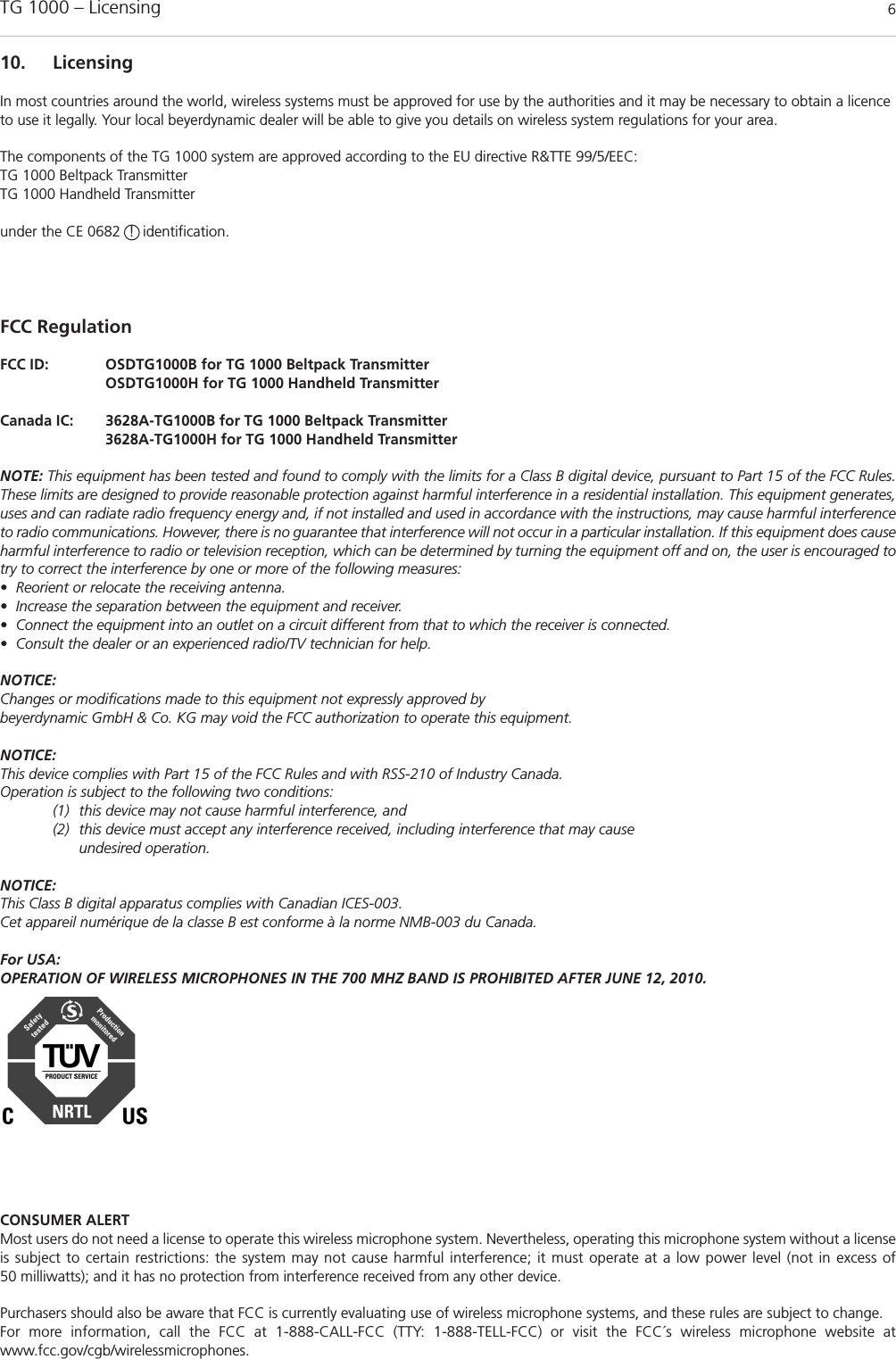

TG 1000 – Licensing 610. LicensingIn most countries around the world, wireless systems must be approved for use by the authorities and it may be necessary to obtain a licenceto use it legally. Your local beyerdynamic dealer will be able to give you details on wireless system regulations for your area.The components of the TG 1000 system are approved according to the EU directive R&TTE 99/5/EEC:TG 1000 Beltpack TransmitterTG 1000 Handheld Transmitter under the CE 0682 ! identification.FCC RegulationFCC ID: OSDTG1000B for TG 1000 Beltpack TransmitterOSDTG1000H for TG 1000 Handheld TransmitterCanada IC: 3628A-TG1000B for TG 1000 Beltpack Transmitter3628A-TG1000H for TG 1000 Handheld TransmitterNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged totry to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.NOTICE:Changes or modifications made to this equipment not expressly approved by beyerdynamic GmbH & Co. KG may void the FCC authorization to operate this equipment.NOTICE:This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.NOTICE:This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. For USA:OPERATION OF WIRELESS MICROPHONES IN THE 700 MHZ BAND IS PROHIBITED AFTER JUNE 12, 2010.CONSUMER ALERTMost users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a licenseis subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC´s wireless microphone website atwww.fcc.gov/cgb/wirelessmicrophones.

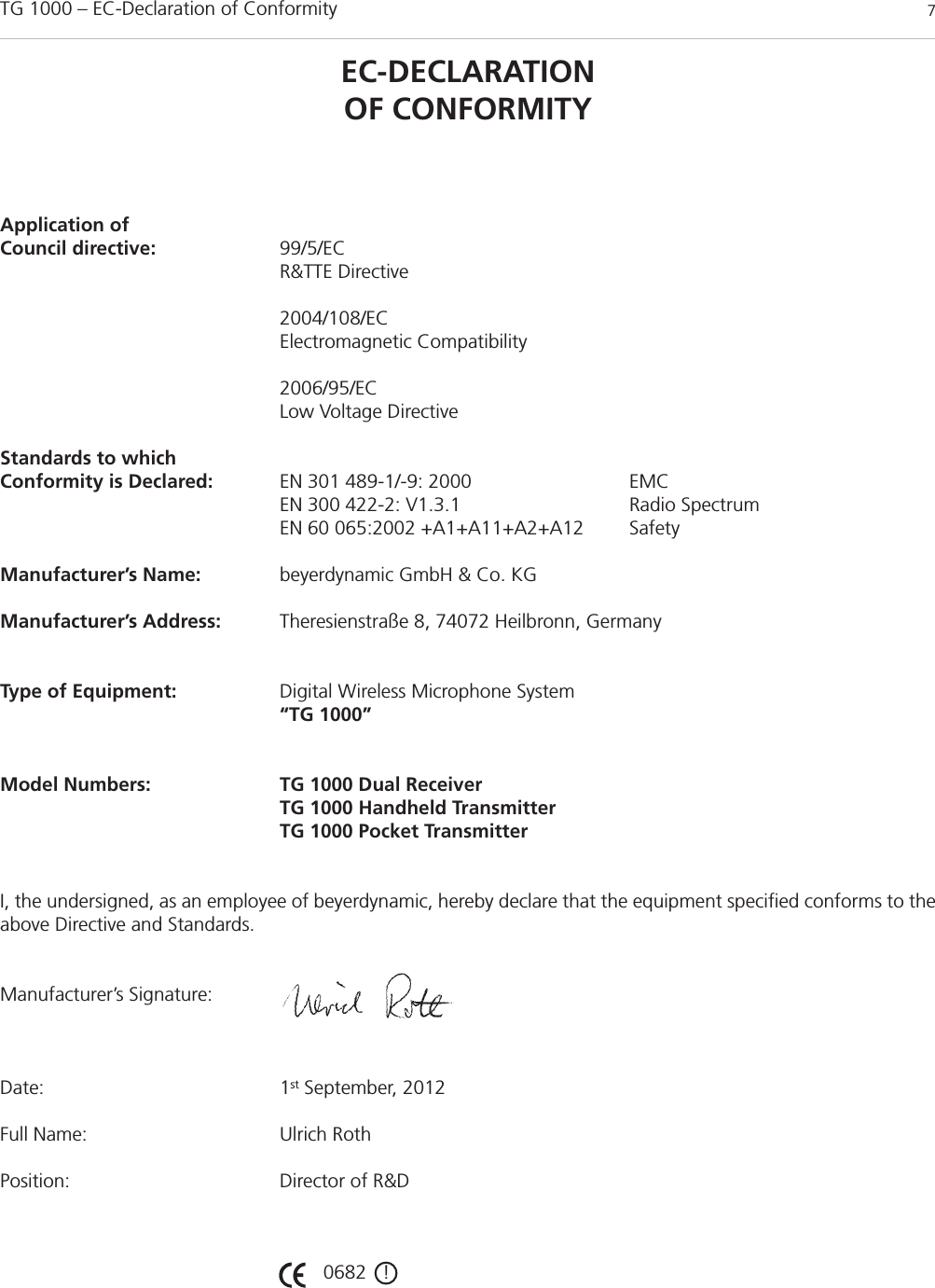

TG 1000 – EC-Declaration of Conformity 7EC-DECLARATIONOF CONFORMITYApplication ofCouncil directive: 99/5/EC R&TTE Directive2004/108/ECElectromagnetic Compatibility2006/95/ECLow Voltage DirectiveStandards to which Conformity is Declared: EN 301 489-1/-9: 2000 EMCEN 300 422-2: V1.3.1 Radio SpectrumEN 60 065:2002 +A1+A11+A2+A12 SafetyManufacturer’s Name: beyerdynamic GmbH & Co. KGManufacturer’s Address: Theresienstraße 8, 74072 Heilbronn, GermanyType of Equipment: Digital Wireless Microphone System“TG 1000”Model Numbers: TG 1000 Dual ReceiverTG 1000 Handheld TransmitterTG 1000 Pocket TransmitterI, the undersigned, as an employee of beyerdynamic, hereby declare that the equipment specified conforms to theabove Directive and Standards.Manufacturer’s Signature:Date: 1st September, 2012Full Name: Ulrich RothPosition: Director of R&D0682 !

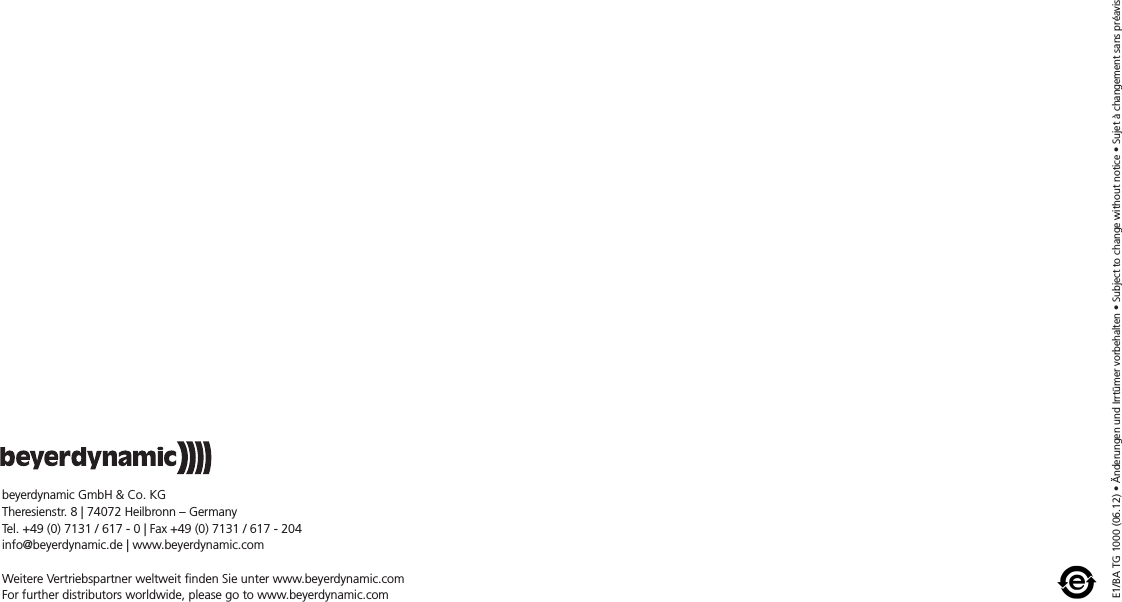

E1/BA TG 1000 (06.12) • Änderungen und Irrtümer vorbehalten • Subject to change without notice • Sujet à changement sans préavisbeyerdynamic GmbH & Co. KGTheresienstr. 8 | 74072 Heilbronn – GermanyTel. +49 (0) 7131 / 617 - 0 | Fax +49 (0) 7131 / 617 - 204info@beyerdynamic.de | www.beyerdynamic.comWeitere Vertriebspartner weltweit finden Sie unter www.beyerdynamic.comFor further distributors worldwide, please go to www.beyerdynamic.com
