Bilian Electronic R8192EU6 WLAN 11b/g/n USB MODULE User Manual

0



WLAN11b/g/nUSBMODULE

BL‐R8192EU6

Version:0.1

Customer

Date

Model NameBL‐R8192EU6

PartNO.

BlinkApproveField

ENGINEERQCSALES

 

CustomerApproveField

ENGINEERQCMANUFACTORYPURCHASING

  



B‐LINKELECTRONICCO.,LTDinshenzhen 

1



Content

Content.......................................................................................................................................................1

0.RevisionHistory ......................................................................................................................................3

1.GeneralDescription.................................................................................................................................3

2.Therangeofapplying..............................................................................................................................3

3.ProductSpecification ..............................................................................................................................3

3.1FunctionBlockdiagram ............................................................................................................................. 3

3.2ElectricalandPerformanceSpecification.................................................................................................. 4

3.3DCCharacteristic ....................................................................................................................................... 5

3.4ProductPhoto............................................................................................................................................ 6

3.5MechanicalSpecification........................................................................................................................... 6

3.6ProductPinDefinition ............................................................................................................................... 7

4.TypicalSolderReflowProfile ...................................................................................................................8

5.Precautionsforuse .................................................................................................................................8



B‐LINKELECTRONICCO.,LTDinshenzhen 

2



FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates uses

and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-Consult the dealer or an experienced radio/TV technician for help.

The WLAN 11b/g/n USB MODULE is designed to comply with the FCC statement. FCC ID is S8J-

R8192EU6. The host system using WLAN 11b/g/n USB MODULE, should have label indicated it

contain modular’s

FCC ID：S8J-R8192EU6.

This radio module must not installed to colocate and operating simultaneously with other radios in

host system , additional testing and equipment authorization may be required to operating

simultaneously with other radio.

* RF warning for Mobile device:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

B‐LINKELECTRONICCO.,LTDinshenzhen 

3



0. RevisionHistory

Date Document

revision

Product

revision Change Description

2015/08/22 V0.1 V0.1 Draft initial release



1. GeneralDescription

BL‐R8192EU6productisdesignedbaseonTheRealtekRTL8192EUchipset. It usesahighly

integratedsingle‐chipMIMO(MultipleIn,MultipleOut)WirelessLAN(WLAN)solutionforthe

wirelesshighthroughput802.11nspecification.ItcombinesaMAC,a2T2Rcapablebaseband,

andRFinasinglechip.Itprovidesacompletesolutionforahighthroughputperformance

wirelessLancontroller.TheRTL8192EUbasebandimplementsMultipleInput,MultipleOutput

(MIMO)OrthogonalFrequencyDivisionMultiplexing(OFDM)with2transmitand2receive

paths(2T2R)andiscompatiblewiththe802.11nspecification.Itsupportsfastreceiver

AutomaticGainControl(AGC)withsynchronousandasynchronouscontrolloopsamong

antennas,antennadiversityfunctions,andadaptivetransmitpowercontrolfunctionstoobtain

thebetterperformanceintheanalogportionsofthetransceiver.

2. Therangeofapplying

MID,networkingcamera,STBGPS,E‐book,Harddiskplayer,NetworkRadios,PSPandotherdevice

whichneedbesupportedbywirelessnetworking

3.ProductSpecification

3.1FunctionBlockdiagram

B‐LINKELECTRONICCO.,LTDinshenzhen 

4



3.2ElectricalandPerformanceSpecification

ItemDescription

ProductName WLAN11b/g/nUSBMODULE

MajorChipsetRTL8192EU

HostInterface USB2.0

StandardIEEE802.11b,IEEE802.11g,IEEE802.11n

FrequencyRange2412‐2462MHzfor802.11b/g/n(HT20);

2422‐2452MHzfor802.11n(HT40)

ModulationType

802.11b:CCK,DQPSK,DBPSK

802.11g:64‐QAM,16‐QAM,QPSK,BPSK

802.11n:64‐QAM,16‐QAM,QPSK,BPSK

WorkingModeInfrastructure,Ad‐Hoc

DataTransferRate1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120,135and

maximumof300Mbps

SpreadSpectrum

IEEE802.11b:DSSS(DirectSequenceSpreadSpectrum)

IEEE802.11g/n:OFDM(OrthogonalFrequencyDivision

Multiplexing)

Sensitivity@PER(Typical)

1M:‐94dBm@8%PER

6M:‐91dBm@10%PER

11M:‐86dBm@8%PER

54M:‐74dBm@10%PER

135M:‐68dBm@10%PER

RFPower18dBm@11b,14dBm@11g,13dBm@11n(Tolerance:+/‐2dB)

B‐LINKELECTRONICCO.,LTDinshenzhen 

5



AntennatypeConnecttotheexternalantennathroughtheIPEX

ThetransmitdistanceIndoor100M,Outdoor300M,accordingthelocalenvironment

Dimension(L*W*H)40.0x20.0x3.2mm(LxWxH)Tolerance:+/‐0.2mm

Powersupply3.3V+/‐0.2V

PowerConsumptionstandbymode30mA@3.3V,

TXmode190mA@3.3V

Clocksource40.00MHz

WorkingTem perature ‐10ºCto+50ºC

Storagetemperature‐40°C~+85°C

3.3DCCharacteristic

Ter msContents

Specification:IEEE802.11b

ModeDSSS/CCK

Datarate1,2,5.5,11Mbps

DCCharacteristicsminTyp.max.unit

TXmode182190204mA

Rxmode374041mA

Sleepmode283032mA

Specification:IEEE802.11g

ModeOFDM

Datarate6,9,12,18,24,36,48,54Mbps

DCCharacteristicsminTyp.max.unit

TXmode176184192mA

Rxmode363841mA

Sleepmode262931mA

Specification:IEEE802.11n

ModeOFDM

Datarate13.5,27,40.5,54,81,108,121.5,135Mbps

DCCharacteristicsminTyp.max.unit

TXmode184196200mA

Rxmode374142mA

Sleepmode263032mA



B‐LINKELECTRONICCO.,LTDinshenzhen 

6



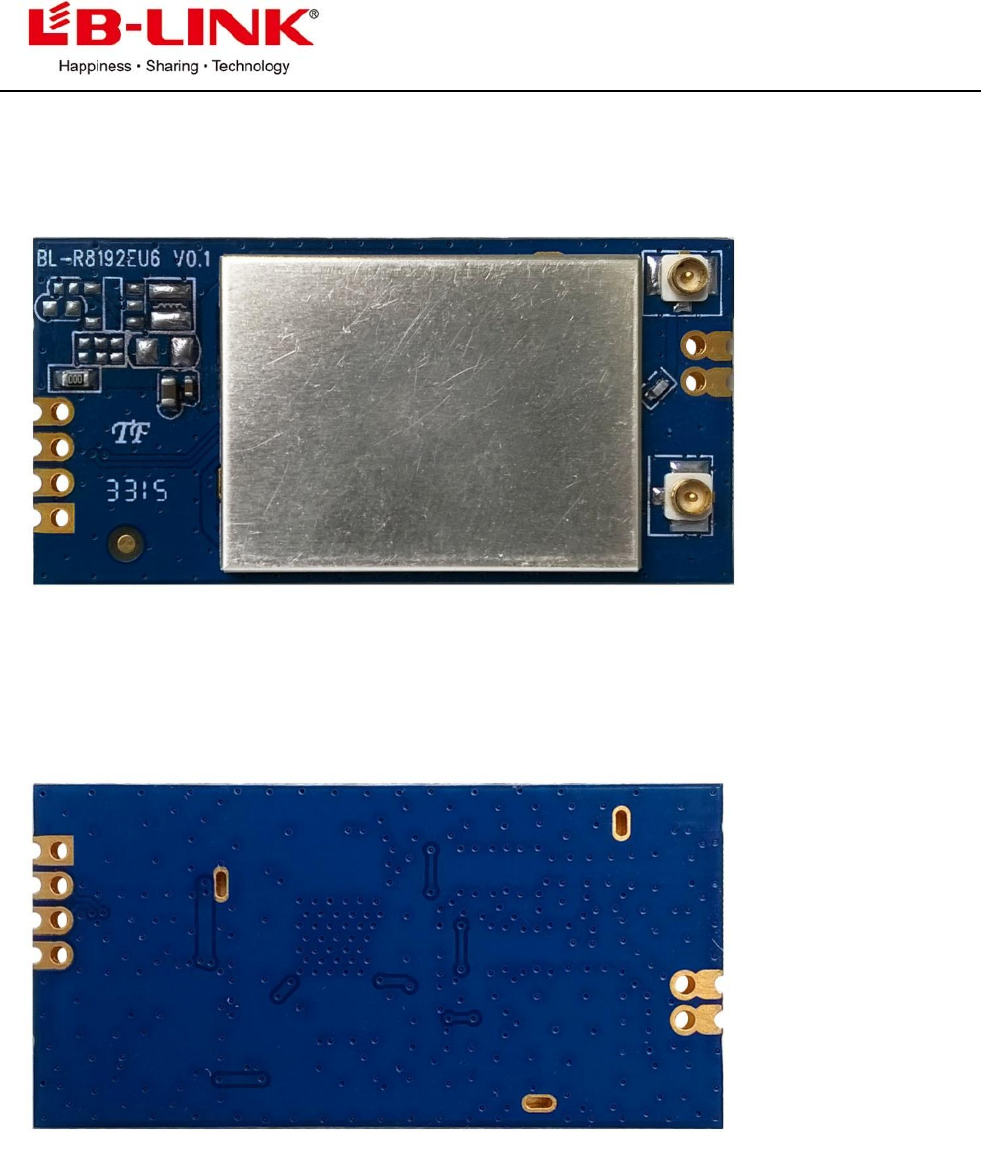

3.4ProductPhoto

TOP



Bottom



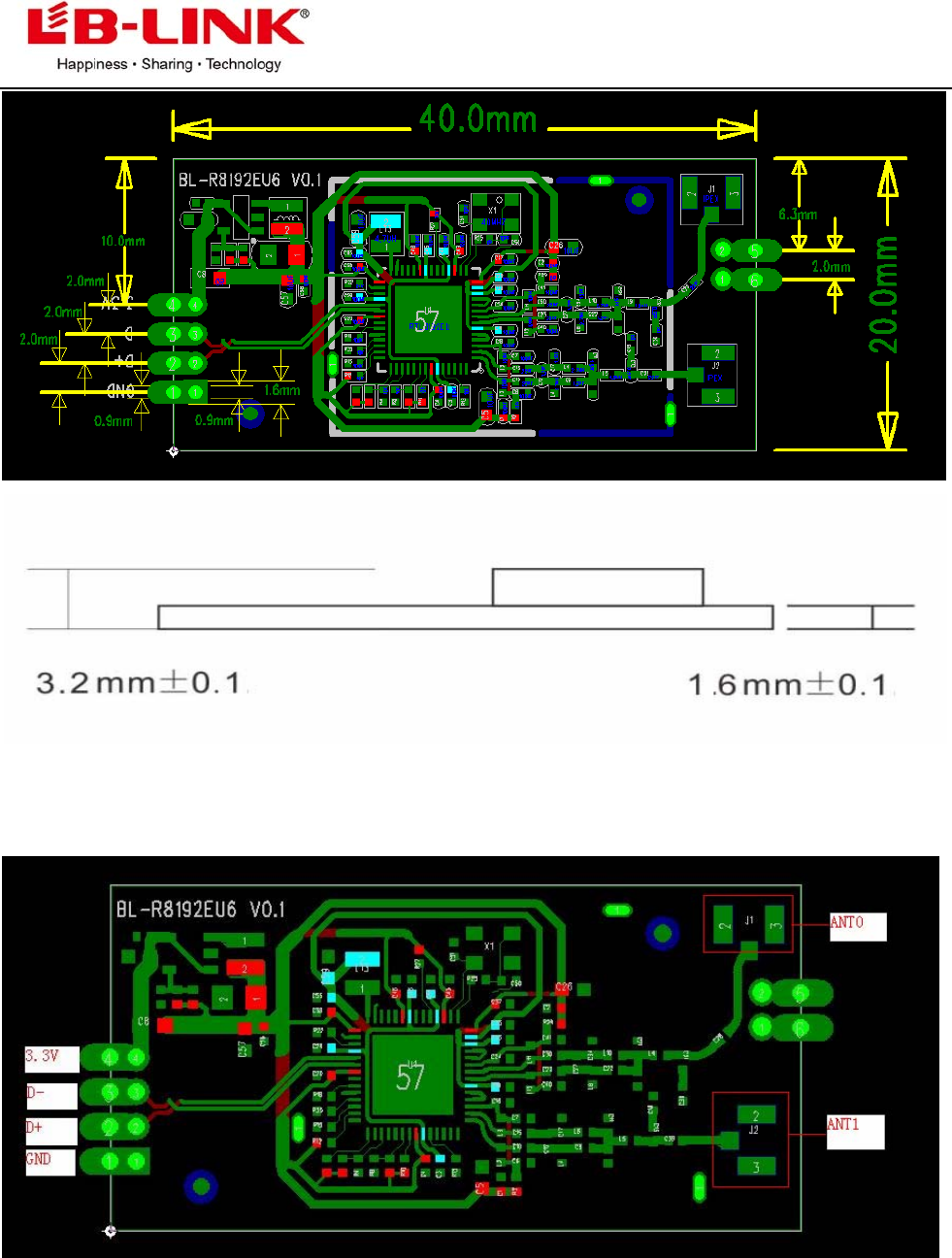

3.5MechanicalSpecification

Moduledimension:Typical(WxLxH):40.0mmx20.0mmx3.2mmTole ranc e:+/‐0.2mm

B‐LINKELECTRONICCO.,LTDinshenzhen 

7



3.6ProductPinDefinition



B‐LINKELECTRONICCO.,LTDinshenzhen 

8



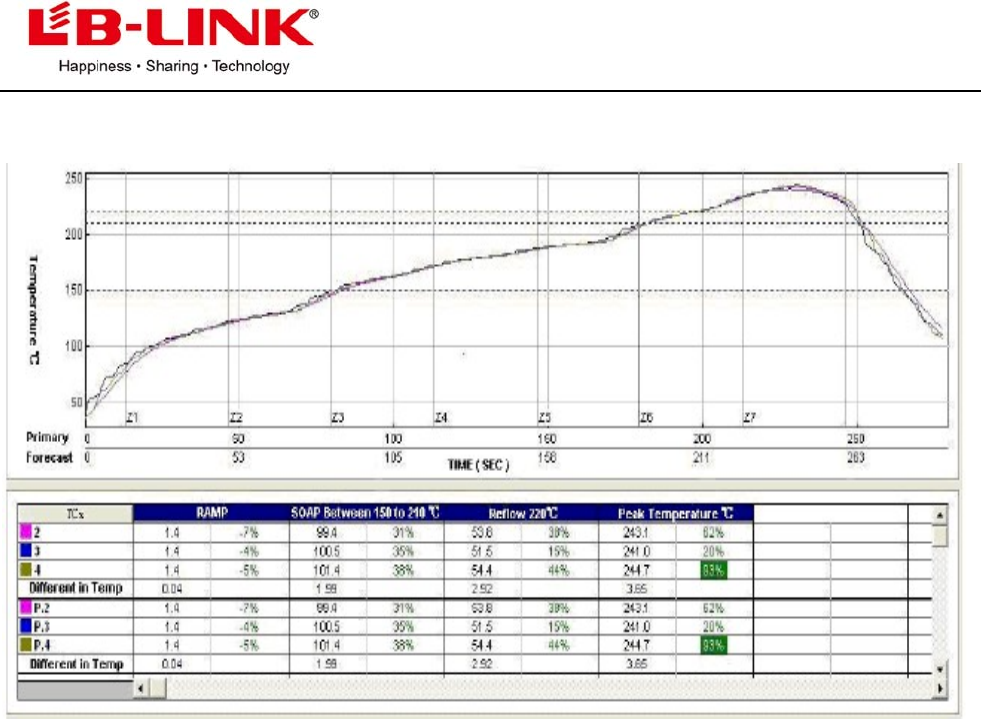

4.TypicalSolderReflowProfile

5.Precautionsforuse

1.PlshandlethemoduleunderESDprotection.

2.Reflowsolderingshallbedoneaccordingtothesolderreflowprofile.Peaktemperature

245℃.

3.Productsrequirebakingbeforemountingifhumidityindicatorcardsreads>30%temp<30degreeC,

humidity<70%RH,over96hours.

Bakingcondition:125degreeC,12hours

Bakingtimes:1time

4.StorageCondition:Moisturebarrierbagmustbestoredunder30degreeC,humidityunder85%RH.The

calculatedshelflifeforthedrypackedproductshallbea12monthsfromthebagsealdate.Humidity

indicatorcardsmustbeblue,<30%.
