Product Specification

IEE802.11b/g/n2.4G1T1RWIFI+BTV2.1+EDR/BT3.0/BT3.0+HS/4.0USB

MODULE Version:1.0

BL‐R8723RB1

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

The 150Mbps Wireless N SDIO

Module is designed to comply with the FCC statement. FCC ID is S8J-R8723RB1. The host system

using 150Mbps Wireless N SDIO Module, should have label indicated it contain modular’s

FCC ID：S8J-R8723RB1.

This radio module must not installed to colocate and operating simultaneously with other radios in h

ost system , additional testing and equipment authorization

may be required to operating simultaneously with other radio.

RF warning for Mobile device:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

B‐LINKELECTRONICCO.,LTDinshenzhen 

1





Contents

1.GeneralDescription................................................................................................2

2.Therangeofapplying.............................................................................................2

3.Features..................................................................................................................2

4.DCCharacteristics.....................................................................................................4

5.FunctionalSpecifications..........................................................................................5

6.Theblockdiagramofproductprinciple...................................................................6

7.Thesupportedplatform...........................................................................................6

8.ThedefinitionofproductPin...................................................................................7

9.TheStructureandSizeofproduct............................................................................8

10.:TheANTPinconnecttoantenna,pleaserefertodesigndemand..............8

11.TpicalSolderReflowProfile...................................................................................9



B‐LINKELECTRONICCO.,LTDinshenzhen 

2



1. GeneralDescription

BL‐8723RB1productAccordwithFCCCEandisasmallsizeandlowprofileofWiFi+BTcombo

modulewithLGA(Land‐GridArray)footprint,boardsizeis19.5mm*12.4mmwithmoduleheight

0.6mm.Itis150wirelessUSBadapterwhichhaslowerpowerconsumption,highlinearityoutput

power,accordswithIEEE802.11B/G/N,andsupportsIEEE802.11isafetyprotocol,alongwithIEEE

802.11estandardservicequality.Itconnectswithotherwirelessdevicewhichaccordedwiththese

standardstogether,supportsthenewdataencryptionon64/128bitWEPandsafetymechanismon

WPA‐PSK/WPA2‐PSK,WPA/WPA2.Itswirelesstransmittingraterises150M,equivalentto10timesof

common11bproduct.TheinnerAIhighgainceramicsantennaadaptsdifferentkindsofwork

environment.It’seasyandconvenienttolinktowirelessnetworkfortheusersusingdesktop,laptop

andotherdevicethatneedsconnecttowirelessnetwork.

TheWiFithroughputcangoupto150Mbpsintheorybyusing1x1802.11nb/g/nMIMOtechnology

andBluetoothcansupportBT2.1+EDR/BT3.0andBT4.0.

2. Therangeofapplying

MID,networkingcamera,STBGPS,E‐book,Harddiskplayer,NetworkRadios,PSP,etc,the

devicewhichneedbesupportedbywirelessnetworking.

3. Features

FeatureImplementation

PowersupplyVCC_3.3V+‐0.2V

Clocksource40MHz

Temper a t urerangeWorktemperature:‐20ºC‐‐‐70ºC

Storagetemperature‐40°C~+80°C

Theconnecttypeof

Antenna

Connecttothe6thpinofModule

PackageSMT10pins

WLANandBTfeatures

Generalfeatures■CMOSMAC,BasebandPHY,andRFinasinglechipforIEEE

802.11b/g/ncompatibleWLAN

■Complete802.11nsolutionfor2.4GHzband

■72.2MbpsreceivePHYrateand72.2MbpstransmitPHYrateusing

20MHzbandwidth

■150MbpsreceivePHYrateand150MbpstransmitPHYrateusing

40MHzbandwidth

■Compatiblewith802.11nspecification

B‐LINKELECTRONICCO.,LTDinshenzhen 

3



■Backwardcompatiblewith802.11b/gdeviceswhileoperatingin

802.11nmode

■QualifiedBT2.1,BT3.0andBT4.0Dualmode

■Support for Bluetooth Low Energy

■Integrated class 1, class 2, and class 3 PA

and modem in Bluetooth Controlle

HostInterface■ComplieswithUSBSpecificationRevision2.0



StandardsSupported

■IEEE802.11b/g/ncompatibleWLAN

■IEEE802.11eQoSEnhancement(WMM)

■IEEE802.11hTPC,SpectrumMeasurement

■802.11i(WPA,WPA2).Open,sharedkey,andpair‐wisekey

authenticationservices

■BTv2.1,EDR/BTv3.0andHS/BTv4.0



WLAN

MAC

Features



■FrameaggregationforincreasedMACefficiency(A‐MSDU,A‐MPDU)

■LowlatencyimmediateHigh‐ThroughputBlockAcknowledgement

(HT‐BA)

■LongNAVformediareservationwithCF‐EndforNAVrelease

■PHY‐levelspoofingtoenhancelegacycompatibility

■Powersavingmechanism

■Channelmanagementandco‐existence

■TransmitOpportunity(TXOP)ShortInter‐FrameSpace(SIFS)bursting

forhighermultimediabandwidth



WLAN

PHY

Features



■IEEE802.11nOFDM

■OneTransmitandoneReceivepath(1T1R)

■20MHzand40MHzbandwidthtransmission

■ShortGuardInterval(400ns)

■DSSSwithDBPSKandDQPSK,CCKmodulationwithlongandshort

preamble

■OFDMwithBPSK,QPSK,16QAM,and64QAMmodulation.

ConvolutionalCodingRate:1/2,2/3,3/4,and5/6

■Maximumdatarate54Mbpsin802.11gand150Mbpsin802.11n

■SwitchdiversityforDSSS/CCK

■Hardwareantennadiversity

■SelectablereceiverFIRfilters

■Programmablescalingintransmitterandreceivertotrade

quantizationnoiseagainstincreasedprobabilityo

f

clippingFast

B‐LINKELECTRONICCO.,LTDinshenzhen 

4



■receiver Automatic Gain Control (AGC)

■On‐chipADCandDAC



BTController

■1MbpsforBasicRate;2,3MbpsforEnhancedDataRate;

6,9,12,18,24,36,48,54MbpsforHighSpeed

■AFH,TimeDivisionforMediaAccessControl

■8DPSK,π/4DQPSK,GFSKforModulationTechniques

■PCM interface for audio data transmission

via BT controller.

■Integrated MCU to execute Bluetooth

protocol stack

■Support all packet types in basic rate and

enhanced data rate

■Support SCO / eSCO link (allow one link

for PCM interface and three links for

HS-UART)

■Support 4 piconets in a scattern

■Support Secure Simple Pairing

■Support Low Power Mode (Sniff / Sniff

Sub-rating / Hold / Park)

■Enhanced BT/WIFI Coexistence Control to

improve transmission quality in different profiles

■Bluetooth 4.0 Dual Mode support:

Simultaneous LE and BR/EDR

■Support multiple states of Low Energy to

increase the flexibility of application

BluetoothTransceiver

Features



■Fast AGC control to i

m

prove receiving

dynamic range

■Support AFH to dynamically detect channel

quality to improve transmission quality

■Integrated internal class 1, class 2, and class

3 PA

■Bluetooth 3.0+HS compliant

■Power Control / Enhanced Power Control

Supported

■Bluetooth Low Energy supported

■Integrated 32K oscillator for power

management



4.DCCharacteristics

SymbolParameterMinimumTypicalMaximumUnits

VD33A,

VD33D

3.3VI/OSupply

Vo l t a g e 

3.03.33.6v

VD28A,

VD28D

1.2VCore

SupplyVo l t a g e 

1.101.21.32v

VD15A,1.5VSupply1.4251.51.575v

B‐LINKELECTRONICCO.,LTDinshenzhen 

5



VD15DVo l t a g e 

5.FunctionalSpecifications



HostInterface USB2.0

StandardWiFi:EEE802.11b,IEEE802.11g,IEEE802.11n

BT:V2.1+EDR/BTv3.0/BTv3.0+HS/BTv4.0

FrequencyRange2.4GHz~2.4835GHz

ModulationType

802.11b:CCK,DQPSK,DBPSK

802.11g:64QAM,16QAM,QPSK,BPSK

802.11n:64QAM,16QAM,QPSK,BPSK

BT:8DPSK,π/4DQPSK,GFSK

WorkingModeInfrastructure,Ad‐Hoc

DataTransferRate

Wifi：802.11b:11,5.5,2,1Mbps

802.11g:54,48,36,24,18,12,9,6Mbps

802.11n:MCS0to7forHT20MHz;MCS0to7for

HT40MHz

BT:1MbpsforBasicRate

2,3MbpsforEnhancedDataRate

SpreadSpectrum

IEEE802.11b:DSSS(DirectSequenceSpreadSpectrum)

IEEE802.11g/n:OFDM(OrthogonalFrequencyDivision

Multiplexing)

BT：FHSS(Frequency‐HoppingSpreadSpectrum)

Sensitivity@PER（Tolerance：

+/‐2dB）

WiFi:1M:‐92dBm@8%PER

6M:‐89dBm@10%PER

11M:‐86dBm@8%PER

54M:‐73dBm@10%PER

135M:‐67dBm@10%PER

BT:‐89dBm@1Mbps,‐85dBm@2Mbps,‐83dBm@3Mbps

RFPower

14dBm@11b,12dBm@11g,11dBm@11n（Tolerance：

+/‐1.5dB）

BT:MAX+4.5dBm

TheconnecttypeofAntenna

Connecttotheexternalantennathroughthehalfhole.The

antennaandotherinterfacegetconnectedtotheexternal

devicesbytheedgehalfacircleweldingplate.



B‐LINKELECTRONICCO.,LTDinshenzhen 

6



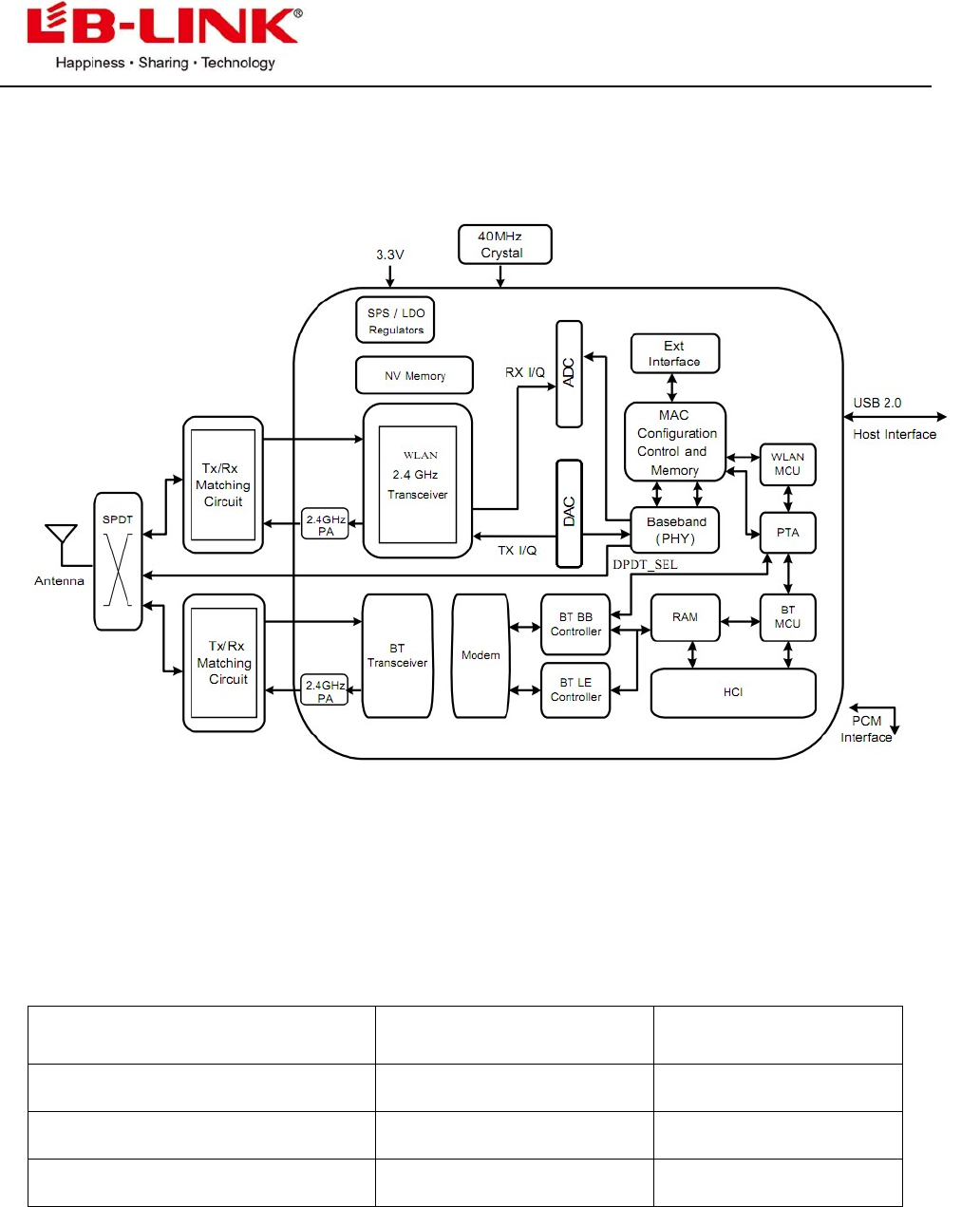

6.Theblockdiagramofproductprinciple



7.Thesupportedplatform

OperatingSystemCPUFrameworkDriver

WIN2000/XP/VISTA/WIN7X86PlatformEnable

LINUX2.4/2.6ARM,MIPSIIEnable

WINCE5.0/6.0ARM,MIPSIIEnable



B‐LINKELECTRONICCO.,LTDinshenzhen 

7



8.ThedefinitionofproductPin



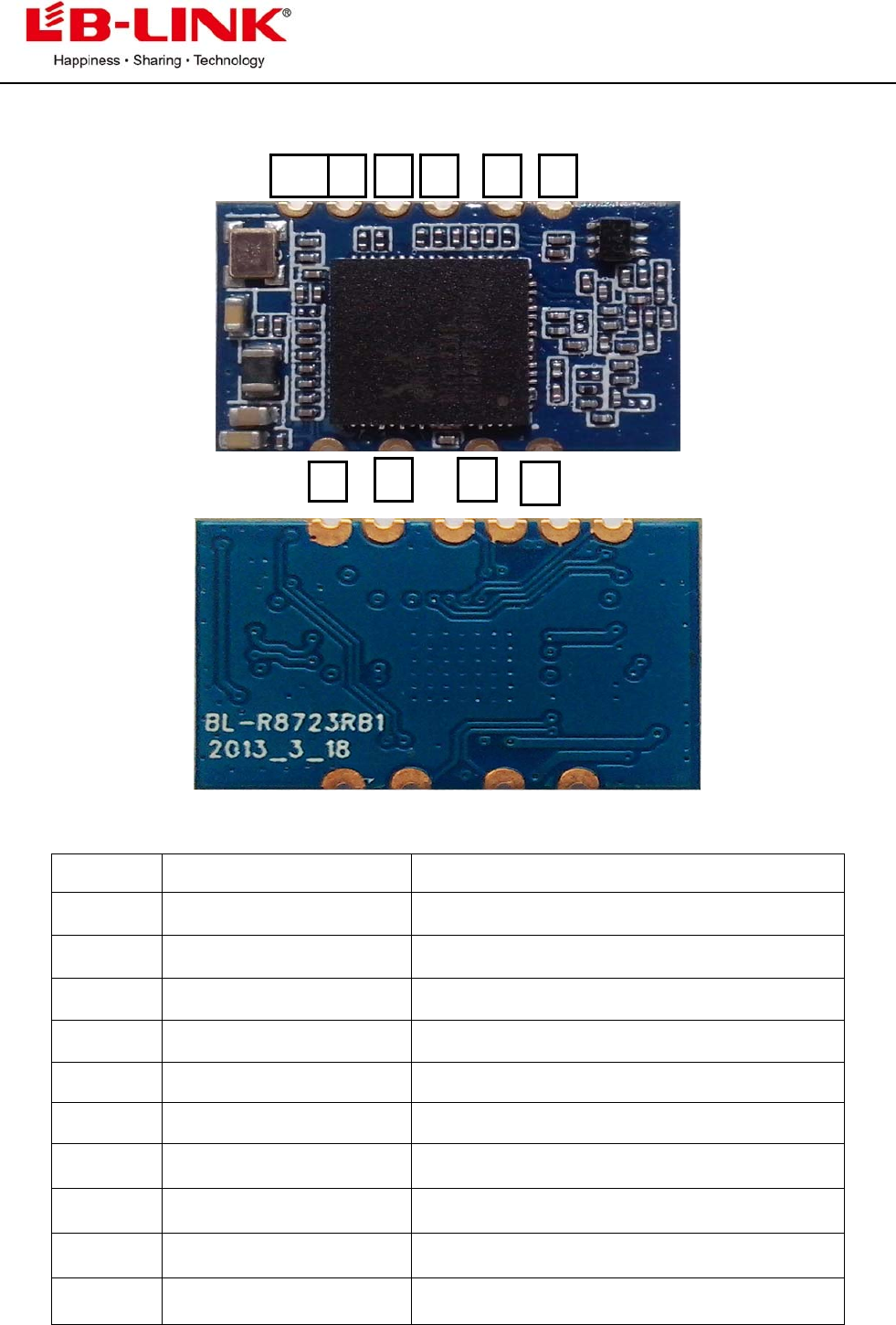

TopandbottomviewofBL‐8723RB1

PinNo：TYPEDescription

1PDC:3.3V

2I/OUDM‐

3I/OUDP+

4PGND

5PGND

6OANT

7PBT_PCM_SYNC

8PBT_PCM_CLK

9PBT_PCM_IN

10PBT_PCM_OUT

12 3 4

7 569810

B‐LINKELECTRONICCO.,LTDinshenzhen 

8



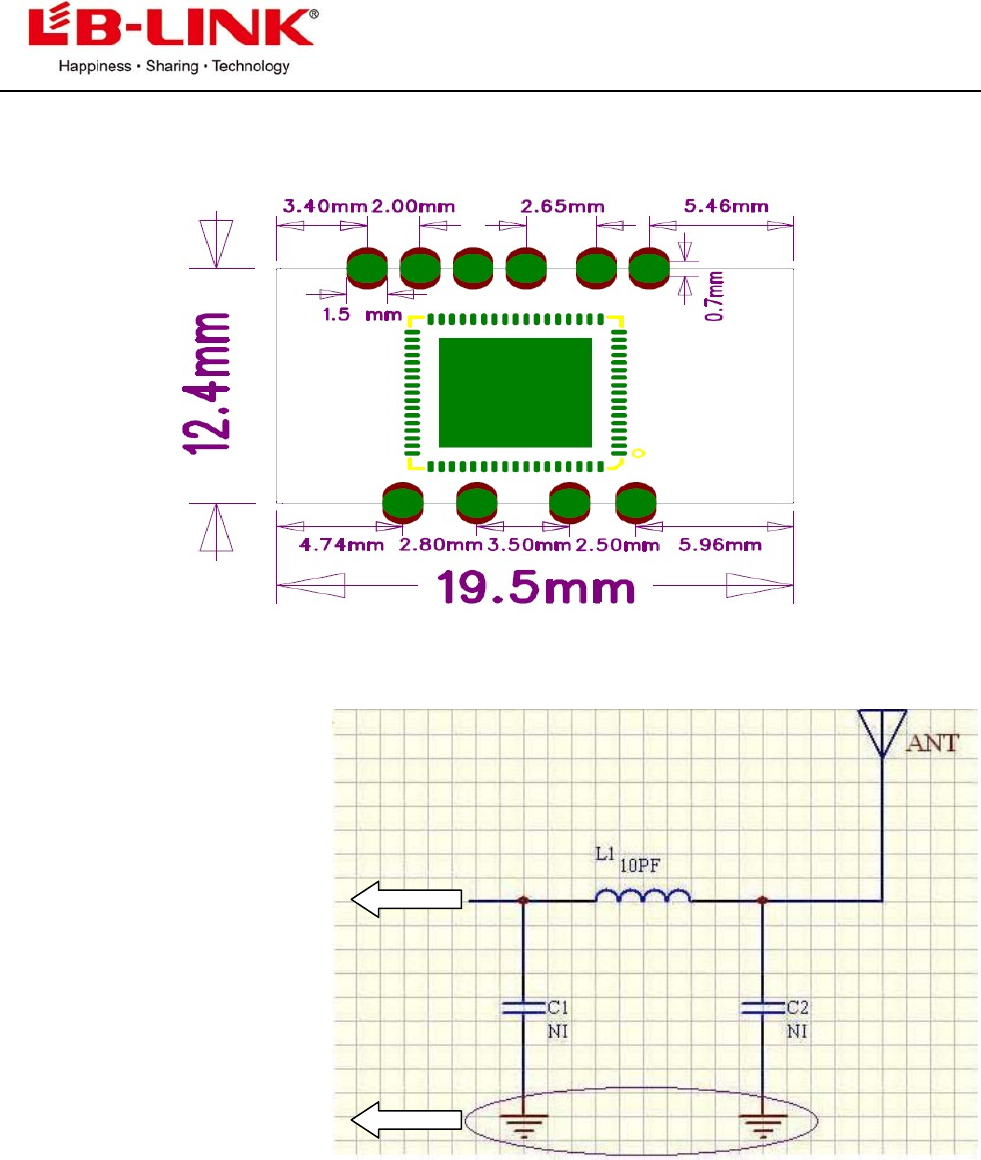

9.TheStructureandSizeofproduct



10:TheANTPinconnecttoantenna,pleaserefertodesigndemand



Connecttothe6thpinofModule



Connecttothe5thpinofModule



a) Thecurrentof3.3Vpowersupplymustbe>300mA,itsripplewavemustbe<30mV.TheGND

pinsofmoduleandexternalantennaneedtobeanincorporatedpart.Thegroundplaneshould

belarger,moduleandantennashouldkeepfarawayfrominterferencesource.

b) Thesixthpinis2.4Ghighfrequencyoutput,coplanarimpedanceoflayoutlinebetweenthispin

toantennainterfaceshouldbe50Ω,wesuggestusearclineorstraightline,andbesidetheline

therewillbegroundplanethatitslengthasshoutaspossible,thelongestlengthisnomore

than50mm.

c) L1,C1,C2constituteaπ‐typenetworkthatwepreset,pleasemakeitclosetoantennainterface,

thisπ‐typenetworkisusedtomatchtheantennaparametersandcontroltheradiation.It

shouldbeadjustedaccordingtotherealconditionwhenbeingused.Normallyyoucanonly

mountL1thatitsparametersare:10pF,NP0material.NoneedC1andC2

B‐LINKELECTRONICCO.,LTDinshenzhen 

9



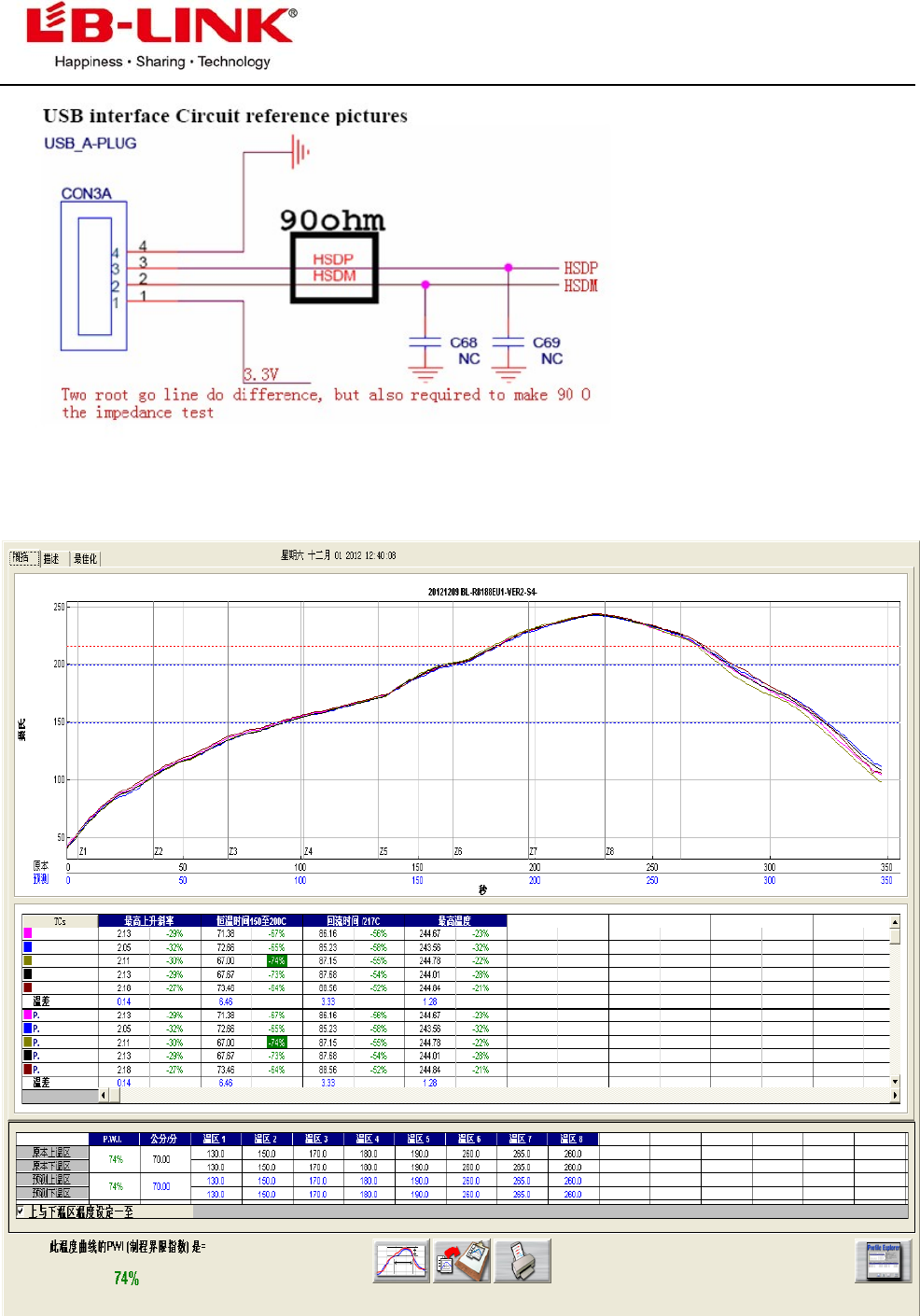

11.TypicalSolderReflowProfile



Bilian Electronic R8723RB1 Bluetooth 150Mbps Wireless N USB Module User Manual

Shenzhen Bilian Electronic Co., Ltd. Bluetooth 150Mbps Wireless N USB Module

User manual

Navigation menu

Namespaces

Views

Navigation
