MOBILE
TELEPHONE
SM320
USER GUIDE
US
2
CONTENTS
1 BOX CONTENT ................................................... 3
2 GETTING TO KNOW YOUR PHONE .................... 4
3 MENU OPERATION ............................................. 8
4 INSTALLATION AND SETUP ................................ 9
5 MAKING AND ANSWERING CALLS .................. 12
6 USING THE PHONEBOOK ................................. 13
7 CALL HISTORY .................................................. 16
8 MESSAGING ...................................................... 17
9 SETTINGS .......................................................... 21
10 SOS SETTING .................................................... 25
11 TOOLS ............................................................... 26
12 GAMES .............................................................. 28
13 SAFETY AND PRECAUTIONS ............................ 29
14 GUARANTEE AND SERVICE .............................. 35
15 TECHNICAL DETAILS ......................................... 36
16 TROUBLESHOOTING ........................................ 37
3
1 BOX CONTENT
In the box you will find:
• 1 mobile handset
• 1 charging cradle
• 1 power adapter
• 1 handset back cover
• 1 user guide
• 1 USB cable
Keep the packing materials in a safe place in case
you later need to transport the device.
Warning
The torch uses a high-brightness LED. Do not shine
directly into eyes, or view with optical instruments.
IMPORTANT
Your handset is not supplied with a SIM card, you
will need to insert a SIM card for the handset to
work correctly.
BECAUSE WE CARE
Thank you for purchasing this product. This product
has been designed and assembled with utmost care
for you and the environment. This is why we supply
this product with a quick installation guide to
reduce the number of paper (pages) and therefore
save trees to be cut for making this paper. Thank
you for supporting us to protect our environment.
4
2 GETTING TO KNOW YOUR PHONE

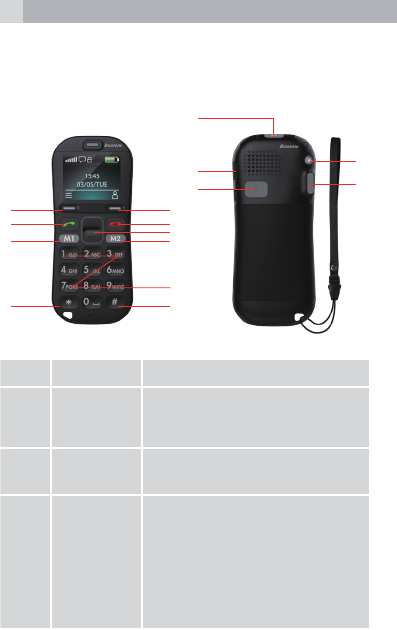

2.1 Keys and parts
# Meaning
1Left Soft
Key
Performs the function of
displayed text above:
Menu / OK
2Right
Soft Key
Performs the function of text
above: Contacts / Back
3
Up and
Down
Key
• Press to browse menu
• Press to move cursor up
or down while editing
• Press to manually change the
frequency in FM interface
• Press for + and - in the
Calculator
1
4
6 6
11
2
5
3
10
12
7
8
9
14
13
5
4 Talk key
• Press to answer a call
during ringing
• Press to enter the calls
log in standby
• Press to dial a number
5
End key
• Press to end a call
• Press to return to the Home
Screen / Standby mode
6M1/M2
key
• Direct memory keys for
storing a telephone number
you often use, long press to
dial out M1/M2
• Press to search channel in
the FM interface
• Press to switch left/right in
menu
• Press for X and / in the
Calculator
7Power
key
• Press and hold to switch the
phone on or off
• Press to Light the screen
8SOS
key
• Long press to start SOS
procedure : SOS alarm /dial
out the 5 pre-stored memo-
ry numbers/send SOS SMS
9Keypad
lock key
• Push up to lock the Keypad
• Push down to unlock the
Keypad
6
10 Number
key
• Press to input telephone
number.
• In edit mode : press to
input numbers or letters.
11 * Key • Press to input */
+/ P/ W symbols.
12 # Key
• Press to input “#”.
• In edit mode : press to
change input method.
• Long press to active silent
mode
13
Volume
control
buttons
• Ring volume in standby or
speaker volume in call.
• Volume in FM radio
14 Torch
key
• Long press to switch torch
LED ON/OFF
7

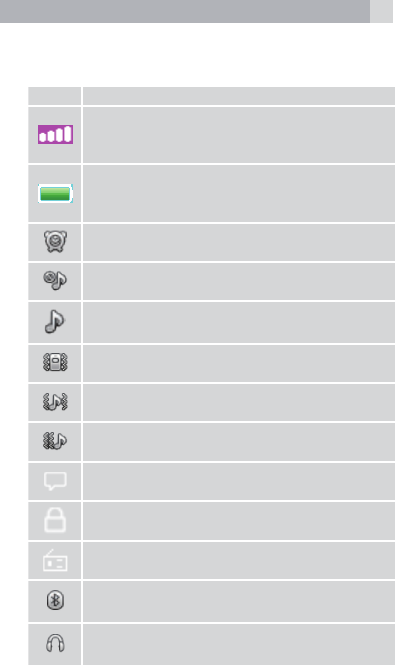

2.2 Display icons and symbols
The standby screen shows the following information:
Meaning
Radio link
On with signal strength when linked.
with mobile network.
Battery charge level
Internal segments cycle during battery
charging.
Alarm
On if alarm is set.
Ring and Vibrate off
Ringer and vibration is off.
Ring on
On if only the ringer is enabled.
Vibrate on
On if only vibration is enabled.
Vibrate and ring on
On if both are enabled.
Vibrate then ring
On if vibrate then ring is enabled.
New SMS
Indicates you have new text messages.
Lock
On when the keypad is locked.
FM radio
On when FM is active.
Bluetooth
On when bluetooth is active.
Earphone
On when earphone plugged in.
8
3 MENU OPERATION
Menu lists are used for set up and operation. The
left and right soft key functions initially are Menu
and Names.
• Press Menu to display Messaging the rst entry
in the main Menu list.
Use Up or Down to scroll the menu list. The
display changes and soft keys become OK and
Back.
• Press Ok/ Back for the next/ previous display.
When writing text, use the # key to Switch
input method between (ABC), (abc) , (Abc) and
numerals (123).
Use Up / Down key and M1/M2 to move the
cursor, right soft key to delete letters and the * key
for symbols or punctuation .
9
4 INSTALLATION AND SETUP
Before operating, a SIM card must be installed.
Keep the SIM card out of reach of small children.
The SIM card and its contacts can be damaged
easily by scratches or bending, so handle the card
carefully.
4.1 Install the SIM card and battery
• Switch off the phone, disconnect the power
adaptor.
• To remove the back cover, lift the cover off from
the gap at left side.
• Remove the battery.

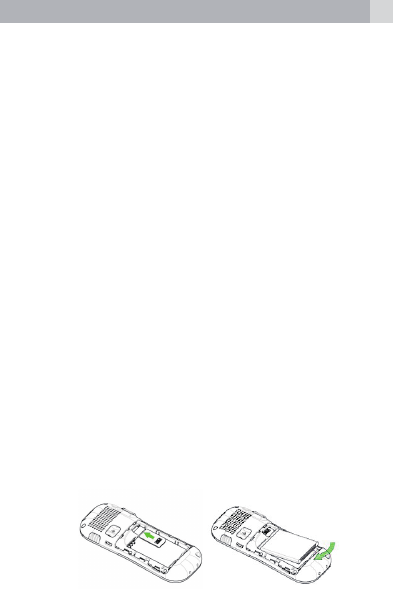

• Carefully slide the SIM card into the holder with
the gold connectors face down ( as shown 1).
• Replace the battery by aligning the gold
connectors on the battery with those on the
phone and push the end of the battery down
until it clicks into place (as shown 2).
• Replace the back cover by placing it at on the
back of the handset and pushing down until it
clicks into place.
1. 2.
10
4.2 Charge the battery
Warning:
Use only the supplied/approved batteries and
chargers. Using others may be dangerous and will
invalidate warranty. A battery must be tted.
Do not charge with the back cover removed.
• Connect the charger lead rmly into the USB
socket in the right of the handset, or place the
handset directly in the charging cradle.
• Plug the mains power adapter into an AC mains
socket. If the handset is turned on, “Charger
connected” displays for a few seconds and
the battery symbol bars scroll to indicate that
charging has started.
• If “Charger connected“ does not display,
disconnect and retry.
If charging still fails, contact the helpline.
• The battery is fully charged when the bars
within the battery symbol are continuously on.
Disconnect the charger from the phone and
the AC outlet. “Charger removed” displays
for a few seconds to indicate the charging has
stopped.
Note:
The battery can also be charged if the handset is
connected to a computer USB port.
11
4.3 Switching on and off
To switch the phone on and off:
• To switch off, press and hold Power key until the
display turns off.
• To switch back on, press and hold Power key
until the display turns on.
Warning:
Do not switch on when mobile phone use is
prohibited or if it may cause interference or
danger.
12
5 MAKING AND ANSWERING CALLS
5.1 To make a call
Ensure the phone is switched on and in service.
• Key in the telephone number including
area code. (To add prefix “+” press the * key
twice repeat)
• Press Talk to dial the number on the display.
• To end calls press the End Call button.
5.2 Last number redial
• In idle mode, press Talk to see the All calls list
– a list of the last dialled, received and missed calls.
• Press Up/Down to go to the number you want.
• Press Talk to dial the number.
5.3 To answer a call
• When the phone rings, press Talk to answer it.
• During a call, press Volume control buttons to
change the volume.
The volume level is displayed and stays for future calls.
5.4 To switch to speakerphone
• During a call, press H-Free to turn Loudspeaker
on and press H-Held to turn Loudspeaker off.
• To end the call press the End Call button.
5.5 To mute the microphone
• During a call, press Left Soft Key for Option
then On /Off Mute .
13
6 USING THE PHONEBOOK
You can store names and phone numbers in the
Internal phone book (up to 300) and in the SIM phone
book (SIM dependant, but a maximum of 250).
6.1 To access the phonebook
In idle mode:
• Press RSK or Menu then Down to Phonebook,
OK.
Note:
Indicates entries on the SIM card
Indicates entries in the Internal phone book.
6.2 Add a new phonebook entry
• Press Menu, then Down to Phonebook, press
OK to open the phonebook menu.
• Select Add new contact , and press Options,
then press Select to SIM / to Phone ,then OK.
• Enter the Name then press Down and then
enter the telephone number.
• Press Options then Save the new contact.
Note:
When writing the name, use # to switch
between (ABC), (abc) ,(Abc) and Numerals (123).
6.3 To call a phonebook number
• In the idle, Press Right soft key to open the
phonebook.
• Press Up/Down to nd the name you want to,
Press Talk key to dial the number.
14
6.4 To edit a phonebook entry
• Press Right soft key to open the phonebook,
then Up/Down to nd the entry you want to
change.
• Press Options then Up/Down to select Edit,
then modify the name ,and then Press Down
and modify the Number.
• Press Options then Save the change(s).
6.5 To delete a phonebook entry
• Press Right soft key to open the phonebook,
then Up/Down to nd the entry you want to
delete.
• Press Options then Up/Down to select Delete,
then Yes to conrm the Delete.
6.6 To copy an entry to the phone or SIM card
• Press Right soft key to open the phonebook,
then Up/Down to nd the entry you want to
copy.
• Press Options then Up/Down to select Copy,
then press the LSK to select copy to Phone or
to SIM.
6.7 To add an entry to Blacklist
• Press Right soft key to open the phonebook,
then Up/Down to nd the entry you want to add
to Blacklist.
• Press Options then Up/Down to select add to
Blacklist, then Yes to conrm.
15
Note: Before that insure the Reject numbers in
blacklist is On , setting path as followed:
Settings > Call settings > Advanced settings >
Blacklist > Reject numbers in blacklist
Once you add the number to the blacklist, this
number can not call you anymore.
6.8 Phonebook settings
In idle mode:
• Press RSK or Menu then Down to Phonebook,
then OK to open Phonebook, and Options .
• Down to Phonebook settings and select,
display as following:
Extra
numbers When you set on, you can only call to
xed number, need SIM card support
Memory
status Display SIM/Phone memory status
Copy
contacts Copy all the contacts from SIM/Phone
or Phone/SIM
Move
contacts Move all the contacts from SIM/Phone
or Phone/SIM
Delete all
contacts To delete all SIM/Phone contacts
16
7 CALL HISTORY
With this function, you can view the Call history.If a
call is not answered, 1 missed call(s) displays until
view or back.
7.1 To view the call log entries
• From the home screen/idle mode, press Talk
to show the All Calls log or
• View via the Menu and Call history where
you can view separate lists for Missed calls,
Dialled calls, Received calls , Delete call Logs,
Call timers, Text msg. counter.
• Press Menu, then Up/Down to show Call history,
and then press OK to open the Call history menu.
• Press Up/Down to select the calls log you wish
to view and press ok to show the selected list.
• When in a list, press Up/Down to nd the call
entry you want.
• Press Options to see the following list of ptions:
View View details of the selected call, include
number
Call Call the selected number.
Send text
message Send an SMS message to the selected
number.
Save to
phonebook Save the selected number to your
phonebook.
Add to
Blacklist Add the number to the blacklist
Delete Delete the selected number from the log.
17
8 MESSAGING
Received SMS are stored in the Inbox and the icon
indicates new messages.
Also “New message 1 unread ” is displayed until
View or Back is pressed.
8.1 To access the SMS menu
• Press Menu to show Messages.
• Press OK to open the Messages.
Write
message to write a new message.
Inbox to go to your inbox to read received
messages.
Drafts to go to saved drafts.
Outbox saved messages that not sent
successfully.
Sent
messages saved messages that have send
successfully.
Broadcast
messages setting and save broadcast messages
SMS
Settings to check or change
SMS settings.
18
8.2 To write and send a text message
• Press Menu to show Messaging
• Press OK to show Write message
• Press OK again to display a ashing cursor.
• Write your message using the digit / letter keys.
Note:
When writing text, use # to switch between (ABC),
(abc) ,(Abc) or Numerals (123).
Note:
Use Up/Down and M1/M2 to move the cursor,
Clear to delete letters and the * key for
symbols or punctuation, or repeated pressing of
the 1 key for more.
• To send, press Options and then select Send to.
• Press OK to add number from Phonebook ,
or Up to Enter number , input full number then
OK.
• Press Options when the number is entered, then
select send to send the message.
Note:
When a message is send it is also saved in the
sentbox, provided Save sent messages is selected
in Messaging > SMS Settings It would be saved in
the Outbox without sending.
Note:
After sending, the phone returns to the Messaging
menu list.
19
8.3 To read your messages
• Press Menu to show Messaging and OK to select.
• Press Down to choose Inbox and OK to select.
• Press Up/Down to step through the messages.
• While viewing a message, press Options to
display:
View to read the message
Reply to send a reply message to the sender.
Call
sender
to call the sender
Forward to forward the message to
others
Delete to delete the message.
Delete all to delete all the Inbox messages.
save to Phonebook
Sort by Sort message by date/Sender/Subject/
Unread, read/Message size/
Details Display the number of the sender
8.4 To review the Outbox
• Press Menu to show Messaging and OK to select.
• Press Down for Outbox, Press OK to select it
and then follow the menus.
20
8.5 To delete all messages
Delete Messages from each folder using their
Option menu.
• Press Menu to show Messaging and OK to select.
• Press Up/Down then ok to select Inbox/Drafts/
Outbox/Sent messages
Press Options to open the options list.
• Press Up/Down to select Delete all then Yes to
delete the required messages.
8.6 To modify SMS settings
• Press Menu to show Messaging and OK to
select
• Press Up/Down to SMS Settings and
OK to select:
SIM to select SMSC address ,Delivery
report, Reply path and Voicemail server
Memory
status to display memory status of the SIM/
phone
Save sent
messages to On/Off Save sent messages
Preferred
storage Phone or SIM
Long text
messages Activated/Deactivate
SMS Black
List to On/Off SMS black list
21
9 SETTINGS
Allows you to adjust various settings on the phone
and also to reset them to their factory default
values.
• Press Menu then press Up/Down to go to
Settings and OK to select.
• Choose from the list the options available.
9.1 PROFILES
Proles allow quick changes to your phone sounds
and to customize them based on your situation.
There are 4 preset proles – General, Silent,
Meeting, Outdoor, and each prole has settings for
Alert type, Ring type, Ringtone, Ringtone volume,
Message tone, Message volume, Keypad tone ,
Keytone volume, Power on /off tone, System alert.
9.1.1. To Activate a Profile
• Press Menu then press Up/Down to go to
settings and OK to select, then OK to open the
Proles menu.
• Press Up/Down to go to the Prole you wish to
select and press Options then select Activate .
9.1.2. To Customize a Profile
• Press Menu then press Up/Down to go to
settings and OK to select, then OK to open the
Proles menu.
• Press Up/Down to go to the prole you wish to
customize and press Options.
• Press Down to Customize and press LSK to
select.
22
9.2 Phone settings
Time and
date to set the displayed time and date.
Schedule
Power on/off set the time and enable the status, then
you can schedule power on/off your
phone
Language set the display language
Writing
language set the writing language
Display to set wallpaper on the idle screen
,date and time displayed on the screen
or not
Misc.
settings to set LCD backlight
9.3 Network settings
To set the Mobile network selection: Automatic /
Manual.
9.4 M1 M2 settings
• Press Menu then press Up/Down to go to
settings and OK to select, then press Down to
M1 M2 Setting, then ok to select.
• Input M1 and M2 number ,then press Options
to select Save then Yes to save the settings. In
standby, long press M1/M2 key to dialing out
the numbers stored under M1 or M2.
23
9.5 Security settings
To managed the security of your phone.
SIM
security set SIM lock on: you need a PIN before use
after startup and to Change password.
Note: some SIM cards don’t allow it turned
off.
Warning: if you enter the wrong PIN three
times the SIM card is blocked and you must
enter the PUK number or contact your SIM
provider to unblock it / set a new PIN code.
PIN and PUK numbers come with your SIM
card.
Phone
security set the Phone lock on to need a PIN on
power-up, and to Change password Default
Pin = 1122.
9.6 Bluetooth
Press Menu then press Up/Down to go to settings
and OK to select, then press Down to Connectivity
then ok to select, then ok to set Bluetooth:
Power to on\off Bluetooth
Visibility set the Bluetooth visible or not
My device to search new device and pair , the
paired devices are saved here
Search
audio device to search Bluetooth headset and pair
My name to modify Bluetooth name
Advanced to display your Bluetooth address and
set audio path :leave in phone/ forward
to Bluetooth headset
24
9.7 Call settings
To set or modify the following call feature
options:
Call
waiting to activate call waiting where you can
press Talk to answer a 2nd call while
holding the 1st.
Call divert to set different incoming call diverts.
Call barring to restrict making and receiving calls.
Blacklist On / Off B l a c k l i s t fo r i n c omin g c a l l s ,
Set Blacklist numbers
Auto redial To set automatic redial for failed calls.
Call time
reminder To set a Single or Periodic time for a
reminder tone during calls.
Reject by
SMS If activated, when reject a incoming call,
a SMS will be send to the caller.
Answer
mode To set Any key / Auto answer in headset
mode.
Note:
Some Network functions may not be available with all
services, so check availability with your SIM provider.
9.8 Restore settings
To restore the phone to its initial settings. This
requires the Phone Password. (Default password =
1122)
25
10 SOS SETTING
During standby mode with the display on, press
and hold the SOS button for 3 seconds to start the
emergency call operation.
An emergency siren will be heard via the speaker,
before sending the emergency SMS to any of the
ve emergency numbers that are programmed.
Then the phone makes a call to the rst
programmed SOS Number. If the rst number is
busy or not answered within 1 minute, it will try the
2nd and then the 3rd, 4th and 5th. If it still does not
get through it will repeat the sequence of calls. If
you receive a SOS call you need to press „0“ on the
receiving phone to stop the process.
• Press Menu then press Up/Down to go to
settings and OK to select, then press Down to
SOS Setting, then ok to select.
• Status : ON /OFF use M1/M2 to activate or de-
activate the SOS key.
Number 1-5 : Input up to 5 telephone numbers
for SOS call and SOS SMS message
Message : This is the SOS SMS text send out
when the SOS key is pressed. You can edit the
text.
• Press End key to return to idle.
Note: Even if the screen is locked and off, the
function of SOS key is enable.
26
11 TOOLS
• Press Menu then press Down to Tools then OK
to select it.
11.1 FM radio
When in headset mode, enter FM radio, will auto
activate the FM. The display shows the radio
frequency or channel and the volume level currently
selected.
• Press Up/Down key to manually change the
frequency.
• Press Voice -\+ key to change the volume level.
• Press M1/M2 to search left / right channel
• Press RSK to exit from FM.
• Press Options for the following:
Channel
list to open a list of radio station channels
that you can listen, Delete or Edit.
Manual
input
to manual enter a new frequency to listen.
Auto
search to scan for radio stations and save the
channels in the Channel list.
Settings to set background play, On/Off
Loudspeaker
Note:
On the BG play , when the radio is playing, press
End call to back to idle, use other functions on
the handset, but leave the FM radio playing in the
background.
27
11.2 Calendar
Open a Calendar to show the current month options:
Jump to date to go to a specic date.
Go to today to return to the present day.
Go to weekly view to display a weekly view
11.3 Alarm
You can set 4 alarms. When it sounds, press LSK
to stop it or RSK to Snooze to start the snooze
function, if a snooze time has been set.
11.4 World clock
• Press M1/M2 to Switch time zones.
• Press Options then OK to On /Off Daylight
saving time for foreign city.
11.5 Calculator
You can use the calculator to perform simple
addition, subtraction, multiplication or division
calculations.
• Press the number keys [0-9,#] to enter numbers.
• Press LSK to calculate the sum.
• Press clear to delete or clear the digits.
• Press UP/Down key to addition and subtraction
digital
• Press M1/M2 to multiplication and division.
28
12 GAMES
Press Menu then Down to Games then press OK
to select it, then OK to select Snake:
Control the direction of snake to eat food, and the
snake will grow longer if eat the food. Please avoid
hit the wall and the snake.
Before starting the game ,you can select game
level, or enter Games settings to modify related
settings, Sound effect , Volume level.
29
13 SAFETY AND PRECAUTIONS
When using your telephone, basic safety
precautions should always be followed to reduce
the risk of re, electric shock and injury, including
the following:
1. Switch off the phone in the vicinity of chemical
plants, gas stations and other locations
containing explosive objects.
2. When driving, please use the hands free calling
device (to be purchased separately) to ensure
safety. Please park the car on the roadside for
communication except in case of emergency.
3. Switch off the phone when boarding an airplane
and do not switch the phone on during the
ight.
4. Be careful when using the mobile phone in the
vicinity of devices such as pacemakers, hearing
aids and other electro-medical equipment,
which may be interfered by the mobile phone.
5. Never attempt to disassemble the phone by
yourself.
6. Do not recharge the phone without battery
being installed.
7. Charge the phone in well-ventilated
environment and keep away from inammable
and highly explosive elements.
8. To avoid demagnetization, keep the handset
away from magnetic substances, such as
magnetic discs or credit cards.
9. Keep the phone away from liquid. If soaking or
erosion occurs, take the battery out and contact
the supplier.
30
10. Avoid using the phone in extremely high or low
temperature environments. Never leave the
phone exposed under direct sunlight, in high
humidity or in a dusty environment.
11. Do not use liquid or anything wet with strong
detergents to clean the handset.
13.1 Charging your battery
Your device is powered by a rechargeable battery
The full performance of a new Battery is achieved
only after two or three complete charge and
discharge cycles. The battery can be charged
and discharged hundreds of times but it will
eventually wear out. When the talking and standby
time is noticeably shorter than normal, please
replace the battery. Use only approved batteries
and recharge your battery only with approved
chargers designated for this device.
If a replacement battery is being used for the rst
time or if the battery has not been used for a long
period, it may be necessary to connect the charger,
disconnect it and then reconnect it to begin
charging the battery.
Unplug the charger from the electrical plug and
the device when not in use. Do not leave a fully
charged battery connected to a charger, since
overcharging may shorten its lifetime. If left unused,
a fully charged battery will lose its charge over time.
If the battery is completely discharged, it may take a
few minutes before the charging indicator appears
on the display or before any calls can be made. Use
the battery only for its intended purpose. Never use
any charger or battery that is damaged.
Do not short-circuit the battery. Accidental short-
31
circuiting will occur when a metallic object such as
a coin, clip or pen causes direct connection of the
positive (+) and negative (-) terminals of the battery.
This might happen, for example, when you carry
a spare battery in your pocket or purse. Short-
circuiting the terminals may damage the battery or
the connecting object.
Leaving the battery in hot or cold places, such as
in a closed car in summer or winter conditions, will
reduce the capacity and lifetime of the battery.
A device with a hot or cold battery may not work
temporarily, even when the battery is fully charged.
Battery performance is particularly limited in
temperatures well below freezing.
Do not dispose of batteries in a re as they may
explode. Batteries may also explode if damaged.
Dispose of batteries according to local regulations.
Please recycle when possible. Do not dispose as
household waste.
Note:
Actual operation time of the battery varies
according to operation mode, network settings and
call settings.
Note:
• To ensure safety, do not change the parts and
accessories of the battery by yourself or take
off the battery shell.
• We suggest you only use the original battery
supplied with your phone to avoid any damage
to your phone.
• The temperature range for charging the phone
is 0°C - 40°C. Do not charge the battery in
extremely high or low temperatures.
• Do not use the mobile phone during charging.
32
13.2 Further safety information
The unit and the accessories can contain small
parts. Keep them out of the reach of small children.
13.3 Operating environment
Remember to ollow any particular rules that may
apply wherever you happen to be and always turn
off the unit whenever its use is forbidden, as it can
cause interference or danger. Only use the units in
its normal user position.
This unit complies with guidelines for radiation when
it is used either in a normal position against your ear,
or when it is at least 2.2 cm from your body.
If the unit is carried close to your body in a case, belt
holder or other holder, these should not contain
any metal and the product should be placed at the
distance from your body specied above.
Parts of the unit are magnetic. The unit can attract
metal objects. Do not keep credit cards or other
magnetic elements near the unit, as information
stored on them can be erase.
13.4 Medical units
The use of equipment that transmits radio signals,
e.g. mobile phones, can interfere with insufciently
protected medical apparatus. Consult a doctor or
the manufacturer of the apparatus to determine if
it has adequate protection against external radio
signals, or if you have any questions. Wherever
there are notices to forbid use of mobile phones,
you should comply. Hospitals and other health care
facilities sometimes use equipment that can be
sensitive to external radio signals.
33
13.5 Pacemaker
Pacemaker manufacturers recommend a distance
of at least 15 cm. between a mobile phone and
a pacemaker to avoid the risk of interference
with the pacemaker. These recommendations
are in accordance with independent research
and recommendations from Wireless Technology
Research. People with pacemakers should:
• not carry the unit in a breast pocket
• hold the unit against the ear on the opposite
side from the pacemaker to reduce the risk of
interference
If you suspect that there is a risk of interference,
turn off the unit and move it further away.
13.6 Hearing aids
Some digital wireless units can cause interference
to some hearing aids.
13.7 Vehicles
Radio signals can affect electronic systems in motor
vehicles (e.g. electronic fuel injection, ABS brakes,
automatic cruise control, air bag systems) that
have been incorrectly installed or are inadequately
protected. Contact the manufacturer or its
representative for more information about your
vehicle or any additional equipment.
For vehicles equipped with air bags: remember that
air bags ll with air with considerable force.
Do not place objects, including xed or portable
radio equipment in the area above the airbag or the
area where it might expand. Serious injuries may be
caused if the mobile phone equipment is incorrectly
installed and the airbag lls with air.
34
13.8 Areas with explosion risk
Always turn off the unit when you are in an area
where there is a risk of explosion and follow all signs
and instructions. An explosion risk exists in the
places that include areas where you are normally
requested to turn off your car engine. Within such
an area, sparks can cause explosions or re which
can lead to personal injuries or even death.
Turn off the unit at lling stations i.e. near petrol
pumps and garages.
Follow the restrictions that are in force on the use
of radio equipment near places where fuel is stored
and sold, chemical factories and places where
blasting is in progress.
Areas with risk for explosion are often – but not
always – clearly marked.
13.9 Emergency calls
Important!
Mobile phones use radio signals and the mobile
phone network. This means that connection in all
circumstances cannot be guaranteed.
Therefore you should never rely solely on a mobile
phone for very important calls such as medical
emergencies.
35
14 GUARANTEE AND SERVICE
The phone is guaranteed for 24 months from the
date of purchase shown on your sales receipt. This
guarantee does not cover any faults or defects
caused by accidents, misuse, fair wear and tear,
neglect, lightning, tampering with the equipment,
or any attempt at adjustment or repair other than
through approved agents.
Please keep your sales (till) receipt this is your proof
of guarantee.
14.1 While the unit is under Guarantee
• Pack up all parts of your phone system.
• Return the unit to the shop where you bought it,
making sure you take your sales receipt.
• Remember to include the mains adapter.
14.2 After the Guarantee has expired
If the unit is no longer under Guarantee, contact
us via www. aegtelephones.eu
36
15 TECHNICAL DETAILS
Standard: GSM Mobile
Frequency Band: GSM850/PCS1900MHZ
System: Phase 2G
Operating Time: Standby around: 400 Hours
(with fully charged battery)
Talk time : 4 hours
Charging Time: <5 hours
Temperature Range: Operating: 0 °C to 40 °C
Storage: -20 °C to 60 °C
Handset Battery: BL-5C Li-ion
3.7V DC, 800mAh Battery Pack
Travel Charger: A31-501000
100-240V AC,50/60Hz,
Input: Max 0.2A
Output: 5.0V DC, 1000mA
37
16 TROUBLESHOOTING
“Call failed”
appears Check dialled
number is correct, with full area code
SIM card
fitted
– only makes
emergency
call
Some SIM cards are
thinner than others. Lightly press the
SIM card holder to ensure a proper
contact is made.
The mobile
phone
display is
blank (screen
off)
The phone is switched
off. Press the Power key for 3
seconds to switch it on again.
The screen is in power save. Press any
button to turn it on again.
Calling
outside
your own
country
If you are away from
your network provider, your phone may
link with another
GSM network.
Contact your network
provider for additional costs incurred
using the phone abroad.
Can an
emergency
call be made
without a
signal or
credit?
You cannot make a call if
the phone has no signal.
If your display says
Limited Service or
SOS, the phone cannot receive a signal
from your network, or has
run out of credit,
so can only call the emergency number
112.
You can call 112 if
there is no credit on your phone.
38
How can
reception be
improved?
If the signal is weak,
try another location to make or
continue with a call, e.g. when indoors
move towards a window. Reception is
often poor in elevators, tunnels or
underground railways and car parks.
Can I
suppress
/ withhold
my
telephone
number?
If you want withhold
your phone telephone number, you
will need to check with your service
provider. (This network service may not
be available).
No reaction
when keys
are pressed?
Slide down the key lock
switch on the right hand side of the
handset to unlock the keypad.
When do I
start to incur
call charges?
Charges start when
a call connects to a person or an
answering machine. There is no charge
for writing or receiving an SMS,
only when sending
an SMS and none for using phone
features e.g. alarm clock.
Did I
successfully
send my
SMS?
If your SMS is in the
SMS Sent messages box then it was
OK, or you can get conrmation after
the SMS is delivered – set Delivery
report from Messages-SMS settings-
SIM
- or contact your operator for details.
39
Warning
Specic Absorption Rate (SAR) information
SAR tests are conducted using standard operating
positions accepted by the FCC with the phone
transmitting at its highest certied power level in
all tested frequency bands, although the SAR is
determined at the highest certied power level, the
actual SAR level of the phone while operating can
be well below the maximum value, in general, the
closer you are to a wireless base station antenna,
the lower the power output.
Before a new model phone is a available for sale
to the public, it must be tested and certied to the
FCC that it does not exceed the exposure limit
established by the FCC, Tests for each phone are
performed in positions and locations (e.g. at the ear
and worn on the body)as required by the FCC.
For body worn operation, this model phone has
been tested and meets the FCC RF exposure
guidelines when used with an accessory designated
for this product or when used with an accessory that
contains no metal and that positions the handset a
minimum of 1.5 cm from the body.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation. Any Changes or
modications not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the equipment.
Note: This equipment has been tested and found
to comply with the limits for a Class B digital device,
40
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment
and receiver.
--Connect the equipment into an outlet on a circuit
different from that to which the receiver
is connected.
--Consult the dealer or an experienced radio/TV
technician for help.
41
ICES-003 :
This CAN ICES-3 (B)/NMB-3(B) digital apparatus
complies with Canadian ICES-003.
IC RSS warning
This device complies with Industry Canada licence-
exempt RSS standard (s). Operation is subject to
the following two conditions: (1) this device may not
cause interference, and (2) this device must accept
any interference,including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils radio
exempts de licence.
L’exploitation est autorisée aux deux conditions
suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le
fonctionnement.
Under Industry Canada regulations, this radio
transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved
for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the
antenna type and its gain should be so chosen that,
the equivalent isotropically radiated power (e.i.r.p.)
is not more than that necessary for successful
communication.
Conformément à la réglementation d’Industrie
Canada, le présent émetteur radio peut fonctionner
avec une antenne d’un type et d’un gain maximal
(ou inférieur) approuvé pour l’émetteur par
Industrie Canada. Dans le but de réduire les risques
42
de brouillage radioélectrique à l’intention des
autres utilisateurs, il faut choisir le type d’antenne
et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas
l’intensité nécessaire à l’établissement d’une
communication satisfaisante.
(1/2) This radio transmitter (identify the device
by certification number, or model number if
Category II) has been approved by Industry
Canada to operate with the antenna types listed
below with the maximum permissible gain and
required antenna impedance for each antenna
type indicated. Antenna types not included in this
list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for
use with this device.
Le présent émetteur radio (identifier le dispositif
par son numéro de certification ou son numéro
de modèle s’il fait partie du matériel de catégorie
I) a été approuvé par Industrie Canada pour
fonctionner avec les types d’antenne énumérés
ci-dessous et ayant un gain admissible maximal
etl’impédance requise pour chaque type d’antenne.
Les types d’antenne non inclus dans cette liste,
ou dont le gain est supérieur au gain maximal
indiqué, sont strictement interdits pour
l’exploitation de l’émetteur.
IC Radiation Exposure Statement:
This equipment complies with IC RF radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-
located or operating in conjunction with any other
antenna or transmitter.
FCC Hearing Aid Compatibility (HAC)
Regulations for Wireless Devices
The U.S. Federal Communications Commission (FCC) has
established requirements for digital wireless mobile devices
to be compatible with hearing aids and other assistive
hearing devices.
When individuals employing some assistive hearing devices
(hearing aids and cochlear implants) use wireless mobile
devices, they may detect a buzzing, humming, or whining
noise. Some hearing devices are more immune than others
to this interference noise, and mobile devices also vary in the
amount of interference they generate.
The wireless telephone industry has developed a rating
system for wireless mobile devices to assist hearing device
users find mobile devices that may be compatible with their
hearing devices. Not all mobile devices have been rated.
Mobile devices that are rated have the rating on their box or
a label located on the box.
The ratings are not guarantees. Results will vary depending
on the user's hearing device and hearing loss. If your hearing
device happens to be vulnerable to interference, you may not
be able to use a rated mobile device successfully. Trying out
the mobile device with your hearing device is the best way to
evaluate it for your personal needs.
M-Ratings
: Wireless mobile devices rated M3 or M4 meet
FCC requirements and are likely to generate less interference
to hearing devices than mobile devices that are not labeled.
M4 is the better/higher of the two ratings. M-ratings refer to
enabling acoustic coupling with hearing aids that do not
43
operate in telecoil mode.
T-Ratings
: Mobile devices rated T3 or T4 meet FCC
requirements and are likely to generate less interference to
hearing devices than mobile devices that are not labeled. T4
is the better/higher of the two ratings. T-ratings refer to
enabling inductive coupling with hearing aids operating in
telecoil mode.
Hearing devices may also be rated. Your hearing aid
manufacturer or hearing health professional may help you
find this rating. Higher ratings mean that the hearing device
is relatively immune to interference noise.
Under the current industry standard, American National
Standards Institute (ANSI) C63.19, the hearing aid and
wireless mobile device rating values are added together to
indicate how usable they are together. For example, if a
hearing aid meets the M2 level rating and the wireless
mobile device meets the M3 level rating, the sum of the two
values equals M5.
Under the standard, this should provide the hearing aid user
with normal use while using the hearing aid with the
particular wireless mobile device. A sum of 6 or more would
indicate excellent performance.
However, these are not guarantees that all users will be
satisfied. T ratings work similarly.
The HAC rating and measurement procedure are described in
the American National Standards Institute (ANSI) C63.19
standard.
HAC for Newer Technologies
This phone has been tested and rated for use with hearing
44
used in this phone that have not been tested yet for use with
hearing aids.
It is important to try the different features of this phone
thoroughly and in different locations, using your hearing aid
or cochlear implant, to determine if you hear any interfering
noise. Consult your service provider or the manufacturer of
this phone for information on hearing aid compatibility. If you
have questions about return or exchange policies, consult
your service provider or phone retailer.
aids for some of the wireless technologies that it uses.
However, there may be some newer wireless technologies
45
US and Canada: (1)-866-779-1632
www.binatoneglobal.com
