A57A Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee

that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the

contents here and specially disclaims any implied warranties of merchantability

or fitness for any purpose. Further the vendor reserves the right to revise this

publication and to make changes to the contents here without obligation to

notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and

we will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

Dichiarazione di conformità

sintetica

Ai sensi dell’art. 2 comma 3 del D.M.

275 del 30/10/2002

Si dichiara che questo prodotto è

conforme alle normative vigenti e

soddisfa i requisiti essenziali richiesti

dalle direttive

2004/108/CE, 2006/95/CE e

1999/05/CE

quando ad esso applicabili

Short Declaration of conf ormity

We declare this product is complying

with the laws in force and meeting all

the essential requirements as specified

by the directives

2004/108/CE, 2006/95/CE and

1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction................................................................ 1

1.1 Before You Start ....................................................................................1

1.2 Package Checklist.................................................................................1

1.3 Motherboard Features...........................................................................2

1.4 Rear Panel Connectors ..........................................................................3

1.5 Motherboard Layout.............................................................................4

Chapter 2: Hardware Installation .................................................. 5

2.1 Installing Central Processing Unit (CPU)...............................................5

2.2 FAN Headers .........................................................................................7

2.3 Installing System Memory......................................................................8

2.4 Connectors and Slots............................................................................10

Chapter 3: Headers & Jumpers Setup........................................... 13

3.1 How to Setup Jumpers .........................................................................13

3.2 Detail Settings......................................................................................13

Chapter 4: RAID Functions.......................................................... 17

4.1 Operating System................................................................................17

4.2 Raid Arrays..........................................................................................17

4.3 How RAID Works.................................................................................17

Chapter 5: Useful Help................................................................ 20

5.1 Driver Installation Note.......................................................................20

5.2 Software...............................................................................................21

5.3 Extra Information................................................................................23

5.4 AMI BIOS Beep Code............................................................................24

5.5 Troubleshooting...................................................................................25

Chapter 6: bios update ............................................................... 26

6.1 BIOS Update Utility .............................................................................26

6.2 Online Update Utility ..........................................................................28

6.3 BIOSTAR BIOS Flasher .........................................................................30

Appendix: SPEC In Other Languages............................................ 32

German ....................................................................................................................32

French.......................................................................................................................34

Italian.......................................................................................................................36

Spanish .....................................................................................................................38

Portuguese ...............................................................................................................40

Polish........................................................................................................................42

Russian.....................................................................................................................44

Arabic.......................................................................................................................46

Japanese...................................................................................................................48

A57A

CHAPTER 1: INTRODUCTION

1.1 BEFORE YOU START

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely

grounded appliance, or use grounded wrist strap to

remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board

on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short

circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be

0 to 45 degrees Celsius.

1.2 PACKAGE CHECKLIST

Serial ATA Cable X2

Rear I/O Panel for ATX Case X1

User’s Manual X1

Fully Setup Driver DVD X1

Note: The package contents may be different due to area or your motherboard version.

Motherboard Manual

1.3 MOTHERBOARD FEATURES

SPEC

CPU Socket FM1

AMD A-Series / E2-Series processors

AMD 64 Architecture enables 32 and 64 bit

computing

Chipset AMD A55

Super I/O

ITE 8728

Provides the most commonly used legacy

Super I/O functionality

Low Pin Count Interface

Environment Control in it iatives

H/W Monitor

Fan Speed Contro ller

ITE's "Smart Guard ian" funct ion

Main

Memory

DDR3 DIMM Slots x 2

Max Memory Capacity 16GB

Each DIMM supports 512MB/

1GB/2GB/4GB/8GB DDR3

Dual Channel Mode DDR3 memory module

Supports DDR3 800/1066/1333/1600/1866

Registered DIMM and ECC DIMM is not supported

SATA II Integrated Serial ATA Controller

Data transfer rates up to 3 Gb/s.

SATA Version 2.0 specif icat ion co mpliant.

RAID 0,1,10 support

LAN RTL8111E / RTL8111F

10 / 100 Mb/s / 1Gb/s auto negotiation

Half / Full duplex capability

Sound VT1708B/ ALC662

5.1channels audio out

Supports HD Audio

PCI Express Gen2 x16 Slot x1 Supports PCI-E Gen2 x16, x4 expans ion cards

PCI Express Gen2 x1 Slot x2 Supports PCI-E Gen2 x1 expansion cards

Slots

PCI Slot x3 Supports PCI expansion cards

SATA Connector x6 Each connector supports 1 SATA device

Front Panel Connector x1 Supports front panel facilities

Front Audio Connector x1 Supports front panel audio function

S/PDIF out Connector x1 Supports digital audio out function

CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)

System Fan Header x1 System Fan Power supply

On Board

Connectors

CMOS clear Header x1 Restore CMOS data to factory default

A57A

SPEC

USB2.0 Connector x2 Each connector supports 2 front panel USB2.0 ports

Printer Port Connector x1 Each connector supports 1 Printer port

Power Connector (24-Pin) x1 Connects to Power supply

Power Connector (4-Pin) x1 Connects to Power supply

Back Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

Serial Port x1

LAN port x1

USB2.0 Port x6

Audio Jack x3

Connects to PS/2 Keyboard

Connects to PS/2 Mouse

Connects to RS-232 Port

Connect to RJ-45 ethernet cable

Connect to USB2.0 devices

Provide Audio-In/Out and Mic. connection

Board Size 200 mm (W) x 295 mm (L) ATX

OS Support

Windows XP / Vista / 7

Biostar reserves the right to add or remove support

for any OS With or without notice.

1.4 REAR PANEL CONNECTORS

PS/2

Mouse

P S /2

Keyboard

COM1 USB2.0X2USB2.0X2

LAN Line In/

Surround

Line Out

Mic In 1/

Bass/ Center

USB2.0X2

Motherboard Manual

1.5 MOTHERBOARD LAYOUT

ATXPWR2

AUDIO1

RJ45USB1

KBMS1

COM 1

USB2

USB1

PCI2

PCI3

PCI1

PEX16_1

PEX1_1

PEX1_2

DD R 3_A 1

DD R 3_B 1

CPU_FAN1

ATXPWR1

F_USB1

F_USB2

J_PRINT1

F_AUDIO1

JSPDIFOUT1

JCMOS1

BIOS

LAN

Super

I/O

Codec

PA N EL1

SYS_FAN1

SATA2

SATA1

SATA4

SATA3

SATA6

SATA5

BAT1

AMD

A55

Note: represents the 1■st pin.

A57A

CHAPTER 2: HARDWARE INSTALLATION

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

Step 1: Pull the lever toward direction A from the socket and then raise the

lever up to a 90-degree angle.

Step 2: Look for the white triangle on socket, and the gold triangle on

CPU should point towards this white triangle. The CPU will fit only

in the correct orientation.

Motherboard Manual

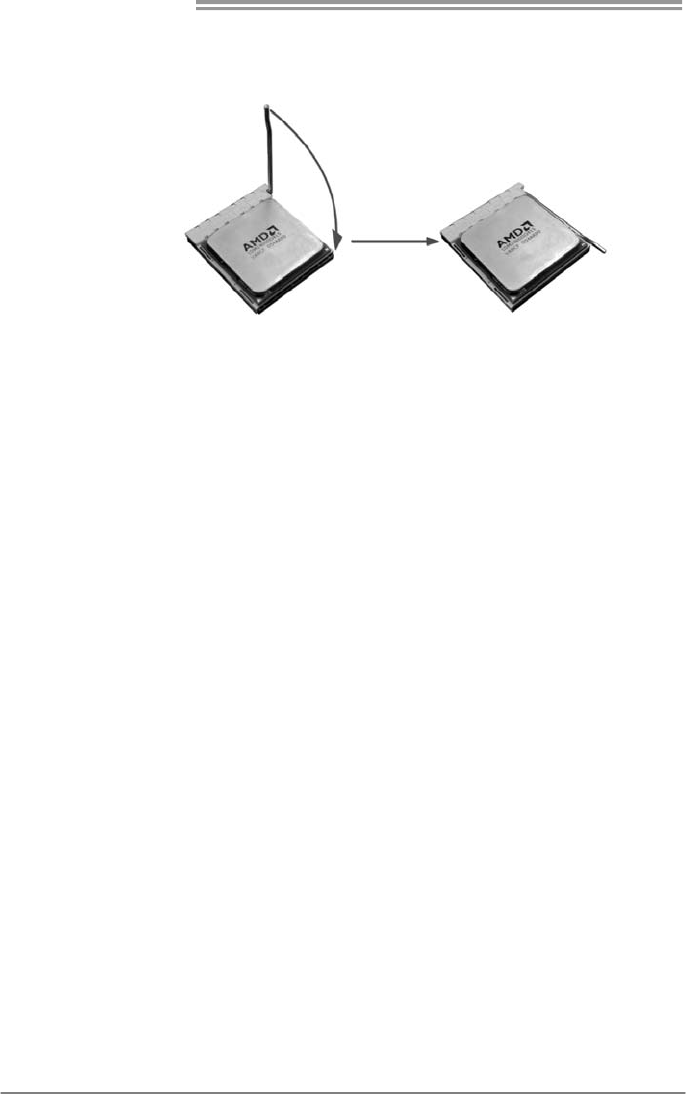

Step 3: Hold the CPU down firmly, and then close the lever toward direct

B to complete the installation.

Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU

FAN power cable to the CPU_FAN1. This completes the

installation.

A57A

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan

cable and connector may be different according to the fan manufacturer.

Connect the fan cable to the connector while matching the black wire to

pin#1.

CPU_FAN1: CPU Fan Header

Assignment

1 Ground

2 +12V

3 FAN RPM rate

sense

4 Smart Fan

Control (By Fan)

SYS_FAN1: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM

rate sense

Note:

CPU_FAN1, SYS_FAN1 support 4-pin and 3-pin head connectors. When connecting

with wires onto connectors, please note that the red wire is the positive and should be

connected to pin#2, and the black wire is Ground and should be connected to GND.

Motherboard Manual

2.3 INSTALLING SYSTEM MEMORY

A. DDR3 Modules

DDR3_A1

DDR3_B1

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.

A57A

B. Memory Capacity

DIMM Socket

Location DDR3 Module Total Mem ory

Size

DDR3_A1 512MB/1GB/2GB/4GB/8GB

DDR3_B1 512MB/1GB/2GB/4GB/8GB

Max is 16GB.

C. Dual Channel Memory installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table

Dual Channel Status DDR3_A1 DDR3_B1

Disabled X O

Disabled O X

Enabled O O

(O means memory installed, X means memory not installed.)

The DRAM bus width of the memory module must be the same (x8 or

x16)

D. DDR Speed Support

Please refer to the following table for DDR speed reference:

# of DIMM per Channel # of Ranks per DIMM Max DDR Speed Grade

for 1.50V DIMM

1 of 1 UDIMM xR DDR3-1866

1 of 2 UDIMMs xR DDR3-1600 / DDR3-1333

Note:

xR: Single or double side memory moudule

Motherboard Manual

2.4 CONNECTORS AND SLOTS

SATA1~SATA6: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 6 channels SATA interface,

it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.

Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

147

SATA2 4 6

1 3 5

SATA SATA

SATA SATA SATA

7 Ground

ATXPWR2: ATX Power Source Connector

This connector provides +12V to CPU power circuit.

Assignment

1 +12V

2 +12V

3 Ground

4 Ground

A57A

ATXPWR1: ATX Power Source Connector

This connector allows user to connect 24-pin power connector on the ATX

power supply.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 Ground 3 Ground

16 PS_ON 4 +5V

17 Ground 5 Ground

18 Ground 6 +5V

19 Ground 7 Ground

20 NC 8 PW_OK

21 +5V 9 Standby Voltage+5V

22 +5V 10 +12V

23 +5V 11 +12V

24 Ground 12 +3.3V

Note:

Before you power on the system, please make sure that both ATXPWR1 and ATXPWR2

connectors have been plugged-in.

PCI1/PCI2/PCI3: Peripheral Component Interconnect Slots

This motherboard is equipped with 3 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for expansion

cards. This PCI slot is designated as 32 bits.

PCI1

PCI2

PCI3

Motherboard Manual

PEX16_1: PCI-Express Gen2 x16 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 8GB/s simultaneously per

direction, for an aggregate of 16GB/s totally.

- PCI-Express Gen2 supports a raw bit-rate of 5.0Gb/s on the data pins.

- 2X bandwidth over the PCI-Express 1.1 architecture.

PEX1_1/PEX1_2: PCI-Express Gen2 x1 Slots

- PCI-Express 2.0 compliant.

- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.

- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.

PEX16_1

PEX1_1

PEX1_2

A57A

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 HOW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is

placed on pins, the jumper is “close”, if not, that means the jumper is

“open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and

speaker connection. It allows user to connect the PC case’s front panel switch

functions.

PWR_LED

RST

HLED

SPK

916

On/Off

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A

2 N/A 10 N/A N/A

3 N/ A 11 N/A N/A

4 Speaker

Speaker

Connector

12 Power LED (+)

5 HDD LED (+) 13 Power LED (+)

6 HDD LED (-)

Hard drive

LED 14 Power LED (-)

Power LED

7 Ground 15 Power button

8 Reset control Reset button 16 Ground Power-on button

Motherboard Manual

JCMOS1: Clear CMOS Header

Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and

the CMOS data. Please carefully follow the procedures to avoid damaging the

motherboard.

Pin 1-2 Close:

Normal Operation

(default).

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Load Optimal Defaults and save settings in CMOS.

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

These headers allow user to connect additional USB cable on the PC front panel,

and also can be connected with internal USB devices, like USB card reader.

Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

USB2

USB1

10 NC

A57A

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front

panel. This header supports HD and AC’97 audio front panel connector.

HD Audio AC’97

Pin Assignment Pin Assignment

1 Mic Left in 1 Mic In

2 Ground 2 Ground

3 Mic Right in 3 Mic Power

4 GPIO 4 Audio Power

5 Right line in 5 RT Line Out

6 Jack Sense 6 RT Line Out

7 Front Sense 7 Reserved

8 Key 8 Key

9 Left line in 9 LFT Line Out

10 Jack Sense 10 LFT Line Out

Note: It is recommended that you connect a high-definition front panel audio module to

this connector to avail of the motherboard's high definition audio capability.

JSPDIFOUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Assignment

1 +5V

2 SPDIF_OUT

3 Ground

Motherboard Manual

J_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground

2 -ALF 15 Data 6

3 Data 0 16 Ground

4 -Error 17 Data 7

5 Data 1 18 Ground

6 -Init 19 -ACK

7 Data 2 20 Ground

8 -Scltin 21 Busy

9 Data 3 22 Ground

10 Ground 23 PE

11 Data 4 24 Ground

12 Ground 25 SCLT

13 Data 5 26 Key

A57A

CHAPTER 4: RAID FUNCTIONS

4.1 OPERATING SYSTEM

Supports Windows Vista and Windows 7.

4.2 RAID ARRAYS

RAID supports the following types of RAID arrays:

RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for

many applications.

RAID 1: RAID 1 defines techniques for mirroring data.

RAID 10: RAID 10 combines the techniques used in RAID 0 and RAID 1.

4.3 HOW RAID WORKS

RAID 0:

The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks

up a large file into smaller blocks and performs disk reads and writes across multip le

drives in parallel. The size of each block is determined by the stripe size parameter,

which you set during the creation of the RAID set based on the system environment. This

technique reduces overall disk access time and offers high bandwidth.

Features and Benefits

 Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the

platform.

 Uses: Intended for non-critical data requiring high data throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increased data throughput, especially for large files. No

capacity loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array

fails, all data is lost.

 Fault Tolerance: No.

Block 1

Blo ck 3

Blo ck 5

Block 2

Blo ck 4

Blo ck 6

Motherboard Manual

RAID 1:

Every read and write is actually carried out in parallel across 2 disk drives in a RAID 1

array system. The mirrored (backup) copy of the data can reside on the same disk or on a

second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the

active volume or drive is corrupted or becomes unavailable because of a hardware failure.

RAID techniques can be applied for high-availability solutions, or as a form of automatic

backup that eliminates tedious manual backups to more expensive and less reliable

media.

Features and Benefits

 Drives: Minimum 2, and maximum is 2.

 Uses: RAID 1 is ideal for small databases or any other application that

requires fault tolerance and minimal capacity.

 Benefits: Provides 100% data redundancy. Should one drive fail, the

controller switches to the other drive.

 Drawbacks: Requires 2 drives for the storage space of one drive.

Performance is impaired during drive rebuilds.

 Fault Tolerance: Yes .

Block 1

Block 2

Block 3

Block 1

Block 2

Block 3

A57A

RAID 10:

RAID 1 drives can be stripped using RAID 0 techniques. Resulting in a RAID 10

solution for improved resiliency, performance and rebuild performance.

Features and Benefits

 Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.

 Benefits: Optimizes for both fault tolerance and performance, allowing for

automatic redundancy. May be simultaneously used with other RAID levels

in an array, and allows for spare disks.

 Drawbacks: Requires twice the available disk space for data redundancy,

the same as RAID level 1.

 Fault Tolerance: Yes .

Block 1

Block 3

Block 5

Block 2

Block 4

Block 6

Block 1

Block 3

Block 5

Block 2

Block 4

Block 6

Motherboard Manual

CHAPTER 5: USEFUL HELP

5.1 DRIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup

Driver CD into your optical drive and install the driver for better system

performance.

You will see the following window after you insert the CD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver CD, please use file browser to

locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will

list the compatible driver for your motherboard and operating system.

Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide

will list the software available for your system, click on each software title

to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver

CD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version

of Acrobat Reader software from

http://www.adobe.com/products/acrobat/readstep2.html

A57A

5.2 SOFTWARE

Installing Software

1. Insert the Setup CD to the optical drive. The drivers installation program

would appear if the Autorun function has been enabled.

2. Select Software Installation, and then click on the respective software

title.

3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process, you will see the software icon “eHOT Line” /

“BIOS Update” appears on the desktop. Double-click the icon to launch the

utility.

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our

Tech-Support system. This utility will collect the system information which is

useful for analyzing the problem you may have encountered, and then send

these information to our tech-support department to help you fix the problem.

Before you use this utility, please set Outlook Express as your default e-mail client application program.

This block will show

the information which

would be collected in

the mail.

Provide the e-ma il

address that you would

like to send the copy to.

Provide the name of

th e power suppl y

manufacturer and the

model no.

Send the mail out.

Save these in formation to a .txt fil

Exit this dialog.

Select your area or

the area close to you.

Pr ov id e the na me of

the memory module

manufacturer.

Describe condition

of your system.

repr es ent s impor tant

informa tion that you

must provide. Wi thout

this information, you may

not be able to send out

the mail.

Motherboard Manual

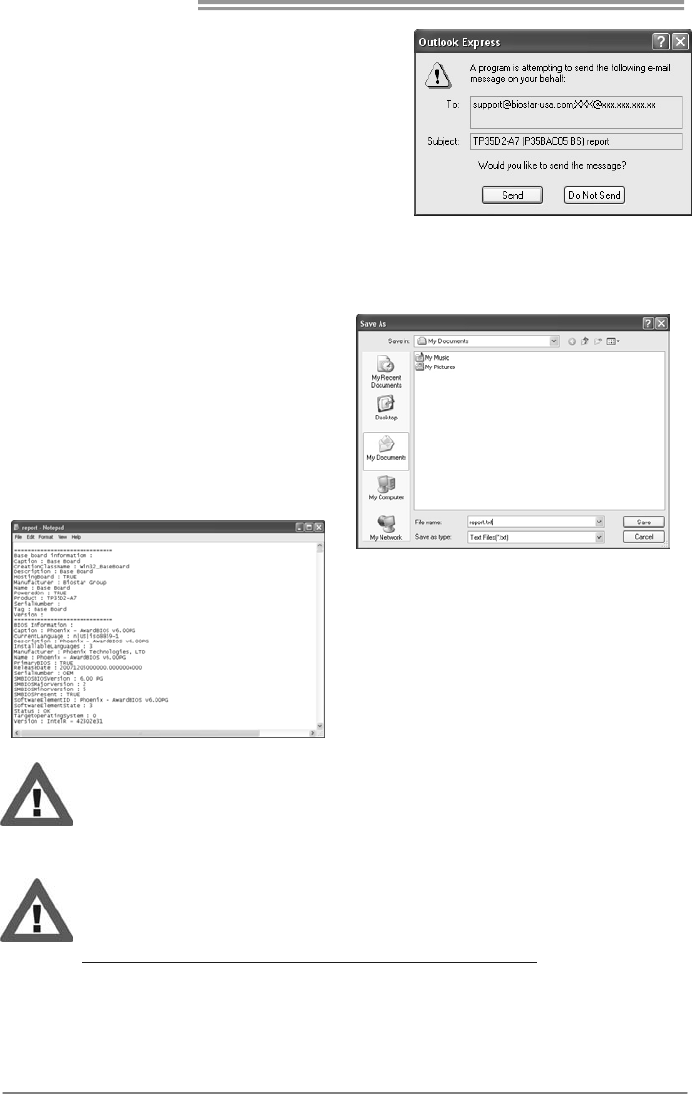

After filling up this information, click “Send”

to send the mail out. A warning dialog would

appear asking for your confirmation; click

“Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you

will see a saving dialog appears asking you to enter file name.

Enter the file name and then click

“Save”. Your system information

will be saved to a .txt file.

Open the saved .txt file, you will see

your system information including

motherboard/BIOS/CPU/video/

device/OS information. This

information is also concluded in the

sent mail.

We will not share customer’s data with any other third parties,

so please feel free to provide your system information while using

eHot-Line service.

If you are not using Outlook Express as your default e-mail client

application, you may need to save the system information to a .txt file

and send the file to our tech support with other e-mail application.

Go to the following web

http://www.biostar.com.tw/app/en/about/contact.php for getting our

contact information.

A57A

BIOS Update Utility

BIOS Update Utility is a convenient utility which allows you to update your

motherboard BIOS under Windows system. Please refer to the detailed

instructions in the section 6.1 BIOS Update Utility of Chapter 6.

5.3 EXTRA INFORMATION

CPU Overheated

If the system shutdown automatically after power on system for

seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown

automatically to avoid a damage of the CPU, and the system may not

power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection

function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.

(See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

Motherboard Manual

5.4 AMI BIOS BEEP CODE

Boot Block Beep Codes

Number of Beeps Description

1 No media present. (Insert diskette in floppy drive A:)

2 “AMIBOOT.ROM” file not found in root directory of diskette in

3 Insert next diskette if multiple diskettes are used for recovery

4 Flash Programming successful

5 File read error

7 No Flash EPROM detected

10 Flash Erase error

11 Flash Program error

12 “AMIBOOT.ROM” file size error

13 BIOS ROM image mismatch (file layout does not match

image present in flash device)

POST BIOS Beep Codes

Number of Beeps Description

1 Memory refresh timer error

3 Base memory read/write test error

6 Keyboard controller BAT command failed

7 General exception error (processor exception interrupt error)

8 Display memory error (system video adapter)

Troubleshooting POST BIOS Beep Codes

Number of Beeps Troubleshooting Action

1, 3 Reseat the memory, or replace with known good modules.

6, 7

Fatal error indicating a serious problem with the system.

Consult your system manufacturer. Before declaring the

motherboard beyond all hope, eliminate the possibility of

interference by a malfunctioning add-in card. Remove all

expansion cards except the video adapter.

z If beep codes are generated when all other expansion

cards are absent, consult your system manufacturer’s

technical support.

z If beep codes are not generated when all other expansion

cards are absent, one of the add-in cards is causing the

malfunction. Insert the cards back into the system one at a

time until the problem happens again. This will reveal the

malfunctioning card.

If the system video adapter is an add-in card, replace or reseat the

video adapter. If the video adapter is an integrated part of the system board, the board

may be faulty.

A57A

5.5 TROUBLESHOOTING

Probable Solution

1. There is no power in the system.

Power LED does not shine; the

fan of the power supply does not

work

2. Indicator light on keyboard does

not shine.

1. Make sure power cable is

securely plugged in.

2. Replace cable.

3. Contact technical support.

System is inoperative. Keyboard lights

are on, power indicator lights are lit,

and hard drives are running.

Using even pressure on both ends of

the DIMM, press down firmly until the

module snaps into place.

System does not boot from a hard disk

drive, but can be booted from optical

drive.

1. Check cable running from disk to

disk controller board. Make sure

both ends are securely plugged

in; check the drive type in the

standard CMOS setup.

2. Backing up the hard drive is

extremely important. All hard

disks are capable of breaking

down at any time.

System only boots from an optical

drive. Hard disks can be read,

applications can be used, but system

fails to boot from a hard disk.

1. Back up data and applications

files.

2. Reformat the hard drive.

Re-install applications and data

using backup disks.

Screen message shows “Invalid

Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure

correct information is in setup.

System cannot boot after user installs a

second hard drive.

1. Set master/slave jumpers

correctly.

2. Run SETUP program and select

correct drive types. Call the drive

manufacturers for compatibility

with other drives.

Motherboard Manual

CHAPTER 6: BIOS UPDATE

There are three ways to update the BIOS: BIOS Update Utility, BIOS Online

Update Utility and BIOSTAR BIOS Flasher.

Note: The programing procedure may take minutes, please do not make any operation

during the programing process.

6.1 BIOS UPDATE UTILITY

1. Installing BIOS Update Utility from the CD Driver.

2. Download the proper BIOS from www.biostar.com.tw .

3. Open BIOS Update Utility and click

the Update BIOS button on the main

screen.

4. A warning message will show up to

request your agreement to start the

BIOS update. Click Yes to start the

update procedure.

5. Choose the location for your BIOS

file in the system. Please select the

proper BIOS file, and then click on

Open. It will take several minutes,

please be patient.

A57A

6. After the BIOS Update process is

finished, click on OK to reboot the

system.

7. While the system boots up and the full screen logo shows up, please press the

<Delete> key to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore

Defaults function to load Optimized Defaults, and select Save Changes and

Reset to restart the computer. Then, the BIOS Update is completed.

All the information and content above about the software are subject to be changed

without notice. For better performance, the software is being continuously updated.

The information and pictures described above are for your reference only. The actual

information and settings on board may be slightly different from this manual.

Click the Backup BIOS button on the

main screen for the backup of BIOS,

and select a proper location for your

backup BIOS file in the system, and

click Save.

Motherboard Manual

6.2 ONLINE UPDATE UTILITY

1. Installing BIOS Update Utility from the CD Driver.

2. Please make sure the system is connected to the internet before

using this function.

3. Open BIOS Update Utility and click the

Online Update button on the main screen.

4. An open dialog will show up to

request your agreement to start the

BIOS update. Click Yes to start the

online update procedure.

5. If there is a new BIOS version, the

utility will ask you to download it. Click

Yes to proceed.

6. After the download is completed,

you will be asked to program

(update) the BIOS or not. Click Yes

to proceed.

A57A

7. After the updating process is finished,

you will be asked you to reboot the

system. Click OK to reboot.

8. While the system boots up and the full screen logo shows up, press

<Delete> key to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore

Defaults function to load Optimized Defaults, and select Save Changes and Reset

to restart the computer. Then, the BIOS Update is completed.

All the information and content above about the T-Series software are subject to be

changed without notice. For better performance, the software is being continuously

updated. The information and pictures described above are for your reference only.

The actual information and settings on board may be slightly different from this manual.

Motherboard Manual

6.3 BIOSTAR BIOS FLASHER

BIOSTAR BIOS Flasher is a BIOS flashing utility providing you an easy and

simple way to update your BIOS via USB pen drive.

The BIOSTAR BIOS Flasher is built in the BIOS ROM. To enter the utility,

press <F12> during the Power-On Self Tests (POST) procedure while

booting up.

Updating BIOS with BIOSTAR BIOS Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, copy and save the BIOS file into a USB flash (pen) drive.

3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press <F12> during the POST

process.

5. After entering the POST

screen, the BIOS-FLASHER

utility pops out. Choose [fs0]

to search for the BIOS file.

A57A

6. Select the proper BIOS

file, and a message asking if

you are sure to flash the

BIOS file. Click Yes to start

updating BIOS.

7. A dialog pops out after

BIOS flash is completed,

asking you to restart the

system. Press the [Y] key to

restart system.

8. While the system boots up and the full screen logo shows up, press

<Delete> key to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the

Restore Defaults function to load Optimized Defaults, and select Save

Changes and Reset to restart the computer. Then, the BIOS Update is

completed.

z This utility only allows storage device with FAT32/16 format and single

partition.

z Shutting down or resetting the system while updating the BIOS will lead to

system boot failure.

Motherboard Manual

APPENDIX: SPEC IN OTHER LANGUAGES

GERMAN

Spezifikationen

CPU Sockel FM1

AMD A-Series / E2-Series Prozessoren

Die AMD 64-Architektur unterstützt eine 32-Bit- und

64-Bit-Datenverarbeitung

Chipsatz AMD A55

Super E/A

ITE 8728

Biet et die häufig verwendeten alten Sup er

E/A-Funktionen.

Low Pin Count-Schnittstelle

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzahl-Controller

"Smart Guardian"-Funktion von ITE

Arbeitsspeich

DDR3 DIMM-Steckplätze x 2

Max. 16GB Arbeitsspeicher

Jeder DIMM unterstützt 512MB/

1GB/2GB/4GB/8GB DDR3.

Dual-Kanal DDR3 Speichermodul

Unterstützt DDR3 800/1066/1333/1600/1866

Unterstützt DDR3 2000 (OC)

registrierte DIMMs. ECC DIMMs werden nicht

unterstützt.

SATA II Integrierter Serial ATA-Controller

Datentransferrate bis zu 3 Gb/s

Konform mit der SATA-Spezifikation Version 2.0

Unterstützt RAID 0,1,10

LAN RTL8111E / RTL8111F

10 / 100 / 1000 Mb/s Auto-Negotiation

Halb-/ Vollduplex-Funktion

Audio-Codec VT1708B/ ALC662

5.1-Kanal-Audioausgabe

Unterstützt High-Definition Audio

PCI Express Gen2 x16 Steckplatz x1

PCI Express Gen2 x1 Steckplatz x2

Steckplätze

PCI Steckplatz x3

SATA-Anschluss x6 Jeder Anschluss unterstützt 1 SATA-Laufwerk

Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen

Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion

S/PDIF Ausgangsanschluss x1 Unterstützt die digitale Audioausgabefunktion

Onboard-Ans

chluss

CPU-Lüfter-Sockel x1

CPU-Lüfterstromversorgungsanschluss (mit Smart

Fan-Fun ktion )

A57A

Spezifikationen

System-Lüfter-Sockel x1 System-Lüfter-Stromversorgungsanschluss

"CMOS löschen"-Sockel x1

USB2.0-Anschluss x2 Jeder Anschluss unterstützt 2

Fronttafe l-USB2.0-Anschlüss e

Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss

Stromanschluss (24-polig) x1

Stromansch luss (4-polig ) x1

Rückseiten-E

PS/2-Tastatur x1

PS/2-Maus x1

Serieller Anschluss x1

LAN-Anschluss x1

USB2.0-Anschluss x6

Audioanschluss x3

Platinengröße

200 mm (B) X 295 mm (L)

OS-Unterstüt

zung Windows XP / Vista / 7

Biostar behält sich das Recht vor, ohne Ankündigung

die Unterstützung für ein Betriebssystem

hinzuzufügen oder zu entfernen.

Motherboard Manual

FRENCH

SPEC

UC Socket FM1

Processeurs AMD A-Series / E2-Series

L'architecture AMD 64 permet le calcul 32 et 64 bits

Chipset AMD A55

Super E/S

ITE 8728

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à f aib le co mpte de b roches

Initiatives de contrôle environnementales,

Mon iteur d e mat ériel

Contrôleur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

Mémoire

principale

Fentes DDR3 DIMM x 2

Capacité mémo ire max imale de 16Go

Chaque DIMM prend en charge des DDR3

de 512Mo/1Go/2Go/4Go/8Go

Module d e mémo ire DDR3 à mode à double vo ie

Prend en charge la DDR3 800/1066/1333/1600/1866

Prend en charge la DDR3 2000 (OC)

Les DIMM à registres et DIMM avec code correcteurs

d'erreurs ne sont pas prises en charge

SATA II

Contrôleur Serial ATA

int é gr é

Taux de transfert jusqu'à 3 Go/s.

Conforme à la spécificat ion SATA Vers ion 2.0

Prise en charge RAID 0,1,10

LAN RTL8111E / RTL8111F

10 / 100 / 1000 Mb/s négociation automatique

Half / Full duplex capability

Codec audio

VT1708B/ ALC662

Sortie audio à 5 .1 voies

Prise en charge de l'audio haute définition

Fente PCI Express Gen2 x16 x1

Fente PCI Express Gen2 x1 x2

Fentes

Fente PCI x3

Connecteur SATA x6

Chaque connecteur prend en charge 1 périp hérique

SATA

Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant

Connecteur Audio du panneau avant x1 Prend en charge la fonction audio du panneau avant

Connecteur de sortie S/PDIF x1 Prend en charge la fonction de sortie audio numérique

Embase de ventilateur UC x1

Alimentation électrique du ventilateur UC (avec fonction

de ventilateur intelligent)

Connecteur

embarqué

Embase de ventilateur système x1 Alimentation électrique du ventilateur système

A57A

SPEC

Embase d'effacement CMOS x1

Connecteur USB2.0 x2

Chaque connecteur prend en charge 2 ports USB2.0 de

panneau avant

Connecteur de Port d'imprimante x1 Chaque connector prend en charge 1 Port d'imprimante

Connecteur d'aliment ation x1

(24 broches)

Connecteur d'aliment ation x1

(4broches)

E/S du

panneau

arrière

Clavier PS/2 x1

Souris PS/2 x1

Port série x1

Port LAN x1

Port USB2.0 x6

Fiche audio x3

Dimensions

de la carte 200 mm (l) X 295 mm (H)

Support SE Windows XP / Vista / 7

Biostar se réserve le droit d'ajouter ou de supprimer le

support de SE avec ou sans préavis.

Motherboard Manual

ITALIAN

SPECIFICA

CPU Socket FM1

Processori AMD A-Series / E2-Series

L’architettura AMD 64 abilita la co mputazione 32

e 64 bit

Chipset AMD A55

Super I/O

ITE 8728

Fornisce le funzionalità legacy Super

I/O usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Controller veloc ità ventolina

Funzione "Smart Guardian" di ITE

Memoria

principale

Alloggi DIMM DDR3 x 2

Capacità massima della memoria 16GB

Ciascun DIMM supporta DDR3

512MB/1GB/2GB/4GB/8GB

Modulo di memoria DDR3 a canale doppio

Supporto di DDR3 800/1066/1333/1600/1866

Supporto di DDR3 2000 (OC)

DIMM registrati e DIMM ECC non sono supportati

SATA II Controller Serial ATA integrato

Velocità di trasferimento dei dati fino a 3 Gb/s.

Compatibile spec ifiche SATA Versione 2.0

Supporto RAID 0,1,10

LAN RTL8111E / RTL8111F

Negoziazione automatica 10 / 100 / 1000 Mb/s

Capacità Half / Full Duplex

Codec

audio VT1708B/ ALC662

Uscita audio 5.1 canali

Supporto audio High-Definition (HD)

Alloggio PCI Express Gen2 x16 x1

Alloggio PCI Express Gen2 x1 x2

Alloggi

Alloggio PC I x3

Connettore SATA x6 Ciascun connettore supporta 1 unità SATA

Connettore pannello frontale x 1 Supporta i s ervizi de l pannello frontale

Connettore audio frontale x1 Supporta la funzione audio pannello frontale

Connettore output S/PDIF x1 Supporta la funzione d’output audio digitale

Collettore ventolina C PU x1

Alimentazione ventolina CPU (con funzione Smart

Fan)

Connettori

su scheda

Collettore ventolina s istema x1 Alimentazione ventolina d i sis tema

A57A

SPECIFICA

Collettore cance llaz ione CMOS x1

Connettore USB2.0 x2

Ciascun connettore supporta 2 porte USB2.0

pannello frontale

Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante

Connettore alimentazione x1

(24 pin)

Connettore alimentazione x1

(4pin)

I/O

pannello

posteriore

Tas t ier a PS /2 x 1

Mouse PS/2 x1

Porta seriale x1

Porta LAN x1

Porta USB2.0 x6

Connettore audio x3

Dimension

i scheda

200 mm (larghezza) x 295 mm

(altezza)

Sistemi

operativi

supportati

Windows XP / Vista / 7

Biostar si riserva il diritto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

Motherboard Manual

SPANISH

Especificación

CPU Conector FM1

Procesadores AMD A-Series / E2-Series

La arquitectura AMD 64 permite el procesado de 32 y

64 bits

Conjunto de

chips AMD A55

Súper E/S

ITE 8728

Le ofrece las funcionalidades heredadas de

uso más comú n Súper E/S.

Interfaz de cuenta Low Pin

In iciat ivas de control d e entorno,

Monitor hardware

Controlador de velocidad de ventilador

Función "Guardia inteligente" de ITE

Memoria

principal

Ranuras DIMM DDR3 x 2

Capacidad máxima de memoria de 16GB

Cada DIMM admite DDR de

512MB/1GB/2GB/4GB/8GB

Módulo de memoria DDR3 de canal Doble

Admite DDR3 de 800/1066/1333/1600/1866

Admite DDR3 de 2000 (OC)

No admite DIMM registrados o DIMM compatibles con

ECC

SATA II Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3 Gb/s.

Compat ib le con la versión SATA 2.0

Admite RAID 0,1,10

Red Local RTL8111E / RTL8111F

Negociación de 10 / 100 / 1000 Mb/s

Funciones Half / Full dúplex

Códecs de

sonido VT1708B/ ALC662

Salida de sonido de 5.1 canales

Soporte de sonido de Alta Definición

Ranura PCI Express Gen2 x16 X1

Ranura PCI express Gen2 x1 X2

Ranuras

Ranura PCI X3

Conector SATA X6 Cada conector soporta 1 dispositivos SATA

Conector de panel f rontal X1 Soporta instalaciones en el p ane l frontal

Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal

Conectores

en placa

Conector de salida S/PDIF X1 Soporta función de salida de sonido digital

A57A

Especificación

Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con

función Smart Fan)

Cabecera de ventilador de sistema X1 Fuente de alimentación de ventilador de sistema

Cabecera de borrado de CMOS X1

Conector USB2.0 X2 Cada conector soporta 2 puertos USB2.0 frontales

Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora

Conector de alimentación X1

(24 patillas)

Conector de alimentación X1

(4patillas)

Panel

trasero de

E/S

Tec lad o PS /2 X 1

Ratón PS/2 X1

Puerto serie X1

Puerto de red local X1

Puerto USB2.0 X6

Conector de sonido X3

Ta maño d e

la placa 200 mm. (A) X 295 mm. (H)

Soporte de

sistema

operativo

Windows XP / Vista / 7

Biostar se reserva el derecho de añadir o retirar el

soporte de cualquier SO con o sin aviso previo.

Motherboard Manual

PORTUGUESE

ESPECIFICAÇÕES

CPU Socket FM1

Processadores AMD A-Series / E2-Series

A arquitectura AMD 64 permite uma co mputação de 32

e 64 bits

Chipset AMD A55

Especificaçã

o Super I/O

ITE 8728

Proporciona as funcionalidades mais

utilizadas em termos da especificação

Super I/O.

Interface LPC (Low Pin Count).

In iciat ivas para contro lo do amb iente

Monitorização do hardware

Controlador da velocidade da ventoinha

Função "Smart Gu ardian" d a ITE

Memória

principal

Ranhuras DIMM DDR3 x 2

Capacidad e máxima d e memór ia: 16GB

Cada módulo DIMM suporta uma

memória DDR3 de 512MB/

1GB/2GB/4GB/8GB

Módulo de memória DDR3 de canal duplo

Suporta módulos DDR3 800/1066/1333/1600/1866

Suporta módulos DDR3 2000 (OC)

Os módulos DIMM registados e os DIMM ECC não são

suportados

SATA II Controlador Serial ATA integrado

Velocidades de transmissão de dados até 3 Gb/s.

Compat ibilidade co m a especificação SATA versão 2.0

Suporta as funções RAID 0,1,10

LAN RTL8111E / RTL8111F

Auto negociação de 10 / 100 / 1000 Mb/s

Capacidade semi/full-duplex

Codec de

som VT1708B/ ALC662

Saída de áudio de 5.1 canais

Suporta a especificação High-Definition Audio

Ranhura PCI Express Gen2 x16 x1

Ranhura PCI Express Gen2 x1 x2

Ranhuras

Ranhura PCI x3

Conector SATA x6 Cada conector suporta 1 dispositivo SATA

Conector do painel frontal x1 Para suporte de várias funções no painel frontal

Conector de áudio frontal x1 Suporta a função de áudio no painel frontal

Conector de saída S/PDIF x1 Suporta a saída de áud io digital

Conector da ventoinha da CPU x1

Aliment ação da ventoinha d a CPU (com a função S mart

Fan)

Conectores

na placa

Conector da ventoinha do sistema x1 Alimentação da ventoinha do sistema

A57A

ESPECIFICAÇÕES

Conector para limpeza do CMOS x1

Conector USB2.0 x2

Cada conector suporta 2 portas USB2.0 no painel

frontal

Conector da para impressora x1 Cada conector suporta 1 Porta para impressora

Conector de alimentação x1

(24 pinos)

Conector de alimentação x1

(4 p inos)

Entradas/S

aídas no

painel

traseiro

Tec lad o PS /2 x 1

Rato PS/2 x1

Porta série x1

Porta LAN x1

Porta USB2.0 x6

Tomada de áudio x3

Tamanho

da placa 200 mm (L) X 295 mm (A)

Sistemas

operativos

suportados

Windows XP / Vista / 7

A Biostar reserva-se o direito de adicionar ou remover

suporte para qualquer sistema operativo com ou sem

av is o prévio.

Motherboard Manual

POLISH

SPEC

Procesor Socket FM1

AMD A-Series / E2-Series Procesory

Architektura AMD 64 umożliwia przetwarzanie 32 i 64

bitowe

Chipset AMD A55

Pamięć

główna

Gniazda DDR3 DIMM x 2

Maks. wielkość pamięci 16GB

Każde gniazdo DIMM obsługuje moduły

512MB/1GB/2GB/4GB/8GB DDR3

Moduł pamięci DDR3 z trybem podwójnego kanału

Obsługa DDR3 800/1066/1333/1600/1866

Obsługa DDR3 2000 (OC)

Brak obsługi Registered DIMM oraz ECC DIMM

Super I/O

ITE 8728

Zapewnia najbardziej powszechne funkcje

Super I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Mon itor H/W

Kontroler prędkości wentylatora

Funkcja ITE "Smart Guard ian"

SATA II Zintegrowany kontroler Serial ATA

Transfer danych do 3 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0

Obsługa RAID 0,1,10

LAN RTL8111E / RTL8111F

10 / 100 / 1000 Mb/s z automatyczną negocjacją

szybkości

Działanie w trybie połowicznego/pełnego dupleksu

Kodek

dźwiękowy VT1708B/ ALC662

5.1 kanałowe wyjście audio

Obsługa High-Defin ition Aud io

Gniazdo PCI Express Gen2 x16 x1

Gniazdo PCI Express Gen2 x1 x2

Gniazda

Gniazdo PCI x3

Złącze SATA x6 Każde złącze obs ługuje 1 urządzenie SATA

Złącze panela przedniego x1 Obsługa elementów panela przedniego

Przednie złącze audio x1 Obsługa funkcji audio na panelu przednim

Złącze wyjścia S/PDIF x1 Obsługa funkcji cyfrowego wyjścia audio

Złącze główkowe wentylatora

procesora x1

Zasilanie wentylatora procesora (z funkcją Smart Fan)

Złącza

wbudowane

Złącze główkowe wentylatora

systemowego x1

Zasilanie wentylatora systemowego

A57A

SPEC

Złącze główkowe kasowania

CMOS x1

Złącze USB2.0 x2

Każde złącze obs ługuje 2 porty USB2.0 na panelu

przednim

Złącze Port drukarki x1 Każde złącze obsługuje 1 Port drukarki

Złącze zasilania (24 pinowe) x1

Złącze zas ilania (4 pino we) x1

Back Panel

I/O

Klawiatura PS/2 x1

Mysz PS/2 x1

Port szeregowy x1

Port LAN x1

Port USB2.0 x6

Gniazdo audio x3

Wymiary

płyty 200 mm (S) X 295 mm (W)

Obsluga

systemu

operacyjne

Windows XP / Vista / 7

Biostar zastrzega sobie prawo dodawania lub

odwoływania obsług i dowo ln ego systemu

operacyjnego bez powiado mienia.

Motherboard Manual

RUSSIAN

СПЕЦ

CPU

(центральн

ый

процессор)

Гнездо FM1

Процессоры AMD A-Series / E2-Series

Архитектура AMD 64 разрешать обработка

данных на 32 и 64 бит

Набор

микросхем AMD A55

Основная

память

Слоты DDR3 DIMM x 2

Максимальная ёмкость памяти 16ГБ

Каждый модуль DIMM поддерживает

512МБ /1ГБ/2ГБ/4ГБ/8ГБ DDR3

Модуль памяти с двухканальным режимом DDR3

Поддержка DDR3 800/1066/1333/1600/1866

Поддержка DDR3 2000 (OC)

Не поддерживает зарегистрированные модули

DIMM and ECC DIMM

Super I/O

ITE 8728

Обеспечивает наиболее используемые

действующие фун кц ио нальны е

возможности Super I/O.

Интерфейс с низким количест вом выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Регул ятор скорости

Функц ия ITE "Smart Guard ian"

(Интеллектуальная защита)

SATA II Встроенное последоват ельное устройство

управления ATA

скорость передачи данных до 3 гигабит/с.

Соответствие спецификации SATA версия 2.0

Поддержка RAID 0,1,10

Локальная

сеть RTL8111E / RTL8111F

Автоматическое согласование 10 / 100 / 1000

Мб/с

Частичная / полная дуплексная способность

Звуко вой

кодек VT1708B/ ALC662 Звуко вая поддержка High-Definition

5.1канальный звуковой выход

Слот PCI Express Gen2 x16 x1

Слот PCI Express Gen2 x1 x2

Слоты

Слот PCI x3

Разъём SATA x6 Каждый разъём поддерживает 1 устройство SATA

Разъём на лицевой панели x1 Поддержка устройств на лицевой панели

Входной звуковой разъём x1

Поддержка звуко вых функций на лицевой

панели

Встроенны

й разъём

Разъём вывода для S/PDIF x1 Поддержка вывода цифровой звуковой фун кц ии

A57A

СПЕЦ

Контактирующее приспособление

вентил ятора центрального процессора x1

Источник питания для вентилятора центрального

процессора (с фун кц ией интеллектуального

вентил ятора)

Контактирующее приспособление

вентил ятора системы x1

Источник питания для вентилятор а системы

Открытое контактирующее

приспособление CMOS x1

USB2.0-разъём x2

Каждый разъём поддерживает 2 USB2.0-порта на

лицевой панели

Разъём Порт подключения

принтера x1

Каждый разъём поддерживает 1 Порт

подключения принтера

Разъем питания (24 вывод) x1

Разъем питания (4 вывод) x1

Задняя

панель

средств

ввода-выв

ода

Клавиатура PS/2 x1

Мышь PS/2 x1

Последовательный порт x1

Порт LAN x1

USB2.0-порт x6

наушнико в x3

Размер

панели 200 мм (Ш) X 295 мм (В)

Поддержка

OS Windows XP / Vista / 7

Biostar сохраняет за собой право добавлять или

удалять средства обеспечения для OS с или без

предварительного уведомления.

Motherboard Manual

ARABIC

تﺎﻔﺻاﻮﻤﻟا

ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو

ﺔﻳﺰآﺮﻤﻟا

ﺲﺒﻘﻡFM1

تﺎﺠﻟﺎﻌﻡAMD A-Series / E2-Series

ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺔﻋﺮﺴﺏ ﺔﻴﺏﻮﺳﺎﺤﻟا تﺎﻴﻠﻤﻌﻟا ءاﺮﺝإ 32 و64 ﺖﺏ

ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻡ

AMD A55

ﺔﻴﺴﻴﺋﺮﻟا ةﺮآاﺬﻟا

ﺔﺤﺘﻓDDR3 DIMM دﺪﻋ2

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ16 ﺖﻳﺎﺏ ﺎﺠﻴﺝ

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻡ ةﺮآاذ ﻢﻋﺪﺗ DDR3 ﺔﻌﺳ /512 ﺎﺠﻴﻡ

و ﺖﻳﺎﺏ1/و 2/و 4/و 8 ﺎﺠﻴﺝﺖﻳﺎﺏ

ةﺮآاذ ةﺪﺣوDDR3 ﻘﻟا ﺔﺝودﺰﻡةﺎﻨ

عﻮﻥ ﻦﻡ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR3 تﺎﻌﺳ 800/1066/1333/1600/1866

ﺖﻳﺎﺏ ﺎﺠﻴﻡ

ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻣ عﻮﻧ DDR3 تﺎﻌﺳ 2000 (OC)

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺗ ﻻDIMM ﻊﻡ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠ ﺗو ECC

Super I/O

ITE 8728

ﺔﻔﻴﻇو ﺮﻓﻮﺗSuper I/O آﻷا ًﺎ ﻡ ا ﺪ ﺨ ﺘﺳ ا ﺮﺜ.

ﺗﻢﻋﺪ ﺔﻴﻨﻘﺗ Low Pin Count Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻡ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻡ

ﺔﻔﻴﻇو"Smart Guardian" ﻦﻡ ITE

SATA II

ﻢﻜﺤﺘﻡ Serial ATA ﻞﻡﺎﻜﺘﻡ

ﻰﻟإ ﻞﺼﺗ تﺎﻋﺮﺴﺏ تﺎﻥﺎﻴﺒﻟا ﻞﻘﻥ3 ﺖﺏﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.

ﻮﻤﻟ ﺔﻘﺏﺎﻄﻡ تﺎﻔﺹا SATA راﺪﺹﻹا 2.0

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗRAID 0,1,10

ﺔﻴﻠﺥاد ﺔﻜﺒﺵ

RTL8111E / RTL8111F

ضوﺎﻔﺗ ﻲﺋﺎﻘﻠﺗ 10/100 ﺎﺠﻴﻣ ﺖیﺎﺑ /ﺔﻴﻧﺎﺛ و1ﺎﺠﻴﺝ ﺖﺑ/ﺔﻴﻧﺎﺛ

ﺔﻴﻧﺎﻜﻣإ ﻞﻘﻨﻟا جودﺰﻤﻟا ﻞﻣﺎﻜﻟا/ﻲﻔﺼﻨﻟا

تﻮﺼﻟا ﻚﻳدﻮآ

VT1708B/ ALC662

ﻦﻡ ﻒﻳﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗ

5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ1

ﺔﺤﺘﻓPCI Express Gen2 x1 دﺪﻋ2

تﺎﺤﺘﻔﻟا

ﺔﺤﺘﻓPCI دﺪﻋ3

ﺬﻔﻨﻡSATA دﺪﻋ6 ةﺰﻬﺝأ ﻦﻡ ﺪﺣاو ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳSATA

ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪﻳ

ﻲﻡﺎﻡﻷا تﻮﺼﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﻳﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟﺎﺏ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪ

ﺢﻄﺳ ﻰﻠﻋ ﺬﻓﺎﻨﻤﻟا

ﺔﺣﻮﻠﻟا

جﺮﺥ ﺬﻔﻨﻡS/PDIF دﺪﻋ1 ﻲﻤﻗﺮﻟا تﻮﺼﻟا جﺮﺥ ﺔﻔﻴﻇو ﻢﻋﺪﻳ

A57A

تﺎﻔﺻاﻮﻤﻟا

ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ1 ﺔﻔﻴﻇو ﻊﻡ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟSmart Fan

مﺎﻈﻨﻟا ﺔﺣوﺮﻡ ﺔﻠﺹو ﺪﻋ1 مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ

ﺢﺴﻡ ﺔﻠﺹوCMOS دﺪﻋ 1

ﺬﻔﻨﻡUSB2.0 دﺪﻋ2 ﻲﺘﺤﺘﻓ ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳUSB2.0ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟﺎﺏ

ﺔﻌﺏﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)24سﻮﺏد( دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)4ﺲﻴﺏﺎﺏد( دﺪﻋ1

ﻞﺥد ﺬﻓﺎﻨﻡ/ جﺮﺥ

ﺔﻴﻔﻠﺨﻟا ﺔﺣﻮﻠﻟا

ﺢﻴﺗﺎﻔﻡ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻡ PS/2 دﺪﻋ1

ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻡ دﺪﻋ1

ﺔﻴﻠﺤﻡ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻡ دﺪﻋ1

ﺬﻓﺎﻨﻡ2.0USB دﺪﻋ6

تﻮﺹ ﺲﺒﻘﻡ دﺪﻋ3

ﺔﺣﻮﻠﻟا ﻢﺠﺣ

295 ﻢﻡ)ضﺮﻋ (X 200 ﻢﻡ)عﺎﻔﺗرا(

ﻞﻴﻐﺸﺘﻟا ﺔﻤﻈﻥأ ﻢﻋد

Windows XP / Vista / 7

ﻆﻔﺘﺤﺗBiostar نوﺪﺏ وأ رﺎﻄﺥﺈﺏ ﻞﻴﻐﺸﺗ مﺎﻈﻥ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺏ

رﺎﻄﺥإ.

Motherboard Manual

JAPANESE

仕様

CPU Socket FM1

AMD A-Series / E2-Series プロセッサ

AMD 64アーキテクチャでは、32ビットと64ビット計算が

可能です

チップセット AMD A55

メインメモリ

DDR3 DIMMスロット x 2

最大メモリ容量16GB

各DIMMは 512MB/1GB/2GB/4GB/8GB DDR3

をサポート

デュアルチャンネルモードDDR3メモリモジュール

DDR3 800/1066/1333/1600/1866 をサポート

DDR3 2000 (OC) をサポート

登録済みDIMMとECC DIMMはサポートされません

Super I/O

ITE 8728

もっとも一般に使用されるレガシーSuper I/O機

能を採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITEの「スマートガーディアン」機能

SATA II 統合シリアルATA コントローラ

最高3 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

RAID 0,1,10のサポート

LAN RTL8111E / RTL8111F

10 / 100 / 1000 Mb/秒のオートネゴシエーション

半/全二重機能

サウンド

Codec VT1708B/ ALC662 ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

PCI Express Gen2 x16スロット x1

PCI Express Gen2 x1スロット x2

スロット

PCIスロット x3

SATAコネクタ x6 各コネクタは1つのSATAデバイスをサポートします

フロントパネルコネクタ x1 フロントパネル機能をサポートします

フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします

S/PDIFアウトコネクタ x1 デジタルオーディオアウト機能をサポートします

CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)

システムファンヘッダ x1 システムファン電源装置

オンボードコ

ネクタ

CMOSクリアヘッダ x1

A57A

仕様

USB2.0コネクタ x2

各コネクタは2つのフロントパネルUSB2.0ポートをサポ

ートします

プリンタポートコネクタ x1 各コネクタは1つのプリンタポートをサポートします

電源コネクタ(24ピン) x1

電源コネクタ(4ピン) x1

背面パネル

I/O

PS/2キーボード x1

PS/2マウス x1

シリアルポート x1

LANポート x1

USB2.0ポート x6

オーディオジャック x3

ボードサイズ 200 mm (幅) X 295 mm (高さ)

OSサポート Windows XP / Vista / 7

Biostarは事前のサポートなしにOSサポートを追加または

削除する権利を留保します。

2012/04/06

Biostar A57A Owners Manual AA55E A1S_120406

Navigation menu

Versions of this User Manual:

Views

Navigation
