A770L3 Setup Manual
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.
Table of Contents
Chapter 1: Introduction ........................................ 1
1.1 Before You Start ................................................................................ 1
1.2 Package Checklist............................................................................. 1
1.3 Motherboard Features...................................................................... 2
1.4 Rear Panel Connectors ..................................................................... 3
1.5 Motherboard Layout......................................................................... 4
Chapter 2: Hardware Installation .......................... 5
2.1 Installing Central Processing Unit (CPU)....................................... 5
2.2 FAN Headers...................................................................................... 7
2.3 Installing System Memory ................................................................ 8
2.4 Connectors and Slots....................................................................... 10

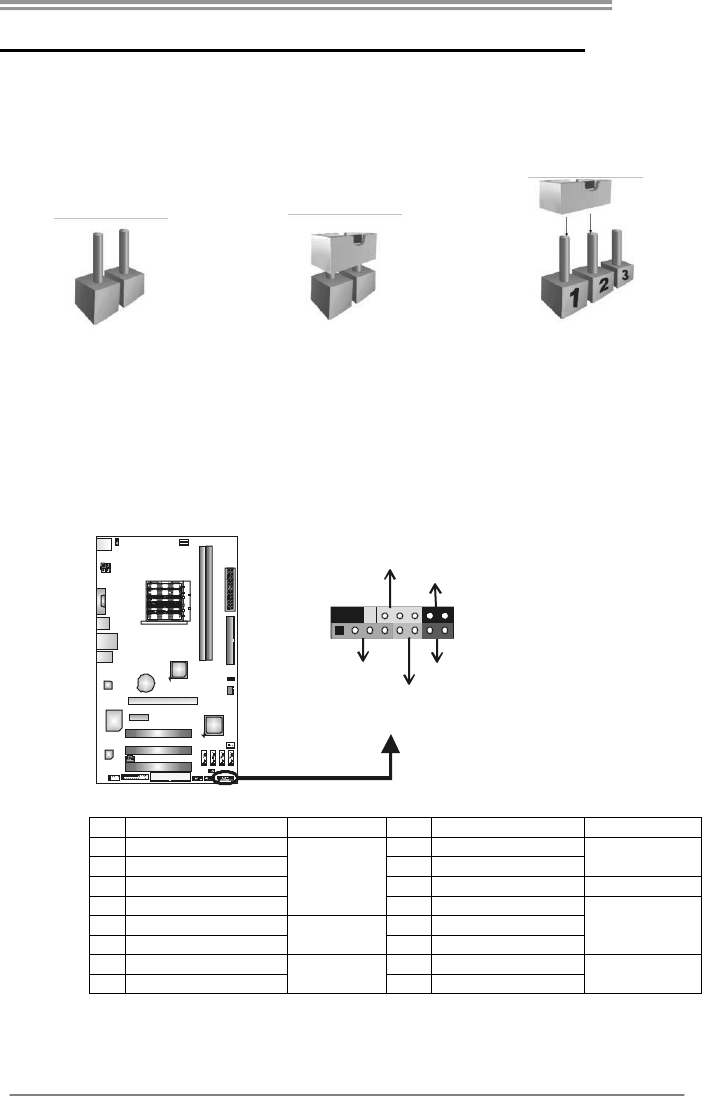

Chapter 3: Headers & Jumpers Setup .................. 13
3.1 How to Setup Jumpers .................................................................... 13
3.2 Detail Settings.................................................................................. 13
Chapter 4: RAID Functions .................................. 17
4.1 Operating System............................................................................ 17
4.2 Raid Arrays ...................................................................................... 17
4.3 How RAID Works............................................................................. 17
Chapter 5: Useful Help ........................................ 20
5.1 Driver Installation Note.................................................................. 20

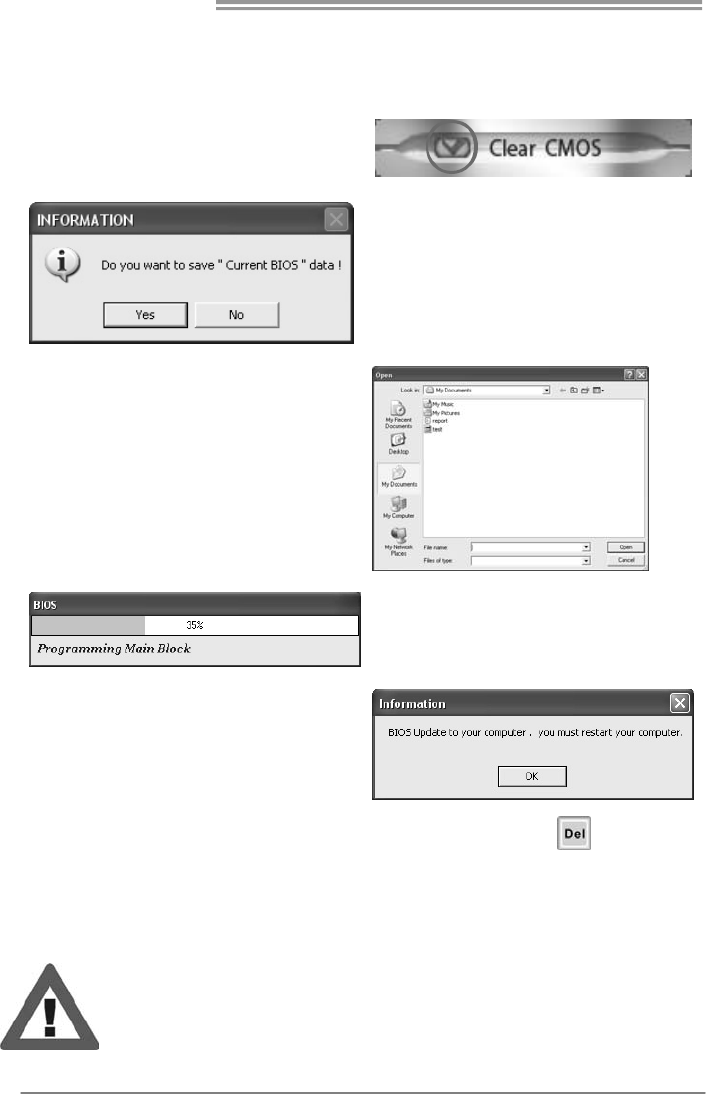

5.2 Software............................................................................................ 21
5.3 Extra Information............................................................................ 25
5.4 AMI BIOS Beep Code....................................................................... 27
5.5 Troubleshooting............................................................................... 28
Appendix: SPEC In Other Languages ................... 30
German.................................................................................................................. 30
French .................................................................................................................... 32
Italian..................................................................................................................... 34
Spanish ................................................................................................................... 36
Portuguese ............................................................................................................ 38
Polish...................................................................................................................... 40
Russian ................................................................................................................... 42
Arabic..................................................................................................................... 44
Japanese ................................................................................................................ 46
A770L3
1
CHAPTER 1: INTRODUCTION
1.1 BEFORE YOU START
Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:
Prepare a dry and stable working environment with
sufficient lighting.
Always disconnect the computer from power outlet
before operation.
Before you take the motherboard out from anti-static
bag, ground yourself properly by touching any safely
grounded appliance, or use grounded wrist strap to
remove the static charge.
Avoid touching the components on motherboard or the
rear side of the board unless necessary. Hold the board
on the edge, do not try to bend or flex the board.
Do not leave any unfastened small parts inside the
case after installation. Loose parts will cause short
circuits which may damage the equipment.
Keep the computer from dangerous area, such as heat
source, humid air and water.
The operating temperatures of the computer should be
0 to 45 degrees Celsius.
1.2 PACKAGE CHECKLIST
HDD Cable X 1 (optional)
Serial ATA Cable X 2
Rear I/O Panel for ATX Case X 1
User’s Manual X 1
Fully Setup Driver CD X 1
Serial ATA Power Cable X 1 (optional)
FDD Cable X 1 (optional)
USB 2.0 Cable X1 (optional)
Note: The package contents may be different due to area or your motherboard version.
Motherboard Manual
2
1.3 MOTHERBOARD FEATURES
SPEC
CPU
Socket AM3
AMD Sempron / Athlon II / Phenom II
processors (Max imum Watt: 95W)
AMD 64 Architecture enables 32 and 64 bit
computing
Supports Hyper Transport 3.0
FSB Support HyperTransport 3.0
Supports up to 5.2 GT/s Bandwidth
Chipset
Northbridge: AMD 770
Southbridge: AMD SB710
Super I/O
ITE 8721
Provides the most commonly used legacy
Super I/O functionality
Low Pin Count Interface
Environment Control in it iatives
H/W Monitor
ITE's "Smart Guardian " funct ion
Main
Memory
DDR3 DIMM Slots x 2
Max Memory Capacity 8GB
Each DIMM supports 512MB/
1GB/2GB/4GB DDR3
Dual Channel Mode DDR3 memory module
Supports DDR3 800 / 1066 / 1333
Supports DDR3 1600 (OC)
Registered D IMM and ECC DIMM is not supported
IDE Integr ated IDE Contro ller Multi-word DMA, and Ultra DMA 33/66/100/133
modes
SATA II Integrated Serial ATA Controller Data transfer rates up to 3 Gb/s
SATA Version 2.5 specif icat ion co mp liant
LAN Realtek RTL 8102EL 10 / 100 Mb/s auto negotiation
Half / Full duplex capability
Sound ALC662 / VT1708B 5.1 channels audio out
High Definition Audio

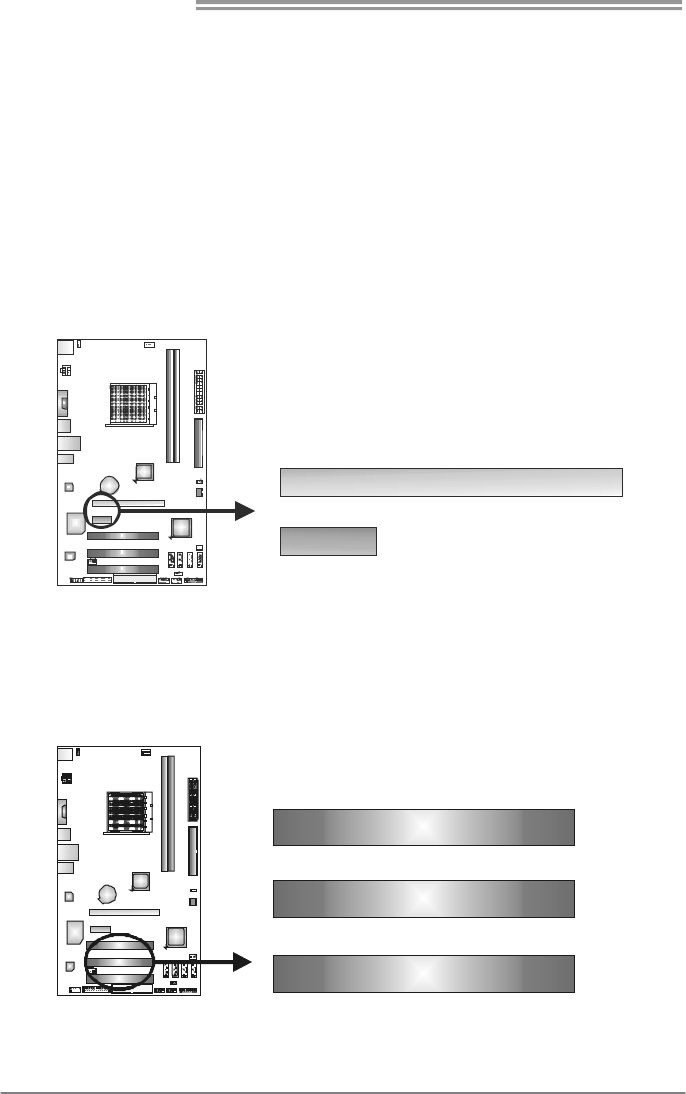

Slots
PCI Express Gen2 x16 slot x1
PCI Express Gen2 x1 slot x1
PCI slot x3
Supports PCI-E Gen2 x16 expansion card
Supports PCI-E Gen2 x1 expans ion card
Supports PCI expansion cards
Floppy Connector x1 Each connector supports 1 Floppy drive
IDE Connector x1 Each connector supports 2 IDE device
SATA Connector x4 Each connector supports 1 SATA devices
Front Panel Connector x1 Supports front panel facilities
On Board
Connector
Front Audio Connector x1 Supports front panel audio function
A770L3
3
SPEC
S/PDIF Out Connector x1 Supports digital audio out function
CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)
System Fan Header x1 System Fan Power supply
CMOS Clear Head er x1 Restore CMOS data to factory default
USB Connector x2 Each connector supports 2 front panel USB ports

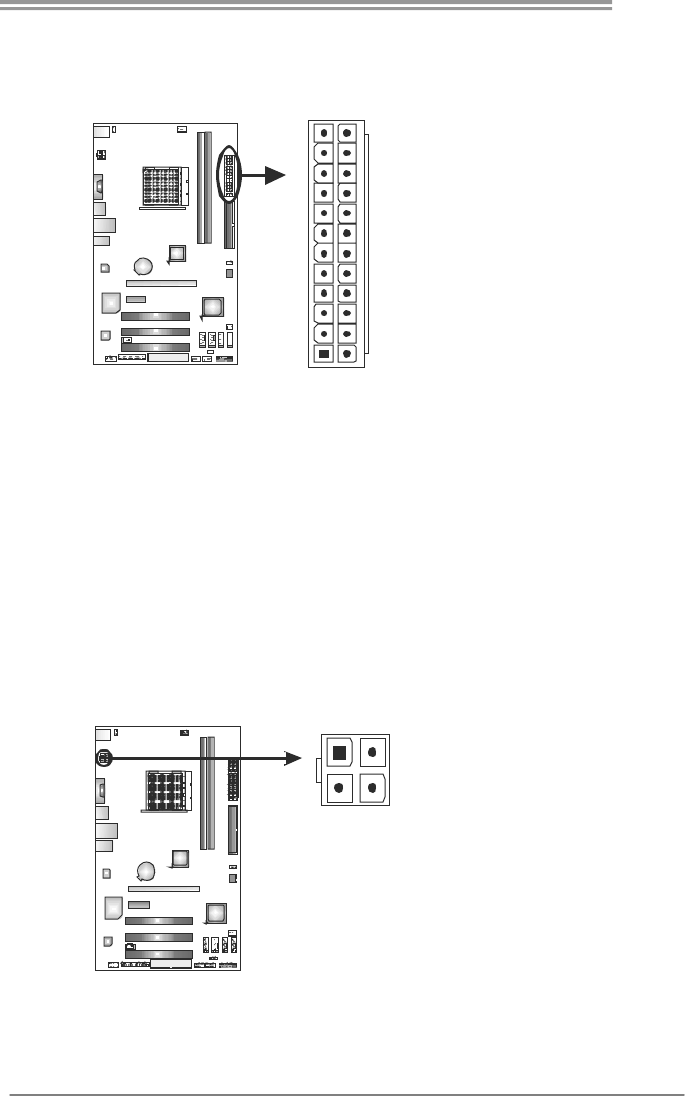

Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Printer Port Connector x1 Each connector supports 1 Printer port
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
Serial Port x1
LAN Port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connects to RS-232 Port
Connect to RJ-45 ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Board Size 182 mm(W) x 305 mm(L) ATX
Special
Features
RAID 0 / 1 / 10 support
OS Support
Windows XP / Vista / 7 Biostar reserves the right to add or remove support
for any OS with or without notice.

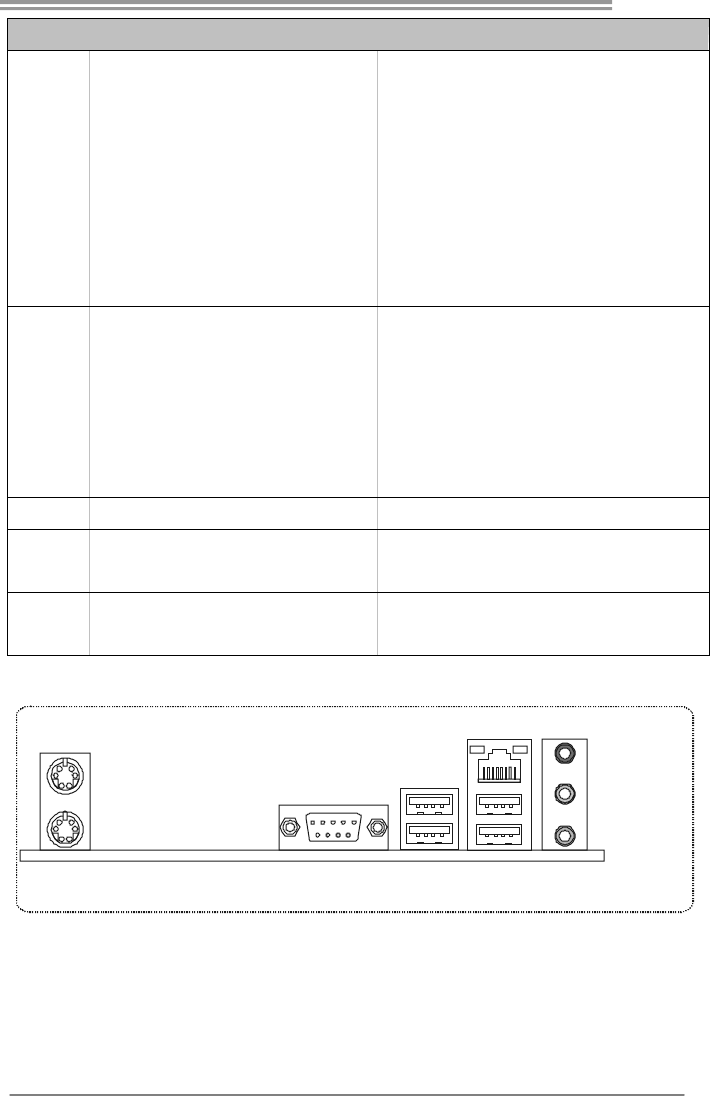

1.4 REAR PANEL CONNECTORS
PS/2
Mouse
PS/2
Keyboard
COM1 USBX2USBX2
LAN Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
Motherboard Manual
4

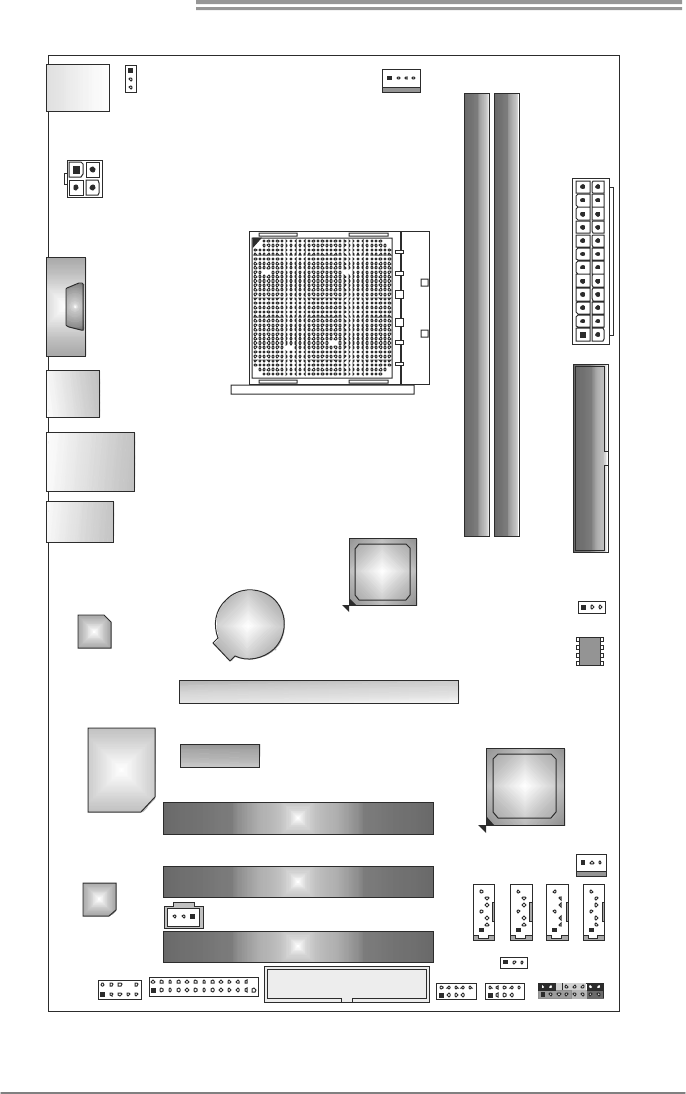

1.5 MOTHERBOARD LAYOUT
KBMS1
ATXP WR 2
USB1
RJ45USB1
AU DIO1
COM1
JUSBV1
LAN
Super I/O
Codec
F_AUDIO1
JSPDIFOUT1
J_PR INT 1
FDD1
PCI3
PCI2
PCI1
PEX16_1
PEX1_1
AMD
770
AT X P W R 1
IDE1
BAT
F_U SB1 F_U SB2
PAN EL1
JUSBV2
AMD
SB710
BIOS
SYS_FAN1
JCMOS1
CPU_FAN1
DDR3_A1
DDR3_B1
SATA1
SATA2
SATA3
SATA4
Socket AM3
Note: represents the 1■st pin.
A770L3
5
CHAPTER 2: HARDWARE INSTALLATION
2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

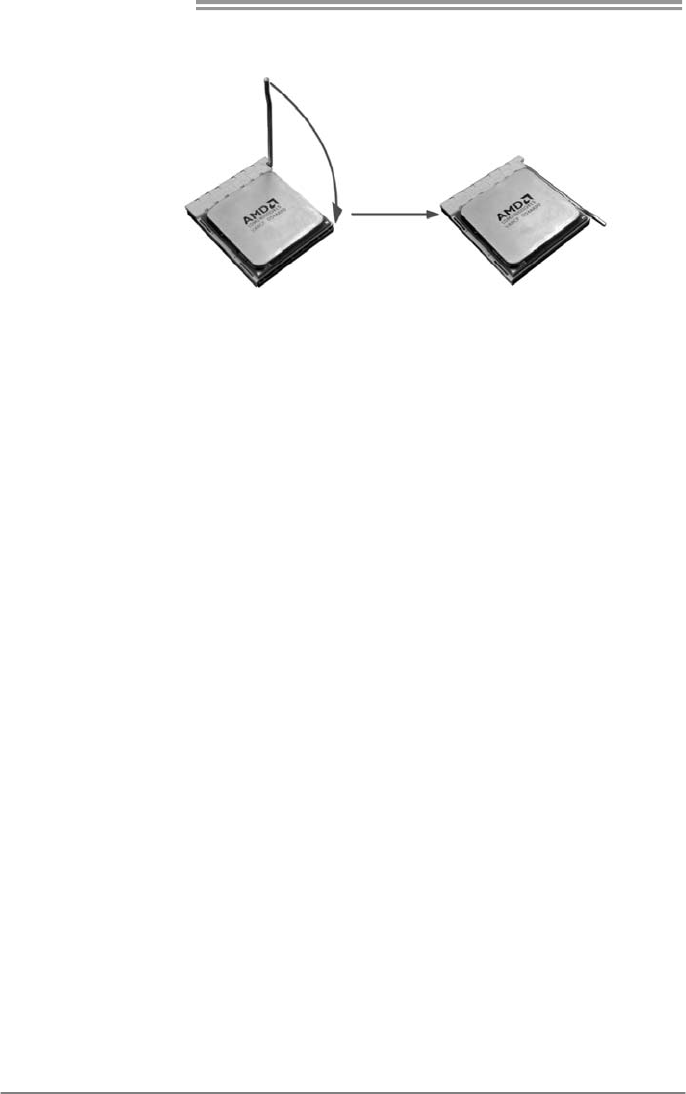

Step 1: Pull the lever toward direction A from the socket and then raise the
lever up to a 90-degree angle.
Step 2: Look for the white triangle on socket, and the gold triangle on
CPU should point towards this white triangle. The CPU will fit only
in the correct orientation.
Motherboard Manual
6
Step 3: Hold the CPU down firmly, and then close the lever toward direct
B to complete the installation.
Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU
FAN power cable to the CPU_FAN1. This completes the
installation.
A770L3
7

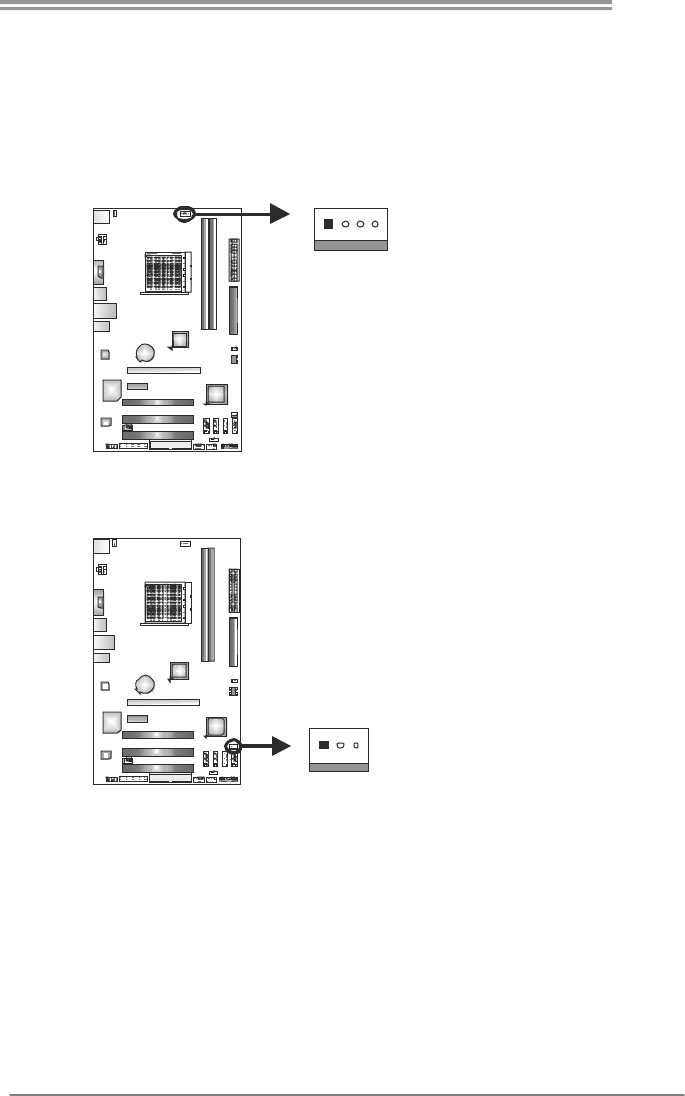

2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
CPU_FAN1: CPU Fan Header
Pin
Assignment
1 Ground
2 +12V
3 FAN RPM rate
sense
14
4 Smart Fan
Control (By Fan)
SYS_FAN1: System Fan Header
Pin Assignment
1 Ground
2 +12V
13
3 FAN RPM rate
sense
Note:
The CPU_FAN1 and SYS_FAN1 support 4-pin and 3-pin head connector. When
connecting with wires onto connectors, please note that the red wire is the positive and
should be connected to pin#2, and the black wire is Ground and should be connected to
GND.
Motherboard Manual
8

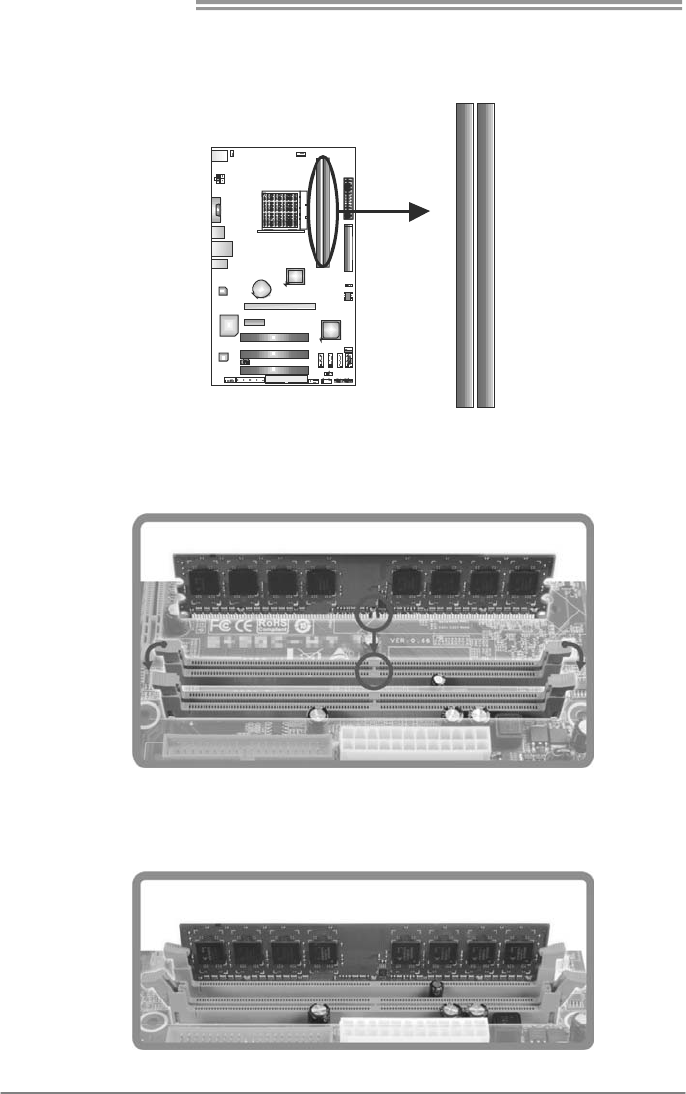

2.3 INSTALLING SYSTEM MEMORY
A. DDR3 Modules
DDR3_A1
DDR3_B1
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
A770L3
9
B. Memory Capacity
DIMM Socket
Location DDR3 Module Total Memory Size
DIMMA1 512MB/1GB/2GB/4GB
DIMMB1 512MB/1GB/2GB/4GB Max is 8GB.
C. Dual Channel Memory installation
Please refer to the following requirements to activate Dual Channel function:
Install memory module of the same density in pairs, shown in the table..
Dual Channel Status DDR3_A1 DDR3_B1
Disabled O X
Disabled X O
Enabled O O
(O means memory installed, X means memory not installed.)
The DRAM bus width of the memory module must be the same (x8 or
x16)
Motherboard Manual
10

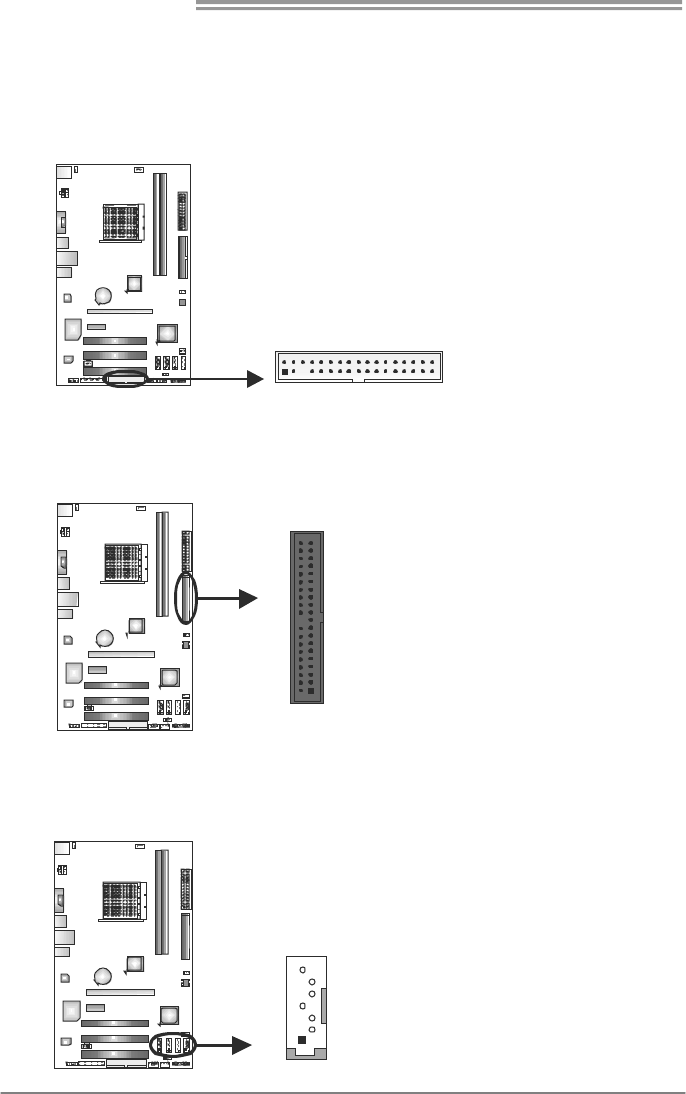

2.4 CONNECTORS AND SLOTS
FDD1: Floppy Disk Connector
The motherboard provides a standard floppy disk connector that supports 360K,
720K, 1.2M, 1.44M and 2.88M floppy disk types.
133
234
IDE1: Hard Disk Connector
The motherboard has a 32-bit Enhanced IDE Controller that provides PIO Mode
0~4, Bus Master, Multi-word DMA, and Ultra DMA 33/66/100/133 functionality.
1
39
2
40
SATA1~SATA4: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 4 channels SATA interface,
it satisfies the SATA 2.5 spec and with transfer rate of 3.0Gb/s.
Pin
Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7
4
1
SATA 1
SATA 2
SATA 3
SATA 4
7 Ground
A770L3
11
ATXPWR1: ATX Power Source Connector
This connector allows user to connect 24-pin power connector on the ATX
power supply.
1
12
13
24
Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Gro und 3 Ground
16 PS_ON 4 +5V
17 Gro und 5 Ground
18 Ground 6 +5V
19 Gro und 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V
ATXPWR2: ATX Power Source Connector
This connector provides +12V to CPU power circuit.
Pin
Assignment
1 +12V
2 +12V
3 Ground
1
23
4
4 Ground
Motherboard Manual
12
PEX16_1: PCI-Express Gen2 x16 Slot
- PCI-Express 2.0 compliant.
- Maximum theoretical realized bandwidth of 8GB/s simultaneously per
direction, for an aggregate of 16GB/s totally.
PEX1_1: PCI-Express Gen2 x1 Slot
- PCI-Express 2.0 compliant.
- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.
- PCI-Express Gen2 supports a raw bit-rate of 2.5Gb/s on the data pins.
- 2X bandwidth over the PCI-Express 1.0 architecture.
PEX16_1
PEX1_1
PCI1~PCI3: Peripheral Component Interconnect Slots
This motherboard is equipped with 3 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for expansion
cards. This PCI slot is designated as 32 bits.
PCI1
PCI3
PCI2
A770L3
13
CHAPTER 3: HEADERS & JUMPERS SETUP
3.1 HOW TO SETUP JUMPERS
The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAIL SETTINGS
PANEL1: Front Panel Header
This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and
speaker connection. It allows user to connect the PC case’s front panel switch
functions.
PWR_LED
On/Off
RST
HLED
SPK
++
+
-
-
1
916
8
Pin Assignment Function Pin Assignment Function
1 +5V 9 N/A
2 N/A 10 N/A N/A
3 N/A 1 1 N/A N/A
4 Speaker
Speaker
Connector
12 Power LED (+)
5 HDD LED (+) 13 Power LED (+)
6 HDD LED (-)
Hard drive
LED 14 Power LED (-)
Power LED
7 Ground 15 Power button
8 Reset control Reset button 16 Ground Power-on button
Motherboard Manual
14
F_AUDIO1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. This header allows only HD audio front panel connector.
Pin
Assignment
1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
10 Jack Sense
1
2
9
10
JSPDIFOUT1: Digital Audio-out Connector
This connector allows user to connect the PCI bracket SPDIF output header.
Pin
Assignment
1 Left Channel Input
2 Ground
3 Ground
31
4 Right Channel Input
F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel
This header allows user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.
Pin
Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
1
2
9
10
F_USB1 F_USB2
10 NC
A770L3
15

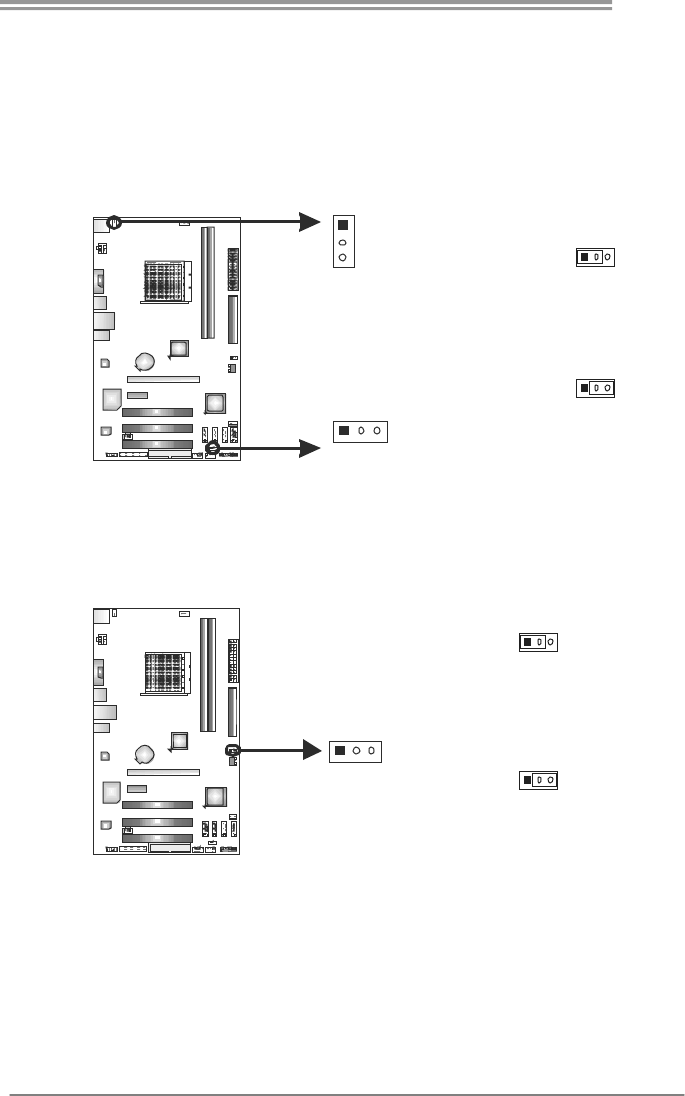

JUSBV1/JUSBV2: Power Source Headers for USB Ports
Pin 1-2 Close:
JUSBV1: +5V for USB ports at USB1/RJ45USB1.
JUSBV2: +5V for USB ports at F_USB1/F_USB2.
Pin 2-3 Close:
JUSBV1: +5V STB for USB ports at USB1/RJ45USB1.
JUSBV2: +5V STB for USB ports at F_USB1/F_USB2.
13
Pin 1-2 close
131
1
3
JUSBV1
JUSBV2
13
Pin 2-3 close
JCMOS1: Clear CMOS Header
Placing the jumper on pin2-3, it allows user to restore the BIOS safe setting and
the CMOS data. Please carefully follow the procedures to avoid damaging the
motherboard.
13
Pin 1-2 Close:
Normal Operation (Default).
13
13
Pin 2-3 Close:
Clear CMOS data.
※ Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
Motherboard Manual
16

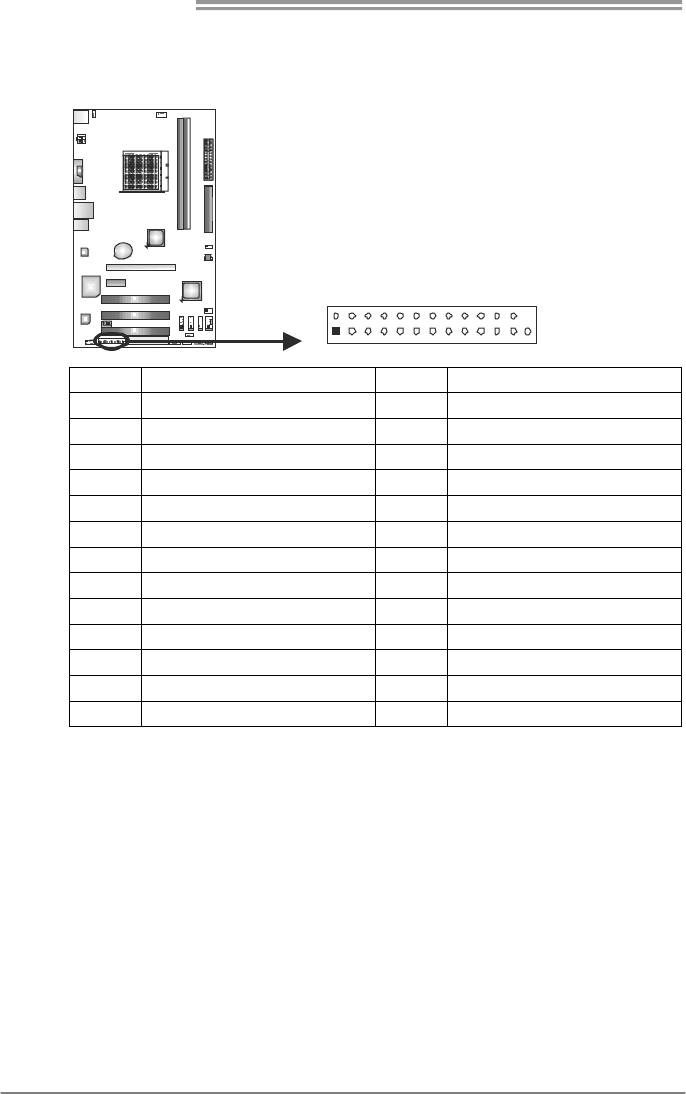

J_PRINT1: Printer Port Connector
This header allows you to connector printer on the PC.
1
2
25
26
Pin Assignment Pin Assignment
1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy
9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key
A770L3
17
CHAPTER 4: RAID FUNCTIONS
4.1 OPERATING SYSTEM
Supports Windows XP, Windows Vista, and Windows 7.
4.2 RAID ARRAYS
RAID supports the following types of RAID arrays:
RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for
many applications.
RAID 1: RAID 1 defines techniques for mirroring data.
RAID 10: RAID 10 combines the techniques used in RAID 0 and RAID 1.
4.3 HOW RAID WORKS
RAID 0:
The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks
up a large f ile into smaller blocks and performs disk reads and writes across multip le
drives in parallel. The size of each block is determined by the stripe size parameter,
which you set during the creation of the RAID set based on the system environment. This
technique reduces overall disk access time and offers high bandwidth.
Features and Benefits
Drives: Minimum 1, and maximum is up to 6 or 8. Depending on the
platform.
Uses: Intended for non-critical data requiring high data throughput, or any
environment that does not require fault tolerance.
Benefits: provides increased data throughput, especially for large files. No
capacity loss penalty for parity.
Drawbacks: Does not deliver any fault tolerance. If any drive in the array
fails, all data is lost.
Fault Tolerance: No.
Block 1
Block 3
Block 5
Block 2
Block 4
Block 6
Motherboard Manual
18

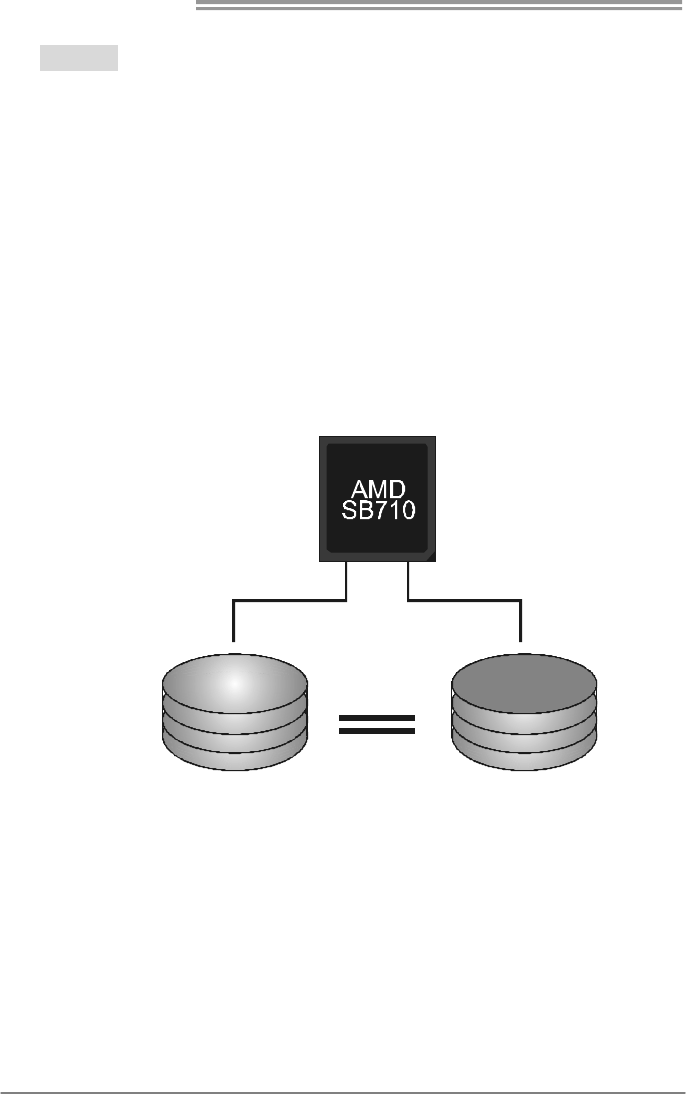

RAID 1:
Every read and write is actually carried out in parallel across 2 disk drives in a RAID 1
array system. The mirrored (backup) copy of the data can reside on the same disk or on a
second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the
active volume or drive is corrupted or becomes unavailable because of a hardware failure.
RAID techniques can be applied for high-availability solutions, or as a form of automatic
backup that eliminates tedious manual backups to more expensive and less reliable
media.
Features and Benefits
Drives: Minimum 2, and maximum is 2.
Uses: RAID 1 is ideal for small databases or any other application that
requires fault tolerance and minimal capacity.
Benefits: Provides 100% data redundancy. Should one drive fail, the
controller switches to the other drive.
Drawbacks: Requires 2 drives for the storage space of one drive.
Performance is impaired during drive rebuilds.
Fault Tolerance: Yes.
Block 1
Block 2
Block 3
Block 1
Block 2
Block 3
A770L3
19
RAID 10:
RAID 1 drives can be stripped using RAID 0 techniques. Resulting in a RAID 10
solution for improved resiliency, performance and rebuild performance.
Features and Benefits
Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
Benefits: Optimizes for both fault tolerance and performance, allowing for
automatic redundancy. May be simultaneously used with other RAID levels
in an array, and allows for spare disks.
Drawbacks: Requires twice the available disk space for data redundancy,
the same as RAID level 1.
Fault Tolerance: Yes.
Block 1
Block 3
Block 5
Block 2
Block 4
Block 6
Block 1
Block 3
Block 5
Block 2
Block 4
Block 6
Motherboard Manual
20
CHAPTER 5: USEFUL HELP
5.1 DRIVER INSTALLATION NOTE
After you installed your operating system, please insert the Fully Setup
Driver CD into your optical drive and install the driver for better system
performance.
You will see the following window after you insert the CD
The setup guide will auto detect your motherboard and operating system.
Note:
If this window didn’t show up after you insert the Driver CD, please use file browser to
locate and execute the file SETUP.EXE under your optical drive.
A. Driver Installation
To install the driver, please click on the Driver icon. The setup guide will
list the compatible driver for your motherboard and operating system.
Click on each device driver to launch the installation program.
B. Software Installation
To install the software, please click on the Software icon. The setup guide
will list the software available for your system, click on each software title
to launch the installation program.
C. Manual
Aside from the paperback manual, we also provide manual in the Driver
CD. Click on the Manual icon to browse for available manual.
Note:
You will need Acrobat Reader to open the manual file. Please download the latest version
of Acrobat Reader software from
http://www.adobe.com/products/acrobat/readstep2.html
A770L3
21
5.2 SOFTWARE
Installing Software
1. Insert the Setup CD to the optical drive. The drivers installation program
would appear if the Autorun function has been enabled.
2. Select Software Installation, and then click on the respective software
title.
3. Follow the on-screen instructions to complete the installation.
Launching Software

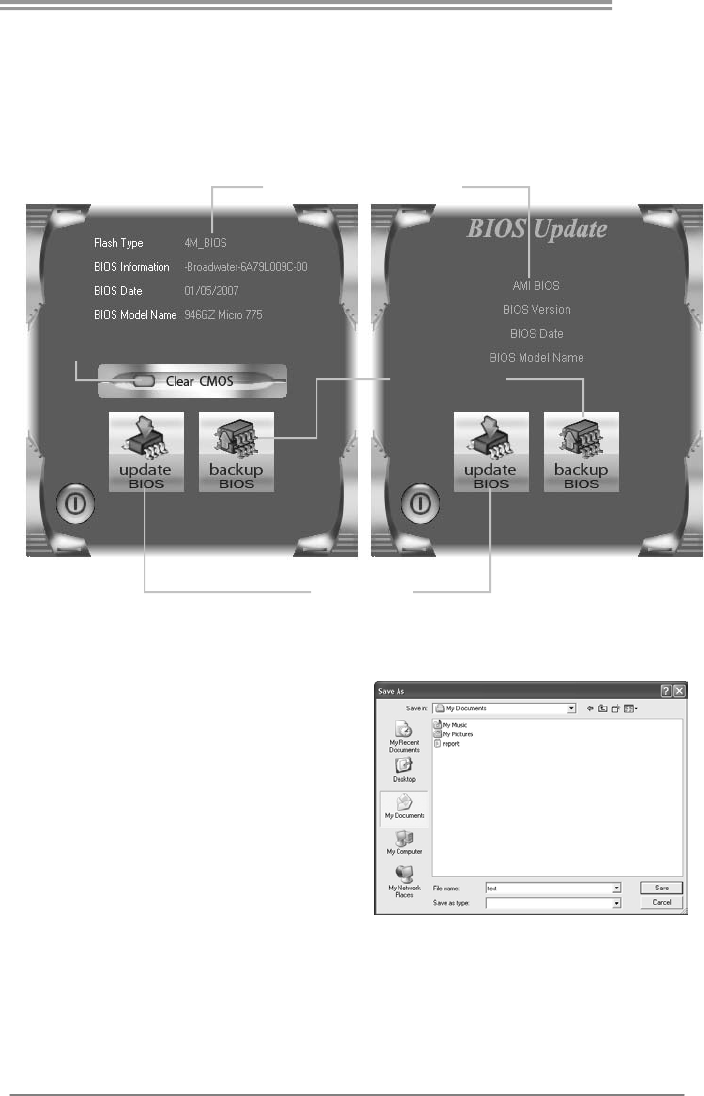

After the installation process, you will see the software icon “eHOT Line” /
“BIOS Update” appears on the desktop. Double-click the icon to launch the
utility.

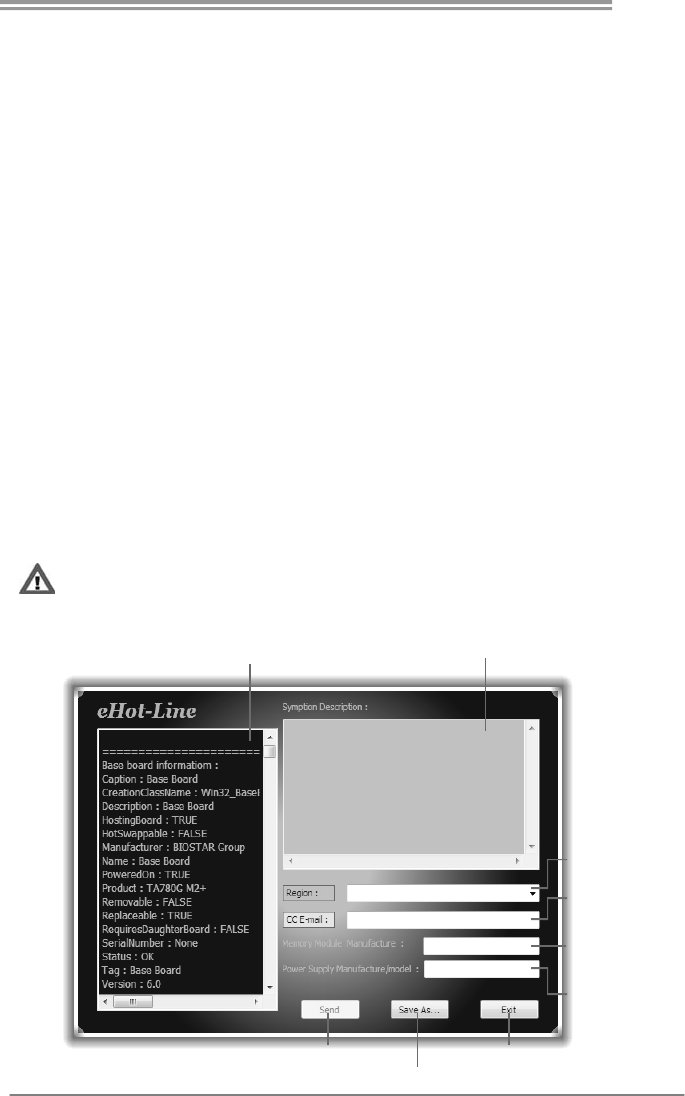

eHot-Line (Optional)
eHot-Line is a convenient utility that helps you to contact with our
Tech-Support system. This utility will collect the system information which is
useful for analyzing the problem you may have encountered, and then send
these information to our tech-support department to help you fix the problem.
Before you use this utility, please set Outlook Express as your default e-mail client application program.
This block will show
the information which
would be collected in
the mail.
Provide the e-ma il
address that you would
like to send the copy to.
Provide the name of
the power suppl y
manufacturer and the
model no.
Send the mail out .
Save thes e informa tion to a .txt fil
e
Exi t this dialog.
Select your area or
the area close to you.
*
Pr ov id e the name o f
the memory module
manufacturer.
*
Describe condition
of your system.
*
*
repr es ent s impor tant
information that you
must provide. Wi thout
this information, you may
not be able to send out
the mail.
Motherboard Manual
22
After filling up this information, click “Send”
to send the mail out. A warning dialog would
appear asking for your confirmation; click
“Send” to confirm or “Do Not Send” to cancel.
If you want to save this information to a .txt file, click “Save As…” and then you
will see a saving dialog appears asking you to enter file name.
Enter the file name and then click
“Save”. Your system information
will be saved to a .txt file.
Open the saved .txt file, you will see
your system information including
motherboard/BIOS/CPU/video/
device/OS information. This
information is also concluded in the
sent mail.
We will not share customer’s data with any other third parties,
so please feel free to provide your system information while using
eHot-Line service.
If you are not using Outlook Express as your default e-mail client
application, you may need to save the system information to a .txt file
and send the file to our tech support with other e-mail application.
Go to the following web
http://www.biostar.com.tw/app/en-us/about/contact.php for getting
our contact information.
A770L3
23
BIOS Update
BIOS Update is a convenient utility which allows you to update your
motherboard BIOS under Windows system.
Update BIOS
with a BIOS file
Clear CMOS function
(On ly for AWARD BIOS)
Show current BIOS information
Save current BIOS
to a .bin file
AWARD BIOS AMI BIOS
<Backup BIOS>
Once click on this button, the saving
dialog will show. Choose the
position to save file and enter file
name. (We recommend that the file
name should be English/number
and no longer than 7 characters.)
Then click Save.
Motherboard Manual
24
<Update BIOS>
Before doing this, please download the proper BIOS file from the website.
For AWARD BIOS, update BIOS procedure
should be run with Clear CMOS function, so
please check on Clear CMOS first.
Then click Update BIOS button, a
dialog will show for asking you backup
current BIOS. Click Yes for BIOS
backup and refer to the Backup BIOS
procedure; or click No to skip this
procedure.
After the BIOS Backup procedure, the
open dialog will show for requesting the
BIOS file which is going to be updated.
Please choose the proper BIOS file for
updating, then click on Open.
The utility will update BIOS with the
proper BIOS file, and this process may
take minutes. Please do not open any
other applications during this process.
After the BIOS Update process, click on
OK to restart the system.
While the system boots up and the full screen logo shows, press <Delete>
key to enter BIOS setup.
In the BIOS setup, use the Load Optimized Defaults function and then Save and
Exit Setup to exit BIOS setup. BIOS Update is completed.
All the information and content above about the software are subject to be changed
without notice. For better performance, the software is being continuously updated.
The information and pictures described above are for your reference only. The actual
information and settings on board may be slightly different from this manual.
A770L3
25
5.3 EXTRA INFORMATION
CPU Overheated
If the system shutdown automatically after power on system for
seconds, that means the CPU protection function has been activated.
When the CPU is over heated, the motherboard will shutdown
automatically to avoid a damage of the CPU, and the system may not
power on again.
In this case, please double check:
1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.
After confirmed, please follow steps below to relief the CPU protection
function.
1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.
Or you can:
1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)
2. Wait for seconds.
3. Power on the system again.
Motherboard Manual
26

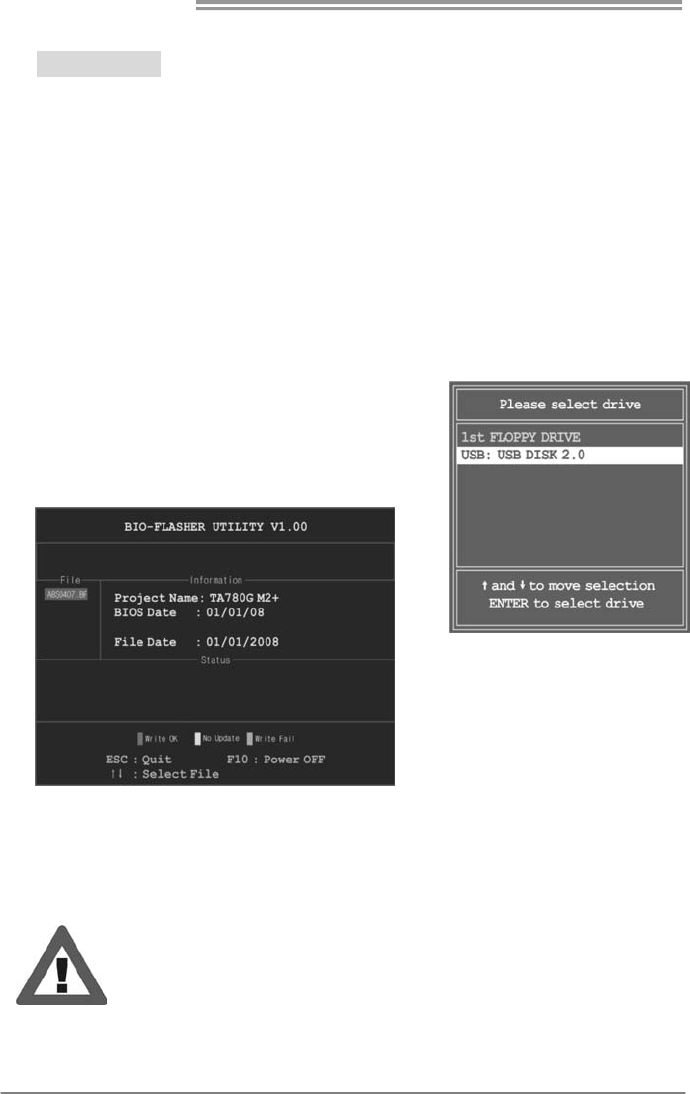

BIO-Flasher
BIO-Flasher is a BIOS flashing utility providing you an easy and simple way to
update your BIOS via USB pen drive or floppy disk.
The BIO-Flasher is built in the BIOS chip. To enter the utility, press <F12>
during the Power-On Self Tests (POST) procedure while booting up.
Updating BIOS with BIO-Flasher
1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, save the BIOS file into a USB pen drive or a floppy disk.
3. Insert the USB pen drive or the floppy disk that contains the BIOS file to the
USB port or the floppy disk drive.
4. Power on or reset the computer and then
press <F12> during the POST process.
A select dialog as the picture on the right
appears.
Select the device contains the BIOS file and
press <Enter> to enter the utility.
5. The utility will show the BIOS
files and their respective
information. Select the proper
BIOS file and press <Enter>
then <Y> to perform the BIOS
update process.
6. After the update process, the utility will ask you to reboot the system.
Press <Y> to proceed. BIOS update completes.
z This utility only allows storage device with FAT32/16 format and single
partition.
z Shutting down or resetting the system while updating the BIOS will lead to
system boot failure.
A770L3
27
5.4 AMI BIOS BEEP CODE
Boot Block Beep Codes
Number of Beeps Description
1 No media present. (Insert diskette in floppy drive A:)
2 “AMIBOOT.ROM” file not found in root directory of diskette in
A:
3 Insert next diskette if multiple diskettes are used for recovery
4 Flash Programming successful
5 File read error
7 No Flash EPROM detected
10 Flash Erase error
11 Flash Program error
12 “AMIBOOT.ROM” file size error
13 BIOS ROM image mismatch (file layout does not match
image present in flash device)
POST BIOS Beep Codes
Number of Beeps Description
1 Memory refresh timer error
3 Base memory read/write test error
6 Keyboard controller BAT command failed
7 General exception error (processor exception interrupt error)
8 Display memory error (system video adapter)
Troubleshooting POST BIOS Beep Codes
Number of Beeps Troubleshooting Action
1, 3 Reseat the memory, or replace with known good modules.
6, 7
Fatal error indicating a serious problem with the system.
Consult your system manufacturer. Before declaring the
motherboard beyond all hope, eliminate the possibility of
interference by a malfunctioning add-in card. Remove all
expansion cards except the video adapter.
z If beep codes are generated when all other expansion
cards are absent, consult your system manufacturer’s
technical support.
z If beep codes are not generated when all other expansion
cards are absent, one of the add-in cards is causing the
malfunction. Insert the cards back into the system one at a
time until the problem happens again. This will reveal the
malfunctioning card.
8
If the system video adapter is an add-in card, replace or
reseat the
video adapter. If the video adapter is an integrated part of the
system board, the board may be faulty.
Motherboard Manual
28
5.5 TROUBLESHOOTING
Probable Solution
1. There is no power in the system.
Power LED does not shine; the
fan of the power supply does not
work
2. Indicator light on keyboard does
not shine.
1. Make sure power cable is
securely plugged in.
2. Replace cable.
3. Contact technical support.
System is inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drives are running.
Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.
System does not boot from a hard disk
drive, but can be booted from optical
drive.
1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged
in; check the drive type in the
standard CMOS setup.
2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.
System only boots from an optical
drive. Hard disks can be read,
applications can be used, but system
fails to boot from a hard disk.
1. Back up data and applications
files.
2. Reformat the hard drive.
Re-install applications and data
using backup disks.
Screen message shows “Invalid
Configuration” or “CMOS Failure.”
Review system’s equipment. Make sure
correct information is in setup.
System cannot boot after user installs a
second hard drive.
1. Set master/slave jumpers
correctly.
2. Run SETUP program and select
correct drive types. Call the drive
manufacturers for compatibility
with other drives.
A770L3
29
This page is intentionally left blank.
Motherboard Manual
30
APPENDIX: SPEC IN OTHER LANGUAGES
GERMAN
Spezif ikationen
CPU
Sockel AM3
AMD Sempron / Athlon II / Phenom II
Prozessoren (Maximales Watt: 95W)
Die AMD 64-Architektur unterstützt eine 32-Bit- und
64-Bit-Datenverarbeitung
Unterstützt Hyper Transport 3.0
FSB Unterstützt HyperTransport 3.0 mit einer
Bandbreite von bis zu 5.2 GT/s
Chipsatz AMD 770
AMD SB710
Super E/A
ITE 8721
Bietet die häufig verwendeten alten Sup er
E/A-Funktionen.
Low Pin Count-Schnittstelle
Umgebungskontrolle,
Hardware-Überwachung
Lüfterdrehzahl-Controller
"Smart Guardian"-Funktion von ITE
Arbeitsspeich
er
DDR3 DIMM-Steckplätze x 2
Max. 8GB Arbeitsspeicher
Jeder DIMM unterstützt 512MB/
1GB/2GB/4GB DDR3.
Dual-Kanal DDR3 Speichermodul
Unterstützt DDR3 800 / 1066 / 1333
Unterstützt DDR3 1600 (OC)
registrierte DIMMs. ECC DIMMs werden nicht
unterstützt.
IDE Integ r iert er IDE-Controller
Ultra DMA 33 / 66 / 100 / 133 Bus Master-Modus
Unterstützt PIO-Modus 0~4,
SATA II Integrierter Serial ATA-Controller
Datentransferrate bis zu 3Gb/s
Konform mit der SATA-Spezifikation Version 2.0.
Unterstützt RAID 0,1,10
LAN Realtek RTL 8102EL
10 / 100 Mb/s Auto-Negotiation
Halb-/ Vollduplex-Funktion
Audio-Codec ALC662 / VT1708B
5.1-Kanal-Audioausgabe
Unterstützt High-Definition Audio
PCI Steckp latz x3
PCI Express Gen2 x16 Steckplatz x1
Steckplätze
PCI Express Gen2x1 Steckplatz x1
A770L3
31
Spezif ikationen
Diskettenlaufwerkanschluss x1 Jeder Anschluss unterstützt 1 Diskettenlaufwerke
Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss
IDE-Anschluss x1 Jeder Anschluss unterstützt 2 IDE-Laufwerke
SATA-Anschluss x4 Jeder Anschluss unterstützt 1 SATA-Laufwerk
Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen
Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion
S/PDIF- Ausgangsanschluss x1 Unterstützt die digitale Audioausgabefunktion
CPU-Lüfter-Sockel x1
CPU-Lüfterstromversorgungsanschluss (mit Smart
Fan- Fun ktion )
System-Lüfter-Sockel x2 System-Lüfter-Stromversorgungsanschluss
"CMOS löschen"-Sockel x1
USB-Anschluss x2
Jeder Anschluss unterstützt 2
Fronttafel-USB-Anschlüsse
Stromanschluss (24-polig) x1
Onboard-Ans
chluss
Stromansch luss (4-polig ) x1
Rückseiten-E
/A
PS/2-Tastatur x1
PS/2- Maus x1
Serieller Anschluss x1
LAN-Anschluss x1
USB-Anschluss x4
Audioanschluss x3
Platinengröße
182 mm (B) X 305 mm (L) ATX
OS-Unterstüt
zung Windows XP / Vista / 7
Biostar behält sich das Recht vor, ohne Ankündigung
die Unterstützung für ein Betriebssystem
hinzuzufügen oder zu entfernen.
Motherboard Manual
32
FRENCH
SPEC
UC
Socket AM3
Processeurs AMD Sempron / Athlon II /
Pheno m II (Watt maximum : 95W)
L'architecture AMD 64 permet le calcul 32 et 64 bits
Prend en charge Hyper Transport 3.0
Bus frontal Prend en charge Hyper Transport 3.0
j
usqu'à
une bande passante de 5.2 GT/s
Chipset AMD 770
AMD SB710
Super E/S
ITE 8721
Fournit la fonctionnalité de Super E/S
patrimoniales la plus utilisée.
Interface à f aib le co mpte de b roches
Initiatives de contrôle environnementales,
Moniteur d e mat ériel
Contrôleur de vitesse de ventilateur
Fonction "Gardien intelligent" de l'ITE
Mémoire
principale
Fentes DDR3 DIMM x 2
Capacité mémo ire max imale de 8 Go
Chaque DIMM prend en charge des DDR3 de
512Mo/1Go/2Go/4Go
Modu le d e mémo ire DDR3 à mod e à double vo ie
Prend en charge la DDR3 800 / 1066 / 1333
Prend en charge la DDR3 1600 (OC)
Les DIMM à registres et DIMM avec code correcteurs
d'erreurs ne sont pas prises en charge
IDE Contrôleur IDE intégré
Mode principale de Bus Ultra DMA 33 / 66 / 100 /
133
Prend en charge le mode PIO 0~4,
SATA II Contrôleur Serail ATA intégré
Taux de transfert jusqu'à 3 Go/s.
Conforme à la spécificat ion SATA Vers ion 2.0
Prise en charg e RAID 0,1,10
LAN Realtek RTL 8102EL
10 / 100 Mb/s négociation automatique
Half / Full duplex capability
Codec audio
ALC662 / VT1708B
Sortie audio à 5.1 voies
Prise en charge de l'audio haut e définition
Fente PCI x3
Fente PCI Express Gen2 x16 x1
Fentes
Fente PCI Express Gen2 x1 x1
A770L3
33
SPEC
Connecteur de disquette x1
Chaque connector prend en charg e 1 lecteur de
disquette
Connecteur de Port d'imprimante x1
Chaque connector prend en charg e 1 Port
d'imprimante
Connecteur IDE x1
Chaque connecteur prend en charge 2 périphériques
IDE
Connecteur SATA x4
Chaque connecteur prend en charge 1 périphérique
SATA
Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant
Connecteur Aud io du p anneau avant x1 Prend en charge la fonct ion audio du panneau avant
Connecteur de sortie S/PDIF x1 Prend en charge la fonction de sortie audio numérique
Embase de ventilateur UC x1
Alimentation électrique du ventilateur UC (avec
fonction de ventilateur intelligent)
Embase de ventilateur système x2 Alimentation électrique du ventilateur système
Embase d'effacement CMOS x1
Connecteur USB x2
Chaque connecteur prend en charge 2 ports USB de
panneau avant
Connecteur d' alimentat ion x1
(24 broches)
Connecteur
embarqué
Connecteur d' alimentat ion x1
(4 broches)
E/S du
panneau
arrière
Clavier PS/2 x1
Souris PS/2 x1
Port série x1
Port LAN x1
Port USB x4
Fiche audio x3
Dimensions
de la carte 182 mm (l) X 305 mm (H) ATX
Support SE Windows XP / Vista / 7
Biostar se réserve le droit d'ajouter ou de supprimer
le support de SE avec ou sans préavis.
Motherboard Manual
34
ITALIAN
SPECIFICA
CPU
Socket AM3
Processori AMD Sempron / Athlon II /
Phenom II (Watt massimo: 95W)
L’architettura AMD 64 abilita la co mputazione 32
e 64 bit
Supporto di Hyper Transport 3.0
FSB Supporto di HyperTransport 3.0 fino a
5.2 GT/s di larghezza di banda
Chipset AMD 770
AMD SB710
Super I/O
ITE 8721
Fornisce le funzionalità legacy Super
I/O usate più comunemente.
Interfaccia LPC (Low Pin Count)
Funzioni di controllo dell’ambiente:
Monitoraggio hardware
Controller velocità ventolina
Funzione "Smart Guardian" di ITE
Memoria
principale
Alloggi DIMM DDR3 x 2
Capacità massima della memoria 8GB
Ciascun DIMM supporta DDR3
512MB/1GB/2GB/4GB
Modulo di memoria DDR3 a canale doppio
Supporto di DDR3 800 / 1066 / 1333
Supporto di DDR3 1600 (OC)
DIMM registrati e DIMM ECC non sono supportati
IDE Controller IDE integrato
Modalità Bus Master Ultra DMA 33 / 66 / 100 /
133
Supporto modalità PIO Mode 0-4
SATA II Controller Ser ial ATA integrato
Velocità di trasferimento dei dati fino a 3 Gb/s.
Compatibile specifiche SATA Versione 2.0.
Supporto RAID 0,1,10
LAN Realtek RTL 8102EL
Negoziazione automatica 10 / 100 Mb/s
Capacità Half / Full Duplex
Codec
audio ALC662 / VT1708B
Uscita audio 5.1 canali
Supporto audio High-Definition (HD)
Alloggio PC I x3
Alloggio PCI Express Gen2 x16 x1
Alloggi
Alloggio PCI Express Gen2x1 x1
A770L3
35
SPECIFICA
Connettore floppy x1 Ciascun connettore supporta 1 unità Floppy
Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante
Connettore IDE x1 Ciascun connettore supporta 2 unità IDE
Connettore SATA x4 Ciascun connettore supporta 1 unità SATA
Connettore pannello frontale x1 Supporta i servizi del panne llo frontale
Connettore audio frontale x1 Supporta la funzione audio pannello frontale
Connettore output SPDIF x1 Supporta la funzione d’output audio digitale
Collettore ventolina CPU x1
Alimentazione ventolina CPU (con funzione Smart
Fan)
Collettore ventolina sistema x2 Alimentazione ventolina d i sistema
Collettore cancellaz ione CMOS x1
Connettore USB x2
Ciascun connettore supporta 2 porte USB
pannello frontale
Connettore alimentazione x1
(24 pin)
Connettori
su scheda
Connettore alimentazione x1
(4 pin)
I/O
pannello
posteriore
Tas t ier a PS /2 x 1
Mouse PS/2 x1
Porta seriale x1
Porta LAN x1
Porta USB x4
Connettore audio x3
Dimension
i scheda
182 mm (larghezza) x 305 mm
(altezza)
ATX
Sistemi
operativi
supportati
Windows XP / Vista / 7
Biostar si riserva il diritto di aggiungere o
rimuovere il supporto di qualsiasi sistema
operativo senza preavviso.
Motherboard Manual
36
SPANISH
Especificación
CPU
Conector AM3
Procesadores AMD Sempron / Athlon II /
Pheno m II (Vatio máximo: 95W)
La arquitectura AMD 64 permite el procesado de 32 y
64 bits
Soporta las tecnologías Hyper Transport 3.0
FSB Admite HyperTransport 3.0 con un ancho
de banda de hasta 5.2 GT/s
Conjunto de
chips
AMD 770
AMD SB710
Súper E/S
ITE 8721
Le ofrece las funcionalidades heredadas de
uso más comú n Súper E /S.
Interfaz de cuenta Low Pin
In iciat ivas de control d e entorno,
Monitor hardware
Controlador de velocidad de ventilador
Función "Guardia inteligente" de ITE
Memoria
principal
Ranuras DIMM DDR3 x 2
Capacidad máxima de memoria de 8GB
Cada DIMM admite DDR de
512MB/1GB/2GB/4GB
Módulo de memoria DDR3 de canal Doble
Admite DDR3 de 800 / 1066 / 1333
Admite DDR3 de 1600 (OC)
No admite DIMM registrados o DIMM compatibles con
ECC
IDE Controlador IDE integrado
Modo bus maestro Ultra DMA 33 / 66 / 100 / 133
Soporte los Modos PIO 0~4,
SATA II Controlador Serial ATA integrado
Tasas de transferencia de hasta 3 Gb/s.
Compat ib le con la vers ión SATA 2.0.
Admite RAID 0,1,10
Red Local Realtek RTL 8102EL
Negociación de 10 / 100 Mb/s
Funciones Half / Full dúplex
Códecs de
sonido ALC662 / VT1708B
Salida de sonido de 5.1 canales
Soporte de sonido de Alta Definición
Ranura PCI X3
Ranura PCI Express Gen2 x16 X1
Ranuras
Ranura PCI express Gen2 x1 X1
A770L3
37
Especificación
Conector disco flexible X1 Cada conector soporta 1 unidade de disco flexible
Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora
Conector IDE X1 Cada conector soporta 2 dispositivos IDE
Conector SATA X4 Cada conector soporta 1 dispositivos SATA
Conector de p anel frontal X1 Soporta instalaciones en el p anel frontal
Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal
Conector de salida S/PDIF X1 Soporta función de salida de sonido digital
Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con
función Smart Fan)
Cabecera de ventilador de sistema X2 Fuente de alimentación de ventilador de sistema
Cabecera de borrado de CMOS X1
Conector USB X2 Cada conector soporta 2 puertos USB frontales
Conector de alimentación X1
(24 patillas)
Conectores
en placa
Conector de alimentación X1
(4 patillas)
Panel
trasero de
E/S
Tec l ado PS /2 X 1
Ratón PS/2 X1
Puerto serie X1
Puerto de red local X1
Puerto USB X4
Conector de sonido X3
Ta mañ o d e
la placa 182 mm. (A) X 305 mm. (H) ATX
Soporte de
sistema
operativo
Windows XP / Vista / 7
Biostar se reserva el derecho de añadir o retirar el
soporte de cualquier SO con o sin aviso previo.
Motherboard Manual
38
PORTUGUESE
ESPECIFICAÇÕES
CPU
Socket AM3
Processadores AMD Sempron / Athlon II /
Pheno m II (Watt máximo: 95W)
A arquitectura AMD 64 p ermite uma co mputação de 32
e 64 bits
Suporta as tecno logias Hyper Transport 3.0
FSB Suporta a tecnologia HyperTransport 3.0
com uma largura de banda até 5.2 GT/s
Chipset AMD 770
AMD SB710
Especificaçã
o Super I/O
ITE 8721
Proporciona as funcionalidades mais
utilizadas em termos da especificação
Super I/O.
Interface LPC (Low Pin Count).
In iciat ivas para contro lo do amb iente
Monitorização do hardware
Controlador da velocidade da ventoinha
Função "S mart Guard ian" d a ITE
Memória
principal
Ranhuras DIMM DDR3 x 2
Capacidade máx ima d e memór ia: 8GB
Cada módulo DIMM suporta uma
memória DDR3 de 512MB/ 1GB/2GB/4GB
Módulo de memória DDR3 de canal duplo
Suporta módulos DDR3 800 / 1066 / 1333
Suporta módulos DDR3 1600 (OC)
Os módulos DIMM registados e os DIMM ECC não são
suportados
IDE Controlador IDE integrado
Modo Bus master Ultra DMA 33 / 66 / 100 / 133
Suporta o modo PIO 0~4,
SATA II Controlador Serial ATA integrado
Velocidades de transmissão de dados até 3 Gb/s.
Compatibilidad e co m a especificação SATA versão 2.0.
Suporta as funções RAID 0,1,10
LAN Realtek RTL 8102EL
Auto negociação de 10 / 100 Mb/s
Capacidade semi/full-duplex
Codec de
som ALC662 / VT1708B
Saída de áudio de 5.1 canais
Suporta a especificação High-Definition Audio
Ranhura PCI x3
Ranhura PCI Express Gen2 x16 x1
Ranhuras
Ranhura PCI Express Gen2 x1 x1
A770L3
39
ESPECIFICAÇÕES
Conector da unidade de disquetes x1 Cada conector suporta 1 unidade de disquete
Conector da para impressora x1 Cada conector suporta 1 Porta para impressora
Conector IDE x1 Cada conector suporta 2 dispositivos IDE
Conector SATA x4 Cada conector suporta 1 dispositivo SATA
Conector do painel frontal x1 Para suporte de várias funções no painel frontal
Conector de áudio frontal x1 Suporta a função de áudio no painel frontal
Conector de saída S/PDIF x1 Suporta a saída de áud io digital
Conector da ventoinha da CPU x1
Aliment ação da vento inha da CPU (co m a função S mart
Fan )
Conector da ventoinha do s istema x2 Alimentação da ventoinha do sistema
Conector para limpeza do CMOS x1
Conector USB x2 Cada conector suporta 2 portas USB no painel frontal
Conector de alimentação x1
(24 pinos)
Conectores
na placa
Conector de alimentação x1
(4 p inos)
Entradas/S
aídas no
painel
traseiro
Tec l ado PS /2 x 1
Rato PS/2 x1
Porta série x1
Porta LAN x1
Porta USB x4
Tomada de áudio x3
Tamanho
da placa 182 mm (L) X 305 mm (A) ATX
Sistemas
operativos
suportados
Windows XP / Vista / 7
A Biostar reserva-se o direito de adicionar ou remover
suporte para qualquer sistema operativo com ou sem
av iso prévio.
Motherboard Manual
40
POLISH
SPEC
Procesor
Socket AM3
AMD Sempron / Athlon II / Phenom II Procesory
(Maksymalny Watt: 95W)
Architektura AMD 64 umożliwia przetwarzanie
32 i 64 bitowe
Obsługa Hyper Transport 3.0
FSB Obsługa HyperTransport 3.0 o szerokości pasma
do 5.2 GT/s
Chipset AMD 770
AMD SB710
Pamięć
główna
Gniazda DDR3 DIMM x 2
Maks. wielkość pamięci 8GB
Każde gniazdo DIMM obsługuje moduły
512MB/1GB/2GB/4GB DDR3
Modu ł pamięci DDR3 z trybem podwójnego
kanału
Obsługa DDR3 800 / 1066 / 1333
Obsługa DDR3 1600 (OC)
Brak obsługi Registered DIMM oraz ECC DIMM
Super I/O
ITE 8721
Zapewnia najbardziej powszechne funkcje Super
I/O.
Interfejs Low Pin Count
Funkcje kontroli warunków pracy,
Monitor H/W
Kontroler prędkości wentylatora
Funkcj a ITE "Smart Guardian"
IDE Zintegrowany kontroler IDE
Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master
obsługa PIO tryb 0~4,
SATA II Zintegrowany kontroler Serial ATA
Transfer danych do 3 Gb/s.
Zgodność ze specyfikacją SATA w wersji 2.0.
Obsługa RAID 0,1,10
LAN Realtek RTL 8102EL
10 / 100 Mb/s z automatyczną negocjacją
szybkości
Działanie w trybie połowicznego/pełnego
dupleksu
Kodek
dźwiękowy ALC662 / VT1708B
5.1 kanałowe wyjście audio
Obsługa High-Def in ition Aud io
Gniazdo PCI x3
Gniazdo PCI Express Gen2 x16 x1
Gniazda
Gniazdo PCI Express Gen2 x1 x1
A770L3
41
SPEC
Złącze napędu dyskietek x1 Każde złącze obsługuje 1 napędy dyskietek
Złącze Port drukarki x1 Każde złącze obs ługuje 1 Port drukarki
Złącze IDE x1 Każde złącze obs ługuje 2 urządzenia IDE
Złącze SATA x4 Każde złącze obs ługuje 1 urządzenie SATA
Złącze panela przedniego x1 Obsługa elementów panela przedniego
Przedn ie złącze audio x1 Obsługa funkcji audio na panelu przednim
Złącze wyjścia S/PDIF x1 Obsługa funkcji cyfrowego wyjścia audio
Złącze głó wkowe wentylatora
procesora x1
Zasilanie wentylatora procesora (z funkcją Smart
Fan )
Złącze główkowe wentylatora systemowego x2 Zasilanie wentylatora systemowego
Złącze głó wkowe kasowania
CMOS x1
Złącze USB x2
Każde złącze obs ługuje 2 porty USB na panelu
przednim
Złącze zasilania (24 pinowe) x1
Złącza
wbudowane
Złącze zas ilania (4 pino we) x1
Back Panel
I/O
Klawiatura PS/2 x1
Mysz PS /2 x1
Port szeregowy x1
Port LAN x1
Port USB x4
Gniazdo audio x3
Wymiary
płyty 182 mm (S) X 305 mm (W) ATX
Obsluga
systemu
operacyjne
go
Windows XP / Vista / 7
Biostar zastrzega sobie prawo dodawania lub
odwoływania obsług i dowo ln ego systemu
operacyjnego bez powiado mienia.
Motherboard Manual
42
RUSSIAN
СПЕЦ
CPU
(центральн
ый
процессор)
Гнездо AM3
Процессоры AMD Sempron / Athlon II /
Phenom II (Ма кс им альн ый ватт: 95W)
Архитектур а AMD 64 разрешать обработка
данных на 32 и 64 бит
Поддержка Hyper Transport 3.0
FSB Поддержка HyperTransport 3.0 с
пропускной способностью до 5.2 GT/s
Набор
микросхем
AMD 770
AMD SB710
Основная
память
Слоты DDR3 DIMM x 2
Максимальная ёмкость памяти 8ГБ
Каждый модуль DIMM поддерживает
512МБ /1ГБ/2ГБ/4ГБ DDR3
Модуль памяти с двухканальным режимом DDR3
Поддержка DDR3 800 / 1066 / 1333
Поддержка DDR3 1600 (OC)
Не поддерживает зарегистрированные модули
DIMM and ECC DIMM
Super I/O
ITE 8721
Обеспечивает наиболее используемые
действующие фун кц иональны е
возможности Super I/O.
Интерфейс с низким количеством выводов
Инициативы по охране окружающей среды,
Аппаратный монитор
Регул ятор скорости
Функция ITE "Smart Guardian"
(Интеллектуальная защита)
IDE Встроенное устройство упр авления
встроенными интерфейсами устройств
Режим "хозяина" шины Ultra DMA 33 / 66 / 100 /
133
Поддержка режима PIO 0~4,
SATA II Встроенное устройство управл ения
встроенными интерфейсами устройств
скорость передачи данных до 3 гигабит/с.
Соответствие спецификации SATA версия 2.0.
Поддержка RAID 0,1,10
Локальная
сеть Realtek RTL 8102EL
Автоматическое согласование 10 / 100 Мб /с
Частичная / полная дуплексная способность
Звуко вой
кодек ALC662 / VT1708B
Звуко вая поддержка High-Defin ition
5.1канальный звуковой выход
Слот PCI x3
Слот PCI Express Gen2 x16 x1
Слоты
Слот PCI Express Gen2 x1 x1
A770L3
43
СПЕЦ
Разъ ём НГМД x1
Каждый разъём поддерживает 1 накопителя на
гибких магнитных дисках
Разъ ём Порт подключения
принтера x1
Каждый разъём поддерживает 1 Порт
подключения принтера
Разъ ём IDE x1 Каждый разъём поддерживает 2 встроенных
интерфейса накопителей
Разъ ём SATA x4 Каждый разъём поддерживает 1 устройство SATA
Разъ ём на лицевой панели x1 Поддержка устройств на лицевой панели
Входной звуковой разъём x1
Поддержка звуко вых функций на лицевой
панели
Разъ ём вывода для S/PDIF x1 Поддержка вывода цифровой звуковой фун кц ии
Контактирующее приспособление
вентилятора центрального процессора x1
Источник питания для вентилятора центрального
процессора (с фун кц ией интеллектуального
вентилятора)
Контактирующее приспособление
вентилятора системы x2
Источник питания для вентилятора системы
Открытое контактир ующее
приспособление CMOS x1
USB-разъём x2
Каждый разъём поддерживает 2 USB-порта на
лицевой панели
Разъ ем питания (24 вывод) x1
Встроенны
й разъём
Разъ ем питания (4 вывод) x1
Задняя
панель
средств
ввода-выв
ода
Клавиатура PS/2 x1
Мышь PS/2 x1
Последоват ельный порт x1
Порт LAN x1
USB-порт x4
Гнездо для подключения
наушников x3
Размер
панели 182 мм (Ш) X 305 мм (В) ATX
Поддержка
OS Windows XP / Vista / 7
Biostar сохраняет за собой право добавлять или
удалять средства обеспечения для OS с или без
предварительного уведомления.
Motherboard Manual
44
ARABIC
تﺎﻔﺻاﻮﻤﻟا
ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا
ﺔﻳﺰآﺮﻤﻟا
ﺲﺒﻘﻡAM3
تﺎﺠﻟﺎﻌﻡAMD Sempron / Athlon II / Phenom II
(طاو ىﻮﺼﻗ: 95و)
ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺔﻋﺮﺴﺏ ﺔﻴﺏﻮﺳﺎﺤﻟا تﺎﻴﻠﻤﻌﻟا ءاﺮﺝإ 32 و64 ﺖﺏ
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyper Transport و 3.0
ﻲﺒﻥﺎﺠﻟا ﻲﻡﺎﻡﻷا ﻞﻗﺎﻨﻟا
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyperTransport ﻰﻟإ ﻞﺼﻳ ددﺮﺘﺏ 3.0 5.2 GT/s
ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻡ
AMD 770
AMD SB710
ﺔﻴﺴﻴﺋﺮﻟا ةﺮآاﺬﻟا
ﺔﺤﺘﻓDDR3 DIMM دﺪﻋ2
ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ8 ﺖﻳﺎﺏ ﺎﺠﻴﺝ
ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻡ ةﺮآاذ ﻢﻋﺪﺗ DDR3 ﺔﻌﺳ /512 ﺖﻳﺎﺏ ﺎﺠﻴﻡ
و1/و 2/و 4 ﺎﺠﻴﺝﺖﻳﺎﺏ
ةﺮآاذ ةﺪﺣوDDR3 ﻘﻟا ﺔﺝودﺰﻡةﺎﻨ
عﻮﻥ ﻦﻡ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR3 تﺎﻌﺳ 800 / 1066 / 1333ﺖﻳﺎﺏ ﺎﺠﻴﻡ
عﻮﻥ ﻦﻡ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR3 تﺎﻌﺳ 1600ﺖﻳﺎﺏ ﺎﺠﻴﻡ )OC(
ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺗ ﻻDIMM ﻊﻡ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠ ﺗو ECC
Super I/O
ITE 8721
ﺔﻔﻴﻇو ﺮﻓﻮﺗSuper I/O ًﺎ ﻡ ا ﺪ ﺨ ﺘﺳا ﺮﺜآﻷا .
ﺗﻢﻋﺪ ﺔﻴﻨﻘﺗ Low Pin Count Interface
ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:
ﻓﺮﻌﻤﻟ ﺐﻗاﺮﻡةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔ
ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻡ
ﺔﻔﻴﻇو"Smart Guardian" ﻦﻡ ITE
ﺬﻔﻨﻡIDE
ﻢﻜﺤﺘﻡIDE ﻞﻡﺎﻜﺘﻡ
ﺔﻴﻨﻘﺘﺏ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100 / 133
ﻲﺴﻴﺋر ﻊﺿو
ﻊﺿو ﻢﻋدPIO Mode 0 ~4
SATA II
ﻢﻜﺤﺘﻡSerial ATAﻞﻡﺎﻜﺘﻡ
ﻰﻟإ ﻞﺼﺗ تﺎﻋﺮﺴﺏ تﺎﻥﺎﻴﺒﻟا ﻞﻘﻥ3 ﺖﺏﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.
ﻮﻤﻟ ﺔﻘﺏﺎﻄﻡ تﺎﻔﺹا SATA راﺪﺹﻹا 2.0.
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗRAID 0,1,10
ﺔﻴﻠﺥاد ﺔﻜﺒﺵ
Realtek RTL 8102EL
ﻲﺋﺎﻘﻠﺗ ضوﺎﻔﺗ10/100 ﺖﻳﺎﺏ ﺎﺠﻴﻡ /ﺔﻴﻥﺎﺙ
ﺔﻴﻥﺎﻜﻡإ ﻞﻘﻨﻟا جودﺰﻤﻟا ﻞﻡﺎﻜﻟا/ﻲﻔﺼﻨﻟا
تﻮﺼﻟا ﻚﻳدﻮآ
ALC662 / VT1708B
ﻦﻡ ﻒﻳﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗ
5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ
ﺔﺤﺘﻓPCI ﺪﻋ3
ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ1 تﺎﺤﺘﻔﻟا
ﺔﺤﺘﻓPCI Express Gen2 x1 دﺪﻋ1
A770L3
45
تﺎﻔﺻاﻮﻤﻟا
ﺔﻥﺮﻡ صاﺮﻗأ كﺮﺤﻡ ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻥﺮﻤﻟا صاﺮﻗﻸﻟ ﻦﻴآﺮﺤﻡ ﻢﻋﺪﻳ
ﺔﻌﺏﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1
ﺬﻔﻨﻡIDE دﺪﻋ1 ةﺰﻬﺝأ ﻦﻡ ﻦﻴﻨﺙا ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳIDE
ﺬﻔﻨﻡSATA دﺪﻋ4 او ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳ ةﺰﻬﺝأ ﻦﻡ ﺪﺣ SATA
ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪﻳ
ﻲﻡﺎﻡﻷا تﻮﺼﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟﺎﺏ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪﻳ
جﺮﺥ ﺬﻔﻨﻡS/PDIF دﺪﻋ1 ﻲﻤﻗﺮﻟا تﻮﺼﻟا جﺮﺥ ﺔﻔﻴﻇو ﻢﻋﺪﻳ
ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ1 ةﺪﺣو ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ ﺔﻔﻴﻇو ﻊﻡ ﺔﺠﻟﺎﻌﻤﻟا Smart Fan
مﺎﻈﻨﻟا ﺔﺣوﺮﻡ ﺔﻠﺹو ﺪﻋ2 مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ
ﺢﺴﻡ ﺔﻠﺹوCMOS دﺪﻋ1
ﺬﻔﻨﻡUSB دﺪﻋ2 ﻲﺘﺤﺘﻓ ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳUSBﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟﺎﺏ
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)24سﻮﺏد( دﺪﻋ1
ﺢﻄﺳ ﻰﻠﻋ ﺬﻓﺎﻨﻤﻟا
ﺔﺣﻮﻠﻟا
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)4ﺲﻴﺏﺎﺏد( دﺪﻋ12
ﻞﺥد ﺬﻓﺎﻨﻡ/ جﺮﺥ
ﺔﺣﻮﻠﻟاﺔﻴﻔﻠﺨﻟا
ﺢﻴﺗﺎﻔﻡ ﺔﺣﻮﻟPS/2 دﺪﻋ1
سوﺎﻡ PS/2 دﺪﻋ1
ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻡ دﺪﻋ1
ﺔﻴﻠﺤﻡ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻡ ﺪﻋ1
ﺬﻓﺎﻨﻡUSB دﺪﻋ4
تﻮﺹ ﺲﺒﻘﻡ دﺪﻋ3
ﺔﺣﻮﻠﻟا ﻢﺠﺣ
182 ﻢﻡ)ضﺮﻋ (X 305 ﻢﻡ)عﺎﻔﺗرا( ATX
ﻞﻴﻐﺸﺘﻟا ﺔﻤﻈﻥأ ﻢﻋد
Windows XP / Vista / 7
ﻆﻔﺘﺤﺗBiostar ﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺏ وأ رﺎﻄﺥﺈﺏ ﻞﻴﻐ ﺸﺗ مﺎﻈﻥ يﻷ ﻢﻋ
رﺎﻄﺥإ نوﺪﺏ.
Motherboard Manual
46
JAPANESE
仕様
CPU
Socket AM3
AMD Sempron / Athlon II / Phenom II プロセ
ッサ (最高のワット: 95W)
AMD 64アーキテクチャでは、32ビットと64ビット計算が
可能です
ハイパートランスポート3.0サポートします
FSB
5.2 GT/sのバンド幅までハイパートランスポート
3.0をサポートします
チップセット
AMD 770
AMD SB710
メインメモリ
DDR3 DIMMスロット x 2
最大メモリ容量8GB
各DIMMは 512MB/1GB/2GB/4GB DDR3をサ
ポート
デュアル チャンネルモードDDR3メモリモジュール
DDR3 800 / 1066 / 1333 をサポート
DDR3 1600 をサポート (OC)
登録済みDIMMとECC DIMMはサポートされません
Super I/O
ITE 8721
もっとも一般に使用されるレガシーSuper I/O機
能を採用しています。
低ピンカウントインターフェイス
環境コントロールイニシアチブ、
H/Wモニター
ファン速度コントローラ/ モニター
ITEの「スマートガーディアン」機能
IDE 統合IDEコントローラ
Ultra DMA 33 / 66 / 100 / 133バスマスタモード
PIO Mode 0~4のサポート、
SATA II 統合Serial ATAコントローラ
最高3 Gb/秒のデータ転送速度
SATAバージョン2.0仕様に準拠。
RAID 0,1,10のサポート
LAN Realtek RTL 8102EL
10 / 100 / 1000 Mb/秒のオートネゴシエーション
半/全二重機能
サウンド
Codec ALC662 / VT1708B ハイデフィニションオーディオのサポート
5.1 チャンネルオーディオアウト
PCIスロット x3
PCI Express Gen2 x16スロット x1
スロット
PCI Express Gen2 x1スロット x1
A770L3
47
仕様
フロッピーコネクタ x1 各コネクタは1つのフロッピードライブをサポートします
プリンタポートコネクタ x1 各コネクタは1つのプリンタポートをサポートします
IDE コネクタ x1 各コネクタは2つのIDE デバイスをサポートします
SATAコネクタ x4 各コネクタは1つのSATAデバイスをサポートします
フロントパネルコネクタ x1 フロントパネル機能をサポートします
フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします
S/PDIFアウトコネクタ x1 デジタルオーディオアウト機能をサポートします
CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)
システムファンヘッダ x2 システムファン電源装置
CMOSクリアヘッダ x1
USBコネクタ x2
各コネクタは2つのフロントパネルUSBポートをサポート
します
電源コネクタ(24ピン) x1
オンボードコ
ネクタ
電源コネクタ(4ピン) x1
背面パネル
I/O
PS/2キーボード x1
PS/2マウス x1
シリアルポート x1
LANポート x1
USBポート x4
オーディオジャック x3
ボードサイズ 182 mm (幅) X 305 mm (高さ) ATX
OSサポート Windows XP / Vista / 7
Biostarは事前のサポートなしにOSサポートを追加または
削除する権利を留保します。
2010/02/05
