G31D-M7 Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee

that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the

contents here and specially disclaims any implied warranties of merchantability

or fitness for any purpose. Further the vendor reserves the right to revise this

publication and to make changes to the contents here without obligation to

notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and

we will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

Table of Contents

Chapter 1: Introduction ........................................ 1

1.1 Before You Start ................................................................................ 1

1.2 Package Checklist............................................................................. 1

1.3 Motherboard Features...................................................................... 2

1.4 Rear Panel Connectors ..................................................................... 3

1.5 Motherboard Layout......................................................................... 4

Chapter 2: Hardware Installation .......................... 5

2.1 Installing Central Processing Unit (CPU)....................................... 5

2.2 FAN Headers...................................................................................... 7

2.3 Installing System Memory ................................................................ 8

2.4 Connectors and Slots....................................................................... 10

Chapter 3: Headers & Jumpers Setup .................. 12

3.1 How to Setup Jumpers .................................................................... 12

3.2 Detail Settings.................................................................................. 12

Chapter 4: Useful Help ........................................ 18

4.1 Driver Installation Note.................................................................. 18

4.2 Software............................................................................................ 19

4.3 Extra Information............................................................................ 24

4.4 AMI BIOS Beep Code....................................................................... 26

4.5 Troubleshooting............................................................................... 27

Appendix: SPEC In Other Languages ................... 28

German.................................................................................................................. 28

French .................................................................................................................... 30

Italian..................................................................................................................... 32

Spanish ................................................................................................................... 34

Portuguese ............................................................................................................ 36

Polish...................................................................................................................... 38

Russian ................................................................................................................... 40

Arabic..................................................................................................................... 42

Japanese ................................................................................................................ 44

G31D-M7

CHAPTER 1: INTRODUCTION

1.1 BEFORE YOU START

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely

grounded appliance, or use grounded wrist strap to

remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board

on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short

circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

1.2 PACKAGE CHECKLIST

IDE Cable X 1

Serial ATA Cable X 1

Rear I/O Panel for ATX Case X 1

Installation Guide X 1

Fully Setup Driver CD X 1 (full version manual files inside)

FDD Cable X 1 (optional)

USB 2.0 Cable X1 (optional)

Serial ATA Power Cable X 1 (optional)

Note: The package contents may be differed by area or your motherboard version.

Motherboard Manual

1.3 MOTHERBOARD FEATURES

SPEC

CPU

LGA 775

Intel Core2Duo / Pentium Dual-Core /

Celeron Dual-Core / Celeron 4xx

processor

(Maximum Watt: 65W)

Supports Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el Archit ecture-64 /

Extended Memory 64 Technology / Virtualization

Technology

FSB Support 800 / 1066 / 1333 MHz

Chipset

Intel G31

Intel ICH7

Super I/O

ITE 8712F

Provides the most commonly used legacy

Super I/O functionality.

Low Pin Count Interface

Environment Control in it iatives ,

Hardware Monitor Controller

Fan Speed Contro ller

ITE's "S mart Guardian " funct ion

Main

Memory

DIMM Slots x 2

Each DIMM supports 256MB / 512MB /

1GB / 2GB DDR2

Max Memory Capicity 4GB

Dual Channel Mode DDR2 memory modu le

Supports DDR2 800/667

Registered D IMM and ECC D IMM is not supported

Graphics GMA 3100 Max Shared Video Memory is 256MB

IDE Integrated IDE Contro ller

Ultra DMA 33 / 66 / 100 Bus Master Mode

supports PIO Mode 0~4

SATA 2 Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s.

SATA Version 2.0 specif icat ion co mp liant

LAN Realtek RTL 8102EL

10 / 100 Mb/s auto negotiation

Half / Full duplex capability

Sound

Codec

ALC662

5.1 channels audio out

High Definition Audio

PCI slot x1 Supports PCI expansion cards

Slots

PCI Express x 16 slot x1 Supports PCI-E x16 expansion cards

Floppy connector x1 Each connector supports 2 Floppy drives

Printer Port Connector x1 Each connector supports 1 Printer port

On Board

Connector

Serial port Connector (Optional) x1 Connects to RS-232 Port

G31D-M7

SPEC

IDE Connector x1 Each connector supports 2 IDE device

SATA Connector x2 Each connector supports 1 SATA devices

Front Panel Connector x1 Supports front panel facilities

Front Audio Connector x1 Supports front panel audio function

CPU Fan header x1 CPU Fan power supply (with Smart Fan function)

Clear CMOS header x1 Restore CMOS dat a to factory default

USB connector x1 Each connector supports 2 front panel USB ports

Power Connector (24pin) x1 Connects to Power supply

Power Connector (4pin) x1 Connects to Power supply

Back Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

VGA port x1

LAN port x1

USB Port x4

Audio Jack x3

Connects to PS/2 Keyboard

Connects to PS/2 Mouse

Connect to D-SUB monitor

Connect to RJ-45 ethernet cable

Connect to USB devices

Provide Audio-In/Out and microphone connection

Board Size 170 (W) x 225 (L) mm

OS Support

Windows 2000 / XP / VISTA 32/ VISTA 64

Biostar Reserves the right to add or remove support for

any OS with or without notice

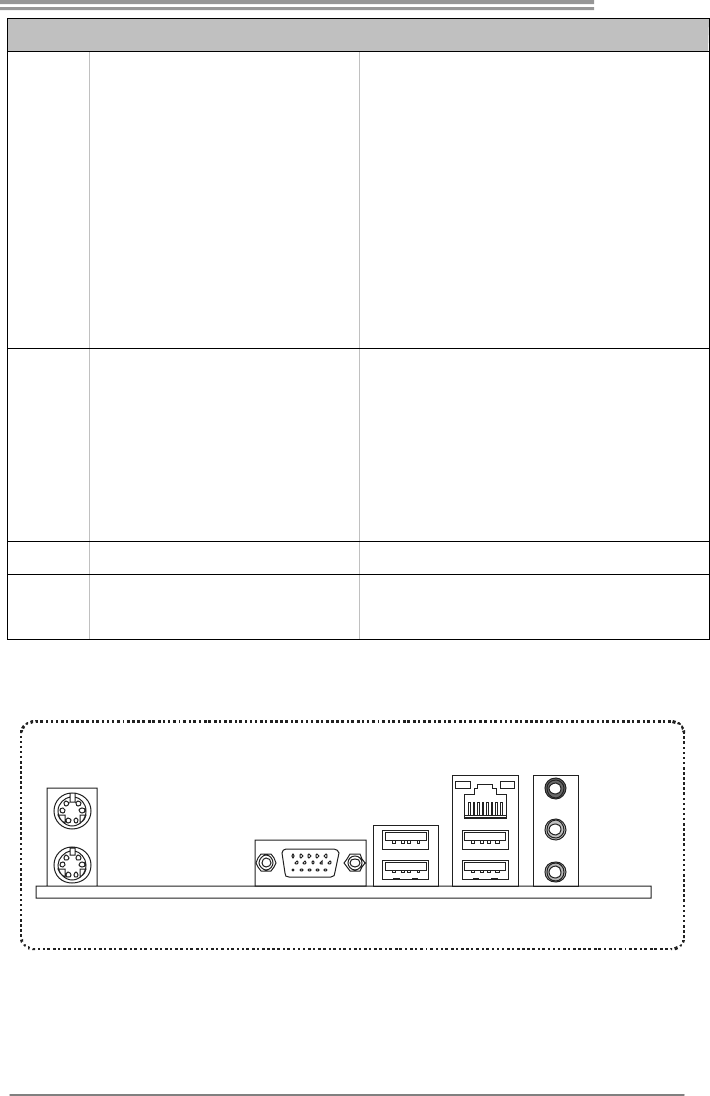

1.4 REAR PANEL CONNECTORS

PS/ 2

Mouse

PS/2

Keyboard

USBX2USBX2

LAN

VGA

Line In/

Surround

Line Out

Mic In 1/

Bass/ Center

Since the audio chip supports High Definition Audio Specification, the function of each audio

jack can be defined by software. The input / output function of each audio jack listed above

represents the default setting. However, when connecting external microphone to the audio port,

please use the Line In (blue) and Mic In (Pink) audio jack.

Motherboard Manual

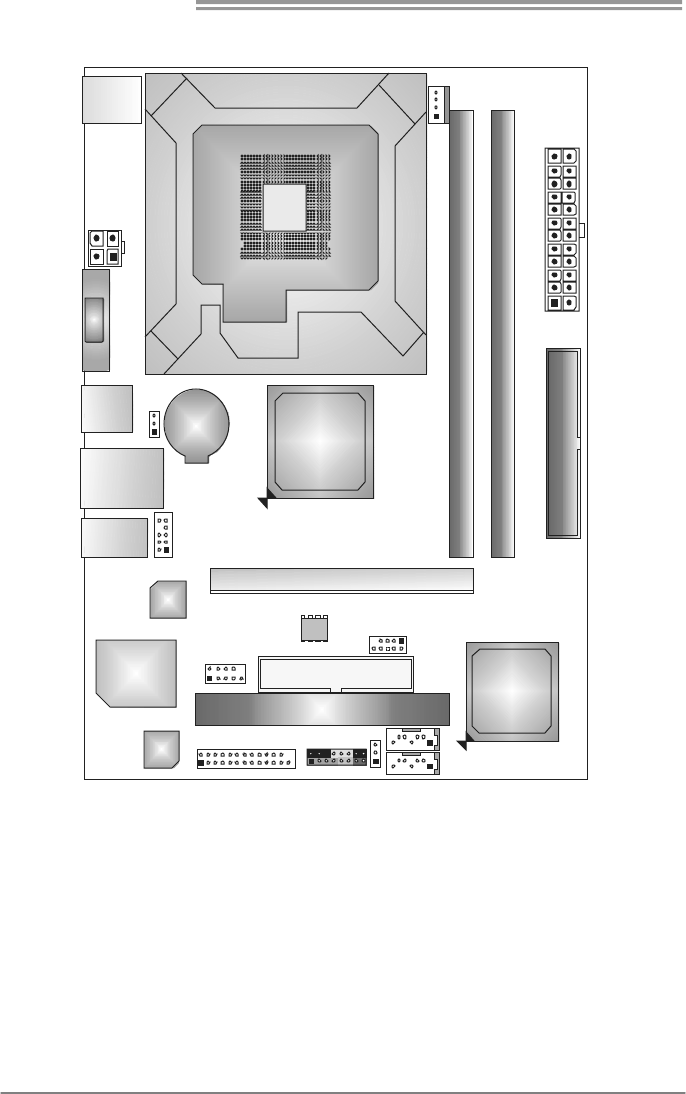

1.5 MOTHERBOARD LAYOUT

JKBMS1

JATXPWR2

JVGA1

JUSB2

JRJ45USB1

JAUDIO1

JAUDIOF1

LAN

Super

I/O

Code c

JCOM2

JPRNT1

PCI1

PEX16_1

FDD1

JPANEL1

JCMOS1

SATA1

SATA2

JUSB3

Intel

ICH7

IDE 1

DDR2_B1

DDR2_A1

Intel

G31

JUSBV1

BAT1

BIOS

LGA775

CPU1

JATXPWR1

JCFAN1

(Optional)

Note: ■ represents the 1st pin.

G31D-M7

CHAPTER 2: HARDWARE INSTALLATION

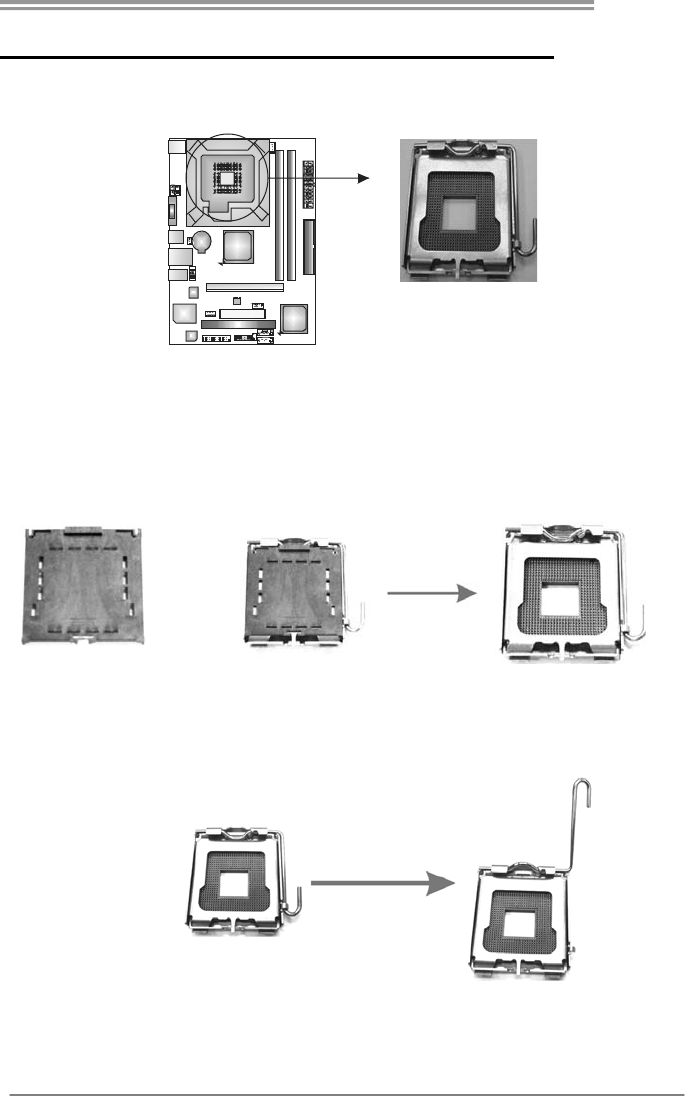

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

Special Notice:

Remove Pin Cap before installation, and make good preservation

for future use. When the CPU is removed, cover the Pin Cap on the

empty socket to ensure pin legs won’t be damaged.

Pin-Cap

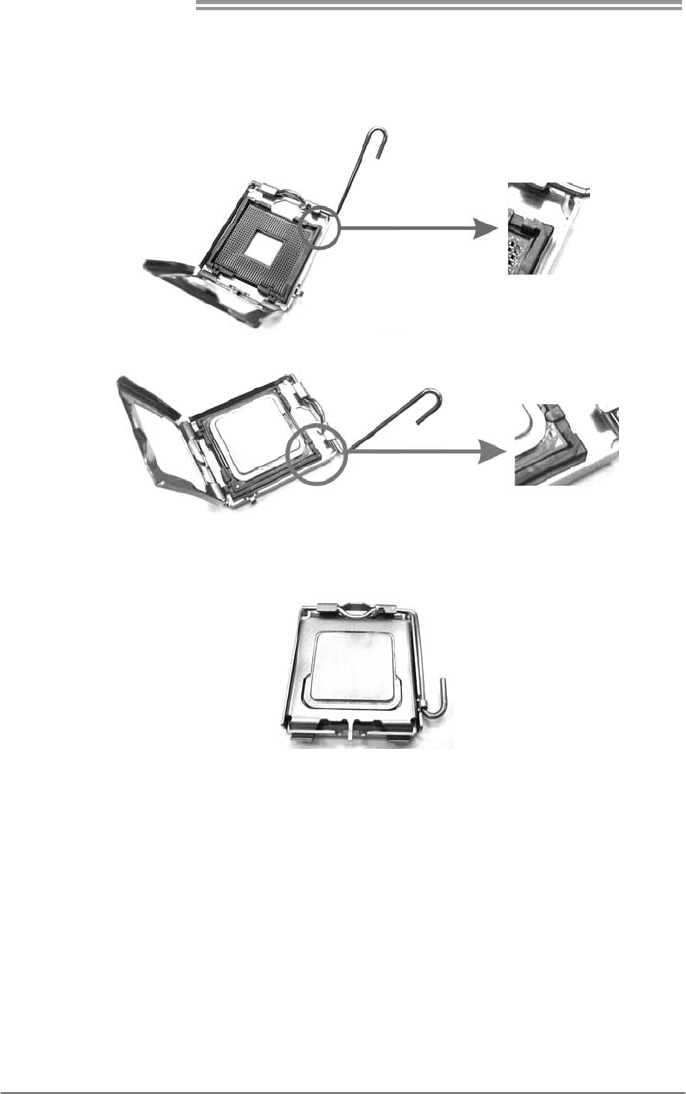

Step 1: Pull the socket locking lever out from the socket and then raise

the lever up to a 90-degree angle.

Motherboard Manual

Step 2: Look for the triangular cut edge on socket, and the golden dot on

CPU should point forwards this triangular cut edge. The CPU will

fit only in the correct orientation.

Step 2-1:

Step 2-2:

Step 3: Hold the CPU down firmly, and then lower the lever to locked

position to complete the installation.

Step 4: Put the CPU Fan and heatsink assembly on the CPU and buckle it

on the retention frame. Connect the CPU FAN power cable into

the JCFAN1. This completes the installation.

G31D-M7

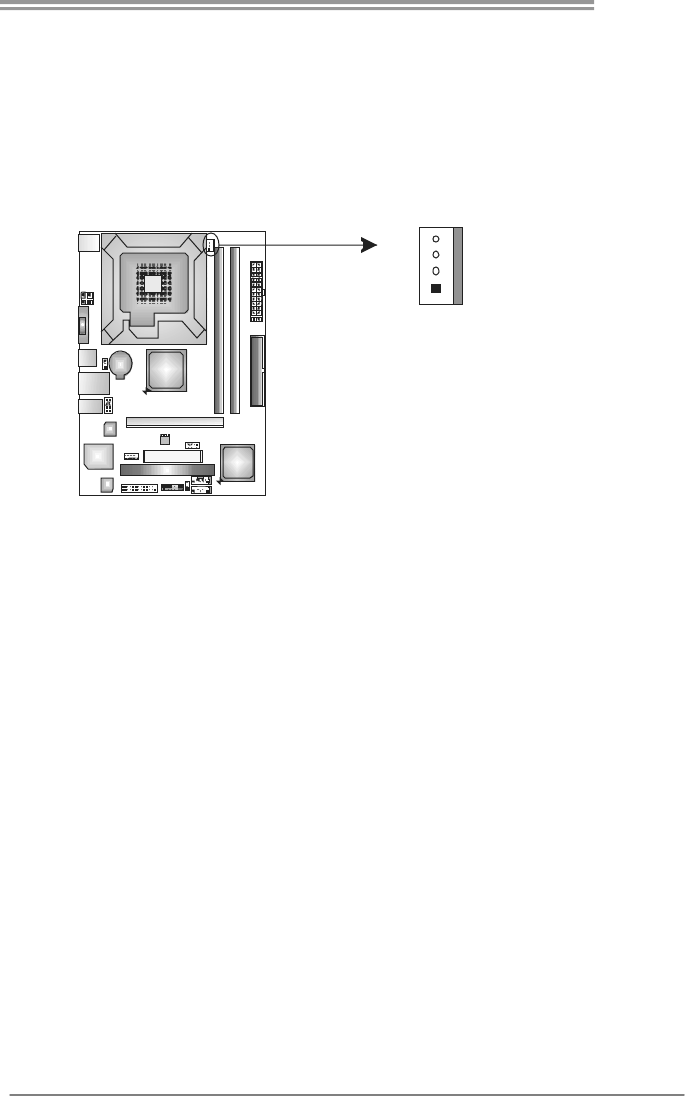

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan

cable and connector may be different according to the fan manufacturer.

Connect the fan cable to the connector while matching the black wire to

pin#1.

JCFAN1: CPU Fan Header

Assignment

1 Ground

2 Power

3 FAN RPM rate sense

4 Smart Fan Control

Note:

The JCFAN1 supports 4-pin head connector. When connecting with wires onto the

connector, please note that the red wire is the positive and should be connected to pin#2,

and the black wire is Ground and should be connected to GND.

Motherboard Manual

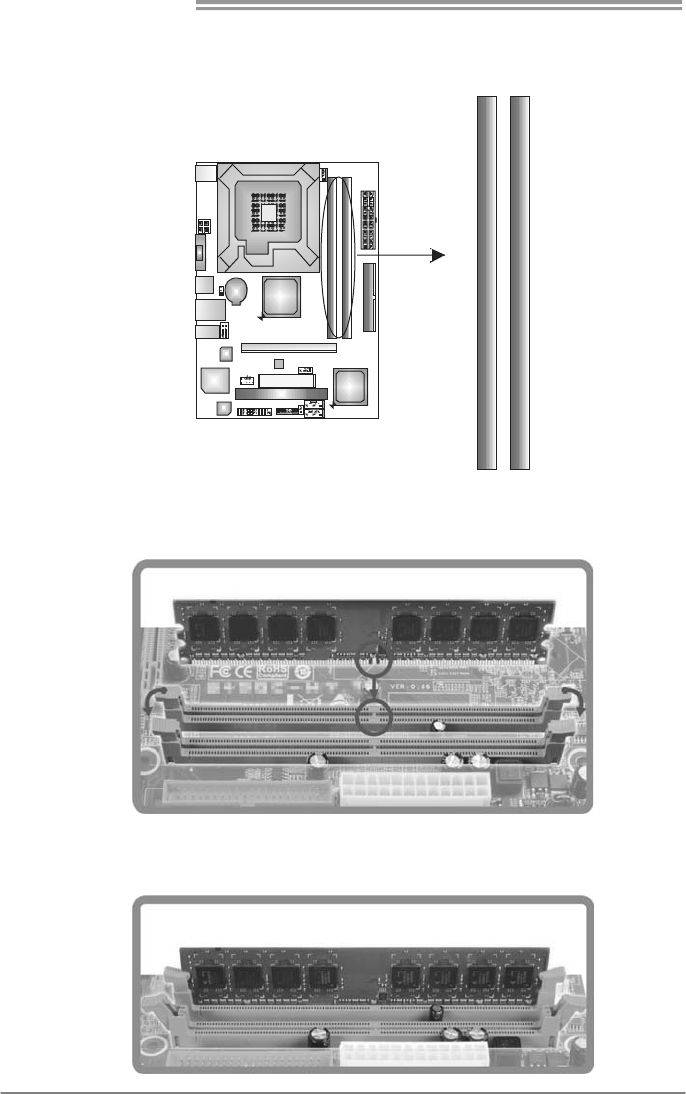

2.3 INSTALLING SYSTEM MEMORY

A. DDR2 module

DDR2_B1

DDR2_A1

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot so that the notch on the DIMM matches the break

on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.

G31D-M7

B. Memory Capacity

DIMM Socket

Location DDR2 Module Total Memory

Size

DDR2_A1 256MB/512MB/1GB/2GB

DDR2_B1 256MB/512MB/1GB/2GB

Max is 4GB.

C. Dual Channel Memory Installation

To activate the Dual Channel function of the motherboard, the memory

module must meet the following requirements:

Install memory module of the same density in pairs, shown in the

following table.

Dual Channel Status DDR2_A1 DDR2_B1

Disabled O X

Disabled X O

Enabled O O

(O means memory installed, X means memory not installed.)

The DRAM bus width of the memory module must be the same(x8 or

x16)

Motherboard Manual

2.4 CONNECTORS AND SLOTS

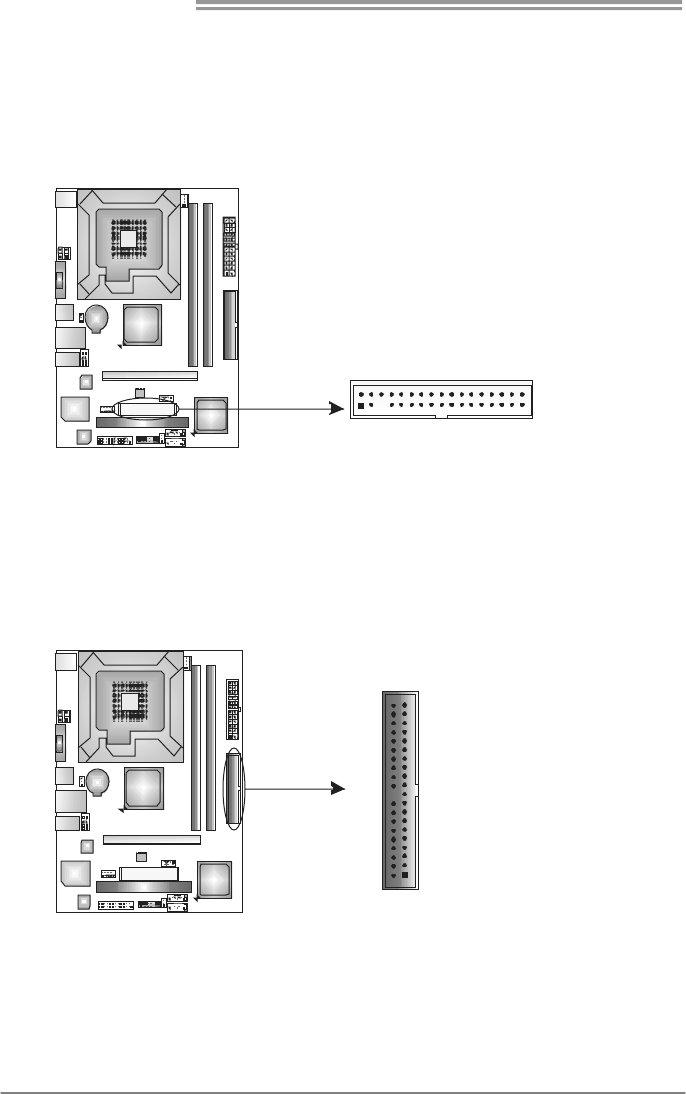

FDD1: Floppy Disk Connector

The motherboard provides a standard floppy disk connector that supports 360K,

720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the

provided floppy drive ribbon cables.

133

234

IDE1: IDE/ATAPI Connector

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO

Mode 0~4, Bus Master, and Ultra DMA 33/66/100 functionality.

The IDE connector can connect a master and a slave drive, so you can connect

up to two drives.

G31D-M7

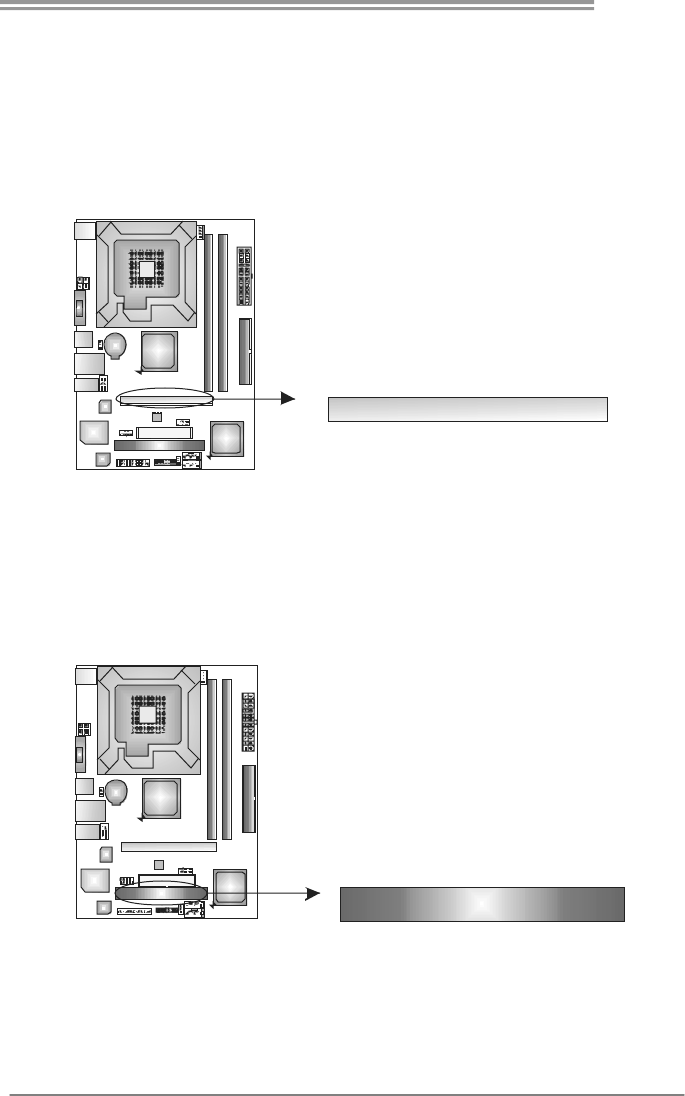

PEX16_1: PCI-Express x16 Slot

- PCI-Express 1.0a compliant.

- Maximum theoretical realized bandwidth of 4GB/s simultaneously per

direction, for an aggregate of 8GB/s totally.

- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.

- 2X bandwidth over the traditional PCI architecture.

PEX16_1

PCI1: Peripheral Component Interconnect Slot

This motherboard is equipped with 1 standard PCI slot. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for expansion

cards. This PCI slot is designated as 32 bits.

PCI1

Motherboard Manual

CHAPTER 3: HEADERS & JUMPERS SETUP

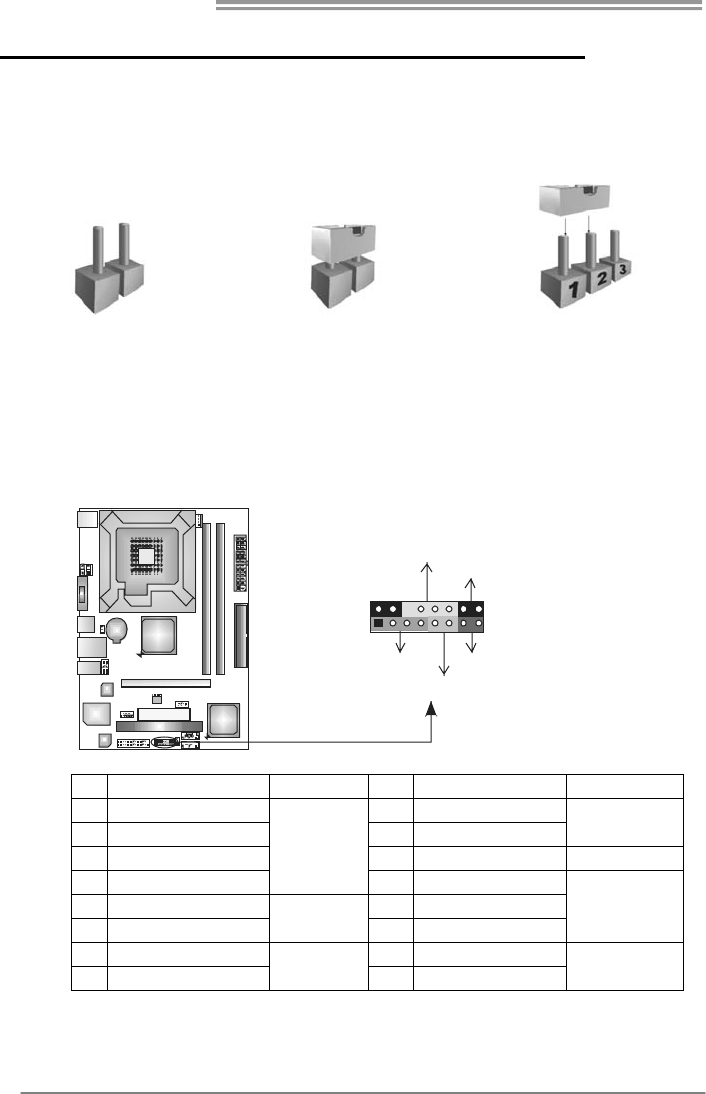

3.1 HOW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is

placed on pins, the jumper is “close”, if not, that means the jumper is

“open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

JPANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and

speaker connection. It allows user to connect the PC case’s front panel switch

functions.

PWR_LED

On/Off

RST

HLED

SPK

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A

2 N/A 10 N/A N/A

3 N/A 1 1 N/A N/A

4 Speaker

Speaker

Connector

12 Power LED (+)

5 HDD LED (+) 13 Power LED (+)

6 HDD LED (-)

Hard drive

LED 14 Power LED (-)

Power LED

7 Ground 15 Power button

8 Reset control Reset button 16 Ground Power-on button

G31D-M7

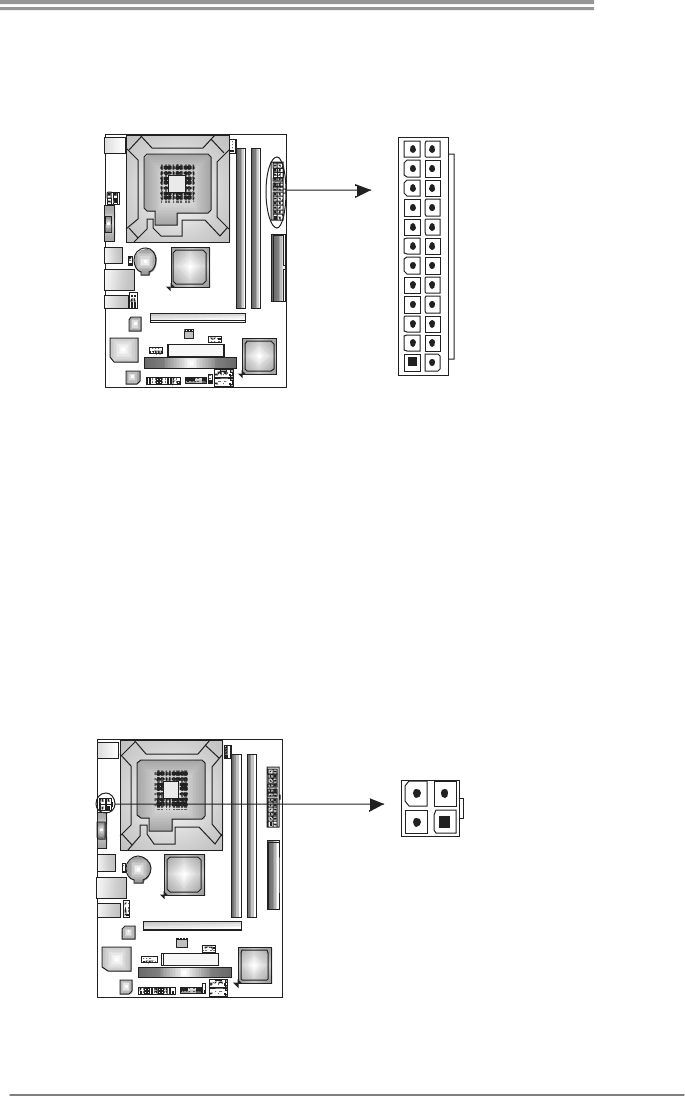

JATXPWR1: AT X Power Source Connector

This connector allows user to connect 24-pin power connector on the ATX

power supply.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 Ground 3 Ground

16 PS_ON 4 +5V

17 Ground 5 Ground

18 Ground 6 +5V

19 Ground 7 Ground

20 NC 8 PW_OK

21 +5V 9 Standby Voltage+5V

22 +5V 10 +12V

23 +5V 11 +12V

24 Ground 12 +3.3V

JATXPWR2: AT X Power Source Connector

By connecting this connector, it will provide +12V to CPU power circuit.

Assignment

1 +12V

2 +12V

3 Ground

4 Ground

Note:

Before power on the system, please make sure that both JATXPWR1 and JATXPWR2

connectors have been plugged-in.

Motherboard Manual

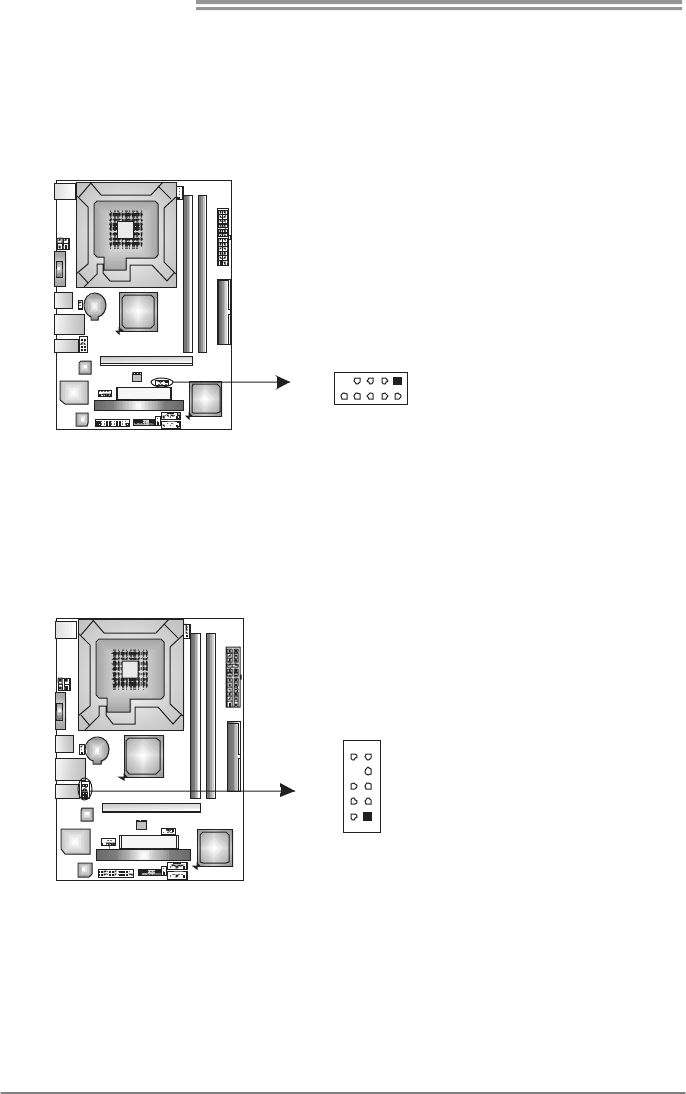

JUSB3: Header for USB 2.0 Ports at Front Panel

This motherboard provides 1 USB 2.0 header, which allows user to connect

additional USB cable on the PC front panel, and also can be connected with

internal USB devices, like USB card reader.

Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

10 NC

JAUDIOF1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front

panel. This header allows only HD audio front panel connector; AC’97 connector

is not acceptable.

Pin Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

10 Jack Sense

G31D-M7

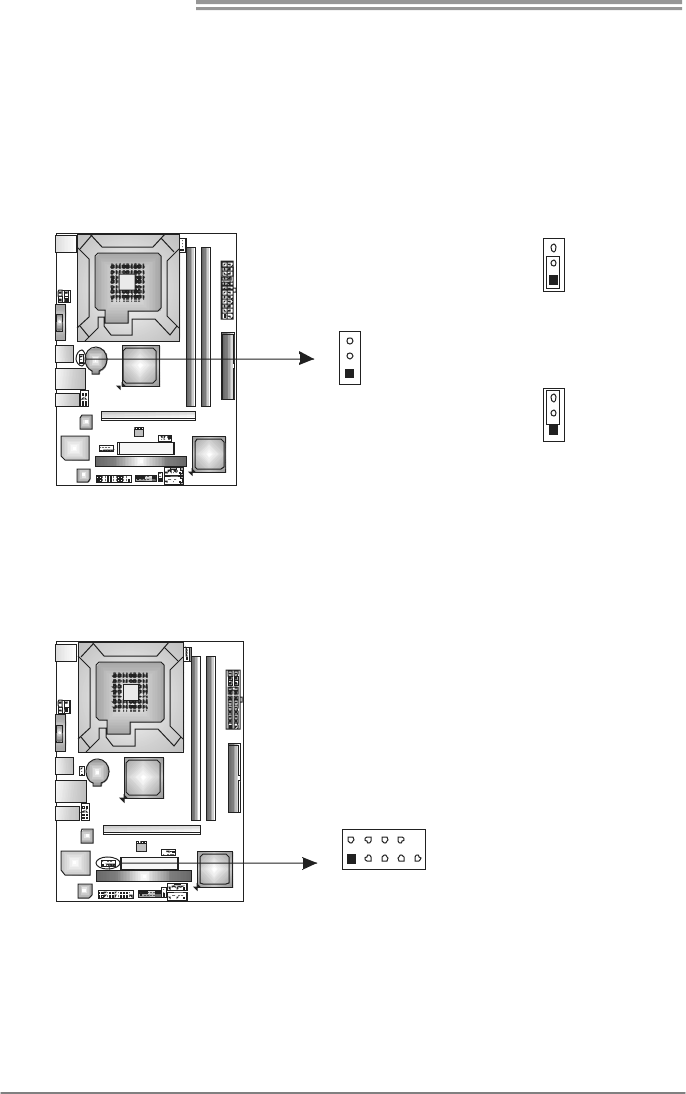

JCMOS1: Clear CMOS Header

Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and

the CMOS data, please carefully follow the procedures to avoid damaging the

motherboard.

Pin 1-2 Close:

Normal Operation

(Default).

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

SATA1/SATA2: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 2channels SATA interface, it

satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

147

SATA1

SATA2

7 Ground

Motherboard Manual

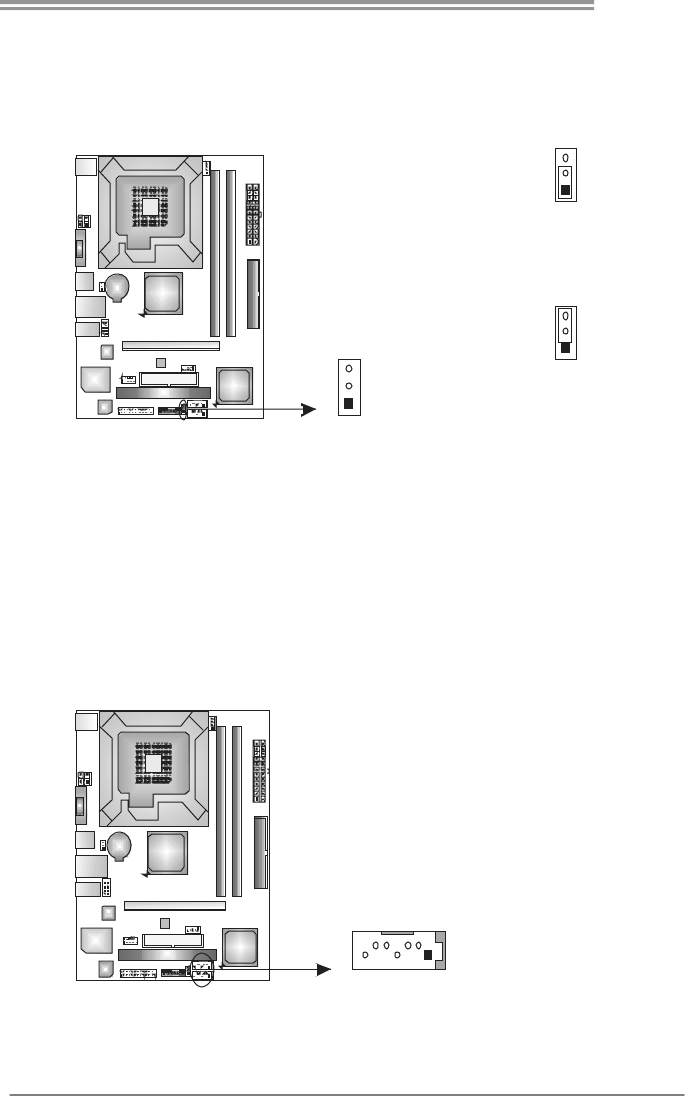

JUSBV1: Power Source Header for USB Ports

Pin 1-2 Close:

+5V for USB ports at JUSB2/JRJ45USB1.

Pin 2-3 Close:

+5V STB for USB ports at JUSB2/JRJ45USB1.

Pin 1-2 close

Pin 2-3 close

JCOM2: Serial port Connector (Optional)

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

G31D-M7

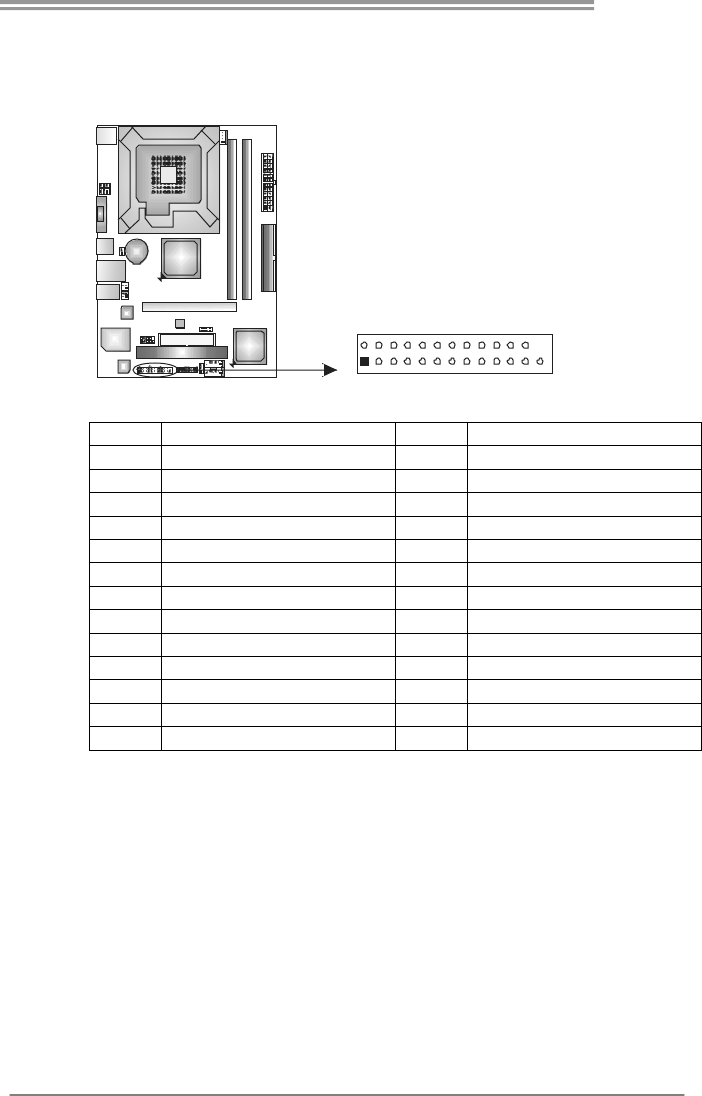

JPRNT1: Printer Port Connector

This header allows you to connector printer on the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground

2 -ALF 15 Data 6

3 Data 0 16 Ground

4 -Error 17 Data 7

5 Data 1 18 Ground

6 -Init 19 -ACK

7 Data 2 20 Ground

8 -Scltin 21 Busy

9 Data 3 22 Ground

10 Ground 23 PE

11 Data 4 24 Ground

12 Ground 25 SCLT

13 Data 5 26 Key

Motherboard Manual

CHAPTER 4: USEFUL HELP

4.1 DRIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup

Driver CD into your optical drive and install the driver for better system

performance.

You will see the following window after you insert the CD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver CD, please use file browser to

locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will

list the compatible driver for your motherboard and operating system.

Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide

will list the software available for your system, click on each software title

to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver

CD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version

of Acrobat Reader software from

http://www.adobe.com/products/acrobat/readstep2.html

G31D-M7

4.2 SOFTWARE

Installing Software

1. Insert the Setup CD to the optical drive. The drivers installation program

would appear if the Autorun function has been enabled.

2. Select Software Installation, and then click on the respective software

title.

3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process, you will see the software icon “eHOT Line” /

“BIOS Update” appears on the desktop. Double-click the icon to launch the

utility.

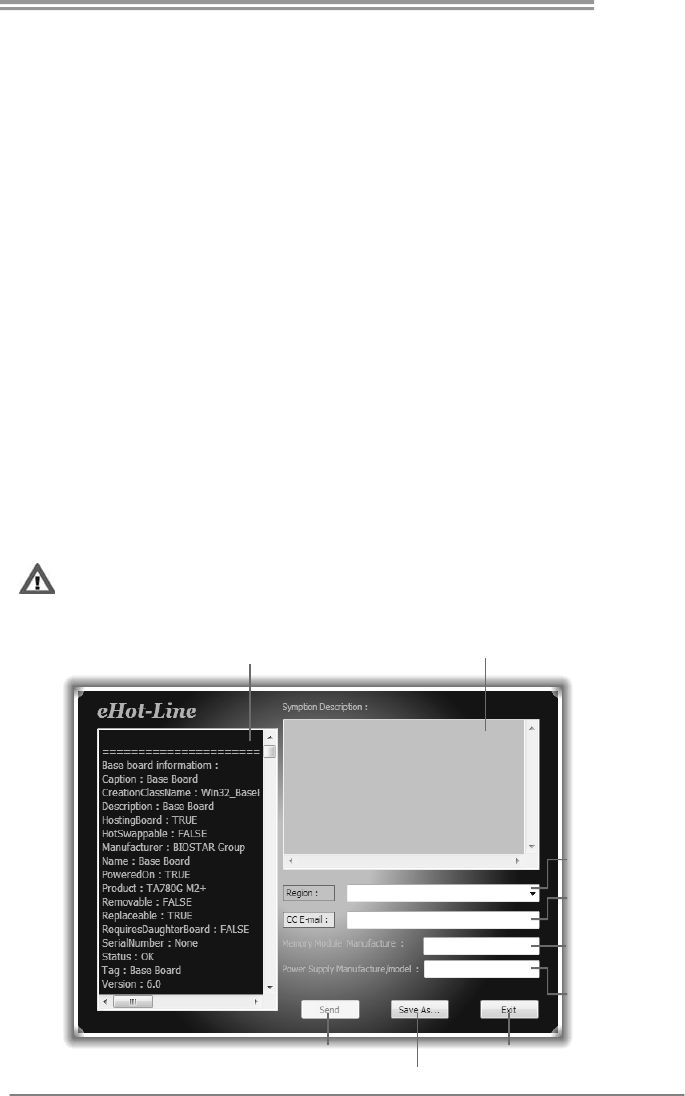

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our

Tech-Support system. This utility will collect the system information which is

useful for analyzing the problem you may have encountered, and then send

these information to our tech-support department to help you fix the problem.

Before you use this utility, please set Outlook Express as your default e-mail client application program.

This block will show

the information which

would be collected in

the mail.

Provide the e-mail

address that you would

like to send the copy to.

Provide the name of

the po wer su ppl y

manufacturer and the

model no.

Sen d t he mai l out .

Save thes e in for ma tion to a .txt fil

Exit this dialog.

Select your area or

the area close to you.

Pr ov id e the na me of

the memory module

manufacturer.

Describe condition

of your system.

rep r es ents impo r ta nt

information that you

must provide. Without

this information, you may

not be able to send out

the mail.

Motherboard Manual

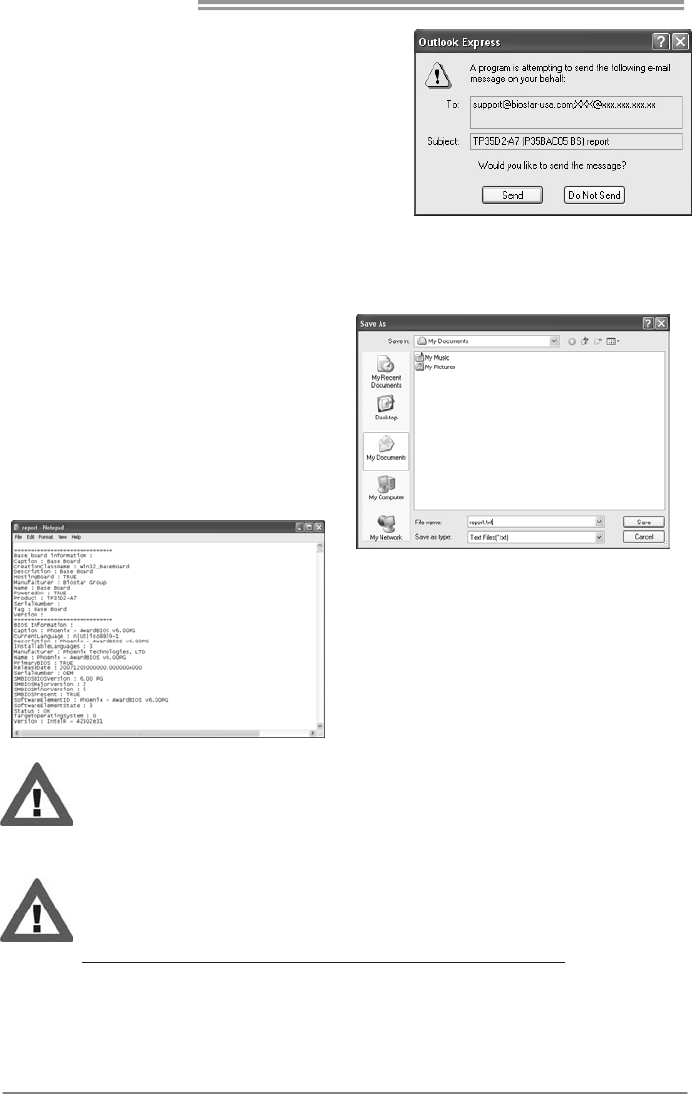

After filling up this information, click “Send”

to send the mail out. A warning dialog would

appear asking for your confirmation; click

“Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you

will see a saving dialog appears asking you to enter file name.

Enter the file name and then click

“Save”. Your system information

will be saved to a .txt file.

Open the saved .txt file, you will see

your system information including

motherboard/BIOS/CPU/video/

device/OS information. This

information is also concluded in the

sent mail.

We will not share customer’s data with any other third parties,

so please feel free to provide your system information while using

eHot-Line service.

If you are not using Outlook Express as your default e-mail client

application, you may need to save the system information to a .txt file

and send the file to our tech support with other e-mail application.

Go to the following web

http://www.biostar.com.tw/app/en-us/about/contact.php for getting

our contact information.

G31D-M7

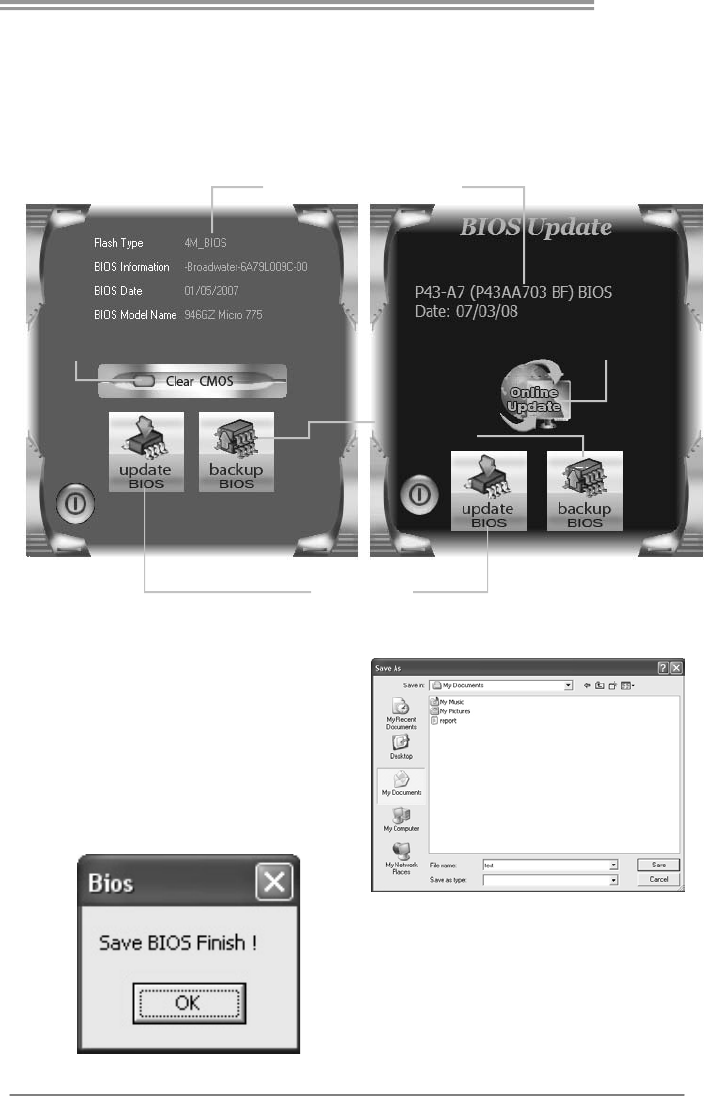

BIOS Update

BIOS Update is a convenient utility which allows you to update your

motherboard BIOS under Windows system.

Update BIOS

with a BIOS file

Clear CMOS function

(On ly for AWARD BIOS)

Show current BIOS information

Save current BIOS

to a .bin file

AWARD BIOS AMI BIOS

Online Update function

(Only for AMI BIOS)

Once click on this button, the saving

dialog will show. Choose the

position to save file and enter file

name. (We recommend that the file

name should be English/number

and no longer than 7 characters.)

Then click Save.

After the saving process, finish

dialog will show. Click on OK to

complete the BIOS Backup

procedure.

Motherboard Manual

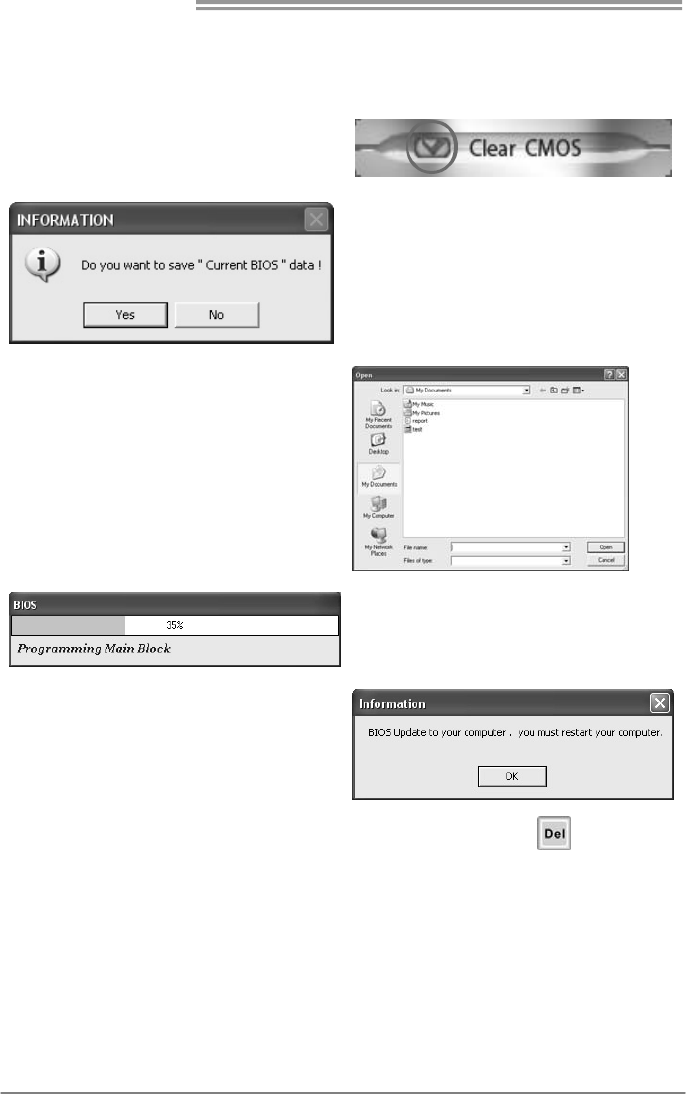

Before doing this, please download the proper BIOS file from the website.

For AWARD BIOS, update BIOS procedure

should be run with Clear CMOS function, so

please check on Clear CMOS first.

Then click Update BIOS button, a

dialog will show for asking you backup

current BIOS. Click Yes for BIOS

backup and refer to the Backup BIOS

procedure; or click No to skip this

procedure.

After the BIOS Backup procedure, the

open dialog will show for requesting the

BIOS file which is going to be updated.

Please choose the proper BIOS file for

updating, then click on Open.

The utility will update BIOS with the

proper BIOS file, and this process may

take minutes. Please do not open any

other applications during this process.

After the BIOS Update process, click on

OK to restart the system.

While the system boots up and the full screen logo shows, press <Delete>

key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and

Exit Setup to exit BIOS setup. BIOS Update is completed.

G31D-M7

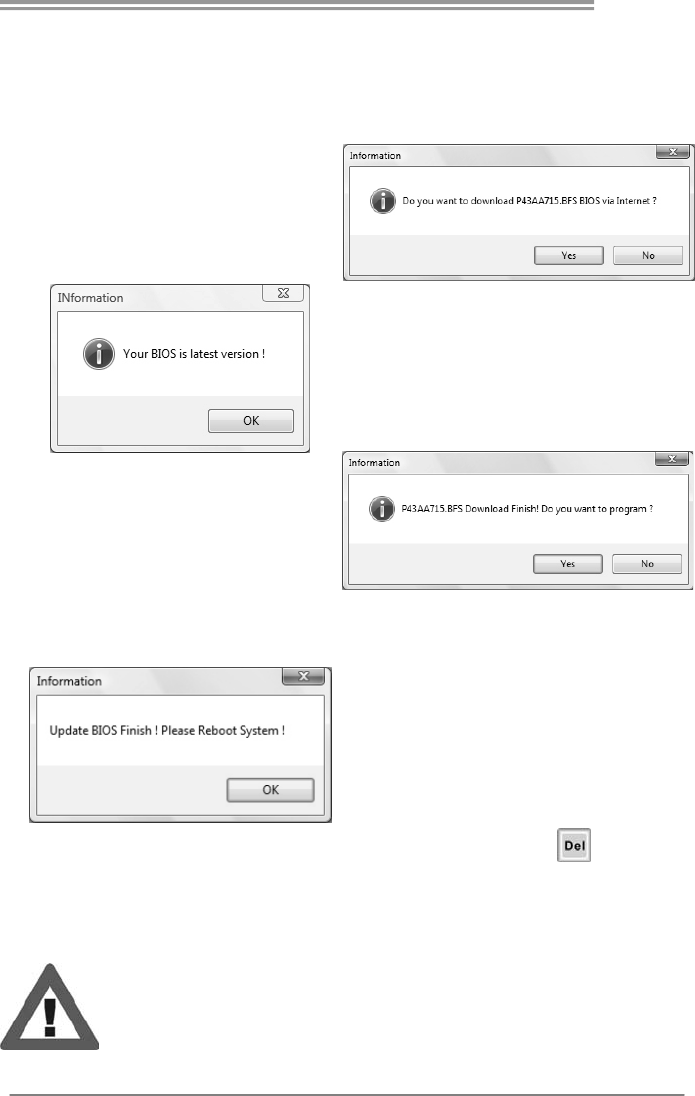

<Online Update> (for AMI BIOS only)

Automatically download and update the latest BIOS via internet; make sure

that the computer is connected to the internet before using this function.

After clicking on the Online Update

button, the utility will search for the

latest BIOS from internet. If there is

a new BIOS version, the utility will

ask you to download it. Click Ye s to

proceed.

If there is no other newer BIOS

version, the utility will also tell you that

your BIOS has been the latest version.

Download completes; the utility will

ask you to program (update) the

BIOS. Click Yes to proceed.

The programming procedure may take minutes, please do not make any

operation during the programming process.

After the updating process, the utility will

ask you to reboot the system. Click OK

to reboot.

While the system boots up and the full screen logo shows, press <Delete>

key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and

Exit Setup to exit BIOS setup. Online Update is completed.

All the information and content above about the T-Series software are subject to be

changed without notice. For better performance, the software is being continuously

updated. The information and pictures described above are for your reference only.

The actual information and settings on board may be slightly different from this manual.

Motherboard Manual

4.3 EXTRA INFORMATION

CPU Overheated

If the system shutdown automatically after power on system for

seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown

automatically to avoid a damage of the CPU, and the system may not

power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection

function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.

(See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

G31D-M7

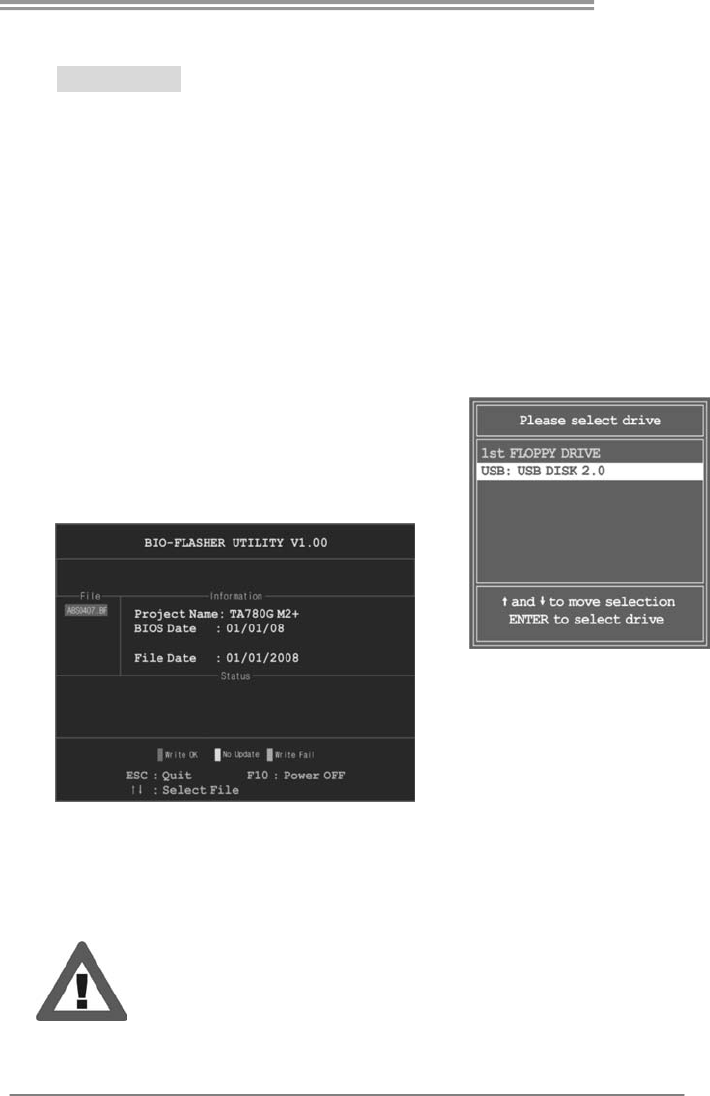

BIO-Flasher

BIO-Flasher is a BIOS flashing utility providing you an easy and simple way to

update your BIOS via USB pen drive or floppy disk.

The BIO-Flasher is built in the BIOS chip. To enter the utility, press <F12>

during the Power-On Self Tests (POST) procedure while booting up.

Updating BIOS with BIO-Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, save the BIOS file into a USB pen drive or a floppy disk.

3. Insert the USB pen drive or the floppy disk that contains the BIOS file to the

USB port or the floppy disk drive.

4. Power on or reset the computer and then

press <F12> during the POST process.

A select dialog as the picture on the right

appears.

Select the device contains the BIOS file and

press <Enter> to enter the utility.

5. The utility will show the BIOS

files and their respective

information. Select the proper

BIOS file and press <Enter>

then <Y> to perform the BIOS

update process.

6. After the update process, the utility will ask you to reboot the system.

Press <Y> to proceed. BIOS update completes.

z This utility only allows storage device with FAT32/16 format and single

partition.

z Shutting down or resetting the system while updating the BIOS will lead to

system boot failure.

Motherboard Manual

4.4 AMI BIOS BEEP CODE

Boot Block Beep Codes

Number of Beeps Description

1 No media present. (Insert diskette in floppy drive A:)

2 “AMIBOOT.ROM” file not found in root directory of diskette in

3 Insert next diskette if multiple diskettes are used for recovery

4 Flash Programming successful

5 File read error

7 No Flash EPROM detected

10 Flash Erase error

11 Flash Program error

12 “AMIBOOT.ROM” file size error

13 BIOS ROM image mismatch (file layout does not match

image present in flash device)

POST BIOS Beep Codes

Number of Beeps Description

1 Memory refresh timer error

3 Base memory read/write test error

6 Keyboard controller BAT command failed

7 General exception error (processor exception interrupt error)

8 Display memory error (system video adapter)

Troubleshooting POST BIOS Beep Codes

Number of Beeps Troubleshooting Action

1, 3 Reseat the memory, or replace with known good modules.

6, 7

Fatal error indicating a serious problem with the system.

Consult your system manufacturer. Before declaring the

motherboard beyond all hope, eliminate the possibility of

interference by a malfunctioning add-in card. Remove all

expansion cards except the video adapter.

z If beep codes are generated when all other expansion

cards are absent, consult your system manufacturer’s

technical support.

z If beep codes are not generated when all other expansion

cards are absent, one of the add-in cards is causing the

malfunction. Insert the cards back into the system one at a

time until the problem happens again. This will reveal the

malfunctioning card.

If the system video adapter is an add-in card, replace or

reseat the

video adapter. If the video adapter is an integrated part of the

system board, the board may be faulty.

G31D-M7

4.5 TROUBLESHOOTING

Probable Solution

1. No power to the system at all

Power light don’t illuminate, fan

inside power supply does not turn

on.

2. Indicator light on keyboard does

not turn on.

1. Make sure power cable is

securely plugged in.

2. Replace cable.

3. Contact technical support.

System inoperative. Keyboard lights

are on, power indicator lights are lit,

and hard drive is spinning.

Using even pressure on both ends of

the DIMM, press down firmly until the

module snaps into place.

System does not boot from hard disk

drive, can be booted from optical drive.

1. Check cable running from disk to

disk controller board. Make sure

both ends are securely plugged

in; check the drive type in the

standard CMOS setup.

2. Backing up the hard drive is

extremely important. All hard

disks are capable of breaking

down at any time.

System only boots from optical drive.

Hard disk can be read and applications

can be used but booting from hard disk

is impossible.

1. Back up data and applications

files.

2. Reformat the hard drive.

Re-install applications and data

using backup disks.

Screen message says “Invalid

Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure

correct information is in setup.

Cannot boot system after installing

second hard drive.

1. Set master/slave jumpers

correctly.

2. Run SETUP program and select

correct drive types. Call the drive

manufacturers for compatibility

with other drives.

Motherboard Manual

APPENDIX: SPEC IN OTHER LANGUAGES

GERMAN

Spezifikationen

CPU

LGA 775

Intel Core2Duo / Pentium Dual-Core /

Celeron Dual-Core / Celeron 4xx

Prozessoren

(Maximales Watt: 65W)

Unterstützt Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el Archit ecture-64 /

Extended Memory 64 Technology / Virtualization

Technology

FSB 800 / 1066 / 1333 MHz

Chipsatz

Intel G31

Intel ICH7

Super E/A

ITE 8712F

Bietet die häufig verwendeten alten Sup er

E/A-Funktionen.

Low Pin Count-Schnittstelle

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzahl-Controller/-Überwachung

"Smart Guardian"-Funktion von ITE

Arbeitsspeich

DDR2 DIMM-Steckplätze x 2

Jeder DIMM unterstützt 256MB / 512MB /

1GB / 2GB DDR2.

Max. 4GB Arbeitsspeicher

Dual-Kanal DDR2 Speichermodul

Unterstützt DDR2 800/667

registrierte DIMMs. ECC DIMMs werden nicht

unterstützt.

Grafik GMA 3100 Max. 256MB gemeinsam benutzter Videospeicher

IDE Integ r iert er IDE-Controller

Ultra DMA 33 / 66 / 100 Bus Master-Modus

Unterstützt PIO-Modus 0~4,

SATA Integrierter Serial ATA-Controller

Datentransferrate bis zu 3.0Gb/s

Konform mit der SATA-Spezifikation Version 2.0.

LAN Realtek RTL 8102EL

10 / 100 Mb/s Auto-Negotiation

Halb-/ Vollduplex-Funktion

Audio-Unters

tützung

ALC662

Unterstützt High-Definition Audio

5.1-Kanal-Audioausgabe

G31D-M7

Spezifikationen

PCI-Steckplatz x1

Steckplätze

PCI Express x16 Steckplatz x1

Diskettenlaufwerkanschluss x1 Jeder Anschluss unterstützt 2 Diskettenlaufwerke

Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss

Serieller Anschluss (fakultativ) x1

IDE-Anschluss x1 Jeder Anschluss unterstützt 2 IDE-Laufwerke

SATA-Anschluss x4 Jeder Anschluss unterstützt 1 SATA-Laufwerk

Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen

Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion

CPU-Lüfter-Sockel x1

CPU-Lüfterstromversorgungsanschluss (mit Smart

Fan-Fun ktion )

"CMOS löschen"-Sockel x1

USB-Anschluss x2

Jeder Anschluss unterstützt 2

Fronttafel-USB-Anschlüsse

Stromanschluss (24-polig) x1

Onboard-Ans

chluss

Stromansch luss (4-polig ) x1

Rückseiten-E

PS/2-Tastatur x1

PS/2- Maus x1

VGA-Anschluss x1

LAN-Anschluss x1

USB-Anschluss x4

Audioanschluss x3

Platinengröße

170 mm (B) X 225 mm (L)

OS-Unterstüt

zung

Windows 2000 / XP / VISTA 32/ VISTA 64

Biostar behält sich das Recht vor, ohne Ankündigung

die Unterstützung für ein Betriebssystem

hinzuzufügen oder zu entfernen.

Motherboard Manual

FRENCH

SPEC

LGA 775

Processeurs Intel Core2Duo /Pentium

Dual-Core / Celeron Dual-Core / Celeron

4xx (Watt max imum : 65W )

Prend en charge les technologies Hyper-Threading /

d'exécut ion de bit de désactivation / Intel SpeedStep®

optimisée/ d' arch itecture Int el 64 / de mémo ire

étendue 64 / de virtualisat ion

Bus frontal 800 / 1066 / 1333 MHz

Chipset Intel G31

Intel ICH7

Super E/S

ITE 8712F

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Inte rface à f aib le co mpte de b roches

Initiatives de contrôle environnementales,

Mon iteur d e mat ér iel

Contrôleur /moniteur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

Mémoire

principale

Fentes DDR2 DIMM x 2

Chaque D IMM prend en charge des DDR2

de 256Mo / 512Mo / 1Go / 2Go

Capacité mémo ire max imale de 4Go

Module de mémo ire DDR2 à mod e à doub le vo ie

Prend en charge la DDR2 800/667

Les DIMM à registres et DIMM avec code correcteurs

d'erreurs ne sont pas prises en charge

Graphiques GMA 3100 Mémoire vidéo partagée maximale de 256 Mo

IDE Contrôleur IDE intégré Mode principale de Bus Ultra DMA 33 / 66 / 100

Prend en charge le mode PIO 0~4,

SATA

Contrôleur Serial ATA

int égr é

Taux de transfert jusqu'à 3.0Go/s.

Conforme à la spécif icat ion SATA Vers ion 2.0

LAN Realtek RTL 8102EL 10 / 100 Mb/s négociation automatique

Half / Full duplex capability

Prise en

charge

audio HD

ALC662 Prise en charge de l'audio haut e définition

Sortie audio à 5.1 vo ies

Fente PCI x1

Fentes Fente PCI Express x16 x1

Connecteur de disquette x1 Chaque connector prend en charg e 2 lecteurs de

disquettes

Connecteur de Port d'imprimante x1 Chaque connector prend en charge 1 Port d'imprimante

Port série (optionnel) x1

Connecteur

embarqué

Connecteur IDE x1 Chaque connecteur prend en charge 2 périphériques

IDE

G31D-M7

SPEC

Connecteur SATA x4 Chaque connecteur prend en charge 1 périphérique

SATA

Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant

Connecteur Audio du panneau avant x1 Prend en charge la fonction audio du panneau avant

Embase de ventilateur UC x1 Alimentation électrique du ventilateur UC (avec fonction

de ventilateur intelligent)

Embase d'effacement CMOS x1

Connecteur USB x2 Chaque connecteur prend en charge 2 ports USB de

panneau avant

Connecteur d'alimentation x1

(24 broches)

Connecteur d'alimentation x1

(4 broches)

E/S du

panneau

arrière

Clavier PS/2 x1

Souris PS/2 x1

Port VGA x1

Port LAN x1

Port USB x4

Fiche audio x3

Dimensions

de la carte 170 mm (l) X 225 mm (H)

Support SE Windows 2000 / XP / VISTA 32/ VISTA 64

Biostar se réserve le droit d'ajouter ou de supprimer le

support de SE avec ou sans préavis.

Motherboard Manual

ITALIAN

SPECIFICA

CPU

LGA 775

Processore Intel Core2Duo /Pentium

Dual-Core / Celeron Dual-Core /

Celeron 4xx

(Watt massimo: 65W)

Supporto di Hyper-Threading / Execute Disable

Bit / Enhanced Intel SpeedStep® / Architettura

Intel 64 / Tecnologia Extended Memory 64 /

Tecnologia Virtualization

FSB 800 / 1066 / 1333 MHz

Chipset

Intel G31

Intel ICH7

Super I/O

ITE 8712F

Fornisce le funz ionalità legacy Super

I/O usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Controller / Monitoraggio velocità ventolina

Funzione "Smart Guardian" di ITE

Memoria

principale

Alloggi DIMM DDR2 x 2

Ciascun DIMM supporta DDR2 256MB

/ 512MB / 1GB / 2GB

Capacità massima della memoria 4GB

Modulo di memoria DDR2 a canale doppio

Supporto di DDR2 800/667

DIMM registrati e DIMM ECC non sono supportati

Grafica GMA 3100 La memoria video condivisa massima è di 256MB

IDE Controller IDE integrato

Modalità Bus Master Ultra DMA 33 / 66 / 100

Supporto modalità PIO Mode 0-4

SATA Controller Serial ATA integrato

Velocità di trasferimento dei dati fino a 3.0Gb/s.

Compatibile s pecifiche SATA Versione 2.0.

LAN Realtek RTL 8102EL

Negoziazione automatica 10 / 100 Mb/s

Capacità Half / Full Duplex

Supporto

audio HD

ALC662

Supporto audio High-Definition (HD)

Uscita audio 5.1 canali

Alloggio PC I x1

Alloggi

Alloggio PCI Express x16 x1

Connettore floppy x1 Ciascun connettore supporta 2 unità Floppy Connettori

su scheda Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante

G31D-M7

SPECIFICA

Porta seriale (faco ltativo) x1

Connettore IDE x1 Ciascun connettore supporta 2 unità IDE

Connettore SATA x4 Ciascun connettore supporta 1 unità SATA

Connettore pannello frontale x 1 Supporta i servizi del pannello frontale

Connettore audio frontale x1 Supporta la funzione audio pannello frontale

Collettore ventolina C PU x 1

Alimentazione ventolina CPU (con funzione Smart

Fan)

Collettore cancellaz ione CMOS x1

Connettore USB x1

Ciascun connettore supporta 2 porte USB

pannello frontale

Connettore alimentazione x1

(24 pin)

Connettore alimentazione x1

(4 pin)

I/O

pannello

posteriore

Tas t ier a PS /2 x 1

Mouse PS/2 x1

Porta VGA x1

Porta LAN x1

Porta USB x4

Connettore audio x3

Dimension

i scheda

170 mm (larghezza) x 225 mm

(altezza)

Sistemi

operativi

supportati

Windows 2000 / XP / VISTA 32/ VISTA

Biostar si riserva il diritto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

Motherboard Manual

SPANISH

Especificación

CPU

LGA 775

Procesador Intel Core2Duo /Pentium

Dual-Core / Celeron Dual-Core / Celeron

4xx (Vatio máx imo : 95W )

Admite Hyper-Threading / Bit de deshabilitación de

ejecución / Intel SpeedStep® Mejorado / Intel

Architecture-64 / Tecnología Extended Memory 64 /

Tecnología de virtualización

FSB 800 / 1066 / 1333 MHz

Conjunto de

chips

Intel G31

Intel ICH7

Súper E/S

ITE 8712F

Le ofrece las funcionalidades heredadas de

uso más común Súper E /S.

Interfaz de cuenta Low Pin

In iciat ivas de control de entorno,

Monitor hardware

Controlador/monitor de velocidad de ventilador

Función "Guardia inteligente" de ITE

Memoria

principal

Ranuras DIMM DDR2 x 2

Cada DIMM admite DDR de 256MB /

512MB / 1GB / 2GB

Capacidad máxima de memoria de 4GB

Módulo de memoria DDR2 de canal Doble

Admite DDR2 de 800/667

No admite DIMM registrados o DIMM compatibles con

ECC

Gráficos GMA 3100 Memoria máxima de vídeo compartida de 256MB

IDE Controlador IDE integrado

Modo bus maestro Ultra DMA 33 / 66 / 100

Soporte los Modos PIO 0~4,

SATA Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3.0 Gb/s.

Compat ib le con la versión SATA 2.0.

Red Local Realtek RTL 8102EL

Negociación de 10 / 100 Mb/s

Funciones Half / Full dúplex

Soporte de

sonido HD

ALC662

Soporte de sonido de Alta Definición

Salida de sonido de 5.1 canales

Ranura PCI X1

Ranuras

Ranura PCI Express x16 X1

Conector disco flexible X1 Cada conector soporta 2 unidades de disco flexible

Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora

Conectores

en placa

Puerto serie (op cional) X1

G31D-M7

Especificación

Conector IDE X1 Cada conector soporta 2 dispositivos IDE

Conector SATA X4 Cada conector soporta 1 dispositivos SATA

Conector de p anel frontal X1 Soporta instalaciones en el p anel frontal

Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal

Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con

función Smart Fan)

Cabecera de borrado de CMOS X1

Conector USB X1 Cada conector soporta 2 puertos USB frontales

Conector de alimentación X1

(24 patillas)

Conector de alimentación X1

(4 patillas)

Panel

trasero de

E/S

Tec l ado PS /2 X 1

Ratón PS/2 X1

Puerto VGA X1

Puerto de red local X1

Puerto USB X4

Conector de sonido X3

Ta maño d e

la placa

170 mm. (A) X 225 Mm. (H)

Soporte de

sistema

operativo

Windows 2000 / XP / VISTA 32/ VISTA 64

Biostar se reserva el derecho de añadir o retirar el

soporte de cualquier SO con o sin aviso previo.

Motherboard Manual

PORTUGUESE

ESPECIFICAÇÕES

CPU

LGA 775

Processador Intel Core2Duo /Pentium

Dual-Core / Celeron Dual-Core / Celeron

4xx (Watt máx imo: 95W)

Suporta as tecnologias Hyper-Threading / Execut e

Disable B it / Enhanced Intel SpeedStep® / Int el

Arquitecture -64 / Extended Memory 64 / Virtualization

FSB 800 / 1066 / 1333 MHz

Chipset Intel G31

Intel ICH7

Especificaçã

o Super I/O

ITE 8712F

Proporciona as funcionalidades mais

utilizadas em termos da especificação

Super I/O.

Interface LPC (Low Pin Count).

In iciat ivas para contro lo do amb iente

Monitorização do hardware

Controlador/Monitor da velocidade da ventoinha

Função "S mart Guardian" d a ITE

Memória

principal

Ranhuras DIMM DDR2 x 2

Cada módulo DIMM suporta uma

memória DDR2 de 256 MB / 512 MB / 1GB

/ 2GB

Capacidad e máx ima de memória:4 GB

Módulo de memória DDR2 de canal duplo

Suporta módulos DDR2 800/667

Os módulos DIMM registados e os DIMM ECC não são

suportados

Placa

gráfica

GMA 3100 Memória de vídeo máxima partilhada: 256 MB

IDE Controlador IDE integrado Modo Bus master Ultra DMA 33 / 66 / 100

Suporta o modo PIO 0~4,

SATA Controlador Serial ATA integrado Velocidades de transmissão de dados até 3.0 Gb/s.

Compat ibilidade com a especificação SATA versão 2.0.

LAN Realtek RTL 8102EL Auto negociação de 10 / 100 Mb/s

Capacidade semi/full-duplex

Suporte

para áudio

de alta

definição

ALC662 Suporta a especificação High-Definition Audio

Saída de áudio de 5.1 canais

Ranhura PCI x1

Ranhuras

Ranhura PCI Express x16 x1

G31D-M7

ESPECIFICAÇÕES

Conector da unidade de disquetes x1 Cada conector suporta 2 unidades de disquetes

Conector da para impressora x1 Cada conector suporta 1 Porta para impressora

Porta sér ie (opcion al) x1

Conector IDE x1 Cada conector suporta 2 dispositivos IDE

Conector SATA x4 Cada conector suporta 1 dispositivo SATA

Conector do painel frontal x1 Para suporte de várias funções no painel frontal

Conector de áudio frontal x1 Suporta a função de áudio no painel frontal

Conector da ventoinha da CPU x1 Alimentação da ventoinha da CPU (co m a função Smart

Fan )

Conector para limpeza do CMOS x1

Conector USB x1 Cada conector suporta 2 portas USB no painel frontal

Conector de alimentação x1

(24 pinos)

Conectores

na placa

Conector de alimentação x1

(4 p inos)

Entradas/S

aídas no

painel

traseiro

Tec l ado PS /2 x 1

Rato PS/2 x1

Porta VGA x1

Porta LAN x1

Porta USB x4

Tomada de áudio x3

Tamanho

da placa

170 mm (L) X 225 mm (A)

Sistemas

operativos

suportados

Windows 2000 / XP / VISTA 32/ VISTA 64

A Biostar reserva-se o direito de adicionar ou remover

suporte para qualquer sistema operativo com ou sem

av iso prévio.

Motherboard Manual

POLISH

SPEC

Procesor

LGA 775

Procesor Intel Core2Duo /Pentium

Dual-Core / Celeron Dual-Core / Celeron

4xx (Maksymalny Watt: 95W)

Obsługa Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el Archit ecture-64 /

Extended Memory 64 Technology / Virtualization

Technology

FSB 800 / 1066 / 1333 MHz

Chipset

Intel G31

Intel ICH7

Pamięć

główna

Gniazda DDR2 DIMM x 2

Każde gniazdo DIMM obsługuje moduły

256MB / 512MB / 1GB / 2GB

Maks. wielkość pamięci 4GB

Moduł pamięci DDR2 z trybem podwójnego kanału

Obsługa DDR2 800/667

Brak obsługi Registered DIMM oraz ECC DIMM

Grafika GMA 3100

Maks. wielkość współdz ielonej pamięci video wynosi

256MB

Super I/O

ITE 8712F

Zapewnia najbardziej powszechne funkcje

Super I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Mon itor H/W

Kontroler/Monitor prędkości wentylatora

Funkcja ITE "Smart Gu ard ian"

IDE Zintegrowany kontroler IDE

Ultra DMA 33 / 66 / 100 Tryb Bus Master

obsługa PIO tryb 0~4,

SATA Zintegrowany kontroler Serial ATA

Transfer danych do 3.0 Gb/s.

Zgodność ze specyfikacją SATA w wersj i 2.0.

LAN Realtek RTL 8102EL

10 / 100 Mb/s z automatyczną negocjacją szybkości

Działanie w tryb ie połowicznego / pełnego dupleksu

Obsługa

audio HD

ALC662

Obsługa High-Defin ition Aud io

5.1 kanałowe wyjście audio

Gniazdo PCI x1

Gniazda

Gniazdo PCI Express x16 x1

Złącze napędu dyskietek x1 Każde złącze obs ługuje 2 napędy dyskietek

Złącze Port drukarki x1 Każde złącze obs ługuje 1 Port drukarki

Złącza

wbudowane

Port szeregowy (Dowolny) x1

G31D-M7

SPEC

Złącze IDE x1 Każde złącze obs ługuje 2 urządzenia IDE

Złącze SATA x4 Każde złącze obs ługuje 1 urządzenie SATA

Złącze panela przedniego x1 Obsługa elementów panela przedniego

Przednie złącze aud io x1 Obsługa funkcji audio na panelu przednim

Złącze główkowe wentylatora

procesora x1

Zasilanie wentylatora procesora (z funkcją Smart Fan)

Złącze główkowe kasowania CMOS x1

Złącze USB x1

Każde złącze obs ługuje 2 porty USB na panelu

przednim

Złącze zasilania (24 pinowe) x1

Złącze zas ilania (4 pino we) x1

Back Panel

I/O

Klawiatura PS/2 x1

Mysz PS /2 x1

Port VGA x1

Port LAN x1

Port USB x4

Gniazdo audio x3

Wymiary

płyty

170 mm (S) X 225 mm (W)

Obsluga

systemu

operacyjne

Windows 2000 / XP / VISTA 32/ VISTA 64

Biostar zastrzega sobie prawo dodawania lub

odwoływania obsług i dowo ln ego sys temu

operacyjnego bez powiadomienia.

Motherboard Manual

RUSSIAN

СПЕЦ

CPU

(центральн

ый

процессор)

LGA 775

Процессор Intel Core2Duo /Pentium

Dual-Core / Celeron Dual-Core / Celeron

4xx (Максимальный ватт: 95W)

Поддержка технологий Hyper-Threading / Execute

Disable B it / Enhanced Intel SpeedStep® / Int el

Architecture-64 / Extended Memory 64 Technology /

технологии виртуализация

FSB 800 / 1066 / 1333 МГ ц

Набор

микросхем

Intel G31

Intel ICH7

Основная

память

Слоты DDR2 DIMM x 2

Каждый модуль DIMM поддерживает

256 МБ / 512МБ / 1ГБ / 2ГБ DDR2

Максимальная ёмкость памяти 4ГБ

Модуль памяти с двухканальным режимом DDR2

Поддержка DDR2 800/667

Не поддерживает зарегистрированные модули

DIMM and ECC DIMM

Графика GMA 3100 Максимальная совместно используемая вид ео

память составляет 256 МБ

Super I/O

ITE 8712F

Обеспечивает наиболее используемые

действующие фун кц ио нальны е

возможности Super I/O.

Интерфейс с низким количеством

выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Регул ятор скорости вентилятора/ монитор

Функция ITE "Smart Guard ian" (Интеллектуальная

защита)

IDE Встроенное устройство упр авления

встроенными интерфейсами устройств

Режим "хозяина" шины Ultra DMA 33 / 66 / 100

Поддержка режима PIO 0~4,

SATA Встроенное последовательное

устройство управления ATA

скорость передачи данных до 3.0 гигабит/с.

Соответствие спецификации SATA версия 2.0.

Локальная

сеть Realtek RTL 8102EL Автоматическое согласование 10 / 100 Мб /с

Частичная / полная дуплексная способность

Звуко вая

поддержка

жесткого

диска

ALC662 Звуко вая поддержка High-Def in ition

5.1канальный звуковой выход

Слот PCI x1

Слоты Слот PCI Express x16 x1

Разъём НГ МД x1

Каждый разъём поддерживает 2 накопителя на

гибких магнитных дисках

Разъём Порт подключения

принтера x1

Каждый разъём поддерживает 1 Порт подключения

принтера

Встроенны

й разъём

Последовательный порт

(опционно) x1

G31D-M7

СПЕЦ

Разъём IDE x1 Каждый разъём поддерживает 2 встроенных

интерфейса накопителей

Разъём SATA x4 Каждый разъём поддерживает 1 устройство SATA

Разъём на лицевой панели x1 Поддержка устройств на лицевой панели

Входной звуковой разъём x1 Поддержка звуко вых функций на лицевой панели

Контактирующее приспособление

вентилятора центрального процессора

Источник питания для вентилятор а центрального

процессора (с фун кц ией интеллектуального

вентилятора)

Открытое контактирующее

приспособление CMOS x1

USB-разъём x1

Каждый разъём поддерживает 2 USB-порта на

лицевой панели

Разъем питания (24 вывод) x1

Разъем питания (4 вывод) x1

Задняя

панель

средств

ввода-выв

ода

Клавиатура PS/2 x1

Мышь PS/2 x1

Порт VGA x1

Порт LAN x1

USB-порт x4

Гнездо для подключения

наушнико в x3

Размер

панели 170 мм (Ш) X 225 мм (В)

Поддержка

OS Windows 2000 / XP / VISTA 32/ VISTA 64

Biostar сохраняет за собой право добавлять или

удалять средства обеспечения для OS с или без

предварительного уведомления.

Motherboard Manual

ARABIC

تﺎﻔﺻاﻮﻤﻟا

تﺎﻴﻨﻘﺗ ﻢﻋﺪﺗHyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el Archit ecture-64 /

Extended Memory 64 Technology / Virtualization

Technology

LGA 775

تﺎﺠﻟﺎﻌﻣIntel Core2Duo /Pentium Dual-Core

/ Celeron Dual-Core /

Celeron 4xx ﺑ ددﺮﺘ ی ﻰﻟإ ﻞﺼ

(طاو ىﻮﺼﻗ: 95و)

ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا

ﺔیﺰآﺮﻤﻟا

ددﺮﺗ 800 / 1066 / 1333 ﺰﺗﺮه ﺎﺠﻴﻣ

ﻞﻗﺎﻨﻟا ﻲﻣﺎﻣﻷا ﻲﺒﻥﺎﺠﻟا

Intel G31

Intel ICH7

ﺔﻋﻮﻤﺠﻣ ﺢﺋاﺮﺸﻟا

ةﺮآاذ ةﺪﺣوDDR2 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR2 تﺎﻌﺳ 667/800ﺖیﺎﺑ ﺎﺠﻴﻣ

ﻖﺋﺎﻗر ﻢﻋﺪﺗ ﻻ ةﺮآاﺬﻟا DIMM ﻊﻣ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠﺗو ECC

ﺔﺤﺘﻓDDR2 DIMM دﺪﻋ2

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺗ DDR2 ﺔﻌﺳ

256/512 و ﺖیﺎﺑ ﺎﺠﻴﻣ 2و ﺖیﺎﺑ 1 ﺎﺠﻴﺝﺖیﺎﺑ

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ4 ﺖیﺎﺑ ﺎﺠﻴﺝ

ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا

ﺔآﺮﺘﺸﻤﻟا ﻮیﺪﻴﻔﻟا ةﺮآاﺬﻟ ﺔﻌﺳ ﻰﺼﻗأ256ﺖیﺎﺑ ﺎﺠﻴﻣ

GMA 3100

ﺔﻗﺎﻄﺑ ﺳﺮ ﻟاتﺎﻣﻮ

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ

ﺔﻔﻴﻇو"Smart Gu ard ian" ﻦﻣ ITE

ITE 8712F

ﺔﻔﻴﻇو ﺮﻓﻮﺗSuper I/O ًﺎ ﻣ ا ﺪ ﺨ ﺘﺳا ﺮﺜآﻷا .

ﺗﻢﻋﺪ ﺔﻴﻨﻘﺗ Low Pin Count Interface

Super I/O

ﺔﻴﻨﻘﺘﺑ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100ﻲﺴﻴﺋر ﻊﺿو

ﻊﺿو ﻢﻋد PIO Mode 0~4

ﻢﻜﺤﺘﻣIDE ﻞﻣﺎﻜﺘﻣ ﺬﻔﻨﻣ IDE

ﻞﻘﻥ تﺎﻥﺎﻴﺒﻟا تﺎﻋﺮﺴﺑ ﻞﺼﺗ ﻰﻟإ 3.0 ﺖﺑﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.

ﺔﻘﺑﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.

ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ

SATA

ﻲﺋﺎﻘﻠﺗ ضوﺎﻔﺗ10/100 ﺖیﺎﺑ ﺎﺠﻴﻣ /ﺔﻴﻥﺎﺙ

ﻞﻣﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻣإ/ﻲﻔﺼﻨﻟا

Realtek RTL 8102EL

ﺔﻜﺒﺷ ﻴﻠ ﺧادﺔ

ﻦﻣ ﻒیﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗ

5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

ALC662

ﻢﻋد تﻮﺼﻝا ﻲﻝﺎﻋ

ﻒیﺮﻌﺘﻝا

G31D-M7

تﺎﻔﺻاﻮﻤﻟا

ﺔﺤﺘﻓPCI دﺪﻋ1

ﺔﺤﺘﻓx16 PCI Express دﺪﻋ1

تﺎﺤﺘﻔﻟا

ﺔﻥﺮﻤﻟا صاﺮﻗﻸﻟ ﻦﻴآﺮﺤﻣ ﻢﻋﺪی

ﺔﻥﺮﻣ صاﺮﻗأ كﺮﺤﻣ ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻌﺑﺎﻃ ﺬﻔﻨﻣ دﺪﻋ1

ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻣ(اﺔّیرﺎﻴﺘﺥ) دﺪﻋ1

ةﺰﻬﺝأ ﻦﻣ ﻦﻴﻨﺙا ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیIDE

ﺬﻔﻨﻣIDE دﺪﻋ1

ةﺰﻬﺝأ ﻦﻣ ﺪﺣاو ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیSATA

ﺬﻔﻨﻣSATA دﺪﻋ4

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪی

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪی

ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ ﺔﻔﻴﻇو ﻊﻣ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو Smart Fan

ﺔیﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1

ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1

ﻲﺘﺤﺘﻓ ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیUSBﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ

ﺬﻔﻨﻣUSB دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)24سﻮﺑد( دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1

ﺬﻓﺎﻨﻤﻝا ﻰﻠﻋ ﺢﻄﺳ

ﺔﺣﻮﻠﻝا

ﺢﻴﺗﺎﻔﻣ ﺔﺣﻮﻟPS/2 دﺪﻋ1

ﺎﻣسو PS/2 دﺪﻋ1

ﺬﻔﻨﻣVGA دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻓﺎﻨﻣUSB دﺪﻋ4

تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3

ﺬﻓﺎﻨﻣ ﻞﺧد/جﺮﺧ

ﺔﺣﻮﻠﻝا ﺔﻴﻔﻠﺨﻝا

170 ﻢﻣ)ضﺮﻋ (X 225 ﻢﻣ)عﺎﻔﺗرا( ﻢﺠﺣ ﺔﺣﻮﻠﻝا

ﻆﻔﺘﺤﺕ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓﺎﺿإ وأ ﺔﻝازإ ﻢﻋﺪﻝا يﻷ مﺎﻈﻥ ﻞﻴﻐﺸﺕ رﺎﻄﺧﺈﺏ وأ نوﺪﺏ

رﺎﻄﺧإ.

Windows 2000 / XP / VISTA 32/ VISTA 64

ﻢﻋد ﺔﻤﻈﻥأ ﻞﻴﻐﺸﺘﻝا

Motherboard Manual

JAPANESE

仕様

CPU

LGA 775

Intel Core2Duo / Pentium Dual-Core /

Celeron Dual-Core / Celeron 4xx

processor

(最高のワット: 95W)

Hyper-Thread ing / Execute Disable Bit / Enhanced Intel

SpeedStep® / Intel Architecture-64 / Extended

Memory 64 Technology / Virtualization Technologyをサ

ポートします

FSB 800 / 1066 / 1333 MHz

チップセット

Intel G31

Intel ICH7

メインメモリ

DDR2 DIMMスロット x 2

各DIMMは 256MB / 512MB / 1GB / 2GB

DDR2をサポート

最大メモリ容量4GB

デュアルチャンネルモードDDR2メモリモジュール

DDR2 800/667をサポート

登録済みDIMMとECC DIMMはサポートされません

グラフィック

ス

GMA 3100 最大の共有ビデオメモリは256MBです

Super I/O

ITE 8712F

もっとも一般に使用されるレガシーSuper I/O

機能を採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITEの「スマートガーディアン」機能

IDE 統合IDEコントローラ

Ultra DMA 33 / 66 / 100バスマスタモード

PIO Mode 0~4のサポート、

SATA 統合シリアルATA コントローラ最高3.0 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

LAN Realtek RTL 8102EL

10 / 100 Mb/秒のオートネゴシエーション

半/全二重機能

HDオーディ

オのサポート

ALC662 ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

G31D-M7

仕様

PCIスロット x1

スロット

PCI Express x16スロット x1

フロッピーコネクタ x1 各コネクタは2つのフロッピードライブをサポートします

プリンタポートコネクタ x1 各コネクタは1つのプリンタポートをサポートします

シリアルポート (任意) x1

IDE コネクタ x1 各コネクタは2つのIDE デバイスをサポートします

SATAコネクタ x4 各コネクタは1つのSATAデバイスをサポートします

フロントパネルコネクタ x1 フロントパネル機能をサポートします

フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします

CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)

CMOSクリアヘッダ x1

USBコネクタ x1

各コネクタは2つのフロントパネルUSBポートをサポートし

ます

電源コネクタ(24ピン) x1

オンボードコ

ネクタ

電源コネクタ(4ピン) x1

背面パネル

I/O

PS/2キーボード x1

PS/2マウス x1

VGAポート x1

LANポート x1

USBポート x4

オーディオジャック x3

ボードサイズ 170 mm (幅) X 225 mm (高さ)

OSサポート Windows 2000 / XP / VISTA 32/ VISTA 64

Biostarは事前のサポートなしにOSサポートを追加または削

除する権利を留保します。

2008/10/22

Biostar G31D M7 Owners Manual IG31G M7S_081022

Navigation menu

Versions of this User Manual:

Views

Navigation
