G41-M7 Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee that

interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents

here and specially disclaims any implied warranties of merchantability or fitness

for any purpose. Further the vendor reserves the right to revise this publication

and to make changes to the contents here without obligation to notify any party

beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and we

will not be responsible for any mistakes found in this user’s manual. All the brand

and product names are trademarks of their respective companies.

Dichiarazione di conformità

sintetica

Ai sensi dell’art. 2 comma 3 del D.M.

275 del 30/10/2002

Si dichiara che questo prodotto è

conforme alle normative vigenti e

soddisfa i requisiti essenziali richiesti

dalle direttive

2004/108/CE, 2006/95/CE e

1999/05/CE

quando ad esso applicabili

Short Declaration of conformity

We declare this product is complying

with the laws in force and meeting all

the essential requirements as specified

by the directives

2004/108/CE, 2006/95/CE and

1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction.......................................... 1

1.1 Before You Start ................................................................................1

1.2 Package Checklist ............................................................................1

1.3 Motherboard Specifications .............................................................2

1.4 Rear Panel Connectors....................................................................3

1.5 Motherboard Layout..........................................................................4

Chapter 2: Hardware Installation ........................... 5

2.1 Install Central Processing Unit (CPU)............................................5

2.2 Install a Heatsink ...............................................................................7

2.3 Connect Cooling Fans......................................................................8

2.4 Install System Memory.....................................................................9

2.5 Expansion Slots...............................................................................11

2.6 Jumper Setting ................................................................................13

2.7 Herders & Connectors....................................................................14

Chapter 3: BIOS & Software ................................. 19

3.1 BIOS Setup ......................................................................................19

3.2 BIOS Update....................................................................................19

3.3 Software............................................................................................24

Chapter 4: Useful Help ......................................... 27

4.1 Driver Installation.............................................................................27

4.2 Extra Information.............................................................................28

4.3 AMI BIOS Beep Code.....................................................................29

4.4 Troubleshooting...............................................................................30

Appendix: Specifications In Other Languages ...... 32

German .................................................................................................................32

French ...................................................................................................................34

Italian .....................................................................................................................36

Spanish..................................................................................................................38

Portuguese ...........................................................................................................40

Polish.....................................................................................................................42

Russian .................................................................................................................44

Arabic.....................................................................................................................46

Japanese...............................................................................................................48

G41-M7

CHAPTER 1: INTRODUCTION

1.1 Before You Start

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with sufficient

lighting.

 Always disconnect the computer from power outlet before

operation.

 Before you take the motherboard out from anti-static bag,

ground yourself properly by touching any safely grounded

appliance, or use grounded wrist strap to remove the static

charge.

 Avoid touching the components on motherboard or the rear

side of the board unless necessary. Hold the board on the

edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the case after

installation. Loose parts will cause short circuits which may

damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be 0 to

45 degrees Celsius.

 To avoid injury, be careful of:

Sharp pins on headers and connectors

Rough edges and sharp corners on the chassis

Damage to wires that could cause a short circuit

1.2 Package Checklist

; Serial ATA Cable x2

; Rear I/O Panel for ATX Case x1

; Installation Guide x1

; Fully Setup Driver DVD x1

Note: The package contents may be different due to the sales region or models in which it was sold.

For more information about the standard package in your region, please contact your dealer or sales

representative.

Motherboard Manual

1.3 Motherboard Specifications

SPEC

CPU

LGA 775

Intel Core2Duo / Core2Quad /

Pentium Dual-Core / Celeron Dual-Core /

Celeron 4xx processor

(Maximum Watt: 95W)

Supports Hyper-Threading / Execute Disable Bit / Enhanced

Intel SpeedStep® / Intel Architecture-64 / Extended Memory 64

Technology / Virtualization Technology

FSB Support 533 / 800 / 1066 / 1333 MHz , FSB533 only support DDR2-533

Chipset

Intel G41

Intel ICH7

Super I/O

ITE 8728F-BX

Provides the most commonly used legacy Super

I/O functionality.

Low Pin Count Interface

Environment Control initiatives,

Hardware Monitor Controller

Fan Speed Controller

ITE's "Smart Guardian" function

Main Memory

DIMM Slots x 2

Each DIMM supports 256MB / 512MB / 1GB /

2GB/ 4GB DDR2

Max Memory Capacity 8GB

Dual Channel Mode DDR2 memory module

Supports DDR2-533/ 800/1066(OC),

DDR2-533 only for FSB1066 / 533

Registered DIMM and ECC DIMM is not supported

Graphics GMA X4500 Max Shared Video Memory is 256MB

IDE Integrated IDE Controller

Ultra DMA 33 / 66 / 100 Bus Master Mode

supports PIO Mode 0~4

SATA 2 Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s.

SATA Version 2.0 specification compliant

LAN Realtek RTL 8105E

10 / 100 Mb/s auto negotiation

Half / Full duplex capability

Sound Codec ALC662

5.1 channels audio out

High Definition Audio

PCI slot x2 Supports PCI expansion cards

Slots

PCI Express x 16 slot x1 Supports PCI-E x16 expansion cards

Printer Port Connector x1 Each connector supports 1 Printer port

Serial port Connector x1 Connects to RS-232 Port

On Board

Connectors

IDE Connector x1 Each connector supports 2 IDE device

G41-M7

SPEC

SATA Connector x4 Each connector supports 1 SATA devices

Front Panel Connector x1 Supports front panel facilities

Front Audio Connector x1 Supports front panel audio function

CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)

System Fan Header x1 System Fan Power supply

Clear CMOS Header x1 Restore CMOS data to factory default

USB 2.0 Connector x2 Each connector supports 2 front panel USB ports

Power Connector (24pin) x1 Connects to Power supply

Power Connector (4pin) x1 Connects to Power supply

Back Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

VGA port x1

LAN port x1

USB 2.0 Port x4

Audio Jack x3

Connects to PS/2 Keyboard

Connects to PS/2 Mouse

Connect to D-SUB monitor

Connect to RJ-45 ethernet cable

Connect to USB devices

Provide Audio-In/Out and microphone connection

Board Size 182 (W) x 235 (L) mm

OS Support Windows 2000 / XP / Vista / 7 / 8

Biostar reserves the right to add or remove support for any OS

with or without notice

1.4 Rear Panel Connectors

Since the audio chip supports High Definition Audio Specification, the function of each audio

jack can be defined by software. The input / output function of each audio jack listed above

represents the default setting. However, when connecting external microphone to the audio port,

please use the Line In (blue) and Mic In (Pink) audio jack.

Motherboard Manual

1.5 Motherboard Layout

Note: ■ represents the 1st pin.

G41-M7

CHAPTER 2: HARDWARE INSTALLATION

2.1 Install Central Processing Unit (CPU)

Step 1: Locate the CPU socket on the motherboard

Note: Remove Pin Cap before installation, and make good preservation for future use. When

the CPU is removed, cover the Pin Cap on the empty socket to ensure pin legs won’t be

damaged.

Pin-Cap

Step 2: Pull the socket locking lever out from the socket and then raise the lever

up to a 90-degree angle.

Motherboard Manual

Step 3: Look for the triangular cut edge on socket, and the golden dot on CPU

should point forwards this triangular cut edge.

Step 3-1:

Step 3-2:

Step 4: Hold the CPU down firmly, and then lower the lever to locked position to

complete the installation.

Note: The CPU fits only in one correct orientation. Do not force the CPU into the socket

to prevent damaging the CPU.

G41-M7

2.2 Install a Heatsink

Step 1: Place the CPU fan assembly on top of the installed CPU and make sure

that the four fasteners match the motherboard holes. Orient the assembly

and make the fan cable is closest to the CPU fan connector.

Step 2: Press down two fasteners at one time in a diagonal sequence to secure

the CPU fan assembly in place. Ensure that all four fasteners are secured.

Note1: Do not forget to connect the CPU fan connector.

Note2: For proper installation, please kindly refer to the installation manual of your CPU

heatsink.

Motherboard Manual

2.3 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and

connector may be different due to the fan manufacturer. Connect the fan cable to

the connector while matching the black wire to pin#1.

CPU_FAN1: CPU Fan Header

Pin Assignment

1 Ground

2 Power

3 FAN RPM rate sense

4 Smart Fan Control

SYS_FAN1: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

Note: CPU_FAN1 & SYS_FAN1 support 4-pin and 3-pin head connectors. When connecting

with wires onto connectors, please note that the red wire is the positive and should be

connected to pin#2, and the black wire is Ground and should be connected to GND.

G41-M7

2.4 Install System Memory

A. DDR2 module

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM

on the slot such that the notch on the DIMM matches the break on the slot.

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining chip snap

back in place and the DIMM is properly seated.

Note: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Motherboard Manual

B. Memory Capacity

DIMM Socket

Location DDR2 Module Total Memory

Size

DDR2_A1 256MB/512MB/1GB/2GB/4GB

DDR2_B1 256MB/512MB/1GB/2GB/4GB Max is 8GB.

C. Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR2_A1 DDR2_B1

Disabled O X

Disabled X O

Enabled O O

(O means memory installed; X, not installed.)

Note1: The DRAM bus width of the memory module must be the same(x8 or x16)

Note2: DDR2-533 only for FSB 1066 / 533

G41-M7

2.5 Expansion Slots

PEX16_1: PCI-Express x16 Slot

- PCI-Express 1.0a compliant.

- Maximum theoretical realized bandwidth of 4GB/s simultaneously per

direction, for an aggregate of 8GB/s totally.

- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.

- 2X bandwidth over the traditional PCI architecture.

PCI1/PCI2: Peripheral Component Interconnect Slots

This motherboard is equipped with 2 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for expansion

cards. This PCI slot is designated as 32 bits.

Motherboard Manual

Install an Expansion Card

You can install your expansion card by following steps:

1. Read the related expansion card's instruction document before install the

expansion card into the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the

computer.

3. Place a card in the expansion slot and press down on the card until it is

completely seated in the slot.

4. Secure the card’s metal bracket to the chassis back panel with a screw.

5. Replace your computer's chassis cover.

6. Power on the computer, if necessary, change BIOS settings for the

expansion card.

7. Install related driver for the expansion card.

G41-M7

2.6 Jumper Setting

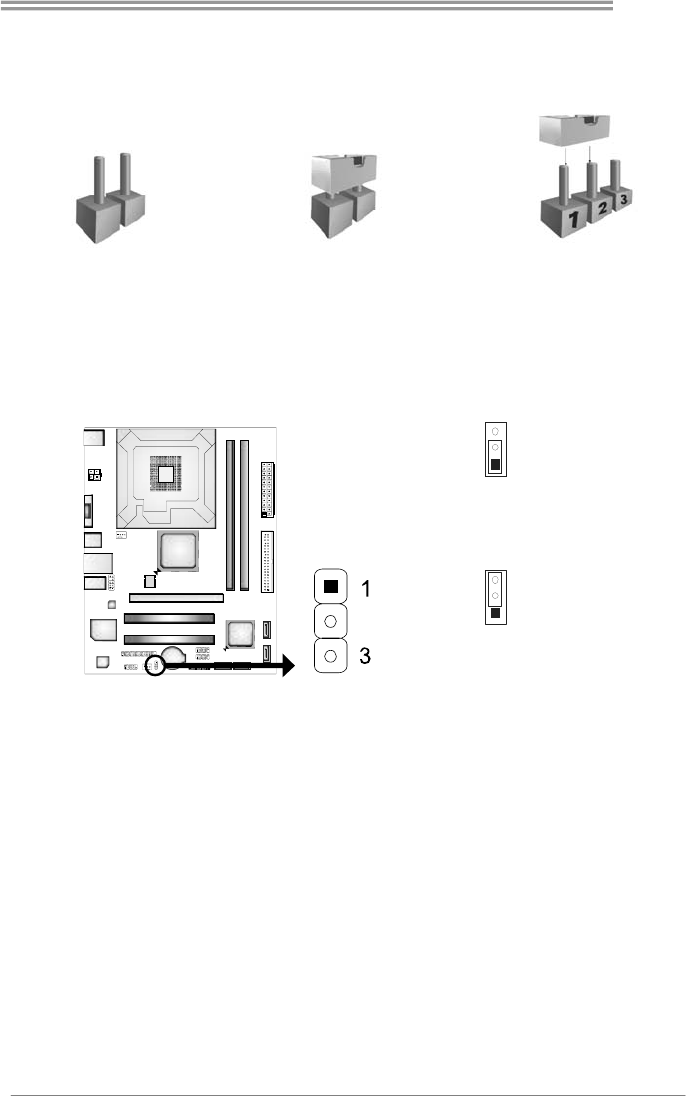

The illustration shows how to set up jumpers. When the jumper cap is placed on

pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin1-2 closed

JCMOS1: Clear CMOS Header

Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and

the CMOS data. Please carefully follow the procedures to avoid damaging the

motherboard.

Pin 1-2 Close:

Normal Operation (Default).

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

Motherboard Manual

2.7 Herders & Connectors

ATXPWR1: ATX Power Source Connector

By connecting this connector, it will provide +12V to CPU power circuit.

Pin Assignment

1 +12V

2 +12V

3 Ground

4 Ground

ATXPWR2: ATX Power Source Connector

This connector allows user to connect 24-pin power connector on the ATX

power supply.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 Ground 3 Ground

16 PS_ON 4 +5V

17 Ground 5 Ground

18 Ground 6 +5V

19 Ground 7 Ground

20 NC 8 PW_OK

21 +5V 9 Standby Voltage+5V

22 +5V 10 +12V

23 +5V 11 +12V

24 Ground 12 +3.3V

Note1: Before you power on the system, please make sure that both ATXPWR1 and

ATXPWR2 connectors have been plugged-in.

Note2: Insufficient power supplied to the system may result in instability or the peripherals

not functioning properly. Use of a PSU with a higher power output is recommended when

configuring a system with more power-consuming devices.

G41-M7

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and

speaker connection. It allows user to connect the PC case’s front panel switch

functions.

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A

2 N/A 10 N/A N/A

3 N/A 11 N/A N/A

4 Speaker

Speaker

Connector

12 Power LED (+)

5 HDD LED (+) 13 Power LED (+)

6 HDD LED (-)

Hard drive

LED 14 Power LED (-)

Power LED

7 Ground 15 Power button

8 Reset control Reset button 16 Ground Power-on button

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front

panel. This header allows only HD audio front panel connector; AC’97 connector

is not acceptable.

Pin Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

10 Jack Sense

Motherboard Manual

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

This motherboard provides 2 USB 2.0 headers, which allows user to connect

additional USB cable on the PC front panel, and also can be connected with

internal USB devices, like USB card reader.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

10 NC

IDE1: Hard Disk Connector

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO

Mode 0~4, Bus Master, and Ultra DMA 33/66/100 functionality.

The IDE connector can connect a master and a slave drive, so you can connect

up to two hard disk drives.

G41-M7

SATA1~SATA4: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 4channels SATA interface, it

satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

JCOM1: Serial port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Pin Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

Motherboard Manual

JPRNT1: Printer Port Connector

This header allows you to connector printer on the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground

2 -ALF 15 Data 6

3 Data 0 16 Ground

4 -Error 17 Data 7

5 Data 1 18 Ground

6 -Init 19 -ACK

7 Data 2 20 Ground

8 -Scltin 21 Busy

9 Data 3 22 Ground

10 Ground 23 PE

11 Data 4 24 Ground

12 Ground 25 SCLT

13 Data 5 26 Key

G41-M7

CHAPTER 3: BIOS & SOFTWARE

3.1 BIOS Setup

 For better system performance, the BIOS firmware is being

continuously updated. The BIOS information described below in this

manual is for your reference only and the actual BIOS information

and settings on board may be different from this manual

 For further information of setting up the BIOS, please refer to the

BIOS Manual in the Setup DVD.

3.2 BIOS Update

There are three ways to update the BIOS:

BIOS Update Utility, BIOS Online Update Utility and BIOS Flasher.

1. BIOS Update Utility

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from www.biostar.com.tw .

Update BIOS

with a BIOS file

Clear CMOS function

(Only for AWARD BIOS)

Show current BIOS information

Save current BIOS

to a .bin file

AWARD BIOS AMI BIOS

Motherboard Manual

Once click on this button, the saving

dialog will show. Choose the position to

save file and enter file name. (We

recommend that the file name should be

English/number and no longer than 7

characters.) Then click Save.

After the saving process, finish dialog

will show. Click on OK to complete the

BIOS Backup procedure.

Before doing this, please download the proper BIOS file from the website.

For AWARD BIOS, update BIOS

procedure should be run with Clear

CMOS function, so please check on

Clear CMOS first.

Then click Update BIOS button, a

dialog will show for asking you backup

current BIOS. Click Yes for BIOS

backup and refer to the Backup BIOS

procedure; or click No to skip this

procedure.

After the BIOS Backup procedure, the

open dialog will show for requesting the

BIOS file which is going to be updated.

Please choose the proper BIOS file for

updating, then click on Open.

G41-M7

The utility will update BIOS with the

proper BIOS file, and this process may

take minutes. Please do not open any

other applications during this process.

After the BIOS Update process, click on

OK to restart the system.

While the system boots up and the full screen logo shows, press <Delete>

key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and

Exit Setup to exit BIOS setup. BIOS Update is completed.

2. Online Update Utility

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this

function.

3. Open BIOS Update Utility and

click the Online Update button

on the main screen.

4. An open dialog will show up to

request your agreement to

start the BIOS update. Click

Yes to start the online update

procedure.

Motherboard Manual

5. If there is a new BIOS version,

the utility will ask you to

download it. Click Yes to

proceed.

6. After the download is

completed, you will be asked

to program (update) the BIOS

or not. Click Yes to proceed.

7. After the updating process is

finished, you will be asked you

to reboot the system. Click

OK to reboot.

8. While the system boots up and the full screen logo shows up, press

<Delete> key to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore

Defaults function to load Optimized Defaults, and select Save Changes and

Reset to restart the computer. Then, the BIOS Update is completed.

G41-M7

3. BIOSTAR BIOS Flasher

BIOSTAR BIOS Flasher is a BIOS flashing utility providing you an easy and

simple way to update your BIOS via USB pen drive.

Note1: This utility only allows storage device with FAT32/16 format and single partition.

Note2: Shutting down or resetting the system while updating the BIOS will lead to system

boot failure.

The BIOSTAR BIOS Flasher is built in the BIOS ROM. To enter the utility, press

<F12> during the Power-On Self Tests (POST) procedure while booting up.

Updating BIOS with BIOSTAR BIOS Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, save the BIOS file into a USB pen

drive or a floppy disk.

3. Insert the USB pen drive or the floppy disk

that contains the BIOS file to the USB port

or the floppy disk drive.

4. Power on or reset the computer and then

press <F12> during the POST process. A

select dialog as the picture on the right

appears. Select the device contains the

BIOS file and press <Enter> to enter the

utility.

5. The utility will show the BIOS files and their respective information. Select

the proper BIOS file and press <Enter> then <Y> to perform the BIOS

update process.

6. After the update process,

the utility will ask you to

reboot the system.

Press <Y> to proceed.

BIOS update completes.

Motherboard Manual

3.3 Software

Installing Software

1. Insert the Setup DVD to the optical drive. The driver installation program would

appear if the Autorun function has been enabled.

2. Select Software Installation, and then click on the respective software title.

3. Follow the on-screen instructions to complete the installation.

Note1: All the information and content about following software are subject to be changed without

notice. For better performance, the software is being continuously updated.

Note2: The information and pictures described below are for your reference only. The actual

information and settings on board may be slightly different from this manual.

Launching Software

After the installation process is completed, you will see the software icon showing on

the desktop. Double-click the icon to launch it.

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system.

This utility will collect the system information which is useful for analyzing the problem

you may have encountered, and then send these information to our tech-support

department to help you fix the problem.

Note: Before you use this utility, please set Outlook Express as your default e-mail client application program.

This block will show

the i nformation which

would be collected in

the mail.

Provide the e-mail

address that you would

like to send the copy to.

Provide the name of

the power supply

manufacturer and the

model no.

Send the mail out.

Save these information to a .txt fil

Exit this dialog.

Select your area or

the area close to you.

Provide the name of

the memory module

manufacturer.

Describe condition

of your system.

represents important

information that you

must provide. Without

this information, you may

not be able to send out

the mail.

G41-M7

After filling up this information, click “Send”

to send the mail out. A warning dialog would

appear asking for your confirmation; click

“Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you will see

a saving dialog appears asking you to enter file name.

Enter the file name and then click “Save”.

Your system information will be saved to

a .txt file.

Open the saved .txt file, you will see

your system information including

motherboard/BIOS/CPU/video/

device/OS information. This information

is also concluded in the sent mail.

Note1: We will not share customer’s data with any other third parties, so please feel free to

provide your system information while using eHot-Line service.

Note2: If you are not using Outlook Express as your default e-mail client application, you may

need to save the system information to a .txt file and send the file to our tech support with other

e-mail application. Go to the following web http://www.biostar.com.tw/app/en/about/contact.php for

getting our contact information.

Motherboard Manual

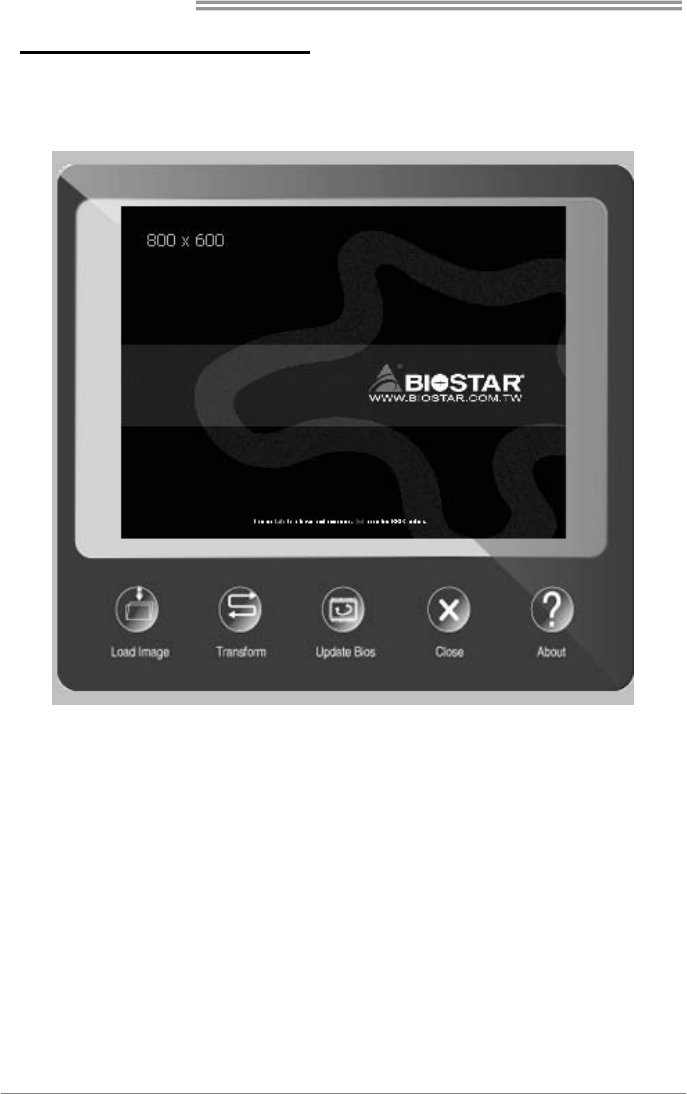

BIOScreen Utility (Optional)

This utility allows you to personalize your boot logo easily. You can choose

BMP as your boot logo so as to customize your computer.

Please follow the following instructions to update boot logo:

1. Load Image：Choose the picture as the boot logo.

2. Transform：Transform the picture for BIOS and preview the result.

3. Update Bios：Write the picture to BIOS Memory to complete the update.

G41-M7

CHAPTER 4: USEFUL HELP

4.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver

DVD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

Note: If this window didn’t show up after you insert the Driver DVD, please use file browser

to locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the

compatible driver for your motherboard and operating system. Click on each

device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list

the software available for your system, click on each software title to launch the

installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD.

Click on the Manual icon to browse for available manual.

Note: You will need Acrobat Reader to open the manual file. Please download the latest

version of Acrobat Reader software from http://get.adobe.com/reader/

Motherboard Manual

4.2 Extra Information

CPU Overheated

If the system shutdown automatically after power on system for seconds, that

means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to

avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection

function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.

(See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

G41-M7

4.3 AMI BIOS Beep Code

Boot Block Beep Codes

Number of Beeps Description

1 No media present. (Insert diskette in floppy drive A:)

2 “AMIBOOT.ROM” file not found in root directory of diskette in

3 Insert next diskette if multiple diskettes are used for recovery

4 Flash Programming successful

5 File read error

7 No Flash EPROM detected

10 Flash Erase error

11 Flash Program error

12 “AMIBOOT.ROM” file size error

13 BIOS ROM image mismatch (file layout does not match

image present in flash device)

POST BIOS Beep Codes

Number of Beeps Description

1 Memory refresh timer error

3 Base memory read/write test error

6 Keyboard controller BAT command failed

7 General exception error (processor exception interrupt error)

8 Display memory error (system video adapter)

Troubleshooting POST BIOS Beep Codes

Number of Beeps Troubleshooting Action

1, 3 Reseat the memory, or replace with known good modules.

6, 7

Fatal error indicating a serious problem with the system.

Consult your system manufacturer. Before declaring the

motherboard beyond all hope, eliminate the possibility of

interference by a malfunctioning add-in card. Remove all

expansion cards except the video adapter.

z If beep codes are generated when all other expansion

cards are absent, consult your system manufacturer’s

technical support.

z If beep codes are not generated when all other expansion

cards are absent, one of the add-in cards is causing the

malfunction. Insert the cards back into the system one at a

time until the problem happens again. This will reveal the

malfunctioning card.

If the system video adapter is an add-in card, replace or

reseat the

video adapter. If the video adapter is an integrated part of the

system board, the board may be faulty.

Motherboard Manual

4.4 Troubleshooting

Probable Solution

1. There is no power in the system.

Power LED does not shine; the

fan of the power supply does not

work

2. Indicator light on keyboard does

not shine.

1. Make sure power cable is

securely plugged in.

2. Replace cable.

3. Contact technical support.

System is inoperative. Keyboard lights

are on, power indicator lights are lit,

and hard drives are running.

Using even pressure on both ends of

the DIMM, press down firmly until the

module snaps into place.

System does not boot from a hard disk

drive, but can be booted from optical

drive.

1. Check cable running from disk to

disk controller board. Make sure

both ends are securely plugged

in; check the drive type in the

standard CMOS setup.

2. Backing up the hard drive is

extremely important. All hard

disks are capable of breaking

down at any time.

System only boots from an optical

drive. Hard disks can be read,

applications can be used, but system

fails to boot from a hard disk.

1. Back up data and applications

files.

2. Reformat the hard drive.

Re-install applications and data

using backup disks.

Screen message shows “Invalid

Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure

correct information is in setup.

System cannot boot after user installs a

second hard drive.

1. Set master/slave jumpers

correctly.

2. Run SETUP program and select

correct drive types. Call the drive

manufacturers for compatibility

with other drives.

G41-M7

This page is intentionally left blank.

Motherboard Manual

APPENDIX: Specifications In Other Languages

German

Spezifikationen

CPU

LGA 775

Intel Core2Duo / Core2Quad / Pentium Dual-Core

/ Celeron Dual-Core / Celeron 4xx Prozessoren

(Maximales Watt: 95W)

Unterstützt Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Intel Architecture-64 /

Extended Memory 64 Technology / Virtualization Technology

FSB 533 / 800 / 1066 / 1333 MHz, FSB533 unterstützt nur DDR2-533

Chipsatz

Intel G41

Intel ICH7

Super E/A

ITE 8728F-BX

Bietet die häufig verwendeten alten Super

E/A-Funktionen.

Low Pin Count-Schnittstelle

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzahl-Controller/-Überwachung

"Smart Guardian"-Funktion von ITE

Arbeitsspeicher

DDR2 DIMM-Steckplätze x 2

Jeder DIMM unterstützt 256MB / 512MB / 1GB /

2GB/ 4GB DDR2.

Max. 8GB Arbeitsspeicher

Dual-Kanal DDR2 Speichermodul

Unterstützt DDR2-533/ 800/1066(OC)

DDR2-533 nur für FSB1066 / 533

registrierte DIMMs. ECC DIMMs werden nicht unterstützt.

Grafik GMA X4500 Max. 256MB gemeinsam benutzter Videospeicher

IDE Integrierter IDE-Controller

Ultra DMA 33 / 66 / 100 Bus Master-Modus

Unterstützt PIO-Modus 0~4,

SATA Integrierter Serial ATA-Controller

Datentransferrate bis zu 3.0Gb/s

Konform mit der SATA-Spezifikation Version 2.0.

LAN Realtek RTL 8105E

10 / 100 Mb/s Auto-Negotiation

Halb-/ Vollduplex-Funktion

Audio-Unterstüt

zung

ALC662

Unterstützt High-Definition Audio

5.1-Kanal-Audioausgabe

PCI-Steckplatz x2

Steckplätze

PCI Express x16 Steckplatz x1

G41-M7

Spezifikationen

Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss

Serieller Anschluss x1

IDE-Anschluss x1 Jeder Anschluss unterstützt 2 IDE-Laufwerke

SATA-Anschluss x4 Jeder Anschluss unterstützt 1 SATA-Laufwerk

Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen

Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion

CPU-Lüfter-Sockel x1

CPU-Lüfterstromversorgungsanschluss (mit Smart

Fan-Funktion)

System-Lüfter-Sockel x1 System-Lüfter-Stromversorgungsanschluss

"CMOS löschen"-Sockel x1

USB-Anschluss x2 Jeder Anschluss unterstützt 2 Fronttafel-USB-Anschlüsse

Stromanschluss (24-polig) x1

Onboard-Ansc

hluss

Stromanschluss (4-polig) x1

Rückseiten-E/A

PS/2-Tastatur x1

PS/2-Maus x1

VGA-Anschluss x1

LAN-Anschluss x1

USB-Anschluss x4

Audioanschluss x3

Platinengröße 182 mm (B) X 235 mm (L)

OS-Unterstützu

Windows 2000 / XP / Vista / 7 / 8

Biostar behält sich das Recht vor, ohne Ankündigung die

Unterstützung für ein Betriebssystem hinzuzufügen oder zu

entfernen.

Motherboard Manual

French

SPEC

LGA 775

Processeurs Intel Core2Duo / Core2Quad /

Pentium Dual-Core / Celeron Dual-Core /

Celeron 4xx

(Watt maximum : 95W)

Prend en charge les technologies Hyper-Threading /

d'exécution de bit de désactivation / Intel SpeedStep®

optimisée/ d'architecture Intel 64 / de mémoire étendue 64 / de

virtualisation

Bus frontal 533 / 800 / 1066 / 1333 MHz, FSB533 seul soutien DDR2-533

Chipset

Intel G41

Intel ICH7

Super E/S

ITE 8728F-BX

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à faible compte de broches

Initiatives de contrôle environnementales,

Moniteur de matériel

Contrôleur /moniteur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

Mémoire

principale

Fentes DDR2 DIMM x 2

Chaque DIMM prend en charge des DDR2 de

256Mo / 512Mo / 1Go / 2Go / 4Go

Capacité mémoire maximale de 8Go

Module de mémoire DDR2 à mode à double voie

Prend en charge la DDR2-533/ 800/1066(OC)

DDR2-533 seulement pour un FSB1066 / 533

Les DIMM à registres et DIMM avec code correcteurs d'erreurs

ne sont pas prises en charge

Graphiques GMA X4500 Mémoire vidéo partagée maximale de 256 Mo

IDE Contrôleur IDE intégré

Mode principale de Bus Ultra DMA 33 / 66 / 100

Prend en charge le mode PIO 0~4,

SATA

Contrôleur Serial ATA

intégré

Taux de transfert jusqu'à 3.0Go/s.

Conforme à la spécification SATA Version 2.0

LAN Realtek RTL 8105E

10 / 100 Mb/s négociation automatique

Half / Full duplex capability

Prise en

charge audio

ALC662

Prise en charge de l'audio haute définition

Sortie audio à 5.1 voies

Fentes Fente PCI x2

G41-M7

SPEC

Fente PCI Express x16 x1

Connecteur de Port d'imprimante x1 Chaque connector prend en charge 1 Port d'imprimante

Port série x1

Connecteur IDE x1 Chaque connecteur prend en charge 2 périphériques IDE

Connecteur SATA x4 Chaque connecteur prend en charge 1 périphérique SATA

Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant

Connecteur Audio du panneau avant x1 Prend en charge la fonction audio du panneau avant

Embase de ventilateur UC x1

Alimentation électrique du ventilateur UC (avec fonction de

ventilateur intelligent)

Embase de ventilateur système x1 Alimentation électrique du ventilateur système

Embase d'effacement CMOS x1

Connecteur USB x2

Chaque connecteur prend en charge 2 ports USB de panneau

avant

Connecteur d'alimentation x1

(24 broches)

Connecteur

embarqué

Connecteur d'alimentation x1

(4 broches)

E/S du

panneau

arrière

Clavier PS/2 x1

Souris PS/2 x1

Port VGA x1

Port LAN x1

Port USB x4

Fiche audio x3

Dimensions

de la carte

182 mm (l) X 235 mm (H)

Support SE Windows 2000 / XP / Vista / 7 / 8

Biostar se réserve le droit d'ajouter ou de supprimer le support

de SE avec ou sans préavis.

Motherboard Manual

Italian

SPECIFICA

CPU

LGA 775

Processore Intel Core2Duo / Core2Quad /

Pentium Dual-Core / Celeron Dual-Core /

Celeron 4xx

(Watt massimo: 95W)

Supporto di Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Architettura Intel 64 /

Tecnologia Extended Memory 64 / Tecnologia

Virtualization

FSB 533 / 800 / 1066 / 1333 MHz, FSB533 solo supporto DDR2-533

Chipset

Intel G41

Intel ICH7

Super I/O

ITE 8728F-BX

Fornisce le funzionalità legacy Super I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Controller / Monitoraggio velocità ventolina

Funzione "Smart Guardian" di ITE

Memoria

principale

Alloggi DIMM DDR2 x 2

Ciascun DIMM supporta DDR2 256MB /

512MB / 1GB / 2GB / 4GB

Capacità massima della memoria 8GB

Modulo di memoria DDR2 a canale doppio

Supporto di DDR2-533/ 800/1066(OC)

DDR2-533 solo per FSB1066 / 533

DIMM registrati e DIMM ECC non sono supportati

Grafica GMA X4500 La memoria video condivisa massima è di 256MB

IDE Controller IDE integrato

Modalità Bus Master Ultra DMA 33 / 66 / 100

Supporto modalità PIO Mode 0-4

SATA Controller Serial ATA integrato

Velocità di trasferimento dei dati fino a 3.0Gb/s.

Compatibile specifiche SATA Versione 2.0.

LAN Realtek RTL 8105E

Negoziazione automatica 10 / 100 Mb/s

Capacità Half / Full Duplex

Supporto

audio HD

ALC662

Supporto audio High-Definition (HD)

Uscita audio 5.1 canali

Alloggio PCI x2

Alloggi

Alloggio PCI Express x16 x1

G41-M7

SPECIFICA

Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante

Porta seriale x1

Connettore IDE x1 Ciascun connettore supporta 2 unità IDE

Connettore SATA x4 Ciascun connettore supporta 1 unità SATA

Connettore pannello frontale x1 Supporta i servizi del pannello frontale

Connettore audio frontale x1 Supporta la funzione audio pannello frontale

Collettore ventolina CPU x1 Alimentazione ventolina CPU (con funzione Smart Fan)

Collettore ventolina sistema x1 Alimentazione ventolina di sistema

Collettore cancellazione CMOS x1

Connettore USB x2

Ciascun connettore supporta 2 porte USB pannello

frontale

Connettore alimentazione x1

(24 pin)

Connettori

su scheda

Connettore alimentazione x1

(4 pin)

I/O pannello

posteriore

Tastiera PS/2 x1

Mouse PS/2 x1

Porta VGA x1

Porta LAN x1

Porta USB x4

Connettore audio x3

Dimensioni

scheda

182 mm (larghezza) x 235 mm (altezza)

Sistemi

operativi

supportati

Windows 2000 / XP / Vista / 7 / 8

Biostar si riserva il diritto di aggiungere o rimuovere il

supporto di qualsiasi sistema operativo senza

preavviso.

Motherboard Manual

Spanish

Especificación

CPU

LGA 775

Procesador Intel Core2Duo / Core2Quad /

Pentium Dual-Core / Celeron Dual-Core /

Celeron 4xx

(Vatio máximo: 95W)

Admite Hyper-Threading / Bit de deshabilitación de ejecución /

Intel SpeedStep® Mejorado / Intel Architecture-64 / Tecnología

Extended Memory 64 / Tecnología de virtualización

FSB 533 / 800 / 1066 / 1333 MHz, FSB533 único soporte DDR2-533

Conjunto de

chips

Intel G41

Intel ICH7

Súper E/S

ITE 8728F-BX

Le ofrece las funcionalidades heredadas de uso

más común Súper E/S.

Interfaz de cuenta Low Pin

Iniciativas de control de entorno,

Monitor hardware

Controlador/monitor de velocidad de ventilador

Función "Guardia inteligente" de ITE

Memoria

principal

Ranuras DIMM DDR2 x 2

Cada DIMM admite DDR de 256MB / 512MB /

1GB / 2GB / 4GB

Capacidad máxima de memoria de 8GB

Módulo de memoria DDR2 de canal Doble

Admite DDR2 de 533/ 800/1066(OC)

DDR2-533 sólo para FSB1066 / 533

No admite DIMM registrados o DIMM compatibles con ECC

Gráficos GMA X4500 Memoria máxima de vídeo compartida de 256MB

IDE Controlador IDE integrado

Modo bus maestro Ultra DMA 33 / 66 / 100

Soporte los Modos PIO 0~4,

SATA Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3.0 Gb/s.

Compatible con la versión SATA 2.0.

Red Local Realtek RTL 8105E

Negociación de 10 / 100 Mb/s

Funciones Half / Full dúplex

Soporte de

sonido HD

ALC662

Soporte de sonido de Alta Definición

Salida de sonido de 5.1 canales

Ranura PCI X2

Ranuras

Ranura PCI Express x16 X1

Conectores Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora

G41-M7

Especificación

Puerto serie X1

Conector IDE X1 Cada conector soporta 2 dispositivos IDE

Conector SATA X4 Cada conector soporta 1 dispositivos SATA

Conector de panel frontal X1 Soporta instalaciones en el panel frontal

Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal

Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con función

Smart Fan)

Cabecera de ventilador de sistema X1 Fuente de alimentación de ventilador de sistema

Cabecera de borrado de CMOS X1

Conector USB X2 Cada conector soporta 2 puertos USB frontales

Conector de alimentación X1

(24 patillas)

en placa

Conector de alimentación X1

(4 patillas)

Panel trasero

de E/S

Teclado PS/2 X1

Ratón PS/2 X1

Puerto VGA X1

Puerto de red local X1

Puerto USB X4

Conector de sonido X3

Tamaño de la

placa

182 mm. (A) X 235 Mm. (H)

Soporte de

sistema

operativo

Windows 2000 / XP / Vista / 7 / 8

Biostar se reserva el derecho de añadir o retirar el soporte de

cualquier SO con o sin aviso previo.

Motherboard Manual

Portuguese

ESPECIFICAÇÕES

CPU

LGA 775

Processador Intel Core2Duo / Core2Quad /

Pentium Dual-Core / Celeron Dual-Core /

Celeron 4xx (Watt máximo: 95W)

Suporta as tecnologias Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Intel Arquitecture -64 / Extended

Memory 64 / Virtualization

FSB 533 / 800 / 1066 / 1333 MHz, FSB533 apoio apenas DDR2-533

Chipset Intel G41 + Intel ICH7

Especificação

Super I/O

ITE 8728F-BX

Proporciona as funcionalidades mais utilizadas

em termos da especificação Super I/O.

Interface LPC (Low Pin Count).

Iniciativas para controlo do ambiente

Monitorização do hardware

Controlador/Monitor da velocidade da ventoinha

Função "Smart Guardian" da ITE

Memória

principal

Ranhuras DIMM DDR2 x 2

Cada módulo DIMM suporta uma memória

DDR2 de 256 MB / 512 MB / 1GB / 2GB / 4GB

Capacidade máxima de memória:8 GB

Módulo de memória DDR2 de canal duplo

Suporta módulos DDR2 533/ 800/1066(OC)

DDR2-533 apenas para FSB1066 / 533

Os módulos DIMM registados e os DIMM ECC não são

suportados

Placa gráfica GMA X4500 Memória de vídeo máxima partilhada: 256 MB

IDE Controlador IDE integrado

Modo Bus master Ultra DMA 33 / 66 / 100

Suporta o modo PIO 0~4,

SATA Controlador Serial ATA integrado

Velocidades de transmissão de dados até 3.0 Gb/s.

Compatibilidade com a especificação SATA versão 2.0.

LAN Realtek RTL 8105E

Auto negociação de 10 / 100 Mb/s

Capacidade semi/full-duplex

Suporte para

áudio de alta

definição

ALC662

Suporta a especificação High-Definition Audio

Saída de áudio de 5.1 canais

Ranhura PCI x2

Ranhuras

Ranhura PCI Express x16 x1

Conector da para impressora x1 Cada conector suporta 1 Porta para impressora

G41-M7

ESPECIFICAÇÕES

Porta série x1

Conector IDE x1 Cada conector suporta 2 dispositivos IDE

Conector SATA x4 Cada conector suporta 1 dispositivo SATA

Conector do painel frontal x1 Para suporte de várias funções no painel frontal

Conector de áudio frontal x1 Suporta a função de áudio no painel frontal

Conector da ventoinha da CPU x1 Alimentação da ventoinha da CPU (com a função Smart Fan)

Conector da ventoinha do sistema x1 Alimentação da ventoinha do sistema

Conector para limpeza do CMOS x1

Conector USB x2 Cada conector suporta 2 portas USB no painel frontal

Conector de alimentação x1

(24 pinos)

Conectores

na placa

Conector de alimentação x1

(4 pinos)

Entradas/Saí

das no painel

traseiro

Teclado PS/2 x1

Rato PS/2 x1

Porta VGA x1

Porta LAN x1

Porta USB x4

Tomada de áudio x3

Tamanho da

placa

182 mm (L) X 235 mm (A)

Sistemas

operativos

suportados

Windows 2000 / XP / Vista / 7 / 8

A Biostar reserva-se o direito de adicionar ou remover suporte

para qualquer sistema operativo com ou sem aviso prévio.

Motherboard Manual

Polish

SPEC

Procesor

LGA 775

Procesor Intel Core2Duo / Core2Quad /

Pentium Dual-Core / Celeron Dual-Core /

Celeron 4xx

(Maksymalny Watt: 95W)

Obsługa Hyper-Threading / Execute Disable Bit / Enhanced

Intel SpeedStep® / Intel Architecture-64 / Extended Memory 64

Technology / Virtualization Technology

FSB 533 / 800 / 1066 / 1333 MHz, FSB 533 obsługują tylko DDR2-533

Chipset

Intel G41

Intel ICH7

Pamięć

główna

Gniazda DDR2 DIMM x 2

Każde gniazdo DIMM obsługuje moduły 256MB

/ 512MB / 1GB / 2GB / 4GB

Maks. wielkość pamięci 8GB

Moduł pamięci DDR2 z trybem podwójnego kanału

Obsługa DDR2 533/ 800/1066(OC)

DDR2-533 tylko dla FSB1066 / 533

Brak obsługi Registered DIMM oraz ECC DIMM

Grafika GMA X4500 Maks. wielkość współdzielonej pamięci video wynosi 256MB

Super I/O

ITE 8728F-BX

Zapewnia najbardziej powszechne funkcje

Super I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Monitor H/W

Kontroler/Monitor prędkości wentylatora

Funkcja ITE "Smart Guardian"

IDE Zintegrowany kontroler IDE

Ultra DMA 33 / 66 / 100 Tryb Bus Master

obsługa PIO tryb 0~4,

SATA Zintegrowany kontroler Serial ATA

Transfer danych do 3.0 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0.

LAN Realtek RTL 8105E

10 / 100 Mb/s z automatyczną negocjacją szybkości

Działanie w trybie połowicznego / pełnego dupleksu

Obsługa

audio HD

ALC662

Obsługa High-Definition Audio

5.1 kanałowe wyjście audio

Gniazdo PCI x2

Gniazda

Gniazdo PCI Express x16 x1

Złącze Port drukarki x1 Każde złącze obsługuje 1 Port drukarki

G41-M7

SPEC

Port szeregowy x1

Złącze IDE x1 Każde złącze obsługuje 2 urządzenia IDE

Złącze SATA x4 Każde złącze obsługuje 1 urządzenie SATA

Złącze panela przedniego x1 Obsługa elementów panela przedniego

Przednie złącze audio x1 Obsługa funkcji audio na panelu przednim

Złącze główkowe wentylatora

procesora x1

Zasilanie wentylatora procesora (z funkcją Smart Fan)

Złącze główkowe wentylatora

systemowego x1

Zasilanie wentylatora systemowego

Złącze główkowe kasowania CMOS x1

Złącze USB x2 Każde złącze obsługuje 2 porty USB na panelu przednim

Złącze zasilania (24 pinowe) x1

Złącza

wbudowane

Złącze zasilania (4 pinowe) x1

Back Panel

I/O

Klawiatura PS/2 x1

Mysz PS/2 x1

Port VGA x1

Port LAN x1

Port USB x4

Gniazdo audio x3

Wymiary

płyty

182 mm (S) X 235 mm (W)

Obsluga

systemu

operacyjnego

Windows 2000 / XP / Vista / 7 / 8

Biostar zastrzega sobie prawo dodawania lub odwoływania

obsługi dowolnego systemu operacyjnego bez powiadomienia.

Motherboard Manual

Russian

СПЕЦ

CPU

(центральны

й процессор)

LGA 775

Процессор Intel Core2Duo / Core2Quad

Pentium Dual-Core / Celeron Dual-Core /

Celeron 4xx (Максимальный ватт: 95W)

Поддержка технологий Hyper-Threading / Execute Disable

Bit / Enhanced Intel SpeedStep® / Intel Architecture-64 /

Extended Memory 64 Technology / технологии

виртуализация

FSB 533 / 800 / 1066 / 1333 МГц , FSB533 поддерживают только DDR2-533

Набор

микросхем

Intel G41

Intel ICH7

Основная

память

Слоты DDR2 DIMM x 2

Каждый модуль DIMM поддерживает 256 МБ

/ 512МБ / 1ГБ / 2ГБ / 4ГБ DDR2

Максимальная ёмкость памяти 8ГБ

Модуль памяти с двухканальным режимом DDR2

Поддержка DDR2 533/ 800/1066(OC)

DDR2-533 только для FSB1066 / 533

Не поддерживает зарегистрированные модули DIMM and

ECC DIMM

Графика GMA X4500 Максимальная совместно используемая видео память

составляет 256 МБ

Super I/O

ITE 8728F-BX

Обеспечивает наиболее используемые

действующие функциональные возможности

Super I/O.

Интерфейс с низким количеством выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Регулятор скорости вентилятора/ монитор

Функция ITE "Smart Guardian" (Интеллектуальная защита)

IDE Встроенное устройство управления

встроенными интерфейсами устройств

Режим "хозяина" шины Ultra DMA 33 / 66 / 100

Поддержка режима PIO 0~4,

SATA Встроенное последовательное устройство

управления ATA

скорость передачи данных до 3.0 гигабит/с.

Соответствие спецификации SATA версия 2.0.

Локальная

сеть Realtek RTL 8105E Автоматическое согласование 10 / 100 Мб/с

Частичная / полная дуплексная способность

Звуковая

поддержка

жесткого

диска

ALC662 Звуковая поддержка High-Definition

5.1канальный звуковой выход

Слот PCI x2

Слоты Слот PCI Express x16 x1

Разъём Порт подключения

принтера x1

Каждый разъём поддерживает 1 Порт подключения

принтера

Встроенный

разъём

Последовательный порт x1

G41-M7

СПЕЦ

Разъём IDE x1 Каждый разъём поддерживает 2 встроенных интерфейса

накопителей

Разъём SATA x4 Каждый разъём поддерживает 1 устройство SATA

Разъём на лицевой панели x1 Поддержка устройств на лицевой панели

Входной звуковой разъём x1 Поддержка звуковых функций на лицевой панели

Контактирующее приспособление

вентилятора центрального процессора x1

Источник питания для вентилятора центрального

процессора (с функцией интеллектуального вентилятора)

Контактирующее приспособление

вентилятора системы x1

Источник питания для вентилятора системы

Открытое контактирующее

приспособление CMOS x1

USB-разъём x2

Каждый разъём поддерживает 2 USB-порта на лицевой

панели

Разъем питания (24 вывод) x1

Разъем питания (4 вывод) x1

Задняя

панель

средств

ввода-вывод

Клавиатура PS/2 x1

Мышь PS/2 x1

Порт VGA x1

Порт LAN x1

USB-порт x4

Гнездо для подключения

наушников x3

Размер

панели 182 мм (Ш) X 235 мм (В)

Поддержка

OS Windows 2000 / XP / Vista / 7 / 8

Biostar сохраняет за собой право добавлять или удалять

средства обеспечения для OS с или без предварительного

уведомления.

Motherboard Manual

Arabic

تﺎﻔﺻاﻮﻤﻟا

تﺎﻴﻨﻘﺗ ﻢﻋﺪﺗHyper-Threading / Execute Disable Bit / Enhanced

Intel SpeedStep® / Intel Architecture-64 / Extended Memory

64 Technology / Virtualization Technology

LGA 775

تﺎﺠﻟﺎﻌﻡIntel Core2Duo / Core2Quad / Pentium

Dual-Core / Celeron Dual-Core / Celeron 4xxددﺮﺘﺑ

ﻰﻟإ ﻞﺼی

(طاو ىﻮﺼﻗ: 95و)

ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو

ﺔیﺰآﺮﻤﻟا

ددﺮﺗ 533 / 800 / 1066 / 1333 ﺰﺗﺮه ﺎﺠﻴﻡ , FSB533 ﻂﻘﻓ ﻢﻋﺪﻟا DDR2-533 ﻲﺒﻥﺎﺠﻟا ﻲﻡﺎﻡﻷا ﻞﻗﺎﻨﻟا

Intel G41

Intel ICH7

ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻡ

ةﺮآاذ ةﺪﺣوDDR2 ةﺎﻨﻘﻟا ﺔﺝودﺰﻡ

عﻮﻥ ﻦﻡ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR2 تﺎﻌﺳ 533/ 800/1066(OC),ﺖیﺎﺑ ﺎﺠﻴﻡ

DDR2-533 ﻞﺝأ ﻦﻡ ﻂﻘﻓ FSB1066 / 533

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺗ ﻻDIMM ﻊﻡ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠﺗو ECC

ﺔﺤﺘﻓDDR2 DIMM دﺪﻋ2

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMMﺗ عﻮﻥ ﻦﻡ ةﺮآاذ ﻢﻋﺪDDR2 ﺔﻌﺳ

256/512و ﺖیﺎﺑ ﺎﺠﻴﻡ 1و ﺖیﺎﺑ ﺎﺠﻴﺝ 2و ﺖیﺎﺑ ﺎﺠﻴﺝ 4ﺖیﺎﺑ ﺎﺠﻴﺝ

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ8ﺖیﺎﺑ ﺎﺠﻴﺝ

ﺔﻴﺴﻴﺋﺮﻟا ةﺮآاﺬﻟا

ﺔآﺮﺘﺸﻤﻟا ﻮیﺪﻴﻔﻟا ةﺮآاﺬﻟ ﺔﻌﺳ ﻰﺼﻗأ256ﺖیﺎﺑ ﺎﺠﻴﻡ GMA X4500 تﺎﻡﻮﺳﺮﻟا ﺔﻗﺎﻄﺑ

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻡ

ﻗاﺮﻡﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐ

ﺔﻔﻴﻇو"Smart Guardian" ﻦﻡ ITE

ITE 8728F-BX

ﺔﻔﻴﻇو ﺮﻓﻮﺗSuper I/O ﺎﻡاﺪﺨﺘﺳا ﺮﺜآﻷا ً .

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗLow Pin Count Interface

Super I/O

ﺔﻴﻨﻘﺘﺑ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100ﻲﺴﻴﺋر ﻊﺿو

ﻊﺿو ﻢﻋدPIO Mode 0~4

ﻢﻜﺤﺘﻡIDEﻞﻡﺎﻜﺘﻡ ﺬﻔﻨﻡIDE

ﺮﺴﺑ تﺎﻥﺎﻴﺒﻟا ﻞﻘﻥ ﻰﻟإ ﻞﺼﺗ تﺎﻋ3.0ﺖﺑﺎﺠﻴﺝ /ﺔﻴﻥﺎﺙ.

تﺎﻔﺻاﻮﻤﻟ ﺔﻘﺑﺎﻄﻡSATA راﺪﺻﻹا 2.0.

ﻢﻜﺤﺘﻡSerial ATAﻞﻡﺎﻜﺘﻡ SATA

ﻲﺋﺎﻘﻠﺗ ضوﺎﻔﺗ10/100 ﺖیﺎﺑ ﺎﺠﻴﻡ /ﺔﻴﻥﺎﺙ

ﻞﻡﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻡإ/ﻲﻔﺼﻨﻟا

Realtek RTL 8105E ﺔﻴﻠﺥاد ﺔﻜﺒﺵ

ﻦﻡ ﻒیﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗ

5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

ALC662

ﻲﻟﺎﻋ تﻮﺼﻟا ﻢﻋد

ﻒیﺮﻌﺘﻟا

ﺔﺤﺘﻓPCI دﺪﻋ2

ﺔﺤﺘﻓx16 PCI Express دﺪﻋ1

تﺎﺤﺘﻔﻟا

ﺔﻌﺑﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1 ﺢﻄﺳ ﻰﻠﻋ ﺬﻓﺎﻨﻤﻟا

G41-M7

تﺎﻔﺻاﻮﻤﻟا

ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻡ دﺪﻋ1

ةﺰﻬﺝأ ﻦﻡ ﻦﻴﻨﺙا ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪیIDE ﺬﻔﻨﻡIDE دﺪﻋ1

ةﺰﻬﺝأ ﻦﻡ ﺪﺣاو ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪیSATA ﺬﻔﻨﻡSATA دﺪﻋ4

ﻴﻬﺠﺗ ﻢﻋﺪیﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا تاﺰ ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1

ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟﺎﺑ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪی ﻲﻡﺎﻡﻷا تﻮﺼﻟا ﺬﻔﻨﻡ دﺪﻋ1

ﺔﻔﻴﻇو ﻊﻡ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺘﻟSmart Fan ﺔیﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻡ ﺔﻠﺻو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺘﻟ مﺎﻈﻨﻟا ﺔﺣوﺮﻡ ﺔﻠﺻو دﺪﻋ1

ﺢﺴﻡ ﺔﻠﺻوCMOS دﺪﻋ1

ﻲﺘﺤﺘﻓ ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪیUSBﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟﺎﺑ ﺬﻔﻨﻡUSB دﺪﻋ2

ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺗ ﺬﻔﻨﻡ)24سﻮﺑد( دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺗ ﺬﻔﻨﻡ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1

ﺔﺣﻮﻠﻟا

ﺢﻴﺗﺎﻔﻡ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻡ PS/2 دﺪﻋ1

ﺬﻔﻨﻡVGA دﺪﻋ1

ﺔﻴﻠﺤﻡ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻡ دﺪﻋ1

ﺬﻓﺎﻨﻡUSB ﺪﻋ د4

تﻮﺻ ﺲﺒﻘﻡ دﺪﻋ3

ﻞﺥد ﺬﻓﺎﻨﻡ/ جﺮﺥ

ﺔﻴﻔﻠﺨﻟا ﺔﺣﻮﻠﻟا

182 ﻢﻡ)ضﺮﻋ (X 235 ﻢﻡ)عﺎﻔﺗرا( ﺔﺣﻮﻠﻟا ﻢﺠﺣ

ﻆﻔﺘﺤﺗBiostar نوﺪﺑ وأ رﺎﻄﺥﺈﺑ ﻞﻴﻐﺸﺗ مﺎﻈﻥ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺑ

رﺎﻄﺥإ.

Windows 2000 / XP / Vista / 7 / 8 ﻞﻴﻐﺸﺘﻟا ﺔﻤﻈﻥأ ﻢﻋد

Motherboard Manual

Japanese

仕様

CPU

LGA 775

Intel Core2Duo / Core2Quad /

Pentium Dual-Core / Celeron Dual-Core /

Celeron 4xx processor

(最高のワット: 95W)

Hyper-Threading / Execute Disable Bit / Enhanced Intel

SpeedStep® / Intel Architecture-64 / Extended Memory 64

Technology / Virtualization Technologyをサポートします

FSB 533 / 800 / 1066 / 1333 MHz, FSB533のみをサポートDDR2-533

チップセット

Intel G41

Intel ICH7

メインメモリ

DDR2 DIMMスロット x 2

各DIMMは 256MB / 512MB / 1GB / 2GB/ 4GB

DDR2をサポート

最大メモリ容量8GB

デュアルチャンネルモードDDR2メモリモジュール

DDR2 533/ 800/1066(OC) をサポート

DDR2-533のみFSB1066/ 533用

登録済みDIMMとECC DIMMはサポートされません

グラフィック

ス

GMA X4500 最大の共有ビデオメモリは256MBです

Super I/O

ITE 8728F-BX

もっとも一般に使用されるレガシーSuper I/O機

能を採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITEの「スマートガーディアン」機能

IDE 統合IDEコントローラ

Ultra DMA 33 / 66 / 100バスマスタモード

PIO Mode 0~4のサポート、

SATA 統合シリアルATAコントローラ最高3.0 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

LAN Realtek RTL 8105E

10 / 100 Mb/秒のオートネゴシエーション

半/全二重機能

HDオーディ

オのサポート

ALC662 ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

PCIスロット x2

スロット

PCI Express x16スロット x1

G41-M7

仕様

プリンタポートコネクタ x1 各コネクタは1つのプリンタポートをサポートします

シリアルポート x1

IDEコネクタ x1 各コネクタは2つのIDEデバイスをサポートします

SATAコネクタ x4 各コネクタは1つのSATAデバイスをサポートします

フロントパネルコネクタ x1 フロントパネル機能をサポートします

フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします

CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)

システムファンヘッダ x1 システムファン電源装置

CMOSクリアヘッダ x1

USBコネクタ x2

各コネクタは2つのフロントパネルUSBポートをサポートしま

す

電源コネクタ(24ピン) x1

オンボードコ

ネクタ

電源コネクタ(4ピン) x1

背面パネル

I/O

PS/2キーボード x1

PS/2マウス x1

VGAポート x1

LANポート x1

USBポート x4

オーディオジャック x3

ボードサイズ 182 mm (幅) X 235 mm (高さ)

OSサポート Windows 2000 / XP / Vista / 7 / 8

Biostarは事前のサポートなしにOSサポートを追加または削除

する権利を留保します。

2012/07/23

Biostar G41 M7 V7 X Owners Manual IG41A M7S_v2_120723

Navigation menu

Versions of this User Manual:

Views

Navigation
