Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+ Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee that

interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents

here and specially disclaims any implied warranties of merchantability or fitness

for any purpose. Further the vendor reserves the right to revise this publication

and to make changes to the contents here without obligation to notify any party

beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and we

will not be responsible for any mistakes found in this user’s manual. All the brand

and product names are trademarks of their respective companies.

Dichiarazione di conformità

sintetica

Ai sensi dell’art. 2 comma 3 del D.M.

275 del 30/10/2002

Si dichiara che questo prodotto è

conforme alle normative vigenti e

soddisfa i requisiti essenziali richiesti

dalle direttive

2004/108/CE, 2006/95/CE e

1999/05/CE

quando ad esso applicabili

Short Declaration of conformity

We declare this product is complying

with the laws in force and meeting all

the essential requirements as specified

by the directives

2004/108/CE, 2006/95/CE and

1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction ................................................. 1

1.1 Before You Start ................................................................................1

1.2 Package Checklist ............................................................................1

1.3 Motherboard Specifications .............................................................2

1.4 Rear Panel Connectors....................................................................4

1.5 Motherboard Layout..........................................................................5

Chapter 2: Hardware Installation .................................. 6

2.1 Install Central Processing Unit (CPU)............................................6

2.2 Install a Heatsink ...............................................................................8

2.3 Connect Cooling Fans......................................................................9

2.4 Install System Memory...................................................................10

2.5 Expansion Slots...............................................................................11

2.6 Jumper Setting ................................................................................13

2.7 Headers & Connectors...................................................................14

Chapter 3: UEFI BIOS & Software ................................ 20

3.1 UEFI BIOS Setup ............................................................................20

3.2 BIOS Update....................................................................................20

3.3 Software............................................................................................24

Chapter 4: Useful Help ................................................. 34

4.1 Driver Installation.............................................................................34

4.2 AMI BIOS Beep Code.....................................................................35

4.3 Troubleshooting...............................................................................35

4.4 RAID Functions ...............................................................................37

Appendix: Specifications in Other Languages .............. 40

Arabic.....................................................................................................................40

French ...................................................................................................................42

German .................................................................................................................44

Italian .....................................................................................................................46

Japanese...............................................................................................................48

Polish.....................................................................................................................50

Portuguese ...........................................................................................................52

Russian .................................................................................................................54

Spanish..................................................................................................................56

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

CHAPTER 1: INTRODUCTION

1.1 Before You Start

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with sufficient

lighting.

 Always disconnect the computer from power outlet before

operation.

 Before you take the motherboard out from anti-static bag,

ground yourself properly by touching any safely grounded

appliance, or use grounded wrist strap to remove the static

charge.

 Avoid touching the components on motherboard or the rear

side of the board unless necessary. Hold the board on the

edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the case after

installation. Loose parts will cause short circuits which may

damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be 0 to

45 degrees Celsius.

 To avoid injury, be careful of:

Sharp pins on headers and connectors

Rough edges and sharp corners on the chassis

Damage to wires that could cause a short circuit

1.2 Package Checklist

; Serial ATA Cable x2

; Rear I/O Panel for ATX Case x1

; User’s Manual x1

; Fully Setup Driver DVD x1

Note: The package contents may be different due to the sales region or models in which it was

sold. For more information about the standard package in your region, please contact your dealer

or sales representative.

Motherboard Manual

1.3 Motherboard Specifications

Specifications

CPU Support

Socket 1150 for Intel® Core i7 / i5 / i3 / Pentium / Celeron processor

Maximum CPU TDP (Thermal Design Power): 95Watt

* Please refer to www.biostar.com.tw for CPU support list.

Chipset INTEL® Z87 (Hi-Fi Z87S3+)

INTEL® H87 (Hi-Fi H87S3+)

INTEL® B85 (Hi-Fi B85S3+)

Memory

Supports Dual Channel DDR3 1066/ 1333/ 1600

Supports Dual Channel DDR3 DDR3 1800(OC) / 1866(OC) / 2133(OC) / 2200(OC) for

Hi-Fi Z87S3+

4 x DDR3 DIMM Memory Slot, Max. Supports up to 32 GB Memory

Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 module

* Please refer to www.biostar.com.tw for Memory support list.

Storage

INTEL® Z87 & H87:

6x SATA 6Gb/s Connector

Supports RAID 0,1,10,5, SRT & AHCI

INTEL® B85:

4x SATA 6Gb/s Connector

2x SATA 3Gb/s Connector

Supports AHCI

LAN Realtek RTL 8111F

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

Audio Codec ALC892

7.1 Channels, High Definition Audio, Biostar Hi-Fi

USB

Hi-Fi Z87S3+ & Hi-Fi H87S3+

6x USB 3.0 port (4 on rear I/Os and 2 via internal headers)

6x USB 2.0 port (2 on rear I/Os and 4 via internal headers)

Hi-Fi B85S3+

4x USB 3.0 port (2 on rear I/Os and 2 via internal headers)

8x USB 2.0 port (4 on rear I/Os and 4 via internal headers)

Expansion Slots

1x PCI Slot

2x PCIe 2.0 x1 Slot

1x PCIe 3.0 x16 Slot (x16)

Rear I/Os

Hi-Fi Z87S3+ & Hi-Fi H87S3+

1x PS/2 Mouse/Keyboard

1x HDMI Port

1x VGA Port

1x DVI Port

1x LAN port

2x USB 2.0 Port

4x USB 3.0 Port

6x Audio Jack

Hi-Fi B85S3+

1x PS/2 Mouse/Keyboard

1x HDMI Port

1x VGA Port

1x DVI Port

1x LAN port

4x USB 2.0 Port

2x USB 3.0 Port

6x Audio Jack

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

Specifications

Internal I/Os

Hi-Fi Z87S3+ & Hi-Fi H87S3+

6x SATA 6.0Gb/s Connector

2x USB 2.0 Header

(each header supports 2 USB 2.0 ports)

1x USB 3.0 Header

(each header supports 2 USB 3.0 ports)

1x 4-Pin Power Connector

1x 24-Pin Power Connector

1x CPU Fan Connector

2x System Fan Connector

1x Front Panel Header

1x Front Audio Header

1x Clear CMOS Header

1x Consumer IR Header

1x Serial Port Header

1x S/PDIF out Connector

1x Printer Port Header

Hi-Fi B85S3+

4x SATA 6.0Gb/s Connector

2x SATA 2.0Gb/s Connector

2x USB 2.0 Header

(each header supports 2 USB 2.0 ports)

1x USB 3.0 Header

(each header supports 2 USB 3.0 ports)

1x 4-Pin Power Connector

1x 24-Pin Power Connector

1x CPU Fan Connector

2x System Fan Connector

1x Front Panel Header

1x Front Audio Header

1x Clear CMOS Header

1x Consumer IR Header

1x Serial Port Header

1x S/PDIF out Connector

1x Printer Port Header

Form Factor ATX Form Factor, 244 mm x 230 mm

OS Support Windows 7/ 8

Biostar reserves the right to add or remove support for any OS with or without notice.

Motherboard Manual

1.4 Rear Panel Connectors

Hi-Fi Z87S3+ & Hi-Fi H87S3+

Hi-Fi B85S3+

Note1: HDMI, DVI-D & VGA ports only work with an Intel® integrated Graphics Processor.

Note2: Maximum resolution:

HDMI: 4096 x 2160 @24Hz, compliant with HDMI 1.4a

DVI: 1920 x 1200 @60Hz

VGA: 1920 x 1200 @60Hz

Note3: The mainboard supports three onboard display outputs at same time.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

1.5 Motherboard Layout

Note: ■ represents the 1st pin.

Motherboard Manual

CHAPTER 2: HARDWARE INSTALLATION

2.1 Install Central Processing Unit (CPU)

Step 1: Locate the CPU socket on the motherboard

Note1: Remove Pin Cap before installation, and make good preservation for future use. When

the CPU is removed, cover the Pin Cap on the empty socket to ensure pin legs won’t be

damaged.

Note2: The motherboard might equip with two different types of pin cap. Please refer below

instruction to remove the pin cap.

Step 2: Pull the socket locking lever out from the socket and then raise the lever

up.

Step 3: Remove the Pin Cap.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

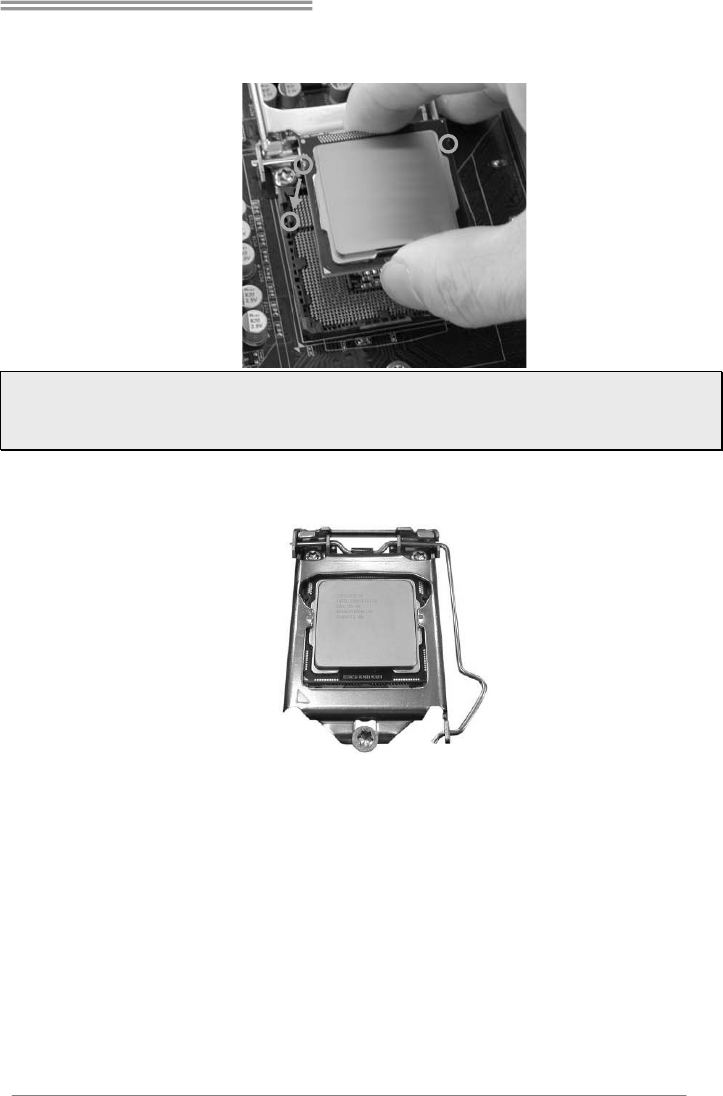

Step 4: Hold processor with your thumb and index fingers, oriented as shown.

Align the notches with the socket. Lower the processor straight down

without tilting or sliding the processor in the socket.

Note1: The LGA1155 CPU is not compatible with LGA 1150 socket. Do not install a LGA 1155 CPU

on the LGA 1150 socket.

Note2: The CPU fits only in one correct orientation. Do not force the CPU into the socket to prevent

damaging the CPU.

Step 5: Hold the CPU down firmly, and then lower the lever to locked position to

complete the installation.

Motherboard Manual

2.2 Install a Heatsink

Step 1: Place the CPU fan assembly on top of the installed CPU and make sure

that the four fasteners match the motherboard holes. Orient the assembly

and make the fan cable is closest to the CPU fan connector.

Step 2: Press down two fasteners at one time in a diagonal sequence to secure

the CPU fan assembly in place. Ensure that all four fasteners are secured.

Note1: Do not forget to connect the CPU fan connector.

Note2: For proper installation, please kindly refer to the installation manual of your CPU heatsink.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

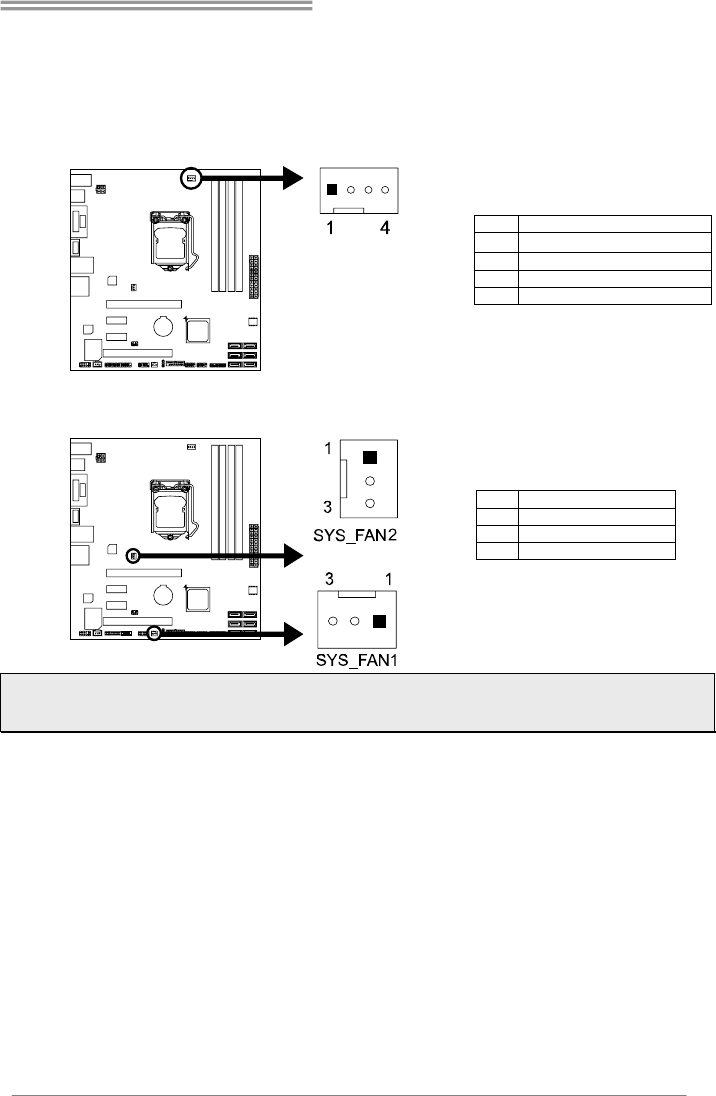

2.3 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and

connector may be different according to the fan manufacturer.

CPU_FAN1: CPU Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

4 Smart Fan Control (By Fan)

SYS_FAN1/2: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

Note: CPU_FAN1, SYS_FAN1/2 support 4-pin and 3-pin head connectors. When connecting with

wires onto connectors, please note that the red wire is the positive and should be connected to

pin#2, and the black wire is Ground and should be connected to pin#1(GND).

Motherboard Manual

2.4 Install System Memory

DDR3 Modules

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM

on the slot such that the notch on the DIMM matches the break on the slot.

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining chip snap

back in place and the DIMM is properly seated.

Note: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

Memory Capacity

DIMM Socket

Location DDR3 Module Total Memory Size

DDR3_A1 512MB/1GB/2GB/4GB/8GB

DDR3_A2 512MB/1GB/2GB/4GB/8GB

DDR3_B1 512MB/1GB/2GB/4GB/8GB

DDR3_B2 512MB/1GB/2GB/4GB/8GB

Max is 32GB.

Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

Enabled O X O X

Enabled X O X O

Enabled O O O O

(O means memory installed, X means memory not installed.)

Note: The DRAM bus width of the memory module must be the same (x8 or x16)

2.5 Expansion Slots

Install an Expansion Card

You can install your expansion card by following steps:

1. Read the related expansion card's instruction document before install the

expansion card into the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the

computer.

3. Place a card in the expansion slot and press down on the card until it is

completely seated in the slot.

4. Secure the card’s metal bracket to the chassis back panel with a screw.

5. Replace your computer's chassis cover.

6. Power on the computer, if necessary, change BIOS settings for the

expansion card.

7. Install related driver for the expansion card.

Motherboard Manual

PEX16_1: PCI-Express Gen3 x16 Slot

- PCI-Express 3.0 compliant.

- Maximum theoretical realized bandwidth of 16GB/s simultaneously per

direction, for an aggregate of 32GB/s totally.

PEX1_1/1_2: PCI-Express Gen2 x1 Slots

- PCI-Express 2.0 compliant.

- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total

PCI1: Peripheral Component Interconnect Slot

The PCI slots support cards used in PCs include: LAN cards, sound cards,

modems, TV tuner cards and other cards that comply PCI standard.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

2.6 Jumper Setting

The illustration shows how to set up jumpers. When the jumper cap is placed on

pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin1-2 closed

JCMOS1: Clear CMOS Jumper

Placing the jumper on pin2-3, it allows user to restore the BIOS safe setting and

the CMOS data. Please carefully follow the procedures to avoid damaging the

motherboard.

Pin 1-2 Close:

Normal Operation (default).

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Load Optimal Defaults and save settings in CMOS.

Motherboard Manual

2.7 Headers & Connectors

ATXPWR1: ATX Power Source Connector

This connector allows user to connect an ATX 24-pin power supply. Make sure to

find the proper orientation before plugging the connector.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 Ground 3 Ground

16 PS_ON 4 +5V

17 Ground 5 Ground

18 Ground 6 +5V

19 Ground 7 Ground

20 NC 8 PW_OK

21 +5V 9 Standby Voltage+5V

22 +5V 10 +12V

23 +5V 11 +12V

24 Ground 12 +3.3V

ATXPWR2: ATX Power Source Connector

The connector provides +12V to the CPU power circuit.

Pin Assignment

1 +12V

2 +12V

3 Ground

4 Ground

Note1: Before you power on the system, please make sure that both ATXPWR1 and ATXPWR2

connectors have been plugged-in.

Note2: Insufficient power supplied to the system may result in instability or the peripherals not

functioning properly. Use of a PSU with a higher power output is recommended when configuring a

system with more power-consuming devices.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

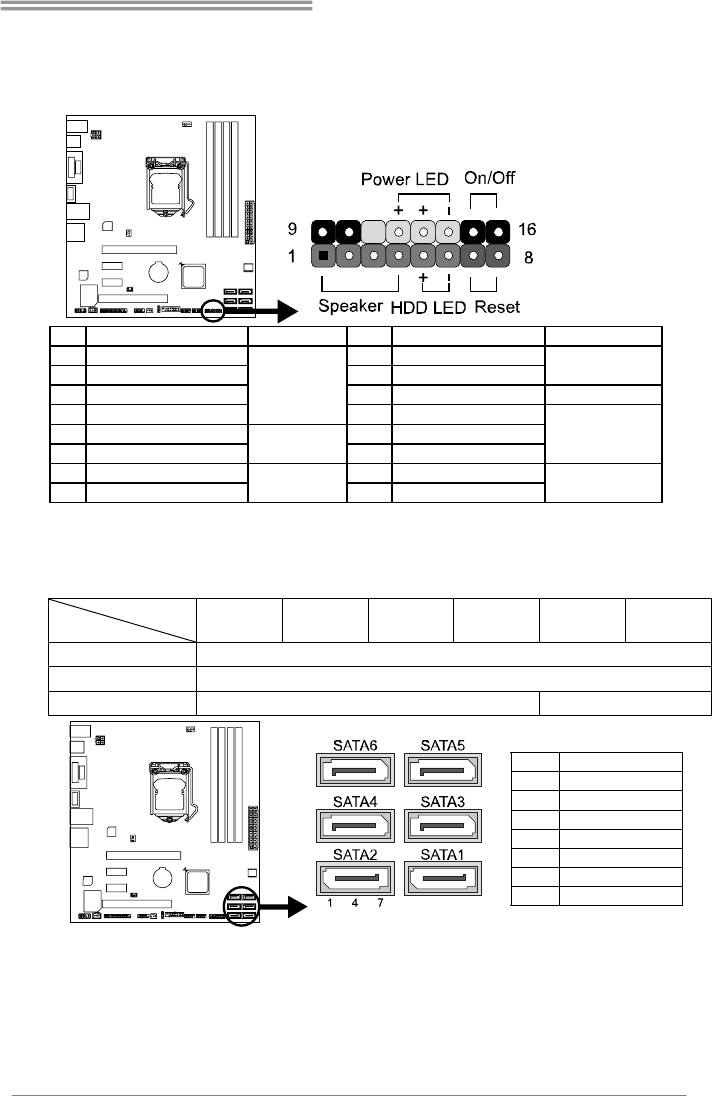

PANEL1: Front Panel Header

This 16-pin header includes Power-on, Reset, HDD LED, Power LED, and speaker

connection. It allows user to connect the PC case’s front panel switch functions.

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A

2 N/A 10 N/A N/A

3 N/A 11 N/A N/A

4 Speaker

Speaker

Connector

12 Power LED (+)

5 HDD LED (+) 13 Power LED (+)

6 HDD LED (-)

Hard drive

LED 14 Power LED (-)

Power LED

7 Ground 15 Power button

8 Reset control Reset button 16 Ground Power-on button

SATA1~SATA6: Serial ATA Connectors

These connectors connect to SATA hard disk drives via SATA cables. Please refer

below table for SATA data transfer rates.

Connectors

Models SATA1 SATA2 SATA3 SATA4 SATA5 SATA6

Hi-Fi Z87S3+ SATA 6Gb/s

Hi-Fi H87S3+ SATA 6Gb/s

Hi-Fi B85S3+ SATA 6Gb/s SATA 3Gb/s

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

Motherboard Manual

JFRONT_USB3_1: Header for USB 3.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and

also can be connected with a wide range of external peripherals.

Pin Assignment Pin Assignment

1 VBUS0 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 Ground

4 Ground 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 Ground

7 Ground 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS1

10 ID 20 Key

F_USB1/2: Header for USB 2.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and

also can be connected with a wide range of external peripherals.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 NC

10 Key

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which

supports HD and AC’97 audio standards.

HD Audio AC’97

Pin Assignment Pin Assignment

1 Mic Left in 1 Mic In

2 Ground 2 Ground

3 Mic Right in 3 Mic Power

4 GPIO 4 Audio Power

5 Right line in 5 RT Line Out

6 Jack Sense 6 RT Line Out

7 Front Sense 7 Reserved

8 Key 8 Key

9 Left line in 9 LFT Line Out

10 Jack Sense 10 LFT Line Out

Note1: It is recommended that you connect a high-definition front panel audio module to this

connector to avail of the motherboard's high definition audio capability.

Note2: Please try to disable the "Front Panel Jack Detection" if you want to use an AC'97 front

audio output cable. The function can be found via O.S. Audio Utility.

JSPDIFOUT1: Digital Audio-out Connector

The connector is for connecting the S/PDIF output bracket.

Pin Assignment

1 +5V

2 SPDIF_OUT

3 Ground

Motherboard Manual

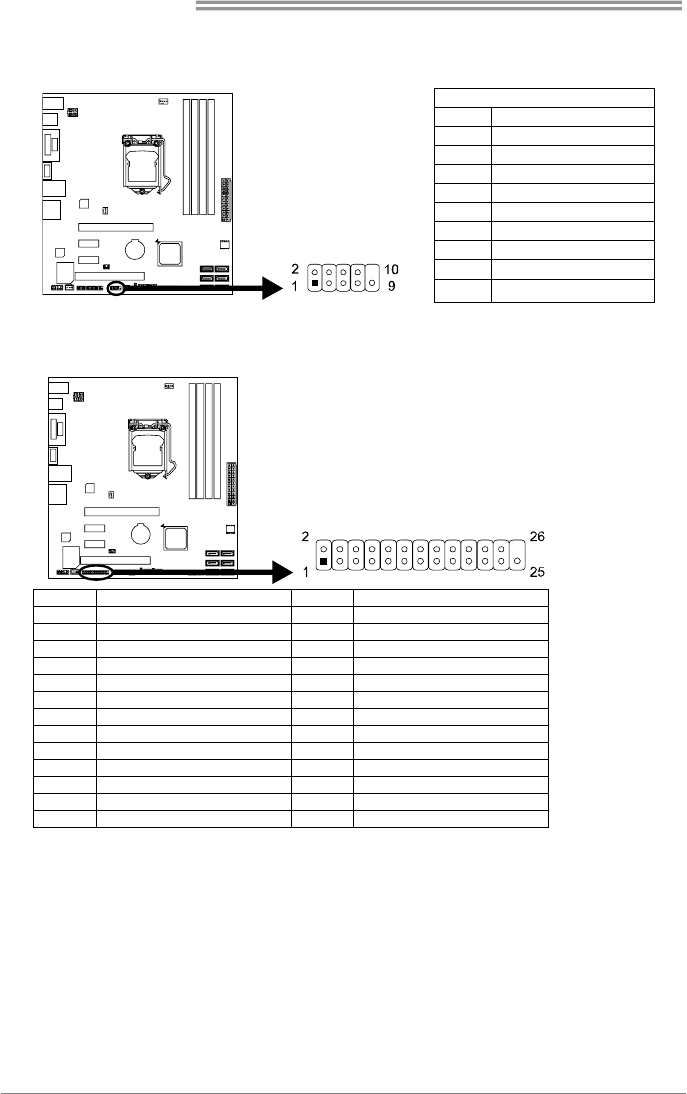

COM: Serial Port Header

The motherboard has a serial port header for connecting RS-232 Port.

Pin Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 NC

J_PRINT1: Printer Port Header

This header allows user to connect a printer to the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground

2 -ALF 15 Data 6

3 Data 0 16 Ground

4 -Error 17 Data 7

5 Data 1 18 Ground

6 -Init 19 -ACK

7 Data 2 20 Ground

8 -Scltin 21 Busy

9 Data 3 22 Ground

10 Ground 23 PE

11 Data 4 24 Ground

12 Ground 25 SCLT

13 Data 5 26 Key

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

CIR1: Consumer IR Header

This header is for infrared remote control and communication.

Pin Assignment

1 IrDA serial input

2 Ground

3 Ground

4 Key

5 IrDA serial output

6 IR Power

Motherboard Manual

CHAPTER 3: UEFI BIOS & SOFTWARE

3.1 UEFI BIOS Setup

z The BIOS Setup program can be used to view and change the BIOS

settings for the computer. The BIOS Setup program is accessed by pressing

the <DEL> key after the Power-On Self-Test (POST) memory test begins

and before the operating system boot begins.

z For further information of setting up the UEFI BIOS, please refer to the UEFI

BIOS Manual in the Setup DVD.

3.2 BIOS Update

The BIOS can be updated using either of the following utilities:

z BIOSTAR BIOS Flasher: Using this utility, the BIOS can be updated from a

file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a

CD-ROM.

z BIOSTAR BIOS Update Utility: It enables automated updating while in the

Windows environment. Using this utility, the BIOS can be updated from a file

on a hard disk, a USB drive (a flash drive or a USB hard drive), or a

CD-ROM, or from the file location on the Web.

BIOSTAR BIOS Flasher

BIOSTAR BIOS Flasher is a BIOS flashing utility providing you an easy and simple

way to update your BIOS via USB pen drive.

Note1: This utility only allows storage device with FAT32/16 format and single partition.

Note2: Shutting down or resetting the system while updating the BIOS will lead to system boot

failure.

Updating BIOS with BIOSTAR BIOS Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, copy and save the BIOS file into a USB flash (pen) drive.

3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press <F12> during the POST process.

5. After entering the POST screen,

the BIOS-FLASHER utility pops

out. Choose [fs0] to search for the

BIOS file.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

6. Select the proper BIOS file, and a

message asking if you are sure to

flash the BIOS file. Click Yes to

start updating BIOS.

7. A dialog pops out after BIOS flash

is completed, asking you to restart

the system. Press the [Y] key to

restart system.

8. While the system boots up and the full screen logo shows up, press <DEL> key to

enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore

Defaults function to load Optimized Defaults, and select Save Changes and

Reset to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through the Internet)

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this

function.

3. Launch BIOS Update Utility and

click the Online Update button on

the main screen.

Motherboard Manual

4. An open dialog will show up to

request your agreement to start the

BIOS update. Click Yes to start the

online update procedure.

5. If there is a new BIOS version, the

utility will ask you to download it.

Click Yes to proceed.

6. After the download is completed,

you will be asked to program

(update) the BIOS or not. Click Yes

to proceed.

7. After the updating process is

finished, you will be asked you to

reboot the system. Click OK to

reboot.

8. While the system boots up and the full screen logo shows up, press <DEL> key

to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore

Defaults function to load Optimized Defaults, and select Save Changes and

Reset to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through a BIOS file)

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from http://www.biostar.com.tw/

3. Launch BIOS Update Utility and

click the Update BIOS button on

the main screen.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

4. A warning message will show up

to request your agreement to start

the BIOS update. Click OK to start

the update procedure.

5. Choose the location for your BIOS

file in the system. Please select

the proper BIOS file, and then

click on Open. It will take several

minutes, please be patient.

6. After the BIOS Update process is

finished, click on OK to reboot the

system.

7. While the system boots up and the full screen logo shows up, press <DEL> key

to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore

Defaults function to load Optimized Defaults, and select Save Changes and

Reset to restart the computer. Then, the BIOS Update is completed.

Backup BIOS

Click the Backup BIOS button on

the main screen for the backup of

BIOS, and select a proper location

for your backup BIOS file in the

system, and click Save.

Motherboard Manual

3.3 Software

Installing Software

1. Insert the Setup DVD to the optical drive. The driver installation program would

appear if the Auto-run function has been enabled.

2. Select Software Installation, and then click on the respective software title.

3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process is completed, you will see the software icon showing on

the desktop. Double-click the icon to launch it.

Note1: All the information and content about following software are subject to be changed without

notice. For better performance, the software is being continuously updated.

Note2: The information and pictures described below are for your reference only. The actual

information and settings on board may be slightly different from this manual.

BIOScreen Utility

This utility allows you to personalize your boot logo easily. You can choose BMP as

your boot logo so as to customize your computer.

Please follow the step-by-step instructions below to update boot logo:

z Load Image：Choose the picture as the boot logo.

z Transform：Transform the picture for BIOS and preview the result.

z Update Bios：Write the picture to BIOS Memory to complete the update.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

eHot-Line

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system.

This utility will collect the system information which is useful for analyzing the problem you

may have encountered, and then send these information to our tech-support department

to help you fix the problem.

Note: Before you use this utility, please set Outlook Express as your default e-mail client

application program.

This block will show

the information which

would be collected in

the mail.

Provide the e-mail

address that you would

like to send the copy to.

Provide the name of

the power supply

manufacturer and the

model no.

Send the mail out.

Save these information to a .txt file

Exit this dialog.

Select your area or

the area close to you.

Provide the name of

the memory module

manufacturer.

Describe condition

of your system.

represents important

information that you

must provide. Without

this information, you may

not be able to send out

the mail.

After filling up this information, click

“Send” to send the mail out. A

warning dialog would appear asking

for your confirmation; click “Send” to

confirm or “Do Not Send” to cancel.

If you want to save this information to

a .txt file, click “Save As…” and then

you will see a saving dialog appears

asking you to enter file name.

Motherboard Manual

Enter the file name and then click

“Save”. Your system information will be

saved to a .txt file.

Open the saved .txt file, you will see

your system information including

motherboard/BIOS/CPU/video/

device/OS information. This

information is also concluded in the

sent mail.

Note1: We will not share customer’s data with any other third parties, so please feel free to provide

your system information while using eHot-Line service.

Note2: If you are not using Outlook Express as your default e-mail client application, you may need

to save the system information to a .txt file and send the file to our tech support with other e-mail

application. Go to the following website http://www.biostar.com.tw/app/en/about/contact.php for

getting our contact information.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

Smart EAR

Hi-Fi Audio Requirements:

1. A chassis with front audio output jacks

2. An earphone or a headphone

3. Windows 7 or Windows 8 operation system

Installation Guide:

1. Make sure the front audio cable of the chassis connected to the front audio

header of the motherboard properly.

2. Install the Smart Ear 3D Utility from the driver DVD.

3. Connect the earphone or headphone to the front audio jack of the chassis.

Note: If you want to use an AC'97 front audio output cable, please disable the "Front Panel Jack

Detection" setting. This setting can be found via O.S. Audio Utility.

Smart EAR Utility:

z High/Low Gain Switch: Keep the gain switch to low for low impedance

headphone and set to high for high impedance headphone.

z Mute Button: To disable system sound

z Volume Control Knob: The volume can be finely adjusted by turning the

knob either clockwise or anti-clockwise to increase or decrease system

volume accordingly.

z Information Button: Get information of the application

z Minimize Button: Minimize the application window to the taskbar

z Exit Button: Exit the application

Motherboard Manual

Smart Connect Technology

Intel® Smart Connect Technology is designed to update programs by periodically

waking your computer from sleep/standby mode for a short time. This function works

with applications that automatically get their data from the Internet.

System Requirement:

z Intel Smart Connect Technology enabled in BIOS Setup

z Set the “ACPI Sleep State” to S3 in BIOS Setup.

z Windows 7 and Windows 8

z Normal internet connection

Configuring Intel Smart Connect Technology

Step 1: After installing the operating system and motherboard drivers, install the Intel

Smart Connect Technology application. Restart your computer when completed.

Step 2: Click on start menu and input "regedit" in the search bar. Press enter to open

the registry editor. Look for the following directory in the registry editor:

Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Intel\Intel Smart Connect Technology

Right-click on Intel Smart Connect Technology and select New > Key. Type “OEM”.

Note: Intel Smart Connect Technology is for S3 mode only. During the updating process, the

monitor will not light up and no sound will be output from the speaker.

Step 3: As shown in the screenshot below, right-click on OEM, select New >

Multi-String Value, and type “WhiteList”. Double-click WhiteList and type the

application name to be added in Edit Multi-String. For example, to add Microsoft Live

Mail, type “wlmail.exe”. Restart your computer when completed.

Step 4: After completing the steps above, go to Start\All Programs\Intel and launch

Intel(R) Smart Connect Technology.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

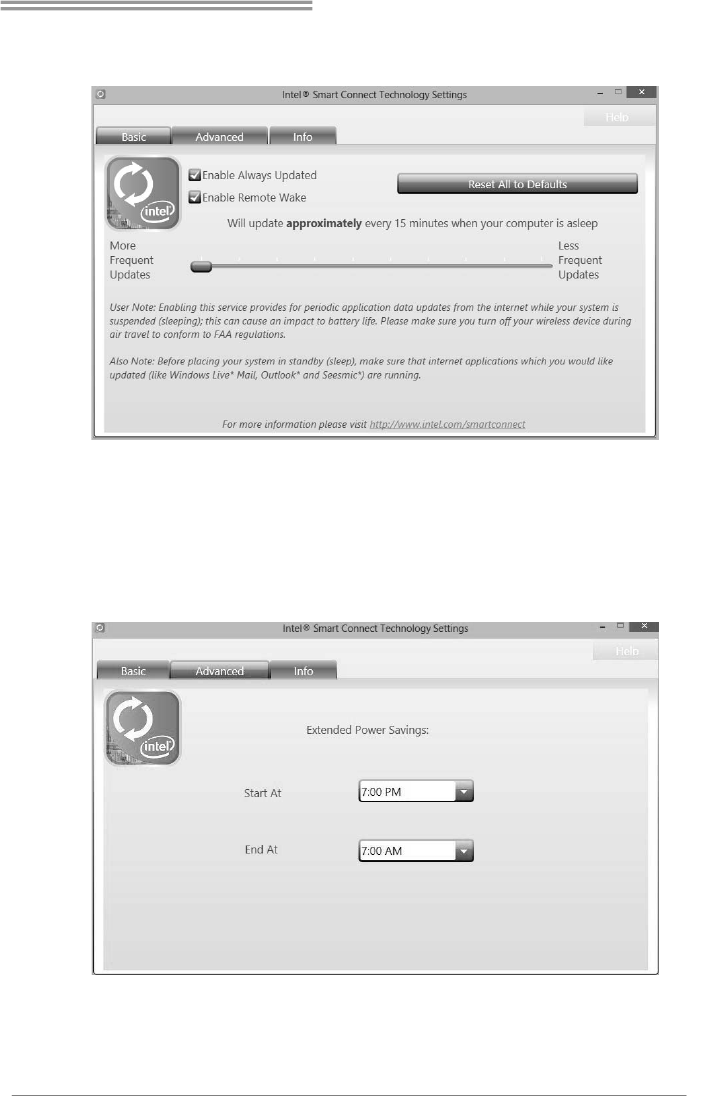

Basic and advanced settings

Basic Tab

Update Frequency slider: This slider bar sets the amount of time the feature waits to wake

your computer and update your applications. Move the slider in the user interface to change

the frequency. The slider bar can be set to wake and update your computer from every 15 to

60 minutes. The longer the time between updates the less power the feature consumes.

Reset All to Defaults button: This button is designed to reset Intel® Smart Connect

Technology back to the original factory setting for wake frequency.

Advanced Tab

Extended Power Savings: You can set a time for Intel Smart Connect Technology to work in

Extended Power Savings mode. This night time mode updates your computer every two

hours, saving power for the times you are not using your computer.

Motherboard Manual

Rapid Start Technology

Intel® Rapid Start technology enables your system to get up and running faster from

even the deepest sleep, saving time and power consumption. Feel secure knowing that

your system will still resume to working conditions in the event of unexpected power

loss while in sleep mode.

System Requirement:

z An Intel® SATA SSD (SATA Gen2 or Gen3. Preferably Gen3, and 80 GB or

larger)

z Windows 7 and Windows 8

Note1: Please visit below webpage for more details about operating systems supporting

http://www.intel.com/p/en_US/support

Note2: The Rapid Start Technology is NOT supported by H81 chipset.

Installing Intel® SBA:

Step 1: BIOS Setting

1-1 Go to [Advanced Menu] > [ACPI Settings], and set [ACPI Sleep State] to S3

(Suspend to RAM)

1-2 Go to [Advanced Menu] > [SATA Configuration], and set [SATA Mode

Selection] to AHCI

1-3 Go to [Advanced Menu] and set [Intel(R) Rapid Start Technology] to Enabled

1-4 Save your changes, and then exit the BIOS Setup.

Step 2: Operating System Installation

Step 3: Installing Intel® Rapid Start Application

3-1 Insert the setup Driver DVD into your optical drive. Click “Intel Rapid Start

Technology” to launch the program.

3-2 Below window will pop-out, then click “Create Disk” to star disk partition. After

disk partition finished, please click “OK” then system will reboot automatically.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

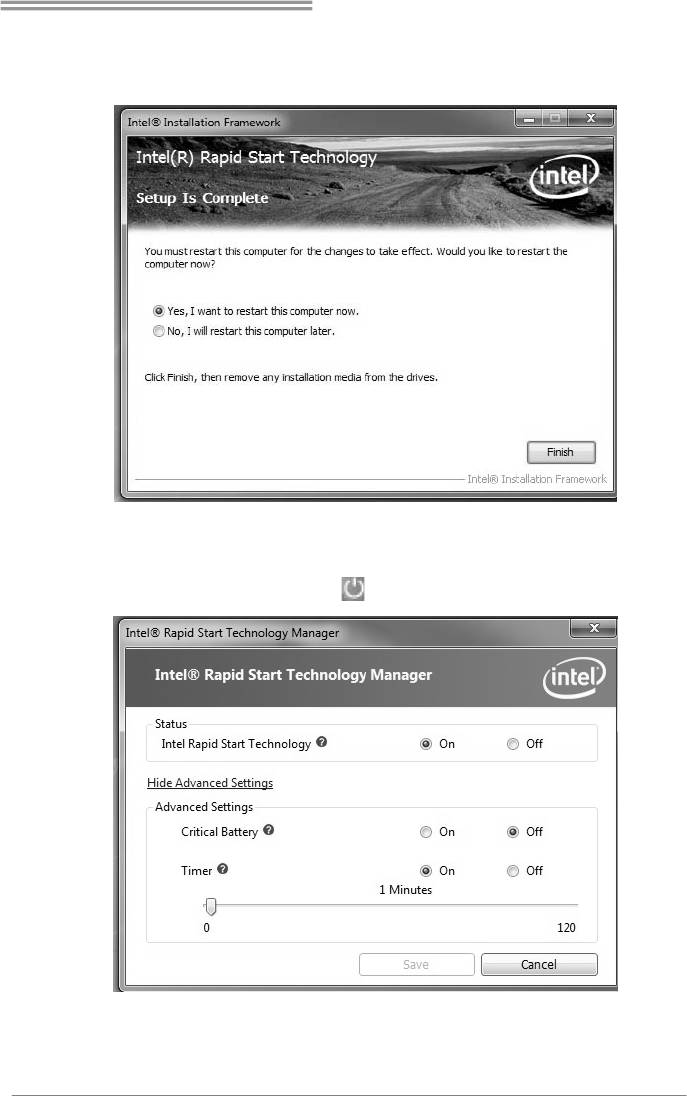

3-3 After rebooting, the system will setup Intel® Rapid Start Technology

automatically. We recommend you restart the system after this installation is

complete,

Step 4: Configuring Intel® Rapid Start Application

Launch the Intel® Rapid Start Technology Manager application from [Start] > [All

Programs] > [Intel] or click the icon in the notification area.

Motherboard Manual

Intel® Small Business Advantage

Intel Small Business Advantage (Intel SBA) provides an out-of-the-box hardware-based

security and productivity suite designed for the small business user.

Software Monitor

Software Monitor helps keep critical security software running by monitoring it at the

hardware level and alerting the business if there has been an attack. The Software

Monitor also maintains an event log that shows status information and any errors

generated, so businesses can know what happened.

Data Backup and Restore

Data Backup and Restore provides reliable after-hours backup of critical data using the

local maintenance timer to power on the computer. Data can be backed up to a

designated location.

USB Blocker

The optional USB Blocker lets businesses control access to their infrastructure,

preventing unauthorized USB devices or file imports or exports on company computers.

PC Health Center

PC Health Center can schedule and do PC maintenance tasks after hours, without

interrupting employee work time. Tasks such as updating the operating system,

deleting temporary internet files, and running disk defragmentation can be done at night.

PC Health Center works even if the computer is powered-down, as long as it is plugged

in.

Energy Saver

With the optional Energy Saver, businesses can save energy by scheduling PCs to

power-down at the end of the day and turn on before the work day begins - ready for

employees as they arrive in the morning.

Supported Operating Systems:

Windows 7 and Windows 8

Note1: Please visit below webpage for more details about operating systems supporting

http://www.intel.com/p/en_US/support

Note2: The Intel® Small Business Advantage is only supported by H87 & B85 chipsets.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

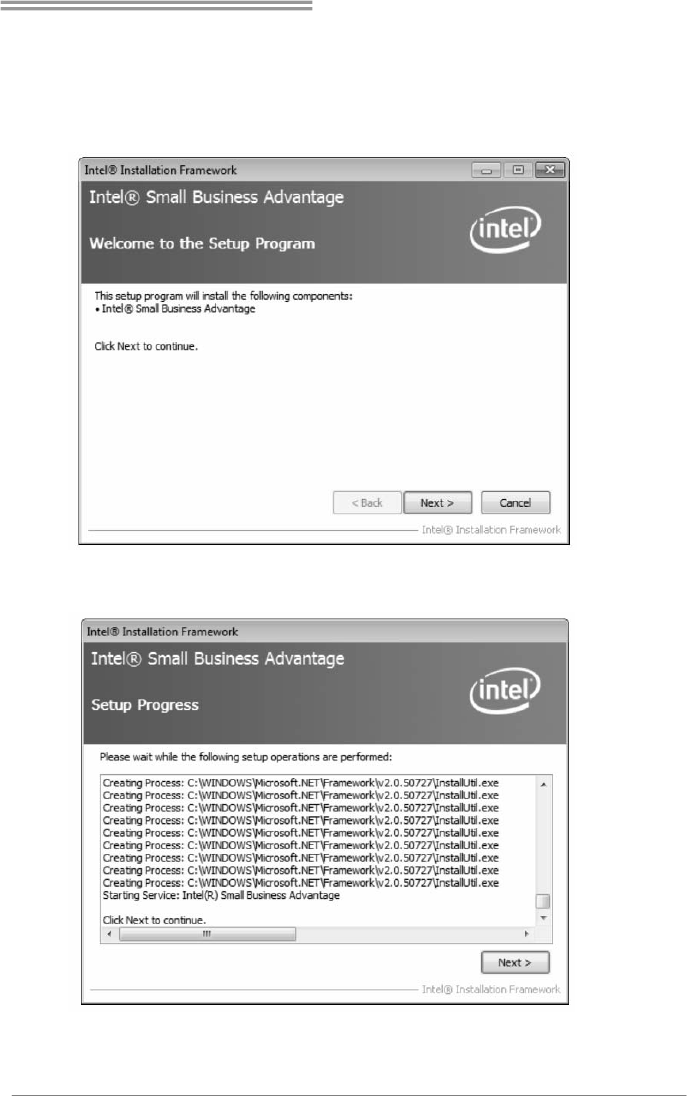

Installing Intel SBA

This procedure describes how to install Intel SBA.

1. Logon to the computer with a user that has administrator privileges.

2. Copy the Setup.exe file to the computer.

3. Double-click Setup.exe.

The Welcome to the Setup Program window opens.

4. Click Next. The installer starts the installation and the Setup Progress window

opens showing the progress of the installation. When installation is complete, the

installer starts the Intel SBA service and the Next button is enabled.

5. Click Next. The Setup Is Complete window opens.

6. Click Finish. The installer closes.

Motherboard Manual

CHAPTER 4: USEFUL HELP

4.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver

DVD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the

compatible driver for your motherboard and operating system. Click on each

device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list

the software available for your system, click on each software title to launch the

installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD.

Click on the Manual icon to browse for available manuals.

Note1: If this window didn’t show up after you insert the Driver DVD, please use file browser to

locate and execute the file SETUP.EXE under your optical drive.

Note2: You will need Acrobat Reader to open the manual file. Please download the latest version of

Acrobat Reader software from http://get.adobe.com/reader/

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

4.2 AMI BIOS Beep Code

Boot Block Beep Codes

Number of Beeps Description

Continuing Memory sizing error or Memory module not found

POST BIOS Beep Codes

Number of Beeps Description

1 Success booting.

8 Display memory error (system video adapter)

4.3 Troubleshooting

Probable Solution

1. There is no power in the system. Power

LED does not shine; the fan of the

power supply does not work

2. Indicator light on keyboard does not

shine.

1. Make sure power cable is securely

plugged in.

2. Replace cable.

3. Contact technical support.

System is inoperative. Keyboard lights are

on, power indicator lights are lit, and hard

drives are running.

Using even pressure on both ends of the

DIMM, press down firmly until the module

snaps into place.

System does not boot from a hard disk drive,

but can be booted from optical drive.

1. Check cable running from disk to disk

controller board. Make sure both ends

are securely plugged in; check the

drive type in the standard CMOS

setup.

2. Backing up the hard drive is

extremely important. All hard disks

are capable of breaking down at any

time.

System only boots from an optical drive.

Hard disks can be read, applications can be

used, but system fails to boot from a hard

disk.

1. Back up data and applications files.

2. Reformat the hard drive. Re-install

applications and data using backup

disks.

Screen message shows “Invalid

Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure

correct information is in setup.

System cannot boot after user installs a

second hard drive.

1. Set master/slave jumpers correctly.

2. Run SETUP program and select

correct drive types. Call the drive

manufacturers for compatibility with

other drives.

Motherboard Manual

CPU Overheated

If the system shutdown automatically after power on system for seconds, that

means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to

avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.

2. Wait for seconds.

3. Power on the system again.

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

4.4 RAID Functions

RAID Definitions

RAID 0:

In a RAID 0 system data are split up in blocks that get

written across all the drives in the array. By using multiple

disks (at least 2) at the same time, this offers superior I/O

performance. This performance can be enhanced further

by using multiple controllers, ideally one controller per

disk.

Features and Benefits

 Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the platform.

 Uses: Intended for non-critical data requiring high data throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increased data throughput, especially for large files. No capacity

loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array fails, all data

is lost.

 Fault Tolerance: No.

 Total Capacity: (Minimal. HDD Capacity) x (Connected HDDs Amount)

RAID 1:

Data are stored twice by writing them to both the data

disk (or set of data disks) and a mirror disk (or set of

disks) . If a disk fails, the controller uses either the data

drive or the mirror drive for data recovery and continues

operation. You need at least 2 disks for a RAID 1 array.

Features and Benefits

 Drives: Minimum 2, and maximum is 2.

 Uses: RAID 1 is ideal for small databases or any other application that requires fault

tolerance and minimal capacity.

 Benefits: Provides 100% data redundancy. Should one drive fail, the controller

switches to the other drive.

 Drawbacks: Requires 2 drives for the storage space of one drive. Performance is

impaired during drive rebuilds.

 Fault Tolerance: Yes.

Motherboard Manual

RAID 10:

RAID 10 combines the advantages (and

disadvantages) of RAID 0 and RAID 1 in

one single system. It provides security

by mirroring all data on a secondary set

of disks (disk 3 and 4 in the drawing

below) while using striping across each

set of disks to speed up data transfers.

Features and Benefits

 Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.

 Benefits: Optimizes for both fault tolerance and performance, allowing for automatic

redundancy. May be simultaneously used with other RAID levels in an array, and

allows for spare disks.

 Drawbacks: Requires twice the available disk space for data redundancy, the same

as RAID level 1.

 Fault Tolerance: Yes.

RAID 5:

A RAID 5 array can withstand a single

disk failure without losing data or access

to data. Although RAID 5 can be

achieved in software, a hardware

controller is recommended. Often extra

cache memory is used on these

controllers to improve the write

performance.

Features and Benefits

 Drives: Minimum 3.

 Uses: RAID 5 is recommended for transaction processing and general purpose

service.

 Benefits: An ideal combination of good performance, good fault tolerance, and high

capacity and storage efficiency.

 Drawbacks: Individual block data transfer rate same as a single disk. Write

performance can be CPU intensive.

 Fault Tolerance: Yes.

Note1: The RAID 0,1,10 and 5 functions are only supported by Z87 & H87 chipsets.

Note2: For more details settings about Intel® Rapid Storage Technology (Intel® RST), please visit

http://www.intel.com/p/en_US/support/highlights/chpsts/imsm

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

This Page Intentionally Left Blank

Motherboard Manual

APPENDIX: Specifications in Other Languages

Arabic

ﻤﻟاتﺎﻔﺻاﻮ

ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ةﺪﻋﺎﻗ

ﺔﻳﺰآﺮﻤﻟا

ﺬﺧﺄﻤﻟا1150 ىد مإ ﻪﻳا ﺞﻟﺎﻌﻤﻟ Intel® Core i7 / i5 / i3 / Pentium / Celeron

ﺞﻟﺎﻌﻤﻟا ﻢﻴﻤﺼﺗ ﻲﻓ ﺔﻳراﺮﺤﻟا ﺔﻗﺎﻄﻠﻟ ﻰﺼﻗﻷا ﺪﺤﻟا )TDP – thermal design power :( 95طاو .

*ﻊﻗﻮﻤﻟا ﻰﻟإ عﻮﺟﺮﻟا ﻰﺟﺮﻳwww.biostar.com.tw ﻋد ﺔﻤﺋﺎﻘﻟ ﺞﻟﺎﻌﻤﻟا ﻢCPU.

ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻣ

INTEL® Z87 (Hi-Fi Z87S3+)

INTEL® H87 (Hi-Fi H87S3+)

INTEL® B85 (Hi-Fi B85S3+)

ةﺮآاﺬﻟا

يد ﺔﺟودﺰﻣ ةﺎﻨﻗ ﻢﻋﺪﺗ .يد .را . DDR3 1066/ 1333/ 1600

يد ﺔﺟودﺰﻣ ةﺎﻨﻗ ﻢﻋﺪﺗ .يد .را . DDR3 1800(OC) / 1866(OC) / 2133(OC) / 2200(OC)

(Hi-Fi Z87S2)

4xيد .يد .را .DDR3 ﺔﺟودﺰﻤﻟا ةﺮآاﺬﻟا تﺎﺤﺘﻓ DIMM ﻰﺼﻗأ ﺪﺤآ ﻞﻤﺤﺘﺗ ،32ةﺮآاذ ﺖﻳﺎﺑﺎﺠﻴﺟ

ﺔﺟودﺰﻣ ﺔﺤﺘﻓ ﻞآ DIMM نود ﻞﻤﺤﺘﺗ ECC 512 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /1/2/4/8يد ﺖﻳﺎﺑﺎﺠﻴﺟ .يد . راDDR3

*ﻊﻗﻮﻤﻟا ﻰﻟإ عﻮﺟﺮﻟا ﻰﺟﺮﻳwww.biostar.com.tw ةﺮآاﺬﻟا ﻢﻋد ﺔﻤﺋﺎﻘﻟ .

ﻦﻳﺰﺨﺘﻟا

INTEL® Z87 & H87

ﺔﻠﺻو6x ﺎﺗﺎﺳ SATA 6 ﺖﻳﺎﺑ ﺎﺠﻴﺟ /ﺔﻴﻧﺎﺜﻟا

ﺪﻳار ﻞﻤﺤﺘﺗRAID 0 / 1 / 5 / 10SRT, AHCI,

INTEL® B85

ﺔﻠﺻو4x ﺎﺗﺎﺳ SATA 6 ﺖﻳﺎﺑ ﺎﺠﻴﺟ /ﺔﻴﻧﺎﺜﻟا

ﺔﻠﺻو2x ﺎﺗﺎﺳ SATA 3 ﺖﻳﺎﺑ ﺎﺠﻴﺟ /ﺔﻴﻧﺎﺜﻟا

ﺪﻳار ﻞﻤﺤﺘﺗAHCI

ﺔﻴﻠﺤﻣ ﺔﻜﺒﺷLAN

ل تر ﻚﻴﺘﻟﺎﻴﻳرRTL 8111 F REALTEK

10 / 100 / 1000 ﺖﻳﺎﺑﺎﺠﻴﻣ / ﻒﺼﻨﻟا ، ﻲﺋﺎﻘﻠﺗ ﺪﻳﺪﺤﺗ ، ﺔﻴﻧﺎﺜﻟا /ﺔﺟودﺰﻤﻟا ىﻮﺼﻘﻟا ةرﺪﻘﻟا

ﻲﺗﻮﺼﻟا ﺰﻴﻣﺮﺘﻟا

ALC892

7.1ﺔﻗﺪﻟا ﺔﻴﻟﺎﻋ تاﻮﻨﻗ , Biostar Hi-Fi

مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧUSB

Hi-Fi Z87S3+ & Hi-Fi H87S3+

ﺬﻓﺎﻨﻣ 6 x مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 3.0 ) 4ﺪﻤﻟا ﻲﻓ و ﺔﻴﻔﻠﺨﻟا جرﺎﺨﻤﻟاو ﻞﺧا2 ﻲﻠﺧاﺪﻟا عزﻮﻤﻟا لﻼﺧ ﻦﻣ (

ﺬﻓﺎﻨﻣ 6 x مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 2.0 )2 و ﺔﻴﻔﻠﺨﻟا جرﺎﺨﻤﻟاو ﻞﺧاﺪﻤﻟا ﻲﻓ 4 ﻲﻠﺧاﺪﻟا عزﻮﻤﻟا لﻼﺧ ﻦﻣ (

Hi-Fi B85S3+

ﺬﻓﺎﻨﻣ4 x مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 3.0 ) 2 و ﺔﻴﻔﻠﺨﻟا جرﺎﺨﻤﻟاو ﻞﺧاﺪﻤﻟا ﻲﻓ 2ﻦﻣ ﻲﻠﺧاﺪﻟا عزﻮﻤﻟا لﻼﺧ (

ﺬﻓﺎﻨﻣ 8 x مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 2.0 ) 4 و ﺔﻴﻔﻠﺨﻟا جرﺎﺨﻤﻟاو ﻞﺧاﺪﻤﻟا ﻲﻓ 4 ﻲﻠﺧاﺪﻟا عزﻮﻤﻟا لﻼﺧ ﻦﻣ (

ﻊﺳﻮﺘﻟا تﺎﺤﺘﻓ

1 x ﺔﻴﻓﺎﺿﻹا تﺎﻘﺤﻠﻤﻟا ﺬﻔﻨﻣ ﺔﺤﺘﻓ PCI

2 x ﺔﻴﻓﺎﺿﻹا تﺎﻘﺤﻠﻤﻟا ﺬﻔﻨﻣ ﺔﺤﺘﻓ PCIe 2.0 x 1

1 xتﺎﻘﺤﻠﻤﻟا ﺬﻔﻨﻣ ﺔﺤﺘﻓ ﺔﻴﻓﺎﺿﻹا PCIe 3.0x 16(x16)

ﺔﻴﻔﻠﺨﻟا جرﺎﺨﻤﻟاو ﻞﺧاﺪﻤﻟا

Hi-Fi Z87S3+ & Hi-Fi H87S3+

1 x PS/2 ﺢﻴﺗﺎﻔﻤﻟا ﺔﺣﻮﻟ /سوﺎﻤﻟا

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ1 x HDMI ﻲﻟﺎﻌﻟا دﺪﻌﺘﻣ ﻂﻴﺳو

حﻮﺿﻮﻟا

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ1 x ﻲﺋﺮﻤﻟا ضﺮﻌﻟا ﺔﻣﻮﻈﻨﻣ VGA

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ1 xﻤﻗر ﺔﻴﺋﺮﻣ ﺔﻬﺟاو ﺔﻴ DVI

دﺪﻋ ﻞﻴﺻﻮﺘﻟ ﺔﺤﺘﻓ1 x ﺔﻴﻠﺤﻤﻟا ﺔﻜﺒﺸﻟا LAN

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ2 xمﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 2.0

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ4 x مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 3.0

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ6 xتﻮﺼﻠﻟ كﺎﺟ

Hi-Fi B85S3+

1 x PS/2 ﺢﻴﺗﺎﻔﻤﻟا ﺔﺣﻮﻟ /سوﺎﻤﻟا

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ1 x HDMIﻂﻴﺳو ﻲﻟﺎﻌﻟا دﺪﻌﺘﻣ

حﻮﺿﻮﻟا

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ1 x ﻲﺋﺮﻤﻟا ضﺮﻌﻟا ﺔﻣﻮﻈﻨﻣ VGA

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ1 x ﺔﻴﻤﻗر ﺔﻴﺋﺮﻣ ﺔﻬﺟاو DVI

دﺪﻋ ﻞﻴﺻﻮﺘﻟ ﺔﺤﺘﻓ1 x ﺔﻴﻠﺤﻤﻟا ﺔﻜﺒﺸﻟا LAN

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ4 xمﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 2.0

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ2 x مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 3.0

ﺔﺤﺘﻓ دﺪﻋ ﻞﻴﺻﻮﺗ6 xتﻮﺼﻠﻟ كﺎﺟ

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

ﻤﻟاتﺎﻔﺻاﻮ

ﺔﻴﻠﺧاﺪﻟا جرﺎﺨﻤﻟاو ﻞﺧاﺪﻤﻟا

Hi-Fi Z87S3+ & Hi-Fi H87S3++

ﺔﻠﺻو6 x SATA 6 ﺖﻳﺎﺑﺎﺠﻴﺟ /ﺔﻴﻧﺎﺜﻟا

عزﻮﻣ2x مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 2.0 ) عزﻮﻣ ﻞآ

مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ ﻦﻴﺘﺤﺘﻓ ﻞﻤﺤﺘﻳUSB 2.0(

عزﻮﻣ1x مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 3.0 ) عزﻮﻣ ﻞآ

ﻞﻤﺤﺘﻳ مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ ﻦﻴﺘﺤﺘﻓ USB 3.0(

ﺔﻗﺎﻄﻠﻟ ﺔﻠﺻو1 x 4ﺲﻴﺑﺎﺑد

ﺔﻗﺎﻄﻠﻟ ﺔﻠﺻو1x 24سﻮﺑد

ﺔﻠﺻو1 x ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺪﻳﺮﺒﺗ ﺔﺣوﺮﻣ

ﺔﻠﺻو2x ﺔﻣﻮﻈﻨﻤﻟا ﺪﻳﺮﺒﺗ حواﺮﻣ

عزﻮﻣ1 xﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا

عزﻮﻣ1x ﻲﻣﺎﻣﻷا تﻮﺼﻟا

عزﻮﻣ1x ﺮﺷﺎﺒﻣ سﻮﻤﻴﺳ

عزﻮﻣ1 xﺴﻣ ﻚﻠﻬﺘIR

عزﻮﻣ1x ﺔﻴﻠﺴﻠﺴﺗ ﺔﺤﺘﻓ

ﺔﻠﺻو1x ﺔﻴﺟرﺎﺧ S/PDIF ﺔﻬﺟاﻮﻟا ﺲﺒﻴﻠﻴﻓ ﻲﻧﻮﺳ

ﺔﻴﻤﻗﺮﻟا

عزﻮﻣ1x ﺔﻌﺑﺎﻄﻠﻟ ﺔﺤﺘﻓ

Hi-Fi B85S3++

ﺔﻠﺻو4 x SATA 6 ﺖﻳﺎﺑﺎﺠﻴﺟ /ﺔﻴﻧﺎﺜﻟا

ﺔﻠﺻو2 x SATA 3 ﺖﻳﺎﺑﺎﺠﻴﺟ /ﺔﻴﻧﺎﺜﻟا

عزﻮﻣ2x مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 2.0 ) ﻞآ

ﺘﺤﺘﻓ ﻞﻤﺤﺘﻳ عزﻮﻣ مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ ﻦﻴUSB 2.0(

عزﻮﻣ1x مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 3.0 ) ﻞآ

مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ ﻦﻴﺘﺤﺘﻓ ﻞﻤﺤﺘﻳ عزﻮﻣUSB 3.0(

ﺔﻗﺎﻄﻠﻟ ﺔﻠﺻو1 x 4ﺲﻴﺑﺎﺑد

ﺔﻗﺎﻄﻠﻟ ﺔﻠﺻو1x 24سﻮﺑد

ﺔﻠﺻو1 x ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺪﻳﺮﺒﺗ ﺔﺣوﺮﻣ

ﺔﻠﺻو2x ﺔﻣﻮﻈﻨﻤﻟا ﺪﻳﺮﺒﺗ حواﺮﻣ

عزﻮﻣ1 x ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا

عزﻮﻣ1x ﻲﻣﺎﻣﻷا تﻮﺼﻟا

عزﻮﻣ1x ﺮﺷﺎﺒﻣ سﻮﻤﻴﺳ

عزﻮﻣ1 x ﻚﻠﻬﺘﺴﻣ IR

عزﻮﻣ1x ﺔﻴﻠﺴﻠﺴﺗ ﺔﺤﺘﻓ

ﺔﻠﺻو1x ﺔﻴﺟرﺎﺧ S/PDIF ﺲﺒﻴﻠﻴﻓ ﻲﻧﻮﺳ

ﺔﻴﻤﻗﺮﻟا ﺔﻬﺟاﻮﻟا

عزﻮﻣ1x ﺔﻌﺑﺎﻄﻠﻟ ﺔﺤﺘﻓ

ﻞﻜﺸﻟا ﻞﻣﺎﻋ ﺔﻣﺪﻘﺘﻤﻟا ﺎﻴﺟﻮﻟﻮﻨﻜﺘﻟا دﺪﻣ ﻞﻜﺷ ﻞﻣﺎﻋATX ، 244 ﻢﻣx 230 ﻣ ﻢ

ﺔﻣﻮﻋﺪﻤﻟا ﻞﻴﻐﺸﺘﻟا ﺔﻤﻈﻧأ

زوﺪﻨﻳو7 / زوﺪﻨﻳو8

رﺎﺘﺳﻮﻴﺑBIOSTARرﺎﻈﻧأ نوﺪﺑ وأ ﻊﻣ ﻞﻴﻐﺸﺗ مﺎﻈﻧ يﻷ ﻢﻋﺪﻟا ﺔﻟزأ وأ ﺔﻓﺎﺿإ ﻖﺤﺑ ﻆﻔﺘﺤﺗ .

Motherboard Manual

French

Spécifications

Support Unité

Centrale

Socket 1150 Processeurs Intel® Core i7 / i5 / i3 / Pentium / Celeron

Enveloppe thermique Unité Centrale maximum : 95Watt

* Veuillez vous reporter à www.biostar.com.tw pour la liste des supports modèles d'Unité

Centrale.

Jeu de puces INTEL® Z87 (Hi-Fi Z87S3+)

INTEL® H87 (Hi-Fi H87S3+)

INTEL® B85 (Hi-Fi B85S3+)

Mémoire

Supporte mémoire DDR3 double canal 1066/ 1333/ 1600

Supporte mémoire DDR3 double canal 1800(OC) / 1866(OC) / 2133(OC) / 2200(OC)

(Hi-Fi Z87S3+ )

Banc de mémoire 4 x DDR3 DIMM, Supporte max. jusqu’à une mémoire de 32 GB

Chaque module DIMM supporte module DDR3 non-ECC 512MB/ 1/ 2/ 4/ 8 GB

* Veuillez vous reporter à www.biostar.com.tw pour la liste des soutien de la mémoire.

Stockage

INTEL® Z87 & H87:

Connecteur 6 x SATA 6Gb/s

Supporte système RAID 0,1,10,5, SRT &

AHCI

INTEL® B85:

Connecteur 4 x SATA 6Gb/s

Connecteur 2 x SATA 3Gb/s

Supporte système AHCI

Réseau local

Realtek RTL 8111F

10/ 100/ 1000 Mb/s auto négociation, capacité bidirectionnelle à l'alternat / bidirectionnelle

simultanée

Codec audio ALC892

Canaux 7.1, écoute audio de haute définition, Biostar Hi-Fi

USB

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

Port 6x USB 3.0 (4 sur les I/O arrières et 2 en interne)

Port 6x USB 2.0 (2 sur les I/O arrières et 4 en interne)

Hi-Fi B85S3+:

Port 4x USB 3.0 (2 sur les I/O arrières et 2 en interne)

Port 8x USB 2.0 (4 sur les I/O arrières et 4 en interne)

Connecteur

d’extension

1x PCI Fente

2x PCIe 2.0 x1 Fente

1x PCIe 3.0 x16 Fente (x16)

I/O arrirèes

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

1x PS/2 Souris/Clavier

1x Port HDMI

1x Port VGA

1x Port DVI

1x port LAN

2x Port USB 2.0

4x Port USB 3.0

6x entrées audio

Hi-Fi B85S3+:

1x PS/2 Souris/Clavier

1x Port HDMI

1x Port VGA

1x Port DVI

1x port LAN

4x Port USB 2.0

2x Port USB 3.0

6x entrées audio

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

Spécifications

I/O en interne

Hi-Fi Z87S3+ & Hi-Fi H87S3+

6x Connecteur SATA 6.0Gb/s

2x embases USB 2.0

(chaque embase supporte 2 Ports USB 2.0)

1x embase USB 3.0

(chaque embase supporte 2 Ports USB 3.0)

1x 4-Broche de carte

1x 24-Broche de carte

1x Connecteur ventilateur unité centrale

2x Connecteur ventilateur système

1x Fiche panneau avant

1x Fiche audio avant

1x Fiche mémoire CMOS vide

1x Fiche Registre d’état Consommateur

1x Embase port série

1x Connecteur sortie S/PDIF

1x Embase port imprimante

Hi-Fi B85S3+

4x Connecteur SATA 6.0Gb/s

2x Connecteur SATA 3.0Gb/s

2x embases USB 2.0

(chaque embase supporte 2 Ports USB 2.0)

1x embase USB 3.0

(chaque embase supporte 2 Ports USB 3.0)

1x 4-Broche de carte

1x 24-Broche de carte

1x Connecteur ventilateur unité centrale

2x Connecteur ventilateur système

1x Fiche panneau avant

1x Fiche audio avant

1x Fiche mémoire CMOS vide

1x Fiche Registre d’état Consommateur

1x Embase port série

1x Connecteur sortie S/PDIF

1x Embase port imprimante

Facteur

d'encombrement Facteur d'encombrement ATX, 244 mm x 230 mm

Support SE

Windows 7/ 8

Biostar se réserve le droit d’ajouter ou d'enlever le support pour toute SE avec ou sans

préavis.

Motherboard Manual

German

Spezifikationen

CPU-Unterstützung

Anschluss-1150 für Intel® Core i7 / i5 / i3 / Pentium / Celeron Prozessor

Maximale CPU TDP (Thermal Design Power): 95 Watt

* Bitte konsultieren Sie www.biostar.com.tw für CPU-Unterstützungsliste

Chipset INTEL® Z87 (Hi-Fi Z87S3+)

INTEL® H87 (Hi-Fi H87S3+)

INTEL® B85 (Hi-Fi B85S3+)

Festplattenspeicher

Unterstützt zweikanaliges DDR3 1066/ 1333/ 1600

Unterstützt zweikanaliges DDR3 1800(OC) / 1866(OC) / 2133(OC) / 2200(OC)

(Hi-Fi Z87S3+)

4 x DDR3 DIMM-SpeicherSlot, Max. Uterstützung bis zu 32 GB-Speicher

Jedes DIMM unterstützt nicht-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3-Module

* Bitte konsultieren Sie www.biostar.com.tw für für Speicherunterstützung Liste.

Arbeitsspeicher

INTEL® Z87 & H87:

6x SATA 6Gb-Verbindung

Unterstützt RAID 0,1,10,5, SRT & AHCI

INTEL® B85:

4x SATA 6Gb-Verbindung

2x SATA 3Gb-Verbindung

Unterstützt AHCI

LAN Realtek RTL 8111F

10/ 100/ 1000 Mb Auto-Negotiation, Halb- / Voll-Duplex-fähig

Audio-Codec ALC892

7.1 Kanäle, HD-Audio, Biostar Hi-Fi

USB

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

6x USB 3.0-Port (4 hintere I/Os und 2 via interne Header)

6x USB 2.0-Port (2 hintere I/Os und 4 via interne Header)

Hi-Fi B85S3+:

4x USB 3.0-Port (2 hintere I/Os und 2 via interne Header)

8x USB 2.0-Port (4 hintere I/Os und 4 via interne Header)

Erweiterungsanschl

üsse

1x PCI-Slot

2x PCIe 2.0 x1-Slot

1x PCIe 3.0 x16-Slot (x16)

Hintere I/Os

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

1x PS/2-Maus/Keyboard

1x HDMI-Port

1x VGA-Port

1x DVI-Port

1x LAN-Port

2x USB 2.0-Port

4x USB 3.0-Port

6x Audio Jack

Hi-Fi B85S3+:

1x PS/2-Maus/Keyboard

1x HDMI-Port

1x VGA-Port

1x DVI-Port

1x LAN-Port

4x USB 2.0-Port

2x USB 3.0-Port

6x Audio Jack

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

Spezifikationen

Interne I/Os

Hi-Fi Z87S3+ & Hi-Fi H87S3+

6x SATA 6.0Gb/s-Verbinung

2x USB 2.0-Header

(jeder Header unterstützt 2 USB 2.0-Ports)

1x USB 3.0-Header

(jeder Header unterstützt 2 USB 3.0-Ports)

1x 4-Pin-Stromverbindung

1x 24-Pin-Stromverbindung

1x CPU-Ventilatorverbindung

2x System-Ventilatorverbindung

1x Header für Frontpanel

1x Header für Frontaudio

1x Header für klares CMOS

1x Consumer IR-Header

1x Serieller Port-Header

1x S/PDI-Auswurfsverbindung

1x Header für Druckeranschluss

Hi-Fi B85S3+

4x SATA 6.0Gb/s-Verbinung

2x SATA 3.0Gb/s-Verbinung

2x USB 2.0-Header

(jeder Header unterstützt 2 USB 2.0-Ports)

1x USB 3.0-Header

(jeder Header unterstützt 2 USB 3.0-Ports)

1x 4-Pin-Stromverbindung

1x 24-Pin-Stromverbindung

1x CPU-Ventilatorverbindung

2x System-Ventilatorverbindung

1x Header für Frontpanel

1x Header für Frontaudio

1x Header für klares CMOS

1x Consumer IR-Header

1x Serieller Port-Header

1x S/PDI-Auswurfsverbindung

1x Header für Druckeranschluss

Formfaktor ATX Formfaktor, 244 mm x 230 mm

OS-Unterstützung Windows 7/ 8

Biostar reserves the right to add or remove support for any OS with or without notice.

Motherboard Manual

Italian

Specificazioni

Supporto

processore

Slot 1150 per processore Intel® Core i7 / i5 / i3 / Pentium / Celeron

Alimentazione di Proiezione Termico (TDP – Thermal Design Power): 95Watt

* Si prega di consultare www.biostar.com.tw per la lista di supporto del processore.

Tipo scheda INTEL® Z87 (Hi-Fi Z87S3+)

INTEL® H87 (Hi-Fi H87S3+)

INTEL® B85 (Hi-Fi B85S3+)

Memoria

Supporta DDR3 1066/ 1333/ 1600 Doppio Canale

Supporta DDR3 1800(OC) / 1866(OC) / 2133(OC) / 2200(OC) Doppio Canale

(Hi-Fi Z87S3+)

4 x DDR3 DIMM Slot di Memoria Supporta fino a 32 GB Memoria

Ogni DIMM supporta non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 moduli

* Si prega di consultare www.biostar.com.tw per la lista di supporto del memoria.

Memorizzazione

INTEL® Z87 & H87:

Connettore 6x SATA 6Gb/s

Supporta RAID 0,1,10,5, SRT & AHCI

INTEL® B85:

Connettore 4x SATA 6Gb/s

Connettore 2x SATA 3Gb/s

Supporta AHCI

Catena Realtek RTL 8111F

10/ 100/ 1000 Mb auto negoziazione, capacita di duplex Meta / Completo

Codec Audio ALC892

Canali Audio di Alta Definizione 7.1, Biostar Hi-Fi

USB

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

Slot 6x USB 3.0 (4 nei ingressi/ uscite posteriore e 2 da distributori interni)

Slot 6x USB 2.0 (2 nei ingressi/ uscite posteriore e 4 da distributori interni)

Hi-Fi B85S3+:

Slot 4x USB 3.0 (2 nei ingressi/ uscite posteriore e 2 da distributori interni)

Slot 8x USB 2.0 (4 nei ingressi/ uscite posteriore e 4 da distributori interni)

Slot di espansione

Slot 1x PCI

Slot 2x PCIe 2.0 x1

Slot 1x PCIe 3.0 x16 (x16)

Ingressi/ Uscite

Posteriore

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

Tastiera / Mouse 1x PS/2

Slot 1x HDMI

Slot 1x VGA

Slot 1x DVI

Slot 1x LAN

Slot 4x USB 2.0

Slot 2x USB 3.0

Jack audio 6x

Hi-Fi B85S3+:

Tastiera / Mouse 1x PS/2

Slot 1x HDMI

Slot 1x VGA

Slot 1x DVI

Slot 1x LAN

Slot 2x USB 2.0

Slot 4x USB 3.0

Jack audio 6x

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

Specificazioni

Ingressi/ Uscite

Interni

Hi-Fi Z87S3+ & Hi-Fi H87S3+

Connettore 6x SATA 6.0Gb/s

Distributore 2x USB 2.0

(ogni distributore supporta 2 slot USB 2.0)

Distributore 1x USB 3.0

(ogni distributore supporta 2 slot USB 3.0)

Connettore con 4 pin x1

Connettore con 24 pin x1

Connettore Ventilatore processore x1

Connettore Ventilatore Sistema x2

Distributore Pannello Frontale x1

Distributore Audio Frontale x1

Distributore CMOS Diretto x1

Distributore Consumabile IR x1

Distributore Slot Serie x1

Connettore esterno S/PDIF x1

Distributore Slot Stampante x1

Hi-Fi B85S3+

Connettore 4x SATA 6.0Gb/s

Connettore 2x SATA 3.0Gb/s

Distributore 2x USB 2.0

(ogni distributore supporta 2 slot USB 2.0)

Distributore 1x USB 3.0

(ogni distributore supporta 2 slot USB 3.0)

Connettore con 4 pin x1

Connettore con 24 pin x1

Connettore Ventilatore processore x1

Connettore Ventilatore Sistema x2

Distributore Pannello Frontale x1

Distributore Audio Frontale x1

Distributore CMOS Diretto x1

Distributore Consumabile IR x1

Distributore Slot Serie x1

Connettore esterno S/PDIF x1

Distributore Slot Stampante x1

Fattore di Forma Fattore di Forma ATX, 244 mm x 230 mm

Supporto SO

Windows 7/ 8

Biostar si riserva il diritto di aggiungere o ritirare il supporto per qualsiasi SO con o senza

preavviso.

Motherboard Manual

Japanese

仕様

CPU サポート

Intel® Core i7 / i5 / i3 / Pentium / Celeron プロセッサの Socket 1150

最大 CPU TDP （Thermal Design Power 最大放熱量）:95 W

*CPU サポートリストについては、www.biostar.com.twを参照してください。

チップセット INTEL® Z87 (Hi-Fi Z87S3+)

INTEL® H87 (Hi-Fi H87S3+)

INTEL® B85 (Hi-Fi B85S3+)

メモリ

デュアルチャンネル1066/ 1333/ 1600 をサポート

デュアルチャンネル1800(OC) / 1866(OC) / 2133(OC) / 2200(OC) をサポート

(Hi-Fi Z87S3+)

4 x DDR3 DIMM メモリスロット、最大 32 GB メモリまでサポート

各 DIMM は、非-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 モジュールをサポートしています

*サポートされているメモリのリストについては、www.biostar.com.twを参照してくだ

さい。

保存スペース

INTEL® Z87 & H87:

6x SATA 6Gb/s コネクタ

RAID 0,1,10,5, SRT & AHCI のサポート

INTEL® B85:

4x SATA 6Gb/s コネクタ

2x SATA 3Gb/s コネクタ

AHCI のサポート

LAN Realtek RTL 8111F

10/ 100/ 1000 Mb/s オートネゴーシエーション、半/全二重通信

オーディオコーデ

ック

ALC892

7.1 チャンネル, ハイデフィニションオーディオ, Biostar Hi-Fi

USB

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

6x USB 3.0 ポート (後部 I/O に4つ及び内蔵ヘッダー経由に2つ)

6x USB 2.0 ポート (後部 I/O に2つ及び内蔵ヘッダー経由に4つ

Hi-Fi B85S3+:

4x USB 3.0 ポート (後部 I/O に2つ及び内蔵ヘッダー経由に2つ)

8x USB 2.0 ポート (後部 I/O に4つ及び内蔵ヘッダー経由に4つ)

拡張スロット

1x PCI スロット

2x PCIe 2.0 x1 スロット

1x PCIe 3.0 x16 スロット(x16)

後部 I/O

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

1x PS/2 マウス/キーボード

1x HDMI ポート

1x VGA ポート

1x DVI ポート

1x LAN ポート

2x USB 2.0 ポート

4x USB 3.0 ポート

6x オーディオジャック

Hi-Fi B85S3+:

1x PS/2 マウス/キーボード

1x HDMI ポート

1x VGA ポート

1x DVI ポート

1x LAN ポート

4x USB 2.0 ポート

2x USB 3.0 ポート

6x オーディオジャック

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

仕様

内蔵 I/O

Hi-Fi Z87S3+ & Hi-Fi H87S3+

6x SATA 6.0Gb/s コネクタ

2x USB 2.0 ヘッダー

(各ヘッダーは、2つの USB 2.0 ポートを

サポートしています)

1x USB 3.0 ヘッダー

(各ヘッダーは、2つの USB 3.0 ポートを

サポートしています)

1x 4-Pin パワーコネクタ

1x 24-Pin パワーコネクタ

1x CPU ファンコネクタ

2x システムファンコネクタ

1x フロントパネルヘッダー

1x フロントオーディオヘッダー

1x クリア CMOS ヘッダー

1x コンシューマー IR ヘッダー

1x シリアルポートヘッダー

1x S/PDIF アウトコネクタ

1x プリンターポートヘッダー

Hi-Fi B85S3+

4x SATA 6.0Gb/s コネクタ

2x SATA 3.0Gb/s コネクタ

2x USB 2.0 ヘッダー

(各ヘッダーは、2つの USB 2.0 ポートをサポ

ートしています)

1x USB 3.0 ヘッダー

(各ヘッダーは、2つの USB 3.0 ポートをサポ

ートしています)

1x 4-Pin パワーコネクタ

1x 24-Pin パワーコネクタ

1x CPU ファンコネクタ

2x システムファンコネクタ

1x フロントパネルヘッダー

1x フロントオーディオヘッダー

1x クリア CMOS ヘッダー

1x コンシューマー IR ヘッダー

1x シリアルポートヘッダー

1x S/PDIF アウトコネクタ

1x プリンターポートヘッダー

フォームファクタ ATX フォームファクタ、244 mm x 230 mm

サポート OS Windows 7/ 8

Biostar には、通知なしでサポート OS を変更する権限があります。

Motherboard Manual

Polish

Specyfikacje techniczne

Obsługa procesora

Gniazdo procesora (Socket) 1150 dla procesorów Intel® Core i7 / i5 / i3 / Pentium /

Celeron

Moc Wydzielanego Ciepła (TDP - Thermal Design Power): 95Watt

* Proszę sprawdzić listę obsługiwanych procesorów na stronie internetowej

www.biostar.com.tw

Rodzaj płyty INTEL® Z87 (Hi-Fi Z87S3+)

INTEL® H87 (Hi-Fi H87S3+)

INTEL® B85 (Hi-Fi B85S3+)

Pamięć

Obsługa pamięci DDR3 1066/ 1333/ 1600 Dwukanałowa

Obsługa pamięci 1800(OC) / 1866(OC) / 2133(OC) / 2200(OC) Dwukanałowa

(Hi-Fi Z87S3+)

4 x DDR3 DIMM Pamięć Gniazda procesora (Slot), Maksymalna wielkość pamięci 32 GB

Każdy DIMM obsługuje jeden moduł non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3

* Proszę sprawdzić listę obsługiwanych pamięć na stronie internetowej

www.biostar.com.tw

Przechowywanie

INTEL® Z87 & H87:

Złącze 6x SATA 6Gb/s

Obsługa RAID 0,1,10,5, SRT & AHCI

INTEL® B85:

Złącze 4x SATA 6Gb/s

Złącze 2x SATA 3Gb/s

Obsługa AHCI

LAN Układ RTL 8111F

10/ 100/ 1000 Mb auto negocjacja, pojemność dupleks Połowe / Pełny

Codec Audio ALC892

Kanały Audio wysokiej Definicji 7.1, Biostar Hi-Fi

USB

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

6 x złącza USB 3.0 (4 przez tylne porty wejścia/ wyjścia oraz 2 przez wewnętrzne porty)

6 x złącza USB 2.0 (2 przez tylne porty wejścia/ wyjścia oraz 4 przez wewnętrzne porty)

Hi-Fi B85S3+:

4 x złącza USB 3.0 (2 przez tylne porty wejścia/ wyjścia oraz 2 przez wewnętrzne porty)

8 x złącza USB 2.0 (4 przez tylne porty wejścia/ wyjścia oraz 4 przez wewnętrzne porty)

Złącza rozszerzeń

złącze 1x PCI (Slot)

złącze 2x PCIe 2.0 x1 (Slot)

złącza 1x PCIe 3.0 x16 (Slot) (x16)

Tylne porty wejścia/

wyjścia

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

Klawiatura / Myszka 1x PS/2

Port 1x HDMI (gniazdo)

Port 1x VGA

Port 1x DVI

Port 1x LAN

Porty 2x USB 2.0

Porty 4x USB 3.0

Porty audio 6x

Hi-Fi B85S3+:

Klawiatura / Myszka 1x PS/2

Port 1x HDMI (gniazdo)

Port 1x VGA

Port 1x DVI

Port 1x LAN

Porty 4x USB 2.0

Porty 2x USB 3.0

Porty audio 6x

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

Specyfikacje techniczne

Wewnętrzne porty

wejścia/ wyjścia

Hi-Fi Z87S3+ & Hi-Fi H87S3+

Złącza 6x SATA 6.0Gb/s

Złącza 2x USB 2.0

(każde złącze obsługuje dodatkowe 2

porty USB 2.0)

Złącze 1x USB 3.0

(każde złącze obsługuje dodatkowe 2

porty USB 3.0)

Złącza 4 pionowe x 1

Złącza 24 pionowe x 1

Złącze wentylatora CPU x 1

Złącze wentylatora obudowy x 2

Złącze przedniego panelu x1

Złącze audio przedniego panelu x1

Złącze bezpośrednie CMOS x1

Złącze konsument IR x1

Port szeregowy x1

Port zewnętrzny S/PDIF x1

Złącze port drukarki x1

Hi-Fi B85S3+

Złącza 4x SATA 6.0Gb/s

Złącza 2x SATA 3.0Gb/s

Złącza 2x USB 2.0

(każde złącze obsługuje dodatkowe 2 porty

USB 2.0)

Złącze 1x USB 3.0

(każde złącze obsługuje dodatkowe 2 porty

USB 3.0)

Złącza 4 pionowe x 1

Złącza 24 pionowe x 1

Złącze wentylatora CPU x 1

Złącze wentylatora obudowy x 2

Złącze przedniego panelu x1

Złącze audio przedniego panelu x1

Złącze bezpośrednie CMOS x1

Złącze konsument IR x1

Port szeregowy x1

Port zewnętrzny S/PDIF x1

Złącze port drukarki x1

Obudowa Obudowa ATX, 244 mm x 230 mm

Obsługa OS

Windows 7/ 8

Biostar zastrzega sobie prawo do dodania lub wycofania obsługi dla OS, z

wypowiedzeniem lub bez wypowiedzenia.

Motherboard Manual

Portuguese

Especificações

Suporte

Processador

Porta 1150 para processador Intel® Core i7 / i5 / i3 / Pentium / Celeron

Alimentação de Design Térmico (TDP – Thermal Design Power): 95Watt

* Por favor consulte www.biostar.com.tw para obter uma lista de suporte do

processador.

Tipo Placa Mãe INTEL® Z87 (Hi-Fi Z87S3+)

INTEL® H87 (Hi-Fi H87S3+)

INTEL® B85 (Hi-Fi B85S3+)

Memória

Suporta DDR3 1066/ 1333/ 1600 Canal Duplo

Suporta DDR3 1800(OC) / 1866(OC) / 2133(OC) / 2200(OC) Canal Duplo

(Hi-Fi Z87S3+)

4 x DDR3 DIMM Slot de memória Suporta até 32 GB Memória

Cada DIMM suporta non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 módulo

* Por favor consulte www.biostar.com.tw para obter uma lista de suporte do memória.

Armazenamento

INTEL® Z87 & H87:

Conector 6x SATA 6Gb/s

Suporta RAID 0,1,10, 5, SRT & AHCI

INTEL® B85:

Conector 4x SATA 6Gb/s

Conector 2x SATA 3Gb/s

Suporta AHCI

LAN Realtek RTL 8111F

10/ 100/ 1000 Mb auto negociação, capacidade duplex Metade / Cheio

Codec de Audio ALC892

Canais de Áudio de Alta Definição 7.1, Biostar Hi-Fi

USB

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

Porta 6x USB 3.0 (4 nas entradas/saídas traseiras e 2 pelos Dispositivos internos)

Porta 6x USB 2.0 (2 nas entradas/saídas traseiras e 4 pelos Dispositivos internos)

Hi-Fi B85S3+:

Porta 4x USB 3.0 (2 nas entradas/saídas traseiras e 2 pelos Dispositivos internos)

Porta 8x USB 2.0 (4 nas entradas/saídas traseiras e 4 pelos Dispositivos internos)

Slots de expansão

Porta 1x PCI

Porta 2x PCIe 2.0 x1

Porta 1x PCIe 3.0 x16 (x16)

Entradas/Saídas

no painel traseiro

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

Teclado / Mouse 1x PS/2

Porta 1x HDMI

Porta 1x VGA

Porta 1x DVI

Porta 1x LAN

Porta 2x USB 2.0

Porta 4x USB 3.0

Soquete audio 6x

Hi-Fi B85S3+:

Teclado / Mouse 1x PS/2

Porta 1x HDMI

Porta 1x VGA

Porta 1x DVI

Porta 1x LAN

Porta 4x USB 2.0

Porta 2x USB 3.0

Soquete audio 6x

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

Especificações

Conectores na

placa

Hi-Fi Z87S3+ & Hi-Fi H87S3+

Conector 6x SATA 6.0Gb/s

Dispositivo 2x USB 2.0 (cada Dispositivo

suporta 2 portas USB 2.0)

Dispositivo 1x USB 3.0 (cada Dispositivo

suporta 2 portas USB 3.0)

Conector de 4 pinos x1

Conector de 24 pinos x1

Conector de Ventoinha processador x1

Conector de Ventoinha Sistema x2

Dispositivo Painel Frontal x1

Dispositivo de Audio Frontal x1

Dispositivo CMOS Direct x1

Dispositivo Consumível IR x1

Dispositivo Porta Série x1

Conector Externo S/PDIF x1

Dispositivo Porta Impressora x1

Hi-Fi B85S3+

Conector 4x SATA 6.0Gb/s

Conector 2x SATA 3.0Gb/s

Dispositivo 2x USB 2.0 (cada Dispositivo

suporta 2 portas USB 2.0)

Dispositivo 1x USB 3.0 (cada Dispositivo

suporta 2 portas USB 3.0)

Conector de 4 pinos x1

Conector de 24 pinos x1

Conector de Ventoinha processador x1

Conector de Ventoinha Sistema x2

Dispositivo Painel Frontal x1

Dispositivo de Audio Frontal x1

Dispositivo CMOS Direct x1

Dispositivo Consumível IR x1

Dispositivo Porta Série x1

Conector Externo S/PDIF x1

Dispositivo Porta Impressora x1

Fator de Fôrma Fator de Fôrma ATX, 244 mm x 230 mm

Suporte OS

Windows 7/ 8

Biostar reserva seu direito de adicionar ou retirar o suporte para qualquer OS com ou sem

notificação.

Motherboard Manual

Russian

Спецификации

Поддержка

центрального

процессора

Сокет 1150 для процессоров Intel® Core i7 / i5 / i3 / Pentium / Celeron

Максимальный термопакет центрального процессора (TDP): 95 ватт

* Перечень поддержки центрального процессора смотрите на www.biostar.com.tw.

Набор микросхем INTEL® Z87 (Hi-Fi Z87S3+)

INTEL® H87 (Hi-Fi H87S3+)

INTEL® B85 (Hi-Fi B85S3+)

Память

Поддерживает двухканальный 1066/ 1333/ 1600

Поддерживает двухканальный 1800(OC) / 1866(OC) / 2133(OC) / 2200(OC)

(Hi-Fi Z87S3+)

4 гнезда платы памяти DDR3 DIMM, максимальная память до 32 Гб

Каждый модуль DIMM поддерживает модуль не-ECC 512 Мб/ 1/ 2/ 4/ 8 Гб DDR3

* Перечень поддержки памяти смотрите на www.biostar.com.tw.

Накопитель

INTEL® Z87 & H87:

Соединитель 6x SATA 6 Гб/с

Поддерживает RAID 0,1,10,5, SRT & AHCI

INTEL® B85

Соединитель 4x SATA 6 Гб/с

Соединитель 2x SATA 3 Гб/с

Поддерживает AHCI

Локальная сеть Realtek RTL 8111F

Автосогласование 10/ 100/ 1000 Мб/с, работает в полно/полудуплексном режиме

Аудиокодек ALC892

Каналы 7.1, высококачественное аудио, Biostar Hi-Fi

USB

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

6 порта USB 3.0 (4 сзади ввода-вывода и 2 через внутренние контакты)

6 порта USB 2.0 (2 сзади ввода-вывода и 4 через внутренние контакты)

Hi-Fi B85S3+:

4 порта USB 3.0 (2 сзади ввода-вывода и 2 через внутренние контакты)

8 порта USB 2.0 (4 сзади ввода-вывода и 4 через внутренние контакты)

Гнезда расшир.

1x PCI гнездо

2x PCIe 2.0 x1 гнездо

1x PCIe 3.0 x16 гнездо (x16)

Задняя плата

ввода-вывода

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

1 мышь/ клавиатура PS/2

1 порт HDMI

1 порт VGA

1 порт DVI

1 порт локальной сети

2 порта USB 2.0

4 порта USB 3.0

6 гнезд для подключения наушников

Hi-Fi B85S3+:

1 мышь/ клавиатура PS/2

1 порт HDMI

1 порт VGA

1 порт DVI

1 порт локальной сети

4 порта USB 2.0

2 порта USB 3.0

6 гнезд для подключения наушников

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

Спецификации

Внутр. Плата

ввода-вывода

Hi-Fi Z87S3+ & Hi-Fi H87S3+

Соединитель 6x SATA 6 Гб/с

2 контакта USB 2.0 (каждый контакт

поддерживает 2 порта USB 2.0)

1 контакт USB 3.0 (каждый контакт

поддерживает 2 порта USB 3.0)

1 4-выводный разъем питания

1 24-выводный разъем питания

1 разъем вентилятора ЦП

2 разъема вентилятора системы

1 контакт передней панели

1 контакт передней аудиопанели

1 контакт микросхемы Clear CMOS

1 инфракрасный пользовательский

контакт

1 контакт последовательного порта

1 соединитель S/PDIF-Out

1 контакт порта принтера

Hi-Fi B85S3+

Соединитель 4x SATA 6 Гб/с

Соединитель 2x SATA 3 Гб/с

2 контакта USB 2.0 (каждый контакт

поддерживает 2 порта USB 2.0)

1 контакт USB 3.0 (каждый контакт

поддерживает 2 порта USB 3.0)

1 4-выводный разъем питания

1 24-выводный разъем питания

1 разъем вентилятора ЦП

2 разъема вентилятора системы

1 контакт передней панели

1 контакт передней аудиопанели

1 контакт микросхемы Clear CMOS

1 инфракрасный пользовательский

контакт

1 контакт последовательного порта

1 соединитель S/PDIF-Out

1 контакт порта принтера

Конструктив Форм-фактор ATX, 244 мм x 230 мм

Поддержка ОС

Windows 7/ 8

Biostar оставляет за собой право добавлять или удалять поддержку любой ОС, с

уведомлением или без.

Motherboard Manual

Spanish

Especificaciones

Compatibilidad con

el procesador

Ranura 1150 para procesador Intel® Core i7 / i5 / i3 / Pentium / Celeron

Alimentación de Proyección Térmica (TDP – Thermal Design Power): 95Watt

*Por favor consultar con www.biostar.com.tw para la lista de compatibilidad con el

procesador.

Tipo de Placa INTEL® Z87 (Hi-Fi Z87S3+)

INTEL® H87 (Hi-Fi H87S3+)

INTEL® B85 (Hi-Fi B85S3+)

Memoria

Soporta DDR3 1066/ 1333/ 1600 Doble Canal

Soporta DDR3 1800(OC) / 1866(OC) / 2133(OC) / 2200(OC) Doble Canal

(Hi-Fi Z87S3+)

4x DDR3 DIMM Ranura de memoria Soporta hasta 32 GB Memoria

Cada DIMM soporta un modulo non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3

*Por favor consultar con www.biostar.com.tw para la lista de compatibilidad con el

memoria.

Almacenamiento

de información

INTEL® Z87 & H87:

Conector 6x SATA 6Gb/s

Soporta RAID 0,1,10,5, SRT & AHCI

INTEL® B85:

Conector 4x SATA 6Gb/s

Conector 2x SATA 3Gb/s

Soporta AHCI

LAN Realtek RTL 8111F

10/ 100/ 1000 Mb/s auto negociación, capacidad dúplex Mitad/Completo

Códec Audio ALC892

Canales Audio de Alta Definición 7.1, Biostar Hi-Fi

USB

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

Ranura 6x USB 3.0 (4 en las entrada/salidas posteriores y 2 por los distribuidores

internos)

Ranura 6x USB 2.0 (2 en las entrada/salidas posteriores y 4 por los distribuidores

internos)

Hi-Fi B85S3+:

Ranura 4x USB 3.0 (2 en las entrada/salidas posteriores y 2 por los distribuidores

internos)

Ranura 8x USB 2.0 (4 en las entrada/salidas posteriores y 4 por los distribuidores

internos)

Ranuras de

Extinción

Ranura 1x PCI

Ranura 2x PCIe 2.0 x1

Ranura 1x PCIe 3.0 x16 (x16)

Panel trasero de

E/S

Hi-Fi Z87S3+ & Hi-Fi H87S3+:

Teclado/Ratón 1x PS/2

Ranura 1x HDMI

Ranura 1x VGA

Ranura 1x DVI

Ranura 1x LAN

Ranura 2x USB 2.0

Ranura 4x USB 3.0

Socket audio 6x

Hi-Fi B85S3+:

Teclado/Ratón 1x PS/2

Ranura 1x HDMI

Ranura 1x VGA

Ranura 1x DVI

Ranura 1x LAN

Ranura 4x USB 2.0

Ranura 2x USB 3.0

Socket audio 6x

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+

Especificaciones

Conectores en

placa

Hi-Fi Z87S3+ & Hi-Fi H87S3+

Conector 6x SATA 6Gb’s

Distribuidor 2x USB 2.0 (cada distribuidor

soporta 2 ranuras USB 2.0)

Distribuidor 1x USB 3.0 (cada distribuidor

soporta 2 ranuras USB 3.0)

Conector con 4 patillas x1

Conector con 24 patillas x1

Conector Ventilador procesador x1

Conector Ventilador Sistema x2

Distribuidor Panel Frontal x1

Distribuidor Audio Frontal x1

Distribuidor CMOS Directo x1

Distribuidor Consumible IR x1

Distribuidor Ranura Serie x1

Conector Externo S/PDIF x1

Distribuidor Ranura Impresora x1

Hi-Fi B85S3+

Conector 4x SATA 6Gb’s

Conector 2x SATA 3Gb’s

Distribuidor 2x USB 2.0 (cada distribuidor

soporta 2 ranuras USB 2.0)

Distribuidor 1x USB 3.0 (cada distribuidor

soporta 2 ranuras USB 3.0)

Conector con 4 patillas x1

Conector con 24 patillas x1

Conector Ventilador procesador x1

Conector Ventilador Sistema x2

Distribuidor Panel Frontal x1

Distribuidor Audio Frontal x1

Distribuidor CMOS Directo x1

Distribuidor Consumible IR x1

Distribuidor Ranura Serie x1

Conector Externo S/PDIF x1

Distribuidor Ranura Impresora x1

Factor de Forma Factor de Forma ATX, 244 mm x 230 mm

Soporte OS

Windows 7/ 8

Biostar reserva su derecho de añadir o retirar el soporte para cada OS con o sin

notificación.

2013/05/07

Biostar Hi Fi B85S3 Plus Owners Manual IZ87B MHS & IH87B IB85B MHS_130507

Navigation menu

Versions of this User Manual:

Views

Navigation
