MCP6PB M2+/N68S Setup Manual
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.
Table of Contents
Chapter 1: Introduction ........................................ 1
1.1 Before You Start ................................................................................ 1
1.2 Package Checklist............................................................................. 1
1.3 Motherboard Features...................................................................... 2
1.4 Rear Panel Connectors ..................................................................... 3
1.5 Motherboard Layout......................................................................... 4
Chapter 2: Hardware Installation .......................... 5
2.1 Installing Central Processing Unit (CPU)....................................... 5
2.2 FAN Headers...................................................................................... 7
2.3 Installing System Memory................................................................ 8
2.4 Connectors and Slots....................................................................... 10
Chapter 3: Headers & Jumpers Setup .................. 12
3.1 How to Setup Jumpers .................................................................... 12
3.2 Detail Settings.................................................................................. 12
Chapter 4: RAID Functions .................................. 19
4.1 Operating System............................................................................ 19
4.2 Raid Arrays ...................................................................................... 19
4.3 How RAID Works............................................................................. 19
Chapter 5: Useful Help ........................................ 21
5.1 Driver Installation Note.................................................................. 21
5.2 Software............................................................................................ 22
5.3 Award BIOS Beep Code .................................................................. 23
5.4 Extra Information............................................................................ 23
5.5 Troubleshooting............................................................................... 24
Appendix: SPEC In Other Languages ................... 26
German.................................................................................................................. 26
French .................................................................................................................... 28
Italian..................................................................................................................... 30
Spanish ................................................................................................................... 32
Portuguese ............................................................................................................ 34
Polish...................................................................................................................... 36
Russian ................................................................................................................... 38
Arabic..................................................................................................................... 40
Japanese ................................................................................................................ 42
MCP6PB M2+/N68S
1
CHAPTER 1: INTRODUCTION
1.1 BEFORE YOU START
Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:
Prepare a dry and stable working environment with
sufficient lighting.
Always disconnect the computer from power outlet
before operation.
Before you take the motherboard out from anti-static
bag, ground yourself properly by touching any safely
grounded appliance, or use grounded wrist strap to
remove the static charge.
Avoid touching the components on motherboard or the
rear side of the board unless necessary. Hold the board
on the edge, do not try to bend or flex the board.
Do not leave any unfastened small parts inside the
case after installation. Loose parts will cause short
circuits which may damage the equipment.
Keep the computer from dangerous area, such as heat
source, humid air and water.
1.2 PACKAGE CHECKLIST
IDE Cable X 1 (optional)
Serial ATA Cable X 2
Rear I/O Panel for ATX Case X 1
Installation Guide X 1
Fully Setup Driver CD X 1 (full version manual files inside)
FDD Cable X 1 (optional)
USB 2.0 Cable X1 (optional)
Serial ATA Power Cable X 1 (optional)
Note: The package contents may be differed by area or your motherboard version.
Motherboard Manual
2
1.3 MOTHERBOARD FEATURES
SPEC
CPU
Socket AM2+
AMD Pheno m / Phenom II / Athlon / Athlon
II / Sempron processors
(Maximum Watt: 95W)
AMD 64 Architecture enables 32 and 64 bit
comput ing
Supports Hyper Transport and PowerNow
FSB Support HyperTransport 1.0 Ghz
Supports up to 2 GT/s Bandwidth
Chipset GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S)
Super I/O
ITE 8718F
Provides the most commonly used legacy
Super I/O functionality
Low Pin Count Interface
Env ironment Control in it iatives
H/W Mon itor
ITE's "Smart Guardian" funct ion
Main
Memory
DDR2 DIMM Slots x 2
Max Memory Capacity 4GB
Each DIMM supports 256MB/512MB/
1GB/2GB DDR2
Dual Channel Mode DDR2 memory module
Supports DDR2 533 / 667 / 800
Supports DDR2 1066 (by AM2+ CPU)
Registered DIMM and ECC DIMM is not supported
Graphics GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S) Max Shared V ideo Memory is 256 MB
IDE Integrated IDE Contro ller Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode
supports PIO Mode 0~4,
SATA II Integrated Serial ATA Controller Data transfer rates up to 3 Gb/s
SATA Version 2.0 specif icat ion co mp liant
LAN Realtek RTL 8201CL PHY 10 / 100 Mb/s auto negotiation
Half / Full duplex capability
Sound ALC662 5.1 channels audio out
High Definition Audio
PCI Express x16 slot x1 Supports PCI-E x16 expansion cards
Slots
PCI slot x1 Supports PCI expansion cards
Floppy connector x1 Each connector supports 2 Floppy drives
IDE Connector x1 Each connector supports 2 IDE device
On Board
Connector
SATA Connector x2 Each connector supports 1 SATA device
MCP6PB M2+/N68S
3
SPEC
Front Panel Connector x1 Supports front panel facilities
Front Audio Connector x1 Supports front panel audio function
CPU Fan header x1 CPU Fan power supply (with Smart Fan function)
System Fan head er x1 System Fan Power supply
CMOS clear header x1 Restore CMOS data to factory default
USB connector x2 Each connector supports 2 front panel USB ports
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Printer Port Connector x1 Each connector supports 1 Printer port
Serial port Connector x1 Connects to RS-232 Port
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
VGA port x1
LAN port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connect to D-SUB monitor
Connect to RJ-45 ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Board Size 170 mm(W) x 235 mm(L) MicroATX
Special
Features
RAID 0 / 1
OS Support Windows XP / Vista / 7 Biostar Reserves the right to add or remove support
for any OS With or without notice.

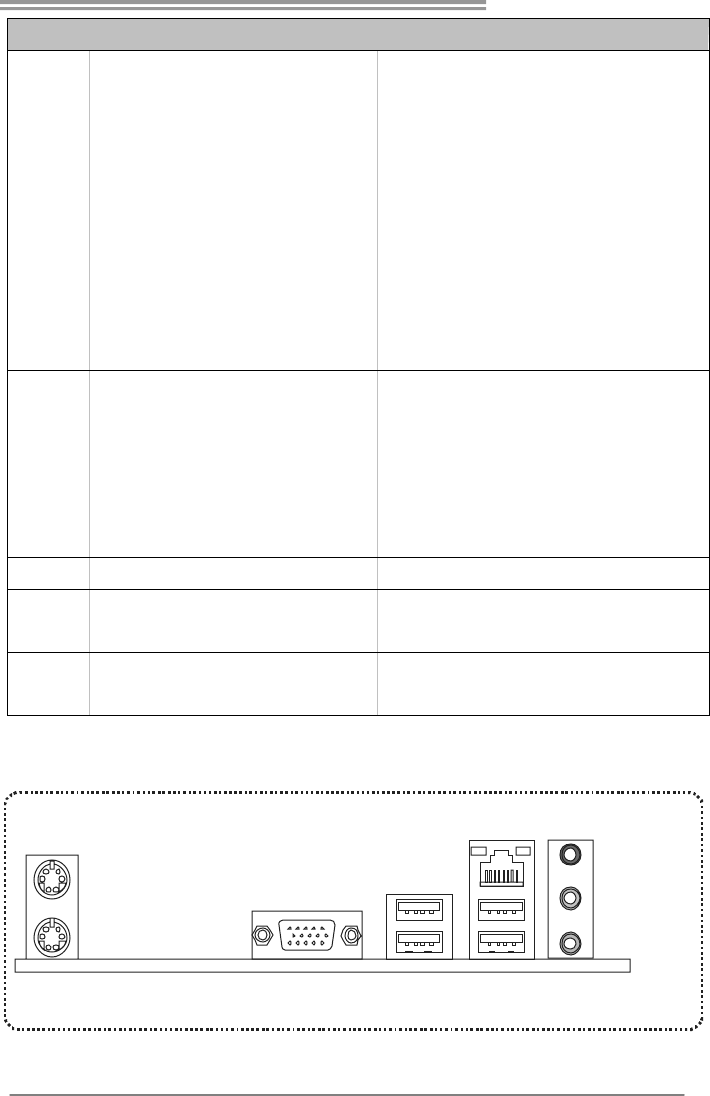

1.4 REAR PANEL CONNECTORS
PS/2
Mouse
PS/ 2
Keyboard
USBX2USBX2
LAN
VGA
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
Motherboard Manual
4

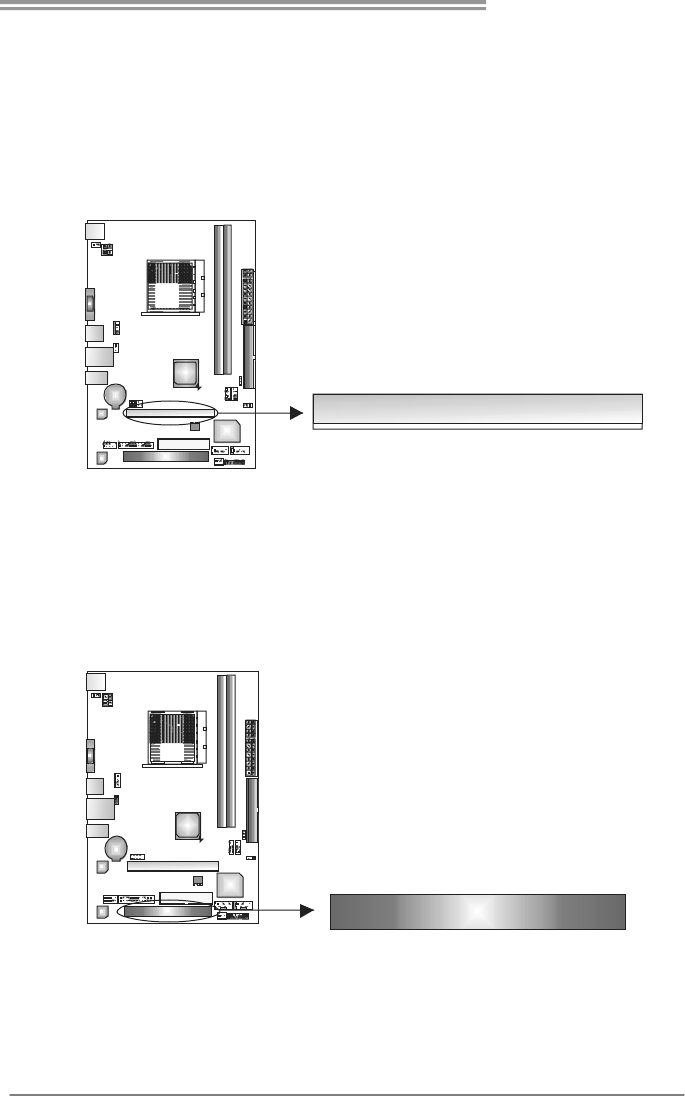

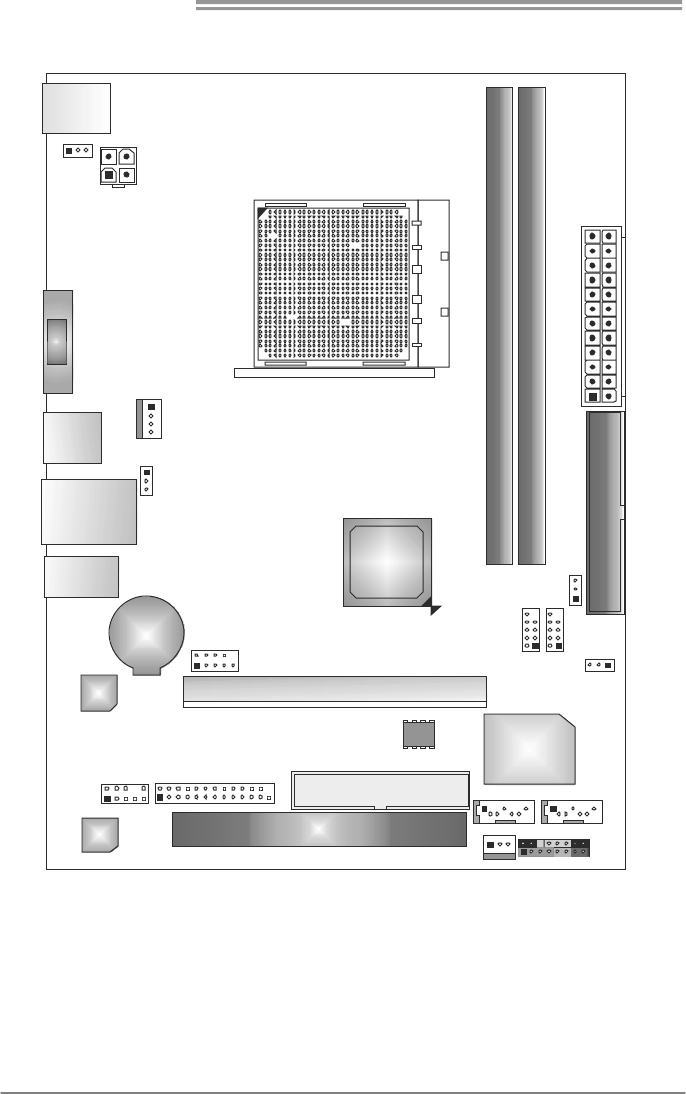

1.5 MOTHERBOARD LAYOUT
JKBMS
JKB_PWR
JAT XP W R2
JVGA
JUSB1
JUSBLAN1
JAUDIO1
JUSBPWR1
JCFAN
BAT1
LAN
JAU D IO F
Codec
PCI1
JPRNT
SATA2 SATA1
JSFAN JPA NEL 1
FDD
BIOS
Super I/O
JCMOS1
JUS B2
JUSB 3
JUSBPWR2
IDE
JATXPWR 1
DIMMB1
DIMMA1
Socket AM2+
PEX16_1
JCOM
GeFo rc e
6150SE/7025
nForce
430/630a
Note: represents the 1■st pin.
MCP6PB M2+/N68S
5
CHAPTER 2: HARDWARE INSTALLATION
2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

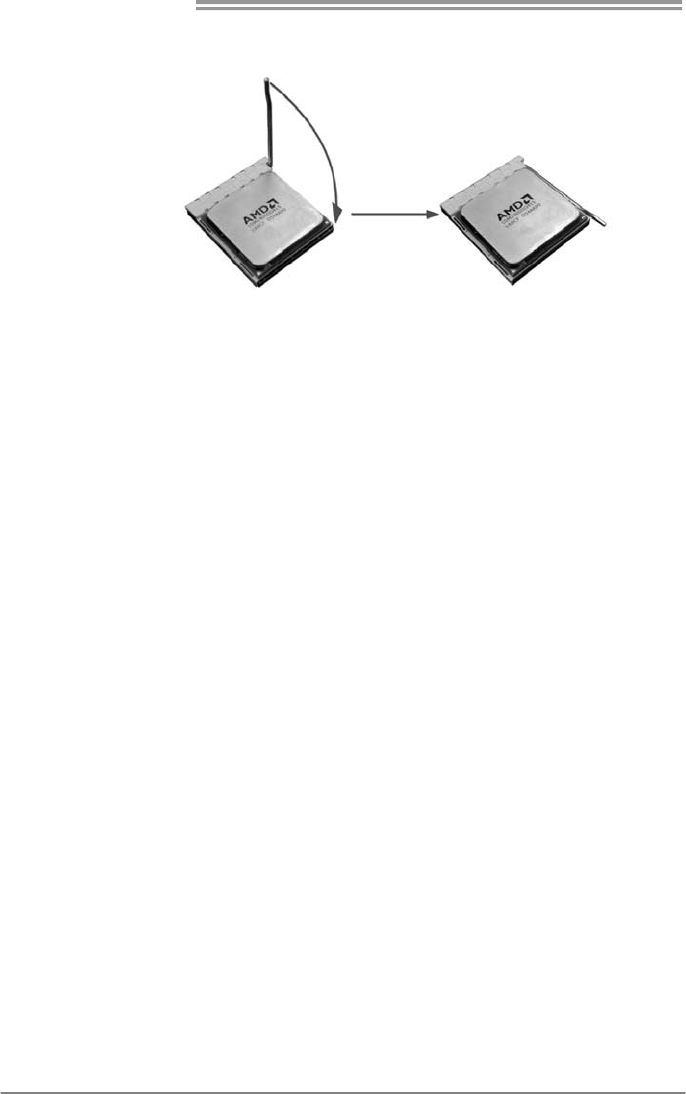

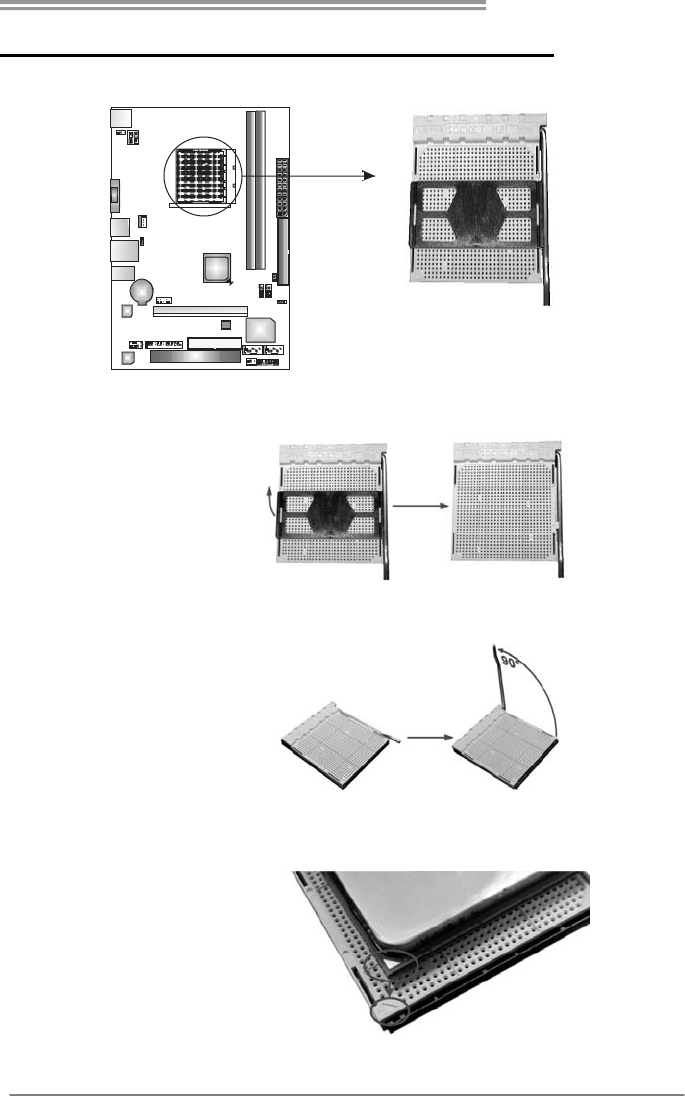

Step 1: Remove the socket protection cap.
Step 2: Pull the lever toward direction A from the socket and then raise the
lever up to a 90-degree angle.
Step 3: Look for the white triangle on socket, and the gold triangle on
CPU should point towards this white triangle. The CPU will fit only
in the correct orientation.
Motherboard Manual
6
Step 4: Hold the CPU down firmly, and then close the lever toward direct
B to complete the installation.
Step 5: Put the CPU Fan on the CPU and buckle it. Connect the CPU
FAN power cable to the JCFAN. This completes the installation.
Note: Please update the BIOS to the latest version while using AM2+ CPUs. Due to the latest CPU
transition, you may encounter the situation that the new system failed to boot while using new
AM2+ CPUs. In this case, please install one standard AM2 CPU to boot your system, and
update the latest BIOS from our website for AM2+ CPUs support.
MCP6PB M2+/N68S
7

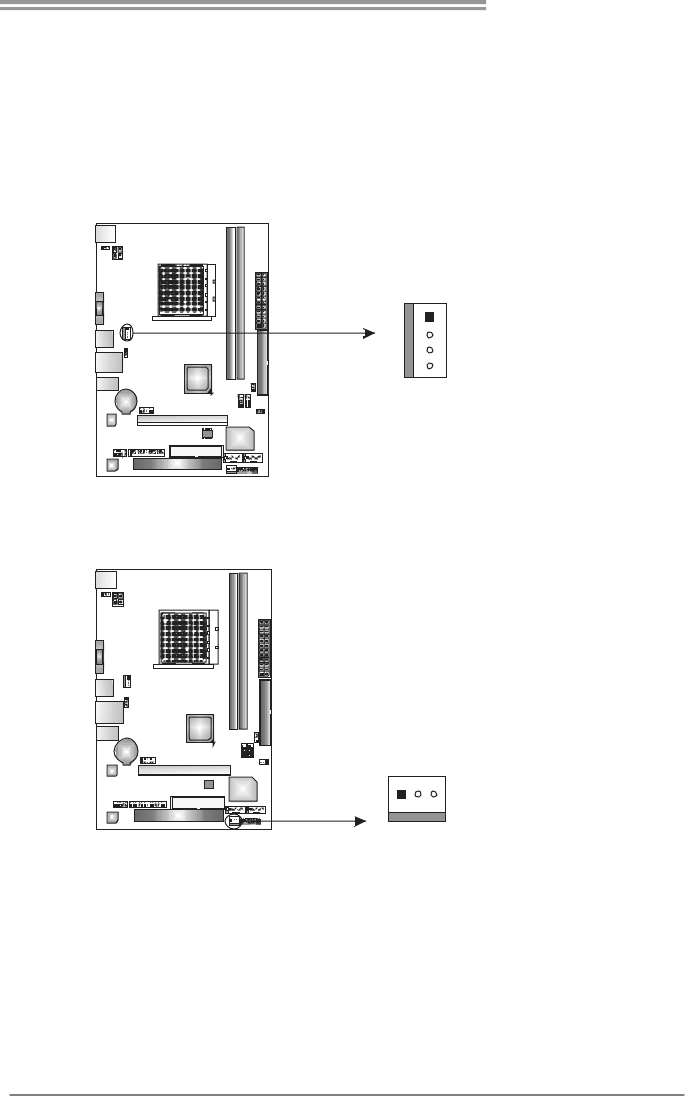

2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN: CPU Fan Header
Pin
Assignment
1 Ground
2 +12V
3 FAN RPM rate
sense
1
4
4 Smart Fan
Control (By Fan)
JSFAN: System Fan Header
Pin
Assignment
1 Ground
2 +12V
13
3 FAN RPM rate
sense
Note:
The JCFAN supports 4-pin head connector; the JSFAN, 3-pin head connector. When
connecting with wires onto connectors, please note that the red wire is the positive and
should be connected to pin#2, and the black wire is Ground and should be connected to
GND.
Motherboard Manual
8
2.3 INSTALLING SYSTEM MEMORY

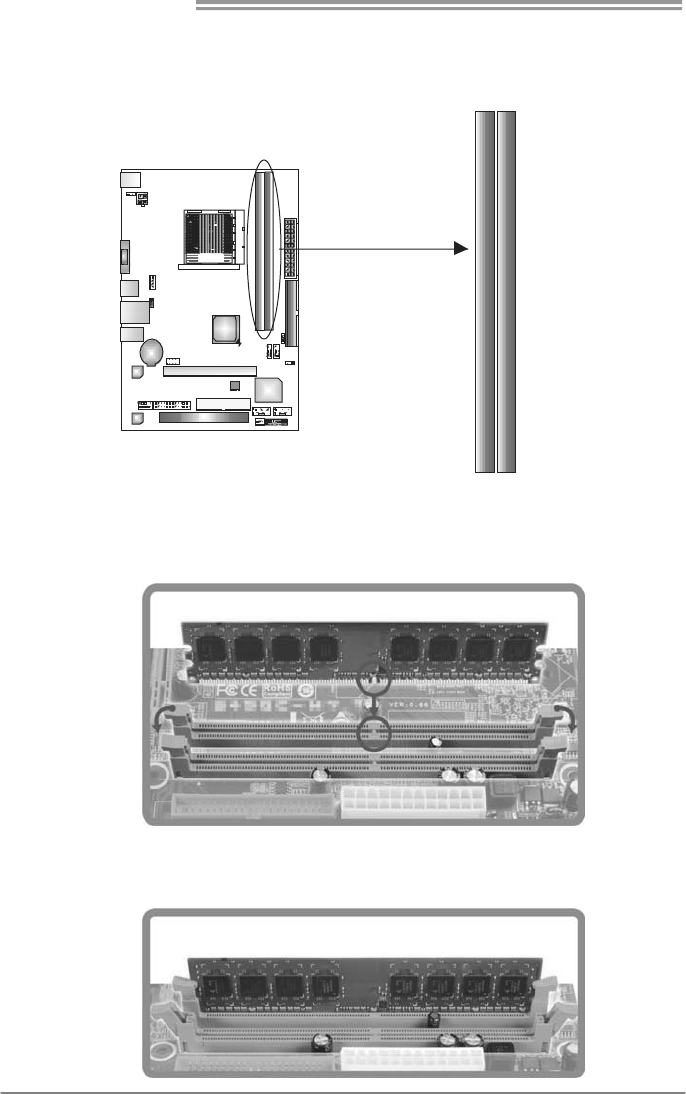

A. Memory Modules
DIMMA1
DIMMB1
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot so that the notch on the DIMM matches the break
on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
MCP6PB M2+/N68S
9
B. Memory Capacity
DIMM Socket
Location DDR2 Module Total Mem ory
Size
DIMMA1 256MB/512MB/1GB/2GB
DIMMB1 256MB/512MB/1GB/2GB
Max is 4GB.
C. Dual Channel Memory installation
To trigger the Dual Channel function of the motherboard, the memory module
must meet the following requirements:
Install memory module of the same density in pairs, shown in the following
table.
Dual Channel Status DIMMA1 DIMMB1
Disabled O X
Disabled X O
Enabled O O
(O means memory installed, X means memory not installed.)
The DRAM bus width of the memory module must be the same (x8 or
x16)
Motherboard Manual
10

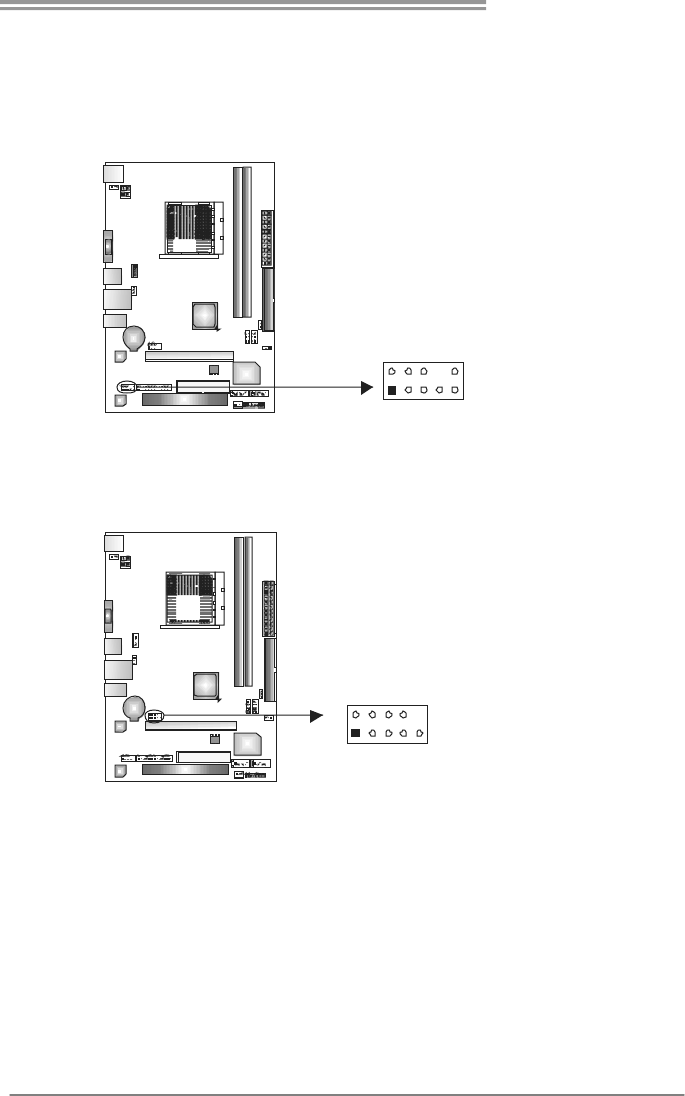

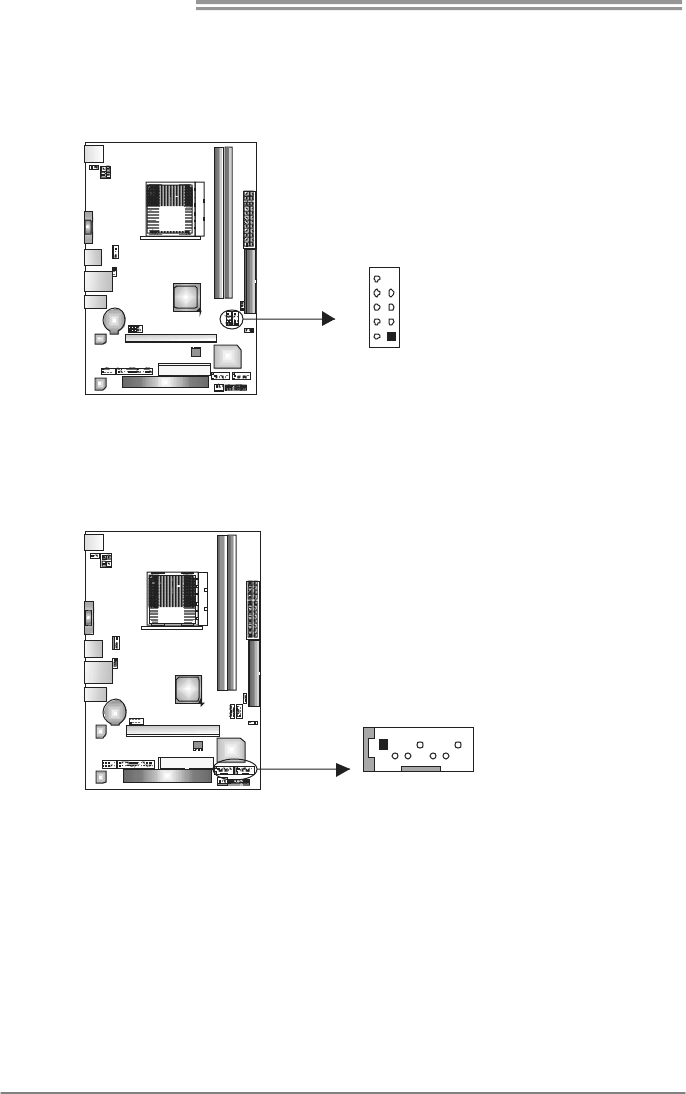

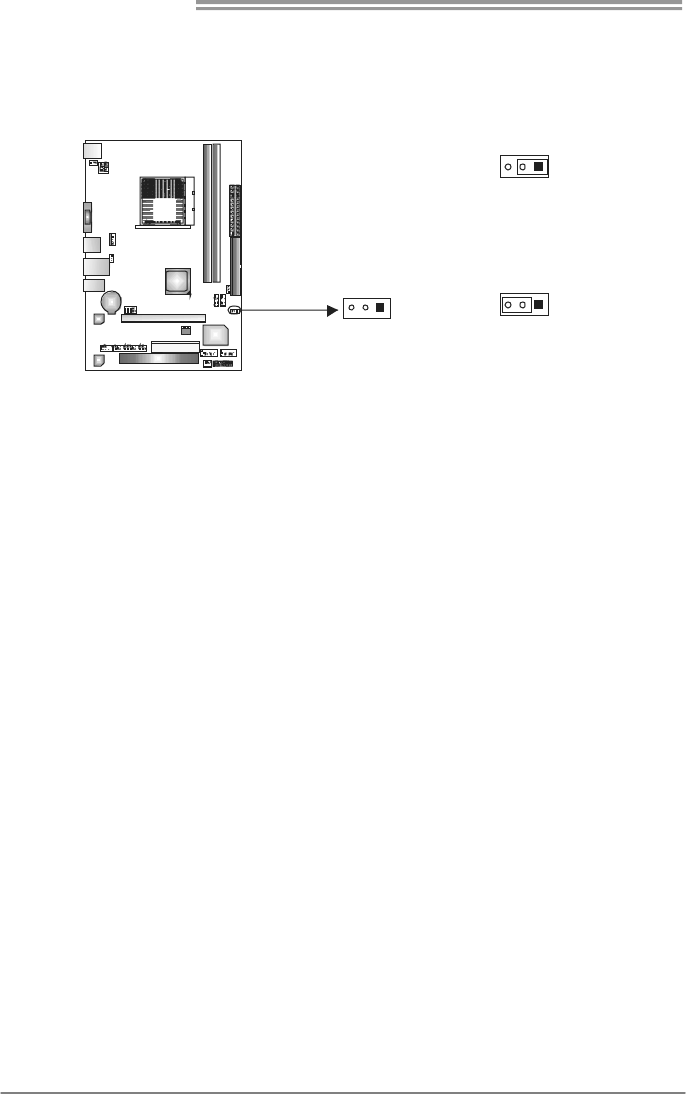

2.4 CONNECTORS AND SLOTS

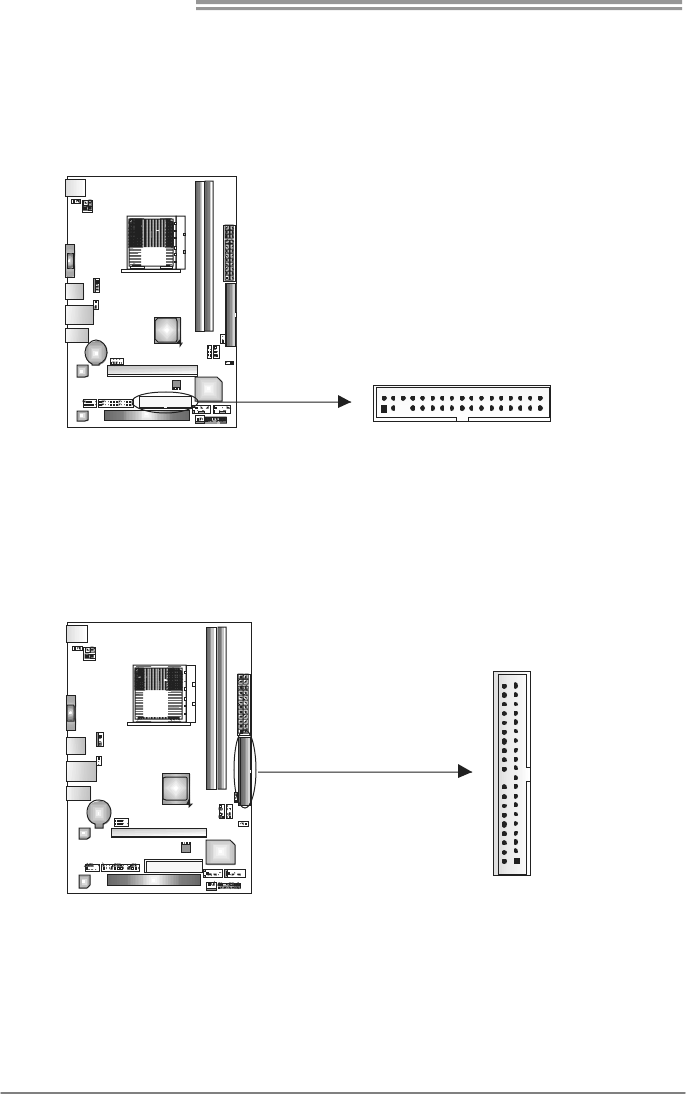

FDD: Floppy Disk Connector
The motherboard provides a standard floppy disk connector that supports 360K,
720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the
provided floppy drive ribbon cable.
133
234
IDE: IDE/ATAPI Connector
The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO
Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 functionality.
The IDE connector can connect a master and a slave drive, so you can connect
up to two drives.
21
3940
MCP6PB M2+/N68S
11
PEX16_1: PCI-Express Gen2 x16 Slot
- PCI-Express 1.0a compliant.
- Maximum theoretical realized bandwidth of 4GB/s simultaneously per
direction, for an aggregate of 8GB/s totally.
- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.
- 2X bandwidth over the traditional PCI architecture.
PEX16_1
PCI1: Peripheral Component Interconnect Slot
This motherboard is equipped with 1 standard PCI slot. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for expansion
cards. This PCI slot is designated as 32 bits.
PCI1
Motherboard Manual
12
CHAPTER 3: HEADERS & JUMPERS SETUP

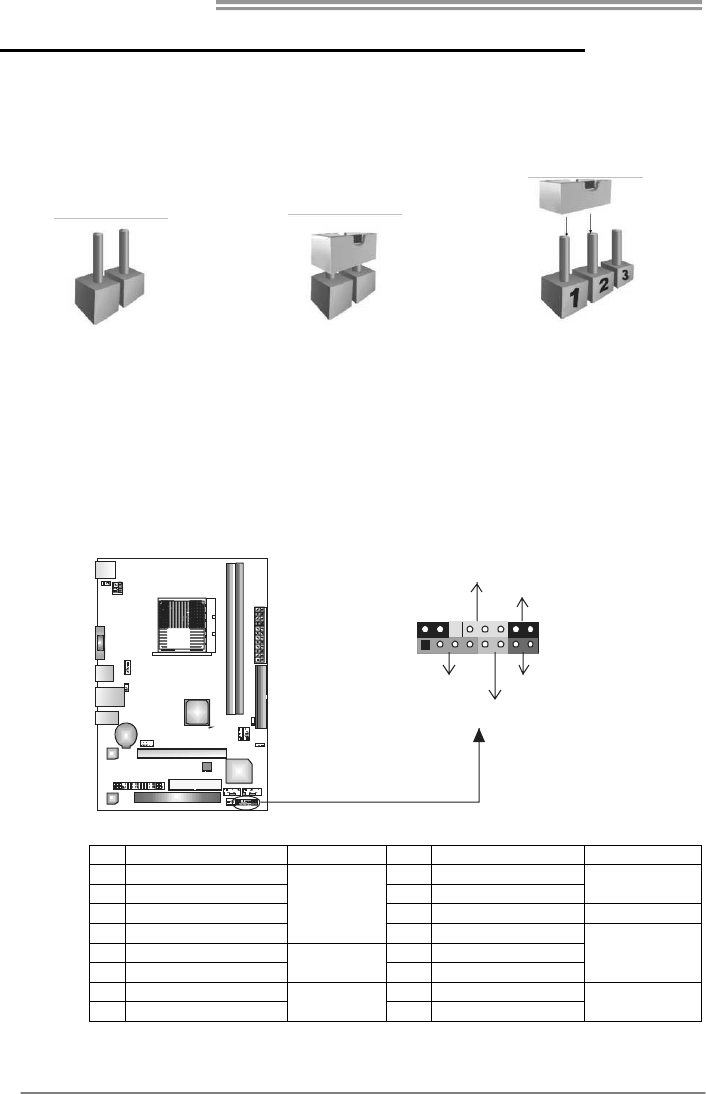

3.1 HOW TO SETUP JUMPERS
The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAIL SETTINGS
JPANEL1: Front Panel Header
This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, Sleep,
and speaker connection. It allows user to connect the PC case’s front panel
switch functions.
18
16
PWR _LE D
On/Off
RST
HLE D
SPK
++
+
9
-
-
Pin Assignment Function Pin Assignment Function
1 +5V 9 N/A
2 N/A 10 N/A N/A
3 N/A 11 N/A N/A
4 Speaker
Speaker
Connector
12 Power LED (+)
5 HDD LED (+) 13 Power LED (+)
6 HDD LED (-)
Hard drive
LED 14 Power LED (-)
Power LED
7 Ground 15 Power button
8 Reset control Reset button 16 Ground Power-on button
MCP6PB M2+/N68S
13

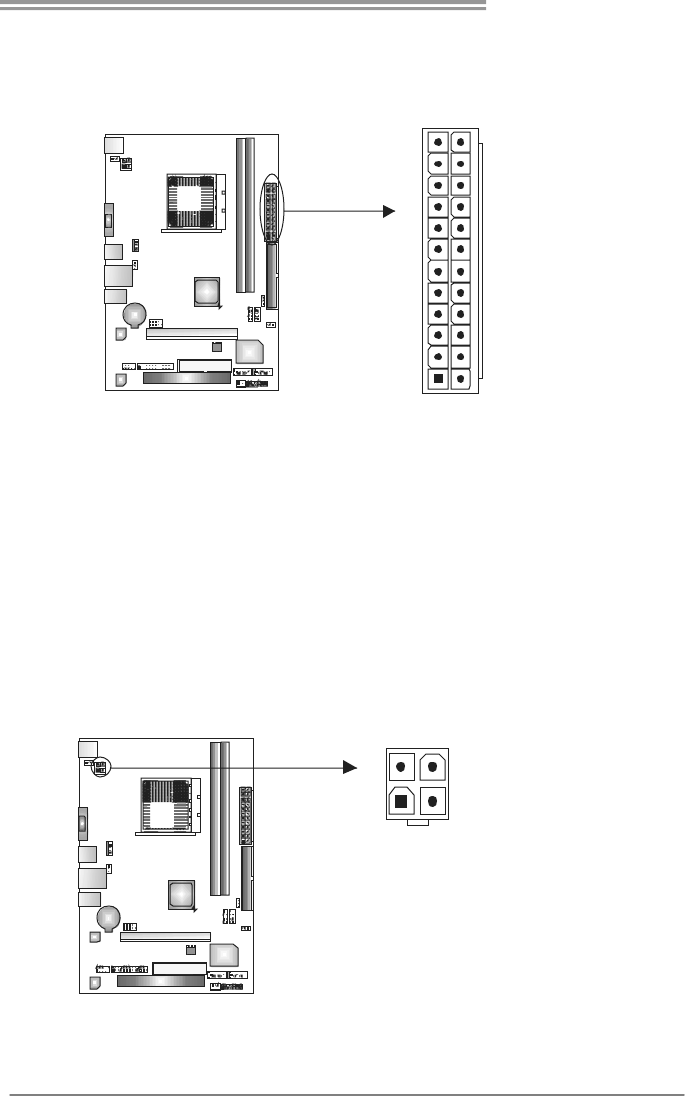

JATXPWR1: ATX Power Source Connector
This connector allows user to connect 24-pin power connector on the ATX
power supply.
24
13
12
1
Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V
JATXPWR2: ATX Power Source Connector
By connecting this connector, it will provide +12V to CPU power circuit.
Pin
Assignment
1 +12V
2 +12V
3 Ground
2
34
1
4 Ground
Note:
Before power on the system, please make sure that both JATXPWR1 and JATXPWR2
connectors have been plugged-in.
Motherboard Manual
14
JUSB2/JUSB3: Headers for USB 2.0 Ports at Front Panel
These headers allow user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.
Pin
Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 NC
21
10 9
JUSB2 JUSB3
10 Key
SATA1/SATA2: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 2 channels SATA interface,
it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.
Pin
Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
14 7
SATA2 SATA1
7 Ground
MCP6PB M2+/N68S
15
JAUDIOF: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. This header allows only HD audio front panel connector; AC’97 connector
is not acceptable.
Pin
Assignment
1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
19
210
10 Jack Sense
JCOM: Serial port Connector
The motherboard has a Serial Port Connector for connecting RS-232 Port.
Pin
Assignment
1 Carrier detect
2 Received data
3 Transmitted data
4 Data terminal ready
5 Signal ground
6 Data set ready
7 Request to send
8 Clear to send
9 Ring indicator
19
210
10 NC
Motherboard Manual
16

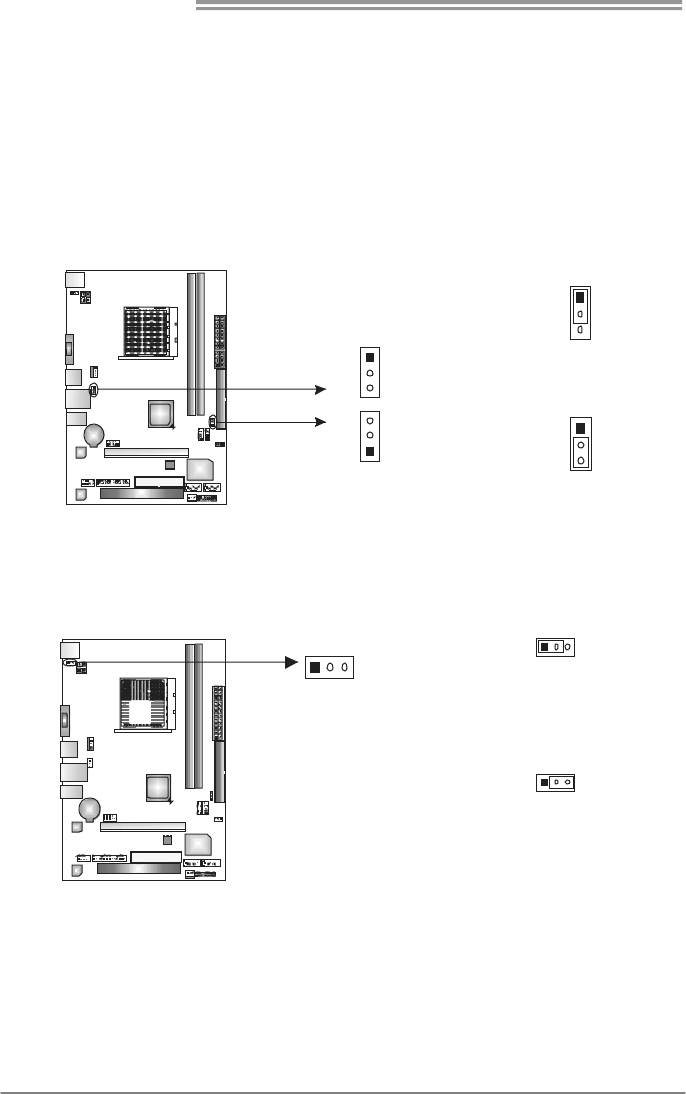

JCMOS1: Clear CMOS Header
By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting
and the CMOS data, please carefully follow the procedures to avoid damaging
the motherboard.
31
Pin 1-2 Close:
Normal Operation (default).
31
31
Pin 2-3 Close:
Clear CMOS data.
※ Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
MCP6PB M2+/N68S
17
JPRNT: Printer Port Connector
This header allows you to connect printer port on the PC.
125
2
Pin Assignment Pin Assignment
1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy
9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key
Motherboard Manual
18
JUSBPWR1/JUSBPWR2: Power Source Headers for USB Ports
Pin 1-2 Close:
JUSBPWR1: +5V for USB ports at JUSB1/JUSBLAN1.
JUSBPWR2: +5V for USB ports at front panel (JUSB2/JUSB3).
Pin 2-3 Close:
JUSBPWR1: +5V STB for USB ports at JUSB1/JUSBLAN1.
JUSBPWR2: +5V STB for USB ports at front panel (JUSB2/JUSB3).
1
3
Pin 1-2 close
1
3
JUSBPWR1
1
3
JUSBPWR2
1
3
Pin 2-3 close
JKB_PWR: Power Source Header for PS/2 Keyboard and Mouse
31
Pin 1-2 close
+5V for PS/2 keyboard and
mouse.
31
31
Pin 2-3 close
+5V STB for PS/2 keyboard
and mouse.
MCP6PB M2+/N68S
19
CHAPTER 4: RAID FUNCTIONS
4.1 OPERATING SYSTEM
Supports Windows XP and Windows Vista.
4.2 RAID ARRAYS
RAID supports the following types of RAID arrays:
RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for
many applications.
RAID 1: RAID 1 defines techniques for mirroring data.
4.3 HOW RAID WORKS

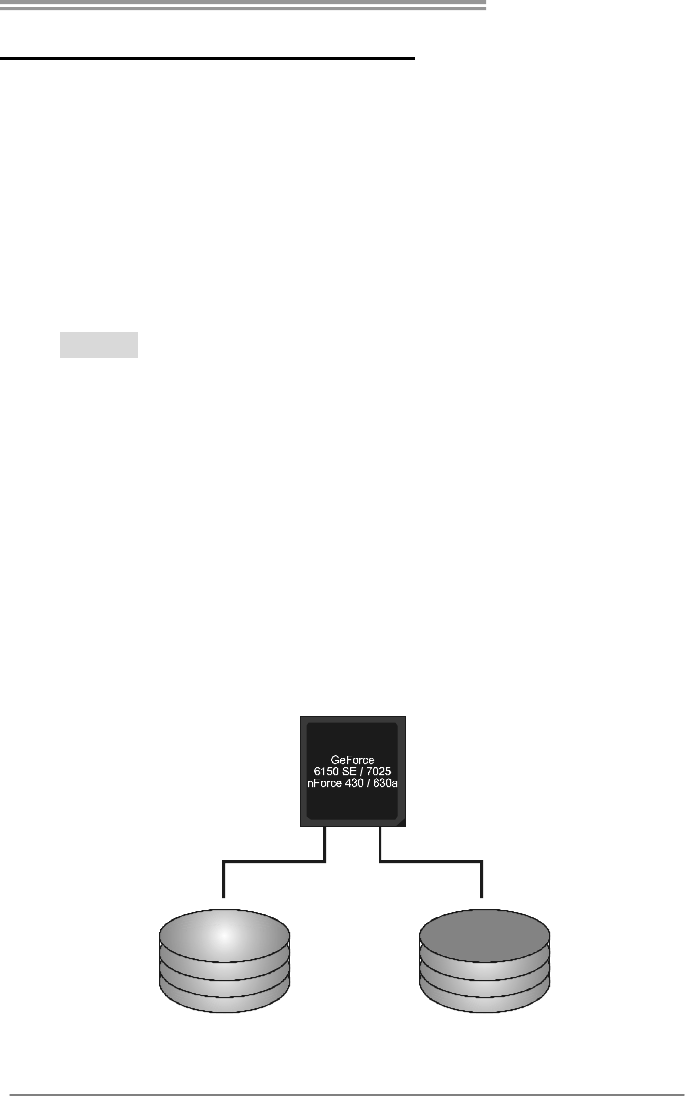

RAID 0:
The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks
up a large f ile into smaller blocks and performs disk reads and writes across multip le
drives in parallel. The size of each block is determined by the stripe size parameter,
which you set during the creation of the RAID set based on the system environment. This
technique reduces overall disk access time and offers high bandwidth.
Features and Benefits
Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the
platform.
Uses: Intended for non-critical data requiring high data throughput, or any
environment that does not require fault tolerance.
Benefits: provides increased data throughput, especially for large files. No
capacity loss penalty for parity.
Drawbacks: Does not deliver any fault tolerance. If any drive in the array
fails, all data is lost.
Fault Tolerance: No.
Block 1
Block 3
Block 5
Block 2
Block 4
Block 6
Motherboard Manual
20

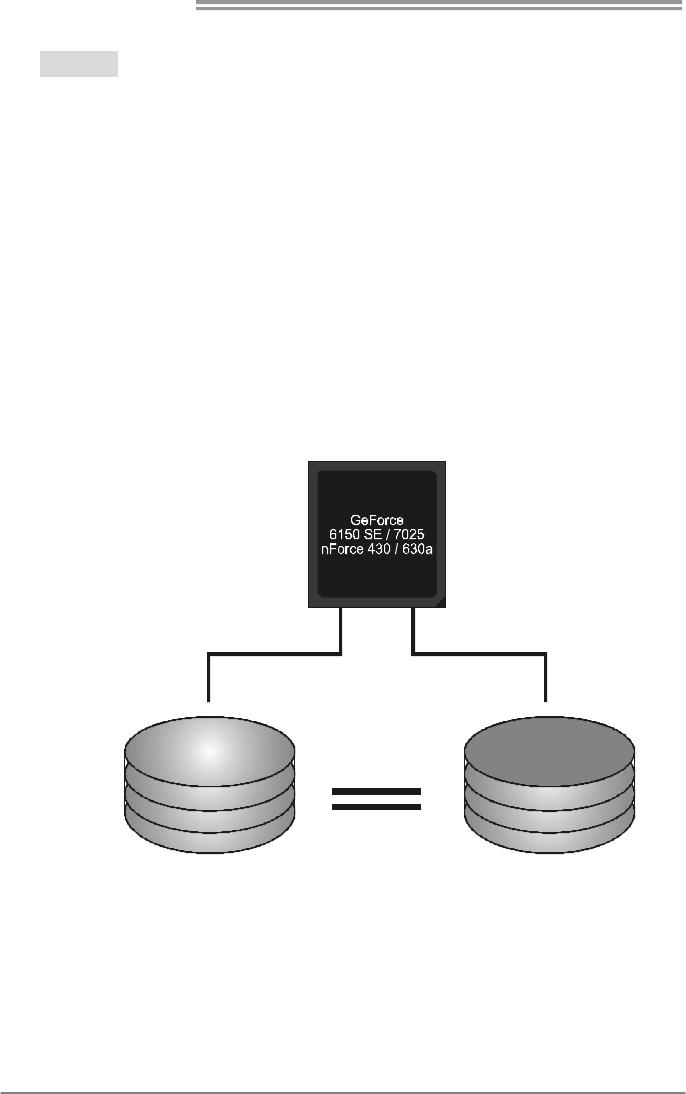

RAID 1:
Every read and write is actually carried out in parallel across 2 disk drives in a RAID 1
array system. The mirrored (backup) copy of the data can reside on the same disk or on a
second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the
active volume or drive is corrupted or becomes unavailable because of a hardware failure.
RAID techniques can be applied for high-availability solutions, or as a form of automatic
backup that eliminates tedious manual backups to more expensive and less reliable
media.
Features and Benefits
Drives: Minimum 2, and maximum is 2.
Uses: RAID 1 is ideal for small databases or any other application that
requires fault tolerance and minimal capacity.
Benefits: Provides 100% data redundancy. Should one drive fail, the
controller switches to the other drive.
Drawbacks: Requires 2 drives for the storage space of one drive.
Performance is impaired during drive rebuilds.
Fault Tolerance: Yes.
Block 1
Block 2
Block 3
Block 1
Block 2
Block 3
MCP6PB M2+/N68S
21
CHAPTER 5: USEFUL HELP
5.1 DRIVER INSTALLATION NOTE
After you installed your operating system, please insert the Fully Setup
Driver CD into your optical drive and install the driver for better system
performance.

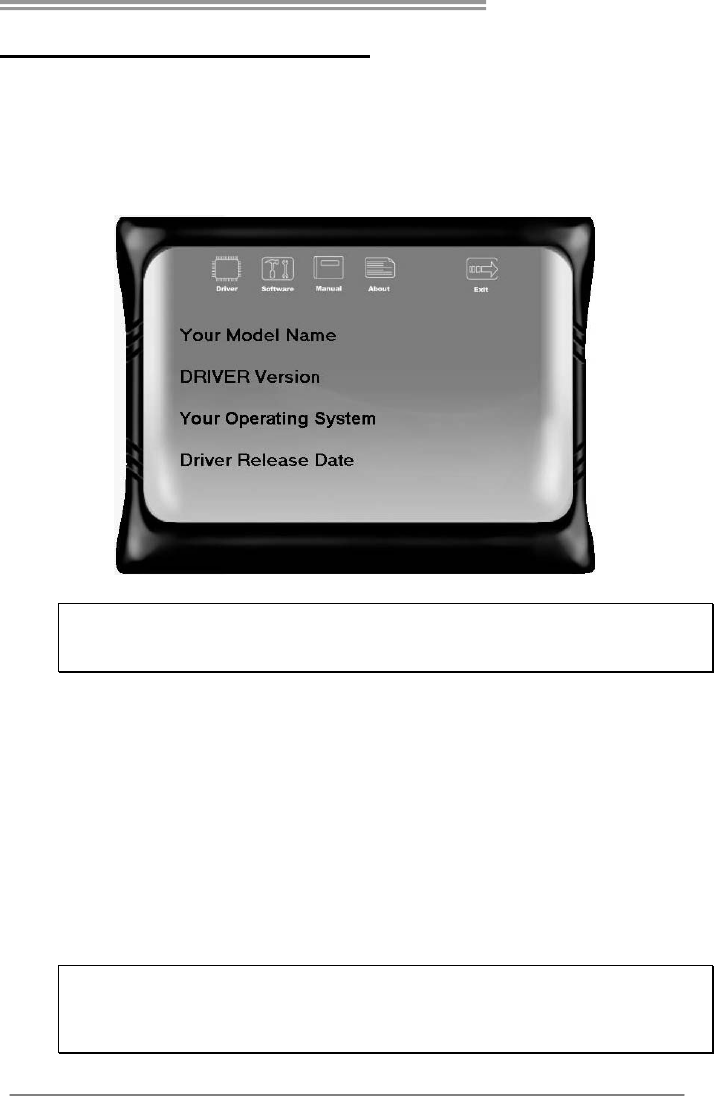

You will see the following window after you insert the CD
The setup guide will auto detect your motherboard and operating system.
Note:
If this window didn’t show up after you insert the Driver CD, please use file browser to
locate and execute the file SETUP.EXE under your optical drive.
A. Driver Installation
To install the driver, please click on the Driver icon. The setup guide will
list the compatible driver for your motherboard and operating system.
Click on each device driver to launch the installation program.
B. Software Installation
To install the software, please click on the Software icon. The setup guide
will list the software available for your system, click on each software title
to launch the installation program.
C. Manual
Aside from the paperback manual, we also provide manual in the Driver
CD. Click on the Manual icon to browse for available manual.
Note:
You will need Acrobat Reader to open the manual file. Please download the latest version
of Acrobat Reader software from
http://www.adobe.com/products/acrobat/readstep2.html
Motherboard Manual
22
5.2 SOFTWARE
Installing Software
1. Insert the Setup CD to the optical drive. The drivers installation program
would appear if the Autorun function has been enabled.
2. Select Software Installation, and then click on the respective software
title.
3. Follow the on-screen instructions to complete the installation.

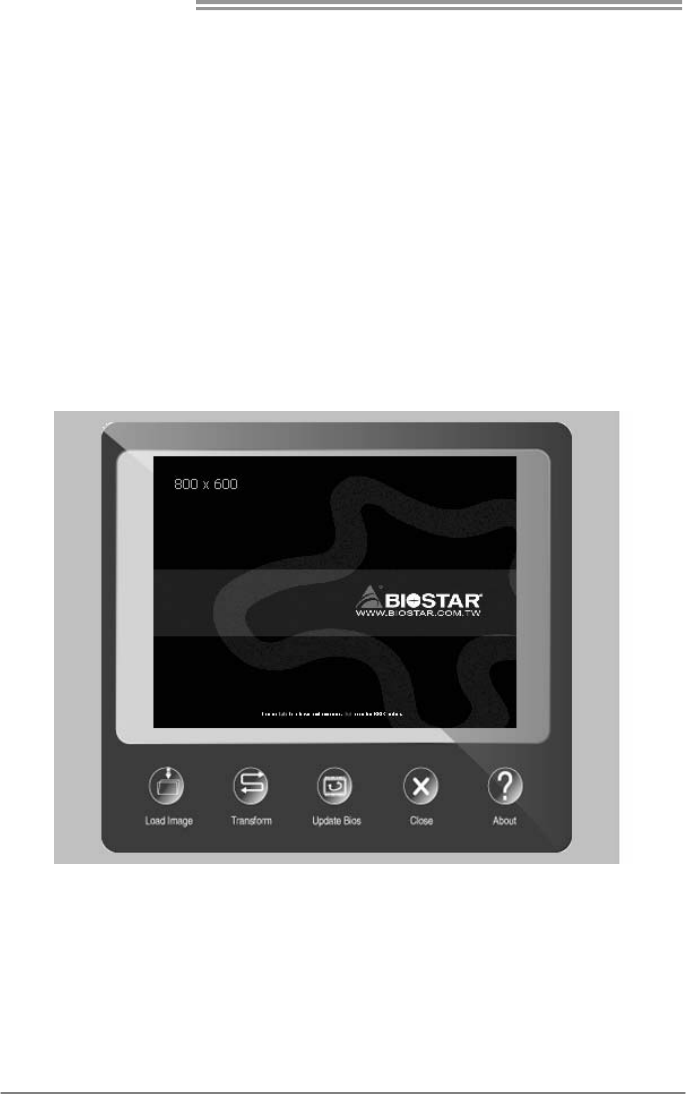

BIOScreen Utility
This utility allows you to personalize your boot logo easily. You can choose
JPG or BMP as your boot logo so as to customize your computer.
Please follow the following instructions to update boo logo:
1. Load Image：Choose the picture as the boot logo.
2. Transform：Transform the picture for BIOS and preview the result.
3. Update Bios：Write the picture to BIOS Memory to complete the update.
MCP6PB M2+/N68S
23
5.3 AWARD BIOS BEEP CODE
Beep Sound Meaning
One long beep followed by two short
beeps
Video card not found or video card
memory bad
High-low siren sound CPU overheated
System will shut down automatically
One Short beep when system boot-up No error found during POST
Long beeps every other second No DRAM detected or install
5.4 EXTRA INFORMATION
CPU Overheated
If the system shutdown automatically after power on system for
seconds, that means the CPU protection function has been activated.
When the CPU is over heated, the motherboard will shutdown
automatically to avoid a damage of the CPU, and the system may not
power on again.
In this case, please double check:
1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.
After confirmed, please follow steps below to relief the CPU protection
function.
1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.
Or you can:
1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)
2. Wait for seconds.
3. Power on the system again.
Motherboard Manual
24
5.5 TROUBLESHOOTING
Probable Solution
1. There is no power in the system.
Power LED does not shine; the
fan of the power supply does not
work
2. Indicator light on keyboard does
not shine.
1. Make sure power cable is
securely plugged in.
2. Replace cable.
3. Contact technical support.
System is inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drives are running.
Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.
System does not boot from a hard disk
drive, but can be booted from optical
drive.
1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged
in; check the drive type in the
standard CMOS setup.
2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.
System only boots from an optical
drive. Hard disks can be read,
applications can be used, but system
fails to boot from a hard disk.
1. Back up data and applications
files.
2. Reformat the hard drive.
Re-install applications and data
using backup disks.
Screen message shows “Invalid
Configuration” or “CMOS Failure.”
Review system’s equipment. Make sure
correct information is in setup.
System cannot boot after user installs a
second hard drive.
1. Set master/slave jumpers
correctly.
2. Run SETUP program and select
correct drive types. Call the drive
manufacturers for compatibility
with other drives.
MCP6PB M2+/N68S
25
This page is intentionally left blank.
Motherboard Manual
26
APPENDIX: SPEC IN OTHER LANGUAGES
GERMAN
Spezifikationen
CPU
Sockel AM2+
AMD Phenom / Phenom II / Athlon / Athlon
II / Sempron Prozessoren
(Maximales Watt: 95W)
Die AMD 64-Architektur unterstützt eine 32-Bit- und
64-Bit-Datenverarbeitung
Unterstützt Hyper Transport und PowerNow
FSB
Unterstützt HyperTransport 2.0 Ghz mit
einer
Bandbreite von bis zu 4 GT/s
Chipsatz
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S)
Super E/A
ITE8716F
Bietet die häufig verwendeten alten Super
E/A-Funktionen.
Low Pin Count-Schnittstelle
Umgebungskontrolle,
Hardware-Überwachung
"Smart Guardian"-Funktion von ITE
Arbeitsspeich
er
DDR2 DIMM-Steckplätze x 2
Max. 4GB Arbeitsspeicher
Jeder DIMM unterstützt 256MB/512MB/
1GB/2GB DDR2.
Dual-Kanal DDR2 Speichermodul
Unterstützt DDR2 533 / 667 / 800
Unterstützt DDR2 1066 (by AM2+ CPU)
registrierte DIMMs. ECC DIMMs werden nicht
unterstützt.
Grafik
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S) Max. 256 MB gemeinsam benutzter Videospeicher
IDE Integ riert er IDE-Controlle r Ultra DMA 33 / 66 / 100 / 133 Bus Master-Modus
Unterstützt PIO-Modus 0~4,
SATA Integrierter Serial ATA-Controller Datentransferrate bis zu 3 Gb/s
Konform mit der SATA-Spezifikation Version 2.0.
LAN Realtek RTL 8201CL PHY 10 / 100 Mb/s Auto-Negotiation
Halb-/ Vollduplex-Funktion
HD
Audio-Unters
tützung
ALC662 5.1-Kanal-Audioausgabe
Unterstützt High-Definition Audio
PCI Express x16 Steckplatz x1
Steckp lätze
PCI-Steckplatz x1
MCP6PB M2+/N68S
27
Spezifikationen
Diskettenlaufwerkanschluss x1 Jeder Anschluss unterstützt 2 Diskettenlaufwerke
IDE-Anschluss x1 Jeder Anschluss unterstützt 2 IDE-Laufwerke
SATA-Anschluss x2 Jeder Anschluss unterstützt 1 SATA-Laufwerk
Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen
Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion
CPU-Lüfter-Sockel x1
CPU-Lüfterstromversorgungsanschluss (mit Smart
Fan-Fun kt ion )
System-Lüfter-Sockel x1 System-Lüfter-Stromversorgungsanschluss
"CMOS löschen"-Sockel x1
USB-Anschluss x2
Jeder Anschluss unterstützt 2
Fronttafel-USB-Anschlüsse
Stromanschluss (24-polig) x1
Stromans ch luss (4-polig ) x1
Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss
Onboard-Ans
chluss
Serieller Anschluss x1
Rückseiten-E
/A
PS/2-Tastatur x1
PS/2- Maus x1
VGA-Anschluss x1
LAN-Anschluss x1
USB-Anschluss x4
Audioanschluss x3
Platinengröß
e
170 mm (B) X 235 mm (L)
Sonderfunkti
onen
Unterstützt RAID 0 / 1
OS-Unterstü
tzung
Windows XP / Vista / 7
Biostar behält sich das Recht vor, ohne Ankündigung
die Unterstützung für ein Betriebssystem
hinzuzufügen oder zu entfernen.
Motherboard Manual
28
FRENCH
SPEC
UC
Socket AM2+
Processeurs AMD Phenom / Phenom II /
Athlon / Athlon II / Sempron
(Watt maximum : 95W )
L'architecture AMD 64 permet le calcul 32 et 64 bits
Prend en charge Hyper Transport et PowerNow
Bus frontal Prend en charge Hyper Transport 2.0 Ghz
jusqu'à une bande passante de 4 GT/s
Chipset GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S)
Super E/S
ITE 8718F
Fournit la fonctionnalité de Super E/S
patrimoniales la plus utilisée.
Interface à f aib le co mpte de b roches
Initiatives de contrôle environnementales,
Mon iteur d e mat ér iel
Fonction "Gardien intelligent" de l'ITE
Mémoire
principale
Fentes DDR2 DIMM x 2
Capacité mémo ire max imale de 4 Go
Chaque DIMM prend en charge des DDR2
de 256Mo/512Mo/1Go/2Go
Modu le d e mémo ire DDR2 à mode à doub le vo ie
Prend en charge la DDR2 533 / 667 / 800
Prend en charge la DDR2 1066 (by AM2+ CPU)
Les DIMM à registres et DIMM avec code correcteurs
d'erreurs ne sont pas prises en charge
Graphiques GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S) Mémoire vidéo partagée maximale de 512 Mo
IDE Contrôleur IDE intégré Mode principale de Bus Ultra DMA 33 / 66 / 100 / 133
Prend en charge le mode PIO 0~4,
SATA
Contrôleur Serial ATA
int égr é
Taux de transfert jusqu'à 3 Go/s.
Conforme à la spécificat ion SATA Vers ion 2.0
LAN Realtek RTL 8201CL PHY 10 / 100 Mb/s négociation automatique
Half / Full duplex capability
Prise en
charge
audio HD
ALC662 Sortie audio à 5.1 vo ies
Prise en charg e de l'aud io haute définition
Fente PCI Express x16 x1
Fentes Fente PCI x1
Connecteur de disquette x1 Chaque connector prend en charg e 2 lecteurs de
disquettes
Connecteur
embarqué
Connecteur IDE x1 Chaque connecteur prend en charge 2 périp hériques
IDE
MCP6PB M2+/N68S
29
SPEC
Connecteur SATA x2 Chaque connecteur prend en charge 1 périphérique
SATA
Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant
Connecteur Audio du panneau avant x1 Prend en charge la fonction audio du panneau avant
Embase de ventilateur UC x1 Alimentation électrique du ventilateur UC (avec
fonction de ventilateur intelligent)
Embase de ventilateur système x1 Alimentation électrique du ventilateur système
Embase d'effacement CMOS x1
Connecteur USB x2 Chaque connecteur prend en charge 2 ports USB de
panneau avant
Connecteur d'alimentat ion x1
(24 broches)
Connecteur d'alimentat ion x1
(4 broches)
Connecteur de Port d'imprimante x1 Chaque connector prend en charge 1 Port
d'imprimante
Connecteur de Port série x1
E/S du
panneau
arrière
Clavier PS/2 x1
Souris PS/2 x1
Port VGA x1
Port LAN x1
Port USB x4
Fiche audio x3
Dimension
s de la
cart e
170 mm (l) X 235 mm (H)
Fonctionnal
ités
spéciales
Prise en charg e RAID 0 / 1
Support SE
Windows XP / Vista / 7 Biostar se réserve le droit d'ajouter ou de supprimer le
support de SE avec ou sans préavis.
Motherboard Manual
30
ITALIAN
SPECIFICA
CPU
Socket AM2+
Processori AMD Phenom / Phenom II /
Athlon / Athlon II / Sempron
(Watt massimo: 95W)
L’architettura AMD 64 abilita la co mputazione 32
e 64 bit
Supporto di Hyper Transport e PowerNow
FSB Supporto di HyperTransport 2.0 Ghz
fino a 4 GT/s di larghezza di banda
Chipset GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S)
Super I/O
ITE 8718F
Fornisce le funzionalità legacy Super
I/O usate più comunemente.
Interfaccia LPC (Low Pin Count)
Funzioni di controllo dell’ambiente:
Monitoraggio hardware
Funzione "Smart Guardian" di ITE
Memoria
principale
Alloggi DIMM DDR2 x 2
Capacità massima della memoria 4GB
Ciascun DIMM supporta DDR2
256MB/512MB/1GB/2GB
Modulo di memoria DDR2 a canale doppio
Supporto di DDR2 533 / 667 / 800
Supporto di DDR2 1066 (by AM2+ CPU)
DIMM registrati e DIMM ECC non sono supportati
Grafica GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S) La memoria video condivisa massima è di 256 MB
IDE Controller IDE integrato
Modalità Bus Master Ultra DMA 33 / 66 / 100 /
133
Supporto modalità PIO Mode 0-4
SATA Controller Serial ATA integrato Velocità di trasferimento dei dati fino a 3 Gb/s.
Compatibile specifiche SATA Vers ione 2.0.
LAN Realtek RTL 8201CL PHY Negoziazione automatica 10 / 100 Mb/s
Capacità Half / Full Duplex
Supporto
audio HD
ALC662 Uscita audio 5.1 canali
Supporto audio High-Definition (HD)
Alloggio PCI Express x16 x1
Alloggi
Alloggio PC I x1
Connettore floppy x1 Ciascun connettore supporta 2 unità Floppy Connettori
su scheda Connettore IDE x1 Ciascun connettore supporta 2 unità IDE
MCP6PB M2+/N68S
31
SPECIFICA
Connettore SATA x2 Ciascun connettore supporta 1 unità SATA
Connettore pannello frontale x1 Supporta i servizi de l pannello frontale
Connettore audio frontale x1 Supporta la funzione audio pannello frontale
Collettore ventolina C PU x1 Alimentazione ventolina CPU (con funzione Smart
Fan)
Collettore ventolina sistema x1 Alimentazione ventolina d i sis tema
Collettore cancellaz ione CMOS x1
Connettore USB x2 Ciascun connettore supporta 2 porte USB
pannello frontale
Connettore alimentazione x1
(24 pin)
Connettore alimentazione x1
(4 pin)
Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante
Connettore Porta seriale x1
I/O
pannello
posteriore
Tas t ier a PS /2 x 1
Mouse PS/2 x1
Porta VGA x1
Porta LAN x1
Porta USB x4
Connettore audio x3
Dimension
i scheda
170 mm (larghezza) x 235 mm
(altezza)
Caratterist
iche
speciali
Supporto RAID 0 / 1
Sistemi
operativi
supportati
Windows XP / Vista / 7
Biostar si riserva il diritto di aggiungere o
rimuovere il supporto di qualsiasi sistema
operativo senza preavviso.
Motherboard Manual
32
SPANISH
Especificación
CPU
Conector AM2+
Procesadores AMD Pheno m / Pheno m II /
Athlon / Athlon II / Sempron
(Vatio máx imo: 95W)
La arquitectura AMD 64 permite el procesado de 32 y
64 bits
Soporta las tecnologías Hyper Transport y PowerNow
FSB Admite HyperTransport 2.0 Ghz con un
ancho d e banda de hasta 4 GT /s
Conjunto
de chips
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S)
Súper E/S
ITE 8718F
Le ofrece las funcionalidades heredadas
de uso más común Súper E/S.
Interfaz de cuenta Low Pin
In iciat ivas de control d e entorno,
Monitor hardware
Función "Guardia inteligente" de ITE
Memoria
principal
Ranuras DIMM DDR2 x 2
Capacidad máxima de memoria de 4GB
Cada DIMM admite DDR de 256MB/
512MB/1GB/2GB
Módulo de memoria DDR2 de canal Doble
Admite DDR2 de 533 / 667 / 800
Admite DDR2 de 1066 (by AM2+ CPU)
No admite DIMM registrados o DIMM compatibles con
ECC
Gráficos GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S) Memoria máxima de vídeo compartida de 256 MB
IDE Controlador IDE integrado Modo bus maestro Ultra DMA 33 / 66 / 100 / 133
Soporte los Modos PIO 0~4,
SATA Controlador ATA Serie Integrado Tasas de transferencia de hasta 3 Gb/s.
Compat ib le con la versión SATA 2.0.
Red Local Realtek RTL 8201CL PHY Negociación de 10 / 100 Mb/s
Funciones Half / Full dúplex
Soporte de
sonido HD
ALC662 Salida de sonido de 5.1 canales
Soporte de sonido Alta Definición
Ranura PCI Express x16 X1
Ranuras
Ranura PCI X1
Conector disco flexible X1 Cada conector soporta 2 unidades de disco flexible
Conector IDE X1 Cada conector soporta 2 dispositivos IDE
Conectores
en placa
Conector SATA X2 Cada conector soporta 1 dispositivos SATA
MCP6PB M2+/N68S
33
Especificación
Conector de p anel f rontal X1 Soporta instalaciones en el p anel frontal
Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal
Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con
función Smart Fan)
Cabecera de ventilador de sistema X1 Fuente de alimentación de ventilador de sistema
Cabecera de borrado de CMOS X1
Conector USB X2 Cada conector soporta 2 puertos USB frontales
Conector de alimentación X1
(24 patillas)
Conector de alimentación X1
(4 patillas)
Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora
Conector Puerto serie X1
Panel
trasero de
E/S
Tec l ad o PS /2 X 1
Ratón PS/2 X1
Puerto VGA X1
Puerto de red local X1
Puerto USB X4
Conector de sonido X3
Ta mañ o d e
la placa 170 mm. (A) X 235 Mm. (H)
Funciones
especiales Admite RAID 0 / 1
Soporte de
sistema
operativo
Windows XP / Vista / 7 Biostar se reserva el derecho de añadir o retirar el
soporte de cualquier SO con o sin aviso previo.
Motherboard Manual
34
PORTUGUESE
ESPECIFICAÇÕES
CPU
Socket AM2+
Processadores AMD Phenom
/
Phenom II
/ Athlon / Athlon II / Sempron
(Watt máximo: 95W)
A arquitectura AMD 64 p ermite uma co mputação de
32 e 64 bits
Suporta as tecno log ias Hyper Transport e PowerNow
FSB
Suporta a tecnologia HyperTransport 2.0
Ghz com uma largura de band a at é 4
GT/s
Chipset GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S)
Especificaç
ão Super
I/O
ITE 8718F
Proporciona as funcionalidades mais
utilizadas em termos da especificação
Super I/O.
Interface LPC (Low Pin Count).
In iciat ivas par a contro lo do amb iente
Monitoriz ação do hardware
Função "S mart Gu ardian" d a ITE
Memória
principal
Ranhuras DIMM DDR2 x 2
Capacidade máx ima de memór ia: 4 GB
Cada módulo DIMM suporta uma
memória DDR2 de 256MB/512MB/
1GB/2GB
Módulo de memória DDR2 de canal duplo
Suporta módulos DDR2 533 / 667 / 800
Suporta módulos DDR2 1066 (by AM2+ CPU)
Os módulos DIMM registados e os DIMM ECC não são
suportados
Placa
gráfica
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S) Memória de vídeo máxima partilhada: 256 MB
IDE Controlador IDE integrado Modo Bus master Ultra DMA 33 / 66 / 100 / 133
Suporta o modo PIO 0~4,
SATA Controlador Serial ATA integrado Velocidades de transmissão de dados até 3 Gb/s.
Compat ib ilidade co m a especificação SATA versão 2.0.
LAN Realtek RTL 8201CL PHY Auto negociação de 10 / 100 Mb/s
Capacidade semi/full-duplex
Suporte
para áudio
de alta
definição
ALC662 Saída de áudio de 5.1 canais
Suporta a especificação High-Definition Audio
Ranhura PCI Express x16 x1
Ranhuras Ranhura PCI x1
Conector da unidade de disquetes x1 Cada conector suporta 2 unidades de disquetes Conectores
na placa Conector IDE x1 Cada conector suporta 2 dispositivos IDE
MCP6PB M2+/N68S
35
ESPECIFICAÇÕES
Conector SATA x2 Cada conector suporta 1 dispositivo SATA
Conector do painel frontal x1 Para suporte de várias funções no painel frontal
Conector de áudio frontal x1 Suporta a função de áud io no painel frontal
Conector da ventoinha da CPU x1 Alimentação da ventoinha da CPU (com a função
Smart Fan)
Conector da ventoinha do sistema x1 Alimentação da ventoinha do s istema
Conector para limpeza do CMOS x1
Conector USB x2 Cada conector suporta 2 portas USB no painel frontal
Conector de alimentação x1
(24 pinos)
Conector de alimentação x1
(4 p inos)
Conector da para impressora x1 Cada conector suporta 1 Porta para impressora
Conector da Porta série x1
Entradas/S
aídas no
painel
traseiro
Tec l ad o PS /2 x 1
Rato PS/2 x1
Porta VGA x1
Porta LAN x1
Porta USB x4
Tomada de áudio x3
Tamanho
da placa 170 mm (L) X 235 mm (A)
Característi
cas
especiais
Suporta as funções RA ID 0 / 1
Sistemas
operativos
suportados
Windows XP / Vista / 7
A Biostar reserva-se o direito de adicionar ou remover
suporte para qualquer sistema operativo com ou sem
av iso prévio.
Motherboard Manual
36
POLISH
SPEC
Procesor
Socket AM2+
AMD Pheno m / Phenom II / Athlon /
Athlon II / Sempron Procesory
(Maksymalny Watt: 95W)
Architektura AMD 64 umożliwia przetwarzanie 32 i 64
bitowe
Obsługa Hyper Transport oraz PowerNow
FSB Obsługa HyperTransport 2.0 Ghz o
szerokości pasma do 4 GT/s
Chipset GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S)
Pamięć
główna
Gniazda DDR2 DIMM x 2
Maks. wielkość pamięci 4GB
Każde gniazdo DIMM obsługuje moduły
256MB/512MB/1GB/2GB DDR2
Modu ł pamięci DDR2 z trybem podwójnego kanału
Obsługa DDR2 533 / 667 / 800
Obsługa DDR2 1066 (by AM2+ CPU)
Brak obsługi Registered DIMM oraz ECC DIMM
Super I/O
ITE 8718F
Zapewnia najbardziej powszechne
funkcje Super I/O.
Interfejs Low Pin Count
Funkcje kontroli warunków pracy,
Mon itor H/W
Funkcja ITE "Smart Guardian"
Grafika GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S)
Maks. wielkość współdz ielon ej pamięci video wynosi
256 MB
IDE Zintegrowany kontroler IDE Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master
obsługa PIO tryb 0~4,
SATA Zintegrowany kontroler Serial ATA Transfer danych do 3 Gb/s.
Zgodność ze specyfikacją SATA w wersj i 2.0.
LAN Realtek RTL 8201CL PHY 10 / 100 Mb/s z automatyczną negocjacją szybkości
Działanie w trybie połowicznego / pełnego dupleksu
Obsługa
audio HD ALC662 5.1 kanałowe wyjście audio
Obsługa High-Def in ition Aud io
Gniazdo PCI Express x16 x1
Gniazda
Gniazdo PCI x1
Złącze napędu dyskietek x1 Każde złącze obs ługuje 2 napędy dyskietek
Złącze IDE x1 Każde złącze obs ługuje 2 urządzenia IDE
Złącze SATA x2 Każde złącze obs ługuje 1 urządzenie SATA
Złącza
wbudowan
e
Złącze panela przedniego x1 Obsługa elementów panela przedniego
MCP6PB M2+/N68S
37
SPEC
Przednie złącze audio x1 Obsługa funkcji audio na panelu przednim
Złącze g łówkowe wentylatora procesora
x1
Zasilanie wentylatora procesora (z funkcją Smart Fan)
Złącze g łówkowe wentylatora
systemowego x1
Zasilanie wentylatora systemowego
Złącze g łówkowe kasowania CMOS x1
Złącze USB x2 Każde złącze obs ługuje 2 porty USB na panelu
przednim
Złącze zasilania (24 pinowe) x1
Złącze zas ilania (4 p ino we) x1
Złącze Port drukarki x1 Każde złącze obs ługuje 1 Port drukarki
Złącze Port szeregowy x1
Back Panel
I/O
Klawiatura PS/2 x1
Mysz PS /2 x1
Port VGA x1
Port LAN x1
Port USB x4
Gniazdo audio x3
Wymiary
płyty
170 mm (S) X 235 mm (W)
Funkcje
specjalne
Obsługa RAID 0 / 1
Obsluga
systemu
operacyjne
go
Windows XP / Vista / 7
Biostar zastrzega sobie prawo dodawania lub
odwoływania obsług i dowo ln ego systemu
operacyjnego bez powiado mienia.
Motherboard Manual
38
RUSSIAN
СПЕЦ
CPU
(централь
ный
процессор
)
Гнездо AM2+
Процессоры AMD Ph enom / Pheno m II /
Athlon / Athlon II / Sempron
(Максимальн ый ватт: 95W)
Архитектура AMD 64 разрешать обработка данных
на 32 и 64 бит
Поддержка Hyp er Transport и PowerNow
FSB Поддержка HyperTransport 2.0 Ghz с
пропускной способностью до 4 GT/s
Набор
микросхем
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S)
Основная
память
Слоты DDR2 DIMM x 2
Максимальная ёмкость памяти 4 ГБ
Каждый модуль DIMM поддерживает
256МБ /512МБ/1ГБ/2ГБ DDR2
Модуль памяти с двухканальным режимом DDR2
Поддержка DDR2 533 / 667 / 800
Поддержка DDR2 1066 (by AM2+ CPU)
Не поддерживает зарегистрированные модули
DIMM and ECC DIMM
Super I/O
ITE 8718F
Обеспечивает наиболее используемые
действующие фун кц ио нальны е
возможности Super I/O.
Интерфейс с низким количеством выводов
Инициативы по охране окружающей среды,
Аппаратный монитор
Функция ITE "Smart Guardian" (Интеллектуальная
защита)
Графика GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S)
Максимальная совместно используемая вид ео
память составляет 256 МБ
IDE Встроенное устройство управл ения
встроенными интерфейсами устройств
Режим "хозяина" шины Ultra DMA 33 / 66 / 100 / 133
Поддержка режима PIO 0~4,
SATA Встроенное последоват ельное
устройство управления ATA
скорость передачи данных до 3 гигабит/с.
Соответствие спецификации SATA версия 2.0.
Локальн ая
сеть Realtek RTL 8201CL PHY Автоматическое согласование 10 / 100 Мб /с
Частичная / полная дуплексная способность
Звуко вая
поддержка
жесткого
диска
ALC662 Звуко вая поддержка High- Def in ition
5.1канальный звуковой выход
Слот PCI Express x16 x1
Слоты Слот PCI x1
Разъём НГ МД x1
Каждый разъём поддерживает 2 накопителя на
гибких магнитных дисках
Встроенны
й разъём
Разъём IDE x1 Каждый разъём поддерживает 2 встроенных
интерфейса накопителей
MCP6PB M2+/N68S
39
СПЕЦ
Разъём SATA x2 Каждый разъём поддерживает 1 устройство SATA
Разъём на лицевой панели x1 Поддержка устройств на лицевой панели
Входной звуковой разъём x1 Поддержка звуко вых функций на лицевой панели
Контактирующее приспособление
вентил ятора центрального
процессора x1
Источник питания для вентилятор а центрального
процессора (с фун кц ией интеллектуального
вентил ятора)
Контактирующее приспособление
вентил ятора системы x1
Источник питания для вентилятор а системы
Открытое конт актирующее
приспособление CMOS x1
USB-разъём x2
Каждый разъём поддерживает 2 USB-порта на
лицевой панели
Разъем питания (24 вывод) x1
Разъем питания (4 вывод) x1
Разъём Порт подключения
принтера x1
Каждый разъём поддерживает 1 Порт подключения
принтера
Разъём Последоват ельный порт x1
Задняя
панель
средств
ввода-выв
ода
Клавиатура PS/2 x1
Мышь PS/2 x1
Порт VGA x1
Порт LAN x1
USB-порт x4
Гнездо для подключения
наушников x3
Размер
панели 170 мм (Ш) X 235 мм (В)
Специальн
ые
техническ
ие
характери
стики
Поддержка RAID 0 / 1
Поддержк
а OS Windows XP / Vista / 7
Biostar сохраняет за собой право добавлять или
удалять средства обеспечения для OS с или без
предварительного уведомления.
Motherboard Manual
40
ARABIC
تﺎﻔﺻاﻮﻤﻟا
ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺔﻋﺮﺴﺑ ﺔﻴﺑﻮﺳﺎﺤﻟا تﺎﻴﻠﻤﻌﻟا ءاﺮﺟإ 32 و64 ﺖﺑ
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyper Transport و 3 PowerNow
ﺲﺒﻘﻡ AM2+
تﺎﺠﻟﺎﻌﻡAMD Pheno m / Phenom II / Ath lon /
Athlon II / Sempron
(طاو ىﻮﺼﻗ: 95و)
ةﺪﺡو ﺔﺠﻟﺎﻌﻤﻟا
ﺔیﺰآﺮﻤﻟا
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyperTransport ﻰﻟإ ﻞﺼی ددﺮﺘﺑ 2.0Ghz 4 GT/s
ﻞﻗﺎﻨﻟا ﻲﻡﺎﻡﻷا ﻲﺒﻥﺎﺠﻟا
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S) ﺔﻋﻮﻤﺠﻡ ﺢﺋاﺮﺸﻟا
ﺗﻢﻋﺪ ﺔﻴﻨﻘﺗ Low Pin Count Interface
ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:
ةﺰﻬﺟﻷا ﺔﻟﺎﺡ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻡ
ﺔﻔﻴﻇو"Smart Guard ian" ﻦﻡ ITE
ITE 8718F
ﺔﻔﻴﻇو ﺮﻓﻮﺗSuper I/O ًﺎ ﻡ ا ﺪ ﺨ ﺘﺳ ا ﺮﺜآﻷا .
Super I/O
ةﺮآاذ ةﺪﺡوDDR2 ﻘﻟا ﺔﺟودﺰﻡةﺎﻨ
عﻮﻥ ﻦﻡ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR2 تﺎﻌﺳ 533 / 667 / 800 ﺖیﺎﺑ ﺎﺠﻴﻡ
عﻮﻥ ﻦﻡ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR2 تﺎﻌﺳ 1066ﺖیﺎﺑ ﺎﺠﻴﻡ
(DDR2 1066 is by AM2+ CPU)
ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺗ ﻻDIMM ﻚﻠﺗو ﻊﻡ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ECC
ﺔﺤﺘﻓDDR2 DIMM دﺪﻋ2
ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ4 ﺖیﺎﺑ ﺎﺠﻴﺟ
ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻡ ةﺮآاذ ﻢﻋﺪﺗ DDR2 ﺔﻌﺳ 256/512 ﺎﺠﻴﻡ
و ﺖیﺎﺑ1/و 2 ﺎﺠﻴﺟﺖیﺎﺑ
ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا
ﻰﺼﻗأ ﺔﻌﺳ ةﺮآاﺬﻟ ﻮیﺪﻴﻔﻟا ﺔآﺮﺘﺸﻤﻟا 256 ﺎﺠی ﺖیﺎﺑ
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S)
ﺔﻗﺎﻄﺑ تﺎﻡﻮﺳﺮﻟا
ﺔﻴﻨﻘﺘﺑ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100 / 133ﻲﺴﻴﺋر ﻊﺿو
ﻊﺿو ﻢﻋدPIO Mode 0 ~4
ﻢﻜﺤﺘﻡIDE ﻞﻡﺎﻜﺘﻡ ﺬﻔﻨﻡ IDE
ﻞﻘﻥ تﺎﻥﺎﻴﺒﻟا تﺎﻋﺮﺴﺑ ﻞﺼﺗ ﻰﻟإ 3 ﺖﺑﺎﺠﻴﺟ/ﺔﻴﻥﺎﺙ.
ﺔﻘﺑﺎﻄﻡ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.
ﻢﻜﺤﺘﻡ Serial ATA ﻞﻡﺎﻜﺘﻡ
SATA
ﺎﻔﺗ ﻲﺋﺎﻘﻠﺗ ضو10/100 ﺖیﺎﺑ ﺎﺠﻴﻡ /ﺔﻴﻥﺎﺙ
ﻞﻡﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻡإ/ﻲﻔﺼﻨﻟا
Realtek RTL 8201CL PHY
ﺔﻜﺒﺵ ﺔﻴﻠﺥاد
5.1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼﻟا
ﻦﻡ ﻒیﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗ
ALC662
ﻢﻋد تﻮﺼﻟا ﻲﻟﺎﻋ
ﻒیﺮﻌﺘﻟا
ﺔﺤﺘﻓx16 PCI Express دﺪﻋ1
ﺔﺤﺘﻓPCI دﺪﻋ1
تﺎﺤﺘﻔﻟا
آﺮﺤﻡ ﻢﻋﺪیﺔﻥﺮﻤﻟا صاﺮﻗﻸﻟ ﻦﻴ
ﺔﻥﺮﻡ صاﺮﻗأ كﺮﺤﻡ ﺬﻔﻨﻡ دﺪﻋ1
ةﺰﻬﺟأ ﻦﻡ ﻦﻴﻨﺙا ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪیIDE
ﺬﻔﻨﻡIDE دﺪﻋ1
ﺬﻓﺎﻨﻤﻟا ﻰﻠﻋ ﺢﻄﺳ
ﺔﺡﻮﻠﻟا
MCP6PB M2+/N68S
41
تﺎﻔﺻاﻮﻤﻟا
ةﺰﻬﺟأ ﻦﻡ ﺪﺡاو ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪیSATA
ﺬﻔﻨﻡSATA دﺪﻋ2
ﺔﻴﻡﺎﻡﻷا ﺔﺡﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪی
ﺔﻴﻡﺎﻡﻷا ﺔﺡﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1
ﻡﺎﻡﻷا ﺔﺡﻮﻠﻟﺎﺑ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪیﺔﻴ
ﻲﻡﺎﻡﻷا تﻮﺼﻟا ﺬﻔﻨﻡ دﺪﻋ1
ﺔﻔﻴﻇو ﻊﻡ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺡو ﺔﺡوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟSmart Fan
ﺔیﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺡو ﺔﺡوﺮﻡ ﺔﻠﺹو دﺪﻋ1
مﺎﻈﻨﻟا ﺔﺡوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ
مﺎﻈﻨﻟا ﺔﺡوﺮﻡ ﺔﻠﺹو دﺪﻋ1
ﺢﺴﻡ ﺔﻠﺹوCMOS دﺪﻋ1
ﻲﺘﺤﺘﻓ ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪیUSBﺔﻴﻡﺎﻡﻷا ﺔﺡﻮﻠﻟﺎﺑ
ﺬﻔﻨﻡUS B دﺪﻋ2
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)24سﻮﺑد( دﺪﻋ1
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)4سﻮﺑد( دﺪﻋ1
ﺔﻌﺑﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1
ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻡ دﺪﻋ1
ﺢﻴﺗﺎﻔﻡ ﺔﺡﻮﻟPS/2 دﺪﻋ1
سوﺎﻡ PS/2 دﺪﻋ1
ﺬﻔﻨﻡVGA دﺪﻋ1
ﺔﻴﻠﺤﻡ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻡ دﺪﻋ1
ﺬﻓﺎﻨﻡUSB دﺪﻋ4
تﻮﺹ ﺲﺒﻘﻡ ﺪﻋ3
ﺬﻓﺎﻨﻡ ﻞﺥد/جﺮﺥ
ﺔﺡﻮﻠﻟا ﻔﻠﺨﻟاﺔﻴ
170 ﻢﻡ)ضﺮﻋ (X 235 ﻢﻡ)عﺎﻔﺗرا( ﻢﺠﺡ ﺔﺡﻮﻠﻟا
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗRAID 0 / 1 ﺔﺹﺎﺥ ﺎیاﺰﻡ
ﻆﻔﺘﺤﺗBiostar وأ رﺎﻄﺥﺈﺑ ﻞﻴﻐ ﺸﺗ مﺎﻈﻥ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺑ
رﺎﻄﺥإ نوﺪﺑ.
Windows XP / Vista / 7
ﻢﻋد ﺔﻤﻈﻥأ ﻞﻴﻐﺸﺘﻟا
Motherboard Manual
42
JAPANESE
仕様
CPU
Socket AM2+
AMD Pheno m / Phenom II / Athlon /
Athlon II / Sempron プロセッサ
(最高のワット: 95W)
AMD 64アーキテクチャでは、32ビットと64ビット計算が可
能です
ハイパートランスポートとクールアンドクワイアットをサポ
ートします
FSB 4 GT/sのバンド幅までハイパートランスポー
ト2.0 GHzをサポートします
チップセッ
ト
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S)
メインメモ
リ
DDR2 DIMMスロット x 2
最大メモリ容量4GB
各DIMMは 256MB/512MB/1GB/2GB
DDR2をサポート
デュアル チャンネルモードDDR2メモリモジュール
DDR2 533 / 667 / 800 をサポート
DDR2 1066 をサポート (by A M2+ CPU)
登録済みDIMMとECC DIMMはサポートされません
Super I/O
ITE 8718F
もっとも一般に使用されるレガシーSuper I/O
機能を採用しています。
低ピンカウントインターフェイス
環境コントロールイニシアチブ、
H/Wモニター
ITEの「スマートガーディアン」機能
グラフィッ
クス
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S) 最大の共有ビデオメモリは256 Bです
IDE 統合IDEコントローラ Ultra DMA 33 / 66 / 100 / 133バスマスタモード
PIO Mode 0~4のサポート、
SATA 統合シリアルATA コントローラ 最高3Gb/秒のデータ転送速度
SATAバージョン2.0仕様に準拠。
LAN Realtek RTL 8201CL PHY 10 / 100 Mb/秒のオートネゴシエーション
半/全二重機能
HDオーディ
オのサポー
ト
ALC662 5.1チャンネルオーディオアウト
ハイデフィニションオーディオのサポート
PCI Express x16スロット x1
スロット PC Iスロット x1
フロッピーコネクタ x1 各コネクタは2つのフロッピードライブをサポートします
IDE コネクタ x1 各コネクタは2つのIDE デバイスをサポートします
オンボード
コネクタ
SATAコネクタ x2 各コネクタは1つのSATAデバイスをサポートします
MCP6PB M2+/N68S
43
仕様
フロントパネルコネクタ x1 フロントパネル機能をサポートします
フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします
CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)
システムファンヘッダ x1 システムファン電源装置
CMOSクリアヘッダ x1
USBコネクタ x2
各コネクタは2つのフロントパネルUSBポートをサポートし
ます
電源コネクタ(24ピン) x1
電源コネクタ(4ピン) x1
プリンタポートコネクタ x1 各コネクタは1つのプリンタポートをサポートします
シリアルポートコネクタ x1
背面パネル
I/O
PS/2キーボード x1
PS/2マウス x1
VGAポート x1
LANポート x1
USBポート x4
オーディオジャック x3
ボードサイ
ズ
170 mm (幅) X 235 mm (高さ)
特殊機能 RAID 0 / 1 のサポート
OSサポート Windows XP / Vista / 7 Biostarは事前のサポートなしにOSサポートを追加または削
除する権利を留保します。
2010/05/04
