MCP6P M2+/N68S+ Setup Manual
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.
Table of Contents
Chapter 1: Introduction ............................................................ 1
1.1 Before You Start ................................................................................ 1
1.2 Package Checklist............................................................................. 1
1.3 Motherboard Features...................................................................... 2
1.4 Rear Panel Connectors ..................................................................... 3
1.5 Motherboard Layout......................................................................... 4
Chapter 2: Hardware Installation ............................................. 5
2.1 Installing Central Processing Unit (CPU)....................................... 5
2.2 FAN Headers...................................................................................... 7
2.3 Installing System Memory ................................................................ 8
2.4 Connectors and Slots....................................................................... 10
Chapter 3: Headers & Jumpers Setup ..................................... 12
3.1 How to Setup Jumpers .................................................................... 12
3.2 Detail Settings.................................................................................. 12
Chapter 4: RAID Functions ..................................................... 19
4.1 Operating System............................................................................ 19
4.2 Raid Arrays ...................................................................................... 19
4.3 How RAID Works............................................................................. 19
Chapter 5: Useful Help ............................................................ 23
5.1 Driver Installation Note.................................................................. 23
5.2 Award BIOS Beep Code .................................................................. 24
5.3 Extra Information............................................................................ 25
5.4 Troubleshooting............................................................................... 26
Appendix: SPEC In Other Languages ...................................... 27
German.................................................................................................................. 28
French .................................................................................................................... 30
Italian..................................................................................................................... 32
Spanish ................................................................................................................... 34
Portuguese ............................................................................................................ 36
Polish...................................................................................................................... 38
Russian ................................................................................................................... 40
Arabic..................................................................................................................... 42
Japanese ................................................................................................................ 44
MCP6P M2+/N68S+
1
CHAPTER 1: INTRODUCTION
1.1 BEFORE YOU START
Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:
Prepare a dry and stable working environment with
sufficient lighting.
Always disconnect the computer from power outlet
before operation.
Before you take the motherboard out from anti-static
bag, ground yourself properly by touching any safely
grounded appliance, or use grounded wrist strap to
remove the static charge.
Avoid touching the components on motherboard or the
rear side of the board unless necessary. Hold the board
on the edge, do not try to bend or flex the board.
Do not leave any unfastened small parts inside the
case after installation. Loose parts will cause short
circuits which may damage the equipment.
Keep the computer from dangerous area, such as heat
source, humid air and water.
1.2 PACKAGE CHECKLIST
IDE Cable X 1(optional)
Serial ATA Cable X 2
Rear I/O Panel for ATX Case X 1
Installation Guide X 1
Fully Setup Driver CD X 1 (full version manual files inside)
FDD Cable X 1 (optional)
Serial ATA Power Cable X 1 (optional)
USB 2.0 Cable X1 (optional)
S/PDIF out Cable X 1 (optional)
Note: The package contents may differ by area or your motherboard version.
Motherboard Manual
2
1.3 MOTHERBOARD FEATURES
SPEC
CPU
Socket AM2+
AMD Pheno m / Phenom II / Ath lon /
Athlon II / Sempron processors
(Maximum Watt: 95W)
AMD 64 Architecture enables 32 and 64 bit computing
Supports Hyper Transport and Cool=n=Quiet
FSB Supports up to 1 GHz Bandwidth
Support HyperTransport
Chipset GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Super I/O
ITE 8716F
Provides the most commonly used legacy
Super I/O functionality.
Low Pin Count Interface
Env ironment Control in it iatives ,
H/W Monitor
Fan Sp eed Contro ller
ITE's "Smart Guard ian" funct ion
Main
Memory
DDR2 DIMM Slots x 2
Max Memory Capacity 8GB
Each DIMM supports 256MB/512MB/1GB/
2GB/4GB DDR2
Dual Channel Mode DDR2 memory module
Supports DDR2 533 / 667 / 800 / 1066
Registered DIMM and ECC DIMM is not supported
Graphics GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+) Max Shared V id eo Memory is 512MB (under OS)
IDE Integrated IDE Contro ller Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode
supports PIO Mode 0~4,
SATA II Integrated Serial ATA Controller Data transfer rates up to 3 Gb/s.
SATA Version 2.0 specificat ion co mp liant.
LAN Realtek RTL 8201CL 10 / 100 Mb/s auto negotiation
Half / Full duplex capability
Sound ALC662 5.1 channels audio out
High Definition Audio
PCI Slot x2 Supports PCI expansion cards
Slots
PCI Express x16 Slot x1 Supports PCI-E x16 expansion cards
Floppy Connector x1 Each connector supports 2 Floppy drives
Printer Port Connector x1 Each connector supports 1 Printer port
IDE Connector x1 Each connector supports 2 IDE device
SATA Connector x4 Each connector supports 1 SATA devices
On Board
Connector
Front Panel Connector x1 Supports front panel facilities
MCP6P M2+/N68S+
3
SPEC
Front Audio Connector x1 Supports front panel audio function
CD-in Connector x1 Supports CD audio-in function
S/PDIF out Connector x1 Supports digital audio out function
CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)
System Fan Header x1 System Fan Power supply
CMOS clear Header x1 Restore CMOS data to factory default
USB Connector x3 Each connector supports 2 front panel USB ports
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
VGA port x1
Serial Port x1
LAN port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connect to D-SUB monitor
Provide RS-232 Serial connection
Connect to RJ-45 ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Board Size 190 mm(W) x 244 mm(L)
Special
Features RAID 0 / 1 / 0+1 / 5 support
OS Support
Windows XP / Vista / 7 BIOSTAR Reserves the right to add or remove support
for any OS With or without notice.

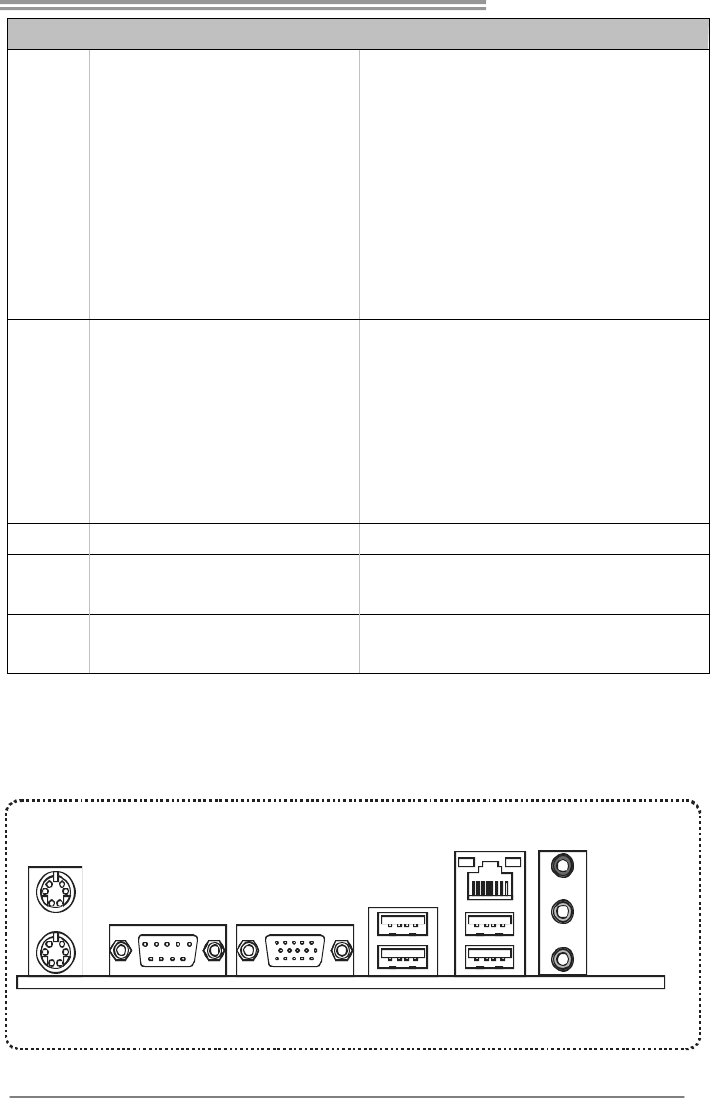

1.4 REAR PANEL CONNECTORS
PS/2
Mouse
PS/2
Keyboard
USBX2USBX2
LAN
COM1 VGA
Line In/
Surroun d
Line Out
Mic In 1/
Bass/ Center
Motherboard Manual
4

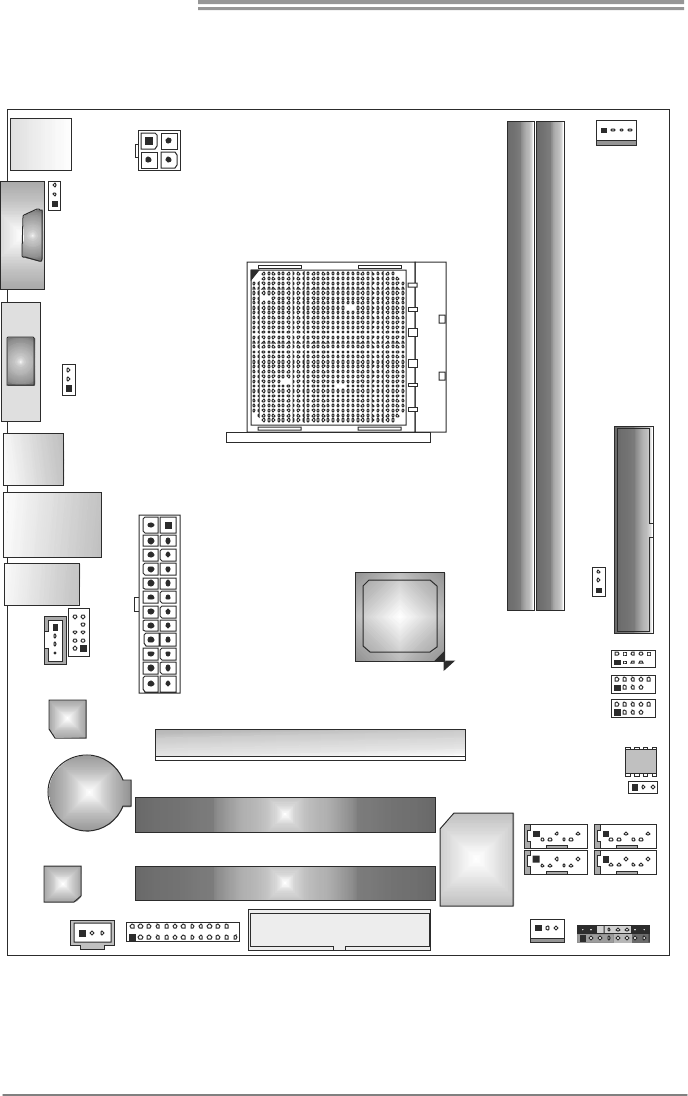

1.5 MOTHERBOARD LAYOUT
PCI-E X16
PCI2
FDD1
BAT1
Co dec
DIMMA1
DIMMB1
Socket AM2+
Super I/O
PCI1
JATXPWR4
JCFA N1
JPR NT1
JATXPWR1
JUS B3
JCMOS1
JSFAN1 JPANEL1
JSPDIF_OUT1
JCDIN1
SATA1
IDE1
LAN
JAU DIOF1
JUS B4
JUS B2
SATA3
SATA4SATA2
JKBMS 1
JVGA1
JUSB1
JUSBLAN1
JAUD IO1
GeForce
6150 SE/7025
nForce
430/630a
BIOS
JUSBPWR2
JUS BPWR1
JKB _PWR
JCOM1
Note: represents the 1■st pin.
MCP6P M2+/N68S+
5
CHAPTER 2: HARDWARE INSTALLATION
2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)
Step 1: Remove the socket protection cap.

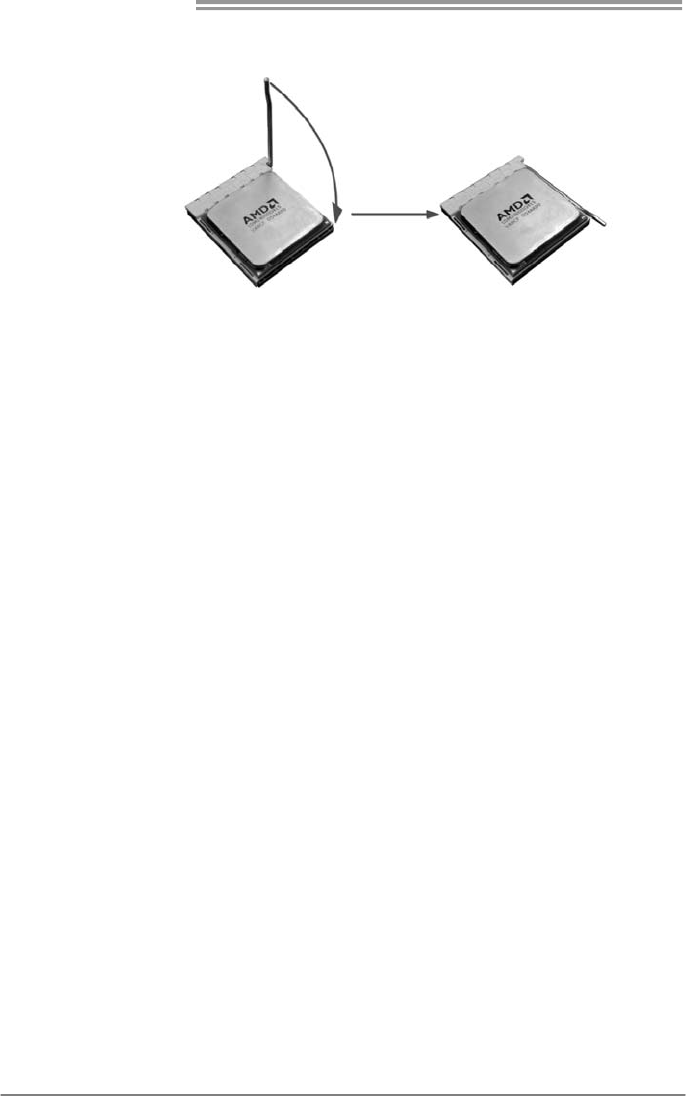

Step 2: Pull the lever toward direction A from the socket and then raise the
lever up to a 90-degree angle.
Step 3: Look for the white triangle on socket, and the gold triangle on
CPU should point towards this white triangle. The CPU will fit only
in the correct orientation.
Motherboard Manual
6
Step 4: Hold the CPU down firmly, and then close the lever toward direct
B to complete the installation.
Step 5: Put the CPU Fan on the CPU and buckle it. Connect the CPU
FAN power cable to the JCFAN1. This completes the installation.
Note: Please update the BIOS to the latest version while using AM2+ CPUs. Due to the latest CPU
transition, you may encounter the situation that the new system failed to boot while using new
AM2+ CPUs. In this case, please install one standard AM2 CPU to boot your system, and
update the latest BIOS from our website for AM2+ CPUs support.
MCP6P M2+/N68S+
7

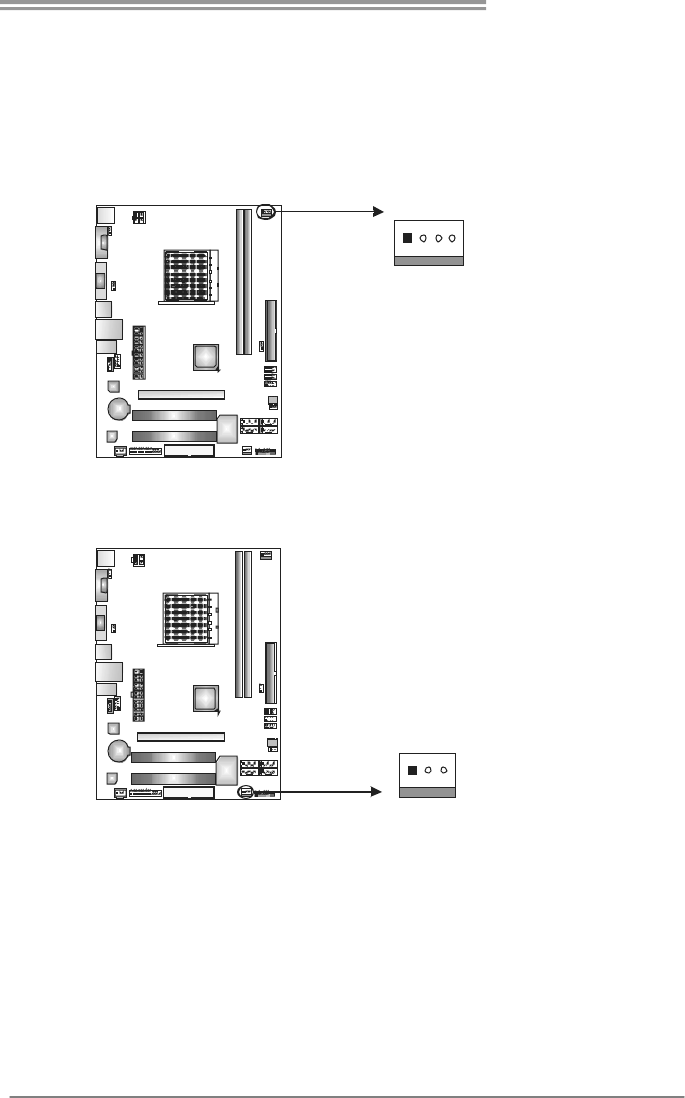

2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN1: CPU Fan Header
Pin
Assignment
1 Ground
2 +12V
3 FAN RPM rate
sense
14
4 Smart Fan
Control (By Fan)
JSFAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
13
3 FAN RPM
rate sense
Note:
The JCFAN1 supports 4-pin head connector. The JSFAN1 supports 3-pin head
connector. When connecting with wires onto connectors, please note that the red wire is
the positive and should be connected to pin#2, and the black wire is Ground and should
be connected to GND.
Motherboard Manual
8

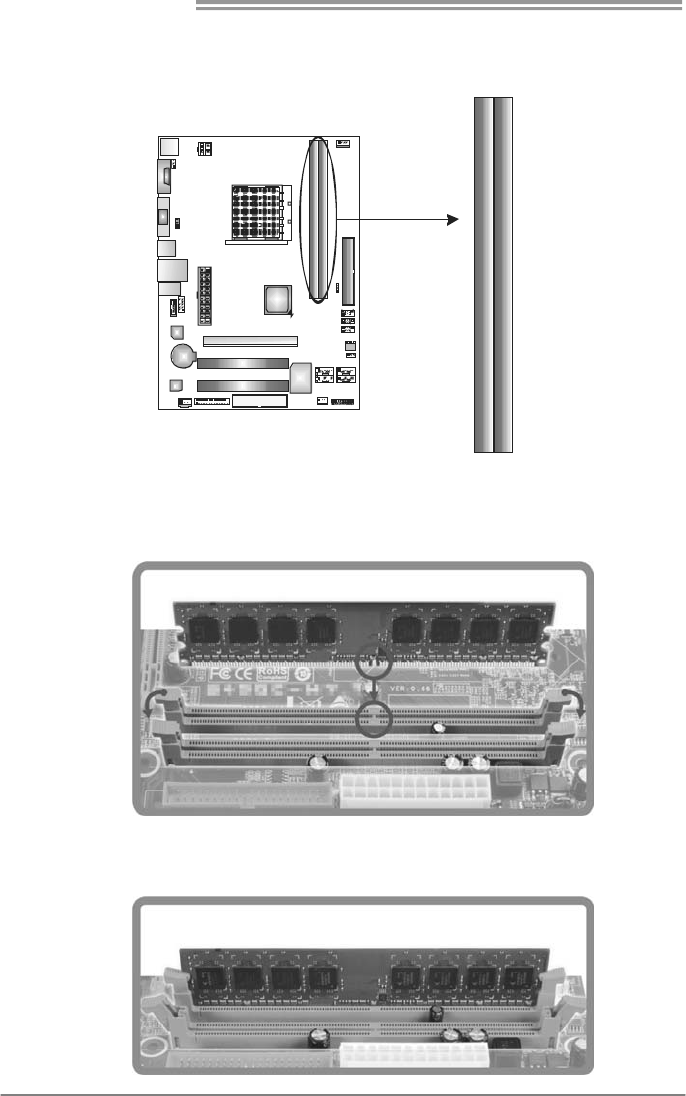

2.3 INSTALLING SYSTEM MEMORY
A. Memory Modules
DIMMA1
DIMMB1
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
MCP6P M2+/N68S+
9
B. Memory Capacity
DIMM Socket
Location DDR2 Module Total Mem ory
Size
DIMMA1 256MB/512MB/1GB/2GB/4GB
DIMMB1 256MB/512MB/1GB/2GB/4GB
Max is 8GB.
C. Dual Channel Memory installation
To trigger the Dual Channel function of the motherboard, the memory module
must meet the following requirements:
Install memory module of the same density in pair, shown in the following table.
Dual Channel Status DIMMA1 DIMMB1
Disabled O X
Disabled X O
Enabled O O
(O means memory installed, X means memory not installed.)
The DRAM bus width of the memory module must be the same (x8 or
x16)
Motherboard Manual
10
2.4 CONNECTORS AND SLOTS
FDD1: Floppy Disk Connector
The motherboard provides a standard floppy disk connector that supports 360K,
720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the
provided floppy drive ribbon cables.
13
234
IDE1: IDE/ATAPI Connector
The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO
Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 functionality.
The IDE connector can connect a master and a slave drive, so you can connect
up to two drives.
21
3940
MCP6P M2+/N68S+
11

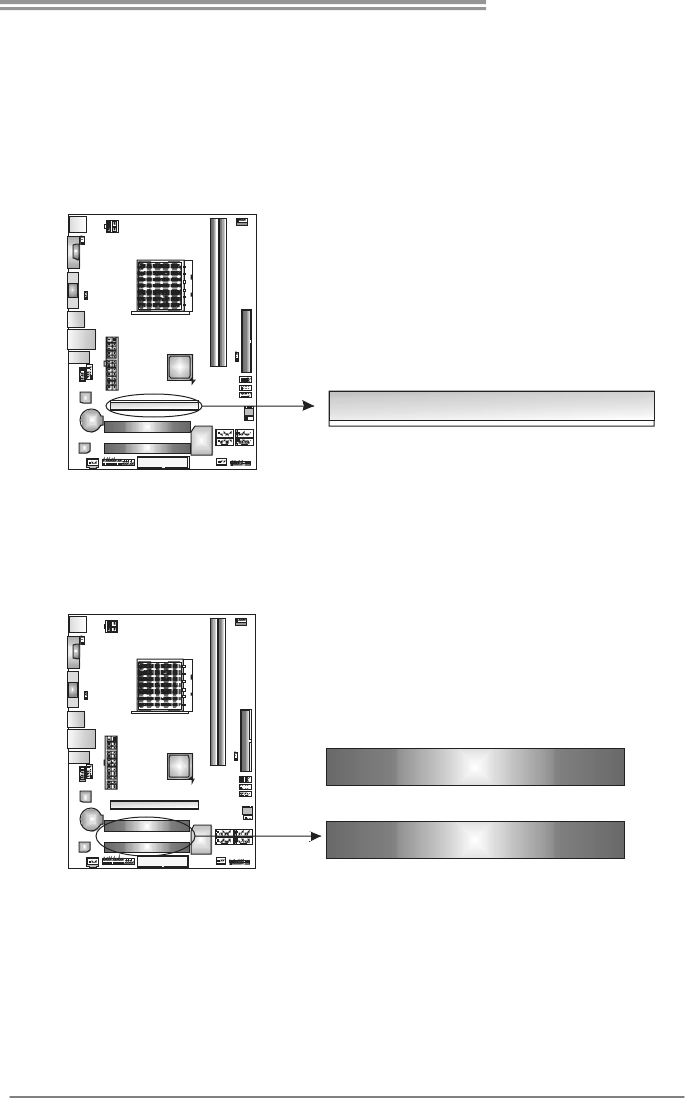

PCI-EX16: PCI-Express x16 Slot
- PCI-Express 1.0a compliant.
- Maximum theoretical realized bandwidth of 4GB/s simultaneously per
direction, for an aggregate of 8GB/s totally.
- PCI-Express supports a raw bit-rate of 2.5GB/s on the data pins.
- 2X bandwidth over the traditional PCI architecture.
PCI-EX16
PCI1~PCI2: Peripheral Component Interconnect Slots
This motherboard is equipped with 2 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for expansion
cards. This PCI slot is designated as 32 bits.
PCI1
PCI2
Motherboard Manual
12
CHAPTER 3: HEADERS & JUMPERS SETUP
3.1 HOW TO SETUP JUMPERS

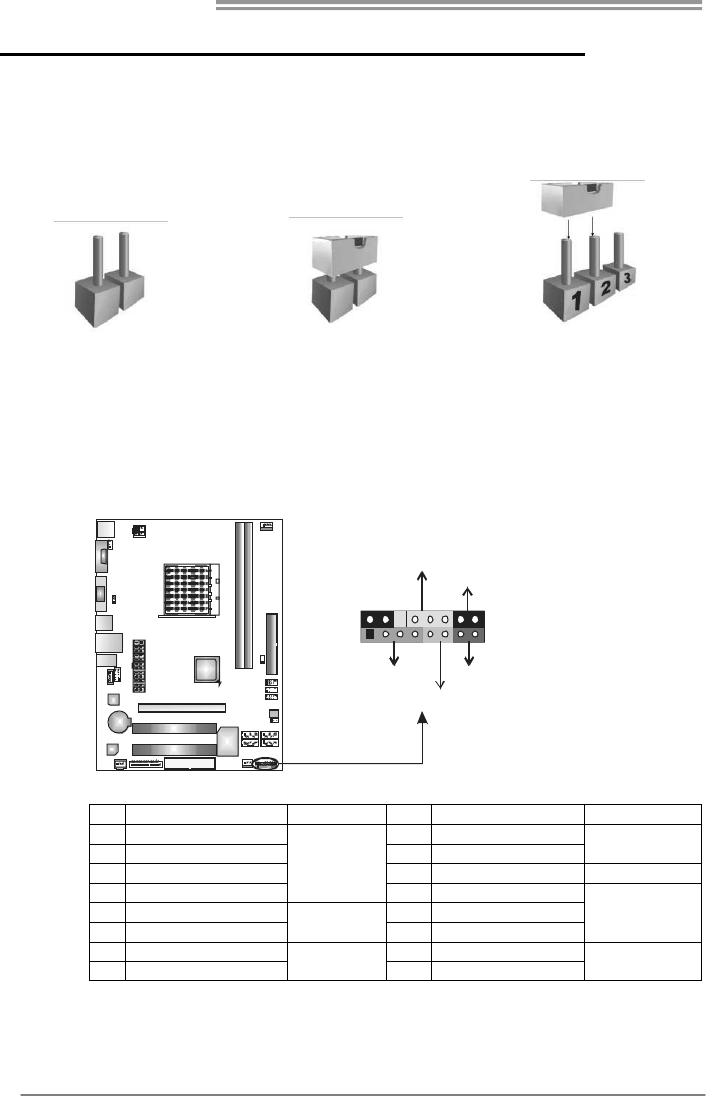

The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAIL SETTINGS
JPANEL1: Front Panel Header
This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and
speaker connection. It allows user to connect the PC case’s front panel switch
functions.
18
16
PWR_LED
On/Off
RST
HLED
SPK
++
+
9
-
-
Pin Assignment Function Pin Assignment Function
1 +5V 9 N/A
2 N/A 10 N/A N/A
3 N/A 11 N/A N/A
4 Speaker
Speaker
Connector
12 Power LED (+)
5 HDD LED (+) 13 Power LED (+)
6 HDD LED (-)
Hard drive
LED 14 Power LED (-)
Power LED
7 Ground 15 Power button
8 Reset control Reset button 16 Ground Power-on button
MCP6P M2+/N68S+
13

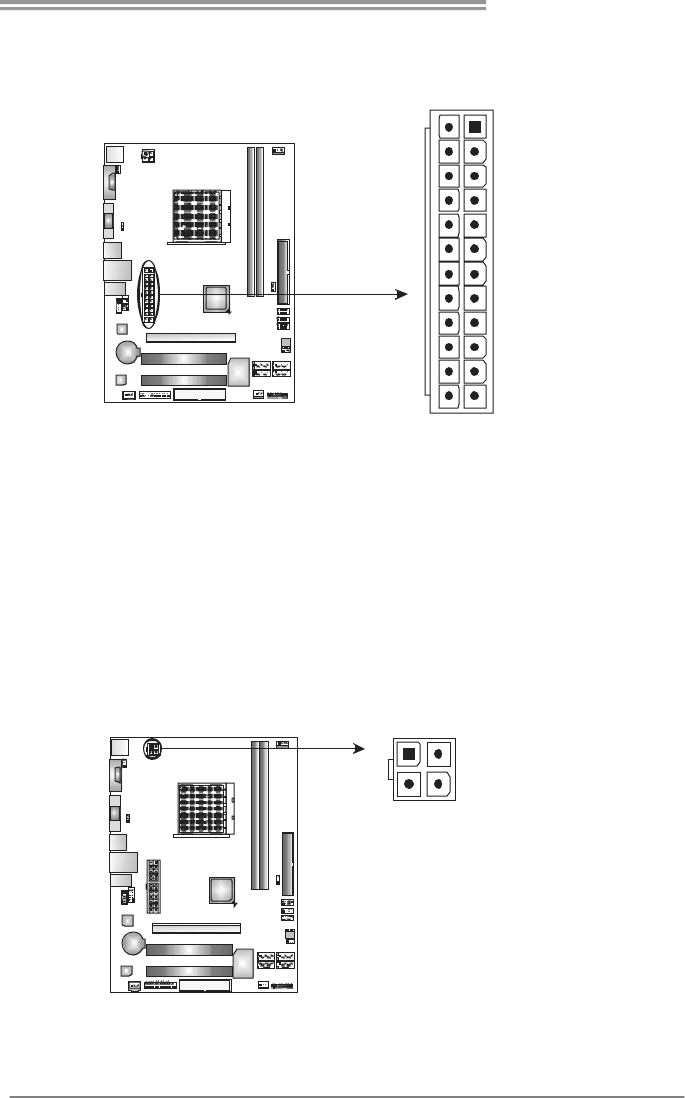

JATXPWR1: ATX Power Source Connector
This connector allows user to connect 24-pin power connector on the ATX
power supply.
1
12
13
24
Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V
JATXPWR4: ATX Power Source Connector
By connecting this connector, it will provide +12V to CPU power circuit.
Pin
Assignment
1 +12V
2 +12V
3 Ground
1
32
4
4 Ground
Note:
Before power on the system, please make sure that both JATXPWR1 and JATXPWR4
connectors have been plugged-in.
Motherboard Manual
14

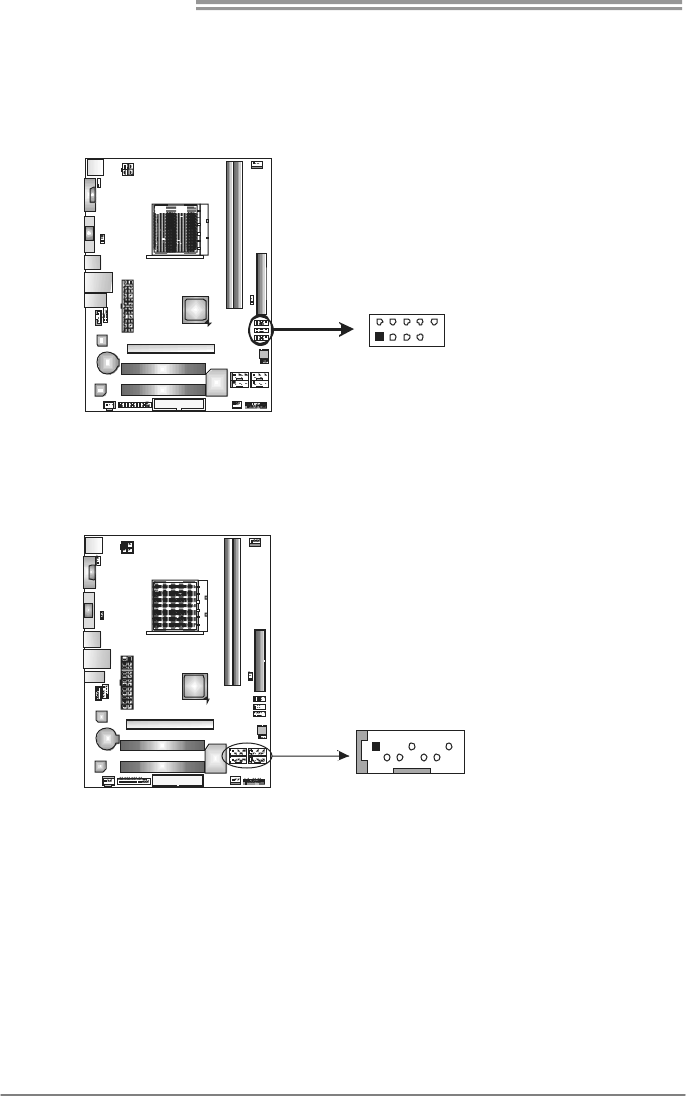

JUSB2/JUSB3/JUSB4: Headers for USB 2.0 Ports at Front Panel
This header allows user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.
Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
10 NC
1
2
9
10
JUSB3
JUSB2
JUSB4
SATA1~SATA4: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 4 channels SATA interface.
Pin
Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
14 7
SATA2
SATA1 S ATA3
SATA4
7 Ground
MCP6P M2+/N68S+
15

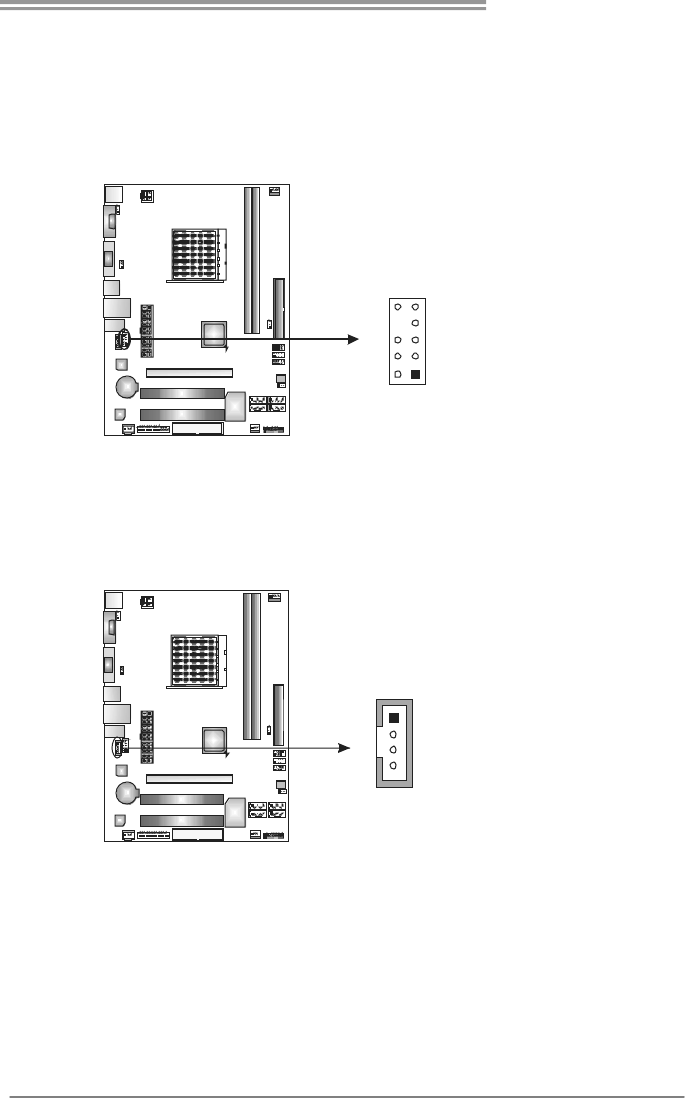

JAUDIOF1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. This header allows only HD audio front panel connector; AC’97 connector
is not acceptable.
Pin Assignment
1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
10 Jack Sense
1
9
2
10
JCDIN1: CD-ROM Audio-in Connector
This connector allows user to connect the audio source from the variaty devices,
like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc..
Pin
Assignment
1 Left Channel
Input
2 Ground
3 Ground
1
4
4 Right Channel
Input
Motherboard Manual
16
JSPDIF_OUT1: Digital Audio-out Connector
This connector allows user to connect the PCI bracket SPDIF output header.
Pin
Assignment
1 +5V
2 SPDIF_OUT
13
3 Ground

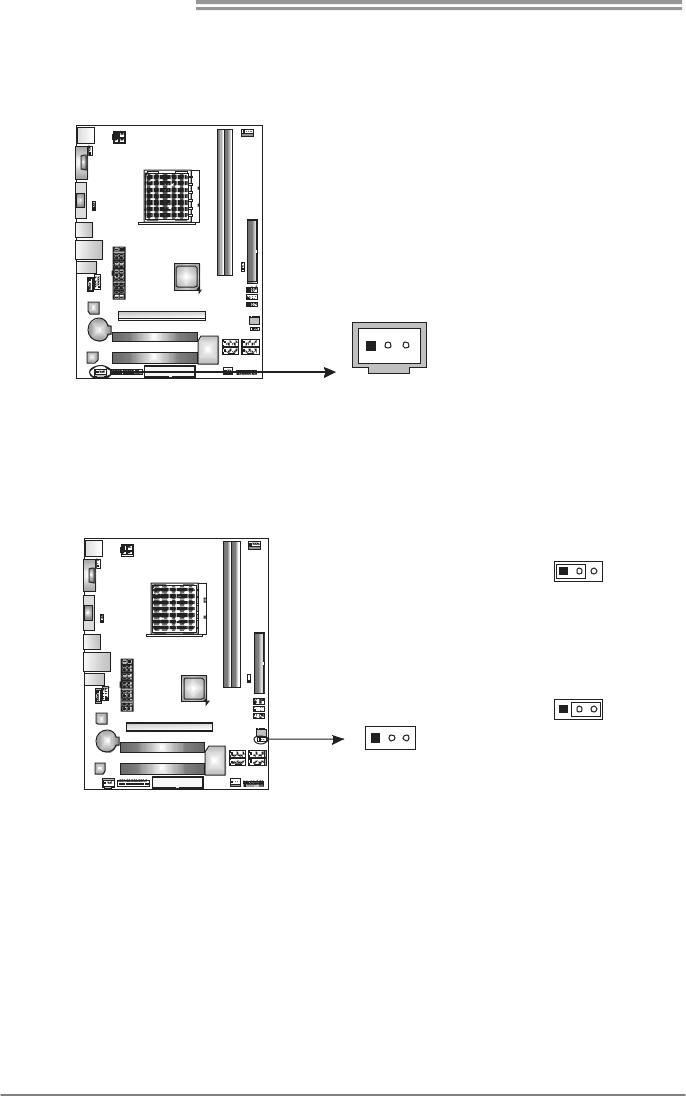

JCMOS1: Clear CMOS Header
By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting
and the CMOS data, please carefully follow the procedures to avoid damaging
the motherboard.
13
Pin 1-2 Close:
Normal Operation
(default).
13
13
Pin 2-3 Close:
Clear CMOS data.
※ Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
MCP6P M2+/N68S+
17
JPRNT1: Printer Port Connector
This header allows you to connector printer on the PC.
125
2
Pin Assignment Pin Assignment
1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy
9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key
Motherboard Manual
18

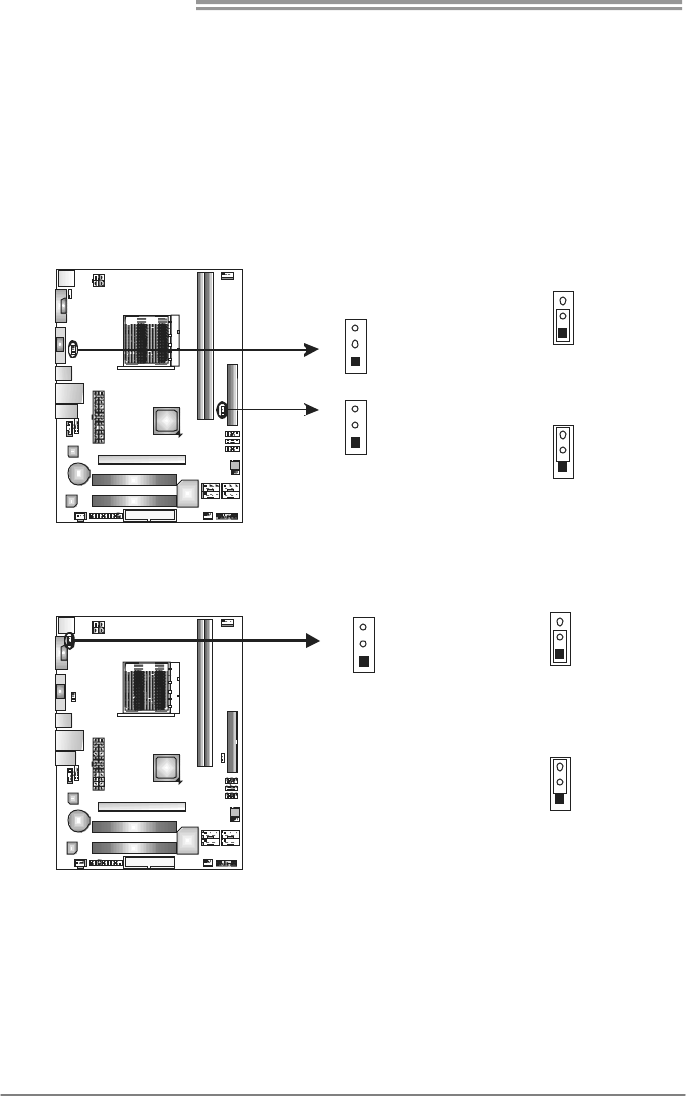

JUSBPWR1/JUSBPWR2: Power Source Headers for USB Ports
Pin 1-2 Close:
JUSBPWR1: +5V for USB ports at JUSB1/JUSBLAN1.
JUSBPWR2: +5V for USB ports at front panel (JUSB2/JUSB3/JUSB4).
Pin 2-3 Close:
JUSBPWR1: +5V STB for USB ports at JUSB1/JUSBLAN1.
JUSBPWR2: +5V STB for USB ports at front panel (JUSB2/JUSB3/JUSB4).
1
3
Pin 1-2 close
1
3
JUSBPWR1
JUSBPWR2
1
3
1
3
Pin 2-3 close
JKB_PWR: Power Source Header for PS/2 Keyboard and Mouse
1
3
Pin 1-2 close
+5V for PS/2 keyboard and
mouse.
1
3
1
3
Pin 2-3 close
+5V STB for PS/2 keyboard and
mouse.
MCP6P M2+/N68S+
19
CHAPTER 4: RAID FUNCTIONS
4.1 OPERATING SYSTEM
Supports Windows XP and Windows Vista.
4.2 RAID ARRAYS
RAID supports the following types of RAID arrays:
RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for
many applications.
RAID 1: RAID 1 defines techniques for mirroring data.
RAID 0+1: RAID 0+1 combines the techniques used in RAID 0 and RAID 1.
RAID 5: RAID 5 provides fault tolerance and better utilization of disk capacity.
4.3 HOW RAID WORKS

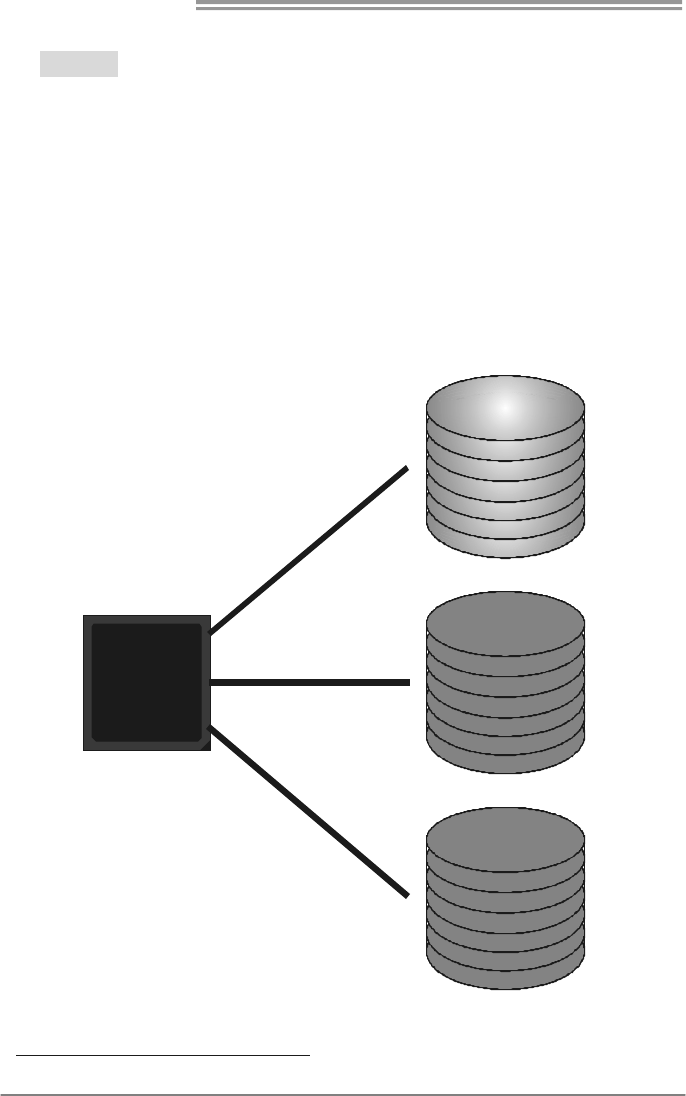

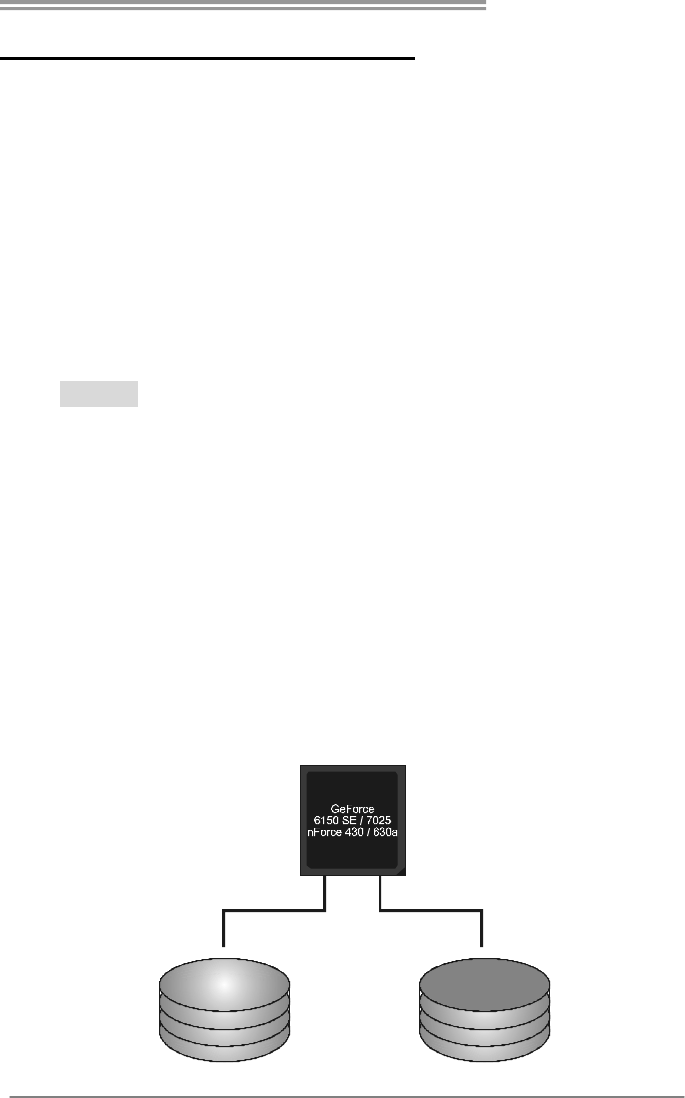

RAID 0:
The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks
up a large f ile into smaller blocks and performs disk reads and writes across multip le
drives in parallel. The size of each block is determined by the stripe size parameter,
which you set during the creation of the RAID set based on the system environment. This
technique reduces overall disk access time and offers high bandwidth.
Features and Benefits
Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the
platform.
Uses: Intended for non-critical data requiring high data throughput, or any
environment that does not require fault tolerance.
Benefits: provides increased data throughput, especially for large files. No
capacity loss penalty for parity.
Drawbacks: Does not deliver any fault tolerance. If any drive in the array
fails, all data is lost.
Fault Tolerance: No.
Block 1
Block 3
Block 5
Block 2
Block 4
Block 6
Motherboard Manual
20

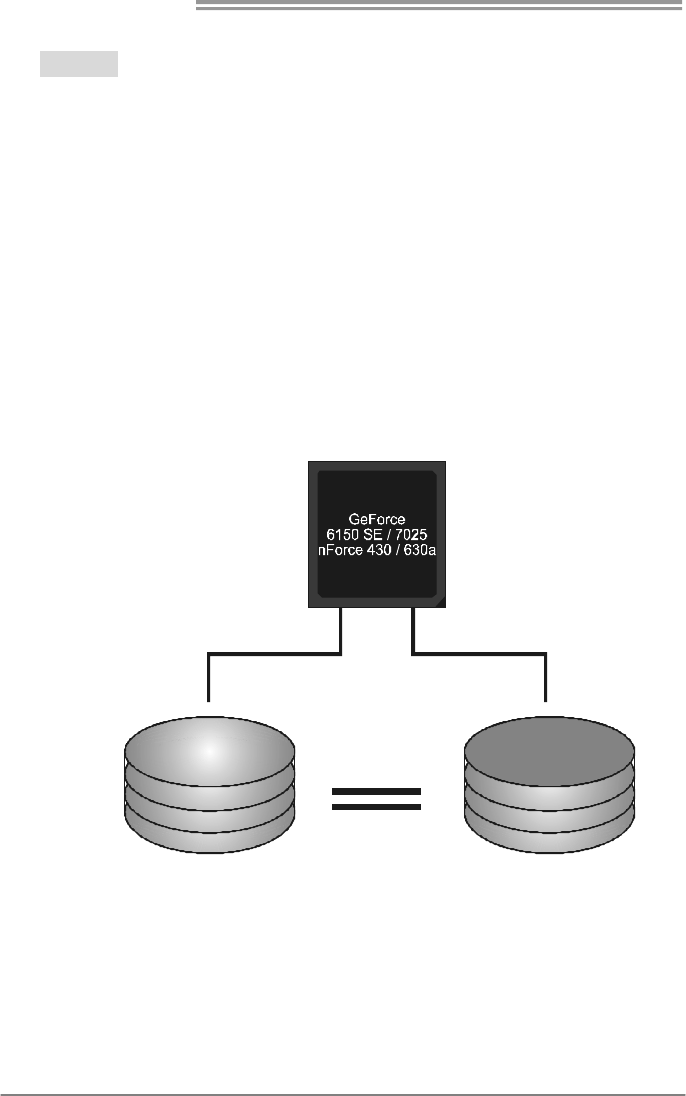

RAID 1:
Every read and write is actually carried out in parallel across 2 disk drives in a RAID 1
array system. The mirrored (backup) copy of the data can reside on the same disk or on a
second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the
active volume or drive is corrupted or becomes unavailable because of a hardware failure.
RAID techniques can be applied for high-availability solutions, or as a form of automatic
backup that eliminates tedious manual backups to more expensive and less reliable
media.
Features and Benefits
Drives: Minimum 2, and maximum is 2.
Uses: RAID 1 is ideal for small databases or any other application that
requires fault tolerance and minimal capacity.
Benefits: Provides 100% data redundancy. Should one drive fail, the
controller switches to the other drive.
Drawbacks: Requires 2 drives for the storage space of one drive.
Performance is impaired during drive rebuilds.
Fault Tolerance: Yes.
Block 1
Block 2
Block 3
Block 1
Block 2
Block 3
MCP6P M2+/N68S+
21

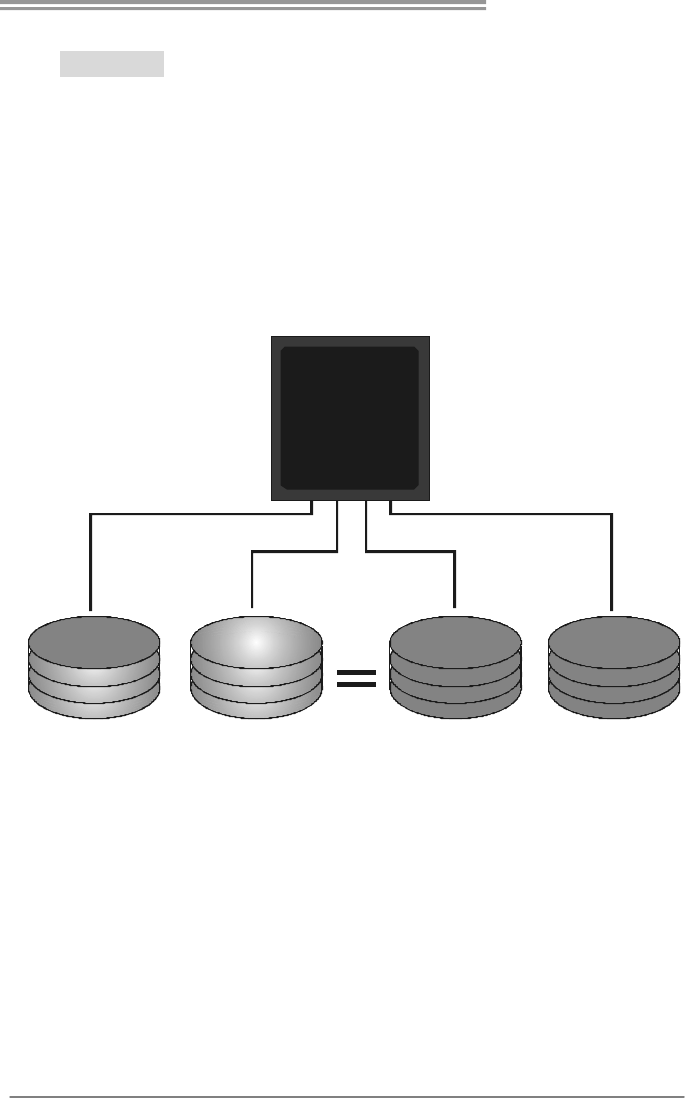

RAID 0+1:
RAID 0 drives can be mirrored using RAID 1 techniques. Resulting in a RAID 0+1
solution for improved performance plus resiliency.
Features and Benefits
Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
Benefits: Optimizes for both fault tolerance and performance, allowing for
automatic redundancy. May be simultaneously used with other RAID levels
in an array, and allows for spare disks.
Drawbacks: Requires twice the available disk space for data redundancy,
the same as RAID level 1.
Fault Tolerance: Yes.
Block 2
Block 4
Block 6
Block 1
Block 3
Block 5
Block 2
Block 4
Block 6
Block 1
Block 3
Block 5
GeForce
6150 SE / 7025
nForce 430 / 630a
Motherboard Manual
22
RAID 5:
RAID 5 stripes both data and parity information across three or more drives. It writes
data and parity blocks across all the drives in the array. Fault tolerance is maintained by
ensuring that the parity information for any given block of data is placed on a different
drive from those used to store the data itself.
Features and Benefits
Drives: Mini mu m 3.
Uses: RAID 5 is recommended for transaction processing and general
purpose service.
Benefits: An ideal combination of good performance, good fault tolerance,
and high capacity and storage efficiency.
Drawbacks: Individual block data transfer rate same as a single disk. Write
performance can be CPU intensive.
Fault Tolerance: Yes.
Disk 1
DATA 3
PARITY
DATA 7
DATA 1
DATA 9
PARITY
Disk 2
PARITY
DATA 5
DATA 8
DATA 2
PARITY
DATA 11
Disk 3
DATA 4
DATA 6
PARITY
PARITY
DATA 10
DATA 12
GeForce
6150 SE / 7 025
nForce 430 / 630a
※ For more detailed setup information, please refer to the Driver CD, or go to
http://www.nvidia.com/object/IO_28159.html to download the NVIDIA RAID User’s Guide.
MCP6P M2+/N68S+
23
CHAPTER 5: USEFUL HELP
5.1 DRIVER INSTALLATION NOTE
After you installed your operating system, please insert the Fully Setup
Driver CD into your optical drive and install the driver for better system
performance.

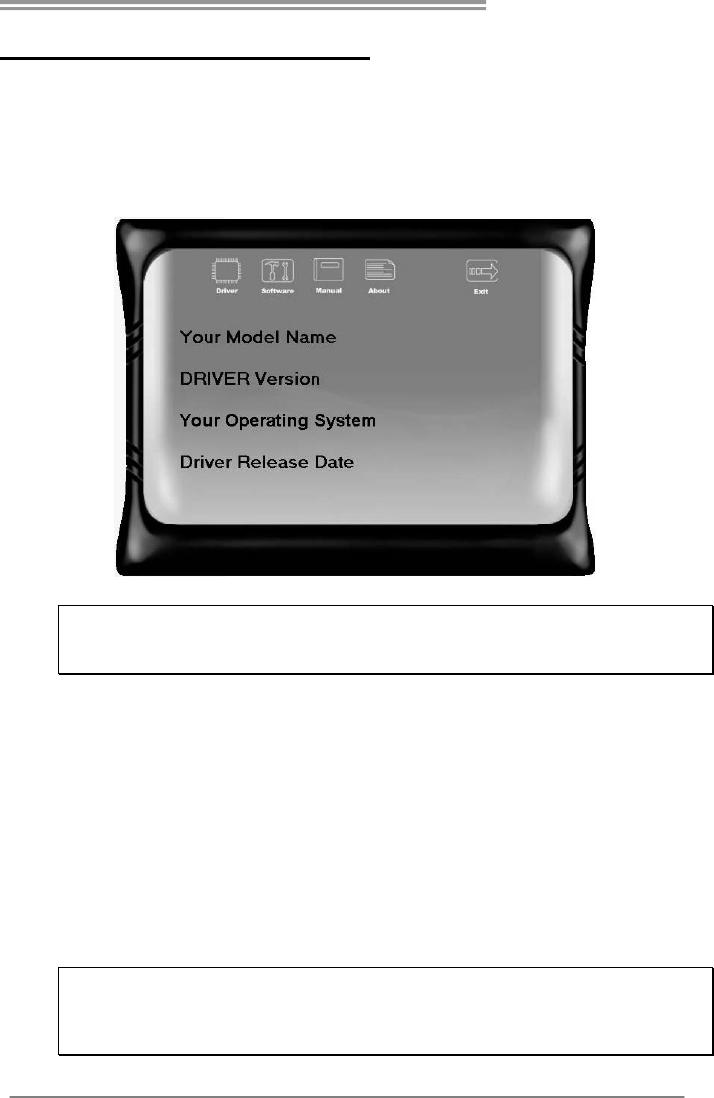

You will see the following window after you insert the CD
The setup guide will auto detect your motherboard and operating system.
Note:
If this window didn’t show up after you insert the Driver CD, please use file browser to
locate and execute the file SETUP.EXE under your optical drive.
A. Driver Installation
To install the driver, please click on the Driver icon. The setup guide will
list the compatible driver for your motherboard and operating system.
Click on each device driver to launch the installation program.
B. Software Installation
To install the software, please click on the Software icon. The setup guide
will list the software available for your system, click on each software title
to launch the installation program.
C. Manual
Aside from the paperback manual, we also provide manual in the Driver
CD. Click on the Manual icon to browse for available manual.
Note:
You will need Acrobat Reader to open the manual file. Please download the latest version
of Acrobat Reader software from
http://www.adobe.com/products/acrobat/readstep2.html
Motherboard Manual
24
5.2 SOFTWARE
Installing Software
1. Insert the Setup CD to the optical drive. The drivers installation program
would appear if the Autorun function has been enabled.
2. Select Software Installation, and then click on the respective software
title.
3. Follow the on-screen instructions to complete the installation.
BIOScreen Utility

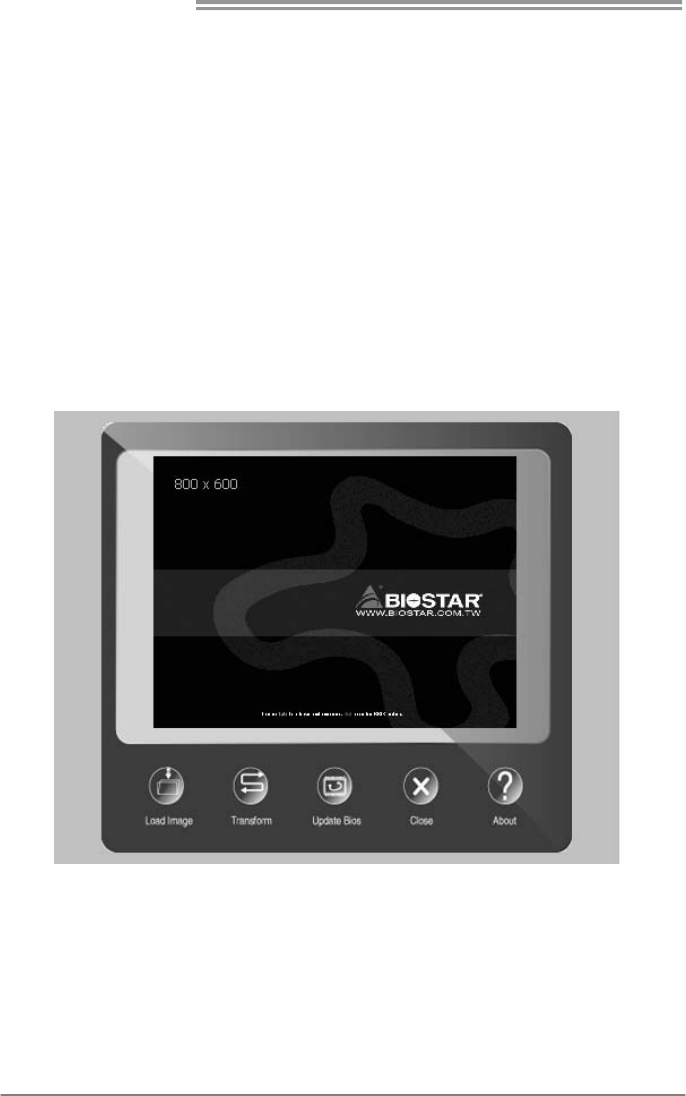

This utility allows you to personalize your boot logo easily. You can choose
JPG or BMP as your boot logo so as to customize your computer.
Please follow the following instructions to update boo logo:
1. Load Image：Choose the picture as the boot logo.
2. Transform：Transform the picture for BIOS and preview the result.
3. Update Bios：Write the picture to BIOS Memory to complete the update.
MCP6P M2+/N68S+
25
5.3 AWARD BIOS BEEP CODE
Beep Sound Meaning
One long beep followed by two short
beeps
Video card not found or video card
memory bad
High-low siren sound CPU overheated
System will shut down automatically
One Short beep when system boot-up No error found during POST
Long beeps every other second No DRAM detected or install
5.4 EXTRA INFORMATION
CPU Overheated
If the system shutdown automatically after power on system for
seconds, that means the CPU protection function has been activated.
When the CPU is over heated, the motherboard will shutdow n
automatically to avoid a damage of the CPU, and the system may not
power on again.
In this case, please double check:
1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.
After confirmed, please follow steps below to relief the CPU protection
function.
1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.
Or you can:
1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)
2. Wait for seconds.
3. Power on the system again.
Motherboard Manual
26
5.5 TROUBLESHOOTING
Probable Solution
1. There is no power in the system.
Power LED does not shine; the
fan of the power supply does not
work
2. Indicator light on keyboard does
not shine.
1. Make sure power cable is
securely plugged in.
2. Replace cable.
3. Contact technical support.
System is inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drives are running.
Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.
System does not boot from a hard disk
drive, but can be booted from optical
drive.
1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged
in; check the drive type in the
standard CMOS setup.
2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.
System only boots from an optical
drive. Hard disks can be read,
applications can be used, but system
fails to boot from a hard disk.
1. Back up data and applications
files.
2. Reformat the hard drive.
Re-install applications and data
using backup disks.
Screen message shows “Invalid
Configuration” or “CMOS Failure.”
Review system’s equipment. Make sure
correct information is in setup.
System cannot boot after user installs a
second hard drive.
1. Set master/slave jumpers
correctly.
2. Run SETUP program and select
correct drive types. Call the drive
manufacturers for compatibility
with other drives.
MCP6P M2+/N68S+
27
This page is intentionally left blank.
Motherboard Manual
28
APPENDIX: SPEC IN OTHER LANGUAGES
GERMAN
Spezifikationen
CPU
Sockel AM2+
AMD Pheno m / Phenom II / Athlon / Athlon
II / Sempron Prozessoren
(Maximales Watt: 95W)
Die AMD 64-Architektur unterstützt eine 32-Bit- und
64-Bit-Datenverarbeitung
Unterstützt Hyper Transport und Cool’n’Quiet
FSB
Unterstützt HyperTransport mit einer
Bandbreite von bis zu 1 GHz
Chipsatz
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Super E/A
ITE 8716F
Bietet die häufig verwendeten alten Super
E/A-Funktionen.
Low Pin Count-Schnittstelle
Umgebungskontrolle,
Hardware-Überwachung
Lüfterdrehzahl-Controller
"Smart Guardian"-Funktion von ITE
Arbeitsspeich
er
DDR2 DIMM-Steckplätze x 2
Max. 8GB Arbeitsspeicher
Jeder DIMM unterstützt
256MB/512MB/1GB/2GB/4GB DDR2.
Dual-Kanal DDR2 Speichermodul
Unterstützt DDR2 533 / 667 / 800 / 1066
registrierte DIMMs. ECC DIMMs werden nicht
unterstützt.
Grafik
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Max. 512MB gemeinsam benutzter Videospeicher
(under OS)
IDE Integ r iert er IDE-Controller Ultra DMA 33 / 66 / 100 / 133 Bus Master-Modus
Unterstützt PIO-Modus 0~4,
SATA II Integrierter Serial ATA-Controller Datentransferrate bis zu 3Gb/s
Konform mit der SATA-Spezifikation Version 2.0.
LAN Realtek RTL 8201CL 10 / 100 Mb/s Auto-Negotiation
Halb-/ Vollduplex-Funktion
Audio-Codec ALC662 5.1-Kanal-Audioausgabe
Unterstützt High-Definition Audio
PCI-Steckplatz x2
Steckp lätze PCI Express x16 Steckplatz x1
Diskettenlaufwerkanschluss x1 Jeder Anschluss unterstützt 2 Diskettenlaufwerke Onboard-Ans
chluss Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss
MCP6P M2+/N68S+
29
Spezifikationen
IDE-Anschluss x1 Jeder Anschluss unterstützt 2 IDE-Laufwerke
SATA-Anschluss x4 Jeder Anschluss unterstützt 1 SATA-Laufwerk
Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen
Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion
CD-IN-Anschluss x1 Unterstützt die CD Audio-In-Funktion
S/PDIF- Ausgangsanschluss x1 Unterstützt die digitale Audioausgabefunktion
CPU-Lüfter-Sockel x1
CPU-Lüfterstromversorgungsanschluss (mit Smart
Fan-Fun ktion )
System-Lüfter-Sockel x1 System-Lüfter-Stromversorgungsanschluss
"CMOS löschen"-Sockel x1
USB-Anschluss x3
Jeder Anschluss unterstützt 2
Fronttafel-USB-Anschlüsse
Stromanschluss (24-polig) x1
Stromans ch luss (4-polig ) x1
Rückseiten-E
/A
PS/2-Tastatur x1
PS/2- Maus x1
VGA-Anschluss x1
Serieller Anschluss x1
LAN-Anschluss x1
USB-Anschluss x4
Audioanschluss x3
Platinengröße
.
190 mm (B) X 244 mm (L)
Sonderfunkti
onen
Unterstützt RAID 0 / 1 / 0+1 / 5
OS-Unterstüt
zung
Windows XP / Vista / 7
BIOSTAR behält sich das Recht vor, ohne
Ankündigung die Unterstützung für ein
Betriebssystem hinzuzufügen oder zu entfernen.
Motherboard Manual
30
FRENCH
SPEC
UC
Socket AM2+
Processeurs AMD Phenom / Phenom II /
Athlon / Athlon II / Sempron
(Watt maximum : 95W)
L'architecture AMD 64 permet le calcul 32 et 64 bits
Prend en charge Hyper Transport et Cool’n’Quiet
Bus frontal Prend en charge Hyper Transport jusqu'à
une bande passante de1 GHz
Chipset GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Super E/S
ITE 8716F
Fournit la fonctionnalité de Super E/S
patrimoniales la plus utilisée.
Interface à f aib le co mpte de b roches
Initiatives de contrôle environnementales,
Mon iteur d e mat ér iel
Contrôleur de vitesse de ventilateur
Fonction "Gardien intelligent" de l'ITE
Mémoire
principale
Fentes DDR2 DIMM x 2
Capacité mémo ire max imale de 8 Go
Chaque DIMM prend en charge des DDR2
de 256 Mo/512 Mo et 1Go/2Go/4Go
Modu le d e mémo ire DDR2 à mode à double vo ie
Prend en charge la DDR2 533 / 667 / 800 / 1066
Les DIMM à registres et DIMM avec code correcteurs
d'erreurs ne sont pas prises en charge
Graphiques GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Mémoire vidéo partagée maximale de 512 Mo (under
OS)
IDE Contrôleur IDE intégré Mode principale de Bus Ultra DMA 33 / 66 / 100 / 133
Prend en charge le mode PIO 0~4,
SATA II
Contrôleur Serial ATA
int égré :
Taux de transfert jusqu'à 3 Go/s.
Conforme à la spécif icat ion SATA Vers ion 2.0
LAN Realtek RTL 8201CL 10 / 100 Mb/s négociation automatique
Half / Full duplex capability
Codec audio
ALC662 Sortie audio à 5.1 voies
Prise en charge de l'audio haut e definition
Fente PCI x2
Fentes
Slot PCI Express x16 x1
Connecteur de disquette x1 Chaque connector prend en charge 2 lecteurs de
disquettes
Connecteur de Port d'imprimante x1 Chaque connector prend en charge 1 Port d'imprimante
Connecteur
embarqué
Connecteur IDE x1 Chaque connecteur prend en charge 2 périphériques
IDE
MCP6P M2+/N68S+
31
SPEC
Connecteur SATA x4 Chaque connecteur prend en charge 1 périphérique
SATA
Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant
Connecteur Audio du panneau avant x1 Prend en charge la fonction audio du panneau avant
Connecteur d' entrée CD x1 Prend en charge la fonction d'entrée audio de CD
Connecteur de sortie S/PDIF x1 Prend en charge la fonction de sortie audio numérique
Embase de ventilateur UC x1 Alimentation électrique du ventilateur UC (avec
fonction de ventilateur intelligent)
Embase de ventilateur système x1 Alimentation électrique du ventilateur système
Embase d'effacement CMOS x1
Connecteur USB x3 Chaque connecteur prend en charge 2 ports USB de
panneau avant
Connecteur d'alimentation x1
(24 broches)
Connecteur d'alimentation x1
(4 broches)
E/S du
panneau
arrière
Clavier PS/2 x1
Souris PS/2 x1
Port VGA x1
Port série x1
Port LAN x1
Port USB x4
Fiche audio x3
Dimensions
de la carte 190 mm (l) X 244 mm (H)
Fonctionnali
tés
spéciales
Prise en charge RAID 0 / 1 / 0+1 / 5
Support SE Windows XP / Vista / 7 BIOSTAR se réserve le droit d'ajouter ou de supprimer
le support de SE avec ou sans préavis.
Motherboard Manual
32
ITALIAN
SPECIFICA
CPU
Socket AM2+
Processori AMD Phenom / Phenom II /
Athlon / Athlon II / Sempron (Watt
massimo: 95W )
L’architettura AMD 64 abilita la co mputazione 32
e 64 bit
Supporto di Hyper Transport e Cool’n’Quiet
FSB Supporto di HyperTransport fino a1
GHz di larghezza di banda
Chipset GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Super I/O
ITE 8716F
Fornisce le funzionalità legacy Super
I/O usate più comunemente.
Interfaccia LPC (Low Pin Count)
Funzioni di controllo dell’ambiente:
Monitoraggio hardware
Controller velocità ventolina
Funzione "Smart Guardian" di ITE
Memoria
principale
Alloggi DIMM DDR2 x 2
Capacità massima della memoria 8GB
Ciascun DIMM supporta DDR2
256MB/ 512MB e 1GB/2GB/4GB
Modulo di memoria DDR2 a canale doppio
Supporto di DDR2 533 / 667 / 800 / 1066
DIMM registrati e DIMM ECC non sono supportati
Grafica GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
La memoria video condivisa massima è di 512MB
(under OS)
IDE Controller IDE integrato
Modalità Bus Master Ultra DMA 33 / 66 / 100 /
133
Supporto modalità PIO Mode 0-4
SATA II Controller Ser ial ATA integrato Velocità di trasferimento dei dati fino a 3 Gb/s.
Compatibile specifiche SATA Vers ione 2.0.
LAN Realtek RTL 8201CL Negoziazione automatica 10 / 100 Mb/s
Capacità Half / Full Duplex
Codec
audio ALC662 Uscita audio 5.1 canali
Supporto audio High-Definition (HD)
Alloggio PC I x2
Alloggi Alloggio PCI Express x16 x1
Connettore floppy x1 Ciascun connettore supporta 2 unità Floppy
Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante
Connettore IDE x1 Ciascun connettore supporta 2 unità IDE
Connettori
su scheda
Connettore SATA x4 Ciascun connettore supporta 1 unità SATA
MCP6P M2+/N68S+
33
SPECIFICA
Connettore pannello frontale x1 Supporta i servizi del pannello frontale
Connettore audio frontale x1 Supporta la funzione audio pannello frontale
Connettore CD-in x1 Supporta la funzione input audio CD
Connettore output SPDIF x1 Supporta la funzione d’output audio digitale
Collettore ventolina C PU x1 Alimentazione ventolina CPU (con funzione Smart
Fan)
Collettore ventolina sistema x1 Alimentazione ventolina d i sistema
Collettore cancellaz ione CMOS x1
Connettore USB x3 Ciascun connettore supporta 2 porte USB
pannello frontale
Connettore alimentazione x1
(24 pin)
Connettore alimentazione x1
(4 pin)
I/O
pannello
posteriore
Tas t ier a PS/2 x 1
Mouse PS/2 x1
Porta VGA x1
Porta seriale x1
Porta LAN x1
Porta USB x4
Connettore audio x3
Dimension
i scheda
190 mm (larghezza) x 244 mm
(altezza)
Caratterist
iche
speciali
Supporto RAID 0 / 1 / 0+1 / 5
Sistemi
operativi
supportati
Windows XP / Vista / 7
BIOSTAR si riserva il diritto di aggiungere o
rimuovere il supporto di qualsiasi sistema
operativo senza preavviso.
Motherboard Manual
34
SPANISH
Especificación
CPU
Conector AM2+
Procesadores AMD Phenom / Pheno m II /
Athlon / Athlon II / Sempron
(Vatio máx imo: 95W)
La arquitectura AMD 64 permite el procesado de 32 y
64 bits
Soporta las tecnologías Hyper Transport y Cool’n’Quiet
FSB Admite HyperTransport con un ancho de
banda de hasta1 GHz
Conjunto de
chips
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Súper E/S
ITE 8716F
Le ofrece las funcionalidades heredadas de
uso más común Súper E /S.
Interfaz de cuenta Low Pin
In iciat ivas de control de entorno,
Monitor hardware
Controlador de velocidad de ventilador
Función "Guardia inteligente" de ITE
Memoria
principal
Ranuras DIMM DDR2 x 2
Capacidad máxima de memoria de 8GB
Cada DIMM admite DDR de
256MB/512MB y 1GB/2GB/4GB
Módulo de memoria DDR2 de canal Doble
Admite DDR2 de 533 / 667 / 800 / 1066
No admite DIMM registrados o DIMM compatibles con
ECC
Gráficos GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Memoria máx ima de vídeo co mpartida de 512MB
(under OS)
IDE Controlador IDE integrado Modo bus maestro Ultra DMA 33 / 66 / 100 / 133
Soporte los Modos PIO 0~4,
SATA II Controlador ATA Serie Integrado Tasas de transferencia de hasta 3 Gb/s.
Compat ib le con la versión SATA 2.0.
Red Local Realtek RTL 8201CL Negociación de 10 / 100 Mb/s
Funciones Half / Full dúplex
Códecs de
sonido ALC662 Salida de sonido de 5.1 canales
Soporte de sonido Alta Definición
Ranura PCI X2
Ranuras
Ranura PCI Express x16 X1
Conector disco flexible X1 Cada conector soporta 2 unidades de disco flexible
Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora
Conector IDE X1 Cada conector soporta 2 dispositivos IDE
Conectores
en placa
Conector SATA X4 Cada conector soporta 1 dispositivos SATA
MCP6P M2+/N68S+
35
Especificación
Conector de p anel f rontal X1 Soporta instalaciones en el p anel frontal
Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal
Conector de entrada de CD X1 Soporta función de entrada de sonido de CD
Conector de salida S/PDIF X1 Soporta función de salida de sonido digital
Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con
función Smart Fan)
Cabecera de ventilador de sistema X1 Fuente de alimentación de ventilador de sistema
Cabecera de borrado de CMOS X1
Conector USB X3 Cada conector soporta 2 puertos USB frontales
Conector de alimentación X1
(24 patillas)
Conector de alimentación X1
(4 patillas)
Panel
trasero de
E/S
Tec lad o PS /2 X 1
Ratón PS/2 X1
Puerto VGA X1
Puerto serie X1
Puerto de red local X1
Puerto USB X4
Conector de sonido X3
Ta maño d e
la placa 190 mm. (A) X 244 Mm. (H)
Funciones
especiales Admite RAID 0 / 1 / 0+1 / 5
Soporte de
sistema
operativo
Windows XP / Vista / 7 BIOSTAR se reserva el derecho de añadir o retirar el
soporte de cualquier SO con o sin aviso previo.
Motherboard Manual
36
PORTUGUESE
ESPECIFICAÇÕES
CPU
Socket AM2+
Processadores AMD Phenom / Pheno m II /
Athlon / Athlon II / Sempron
(Watt máximo: 95W)
A arquitectura AMD 64 p ermite uma co mputação de 32
e 64 bits
Suporta as tecnologias Hyper Transport e Cool’n’Quiet
FSB Suporta a tecnologia HyperTransport com
uma largura de banda até1 GHz
Chipset GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Especificaçã
o Super I/O
ITE 8716F
Proporciona as funcionalidades mais
utilizadas em termos da especificação
Super I/O.
Interface LPC (Low Pin Count).
In iciat ivas par a contro lo do amb iente
Monitoriz ação do hardware
Controlador da velocidade da ventoinha
Função "S mart Guardian" da ITE
Memória
principal
Ranhuras DIMM DDR2 x 2
Capacidad e máx ima d e memória: 8 GB
Cada módulo DIMM suporta uma
memória DDR2 de 256 MB/512 MB &
1 GB/2 GB/4 GB
Módulo de memória DDR2 de canal duplo
Suporta módulos DDR2 533 / 667 / 800 / 1066
Os módulos DIMM registados e os DIMM ECC não são
suportados
Placa
gráfica
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Memória de vídeo máxima partilhada: 512 MB (under
OS)
IDE Controlador IDE integrado Modo Bus master Ultra DMA 33 / 66 / 100 / 133
Suporta o modo PIO 0~4,
SATA II Controlador Serial ATA integrado Velocidades de transmissão de dados até 3 Gb/s.
Compat ibilidade co m a especificação SATA versão 2.0.
LAN Realtek RTL 8201CL Auto negociação de 10 / 100 Mb/s
Capacidade semi/full-duplex
Codec de
som ALC662 Saída de áudio de 5.1 canais
Suporta a especificação High-Definition Audio
Ranhura PCI x2
Ranhuras Ranhura PCI Express x16 x1
Conector da unidade de disquetes x1 Cada conector suporta 2 unidades de disquetes
Conector da para impressora x1 Cada conector suporta 1 Porta para impressora
Conectores
na placa
Conector IDE x1 Cada conector suporta 2 dispositivos IDE
MCP6P M2+/N68S+
37
ESPECIFICAÇÕES
Conector SATA x4 Cada conector suporta 1 dispositivo SATA
Conector do painel frontal x1 Para suporte de várias funções no painel frontal
Conector de áudio frontal x1 Suporta a função de áud io no painel frontal
Conector para entrada de CDs x1 Suporta a entrada de áud io a part ir de CDs
Conector de saída S/PDIF x1 Suporta a saída de áudio d igital
Conector da ventoinha da CPU x1 Alimentação da ventoinha da CPU (co m a função Smart
Fan )
Conector da ventoinha do s istema x1 Alimentação da ventoinha do s istema
Conector para limpeza do CMOS x1
Conector USB x3 Cada conector suporta 2 portas USB no painel frontal
Conector de alimentação x1
(24 pinos)
Conector de alimentação x1
(4 p inos)
Entradas/S
aídas no
painel
traseiro
Tec lad o PS /2 x 1
Rato PS/2 x1
Porta VGA x1
Porta série x1
Porta LAN x1
Porta USB x4
Tomada de áudio x3
Tamanho
da placa 190 mm (L) X 244 mm (A)
Característi
cas
especiais
Suporta as funções RAID 0 / 1 / 0+1 / 5
Sistemas
operativos
suportados
Windows XP / Vista / 7
A BIOSTAR reserva-se o direito de adicionar ou
remover suporte para qualquer sistema operativo com
ou sem aviso prévio.
Motherboard Manual
38
POLISH
SPEC
Procesor
Socket AM2+
AMD Pheno m / Phenom II / Ath lon /
Athlon II / Sempron Procesory
(Maksymalny Watt: 95W)
Architektura AMD 64 umożliwia przetwarzanie 32 i 64
bitowe
Obsługa Hyper Transport oraz Cool’n’Quiet
FSB Obsługa HyperTransport o szerokości
pasma do1 GHz
Chipset GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Pamięć
główna
Gniazda DDR2 DIMM x 2
Maks. wielkość pamięci 8GB
Każde gniazdo DIMM obsługuje moduły
256MB/512MB oraz 1GB/2GB/4GB DDR2
Modu ł pamięci DDR2 z trybem podwójnego kanału
Obsługa DDR2 533 / 667 / 800 / 1066
Brak obsługi Registered DIMM oraz ECC D IMM
Super I/O
ITE 8716F
Zapewnia najbardziej powszechne funkcje
Super I/O.
Interfejs Low Pin Count
Funkcje kontroli warunków pracy,
Mon itor H/W
Kontroler prędkości wentylatora
Funkcja ITE "Smart Guard ian"
Grafika GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Maks. wielkość współdz ielon ej pamięci video wynosi
512MB (under OS)
IDE Zintegrowany kontroler IDE Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master
obsługa PIO tryb 0~4,
SATA II Zintegrowany kontroler Serial ATA Transfer danych do 3 Gb/s.
Zgodność ze specyfikacją SATA w wersj i 2.0.
LAN Realtek RTL 8201CL 10 / 100 Mb/s z automatyczną negocjacją szybkości
Działanie w tryb ie połowicznego / pełnego dupleksu
Kodek
dźwiękowy ALC662 5.1 kanałowe wyjście audio
Obsługa High-Def in ition Aud io
Gniazdo PCI x2
Gniazda
Gniazdo PCI Express x16 x1
Złącze napędu dyskietek x1 Każde złącze obs ługuje 2 napędy dyskietek
Złącze Port drukarki x1 Każde złącze obs ługuje 1 Port drukarki
Złącze IDE x1 Każde złącze obs ługuje 2 urządzenia IDE
Złącze SATA x4 Każde złącze obs ługuje 1 urządzenie SATA
Złącza
wbudowane
Złącze panela przedniego x1 Obsługa elementów panela przedniego
MCP6P M2+/N68S+
39
SPEC
Przednie złącze audio x1 Obsługa funkcji audio na panelu przednim
Złącze wejścia CD x1 Obsługa funkcji wejścia aud io CD
Złącze wyjścia S/PDIF x1 Obsługa funkcji cyfrowego wyjścia audio
Złącze g łówkowe wentylatora
procesora x1
Zasilanie wentylatora procesora (z funkcją Smart Fan)
Złącze g łówkowe wentylatora
systemowego x1
Zasilanie wentylatora systemowego
Złącze g łówkowe kasowania
CMOS x1
Złącze USB x3 Każde złącze obs ługuje 2 porty USB na panelu
przednim
Złącze zasilania (24 pinowe) x1
Złącze zas ilania (4 pino we) x1
Back Panel
I/O
Klawiatura PS/2 x1
Mysz PS /2 x1
Port VGA x1
Port szeregowy x1
Port LAN x1
Port USB x4
Gniazdo audio x3
Wymiary
płyty 190 mm (S) X 244 mm (W)
Funkcje
specjalne Obsługa RAID 0 / 1 / 0+1 / 5
Obsluga
systemu
operacyjne
go
Windows XP / Vista / 7
BIOSTAR zastrzega sobie prawo dodawania lub
odwoływania obsług i dowo ln ego sys temu
operacyjnego bez powiado mienia.
Motherboard Manual
40
RUSSIAN
СПЕЦ
CPU
(центральн
ый
процессор)
Гнездо AM2+
Процессоры AMD Ph enom / Pheno m II /
Athlon / Athlon II / Sempron
(Максимальн ый ватт: 95W)
Архитектура AMD 64 разрешать обработка данных
на 32 и 64 бит
Поддержка Hyp er Transport и Cool’n’Quiet
FSB Поддержка HyperTransport с
пропускной способностью до1GГц
Набор
микросхем
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Основная
память
Слоты DDR2 DIMM x 2
Максимальная ёмкость памяти 8 ГБ
Каждый модуль DIMM поддерживает
256 МБ /512МБ & 1ГБ/2ГБ/4ГБ DDR2
Модуль памяти с двухканальным режимом DDR2
Поддержка DDR2 533 / 667 / 800 / 1066
Не поддерживает зарегистрированные модули
DIMM and ECC DIMM
Super I/O
ITE 8716F
Обеспечивает наиболее используемые
действующие фун кц ио нальны е
возможности Super I/O.
Интерфейс с низким количеством
выводов
Инициативы по охране окружающей среды,
Аппаратный монитор
Регул ятор скорости
Функция ITE "Smart Gu ardian" (Интеллектуальная
защита)
Графика GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
Максимальная совместно используемая вид ео
память составляет 512 МБ (under OS)
IDE Встроенное устройство упр авления
встроенными интерфейсами устройств
Режим "хозяина" шин ы Ultra DMA 33 / 66 / 100 / 133
Поддержка режима PIO 0~4,
SATA II Встроенное последовательное
устройство управления ATA
скорость передачи данных до 3 гигабит/с.
Соответствие спецификации SATA версия 2.0.
Локальн ая
сеть Realtek RTL 8201CL Автоматическое согласование 10 / 100 Мб /с
Частичная / полная дуплексная способность
Звуко вой
кодек ALC662 5.1канальный звуковой выход
Звуко вая поддержка High-Def in ition
Слот PCI x2
Слоты Слот PCI Express x16 x1
Разъём НГМД x1
Каждый разъём поддерживает 2 накопителя на
гибких магнитных дисках
Разъём Порт подключения
принтера x1
Каждый разъём поддерживает 1 Порт подключения
принтера
Разъём IDE x1 Каждый разъём поддерживает 2 встроенных
интерфейса накопителей
Встроенны
й разъём
Разъём SATA x4 Каждый разъём поддерживает 1 устройство SATA
MCP6P M2+/N68S+
41
СПЕЦ
Разъём на лицевой панели x1 Поддержка устройств на лицевой панели
Входной звуковой разъём x1 Поддержка звуко вых функций на лицевой панели
Разъём ввода для CD x1 Поддержка функции ввода для CD
Разъём вывода для S/PDIF x1 Поддержка вывода цифровой звуковой фун кц ии
Контактирующее приспособление x1
вентил ятора центрального процессора
Источник питания для вентилятор а центрального
процессора (с фун кц ией интеллектуального
вентил ятора)
Контактирующее приспособление
вентил ятора системы x1
Источник питания для вентилятор а системы
Открытое конт актирующее
приспособление CMOS x1
USB-разъём x3
Каждый разъём поддерживает 2 USB-порта на
лицевой панели
Разъем питания (24 вывод) x1
Разъем питания (4 вывод) x1
Задняя
панель
средств
ввода-выв
ода
Клавиатура PS/2 x1
Мышь PS/2 x1
Порт VGA x1
Последовательный порт x1
Порт LAN x1
USB-порт x4
Гнездо для подключения наушников x3
Размер
панели 190 мм (Ш) X 244 мм (В)
Специальн
ые
технически
е
характерис
тики
Поддержка RAID 0 / 1 / 0+1 / 5
Поддержка
OS Windows XP / Vista / 7
BIOSTAR сохраняет за собой право добавлять или
удалять средства обеспечения для OS с или без
предварительного уведомления.
Motherboard Manual
42
ARABIC
تﺎﻔﺻاﻮﻤﻟا
ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو
ﺔﻳﺰآﺮﻤﻟا
ﺲﺒﻘﻡAM2+
تﺎﺠﻟﺎﻌﻡAMD Pheno m / Phenom II /
Athlon / Athlon II / Sempron
(طاو ىﻮﺼﻗ: 95و)
ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺔﻋﺮﺴﺏ ﺔﻴﺏﻮﺳﺎﺤﻟا تﺎﻴﻠﻤﻌﻟا ءاﺮﺝإ 32 و64 ﺖﺏ
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyper Transport و Cool’n’Quiet
ﻲﺒﻥﺎﺠﻟا ﻲﻡﺎﻡﻷا ﻞﻗﺎﻨﻟا
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyperTransport ﻰﻟإ ﻞﺼﻳ ددﺮﺘﺏ 1000ددﺮﺗ
ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻡ
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
ﺔﻴﺴﻴﺋﺮﻟا ةﺮآاﺬﻟا
ﺔﺤﺘﻓDDR2 DIMM دﺪﻋ2
ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ8 ﺖﻳﺎﺏ ﺎﺠﻴﺝ
ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻡ ةﺮآاذ ﻢﻋﺪﺗ DDR2 ﺔﻌﺳ
256/512 و ﺖﻳﺎﺏ ﺎﺠﻴﻡ 1/2/4 ﺎﺠﻴﺝﺖﻳﺎﺏ
ةﺮآاذ ةﺪﺣوDDR2 ﻘﻟا ﺔﺝودﺰﻡةﺎﻨ
عﻮﻥ ﻦﻡ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR2 تﺎﻌﺳ 533 / 667 / 800/1066ﺖﻳﺎﺏ ﺎﺠﻴﻡ
ﻋﺪﺗ ﻻ ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢDIMM ﻊﻡ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠﺗو ECC
Super I/O
ITE 8716F
ﺔﻔﻴﻇو ﺮﻓﻮﺗSuper I/O ًﺎ ﻡ ا ﺪ ﺨ ﺘﺳ ا ﺮﺜآﻷا .
ﺗﻢﻋﺪ ﺔﻴﻨﻘﺗ Low Pin Count Interface
ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:
ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻡ
ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻡ
ﺔﻔﻴﻇو"Smart Guard ian" ﻦﻡ ITE
ﺮﻟا ﺔﻗﺎﻄﺏتﺎﻡﻮﺳ
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
ﺔآﺮﺘﺸﻤﻟا ﻮﻳﺪﻴﻔﻟا ةﺮآاﺬﻟ ﺔﻌﺳ ﻰﺼﻗأ512ﺖﻳﺎﺏ ﺎﺠﻴﻡ (under OS)
ﺬﻔﻨﻡIDE
ﻢﻜﺤﺘﻡIDE ﻞﻡﺎﻜﺘﻡ
ﺔﻴﻨﻘﺘﺏ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100 / 133ﻲﺴﻴﺋر ﻊﺿو
ﻊﺿو ﻢﻋدPIO Mode 0 ~4
SATA II
ﻢﻜﺤﺘﻡSerial ATAﻞﻡﺎﻜﺘﻡ
ﻰﻟإ ﻞﺼﺗ تﺎﻋﺮﺴﺏ تﺎﻥﺎﻴﺒﻟا ﻞﻘﻥ3 ﺖﺏﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.
تﺎﻔﺹاﻮﻤﻟ ﺔﻘﺏﺎﻄﻡSATA راﺪﺹﻹا 2.0.
ﺔﻴﻠﺥاد ﺔﻜﺒﺵ
Realtek RTL 8201CL
ﻲﺋﺎﻘﻠﺗ ضوﺎﻔﺗ10/100 ﺖﻳﺎﺏ ﺎﺠﻴﻡ /ﺔﻴﻥﺎﺙ
ﻞﻡﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻡإ/ﻲﻔﺼﻨﻟا
تﻮﺼﻟا ﻚﻳدﻮآ
ALC662
5.1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼﻟا
ﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗﻦﻡ ﻒﻳﺮﻌﺘﻟا ﻲﻟﺎ
ﺔﺤﺘﻓPCI دﺪﻋ2
تﺎﺤﺘﻔﻟا
ﺔﺤﺘﻓx16 PCI Express دﺪﻋ1
ﺔﻥﺮﻡ صاﺮﻗأ كﺮﺤﻡ ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻥﺮﻤﻟا صاﺮﻗﻸﻟ ﻦﻴآﺮﺤﻡ ﻢﻋﺪﻳ
ﺔﻌﺏﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1
ﺢﻄﺳ ﻰﻠﻋ ﺬﻓﺎﻨﻤﻟا
ﺔﺣﻮﻠﻟا
ﺬﻔﻨﻡIDE دﺪﻋ1 ةﺰﻬﺝأ ﻦﻡ ﻦﻴﻨﺙا ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳIDE
MCP6P M2+/N68S+
43
تﺎﻔﺻاﻮﻤﻟا
ﺬﻔﻨﻡSATA دﺪﻋ4 ﻦﻡ ﺪﺣاو ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳ ةﺰﻬﺝأ SATA
ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪﻳ
ﻲﻡﺎﻡﻷا تﻮﺼﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟﺎﺏ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪﻳ
ﺬﻔﻨﻡCD-IN دﺪﻋ1 ﺞﻡﺪﻤﻟا صﺮﻘﻟا تﻮﺹ ﻞﺥد ﺔﻔﻴﻇو ﻢﻋﺪﻳ
جﺮﺥ ﺬﻔﻨﻡS/PDIF دﺪﻋ1 ﻲﻤﻗﺮﻟا تﻮﺼﻟا جﺮﺥ ﺔﻔﻴﻇو ﻢﻋﺪﻳ
ﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻡ ﺔﻠﺹوﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟ دﺪﻋ1 ﺔﻔﻴﻇو ﻊﻡ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟSmart Fan
مﺎﻈﻨﻟا ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ1 مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ
ﺢﺴﻡ ﺔﻠﺹوCMOS دﺪﻋ1
ﺬﻔﻨﻡUSB دﺪﻋ3 ﻲﺘﺤﺘﻓ ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳUSBﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟﺎﺏ
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)24سﻮﺏد( دﺪﻋ1
ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ ﺔﻗﺎﻄﻟا )4ﺲﻴﺏﺎﺏد( دﺪﻋ1
ﻞﺥد ﺬﻓﺎﻨﻡ/ جﺮﺥ
ﺔﻴﻔﻠﺨﻟا ﺔﺣﻮﻠﻟا
ﺢﻴﺗﺎﻔﻡ ﺔﺣﻮﻟPS/2 دﺪﻋ1
سوﺎﻡ PS/2 دﺪﻋ1
ﺬﻓﺎﻨﻡVGA دﺪﻋ1
ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻡ دﺪﻋ1
ﺔﻴﻠﺤﻡ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻡ دﺪﻋ1
ﺬﻓﺎﻨﻡUSB دﺪﻋ4
تﻮﺹ ﺲﺒﻘﻡ دﺪﻋ3
ﺔﺹﺎﺥ ﺎﻳاﺰﻡ
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗRAID 0 / 1 / 0+1 / 5
ﺔﺣﻮﻠﻟا ﻢﺠﺣ
190 ﻢﻡ)ضﺮﻋ (X 244 ﻢﻡ)عﺎﻔﺗرا(
ﻞﻴﻐﺸﺘﻟا ﺔﻤﻈﻥأ ﻢﻋد
Windows XP / Vista / 7
ﻆﻔﺘﺤﺗBIOSTAR نوﺪﺏ وأ رﺎﻄﺥﺈﺏ ﻞﻴﻐﺸﺗ مﺎﻈﻥ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺏ
رﺎﻄﺥإ.
Motherboard Manual
44
JAPANESE
仕様
CPU
Socket AM2+
AMD Pheno m / Phenom II / Ath lon /
Athlon II / Sempron プロセッサ
(最高のワット: 95W)
AMD 64アーキテクチャでは、32ビットと64ビット計算が可
能です
ハイパートランスポートとクールアンドクワイアットをサポ
ートします
FSB
1GHzのバンド幅までハイパートランスポート
をサポートします
チップセット
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+)
メインメモリ
DDR2 DIMMスロット x 2
最大メモリ容量8GB
各DIMMは 256MB/512MB & 1GB/2GB/
4GB DDR2をサポート
デュアル チャンネルモードDDR2メモリモジュール
DDR2 533 / 667 / 800 / 1066をサポート
登録済みDIMMとECC DIMMはサポートされません
Super I/O
ITE 8716F
もっとも一般に使用されるレガシーSuper I/O
機能を採用しています。
低ピンカウントインターフェイス
環境コントロールイニシアチブ、
H/Wモニター
ファン速度コントローラ/ モニター
ITEの「スマートガーディアン」機能
グラフィック
ス
GeForce 6150 SE/nForce 430 (MCP6P M2+)
GeForce 7025/nForce 630a (N68S+) 最大の共有ビデオメモリは512MBです(under OS)
IDE 統合IDEコントローラ Ultra DMA 33 / 66 / 100 / 133バスマスタモード
PIO Mode 0~4のサポート、
SATA II 統合シリアルATA コントローラ 最高3 Gb/秒のデータ転送速度
SATAバージョン2.0仕様に準拠。
LAN Realtek RTL 8201CL 10 / 100 Mb/秒のオートネゴシエーション
半/全二重機能
サウンド
Codec
ALC662 5.1チャンネルオーディオアウト
ハイデフィニションオーディオのサポート
PCIスロット x2
スロット PCI Express x16スロット x1
フロッピーコネクタ x1 各コネクタは2つのフロッピードライブをサポートします
プリンタポートコネクタ x1 各コネクタは1つのプリンタポートをサポートします
オンボードコ
ネクタ
IDE コネクタ x1 各コネクタは2つのIDE デバイスをサポートします
MCP6P M2+/N68S+
45
仕様
SATAコネクタ x4 各コネクタは1つのSATAデバイスをサポートします
フロントパネルコネクタ x1 フロントパネル機能をサポートします
フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします
CDインコネクタ x1 CDオーディオイン機能をサポートします
S/PDIFアウトコネクタ x1 デジタルオーディオアウト機能をサポートします
CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)
システムファンヘッダ x1 システムファン電源装置
CMOSクリアヘッダ x1
USBコネクタ x3
各コネクタは2つのフロントパネルUSBポートをサポートし
ます
電源コネクタ(24ピン) x1
電源コネクタ(4ピン) x1
背面パネル
I/O
PS/2キーボード x1
PS/2マウス x1
VGAポート x1
シリアルポート x1
LANポート x1
USBポート x4
オーディオジャック x3
ボードサイズ 190 mm (幅) X 244 mm (高さ)
特殊機能 RAID 0 / 1 / 0+1 / 5 のサポート
OSサポート Windows XP / Vista / 7
BIOSTARは事前のサポートなしにOSサポートを追加または
削除する権利を留保します。
2010/05/04

Navigation menu
