P43D3

1

CHAPTER 1: INTRODUCTION

1.1 BEFORE YOU START

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely

grounded appliance, or use grounded wrist strap to

remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board

on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short

circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be

0 to 45 degrees Celsius.

1.2 PACKAGE CHECKLIST

Serial ATA Cable X 2

Rear I/O Panel for ATX Case X 1

User’s Manual X 1

Fully Setup Driver CD X 1

FDD Cable X 1 (optional)

USB 2.0 Cable X1 (optional)

Serial ATA Power Cable X 1 (optional)

Note: The package contents may be different due to area or your motherboard version.

Motherboard Manual

2

1.3 MOTHERBOARD FEATURES

SPEC

CPU

LGA 775

Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Du al-Core /

Celeron 4xx processor

(Maximum Watt: 125W)

Supports Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el Architecture-64 /

Extended Memory 64 Technology / Virtualization

Technology

FSB 800 / 1066 / 1333 / 1600 MHz (OC) MHz

Chipset

Intel P43

Intel ICH1 0

Super I/O

ITE 8718F

Provides the most commonly used legacy

Super I/O functionality.

Low Pin Count Interface

Environment Control in it iatives,

Hardware Monitor Controller

Fan Speed Contro ller

ITE's "S mart Guard ian" funct ion

Main

Memory

DIMM Slots x 2

Each DIMM supports 512MB / 1GB / 2GB

DDR3

Max Memory Capacity 4GB

Dual Channel Mode DDR3 memory modu le

Supports DDR3 1333(OC) / 1066 / 800

Registered DIMM and ECC DIMM is not supported

(CPU with FSB 800 MHz only supports DDR3 800)

SATA 2 Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s.

SATA Version 2.0 specif icat ion co mp liant

LAN Realtek RTL8111DL

10 / 100 Mb/s / 1Gb/s auto negotiation

Half / Full duplex capability

Sound

Codec

ALC662

5.1 channels audio out

High Definition Audio

PCI Express Gen2 x16 Slot x1 Supports PCI-E Gen2 x16 expansion cards

PCI Express x1 Slot x2 Supports PCI-E x1 expansion cards

Slots

PCI Slot x3 Supports PCI expansion cards

Floppy Connector x1 Each connector supports 1 Floppy drive

Printer Port Connector x1 Each connector supports 1 Printer port

SATA Connector x4 Each connector supports 1 SATA device

Front Panel Connector x1 Supports front panel facilities

On Board

Connectors

Front Audio Connector x1 Supports front panel audio function

P43D3

3

SPEC

S/PDIF out Connector x1 Supports digital audio out function

CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)

System Fan Header x1 System Fan Power supply

Clear C MOS Header x1 Restore CMOS dat a to factory default

USB Connector x2 Each connector supports 2 front panel USB ports

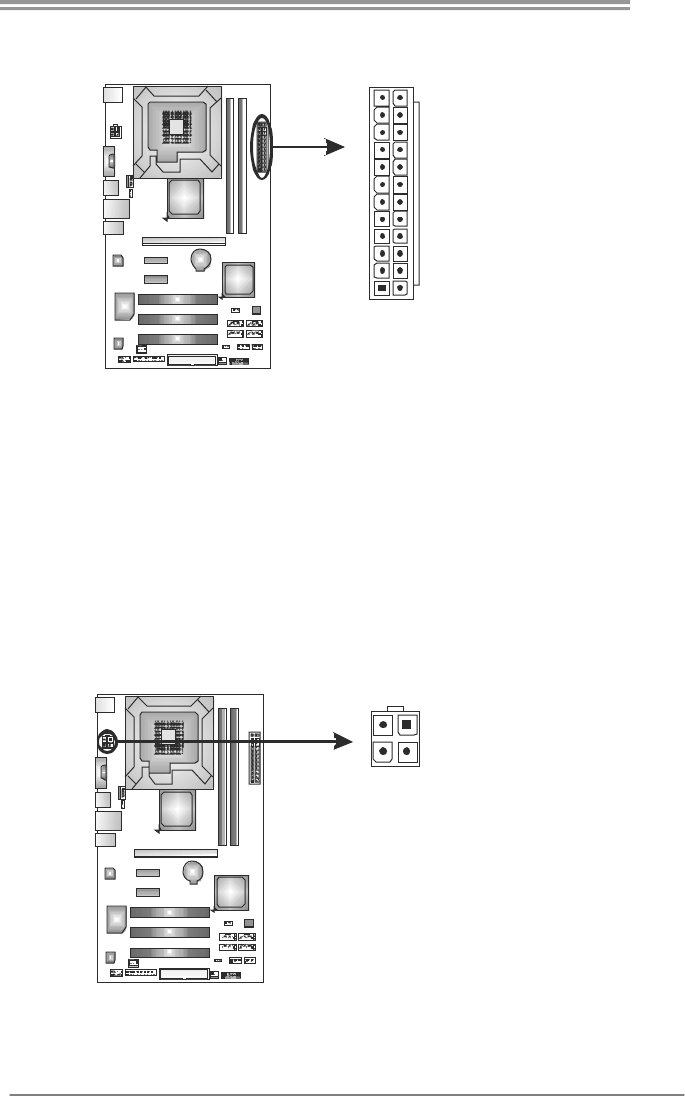

Power Connector (24pin) x1 Connects to Power supply

Power Connector (4pin) x1 Connects to Power supply

Back Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

Serial Port x1

LAN port x1

USB Port x4

Audio Jack x3

Connects to PS/2 Keyboard

Connects to PS/2 Mouse

Connects to RS-232 Port

Connect to RJ-45 ethernet cable

Connect to USB devices

Provide Audio-In/Out and microphone connection

Board Size 182(W) x 295 (L) mm

OS Support

Windows 2000 / XP / Vista 32 / Vista 64 / 7

Biostar reserves the right to add or remove support for

any OS with or without notice

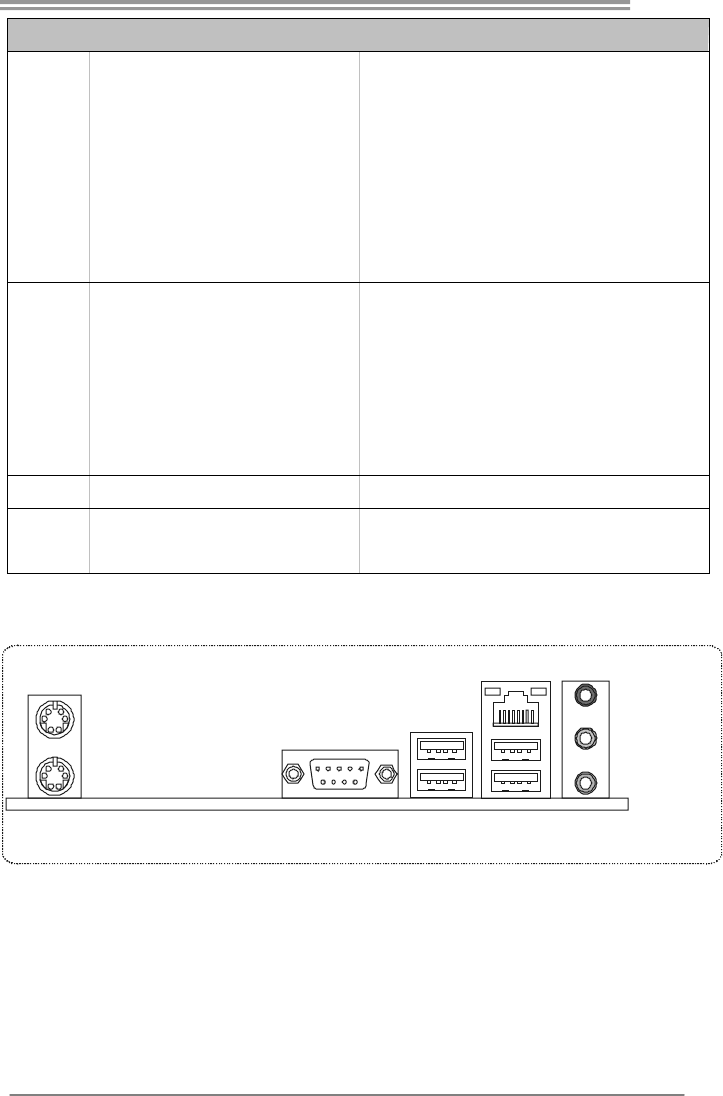

1.4 REAR PANEL CONNECTORS

PS/2

Mouse

PS /2

Keyboard

COM1 USBX2USBX2

LAN Line In/

Surround

Line Out

Mic In 1/

Bass/ Center

Since the audio chip supports High Definition Audio Specification, the function of each audio

jack can be defined by software. The input / output function of each audio jack listed above

represents the default setting. However, when connecting external microphone to the audio port,

please use the Line In (blue) and Mic In (Pink) audio jack.

Motherboard Manual

4

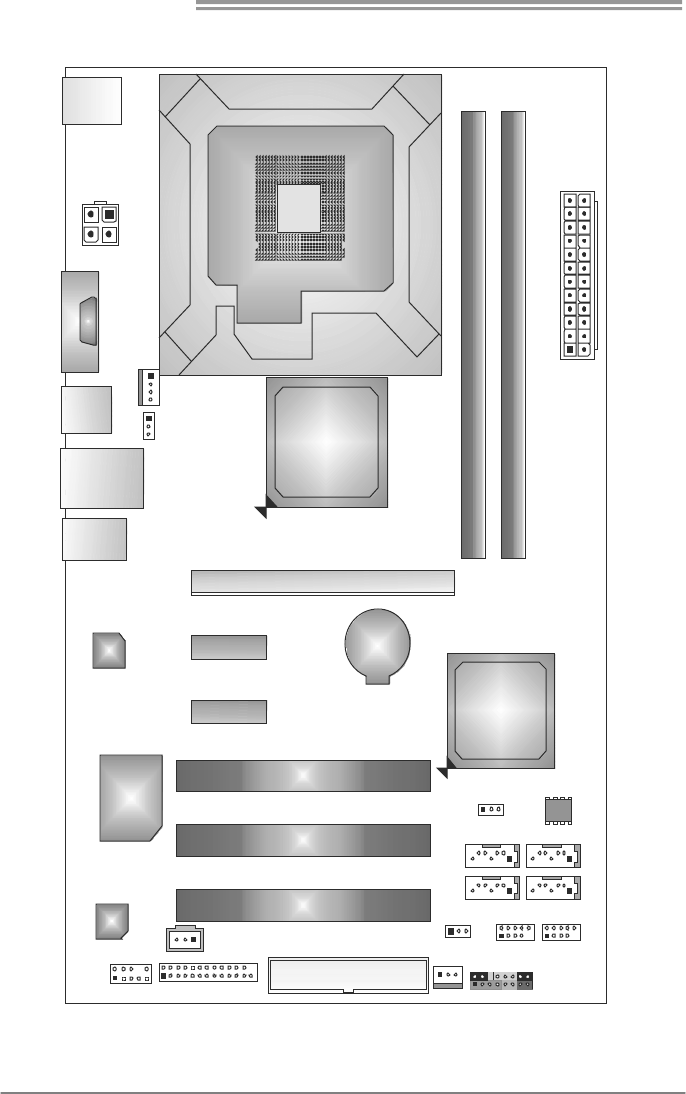

1.5 MOTHERBOARD LAYOUT

KB M S1

USB1

RJ45USB1

AUDIO1

CO M 1

AT XPWR2

JUSBV1

CPU_FAN1

PEX16_1

PCI1

PCI2

PEX1_1

PCI3

PEX1_2

CODEC

Super

I/O

LAN

J_PRINT 1

F_AUDIO1

JSPDIFOUT1

FDD1

PAN E L1

SYS_FAN1

JUSBV2

F_USB2 F_USB1

SATA3

SATA4

SATA1

SATA2

BIOS

JCMOS1

BAT1

AT XPWR1

DDR 3_A 1

DDR 3_B 1

LGA775

CPU1

Intel

P43

Intel

ICH10

Note: ■ represents the 1st pin.

P43D3

5

CHAPTER 2: HARDWARE INSTALLATION

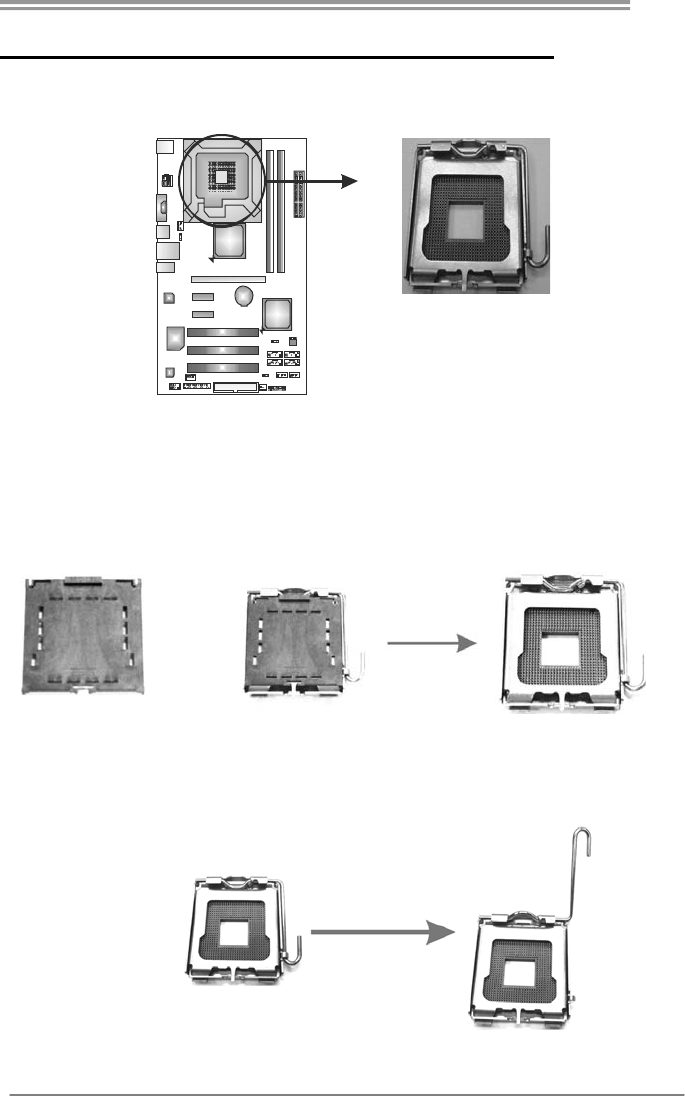

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

Special Notice:

Remove Pin Cap before installation, and make good preservation

for future use. When the CPU is removed, cover the Pin Cap on the

empty socket to ensure pin legs won’t be damaged.

Pin-Cap

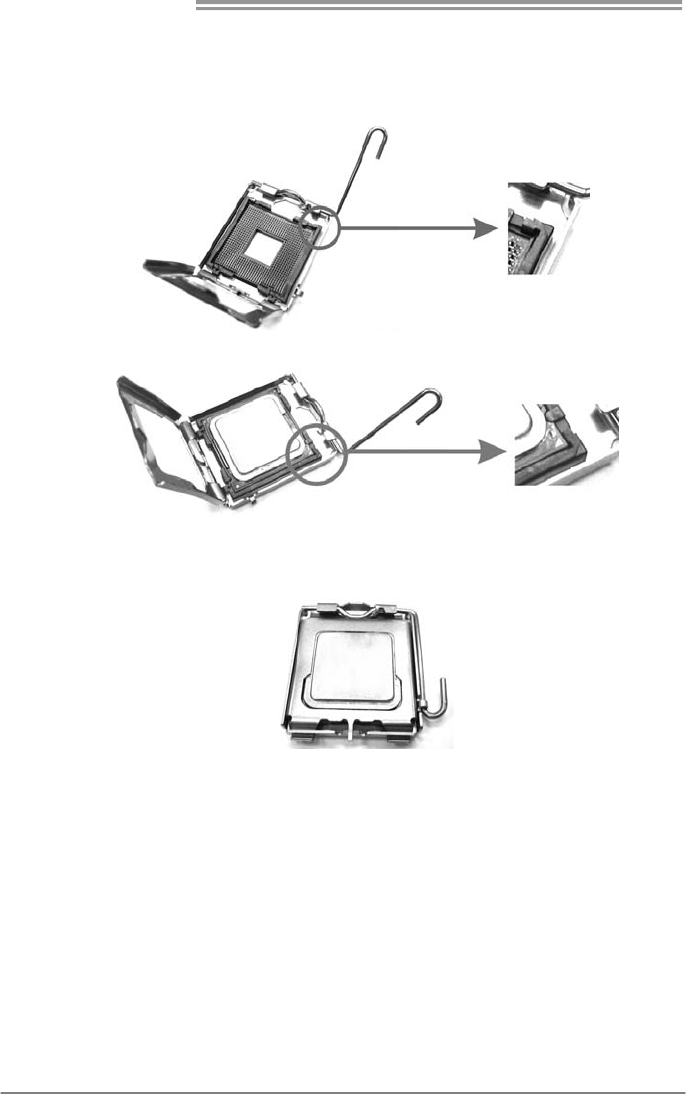

Step 1: Pull the socket locking lever out from the socket and then raise

the lever up to a 90-degree angle.

Motherboard Manual

6

Step 2: Look for the triangular cut edge on socket, and the golden dot on

CPU should point forwards this triangular cut edge. The CPU will

fit only in the correct orientation.

Step 2-1:

Step 2-2:

Step 3: Hold the CPU down firmly, and then lower the lever to locked

position to complete the installation.

Step 4: Put the CPU Fan and heatsink assembly on the CPU and buckle it

on the retention frame. Connect the CPU FAN power cable into

the CPU_FAN1. This completes the installation.

P43D3

7

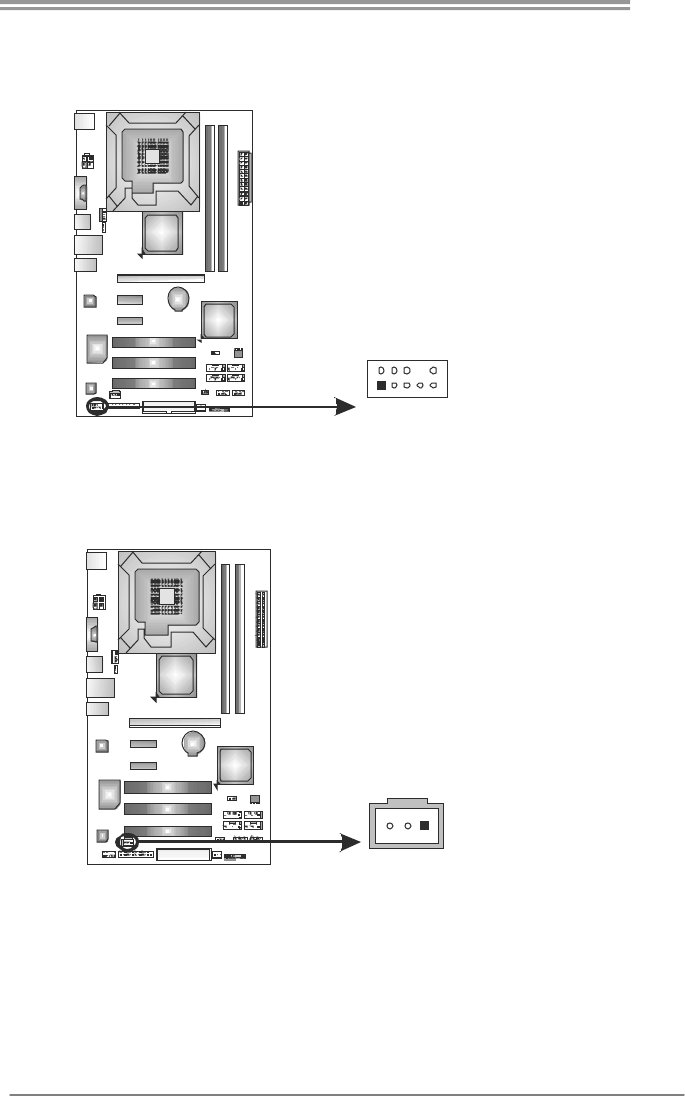

2.2 FAN HEADERS

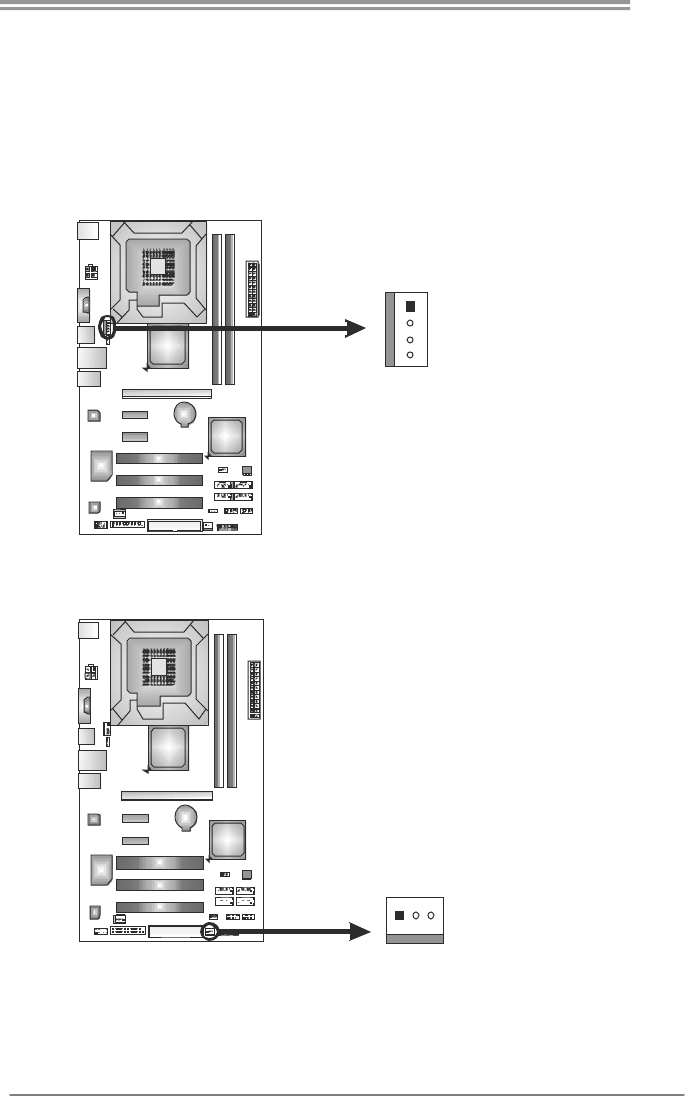

These fan headers support cooling-fans built in the computer. The fan

cable and connector may be different due to the fan manufacturer.

Connect the fan cable to the connector while matching the black wire to

pin#1.

CPU_FAN1: CPU Fan Header

Pin

Assignment

1 Ground

2 Power

3 FAN RPM rate sense

4

1

4 Smart Fan Control

SYS_FAN1: System Fan Header

Pin

Assignment

1 Ground

2 +12V

13

3 FAN RPM rate sense

Note:

CPU_FAN1 supports 4-pin head connector; SYS_FAN1, 3-pin head one. When

connecting with wires onto connectors, please note that the red wire is the positive and

should be connected to pin#2, and the black wire is Ground and should be connected to

GND.

Motherboard Manual

8

2.3 INSTALLING SYSTEM MEMORY

A. DDR3 module

DDR3_B1

DDR3_A1

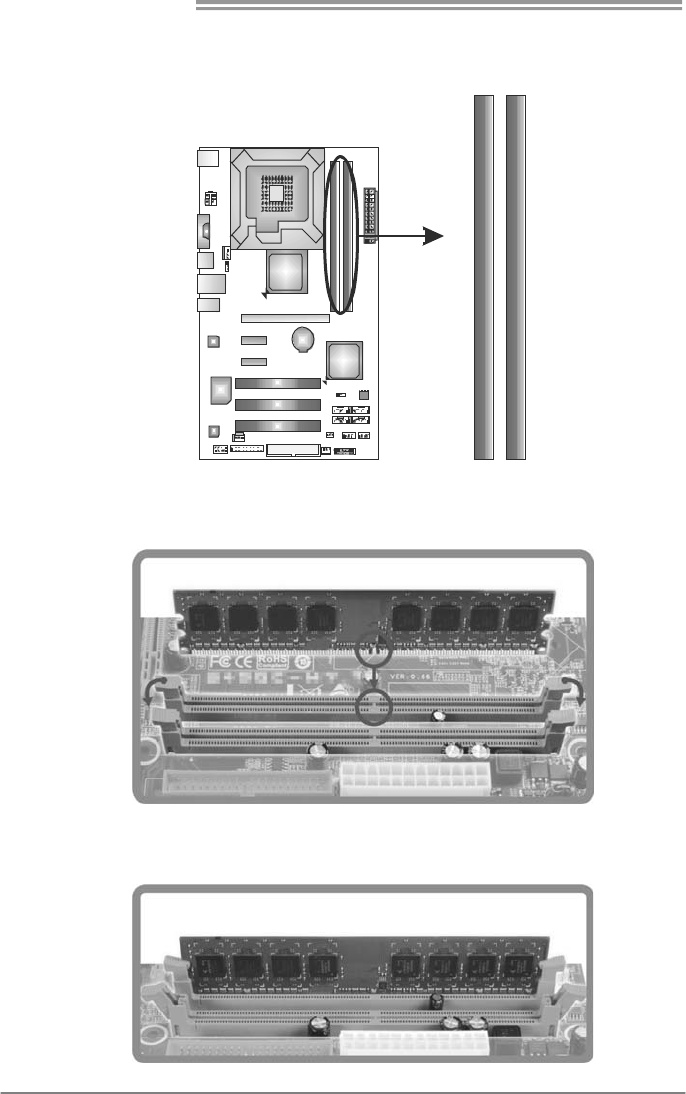

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.

P43D3

9

B. Memory Capacity

DIMM Socket

Location DDR3 Module Total Memory

Size

DDR3_A1 256MB/512MB/1GB/2GB

DDR3_B1 256MB/512MB/1GB/2GB

Max is 4GB.

C. Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR3_A1 DDR3_B1

Disabled O X

Disabled X O

Enabled O O

(O means memory installed; X, not installed.)

The DRAM bus width of the memory module must be the same(x8 or

x16)

Motherboard Manual

10

2.4 CONNECTORS AND SLOTS

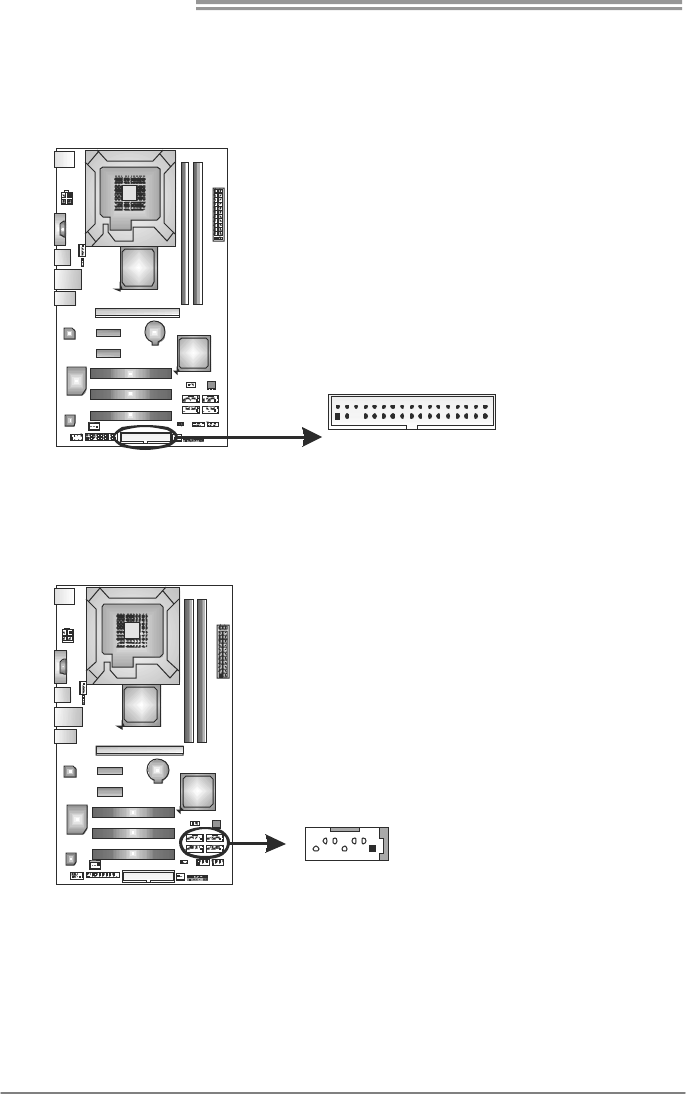

FDD1: Floppy Disk Connector

The motherboard provides a standard floppy disk connector that supports 360K,

720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the

provided floppy drive ribbon cables.

133

234

SATA1~SATA4: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 4channels SATA interface, it

satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

147

SATA4 SATA2

SATA3 SATA1

7 Ground

P43D3

11

ATXPWR1: AT X Power Source Connector

This connector is for 24-pin power connector on the ATX power supply.

1

12

13

24

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 Ground 3 Ground

16 PS_ON 4 +5V

17 Ground 5 Ground

18 Ground 6 +5V

19 Ground 7 Ground

20 NC 8 PW_OK

21 +5V 9 Standby Voltage+5V

22 +5V 10 +12V

23 +5V 11 +12V

24 Ground 12 +3.3V

ATXPWR2: AT X Power Source Connector

Connecting this connector provides +12V to CPU power circuit.

Pin

Assignment

1 +12V

2 +12V

3 Ground

12

34

4 Ground

Note:

Before you power on the system, please make sure that both ATXPWR1 and ATXPWR2

connectors have been plugged-in.

Motherboard Manual

12

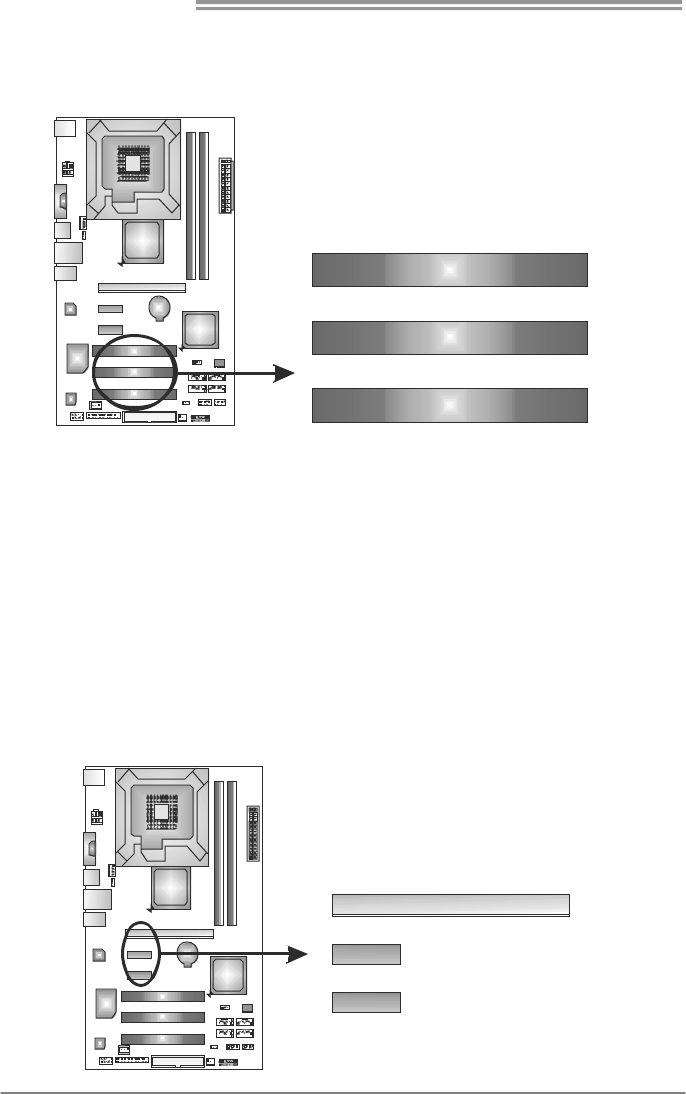

PCI1~PCI3: Peripheral Component Interconnect Slots

This motherboard is equipped with 2 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for expansion

cards. This PCI slot is designated as 32 bits.

PCI1

PCI2

PCI3

PEX16_1: PCI-Express Gen2 x16 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 8GB/s simultaneously per

direction, for an aggregate of 16GB/s totally.

- PCI-Express Gen2 supports a raw bit-rate of 5.0Gb/s on the data pins.

- 2X bandwidth over the PCI-Express 1.1 architecture.

PEX1_1/PEX1_2: PCI-Express x1 Slot

- PCI-Express 1.1 compliant.

- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.

- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.

- 2X bandwidth over the PCI architecture.

PEX16_1

PEX1_2

PEX1_1

P43D3

13

CHAPTER 3: HEADERS & JUMPERS SETUP

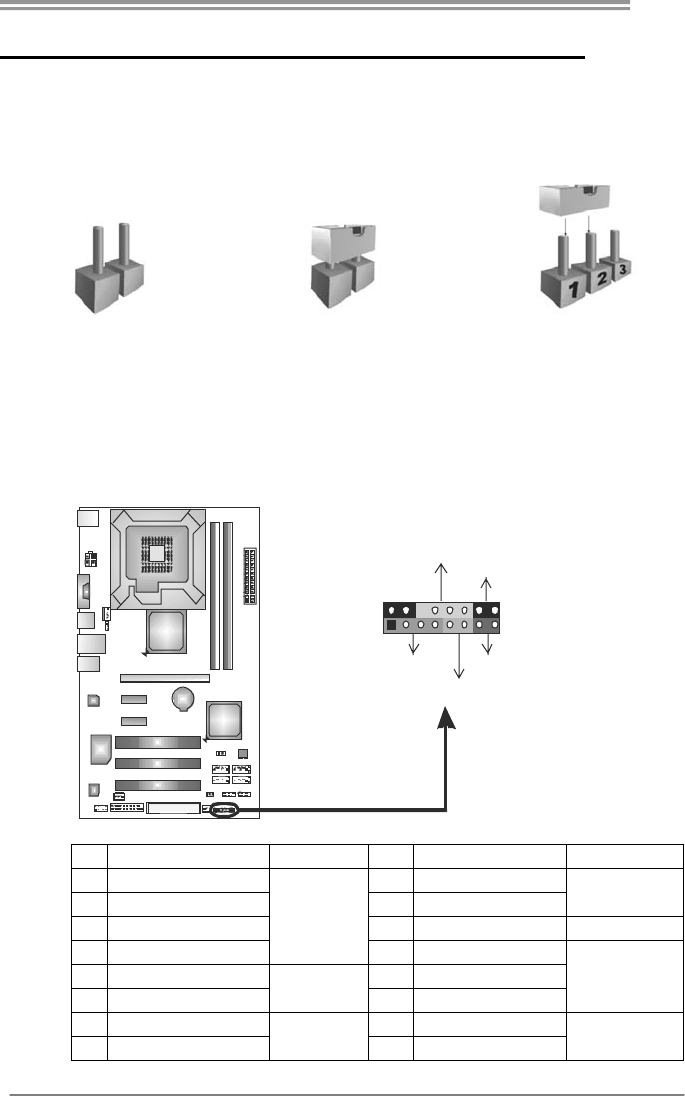

3.1 HOW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is

placed on pins, the jumper is “close”, if not, that means the jumper is

“open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

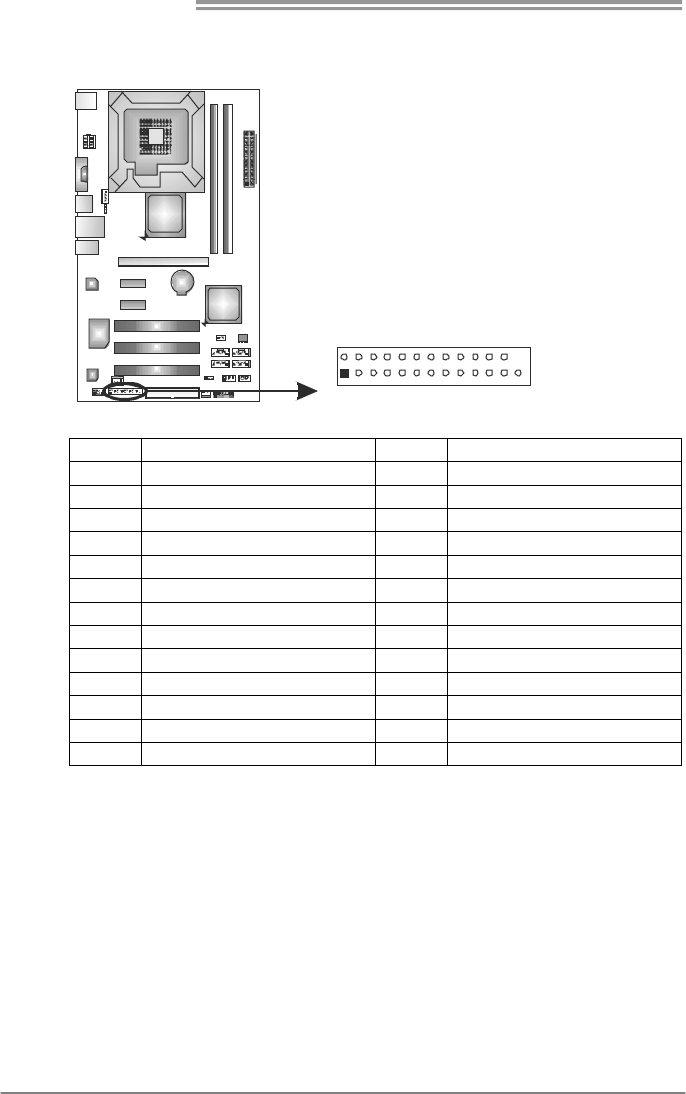

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and

speaker connection. It allows user to connect the PC case’s front panel switch

functions.

POW_LED

On/Off

RS T

HLED

SPK

++

+

-

-

1

9

8

16

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A

2 N/A 10 N/A N/A

3 N/A 1 1 N/A N/A

4 Speaker

Speaker

Connector

12 Power LED (+)

5 HDD LED (+) 13 Power LED (+)

6 HDD LED (-)

Hard drive

LED 14 Power LED (-)

Power LED

7 Ground 15 Power button

8 Reset control Reset button 16 Ground Power-on button

Motherboard Manual

14

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

This motherboard provides 2 USB 2.0 headers, which allows user to connect

additional USB cable on the PC front panel, and also can be connected with

internal USB devices, like USB card reader.

Pin

Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

19

210

F_USB2 F_USB1

10 NC

JUSBV1/JUSBV2: Power Source Headers for USB Ports

Pin 1-2 Close:

JUSBV1: +5V for USB ports at USB1/RJ45USB1.

JUSBV2: +5V for USB ports at F_USB1/F_USB2.

Pin 2-3 Close:

JUSBV1: +5V STB for USB ports at USB1/RJ45USB1.

JUSBV2: +5V STB for USB ports at F_USB1/F_USB2.

13

Pin 1-2 close

3

1

JUSBV1

JUSBV2

13

13

Pin 2-3 close

P43D3

15

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front

panel. This header allows only HD audio front panel connector, not AC’97.

Pin Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

10 Jack Sense

19

210

JSPDIFOUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Pin

Assignment

1 +5V

2 SPDIF_OUT

13

3 Ground

Motherboard Manual

16

J_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

1

2

25

26

Pin Assignment Pin Assignment

1 -Strobe 14 Ground

2 -ALF 15 Data 6

3 Data 0 16 Ground

4 -Error 17 Data 7

5 Data 1 18 Ground

6 -Init 19 -ACK

7 Data 2 20 Ground

8 -Scltin 21 Busy

9 Data 3 22 Ground

10 Ground 23 PE

11 Data 4 24 Ground

12 Ground 25 SCLT

13 Data 5 26 Key

P43D3

17

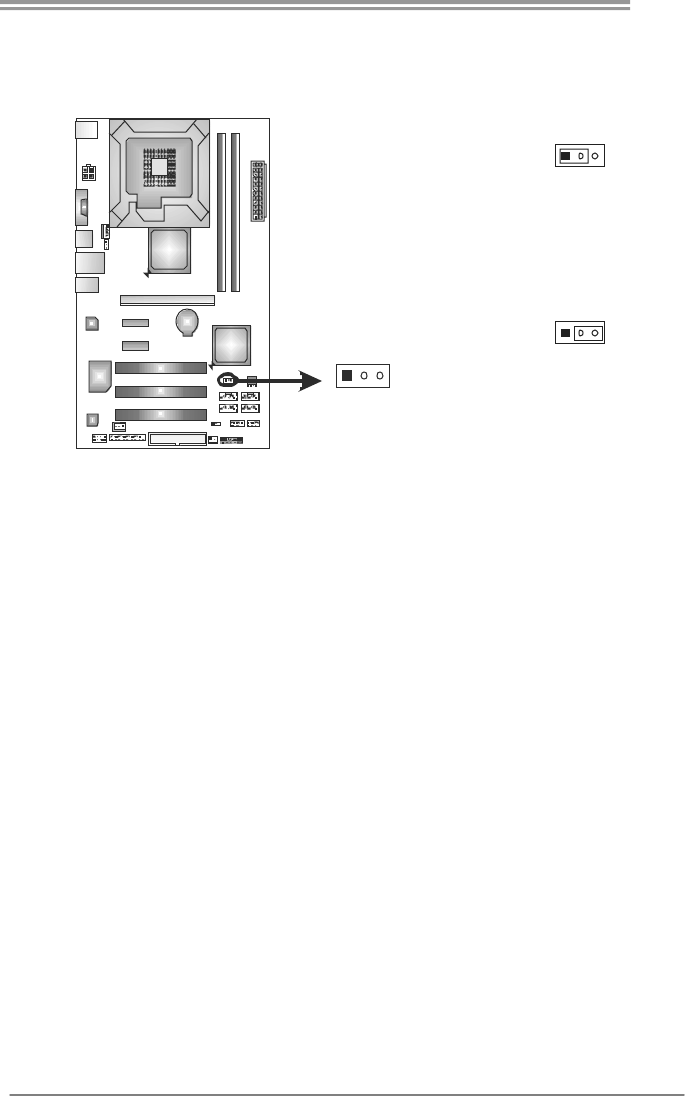

JCMOS1: Clear CMOS Header

Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and

the CMOS data. Please carefully follow the procedures to avoid damaging the

motherboard.

13

Pin 1-2 Close:

Normal Operation

(Default).

13

13

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

Motherboard Manual

18

CHAPTER 4: USEFUL HELP

4.1 DRIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup

Driver CD into your optical drive and install the driver for better system

performance.

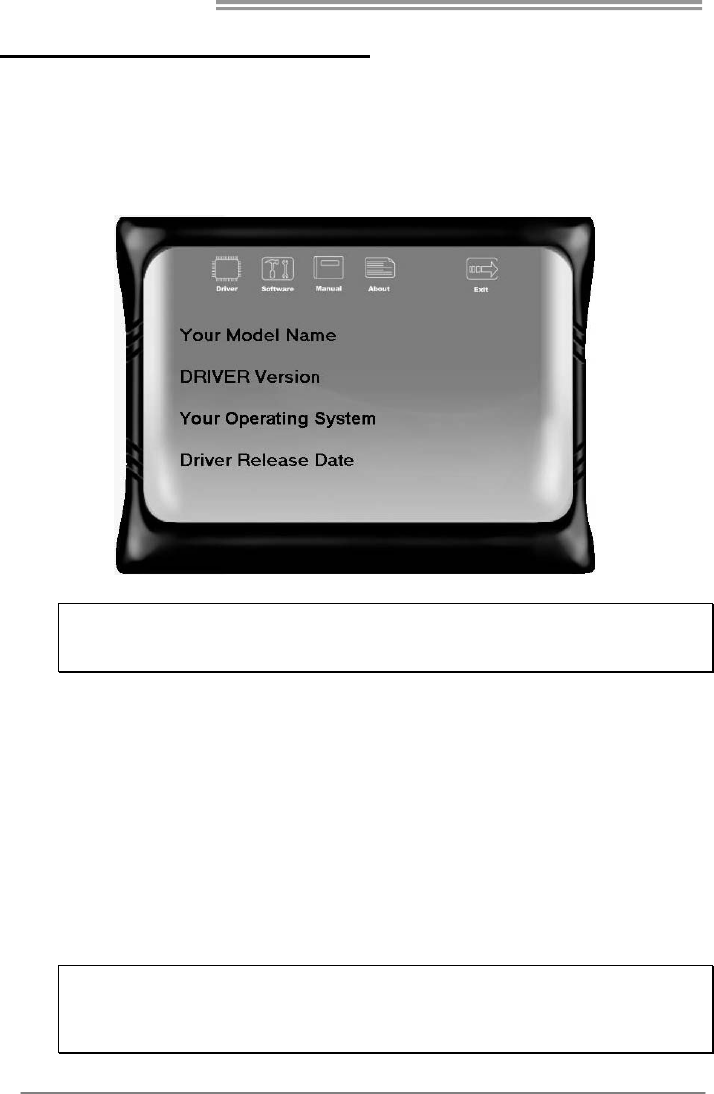

You will see the following window after you insert the CD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver CD, please use file browser to

locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will

list the compatible driver for your motherboard and operating system.

Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide

will list the software available for your system, click on each software title

to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver

CD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version

of Acrobat Reader software from

http://www.adobe.com/products/acrobat/readstep2.html

P43D3

19

4.2 SOFTWARE

Installing Software

1. Insert the Setup CD to the optical drive. The drivers installation program

would appear if the Autorun function has been enabled.

2. Select Software Installation, and then click on the respective software

title.

3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process, you will see the software icon “eHOT Line” /

“BIOS Update” appears on the desktop. Double-click the icon to launch the

utility.

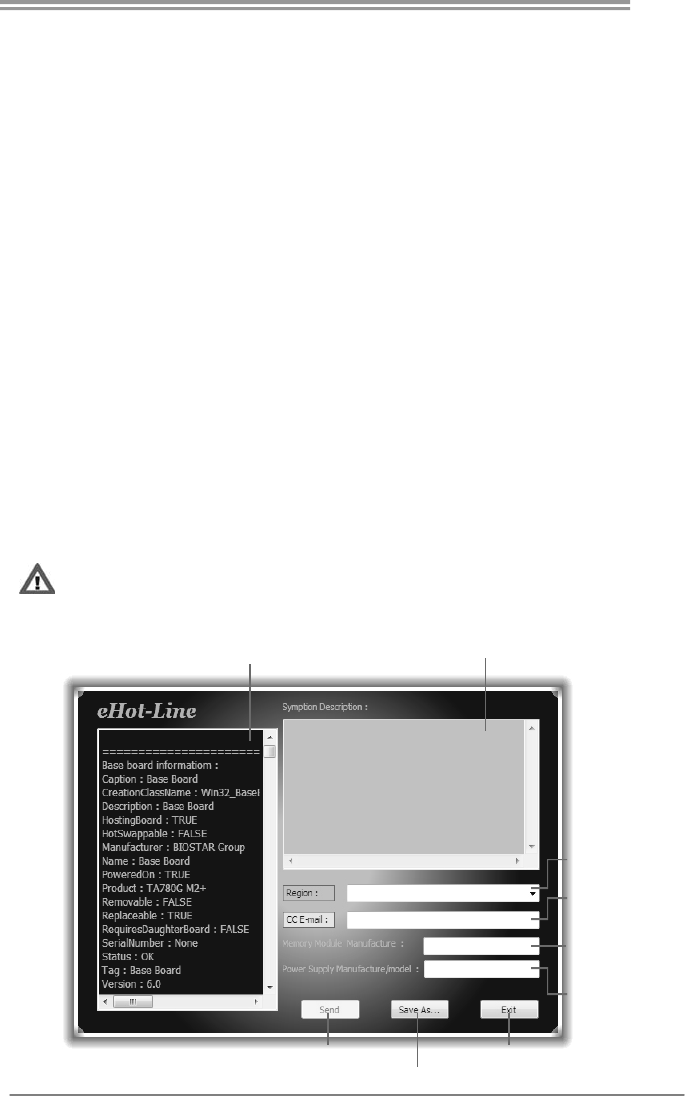

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our

Tech-Support system. This utility will collect the system information which is

useful for analyzing the problem you may have encountered, and then send

these information to our tech-support department to help you fix the problem.

Before you use this utility, please set Outlook Express as your default e-mail client application program.

This block will show

the information which

would be collected in

the mail.

Provide the e-mail

address that you would

like to send the copy to.

Provide the name of

the po wer su ppl y

manufacturer and the

model no.

Send t he mail out.

Save these in for ma tion to a .txt fil

e

Exi t this dialog.

Select your area or

the area close to you.

*

Pr ov id e t h e name of

the memory module

manufacturer.

*

Describe condition

of your system.

*

*

repr es en t s impor t ant

information that you

must provide. Without

this information, you may

not be able to send out

the mail.

Motherboard Manual

20

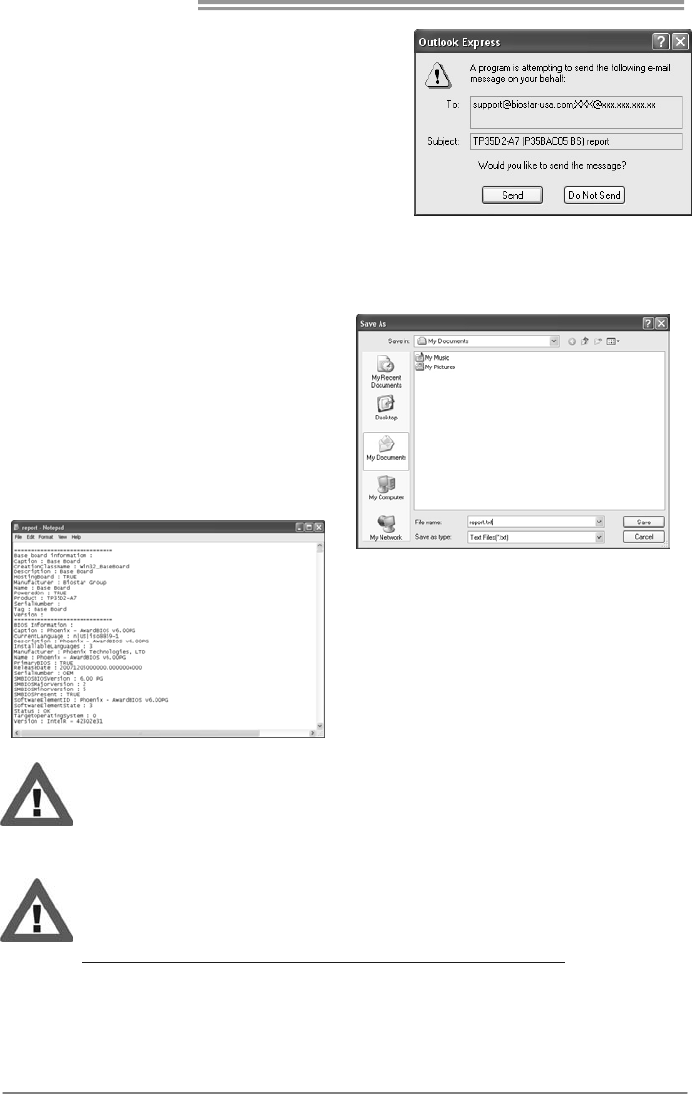

After filling up this information, click “Send”

to send the mail out. A warning dialog would

appear asking for your confirmation; click

“Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you

will see a saving dialog appears asking you to enter file name.

Enter the file name and then click

“Save”. Your system information

will be saved to a .txt file.

Open the saved .txt file, you will see

your system information including

motherboard/BIOS/CPU/video/

device/OS information. This

information is also concluded in the

sent mail.

We will not share customer’s data with any other third parties,

so please feel free to provide your system information while using

eHot-Line service.

If you are not using Outlook Express as your default e-mail client

application, you may need to save the system information to a .txt file

and send the file to our tech support with other e-mail application.

Go to the following web

http://www.biostar.com.tw/app/en-us/about/contact.php for getting

our contact information.

P43D3

21

BIOS Update

BIOS Update is a convenient utility which allows you to update your

motherboard BIOS under Windows system.

Update BIOS

with a BIOS file

Clear CMOS function

(Only for AWARD BIOS)

Show current BIOS information

Save current BIOS

to a .bin file

AWARD BIOS AMI BIOS

<Backup BIOS>

Once click on this button, the saving

dialog will show. Choose the

position to save file and enter file

name. (We recommend that the file

name should be English/number

and no longer than 7 characters.)

Then click Save.

Motherboard Manual

22

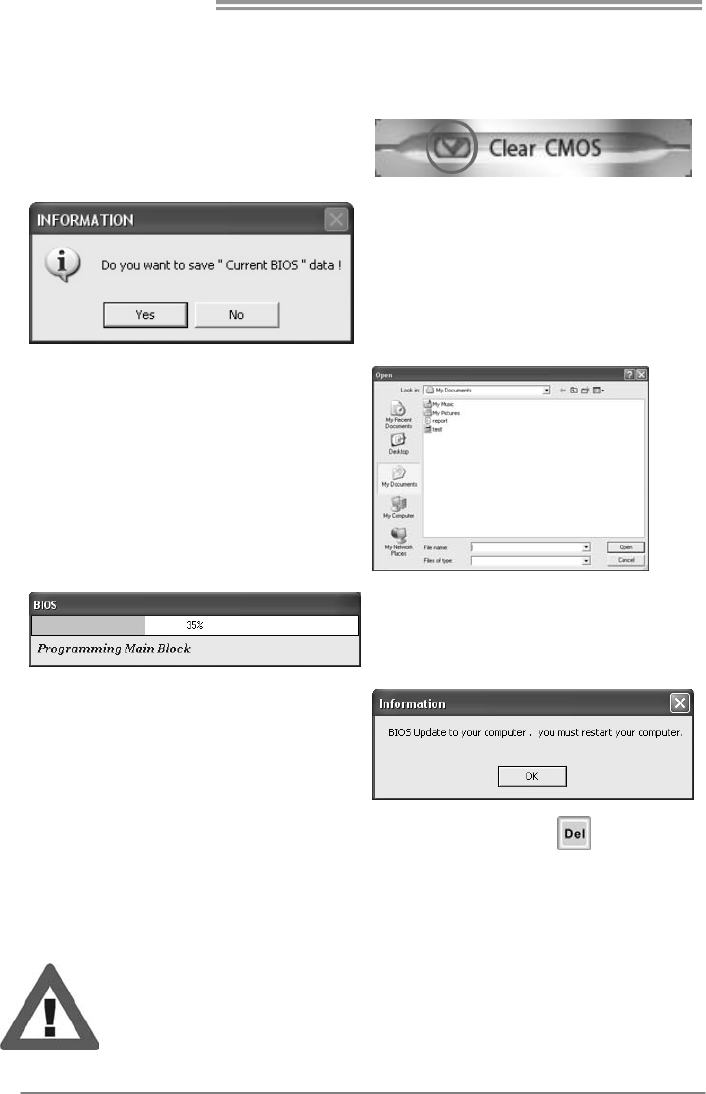

<Update BIOS>

Before doing this, please download the proper BIOS file from the website.

For AWARD BIOS, update BIOS procedure

should be run with Clear CMOS function, so

please check on Clear CMOS first.

Then click Update BIOS button, a

dialog will show for asking you backup

current BIOS. Click Yes for BIOS

backup and refer to the Backup BIOS

procedure; or click No to skip this

procedure.

After the BIOS Backup procedure, the

open dialog will show for requesting the

BIOS file which is going to be updated.

Please choose the proper BIOS file for

updating, then click on Open.

The utility will update BIOS with the

proper BIOS file, and this process may

take minutes. Please do not open any

other applications during this process.

After the BIOS Update process, click on

OK to restart the system.

While the system boots up and the full screen logo shows, press <Delete>

key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and

Exit Setup to exit BIOS setup. BIOS Update is completed.

All the information and content above about the software are subject to be changed

without notice. For better performance, the software is being continuously updated.

The information and pictures described above are for your reference only. The actual

information and settings on board may be slightly different from this manual.

P43D3

23

4.3 EXTRA INFORMATION

CPU Overheated

If the system shutdown automatically after power on system for

seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdow n

automatically to avoid a damage of the CPU, and the system may not

power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection

function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.

(See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

Motherboard Manual

24

BIO-Flasher

BIO-Flasher is a BIOS flashing utility providing you an easy and simple way to

update your BIOS via USB pen drive or floppy disk.

The BIO-Flasher is built in the BIOS chip. To enter the utility, press <F12>

during the Power-On Self Tests (POST) procedure while booting up.

Updating BIOS with BIO-Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, save the BIOS file into a USB pen drive or a floppy disk.

3. Insert the USB pen drive or the floppy disk that contains the BIOS file to the

USB port or the floppy disk drive.

4. Power on or reset the computer and then

press <F12> during the POST process.

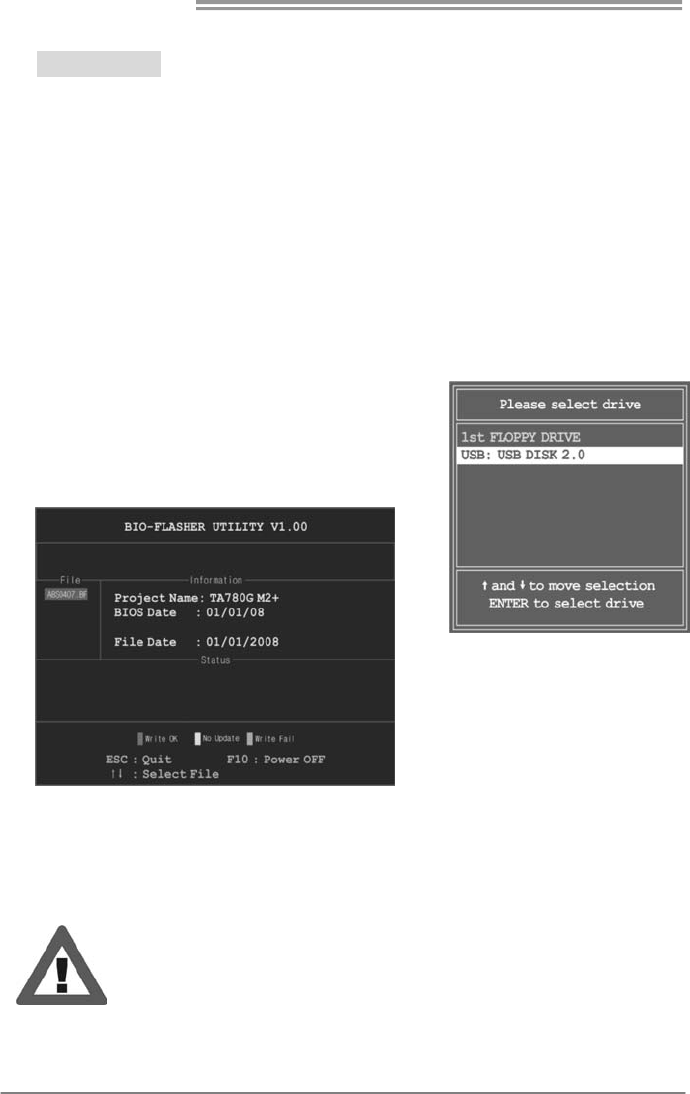

A select dialog as the picture on the right

appears.

Select the device contains the BIOS file and

press <Enter> to enter the utility.

5. The utility will show the BIOS

files and their respective

information. Select the proper

BIOS file and press <Enter>

then <Y> to perform the BIOS

update process.

6. After the update process, the utility will ask you to reboot the system.

Press <Y> to proceed. BIOS update completes.

z This utility only allows storage device with FAT32/16 format and single

partition.

z Shutting down or resetting the system while updating the BIOS will lead to

system boot failure.

P43D3

25

4.4 AMI BIOS BEEP CODE

Boot Block Beep Codes

Number of Beeps Description

1 No media present. (Insert diskette in floppy drive A:)

2 “AMIBOOT.ROM” file not found in root directory of diskette in

A:

3 Insert next diskette if multiple diskettes are used for recovery

4 Flash Programming successful

5 File read error

7 No Flash EPROM detected

10 Flash Erase error

11 Flash Program error

12 “AMIBOOT.ROM” file size error

13 BIOS ROM image mismatch (file layout does not match

image present in flash device)

POST BIOS Beep Codes

Number of Beeps Description

1 Memory refresh timer error

3 Base memory read/write test error

6 Keyboard controller BAT command failed

7 General exception error (processor exception interrupt error)

8 Display memory error (system video adapter)

Troubleshooting POST BIOS Beep Codes

Number of Beeps Troubleshooting Action

1, 3 Reseat the memory, or replace with known good modules.

6, 7

Fatal error indicating a serious problem with the system.

Consult your system manufacturer. Before declaring the

motherboard beyond all hope, eliminate the possibility of

interference by a malfunctioning add-in card. Remove all

expansion cards except the video adapter.

z If beep codes are generated when all other expansion

cards are absent, consult your system manufacturer’s

technical support.

z If beep codes are not generated when all other expansion

cards are absent, one of the add-in cards is causing the

malfunction. Insert the cards back into the system one at a

time until the problem happens again. This will reveal the

malfunctioning card.

8

If the system video adapter is an add-in card, replace or

reseat the

video adapter. If the video adapter is an integrated part of the

system board, the board may be faulty.

Motherboard Manual

26

4.5 TROUBLESHOOTING

Probable Solution

1. There is no power in the system.

Power LED does not shine; the

fan of the power supply does not

work

2. Indicator light on keyboard does

not shine.

1. Make sure power cable is

securely plugged in.

2. Replace cable.

3. Contact technical support.

System is inoperative. Keyboard lights

are on, power indicator lights are lit,

and hard drives are running.

Using even pressure on both ends of

the DIMM, press down firmly until the

module snaps into place.

System does not boot from a hard disk

drive, but can be booted from optical

drive.

1. Check cable running from disk to

disk controller board. Make sure

both ends are securely plugged

in; check the drive type in the

standard CMOS setup.

2. Backing up the hard drive is

extremely important. All hard

disks are capable of breaking

down at any time.

System only boots from an optical

drive. Hard disks can be read,

applications can be used, but system

fails to boot from a hard disk.

1. Back up data and applications

files.

2. Reformat the hard drive.

Re-install applications and data

using backup disks.

Screen message shows “Invalid

Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure

correct information is in setup.

System cannot boot after user installs a

second hard drive.

1. Set master/slave jumpers

correctly.

2. Run SETUP program and select

correct drive types. Call the drive

manufacturers for compatibility

with other drives.

P43D3

27

This page is intentionally left blank.

Motherboard Manual

28

APPENDIX: SPEC IN OTHER LANGUAGES

GERMAN

Spezifikationen

CPU

LGA 775

Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Du al-Core /

Celeron 4xx Prozessoren

(Maximales Watt: 125W)

Unterstützt Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el Architecture-64 /

Extended Memory 64 Technology / Virtualization

Technology

FSB 800 / 1066 / 1333 / 1600 MHz (OC) MHz

Chipsatz

Intel P43

Intel ICH1 0

Super E/A

ITE 8718F

Bietet die häufig verwendeten alten Sup er

E/A-Funktionen.

Low Pin Count-Schnittstelle

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzahl-Controller/-Überwachung

"Smart Guardian"-Funktion von ITE

Arbeitsspeich

er

DDR3 DIMM-Steckplätze x 2

Jeder DIMM unterstützt 512MB / 1GB / 2GB

DDR3.

Max. 4GB Arbeitsspeicher

Dual-Kanal DDR3 Speichermodul

Unterstützt DDR3 1333(OC) / 1066 / 800

registrierte DIMMs. ECC DIMMs werden nicht

unterstützt.

(CPU mit 800 MHz FSB unterstützt nur DDR3-800)

SATA Integrierter Serial ATA-Controller

Datentransferrate bis zu 3.0Gb/s

Konform mit der SATA-Spezifikation Version 2.0.

LAN Realtek RTL8111DL

10 / 100 / 1000 Mb/s Auto-Negotiation

Halb-/ Vollduplex-Funktion

HD

Audio-Unters

tützung

ALC662

Unterstützt High-Definition Audio

5.1-Kanal-Audioausgabe

PCI Express Gen2 x16 Steckplatz x1

PCI Express x1 Steckplatz x2

Steckplätze

PCI Steckplatz x3

P43D3

29

Spezifikationen

Diskettenlaufwerkanschluss x1 Jeder Anschluss unterstützt 1 Diskettenlaufwerke

Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss

SATA-Anschluss x4 Jeder Anschluss unterstützt 1 SATA-Laufwerk

Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen

Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion

S/PDIF- Ausgangsanschluss x1 Unterstützt die digitale Audioausgabefunktion

CPU-Lüfter-Sockel x1

CPU-Lüfterstromversorgungsanschluss (mit Smart

Fan-Fun ktion )

System-Lüfter-Sockel x1 System-Lüfter-Stromversorgungsanschluss

"CMOS löschen"-Sockel x1

USB-Anschluss x2

Jeder Anschluss unterstützt 2

Fronttafel-USB-Anschlüsse

Stromanschluss (24-polig) x1

Onboard-Ans

chluss

Stromansch luss (4-polig ) x1

Rückseiten-E

/A

PS/2-Tastatur x1

PS/2- Maus x1

Serieller Anschluss x1

LAN-Anschluss x1

USB-Anschluss x4

Audioanschluss x3

Platinengröße

182mm (B) X 295 mm (L)

OS-Unterstüt

zung

Windows 2000 / XP / Vista 32 / Vista 64 / 7

Biostar behält sich das Recht vor, ohne Ankündigung

die Unterstützung für ein Betriebssystem

hinzuzufügen oder zu entfernen.

Motherboard Manual

30

FRENCH

SPEC

UC

LGA 775

Processeurs Intel Core2Duo / Core2Quad

/ Pent ium Dual-Core / Celeron Dual-Core /

Celeron 4xx

(Watt maximum : 125W)

Prend en charge les technologies Hyper-Threading /

d'exécut ion de bit de d ésactivat ion / Intel SpeedStep®

optimisée/ d' ar ch ite cture Int el 64 / de mémo ir e

étendue 64 / de virtualisat ion

Bus frontal 800 / 1066 / 1333 / 1600 MHz (OC) MHz

Chipset

Intel P43

Intel ICH1 0

Super E/S

ITE 8718F

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à faib le co mpte de b roches

Initiatives de contrôle environnementales,

Moniteur d e mat ér iel

Contrôleur /moniteur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

Mémoire

principale

Fentes DDR3 DIMM x 2

Chaque DIMM p rend en charge des DDR3

de 512Mo / 1Go / 2Go

Capacité mémo ire max imale de 4Go

Module de mémo ire DDR3 à mod e à double vo ie

Prend en charge la DDR3 1333(OC) / 1066 / 800

Les DIMM à registres et DIMM avec code correcteurs

d'erreurs ne sont pas prises en charge

(UC avec FSB 800 MHz ne prend en charge que DDR3

800)

SATA

Contrôleur Serial ATA

int égré

Taux de transfert jusqu'à 3.0Go/s.

Conforme à la spécificat ion SATA Vers ion 2.0

LAN Realtek RTL8111DL

10 / 100 / 1000 Mb/s négociation automatique

Half / Full duplex capability

Prise en

charge

audio HD

ALC662

Prise en charg e de l'audio haut e définition

Sortie audio à 5.1 vo ies

Fente PCI Express Gen2 x16 x1

Fente PCI Express x1 x2

Fentes

Fente PCI x3

P43D3

31

SPEC

Connecteur de disquette x1

Chaque connector prend en charge 1 lecteurs de

disquette

Connecteur de Port d'imprimante x1 Chaque connector prend en charge 1 Port d'imprimante

Connecteur SATA x4

Chaque connecteur prend en charge 1 périphérique

SATA

Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant

Connecteur Audio du panneau avant x1 Prend en charge la fonction audio du panneau avant

Connecteur de sortie S/PDIF x1 Prend en charge la fonction de sortie audio numérique

Embase de ventilateur UC x1

Alimentation électrique du ventilateur UC (avec fonction

de ventilateur intelligent)

Embase de ventilateur système x1 Alimentation électrique du ventilateur système

Embase d'effacement CMOS x1

Connecteur USB x2

Chaque connecteur prend en charge 2 ports USB de

panneau avant

Connecteur d'aliment ation x1

(24 broches)

Connecteur

embarqué

Connecteur d'aliment ation x1

(4 broches)

E/S du

panneau

arrière

Clavier PS/2 x1

Souris PS/2 x1

Port série x1

Port LAN x1

Port USB x4

Fiche audio x3

Dimensions

de la carte 182mm (l) X 295 mm (H)

Support SE Windows 2000 / XP / Vista 32 / Vista 64 / 7

Biostar se réserve le droit d'ajouter ou de supprimer le

support de SE avec ou sans préavis.

Motherboard Manual

32

ITALIAN

SPECIFICA

CPU

LGA 775

Processore Intel Core2Duo /

Core2Quad / Pentium Dual-Core /

Celeron Dual-Core / Celeron 4xx

(Watt massimo: 125W)

Supporto di Hyper-Threading / Execute Disable

Bit / Enhanced Intel SpeedStep® / Architettura

Intel 64 / Tecnologia Extended Memory 64 /

Tecnologia Virtualization

FSB 800 / 1066 / 1333 / 1600 MHz (OC) MHz

Chipset

Intel P43

Intel ICH1 0

Super I/O

ITE 8718F

Fornisce le funzionalità legacy Super

I/O usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Controller / Monitoraggio velocità ventolina

Funzione "Smart Guardian" di ITE

Memoria

principale

Alloggi DIMM DDR3 x 2

Ciascun DIMM supporta DDR3 512MB

/ 1GB / 2GB

Capacità massima della memoria 4GB

Modulo di memoria DDR3 a canale doppio

Supporto di DDR3 1333(OC) / 1066 / 800

DIMM registrati e DIMM ECC non sono supportati

(CPU con FSB a 800 MHz supporta solo DDR3 800)

SATA Controller Ser ial ATA integrato

Velocità di trasferimento dei dati fino a 3.0Gb/s.

Compatibile specifiche SATA Versione 2.0.

LAN Realtek RTL8111DL

Negoziazione automatica 10 / 100 / 1000 Mb/s

Capacità Half / Full Duplex

Supporto

audio HD ALC662

Supporto audio High-Definition (HD)

Uscita audio 5.1 canali

Alloggio PCI Express Gen2 x16 x1

Alloggio PCI Express x1 x2

Alloggi

Alloggio PC I x3

P43D3

33

SPECIFICA

Connettore floppy x1 Ciascun connettore supporta 1 unità Floppy

Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante

Connettore SATA x4 Ciascun connettore supporta 1 unità SATA

Connettore pannello frontale x1 Supporta i servizi del pannello frontale

Connettore audio frontale x1 Supporta la funzione audio pannello frontale

Connettore output SPDIF x1 Supporta la funzione d’output audio digitale

Collettore ventolina C PU x1

Alimentazione ventolina CPU (con funzione Smart

Fan)

Collettore ventolina sistema x1 Alimentazione ventolina d i sis tema

Collettore cancellaz ione CMOS x 1

Connettore USB x2

Ciascun connettore supporta 2 porte USB

pannello frontale

Connettore alimentazione x1

(24 pin)

Connettori

su scheda

Connettore alimentazione x1

(4 pin)

I/O

pannello

posteriore

Tas t iera PS/2 x 1

Mouse PS/2 x1

Porta seriale x1

Porta LAN x1

Porta USB x4

Connettore audio x3

Dimension

i scheda

182mm (larghezza) x 295 mm

(altezza)

Sistemi

operativi

supportati

Windows 2000 / XP / Vista 32 / Vista

64 / 7

Biostar si riserva il diritto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

Motherboard Manual

34

SPANISH

Especificación

CPU

LGA 775

Procesador Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Du al-Core /

Celeron 4xx

(Vatio máximo: 125W)

Admite Hyper-Threading / Bit de deshabilitación de

ejecución / Intel SpeedStep® Mejorado / Intel

Architecture-64 / Tecnología Extended Memory 64 /

Tecnología de virtualización

FSB 800 / 1066 / 1333 / 1600 MHz (OC) MHz

Conjunto de

chips

Intel P43

Intel ICH1 0

Súper E/S

ITE 8718F

Le ofrece las funcionalidades heredadas de

uso más común Súper E/S.

Interfaz de cuenta Low Pin

In iciat iv as de control d e entorno,

Monitor hardware

Controlador/monitor de velocidad de ventilador

Función "Guardia inteligente" de ITE

Memoria

principal

Ranuras DIMM DDR3 x 2

Cada DIMM admite DDR de 512MB / 1GB /

2GB

Capacidad máxima de memoria de 4GB

Módulo de memoria DDR3 de canal Doble

Admite DDR3 de 1333(OC) / 1066 / 800

No admite DIMM registrados o DIMM compatibles con

ECC (CPU con FSB de 800 MHz sólo soporta DDR3 800)

SATA Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3.0 Gb/s.

Compat ib le con la versión SATA 2.0.

Red Local Realtek RTL8111DL

Negociación de 10 / 100 / 1000 Mb/s

Funciones Half / Full dúplex

Soporte de

sonido HD ALC662

Soporte de sonido de Alta Definición

Salida de sonido de 5.1 canales

Ranura PCI Express Gen2 x16 X1

Ranura PCI express x1 X2

Ranuras

Ranura PCI X3

P43D3

35

Especificación

Conector disco flexible X1 Cada conector soporta 1 unidade de disco flexible

Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora

Conector SATA X4 Cada conector soporta 1 dispositivos SATA

Conector de p anel f rontal X1 Soporta instalac iones en el p anel frontal

Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal

Conector de salida S/PDIF X1 Soporta función de salida de sonido digital

Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con

función Smart Fan)

Cabecera de ventilador de sistema X1 Fuente de alimentación de ventilador de sistema

Cabecera de borrado de CMOS X1

Conector USB X2 Cada conector soporta 2 puertos USB frontales

Conector de alimentación X1

(24 patillas)

Conectores

en placa

Conector de alimentación X1

(4 patillas)

Panel

trasero de

E/S

Tec l ad o PS /2 X 1

Ratón PS/2 X1

Puerto serie X1

Puerto de red local X1

Puerto USB X4

Conector de sonido X3

Ta maño d e

la placa

182mm. (A) X 295 Mm. (H)

Soporte de

sistema

operativo

Windows 2000 / XP / Vista 32 / Vista 64 / 7

Biostar se reserva el derecho de añadir o retirar el

soporte de cualquier SO con o sin aviso previo.

Motherboard Manual

36

PORTUGUESE

ESPECIFICAÇÕES

CPU

LGA 775

Processador Intel Core2Duo / Core2Quad

/ Pent ium Dual-Core / Celeron Dual-Core /

Celeron 4xx

(Watt máximo: 125W)

Suporta as tecno logias Hyper-Thread ing / Execut e

Disable B it / Enhanced Intel SpeedStep® / Int el

Arquitecture -64 / Extended Memory 64 / Virtualization

FSB 800 / 1066 / 1333 / 1600 MHz (OC) MHz

Chipset Intel P43

Intel ICH1 0

Especificaçã

o Super I/O

ITE 8718F

Proporciona as funcionalidades mais

utilizadas em termos da especificação

Super I/O.

Interface LPC (Low Pin Count).

In iciat iv as par a contro lo do amb iente

Monitorização do hardware

Controlador/Monitor da velocidade da ventoinha

Função "S mart Guardian" da ITE

Memória

principal

Ranhuras DIMM DDR3 x 2

Cada módulo DIMM suporta uma

memória DDR3 de 512 MB / 1GB / 2GB

Capacidade máx ima d e memória:4GB

Módulo de memória DDR3 de canal duplo

Suporta módulos DDR3 1333(OC) / 1066 / 800

Os módulos DIMM registados e os DIMM ECC não são

suportados

(CPU com FSB 800 MHz só suporta DDR3 800)

SATA Controlador Serial ATA integrado

Velocidades de transmissão de dados até 3.0 Gb/s.

Compat ibilidade co m a especificação SATA versão 2.0.

LAN Realtek RTL8111DL

Auto negociação de 10 / 100 / 1000 Mb/s

Capacidade semi/full-duplex

Suporte

para áudio

de alta

definição

ALC662

Suporta a especificação High-Definition Audio

Saída de áudio de 5.1 canais

Ranhura PCI Express Gen2 x16 x1

Ranhura PCI Express x1 x2

Ranhuras

Ranhura PCI x3

P43D3

37

ESPECIFICAÇÕES

Conector da unidade de disquetes x1 Cada conector suporta 1 unidade de disquete

Conector da para impressora x1 Cada conector suporta 1 Porta para impressora

Conector SATA x4 Cada conector suporta 1 dispositivo SATA

Conector do painel frontal x1 Para suporte de várias funções no painel frontal

Conector de áud io frontal x1 Suporta a função de áud io no painel frontal

Conector de saída S/PDIF x1 Suporta a saída de áudio d igital

Conector da ventoinha da CPU x1

Aliment ação da ventoinha da CPU (co m a fun ção Smart

Fan )

Conector da ventoinha do s istema x1 Alimentação da ventoinha do sistema

Conector para limpeza do CMOS x1

Conector USB x2 Cada conector suporta 2 portas USB no painel frontal

Conector de alimentação x1

(24 pinos)

Conectores

na placa

Conector de alimentação x1

(4 p inos)

Entradas/S

aídas no

painel

traseiro

Tec l ad o PS /2 x 1

Rato PS/2 x1

Porta série x1

Porta LAN x1

Porta USB x4

Tomada de áudio x3

Tamanho

da placa 182mm (L) X 295 mm (A)

Sistemas

operativos

suportados

Windows 2000 / XP / Vista 32 / Vista 64 / 7

A Biostar reserva-se o direito de adicionar ou remover

suporte para qualquer sistema operativo com ou sem

av iso prévio.

Motherboard Manual

38

POLISH

SPEC

Procesor

LGA 775

Procesor Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Du al-Core /

Celeron 4xx

(Maksymalny Watt: 125W)

Obsługa Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el Architecture-64 /

Extended Memory 64 Technology / Virtualization

Technology

FSB 800 / 1066 / 1333 / 1600 MHz (OC) MHz

Chipset

Intel P43

Intel ICH1 0

Pamięć

główna

Gniazda DDR3 DIMM x 2

Każde gniazdo DIMM obsługuje moduły

512MB / 1GB / 2GB

Maks. wielkość pamięci 4GB

Moduł pamięci DDR3 z trybem podwójnego kanału

Obsługa DDR3 1333(OC) / 1066 / 800

Brak obsług i Registered D IMM oraz ECC DIMM

(CPU z FSB 800 MHz tylko obsługuje pamięci DDR3 800)

Super I/O

ITE 8718F

Zapewnia najbardziej powszechne funkcje

Super I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Monitor H/W

Kontroler/Monitor prędkości wentylatora

Funkcja ITE "Smart Guard ian"

SATA Zintegrowany kontroler Serial ATA

Transfer danych do 3.0 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0.

LAN Realtek RTL8111DL

10 / 100 / 1000 Mb/s z automatyczną negocjacją

szybkości

Działan ie w tryb ie połowicznego / pełnego dupleksu

Obsługa

audio HD ALC662

Obsługa High-Def inition Aud io

5.1 kanałowe wyjście audio

Gniazdo PCI Express Gen2 x16 x1

Gniazdo PCI Express x1 x2

Gniazda

Gniazdo PCI x3

P43D3

39

SPEC

Złącze napędu dyskietek x1 Każde złącze obs ługuje 1 napędy dyskietek

Złącze Port drukarki x1 Każde złącze obs ługuje 1 Port drukarki

Złącze SATA x4 Każde złącze obs ługuje 1 urządzenie SATA

Złącze panela przedniego x1 Obsługa elementów panela przedniego

Przednie złącze aud io x1 Obsługa funkcji audio na panelu przednim

Złącze wyjścia S/PDIF x1 Obsługa funkcji cyfrowego wyjścia audio

Złącze głó wkowe wentylatora

procesora x1

Zasilanie wentylatora procesora (z funkcją Smart Fan)

Złącze głó wkowe wentylatora

systemowego x1

Zasilanie wentylatora systemowego

Złącze głó wkowe kasowania CMOS x1

Złącze USB x2

Każde złącze obs ługuje 2 porty USB na panelu

przednim

Złącze zasilania (24 pinowe) x1

Złącza

wbudowane

Złącze zas ilania (4 pino we) x1

Back Panel

I/O

Klawiatura PS/2 x1

Mysz PS /2 x1

Port szeregowy x1

Port LAN x1

Port USB x4

Gniazdo audio x3

Wymiary

płyty 182mm (S) X 295 mm (W)

Obsluga

systemu

operacyjne

go

Windows 2000 / XP / Vista 32 / Vista 64 / 7

Biostar zastrzega sobie prawo dodawania lub

odwoływania obsług i dowo ln ego sys temu

operacyjnego bez powiado mien ia.

Motherboard Manual

40

RUSSIAN

СПЕЦ

CPU

(центральн

ый

процессор)

LGA 775

Процессор Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Du al-Core /

Celeron 4xx

(Макс имальн ый ватт: 125W)

Поддержка технологий Hyper-Threading / Execute

Disable B it / Enhanced Intel SpeedStep® / Int el

Architecture-64 / Extended Memory 64 Technology /

технологии виртуализация

FSB 800 / 1066 / 1333 / 1600 (OC) МГц

Набор

микросхем

Intel P43

Intel ICH1 0

Основная

память

Слоты DDR3 DIMM x 2

Каждый модуль DIMM поддерживает

512МБ / 1ГБ / 2ГБ DDR3

Максимальная ёмкость памяти 4ГБ

Модуль памяти с двухканальным режимом DDR3

Поддержка DDR3 1333(OC) / 1066 / 800

Не поддерживает зарегистрированные модули

DIMM and ECC DIMM

(Процессор с ФСБ 800 МГц поддерживает только

DDR3 800)

Super I/O

ITE 8718F

Обеспечивает наиболее используемые

действующие фун кц ио нальны е

возможности Super I/O.

Интерфейс с низким количеством

выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Регул ятор скорости вентилятора/ монитор

Функция ITE "Smart Guard ian" (Интеллектуальная

защита)

SATA Встроенное последовательное

устройство управления ATA

скорость передачи данных до 3.0 гигабит/с.

Соответствие спецификации SATA версия 2.0.

Локальная

сеть Realtek RTL8111DL

Автоматическое согласование 10 / 100 / 1000 Мб/с

Частичная / полная дуплексная способность

Звуко вая

поддержка

жесткого

диска

ALC662

Звуко вая поддержка High-Def in ition

5.1канальный звуковой выход

Слот PCI Express Gen2 x16 x1

Слот PCI Express x1 x2

Слоты

Слот PCI x3

P43D3

41

СПЕЦ

Разъём НГ МД x1

Каждый разъём поддерживает 1 накопителя на

гибких магнитных дисках

Разъём Порт подключения

принтера x1

Каждый разъём поддерживает 1 Порт подключения

принтера

Разъём SATA x4 Каждый разъём поддерживает 1 устройство SATA

Разъём на лицевой панели x1 Поддержка устройств на лицевой панели

Входной звуковой разъём x1 Поддержка звуко вых функций на лицевой панели

Разъём вывода для S/PDIF x1 Поддержка вывода цифровой звуковой фун кц ии

Контактирующее приспособление

вентил ятора центрального процессора

x1

Источник питания для вентилятора центрального

процессора (с фун кц ией интеллектуального

вентил ятора)

Контактирующее приспособление

вентил ятора системы x1

Источник питания для вентилятора системы

Открытое контактир ующее

приспособление CMOS x1

USB-разъём x2

Каждый разъём поддерживает 2 USB-порта на

лицевой панели

Разъем питания (24 вывод) x1

Встроенны

й разъём

Разъем питания (4 вывод) x1

Задняя

панель

средств

ввода-выв

ода

Клавиатура PS/2 x1

Мышь PS/2 x1

Последовательный порт x1

Порт LAN x1

USB-порт x4

Гнездо для подключения

наушников x3

Размер

панели 182мм (Ш) X 295 мм (В)

Поддержка

OS Windows 2000 / XP / Vista 32 / Vista 64 / 7

Biostar сохраняет за собой право добавлять или

удалять средства обеспечения для OS с или без

предварительного уведомления.

Motherboard Manual

42

ARABIC

تﺎﻔﺻاﻮﻤﻟا

تﺎﻴﻨﻘﺗ ﻢﻋﺪﺗHyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el Architecture-64 /

Extended Memory 64 Technology / Virtualization

Technology

LGA 775

تﺎﺠﻟﺎﻌﻣIntel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Du al-Core /

Celeron 4xx ﺑ ددﺮﺘ ی ﻰﻟإ ﻞﺼ

(طاو ىﻮﺼﻗ: 125و)

ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا

ﺔیﺰآﺮﻤﻟا

ددﺮﺗ 800 / 1066 / 1333 / 1600 (OC) ﺰﺗﺮه ﺎﺠﻴﻣ

ﻞﻗﺎﻨﻟا ﻲﻣﺎﻣﻷا ﻲﺒﻥﺎﺠﻟا

Intel P43

Intel ICH1 0

ﺔﻋﻮﻤﺠﻣ ﺢﺋاﺮﺸﻟا

ةﺮآاذ ةﺪﺣوDDR3 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR3 تﺎﻌﺳ 800 / 1066 /1333)OC(ﺖیﺎﺑ ﺎﺠﻴﻣ

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺗ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠﺗو ECC

(800 ﺰﺗﺮهﺎﺠﻴﻣ ﻊﻣ ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا ﺔیﺰآﺮﻤﻟا ﺰﺗﺮﻴهﺎﻐﻴﻣ ﻂﻘﻓ ﻢﻋﺪﺗ

DDR3 800)

ﺔﺤﺘﻓDDR3 DIMM دﺪﻋ2

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺗ DDR3 ﻞآ ﻢﻋﺪﺗ ﺔﻌﺳ

ﺔﺤﺘﻓDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺗ DDR3 ﺔﻌﺳ 512 ﺖیﺎﺑ ﺎﺠﻴﻣ

و1/و 2 ﺎﺠﻴﺝﺖیﺎﺑ

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ4 ﺖیﺎﺑ ﺎﺠﻴﺝ

ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ

ﺔﻔﻴﻇو"Smart Guard ian" ﻦﻣ ITE

ITE 8718F

ﺔﻔﻴﻇو ﺮﻓﻮﺗSuper I/O ًﺎ ﻣ ا ﺪ ﺨ ﺘﺳا ﺮﺜآﻷا .

ﺗﻢﻋﺪ ﺔﻴﻨﻘﺗ Low Pin Count Interface

Super I/O

ﻞﻘﻥ تﺎﻥﺎﻴﺒﻟا تﺎﻋﺮﺴﺑ ﻞﺼﺗ ﻰﻟإ 3.0 ﺖﺑﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.

ﺔﻘﺑﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.

ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ

SATA

ﻲﺋﺎﻘﻠﺗ ضوﺎﻔﺗ10/100 ﺖیﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺖﺑ ﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ

ﻞﻣﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻣإ/ﻲﻔﺼﻨﻟا

Realtek RTL8111DL

ﺔﻜﺒﺷ ﺔﻴﻠﺧاد

ﻘﺗ ﻢﻋﺪﺗ ﻦﻣ ﻒیﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨ

5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

ALC662

ﻢﻋد تﻮﺼﻟا ﻲﻟﺎﻋ

ﻒیﺮﻌﺘﻟا

ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ1

ﺔﺤﺘﻓPCI Express x1 دﺪﻋ2

ﺔﺤﺘﻓPCI ﺪﻋ3

تﺎﺤﺘﻔﻟا

P43D3

43

تﺎﻔﺻاﻮﻤﻟا

ﺔﻥﺮﻤﻟا صاﺮ ﻗﻸﻟ ﻦﻴآﺮﺤﻣ ﻢﻋﺪی

ﺔﻥﺮﻣ صاﺮﻗأ كﺮﺤﻣ ﺬﻔﻨﻣ دﺪﻋ1

ﺑﺎﻃ ﺬﻔﻨﻣﺔﻌ دﺪﻋ1

ةﺰﻬﺝأ ﻦﻣ ﺪﺣاو ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیSATA

ﺬﻔﻨﻣSATA دﺪﻋ4

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪی

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪی

ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﻲﻤﻗﺮﻟا تﻮﺼﻟا جﺮﺥ ﺔﻔﻴﻇو ﻢﻋﺪی

جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1

ﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ ﺔﻔﻴﻇو ﻊﻣ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔSmart Fan

ﺔیﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ

مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1

ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1

ﻲﺘﺤﺘﻓ ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیUSBﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ

ﺬﻔﻨﻣUSB دﺪﻋ2

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)24سﻮﺑد( ع دد1

ﻔﻨﻣ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1

ﺬﻓﺎﻨﻤﻟا ﻰﻠﻋ ﺢﻄﺳ

ﺔﺣﻮﻠﻟا

ﺢﻴﺗﺎﻔﻣ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻣ PS/2 دﺪﻋ1

ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻣ ﺪﻋ1

ﺬﻓﺎﻨﻣUSB دﺪﻋ4

تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3

ﺬﻓﺎﻨﻣ ﻞﺧد/جﺮﺧ

ﺔﺣﻮﻠﻟا ﺔﻴﻔﻠﺨﻟا

182 ﻢﻣ)ضﺮﻋ (X 295 ﻢﻣ)عﺎﻔﺗرا( ﻢﺠﺣ ﺔﺣﻮﻠﻟا

ﻆﻔﺘﺤﺗ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺿإﺔﻓﺎ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻥ ﻞﻴﻐﺸﺗ رﺎﻄﺧﺈﺏ وأ نوﺪﺏ

رﺎﻄﺧإ.

Windows 2000 / XP / Vista 32 / Vista 64 / 7

ﻢﻋد ﺔﻤﻈﻥأ ﻞﻴﻐﺸﺘﻟا

Motherboard Manual

44

JAPANESE

仕様

CPU

LGA 775

Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Du al-Core /

Celeron 4xx processor

(最高のワット: 125W)

Hyper-Threading / Execute Disable Bit / Enhanced Intel

SpeedStep® / Intel Architecture-64 / Extended

Memory 64 Technology / Virtualization Technologyをサ

ポートします

FSB 800 / 1066 / 1333 / 1600 MHz (OC) MHz

チップセット

Intel P43

Intel ICH1 0

メインメモリ

DDR3 DIMMスロット x 2

各DIMMは 512MB / 1GB / 2GB DDR3をサ

ポート

最大メモリ容量4GB

デュアル チャンネルモードDDR3メモリモジュール

DDR3 1333(OC) / 1066 / 800をサポート

登録済みDIMMとECC DIMMはサポートされません

(のCPUのFSBを800 MHzの唯一のDDR3 800をサポートし

ています)

Super I/O

ITE 8718F

もっとも一般に使用されるレガシーSuper I/O

機能を採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITEの「スマートガーディアン」機能

SATA 統合シリアルATA コントローラ 最高3.0 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

LAN Realtek RTL8111DL

10 / 100 / 1000 Mb/秒のオートネゴシエーション

半/全二重機能

HDオーディ

オのサポート

ALC662 ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

PCI Express Gen2 x16スロット x1

PCI Express x1スロット x2

スロット

PCIスロット x3

P43D3

45

仕様

フロッピーコネクタ x1 各コネクタは1つのフロッピードライブをサポートします

プリンタポートコネクタ x1 各コネクタは1つのプリンタポートをサポートします

SATAコネクタ x4 各コネクタは1つのSATAデバイスをサポートします

フロントパネルコネクタ x1 フロントパネル機能をサポートします

フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします

S/PDIFアウトコネクタ x1 デジタルオーディオアウト機能をサポートします

CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)

システムファンヘッダ x1 システムファン電源装置

CMOSクリアヘッダ x1

USBコネクタ x2

各コネクタは2つのフロントパネルUSBポートをサポートし

ます

電源コネクタ(24ピン) x1

オンボードコ

ネクタ

電源コネクタ(4ピン) x1

背面パネル

I/O

PS/2キーボード x1

PS/2マウス x1

シリアルポート x1

LANポート x1

USBポート x4

オーディオジャック x3

ボードサイズ 182mm (幅) X 295 mm (高さ)

OSサポート Windows 2000 / XP / Vista 32 / Vista 64 / 7

Biostarは事前のサポートなしにOSサポートを追加または削

除する権利を留保します。

2011/05/20
