TP45D2-A7/TP43D2-A7 Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee

that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the

contents here and specially disclaims any implied warranties of merchantability

or fitness for any purpose. Further the vendor reserves the right to revise this

publication and to make changes to the contents here without obligation to

notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and

we will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

Table of Contents

Chapter 1: Introduction ............................................................ 1

1.1 Before You Start......................................................................................... 1

1.2 Package Checklist ..................................................................................... 1

1.3 Motherboard Features.............................................................................. 2

1.4 Rear Panel Connectors.............................................................................. 3

1.5 Motherboard Layout................................................................................. 4

Chapter 2: Hardware Installation ............................................. 5

2.1 Installing Central Processing Unit (CPU) ............................................... 5

2.2 FAN Headers.............................................................................................. 7

2.3 Installing System Memory ........................................................................ 8

2.4 Connectors and Slots................................................................................ 10

Chapter 3: Headers & Jumpers Setup ..................................... 12

3.1 How to Setup Jumpers............................................................................. 12

3.2 Detail Settings.......................................................................................... 12

Chapter 4: T-Series BIOS & Software ..................................... 20

4.1 T-Series BIOS............................................................................................. 20

4.2 T-Series Software...................................................................................... 28

Chapter 5: Useful Help ............................................................ 37

5.1 Driver Installation Note.......................................................................... 37

5.2 Extra Information.................................................................................... 38

5.3 AMI BIOS Beep Code............................................................................... 39

5.4 Troubleshooting ....................................................................................... 40

Appendencies: SPEC In Other Language ................................ 42

German.................................................................................................................. 42

France .................................................................................................................... 44

Italian..................................................................................................................... 46

Spanish ................................................................................................................... 48

Portuguese ............................................................................................................ 50

Polish...................................................................................................................... 52

Russian ................................................................................................................... 54

Arabic..................................................................................................................... 56

Japanese ................................................................................................................ 58

TP45D2-A7/TP43D2-A7

CHAPTER 1: INTRODUCTION

1.1 BEFORE YOU START

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely

grounded appliance, or use grounded wrist strap to

remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board

on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short

circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

1.2 PACKAGE CHECKLIST

HDD Cable X 1

Serial ATA Cable X 2

Rear I/O Panel for ATX Case X 1

User’s Manual X 1

Fully Setup Driver CD X 1

FDD Cable X 1 (optional)

USB 2.0 Cable X1 (optional)

Serial ATA Power Cable X 1 (optional)

Note: The package contents may differ by area or your motherboard version.

Motherboard Manual

1.3 MOTHERBOARD FEATURES

TP45D2- A7 TP43D2- A7

CPU

LGA 775

Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx processor

Supports Execute Disab le Bit / Enhanced Intel

SpeedStep® / Intel Arch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technology

LGA 775

Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx processor

Supports Execute Disab le Bit / Enhanced Intel

SpeedStep® / Intel Arch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technology

FSB Support 800 / 1066 / 1333 / 1600 MHz Support 800 / 1066 / 1333 / 1600 MHz

Chipset Intel P45

Intel ICH1 0

Intel P43

Intel ICH1 0

Super I/O

ITE 8718F

Provides the most commonly used legacy Super

I/O functionality.

Low Pin Count Interface

Environment Control in it iatives,

Hardware Monitor Controller

Fan Sp eed Contro ller

ITE's "Smart Guardian" funct ion

ITE 8718F

Provides the most commonly used legacy Super

I/O functionality.

Low Pin Count Interface

Environment Control in it iatives,

Hardware Monitor Controller

Fan Sp eed Contro ller

ITE's "Smart Guardian" funct ion

Main

Memory

DIMM Slots x 4

Each DIMM supports 256MB / 512MB / 1GB /

2GB DDR2

Max Memory Capicity 8GB

Dual Channel Mode DDR2 memory modu le

Supports DDR2 1066 / 800 / 667

Registered DIMM and ECC DIMM is not

supported

DIMM Slots x 4

Each DIMM supports 256MB / 512MB / 1GB /

2GB DDR2

Max Memory Capicity 8GB

Dual Channel Mode DDR2 memory modu le

Supports DDR2 1066 / 800 / 667

Registered DIMM and ECC DIMM is not

supported

IDE

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode

supports PIO Mode 0~4

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode

supports PIO Mode 0~4

SATA 2

Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s.

SATA Version 2.0 specif icat ion co mp liant

Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s.

SATA Version 2.0 specif icat ion co mp liant

LAN

Realtek RTL 8111C

10 / 100 Mb/s / 1Gb/s auto negotiation

Half / Full duplex capability

Realtek RTL 8111C

10 / 100 Mb/s / 1Gb/s auto negotiation

Half / Full duplex capability

Sound

Codec

ALC662

5.1 channels audio out

High Definition Audio

ALC662

5.1 channels audio out

High Definition Audio

TP45D2-A7/TP43D2-A7

TP45D2- A7 TP43D2- A7

PCI slot x3 PCI slot x3

PCI Express Gen2 x 16 slot x1 PCI Express Gen2 x 16 slot x1

Slots

PCI Express x 1 slot x2 PCI Express x 1 slot x2

Floppy connector x1 Floppy connector x1

Printer Port Connector x1 Printer Port Connector x1

Serial port Connector x1 Serial port Connector x1

IDE Conn ector x1 IDE Conn ector x1

SATA Connector x6 SATA Connector x6

Front Panel Connector x1 Front Panel Connector x1

Front Audio Connector x1 Front Audio Connector x1

CD-in Connector x1 CD-in Connector x1

CPU Fan header x1 CPU Fan header x1

System Fan header x2 System Fan header x2

Clear C MOS header x1 Clear CMOS header x1

USB connector x3 USB connector x3

Power Connector (24pin) x1 Power Connector (24pin) x1

On Board

Connector

Power Connector (4pin) x2 Power Connector (4pin) x2

Back Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

LAN port x1

USB Port x6

Audio Jack x3

PS/2 Keyboard x1

PS/2 Mouse x1

LAN port x1

USB Port x6

Audio Jack x3

Board Size 220 (W) x 305 (L) mm 220 (W) x 305 (L) mm

OS Support

Windows 2000 / XP / VISTA

Biostar Reserves the right to add or remove

support for any OS with or without notice

Windows 2000 / XP / VISTA

Biostar Reserves the right to add or remove

support for any OS with or without notice

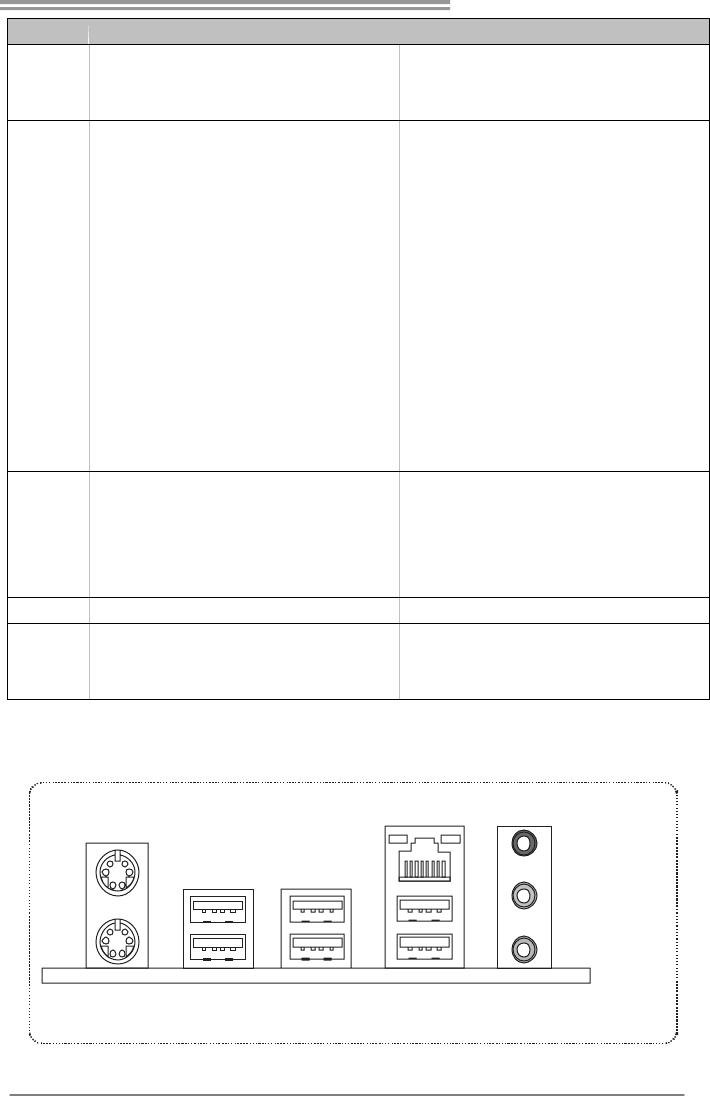

1.4 REAR PANEL CONNECTORS

PS/2

Mouse

PS/2

Keyboard

USBX2 USBX2

LAN

USBX2

Line In/

Surround

Line Out

Mic In 1/

Bass/ Center

Motherboard Manual

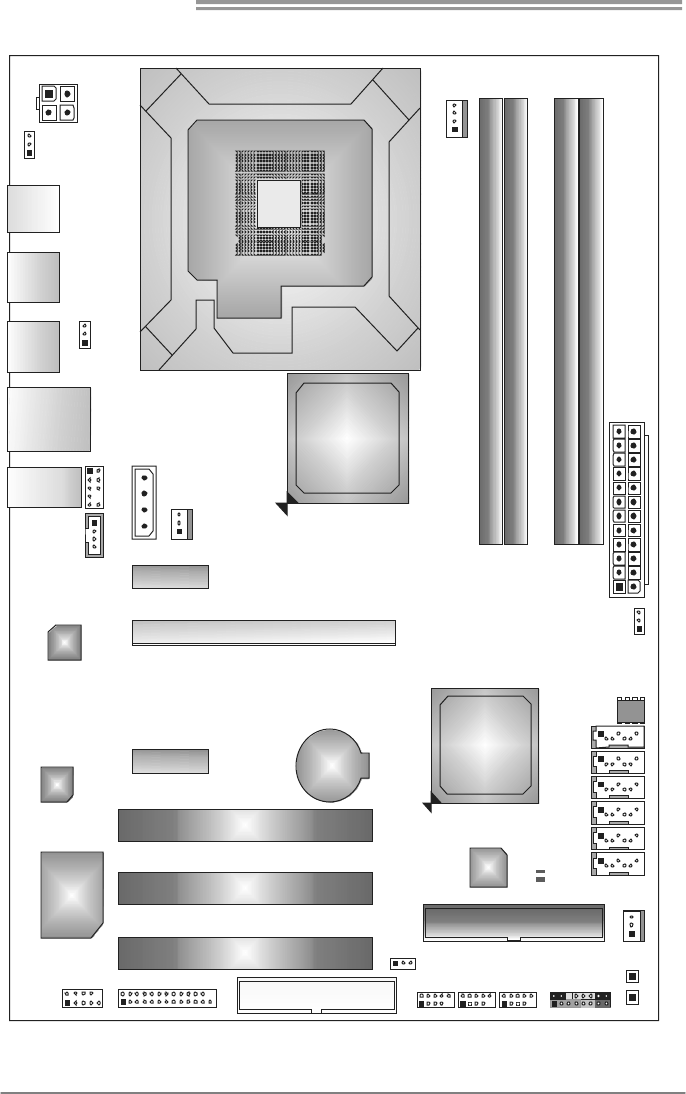

1.5 MOTHERBOARD LAYOUT

BIOS

FDD1

PEX16_1

PCI1

PCI2

JATXPWR2

JCFAN1

JAT XP WR1

SATA1

SATA3

CODEC

JS FAN 1

BAT1

LGA775

CPU1

JKBMS1

JUSB2

JRJ45USB1

IDE1

SATA2

SATA4

DDR2_ A1

DDR2_ B1

DDR2_ A2

DDR2_ B2

IDE

Super

I/O

JUSB1

RSTSW2

PEX1_2

PCI3

JS FAN 2

JCMOS1

JP RNT1

LED_D1

JUSB4

JC OM 1

JA UDI OF 1

JUSB3

JPANEL1 PWRSW1

JUSB5

Intel

P45/P43

Intel

ICH10

JAUDIO1

LAN

SATA6

SATA5

PEX1_1

JKBV1

JU SBV1

JCDIN1

JUSBV2

LE D_ D2

Note: represents the 1■st pin.

TP45D2-A7/TP43D2-A7

CHAPTER 2: HARDWARE INSTALLATION

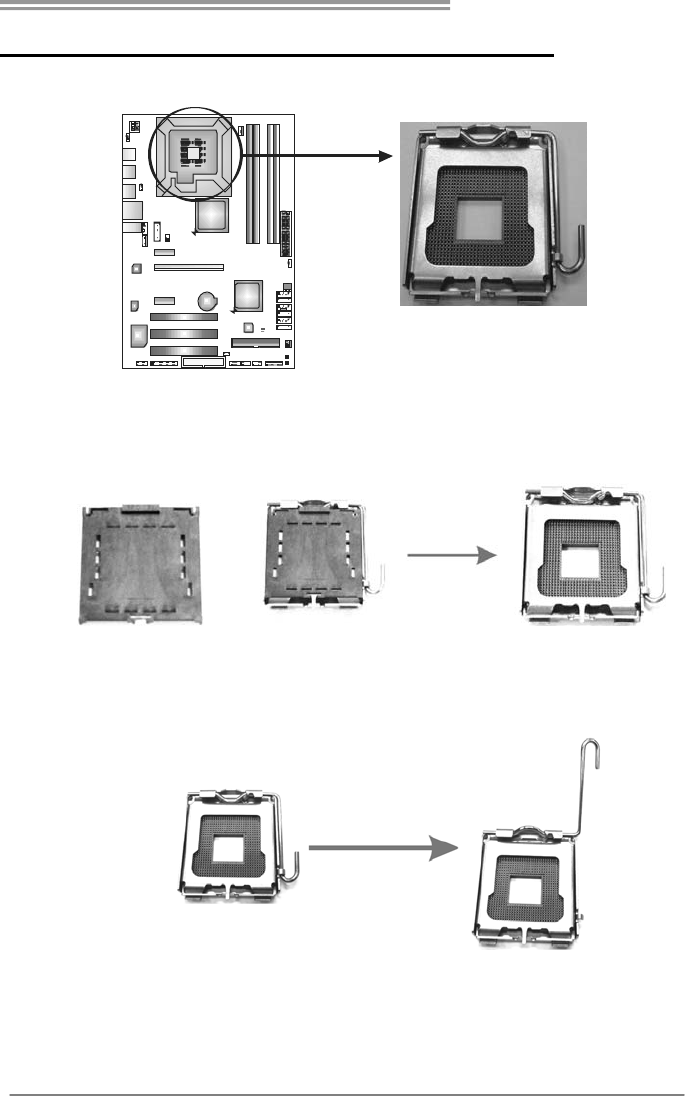

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

Special Notice:

Remove Pin Cap before installation, and make good preservation

for future use. When the CPU is removed, cover the Pin Cap on the

empty socket to ensure pin legs won’t be damaged.

Pin Cap

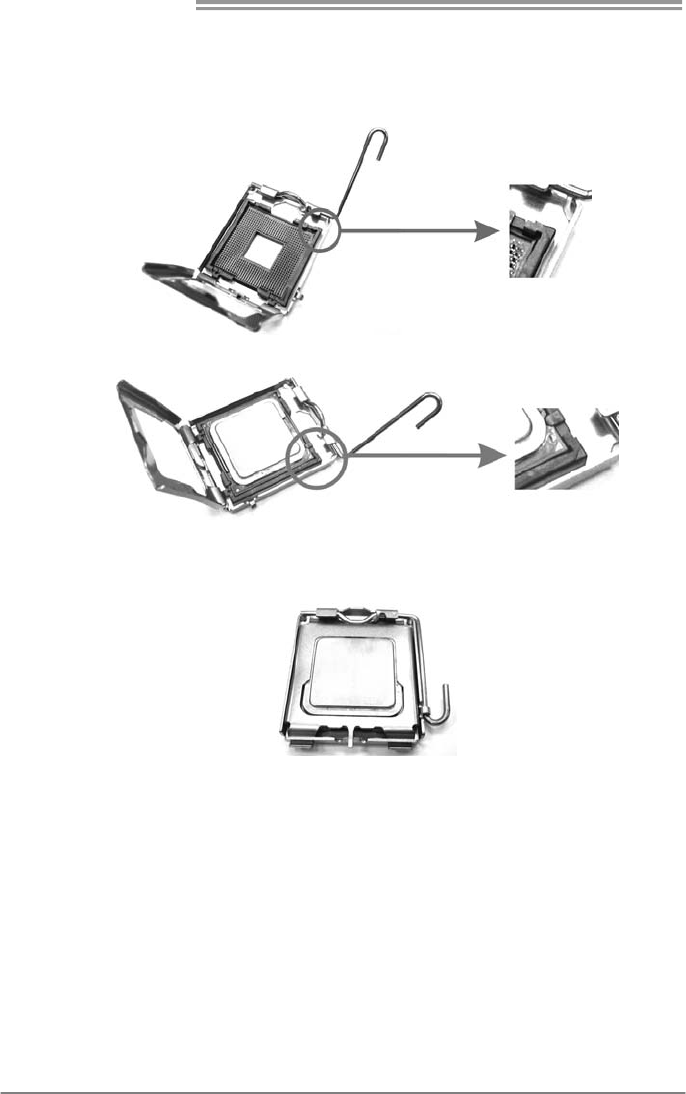

Step 1: Pull the socket locking lever out from the socket and then raise

the lever up to a 90-degree angle.

Motherboard Manual

Step 2: Look for the triangular cut edge on socket, and the golden dot on

CPU should point forwards this triangular cut edge. The CPU will

fit only in the correct orientation.

Step 2-1:

Step 2-2:

Step 3: Hold the CPU down firmly, and then lower the lever to locked

position to complete the installation.

Step 4: Put the CPU Fan and heatsink assembly on the CPU and buckle it

on the retention frame. Connect the CPU FAN power cable into

the JCFAN1. This completes the installation.

TP45D2-A7/TP43D2-A7

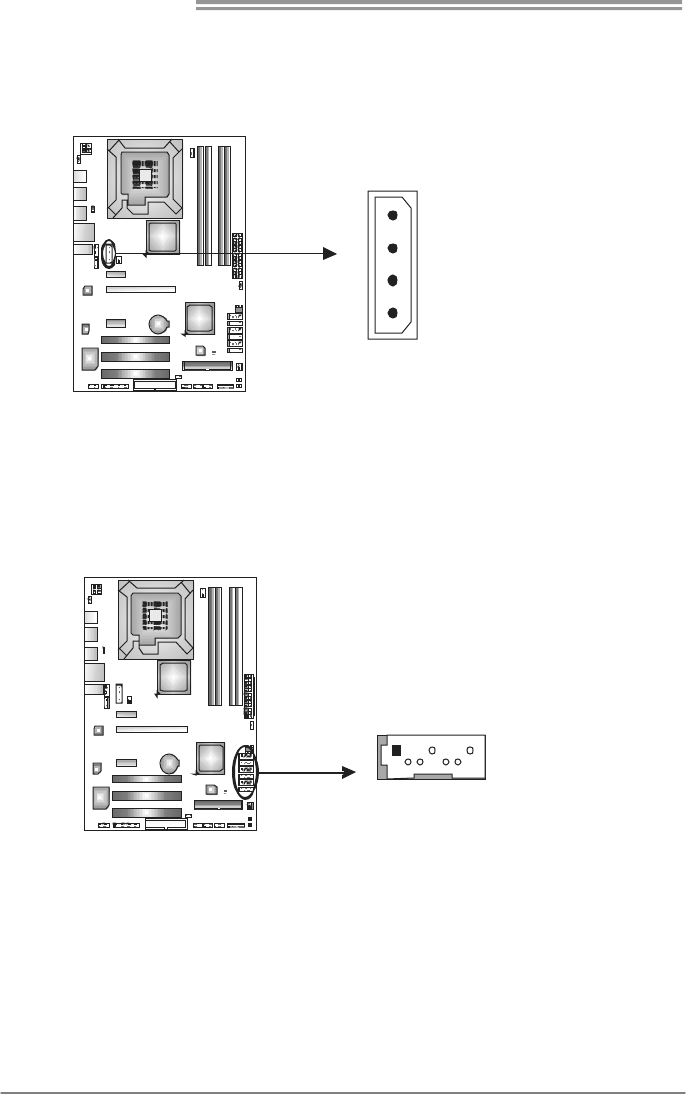

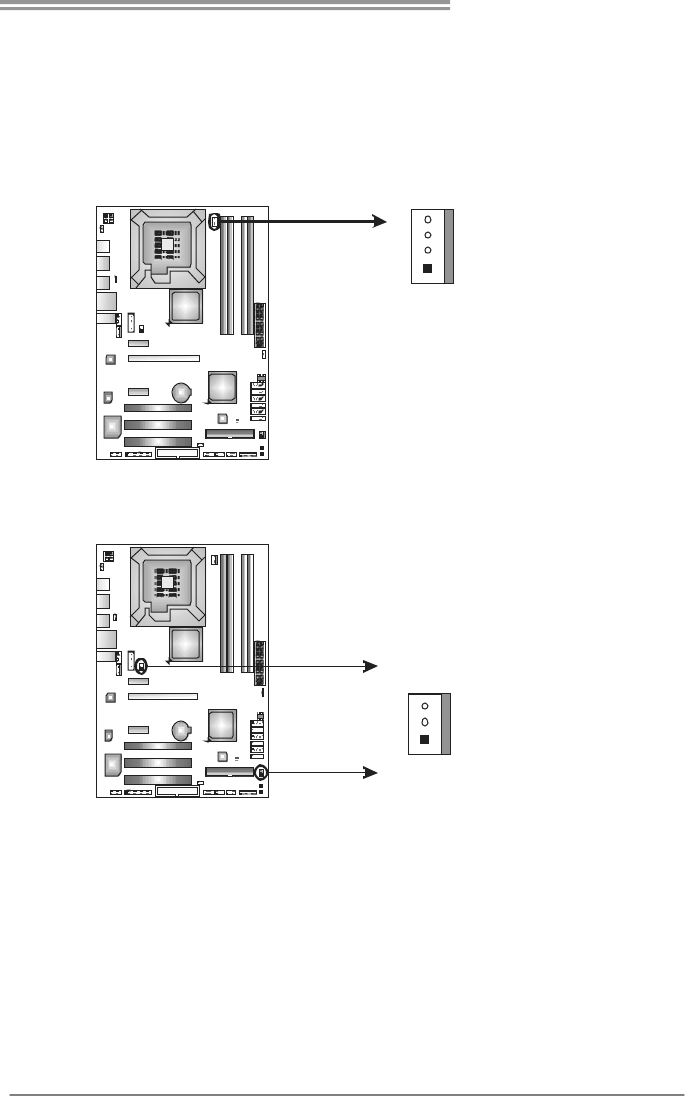

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan

cable and connector may be different according to the fan manufacturer.

Connect the fan cable to the connector while matching the black wire to

pin#1.

JCFAN1: CPU Fan Header

Assignment

1 Ground

2 +12V

3 FAN RPM rate

sense

4 Smart Fan

Control

JSFAN1/JSFAN2: System Fan Headers

Assignment

1 Ground

2 +12V

JSFAN1

JSFAN2

3 FAN RPM rate

sense

Note:

The JSFAN1/JSFAN2 support 3-pin head connectors, and the JCFAN1 supports 4-pin

head connector. When connecting with wires onto connectors, please note that the red

wire is the positive and should be connected to pin#2, and the black wire is Ground and

should be connected to GND.

Motherboard Manual

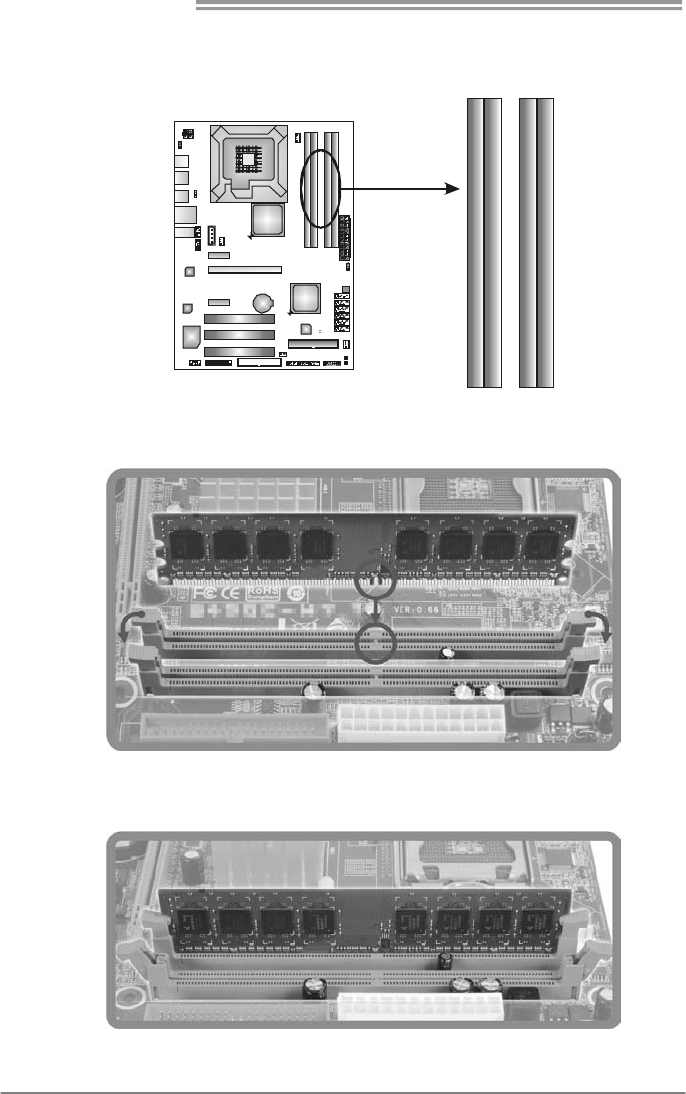

2.3 INSTALLING SYSTEM MEMORY

A. Memory Modules

DDR2 _A1

DDR2 _B1

DDR2 _A2

DDR2 _B2

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.

TP45D2-A7/TP43D2-A7

B. Memory Capacity

DIMM Socket

Location DDR2 Module Total Mem ory

Size

DDR2_A1 256MB/512MB/1GB/2GB

DDR2_A2 256MB/512MB/1GB/2GB

DDR2_B1 256MB/512MB/1GB/2GB

DDR2_B2 256MB/512MB/1GB/2GB

Max is 8GB.

C. Dual Channel Memory installation

To trigger the Dual Channel function of the motherboard, the memory module

must meet the following requirements:

Install memory module of the same density in pairs, shown in the following

table.

Dual Channel Status DDR2_A1 DDR2_A2 DDR2_B1 DDR2_B2

Enabled O X O X

Enabled X O X O

Enabled O O O O

(O means memory installed, X means memory not installed.)

The DRAM bus width of the memory module must be the same (x8 or

x16)

Motherboard Manual

2.4 CONNECTORS AND SLOTS

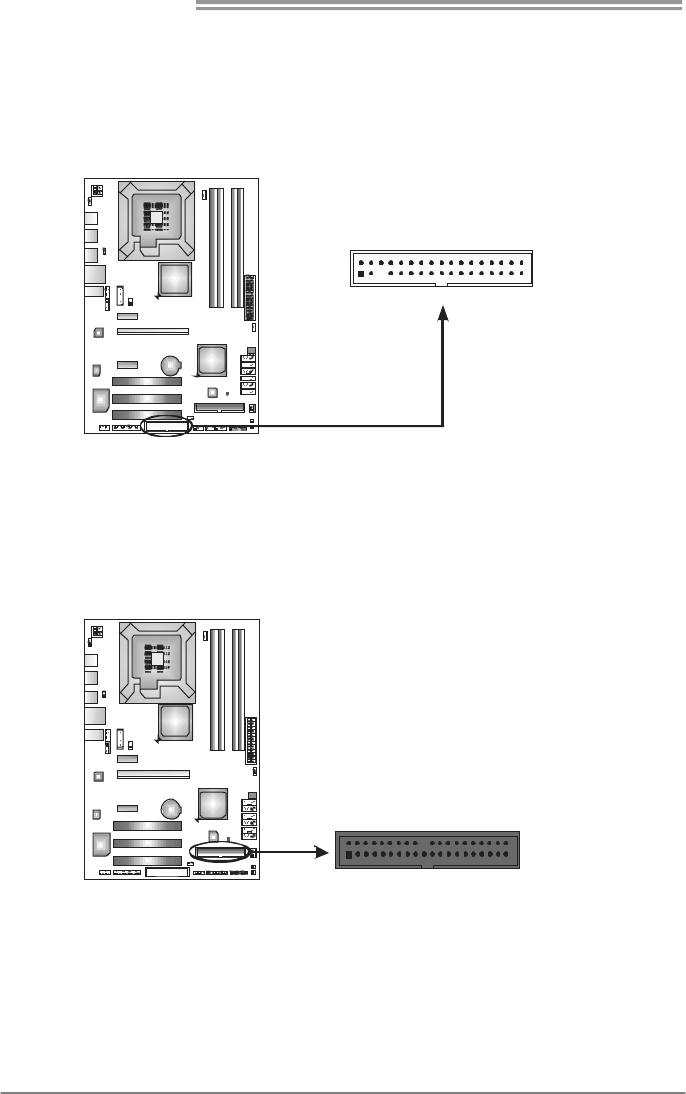

FDD1: Floppy Disk Connector

The motherboard provides a standard floppy disk connector that supports 360K,

720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the

provided floppy drive ribbon cables.

331

IDE1: Hard Disk Connector

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO

Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 functionality.

The IDE connector can connect a master and a slave drive, so you can connect

up to two hard disk drives.

240

TP45D2-A7/TP43D2-A7

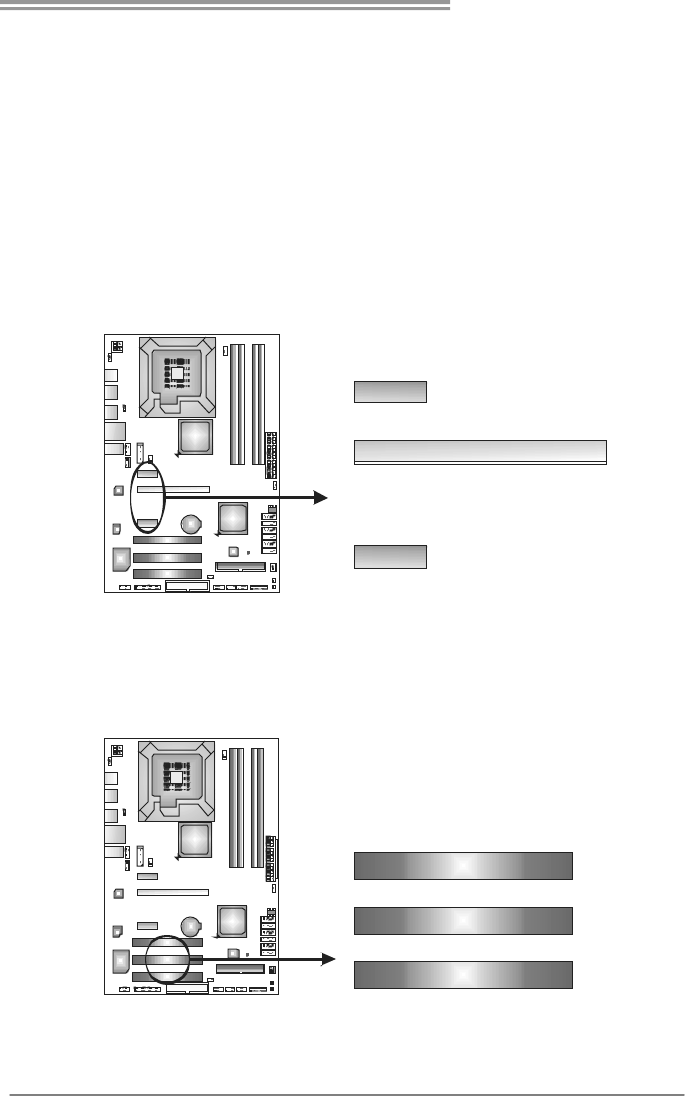

PEX16_1: PCI-Express Gen2 x16 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 8GB/s simultaneously per

direction, for an aggregate of 16GB/s totally.

- PCI-Express Gen2 supports a raw bit-rate of 5.0Gb/s on the data pins.

- 2X bandwidth over the PCI-Express 1.1 architecture.

PEX1_1/PEX1_2: PCI-Express x1 Slots

- PCI-Express 1.1 compliant.

- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.

- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.

- 2X bandwidth over the PCI architecture.

PEX16_1

PEX1_2

PEX1_1

PCI1~PCI3: Peripheral Component Interconnect Slots

This motherboard is equipped with 3 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for expansion

cards. This PCI slot is designated as 32 bits.

PCI2

PCI1

PCI3

Motherboard Manual

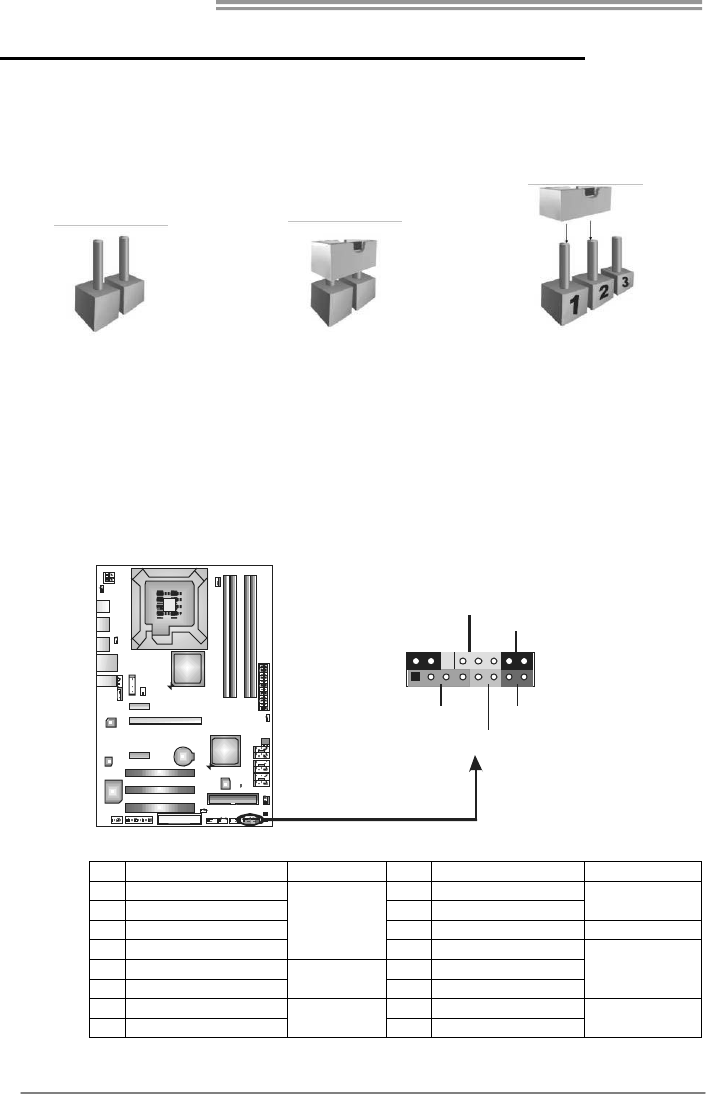

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 HOW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is

placed on pins, the jumper is “close”, if not, that means the jumper is

“open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

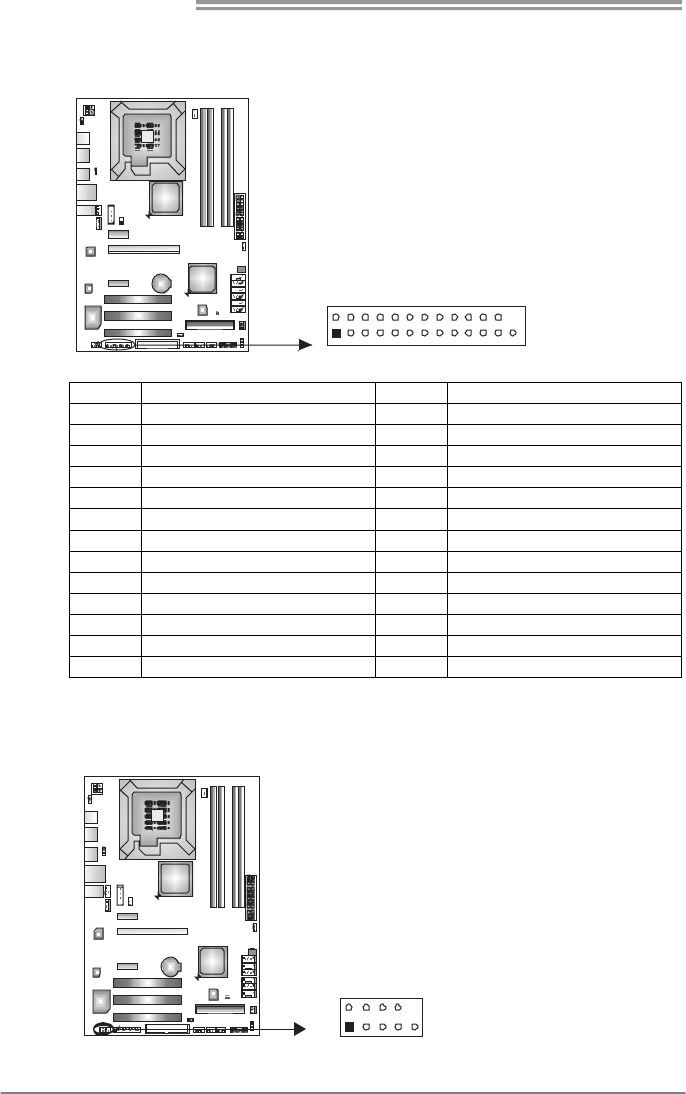

JPANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and

speaker connection. It allows user to connect the PC case’s front panel switch

functions.

PWR_LED

On/Off

RST

HLED

SPK

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A

2 N/A 10 N/A N/A

3 N/A 11 N/A N/A

4 Speaker

Speaker

Connector

12 Power LED (+)

5 HDD LED (+) 13 Power LED (+)

6 HDD LED (-)

Hard drive

LED 14 Power LED (-)

Power LED

7 Ground 15 Power button

8 Reset control Reset button 16 Ground Power-on button

TP45D2-A7/TP43D2-A7

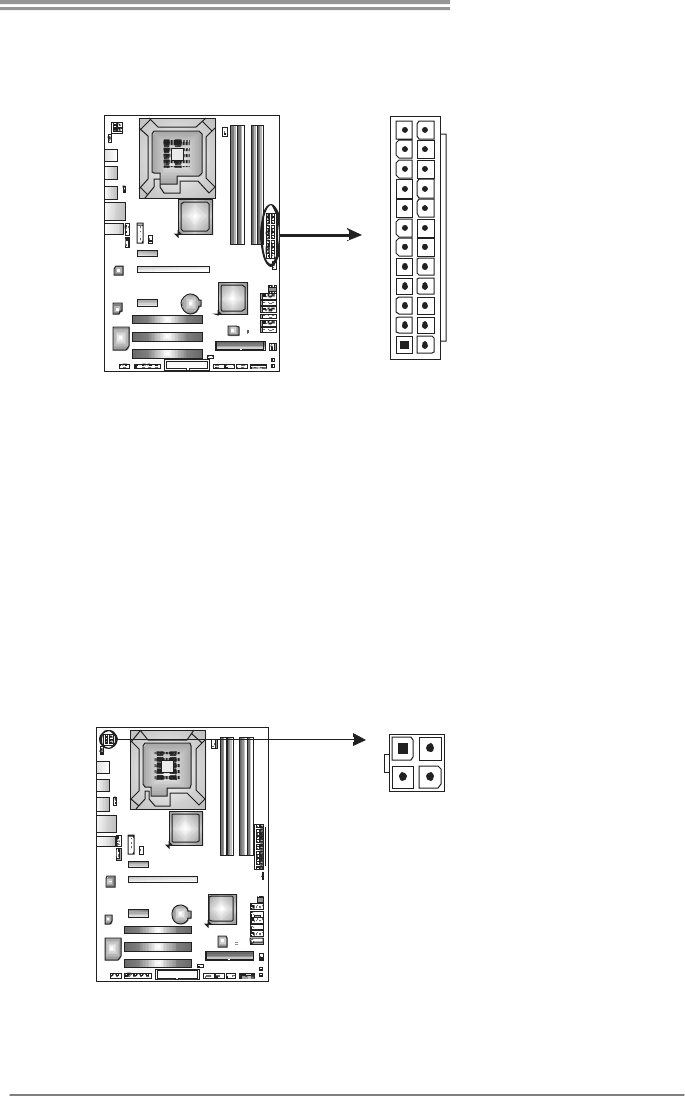

JATXPWR1: AT X Power Source Connector

This connector allows user to connect 24-pin power connector on the ATX

power supply.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 Ground 3 Ground

16 PS_ON 4 +5V

17 Ground 5 Ground

18 Ground 6 +5V

19 Ground 7 Ground

20 NC 8 PW_OK

21 +5V 9 Standby Voltage+5V

22 +5V 10 +12V

23 +5V 11 +12V

24 Ground 12 +3.3V

JATXPWR2: AT X Power Source Connector

By connecting this connector, it will provide +12V to CPU power circuit.

Assignment

1 +12V

2 +12V

3 Ground

4 Ground

Note:

Before power on the system, please make sure that both JATXPWR1 and JATXPWR2

connectors have been plugged-in.

Motherboard Manual

J1: Auxiliary Power for Graphics

This connector is an auxiliary power connection for graphics cards. Exclusive

power for the graphics card provides better graphics performance.

Assignment

1 +12V

2 Ground

3 Ground

4 VCC

SATA1~SATA6: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 6 channels SATA interface,

it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.

Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

147

SATA1

SATA2

SATA3

SATA4

SATA5

SATA6

7 Ground

TP45D2-A7/TP43D2-A7

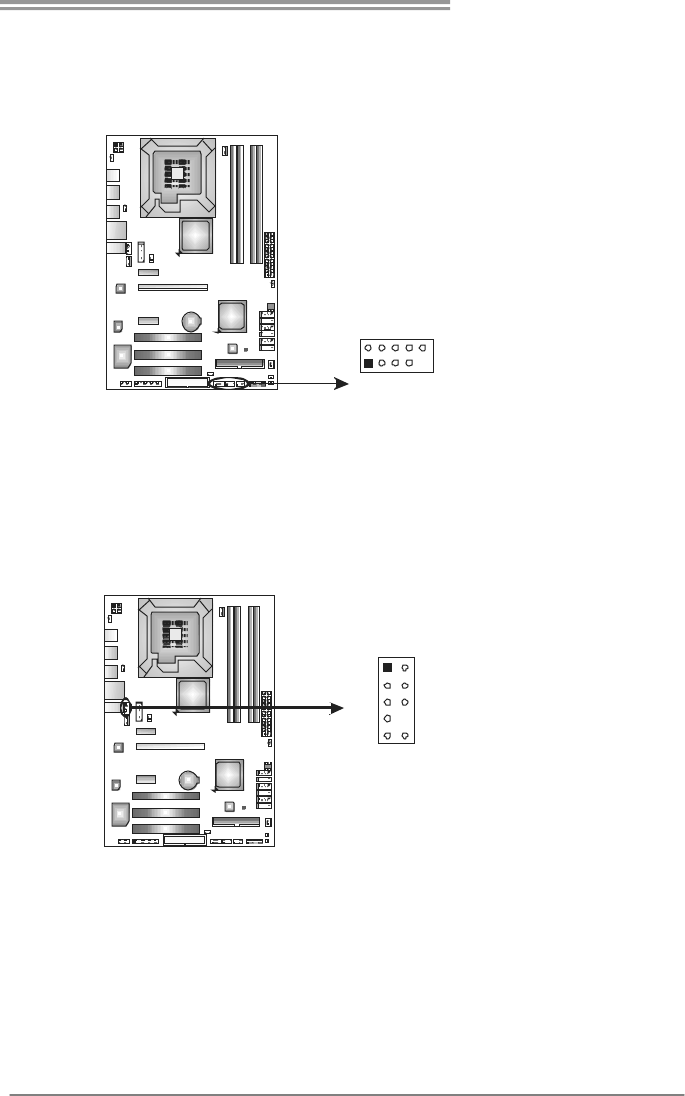

JUSB3/JUSB4/JUSB5: Headers for USB 2.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel,

and also can be connected with internal USB devices, like USB card reader.

Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

JUSB4

JUSB5JUSB3

10 NC

JAUDIOF1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front

panel. This header allows only HD audio front panel connector; AC’97 connector

is not acceptable.

Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

910

10 Jack Sense

Motherboard Manual

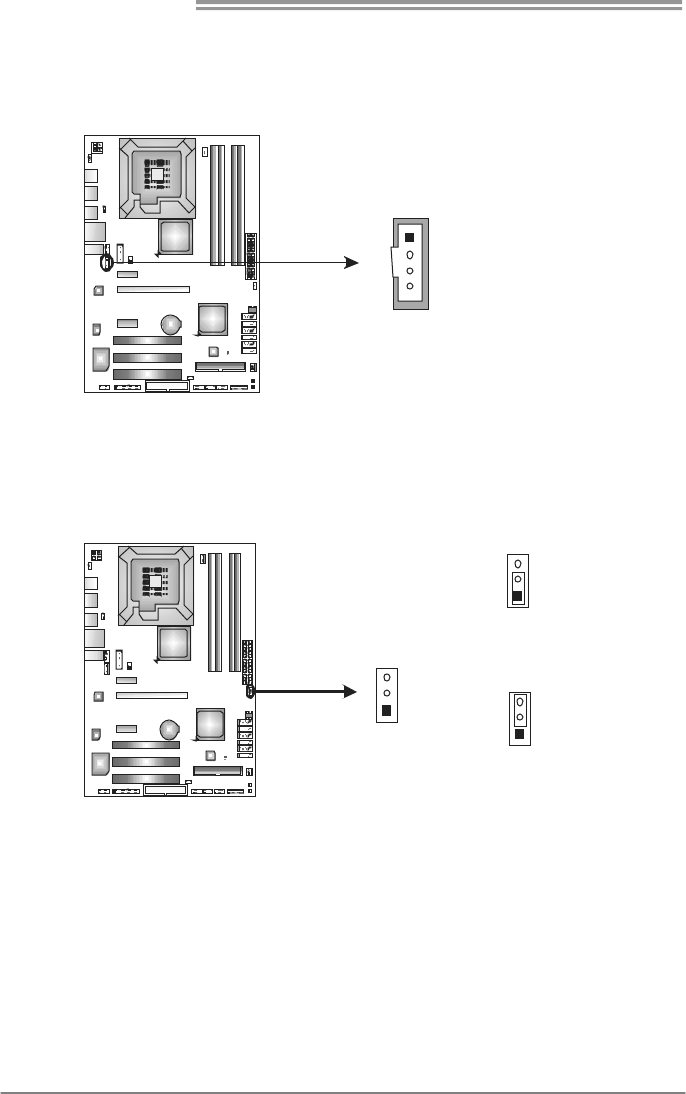

JCDIN1: CD-ROM Audio-in Connector

This connector allows user to connect the audio source from the variaty devices,

like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc..

Assignment

1 Left Channel Input

2 Ground

3 Ground

4 Right Channel Input

JCMOS1: Clear CMOS Header

By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting

and the CMOS data, please carefully follow the procedures to avoid damaging

the motherboard.

Pin 1-2 Close:

Normal Operation (default).

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

TP45D2-A7/TP43D2-A7

On-Board LED Indicators

There are 2 LED indicators on the motherboard to show system status.

LED_D1

LED_D2

LED_D1 and LED_D2:

These 2 LED indicate system power on diagnostics.

Please refer to the table below for different messages:

LED_D1 LED_D2 Message

ON ON Normal

ON OFF Memory Error

OFF ON VGA Error

OFF OFF Abnormal: CPU / Chipset error.

On-Board Buttons

There are 2 on-board buttons.

RS TSW 2

PWRSW1

PWRSW1:

This is an on-board Power Switch button.

RSTSW2:

This is an on-board Reset button.

Motherboard Manual

JPRNT1: Printer Port Connector

This header allows you to connect printer on the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground

2 -ALF 15 Data 6

3 Data 0 16 Ground

4 -Error 17 Data 7

5 Data 1 18 Ground

6 -Init 19 -ACK

7 Data 2 20 Ground

8 -Scltin 21 Busy

9 Data 3 22 Ground

10 Ground 23 PE

11 Data 4 24 Ground

12 Ground 25 SCLT

13 Data 5 26 Key

JCOM1: Serial port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

TP45D2-A7/TP43D2-A7

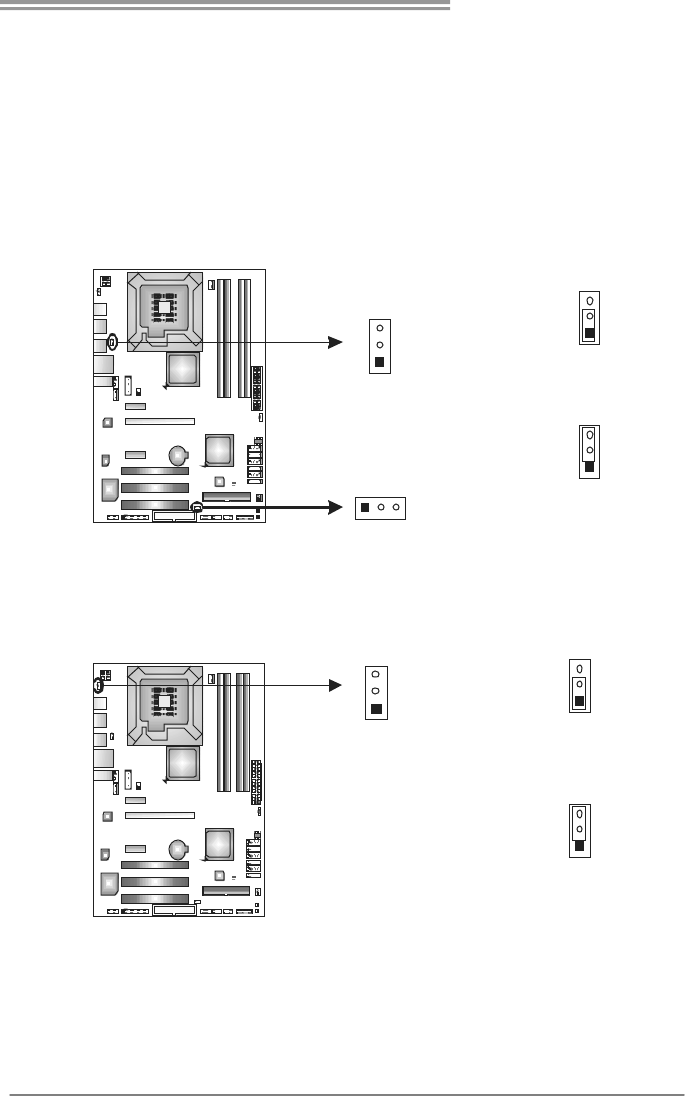

JUSBV1/JUSBV2: Power Source Headers for USB Ports

Pin 1-2 Close:

JUSBV1: +5V for USB ports at JUSB1/JUSB2/JRJ45USB1.

JUSBV2: +5V for USB ports at JUSB3/JUSB4/JUSB5.

Pin 2-3 Close:

JUSBV1: +5V STB for USB ports at JUSB1/JUSB2/ JRJ45USB1.

JUSBV2: +5V STB for USB ports at JUSB3/JUSB4/JUSB5.

Pin 1-2 close

JUSBV1

JUSBV2

Pin 2-3 close

JKBV1: Power Source Header for PS/2 Keyboard and Mouse

Pin 1-2 close

+5V for PS/2 keyboard and

mouse.

Pin 2-3 close

+5V STB for PS/2 keyboard

and mouse.

Motherboard Manual

CHAPTER 4: T-SERIES BIOS & SOFTWARE

4.1 T-SERIES BIOS

T-Series BIOS Features

Overclocking Navigator Engine (O.N.E.)

Memory Integration Test (M.I.T., under Overclock Navigator Engine)

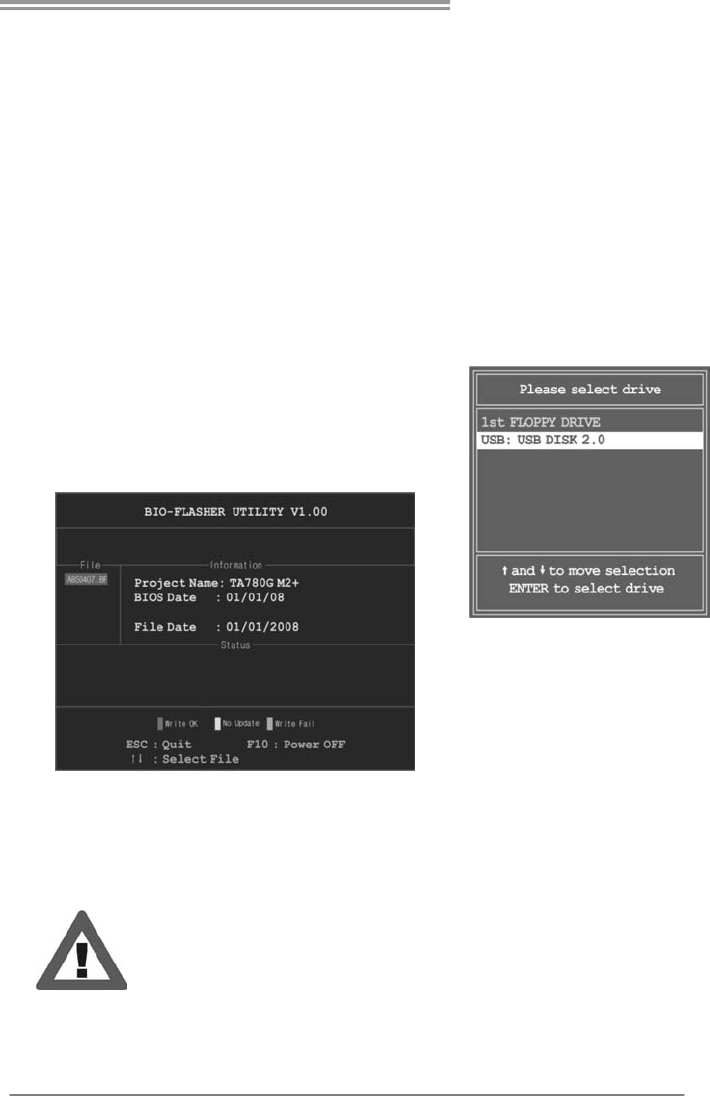

BIO-Flasher: Update BIOS file from USB Flash Drive or FDD

Self Recovery System (S.R.S)

Smart Fan Function

CMOS Reloading Program

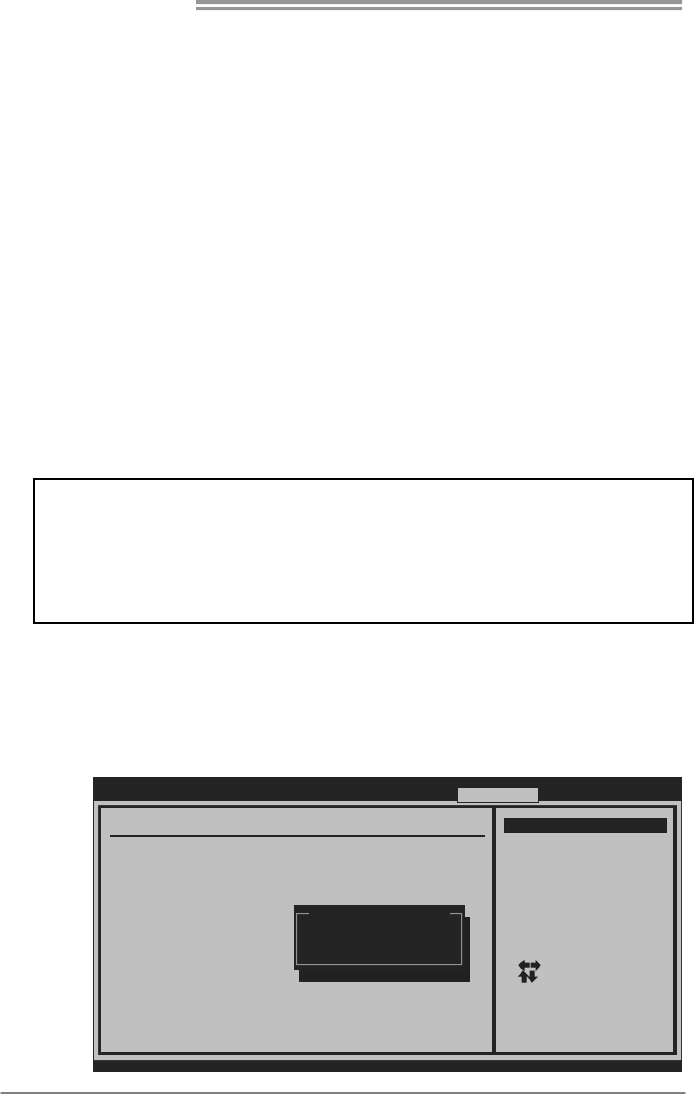

A. Overclocking Navigator Engine (O.N.E.)

ONE provides two powerful overclocking engines: MOS and AOS for both

Elite and Casual overclockers.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Over-Clocking Navigator setting

WARNING: Setting wrong values in below sections

may cause system to malfunction.

=========== Automate OverClock System ===========

============ Manual OverClock System ============

Over-Clocking Navigator [Normal]

Memory Test [Disabled]

Auto OverClock System [V6-Tech Engine]

Intel(R) SpeedStep(tm) tech [Enabled]

Ratio CMOS Setting [ x10.0]

CPU Frequency Setting [266]

Over Clock Retry Count [3]

FSB(Bsel) To NorthBridge Latch [Auto]

DRAM Frequency [Auto]

DDR2 Enhanced Mode [Auto]

> DRAM Timing Configuration

> Clock Gen Configuration

> ALL Voltage Configuration

Exit

Options

Normal

Automate OverClock

Manual OverClock

!! WARNING !!

For better system performance, the BIOS firmware is being

continuously updated. The BIOS information described below in

this manual is for your reference only and the actual BIOS

information and settings on board may be different from this

manual. For further information of setting up the BIOS, please

refer to the BIOS Manual in the Setu

CD.

TP45D2-A7/TP43D2-A7

Manual Overclock System (M.O.S.)

MOS is designed for experienced overclock users.

It allows users to customize personal overclock settings.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Over-Clocking Navigator setting

WARNING: Setting wrong values i n below sections

may cause system to ma lfunction.

=========== Automate OverClock System ===========

============ Manual OverClock S ystem ============

Over-Clocking Navigator [Normal]

Memory Test [Disabled]

Auto OverClock System [V6-Tech Engine]

Intel(R) SpeedStep(tm) tech [Enabled]

Ratio CMOS Setting [ x10.0]

CPU Frequency Setting [266]

Over Clock Retry Count [3]

FSB(Bsel) To NorthBridge Latch [Auto]

DRAM Frequency [Auto]

DDR2 Enhanced Mode [Auto]

> DRAM Timing Configuration

> Clock Gen Configuration

> ALL Voltage Configuration

Exit

Options

Normal

Automate OverClock

Manual OverClock

Options

Normal

Automate OverClock

Manual OverClock

↓

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Over-Clocking Navigator setting

WARNING: Setting wrong values i n below sections

may cause system to ma lfunction.

=========== Automate OverClock System ===========

============ Manual OverClock S ystem ============

Over-Clocking Navigator [Manual OverClock]

Intel(R) SpeedStep(tm) tech [Enabled]

Ratio CMOS Setting [ x10.0]

CPU Frequency Setting [266]

Over Clock Retry Count [3]

FSB(Bsel) To NorthBridge Latch [Auto]

DRAM Frequency [Auto]

DDR2 Enhanced Mode [Auto]

> DRAM Timing Configuration

> Clock Gen Configuration

> ALL Voltage Configuration

Memory Test [Disabled]

Auto OverClock System [V6-Tech Engine]

Exit

Options

Normal

Automate OverClock

Manual OverClock

Intel(R) SpeedStep(tm) Tech

This item allows you to enable SpeedStep technology for better power

saving. SpeedStep is a technology built into some Intel processors that

allows the clock speed of the processor to be dynamically changed by

software.

Ratio CMOS Setting

This item allows you to set the CPU ratio frequency.

CPU Fre quency Setting

CPU Frequency is directly in proportion to system performance. To

maintain the system stability, CPU voltage needs to be increased also

when raising CPU frequency.

Motherboard Manual

Over Clock Retry Count

This item allows you to set the overclock fail retry times.

FSB(Bsel) To NorthBridge Latch

This item allows you to select the FSB Frequency.

DRAM Fre quency

To get better system performance, sometimes downgrading the memory

frequency is necessary when CPU frequency is adjusted over the upper

limit.

DDR2 Enhanced Mode

This item allows you to control the DDR2 ram enhanced mode.

DRAM Timing Conf iguration

Enter this item for more advanced DRAM timing settings.

Clock Ge n Co nfig urat io n

Enter this item for more advanced Clock Gen settings.

ALL Voltage Configuration

Enter this item for more advanced voltage settings.

Automatic Overclock System (A.O.S.)

For beginners in overclock field, BET had developed an easy, fast, and

powerful feature to increase the system performance, named A.O.S.

Based on many tests and experiments, A.O.S. provides 3 ideal overclock

configurations that are able to raise the system performance in a single step.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Over-Clocking Navigator setting

WARNING: Setting wrong values i n below sections

may cause system to ma lfunction.

=========== Automate OverClock System ===========

============ Manual OverClock S ystem ============

Over-Clocking Navigator [Normal]

Memory Test [Disabled]

Auto OverClock System [V6-Tech Engine]

Intel(R) SpeedStep(tm) tech [Enabled]

Ratio CMOS Setting [ x10.0]

CPU Frequency Setting [266]

Over Clock Retry Count [3]

FSB(Bsel) To NorthBridge Latch [Auto]

DRAM Frequency [Auto]

DDR2 Enhanced Mode [Auto]

> DRAM Timing Configuration

> Clock Gen Configuration

> ALL Voltage Configuration

Exit

Options

Normal

Automate OverClock

Manual OverClock

Options

Normal

Manual OverClock

Automate OverClock

NOTE

Overclock is an optional process, but not a “must-do” process; it is not

recommended for inexperienced users. Therefore, we will not be responsible

for any hardware damage which may be caused by overclocking. We also

would not

uarantee an

overclockin

erformance.

TP45D2-A7/TP43D2-A7

V6 Tech Engine

This engine will make a good over-clock performance.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Over-Clocking Navigator setting

WARNING: Setting wrong values i n below sections

may cause system to ma lfunction.

=========== Automate OverClock System ===========

============ Manual OverClock S ystem ============

Over-Clocking Navigator [Automate OverClock]

Memory Test [Disabled]

Auto OverClock System [V6-Tech Engine]

Intel(R) SpeedStep(tm) tech [Enabled]

Ratio CMOS Setting [ x10.0]

CPU Frequency Setting [266]

Over Clock Retry Count [3]

FSB(Bsel) To NorthBridge Latch [Auto]

DRAM Frequency [Auto]

DDR2 Enhanced Mode [Auto]

> DRAM Timing Configuration

> Clock Gen Configuration

> ALL Voltage Configuration

Exit

Options

V6-Tech Engine

V8-Tech Engine

V12-Tech Engine

V8 Tech Engine

This engine will make a better over-clock performance.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Over-Clocking Navigator setting

WARNING: Setting wrong values i n below sections

may cause system to ma lfunction.

=========== Automate OverClock System ===========

============ Manual OverClock S ystem ============

Over-Clocking Navigator [Automate OverClock]

Memory Test [Disabled]

Auto OverClock System [V8-Tech Engine]

Intel(R) SpeedStep(tm) tech [Enabled]

Ratio CMOS Setting [ x10.0]

CPU Frequency Setting [266]

Over Clock Retry Count [3]

FSB(Bsel) To NorthBridge Latch [Auto]

DRAM Frequency [Auto]

DDR2 Enhanced Mode [Auto]

> DRAM Timing Configuration

> Clock Gen Configuration

> ALL Voltage Configuration

Exit

Options

V6-Tech Engine

V8-Tech Engine

V12-Tech Engine

V12 Tech Engine

This engine will make a best over-clock performance.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Over-Clocking Navigator setting

WARNING: Setting wrong values i n below sections

may cause system to ma lfunction.

=========== Automate OverClock System ===========

============ Manual OverClock S ystem ============

Over-Clocking Navigator [Automate OverClock]

Memory Test [Disabled]

Auto OverClock System [V12-Tech Engine]

Intel(R) SpeedStep(tm) tech [Enabled]

Ratio CMOS Setting [ x10.0]

CPU Frequency Setting [266]

Over Clock Retry Count [3]

FSB(Bsel) To NorthBridge Latch [Auto]

DRAM Frequency [Auto]

DDR2 Enhanced Mode [Auto]

> DRAM Timing Configuration

> Clock Gen Configuration

> ALL Voltage Configuration

Exit

Options

V6-Tech Engine

V8-Tech Engine

V12-Tech Engine

Motherboard Manual

Notices:

Not all types of Intel CPU perform above overclock setting ideally; the difference will be based on the

selected CPU model.

B. Memory Integration Test (M.I.T.)

This function is under “Overclocking Navigator Engine” item.

MIT allows users to test memory compatibilities, and no extra devices or

software are needed.

Step 1

The default setting under this item is “Disabled”; the condition parameter should

be changed to “Enable” to proceed this test.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Over-Clocking Navigator setting

WARNING: Setting wrong values i n below sections

may cause system to ma lfunction.

=========== Automate OverClock System ===========

============ Manual OverClock S ystem ============

Over-Clocking Navigator [Normal]

Auto OverClock System [V6-Tech Engine]

Intel(R) SpeedStep(tm) tech [Enabled]

Ratio CMOS Setting [ x10.0]

CPU Frequency Setting [266]

Over Clock Retry Count [3]

FSB(Bsel) To NorthBridge Latch [Auto]

DRAM Frequency [Auto]

DDR2 Enhanced Mode [Auto]

> DRAM Timing Configuration

> Clock Gen Configuration

> ALL Voltage Configuration

Memory Test [Disabled]

Exit

Options

Disabled

Enabled

↓

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Over-Clocking Navigator setting

WARNING: Setting wrong values i n below sections

may cause system to ma lfunction.

=========== Automate OverClock System ===========

============ Manual OverClock S ystem ============

Over-Clocking Navigator [Normal]

Auto OverClock System [V6-Tech Engine]

Intel(R) SpeedStep(tm) tech [Enabled]

Ratio CMOS Setting [ x10.0]

CPU Frequency Setting [266]

Over Clock Retry Count [3]

FSB(Bsel) To NorthBridge Latch [Auto]

DRAM Frequency [Auto]

DDR2 Enhanced Mode [Auto]

> DRAM Timing Configuration

> Clock Gen Configuration

> ALL Voltage Configuration

Memory Test [Enabled]

Exit

Options

Disabled

Enabled

Step 2

Save and Exit from CMOS setup and reboot the system to activate this test.

Run this test for 5 minutes (minimum) to ensure the memory stability.

Step 3

When the process is done, change the setting back from “Enable” to “Disable”

to complete the test.

TP45D2-A7/TP43D2-A7

C. BIO-Flasher

BIO-Flasher is a BIOS flashing utility providing you an easy and simple way to

update your BIOS via USB pen drive or floppy disk.

The BIO-Flasher is built in the BIOS chip. To enter the utility, press <F12>

during the Power-On Self Tests (POST) procedure while booting up.

Updating BIOS with BIO-Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, save the BIOS file into a USB pen drive or a floppy disk.

3. Insert the USB pen drive or the floppy disk that contains the BIOS file to the

USB port or the floppy disk drive.

4. Power on or reset the computer and then

press <F12> during the POST process.

A select dialog as the picture on the right

appears.

Select the device contains the BIOS file and

press <Enter> to enter the utility.

5. The utility will show the BIOS

files and their respective

information. Select the proper

BIOS file and press <Enter>

then <Y> to perform the BIOS

update process.

6. After the update process, the utility will ask you to reboot the system.

Press <Y> to proceed. BIOS update completes.

z This utility only allows storage device with FAT32/16 format and single

partition.

z Shutting down or resetting the system while updating the BIOS will lead to

system boot failure.

Motherboard Manual

D. Self Recovery System (S.R.S.)

This function can’t be seen under BIOS setup; and is always on whenever the

system starts up.

However, it can prevent system hang-up due to inappropriate overclock

actions.

When the system hangs up, S.R.S. will automatically log in the default BIOS

setting, and all overclock settings will be re-configured.

E. Smart Fan Function

Smart Fan Function is under “Smart Fan Configuration” in “Advanced Menu”.

This is a brilliant feature to control CPU/System Temperature vs. Fan speed.

When enabling Smart Fan function, Fan speed is controlled automatically by

CPU/System temperature.

This function will protect CPU/System from overheat problem and maintain the

system temperature at a safe level.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Advanced Settings

WARNING: Setting wrong values in below sections

may cause system to malfunction.

> CPU Configuration

> Intel VT-d Configuration

> USB Configuration

> Config Onboard PCI/PCI-E Devices

> SuperIO Configuration

> Hardware Health Configuration

> PM/ACPI Configuration

> Smart Fan Configuration

Exit

↓

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

When you choice [Auto]

,[3Pin] or [4Pin],

please run the

calibration to define

the Fan parameters for

Smart Fan control

Smart Fan Configuration

CPU Smart Fan [Disabled]

Smart Fan Calibration

Control Mode

Fan Ctrl OFF( C)

Fan Ctrl On( C)

Fan Ctrl Start value

Fan Ctrl Sensitive

TP45D2-A7/TP43D2-A7

Smart Fan Calibration

Choose this item and then the BIOS will automatically test and detect the

CPU/System fan functions and show CPU/System fan speed.

Control Mode

This item provides several operation modes of the fan.

Fan Ctrl OFF(℃)

If the CPU/System temperature is lower than the set value, the CPU/

System fan will turn off. The range is from 0~127, with an interval of 1.

Fan Ctrl On(℃)

The CPU/System fan starts to work when CPU/System temperature

arrives to this set value. The range is from 0~127, with an interval of 1.

Fan Ctrl Start Value

When CPU/System temperature arrives to the set value, the CPU/System

fan will work under Smart Fan Function mode. The range is from 0~127,

with an interval of 1.

Fan Ctrl Sensitive

Increasing the value of slope PWM will raise the speed of CPU/System fan.

The range is from 1~127, with an interval of 1.

F. CMOS Reloading Program

It allows users to save different CMOS settings into BIOS-ROM.

Users are able to reload any saved CMOS setting for customizing system

configurations. Moreover, users are able to save an ideal overclock setting

during overclock operation.

There are 10 sets of record addresses in total, and users are able to name the

CMOS data according to personal preference.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Exit Options

Security Settings

Save Changes and Exit

Discard Changes and Exit

Discard Changes

Load Optimal Defaults

> Security

CMOS Backup Function

Exit

CMOS Backup Func

CMOS Data

CMOS Data Reload

Save

Motherboard Manual

4.2 T-SERIES SOFTWARE

Installing T-Series Software

1. Insert the Setup CD to the optical drive. The drivers installation program

would appear if the Auto-run function has been enabled.

2. Select Software Installation, and then click on the respective software

title.

3. Follow the on-screen instructions to complete the installation.

Launching T-Series Software

After the installation process, you will see the software icon “T-Utility

OverClock III” / “HW Monitor” / “eHOT Line” / “Tseries BIOS Update” appears

on the desktop. Double-click the icon to launch T-Series utility.

OverClock 3

OverClock 3 is equipped with friendly interface and solid over-clock features, and it

will help you easily do over-clocking under windows environment.

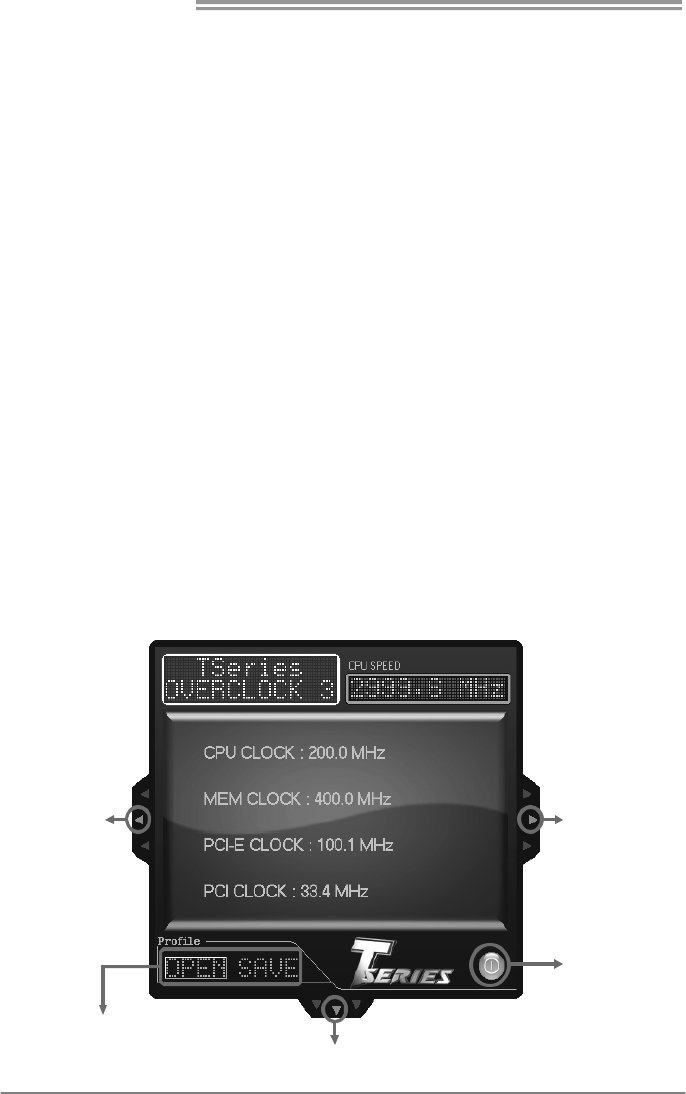

Double-click the desktop icon, OverClock 3 will be launched; the first window

you will see is Main Panel. In this panel you will see current CPU Speed and

CPU/Memory/PCI-E/PCI Clock.

Open

Over Voltage

Panel

Open

Over Clock

Panel

ON/OFF

Ope n a s aved setti ng/

Save current settings

Open

Over Voltage

Panel

Open

Abou t Pane

TP45D2-A7/TP43D2-A7

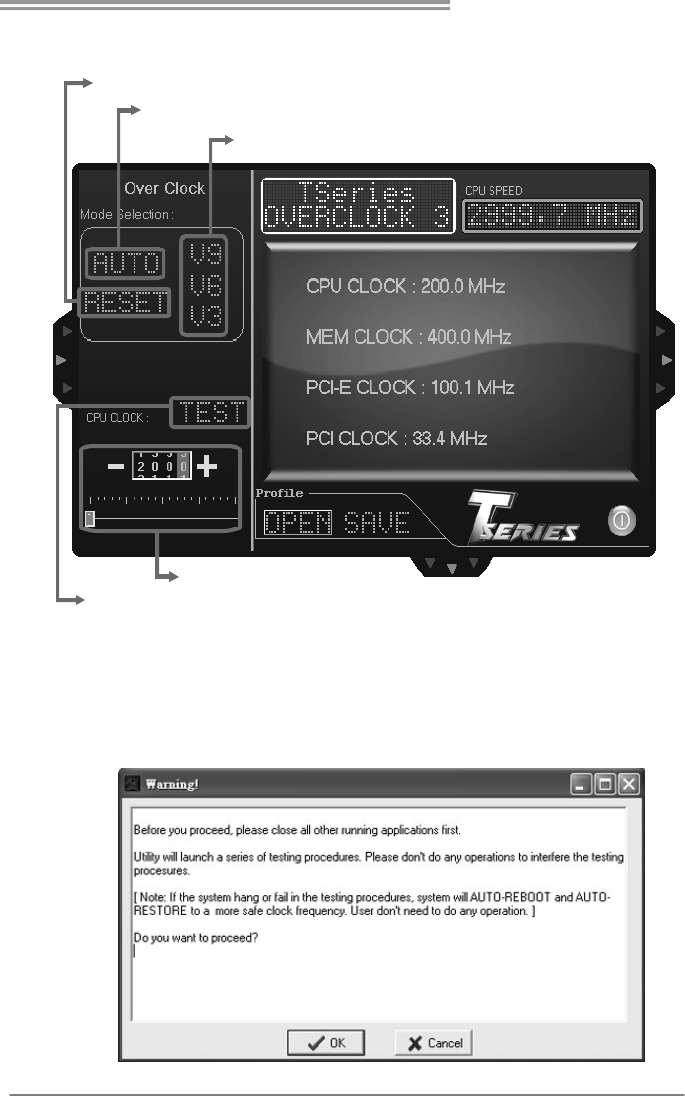

Over Clock Panel

V3/V6/ V9 Engine

Real-time Over-clock

AUTO Over-Clock

Restore Default Settings

Test & Apply Manual Settings

Manual Adjust CPU Clock

AUTO

User can click this button and the utility will set the best and stable

performance and frequency automatically. A warning dialog as below will

show up to notify you that the system may become unstable, click on “OK”

to continue.

Motherboard Manual

Then the utility will execute a series of testing until system fail. Then

system will do fail-safe reboot by using Watchdog function. After reboot,

launch the utility again and the utility will load the previously verified best

and stable frequency.

V3 / V6 / V9

Provide user the ability to do real-time over-clock adjustment. For

beginners in over-clock field, this is a powerful feature to increase system

performance.

 V3 Engine

This engine will make a good over-clock performance.

 V6 Engine

This engine will make a better over-clock performance.

 V9 Engine

This engine will make a best over-clock performance.

TEST

You can also manually adjust CPU clock by pressing +/- button or moving

the level bar. After manually adjust the CPU clock, you should click

TEST button and the utility will proceed a testing for current frequency. If

the testing is ok, then the current frequency will be saved into system

registry. If the testing fails, system will do a fail-safe rebooting. After reboot,

the utility will restore to the hardware default setting.

Warning

Manually over-clock is potentially dangerous, especially when the over-clocking

percentage is over 110 %. We strongly recommend you test every speed you

over-clock by click the TEST button. Or, you can just click AUTO over-clock

button and let the Utility automatically get the best result for you.

RESET

Click this button and the utility will restore all values to the hardware

default setting.

TP45D2-A7/TP43D2-A7

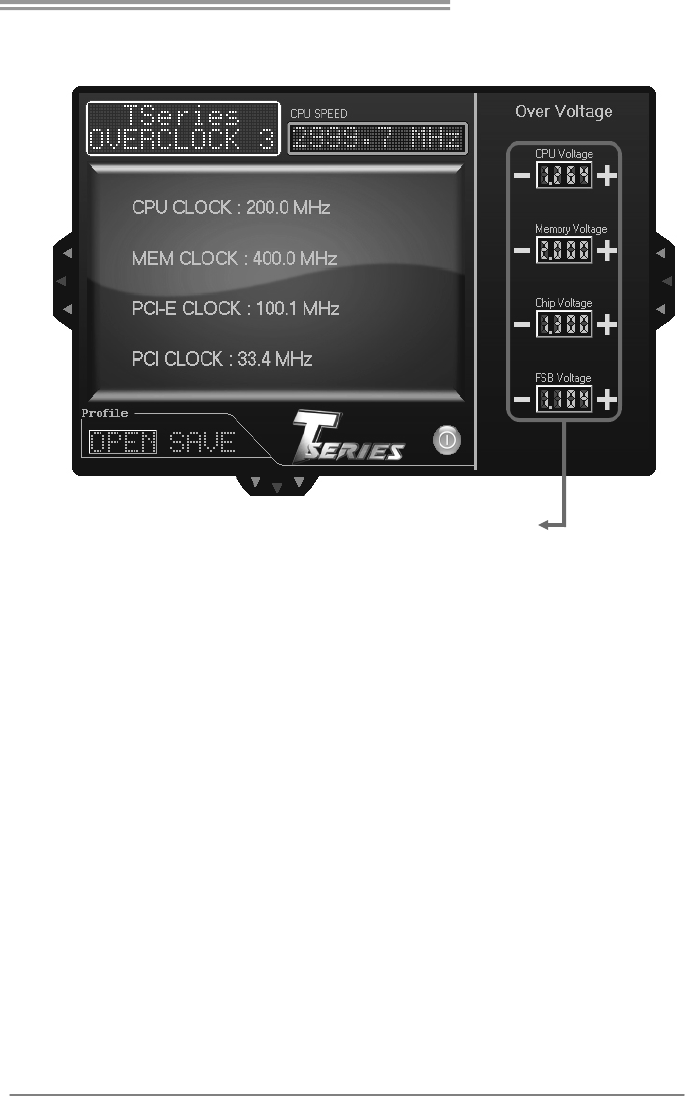

Over Voltage Panel

Manual Adjust

CPU/Memory/Chipset/FSB Voltage

CPU Voltage

This function allows user to adjust CPU voltage. Click on “+” to increase

or “-“ to decrease the CPU voltage.

Memory Voltage

This function allows user to adjust Memory voltage. Click on “+” to

increase or “-“ to decrease the Memory voltage.

Chip Voltage

This function allows user to adjust Chipset voltage. Click on “+” to

increase or “-“ to decrease the Chipset voltage.

FSB Voltage

This function allows user to adjust FSB voltage. Click on “+” to increase

or “-“ to decrease the FSB voltage.

Motherboard Manual

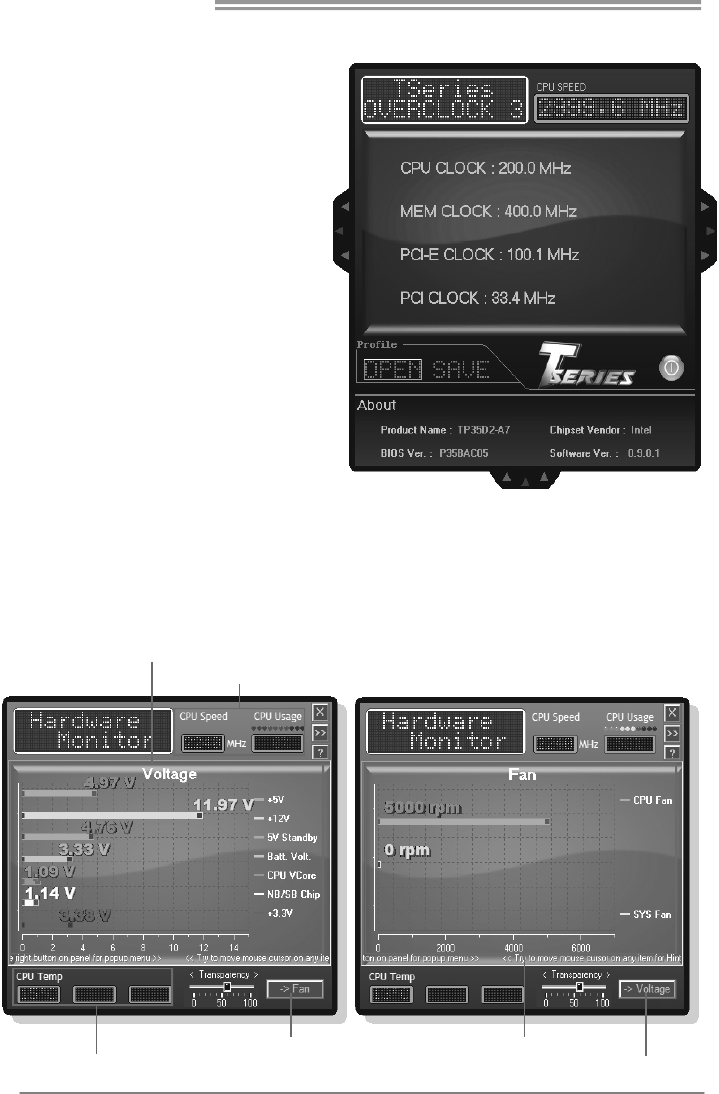

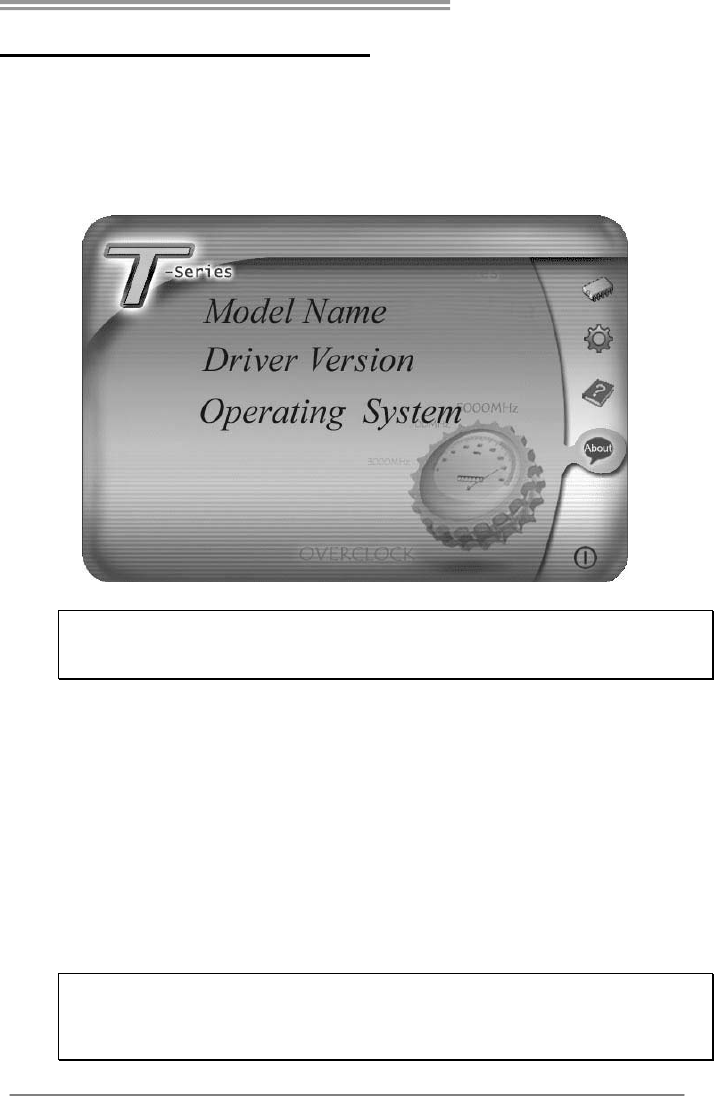

About Panel

In this panel, you can get model

name and other system information

that may related to over-clocking.

You can also get the version number

of this software.

Note

Because the Over Clock and Over

Voltage features are controlled by

several separate chipset, the utility

divides these features to separate

panels. If one chipset is not on

board, the correlative button in Main

panel will be disabled, but it will not

interfere with other panels’ functions.

This property can make the utility

more robust.

Hardware Monitor

HW Monitor is a monitor utility that helps you to maintain the health of the PC.

It provides real-time information of CPU/GPU/System temperature, fan speed,

and voltage.

Thi s area shows CPU/Sys tem temperat ure

Voltage Pa nel Fan Panel

Tu rn t o F a n P a nel

Thi s area shows vol t age informati on

Thi s area shows CPU inf ormation

Turn to Voltage P anel

Thi s area shows CPU/ System f an spe ed

TP45D2-A7/TP43D2-A7

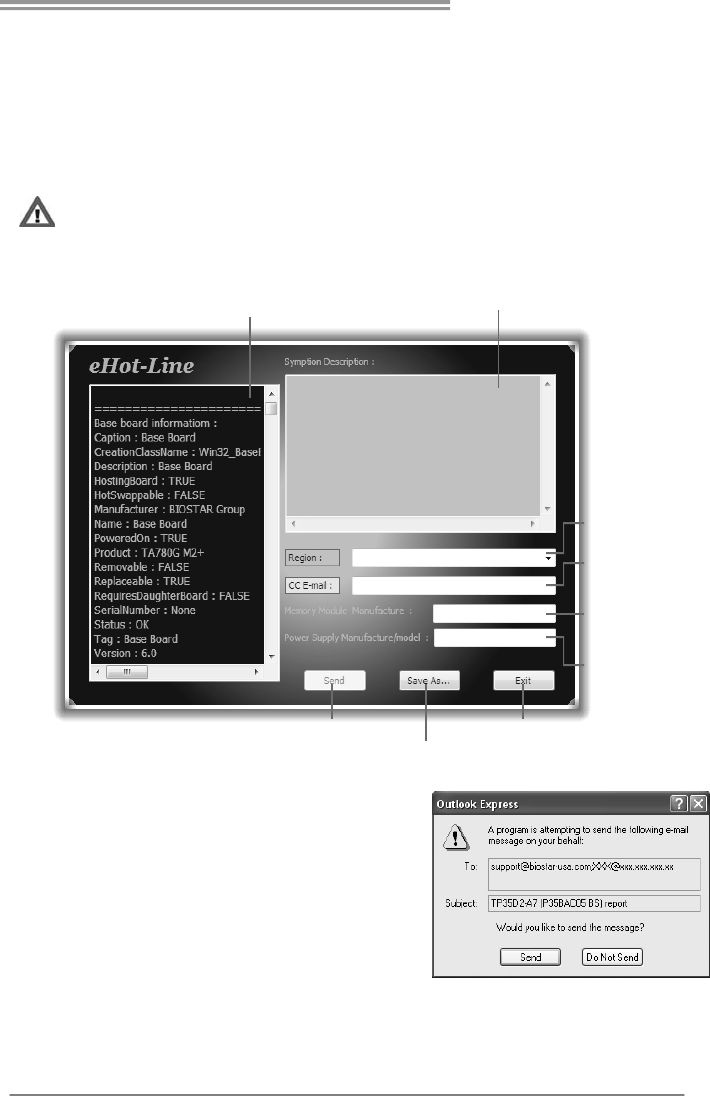

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our

Tech-Support system. This utility will collect the system information which is

useful for analyzing the problem you may have encountered, and then send

these information to our tech-support department to help you fix the problem.

Before you use this utility, please set Outlook Express as your default e-mail client application program.

This block will show

the information which

would be collected in

the mail.

Provide the e-mail

address that you would

like to send t he copy to.

Provide the name of

the power suppl y

manufacturer and the

model no.

Send the mail out.

Save these information to a .txt fil

Exit this dialog.

Select your area or

the area close to you.

Provid e the name of

the memory module

manufacturer.

Describe condition

of your system.

represents important

information that you

must provi de. Without

this informat ion, you may

not be able to send out

the mail.

After filling up this information, click “Send”

to send the mail out. A warning dialog would

appear asking for your confirmation; click

“Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you

will see a saving dialog appears asking you to enter file name.

Motherboard Manual

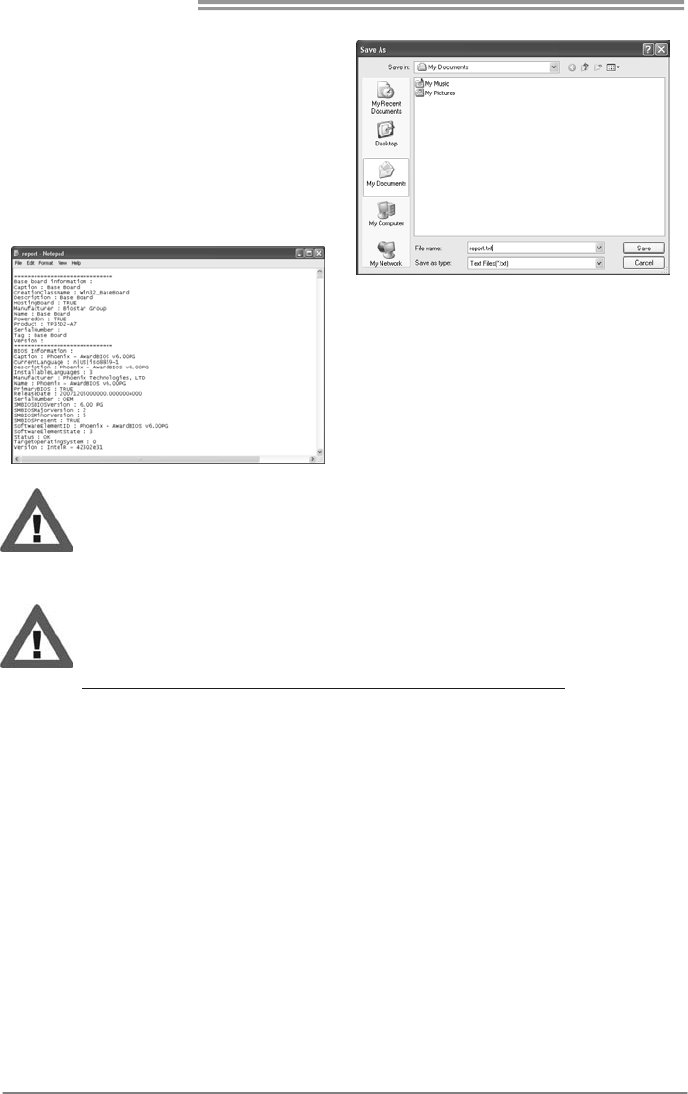

Enter the file name and then click

“Save”. Your system information

will be saved to a .txt file.

Open the saved .txt file, you will see

your system information including

motherboard/BIOS/CPU/video/

device/OS information. This

information is also concluded in the

sent mail.

We will not share customer’s data with any other third parties,

so please feel free to provide your system information while using

eHot-Line service.

If you are not using Outlook Express as your default e-mail client

application, you may need to save the system information to a .txt file

and send the file to our tech support with other e-mail application.

Go to the following web

http://www.biostar.com.tw/app/en-us/about/contact.php for getting

our contact information.

TP45D2-A7/TP43D2-A7

BIOS Update

BIOS Update is a convenient utility which allows you to update your

motherboard BIOS under Windows system.

Update BIOS

with a BIOS file

Clear CMOS function

(Only for AWARD BIOS)

Show current BIOS information

Save current BIOS

to a .bin file

AWARD BIOS AMI BIOS

Once click on this button, the saving

dialog will show. Choose the

position to save file and enter file

name. (We recommend that the file

name should be English/number

and no longer than 7 characters.)

Then click Save.

After the saving process, finish

dialog will show. Click on OK to

complete the BIOS Backup

procedure.

Motherboard Manual

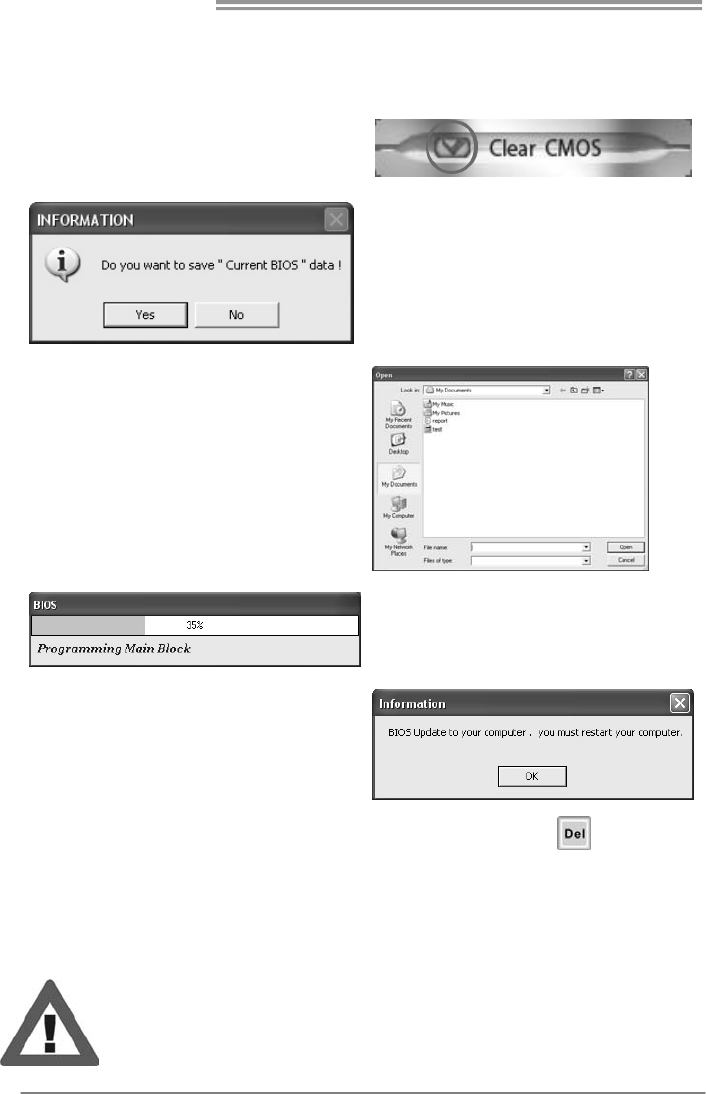

Before doing this, please download the proper BIOS file from the website.

For AWARD BIOS, update BIOS procedure

should be run with Clear CMOS function, so

please check on Clear CMOS first.

Then click Update BIOS button, a

dialog will show for asking you backup

current BIOS. Click Yes for BIOS

backup and refer to the Backup BIOS

procedure; or click No to skip this

procedure.

After the BIOS Backup procedure, the

open dialog will show for requesting the

BIOS file which is going to be updated.

Please choose the proper BIOS file for

updating, then click on Open.

The utility will update BIOS with the

proper BIOS file, and this process may

take minutes. Please do not open any

other applications during this process.

After the BIOS Update process, click on

OK to restart the system.

While the system boots up and the full screen logo shows, press <Delete>

key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and

Exit Setup to exit BIOS setup. BIOS Update is completed.

All the information and content above about the T-Series software are subject to be

changed without notice. For better performance, the software is being continuously

updated. The information and pictures described above are for your reference only.

The actual information and settings on board may be slightly different from this

manual.

TP45D2-A7/TP43D2-A7

CHAPTER 5: USEFUL HELP

5.1 DRIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup

Driver CD into your optical drive and install the driver for better system

performance.

You will see the following window after you insert the CD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver CD, please use file browser to

locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will

list the compatible driver for your motherboard and operating system.

Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide

will list the software available for your system, click on each software title

to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver

CD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version

of Acrobat Reader software from

http://www.adobe.com/products/acrobat/readstep2.html

Motherboard Manual

5.2 EXTRA INFORMATION

CPU Overheated

If the system shutdown automatically after power on system for

seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown

automatically to avoid a damage of the CPU, and the system may not

power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection

function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.

(See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

TP45D2-A7/TP43D2-A7

5.3 AMI BIOS BEEP CODE

Boot Block Beep Codes

Number of Beeps Description

1 No media present. (Insert diskette in floppy drive A:)

2 “AMIBOOT.ROM” file not found in root directory of diskette in

3 Insert next diskette if multiple diskettes are used for recovery

4 Flash Programming successful

5 File read error

7 No Flash EPROM detected

10 Flash Erase error

11 Flash Program error

12 “AMIBOOT.ROM” file size error

13 BIOS ROM image mismatch (file layout does not match

image present in flash device)

POST BIOS Beep Codes

Number of Beeps Description

1 Memory refresh timer error

3 Base memory read/write test error

6 Keyboard controller BAT command failed

7 General exception error (processor exception interrupt error)

8 Display memory error (system video adapter)

Troubleshooting POST BIOS Beep Codes

Number of Beeps Troubleshooting Action

1, 3 Reseat the memory, or replace with known good modules.

6, 7

Fatal error indicating a serious problem with the system.

Consult your system manufacturer. Before declaring the

motherboard beyond all hope, eliminate the possibility of

interference by a malfunctioning add-in card. Remove all

expansion cards except the video adapter.

z If beep codes are generated when all other expansion

cards are absent, consult your system manufacturer’s

technical support.

z If beep codes are not generated when all other expansion

cards are absent, one of the add-in cards is causing the

malfunction. Insert the cards back into the system one at a

time until the problem happens again. This will reveal the

malfunctioning card.

If the system video adapter is an add-in card, replace or

reseat the

video adapter. If the video adapter is an integrated part of the

system board, the board may be faulty.

Motherboard Manual

5.4 TROUBLESHOOTING

Probable Solution

1. No power to the system at all

Power light don’t illuminate, fan

inside power supply does not turn

on.

2. Indicator light on keyboard does

not turn on.

1. Make sure power cable is

securely plugged in.

2. Replace cable.

3. Contact technical support.

System inoperative. Keyboard lights

are on, power indicator lights are lit,

and hard drive is spinning.

Using even pressure on both ends of

the DIMM, press down firmly until the

module snaps into place.

System does not boot from hard disk

drive, can be booted from optical drive.

1. Check cable running from disk to

disk controller board. Make sure

both ends are securely plugged

in; check the drive type in the

standard CMOS setup.

2. Backing up the hard drive is

extremely important. All hard

disks are capable of breaking

down at any time.

System only boots from optical drive.

Hard disk can be read and applications

can be used but booting from hard disk

is impossible.

1. Back up data and applications

files.

2. Reformat the hard drive.

Re-install applications and data

using backup disks.

Screen message says “Invalid

Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure

correct information is in setup.

Cannot boot system after installing

second hard drive.

1. Set master/slave jumpers

correctly.

2. Run SETUP program and select

correct drive types. Call the drive

manufacturers for compatibility

with other drives.

TP45D2-A7/TP43D2-A7

This page is intentionally left blank.

Motherboard Manual

APPENDENCIES: SPEC IN OTHER LANGUAGE

GERMAN

TP45D2- A7 TP43D2- A7

CPU

LGA 775

Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx Prozessoren

Unterstützt Execute Disable Bit / Enhanced Intel

SpeedStep® / Intel Arch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technology

LGA 775

Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx Prozessoren

Unterstützt Execute Disable Bit / Enhanced Intel

SpeedStep® / Intel Arch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technology

FSB 800 / 1066 / 1333 / 1600 MHz 800 / 1066 / 1333 / 1600 MHz

Chipsatz Intel P45

Intel ICH1 0

Intel P43

Intel ICH1 0

Super E/A

ITE 8718F

Bietet die häufig verwendeten alten Super

E/A-Funktionen.

Low Pin Count-Schnittstelle

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzahl-Controller/-Überwachung

"Smart Guardian"-Funktion von ITE

ITE 8718F

Bietet die häufig verwendeten alten Super

E/A-Funktionen.

Low Pin Count-Schnittstelle

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzahl-Controller/-Überwachung

"Smart Guardian"-Funktion von ITE

Arbeitsspeich

DDR2 DIMM-Steckplätze x 4

Jeder DIMM unterstützt 256MB / 512MB / 1GB /

2GB DDR2.

Max. 8GB Arbeitsspeicher

Dual-Kanal DDR2 Speichermodul

Unterstützt DDR2 1066 / 800 / 667

registrierte DIMMs. ECC DIMMs werden nicht

unterstützt.

DDR2 DIMM-Steckplätze x 4

Jeder DIMM unterstützt 256MB / 512MB / 1GB /

2GB DDR2.

Max. 8GB Arbeitsspeicher

Dual-Kanal DDR2 Speichermodul

Unterstützt DDR2 1066 / 800 / 667

registrierte DIMMs. ECC DIMMs werden nicht

unterstützt.

IDE

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Bus

Master-Modus

Unterstützt PIO-Modus 0~4,

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Bus

Master-Modus

Unterstützt PIO-Modus 0~4,

SATA

Integrierter Serial ATA-Controller

Datentransferrate bis zu 3.0Gb/s

Konform mit der SATA-Spezifikation Version 2.0.

Integrierter Serial ATA-Controller

Datentransferrate bis zu 3.0Gb/s

Konform mit der SATA-Spezifikation Version 2.0.

LAN

Realtek RTL 8111C

10 / 100 / 1000 Mb/s Auto-Negotiation

Halb-/ Vollduplex-Funktion

Realtek RTL 8111C

10 / 100 / 1000 Mb/s Auto-Negotiation

Halb-/ Vollduplex-Funktion

TP45D2-A7/TP43D2-A7

TP45D2- A7 TP43D2- A7

Audio-Unters

tützung

ALC662

Unterstützt High-Definition Audio

5.1-Kanal-Audioausgabe

ALC662

Unterstützt High-Definition Audio

5.1-Kanal-Audioausgabe

PCI-Steckp latz x3 PCI-Steckp latz x3

PCI Express Gen2 x16 Steckplatz x1 PCI Express Gen2 x16 Steckplatz x1

Steckp lätze

PCI Express x 1-Steckplatz x2 PCI Express x 1-Steckplatz x2

Diskettenlaufwerkanschluss x1 Diskettenlaufwerkanschluss x1

Druckeranschluss Anschluss x1 Druckeranschluss Anschluss x1

Serieller Anschluss x1 Serieller Anschluss x1

IDE-Anschluss x1 IDE-Anschluss x1

SATA-Anschluss x6 SATA-Anschluss x6

Fronttafelanschluss x1 Fronttafelanschluss x1

Front-Audioanschluss x1 Front-Audioanschluss x1

CD-IN-Anschluss x1 CD-IN-Anschluss x1

CPU-Lüfter-Sockel x1 CPU-Lüfter-Sockel x1

System-Lüfter-Sockel x2 System-Lüfter-Sockel x2

"CMOS löschen"-Sockel x1 "CMOS löschen"-Sockel x1

USB-Anschluss x3 USB-Anschluss x3

Stromanschluss (24-polig) x1 Stromanschluss (24-polig) x1

Onboard-Ans

chluss

Stromansch luss (4-polig ) x2 Stromansch lus s (4-polig ) x2

Rückseiten-E

PS/2-Tastatur x1

PS/2- Maus x1

LAN-Anschluss x1

USB-Anschluss x6

Audioanschluss x3

PS/2-Tastatur x1

PS/2- Maus x1

LAN-Anschluss x1

USB-Anschluss x6

Audioanschluss x3

Platinengröße

220 mm (B) X 305 mm (L) 220 mm (B) X 305 mm (L)

OS-Unterstüt

zung

Windows 2000 / XP / VISTA

Biostar behält sich das Recht vor, ohne

Ankündigung die Unterstützung für ein

Betriebssystem hinzuzufügen oder zu

entfernen.

Windows 2000 / XP / VISTA

Biostar behält sich das Recht vor, ohne

Ankündigung die Unterstützung für ein

Betriebssystem hinzuzufügen oder zu

entfernen.

Motherboard Manual

FRANCE

TP45D2- A7 TP43D2- A7

LGA 775

Processeurs Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx

Prend en charge les technologies d'exécution de

bit de désactivation / Intel SpeedStep®

optimisée/ d'ar ch itecture Int el 64 / de mémo ire

étendue 64 / de virtualisat ion

LGA 775

Processeurs Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx

Prend en charge les technologies d'exécution de

bit de désactivation / Intel SpeedStep®

optimisée/ d'ar ch itecture Int el 64 / de mémo ire

étendue 64 / de virtualisat ion

Bus frontal 800 / 1066 / 1333 / 1600 MHz 800 / 1066 / 1333 / 1600 MHz

Chipset Intel P45

Intel ICH1 0

Intel P43

Intel ICH1 0

Super E/S

ITE 8718F

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à f aib le co mpte de b roches

Initiatives de contrôle environnementales,

Moniteur de mat ér iel

Contrôleur /moniteur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

ITE 8718F

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à f aib le co mpte de b roches

Initiatives de contrôle environnementales,

Moniteur de mat ér iel

Contrôleur /moniteur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

Mémoire

principale

Fentes DDR2 DIMM x 4

Chaque DIMM prend en charge des DDR2 de

256Mo / 512Mo / 1Go / 2Go

Capacité mémo ire max imale de 8Go

Module de mémoire DDR2 à mode à double voie

Prend en charge la DDR2 1066 / 800 / 667

Les DIMM à registres et DIMM avec code

correcteurs d'erreurs ne sont pas prises en

charge

Fentes DDR2 DIMM x 4

Chaque DIMM prend en charge des DDR2 de

256Mo / 512Mo / 1Go / 2Go

Capacité mémo ire max imale de 8Go

Module de mémoire DDR2 à mode à double voie

Prend en charge la DDR2 1066 / 800 / 667

Les DIMM à registres et DIMM avec code

correcteurs d'erreurs ne sont pas prises en

charge

IDE

JMicro JMB368

Mode principale de Bus Ultra DMA 33 / 66 / 100 /

133

Prend en charge le mode PIO 0~4,

JMicro JMB368

Mode principale de Bus Ultra DMA 33 / 66 / 100 /

133

Prend en charge le mode PIO 0~4,

SATA

Contrôleur Serial ATA

int égré :

Taux de transfert jusqu'à 3.0Go/s.

Conforme à la spécif icat ion SATA Vers ion 2.0

Contrôleur Serial ATA

int égré :

Taux de transfert jusqu'à 3.0Go/s.

Conforme à la spécif icat ion SATA Vers ion 2.0

LAN

Realtek RTL 8111C

10 / 100 / 1000 Mb/s négociation automatique

Half / Full duplex capability

Realtek RTL 8111C

10 / 100 / 1000 Mb/s négociation automatique

Half / Full duplex capability

TP45D2-A7/TP43D2-A7

TP45D2- A7 TP43D2- A7

Prise en

charge

audio HD

ALC662

Prise en charge de l'aud io haut e définit ion

Sortie audio à 5.1 vo ies

ALC662

Prise en charge de l'aud io haut e définit ion

Sortie audio à 5.1 vo ies

Fente PCI x3 Fente PCI x3

Fente PCI Express Gen2 x16 x1 Fente PCI Express Gen2 x16 x1

Fentes

Fente PCI Express x1 x2 Fente PCI Express x1 x2

Connecteur de disquette x1 Connecteur de disquette x1

Connecteur de Port d'imprimante x1 Connecteur de Port d'imprimante x1

Port série x1 Port série x1

Connecteur IDE x1 Connecteur IDE x1

Connecteur SATA x6 Connecteur SATA x6

Connecteur du panneau avant x1 Connecteur du panneau avant x1

Connecteur Audio du panneau avant x1 Connecteur Audio du panneau avant x1

Connecteur d' entrée CD x1 Connecteur d' entrée CD x1

Embase de ventilateur UC x1 Embase de ventilateur UC x1

Embase de ventilateur système x2 Embase de ventilateur système x2

Embase d'effacement CMOS x1 Embase d'effacement CMOS x1

Connecteur USB x3 Connecteur USB x3

Connecteur d' aliment ation x1

(24 broches)

Connecteur d' aliment ation x1

(24 broches)

Connecteur

embarqué

Connecteur d' aliment ation x2

(4 broches)

Connecteur d' aliment ation x2

(4 broches)

E/S du

panneau

arrière

Clavier PS/2 x1

Souris PS/2 x1

Port LAN x1

Port USB x6

Fiche audio x3

Clavier PS/2 x1

Souris PS/2 x1

Port LAN x1

Port USB x6

Fiche audio x3

Dimensions

de la carte 220 mm (l) X 305 mm (H) 220 mm (l) X 305 mm (H)

Support SE

Windows 2000 / XP / VISTA

Biostar se réserve le droit d'ajouter ou de

supprimer le support de SE avec ou sans préavis.

Windows 2000 / XP /VISTA

Biostar se réserve le droit d'ajouter ou de

supprimer le support de SE avec ou sans préavis.

Motherboard Manual

ITALIAN

TP45D2-A7 TP43D2-A7

CPU

LGA 775

Processore Intel Core2Duo / Core2Quad /

Pentium Dual-Core / Celeron Dual-Core /

Celeron 4xx

Supporto di Execute Disable Bit / Enhanced

Intel SpeedStep® / Architettura Intel 64 /

Tecnologia Extended Memory 64 /

Tecnologia Virtualization

LGA 775

Processore Intel Core2Duo / Core2Quad /

Pentium Dual-Core / Celeron Dual-Core /

Celeron 4xx

Supporto di Execute Disable Bit / Enhanced

Intel SpeedStep® / Architettura Intel 64 /

Tecnologia Extended Memory 64 /

Tecnologia Virtualization

FSB 800 / 1066 / 1333 / 1600 MHz 800 / 1066 / 1333 / 1600 MHz

Chipset Intel P45

Intel ICH1 0

Intel P43

Intel ICH1 0

Super I/O

ITE 8718F

Fornisce le funzionalità legacy Super I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Controller / Monitoraggio velocità ventolina

Funzione "Smart Guardian" di ITE

ITE 8718F

Fornisce le funzionalità legacy Super I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Controller / Monitoraggio velocità ventolina

Funzione "Smart Guardian" di ITE

Memoria

principale

Alloggi DIMM DDR2 x 4

Ciascun DIMM supporta DDR2 256MB /

512MB / 1GB / 2GB

Capacità massima della memoria 8GB

Modulo di memoria DDR2 a canale doppio

Supporto di DDR2 1066 / 800 / 667

DIMM registrati e DIMM ECC non sono

supportati

Alloggi DIMM DDR2 x 4

Ciascun DIMM supporta DDR2 256MB /

512MB / 1GB / 2GB

Capacità massima della memoria 8GB

Modulo di memoria DDR2 a canale doppio

Supporto di DDR2 1066 / 800 / 667

DIMM registrati e DIMM ECC non sono

supportati

IDE

JMicro JMB368

Modalità Bus Master Ultra DMA 33 / 66 /

100 / 133

Supporto modalità PIO Mode 0-4

JMicro JMB368

Modalità Bus Master Ultra DMA 33 / 66 /

100 / 133

Supporto modalità PIO Mode 0-4

SATA

Controller Ser ial ATA integrato

Velocità di trasferimento dei dati fino a

3.0Gb/s.

Compatibile specifiche SATA Versione 2.0.

Controller Ser ial ATA integrato

Velocità di trasferimento dei dati fino a

3.0Gb/s.

Compatibile specifiche SATA Versione 2.0.

LAN

Realtek RTL 8111C

Negoziazione automatica 10 / 100 / 1000

Mb/s

Capacità Half / Full Duplex

Realtek RTL 8111C

Negoziazione automatica 10 / 100 / 1000

Mb/s

Capacità Half / Full Duplex

TP45D2-A7/TP43D2-A7

TP45D2-A7 TP43D2-A7

Supporto

audio HD

ALC662

Supporto audio High-Definition (HD)

Uscita audio 5.1 canali

ALC662

Supporto audio High-Definition (HD)

Uscita audio 5.1 canali

Alloggio PC I x3 Alloggio PC I x3

Alloggio PCI Express Gen2 x16 x1 Alloggio PCI Express Gen2 x16 x1

Alloggi

Alloggio PCI Express x1 x2 Alloggio PCI Express x1 x2

Connettore floppy x1 Connettore floppy x1

Connettore Porta stampante x1 Connettore Porta stampante x1

Porta seriale x1 Porta seriale x1

Connettore IDE x1 Connettore IDE x1

Connettore SATA x6 Connettore SATA x6

Connettore pannello frontale x1 Connettore pannello frontale x1

Connettore audio frontale x1 Connettore audio frontale x1

Connettore CD-in x1 Connettore CD-in x1

Collettore ventolina C PU x1 Collettore ventolina C PU x1

Collettore ventolina sistema x2 Collettore ventolina sis tema x2

Collettore cancellaz ione CMOS x1 Collettore cancellaz ione CMOS x1

Connettore USB x3 Connettore USB x3

Connettore alimentazione x1

(24 pin)

Connettore alimentazione x1

(24 pin)

Connettori

su scheda

Connettore alimentazione x2

(4 pin)

Connettore alimentazione x2

(4 pin)

I/O

pannello

posteriore

Tas t ier a PS /2 x 1

Mouse PS/2 x1

Porta LAN x1

Porta USB x6

Connettore audio x3

Tas t ier a PS /2 x 1

Mouse PS/2 x1

Porta LAN x1

Porta USB x6

Connettore audio x3

Dimension

i scheda 220 mm (larghezza) x 305 mm (altezza) 220 mm (larghezza) x 305 mm (altezza)

Sistemi

operativi

supportati

Windows 2000 / XP / VISTA

Biostar si riserva il diritto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

Windows 2000 / XP / VISTA

Biostar si riserva il diritto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

Motherboard Manual

SPANISH

TP45D2- A7 TP43D2- A7

CPU

LGA 775

Procesador Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx

Admite Bit de deshabilitación de ejecución / Intel

SpeedStep® Mejorado / Int el Architecture-64 /

Tecno logía Extended Memory 64 / Tecno log ía de

virtualización

LGA 775

Procesador Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx

Admite Bit de deshabilitación de ejecución / Intel

SpeedStep® Mejorado / Int el Architecture-64 /

Tecno logía Extended Memory 64 / Tecno log ía de

virtualización

FSB 800 / 1066 / 1333 / 1600 MHz 800 / 1066 / 1333 / 1600 MHz

Conjunto de

chips

Intel P45

Intel ICH1 0

Intel P43

Intel ICH1 0

Súper E/S

ITE 8718F

Le ofrece las funcionalidades heredadas de uso

más común Súper E/S.

Interfaz de cuenta Low Pin

In ic iat ivas de control d e entorno,

Monitor hardware

Controlador/monitor de velocidad de ventilador

Función "Guardia inteligente" de ITE

ITE 8718F

Le ofrece las funcionalidades heredadas de uso

más común Súper E/S.

Interfaz de cuenta Low Pin

In ic iat ivas de control d e entorno,

Monitor hardware

Controlador/monitor de velocidad de ventilador

Función "Guardia inteligente" de ITE

Memoria

principal

Ranuras DIMM DDR2 x 4

Cada DIMM admite DDR de 256MB / 512MB /

1GB / 2GB

Capacidad máxima de memoria de 8GB

Módulo de memoria DDR2 de canal Doble

Admite DDR2 de 1066 / 800 / 667

No admite DIMM registrados o DIMM

compatibles con ECC

Ranuras DIMM DDR2 x 4

Cada DIMM admite DDR de 256MB / 512MB /

1GB / 2GB

Capacidad máxima de memoria de 8GB

Módulo de memoria DDR2 de canal Doble

Admite DDR2 de 1066 / 800 / 667

No admite DIMM registrados o DIMM

compatibles con ECC

IDE

JMicro JMB368

Modo bus maestro Ultra DMA 33 / 66 / 100 / 133

Soporte los Modos PIO 0~4,

JMicro JMB368

Modo bus maestro Ultra DMA 33 / 66 / 100 / 133

Soporte los Modos PIO 0~4,

SATA

Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3.0 Gb/s.

Compat ib le con la vers ión SATA 2.0.

Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3.0 Gb/s.

Compat ib le con la vers ión SATA 2.0.

Red Local

Realtek RTL 8111C

Negociación de 10 / 100 / 1000 Mb/s

Funciones Half / Full dúplex

Realtek RTL 8111C

Negociación de 10 / 100 / 1000 Mb/s

Funciones Half / Full dúplex

TP45D2-A7/TP43D2-A7

TP45D2- A7 TP43D2- A7

Soporte de

sonido HD

ALC662

Soporte de sonido de Alta Definición

Salida de sonido de 5.1 canales

ALC662

Soporte de sonido de Alta Definición

Salida de sonido de 5.1 canales

Ranura PCI X3 Ranura PCI X3

Ranura PCI Express Gen2 x16 X1 Ranura PCI Express Gen2 x16 X1

Ranuras

Ranura PCI express x 1 X2 Ranura PCI express x 1 X2

Conector disco flexible X1 Conector disco flexible X1

Conector Puerto de impresora X1 Conector Puerto de impresora X1

Puerto serie X1 Puerto serie X1

Conector IDE X1 Conector IDE X1

Conector SATA X6 Conector SATA X6

Conector de panel frontal X1 Conector de panel frontal X1

Conector de sonido frontal X1 Conector de sonido frontal X1

Conector de entrada de CD X1 Conector de entrada de CD X1

Cabecera de ventilador de CPU X1 Cabecera de ventilador de CPU X1

Cabecera de ventilador de sistema X2 Cabecera de ventilador de sistema X2

Cabecera de borrado de CMOS X1 Cabecera de borrado de CMOS X1

Conector USB X3 Conector USB X3

Conector de alimentación X1

(24 patillas)

Conector de alimentación X1

(24 patillas)

Conectores

en placa

Conector de alimentación X2

(4 patillas)

Conector de alimentación X2

(4 patillas)

Panel

trasero de

E/S

Tec l ado PS /2 X 1

Ratón PS/2 X1

Puerto de red local X1

Puerto USB X6

Conector de sonido X3

Tec l ado PS /2 X 1

Ratón PS/2 X1

Puerto de red local X1

Puerto USB X6

Conector de sonido X3

Ta mañ o d e

la placa 220 mm. (A) X 305 Mm. (H) 220 mm. (A) X 305 Mm. (H)

Soporte de

sistema

operativo

Windows 2000 / XP / VISTA

Biostar se reserva el derecho de añadir o retirar

el soporte de cualquier SO con o sin aviso previo.

Windows 2000 / XP / VISTA

Biostar se reserva el derecho de añadir o retirar

el soporte de cualquier SO con o sin aviso previo.

Motherboard Manual

PORTUGUESE

TP45D2- A7 TP43D2- A7

CPU

LGA 775

Processador Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx

Suporta as tecno logias Execute Disable Bit /

Enhanced Intel SpeedStep® / Intel Arquitecture

-64 / Extended Memory 64 / Virtualization

LGA 775

Processador Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx

Suporta as tecno logias Execute Disable Bit /

Enhanced Intel SpeedStep® / Intel Arquitecture

-64 / Extended Memory 64 / Virtualization

FSB 800 / 1066 / 1333 / 1600 MHz 800 / 1066 / 1333 / 1600 MHz

Chipset Intel P45

Intel ICH1 0

Intel P43

Intel ICH1 0

Especificaçã

o Super I/O

ITE 8718F

Proporciona as funcionalidades mais utilizadas

em termos da especificação Super I/O.

Interface LPC (Low Pin Count).

In ic iat ivas para contro lo do amb iente

Monitorização do hardware

Controlador/Monitor da velocidade da ventoinha

Função "S mart Gu ard ian" da ITE

ITE 8718F

Proporciona as funcionalidades mais utilizadas

em termos da especificação Super I/O.

Interface LPC (Low Pin Count).

In ic iat ivas para contro lo do amb iente

Monitorização do hardware

Controlador/Monitor da velocidade da ventoinha

Função "S mart Gu ard ian" da ITE

Memória

principal

Ranhuras DIMM DDR2 x 4

Cada módulo DIMM suporta uma memória

DDR2 de 256 MB / 512 MB / 1GB / 2GB

Capacidad e máx ima d e memór ia:8 GB

Módulo de memória DDR2 de canal duplo

Suporta módulos DDR2 1066 / 800 / 667

Os módulos DIMM registados e os DIMM ECC

não são suportados

Ranhuras DIMM DDR2 x 4

Cada módulo DIMM suporta uma memória

DDR2 de 256 MB / 512 MB / 1GB / 2GB

Capacidad e máx ima d e memór ia:8 GB

Módulo de memória DDR2 de canal duplo

Suporta módulos DDR2 1066 / 800 / 667

Os módulos DIMM registados e os DIMM ECC

não são suportados

IDE

JMicro JMB368

Modo Bus master Ultra DMA 33 / 66 / 100 / 133

Suporta o modo PIO 0~4,

JMicro JMB368

Modo Bus master Ultra DMA 33 / 66 / 100 / 133

Suporta o modo PIO 0~4,

SATA

Controlador Serial ATA integrado

Velocidades de transmissão de dados até 3.0

Gb/s.

Compat ibilidad e co m a especificação SATA

versão 2.0.

Controlador Serial ATA integrado

Velocidades de transmissão de dados até 3.0

Gb/s.

Compat ibilidad e co m a especificação SATA

versão 2.0.

LAN

Realtek RTL 8111C

Auto negociação de 10 / 100 / 1000 Mb/s

Capacidade semi/full-duplex

Realtek RTL 8111C

Auto negociação de 10 / 100 / 1000 Mb/s

Capacidade semi/full-duplex

Suporte

para áudio

de alta

definição

ALC662

Suporta a especificação High-Definition Audio

Saída de áudio de 5.1 canais

ALC662

Suporta a especificação High-Definition Audio

Saída de áudio de 5.1 canais

TP45D2-A7/TP43D2-A7

TP45D2- A7 TP43D2- A7

Ranhura PCI x3 Ranhura PCI x3

Ranhura PCI Express Gen2 x16 x1 Ranhura PCI Express Gen2 x16 x1

Ranhuras

Ranhura PCI Express x 1 x2 Ranhura PCI Express x 1 x2

Conector da unidade de disquetes x1 Conector da unidade de disquetes x1

Conector da para impressora x1 Conector da para impressora x1

Porta série x1 Porta série x1

Conector IDE x1 Conector IDE x1

Conector SATA x6 Conector SATA x6

Conector do painel frontal x1 Conector do painel frontal x1

Conector de áudio frontal x1 Conector de áudio frontal x1

Conector para entrada de CDs x1 Conector para entrada d e CDs x1

Conector da ventoinha da CPU x1 Conector da ventoinha da CPU x1

Conector da ventoinha do s istema x2 Conector da ventoinha do sistema x2

Conector para limpeza do CMOS x1 Conector para limpeza do CMOS x1

Conector USB x3 Conector USB x3

Conector de alimentação x1

(24 pinos)

Conector de alimentação x1

(24 pinos)

Conectores

na placa

Conector de alimentação x2

(4 p inos)

Conector de alimentação x2

(4 p inos)

Entradas/S

aídas no

painel

traseiro

Tec l ado PS /2 x 1

Rato PS/2 x1

Porta LAN x1

Porta USB x6

Tomada de áudio x3

Tec l ado PS /2 x 1

Rato PS/2 x1

Porta LAN x1

Porta USB x6

Tomada de áudio x3

Tamanho

da placa 220 mm (L) X 305 mm (A) 220 mm (L) X 305 mm (A)

Sistemas

operativos

suportados

Windows 2000 / XP / VISTA

A Biostar reserva-se o direito de adicionar ou

remover suporte para qualquer sistema

operativo com ou sem aviso prévio.

Windows 2000 / XP / VISTA

A Biostar reserva-se o direito de adicionar ou

remover suporte para qualquer sistema

operativo com ou sem aviso prévio.

Motherboard Manual

POLISH

TP45D2- A7 TP43D2- A7

Procesor

LGA 775

Procesor Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx

Obsługa Execute Dis able Bit / Enhanced Intel

SpeedStep® / Intel Arch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technology

LGA 775

Procesor Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx

Obsługa Execute Dis able Bit / Enhanced Intel

SpeedStep® / Intel Arch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technology

FSB 800 / 1066 / 1333 / 1600 MHz 800 / 1066 / 1333 / 1600 MHz

Chipset Intel P45

Intel ICH1 0

Intel P43

Intel ICH1 0

Pamięć

główna

Gniazda DDR2 DIMM x 4

Każde gniazdo DIMM obsługuje moduły 256MB /

512MB / 1GB / 2GB

Maks. wielkość pamięci 8GB

Modu ł pamięci DDR2 z trybem podwójnego

kanału

Obsługa DDR2 1066 / 800 / 667

Brak obsług i Registered D IMM oraz ECC DIMM

Gniazda DDR2 DIMM x 4

Każde gniazdo DIMM obsługuje moduły 256MB /

512MB / 1GB / 2GB

Maks. wielkość pamięci 8GB

Modu ł pamięci DDR2 z trybem podwójnego

kanału

Obsługa DDR2 1066 / 800 / 667

Brak obsług i Registered D IMM oraz ECC DIMM

Super I/O

ITE 8718F

Zapewnia najbardziej powszechne funkcje Super

I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Monitor H/W

Kontroler/Monitor prędkości wentylatora

Funkcja ITE "Smart Guardian"

ITE 8718F

Zapewnia najbardziej powszechne funkcje Super

I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Monitor H/W

Kontroler/Monitor prędkości wentylatora

Funkcja ITE "Smart Guardian"

IDE

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master

obsługa PIO tryb 0~4,

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master

obsługa PIO tryb 0~4,

SATA

Zintegrowany kontroler Serial ATA

Transfer danych do 3.0 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0.

Zintegrowany kontroler Serial ATA

Transfer danych do 3.0 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0.

LAN

Realtek RTL 8111C

10 / 100 / 1000 Mb/s z automatyczną negocjacją

szybkości

Działanie w tryb ie połowicznego / pełnego

dupleksu

Realtek RTL 8111C

10 / 100 / 1000 Mb/s z automatyczną negocjacją

szybkości

Działanie w tryb ie połowicznego / pełnego

dupleksu

Obsługa

audio HD

ALC662

Obsługa High-Def inition Audio

5.1 kanałowe wyjście audio

ALC662

Obsługa High-Def inition Audio

5.1 kanałowe wyjście audio

TP45D2-A7/TP43D2-A7

TP45D2- A7 TP43D2- A7

Gniazdo PCI x3 Gniazdo PCI x3

Gniazdo PCI Express Gen2 x16 x1 Gniazdo PCI Express Gen2 x16 x1

Gniazda

Gniazdo PCI Express x 1 x2 Gniazdo PCI Express x 1 x2

Złącze napędu dyskietek x1 Złącze napędu dyskietek x1

Złącze Port drukarki x1 Złącze Port drukarki x1

Port szeregowy x1 Port szeregowy x1

Złącze IDE x1 Złącze IDE x1

Złącze SATA x6 Złącze SATA x6

Złącze panela przedniego x1 Złącze panela przedniego x1

Przednie złącze audio x1 Przednie złącze aud io x1

Złącze wejścia CD x1 Złącze wejścia CD x1

Złącze g łówkowe wentylatora

procesora x1

Złącze g łówkowe wentylatora

procesora x1

Złącze g łówkowe wentylatora

systemowego x2

Złącze g łówkowe wentylatora

systemowego x2

Złącze g łówkowe kasowania CMOS x1 Złącze główkowe kasowania CMOS x1

Złącze USB x3 Złącze USB x3

Złącze zasilania (24 pinowe) x1 Złącze zasilania (24 pinowe) x1

Złącza

wbudowane

Złącze zas ilania (4 pino we) x2 Złącze zasilania (4 pino we) x2

Back Panel

I/O

Klawiatura PS/2 x1

Mysz PS /2 x1

Port LAN x1

Port USB x6

Gniazdo audio x3

Klawiatura PS/2 x1

Mysz PS /2 x1

Port LAN x1

Port USB x6

Gniazdo audio x3

Wymiary

płyty 220 mm (S) X 305 mm (W) 220 mm (S) X 305 mm (W)

Obsluga

systemu

operacyjne

Windows 2000 / XP / VISTA

Biostar zastrzega sobie prawo dodawania lub

odwoływania obsług i dowo lnego systemu

operacyjnego b ez powiado mienia.

Windows 2000 / XP / VISTA

Biostar zastrzega sobie prawo dodawania lub

odwoływania obsług i dowo lnego systemu

operacyjnego b ez powiado mienia.

Motherboard Manual

RUSSIAN

TP45D2- A7 TP43D2- A7

CPU

(центральн

ый

процессор)

LGA 775

Процессор Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx

Поддержка технологий Execute Disable Bit /

Enhanced Intel Sp eedStep® / Intel

Architecture-64 / Extended Memory 64

Technology / технологии виртуализация

LGA 775

Процессор Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx

Поддержка технологий Execute Disable Bit /

Enhanced Intel Sp eedStep® / Intel

Architecture-64 / Extended Memory 64

Technology / технологии виртуализация

FSB 800 / 1066 / 1333 / 1600 МГц 800 / 1066 / 1333 / 1600 МГц

Набор

микросхем

Intel P45

Intel ICH1 0

Intel P43

Intel ICH1 0

Основная

память

Слоты DDR2 DIMM x 4

Каждый модуль DIMM поддерживает 256 МБ /

512МБ / 1ГБ / 2ГБ DDR2

Максимальная ёмкость памяти 8ГБ

Модуль памяти с двухканальным режимом

DDR2

Поддержка DDR2 1066 / 800 / 667

Не поддерживает зарегистрированные

модули DIMM and ECC DIMM

Слоты DDR2 DIMM x 4

Каждый модуль DIMM поддерживает 256 МБ /

512МБ / 1ГБ / 2ГБ DDR2

Максимальная ёмкость памяти 8ГБ

Модуль памяти с двухканальным режимом

DDR2

Поддержка DDR2 1066 / 800 / 667

Не поддерживает зарегистрированные

модули DIMM and ECC DIMM

Super I/O

ITE 8718F

Обеспечивает наиболее используемые

действующие фун кц ио нал ьны е во зможности

Super I/O.

Интерфейс с низким количеством выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Регулятор скорости вентилятора/ монитор

Функц ия ITE "Smart Guard ian"

(Интеллектуальная защита)

ITE 8718F

Обеспечивает наиболее используемые

действующие фун кц ио нал ьны е во зможности

Super I/O.

Интерфейс с низким количеством выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Регулятор скорости вентилятора/ монитор

Функц ия ITE "Smart Guard ian"

(Интеллектуальная защита)

IDE

JMicro JMB368

Режим "хозяина" шины Ultra DMA 33 / 66 / 100

/ 133

Поддержка режима PIO 0~4,

JMicro JMB368

Режим "хозяина" шины Ultra DMA 33 / 66 / 100

/ 133

Поддержка режима PIO 0~4,

SATA

Встроенное последовательное устройство

управления ATA

скорость передачи данных до 3.0 гигабит/с.

Соответствие спецификации SATA версия 2.0.

Встроенное последовательное устройство

управления ATA

скорость передачи данных до 3.0 гигабит/с.

Соответствие спецификации SATA версия 2.0.

Локальная

сеть

Realtek RTL 8111C

Автоматическое согласование 10 / 100 / 1000

Мб/с

Частичная / полная дуплексная способность

Realtek RTL 8111C

Автоматическое согласование 10 / 100 / 1000

Мб/с

Частичная / полная дуплексная способность

TP45D2-A7/TP43D2-A7

TP45D2- A7 TP43D2- A7

Звуко вая

поддержка

жесткого

диска

ALC662

Звуко вая поддержка High-Def inition

5.1канальный звуковой выход

ALC662

Звуко вая поддержка High-Def inition

5.1канальный звуковой выход

Слот PCI x3 Слот PCI x3

Слот PCI Express Gen2 x16 x1 Слот PCI Express Gen2 x16 x1

Слоты

Слот PCI Express x 1 x2 Слот PCI Express x 1 x2

Разъём НГ МД x1 Разъ ём НГ МД x1

Разъём Порт подключения

принтера x1

Разъём Порт подключения

принтера x1

Последовательный порт x1 Последовательный порт x1

Разъём IDE x 1 Разъём IDE x 1

Разъём SATA x6 Разъём SATA x6

Разъём на лицевой панели x1 Разъ ём на лицевой панели x1

Входной звуковой разъём x1 Входной звуковой разъём x1

Разъём ввода для CD x1 Разъём ввода для CD x1

Контактирующее приспособление

вентилятора центрального процессора x1

Контактирующее приспособление

вентилятора центрального процессора x1

Контактирующее приспособление

вентилятора системы x2

Контактирующее приспособление

вентилятора системы x2

Открытое контактир ующее

приспособление CMOS x1

Открытое контактир ующее

приспособление CMOS x1

USB-разъём x3 USB-разъём x3

Разъем питания (24 вывод) x1 Разъ ем питания (24 вывод) x1

Встроенны

й разъём

Разъем питания (4 вывод) x2 Разъем питания (4 вывод) x2

Задняя

панель

средств

ввода-выв

ода

Клавиатура PS/2 x1

Мышь PS/2 x1

Порт LAN x1

USB-порт x6

Гнездо для подключения

наушников x3

Клавиатура PS/2 x1

Мышь PS/2 x1

Порт LAN x1

USB-порт x6

Гнездо для подключения

наушников x3

Размер

панели 220 мм (Ш) X 305 мм (В) 220 мм (Ш) X 305 мм (В)

Поддержка

Windows 2000 / XP / VISTA

Biostar сохраняет за собой право добавлять

или удал ять средства обеспечения для OS с

или без предварительного уведомления.

Windows 2000 / XP / VISTA

Biostar сохраняет за собой право добавлять

или удал ять средства обеспечения для OS с

или без предварительного уведомления.

Motherboard Manual

ARABIC

TP43D2- A7 TP45D2- A7

LGA 775

تﺎﺠﻟﺎﻌﻣIntel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core

Celeron 4xx ﺑ ددﺮﺘ ﻳ ﻰﻟإ ﻞﺼ

تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕExecute Disable Bit / Enhanced Intel

SpeedStep® / Intel Arch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technology

LGA 775

تﺎﺠﻟﺎﻌﻣIntel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core

Celeron 4xx ﺑ ددﺮﺘ ﻳ ﻰﻟإ ﻞﺼ

تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕExecute Disable Bit / Enhanced Intel

SpeedStep® / Intel Arch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technology

ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا

ﺔﻳﺰآﺮﻤﻟا

ددﺮﺕ 800 / 1066 / 1333 / 1600 ﺰﺕﺮه ﺎﺠﻴﻣ ددﺮﺕ 800 / 1066 / 1333 / 1600 ﺰﺕﺮه ﺎﺠﻴﻣ ﻞﻗﺎﻨﻟا ﻲﻣﺎﻣﻷا ﻲﺒﻥﺎﺠﻟا

Intel P43

Intel ICH1 0

Intel P45

Intel ICH1 0 ﺔﻋﻮﻤﺠﻣ ﺢﺋاﺮﺸﻟا

ﺔﺤﺘﻓDDR2 DIMM دﺪﻋ4

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR2 ﺔﻌﺳ 256/512 ﺎﺠﻴﻣ

و ﺖﻳﺎﺑ2و ﺖﻳﺎﺑ 1 ﺎﺠﻴﺝﺖﻳﺎﺑ

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ8 ﺖﻳﺎﺑ ﺎﺠﻴﺝ

ةﺪﺣو ةﺮآاذ DDR2 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR2 تﺎﻌﺳ 667 / 800 / 1066ﺖﻳﺎﺑ ﺎﺠﻴﻣ

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺕ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺕ ﻻ ﻲﺘﻟا ﻚﻠﺕو ECC

ﺔﺤﺘﻓDDR2 DIMM دﺪﻋ4

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR2 ﺔﻌﺳ 256/512 ﺎﺠﻴﻣ

و ﺖﻳﺎﺑ2و ﺖﻳﺎﺑ 1 ﺎﺠﻴﺝﺖﻳﺎﺑ

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ8 ﺖﻳﺎﺑ ﺎﺠﻴﺝ

ةﺮآاذ ةﺪﺣوDDR2 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR2 تﺎﻌﺳ 667 / 800 / 1066ﺖﻳﺎﺑ ﺎﺠﻴﻣ

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺕ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺕ ﻻ ﻲﺘﻟا ﻚﻠﺕو ECC

ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا

ITE 8718F

ﺔﻔﻴﻇو ﺮﻓﻮﺕSuper I/O ًﺎ ﻣ ا ﺪ ﺨ ﺘﺳا ﺮﺜآﻷا .

ﺕﻢﻋﺪ ﺔﻴﻨﻘﺕ Low Pin Count Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ

ﺔﻔﻴﻇو"Smart Gu ard ian" ﻦﻣ ITE

ITE 8718F

ﺔﻔﻴﻇو ﺮﻓﻮﺕSuper I/O ًﺎ ﻣ ا ﺪ ﺨ ﺘﺳا ﺮﺜآﻷا .

ﺕﻢﻋﺪ ﺔﻴﻨﻘﺕ Low Pin Count Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ

وﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣﺔﺣ

ﺔﻔﻴﻇو"Smart Gu ard ian" ﻦﻣ ITE

Super I/O

JMicro JMB368 ﻢﻜﺤﺘﻣIDE ﻞﻣﺎﻜﺘﻣ

ﺔﻴﻨﻘﺘﺑ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100 / 133ﻲﺴﻴﺋر ﻊﺿو

ﻊﺿو ﻢﻋدPIO Mode 0~4

JMicro JMB368 ﻢﻜﺤﺘﻣIDE ﻞﻣﺎﻜﺘﻣ

ﺔﻴﻨﻘﺘﺑ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100 / 133ﻲﺴﻴﺋر ﻊﺿو

ﻊﺿو ﻢﻋدPIO Mode 0~4

ﺬﻔﻨﻣ IDE

ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ

ﻞﻘﻥ تﺎﻥﺎﻴﺒﻟا تﺎﻋﺮﺴﺑ ﻞﺼﺕ ﻰﻟإ 3.0 ﺖﺑﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.

ﺔﻘﺑﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.

ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ

ﻞﻘﻥ تﺎﻥﺎﻴﺒﻟا تﺎﻋﺮﺴﺑ ﻞﺼﺕ ﻰﻟإ 3.0 ﺖﺑﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.

ﺔﻘﺑﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.

SATA

Realtek RTL 8111C

ﻲﺋﺎﻘﻠﺕ ضوﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺖﺑ ﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ

ﻞﻣﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻣإ/ﻲﻔﺼﻨﻟا

Realtek RTL 8111C

ﻲﺋﺎﻘﻠﺕ ضوﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺖﺑ ﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ

ﻞﻣﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻣإ/ﻲﻔﺼﻨﻟا

ﺔﻜﺒﺷ ﺔﻴﻠﺧاد

TP45D2-A7/TP43D2-A7

TP43D2- A7 TP45D2- A7

ALC662

ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺕ ﻢﻋﺪﺕInt el

5.1 ﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗت

ALC662

ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺕ ﻢﻋﺪﺕ

5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

ﻢﻋد تﻮﺼﻝا ﻲﻝﺎﻋ

ﻒیﺮﻌﺘﻝا

ﺔﺤﺘﻓPCI دﺪﻋ3 ﺔﺤﺘﻓPCI دﺪﻋ3

ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ1 ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ1

ﺔﺤﺘﻓPCI Express x 1 دﺪﻋ2 ﺔﺤﺘﻓPCI Express x 1 دﺪﻋ2

تﺎﺤﺘﻔﻟا

كﺮﺤﻣ ﺬﻔﻨﻣﺔﻥﺮﻣ صاﺮﻗأ دﺪﻋ1 ﺔﻥﺮﻣ صاﺮﻗأ كﺮﺤﻣ ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻌﺑﺎﻃ ﺬﻔﻨﻣ دﺪﻋ1 ﺔﻌﺑﺎﻃ ﺬﻔﻨﻣ دﺪﻋ1

ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻣ دﺪﻋ1 ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻔﻨﻣIDE دﺪﻋ1 ﺬﻔﻨﻣIDE دﺪﻋ1

ﺬﻔﻨﻣSATA دﺪﻋ6 ﺬﻔﻨﻣSATA دﺪﻋ6

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1 ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣ ﻋ دﺪ1

ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1 ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻔﻨﻣCD-IN دﺪﻋ1 ﺬﻔﻨﻣCD-IN دﺪﻋ1

ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1 ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ2 مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ2

ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1 ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1

ﺬﻔﻨﻣUSB دﺪﻋ3 ﺬﻔﻨﻣUSB دﺪﻋ3

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)24سﻮﺑد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)24سﻮﺑد( دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ2 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ2

ﺬﻓﺎﻨﻤﻝا ﻰﻠﻋ ﺢﻄﺳ

ﺔﺣﻮﻠﻝا

ﺢﻴﺕﺎﻔﻣ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻣ PS/2 دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ1

ﻣ ﺬﻓﺎﻨUSB دﺪﻋ6

تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3

ﺢﻴﺕﺎﻔﻣ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻣ PS/2 دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻓﺎﻨﻣUSB دﺪﻋ6

تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3

ﺬﻓﺎﻨﻣ ﻞﺧد/جﺮﺧ

ﺔﺣﻮﻠﻝا ﺔﻴﻔﻠﺨﻝا

220 ﻢﻣ)ضﺮﻋ (X 305 ﻢﻣ)عﺎﻔﺕرا( 220 ﻢﻣ)ضﺮﻋ (X 305 ﻢﻣ)عﺎﻔﺕرا( ﻢﺠﺣ ﺔﺣﻮﻠﻝا

Windows 2000 / XP / VISTA

ﻆﻔﺘﺤﺕ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓﺎﺿإ وأ ﺔﻝازإ ﻢﻋﺪﻝا يﻷ مﺎﻈﻥ ﻞﻴﻐﺸﺕ رﺎﻄﺧﺈﺏ

وأ نوﺪﺏ رﺎﻄﺧإ.

Windows 2000 / XP / VISTA

ﻆﻔﺘﺤﺕ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓﺎﺿإ وأ ﺔﻝازإ ﻢﻋﺪﻝا يﻷ مﺎﻈﻥ ﻞﻴﻐﺸﺕ رﺎﻄﺧﺈﺏ

وأ نوﺪﺏ رﺎﻄﺧإ.

ﻢﻋد ﺔﻤﻈﻥأ ﻞﻴﻐﺸﺘﻝا

Motherboard Manual

JAPANESE

TP45D2- A7 TP43D2- A7

CPU

LGA 775

Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx processor

Execute Disable Bit / Enhanced Intel

SpeedStep® / Intel Arch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technologyをサポートします

LGA 775

Intel Core2Duo / Core2Quad /

Pent iu m Dual-Core / C eleron Dual-Core /

Celeron 4xx processor

Execute Disable Bit / Enhanced Intel

SpeedStep® / Intel Arch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technologyをサポートします

FSB 800 / 1066 / 1333 / 1600 MHz 800 / 1066 / 1333 / 1600 MHz

チップセット Intel P45

Intel ICH1 0

Intel P43

Intel ICH1 0

メインメモリ

DDR2 DIMMスロット x 4

各DIMMは 256MB / 512MB / 1GB / 2GB DDR2を

サポート

最大メモリ容量8GB

デュアルチャンネルモードDDR2メモリモジュール

DDR2 1066 / 800 / 667をサポート

登録済みDIMMとECC DIMMはサポートされません

DDR2 DIMMスロット x 4

各DIMMは 256MB / 512MB / 1GB / 2GB DDR2を

サポート

最大メモリ容量8GB

デュアルチャンネルモードDDR2メモリモジュール

DDR2 1066 / 800 / 667をサポート

登録済みDIMMとECC DIMMはサポートされません

Super I/O

ITE 8718F

もっとも一般に使用されるレガシーSuper I/O機能を

採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITEの「スマートガーディアン」機能

ITE 8718F

もっとも一般に使用されるレガシーSuper I/O機能を

採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITEの「スマートガーディアン」機能

IDE

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133バスマスタモード

PIO Mode 0~4のサポート、

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133バスマスタモード

PIO Mode 0~4のサポート、

SATA

統合シリアルATA コントローラ

最高3.0 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

統合シリアルATA コントローラ

最高3.0 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

LAN

Realtek RTL 8111C

10 / 100 / 1000 Mb/秒のオートネゴシエーション

半/全二重機能

Realtek RTL 8111C

10 / 100 / 1000 Mb/秒のオートネゴシエーション

半/全二重機能

TP45D2-A7/TP43D2-A7

TP45D2- A7 TP43D2- A7

HDオーディ

オのサポート

ALC662

ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

ALC662

ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

PCIスロット x3 PCIスロット x3

PCI Express x16 Gen2スロット x1 PCI Express x16 Gen2スロット x1

スロット

PCI Express x 1スロット x2 PCI Express x 1スロット x2

フロッピーコネクタ x1 フロッピーコネクタ x1

プリンタポートコネクタ x1 プリンタポートコネクタ x1

シリアルポート x1 シリアルポート x1

IDE コネクタ x1 IDEコネクタ x1

SATAコネクタ x6 SATAコネクタ x6

フロントパネルコネクタ x1 フロントパネルコネクタ x1

フロントオーディオコネクタ x1 フロントオーディオコネクタ x1

CDインコネクタ x1 CDインコネクタ x1

CPUファンヘッダ x1 CPUファンヘッダ x1

システムファンヘッダ x2 システムファンヘッダ x2

CMOSクリアヘッダ x1 CMOSクリアヘッダ x1

USBコネクタ x3 USBコネクタ x3

電源コネクタ(24ピン) x1 電源コネクタ(24ピン) x1

オンボードコ

ネクタ

電源コネクタ(4ピン) x2 電源コネクタ(4ピン) x2

背面パネル

I/O

PS/2キーボード x1

PS/2マウス x1

LANポート x1

USBポート x6

オーディオジャック x3

PS/2キーボード x1

PS/2マウス x1

LANポート x1

USBポート x6

オーディオジャック x3

ボードサイズ 220 mm (幅) X 305 mm (高さ) 220 mm (幅) X 305 mm (高さ)

OSサポート

Windows 2000 / XP / VISTA

Biostarは事前のサポートなしにOSサポートを追加ま

たは削除する権利を留保します。

Windows 2000 / XP / VISTA

Biostarは事前のサポートなしにOSサポートを追加ま

たは削除する権利を留保します。

2008/05/07

Biostar Tp43D2 A7 Owners Manual IP45A A7T_IP43A A7T_080507

Navigation menu

Versions of this User Manual:

Views

Navigation
