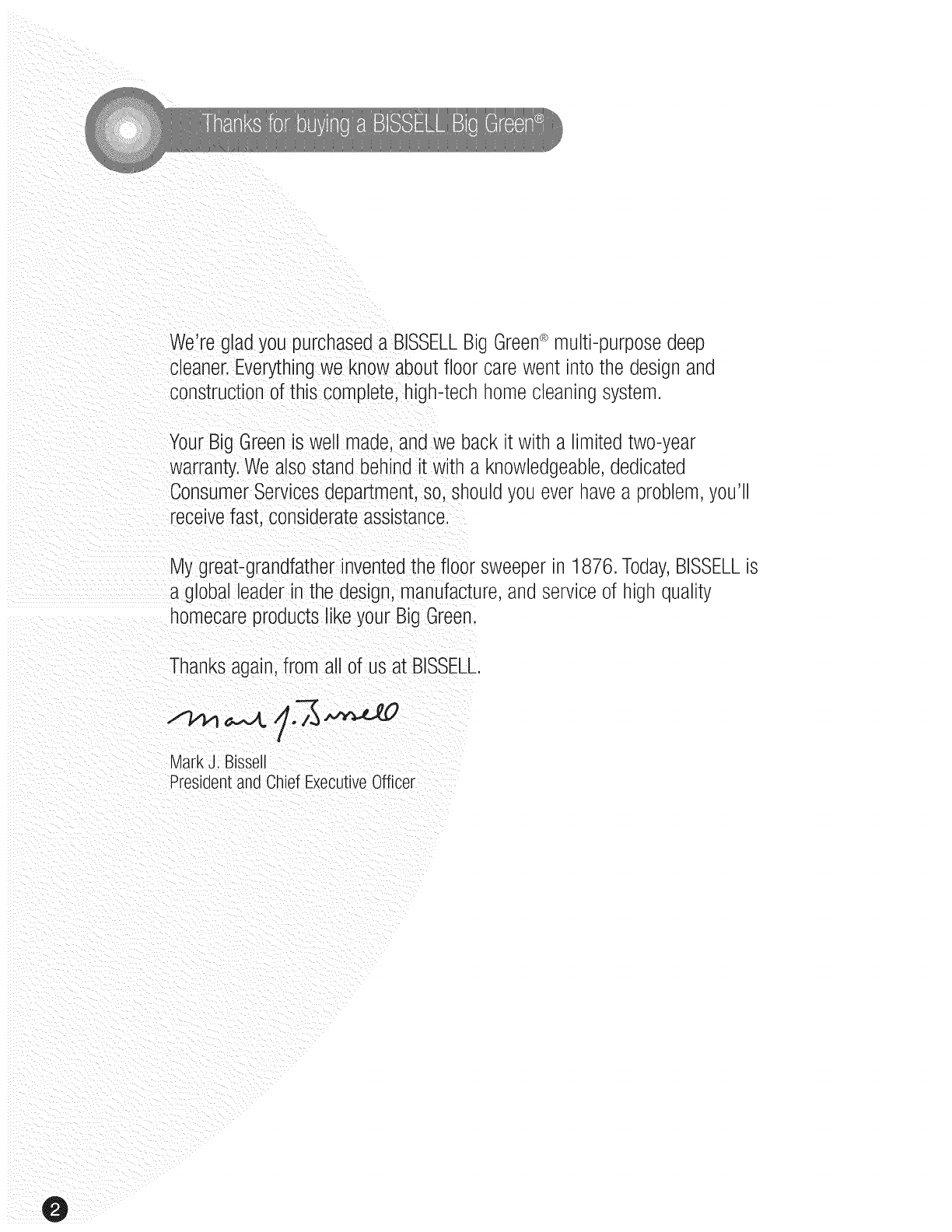

We're gladyou purchaseda BISSELLBigGreen®multi-purposedeep
cleaner.Everythingwe know aboutfloor carewent intothe designand
constructionof this complete,high-techhomecleaningsystem.
YourBig Greenis well made,and we back it with a limitedtwo-year
warranty.We alsostandbehind it with a knowledgeable,dedicated
ConsumerServicesdepartment,so, shouldyoueverhavea problem,you'll
receivefast, considerateassistance.
My great-grandfatherinventedthe floor sweeperin 1876. Today,BISSELLis
a globalleaderin the design,manufacture,and serviceof high quality
homecareoroductslike yourBig Green.
Thanksagain,from all of us at BISSELL
Mark J. Bissell
Presidentand Chief ExecutiveOfficer
0
Groundin_Pin
0
LargeVacuum
Flex Hose Clips_
Grip/Trigger
Vacuum Flex Hose
WandSolutionTube
,p Power Unit
Motor Filter
Ball Cage
Measuring
Cup
D
Tank Unit
Tank SiphonTube
i
Floor Nozzle
0

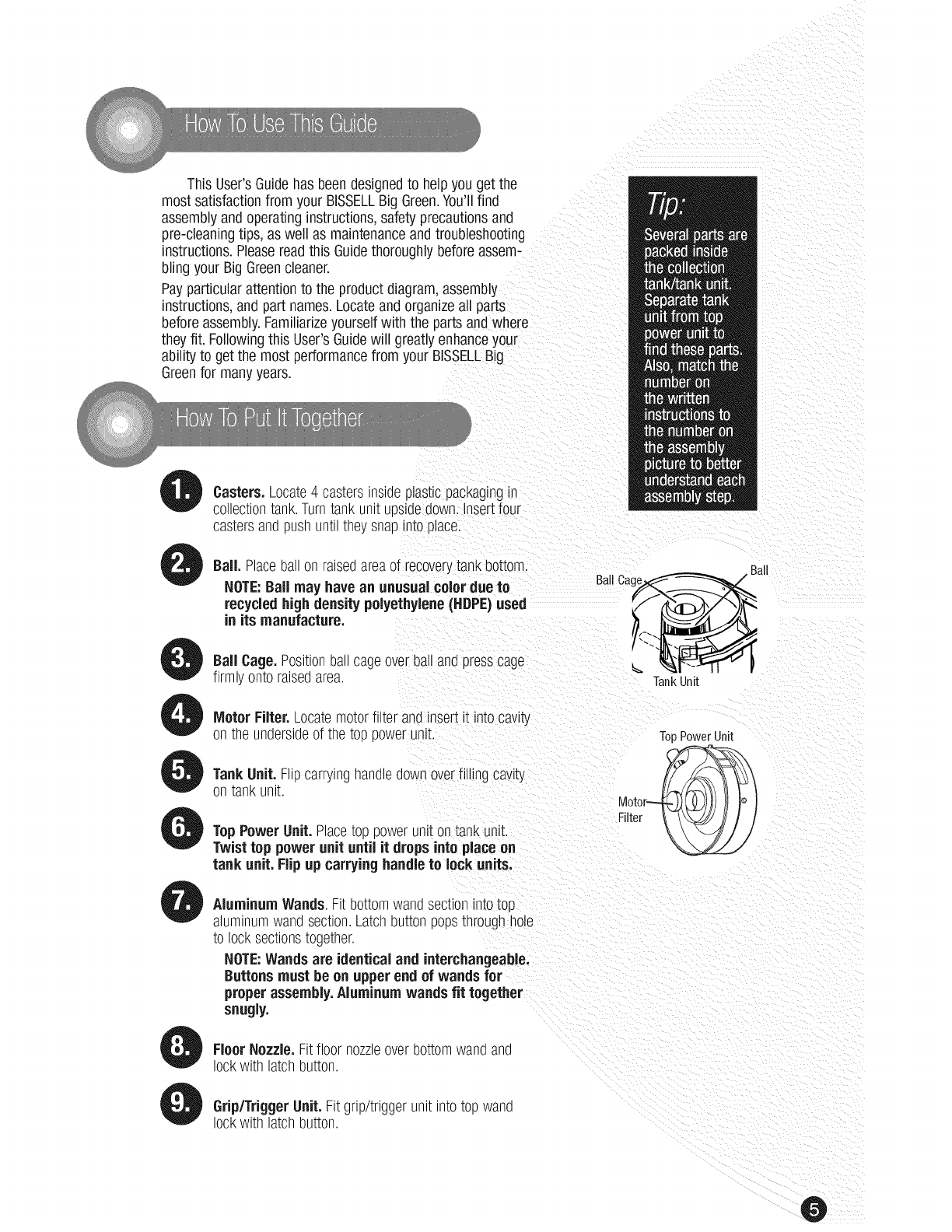

ThisUser'sGuidehas beendesignedto help you get the
most satisfactionfrom your BBSELLBig Green.You'll find
assemblyandoperatinginstructions,safety precautionsand
pre-cleaningtips, as well as maintenanceand troubleshooting
instructions.Pleasereadthis Guidethoroughlybeforeassem-
blingyour BigGreencleaner.
Payparticularattention to the productdiagram,assembly
instructions,and part names.Locateand organEeall pars
beforeassembly.Familiarizeyourself with the partsand where
they fit. Followingthis User'sGuidewill greatlyenhanceyour
ability to get the most performancefrom your BBSELLBig
Greenfor manyyears.
Casters. Locate4 casters nside plasticpackagingin
collectiontank.Turntank unit upsidedown insertfour
castersandpush untiltheysnao ntoplace.
Bail, Placeballon raisedareaof recoverytank bottom.
NOTE:Ball may havean unusualcolordue to
recycled highdensity polyethylene(NBPE)used
in its manufacture.
Ball
Bail Cage.Positionballcageoverbali andpresscage
firmlyonto raisedarea.
MotorFilter. Locatemotorfilter andinsertit into cavity
onthe undersideof the top powerunit
TankUnit. Flipcarryinghandledownoverfilling cavity
ontank unit.
TopPower Unit,Placetop powerunit ontank unit.
Twisttop power unit until it dropsinto placeon
tank unit.Flip up carrying handleto lock units.
AluminumWands. Fit bottomwand sectionintotop
aluminumwand section.Latchout,onclODSthroughhole
to locksectionstogether.
NOTE:Wands are identical and interchangeable.
Buttons must be on upperend of wands for
properassembly. Aluminumwands fit together
snugly.
FloorNozzle. Fitfloor nozzleoverbottomwandand
lockwith latchbutton.
TankUnit
Motor_
Filter
To_ Power Unit
Grip/TriggerUnit.Fit grip/triggerun_ mo _ouwand
lockwith latchbutton.
0

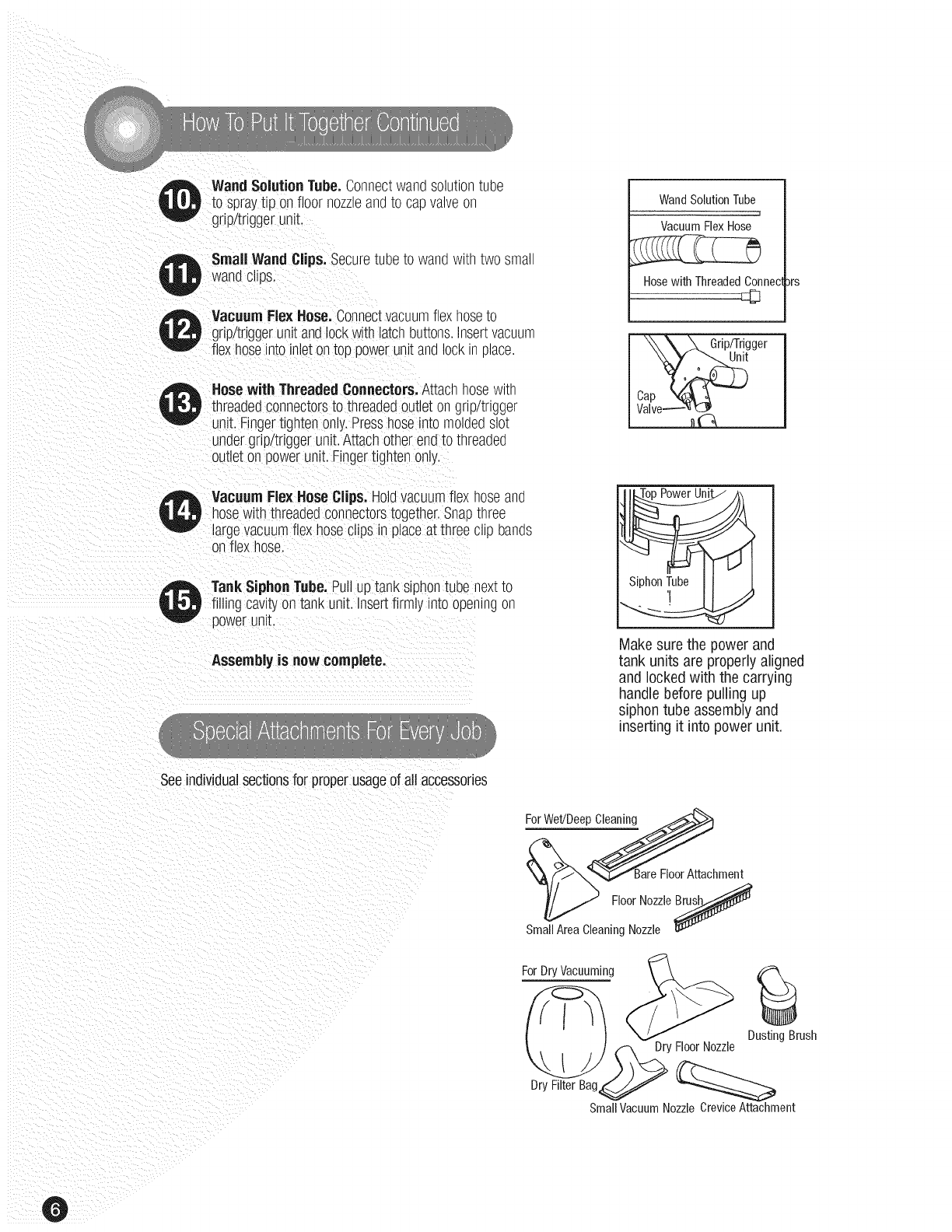

WandSolution Tube.Connectwand SOlUttontube
to spraytip on floor nozzleano to cao valveon
grip/triggerunit
_ mall Wand Clips.Securetuoe [o wano wt_ntwo small
wandclips.
Vacuum FlexHose. Connectvacuumflexhoseto
grip/triggerunitandlockwithlatchbuttons.Insertvacuum
flexhoseinto inletontop powerunit andlock _ place.
Hosewith ThreadedConnectors.Attach hosewith
threadedconnectorsto threadedoutleton grip/[rigger
unit.Fingertightenonly.Presshoseinto moldedslot
unoergrip/triggerunit.Attachotne[endto threaded
outletonpowerunit. Fingertightenonly.
VacuumFlexHoseClips. Holdvacuumflex noseano
! hosewiththreadedconnectorstogether.Snapthree
largevacuumflex hoseclipsin placeat three clip bands
onflex hose.
Wand Solution Tube
Vacuum Flex Hose
Hose with Threaded Connecl
I__-- Grip/Trigger
ICap "¢_
%S
Tank Siphon Tube.Pulluptank siphontube nex[_o
filling cavityontank unit.insertfirmly intoopeningon
powerunit.
Assemblyis now complete. Makesure the power and
tank units are properly aligned
and locked with the carrying
handle before pulling up
siphon tube assembly and
inserting it into power unit,
Seeindividualsectionsfor properusageof all accessories
__Bare FloorAttachment
For Dry Vacuuming
Dusting Brush
/_y FloorNozzle
Dry Filter Bag_
Small Vacuum Nozzle CreviceAttachment
0

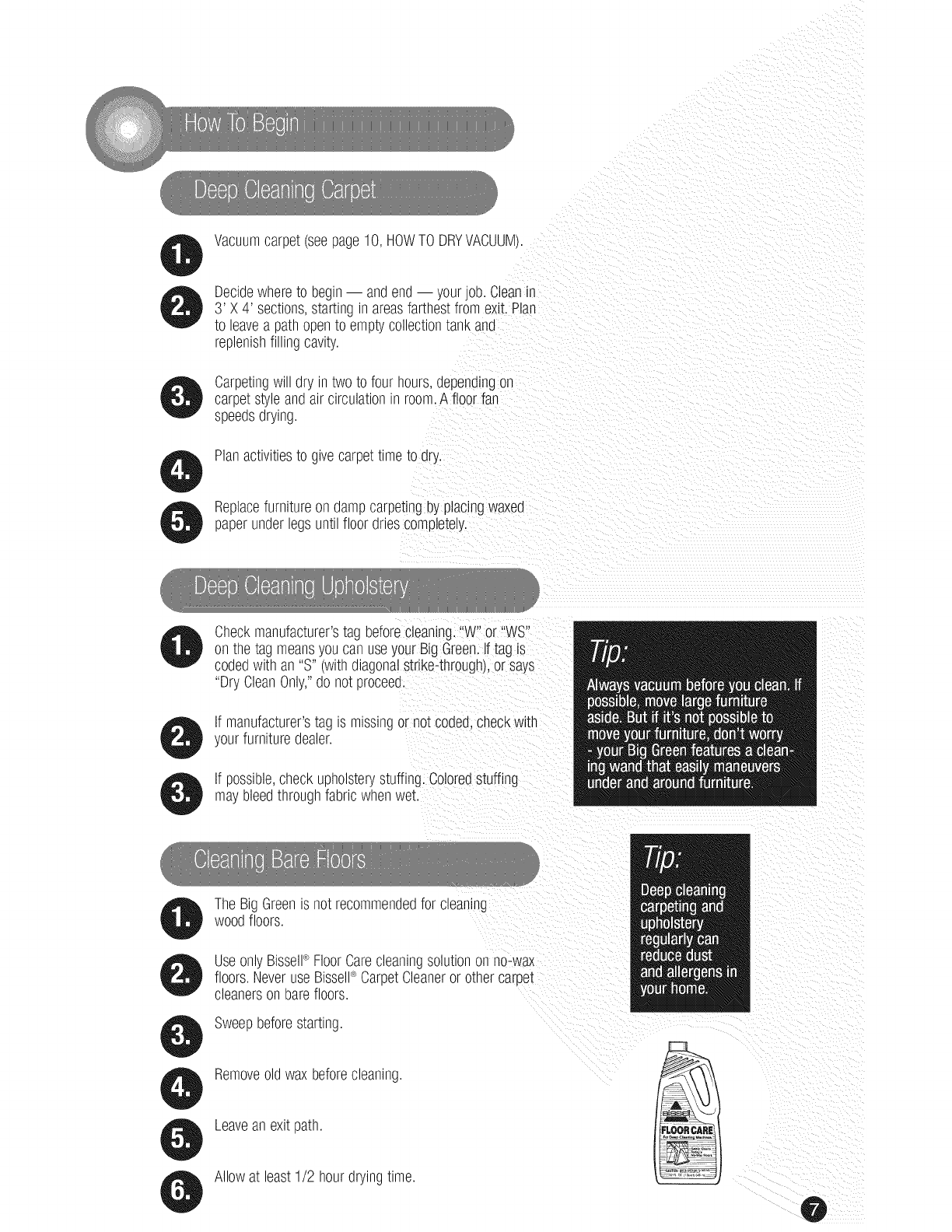

Vacuumcarpet (seepage10, HOWTO DRYVACUUM,.
Decidewhereto begin andena your.o_).Cleanin
3' X 4' sections,startingin areasfarthestfromexit. Plan
to leavea pathopento emptyCOlleCtiontank ana
replenishfilling cavity.
Carpetingwill dry in twoto four nours,aependingon
carpetstyleandair circulation_ room.A floor fan
speedsdrying.
Planactivitiesto givecarpett_meto dry.
Replacefurnitureon damocaroetingby placingwaxea
paperunderlegs untilfloor driescompletely.
Checkmanufacturer'stag beforecleaning "W" or"WS"
onthe tag meansyou can useyour BigGreen.Iftag is
codedwith an "S" (withdiagonalstrike-through),or says
"DryCleanOnly,"do not proceed.
If manufacturer'stag is missingor not coded,checkwith
your furnituredealer.
If possible,check upholsterystuffing.Coloredstuffing
maybleedthroughfabricwhenwet.
The BigGreenis not recommenaeafor c_eaning
woodfloors.
UseonlyBissell®FloorCarecleaningsolutionon no-wax
floors.Neveruse Bissell®Carlet Cleaneror other carpet
cleanerson barefloors.
Sweepbeforestarting.
Removeold waxbeforecleaning.
Leaveanexit path.
Allow at least1/2 hourdryingt_me.
@

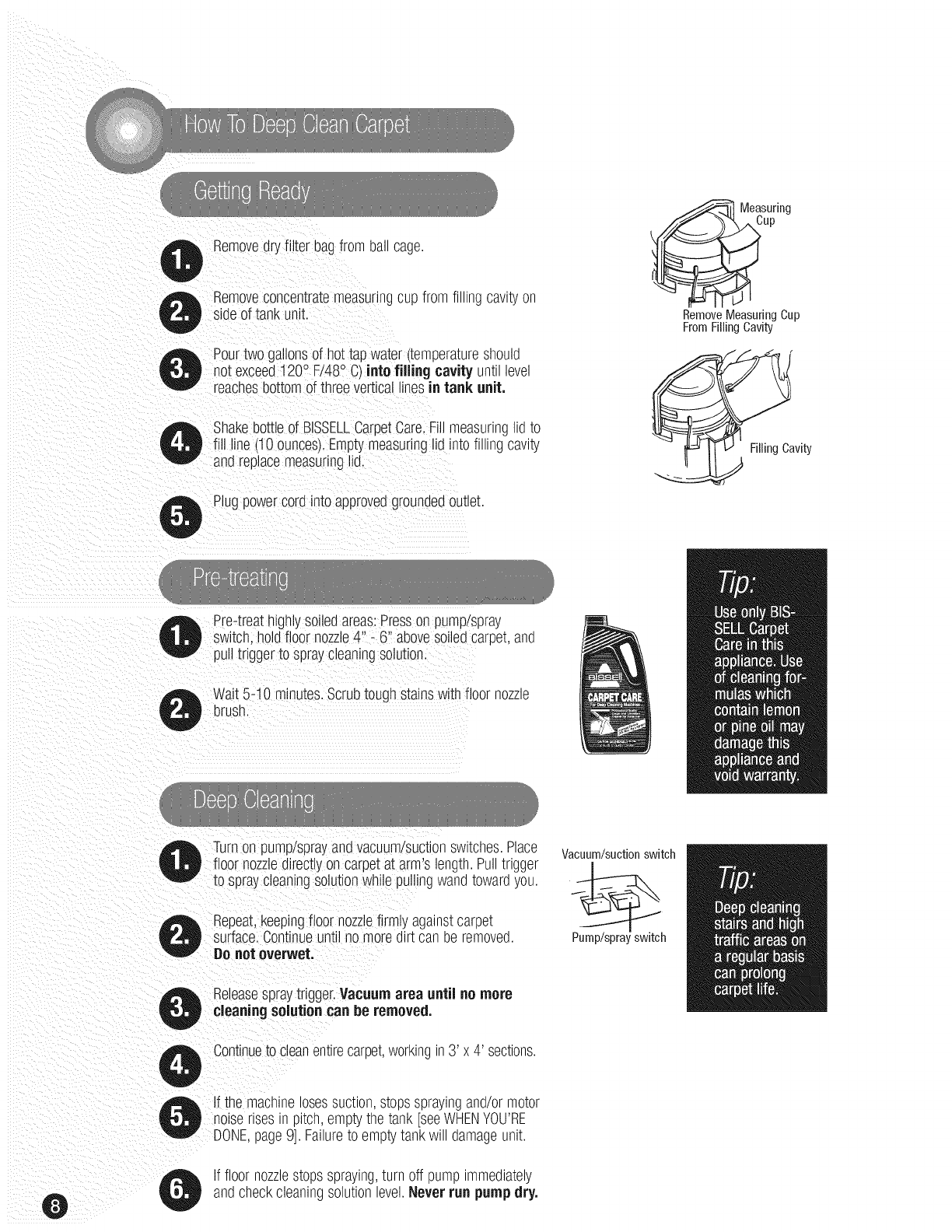

Removedryfilter bagfrom bal cage.
O emoveconcentratemeasunngcup fromfilling cavityon
sideof tankunit.
Pourtwo gallonsof hot tap water(temoera_uresllould
not exceed120° F/48° C)into filling cavity un_ttlevel
reachesbottomof three verticallinesin tank unit.
Shakebottleof BISSELLCarpetCare.Fillmeasuringlid to
fill line(10 ounces).Emptymeasuringlid into filling cavity
andreplacemeasuringlid.
Plugpowercord into approvedgroundedoutlet.
Measuring
up
Remove Measuring Cup
From Filling Cavity
Pre-treathighlysoiledareas:Presson pump/spray
b switch,holdfloor nozzle4"- 6" abovesoiledcarpet,and
pulltrigger to spraycleaningsolution.
Wait5-I0 minutes.Scrubtoughstainswithfloor nozzle
P brush.
Turnon pump/sprayandvacuum/suctionswt_cnes.Place
i floor nozzledirec:tlyon carpetat arm's length.Pul trigger
to spraycleaningsolutionwhile pullingwand_owarayou.
Repeat,keepingfloor nozzlefirmlyagainstcarpet
I surface,Continueuntil nomoredirt can be removed.
Do not overwet.
Vacuum/suction switch
O eleasespraytrigger.Vacuumarea until no more
cleaningsolutioncan be removed.
Continueto cleanentirecaroet,working _3' x z[,sections.
0
O f the macn_neosessuction,slopssprayingand/or motor
noiserisesin pitch,emptythe tank [seeWHENYOU'RE
DONE.page9]. Failureto emptytankwill damageunit.
If floor nozzles_oossprayingturn off Dumbmmediately
anecnecKcleaningsolu[_onrevel.Never run pumpdry.

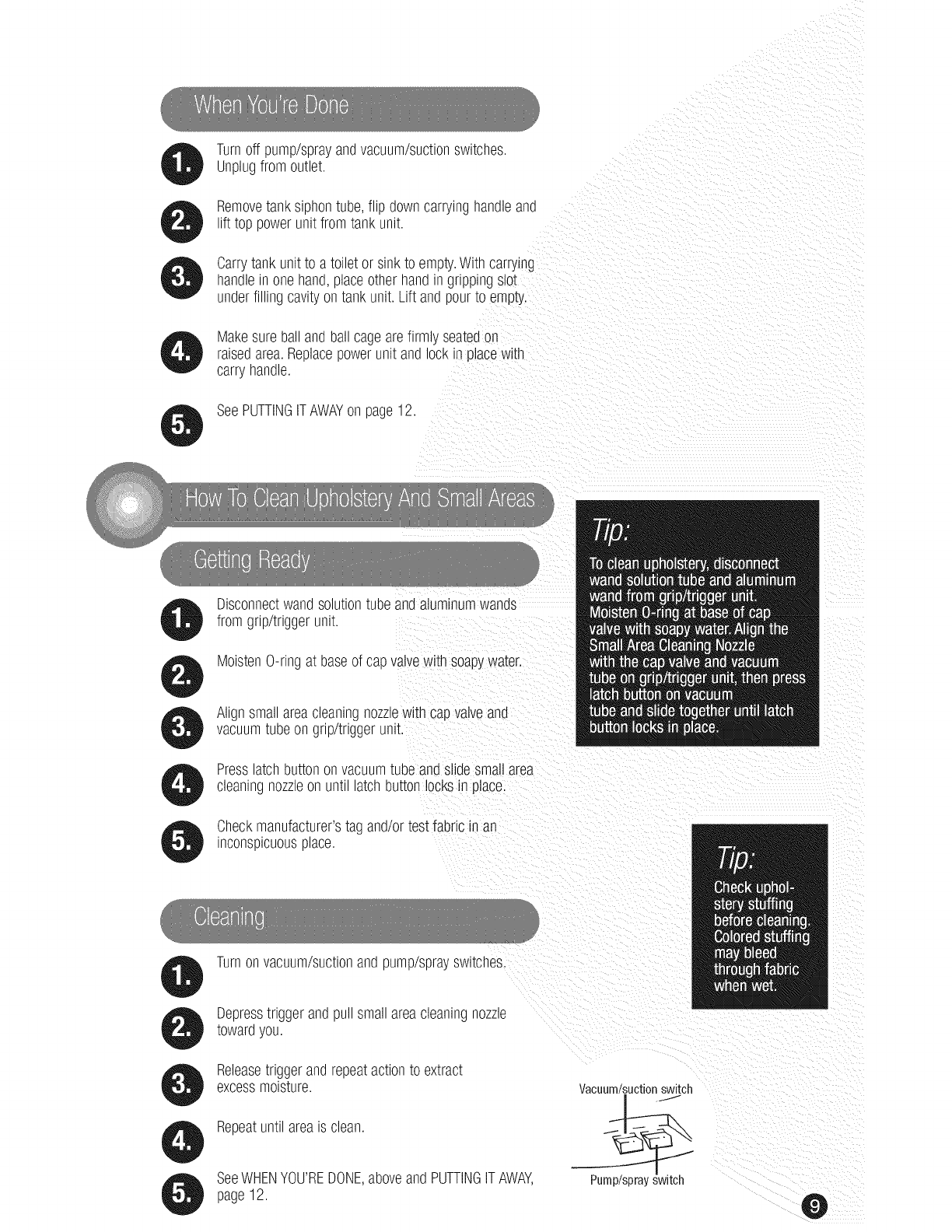

Turnoff pump/sprayandvacuum/suctionsw_cnes.
Unplugfromoutlet.
Removetanksiphontube,flip aowncarryinghandlearia
lift top powerunitfrom tank un_.
Carrytank unitto a toiletor sink_oempty.Withcarrying
handlein onehand,placeother nano'_ grippingslot
underfilling cavityontank unit.Lift andDour_Oempty.
Makesureballand ballcagearefirmly sea_eoon
raisedarea.Replacepowerun_and_OCKin placewith
carryhandle.
SeePUTTINGITAWAYon page12.
Disconnectwandsolutiontubeand aluminumwands
fromgrip/triggerunit.
MoistenO-ringat baseof cap valvewith soapywater.
Alignsmallareacleaningnozzlewith cap valveand
vacuumtube ongrip/triggerunit.
Presslatchbuttononvacuum_uDeandslide smallarea
cleaningnozzleon until latchbuttonlocksin place.
Checkmanufacturer'stag and/ortestfabric in an
inconspicuousplace.
Turnon vacuum/suctionand pump/spraysw_cnes.
Depresstrigger andpullsmall areacleaningnozzle
towardyou.
Releasetriggerand repeataction _Oex_rac_
excessmoisture.
Repeatuntil areais clean.
SeeWHENYOU'REDONE,aboveand PUTTINGITAWAY.
page12.
Vacuum/suction switch
0

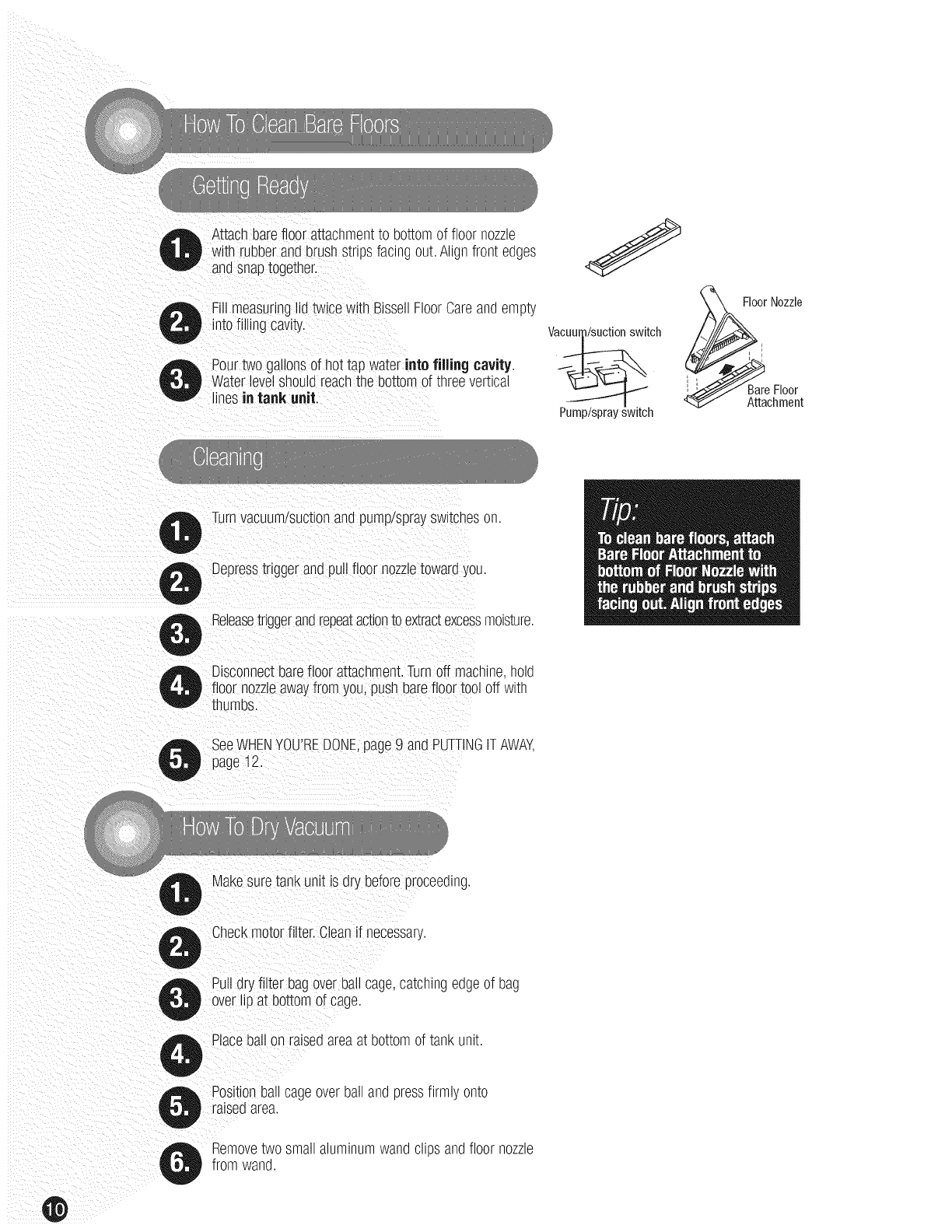

Attachbarefloor attacnmem_obottomof floor nozzle
with rubberandbrushstrips facingout.Alignfrontedges
andsnaptogether.
Fill measuringlidtwice with BissellFloorCareandempty
intofilling cavity.
Pourtwo gallonsof hottap waterinto filling cavity.
)Waterlevelshouldreachthe bottomof threevertical
lines in tank unit.
Turnvacuum/suctionand pump/sprayswitcheson.
Depresstriggerand pullfloor nozzletowardyou.
Releasetriggerandrepeatactionto extractexcessmoisture.
Vacuul Jsuction switch _!i_,_._ur
Nozzle
__are Floor
_ Attachment
Pump/spray
Disconnectbarefloor attachment.Turnoff maclline,hold
I floor nozzleawayfromyou,pushbarefloortool off with
thumbs.
SeeWHENYOU'REDONE,page9 and PUTTINGITAWAY,
page12.
Makesure tankunit is dry beforeproceeding.
Checkmotorfilter.Cleanif necessary.
Pulldry filter bagoverballcage,ca[changedgeof bag
overlip at bottomof cage.
Placebail on raisedareaa[ bottomof tank _n_t
Positionbal cage overballano oressfirmlyon[o
raisedarea.
Remove_wosmallaluminumwanocl os anofloor nozzle
fromwano.
@

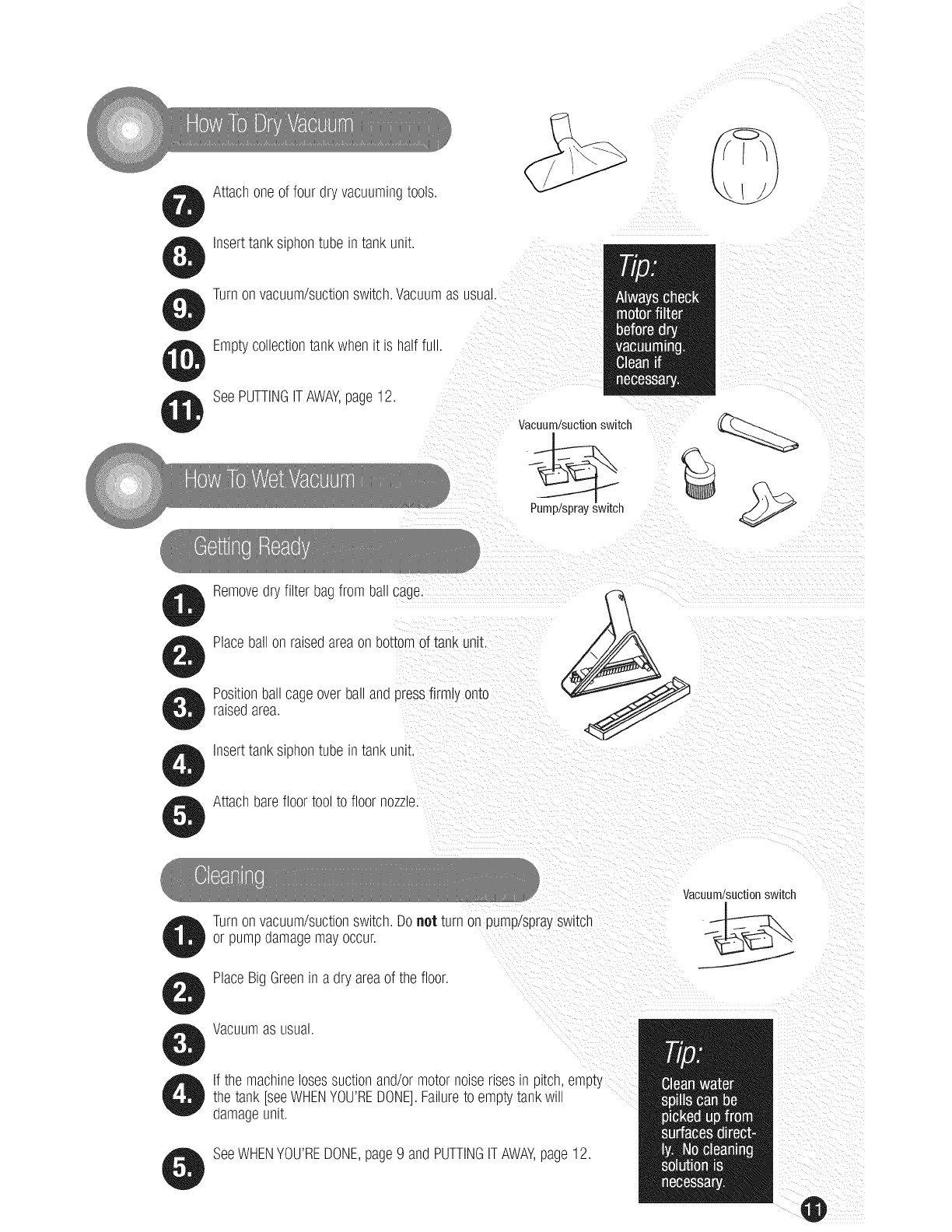

Attachone of four dry vacuuminotools.
O Inserttank sipllontube in tank unit.
Turnonvacuum/suctionswitch.Vacuumas usual.
_ Emptycollectiontank wllen it is half full.
SeePUTTINGITAWAY,page12
Vacuum/suction switch
h
O Removedry filter bagfrom ballcage.
Placeballon raisedareaon bottomof tank unit.
Positionballcageover ballandpressfirmly onto
raisedarea.
Inserttank sipl_ontube in tank unit.
Attacl_barefloor tool to floor nozzle.
Turnonvacuum/suctionswitch.Donot turn on pump/sprayswitch
or pumpdamagemayoccur.
PlaceBig Greenin a dry areaof the floor.
Vacuum/suction switch
_J
Vacuumas usual.
If the machinelosessuctionand!or motorno_serises _ 9_cn.empty
the tank [seeWHENYOU'REDONE].Failure_oemp_/_anKw_
damageunit.
SeeWHENYOU'REDONE,page9 ana PUTTINGITAWAY.page2.
®

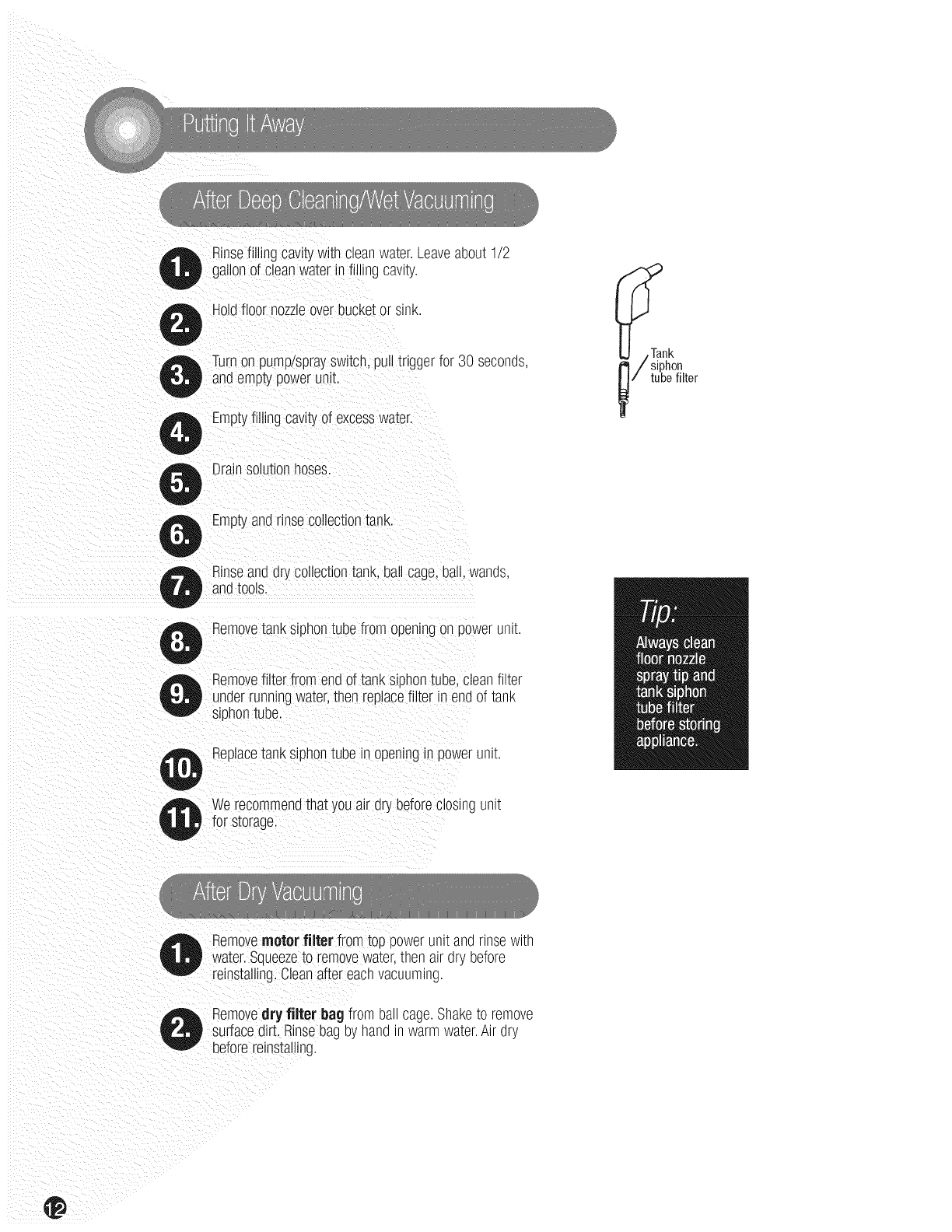

Rinsefilling cavitywitn aeanwa_er.Leaveabout1/2
gallonof cleanwaterin filling caw_y.
Holdfloor nozzleoverbucketor sink.
O urn onpump/sprayswitch,pulltrigger for 30 seconos,
andemptypowerunit.
Emptyfilling cavityof excesswater.
[ter
Drainsolutionhoses.
Emptyand rinsecollectiontank.
R nseanddry collectiontank.ball cage.ball.wanos
andtools.
Removetanksiphontube from openingon powerunit.
O emovefilterfrom endof tank siphontube,cleanfilter
underrunningwater,then replacefilter in endof tank
siphontube.
Replacetank siphontube m openingin powerunit.
Werecommendthat youair dry beforeclosingunit
for storage.
Removemeter filter from top power Jn_anonnse with
water.Squeezeto removewater,then airdry before
reinstalling.Cleanaftereachvacuuming.
Removedry filter bagfrom Dal cage.Shake_oremove
surfacedirt.Rinsebagoy hand_ warmwater.Air dry
beforereinstalling.
@

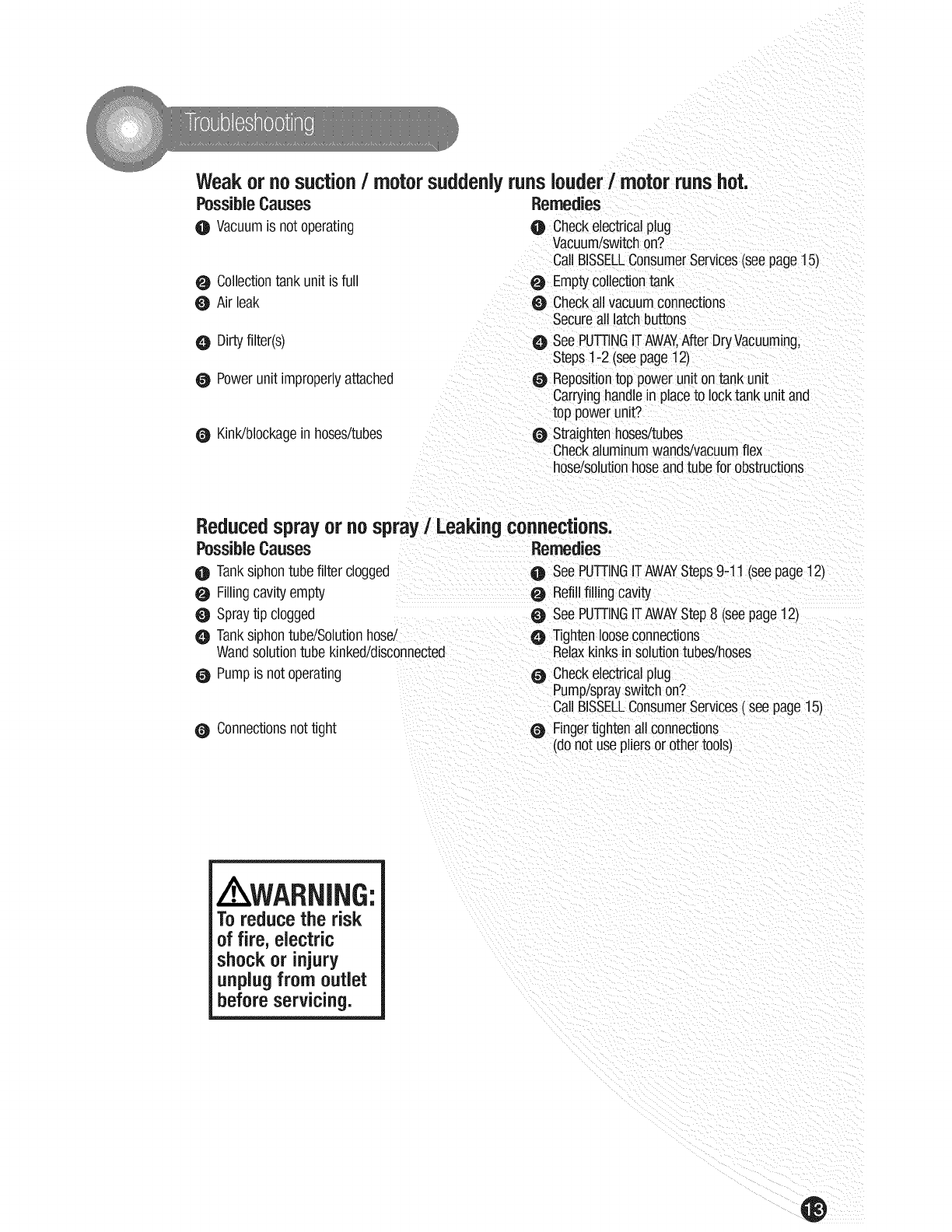

Weakor nosuction/motorsuddenlyruns louder/motor runs hot.
PossibleCauses Remedies
O Vacuumis notoperating
O Collectiontank unit is full
O Air leak
O Checkelectricalplug
Vacuum/switchon?
CallBISSELLConsumerServices(seepage15)
O Emptycollectiontank
O Checkallvacuumconnections
Secureall latchbuttons
O Dirtyfilter(s)
O Powerunitimproperlyattached
O Kink/blockagein hoses/tubes
O SeePUTTINGITAWAY,AfterDryVacuuming,
Steps1-2 (seepage12)
O Repositiontop powerunit ontank unit
Carryinghandlein placeto locktankunit and
top powerunit?
O Straightenhoses/tubes
Checkaluminumwands/vacuumflex
hose/solutionhoseandtubefor obstructions
Reducedsprayor nospray/Leakingconnections.
PossibleCauses Remedies
O Tanksiphontubefilter clogged
O Fillingcavityempty
O Spraytip clogged
O Tanksiphontube/Solutionhose/
Wandsolutiontube kinked/disconnected
Q SeePUTTINGITAWAYSteps9-11 (seepage12)
O Refillfilling cavity
O SeePUFFINGITAWAYStep8 (seepage12)
O Tightenlooseconnections
Relaxkinksin solutiontubes/hoses
O Pumpis not operating
O Connectionsnottight
O Checkelectricalplug
Pump/sprayswitchon?
CallBISSELLConsumerServices( seepage15)
O Fingertightenall connections
(donot usepliersor othertools)
A WARNING:
To reduce the risk
of fire, electric
shock or injury
unplug from outlet
beforeservicing.
®
item PartNo. PartName
1 210-4706 Vacuumflex hose
2 555-9129
3 555-9013
4 216-4181
5 210-1188
6 010-9156
7 010-6055
Largevacuumflex hoseclips (3t
Hosewiththreadedconnectors
Grip/triggerunit
Dustingbrush
Creviceattachment
Smallvacuumnozzle
8 213-9152 Drainclean-outattachment
9 203-1659 Capvalveassembl_
10 555-9008 Wandsolutiontube
11 555-6502 Smallwand clips (2)
12 215-9151 Smallnozzle
13 555-9044 Aluminumwands
(2. interchangeable)
14 603-2920 Top powerunit
15 017-3533 Motorfilter
16 213-3537 Filterbag
17 213-1526 Ballcage
18 213-3004 Measuringcup
19 213-0329 Ball
20
21
22
23
215-9075 Tankunit (includesfilling
cavity,collectiontank. andhandle
214-1523 Wallstoragerackwith screws(optionalon
/optionalonsome models
555-9011 Tanksiphontube
555-9036 Tanksiphontube filter
24 210-2283 Caster(individual/
25 210-4740 Dryfloor nozzle
26 215-6150 Spraytip
27 555-9005 Floornozzle
28 555-9003 Floornozzlebrush
29 213-0471 Barefloor attachment 21
2
@
22
23
5
8
13
0

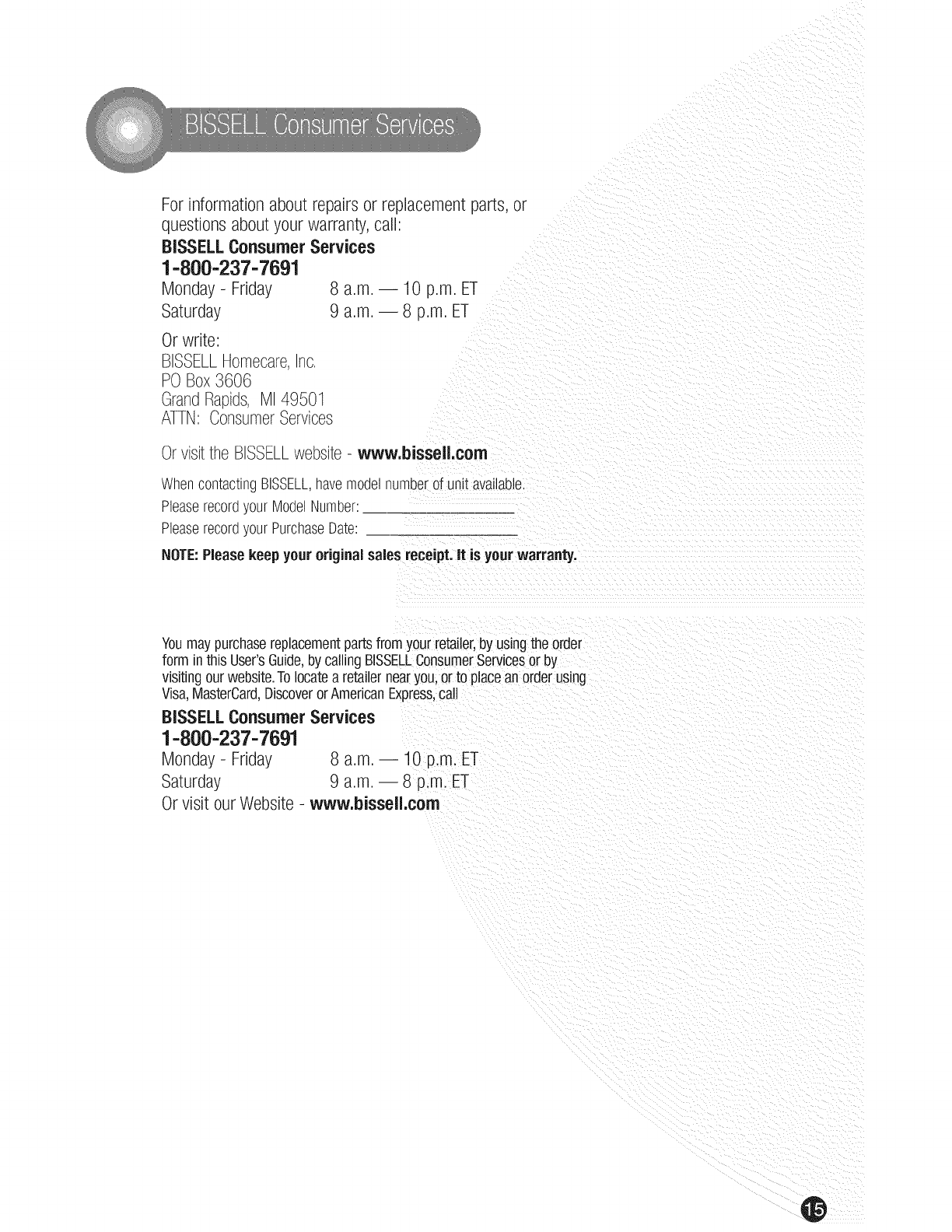

Forinformationaboutrepairsor replacementparts,or
questionsaboutyourwarranty,call:
BISSELLConsumerServices
1-800-237-7691
Monday- Friday 8 a.m.- 10 p.m ET
Saturday 9 a.m.- 8 p m ET
Or write:
BISSELLHomecare,Inc.
PO Box3606
GrandRapids,MI 49501
ATTN: ConsumerServices
Orvisitthe BISSELLwebsite- www.bissell.com
Wllen contactingBISSELL,havemodelnumberof unit available.
Pleaserecordyour ModelNumber:
PleaserecordyourPurchaseDate:
NOTE:Please keepyour original sales receipt,it is your warranty.
Youmaypurchasereplacementpartsfromyour retailer,byusingthe order
form inthis User'sGuide,bycallingBISSELLConsumerServicesor by
visitingourwebsite.Tolocatea retailernearyou,or to placean orderusing
Visa,MasterCard,DiscoverorAmericanExpress.call
BISSELLConsumer Services
1-800-237-7691
Monday- Friday 8 a.m. 10 p.m. ET
Saturday 9 a.m.- 8 p.m. ET
Or visit our Website - www.bissell.com
@

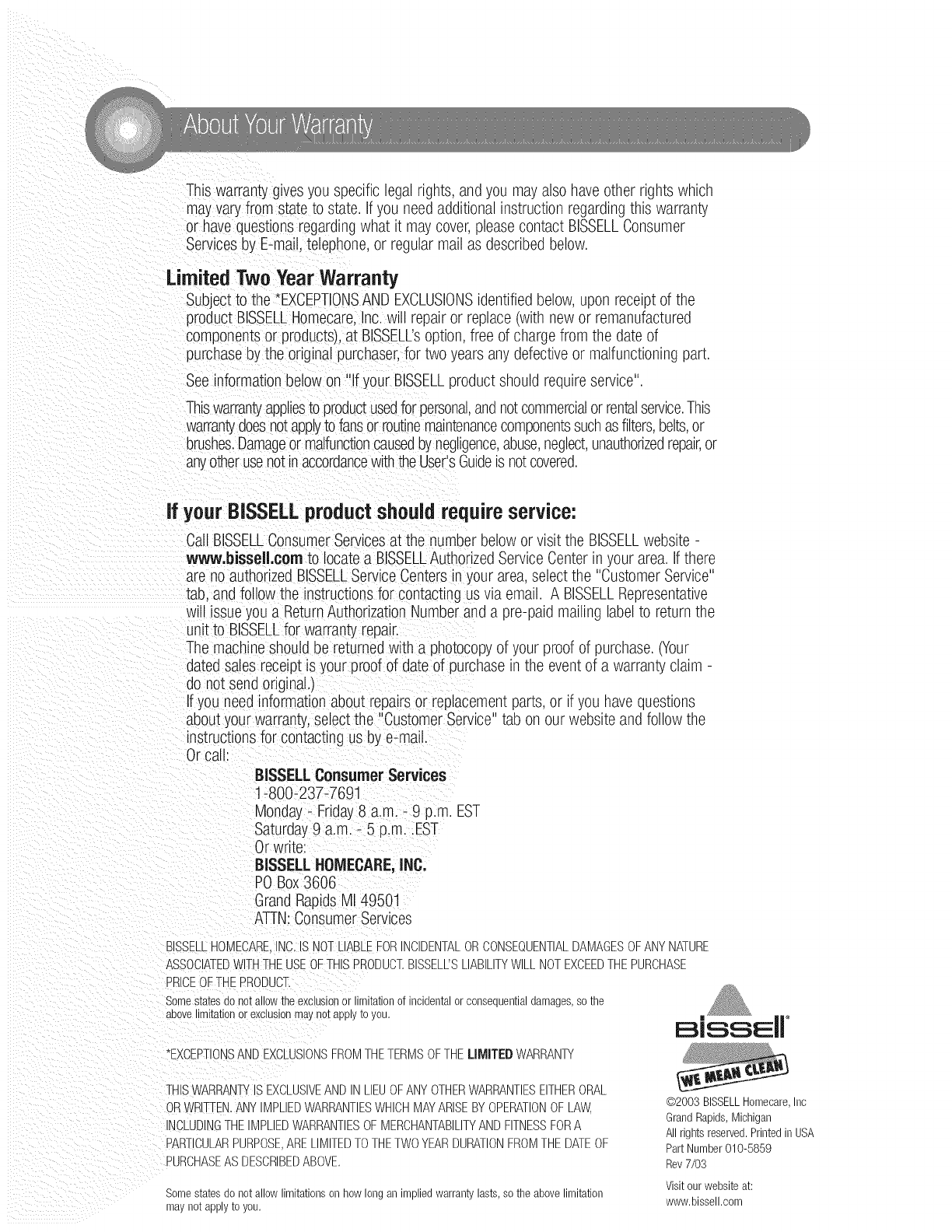

This warranty givesyou specific legal rights, and you may also have other rights which
mayvary from state to state. If you need additional instruction regardingthis warranty
or have questions regardingwhat it may cover,please contact BISSELLConsumer
Services by E-mail,telephone or regular mail as described below.
LimitedTwo Year Warranty
Subject to the *EXCEPTIONSAND EXCLUSIONSidentified below,upon receipt of the
product BISSELLHomecare,Inc. will repair or replace (with new or remanufactured
components or products),at BISSELL'soption, free of charge from the date of
purchaseby the original purchaser,for two years any defectiveor malfunctioning part.
See information below on "If your BISSELLproduct should require service".
Thiswarrantyappliesto productusedfor personal,andnot commercialor rentalservice.This
warran_ doesnotapplyto fansor routinemaintenancecomponentssuchas filters,belts,or
brushes.Damageor malfunctioncausedby negligence,abuse,neglect,unauthorizedrepair,or
anyother usenot in accordancewiththe User'sGuideis notcovered.
If your BISSELLproductshouldrequire service:
Call BISSELLConsumer Servicesat the number below or visit the BISSELLwebsite -
v_t_v,bisseli.com to locate a BISSELLAuthorizedService Centerin your area. If there
are no authorized BISSELLService Centers in vour area, select the "CustomerService"
tab, and follow the instructions for contacting us via email. A BISSELLRepresentative
will issueyou a ReturnAuthorization Numberand a pre-paid mailing labelto return the
unit to BISSELLfor warranty repair.
The machine should be _eturnedwith a photocopy of your proof of purchase. (Your
dated sales receipt isyour proof of date of purchase in the event of a warranty claim -
do not send original.)
Ifyou need information about repa=rsor replacement parts, or if you have questions
about your warranty, select the "Customer Service" tab on our website and follow the
instructions for contacting us by e-mail.
Orcall:
BISSELLConsumer Services
1-800-237-7691
Monday- Friday8 a.m.- 9 p.m. EST
Saturday 9 a.m.- 5 p.m..EST
Or write:
BISSELLHOMECARE,INC.
POBox 3606
Grand RapidsM149501
ATTN:Consumer Services
31SSELLHOMECARE.INC.IS _]OTLABE FORNCIDENTALORCONSEQUENTIALDAMAGESOFANYNATURE
ASSOCIATEDWITHTHEUSEOFTHISPRODUCT.BISSELUSLIABILITYWILLNOTEXCEEDTHEPURCHASE
PRICEOFTHEPRODUCT.
Somestates do notallOW the exc JSlOn or ilrnltatlon of lcldenta or consequentialdamages,so the
above ilmltatlorl or exclusion may not aDDIV Io OL
*EXCEPTIONSANDEXCLUSIONSFROMTHETERM_OFTHELIMITEDWARRANTY
THISWARRANTYSEXCLUSIVEAND N LIEUOFANY DTHERWARRANTIESEITHERORAL
ORWRITTEN.ANY MPLIEDWARRANTIESWHICHMAYARISEB OPERATIONOFLAW,
NCLUDINGTHEMPLIEDWARRANTIESOFMERCHANTABILITYANDFITNESSFORA
DARTCULARPURPOSEARELIMITEDTOTHETWOYEARDURATIONFROMTHEDATEOF
PURCHASEA,< DESCRIBEDABOVE
@2003 BISSELLHomecare,Inc
GrandRapids,Michigan
All rightsreserved,Printedin USA
PartNumber010-5859
Rev7/03
Visitourwebsiteat:
Somesta_esdo no_allow _nl_a_lonsor now long an repliedwarrant_ as_s,sothe above limitation
_na no_aDDIV_0 /ou, www,bissell,com

Navigation menu
