16981 Series

■Assembly

■Operation

■Safety

■Storage

SmartClean®System pre-treats,

loosens, and lifts out dirt.

■SmartTemp™heats solution for

best cleaning

■

On-board

DirtLifter®TurboBrush™

■DirtLifter®PowerBrush lifts deep

down dirt, grooms carpet

■SmartMix®auto-adjusts

formula for every cleaning job

■

Tank-in-Tank

™

is easy to use -

saves trips to empty and refill

■

ReadyTools

™

instantly converts

from floor cleaning to tools

User’s Guide

Thanks for buying a POWERSTEAMER®PROHEAT™PLUS Heated Solution Deep Cleaner.

We’re glad you purchased a BISSELLPOWERSTEAMER®

PROHEAT™PLUS Heated Formula Deep Cleaner. Everything we

know about floor care went into the design and construction

of this complete, high-tech home cleaning system.

Your POWERSTEAMER®PROHEAT™PLUS is well made,

and we back it with a full one-year warranty. We also stand

behind it with a knowledgeable, dedicated Consumer

Services department, so, should you ever have a problem,

you’ll receive fast, considerate assistance.

My great-grandfather invented the floor sweeper

in 1876. Today, BISSELL is a global leader in the design,

manufacture, and service of high

quality homecare products like

your POWERSTEAMER®PROHEAT™PLUS.

Thanks again, from

all of us at BISSELL.

Mark J. Bissell

President and Chief Executive Officer

■Keep openings free of dust, lint, hair, etc.

■Use only commercially available floor cleaners

and waxes intended for machine application

■Keep appliance on a level surface

■Turn off all controls before unplugging

■Unplug by grasping the plug, not the cord

■Unplug before attaching the TurboBrush™

■Be extra careful when cleaning stairs

■Pay close attention when working around children

SAVE THESE INSTRUCTIONS.

THIS MODEL IS FOR HOUSEHOLD USE ONLY.

Commercial use of this unit voids the manufacturer’s

warranty.

GROUNDING INSTRUCTIONS

This appliance must be connected to a grounded

wiring system. If it should malfunction or break

down, grounding provides a safe path of least

resistance for electrical current, reducing the risk of

electrical shock. The cord for this appliance has an

equipment-grounding conductor and a grounding

plug. It must only be plugged into an outlet that is

properly installed and grounded in accordance with

all local codes and ordinances.

WARNING:Improper connection

of the equipment-grounding conductor can

result in a risk of electrical shock. Check

with a qualified electrician or service person

if you aren’t sure if the outlet is properly

grounded. DO NOT MODIFY THE PLUG.

If it will not fit the outlet, have a proper

outlet installed by a qualified electrician.

This appliance is designed for use on a

nominal 120-volt circuit, and has a

grounding attachment plug that looks like

the plug in the drawing above. Make certain

that the appliance is connected to an

outlet having the same configuration as

the plug. No plug adapter should be used

with this appliance.

WARNING:

When using an electrical

appliance, basic precautions should be

observed, including the following: Read

allinstructions before using your POWERSTEAMER®

PROHEAT™PLUS. To reduce the risk of fire, electric

shock, or injury, use indoors only. Do not immerse.

Use only on surfaces moistened by cleaning

process. Always connect to a properly grounded

outlet. Unplug from outlet when not in use and

before conducting maintenance or troubleshooting.

■Do not leave machine when it is plugged in

■Do not service machine when it is plugged in

■Do not use with damaged cord or plug

■Do not use machine if it has been dropped,

damaged, left outdoors or dropped into water

■Do not expose to rain, store indoors

■Do not handle unit with wet hands

■Do not pull or carry by cord, use cord as a

handle, close door on cord, pull cord around

sharp corners or edges, run appliance over

cord, or expose cord to heated surfaces

■Do not carry the appliance while in use

■Do not unplug by pulling on cord-unplug by

grasping plug

■Do not handle plug or appliance with wet hands

■Do not put any object into appliance openings,

use with blocked opening, or restrict air flow

■Do not expose hair, loose clothing, fingers or

body parts to openings or moving parts

■Do not pick up hot or burning objects

■Do not pick up flammable or combustible

materials (lighter fluid, gasoline, kerosene, etc.)

or use in the presence of explosive liquids or vapor

■Do not use appliance in an enclosed space filled

with vapors given off by oil base paint, paint

thinner, some moth proofing substances,

flammable dust, or other explosive or toxic vapors

■Do not pick up toxic material (chlorine bleach,

ammonia, drain cleaner, gasoline, etc.)

■Do not modify the 3-prong grounded plug

■Do not allow to be used as a toy

■Do not use for any purpose other than described

in this User’s Guide

■Use only manufacturer’s recommended

attachments

■Use only cleaning products formulated by

BISSELL for use in this appliance

IMPORTANT SAFETY INSTRUCTIONS

Grounded

Outlets

Grounding Pin

Flex

Hose

SmartMix®

Tank

DirtLifter®

PowerBrush™Floor Nozzle

Window

SmartTemp™

Switch

SmartTemp™

ReadyLight

ReadyTools™

Switch

Tank-in-Tank™

Belt Access Door

Flow Indicator

(Filter Inside)

SmartMix® Power

Switch

Trigger

Handle

CAUTION:

POWERSTEAMER®

PROHEAT™ PLUS

uses water and

must not be

stored where

there is danger

of freezing.

Freezing will

damage internal

components.

TurboBrush™

Storage

WARNING: Use only

BISSELL Fiber Cleansing Formula™

in your POWERSTEAMER®.PROHEAT™

PLUS. Use of cleaning formulas

which contain lemon or pine oil

may damage this appliance and

void warranty. Chemical spot

cleaners or solvent-based soil

removers should not be used.

These products may react with the

plastic materials used in your

POWERSTEAMER®PROHEAT™PLUS

causing cracking or pitting.

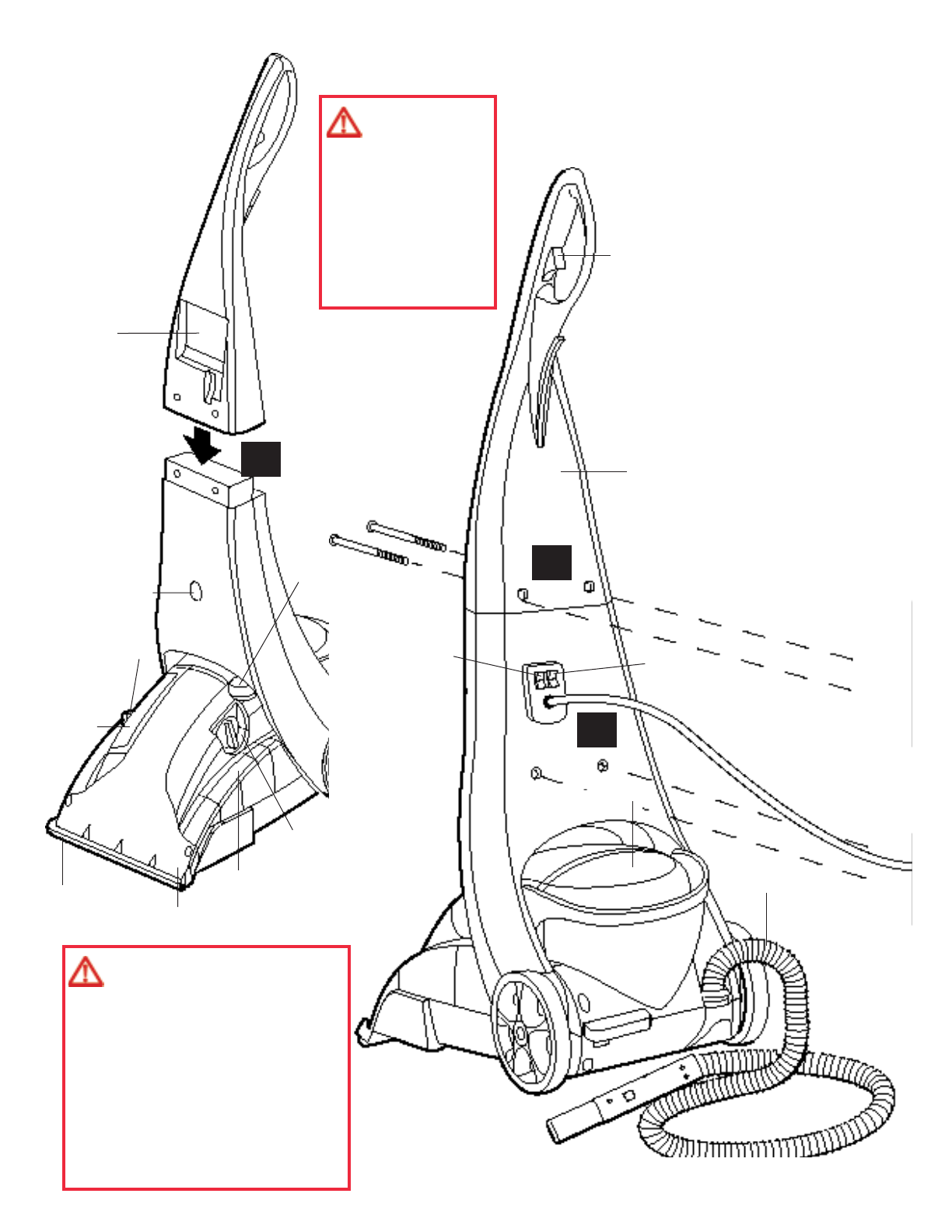

Slide upper handle onto lower handle.

Feed bundled power cord through tool caddy from

caddy’s flat side.

Align handle holes and tool caddy holes.

Place hex nut into back of tool caddy and hold in

place. Insert bolt from front to back turning into hex

nut until snug. Do not overtighten. Repeat steps 3 and

4 for second bolt and hex nut.

Insert 2 screws into lower two holes.

Turn until snug.

Snap tools into storage on the

tool caddy.

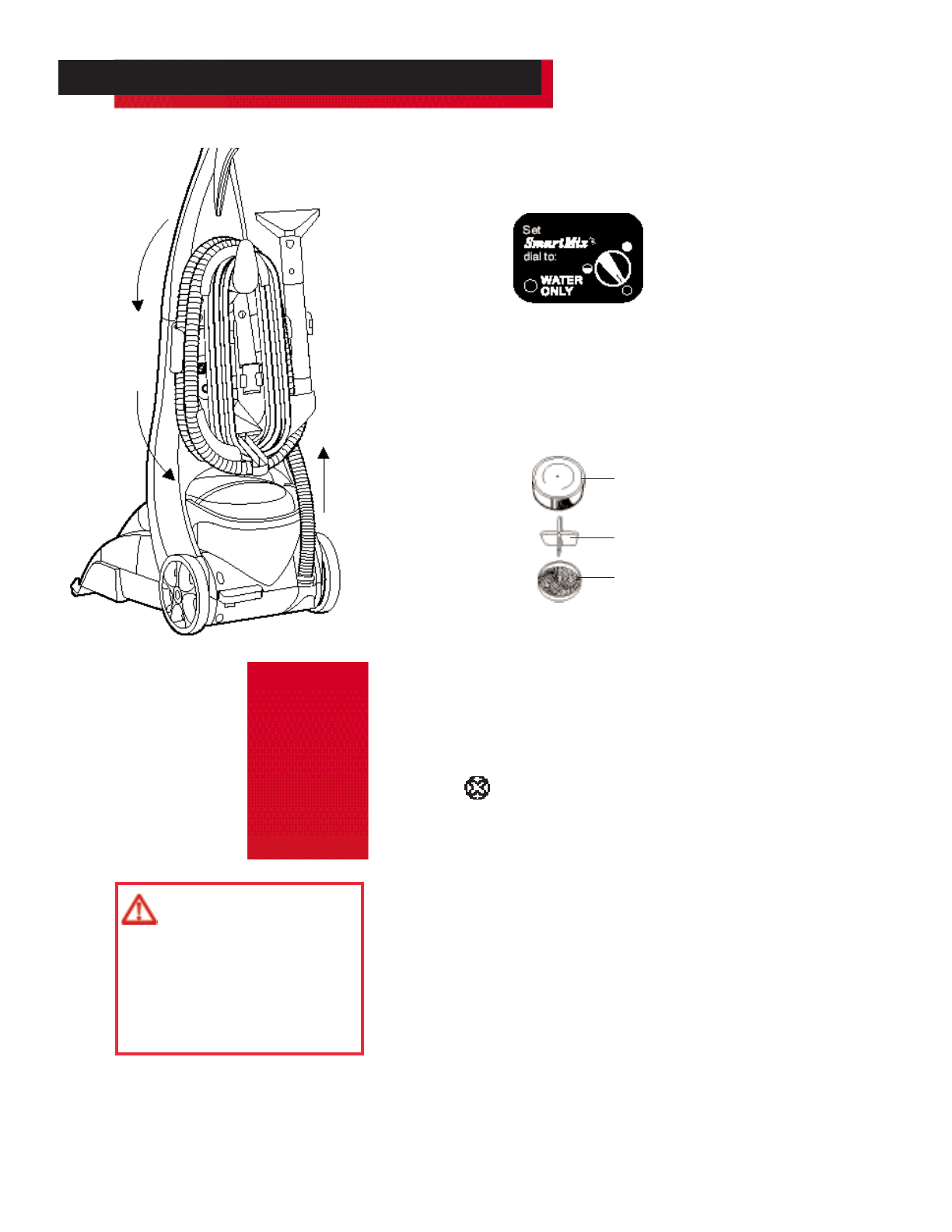

Wrap power cord and flex hose

as shown.

*All parts may not be included with your model.

More Tools are available. To order replacement parts

or tools please refer to page 17.

Flex

Hose

Power Cord

Quick Release

Tool Caddy

TurboBrush™

Bare Floor Attachment

Spraying Crevice Tool

Crevice

Tool

Storage

4” Upholstery

Tool Storage

4” Upholstery Tool

16oz.

Fiber

Cleansing

Formula™

16oz.

Tough Stain

PreCleaner™

16oz.

Floor

Cleansing

Formula™

Tough Stain Brush

Keep plenty of genuine BISSELL

Fiber Cleansing Formula™on

hand so you can clean whenever

it fits your schedule. Always use

genuine BISSELL deep cleaning

formulas. Non-BISSELL cleaning

solutions may harm the machine

and void the warranty.

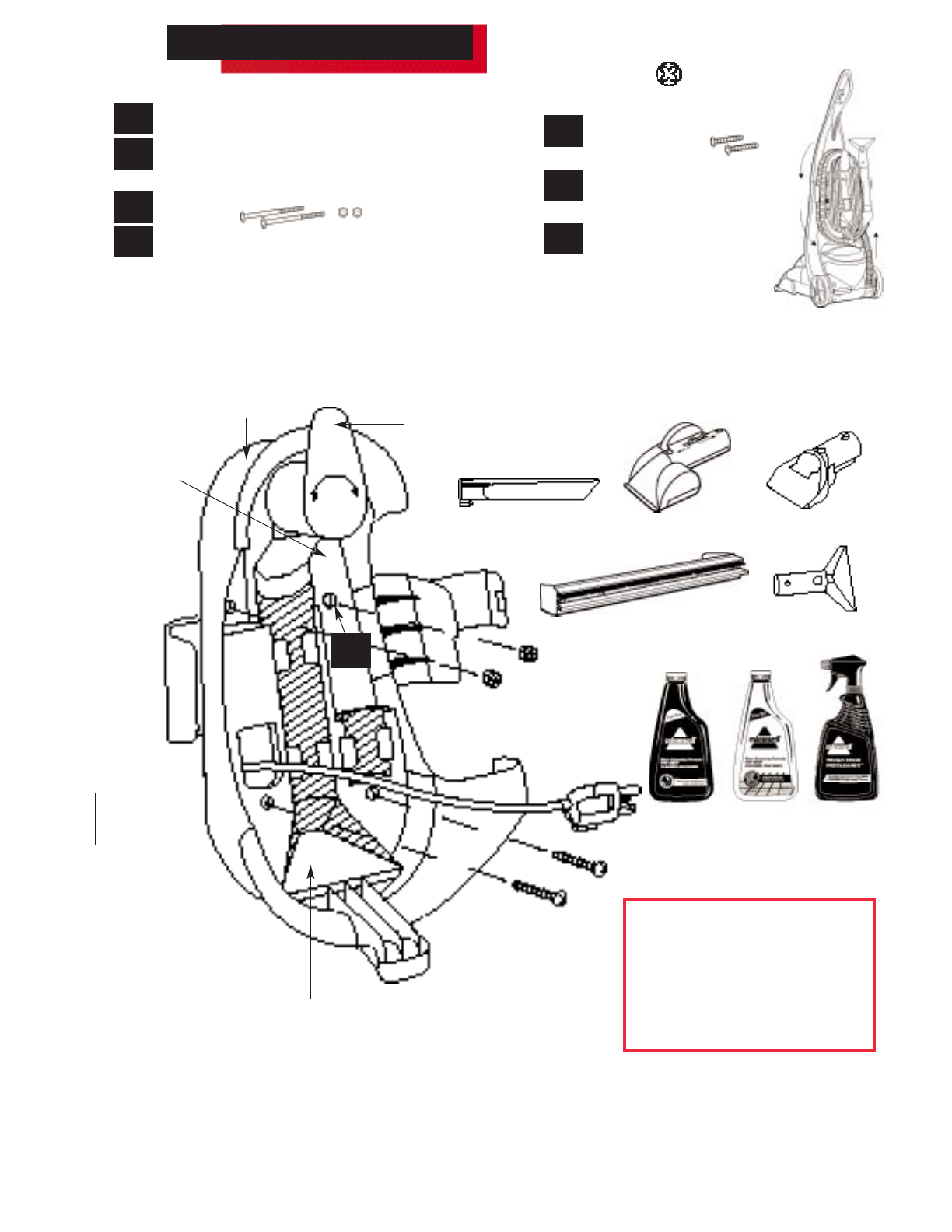

The only thing you will need to assemble your cleaner

is a Phillips head screwdriver.

Putting it together

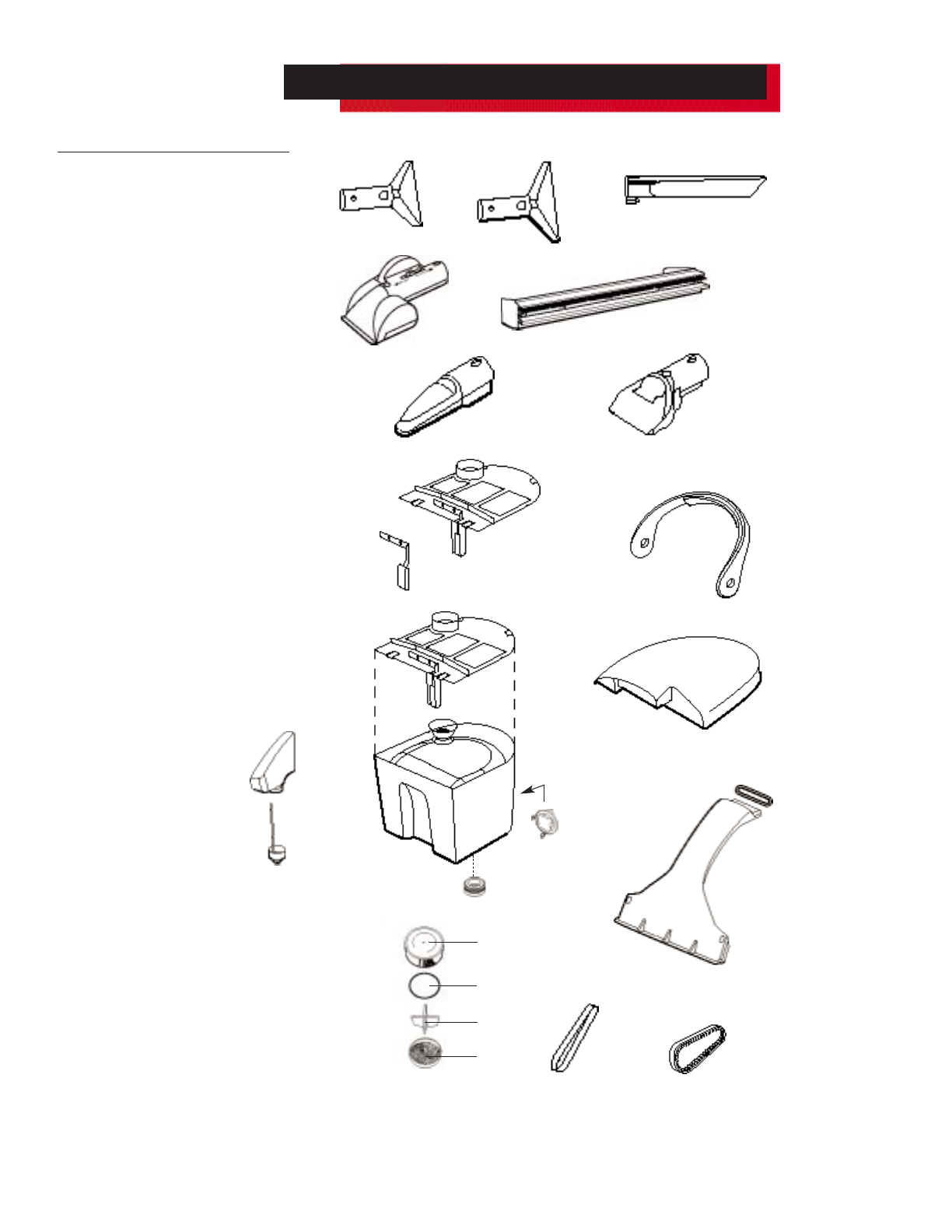

What comes with your POWERSTEAMER®PROHEAT™PLUS:*

The Basics: How it works

SmartTemp™Ready Light

SmartTemp™

Switch

Illuminates

when ON

Power Switch

The BISSELL SmartClean®System

POWERSTEAMER®PROHEAT™PLUS is a home cleaning system

that automatically mixes hot tap water with fiber cleansing

formula and heats the cleaning solution as it is applied to the

carpet. The combination of heated cleaning solution, powered

brush and suction provide a safe and effective method of cleaning.

SmartTemp™

Temperature control automatically heats the cleaning solution

as it is being applied to the carpet (*) to safely optimize

cleaning effectiveness.

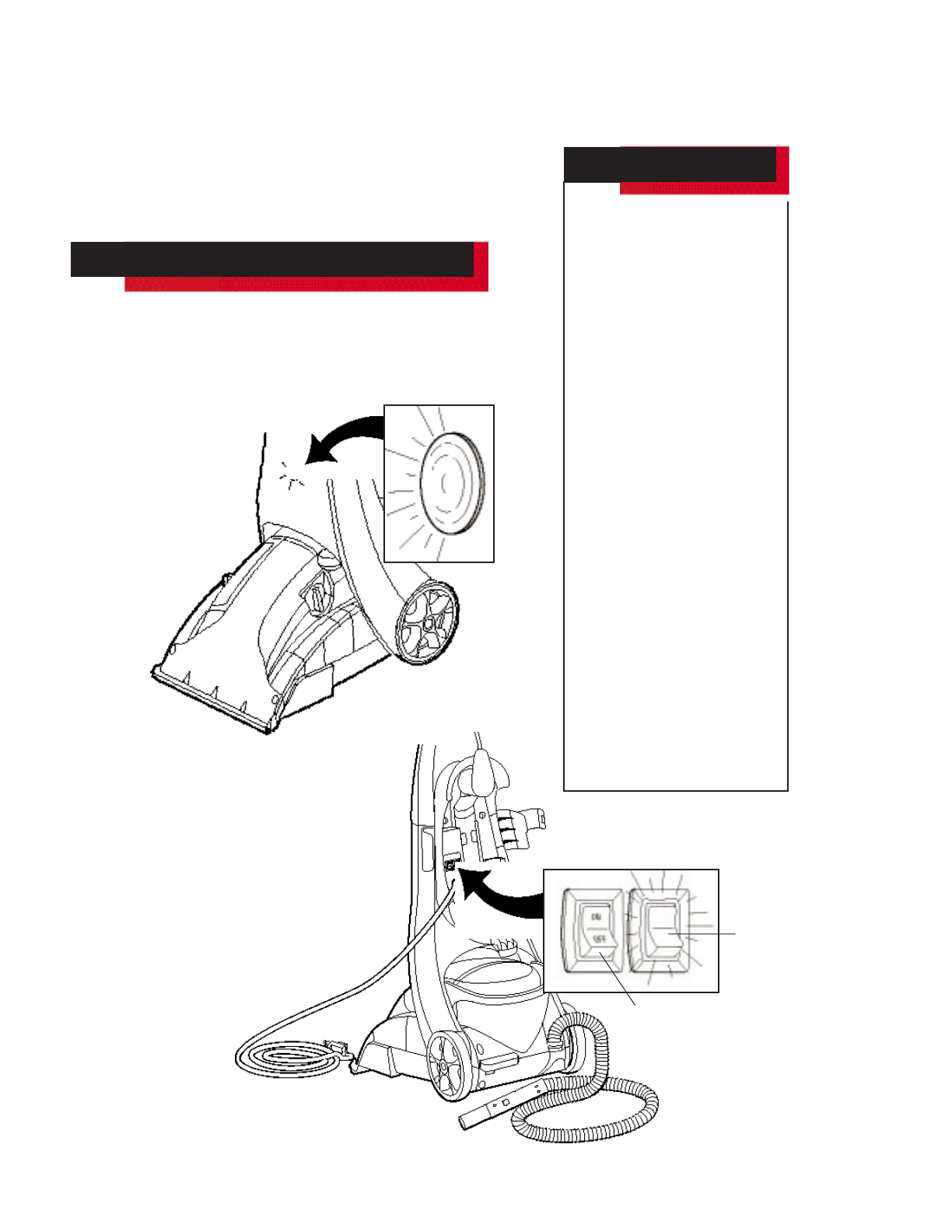

• The SmartTemp™Ready Light

indicates when the

heater is ON and

ready to clean.

It is found on

the front of the

handle where

it is easy to

see while

you clean.

• The Power Switchcontrols power to the

machine; both switches must be ON for

SmartTemp™to work.

• The SmartTemp™Switch is found on the

back of the handle next to the Power

Switch. It illuminates in the ON position.

You may choose not to use the SmartTemp™

feature if you are cleaning delicate

wool, or oriental rugs.

* SmartTemp™heats the cleaning

solution for carpet and barefloor

application only. It does

not heat solution

sprayed through

the accessory

tools.

Index

Safety instructions . . . . . . . . . .2

Product view . . . . . . . . . . . . .3-4

Putting it together . . . . . . . . . .4

What comes with your

POWERSTEAMER®

PROHEAT™PLUS . . . . . . . . . . .4

The basics . . . . . . . . . . . . . . .5-9

Index . . . . . . . . . . . . . . . . . . . .5

Cleaning carpets . . . . . . . . . .10

Cleaning upholstery

& small areas . . . . . . . . . . . . .11

Cleaning bare floors . . . . .12-13

Maintenance/

Putting it away . . . . . . . . . . .14

Troubleshooting . . . . . . . .15-16

Parts . . . . . . . . . . . . . . . . . . .17

Warranty . . . . . . . . . . . . . . . .18

Consumer services . . . . . . . . .18

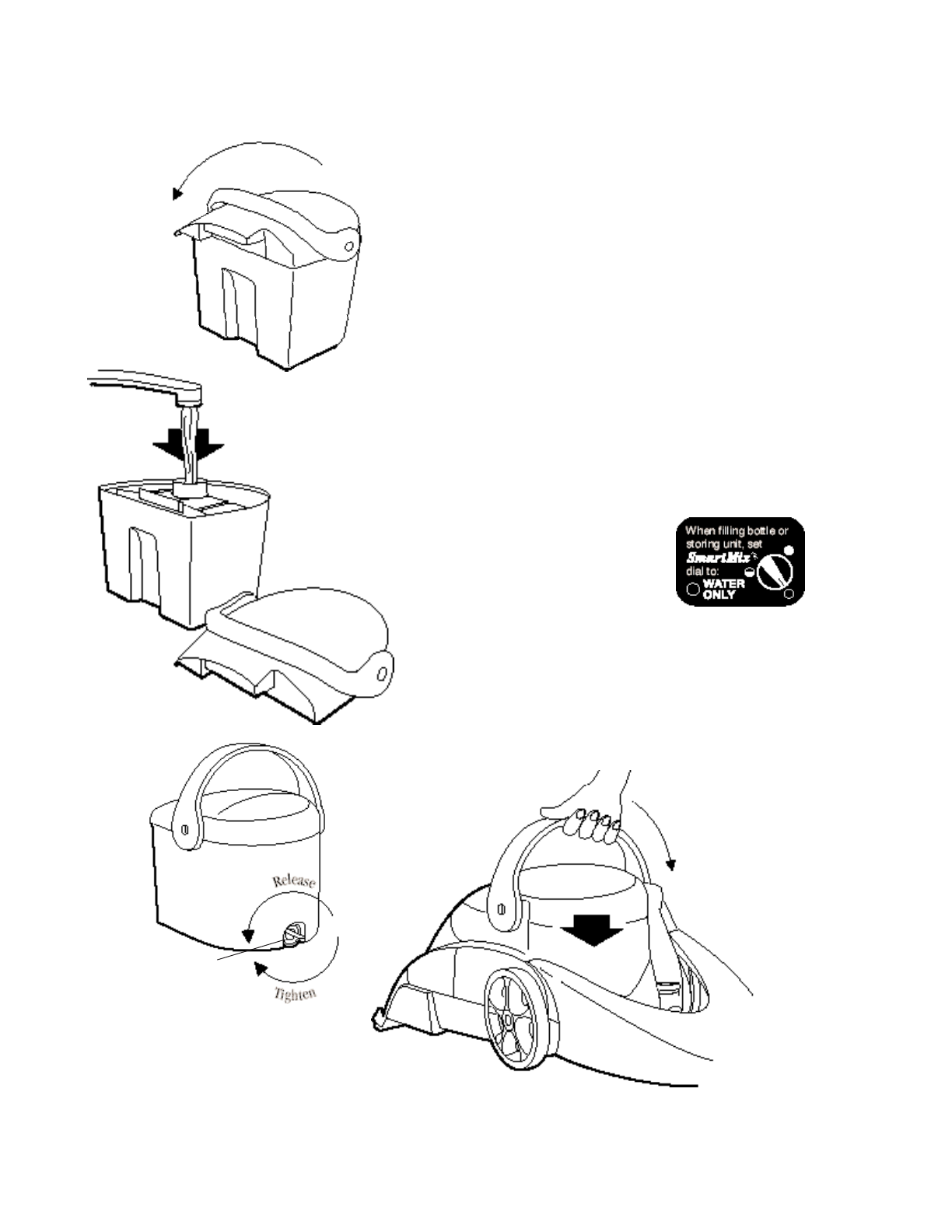

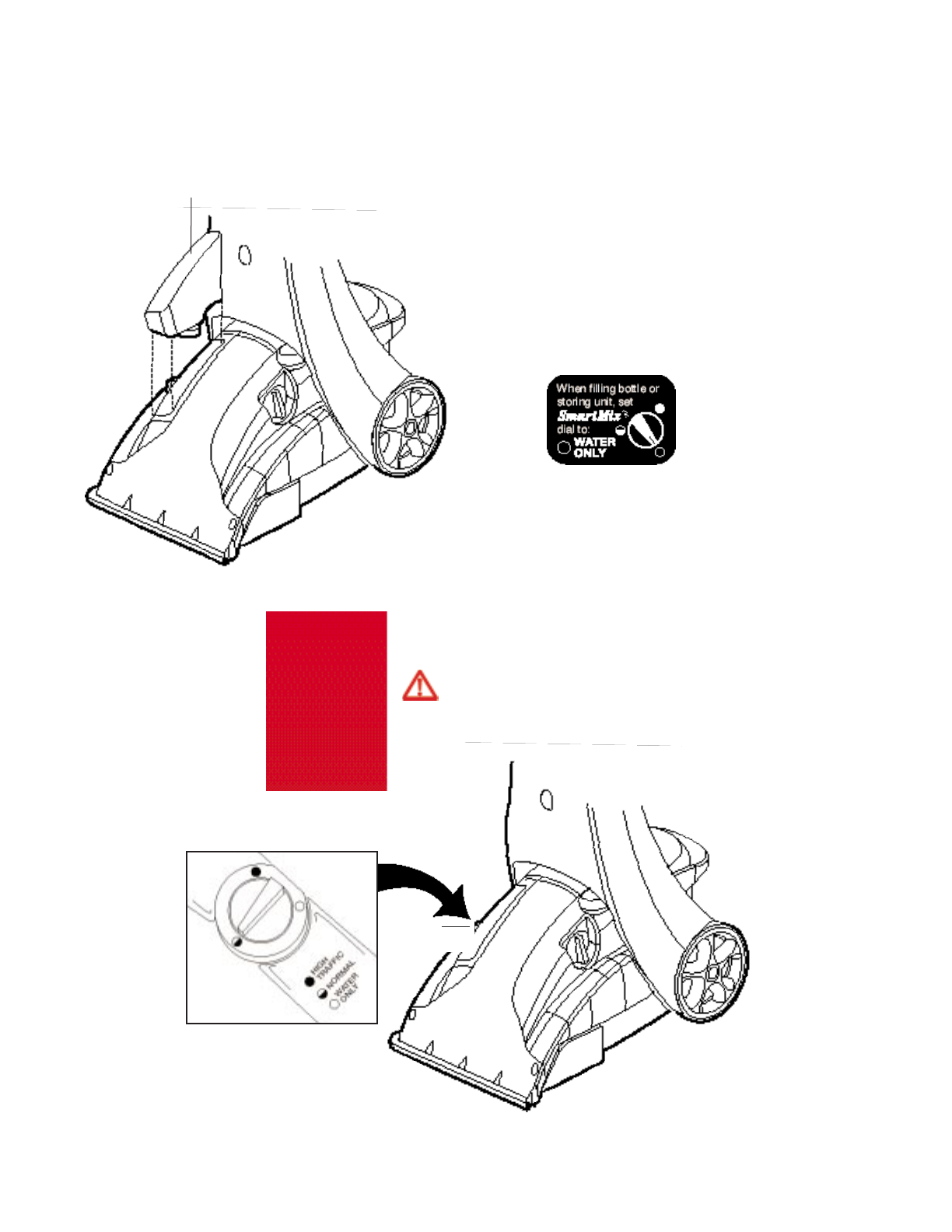

SmartMix®

Provides custom control for each cleaning job.

1. Lift the SmartMix®concentrate bottle up out of the

machine base.

2. Flip the bottle over so that the valve cap is in an

upward position.

3. Unscrew the valve cap and fill the bottle to the mark with

BISSELL Fiber Cleansing Formula.™

4. Replace the valve cap turning until snug.

5. Replace SmartMix®concentrate bottle.

6. Choose the SmartMix®setting that fits the cleaning job.

• Water Only– use for gentle cleaning or for the final

rinse after cleaning.

• Normal – automatically provides the best mix of

water and concentrate for most cleaning jobs.

• High Traffic – automatically mixes the right amounts

of water and concentrate to dissolve tough grime and

heavy soil.

SmartMix®Bottle

SmartMix®

Switch

Tip:

Deep cleaning

stairs and high

traffic areas on

a regular basis

can prolong

carpet life.

The Basics - continued

WARNING: Be extra careful when

cleaning stairs.

NOTE: Both the SmartMix®Bottle and

the clean water tank must have liquid in

them in order for the machine to spray.

If one tank is empty the machine will not

apply either cleaning solution or water

only. If you’re using the WATER ONLY

setting, fill the SmartMix®Bottle with

water also.

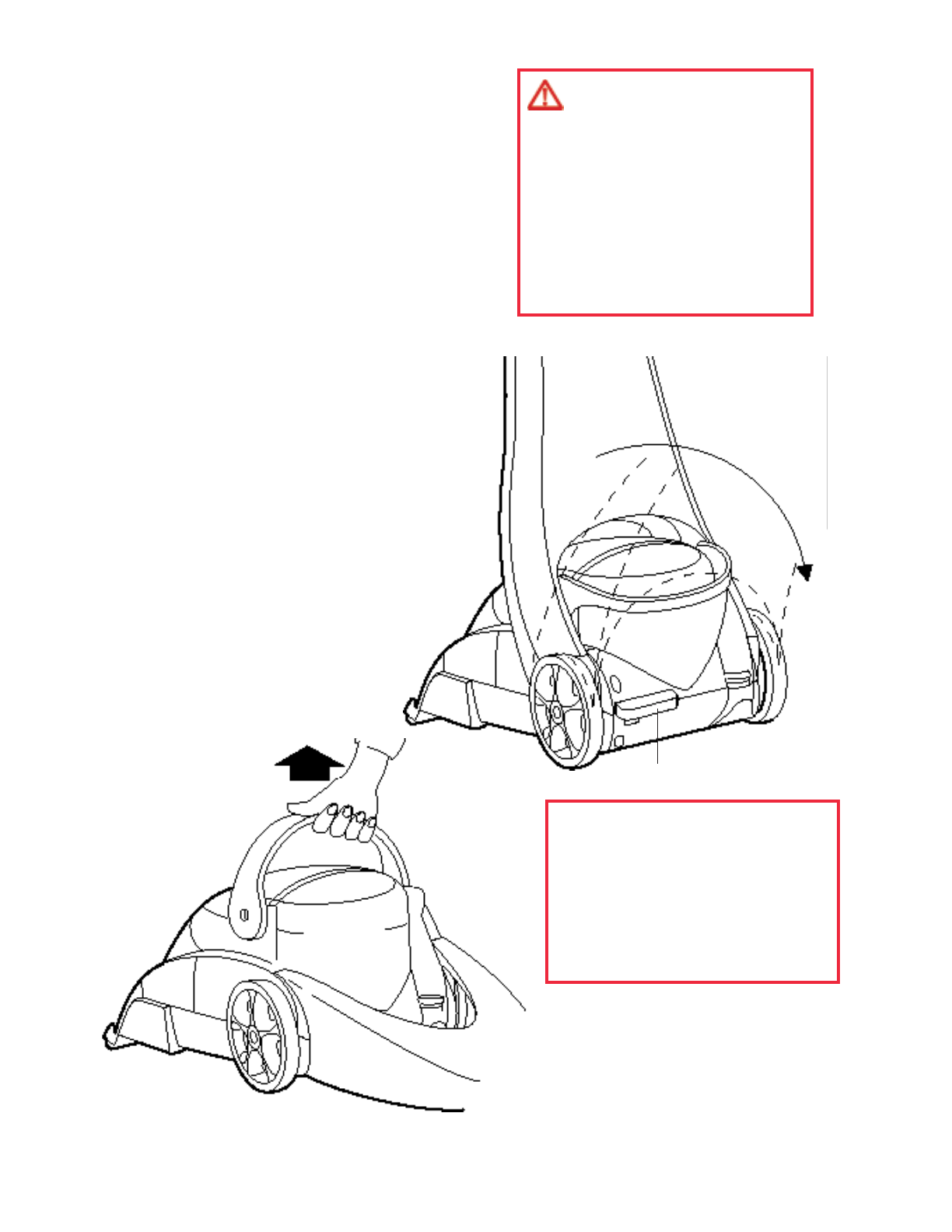

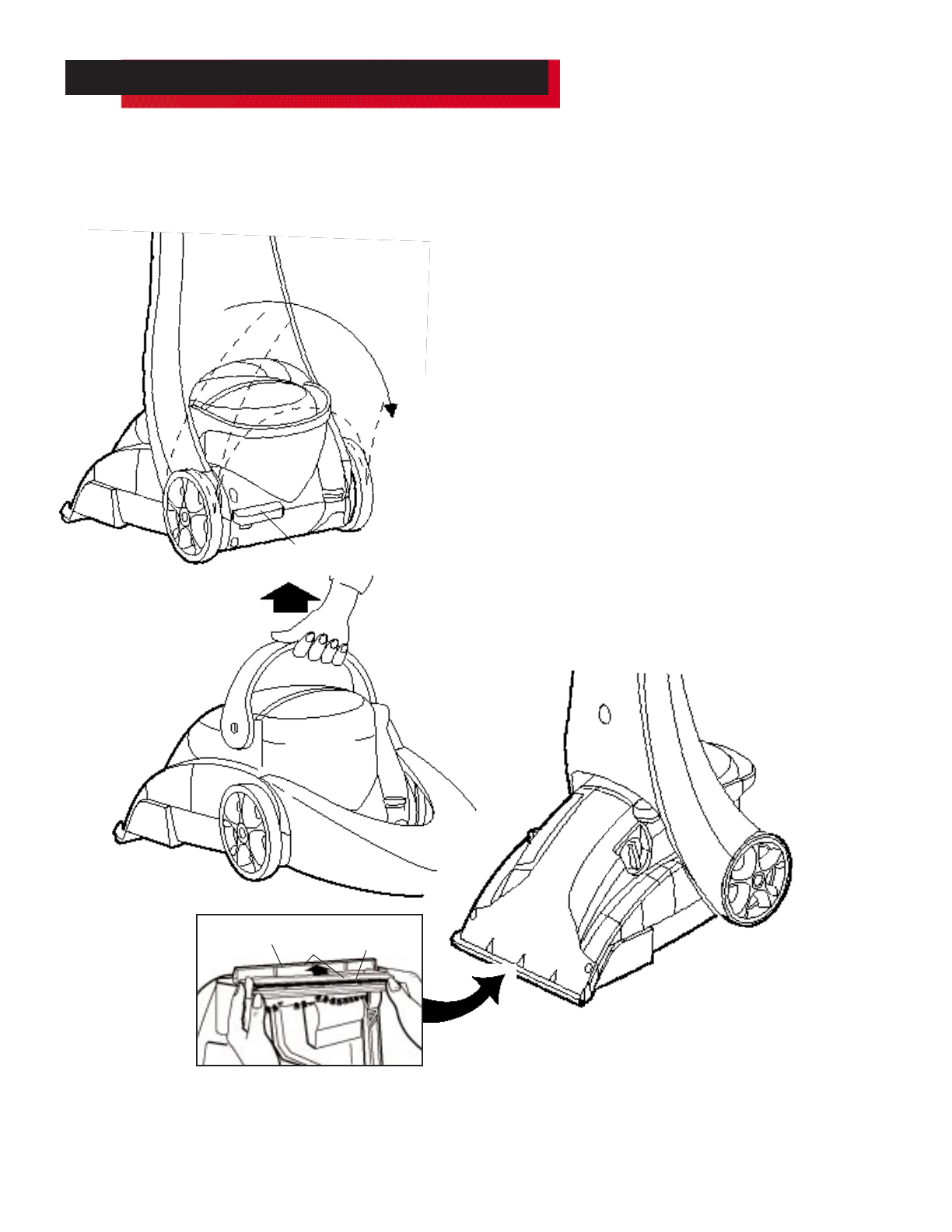

Tilt Handle

Back

Handle Release

Lift and

Carry

WARNING: Use only

BISSELL Fiber Cleansing Formula™

in your POWERSTEAMER®.PROHEAT™

PLUS. Use of cleaning formulas

which contain lemon or pine oil

may damage this appliance and void

warranty. Chemical spot

cleaners or solvent-based soil

removers should not be used. These

products may react with

the plastic materials used in your

POWERSTEAMER®PROHEAT™PLUS,

causing cracking or pitting.

DirtLifter®PowerBrush®

The powered brush roll at the floor nozzle is designed to

enhance cleaning performance. The bristle pattern lifts out

the deep down dirt while gently grooming carpet fibers.

The floating suspension self-adjusts to all carpet heights and

protects your carpet if you leave the power switch ON. When the

machine handle is in the fully upright position, CarpetSaver™

automatically raises the brush off the carpet.

Tank-in-Tank™is easy to use

It is designed with a bladder inside for clean water. As you

clean, the bladder will empty. Dirty water collects in the tank

outside the bladder.

1. Step on handle release to lay the machine handle down

out of the way.

2. Lift the Tank-in-Tank™ handle. The handle locks the

lid in place.

3. Carry it like a bucket to fill at the sink.

4. Set the tank down and rotate the handle forward to

unlatch the lid. Lift off and set the lid aside.

5. Find the mouth of the bladder and fill to the bottom of the

neck with hot tap water.

NOTE: Fill the Bladder with water only.

6. Replace the tank lid matching the lid and tank edges.

Handle must be in forward position to reinstall.

7. Rotate the handle to the carrying position to re-latch

the lid.

8. Replace tank in machine base, seating firmly in place.

9. Rotate handle back down to the latched position.

When it’s time to empty the Tank-in-Tank™

10. Remove the Tank-in-Tank™– follow steps 1and 2

on page 7.

11. Carry the Tank-in-Tank,™like a bucket, to the sink where

you will dispose of the dirty water.

12. Place in or at edge of sink, turn the Tank Drain Cap and

remove to release the dirty water.

13. Replace Drain Cap.

14. Refill with clean tap water as

above, steps 5through 9,

and refill the SmartMix®Bottle

with BISSELL Cleansing Formula,™

as necessary.

15. If the cleaning job is complete, rinse out the Tank-in-Tank™

by rinsing clean water between the bladder and tank.

16. Replace the Tank Drain Cap and return the Tank-in-Tank™

to the machine, following steps 6through 9above.

17. Refer to the Putting it Away section,page 14, for the

final cleanup.

Rotate Handle

to Unlatch

Fill Bladder only with

clean tap water.

Latched

Tank Drain Cap

The Basics - continued

Tip:

A special red

float device in

the tank will

cause the

cleaner to

stop removing

solution from

the carpet and

the motor sound

will rise in pitch

to let you know

the dirty water

tank is full.

The Flow Indicator

This is located on the machine base. It spins when

the trigger is pressed to indicate that the machine

is applying cleaning solution to the floor. It will

stop spinning to indicate that the SmartMix®

Bottle or bladder needs to be refilled, or when

the trigger is released.

ReadyTools™ Switch

This provides above floor cleaning with the

flip of a switch. Just choose the cleaning

tool, attach to the flex hose and

POWERSTEAMER®PROHEAT™

PLUS is ready to clean

upholstery and more.*

* Set the switch to Floor

Cleaning when

cleaning carpets or

bare floors or set it

to Tools/PreTreat

when using the flex hose

attachments or for pre-treating floors.

* SmartTemp™heats the cleaning solution for

carpet and bare floor application only. It does not

heat solution sprayed through the accessory tools.

When You’re Done

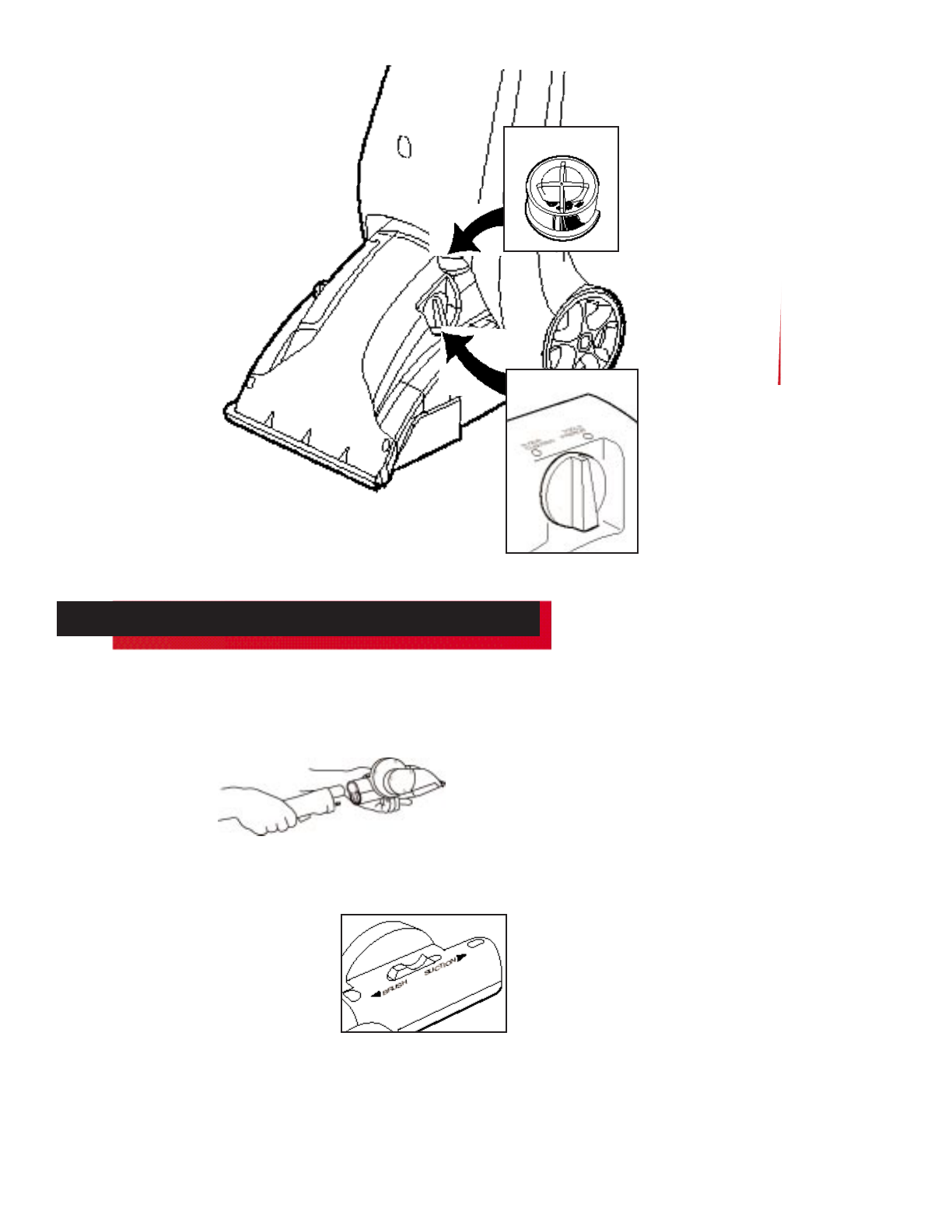

Disconnect the TurboBrush

™

from

the vacuum flex hose by pushing

down on the button lock and

pulling straight off.

2. Once removed from the flex hose, the

TurboBrush™can be cleaned:

1. Move the switch to the

“SUCTION” position.

2. Rinse under running water.

3. Check spray nozzle for dirt.

If necessary, clean with soft

bristle brush.

4. Replace TurboBrush™in its

special storage location on the

handle front.

Assembly

Unplug before attaching the TurboBrush.™ Attach

TurboBrush™to the flex hose by pressing tool onto the

grip/trigger until button snaps into hole.

Make certain tool is securely in place.

Use

1. Move the TurboBrush™switch to the “BRUSH” position.

This activates the brush.

2. Place the tool directly on the soiled surface.

Apply downward pressure on the tool and

pull towards you while pulling trigger to

spray cleaning solution.

3. Release the spray trigger and move the

switch to the “SUCTION” position.

Vacuum the area until no more cleaning

solution can be removed.

4. Repeat steps 1-3 until no more dirt can be removed.

Caution: Do not overwet.

How to use TurboBrush™attachment

Flow Indicator

ReadyTools™Switch

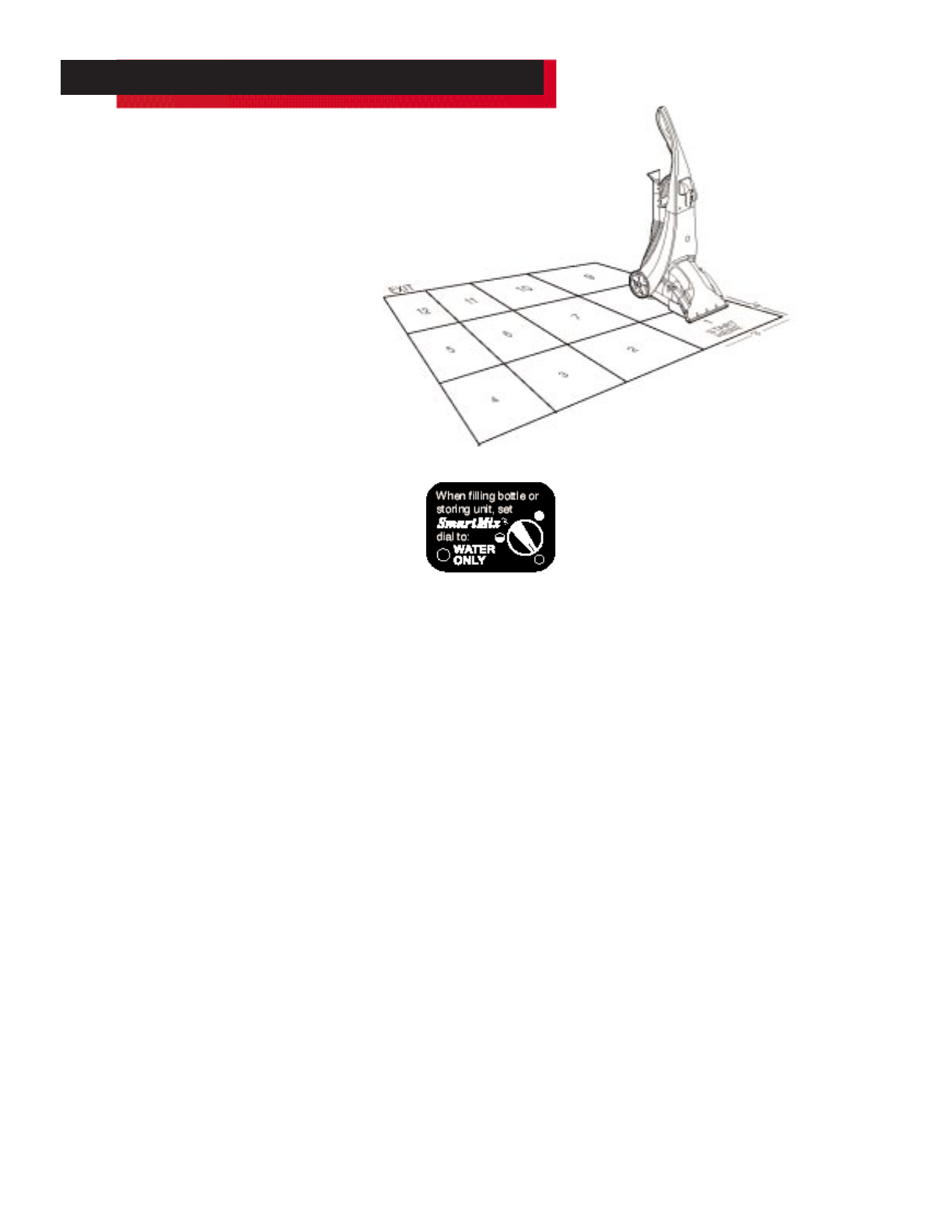

1. Plan activities to give carpet time to dry.

2. Remove easily moved furniture from the room (chairs,

lamps, coffee tables, etc).

3. Vacuum thoroughly to pick up loose debris and pet hair

before using the POWERSTEAMER®PROHEAT™PLUS.

4. Plan your cleaning route to leave an exit path. It is best to

begin cleaning in the corner farthest from your exit.

Machine Preparation

5. Set up the machine following instructions in

The Basics section, pages 5-9.

6. Use Fiber Cleansing Formula™in the SmartMix®tank.

7. Choose the SmartMix®setting to match the cleaning job.

8. Set the ReadyTools™switch on to either Tools/PreTreat

or Floor Cleaning.

Pre-Treating (Optional)

Improves cleaning effectiveness for heavily soiled carpet

in high traffic areas such as entryways and hallways:

9. Set the SmartMix®dial to High Traffic.

10. Set the ReadyTools™switch on PreTreat.

11. Plug into a proper outlet and turn ON both the Power

and the SmartTemp™switches.

12. While pressing the trigger, slowly make several passes

over the area to be cleaned.

Caution: Do not overwet.

13. Turn the machine Power switches OFF and let BISSELL

Fiber Cleansing Formula™dissolve the tough soil for

1-2 minutes before continuing.

Normal Cleaning

14. Plug into a proper outlet and turn the Power and the

SmartTemp™switches ON.

15. While pressing the trigger make one slow forward and

back wet pass. Let the SmartTemp™heated formula and

DirtLifter®PowerBrush®do the work for you.

Caution: Do not overwet.

16. Release the trigger and make one slow forward and back

pass over the same area to remove any residual dirty water.

How to clean carpets

17. Repeat cleaning passes until solution being

pulled up appears clean.

18. Continue passes without pressing the trigger

until you can’t see any more water being

pulled up.

NOTE: Both the SmartMix®and the clean

water tank must have liquid in

them in order for the machine to

spray. If one tank is empty the

machine will not apply either

cleaning solution or water only.

19. After cleaning, you may want to turn the

SmartMix®to Water Only to give your

carpeting a final rinse. This will insure

thorough removal of embedded dirt loosened

by the Fiber Cleansing Formula.™

20. When the cleaning job is complete refer to

the Maintenance/Putting it Away section

for machine cleanup and storage

instructions, page 14.

How to clean upholstery and small areas

Manufacturer’s Tag

Tip:

Deep cleaning

carpeting and

upholstery

regularly can

reduce dust and

allergens in

your home.

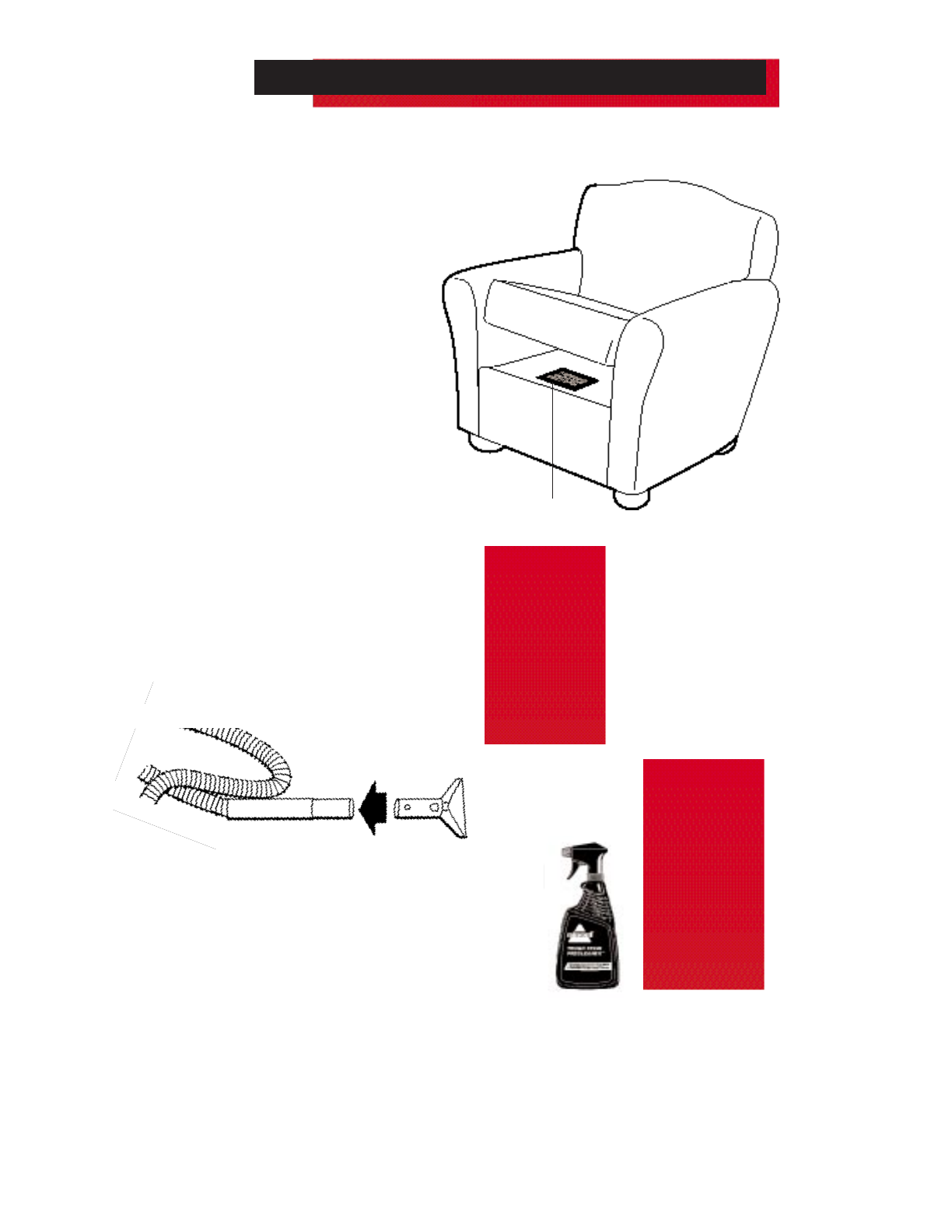

Important - Check Upholstery Tags:

1. Check manufacturer’s tag before cleaning. “W” or “WS”

on the tag means you can use your POWERSTEAMER®

PROHEAT™PLUS.If the tag is coded with“X”or“S”(with a

diagonal strike through), or says “Dry Clean Only,” do not

proceed. Do not use on velvet or silk. If manufacturer’s tag

is missing or not coded, check with your furniture dealer.

2. Check for colorfastness in an inconspicuous place.

3. If possible, check upholstery stuffing. Colored stuffing

may bleed through fabric when wet.

4. Plan activities to give upholstery time to dry.

5. Vacuum thoroughly to pick up loose debris and pet hair.

Use a vacuum with a brush attachment and a crevice tool

to clean in fabric folds and tufts.

Machine Preparation:

6. Set up the machine following instructions in The Basics

section, pages 5-9.

7. Use Fiber Cleansing Formula™in the SmartMix®tank.

8. Set the ReadyTools™switch on Tools and PreTreat.

* SmartTemp™heats the cleaning solution for carpet

and barefloor application only. It does not heat

solution sprayed through the accessory tools.

9. Set SmartMix®to Normal.

Cleaning Technique

10. Choose the 4” Small Area Tool, the Tough Stain Brush, or

the Spraying Crevice Tool and connect to the flex hose.

11. Plug into a proper outlet and turn the Power switch ON.

12. While pressing the trigger, slowly move the spraying tool

back and forth over the soiled surface. Release the trigger

to vacuum soiled water.

13. Continue to clean soiled area, working in small sections,

until no more dirt can be removed.

Caution: Do not overwet.

14. When the cleaning job is complete refer to the Putting

it Away section for machine cleanup and storage

instructions, page 14.

Tip:

Try pre-treating

stairs or entry

ways with

BISSELL Tough

Stain PreCleaner.™

Then deep

clean with the

SmartMix®

dial set on

High Traffic.

Cleaning bare floors

Tilt Handle

Back

Carrying

Bottom Front Edge of

Machine Base Snap Together

Bare Floor

Cleaning

Tool

Handle Release

The Bare Floor Tool provides effective cleaning for

linoleum, vinyl, and tile floors.

Caution: Do not use on hardwood floors.

1. Use only BISSELL Floor Cleansing Formula.™

2. Vacuum or sweep thoroughly to pick up loose debris and

pet hair.

3. Remove easily moved furniture from the room, (chairs,

tables, etc).

4. Plan your cleaning route to leave an exit path.

5. Plan activities to allow about 30 minutes for the floor to

dry completely.

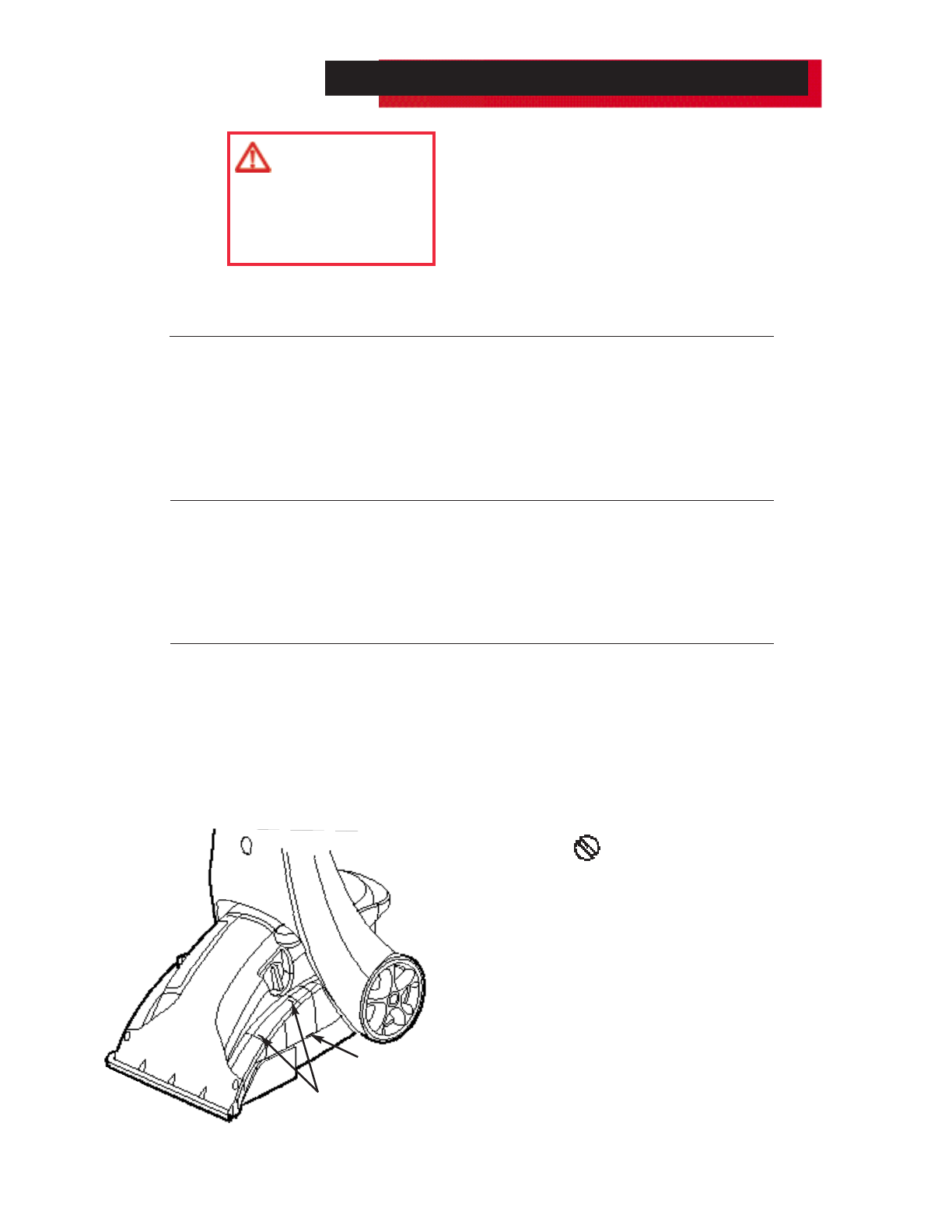

Attach the Bare Floor Tool

6. Step on the handle release to lay the machine handle down.

7. Remove the Tank-in-Tank™from the machine base.

8. Lift the machine base to expose the underside of the nozzle.

9. Attach Bare Floor Tool to nozzle with long tab to the right

side (ReadyTools™side) of the nozzle.

10. First attach left side (short tab) catching tab over

nozzle edge.

11. Gently bend long tab (right side) outward to easily snap

over edge of clear nozzle on left.

Machine Preparation

12. Set up machine following instructions in The Basics

section, pages 5-9. Be sure to thoroughly rinse out any

remaining Fiber Cleansing Formula™to prevent slippery

linoleum, vinyl, and tile floors. Use BISSELL Floor

Cleansing Formula™in the SmartMix®tank.

13. Check ReadyTools™switch - it should be set on

Floor Cleaning.

14. Choose the SmartMix®setting to match the cleaning job.

15. Plug into a proper outlet and turn Power Switch ON.

Turn SmartTemp™switch to ON. The SmartTemp™

Ready Light illuminates when POWERSTEAMER®

PROHEAT™PLUS is ready to clean.

Bare Floor Cleaning Technique

17. Slowly move the machine nozzle with Bare Floor Tool

forward and back over soiled surface one time while

pressing the trigger.

Caution: Do not over wet.

18. Repeat the motion without pressing the trigger using the

Bare Floor Tool to squeegee and suction up the dirty water.

19. Repeat steps 1 and 2 backing along the exit path.

20. Allow about 30 minutes for the floor to dry completely.

21. When the cleaning job is complete refer to the

Maintenance/Putting it Away section, page 14, for

machine cleanup and storage instructions.

22. To remove Bare Floor Tool gently bend long tab (right

side) outward and pull tool down away from nozzle.

Rinse thoroughly, dry and store.

Keep plenty of genuine BISSELL

Fiber Cleansing Formula™on

hand so you can clean whenever

it fits your schedule. Always use

genuine BISSELL deep cleaning

formulas. Non-BISSELL cleaning

solutions may harm the machine

and void the warranty.

1. Turn Power and SmartTemp™switches OFF.

2. Unplug power cord from the outlet and coil around

machine cord wrap.

3. Remove and rinse tools in clean, running water, dry and

replace in tool caddy.

4. Coil flex hose around storage brackets on tool caddy.

5. Remove Tank-in-Tank,™dispose of dirty water. See The

Basics section, page 8.

6. Rinse out the Tank-in-Tank™and replace on the machine.

7. Clean out the Flow Indicator Filter each time it is used to

insure best cleaning performance. Unscrew the Flow

Indicator Cap, lift out the red Rotor and white Filter.

Rinse all three parts in tap water. Replace the Filter and

Rotor. Replace the Flow Indicator Cap; turn until snug,

do not over-tighten.

8. To remove the Clear Nozzle for cleaning out remaining

dirt and carpet fibers, unscrew the two screws with a

Phillips screwdriver. Rotate the Clear Nozzle up toward

the handle and lift out. Wipe machine base with a clean

damp cloth. Rinse nozzle in tap water and replace. Catch

the two tabs in the notches at the top, then rotate down

and replace the screws.

9. Wipe all exterior surfaces with a soft cloth.

10. Store cleaner upright in a protected, dry area.

Maintenance/Putting it away

CAUTION:

POWERSTEAMER®PROHEAT™

PLUS uses water and must

not be stored where there

is a danger of freezing.

Freezing will damage

internal components and

void the warranty.

Cap

Rotor

Filter

Tip:

SmartMix®

Bottle may be

stored with

concentrate

ready for

your next

cleaning job.

SmartTemp™Ready Light does not illuminate.

Possible Causes Remedies

The SmartTemp™switch is Turn On the SmartTemp™switch.

not turned ON.

The machine Power Switch is Both switches must be ON to activate the

not turned ON. SmartTemp™Ready Light.

SmartTemp™ Power Switch does not illuminate.

Possible Causes Remedies

The machine Power Switch is Turn On the SmartTemp™switch.

not turned ON. Both switches must be ON to activate the

SmartTemp™Ready Light.

Reduced spray or no spray.

Possible Causes Remedies

Bladder may be empty. Refill tank with hot tap water.

SmartMix®Bottle may be empty. Fill with Fiber Cleansing Formula.

The filter may be clogged. Clean out filter, page 14.

Tanks may not be seated properly. Turn power OFF; remove and reseat tanks.

Pump may have lost prime. Turn power OFF; after 1 minute turn ON and

depress trigger.

The Pump Belt may be broken. Turn the machine OFF and unplug from the outlet.

To check if a Pump Belt has broken, you will need

a flat head screwdriver. Insert the blade end

into the lower slot of the Belt Access door to release

the lower snap. If necessary, insert the blade end

into the upper slot to release the upper snap.

Examine for belt breakage. You should be able to

see the Pump Belt looped around the white pulley.

If it is broken or missing, please refer to

Part Numbers and Descriptions on page 17

before calling Consumer Services.

Complete installation instructions will accompany

the replacement belt.

Troubleshooting

WARNING:

To reduce the risk of

fire, electric shock or

injury unplug from

outlet before servicing.

Insert

Screwdriver

Blade Here

Lift Here

Dirtlifter®PowerBrush®does not turn.

Possible Causes Remedies

The Brush Belt or Pump Belt Turn the machine OFF and unplug from the

may be broken. outlet. To check if a Brush Belt has broken,

you will need a flat head screwdriver.

Insert the blade end into the lower slot of the

Belt Access door to release the lower snap. If

necessary, insert the blade end into the upper

slot to release the upper snap. Examine for

belt breakage. The Brush Belt should be

visible, looped around the motor shaft.

If it is broken or missing, please refer to

Part Numbers and Descriptionson

page 17 before calling Consumer Services.

Complete installation instructions will

accompany the replacement belt.

Vacuum not picking up solution.

Possible Causes Remedies

ReadyTools™switch may be at the Set ReadyTools™switch to either Tools or

wrong setting for the cleaning job. PreTreat or Floor Cleaning.

Drain cap may be missing or not Remove Tank-in-Tank,™loosen and

properly installed at back of re-tighten Drain Cap.

Tank-in-Tank.™

Tank-in-Tank™lid is not Re-install lid; refer to The Basicssection.

properly installed.

Tank-in-Tank™is not properly seated. Tank-in-Tank™ must be firmly seated to

function; remove and reseat Tank-in-Tank.™

Poor tool position. Adjust angle; apply more downward pressure.

(Hand held attachments only).

Tank-in-Tank™ has picked up Empty Tank-in-Tank,™refer to

maximum dirty water. The Basics section.

Troubleshooting - continued

Item Part No. Part Name

1 010-9201 4” Small Area Tool

2 603-0910 6” Stair Tool

3 010-9148 Spraying Crevice Tool

4 010-1185 TurboBrush™

5 014-9131 Bare Floor Tool

6 014-9142 PreTreat Wand

7 015-9155 Tough Stain Brush

8 013-0212 Baffle

9 014-0325 Red Float

10 015-9040 Tank Assembly

11 010-6241 Tank Seal

12 014-2987 Tank Lid Assembly

13 013-4435 Tank Handle

14 014-1782 Tank Drain Cap

15 010-1785 SmartMix® Bottle

(Includes Cap)

16 010-1795 SmartMix®Cap Assembly

17 010-1651 Flow Indicator Cap

18 010-6214 Flow Indicator O-Ring

19 010-7635 Flow Indicator Rotor

20 010-3510 Flow Indicator Filter

21 014-9860 Floor Nozzle Window

and Gasket

22 010-4052 Window Gasket

23 010-0620 Belt – Pump

24 010-0621 Belt – Brush

Part numbers and descriptions*

NOTE: To order replacement parts, or to

order parts not originally included in your

POWERSTEAMER®PROHEAT™PLUS model, call

BISSELL Consumer Services

1-800-237-7691

Monday - Friday 8 a.m. — 7 p.m. EST

Saturday 9 a.m. –– 2 p.m. EST

*Not all parts included with every model.

“ASK ANNA”

Product Information

Purchase Products & Parts

http://www.bissell.com

About your warranty

This warranty gives you specific legal rights, and you may also have

other rights which may vary from state to state. If you need additional

instruction regarding this warranty or have questions regarding what

it may cover, call BISSELL Consumer Services.

One Year Warranty

BISSELL Inc., upon receipt of the product, will repair or replace, free

of charge, any part which is defective or malfunctioning within one

year of the purchase date, provided that it is used for personal and

not commercial or rental service. If the deep cleaner cannot be

repaired, BISSELL Inc. will replace or refund the full price, at

your option.

If your BISSELL product should require service

1. Call BISSELL Consumer Services at 1-800-237-7691 and

we will give you the name and address of an authorized

BISSELL Service Center in your area.

2. If there is not an authorized BISSELL Service Center in

your area, a BISSELL Consumer Services Representative

will assist you with servicing your unit.

You can also visit the BISSELL website -

http://www.bissell.com

to locate a Service Center near you.

BISSELL Consumer Services

For information about repairs or replacement parts, or questions about your warranty, call:

BISSELL Consumer Services

1-800-237-7691

Monday - Friday 8 a.m. — 7 p.m. EST

Saturday 9 a.m. — 2 p.m. EST

Visit our web site at http://www.bissell.com

Or write:

BISSELL INC

PO Box 3606

Grand Rapids MI 49501

ATTN: Consumer Services

When contacting BISSELL, have model number of unit available.

Please record your Model Number: ___________________

Please record your Purchase Date: ___________________

NOTE: Please keep your original sales receipt. It is your warranty.

Grand Rapids, Michigan

Part Number 010-5710

Rev 11/98

WARNING:Use only

BISSELL Fiber Cleansing

Formula™or BISSELL Floor

Cleansing Formula™ in your

POWERSTEAMER®.PROHEAT™

PLUS. Use of cleaning

formulas which contain

lemon or pine oil may

damage this appliance and

void warranty. Chemical spot

cleaners or solvent-based

soil removers should not

be used. These products

may react with the plastic

materials used in your

POWERSTEAMER®PROHEAT™

PLUS causing cracking

or pitting.

Bissell Powersteamer Proheat Plus 16981 Users Manual 1

16981 to the manual 6b48d77a-8ceb-420a-86c8-fcfe9004812f

Navigation menu

Versions of this User Manual:

Views

Navigation
