user guide
BlackBerry Wireless Handheld
User Guide
User Guide
BlackBerry 7730 Wireless Handheld™ and BlackBerry 7780 Wireless
Handheld™.
BlackBerry 7730™: 900/1800/1900 MHz GSM GPRS Networks
BlackBerry 7780™: 850/1800/1900 MHz GSM GPRS Networks
Model Numbers: R6030GE, R6030GN
Last modified: 7 July 2003
Part number: PDF-06707-001
At the time of publication, this documentation complies with handheld
software version 3.7.0.
© 2003 Research In Motion Limited. All Rights Reserved. The BlackBerry
and RIM families of related marks, images and symbols are the exclusive
properties of Research In Motion Limited. RIM, Research In Motion,
‘Always On, Always Connected’, the “envelope in motion” symbol and the
BlackBerry logo are registered with the U.S. Patent and Trademark Office
and may be pending or registered in other countries. All other brands,
product names, company names, trademarks and service marks are the
properties of their respective owners.
The handheld and/or associated software are protected by copyright,
international treaties and various patents, including one or more of the
following U.S. patents: 6,278,442; 6,271,605; 6,219,694; 6,075,470; 6,073,318;
D445,428; D433,460; D416,256. Other patents are registered or pending in
various countries around the world. Visit www.rim.com/patents.shtml for a
current listing of applicable patents.
While every effort has been made to achieve technical accuracy, information
in this document is subject to change without notice and does not represent a
commitment on the part of Research In Motion Limited, or any of its
subsidiaries, affiliates, agents, licensors, or resellers. There are no warranties,
express or implied, with respect to the content of this document.
Research In Motion Limited
295 Phillip Street
Waterloo, ON N2L 3W8
Canada
Research In Motion UK Limited
Centrum House, 36 Station Road
Egham, Surrey TW20 9LF
United Kingdom
Published in Canada
4User Guide
Contents
About this guide...........................................................................................................7
Overview ................................................................................... 8
Audience .................................................................................... 8
Conventions............................................................................... 9
Related resources...................................................................... 9
Messages.......................................................................................................................11
Email and PIN messages ....................................................... 12
SMS messages ......................................................................... 25
Managing messages ............................................................... 30
Address book...............................................................................................................39
Adding contacts ...................................................................... 40
Managing the address book.................................................. 44
Setting address book options................................................ 47
Managing the SIM card phone book ................................... 48
Phone.............................................................................................................................51

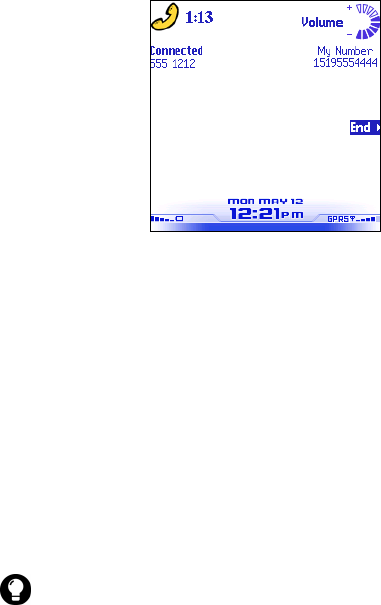

Making phone calls ................................................................ 52
Answering phone calls .......................................................... 55
Using phone features ............................................................. 56
Managing phone call logs ..................................................... 58
Setting phone options ............................................................ 61
Viewing phone information.................................................. 71
Browser..........................................................................................................................73
About the handheld browsers .............................................. 74
Configuring a browser........................................................... 74
Browsing web pages .............................................................. 75
Using bookmarks.................................................................... 80
Managing the browser........................................................... 85
Setting browser options ......................................................... 87
Calendar........................................................................................................................89

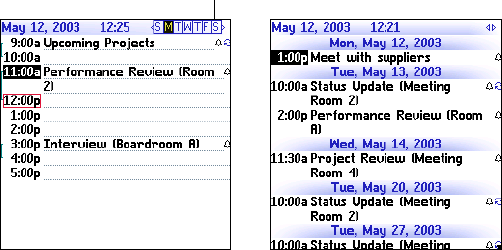

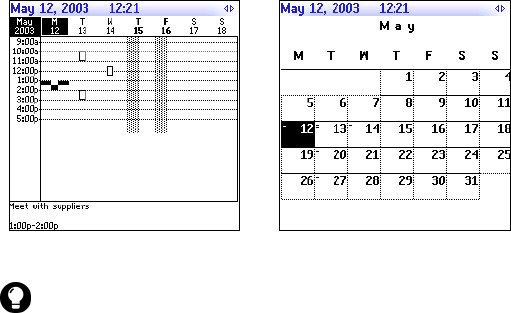

Navigating in the calendar.................................................... 90
Managing appointments and meetings............................... 92
Setting calendar options ........................................................ 99
Other applications...................................................................................................101
Tasks ....................................................................................... 102
MemoPad............................................................................... 104
Calculator............................................................................... 106
Alarm...................................................................................... 107
Games..................................................................................... 108
Options.......................................................................................................................111
Handheld options................................................................. 112
Reference...................................................................................................................139
Icons........................................................................................ 140
Troubleshooting.................................................................... 143
Maintenance .......................................................................... 146
Index............................................................................................................................147
About this guide
8 User Guide
Overview
This guide provides information on and procedures for using the
BlackBerry Wireless Handheld and its applications.
You can integrate your handheld with the following accounts:
•New or existing ISP email account: Your handheld is integrated
with a new email account, which is provided by your service
provider, or an existing Internet service provider (ISP) email
account.
•Enterprise email account: Your handheld is integrated with
your enterprise email account using the BlackBerry Enterprise
Server or BlackBerry Desktop Redirector. Messages that you
send from your handheld are sent from your existing corporate
email account.
Depending on your service provider’s plan or your integration
option, some applications might not be available on your handheld.
Contact your service provider for more information on available
services.
Audience
This guide is a reference for BlackBerry Wireless Handheld users.
Conventions
BlackBerry Wireless Handheld 9
Conventions
This guide uses the following conventions:
Related resources
Refer to the following resources for additional information:
Icon Description
Warning: Warnings advise you that failure to take or avoid a specific
action can result in data loss or physical damage.
Note: Notes contain important information on the associated topic.
Tip: Tips provide optional or time-saving information on the associated
topic.
Prerequisite: Prerequisites are required conditions for the associated
topic.
Resource Description
Getting Started and Quick
Reference Card
This card provides you with the steps that you
must complete to set up your handheld and
provides shortcuts and tips for using your
handheld.
BlackBerry Desktop Software
Online Help
Each tool in the desktop software offers online
Help to guide you and answer your questions. To
view procedures for and information on the
desktop software’s tools, in any active window,
click Help.
BlackBerry Web Client Online
Help
If you integrate your desktop software with a new
email account or an existing ISP account, you
configure your email settings in the BlackBerry
Web Client. For information on configuring and
using the Web Client, in any Web Client window,
click Help.
www.blackberry.com/
support This web site provides frequently asked questions
and documentation for all BlackBerry products.
About this guide
10 User Guide
1
Messages
This section provides information on the following topics:
•Email and PIN messages
•Opening messages
•Sending email and PIN messages
•Managing address book attachments
•Managing file attachments
•Setting message options
•SMS messages
•Opening SMS messages
•Sending SMS messages
•Setting SMS message options
•Managing messages
•Saving messages
•Deleting messages
•Reconciling email messages

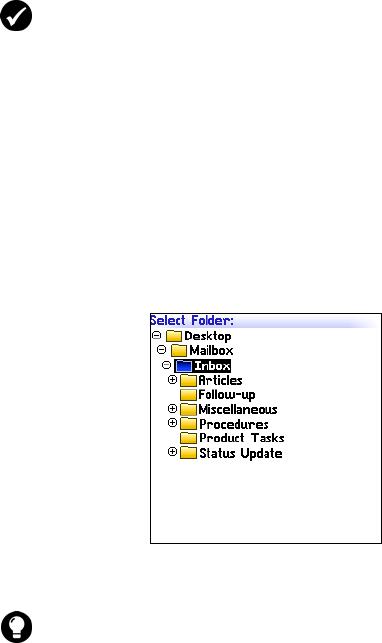

•Filing email messages
•Searching for messages
•Marking messages
1: Messages
12 User Guide
Email and PIN messages
You can send and receive email messages. Email messages that are
sent from or received by your handheld are routed through an
existing email account.
You can also send and receive PIN messages. A personal
identification number (PIN) uniquely identifies each BlackBerry
handheld on the network. If you know another person’s handheld
PIN, you can send a PIN message to that person. PIN messages are
not routed through an existing email account.
Opening messages
You can receive email messages from any email account and you
can receive PIN messages from other BlackBerry handheld users.
Long messages are sent to your handheld in sections. As you read
the first section, the next section is sent to your handheld
automatically.
Open a message
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a message. A menu appears.
3. Click Open. The message appears.
Tip: To locate your handheld PIN, on the Home screen, click the Options
icon. The Options screen appears. Click Status. The PIN field displays your
PIN.
Tip: If, on the Message List Options screen, you set the Auto More field to
No, you can request more of a long message manually. In the open message,
click the trackwheel. A menu appears.
•To request the next section of the message, click More.
•To request the rest of the message, click More All.
Refer to "Set message options" on page 23 for more information.
Email and PIN messages
BlackBerry Wireless Handheld 13
Sending email and PIN messages
Send a message
1. On the Home screen, click the Compose icon. The To screen
appears.
2. Click [Use Once]. A menu appears.
3. Select one of the following options:
•To send an email message, click Email. The One Time Email
screen appears.
•To send a PIN message, click PIN. The One Time PIN screen
appears.

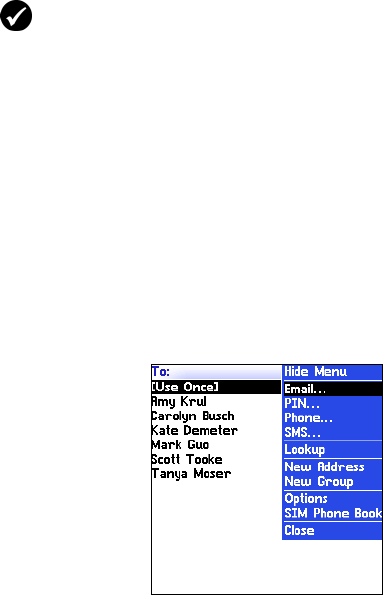

To screen menu — Email item
4. Type an email address or PIN number.
5. Click the trackwheel. A menu appears.
Prerequisite: To send messages, the following requirements must be met:
•The wireless coverage indicator must show a level of wireless coverage.
•GPRS must appear with the wireless coverage indicator on the Home
screen.
1: Messages
14 User Guide
6. Click Continue.
7. In the Subject field, type a subject.
8. Press the Enter key.
9. Type a message.
10. Click the trackwheel. A menu appears.
11. Select one of the following options:
•To save a draft of the message without sending it, click Save
Draft.
•To send the message, click Send.
If you send a message and you are not in an area of sufficient
wireless coverage, the handheld sends the message when you
return to an area of sufficient wireless coverage.
Send a message to a contact in your address book
1. On the Home screen, click the Compose icon. The To screen
appears.
2. Click a contact. A menu appears.
3. Select one of the following options:
•To send an email message, click Email <contact name>.
•To send a PIN message, click PIN <contact name>.
Tip: To add additional contacts to your message, click the trackwheel. Click
Add To, Add Cc, or Add Bcc. Repeat steps 2 through 6.
Tip: To send the message from a specific service (for example, Desktop or
Web Client), scroll to the top of the message. In the Using field, press the
Space key until the preferred service appears. Any subsequent messages are
also sent from this service.
Tip: To search for a contact name, type the first letters of the name.
Email and PIN messages
BlackBerry Wireless Handheld 15
4. In the Subject field, type a subject.
5. Press the Enter key.
6. Type a message.
7. Click the trackwheel. A menu appears.
8. Click Send. The message is sent.
Send an email message using a link
Links to email addresses appear as underlined text.
1. Click an email address link. A menu appears.
2. Click Email.
3. In the Subject field, type a subject.
4. Press the Enter key.
5. Type a message.
6. Click the trackwheel. A menu appears.
7. Click Send. The message is sent.
Reply to a message
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a message. A menu appears.
3. Click Open.
4. Click the trackwheel. A menu appears.
5. Select one of the following options:
•To reply to only the sender, click Reply.
1: Messages
16 User Guide
•To reply to the sender and all recipients of the original
message, click Reply To All.
6. Type a message.
7. Click the trackwheel. A menu appears.
8. Click Send. The message is sent.
Forward a message
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a message. A menu appears.
3. Click Forward. The Select Address screen appears.
4. Click a contact. A menu appears.
5. Select one of the following options:
•To send an email message, click Email <contact name>.
•To send a PIN message, click PIN <contact name>.
6. Type a message.
7. Click the trackwheel. A menu appears.
8. Click Send. The message is sent.
Resend a message
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a sent message. A menu appears.
3. Click Open. The message appears.
4. Click the trackwheel. A menu appears.
Tip: To delete the original message from the reply, click the trackwheel. A
menu appears. Click Delete Original Text.
Email and PIN messages
BlackBerry Wireless Handheld 17
5. Click Resend. The message is sent.
Edit and resend a message
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a sent message. A menu appears.
3. Click Open. The message appears.
4. Click the trackwheel. A menu appears.
5. Click Edit. The message appears.
6. Edit the message.
7. Click the trackwheel. A menu appears.
8. Click Send. The message is sent.
Managing address book attachments
You can send and receive messages with address book attachments.
An address book attachment contains contact information that
recipients of the message can view and add to their address book.
Send an address book attachment
1. On the Home screen, click the Compose icon. The To screen
appears.
2. Click a contact. A menu appears.
3. Select one of the following options:
•To send an email message, click Email <contact name>.
•To send a PIN message, click PIN <contact name>.
4. Type a message.
Tip: To replace a contact, place your cursor in the To field. Click a contact. A
menu appears. Click Change Address.
1: Messages
18 User Guide
5. Click the trackwheel. A menu appears.
6. Click Attach Address. The Attach screen appears.
7. Click a contact. A menu appears.
8. Click Continue. The contact information is attached to the
message.
Composing a message — Address book attachment
9. Click the trackwheel. A menu appears.
10. Click Send. The message and attachment are sent.
Open an address book attachment
1. In a message with an address book attachment, place your cursor
in the name of the address book attachment.
Email and PIN messages
BlackBerry Wireless Handheld 19
Open email message with address book attachment
2. Click the trackwheel. A menu appears.
3. Click View Attachment. The contact information appears.
4. Click the trackwheel. A menu appears.
5. Select one of the following options:
•To add the contact information to your address book, click
Add To Address Book.
•To update the contact information that is in your address
book, click Update Address.
•To return to the open message, click Close.
1: Messages
20 User Guide
Managing file attachments
If the attachment service is loaded on your handheld, you can open
file attachments on your handheld. You can open attachments with
a .zip, .html, .doc, .ppt, .pdf, .wpd, .txt, or .xls file extension.
Open the table of contents of a file attachment
1. In a message with a file attachment, click the trackwheel. A
menu appears.
2. Click Open Attachment. The Attachments screen appears.
Prerequisite: To open file attachments with a .doc, .ppt, .wpd, .txt, or .xls file
extension, the following requirements must be met:
•Your handheld must be integrated with an enterprise email account.
•Your handheld must be enabled for attachment service on a BlackBerry
Enterprise Server version 3.6 or later for Microsoft Exchange or a BlackBerry
Enterprise Server version 2.2 or later for Lotus Domino.
To open file attachments with a .zip or .html file extension, the following
additional requirement must be met:
•Your handheld must be enabled for attachment service on a BlackBerry
Enterprise Server version 3.6 Service Pack 1 or later for Microsoft Exchange
or a BlackBerry Enterprise Server version 2.2 Service Pack 2 or later for Lotus
Domino.

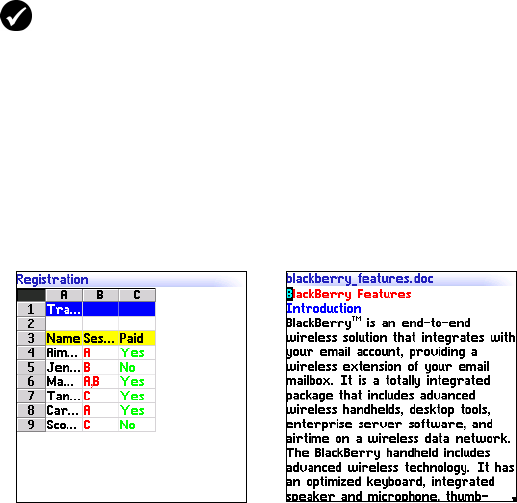

Spreadsheet format Document format
Email and PIN messages
BlackBerry Wireless Handheld 21
3. Click Table of Contents. A menu appears.
4. Click Retrieve. The table of contents appears.
Open a file attachment
1. In a message with a file attachment, click the trackwheel. A
menu appears.
2. Click Open Attachment. The Attachment screen appears.
3. Click Full Content. A menu appears.
4. Click Retrieve. The content appears.
Navigate in spreadsheet format
1. In spreadsheet format, click the trackwheel. A menu appears.
2. Select one of the following options:
•To move to a specific worksheet, click Select Worksheet. A
dialog box appears. Click a worksheet.
•To view the previous worksheet, click Prev Sheet.
•To view the next worksheet, click Next Sheet.
•To move to a specific cell, click Go to Cell. A dialog appears.
Type the cell coordinates (for example, C16). Click the
trackwheel.
•To view the contents of a cell, click View Cell.
Tip: To request the content for a table of contents item, click the item. A
menu appears. Click Retrieve. The content appears.
Note: If you retrieve a .pdf file that is password protected, you must type the
password. On the Attachment screen, click the trackwheel. A menu appears.
Click Password. Type the password. Click the trackwheel. The Attachment
screen appears.
Tip: In document format, links to tables appear as underlined text. To open
a table, click a table link. A menu appears. Click Retrieve.
1: Messages
22 User Guide
Set file attachment options
1. In a file attachment, click the trackwheel. A menu appears.
2. Click Options. The Options screen appears.
3. In the following fields, press the Space key until the preferred
option appears:
4. Click the trackwheel. A menu appears.
5. Click Save. The options are saved.
Field Description Default
Sheet Outline Cells Set whether the grid appears in spreadsheet
format. Yes
Sheet Horizontal
Scroll Set whether the information in spreadsheet
cells wraps around when you scroll
horizontally.
No
Sheet Vertical Scroll Set whether the information in spreadsheet
cells wraps around when you scroll vertically. No
Sheet Column
Width Set the column width for the spreadsheet. Medium
Sheet Display Labels Set whether spreadsheet columns are labeled
with letters and rows are labeled with
numbers.
Yes
Case Sensitive
Search Set whether the Find feature is case sensitive
when it searches attachments. No
Font Family Set the font for attachments. System
Font Size Set the font size for attachments. Large
Font
Email and PIN messages
BlackBerry Wireless Handheld 23
Setting message options
Set message options
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Message List Options screen appears.
4. In the following fields, press the Space key until the preferred
option appears:
Prerequisite: To set the Hide Filed Messages and Delete On options, your
handheld must be integrated with an enterprise email account.
To set the Wireless Reconcile and Conflicts options, one of the following
requirements must be met:
•Enterprise email account: Your handheld must be enabled for wireless
email reconciliation on a BlackBerry Enterprise Server version 3.6 or later for
Microsoft Exchange or a BlackBerry Enterprise Server version 2.2 or later for
Lotus Domino.
•New or existing ISP email account: Your handheld must be enabled for
wireless email reconciliation on the BlackBerry Web Client.
Field Description Default
Display Time Set whether the Messages screen displays the time
that a message is sent or received. Yes
Display
Name Set whether the Messages screen displays the
name of the sender or recipient. Yes
Confirm
Delete Set whether you are prompted before messages are
deleted. Yes
Hide Filed
Messages Set whether the Messages screen displays filed
email messages. Yes
Consider PIN
Level 1 Set whether PIN messages are considered as high
importance messages. Yes
Auto More Set whether the next section of a long message or
attachment is delivered to your handheld
automatically.
Yes
1: Messages
24 User Guide
5. Click the trackwheel. A menu appears.
6. Click Save. The options are saved.
Set the importance level of a message
1. In a message, click the trackwheel. A menu appears.
2. Click Options. The Current Message Options screen appears.
3. In the following field, press the Space key until the preferred
option appears:
4. Click the trackwheel. A menu appears.
5. Click Save. The option is saved.
Delete On Set whether email messages are deleted from your
handheld only or from both your handheld and
computer during an email reconciliation.
Mailbox &
Handheld
Wireless
Reconcile Set whether messages are reconciled over the
wireless network between your handheld and your
computer.
On
Conflicts Set whether your handheld or your computer takes
precedence if a message is moved or deleted from
both locations.
Mailbox
wins
Field Description Default
Importance Set the priority level of the message. Normal
Field Description Default
SMS messages
BlackBerry Wireless Handheld 25
SMS messages
If you have an SMS-compatible phone number, you can send and
receive short message service (SMS) messages. An SMS-compatible
number is a phone number (work, home, mobile, or pager) that
your service provider has enabled for SMS.
Opening SMS messages
Open an SMS message
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click an SMS message. A menu appears.
3. Click Open. The message appears.
SMS message

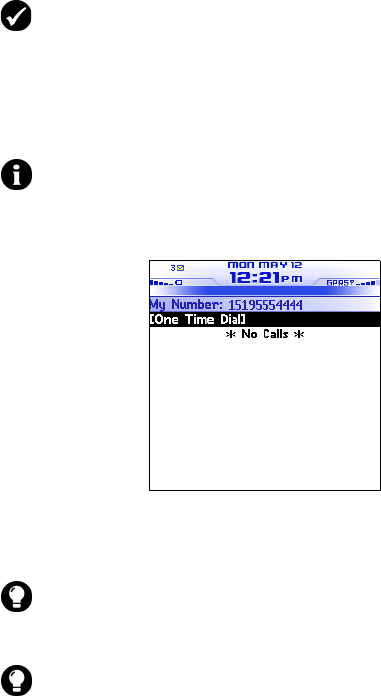

Tip: To locate the SMS-compatible number for your handheld, on the Home
screen, click the Options icon. The Options screen appears. Click SIM Card.
The Phone Number field displays your SMS-compatible number.
1: Messages
26 User Guide
Sending SMS messages
You can send SMS messages to contacts who have an SMS-
compatible phone number. SMS messages can contain up to 160
characters.
If your service provider supports SMS concatenation, an SMS
message that contains more than 160 characters, is sent over the
wireless network in multiple, successive messages that appear on
your handheld as one message. The number of characters that you
type, and the number of messages that are required to send your
message, appear in the upper right corner of the screen.
Send an SMS message
1. On the Home screen, click the Compose icon. The To screen
appears.
2. Click [Use Once]. A menu appears.
3. Click SMS. The One Time SMS screen appears.
To screen menu — SMS item
Prerequisite: To send SMS messages, the following requirements must be
met:
•The wireless coverage indicator should show a level of wireless coverage.
•GPRS, gprs, or GSM must appear with the wireless coverage indicator on
the Home screen.
SMS messages
BlackBerry Wireless Handheld 27
4. Type your contact’s SMS-compatible phone number.
5. Click the trackwheel. A menu appears.
6. Click Continue.
7. Type a message.
8. Click the trackwheel. A menu appears.
9. Click Send. The message is sent.
If you send a message and you are not in an area of sufficient
wireless coverage, the handheld sends the message when you
return to an area of sufficient wireless coverage.
Send an SMS message to a contact in your address
book
1. On the Home screen, click the Compose icon. The To screen
appears.
2. Click a contact with an SMS-compatible number. A menu
appears.
3. Click SMS <contact name>.
4. Type a message.
5. Click the trackwheel. A menu appears.
6. Click Send. The message is sent.
Tip: When you type an SMS-compatible number, include the country code
and the area code. If you have set your smart dialing options in the phone
application, you do not need to type the country code and area code. Refer
to "Setting smart dialing options" on page 68 for more information.
Note: Sending an SMS message to a wireless device that is registered on a
different wireless network might not function as expected. Contact your
service provider for more information on sending SMS messages between
wireless networks.
1: Messages
28 User Guide
Reply to an SMS message
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click an SMS message. A menu appears.
3. Click Reply.
4. Type a message.
5. Click the trackwheel. A menu appears.
6. Click Send. The message is sent.
Forward an SMS message
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click an SMS message. A menu appears.
3. Click Forward. The Select Address screen appears.
4. Click a contact with an SMS-compatible number. A menu
appears.
5. Click SMS <contact name>.
6. Type a message.
7. Click the trackwheel. A menu appears.
8. Click Send. The message is sent.
Resend an SMS message
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click an SMS message. A menu appears.

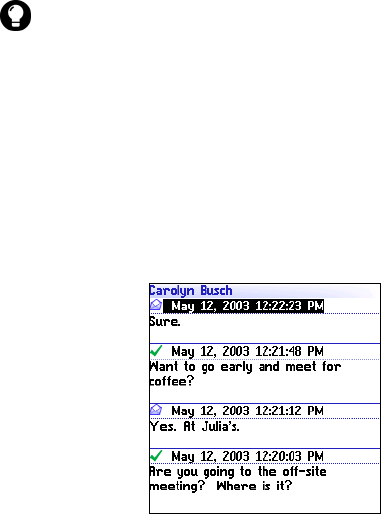

Tip: To delete the previous messages from the screen, click the trackwheel.
A menu appears. Click Remove History.
SMS messages
BlackBerry Wireless Handheld 29
3. Click Open. The message appears.
4. Click the trackwheel. A menu appears.
5. Click Resend. The message is sent.
Setting SMS message options
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click SMS. The SMS screen appears.
3. In the following fields, press the Space key until the preferred
option appears:
4. Click the trackwheel. A menu appears.
5. Click Save. The options are saved.
Field Description Default
Leave
messages on
SIM Card
Set whether SMS messages are saved on your SIM
card. No
Delivery
Reports Set whether you receive notification when your SMS
message is delivered to the contact. Off
Validity Period Set how long the service center keeps an SMS
message if it cannot be delivered to your contact
immediately.
Max
Sent As Set the type of SMS message to send. Text
Number of
Previous Items Set the number of previous SMS messages that
appear when you view an SMS message. 7
Service Center This field displays the phone number for the service
center through which your SMS messages are sent. —
Network To
Send Over Set whether you want SMS messages to be sent over
the GSM or GPRS network. GSM
1: Messages
30 User Guide
Managing messages
Saving messages
You can save important messages in the Saved Messages
application. If your handheld must delete messages to free memory,
it does not delete saved messages.
Save a message
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a message. A menu appears.
3. Click Save. The message is saved in the Saved Messages
application.
Deleting messages
You should delete unnecessary messages from your handheld. If
your handheld memory is full, your handheld deletes the oldest
messages from the Messages application to accommodate new ones.
Delete a message
1. Select one of the following options:
•To delete a message from the Messages application, on the
Home screen, click the Messages icon.
Tip: To open a saved message, on the Home screen, click the Saved
Messages icon.
Note: If, on the Message List Options screen, the Delete On option is set to
Mailbox & Handheld, messages that you delete on your handheld are also
deleted from your computer during email reconciliation. Refer to "Set
message options" on page 23 for more information.
Managing messages
BlackBerry Wireless Handheld 31
•To delete a message from the Saved Messages application, on
the Home screen, click the Saved Messages icon.
2. Click a message. A menu appears.
3. Click Delete. A dialog box appears.
4. Click Delete. The message is deleted.
Delete messages prior to a specific date
1. Select one of the following options:
•To delete messages from the Messages application, on the
Home screen, click the Messages icon.
•To delete messages from the Saved Messages application, on
the Home screen, click the Saved Messages icon.
2. Click a date. A menu appears.
3. Click Delete Prior. A dialog box appears.
4. Click Delete. The messages are deleted.
Empty the deleted messages folder on your computer
from your handheld
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click the trackwheel. A menu appears.
Note: Email messages that are deleted using the Delete Prior menu item
are not deleted from your computer during email reconciliation.
Prerequisite: To delete messages from the Deleted Items folder on your
computer, the following requirements must be met:
•Your handheld must be integrated with an enterprise email account.
•Your handheld must be enabled on the BlackBerry Enterprise Server version
3.6 or later for Microsoft Exchange.
•Wireless email reconciliation must be enabled on your handheld. Refer to
"Set message options" on page 23 for more information.
1: Messages
32 User Guide
3. Click Purge Deleted Items. A dialog box appears.
4. Click Yes. The Deleted Items folder on your computer is
emptied.
Reconciling email messages
When email messages are reconciled, any message that you open,
file, or delete on your handheld is also opened, filed, or deleted on
your computer depending on how you set your message options.
If wireless email reconciliation is not enabled on your handheld,
you must use the BlackBerry Desktop Software to reconcile your
handheld and desktop messages. Refer to the Desktop Software:
Intellisync Help for more information.
If wireless email reconciliation is enabled on your handheld, your
handheld and desktop messages are reconciled over the wireless
network automatically. Refer to "Set message options" on page 23
for more information on enabling wireless email reconciliation.
Lotus Domino If you use Lotus Notes, opened and unopened messages are not
reconciled between your computer and your handheld.
Tip: If wireless email reconciliation is enabled on your handheld, you can
reconcile email messages manually. Click the Messages icon. The Messages
screen appears. Click the trackwheel. A menu appears. Click Reconcile Now.
Managing messages
BlackBerry Wireless Handheld 33
Filing email messages
File an email message
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click an email message. A menu appears.
3. Click File. The Select Folder screen appears.
Select Folder screen
4. Click a folder. A menu appears.
Prerequisite: To file email messages, the following requirements must be
met:
•Your handheld must be integrated with an enterprise email account using
the BlackBerry Enterprise Server or BlackBerry Desktop Redirector.
•You have folders in your desktop email program.
•You reconciled your email messages so that the folders from your desktop
email program appear on your handheld.
Tip: To expand a folder on the Select Folder screen, click a folder with a plus
sign (+) beside it. A menu appears. Click Expand.
To collapse a folder, click a folder with a minus sign (-) beside it. A menu
appears. Click Collapse.
1: Messages
34 User Guide
5. Click File. The message is filed.
Searching for messages
Search for a message
1. On the Home screen, click the Search Messages icon. The Search
screen appears.
Search screen — Specifying search criteria
2. In one or more of the following fields, type message information:
Tip: To display filed messages on the Messages screen, set the Hide Filed
Messages option on the Message List Options screen to No.
To remove a filed message from a folder, file the message in the Inbox folder.
Field Description
Name Type a name, email address, PIN, or phone number.
Subject Type text that the handheld should search for in the subject of
messages.
Message Type text that the handheld should search for in the body of
messages.
Managing messages
BlackBerry Wireless Handheld 35
3. In one or more of the following fields, press the Space key until
the preferred option appears:
4. Click the trackwheel. A menu appears.
5. Select one of the following options:
•To perform a search without saving the search criteria, click
Search.
•To save the search criteria, click Save. The Save Search screen
appears. Type a name and a shortcut key for your search.
Click the trackwheel. A menu appears. Click Save.
View, edit, or delete a saved search
1. On the Home screen, click the Search Messages icon. The Search
screen appears.
2. Click the trackwheel. A menu appears.
3. Click Recall. Your saved searches appear.
4. Click a search. A menu appears.
5. Select one of the following options:
•To view the search criteria, click Select Search.
Field Description Default
In Set the address field in which you want to search. Any Address
Field
Folder Set the folder in which you want to search.
!To select a folder, press the Space key. The Select
Folder screen appears. Click a folder. A menu
appears. Click Select Folder.
All Folders
Show Set whether you want to search for sent, received, or
saved messages. Sent and
Received
Type Set the type of message for which you want to
search. All
1: Messages
36 User Guide
•To edit the search criteria, click Edit Search. Edit the search
criteria. Click the trackwheel. A menu appears. Click Save.
•To delete the search, click Delete Search. A dialog box
appears. Click Delete.
Search for a message by sender, recipient, or subject
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a message. A menu appears.
3. Select one of the following options:
•To search for all messages that relate to the sender of the
selected message, click Search Sender.
•To search for all messages that relate to the recipient of the
selected message, click Search Recipient.
•To search for messages with the same subject as the selected
message, click Search Subject.

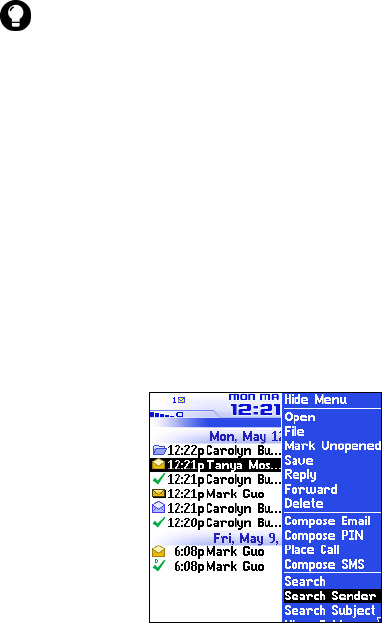

Messages screen menu — Search Sender item
Tip: To view the criteria of your last search quickly, on the Search screen, click
the trackwheel. Click Last. The Search screen displays the criteria of the last
search that you performed.
Managing messages
BlackBerry Wireless Handheld 37
Marking messages
Mark a message as unopened or opened
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a message. A menu appears.
3. Select one of the following options:
•To mark the message as opened, click Mark Opened.
•To mark the message as unopened, click Mark Unopened.
Mark messages prior to a specific date as opened
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a date. A menu appears.
3. Click Mark Prior Opened. All messages prior to the selected
date are marked as opened.
1: Messages
38 User Guide
2: Address book
40 User Guide
Adding contacts
Create a contact
1. On the Home screen, click the Address Book icon. The Find
screen appears.
2. Click the trackwheel. A menu appears.
3. Click New Address. The New Address screen appears.

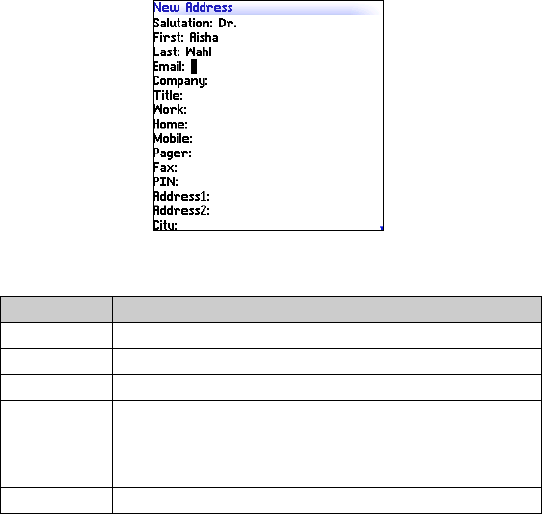

New Address screen
4. In one or more of the following fields, type contact information:
Enterprise email
account You can import contacts from your desktop email program.
Refer to the
Desktop Software: Backup and Restore Help
for
more information.
Field Description
Salutation Type a salutation (for example, Mr., Ms., Dr.).
First Type a first name.
Last Type a last name.
Email Type an email address. Press the Space key to insert the at sign
(@); press it again to insert a period.
!To add more than one email address for the contact, click the
trackwheel. A menu appears. Click Add Email Address.
Company Type a company name.
Adding contacts
BlackBerry Wireless Handheld 41
5. Click the trackwheel. A menu appears.
6. Click Save. The contact is saved.
Title Type a job title.
Work, Home,
Mobile, Pager Type the appropriate phone number.
!To insert an extension, type x or ext. Type the extension
number.
You can use a wait or pause to separate additional numbers (for
example, a password or extension) from the main number. When
the phone number is dialed, your handheld either pauses before
dialing the additional numbers (pause) or prompts you to type
them (wait).
!To insert a pause or wait, click the trackwheel. A menu
appears. Click Add Wait or Add Pause. Type the additional
numbers.
Fax Type a fax number.
PIN Type a BlackBerry handheld personal identification number.
Address 1 Type a street address.
Address 2 Type any additional address information.
City Type a city.
State/Prov Type a state or province.
ZIP/Postal
Code Type a ZIP code or postal code.
Country Type a country.
User 1, User 2,
User 3, User 4 Type additional information (for example, a birthday or
anniversary).
!To change the name of a user-defined field for all contacts,
click the trackwheel. A menu appears. Click Change Field
Name.
Notes Type any notes.
Field Description
2: Address book
42 User Guide
Create a group
After you create contacts, you can create a group. If you send an
email message to a group, the message is sent to all group members
at the same time.
1. On the Home screen, click the Address Book icon. The Find
screen appears.
2. Click the trackwheel. A menu appears.
3. Click New Group. The New Group screen appears.
4. Type a group name.
5. Click the trackwheel. A menu appears.
6. Click Add Member. The Select Address screen appears.
7. Click a contact. A menu appears.
8. Click Continue. The New Group screen appears with the contact
added as a new member.
9. To add more contacts to your group, repeat steps 5 through 8.
10. Click the trackwheel. A menu appears.
11. Click Save Group. The group is saved.
Add contact information from the Messages screen
You can add a sender’s email address or PIN from a message and
the phone number of a caller or contact from a phone call log.
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a message or phone call log. A menu appears.
3. Click Open. The message or phone call log appears.
4. Click the trackwheel. A menu appears.
5. Click Add To Address Book. The New Address screen appears.
Adding contacts
BlackBerry Wireless Handheld 43
6. Type contact information.
7. Click the trackwheel. A menu appears.
8. Click Save. The contact is saved.
Add contact information from the Phone screen
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click a phone number. A menu appears.
3. Click Add To Address Book. The New Address screen appears.
4. Type contact information.
5. Click the trackwheel. A menu appears.
6. Click Save. The contact is saved.
Add contact information from a link
Links for email addresses and phone numbers appear as underlined
text.
1. Click an email address or phone number link. A menu appears.
2. Click Add To Address Book. The New Address screen appears.
3. Type contact information.
4. Click the trackwheel. A menu appears.
5. Click Save. The contact is saved.
Add contact information from your SIM card phone
book
1. On the Home screen, click the Address Book icon. The Find
screen appears.
2. Click the trackwheel. A menu appears.
2: Address book
44 User Guide
3. Click SIM Phone Book. The Find screen appears.
4. Click a contact. A menu appears.
5. Click Add To Address Book. The ADN Phonebook Entry screen
appears.
6. Click the trackwheel. A menu appears.
7. Click Save. The contact is saved.
Managing the address book
Open a contact or group
1. On the Home screen, click the Address Book icon. The Find
screen appears.
2. Select one of the following options:
•Click a contact. A menu appears. Click View. The contact
information appears.
•Click a group. A menu appears. Click View Group. The
group member list appears.
Edit a contact
1. On the Home screen, click the Address Book icon. The Find
screen appears.
2. Click a contact. A menu appears.
3. Click Edit. The Edit Address screen appears.
4. Edit the contact information.
5. Click the trackwheel. A menu appears.
Tip: To view information for a contact in the group, click the contact. A menu
appears. Click View Member.
Managing the address book
BlackBerry Wireless Handheld 45
6. Click Save. The edited contact is saved.
Edit a group
1. On the Home screen, click the Address Book icon. The Find
screen appears.
2. Click a group. A menu appears.
3. Click Edit Group. The Edit Group screen appears.
4. Click a contact. A menu appears.
5. Select one of the following options:
•To delete the contact, click Delete Member. A dialog box
appears. Click Delete. Proceed to step 8.
•To replace the contact with another contact, click Change
Member. The Select Address screen appears.
•To add a contact, click Add Member. The Select Address
screen appears.
6. Click a contact. A menu appears.
7. Click Continue. The Edit Group screen appears.
8. Click the trackwheel. A menu appears.
9. Click Save Group. The edited group is saved.
Delete a contact or group
If you delete a group, the individual contacts still appear in your
address book.
1. On the Home screen, click the Address Book icon. The Find
screen appears.
2. Select one of the following options:
•Click a contact. A menu appears. Click Delete.
2: Address book
46 User Guide
•Click a group. A menu appears. Click Delete Group.
A dialog box appears.
3. Click Delete. The contact or group is deleted.
Search for a contact in a remote address book
You can search for contact information in your company’s Global
Address List or Notes Address Book.
1. On the Home screen, click the Address Book icon. The Find
screen appears.
2. Type a contact name.
3. Click the trackwheel. A menu appears.
4. Click Lookup. The Find screen displays the search status and
indicates when the search is complete.
5. Click the trackwheel. A menu appears.
6. Click View Lookup. The results of your search appear.
7. Click a contact. A menu appears.
8. Click one of the following menu items:
Prerequisite: To search for contacts in a remote address book, the following
requirements must be met:
•Your handheld must be integrated with an enterprise email account.
•Your handheld must be enabled for Remote Address Lookup on a
BlackBerry Enterprise Server version 3.5 or later for Microsoft Exchange or a
BlackBerry Enterprise Server version 2.2 or later for Lotus Domino.
Menu item Description
Lookup enables you to specify or edit search criteria
Resolve adds the selected contact to your address book temporarily
Add adds the selected contact to your address book
Add All adds all the contacts to your address book
Delete deletes the selected contact from the search results
Setting address book options
BlackBerry Wireless Handheld 47
Setting address book options
Set address book options
1. On the Home screen, click the Address Book icon. The Find
screen appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Address Book Options screen appears.
4. In the following fields, press the Space key until the preferred
option appears:
5. Click the trackwheel. A menu appears.
6. Click Save. The options are saved.
Delete
Lookup deletes the search results
View displays the selected contact’s information
Get More
Results requests more search results from the BlackBerry Enterprise
Server (the server sends a maximum of 20 results at one time)
Field Option Default
Sort By Set how your contacts are sorted. First
Name
Confirm
Delete Set whether you are prompted before contacts are
deleted. Yes
Allow
Duplicate
Names
Set whether the same name can appear more than
once in your address book. Yes
Menu item Description
2: Address book
48 User Guide
Managing the SIM card phone book
You can access the abbreviated dialing numbers (ADNs) and service
dialing numbers (SDNs) that are saved on your SIM card.
View the SIM card phone book
1. On the Home screen, click the Address Book icon. The Find
screen appears.
2. Click the trackwheel. A menu appears.
3. Click SIM Phone Book. ADN entries appear in plain text and
SDN entries appear in bold.
Create a SIM card contact
1. On the Home screen, click the Address Book icon. The Find
screen appears.
2. Click the trackwheel. A menu appears.
3. Click SIM Phone Book. The Find screen appears.
4. Click the trackwheel. A menu appears.
5. Click New. The ADN Phonebook Entry screen appears.
6. In the Name field, type a name.
7. In the Phone field, type a phone number.
8. Click the trackwheel. A menu appears.
9. Click Save. The contact is saved.
Prerequisite: To view the SIM card phone book, you must have the phone
application on your handheld.
To create or edit SIM card contacts, your SIM card must be provisioned
appropriately.
Managing the SIM card phone book
BlackBerry Wireless Handheld 49
Edit a SIM card contact
1. On the Home screen, click the Address Book icon. The Find
screen appears.
2. Click the trackwheel. A menu appears.
3. Click SIM Phone Book. The Find screen appears.
4. Click a contact. A menu appears.
5. Click Edit. The ADN Phonebook Entry screen appears.
6. Edit the contact information.
7. Click the trackwheel. A menu appears.
8. Click Save. The edited contact is saved.
Delete a SIM card contact
1. On the Home screen, click the Address Book icon. The Find
screen appears.
2. Click the trackwheel. A menu appears.
3. Click SIM Phone Book. The Find screen appears.
4. Click a contact. A menu appears.
5. Click Delete. A dialog box appears.
6. Click Delete. The contact is deleted.
2: Address book
50 User Guide
3
Phone
Depending on your service provider’s plan, the phone or some
of its features might not be available on your handheld. Contact
your service provider or network operator for more
information on available services.
This section provides information on the following topics:
•Making phone calls
•Answering phone calls
•Using phone features
•Managing phone call logs
•Setting phone options
•Viewing phone information
3: Phone
52 User Guide
Making phone calls
Make a call
1. On the Home screen, click the Phone icon. The Phone screen
appears.
Phone screen
2. Click One Time Dial. The Enter Phone Number dialog box
appears.
3. Type a phone number.
4. Click Call. The phone number is dialed.
Prerequisite: To make a phone call, the following requirements must be
met:
•The wireless coverage indicator must show a level of wireless coverage.
•GPRS, gprs, or GSM must appear with the wireless coverage indicator on
the Home screen.
Note: If you are using a headset, insert the headset connector into the
headset jack at the top of the handheld.
Tip: On the Phone screen, you can also press the Space key to open the Enter
Phone Number dialog box.
Tip: To type a phone number extension, hold the 8 key until the letter x
appears. Type the phone number extension.
Making phone calls
BlackBerry Wireless Handheld 53
Active Call screen
5. To end the call, hold the Escape button.
Call a contact that appears on your Phone screen
The Phone screen lists the contact names or phone numbers for your
last 20 calls.
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click a contact or a phone number. A menu appears.
3. Click Call <contact name or phone number>. The phone number
is dialed.
4. To end the call, hold the Escape button.
Call a contact in your address book
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Type the first letters of a contact. Contacts that start with these
letters appear.
Tip: To delete a contact or a phone number that appears on the Phone
screen, click the contact or the phone number. A menu appears. Click
Delete.
3: Phone
54 User Guide
3. Click a contact. A menu appears.
4. Click Call <contact name>. The phone number is dialed.
5. To end the call, hold the Escape button.
Call a contact using a link
In messages and on web pages, phone numbers appear as links.
1. Click a phone number link. A menu appears.
2. Click Call. The phone number is dialed.
3. To end the call, hold the Escape button.
Call an emergency phone number
You can call an emergency phone number even when your
handheld is locked or the SIM card is not inserted. If you call an
emergency phone number when the radio is off, the radio turns on
automatically.
1. Select one of the following options:
•On the Home screen, click the Phone icon. The Phone screen
appears. Click One Time Dial.
•If your handheld is locked, click the trackwheel. A dialog box
appears. Click Emergency Call. A dialog box appears. Click
Yes.
2. Type an emergency phone number (for example, 911 or 112).
3. Click the trackwheel. The emergency number is dialed.
4. To end the call, hold the Escape button.
Warning: If your handheld is locked, you can only make calls to emergency
numbers (for example, 911 or 112).
Answering phone calls
BlackBerry Wireless Handheld 55
Call your voice mail
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Call Voice Mail.
•If a voice mail access phone number is available, your voice
mail access number is dialed.
•If a voice mail access phone number is not available, a dialog
box appears. Type your voice mail access number. Click the
trackwheel. Your voice mail access number is dialed.
4. To end the call, hold the Escape button.
Answering phone calls
Answer a call
1. In the dialog box that appears when you receive a call, select one
of the following options:
2. To end the call, hold the Escape button.
Tip: To call your voice mail quickly, in the Phone application, press and hold
1.
Option Description
Answer answers the incoming call
Answer and Hold answers the incoming call and places it on hold
Answer - Drop
Current ends the current call and answers the incoming call
Answer - Hold
Current places the current call on hold and answers the incoming
call
Answer - Drop All ends all current calls and answers the incoming call
Ignore ignores the incoming call
3: Phone
56 User Guide
Using phone features
Adjust the volume
1. On the Active Call screen, select one of the following options:
•To increase the volume, roll the trackwheel up.
•To decrease the volume, roll the trackwheel down.
Place a call on hold
1. During a call, click the trackwheel. A menu appears.
2. Click Hold. The call is placed on hold.
3. To resume the call, click the trackwheel. A menu appears.
4. Click Resume. The call is resumed.
Mute a phone call
If you mute a phone call, you can hear your contact, but your
contact cannot hear you.
1. During a call, click the trackwheel. A menu appears.
2. Click Mute. A tone sounds and the call is muted.
3. To turn the mute feature off, click the trackwheel. A menu
appears.
4. Click Turn Mute Off. A tone sounds and the mute feature is
turned off.
Tip: To adjust the volume while you are using another handheld application,
click the trackwheel. A menu appears. Click Volume. Roll the trackwheel up
or down to change the volume.
Using phone features
BlackBerry Wireless Handheld 57
Alternate between phone calls
If you are connected to two phone calls and you want to alternate
between them, you can swap calls.
1. During a call, click the trackwheel. A menu appears.
2. Click Swap. The calls are swapped.
Make a conference call
You can talk to multiple contacts at one time.
1. During a call, click the trackwheel. A menu appears.
2. Click New Call. The Select Address screen appears and the
current call is placed on hold.
3. Click a contact. A menu appears.
4. Click Call <contact name>. The phone number is dialed.
5. During the second call, click the trackwheel. A menu appears.
6. Click Join. You are connected to both calls.
•To add another contact to your call, click the trackwheel. A
menu appears. Click Hold. Repeat steps 1 through 4.
•To speak privately with one contact, click the trackwheel. A
menu appears. Click Split Call. The Select Call dialog box
appears. Click a contact.
•To disconnect one contact, click the trackwheel. A menu
appears. Click Drop Call. The Select Call dialog box appears.
Click a contact.
7. To end the conference call, hold the Escape button.
Prerequisite: To use this feature, you must subscribe to a conference call
service. Contact your service provider for more information.
3: Phone
58 User Guide
Use other applications during a call
If you use a headset with your handheld, you can use other
applications during a phone call. You can compose email and PIN
messages, but you cannot send or receive them until the call ends.
1. On the Active Call screen, click the trackwheel. A menu appears.
2. Click Hide Call. The Home screen appears.
Use alpha-dialing
When you call a contact, your handheld enters number-lock mode.
You can use the alpha-dialing feature to type letters when you enter
a phone number or while you are on a call.
•Τo type one letter, press the Right Shift key. Press the letter key.
•To type multiple letters, press the Alt key + the Right Shift key.
Your handheld enters character mode. To turn off character
mode, press the Right Shift key again.
Managing phone call logs
The handheld creates a phone call log after each phone call. Phone
call logs appear on the Messages screen and contain information
about the call, including the date and time, duration, caller or
recipient information, and any call notes.
Open a phone call log
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a phone call log. A menu appears.
3. Click Open. The phone call log appears.
Note: To end the call while you are using another application, click the
trackwheel. A menu appears. Click End Call.
Managing phone call logs
BlackBerry Wireless Handheld 59
Phone call log
Create or edit phone call notes
After a call ends, you can create call notes to record the details of
your call.
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a phone call log. A menu appears.
3. Click Open. The View Call Log screen appears.
4. Click the trackwheel. A menu appears.
5. Select one of the following options:
•To create call notes, click Add Notes. Type call notes.
•To edit call notes, click Edit Notes. Edit the call notes.
6. Click the trackwheel. A menu appears.
7. Click Save Notes. The call notes are saved.
Tip: If you use a headset with the handheld, you can add call notes during
a call. Click the trackwheel. A menu appears. Click Notes. Type your notes.
The notes are saved when the call ends.
3: Phone
60 User Guide
Forward a phone call log
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a phone call log. A menu appears.
3. Click Forward. The Select Address screen appears.
4. Click a contact. A menu appears.
5. Click Email <contact name>.
6. Type a message.
7. Click the trackwheel. A menu appears.
8. Click Send. The phone call log is forwarded.
Delete a phone call log
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click a phone call log. A menu appears.
3. Click Delete. A dialog box appears.
4. Click Delete. The phone call log is deleted.
Search for a phone call log
1. On the Home screen, click the Search Messages icon. The Search
screen appears.
2. In one or more of the following fields, type phone call log
information:
Field Description
Name Type a name or phone number.
Message Type any text that you want the handheld to search for in call notes.
Setting phone options
BlackBerry Wireless Handheld 61
3. In the following fields, press the Space key until the preferred
option appears:
4. Click the trackwheel. A menu appears.
5. Click Search. The Search Results screen appears.
Setting phone options
View the phone options
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Phone Options screen appears.
Field Description Default
Folder Set the folder in which you want to search.
!To select a folder, press the Space key. The Select
Folder screen appears. Click a folder. A menu appears.
Click Select Folder.
All Folders
Show Set whether you want to search for sent or received
phone call logs. Sent and
Received
Type Set the type of message for which you want to search. All
Option Description
Call Logging Set whether phone call logs appear on the Messages screen.
Select the type of calls that are logged.
Call Barring Set whether incoming or outgoing calls are blocked. Select the
type of calls that are blocked.
Call
Forwarding Set whether incoming calls are forwarded to another phone
number.
Call Waiting Set whether you are notified of incoming calls during a call.
General
Options Set general phone options.
3: Phone
62 User Guide
Setting call logging
You can set whether phone call logs appear on the Messages screen.
Set call logging
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Phone Options screen appears.
4. Click Call Logging. The Call Logging screen appears.
5. In the following fields, press the Space key until the preferred
option appears:
6. Click the trackwheel. A menu appears.
7. Click Save. The options are saved.
Smart
Dialing Set dialing properties.
Voice Mail Set your voice mail access number.
TTY Option Enable or disable text telephone.
Field Description Default
Show Logs In
Message List Set whether phone call logs appear on the
Messages screen. Yes
Log These Call
Types Set which types of calls generate a phone call log. Selected
Option Description
Setting phone options
BlackBerry Wireless Handheld 63
Setting call barring
Set call barring options
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Phone Options screen appears.
4. Click Call Barring. The Call Barring screen appears.
5. In the following check boxes, press the Space key to select or
clear the option:
6. Click the trackwheel. A menu appears.
7. Click Save. The options are saved.
Prerequisite: To block calls, the following requirements must be met:
•Your SIM card must be provisioned for call barring.
•You must have a default call barring password.
Contact your service provider for more information.
Option Description Default
All Incoming Set whether all incoming calls are blocked. cleared
Incoming If
Roaming Set whether incoming calls are blocked when you are
roaming outside the coverage area of your home
network.
cleared
All Outgoing Set whether all outgoing calls are blocked. cleared
Int’l Calls Set whether outgoing calls to international phone
numbers are blocked. cleared
Int’l Not to
Home PLMN Set whether outgoing calls to international phone
numbers that are not on your home network are
blocked.
cleared
3: Phone
64 User Guide
Enable or disable call barring
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Phone Options screen appears.
4. Click Call Barring. The Call Barring screen appears.
5. Click the trackwheel. A menu appears.
6. Select one of the following options:
•To enable call barring, click Enable. A dialog box appears. In
the Enter password field, type your password.
•To disable call barring, click Disable.
7. Click the trackwheel. A menu appears.
8. Click Save. The option is enabled or disabled.
Change your call barring password
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Phone Options screen appears.
4. Click Call Barring. The Call Barring screen appears.
5. Click the trackwheel. A menu appears.
6. Click Change Password. A dialog box appears.
7. In the Current Password field, type your call barring password.
8. Click the trackwheel. A dialog box appears.
9. In the New Password field, type a new call barring password.
10. Click the trackwheel. A dialog box appears.
Setting phone options
BlackBerry Wireless Handheld 65
11. In the Verify New Password field, type the new password again.
12. Click the trackwheel. Your password is changed.
Setting call forwarding
Set call forwarding profiles
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Phone Options screen appears.
4. Click Call Forwarding. The profiles appear.
5. Click a profile. A menu appears.
6. Click Edit. The Edit Forwarding Profile screen appears.
7. Type a phone number.
8. Click the trackwheel. A menu appears.
9. Click Save. The profile is saved.
Enable or disable a call forwarding profile
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
Prerequisite: To set and enable call forwarding profiles, your SIM card must
be provisioned for call forwarding. Contact your service provider for more
information.
Profile Description
All Calls This profile forwards all calls to the specified phone number.
Unanswered
Calls This profile forwards calls to the specified number if you are on
another call, you are not answering calls, or your handheld is not
reachable.
3: Phone
66 User Guide
3. Click Options. The Phone Options screen appears.
4. Click Call Forwarding. The Call Forwarding screen appears.
5. Click a profile. A menu appears.
6. Select one of the following options:
•To enable the call forwarding profile, click Enable.
•To disable the call forwarding profile, click Disable.
Setting call waiting
Set call waiting
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Phone Options screen appears.
4. Click Call Waiting. The Call Waiting screen appears.
5. In the following field, press the Space key until the preferred
option appears:
6. Click the trackwheel. A menu appears.
7. Click Save. The option is saved.
Tip: To enable or disable a call forwarding profile quickly, select it and press
the Space key.
Field Description Default
Call Waiting
Enabled Set whether you receive notification for incoming
calls during a call. Yes
Setting phone options
BlackBerry Wireless Handheld 67
Setting general phone options
Set general phone options
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Phone Options screen appears.
4. Click General Options. The General Options screen appears.
5. In the following fields, press the Space key until the preferred
option appears:
6. Click the trackwheel. A menu appears.
7. Click Save. The options are saved.
Field Option Default
Auto Answer Set whether calls are answered automatically when
you remove your handheld from the holster. Never
Auto
Hangup Set whether phone calls end when you insert your
handheld in the holster. Into
Holster
Confirm
Delete Set whether you are prompted before phone numbers
and contacts are deleted from the Phone screen. Yes
Restrict My
Identity Set whether your handheld phone number is hidden
from the recipient’s call display when you make
phone calls.
No
Sort By Set how your contacts appear on the Phone screen. Most
Recent
Dial from
Home Screen Set whether you can dial phone numbers from the
Home screen. If you set this field to Yes, you cannot
use shortcut keys on the Home screen.
No
3: Phone
68 User Guide
Setting smart dialing options
You can specify default country and area codes so that you do not
have to specify these numbers each time that you type a phone
number.
You can also set options for dialing corporate extensions. If you call
a corporation frequently, you can set your smart dialing options so
that you do not have to type the main number for the corporation.
To call a contact in the corporation, you only need to type x and the
extension number.
Set general smart dialing options
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Phone Options screen appears.
4. Click Smart Dialing. The Smart Dialing screen appears.
5. In the following fields, type general smart dialing information:
Set corporate smart dialing options
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Phone Options screen appears.
Field Description
Country Code Type your country code.
Area Code Type your area code.
National
Number Length Type the default length for phone numbers in your country.
This value includes your area code and local number, but does
not include your country code or National Direct Dialing
prefix.
Setting phone options
BlackBerry Wireless Handheld 69
4. Click Smart Dialing. The Smart Dialing screen appears.
5. In the following field, type corporate smart dialing information:
6. In the following fields, press the Space key until the preferred
option appears:
7. In the following field, press the Space key until the preferred
option appears:
8. Click the trackwheel. A menu appears.
9. Click Save. The options are saved.
Setting voice mail options
If your SIM card is provisioned for voice mail, a voice mail access
number appears on the Voice Mail screen. If your SIM card is not
provisioned for voice mail or you want to choose a different voice
mail system, you can specify a voice mail access number.
Field Description
Call Type the main phone number of a corporation that you call
frequently. If you have set general smart dialing options, you do not
need to specify an area or country code.
Field Description Default
Wait For Set how long your handheld waits before dialing
extensions. This option applies to extensions of the
phone number that you specified in the Call field.
2 seconds
Extension
Length Set a default length for extensions of the phone
number that you specified in the Call field. Unknown
Field Description Default
Wait For Set how long your handheld waits before dialing
extensions. This option applies to extensions of phone
numbers other than the one you specified in the Call
field.
2 seconds
3: Phone
70 User Guide
Set voice mail options
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Phone Options screen appears.
4. Click Voice Mail. The Voice Mail screen appears.
5. In the following fields, type voice mail information:
6. Click the trackwheel. A menu appears.
7. Click Save. The options are saved.
Setting TTY options
You can use text telephone (TTY) to make calls to and receive calls
from other TTY devices. If you connect your handheld to a TTY
device, phone calls that you receive on your handheld are converted
to text.
Field Description
Access Number Type a voice mail access number.
Additional
Numbers Type any additional numbers for your voice mail (for
example, a password or an extension number).
Prerequisite: To use text telephone, the following requirements must be
met:
•Your service provider must support TTY devices.
•Your TTY device must operate at 45.45 bps. The handheld does not support
devices that operate at 50 bps.
•The TTY device connector must be inserted into the headset jack that is
located at the top of your handheld. If you use an RJ-11 connector, you
must use an adapter to connect the TTY device to your handheld.
Viewing phone information
BlackBerry Wireless Handheld 71
Set the TTY option
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Phone Options screen appears.
4. Click TTY Option. The TTY Option screen appears.
5. In the following field, press the Space key until the preferred
option appears:
6. Click the trackwheel. A menu appears.
7. Click Save. The option is saved.
Viewing phone information
The Phone Info screen displays the duration of your calls and your
handheld phone number.
View phone information
1. On the Home screen, click the Phone icon. The Phone screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Status. The Phone Info screen displays your handheld
phone number, the length of your last call, and the total length of
all your calls.
Reset call timers
1. On the Home screen, click the Phone icon. The Phone screen
appears.
Field Description Default
TTY Mode Set whether the TTY feature is enabled or disabled. No
3: Phone
72 User Guide
2. Click the trackwheel. A menu appears.
3. Click Status. The Phone Info screen appears.
4. Click either Last Call or Total Calls. A menu appears.
5. Select one of the following options:
•To clear the timer, click Clear Timer.
•To clear both timers, click Clear All Timers.
6. Click the trackwheel. A menu appears.
7. Click Save. The timer is reset.
4
Browser
Depending on your service provider’s plan, a browser or some
browser features might not be available on your handheld.
Contact your service provider for more information on
available services.
This section provides information on the following topics:
•About the handheld browsers
•Configuring a browser
•Browsing web pages
•Using bookmarks
•Managing the browser
•Setting browser options
4: Browser
74 User Guide
About the handheld browsers
Your handheld supports the following browser types:
•Wireless Application Protocol (WAP) Browser: Use this
browser to open web pages using your service provider’s
gateway. The options and available services vary depending on
your service provider.
•BlackBerry Browser: Use this browser to open web pages using
your corporate Mobile Data Service.
Configuring a browser
Configure a browser
You can change the home page for a browser.
1. On the Home screen, click a browser icon. A startup screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Browser Options screen appears.
4. Click Browser Configuration. The Browser Configuration screen
appears.
5. In the Home Page Address field, type a URL.
Prerequisite: To use the BlackBerry Browser, the following requirement
must be met:
•Your handheld must be enabled for Mobile Data Service on a BlackBerry
Enterprise Server version 3.5 or later for Microsoft Exchange or a BlackBerry
Enterprise Server version 2.2 or later for Lotus Domino.
Browsing web pages
BlackBerry Wireless Handheld 75
6. In the following fields, press the Space key until the preferred
option appears.
7. Click the trackwheel. A menu appears.
8. Click Save Options. The configuration is saved.
Browsing web pages
The browser is optimized to view WML and HTML web pages.
Open a web page by typing a URL
1. On the Home screen, click a browser icon. The startup screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Go To. A dialog box appears.
4. In the Go To field, type a URL.
Field Description Default
Show Images Set whether images load when you open a web
page. On WML &
HTML Pages
Show Image
Placeholders Set whether image placeholders appear if
images do not load. No
Content Mode Set the type of content that your browser
accepts. WML &
HTML
Warning: Do not change the information in any other fields on this screen.
Prerequisite: To browse web pages, the following requirements must be
met:
•The wireless coverage indicator must show a level of wireless coverage.
•GPRS must appear with the wireless coverage indicator on the Home
screen.
4: Browser
76 User Guide
Go To field — Typing a URL
5. Click OK. The browser requests the web page.
Open a web page from a link
Links to web pages appear as underlined text and usually contain
the name or URL of a web page.
1. Click a link. A menu appears.
2. Click Get Link. The browser requests the web page.
Cancel a web page request
1. While a web page is loading, click the trackwheel. A menu
appears.
2. Click Stop. The browser stops requesting the web page.
Tip: Press the Space key to insert a period. Press a Shift key + the Space
key to insert a slash mark (/).
Tip: To open a web page from a link quickly, select the link and hold the
trackwheel.
Browsing web pages
BlackBerry Wireless Handheld 77
Navigate on a web page
Navigation on a web page varies according to the layout on each
page and the items that you have selected. A web page can contain
customized menu items or links.
1. On a web page, select one of the following options:
•To select a menu item, click the trackwheel. A menu appears.
Click a menu item.
•To select a link on a web page, click the link.
Navigate between web pages
1. On a web page, click the trackwheel. A menu appears.
2. Select one of the following options:
•To move back a page, click Previous or press the Escape
button.
•To move forward a page, click Next.
View images on a web page
1. On a web page, click an image or image placeholder. A menu
appears.
2. Select one of the following options:
•To view the image on its own page, click Full Image.
•To load more images on the web page, click More Images.
•To load all the images on the web page, click All Images.
Tip: To see a list of browser shortcut keys, click the trackwheel. A menu
appears. Click Help.
4: Browser
78 User Guide
Refresh a web page
You can refresh a web page to view the most current information, or
if a web page stops responding.
1. On a web page, click the trackwheel. A menu appears.
2. Click Refresh. The web page is refreshed.
Save a web page to the Messages screen
You can save a web page to your Messages screen instead of
creating a bookmark that appears on the Bookmarks screen.
1. On a web page, click the trackwheel. A menu appears.
2. Select one of the following options:
•If the web page is not loaded yet, click Save Request.
•If the web page is loaded, click Save Page.
The requested web page is saved as a message on the Messages
screen.
View the URL of a web page
You can view the URL of a web page while you browse it.
1. On a web page, click the trackwheel. A menu appears.
2. Click Page Address. The Address dialog box displays the
address of the web page.
Tip: To open a web page from the Messages screen, click a saved web page.
A menu appears. Click Open Page.
Browsing web pages
BlackBerry Wireless Handheld 79
View the security settings for a web page
1. On a web page, click one of the following icons:
A dialog box displays security setting information.
Download applications
You can download applications to use on your handheld.
1. On a web page, click an application link. A menu appears.
2. Click Get Link. The application information appears.
Application information
3. Click Download. A dialog box appears.
4. Click OK. The application is downloaded.
The new application is added to your handheld.
Icon Description
browser connection to the web page is secure
browser connection to the web page is not secure
Note: Research In Motion does not in any way endorse or guarantee the
security of third-party applications, and your usage of third-party
applications is your sole responsibility.
4: Browser
80 User Guide
Using bookmarks
You can save the addresses of your favorite web pages as
bookmarks. Bookmarks appear in the browser, on the Bookmarks
screen.
Create a bookmark
1. On a web page, click the trackwheel. A menu appears.
2. Click Add Bookmark. The Add Bookmark dialog box appears.
Add Bookmark dialog box
3. In the following fields, review or edit the information:
Field Description Default
Title This field displays the name of the bookmark. —
Create in Set the folder in which the bookmark is saved.
!To set a different folder, click Change Folder. The
Bookmarks screen appears. Click a folder. A menu
appears. Click Select Folder.
Refer to "Create a folder for bookmarks" on page 83
for more information.
Browser
Bookmarks
Using bookmarks
BlackBerry Wireless Handheld 81
4. Click Add. The bookmark is saved.
Open a bookmark
1. In a browser, click the trackwheel. A menu appears.
2. Click Bookmarks. The Bookmarks screen appears.
3. Click a bookmark. A menu appears.
4. Click Get Link. The browser requests the web page.
Edit a bookmark
1. In a browser, click the trackwheel. A menu appears.
2. Click Bookmarks. The Bookmarks screen appears.
3. Click a bookmark. A menu appears.
4. Click Edit Bookmark. A dialog box appears.
5. Edit the bookmark.
Make
Available
Offline
Set whether you can view the web page when you are
not connected to the wireless network. When you view
a web page offline, it displays the information that
was current when you saved the bookmark.
!To select or clear the check box, press the Space
key.
cleared
Field Description Default
4: Browser
82 User Guide
Bookmarks screen — Editing a bookmark
6. Click Accept. The edited bookmark is saved.
Move a bookmark
1. In a browser, click the trackwheel. A menu appears.
2. Click Bookmarks. The Bookmarks screen appears.
3. Click a bookmark. A menu appears.
4. Select one of the following options:
•To move the bookmark one item higher in the list, click Move
Bookmark Up.
•To move the bookmark one item lower in the list, click Move
Bookmark Down.
•To move the bookmark to another folder, click Move
Bookmark. The Select Destination Folder screen appears.
Click a folder. A menu appears. Click Select Folder.
Note: To change the Make Available Offline option, you must create the
bookmark again. Refer to "Create a bookmark" on page 80 for more
information.
Using bookmarks
BlackBerry Wireless Handheld 83
Delete a bookmark
1. In a browser, click the trackwheel. A menu appears.
2. Click Bookmarks. The Bookmarks screen appears.
3. Click a bookmark. A menu appears.
4. Click Delete Bookmark. A dialog box appears.
5. Click Delete. The bookmark is deleted.
Create a folder for bookmarks
You can create folders within the Bookmarks folder.
1. In a browser, click the trackwheel. A menu appears.
2. Click Bookmarks. The Bookmarks screen appears.
3. Click the trackwheel. A menu appears.
4. Click View Bookmark Subfolders. The Bookmarks screen
appears.
5. Click the trackwheel. A menu appears.
6. Click Add Subfolder. A dialog box appears.
Note: You cannot delete the Home Page bookmark.
4: Browser
84 User Guide
Bookmarks screen — Creating a folder
7. In the Enter subfolder name field, type a name for the folder.
8. Click OK. The folder is saved.
Rename a folder for bookmarks
1. In a browser, click the trackwheel. A menu appears.
2. Click Bookmarks. The Bookmarks screen appears.
3. Click the trackwheel. A menu appears.
4. Click View Bookmark Subfolders. The Bookmarks screen
appears.
5. Click a folder. A menu appears.
6. Click Rename Folder. A dialog box appears.
7. In the Enter subfolder name field, type a new name for the
folder.
8. Click OK. The renamed folder is saved.
Move between folders for bookmarks
Folders that contain other folders are marked with a plus sign (+).
1. On the Bookmarks screen, select one of the following options:
Managing the browser
BlackBerry Wireless Handheld 85
•To select a folder, click the trackwheel. A menu appears.
Click Select Folder.
•To open a folder, click the trackwheel. A menu appears. Click
Open Folder.
•To move up a folder level, click the trackwheel. A menu
appears. Click Move Up.
•To move to the Bookmarks folder, click the trackwheel. A
menu appears. Click Go to Root.
Managing the browser
Close a web page
1. In a browser, press the Escape button. The previous screen
appears.
Hide the browser
You can hide the browser while you use other applications on your
handheld.
1. In a browser, click the trackwheel. A menu appears.
2. Click Hide. The previous screen appears.
3. To return to the browser, on the Home screen, click the browser
icon. The last web page that you viewed appears.
Close the browser
Closing the browser disconnects it from the wireless network.
1. In a browser, click the trackwheel. A menu appears.
2. Click Close.
Tip: To close the browser quickly, press and hold the Escape button.
4: Browser
86 User Guide
View the browser history
The browser saves a list of the last 20 web pages that you visited
during your browser session.
1. On a web page, click the trackwheel. A menu appears.
2. Click History. The History screen appears.
Clear a browser cache
You can clear the browser caches to free memory on your handheld.
Each cache can store up to ten items.
1. In the browser, click the trackwheel. A menu appears.
2. Click Options. The Browser Options screen appears.
3. Click General Properties. The General Properties screen
appears.
4. Click the trackwheel. A menu appears.
5. Select one of the following options:
•To clear rendered pages, click Clear Page Cache.
•To clear server data, click Clear Raw Data Cache.
•To clear rendered pages and server data, click Clear Content
Caches.
•To clear browser cookies, click Clear Cookie Cache.
•To clear content that was sent to your handheld, click Clear
Persistent Cache.
View the browser connection information
You can view the host name of a web page, the duration of your
browser session, and the amount of data sent and received by your
browser.
Setting browser options
BlackBerry Wireless Handheld 87
1. On a web page, click one of the following icons:
A dialog box displays the browser connection information.
Setting browser options
Set browser options
1. In a browser, click the trackwheel. A menu appears.
2. Click Options. The Browser Options screen appears.
3. Click General Properties. The General Properties screen
appears.
4. In the following check boxes, press the Space key to select or
clear the option:
5. Click the trackwheel. A menu appears.
6. Click Save Options. The options are saved.
Icon Description
browser is connected to the wireless network
browser is not connected to the wireless network
Field Description Default
Confirm close
on Escape Set whether you are prompted before the browser
closes when you press the Escape button. cleared
Confirm
execute scripts Set whether you are prompted before scripts are
run. cleared
4: Browser
88 User Guide
5: Calendar
90 User Guide
Navigating in the calendar
Change the calendar format
1. On the Home screen, click the Calendar icon. The calendar
appears.
2. Click the trackwheel. A menu appears.
3. Select one of the following options:
•To view your schedule for one day, click View Day.
•To view a list of your appointments and meetings, grouped
by day, click View Agenda.
•To view your schedule for one week, click View Week.
•To view your schedule for one month, click View Month.
Day format Agenda format
navigation bar
Navigating in the calendar
BlackBerry Wireless Handheld 91
View the current date
1. On the Home screen, click the Calendar icon. The calendar
appears.
2. Click the trackwheel. A menu appears.
3. Click Today. The current date appears.
View a specific date
1. On the Home screen, click the Calendar icon. The calendar
appears.
2. Click the trackwheel. A menu appears.
3. Click Go to Date. A dialog box appears.
4. In the Go to Date field, press the Space key until the preferred
options appear.
5. Click the trackwheel. The date appears.
Week format Month format
Tip: To change days quickly in Day format, scroll to the navigation bar. Click
a day.
5: Calendar
92 User Guide
View the next or previous date
1. On the Home screen, click the Calendar icon. The calendar
appears.
2. Click the trackwheel. A menu appears.
3. Select one of the following options:
Managing appointments and
meetings
An appointment is a scheduled amount of time in the calendar. A
meeting is an appointment to which contacts are invited.
Format Option
Day To view that day in the next week, click Next Week.
To view that day in the previous week, click Prev Week.
Agenda To view the next day on which you have an appointment or meeting,
click Next Day.
To view the previous day on which you have an appointment or
meeting, click Prev Day.
Week To view the next week, click Next Week.
To view the previous week, click Prev Week.
Month To view the next month, click Next Month.
To view the previous month, click Prev Month.
To view that month in the next year, click Next Year.
To view that month in the previous year, click Prev Year.
Prerequisite: To manage meetings on your handheld, the following
requirements must be met:
•Your handheld must be integrated with an enterprise email account.
•Your handheld must be enabled on a BlackBerry Enterprise Server version
2.1 or later.
•Wireless calendar synchronization is enabled. Refer to the
Desktop Software:
Intellisync Help
for more information.
Managing appointments and meetings
BlackBerry Wireless Handheld 93
Create an appointment or meeting
1. On the Home screen, click the Calendar icon. The calendar
appears.
2. Click the trackwheel. A menu appears.
3. Click New. The New Appointment screen appears.
New Appointment screen
4. In the following fields, type the appointment information:
5. In the following fields, press the Space key until the preferred
option appears:
Field Description
Subject Type the subject of the appointment.
Location Type the location of the appointment.
Field Description Default
All Day Event Set whether the appointment occupies a full
day. cleared
Start Set the date and time when the appointment
starts. selected date
and time
5: Calendar
94 User Guide
6. In the Notes field, type any additional information for the
appointment.
7. Click the trackwheel. A menu appears.
8. Select one of the following options:
•To save the appointment, click Save.
End Set the date and time when the appointment
ends. If you modify this field, the Duration field
reflects the change.
Lotus Notes: Lotus Notes users cannot create
appointments that span days. The appointment
must start and end on the same date.
30 minutes
after start
time
Duration Set the length of the appointment. If you
modify this field, the End field reflects the
change.
0 Hours
30 Mins
Time Zone Set the time zone in which the appointment
occurs. Eastern Time
Reminder Set the amount of time in advance your
handheld notifies you of the appointment. If
you do not want to be notified, set this field to
None.
15 Min.
Recurrence Set whether you want the appointment to recur
regularly, such as on a daily, weekly, or monthly
basis.
None
Every: Set the frequency of the appointment.
End: Set the date on which the series of
appointments ends.
Days: If your appointment recurs weekly, set
the days on which the appointment recurs.
Relative Date: If your appointment recurs
monthly or yearly, you can set whether the
appointment recurs on the exact date or on the
relative date. For example, you can set the
appointment to recur on the 28th of each
month (exact date) or on the last Monday of
each month (relative date).
1
Never
Field Description Default
Managing appointments and meetings
BlackBerry Wireless Handheld 95
•To create a meeting, proceed to step 9.
9. Click Invite Attendee. The Select Address screen appears.
10. Click a contact. A menu appears.
11. Click Invite.
12. To invite more contacts, repeat steps 9 through 11.
13. Click the trackwheel. A menu appears.
14. Click Save. A meeting invitation is sent.
Create an appointment quickly
1. On the Home screen, click the Calendar icon. The calendar
appears.
2. Verify that the calendar is in Day format.
3. Beside the start time, type the subject of the appointment.
4. Beside the subject, type a location in parentheses.
Tip: Do not invite yourself to the meeting. You are already registered as the
person who created the meeting.
Note: Any responses to your meeting invitation are received in the
Messages application.
Warning: If you turn off the handheld by clicking the Turn Power Off icon,
the handheld does not turn on to notify you of calendar reminders. To have
the handheld turn on to notify you of a calendar reminder, select one of the
following options:
•Turn off the handheld by pressing the Power button.
•Set the Auto On/Off feature. Refer to "Set Auto On/Off options" on page
114 for more information.
Prerequisite: To add appointments quickly, the Enable Quick Entry field
must be set to Yes. Refer to "Set calendar options" on page 99 for more
information.
Tip: If the calendar is not in Day format, click the trackwheel. A menu
appears. Click View Day. Day format appears.
5: Calendar
96 User Guide
5. Roll the trackwheel to change the end time of the appointment.
6. Click the trackwheel. The appointment is saved.
Open an appointment or meeting
1. On the Home screen, click the Calendar icon. The calendar
appears.
2. Verify that the calendar is in Day, Week, or Agenda format.
3. Click an appointment or meeting. A menu appears.
4. Click Open. If the appointment or meeting recurs, a dialog box
appears.
•To open all occurrences of the appointment, click Open the
series.
•To open only the selected appointment, click Open this
occurrence.
The details of the meeting appear.
Open a meeting from the Messages screen
1. On the Messages screen, click a meeting invitation (or response).
A menu appears.
2. Click Open. The meeting invitation (or response) appears.
3. At the bottom of the screen, click Meeting Request (or Meeting
Response). A menu appears.
4. Click Open Attachment. The details of the meeting appear.
Accept or decline a meeting invitation
Meeting invitations appear as messages on the Messages screen.
Tip: If the calendar is in Month format, click a day. A menu appears. Click
View Appts. Day format appears.
Managing appointments and meetings
BlackBerry Wireless Handheld 97
1. On the Home screen, click the Messages icon. The Messages
screen appears.
2. Click the meeting invitation. A menu appears.
3. Click Open. The details of the meeting appear.
4. Click the trackwheel. A menu appears.
5. Select one of the following options:
•To accept the meeting without sending comments, click
Accept.
•To decline the meeting without sending comments, click
Decline.
•To accept the meeting and send comments, click Accept with
comments. The Comments screen appears. Type comments.
Click the trackwheel. A menu appears. Click Send.
•To decline the meeting and send comments, click Decline
with comments. The Comments screen appears. Type
comments. Click the trackwheel. A menu appears. Click
Send.
The response is sent to the person who created the meeting.
Edit an appointment or meeting
1. On the Home screen, click the Calendar icon. The calendar
appears.
2. Verify that the calendar is in Day, Week, or Agenda format.
Tip: To check your calendar while you view the meeting invitation, click the
trackwheel. A menu appears. Click View Calendar.
Note: You can only edit a meeting that you created.
Tip: If the calendar is in Month format, click a day. A menu appears. Click
View Appts. Day format appears.
5: Calendar
98 User Guide
3. Click an appointment or meeting. A menu appears.
4. Click Open. If the appointment or meeting recurs, a dialog box
appears.
•To edit all occurrences of the appointment or meeting, click
Open the series.
•To edit only the selected appointment or meeting, click Open
this occurrence.
The Appointment Details screen appears.
5. Edit the appointment or meeting.
6. Click the trackwheel. A menu appears.
7. Select one of the following options:
•To save the edited appointment or meeting, click Save.
•To edit the contacts that are invited to a meeting, proceed to
step 8.
8. In either the Accepted field or the Declined field, click a contact.
A menu appears.
9. Select one of the following options:
•To invite a new contact, click Invite Attendee. The Select
Address screen appears. Click a contact. A menu appears.
Click Invite <contact>.
•To replace one contact with another contact, click Change
Attendee. The Select Address screen appears. Click a contact.
A menu appears. Click Invite <contact>.
•To revoke the invitation to a contact, click Remove Attendee.
A dialog box appears. Click Delete.
10. Click the trackwheel. A menu appears.
Lotus Domino Lotus Notes users cannot edit the Start, End, Duration, or Time
Zone of a recurring appointment or meeting.
Setting calendar options
BlackBerry Wireless Handheld 99
11. Click Save. An updated meeting invitation is sent.
Delete an appointment or meeting
1. On the Home screen, click the Calendar icon. The calendar
appears.
2. Verify that the calendar is in Day, Week, or Agenda format.
3. Click an appointment or meeting. A menu appears.
4. Click Delete. A dialog box appears.
5. Select one of the following options:
•If the appointment or meeting occurs once, click Delete.
•If the appointment or meeting recurs, to delete all
occurrences of the appointment, click Delete the series. To
delete only the selected appointment, click Delete this
occurrence.
The appointment or meeting is deleted.
Setting calendar options
Set calendar options
1. On the Home screen, click the Calendar icon. The calendar
appears.
Warning: If you delete a meeting invitation from the Messages screen
before you accept or decline it, the appointment is deleted from your
desktop calendar.
Tip: If the calendar is in Month format, click a day. A menu appears. Click
View Appts. Day format appears.
Tip: If you delete a meeting that you created, the Send cancellation to
attendees dialog box appears. To send a cancellation notice to the contacts
that you invited, click Yes.
5: Calendar
100 User Guide
2. Click the trackwheel. A menu appears.
3. Click Options. The Calendar Options screen appears.
4. In the following fields, press the Space key until the preferred
option appears:
5. Click the trackwheel. A menu appears.
6. Click Save. The options are saved.
Field Description Default
Enable Quick
Entry Set whether you can add appointments quickly
when the calendar is in Day format. Yes
Initial View Set the format that appears when the calendar
opens. Day
Default
Reminder Set the amount of time before an appointment or
meeting that the handheld notifies you. 15 Min.
Confirm
Delete Set whether you are prompted before appointments
are deleted. Yes
Start of Day Set the time at which your daily schedule begins. 9:00 AM
End of Day Set the time at which your daily schedule ends. 5:00 PM
First Day of
the Week Set the day on which your weekly schedule begins. Sun
6: Other applications
102 User Guide
Tasks
Create a task
You can create a task to track the progress of an assigned duty.
1. On the Home screen, click the Tasks icon. The Find screen
appears.
2. Click the trackwheel. A menu appears.
3. Click New. The New screen appears.
New screen
4. In the Task field, type the subject of the task.
5. In the following fields, press the Space key until the preferred
option appears:
6. In the Notes field, type any additional information for the task.
7. Click the trackwheel. A menu appears.
Field Description Default
Status Set the progress status of the task. Not Started
Priority Set the priority of the task. Normal
Due Set the date by which the task is to be completed. None
Tasks
BlackBerry Wireless Handheld 103
8. Click Save. The task is saved.
Open a task
1. On the Home screen, click the Tasks icon. The Find screen
appears.
2. Click a task. A menu appears.
3. Click Open. The task appears.
Edit a task
1. On the Home screen, click the Tasks icon. The Find screen
appears.
2. Click a task. A menu appears.
3. Click Open. The Edit Task screen appears.
4. Edit the task.
5. Click the trackwheel. A menu appears.
6. Click Save. The edited task is saved.
Change the status of a task
1. On the Home screen, click the Tasks icon. The Find screen
appears.
2. Click a task. A menu appears.
3. Select one of the following options:
•To show that the task is in progress, click Mark In Progress.
•To show that the task is complete, click Mark Completed.
Note: To mark a task as Waiting or Deferred, you must edit the Status
field of the task. Refer to "Edit a task" on page 103 for more information.
6: Other applications
104 User Guide
Delete a task
1. On the Home screen, click the Tasks icon. The Find screen
appears.
2. Click a task. A menu appears.
3. Click Delete. A dialog box appears.
4. Click Delete. The task is deleted.
Set task options
1. On the Home screen, click the Tasks icon. The Find screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Tasks Options screen appears.
4. In the following fields, press the Space key until the preferred
option appears:
5. Click the trackwheel. A menu appears.
6. Click Save. The options are saved.
MemoPad
Create a memo
You can create a memo to record notes or lists.
Tip: To delete all completed tasks, on the Find screen, click the trackwheel.
A menu appears. Click Delete Completed.
Field Description Default
Sort By Set how tasks are sorted on the Find screen. Subject
Confirm
Delete Set whether you are prompted before tasks are
deleted. Yes
MemoPad
BlackBerry Wireless Handheld 105
1. On the Home screen, click the MemoPad icon. The Find screen
appears.
2. Click the trackwheel. A menu appears.
3. Click New. A blank memo appears.
4. In the Title field, type a name for the memo.
5. Press the Enter key.
6. Type a memo.
7. Click the trackwheel. A menu appears.
8. Click Save. The memo is saved.
Open a memo
1. On the Home screen, click the MemoPad icon. The Find screen
appears.
2. Click a memo. A menu appears.
3. Click View. The memo appears.
Edit a memo
1. On the Home screen, click the MemoPad icon. The Find screen
appears.
2. Click a memo. A menu appears.
3. Click Edit. The memo appears.
4. Edit the memo.
5. Click the trackwheel. A menu appears.
6. Click Save. The edited memo is saved.
6: Other applications
106 User Guide
Delete a memo
1. On the Home screen, click the MemoPad icon. The Find screen
appears.
2. Click a memo. A menu appears.
3. Click Delete. A dialog box appears.
4. Click Delete. The memo is deleted.
Set MemoPad options
1. On the Home screen, click the MemoPad icon. The Find screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The MemoPad Options screen appears.
4. In the following field, press the Space key until the preferred
option appears:
5. Click the trackwheel. A menu appears.
6. Click Save. The option is saved.
Calculator
Perform a calculation
1. On the Home screen, click the Calculator icon. The calculator
appears.
2. Type a number.
3. Click an operator.
Field Description Default
Confirm
Delete Set whether you are prompted before memos are
deleted. Yes
Alarm
BlackBerry Wireless Handheld 107
4. Type another number.
5. Click the equal sign. The result appears.
Convert measurements
You can convert numbers to and from metric and imperial
measurements.
1. On the Home screen, click the Calculator icon. The calculator
appears.
2. Type a number.
3. Click Menu. A menu appears.
4. Select one of the following options:
•To convert from imperial to metric, click To Metric.
•To convert from metric to imperial, click From Metric.
A menu appears.
5. Click a conversion. The number is converted.
Alarm
Set the alarm
1. On the Home screen, click the Alarm icon. The Alarm screen
appears.
2. In the following fields, press the Space key until the preferred
Tip: To use the calculator memory, select one of the following options:
•To populate the memory, type a number. Click M+.
•To recall the memory, click MR.
•To clear the memory, click MC.
•To replace the memory, type a number. Click MS.
6: Other applications
108 User Guide
option appears:
3. Click the trackwheel. A menu appears.
4. Click Save. The options are saved.
Turn off the alarm
•To silence the alarm when it is sounding, press any key.
•To disable the alarm, set the Daily Alarm field to Off.
Games
Start a game
1. On the Home screen, select one of the following options:
•To start Meteors, click the Meteors icon.
•To start BrickBreaker, click the BrickBreaker icon.
Field Option Default
Daily
Alarm Set whether the alarm is on or off. Off
Time Set the time at which you want the alarm to notify
you. 12:00 AM
Snooze Set whether the alarm sounds again after the
initial notification. Set the amount of time after
each notification that the alarm notifies you again.
Off
Active on
Weekends Set whether the alarm notifies you every day,
including Saturday and Sunday. Yes
Warning: If you turn off the handheld by clicking the Turn Power Off icon,
the handheld does not turn on to notify you of the alarm. To have the
handheld turn on to notify you of an alarm, select one of the following
options:
•Turn off the handheld by pressing the Power button.
•Set the Auto On/Off feature. Refer to "Set Auto On/Off options" on page
114 for more information.
Games
BlackBerry Wireless Handheld 109
2. Click the trackwheel. A menu appears.
3. Click New Game. The game starts.
BrickBreaker
The object of this game is to destroy bricks using a paddle and a ball.
During the game, the following capsules can fall from bricks that
you destroy.
Navigate in BrickBreaker
You can navigate using the following:
Tip: To pause a game, click the trackwheel. To resume a game, click
Resume.
Capsule Description
Long makes the paddle longer
Slow slows down the ball
Gun enables you to shoot at bricks
Laser enables you to shoot laser beams at bricks
Multi enables you to use multiple balls
Catch enables you to catch and hold the ball
Skip skips to the next level
Flip changes the direction of the paddle
1-up gives you an additional life
To Press
move the paddle roll the trackwheel
fire the gun or laser Space key
release the ball when in catch mode Space key
6: Other applications
110 User Guide
Set BrickBreaker options
1. On the Home screen, click the BrickBreaker icon. The
BrickBreaker screen appears.
2. Click the trackwheel. A menu appears.
3. Click Options. The Options screen appears.
4. In the following fields, press the Space key until the preferred
option appears:
5. Click the trackwheel. A menu appears.
6. Click Save. The options are saved.
Field Description Default
Paddle Movement
Speed Set how quickly the paddle moves when
you roll the trackwheel. 4
Paddle Acceleration Set whether the paddle speed accelerates
as you roll the trackwheel. cleared
Chapter 7: Options
112 User Guide
Handheld options
View handheld options
1. On the Home screen, click the Options icon. The Options screen
appears.
Option Description
About View your handheld copyright information.
Applications View the applications that are installed on your handheld.
Auto On/Off Set your handheld to turn on and off at specified times.
AutoText View, add, edit, and delete AutoText entries.
Browser Set browser options.
Date/Time Set the date and time.
Firewall View the status of your firewall.
Host Routing Table View information about your host network.
Localization Select a display language.
Message Services View the message services that are on your handheld.
Network View network settings.
Owner Type the information that appears when you lock your
handheld.
Profiles Create, enable, or delete profiles that notify you of alarms,
appointments, messages, phone calls, and browser items.
Screen/Keyboard Set options for how the screen appears and how the
keyboard responds on your handheld.
Security Set a password.
Service Book View the service books that are on your handheld.
SIM Card View your SIM card identity and phone number and enable
SIM card security.
SMS Set SMS message options.
Status View information about your handheld and the wireless
network.
Handheld options
BlackBerry Wireless Handheld 113
About
View handheld information
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click About. Handheld and copyright information appears.
3. To return to the Options screen, press the Escape button twice.
Applications
Default applications are shipped with your handheld. Any
additional applications that you load onto your handheld are called
third-party applications.
View application information
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Applications. The Applications screen appears.
3. Click an application. A menu appears.
4. Select one of the following options:
TLS Set Transport Layer Security (TLS) options.
WAP Push Set how your handheld processes WAP Push messages and
applications.
WTLS Set Wireless Transport Layer Security (WTLS) options.
Note: Research In Motion does not in any way endorse or guarantee the
security of third-party applications, and your usage of third-party
applications is your sole responsibility.
Option Description
Chapter 7: Options
114 User Guide
•To view all application details, click Modules. A list of
modules appears. Click a module. A menu appears. Click
Module Information. The application details appear.
•To view third-party application details, click Properties. The
application details appear.
•To delete a third-party application, click Delete.
Auto On/Off
You can set whether you want your handheld to turn on and off at
specific times.
Set Auto On/Off options
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Auto On/Off. The Auto On/Off screen appears.
3. In the following fields, press the Space key until the preferred
option appears:
4. Click the trackwheel. A menu appears.
5. Click Save. The options are saved.
Warning: If you are in an area where wireless signals might interfere with
normal operations (for example, on an airplane), do not use the Auto On/
Off feature to turn off your handheld radio. On the Home screen, click the
Turn Wireless Off icon.
Field Description Default
Weekday On Set when the handheld turns on on weekdays. 7:00 AM
Weekday Off Set when the handheld turns off on weekdays. 1:00 AM
Weekend On Set when the handheld turns on on weekends. 9:00 AM
Weekend Off Set when the handheld turns off on weekends. 3:00 AM
Handheld options
BlackBerry Wireless Handheld 115
Enable or disable Auto On/Off
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Auto On/Off. The Auto On/Off screen appears.
3. In the weekday and weekend sections, select one of the
following options:
•To enable Auto On/Off, in the Disabled field, press the Space
key until Enabled appears.
•To disable Auto On/Off, in the Enabled field, press the Space
key until Disabled appears.
AutoText
You can use AutoText in messages, tasks, memos, and
appointments. The AutoText feature replaces certain text that you
type with programmed text. For example, in a message, if you type
hte and press the Space key, hte changes to the.
You can use AutoText to complete the following actions:
•correct commonly misspelled words
•replace abbreviations and acronyms with complete words
•insert phrases into messages by typing a keyword
Note: If you turn off your handheld using the Power button and Auto On/
Off is enabled, the handheld turns on again at the specified Auto On time.
Calendar and alarm notifications also turn on your handheld.
If you turn off your handheld using the Turn Power Off icon, you are
prompted to select either Auto Off (the handheld turns on again at the
specified Auto On time) or Power Off (the handheld turns on only if you
press the Power button).
Chapter 7: Options
116 User Guide
View AutoText entries
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click AutoText. The AutoText entries appear.
Create an AutoText entry
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click AutoText. The AutoText screen appears.
3. Click the trackwheel. A menu appears.
4. Click New. The AutoText: New screen appears.
5. In the following fields, type AutoText information:
Tip: To search for an AutoText entry, on the AutoText screen, type the first
letters of the entry. Entries that begin with these letters appear.
Field Description
Replace Type a keyword or a combination of letters.
With Type the text that replaces the keyword.
!To insert a macro (for example, the current date), click the trackwheel.
A menu appears. Click Insert Macro. The Insert macro dialog box
appears. Click a macro.
Handheld options
BlackBerry Wireless Handheld 117
6. In the following fields, press the Space key until the preferred
option appears:
7. Click the trackwheel. A menu appears.
8. Click Save. The AutoText entry is saved.
Edit an AutoText entry
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click AutoText. The AutoText screen appears.
3. Click an entry. A menu appears.
4. Click Edit. The AutoText: Edit screen appears.
5. Edit the AutoText entry.
6. Click the trackwheel. A menu appears.
7. Click Save. The edited AutoText entry is saved.
Delete an AutoText entry
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click AutoText. The AutoText screen appears.
3. Click an entry. A menu appears.
Field Description Default
Using Select one of the following options:
Specified Case: The capitalization of the AutoText entry
appears exactly as you typed it.
SmartCase: The capitalization of the AutoText entry
changes depending on the context in which it is used.
SmartCase
Locale Set whether the AutoText entry is available in all
languages that are on your handheld or in a specific
language only.
current
display
language
Chapter 7: Options
118 User Guide
4. Click Delete. A dialog box appears.
5. Click Delete. The AutoText entry is deleted.
Browser
You can set the default browser configuration settings. Refer to
"Setting browser options" on page 87 for more information on
setting other browser options.
Set browser options
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Browser. The Browser screen appears.
3. In the following fields, press the Space key until the preferred
option appears:
4. Click the trackwheel. A menu appears.
5. Click Save. The browser options are saved.
Field Description
Default browser
configuration Set which browser opens when you click links in messages and
attachments.
“W” hotkey
configuration Set which WAP browser opens when you press the W key on the
Home screen.
“B” hotkey
configuration Set which BlackBerry Browser opens when you press the B key on
the Home screen.
Note: The browser options might vary depending on the browser
applications that are available on your handheld.
Handheld options
BlackBerry Wireless Handheld 119
Date/Time
Set the date and time
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Date/Time. The Date/Time screen appears.
3. In the following fields, press the Space key until the preferred
option appears:
4. Click the trackwheel. A menu appears.
5. Click Save. The options are saved.
Firewall
If you have third-party applications on your handheld, the firewall
option prevents these applications from transmitting data from
your handheld without your knowledge.
Field Description
Time Zone Set your time zone.
Time Set the current time.
Time Format Select a 12-hour or 24-hour clock.
Date Set the current date.
Auto Time Set Set whether your handheld time is updated automatically based
on your selected time zone.
Network Date This field displays the current date on the wireless network.
Network Time This field displays the current time on the wireless network.
Tip: To copy the current date and time from the wireless network to your
handheld, on the Date/Time screen, click the trackwheel. A menu appears.
Click Copy Network Time.
Note: Research In Motion does not in any way endorse or guarantee the
security of third-party applications, and your usage of third-party
applications is your sole responsibility.
Chapter 7: Options
120 User Guide
Accept or deny a connection request
1. In the dialog box that prompts you to accept or deny a
connection request, select one of the following options:
•To accept the request, select the Accept check box.
•To deny the request, select the Deny check box.
Reset firewall settings
You can return to the default firewall settings.
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Firewall. The Firewall screen appears.
3. Click the trackwheel. A menu appears.
4. Click Reset Settings. The firewall settings are reset.
Localization
If more than one language is available on your handheld, you can
change the display language.
Select a display language
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Localization. The Localization screen appears.
Tip: If you do not want a dialog box to appear each time that a request is
made, in the dialog box, select the Don’t ask this again check box. All
subsequent requests are accepted or denied, depending on the option that
you selected in the dialog box.
Handheld options
BlackBerry Wireless Handheld 121
3. In the following field, press the Space key until the preferred
option appears:
4. Click the trackwheel. A menu appears.
5. Click Save. The language is selected.
Message services
All email messages that you send from your handheld are sent from
the default message service.
Change your default message service
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Message Services. The Message Services screen appears.
3. In the Messaging (CMIME) field, press the Space key until the
preferred service appears.
4. Click the trackwheel. A menu appears.
5. Click Save. The option is saved.
Field Description Default
Locale Select the language that you want to use on your
handheld. current display
language
Note: If you change your display language, your AutoText entries are
updated to reflect the change.
Note: If your handheld is integrated with a new or existing ISP email
account, the default message service is Web Client.
If your handheld is integrated with an enterprise email account, the default
message service is Desktop.
Chapter 7: Options
122 User Guide
Network
Set network options
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Network. The Network screen appears.
3. In the following fields, press the Space key until the preferred
option appears:
4. Click the trackwheel. A menu appears.
5. Click Save. The options are saved.
Select a network manually
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Network. The Network screen appears.
3. Click the trackwheel. A menu appears.
4. Click Scan for Networks. A list of available networks appears.
5. Click a network. A menu appears.
6. Click Select Network. The network is selected.
Item Description Default
Radio Turn on and turn off your handheld radio. On
Scan Mode Set whether your handheld scans for and selects a
wireless network automatically. Automatic
Active
Network This field displays the name of the network that
your handheld uses. —
Handheld options
BlackBerry Wireless Handheld 123
Register your handheld manually
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Network. The Network screen appears.
3. Click the trackwheel. A menu appears.
4. Click Register Now. Your handheld is registered.
Owner
The text that you type on this screen appears when you lock your
handheld.
Set owner information
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Owner. The Owner screen appears.
3. In the following fields, type contact information:
4. Click the trackwheel. A menu appears.
5. Click Save. The owner information is saved.
Profiles
You can enable profiles that notify you of alarms, saved web pages
and incoming WAP content, messages, and phone calls.
Field Description
Name Type your name.
Information Type information that appears when the handheld is locked.
Chapter 7: Options
124 User Guide
The handheld has the following profiles. When you first receive
your handheld, the Default profile is enabled.
Enable a notification profile
1. On the Home screen, click the Profiles icon. The Profiles screen
appears.
2. Click a profile. A menu appears.
3. Click Enable. The word (On) appears beside the enabled profile.
Create a notification profile
1. On the Home screen, click the Profiles icon. The Profiles screen
appears.
2. Click the trackwheel. A menu appears.
Profile Item Notification Volume
Out of Holster In Holster
Quiet Alarm, Browser, Calendar,
Level 1, Messages, Phone,
SMS
None None Mute
Loud Alarm, Browser, Calendar,
Level 1, Messages, Phone,
SMS
Vibrate + Tone Vibrate + Tone High
Discreet Alarm Tone Tone Low
Browser, Calendar, Level 1,
Messages, Phone, SMS Vibrate Vibrate Mute
Default Alarm Tone Tone High
Phone Tone Vibrate + Tone High
Browser, Calendar, Level 1,
Messages, SMS LED Flashing Vibrate
LED Flashing Mute
Tip: To enable a profile quickly, on the Profiles screen, select a profile. Press
the Space key.
Handheld options
BlackBerry Wireless Handheld 125
3. Click New. A list of items for which you can receive notification
appears.
4. In the Name field, type a profile name.
5. Click an item for which you can receive notification. A menu
appears.
6. Click Edit.
7. In the following fields, press the Space key until the preferred
option appears:
8. Click the trackwheel. A menu appears.
9. Click Save. The options are saved.
10. Repeat steps 5 through 9 for the other items in the list.
11. Click the trackwheel. A menu appears.
12. Click Save. The profile is saved.
Field Description
Out of Holster Set how you are notified when your handheld is not in the holster.
In Holster Set how you are notified when your handheld is in the holster.
Tune Set the tune that plays when you are notified.
Volume Set the volume for your notification.
If you set this field to Escalating, the notification volume
increases.
Number of
Beeps Set how many times the tune plays before notification stops.
For phone calls, notification does not stop until you answer the
call.
Repeat
Notification Set whether the LED flashes to remind you of unopened
messages.
Do Not Disturb Set whether your handheld notifies you of incoming calls.
Chapter 7: Options
126 User Guide
Edit a notification profile
1. On the Home screen, click the Profiles icon. The Profiles screen
appears.
2. Click a profile. A menu appears.
3. Click Edit. A list of items for which you can receive notification
appears.
4. Click an item. A menu appears.
5. Click Edit.
6. Edit the notification information.
7. Click the trackwheel. A menu appears.
8. Click Save. The options are saved.
9. Repeat steps 4 through 8 for the other items in the list.
10. Click the trackwheel. A menu appears.
11. Click Close. The edited items are saved.
Delete a notification profile
You can only delete notification profiles that you created.
1. On the Home screen, click the Profiles icon. The Profiles screen
appears.
2. Click a profile. A menu appears.
3. Click Delete. A dialog box appears.
4. Click Delete. The profile is deleted.
Download notification tunes
You can download tunes, or ring tones, in standard MIDI format.
1. On a web page, click a .mid file link. A menu appears.
Handheld options
BlackBerry Wireless Handheld 127
2. Click Get Link. The MIDI File screen appears.
3. Click Save. A dialog box appears.
4. In the Enter Tune Name field, type a name for the tune.
5. Click Save. A dialog box appears.
6. Click OK. The tune is downloaded.
Manage a tune
1. On the Home screen click the Profiles icon. The Profiles screen
appears.
2. Click the trackwheel. A menu appears.
3. Click Show Tunes. The Tunes screen appears.
4. Click a tune. A menu appears.
5. Select one of the following options:
•To listen to the tune, click Play.
•To delete a tune, click Delete. A dialog box appears. Click
Delete.
Screen/Keyboard
Set screen and keyboard settings
1. On the Home screen, click the Options icon. The Options screen
appears.
Tip: To listen to the tune before you download it, on the Midi File screen,
click the Play icon. To stop playing the tune, click the Stop icon.
Warning: Research In Motion does not in any way endorse or guarantee the
security or compatibility of any MIDI file with the handheld, and takes no
responsibility whatsoever for such MIDI files, including their functionality.
Your selection and usage of MIDI files is your sole responsibility.
Chapter 7: Options
128 User Guide
2. Click Screen/Keyboard. The Screen/Keyboard screen appears.
3. In the following fields, press the Space key until the preferred
option appears:
4. Click the trackwheel. A menu appears.
5. Click Save. The options are saved.
Security
Set security options
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Security. The Security screen appears.
Field Description Default
Standby Screen Set whether an image appears when your
handheld is idle for a specified duration.
!To preview the standby screen, click the
Preview button.
Enabled
Standby
Timeout Set the duration of time that your handheld is
idle before the standby screen appears. 10 min
Font Family Set the font family of the display font. System
Font Size Set the size of the display font. 9
Font Style Set whether the font is plain, bold, or italic. Plain
Antialias mode Set whether your handheld uses antialiasing to
smooth the edges of large fonts. No Antialiasing
Backlight
Brightness Set the brightness for backlighting. 50
Key Tone Set whether your handheld emits a tone each
time that you press a key. Off
Key Rate Set the speed at which your cursor moves when
you hold the Backspace key, the Enter key, or
the Space key.
Slow
Handheld options
BlackBerry Wireless Handheld 129
3. In the following fields, press the Space key until the preferred
option appears:
4. Click the trackwheel. A menu appears.
5. Click Save. The options are saved.
Set a password
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Security. The Security screen appears.
3. In the Password field, press the Space key until Enabled
appears.
4. Click the trackwheel. A menu appears.
5. Click Save. A dialog box appears.
6. In the New Password field, type a password.
7. Click the trackwheel. A dialog box appears.
Field Description Default
Password Set whether you want to enable a password on your
handheld. Refer to "Set a password" on page 129
for more information.
Disabled
Security Timeout Set the duration of time that your handheld is idle
before it locks. 2 Min
Lock Handheld
Upon Holstering Set whether your handheld locks when you insert it
into the holster. No
IT Policy This field displays the name of the IT policy that is
assigned to your handheld. —
Note: If your handheld is lost or stolen, contact your system administrator.
If wireless IT policy is available for your handheld, your system administrator
can disable or lock your handheld over the wireless network.
To receive IT policy settings over the wireless network, your handheld must
be enabled on a BlackBerry Enterprise Server version 3.5 or later for
Microsoft Exchange.
Chapter 7: Options
130 User Guide
8. In the Verify New Password field, type the password again.
9. Click the trackwheel. The password is enabled.
Change the password
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Security. The Security screen appears.
3. Click the trackwheel. A menu appears.
4. Click Change Password. A dialog box appears.
5. In the Enter Password field, type the current password.
6. Click the trackwheel. A dialog box appears.
7. In the New Password field, type a new password.
8. Click the trackwheel. A dialog box appears.
9. In the Verify New Password field, type the password again.
10. Click the trackwheel. The password is changed.
Disable the password
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Security. The Security screen appears.
3. In the Password field, press the Space key until Disabled
appears.
4. Click the trackwheel. A menu appears.
5. Click Save. A dialog box appears.
6. In the Enter Password field, type the password.
7. Click the trackwheel. The password is disabled.
Handheld options
BlackBerry Wireless Handheld 131
Lock your handheld
1. On the Home screen, click the Lock icon. Your handheld is
locked.
Unlock your handheld
1. On the Lock screen, roll the trackwheel. The Handheld is locked
dialog box appears.
2. Click Unlock. A dialog box appears.
3. In the Enter Password field, type your password.
4. Click the trackwheel. Your handheld is unlocked.
Perform Security Self Tests
The Security Self Test application verifies that security software is
implemented properly on your handheld. The tests run
automatically when your handheld restarts. To perform the tests
manually, complete the following steps:
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Security. The Security screen appears.
3. Click the trackwheel. A menu appears.
4. Click Verify Security Software. A dialog box indicates whether
the tests passed or failed.
Warning: If you type your password five times incorrectly, you are prompted
to type blackberry before you can continue. On subsequent password
attempts, the characters that you type are displayed in the Enter Password
field.
If you type your password eight times incorrectly, you are prompted to type
blackberry again before you can continue.
If you type your password ten times incorrectly, all information is erased
from your handheld for security reasons.
Chapter 7: Options
132 User Guide
Service book
You can view the service books that are present on your handheld.
Some handheld features (for example, wireless calendar
synchronization) require a service book to function.
View service books
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Service Book. The service books appear.
Accept a service book
Your handheld accepts most service books automatically. If a
service book is not accepted automatically, a book icon appears in
the handheld status section of the screen. To accept a service book
manually, complete the following steps:
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Service Book. The service books appear.
3. Click a pending service book. A menu appears.
4. Click Accept. The service book is accepted.
SIM card
Your Subscriber Information Module (SIM) card stores security
data, information about your service plan, and personal phone
settings. The ID field is set by your service provider.
Note: Your integration option determines which email service book appears
on your handheld.
Tip: To view the service record for a service book, click the service book. A
menu appears. Click View.
Handheld options
BlackBerry Wireless Handheld 133
Enable or disable SIM card security
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click SIM Card. The SIM Card screen appears.
3. Click the trackwheel. A menu appears.
4. Select one of the following options:
•To enable SIM card security, click Enable Security.
•To disable SIM card security, click Disable Security.
A dialog box appears.
5. In the Enter PIN code field, type your PIN code.
6. Click the trackwheel. The option is saved.
Change the SIM card PIN code
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click SIM Card. The SIM Card screen appears.
3. Verify that Security Enabled appears at the top of the screen.
4. Click the trackwheel. A menu appears.
5. Click Change PIN Code. A dialog box appears.
6. In the Enter PIN code field, type your PIN code.
Prerequisite: To use SIM card security, the following requirements must be
met:
• Your service provider must provide you with a SIM card PIN code.
• Your SIM card must be provisioned appropriately.
Warning: If you type a PIN code incorrectly three times, your SIM card does
not function. To use your handheld with that SIM card again, you must ask
your service provider for the personal unblock key (PUK) for your SIM card.
Chapter 7: Options
134 User Guide
7. Click the trackwheel. A dialog box appears.
8. In the Enter new PIN code field, type your new PIN code.
9. Click the trackwheel. A dialog box appears.
10. Type your new PIN code again. The PIN code is changed.
SMS
Refer to "Setting SMS message options" on page 29 for more
information on SMS options.
Status
View status items
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click Status. The following items appear:
Field Description
Signal displays the strength of the network signal, in decibel milliwatts
(dBm)
Battery displays the approximate level of battery power
File Free displays the amount of available memory, in bytes, for storing data
such as messages, phone call logs, and contacts
File Total displays the amount of memory, in bytes, that the handheld is using
PIN displays the personal identification number (PIN) for your handheld
IMEI displays the International Mobile Equipment Identity (IMEI) number
for your handheld
Handheld options
BlackBerry Wireless Handheld 135
TLS
Transport Layer Security (TLS) provides additional authentication
and security when you browse web pages using the BlackBerry
Browser. It is an optional security feature that you can load onto
your handheld using the Application Loader tool. Refer to the
Desktop Software:
Application Loader Help
for more information on
loading applications.
Set TLS options
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click TLS.
3. In the TLS Default field, press the Space key until the preferred
option appears:
•To add TLS to the connection from your BlackBerry
Enterprise Server to a web server, select Proxy.
•To add TLS to the entire connection from your handheld to a
web server, select Handheld.
WAP Push
WAP push enables you to receive content from web applications
without requesting it. For example, you can receive updates, or
notifications, for weather, stock quotes, or news.
Depending on your service provider’s plan, this feature might not
be available for your handheld.
Prerequisite: To use TLS your handheld must be enabled for Mobile Data
Service on the BlackBerry Enterprise Server.
Note: Your browser might take more time to connect to web pages if you
select Handheld in the TLS Default field.
Chapter 7: Options
136 User Guide
Set WAP Push options
1. On the Home screen, click the Options icon. The Options screen
appears.
2. In the following check boxes, press the Space key to select or
clear the option:
3. In the following fields, press the Space key until the preferred
option appears:
4. Click the trackwheel, a menu appears.
5. Click Save. The options are saved.
WTLS
Wireless Transport Layer Security (WTLS) is the security layer of
the WAP browser that provides security for WAP services. It is an
optional security feature that you can load onto your handheld
using the Application Loader tool. Refer to the Desktop Software:
Application Loader Help
for more information on loading applications.
Field Description Default
Enable WAP Push Set whether WAP push is enabled or disabled. Selected
Allow WAP Push
Applications Set whether your handheld accepts third-party
applications. Selected
Field Description Default
Process Service Load Set how your handheld notifies you of
incoming service load content. Auto
Process Service
Indication Set how your handheld notifies you of
incoming service indication content. Auto
Process Other
Messages Set how your handheld notifies you of
incoming content that is neither service load or
service indication content.
Auto
Handheld options
BlackBerry Wireless Handheld 137
Set WTLS options
1. On the Home screen, click the Options icon. The Options screen
appears.
2. Click WTLS. The WTLS screen appears.
3. In the following fields, press the Space key until the preferred
option appears:
4. Click the trackwheel. A menu appears.
5. Click Save. The options are saved.
Field Description Default
Encryption Strength Set the encryption level for connecting to your
WAP gateway. Allow
Weak
Prompt for Server
Trust Set whether you are prompted to authenticate
WTLS connections if the handheld cannot
authenticate the connection automatically.
Yes
Chapter 7: Options
138 User Guide
8: Reference
140 User Guide
Icons
Address book
Messages
Icon Description
phone number contains a pause
phone number contains a wait
Icon Description
message is being sent
message will be sent when possible
attachment request sent
message was sent to the network
attachment request was successful
PIN or SMS message was delivered to the recipient
saved draft of email or PIN message
message transmission error
attachment request was not successful
unopened email message
opened email message
unopened SMS message
opened SMS message
email message is filed
high importance
Icons
BlackBerry Wireless Handheld 141
Phone
Browser
address book attachment
Icon Description
phone call is in progress
volume level
phone call is muted
call forwarding is enabled for all phone calls
voice mail message pending
text telephone (TTY) is enabled
placed or received phone call
unopened missed phone call log
unopened voice mail message
opened missed phone call log
opened voice mail message
Icon Description
unopened saved web page
opened saved web page
Icon Description
8: Reference
142 User Guide
Calendar
browser is connected to the wireless network
browser is not connected to the wireless network
browser connection to the web page is secure
browser connection to the web page is not secure
play MIDI tune
stop playing MIDI tune
Icon Description
appointment was initiated by a meeting invitation
appointment or meeting has a reminder set
appointment or meeting has text in the Notes field
appointment or meeting recurs
exception to a recurring appointment or meeting
appointment or meeting is an all-day event
Icon Description
Troubleshooting
BlackBerry Wireless Handheld 143
Other applications
Troubleshooting
Application Icon Description
Tasks task is not started or is in progress
task is deferred
task is complete
high priority
low priority
Alarm alarm is set
Miscellaneous Alt mode
Shift mode or CAP-lock mode
NUM-lock mode
new service book
Issue Possible cause Possible solution
The handheld does not
turn on. The battery is not
inserted correctly. Reinsert the battery.
Refer to the
Getting
Started and Quick
Reference Card
.
The battery is too low. Charge the battery.
Refer to the
Getting
Started and Quick
Reference Card
.
8: Reference
144 User Guide
The handheld does not
respond or is ”frozen”. Various. Reset the handheld: Press
the Alt key + the Right
Shift key + the
Backspace key.
The display is difficult to
read. The handheld is in a
poorly lit area. Turn on the backlighting:
Press the Power button.
The display font is too
small. Increase the size of the
display font.
Refer to page 127.
The handheld does not
notify you of events
such as messages,
phone calls, or the
alarm.
The wireless radio is off. On the Home screen, click
the Turn Wireless On
icon.
The notification is not set
to notify you audibly. Change the notification
to Tone or
Vibrate+Tone.
Refer to page 123.
The notification volume
is too low. Increase the notification
volume.
Refer to page 123.
The alarm is set at the
wrong time. Reset the alarm and, if
you are using 12 hour
format, verify the AM or
PM setting.
Refer to page 107.
The calendar event does
not have a reminder set. Set a reminder.
Refer to page 93.
Issue Possible cause Possible solution
Troubleshooting
BlackBerry Wireless Handheld 145
Some handheld
applications do not
work.
For example, the
handheld does not send
or receive messages, or
the phone or browser do
not work.
The wireless radio is off. On the Home screen, click
the Turn Wireless On
icon.
The handheld is not in an
area of wireless
coverage.
Return to an area of
wireless coverage.
The battery is too low. Charge the handheld.
Refer to the
Getting
Started and Quick
Reference Card.
The SIM card is not
inserted correctly. Reinsert the SIM card.
Refer to the
Getting
Started and Quick
Reference Card
.
The handheld is not
registered with the
wireless network.
Verify the registration
status in the Active
Network field.
Refer to page 122.
Register with the network.
Refer to page 123.
Contact your service
provider.
The wireless network is
experiencing difficulties. Contact your service
provider.
Your service provider
does not support the
phone or browser.
Contact your service
provider.
Issue Possible cause Possible solution
8: Reference
146 User Guide
Maintenance
To Do this
Preserve battery life Set the Auto On/Off feature. Refer to page 114.
Turn off the radio when you are not in an area of
wireless coverage: On the Home screen, click the Turn
Wireless Off icon.
Limit your use of the backlighting feature.
Delete the original message when you send a reply.
Refer to page 15.
If you want to send a message to multiple people, use
Add To, Add Cc, or Add Bcc instead of sending the
message multiple times. Refer to page 13.
Charge your handheld regularly.
BlackBerry Wireless Handheld 147
Index
A
about this guide, 7
accepting
meeting invitations, 96
service books, 132
Access Number field, 70
Active Network field, 122, 145
adding
additional contacts to messages,
14
applications, 79
attachments to messages, 17
contacts to groups, 45
multiple email addresses, 40
tunes, 126
See also creating
Additional Numbers field, 70
address book
adding groups, 42
creating contacts, 19, 40–44
deleting contacts, 45
deleting groups, 45
editing contacts, 44
editing groups, 45
icons, 140
searching for remote addresses,
46
setting options, 47
address book attachments
icons, 141
opening, 18
sending, 17
addresses, See contacts
alarm
icon, 143
setting, 107
setting notification profiles, 123
troubleshooting, 144
turning off, 108
All Calls field, 65
All Incoming field, 63
All Outgoing field, 63
Allow Duplicate Names field, 47
alpha-dialing, 58
alternating between phone calls, 57
answering phone calls, 55
application information, viewing,
113
applications
adding, 79
deleting, 114
troubleshooting, 145
using during a call, 58
appointments
creating, 93–96
definition, 92
deleting, 99
editing, 97–99
opening, 96
Area Code field, 68
attachments, See file
attachments; address book
attachments
Auto Answer field, 67
Auto Hangup field, 67
Auto More field, 23
auto on/off
disabling, 115
enabling, 115
setting, 114
AutoText
creating entries, 116
deleting entries, 117
editing entries, 117
inserting macros, 116
specified case and smartcase,
117
viewing entries, 116
Index
148 User Guide
B
B hotkey configuration field, 118
Backlight Brightness field, 128
backlighting, 144, 146
battery
maintenance, 146
troubleshooting, 143, 145
BlackBerry Browser, definition, 74
BlackBerry Desktop Software Online
Help, 9
BlackBerry Web Client Online Help, 9
bookmark folders
creating, 83
renaming, 84
setting default, 83
bookmarks
availability, 81
creating, 80
deleting, 83
editing, 81
moving, 82, 84
opening, 81
BrickBreaker
capsules, 109
definition, 109
navigating, 109
setting options, 110
browser
about, 74
bookmarks, 80
browsing web pages, 75
closing, 85
connection status, 86
hiding, 85
history, 86
home page, 74
icons, 141
managing, 85
navigating web pages, 77
setting options, 74, 87, 118
shortcut keys, 77
TLS, 135
WAP Push, 135
WTLS, 136
C
caches, 86
calculator
converting measurements, 107
memory, 107
performing calculations, 106
calendar
agenda format, 90
changing formats, 90
day format, 90
icons, 142
month format, 91
restrictions for Lotus Notes
users, 94, 98
setting notification profiles, 123
setting options, 99
week format, 91
See also appointments; meetings
call barring
changing password, 64
disabling, 64
enabling, 64
setting options, 63
Call field, 69
call forwarding
disabling, 65
enabling, 65
setting options, 65
call logging, 62
call logs, See phone call logs
call waiting, 66
Call Waiting Enabled field, 66
calling
contacts, 52–54
emergency numbers, 54
voice mail, 55
calls, See phone calls
Case Sensitive Search field, 22
changing
bookmark folders, 80
contacts in groups, 45
Index
BlackBerry Wireless Handheld 149
formats in calendar, 90
handheld password, 130
order of bookmarks, 82
SIM card security PIN code, 133
task status, 103
user-defined field names, 41
volume for phone calls, 56
See also editing; setting
clearing
browser caches, 86
phone timers, 72
closing
browser, 85
web pages, 85
conference calls, 57
configuring
browser, 74
browser home page, 74
Confirm close on Escape field, 87
Confirm Delete field, 23, 47, 67, 100,
104, 106
Confirm execute scripts field, 87
Conflicts field, 24
connection requests, 120
Consider PIN Level 1 field, 23
contacts
creating, 40–44
deleting, 45
editing, 44
opening, 44
searching for in remote address
book, 46
See also SIM card
contacts; groups
conventions
notes, 9
prerequisites, 9
tips, 9
warnings, 9
Country Code field, 68
Create in field, 80
creating
appointments, 93–96
AutoText entries, 116
bookmarks, 80
contacts, 19, 40–44
email and PIN messages, 13–15
folders for bookmarks, 83
groups, 42
meetings, 93–95
memos, 104
notification profiles, 124
phone call notes, 59
phone calls, 52
SIM card contacts, 48
SMS messages, 26
tasks, 102
customizing, See setting
D
date, setting, 119
declining meeting invitations, 96
Default browser configuration field,
118
Default Reminder field, 100
Delete On field, 24
deleting
appointments, 99
AutoText entries, 117
bookmarks, 83
contacts, 45
contacts from groups, 45
groups, 45
meetings, 99
memos, 106
messages, 30–31
notification profiles, 126
original text from reply, 16
phone call logs, 60
saved searches, 36
SIM card contacts, 49
tasks, 104
Delivery Reports field, 29
Dial from Home Screen field, 67
disabling
alarm, 108
auto on/off, 115
Index
150 User Guide
call barring, 64
call forwarding, 65
call logging, 62
handheld password, 130
SIM card security, 133
disconnecting browser from
wireless network, 85
display language, selecting, 120
Display Name field, 23
Display Time field, 23
distribution lists, See groups
Do Not Disturb field, 125
draft messages
icon, 140
saving, 14
E
editing
appointments, 97–99
AutoText entries, 117
bookmarks, 81
contacts, 44
email and PIN messages, 17
groups, 45
meetings, 97–99
memos, 105
notification profiles, 126
phone call notes, 59
saved searches, 36
SIM card contacts, 49
task status, 103
tasks, 103
user-defined field names, 41
See also setting
email addresses, adding multiple, 40
email messages
adding contacts to, 14
deleting, 30
editing, 17
filing, 33
forwarding, 16
marking opened, 37
marking unopened, 37
opening, 12
reconciling, 32
replying to, 15
requesting more of, 12
resending, 16, 17
saving, 30
saving draft, 14
searching for, 34
sending, 13–15
setting importance, 24
setting options, 23
emergency calls, making, 54
emptying deleted items folder on
computer from handheld, 31
Enable Quick Entry field, 100
enabling
auto on/off, 115
call barring, 64
call forwarding, 65
call logging, 62
handheld password, 129
SIM card security, 133
Encryption Strength field, 137
End of Day field, 100
ending phone calls, 53
Extension Length field, 69
extensions, dialing, 41
F
file attachments
navigating, 21
opening, 21
opening table of contents, 20
setting options, 22
supported file formats, 20
filing email messages, 33
firewall
accepting or denying
connection requests, 120
resetting options, 120
First Day of the Week field, 100
folders, See bookmark folders
Font Family field, 22, 128
Index
BlackBerry Wireless Handheld 151
Font Size field, 22, 128
format
calendar, 90
forwarding
email and PIN messages, 16
phone call logs, 60
phone calls, 65
SMS messages, 28
full content, opening, 21
G
games
navigating, 109
pausing, 109
resuming, 109
setting options, 110
starting, 108
getting help, 9
Getting Started and Quick Reference
Card, 9
groups
adding contacts to, 45
changing contacts in, 45
creating, 42
deleting, 45
deleting contacts from, 45
editing, 45
opening, 44
H
handheld options
about, 113
applications, 113
auto on/off, 114
AutoText, 115
browser, 118
date/time, 119
firewall, 119
localization, 120
message services, 121
network, 122
owner, 123
screen/keyboard, 127
security, 128
service book, 132
SIM card, 132
SMS, 134
status, 134
TLS, 135
viewing, 112
WAP Push, 135
WTLS, 136
handheld password
changing, 130
disabling, 130
incorrect, 131
setting, 129
help, 9
Hide Filed Messages field, 23
hiding a browser, 85
high importance, setting, 24
holding phone calls, 56
Home page address field, 74
home page, customizing, 74
I
icons
address book, 140
address book attachments, 141
alarm, 143
Alt mode, 143
browser, 141
calendar, 142
CAP-lock mode, 143
chart, 140
messages, 140
miscellaneous, 143
note, 9
NUM-lock mode, 143
pause, 140
phone, 141
prerequisite, 9
service book, 143
Shift mode, 143
tasks, 143
tip, 9
Index
152 User Guide
wait, 140
warning, 9
ignoring phone calls, 55
images, viewing, 77
Importance field, 24
importance, setting, 24
In Holster field, 125
Incoming If Roaming field, 63
Initial View field, 100
inserting
extensions, 41
pauses, 41
waits, 41
Int’l Calls field, 63
Int’l Not to Home PLMN field, 63
integration options, 8
IT Policy field, 129
K
Key Rate field, 128
Key Tone field, 128
keyboard, setting options, 127
L
Leave messages on SIM card field,
29
links
definition, 15
email address, 15
phone number, 54
web page, 76
localization, 120
locating
phone number, 71
PIN, 12
SMS number, 25
Lock Handheld Upon Holstering
field, 129
locking the handheld, 131
Log These Call Types field, 62
logs, See phone call logs
low battery, 143, 145, 146
M
macros, inserting into AutoText
entries, 116
maintenance, battery, 146
Make Available Offline field, 81
making
emergency phone calls, 54
phone calls, 52–54
meeting invitations
accepting, 96
changing attendees, 98
declining, 96
icon, 142
removing attendees, 98
meetings
creating, 93–95
definition, 92
deleting, 99
editing, 97–99
opening, 96
MemoPad, setting options, 106
memos
creating, 104
deleting, 106
editing, 105
opening, 105
message services, 121
messages
icons, 140
setting notification profiles, 123
setting options, 23
See also email messages; SMS
messages, PIN
messages; phone call logs
more, requesting, 12
muting phone calls, 56
N
National Number Length field, 68
navigating
attachments, 21
calendar, 90
web pages, 77
Index
BlackBerry Wireless Handheld 153
network
registering, 145
registering manually, 123
selecting, 122
notes
definition, 9
icon, 9
notification profiles
creating, 124
deleting, 126
editing, 126
enabling, 124
troubleshooting, 144
Number of Beeps field, 125
Number of Previous Items field, 29
O
opening
address book attachments, 18
appointments, 96
bookmarks, 81
contacts, 44
email and PIN messages, 12
file attachments, 21
groups, 44
meetings, 96
memos, 105
phone call logs, 58
SMS messages, 25
tasks, 103
web pages, 75–76
options
address book, 47
browser, 87
calendar, 99
email and PIN messages, 23
file attachment, 22
MemoPad, 106
phone, 61, 67
SMS messages, 29
tasks, 104
See also handheld options
Out of Holster field, 125
owner information, setting, 123
P
Password field, 129
password security screen, 128–131
password, See handheld password
pauses
adding, 41
definition, 41
icon, 140
personal identification number,
locating, 12
phone
adjusting volume, 56
alpha-dialing, 58
clearing timers, 72
icons, 141
resetting timers, 71
setting call barring options, 63
setting call waiting options, 66
setting general options, 67
setting notification profiles, 123
setting text telephone options,
70
setting voice mail options, 69
viewing options, 61
viewing status, 71
phone call logs
deleting, 60
editing notes, 59
forwarding, 60
making notes, 59
opening, 58
searching for, 60
phone calls
alpha-dialing, 58
alternating between, 57
answering, 55
blocking, 63
dialing from Home screen, 67
ending, 53
forwarding, 65
ignoring, 55
Index
154 User Guide
logging, 62
making, 52–54
making conference, 57
making emergency, 54
making to voice mail, 55
muting, 56
placing on hold, 56
resuming, 56
turning mute off, 56
using applications during, 58
PIN code, changing for SIM card
security, 133
PIN messages
adding contacts to, 14
deleting, 30
editing, 17
forwarding, 16
marking opened, 37
marking unopened, 37
opening, 12
replying to, 15
requesting more of, 12
resending, 16, 17
saving, 30
saving draft, 14
searching for, 34
sending, 13–15
setting importance, 24
setting options, 23
PIN, locating, 12
prerequisites
definition, 9
icon, 9
priority of messages, setting, 24
profiles, See notification profiles
Prompt for Server Trust field, 137
R
radio
troubleshooting, 144, 145
turning on, 144
Radio field, 122
recipients
replying to all, 16
searching by, 36
reconciling email messages, 32
recurring appointments, See
appointments
recurring meetings, See meetings
reference information, 139
refreshing web pages, 78
registering with the network, 123,
145
related resources, 9
relative date, definition, 94
reminders, troubleshooting, 144
remote address book, searching in,
46
removing, See deleting
Repeat Notification field, 125
replying to
all recipients, 16
email and PIN messages, 15
SMS messages, 28
resending
email and PIN messages, 16
SMS messages, 28
resetting
firewall options, 120
handheld, 144
phone timers, 71
resources, related to this guide, 9
Restrict My Identity field, 67
resuming phone calls, 56
ring tones, See tunes
S
Salutation field, 40
saving
draft messages, 14
messages, 30
searches, 35
web pages, 78
Scan Mode field, 122
screen/keyboard, setting options,
127
Index
BlackBerry Wireless Handheld 155
searches
deleting saved, 36
editing saved, 36
performing, 35
saving, 35
selecting folders, 35, 61
specifying criteria for, 35
viewing saved, 35
searching
by recipient, 36
by sender, 36
by subject, 36
contacts in remote address
book, 46
messages, 34
phone call logs, 60
security
changing handheld password,
130
changing SIM card PIN code,
133
disabling handheld password,
130
disabling SIM card password,
133
enabling handheld password,
128
enabling SIM card password,
133
locking handheld, 131
performing self tests, 131
setting options, 128
TLS, 135
unlocking handheld, 131
web page, 79
WTLS, 136
security self tests, 131
Security Timeout field, 129
selecting
display language, 120
folders, 35, 61
network, 122
sender, searching by, 36
sending
address book attachments, 17
email and PIN messages, 13
SMS messages, 26
Sent As field, 29
service
sending messages from specific,
14
service books
accepting, 132
icon, 143
viewing, 132
Service Center field, 29
setting
address book options, 47
alarm, 107
auto on/off options, 114
browser options, 87, 118
calendar options, 99
date and time, 119
default folder for bookmarks, 83
email and PIN message options,
23
file attachment options, 22
game options, 110
handheld password, 131
importance level of messages,
24
MemoPad options, 106
network options, 122
notification profiles, 124
owner information, 123
phone options, 61
screen/keyboard options, 127
security options, 128
SMS message options, 29
tasks options, 104
TLS options, 135
voice mail options, 69
WTLS options, 136
Sheet Column Width field, 22
Sheet Display Labels field, 22
Sheet Horizontal Scroll field, 22
Sheet Outline Cells field, 22
Sheet Vertical Scroll field, 22
Index
156 User Guide
short message service, See SMS
messages
Show Logs in Message List field, 62
SIM card
definition, 132
disabling security, 133
enabling security, 133
SIM card contacts
creating, 48
deleting, 49
editing, 49
viewing, 48
smart dialing, setting options, 68–69
smartcase, definition, 117
SMS messages
deleting, 30
forwarding, 28
marking opened, 37
marking unopened, 37
opening, 25
removing history, 28
replying to, 28
resending, 28
saving, 30
searching for, 34
sending, 26–27
setting options, 29
SMS number, locating, 25
Sort By field, 47, 67, 104
specified case, definition, 117
specifying search criteria, 35
Start of Day field, 100
subfolders, See bookmark folders
subject, searching by, 36
subscriber information module
card, See SIM card
support, 9
T
table of contents, opening for file
attachments, 20
tasks
changing status of, 103
creating, 102
deleting, 104
editing, 103
icons, 143
opening, 103
setting options, 104
technical support, 9
text telephone
definition, 70
disabling, 71
enabling, 71
icon, 141
time, setting, 119
timers, 71
tips
definition, 9
icon, 9
Title field, 80
TLS, definition, 135
troubleshooting
alarm, 144
applications, 145
backlighting, 144
battery, 143, 145
browser, 145
display, 144
font size, 144
lighting, 144
notification, 144
phone, 145
radio, 144, 145
reminders, 144
resetting the handheld, 144
volume, 144
TTY Mode field, 71
TTY option, See text telephone
Tune field, 125
tunes
adding, 126
deleting, 127
downloading, 126
turning off
alarm, 108
handheld, 114, 115
Index
BlackBerry Wireless Handheld 157
mute, 56
turning on, radio, 144, 145
U
Unanswered Calls field, 65
unlocking handheld, 131
URL
home page, 74
web page, 75, 78
user-defined fields, changing, 41
V
Validity Period field, 29
viewing
application information, 113
appointments, 96
AutoText entries, 116
browser connection status, 86
browser history, 86
browser security settings, 79
contacts, 44
contents of spreadsheet cell, 21
criteria of last search, 36
current date in calendar, 91
email and PIN messages, 12
file attachments, 21
groups, 44
handheld information, 113
handheld options, 112
host name of web page, 86
images on web page, 77
meetings, 96
memos, 105
next sheet, 21
phone options, 61
phone status, 71
phone timers, 71
previous sheet, 21
saved searches, 35
service books, 132
SIM card contacts, 48
SMS messages, 25
specific date in calendar, 91
specific spreadsheet cell, 21
table of contents of file
attachments, 20
tasks, 103
voice mail
calling, 55, 69
icon, 141
setting number, 69
volume
adjusting for notification
profiles, 125
adjusting for phone calls, 56
icon, 141
troubleshooting, 144
Volume field, 125
W
W hotkey configuration field, 118
Wait For field, 69
waits
adding, 41
definition, 41
icon, 140
WAP browser, definition, 74
WAP Push, setting, 135
warnings
definition, 9
icon, 9
web pages
browsing, 75
canceling requests, 76
closing, 85
connection status, 86
links, 76
navigating between, 77
navigating on, 77
opening, 75–76
refreshing, 78
saving, 78
setting notification profiles, 123
viewing images, 77
viewing security settings, 79
viewing URL, 78
Index
158 User Guide
Weekday Off field, 114
Weekday On field, 114
Weekend Off field, 114
Weekend On field, 114
wireless email reconciliation
definition, 32
prerequisites, 23
wireless network
disconnecting browser from, 85
registering with, 123
troubleshooting, 144
wireless radio,troubleshooting, 145
Wireless Reconcile field, 24
wireless transport layer security, See
WTLS
WML, 75
worksheet, selecting in attachments,
21
WTLS, definition, 136
