BlackBerry RDJ20WW Tablet Device User Manual

BlackBerry Limited Tablet Device Users Manual

Users Manual

BlackBerry PlayBook
User Guide
Version: 1.0 Internal Beta
SWD-1347536-0222042730-001
Contents
Getting started................................................................................................................................................................................................... 3
Beta notice......................................................................................................................................................................................................... 3
Getting to know your BlackBerry PlayBook tablet............................................................................................................................................. 3
Getting around................................................................................................................................................................................................... 5
Using the touch screen....................................................................................................................................................................................... 7
View your notifications....................................................................................................................................................................................... 9
BlackBerry Bridge............................................................................................................................................................................................... 11
About BlackBerry Bridge..................................................................................................................................................................................... 11
Connect to BlackBerry Bridge............................................................................................................................................................................. 11
BlackBerry Bridge tips......................................................................................................................................................................................... 12
Troubleshooting: BlackBerry Bridge................................................................................................................................................................... 12
Music.................................................................................................................................................................................................................. 14
Playing your music.............................................................................................................................................................................................. 14
Photos................................................................................................................................................................................................................ 15
Viewing your photos.......................................................................................................................................................................................... 15
Videos................................................................................................................................................................................................................. 16
Playing videos..................................................................................................................................................................................................... 16
Camera............................................................................................................................................................................................................... 17
Taking pictures................................................................................................................................................................................................... 17
Recording videos................................................................................................................................................................................................ 17
Voice notes......................................................................................................................................................................................................... 18
Recording voice notes........................................................................................................................................................................................ 18
BlackBerry App World........................................................................................................................................................................................ 19
Download apps with BlackBerry App World...................................................................................................................................................... 19
Browser.............................................................................................................................................................................................................. 20
Browsing the web............................................................................................................................................................................................... 20
Troubleshooting: browser.................................................................................................................................................................................. 20
Battery and power.............................................................................................................................................................................................. 21
Turning off your tablet and using standby mode............................................................................................................................................... 21
Extending your battery life................................................................................................................................................................................. 21
Connections........................................................................................................................................................................................................ 22
Wi-Fi................................................................................................................................................................................................................... 22
Bluetooth technology......................................................................................................................................................................................... 25
Keyboard and typing.......................................................................................................................................................................................... 27
Typing with the touch screen keyboard............................................................................................................................................................. 27
Word to Go......................................................................................................................................................................................................... 28
Creating and editing documents........................................................................................................................................................................ 28
Word To Go icons............................................................................................................................................................................................... 28
Sheet to Go......................................................................................................................................................................................................... 29
Creating and editing spreadsheets..................................................................................................................................................................... 29
Legal notice........................................................................................................................................................................................................ 30
Getting started
Beta notice
The information contained in this documentation is intended for beta customers only. Content and software are subject to
change.

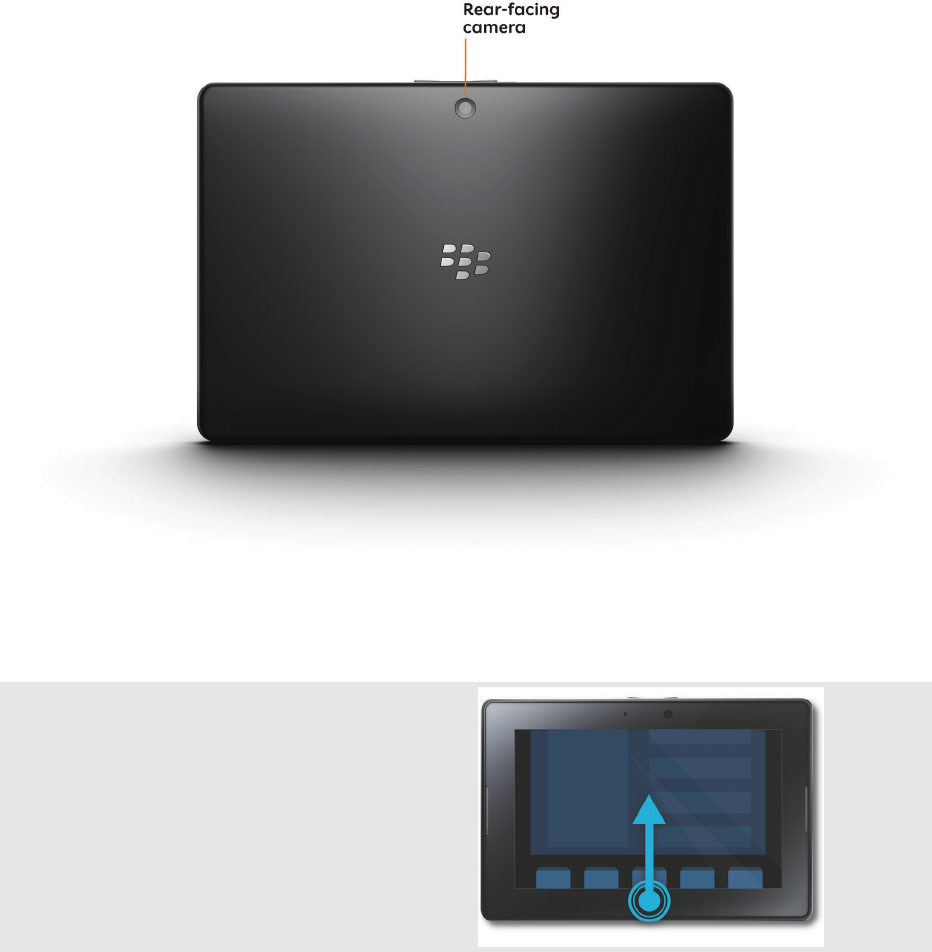

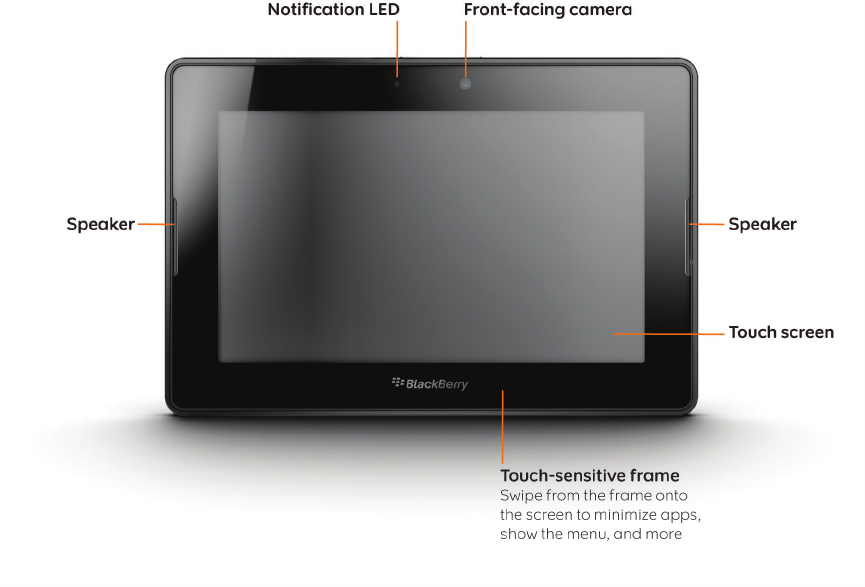

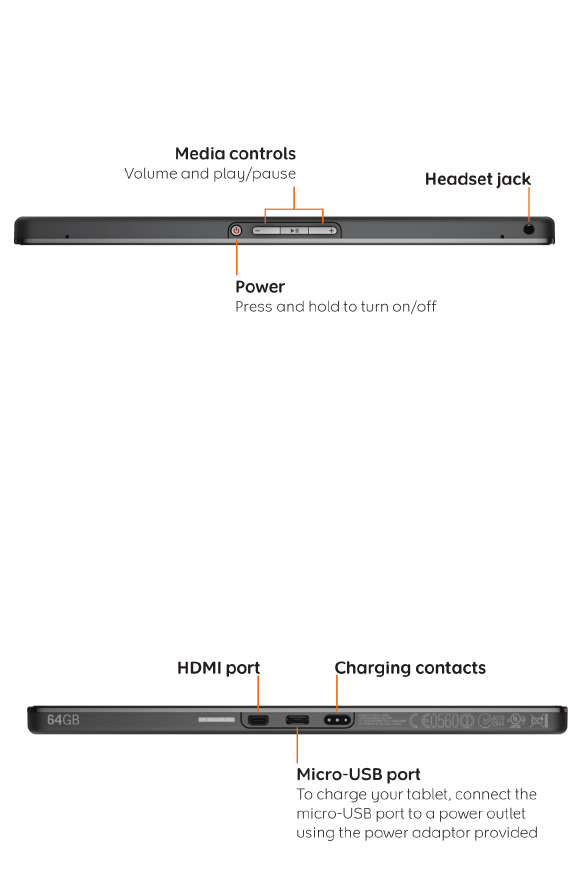

Getting to know your BlackBerry PlayBook tablet
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
3
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
4
Getting around
Show the home screen and miminimze apps
Swipe up from the bottom frame.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
5
Show the menu
In many apps, you can find additional features, options, and
help in the menu.
In an app, swipe down from the top frame. To close the menu,
touch anywhere in the app.
Switch between apps
You can flip between your open apps without having to return
to the home screen.
In an app, swipe in from the left or right frame.
Show the status bar
You can peek at the status bar without leaving the app you're
using. This is a great way to quickly check your notifications,
see the time, keep an eye on your battery level, change system
options, and more.
In an app, swipe in from the top-left frame.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
6
Close an app
On the home screen, touch the minimized app and swipe up.
Switch between views on the home screen
Swipe left or right in the bottom part of the home screen.
Using the touch screen
Here are some common gestures to help you get started using your BlackBerry® PlayBook™ tablet.
Swipe
To scroll through a list or a webpage, move between pictures,
and more, touch the screen and slide your finger up and down
or right and left.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
7
Pinch
To zoom in and out while you're looking at a webpage, picture,
or other content, touch the screen with your finger and thumb
and pinch them together or apart.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
8
Drag
To move something from one place to another, touch and hold
the item you want to move. Slide your finger to the position
where you want it.
View your notifications
Your BlackBerry® PlayBook™ tablet uses notifications to keep you informed about software updates, new messages, calendar
reminders, battery power level, and much more. When new notifications come in, the top-left or top-right corner of your
screen glows red.
1. To display the status bar from within any application, swipe from the upper-left corner of the frame onto the screen.
You can also find the status bar on the home screen.
2. On the status bar, tap [flag_icon] or [system_notifications_icon].
Return to what you were doing Tap the screen anywhere outside of the displayed
notifications.
Dismiss a notification Swipe from left to right across the item you want to dismiss.
View a specific type of notification On the status bar, tap the icon for the type of notification
that you want to see.
View details about a notification You can jump directly from a notification into the related
application. For example, if you tap an email notification, the
email opens in the Messages app.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
9
To view details, tap the notification message.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
10
BlackBerry Bridge
About BlackBerry Bridge
If you're running BlackBerry® Device Software 5.0 or later on your BlackBerry smartphone, you can connect your BlackBerry®
PlayBook™ tablet to your smartphone to access push email, calendars, BBM™, files, and other data directly from your tablet.
Your tablet connects to your smartphone using Bluetooth® technology. To connect, you need the BlackBerry® Bridge™ app
installed on your smartphone. You can find it in BlackBerry App World™.
When your tablet and smartphone are connected, these icons appear on your tablet's home screen:
BlackBerry Messenger
Communicate virtually instantly with other BlackBerry users. It's everything you love about BBM,
on your tablet.
Messages
Take advantage of your tablet's larger screen and the reading pane to work through your message
inbox more quickly. Attach files from your tablet or your smartphone.
Calendar
Keep on top of your schedule at a glance with day and month views that show names on each
event and a split-screen day view.
Contacts
Connect with the people in your network through the Contacts app. Quickly jump to a contact to
send an email, schedule a meeting, or start a BBM conversation.
Tasks
Have a growing to-do list? Use the Tasks app to help you stay focused on important actions.
Memos
Instead of jotting notes on scraps of paper that can be easy to lose track of, try using memos to
keep your information organized and easy to find.
Connect to BlackBerry Bridge
To connect your tablet with your BlackBerry® smartphone, you need to install the BlackBerry® Bridge™ app on your
smartphone. You can find it in BlackBerry App World™.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
11
1. On your tablet's home screen, on the status bar, tap [settings_icon] > BlackBerry Bridge.
2. Tap Setup > Continue.
3. In the BlackBerry Bridge app on your smartphone, tap Add Device > Next.
4. Point your smartphone camera at the barcode displayed on your tablet to scan the barcode.
BlackBerry Bridge tips
View email for a specific address or email in a folder If you've added multiple email addresses to your smartphone,
like an enterprise address and a Yahoo!® Mail address, you
can view all email together or you can view email for each
address separately.
At the top of the message list, tap the name of the currently
displayed address or All Messages, depending on the current
view. Tap the email address you want to view, or to view
email in a folder, tap View Folders.
Move an email to a folder View the message. Below the message, tap [folder_icon].
Multi-select email To more quickly work through you inbox, you can select
multiple email messages and delete them, mark them read or
unread, or move them to a folder.
At the bottom of the message list, tap [multiselect_icon]. Tap
the checkbox next to each email you want to select. Tap the
appropriate icon at the bottom of the message list.
View a single calendar At the bottom of the screen, tap [services_icon].
Hide completed tasks
Start a group chat In the BBM™ contacts list, tap one of the people you want to
add to the chat. At the top of the chat window, tap
[arrow_icon] > Invite Others. Tap the other people you want
to include. Start chatting.
Troubleshooting: BlackBerry Bridge
Issue Possible cause or solution
I can't pair my tablet with my BlackBerry® smartphone Verify that the BlackBerry® Bridge™ application is installed on
your smartphone. You can download the application from
BlackBerry App World™.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
12
Verify that your smartphone's Bluetooth® connection is
turned on and that your smartphone is in range.
I can't reconnect to my BlackBerry smartphone Verify that your smartphone's Bluetooth connection is turned
on and that your smartphone is in range.
The BlackBerry Bridge application on your smartphone might
not be set to automatically connect to your tablet. Try
opening the application and connecting manually.
Your smartphone might already be connected to another
tablet. In the BlackBerry Bridge application on your
smartphone, disconnect the other tablet and then try
connecting again.
I can't find a draft message I saved When you save a draft message, the message appears in the
message list with a special draft icon. If you have multiple
email addresses, look for the draft message in the inbox of
the address you are sending the message from. If you've
received a lot of email since you saved the draft, it may
appear far down in the message list.
I can't find a memo I'm searching for You can only searches the titles of memos, not the contents.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
13
Music
Playing your music
Your BlackBerry® PlayBook™ tablet supports the most popular types of audio files including MP3, M4A, WMA, and WAV. Use
the built-in stereo speakers, plug in headphones, or hook your tablet's HDMI port up to a home entertainment system for
some serious sound.
Change the volume Touch and drag on the volume bar.
Shuffle or repeat songs Tap or .
See more music Swipe down from the top frame.
See what's next in a playlist Tap beside the album art of the song that is currently
playing.
Search your music Tap Search All. Enter the title or artist you are looking for.
Control music from the status bar Tap . Tap , , or .
Create a playlist Create a playlist on your computer using a music library such
as Windows Media® Player or iTunes.
Add a song to your PlayBook Playlist Swipe down from the top frame. Tap Edit. Tap a song or
songs. Tap Add.
Delete a song from your PlayBook Playlist ?
Move playlists from your computer Open the BlackBerry® Desktop Software on your computer.
Connect the tablet and the computer using a USB cable. Click
Music and complete the instructions on the computer screen.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
14
Photos
Viewing your photos
Your BlackBerry® PlayBook™ tablet is the perfect way to take your photos with you and lets you share them with friends and
family on a beautiful hi-res screen. Pictures that you take with the tablet's cameras are automatically saved in the Photos app.
Zoom in on a picture Pinch out. Double-tap to zoom in to fit the screen.
Move between pictures Swipe left or right.
Pan a picture In a picture that you are zoomed into, touch and drag in any
direction.
Delete a picture Tap a picture. Tap [pencil icon]. Tap [garbage can icon].
Play a slideshow Tap an album. Tap a picture. Tap .
Play a slideshow using HDMI Connect the HDMI cable to both your tablet and an HDMI
display such as a TV, projector, or computer monitor. Tap an
album. Tap a picture. Tap . (???)
Move pictures between your tablet and your computer Open the BlackBerry® Desktop Software on your computer.
Connect your tablet and computer using a USB cable. Click
Pictures and complete the instructions on the computer.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
15
Videos
Playing videos
Watch HD video on the go with your BlackBerry® PlayBook™ tablet. Your tablet plays 1080p HD videos and supports a variety
of video formats such as AVI, ASF, Fv4, MP4, and WMV. For information about recording videos, see the Camera section of the
Help.
Stop playing a video Tap the screen. Tap .
Delete a video Tap a video. Tap [image of pencil icon]. Tap [image of trash
can icon].
Play a video using HDMI Connect the HDMI cable to both your tablet and an HDMI
display such as a TV, projector, or computer monitor (???)
Move videos between your tablet and your computer Open the BlackBerry® Desktop Software on your computer.
Connect the tablet and the computer using a USB cable. Click
Videos and complete the instructions on the computer
screen.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
16
Camera
Taking pictures
Your BlackBerry® PlayBook™ has a 5 megapixel rear facing camera that allows you to capture great images and a 3 megapixel
front facing camera perfect for taking a quick self portrait or creating a profile picture. Pictures that you take are saved in an
album in Photos app. For more info, see the Photos section of the Help.
Take a picture Tap [image of camera icon] .
Switch between the front facing camera and the rear facing
camera
Tap [image of switch icon].
Change the camera scene mode and settings Swipe down from the top frame until more modes appear.
Tap the one you want to use.
Look at pictures you took Swipe down from the top frame. Tap Camera Photos.
Delete a picture Swipe down from the top frame. Tap Camera Photos. Tap a
picture. Tap [image of pencil icon]. Tap [image of trash can
icon].
Zoom in or out on a subject Tap [image of zoom slider].
Show more camera tools Tap the screen.
Record a video Tap [image of video camera icon].
Recording videos
Record crisp, clear, 720p high definition videos with your BlackBerry® PlayBook™ no matter what the occasion. You can
instantly switch between the video camera and the still cameras to freeze a moment in time.
Record a video Tap [video camera icon]. Tap . To stop recording, tap .
Switch between the video camera and camera Tap [image of camera icon].
Delete a video Tap a video. Tap [image of pencil icon]. Tap [image of trash
can icon].
Record a video from the Videos app Swipe down from the top frame. Tap Take Videos.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
17
Voice notes
Recording voice notes
Record a reminder or notes from lectures and meetings with a single tap. Your voice notes are listed by the date and time they
are recorded.
Record a voice note Tap . To stop recording, tap .
Stop or pause the playback Tap or tap .
Delete a voice note Swipe down from the top frame. Tap Edit [image of pencil].
Tap a recording. Tap Delete [image of trash can.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
18
BlackBerry App World
Download apps with BlackBerry App World
Enhance your BlackBerry® PlayBook™ tablet with the many games, and social networking and productivity apps available
through the BlackBerry App World™ storefront. Search for apps or browse the top downloads and best sellers. You can pay for
items with your credit card or using a PayPal® account. The My World screen gives you a streamlined view of all your apps and
their statuses. You can quickly see which apps are installed, archived, deleted, or pending.
1. If prompted, enter your BlackBerry® ID to log in.
2. Search for an app or tap the app you want to download.
• If available, to download a free or trial version of an app, tap Install or Download Trial.
• To buy an app, tap Purchase > Buy Now.
Update an app Tap My World > Upgrade. Complete the instructions on the
screen.
Delete or remove an app Tap an app. Tap Delete [image of trash can] (???)
Update your BlackBerry ID account information Go to https://blackberryid.blackberry.com/bbid/login/
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
19
Browser
Browsing the web
Search for or go to a webpage In the address bar, type search terms or a web address. Tap
Go.
To reload a page, tap [reload_icon] in the address bar.
Bookmark a page Tap [add_bookmark_icon].
To view bookmarked pages, tap [view_bookmarks_icon].
Open multiple pages Tabs let you browse multiple webpages simultaneously.
Swipe down from the top frame to show the menu. To open a
new browser tab, tap New Tab. To switch between open
pages, tap the thumbnail for the page you want to view.
View your browsing history Tap [history_icon].
Change browser options Swipe down from the top frame to show the menu. Tap
Options.
Zoom Pinch to zoom. Double-tap to zoom in on an image or a
column of text.
Troubleshooting: browser
Issue Possible cause or solution
I can't play a song or video on a web page The media format might not be supported or the link might
be broken.
I can't open a new tab You probably have too many tabs open already, or too many
apps running. Try closing an existing tab or closing some open
apps. (???)
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
20
Battery and power
Turning off your tablet and using standby mode
Check the battery power level On the status bar, tap . When the battery power level is low, your tablet
notifies you.
Enter standby mode Press the power button on the top of the tablet.
Exit standby mode Swipe from the top frame to the bottom frame.
Turn off your tablet Press and hold the power button. Tap Shut Down.
Extending your battery life
To extend your tablet's battery life, charge it regularly, close applications that you're not using, and keep it out of the sun and
other hot places. Also consider the following guidelines:
Dim the screen On the status bar, tap > Screen. Change the Brightness setting.
Turn off the screen automatically On the status bar, tap > Screen. Change the Backlight Time-out field.
Enter standby mode automatically On the status bar, tap > Screen. Change the Standby Time-out field.
Turn off Wi-Fi® On the status bar, tap . Set the Wi-Fi switch to Off.
Turn off Bluetooth® connectivity On the status bar, tap . Set the Bluetooth switch to Off.
Pause apps when you show the home
screen or switch between apps
On the status bar, tap > Navigator. In the Deactivate applications drop-down
list, tap when they leave full screen.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
21
Connections
Wi-Fi
Connect to a Wi-Fi network
Your BlackBerry® PlayBook™ can connect to the Internet using Wi-Fi®. Public Wi-Fi networks are available in many public
places, such as libraries, airports, hotels, coffee shops, and so on. When you connect to a Wi-Fi network, your tablet saves the
network and connects to it automatically the next time you're within range.
1. On the Status bar, tap > Wi-Fi.
2. Tap the network you want to connect to.
To only see networks that don't require a password, in the Networks drop-down list, select Open Networks.
3. If necessary, type the network password.
4. Tap Connect.
Connect using a Wi-Fi Protected Setup button Tap > Wi-Fi >Use WPS > Press WPS Button on Router. On
your Wi-Fi router, press the button. On your tablet, tap Start.
Connect using a Wi-Fi Protected Setup PIN code Tap > Wi-Fi >Use WPS > Enter a PIN into Router > Start. On
the administration screen for your Wi-Fi router, type the PIN
displayed.
Connect manually If you want to connect to a hidden Wi-Fi network or save the
settings for a network that's not currently available, you can
connect manually.
Tap > Wi-Fi > Manually Connect. Type the name of the
network. If the network is hidden, select Hidden SSID. Select
the security type and specify any additional information. Tap
Connect to connect now or tap Save to save without
connecting.
Change, delete, or reorder saved Wi-Fi networks
Your BlackBerry® PlayBook™ tablet remembers the Wi-Fi® networks you connect to and automatically connects whenever
you're in range. If multiple networks are available, your tablet connects to the one closest to the top of your list of saved
networks.
1. On the status bar, tap > Wi-Fi.
2. In the drop-down list, tap Saved Networks.
• To change options for a saved network, tap the network.
• To move a saved network up or down in the list, touch and hold the network. Drag it to where you want it.
• To delete a saved network, tap [pencil]. Beside the network, tap [x].
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
22
• To stop your tablet from automatically connecting to a saved network, tap the network. Clear the Enable Profile
checkbox. Tap Save.
Wi-Fi network options
For most Wi-Fi® networks, you won't need to change the network options. If you're having trouble connecting or if you need to
connect manually, you can set the network options yourself. The options available depend on the type of network you're
connecting to. To find out what settings to use, if you're connecting to a home network, see the information that came with
your Wi-Fi router; if you're connecting to an enterprise Wi-Fi network, talk to your administrator; if you're connecting to a
hotspot, see the information provided about the hotspot or talk to an employee at the hotspot who might have details about
how to connect.
Option Description
Name Enter the name that you want to see in your list of saved Wi-Fi networks.
SSID If the Wi-Fi network is hidden, type the SSID (the name the network uses to identify
itself). Your BlackBerry® PlayBook™ tablet uses this name to find the network.
Hidden SSID If the Wi-Fi network is hidden, select this check box. Hidden networks don't appear
in the list of available networks.
Security Type Set the security type that the Wi-Fi network uses.
Security Sub Type If you're connecting to an enterprise Wi-Fi network, set the security subtype that
the Wi-Fi network uses.
VPN Profiles To use a VPN Profile when connecting to this network, select the profile you want
to use. For more information, see the Security section of the help.
Automatically Obtain IP Address Clear this check box if you need to manually specify an IP address for your tablet.
When you clear this check box, additional options appear. To find out what
information to enter, talk to your administrator.
Enable IPv6 Set whether the network uses the IPv6 protocol.
Use HTTP Proxy Select this check box if you want to connect to a proxy server. When you select this
check box, additional options appear. To find out what options to use, see the
information provided for the proxy server.
Allow inter-access point handover If the network spans multiple access points, set whether your tablet should remain
connected when you move from one access point to another.
CA Certificate If necessary, set the root certificate that your tablet should use to verify that it's
connecting to the correct Wi-Fi network. If the network requires a certificate, you
need to transfer it to your tablet before you can connect. For more information, talk
to your administrator.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
23
Option Description
Client Certificate If necessary, set the authentication certificate that your tablet should use to connect
to the Wi-Fi network. If the network requires a certificate, you need to transfer it
to your tablet before you can connect. For more information, talk to your
administrator.
I can't connect to a Wi-Fi network
Try one of the following actions:
• On the status bar, tap and verify that the switch is set to On.
• The connection might have timed out. Try connecting again.
• Your tablet might be too far away from the wireless access point or wireless router to connect. Move your tablet closer
and try connecting again.
• Verify that you're in a Wi-Fi® coverage area. If you're connecting to a home network, see if other wireless devices are able
to connect. If you're connecting to an enterprise Wi-Fi network or a hotspot, talk to your administrator or an employee at
the hotspot.
• Verify that the time on your BlackBerry® PlayBook™ tablet is synchronized with the network time. If the times are
different, it could prevent your tablet from connecting (for example, if connecting to the network requires you to have a
certificate on your tablet and the certificate has an expiration date).
• If the Wi-Fi network doesn't appear the list of available networks, the network might be hidden. If you know the network
name, try connecting to it manually.
• Verify that the options for the Wi-Fi network are correct. To find out what options to use, for a home network, refer to the
information that came with your router; for an enterprise Wi-Fi network, talk to your administrator; for a public hotspot,
refer to any information provided for the hotspot or talk to an employee at the hotspot who might have details about how
to connect.
• If you switched Wi-Fi networks manually, try switching to another Wi-Fi network.
• If you are using the Push Button Setup method, verify that the access point uses Wi-Fi Protected Setup™, and that it has
been set to send its profile. Verify that another device is not also attempting to connect at the same time, and that not
more than one access point within range is in this mode. For more information, see the information that came with your
router.
• If you use PEAP, EAP-TLS, EAP-FAST or EAP-TTLS to connect to a Wi-Fi network, verify that you have installed the root
certificate for the certificate authority server that created the certificate for the authentication server. The certificate must
be transferred to your tablet before you can connect to the network. For more information, talk to your administrator.
• If you use EAP-TLS to connect to a Wi-Fi network, verify that you have added your authentication certificate to your tablet.
The certificate must be transferred to your tablet before you can connect to the network. For more information, talk to
your administrator.
• To view details about your tablet and the network you're connected to that might help with advanced troubleshooting, on
the status bar, tap > Wi-Fi. In the lower-right corner, tap [info].
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
24
Bluetooth technology
Connect a Bluetooth enabled device
You can use Bluetooth® technology to connect your BlackBerry® PlayBook™ tablet to a wireless keyboard, mobile phone, or
other device that uses a supported Bluetooth profile. The first time you connect to a device, you pair it with your tablet. Your
tablet remembers paired devices and usually connects to them automatically whenever they're in range.
For information about connecting your tablet to a BlackBerry smartphone, see the BlackBerry Bridge section of the Help.
1. On the status bar, tap > Bluetooth.
2. Set the Bluetooth switch to On.
3. Tap Add New Device > Search.
4. Tap a device.
5. If necessary, do one of the following:
• Type a pairing passkey of your choice on both the device you're pairing with and on your tablet.
• On your tablet, type the pairing passkey that appears on the device you're pairing with or in the information that came
with the device. If you don't know the passkey, try 0000.
Reconnect to a paired device In the list of paired devices, tap the device > Connect.
Change options for a paired device In the list of paired devices, tap the device.
Delete a paired device In the list of paired devices, tap the device > Delete.
Make your tablet discoverable To allow other Bluetooth enabled devices to search for your
tablet and attempt to connect to it, you can make it
discoverable. Set the Discoverable switch to On.
To help protect your tablet against unauthorized access, you
can make it discoverable for 2 minutes only. Tap Add New
Device > Listen.
Supported Bluetooth profiles
Your BlackBerry® PlayBook™ tablet uses Bluetooth® profiles to communicate with different types of Bluetooth enabled
devices. To find out if your tablet supports a specific Bluetooth enabled device, you can check the information available for the
device to see what profiles it uses. Your tablet supports the profiles listed here.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
25
Profile Description
Dial-up Networking (DUN) Your tablet uses this profile to connect to a tethered mobile phone or other Internet-
enabled device to access its Internet connection.
Human Interface Device (HID) Your tablet uses this profile to connect to a wireless keyboard.
Serial Port Profile (SPP) Your tablet uses this profile to connect to your BlackBerry smartphone through the
BlackBerry® Bridge™ application.
I can't connect to a Bluetooth device
Try the following actions:
• Verify that the Bluetooth® enabled device is compatible with your BlackBerry® PlayBook™ tablet. Check the information
that came with the Bluetooth enabled device to find out what Bluetooth profiles it uses and verify that your tablet
supports those profiles.
• If you don't know the passkey for the Bluetooth enabled device, see the information that came with the device. If you can't
find any passkey information, try 0000.
• If your tablet can't detect the Bluetooth enabled device, try making the Bluetooth enabled device discoverable, or try
making your tablet discoverable and searching for your tablet from the Bluetooth enabled device.
My list of paired Bluetooth devices doesn't appear
Verify that your tablet's Bluetooth® connection is turned on.
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
26
Keyboard and typing
Typing with the touch screen keyboard
Show the keyboard Tap a text entry field or swipe onto the screen from the
bottom left corner of the frame.
Hide the keyboard Tap the Hide Keyboard icon in the bottom left corner of the
keyboard.
Insert a period [Tap space twice???]
Insert an at sign (@) or a period in an email address field Tap the Space key.[???]
Capitalize a letter Tap the Shift key, then tap the letter.
Turn on CAP lock Touch and hold the Shift key. To turn CAP lock off, tap the
Shift key again.
Type a symbol Tap the 123 sym key. If the symbol key you're looking for isn't
displayed, tap the More Symbols key.
Type an accented character Touch and hold a letter key to display a list of accented
versions of the letter. Tap the accented or special character
you want to insert.
Type a number in a text field Tap the 123 sym key, then tap the number. To show the
standard keys again, tap the ABC key.
Move the cursor to edit text Touch the text. [frame displayed???]
Change the typing input language [possible???]
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
27
Word to Go
Creating and editing documents
Using your BlackBerry® PlayBook™ and Word To Go you can edit, update, and save your important information in one
convenient location.
Create a new document On the welcome screen, tap New Document.
Open a document On the welcome screen, tap Browse. Tap a file that you want
to open. Tap OK.
Save a document Swipe down from the top frame. Tap the Save icon.
Word To Go icons
Change the font
Change text alignment
or Increase or decrease an indent
, , or Apply a font style
Find the word count for a document
Apply paragraph formatting
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
28
Sheet to Go
Creating and editing spreadsheets
Create a new spreadsheet On the welcome screen, tap New Document.
Open a spreadsheet On the welcome screen, tap Browse.
Save a spreadsheet Swipe down from the top frame. Tap the Save icon.
Change the font Tap > Font. Change the Font, Size, Style, Font Colour or
Fill Color fields.
Change number formatting Tap > Number. Tap a number format, such as Currency or
Scientific. Change the fields that appear on the screen.
Hide a column or row Tap the column or row that you want to hide. Tap . To
show a column or row that you have hidden, tap .
Clear a cell Tap the cell that you want to clear. Tap .
Apply a font style to a cell Tap the cell that you want to apply a font style to. Tap ,
or .
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
29
Legal notice
©2011 Research In Motion Limited. All rights reserved. BlackBerry®, RIM®, Research In Motion®, and related trademarks,
names, and logos are the property of Research In Motion Limited and are registered and/or used in the U.S. and countries
around the world.
All other trademarks are the property of their respective owners.
This documentation including all documentation incorporated by reference herein such as documentation provided or made
available at www.blackberry.com/go/docs is provided or made accessible "AS IS" and "AS AVAILABLE" and without condition,
endorsement, guarantee, representation, or warranty of any kind by Research In Motion Limited and its affiliated companies
("RIM") and RIM assumes no responsibility for any typographical, technical, or other inaccuracies, errors, or omissions in this
documentation. In order to protect RIM proprietary and confidential information and/or trade secrets, this documentation
may describe some aspects of RIM technology in generalized terms. RIM reserves the right to periodically change information
that is contained in this documentation; however, RIM makes no commitment to provide any such changes, updates,
enhancements, or other additions to this documentation to you in a timely manner or at all.
This documentation might contain references to third-party sources of information, hardware or software, products or services
including components and content such as content protected by copyright and/or third-party web sites (collectively the "Third
Party Products and Services"). RIM does not control, and is not responsible for, any Third Party Products and Services including,
without limitation the content, accuracy, copyright compliance, compatibility, performance, trustworthiness, legality, decency,
links, or any other aspect of Third Party Products and Services. The inclusion of a reference to Third Party Products and Services
in this documentation does not imply endorsement by RIM of the Third Party Products and Services or the third party in any
way.
EXCEPT TO THE EXTENT SPECIFICALLY PROHIBITED BY APPLICABLE LAW IN YOUR JURISDICTION, ALL CONDITIONS,
ENDORSEMENTS, GUARANTEES, REPRESENTATIONS, OR WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, ANY CONDITIONS, ENDORSEMENTS, GUARANTEES, REPRESENTATIONS OR WARRANTIES OF
DURABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE, MERCHANTABILITY, MERCHANTABLE QUALITY, NON-
INFRINGEMENT, SATISFACTORY QUALITY, OR TITLE, OR ARISING FROM A STATUTE OR CUSTOM OR A COURSE OF DEALING OR
USAGE OF TRADE, OR RELATED TO THE DOCUMENTATION OR ITS USE, OR PERFORMANCE OR NON-PERFORMANCE OF ANY
SOFTWARE, HARDWARE, SERVICE, OR ANY THIRD PARTY PRODUCTS AND SERVICES REFERENCED HEREIN, ARE HEREBY
EXCLUDED. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR PROVINCE. SOME JURISDICTIONS MAY NOT ALLOW
THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES AND CONDITIONS. TO THE EXTENT PERMITTED BY LAW, ANY
IMPLIED WARRANTIES OR CONDITIONS RELATING TO THE DOCUMENTATION TO THE EXTENT THEY CANNOT BE EXCLUDED AS
SET OUT ABOVE, BUT CAN BE LIMITED, ARE HEREBY LIMITED TO NINETY (90) DAYS FROM THE DATE YOU FIRST ACQUIRED THE
DOCUMENTATION OR THE ITEM THAT IS THE SUBJECT OF THE CLAIM.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION, IN NO EVENT SHALL RIM BE LIABLE FOR
ANY TYPE OF DAMAGES RELATED TO THIS DOCUMENTATION OR ITS USE, OR PERFORMANCE OR NON-PERFORMANCE OF ANY
SOFTWARE, HARDWARE, SERVICE, OR ANY THIRD PARTY PRODUCTS AND SERVICES REFERENCED HEREIN INCLUDING WITHOUT
LIMITATION ANY OF THE FOLLOWING DAMAGES: DIRECT, CONSEQUENTIAL, EXEMPLARY, INCIDENTAL, INDIRECT, SPECIAL,
PUNITIVE, OR AGGRAVATED DAMAGES, DAMAGES FOR LOSS OF PROFITS OR REVENUES, FAILURE TO REALIZE ANY EXPECTED
SAVINGS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, LOSS OF BUSINESS OPPORTUNITY, OR CORRUPTION OR
LOSS OF DATA, FAILURES TO TRANSMIT OR RECEIVE ANY DATA, PROBLEMS ASSOCIATED WITH ANY APPLICATIONS USED IN
CONJUNCTION WITH RIM PRODUCTS OR SERVICES, DOWNTIME COSTS, LOSS OF THE USE OF RIM PRODUCTS OR SERVICES OR
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
30
ANY PORTION THEREOF OR OF ANY AIRTIME SERVICES, COST OF SUBSTITUTE GOODS, COSTS OF COVER, FACILITIES OR
SERVICES, COST OF CAPITAL, OR OTHER SIMILAR PECUNIARY LOSSES, WHETHER OR NOT SUCH DAMAGES WERE FORESEEN OR
UNFORESEEN, AND EVEN IF RIM HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION, RIM SHALL HAVE NO OTHER OBLIGATION,
DUTY, OR LIABILITY WHATSOEVER IN CONTRACT, TORT, OR OTHERWISE TO YOU INCLUDING ANY LIABILITY FOR NEGLIGENCE
OR STRICT LIABILITY.
THE LIMITATIONS, EXCLUSIONS, AND DISCLAIMERS HEREIN SHALL APPLY: (A) IRRESPECTIVE OF THE NATURE OF THE CAUSE OF
ACTION, DEMAND, OR ACTION BY YOU INCLUDING BUT NOT LIMITED TO BREACH OF CONTRACT, NEGLIGENCE, TORT, STRICT
LIABILITY OR ANY OTHER LEGAL THEORY AND SHALL SURVIVE A FUNDAMENTAL BREACH OR BREACHES OR THE FAILURE OF
THE ESSENTIAL PURPOSE OF THIS AGREEMENT OR OF ANY REMEDY CONTAINED HEREIN; AND (B) TO RIM AND ITS AFFILIATED
COMPANIES, THEIR SUCCESSORS, ASSIGNS, AGENTS, SUPPLIERS (INCLUDING AIRTIME SERVICE PROVIDERS), AUTHORIZED RIM
DISTRIBUTORS (ALSO INCLUDING AIRTIME SERVICE PROVIDERS) AND THEIR RESPECTIVE DIRECTORS, EMPLOYEES, AND
INDEPENDENT CONTRACTORS.
IN ADDITION TO THE LIMITATIONS AND EXCLUSIONS SET OUT ABOVE, IN NO EVENT SHALL ANY DIRECTOR, EMPLOYEE, AGENT,
DISTRIBUTOR, SUPPLIER, INDEPENDENT CONTRACTOR OF RIM OR ANY AFFILIATES OF RIM HAVE ANY LIABILITY ARISING FROM
OR RELATED TO THE DOCUMENTATION.
Prior to subscribing for, installing, or using any Third Party Products and Services, it is your responsibility to ensure that your
airtime service provider has agreed to support all of their features. Some airtime service providers might not offer Internet
browsing functionality with a subscription to the BlackBerry® Internet Service. Check with your service provider for availability,
roaming arrangements, service plans and features. Installation or use of Third Party Products and Services with RIM's products
and services may require one or more patent, trademark, copyright, or other licenses in order to avoid infringement or
violation of third party rights. You are solely responsible for determining whether to use Third Party Products and Services and
if any third party licenses are required to do so. If required you are responsible for acquiring them. You should not install or use
Third Party Products and Services until all necessary licenses have been acquired. Any Third Party Products and Services that
are provided with RIM's products and services are provided as a convenience to you and are provided "AS IS" with no express
or implied conditions, endorsements, guarantees, representations, or warranties of any kind by RIM and RIM assumes no
liability whatsoever, in relation thereto. Your use of Third Party Products and Services shall be governed by and subject to you
agreeing to the terms of separate licenses and other agreements applicable thereto with third parties, except to the extent
expressly covered by a license or other agreement with RIM.
Certain features outlined in this documentation require a minimum version of BlackBerry® Enterprise Server, BlackBerry®
Desktop Software, and/or BlackBerry® Device Software.
The terms of use of any RIM product or service are set out in a separate license or other agreement with RIM applicable
thereto. NOTHING IN THIS DOCUMENTATION IS INTENDED TO SUPERSEDE ANY EXPRESS WRITTEN AGREEMENTS OR
WARRANTIES PROVIDED BY RIM FOR PORTIONS OF ANY RIM PRODUCT OR SERVICE OTHER THAN THIS DOCUMENTATION.
BlackBerry® PlayBook™ tablet model number: RDJ21WW
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
31
This is a Wi-Fi® enabled device subject to restrictions of use in some member states of the European Community.
Research In Motion Limited
295 Phillip Street
Waterloo, ON N2L 3W8
Canada
Research In Motion UK Limited
Centrum House
36 Station Road
Egham, Surrey TW20 9LF
United Kingdom
Published in Canada
RIM Confidential and Proprietary Information - Beta Customers Only. Content and software are subject to change.
32

Navigation menu
