Blocks wearables BLKS001 Smart Watch User Manual Blocks 0808 key
Blocks wearables Inc. Smart Watch Blocks 0808 key
Users Manual
1
User Manual
Blocks Proprietary and Confidential ©
FCC ID: 2AHBVBLKS001
S/N: 2121531119A1
M/N: BLKS001

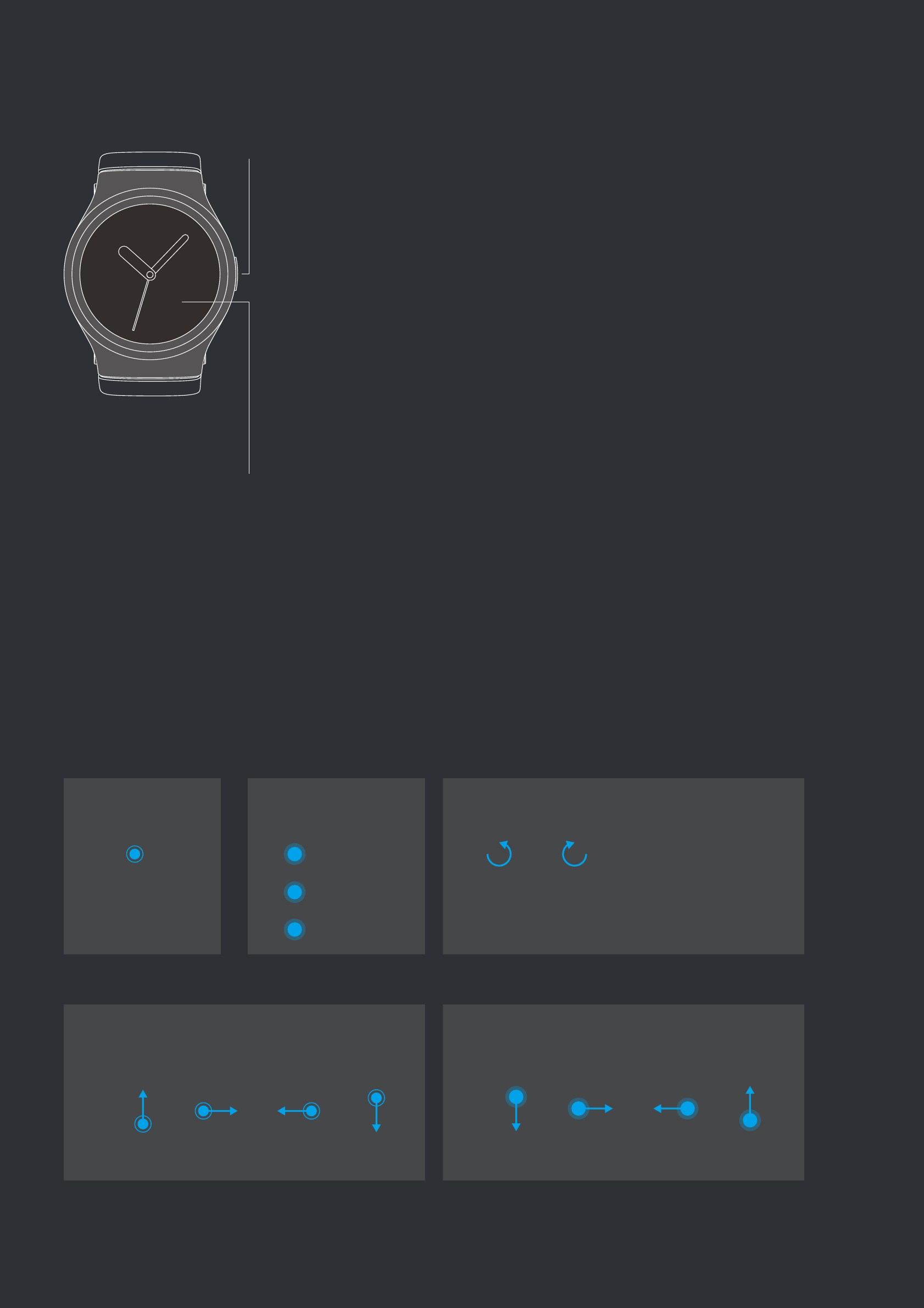

Swipe
Tap
Drag
Long Press Rotate
Swipe up Swipe right
> 1 sec
Rotate
clockwise
Rotate
counter clockwise
Swipe left Swipe down Drag down Drag right Drag left Drag up
> 1.5 sec
> 2 sec
Here are the gestures you need to use its apps. The BLOCKS display not only
responds to touch-based gestures, it also responds rotate gesture.
2
1.Get Start
Physical button
When the button is pressed
for less than one second, and
the watch is in the Active
state, the watch enters the
passive state (Ambient Mode).
When the watch is in the
passive state, the watch
enters the active state.
When user tap and hold
the button over 2 sec,
activate the settings
overview
Holding button for longer
than 10 sec to restart the
device.
Display
Long press to change the watch face
Blocks Proprietary and Confidential ©
Tap Tap and hold Tap and hold
You can customise the Blocks watch face for the functions you need.
3

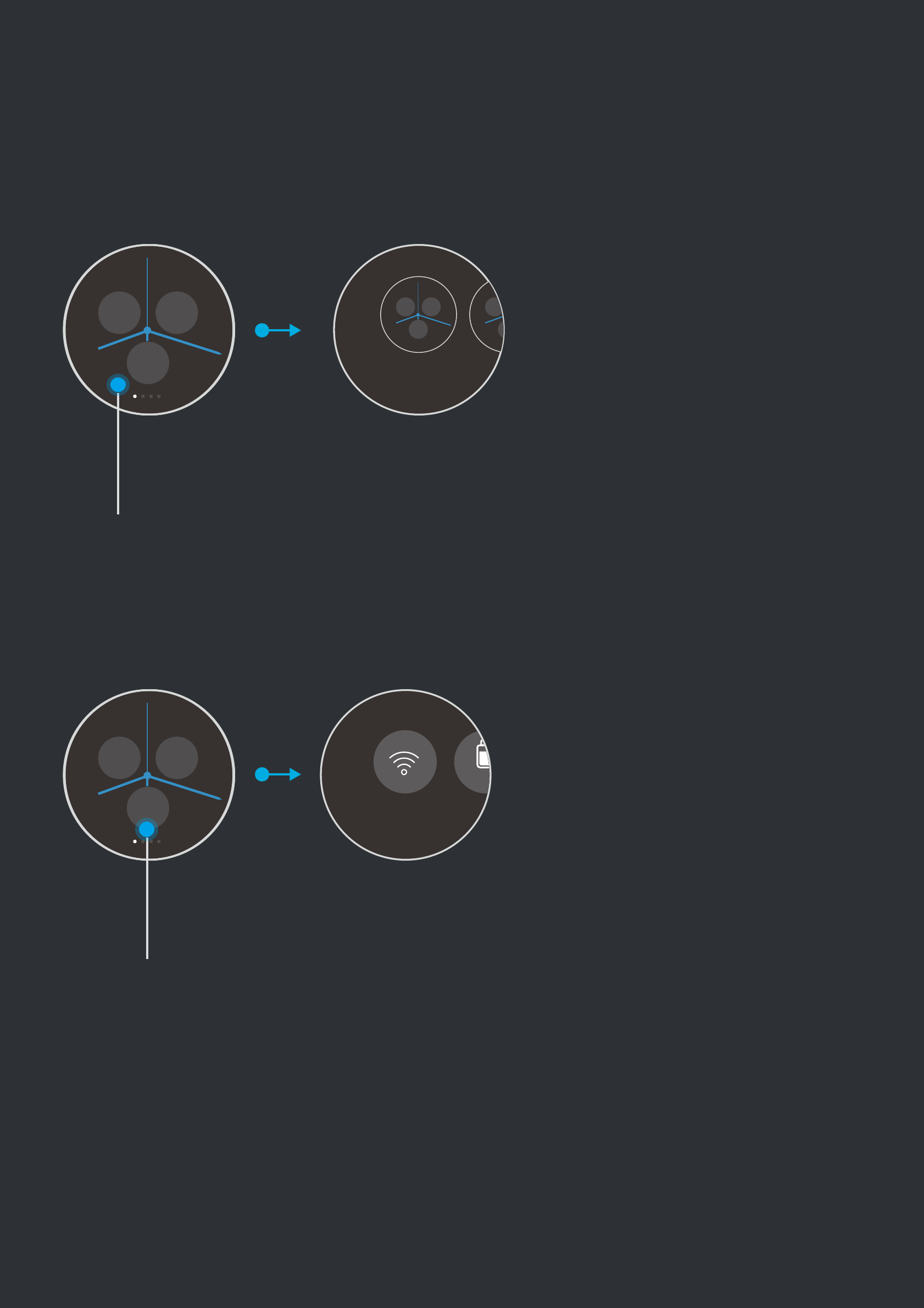

2.Watch faces
Change the watch face
Blocks Proprietary and Confidential ©
long press the display, then swipe to see the
faces. Tap to select.
Customize containers
long press the container, then swipe to browse.
Tap to select.
watchface 1
watchface 1
75%
Long press physical button to call out settings. You can glance the watch status, set
up the wireless/network, personalised and OTA update.
4

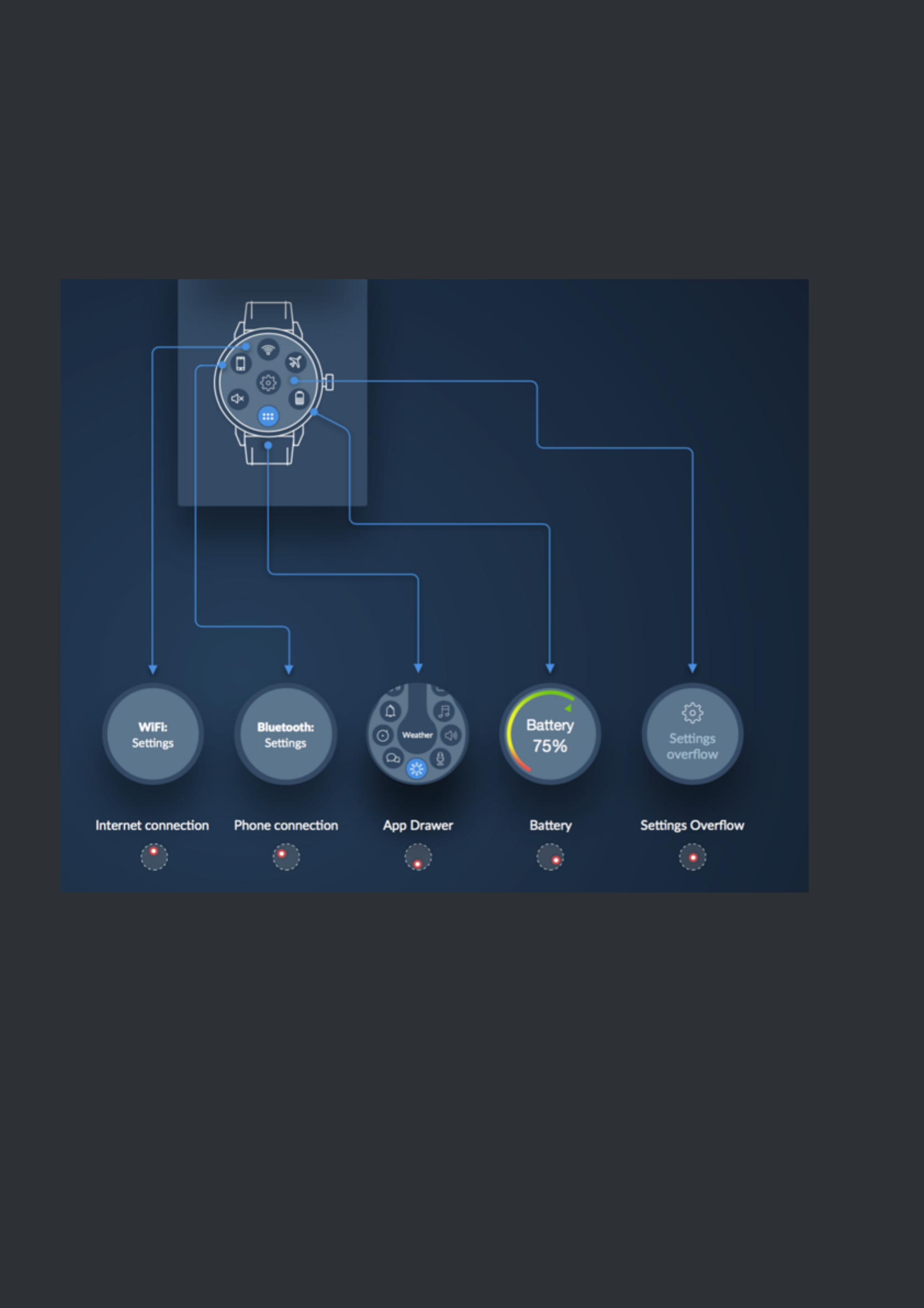

3.Settings
You can see the battery, wifi and bluetooth status, also quick access power, do not
disturb and BLOCKS module app.
Settings overview
Blocks Proprietary and Confidential ©
5Blocks Proprietary and Confidential ©
Tap the gear icon to setting pages, swipe to 3 main categories. In each category,
scrolling for details.
Settings page
1. watchface picker
2. wifi
3. wifi setting
4. bluetooth
5. always on display
6. display brightness
7. notification vibrations
8. notification blacklist
9. notification options
10. battery
11. time and date
12. change language
13. input and keyboard
14. system update
15. factory reset
16. restart
17. power off
18. about
6
Blocks Proprietary and Confidential ©

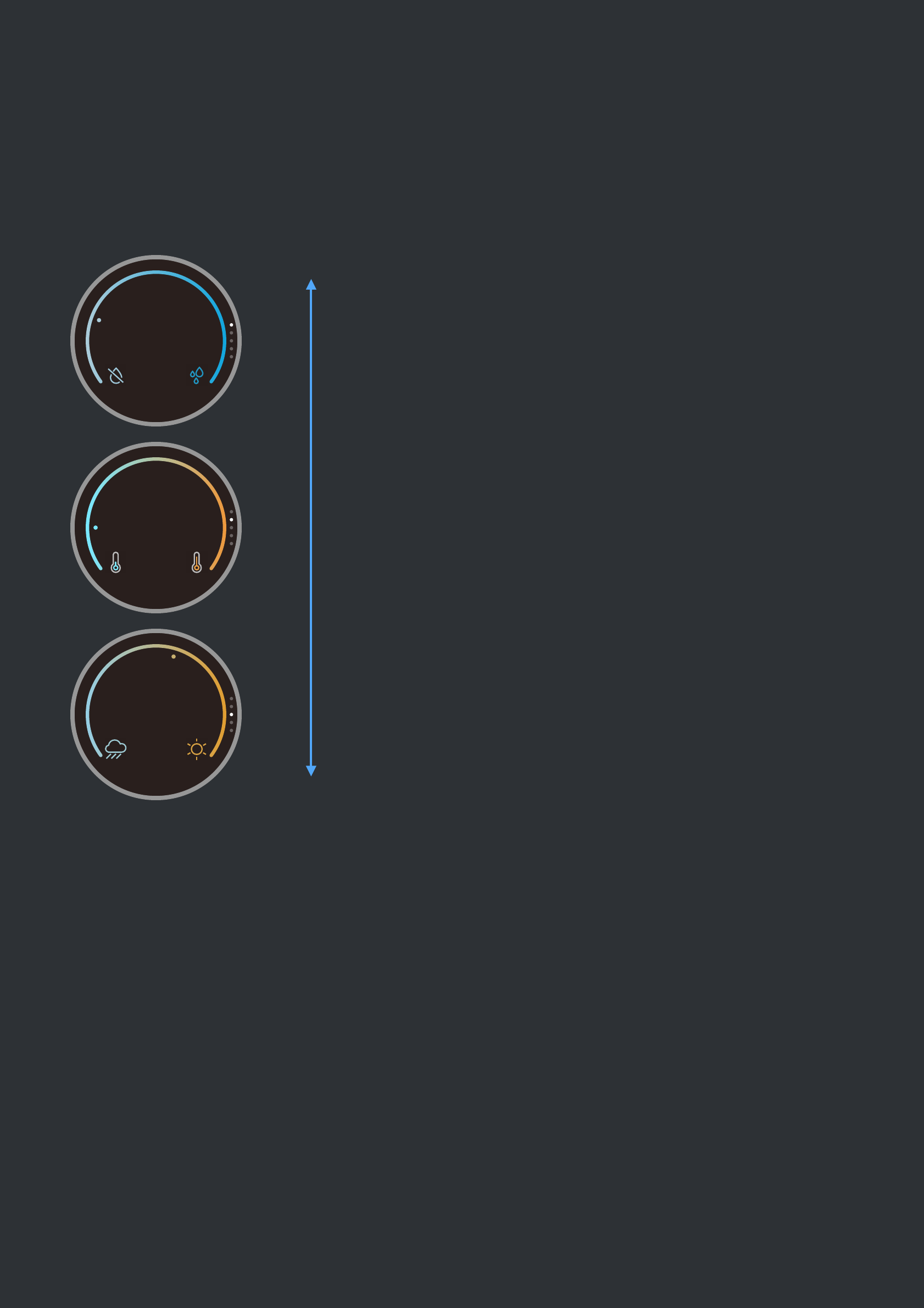

A list of Full Screen Containers are displayed in a circular list that can be moved
through by using the rotate gesture. The ordering and number of Full Screen
Containers available on the screen at once will be finalized upon user testing.
4.App Drawer
7
Blocks Proprietary and Confidential ©

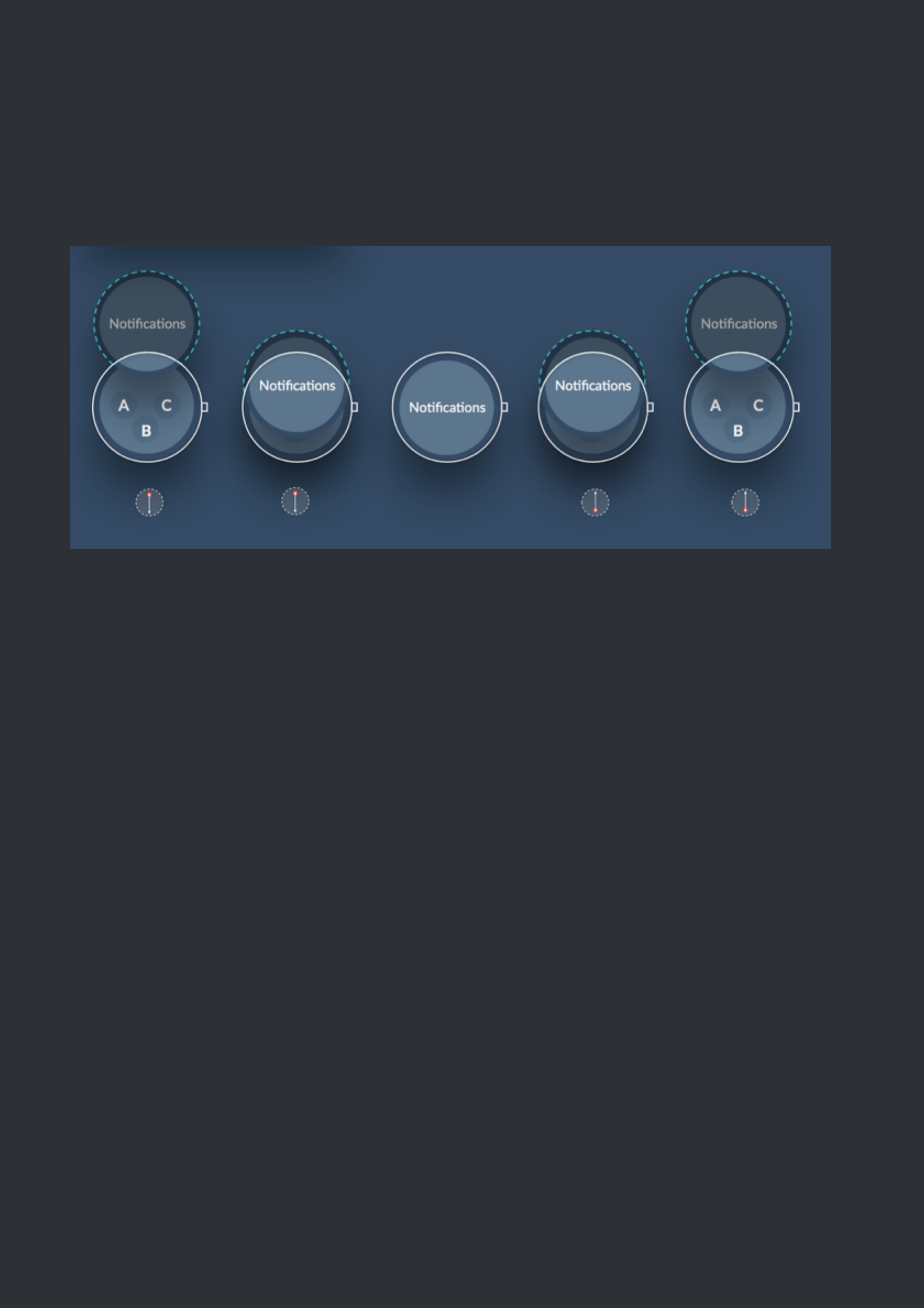

The list of all active notifications are available via an edge swipe from the top in any
watch face or full screen application.
5. Notification
Open BLOCKS module app in app drawer, swipe to see the module information.
8
6.Module app
Blocks Proprietary and Confidential ©
Ba#ery
Programmable
Bu-on
Heart Rate
Flashlight
Adventure
GPS
2 Module
Connected
Show the number of module be
connected.
Module overview

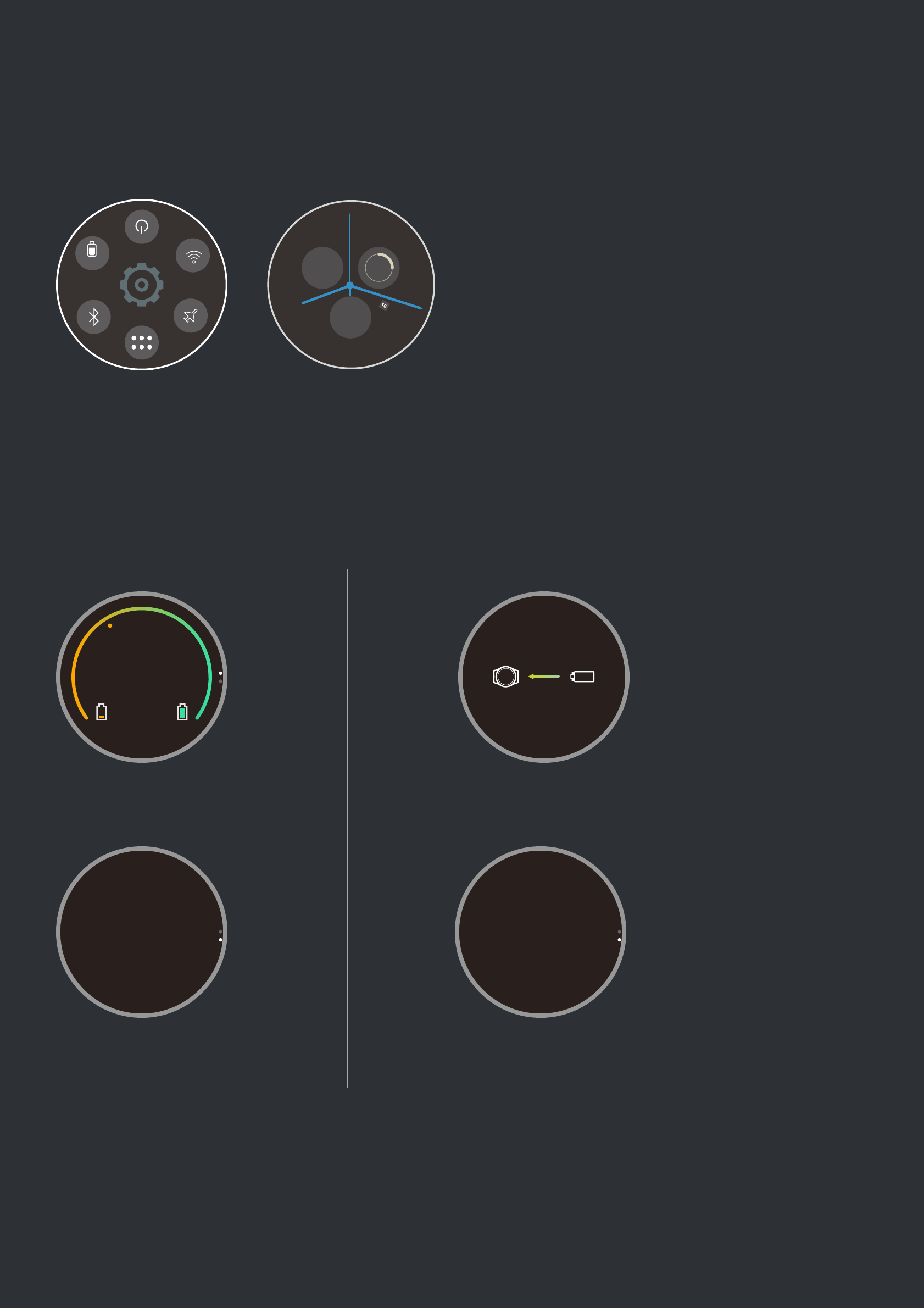

Check remaining power 1. Go to settings and check the battery power. 2. You can
add battery indicator to watch face.
9

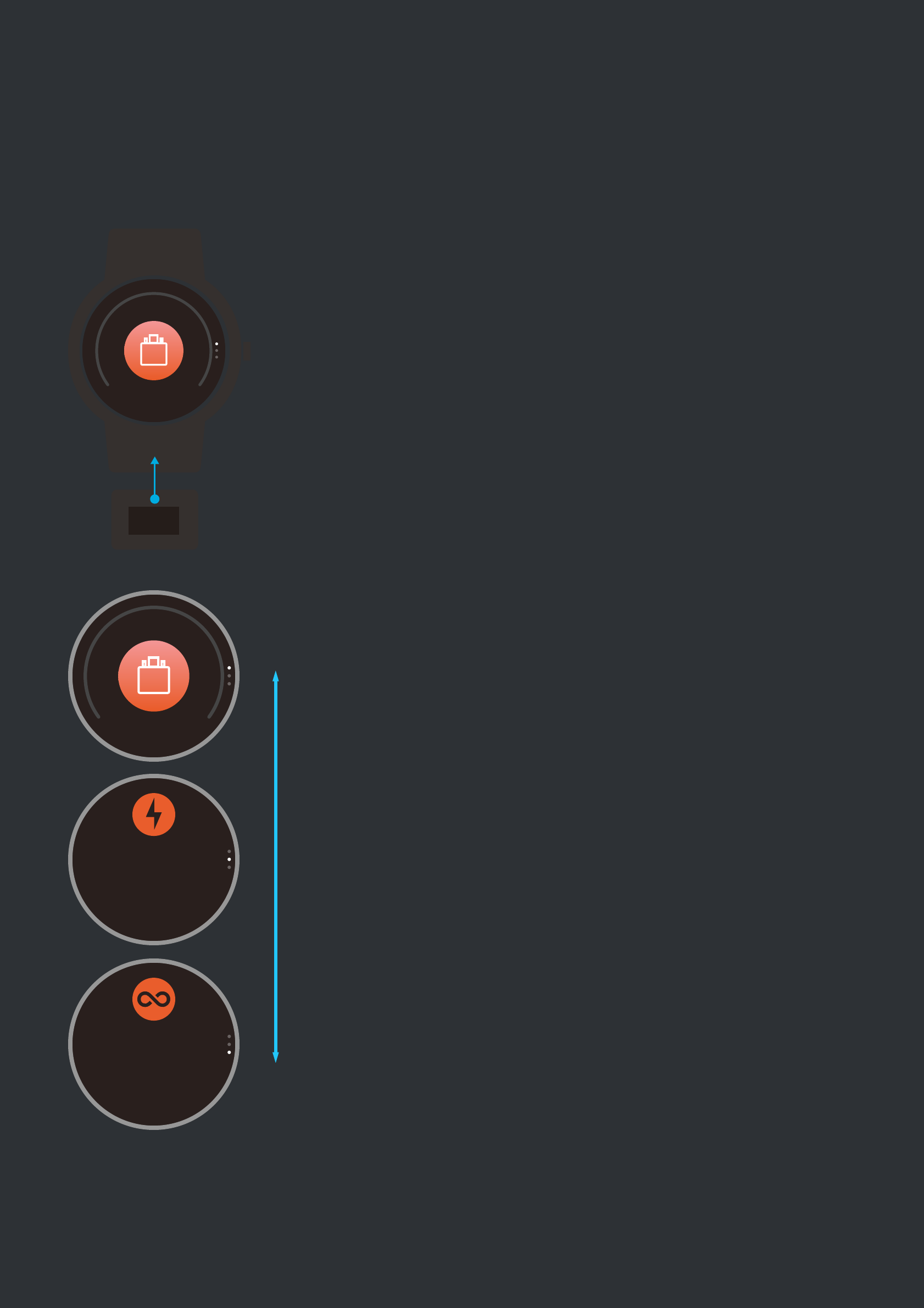

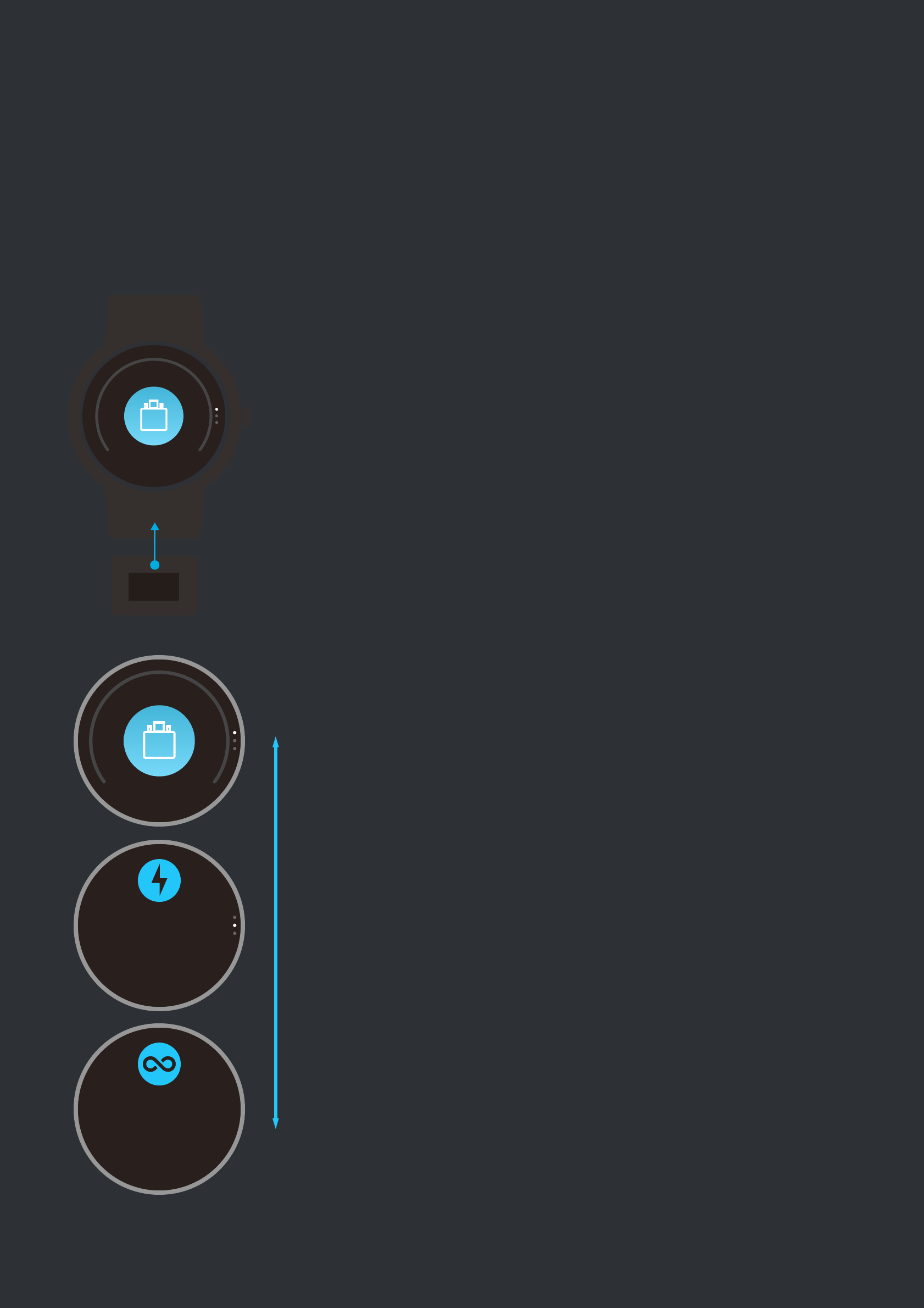

7.Battery
25%
Tap battery icon to check the battery status, when battery module connected, then
display core battery + module battery.
Core watch battery
Blocks Proprietary and Confidential ©
75%
Ba#ery
100%
CPU Usage
on ba,ery
100%
100%100%
Core Ba)ery
30 min to full
Connect to extra battery
Show the battery status Show core and extra
battery status
Swipe up to show the
percentage of CPU
usage on battery
CPU Usage
on ba,ery
100%
Swipe up to show the
percentage of CPU
usage on battery
10

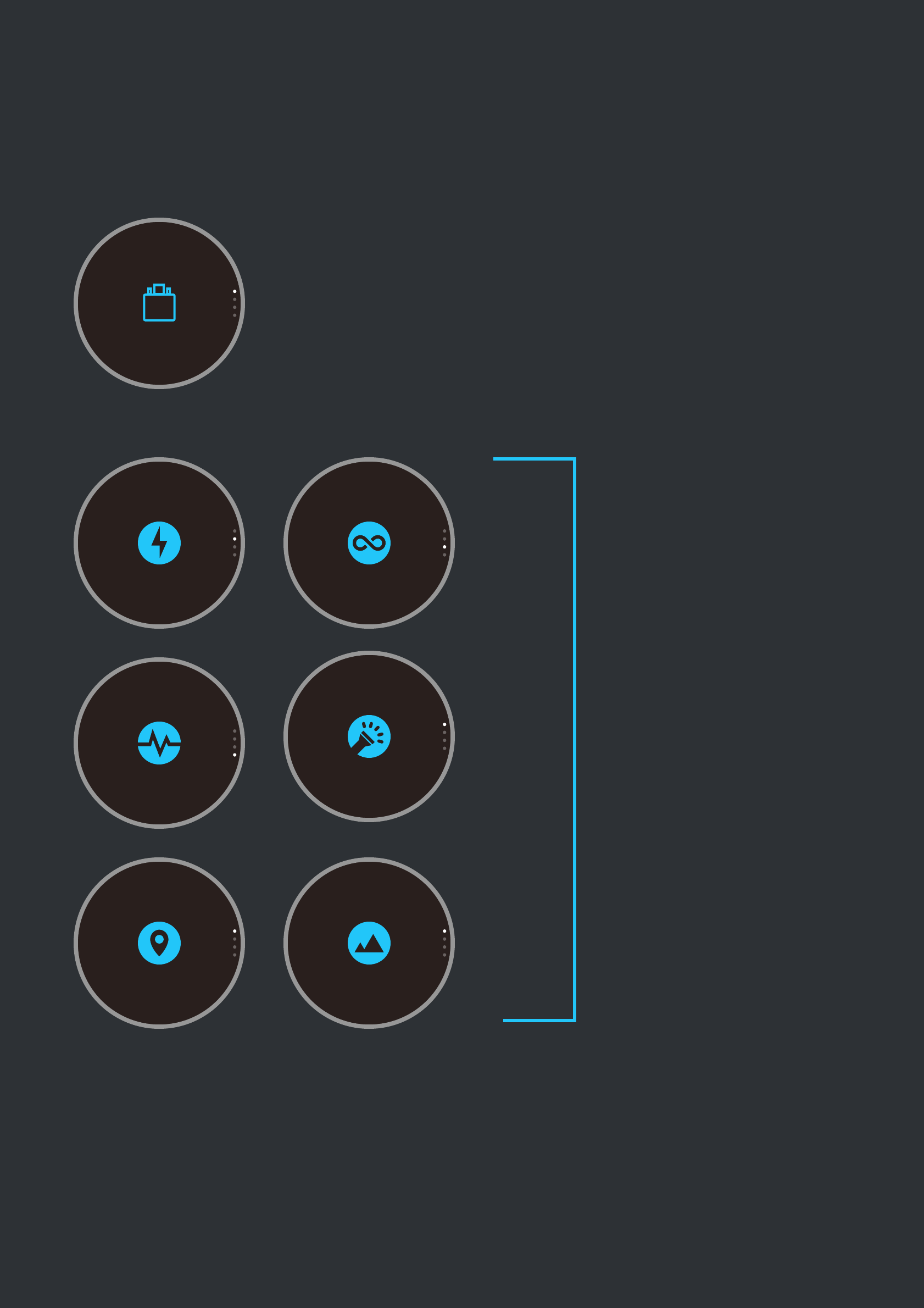

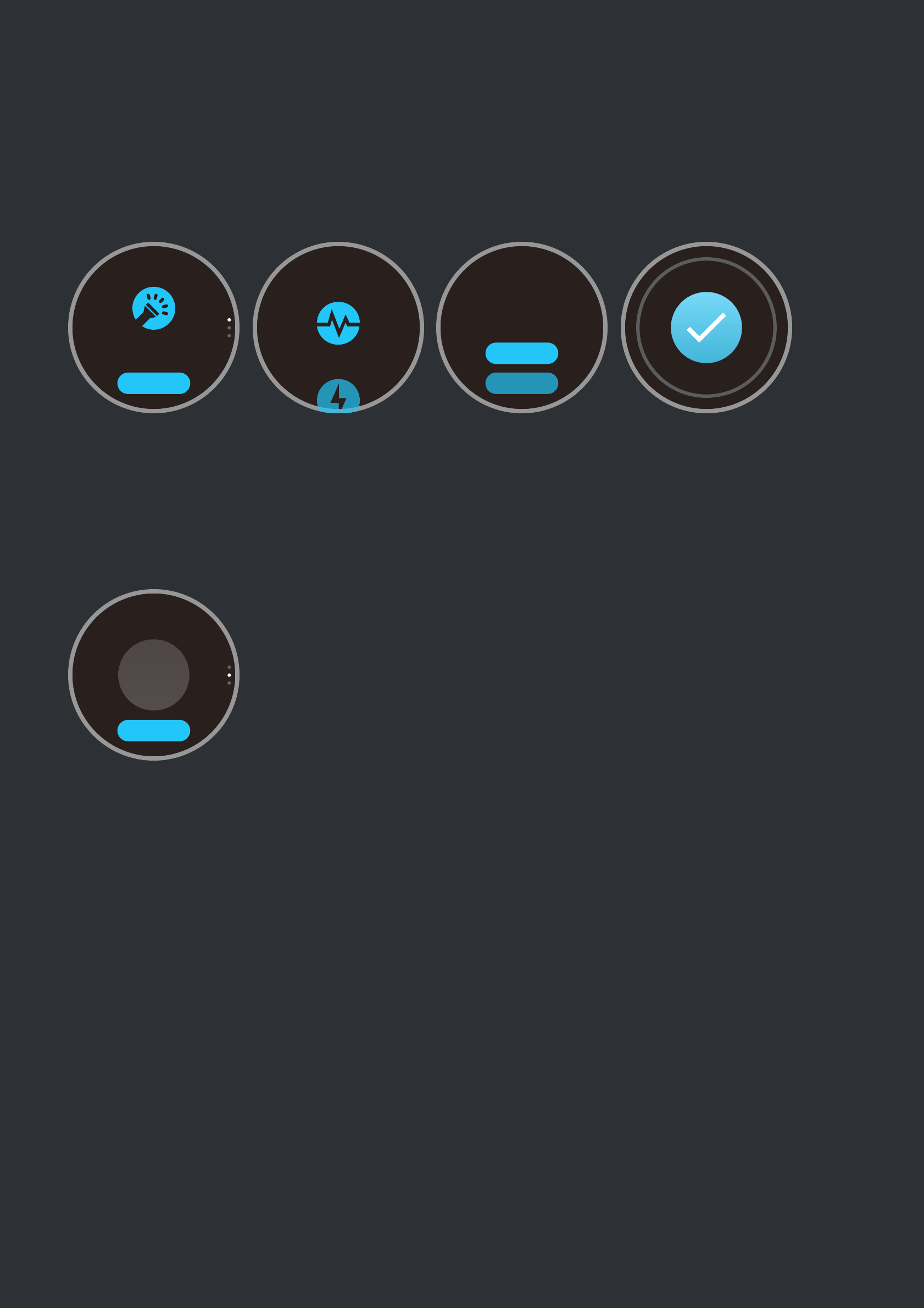

8.Connect and disconnect module
Module is the core of BLOCKS. For now we have adventure, GPS, Programmable
button, Heart rate, Flashlight and battery module.
First time to connect the module, will show you the relative app lists, the you can
find those app in app drawer with a module icon. You can go to control centre open
the module app to check the status. Finally open companion app to add the app
container to your watch face.
GPS
GPS
Connected
Pop up notification when
connect
When display the pop up window then scroll up to see further
informations.
Blocks Proprietary and Confidential ©
2 Module
Connect
2 Module
Connect
Ba#ery
descrip,on descrip,on
descrip,on
descrip,ondescrip,on
descrip,on
Programmable Bu-on
descrip4on descrip4on
descrip4on
descrip4ondescrip4on
descrip4on
11Blocks Proprietary and Confidential ©
Module disconnect will show the pop up window, then display the relative app will
be disabled.
GPS
GPS
Connected
Pop up notification when
disconnect
When display the pop up window then scroll up to see further
informations.
2 Module
Connect
Module disconnection
2 Module
disconnect
2 Module
disconnect
Ba#ery
descrip,on descrip,on
descrip,on
descrip,ondescrip,on
descrip,on
Programmable Bu-on
descrip4on descrip4on
descrip4on
descrip4ondescrip4on
descrip4on
12

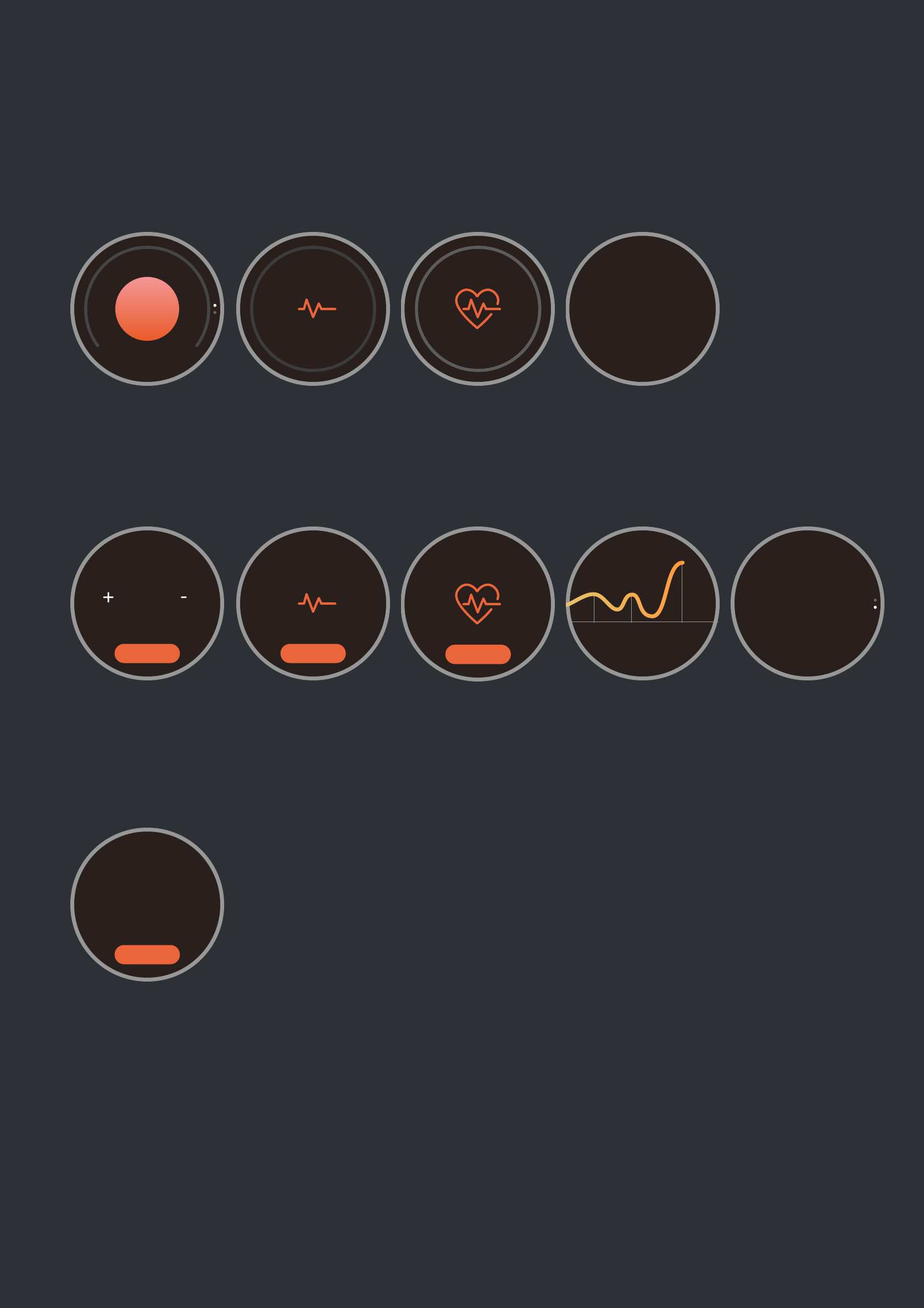

9.Heart rate
Wearing Heart rate module on your wrist. keep comfortable and steady, waiting
around a minute.
Blocks Proprietary and Confidential ©
Heart Rate
START
20
bpm
Couldn’t get it
check your watch
placement, keep
your arm still.
RETRY
Heart Rate
START
20
Frequency
STOP
STOP
80bpm
Average
Heart Rate
80bpm
79bpm
76bpm
70bpm
10:30 am
11:00 am
11:30 am
12:00 am
Tap to start check the heart rate. Will show the result in 10 sec.
If cannot detect the heart rate, you might need to check
your watch placement and keep arm still.
Set the frequency to start, and stop to show the history data.
13

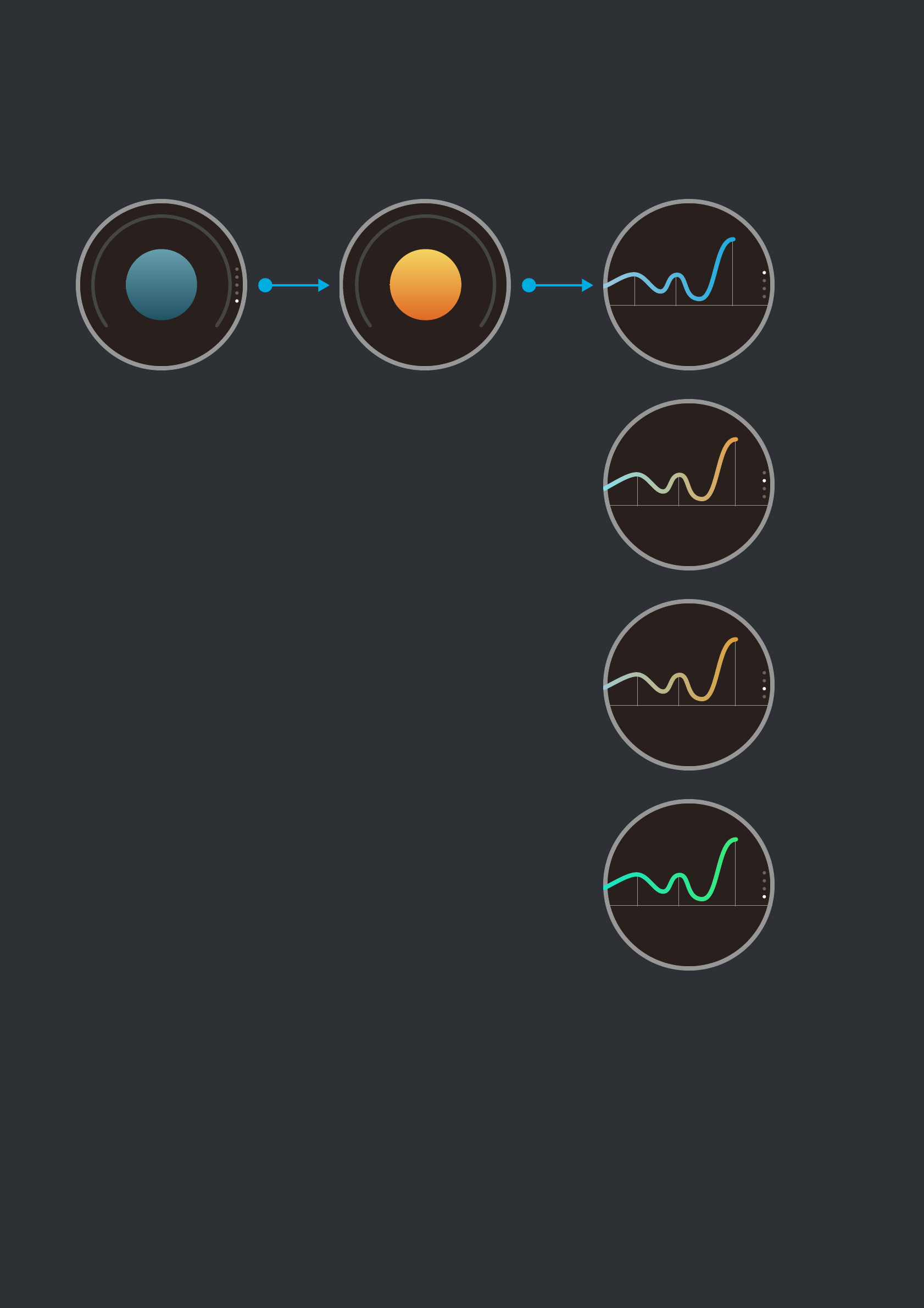

10.Adventure
Adventure module can detect the humidity, pressure, Altitude, external temperature
and compass. The result to remind people to have a water if it too dry, or if the
pressure quite low, means it will raining soon.
Scroll up/ down to see the informations
Blocks Proprietary and Confidential ©
20
%rH
Humidity
10°C
Temperature
20
inHg
Barometric
14Blocks Proprietary and Confidential ©
Adventure
START
Tap to start tracking, tap again to stop then show the history
Adventure
00:04
STOP
Humidity
20%rH
Average
Temperature
10 °C
Average
Barometric
Average
20inHg
Al#tude
Average
330,
15

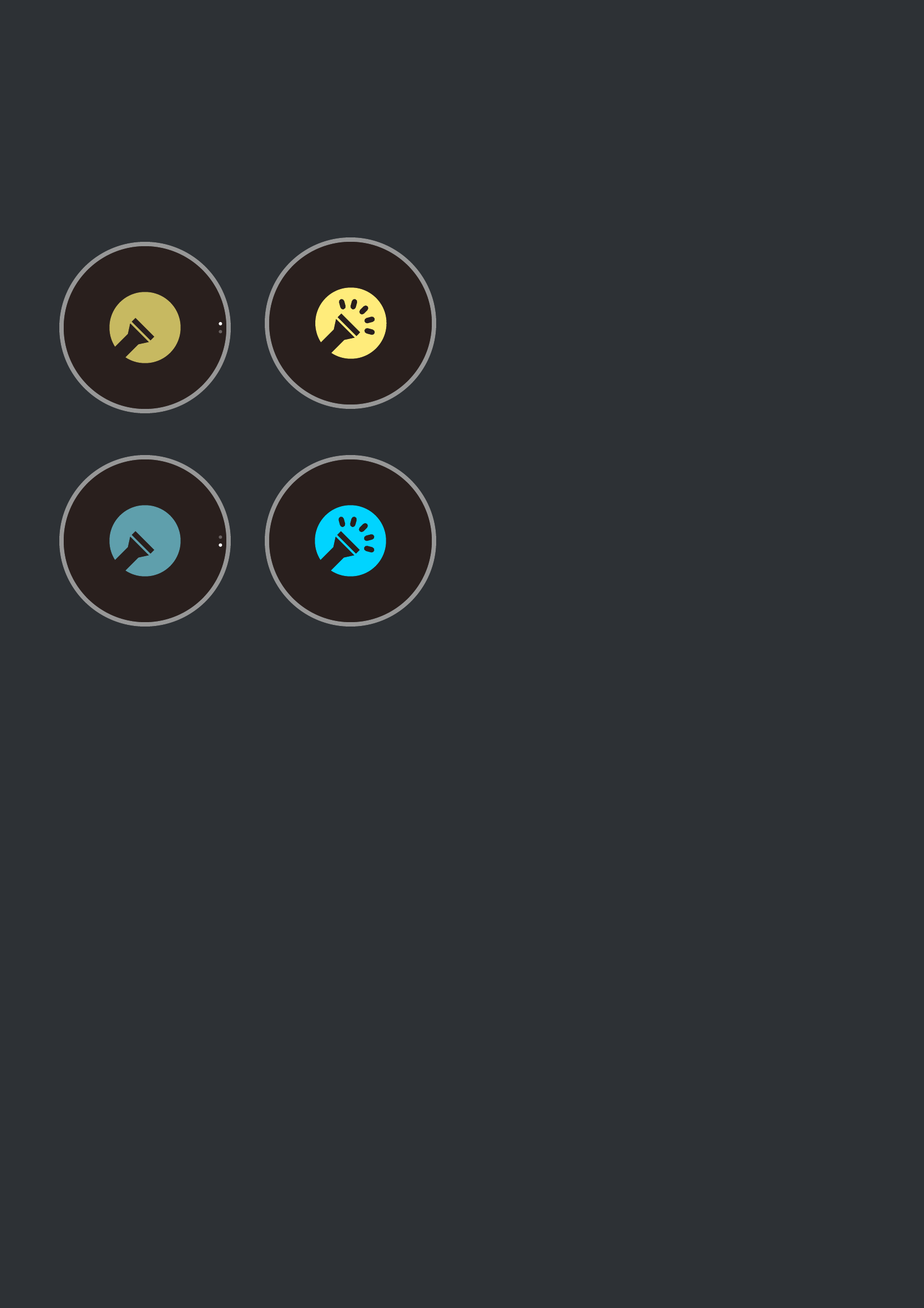

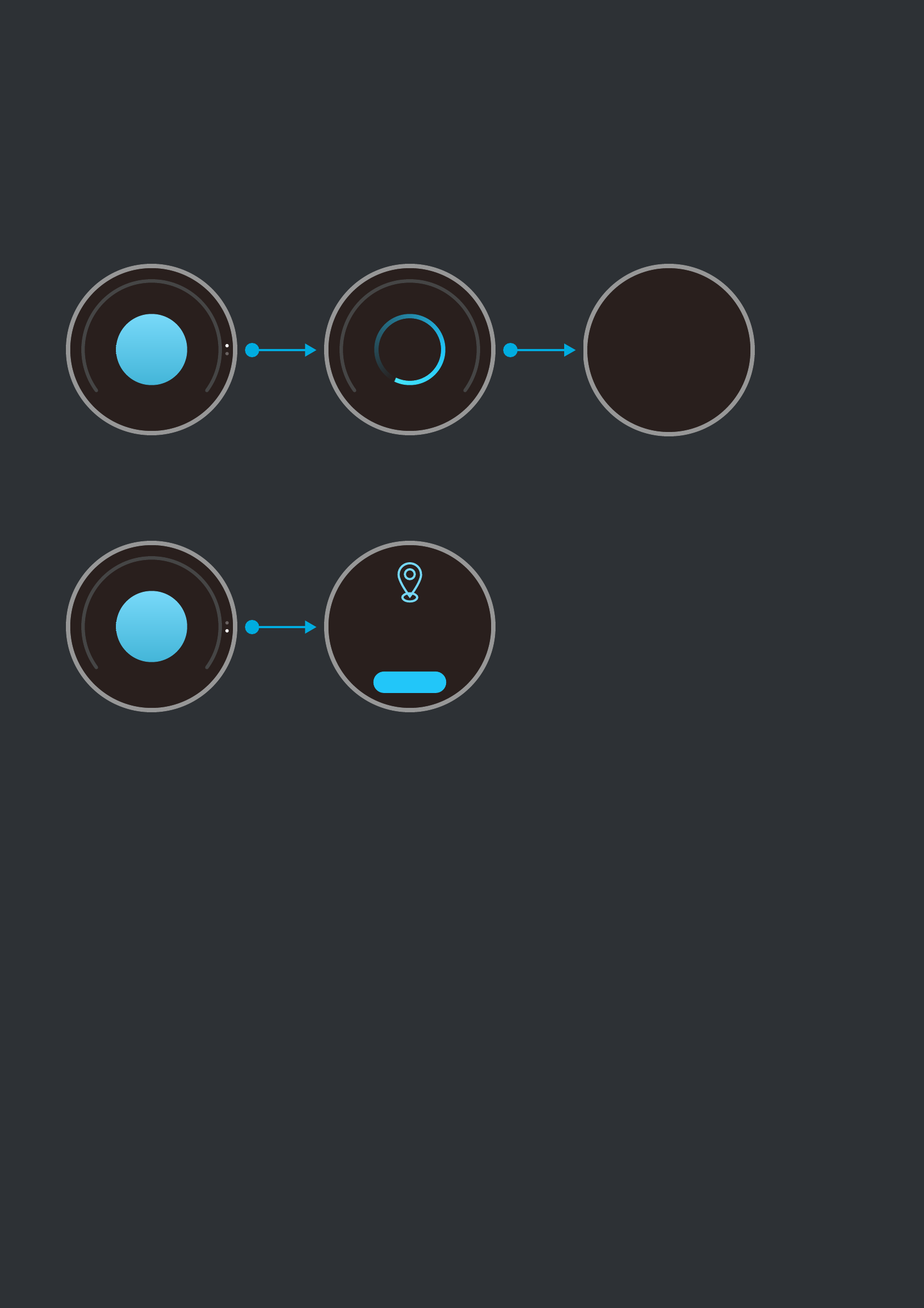

11.Flashlight
After connect to flashlight sensor, user can open the app to turn on/ off. or scroll up
to start strobe.
Blocks Proprietary and Confidential ©
Flashlight
OFF
Strobe for 5s
Flashlight
ON
Strobe for 5s
16
12.GPS
Have GPS module can show your location and distance without phone.
Blocks Proprietary and Confidential ©
GPS
START
GPS
STOP
100 km
20 km/h
Distance
Speed
Coordinates
25.0397033,121.4398929
25.0397033,121.4398929
25.0397033,121.4398929
SHOW
Current GPS
25.0397033,121.4398929
RETRY
Start tracking the distance. Tap to start, tap again to stop, then show the results.
Or scroll up to show the current GPS location.
17

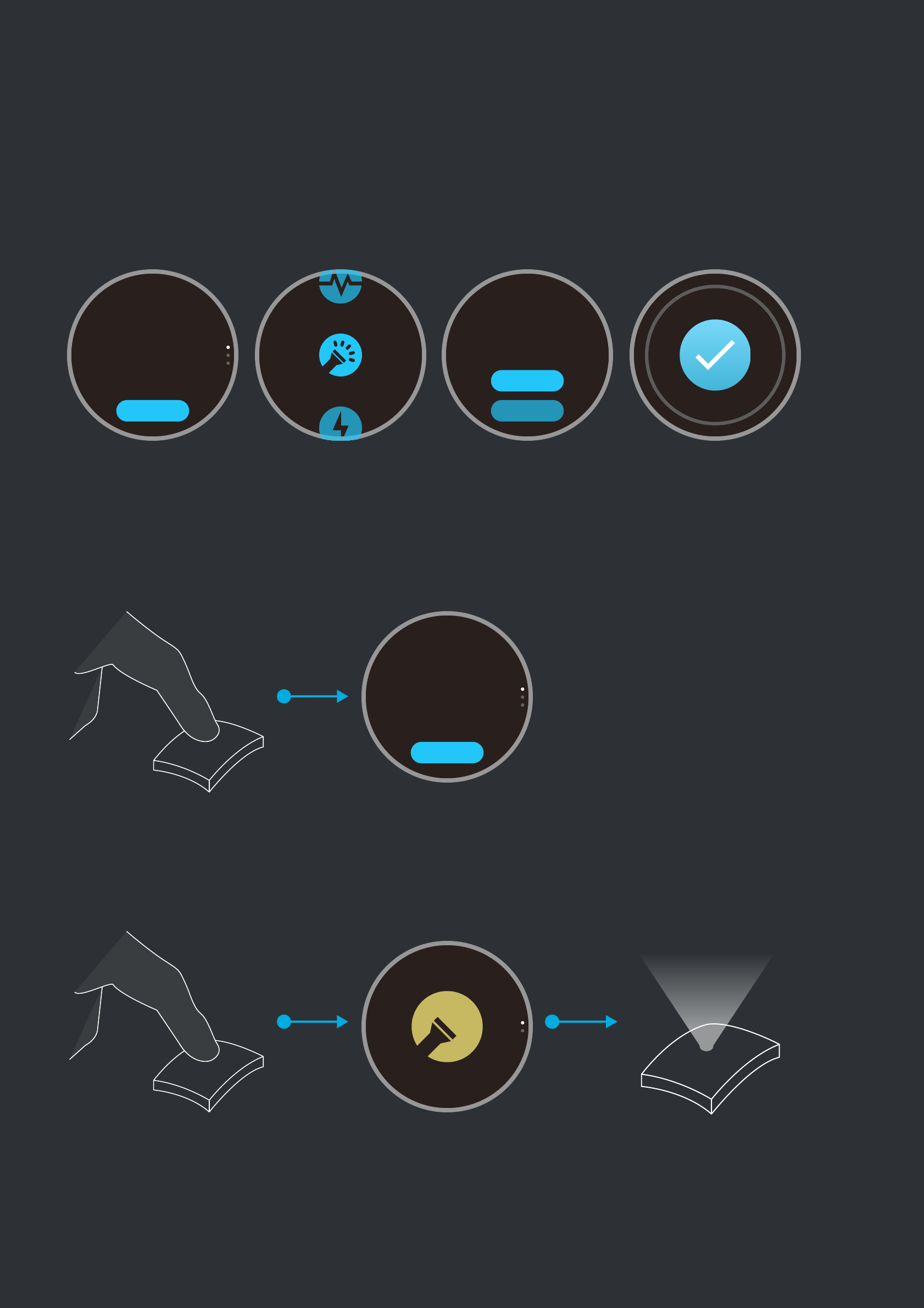

13. Programmable button
Programmable button for you free to decide what action you like for this button.
Could be a shortcut to launch an app.
For first time use. On watch offer to set the button as a shortcut to launch a watch
app. for advance setting please open the companion app.
Or Tap the module will have a pop up window, you can also set up via taping the
window.
After set up, tap the module to test the function (toggle flashlight as a example)
Blocks Proprietary and Confidential ©
Tap
This button is
empty, try add
someting
ADD
Tap
Set up launch
Flashlight APP
CANCEL
CONFIRM
Tap
This button is
empty, try add
someting
ADD
Flashlight
OFF
18Blocks Proprietary and Confidential ©
Reset the button
Tap
RESET
Tap
Set up launch
APP
CANCEL
CONFIRM
Open Programmable button to see the current function, and tap reset to start the
reset process.
1
RESET
Tap test
Scroll up for the tap test.
19Blocks Proprietary and Confidential ©

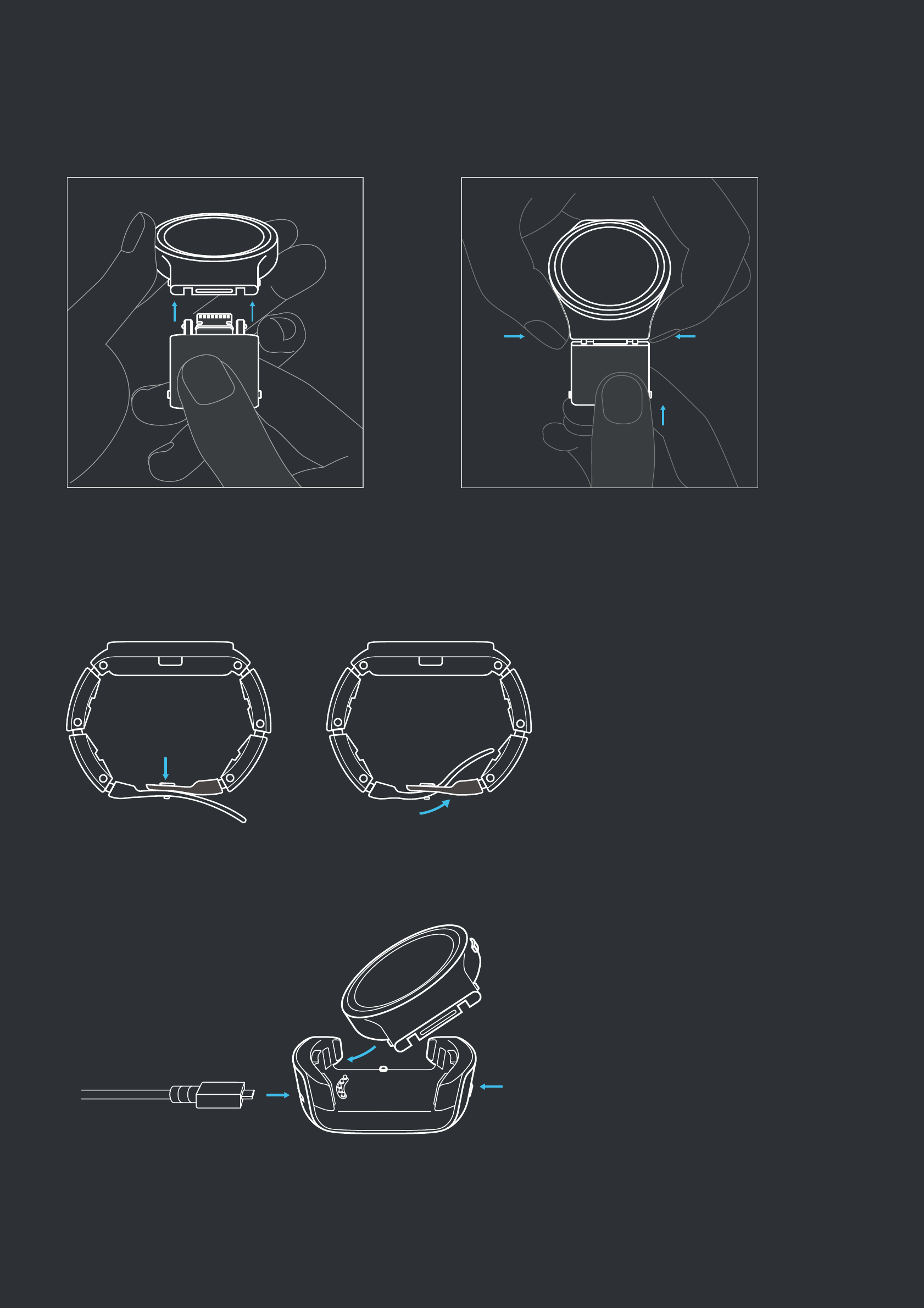

Connect module
14. Connect / disconnect module, adjust Clasp and How to charge
1 1
2
Disconnect module
12
Clasp and Fit
How to charge
1
2
3
1. slide in the core
2. Press the button and push
core into the charging dock
3. Plugin the usb cable
20Blocks Proprietary and Confidential ©
