Blocks wearables BLKS002 Modular Smartwatch User Manual Blocks 1011 key

Blocks wearables Inc. Modular Smartwatch Blocks 1011 key

User Manual

1
User Manual
Blocks Proprietary and Confidential ©
FCC ID: 2AHBVBLKS001
S/N: 2121531119A1
M/N: BLKS001
FCC ID: 2AHBVBLKS002
M/N: BLKS002
Swipe
Tap
Drag
Long Press Rotate
Swipe up Swipe right
> 1 sec
Rotate
clockwise
Rotate
counter clockwise
Swipe left Swipe down Drag down Drag right Drag left Drag up
> 1.5 sec
> 2 sec
Gestures
2
1. Get Start
Blocks Proprietary and Confidential ©
Physical Button
To turn on your BLOCKS watch for the first
time, hold the home button for 1 second.
You will be greeted by the start up screen
shortly, follow the tutorial on the home
screen to complete the setup of your
device.
You can customise the Blocks watch face for the functions you need.
3
2. Watch faces

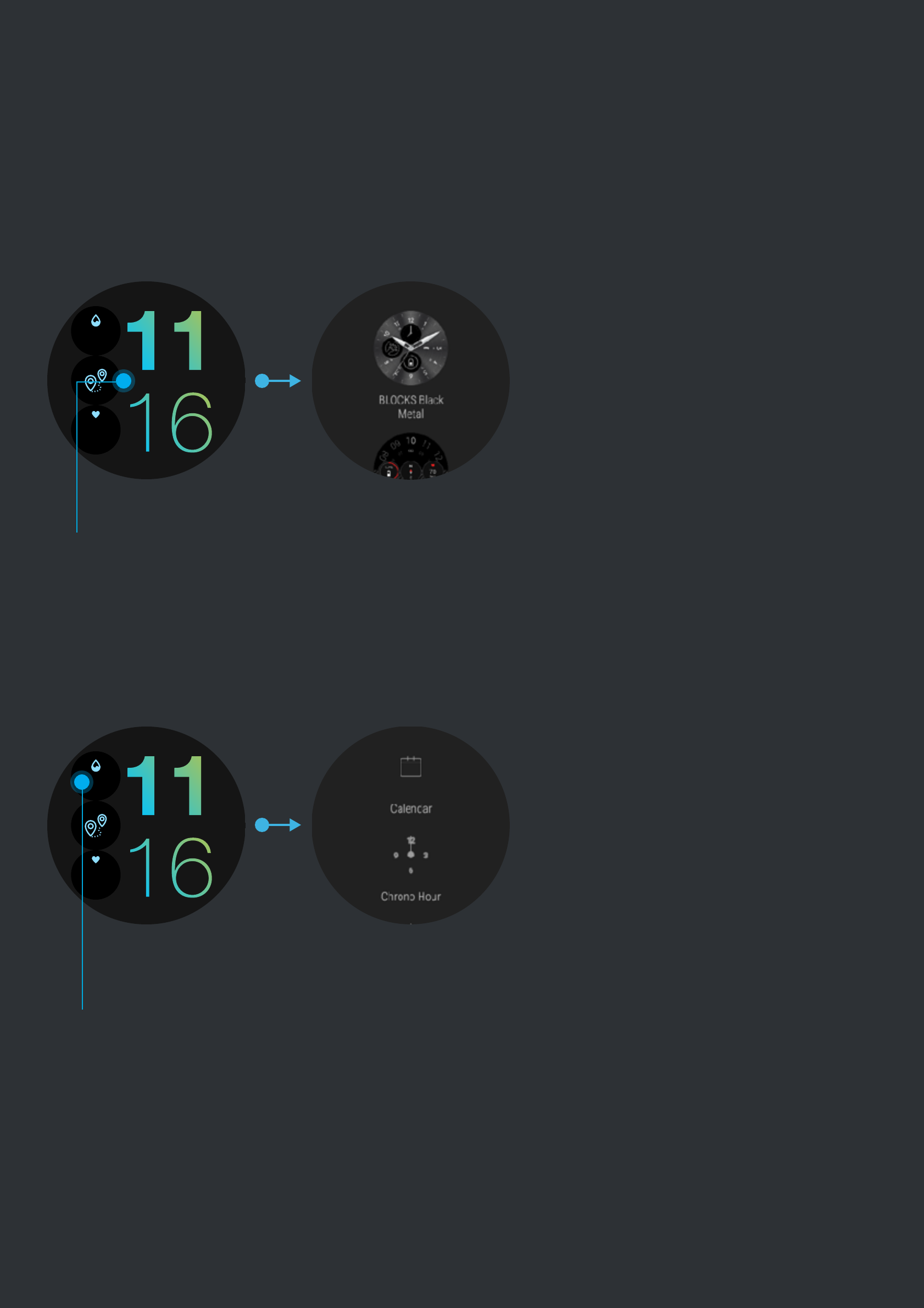

Change the watch face
Blocks Proprietary and Confidential ©
Long press and swipe to browse the watch faces.
Customize containers
Long press a container, then swipe to browse. Tap to
select.
28%
70
bpm
Blocks carbon
28%
70
bpm
4
Blocks Proprietary and Confidential ©

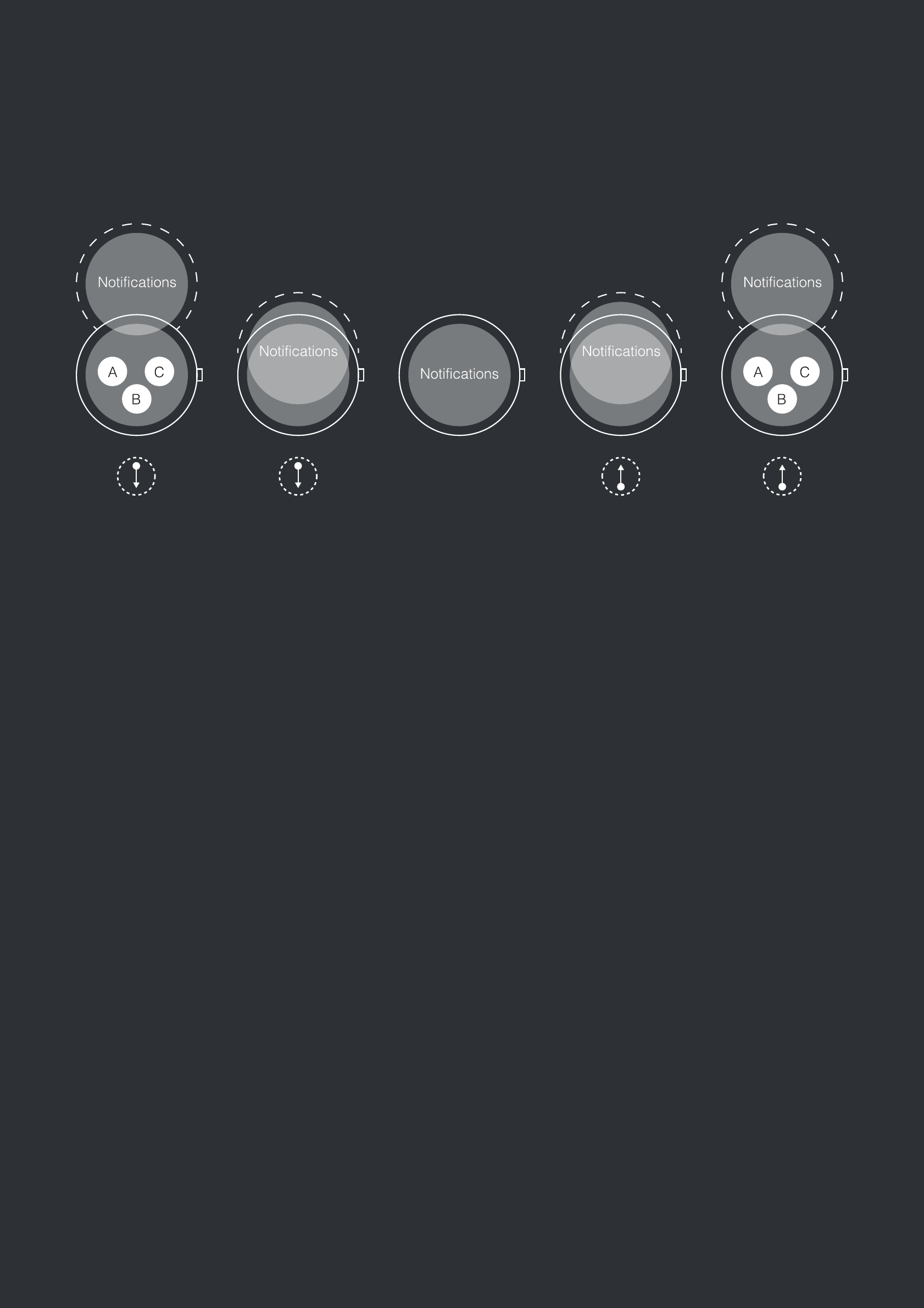

Swipe down to view unread notifications
3. Notification

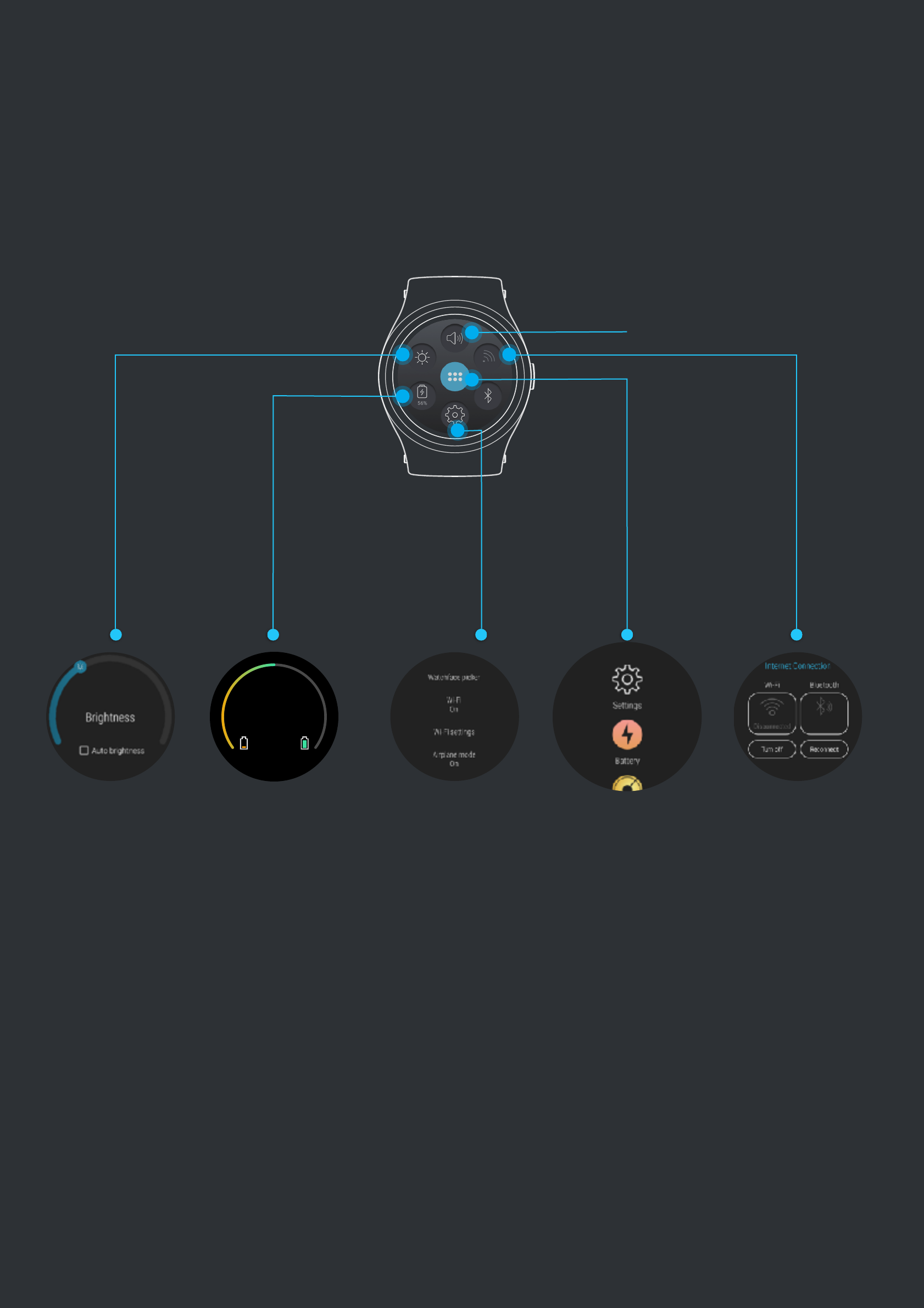

Swipe up for quick settings: Adjust brightness, mute/unmute,
Bluetooth, Wifi control and Battery status
5
4. Quick settings
Blocks Proprietary and Confidential ©
Battery
50%
WiFi and Bluetooth
Mute/unmute
Battery SettingsBrightness App Drawer
6
Blocks Proprietary and Confidential ©

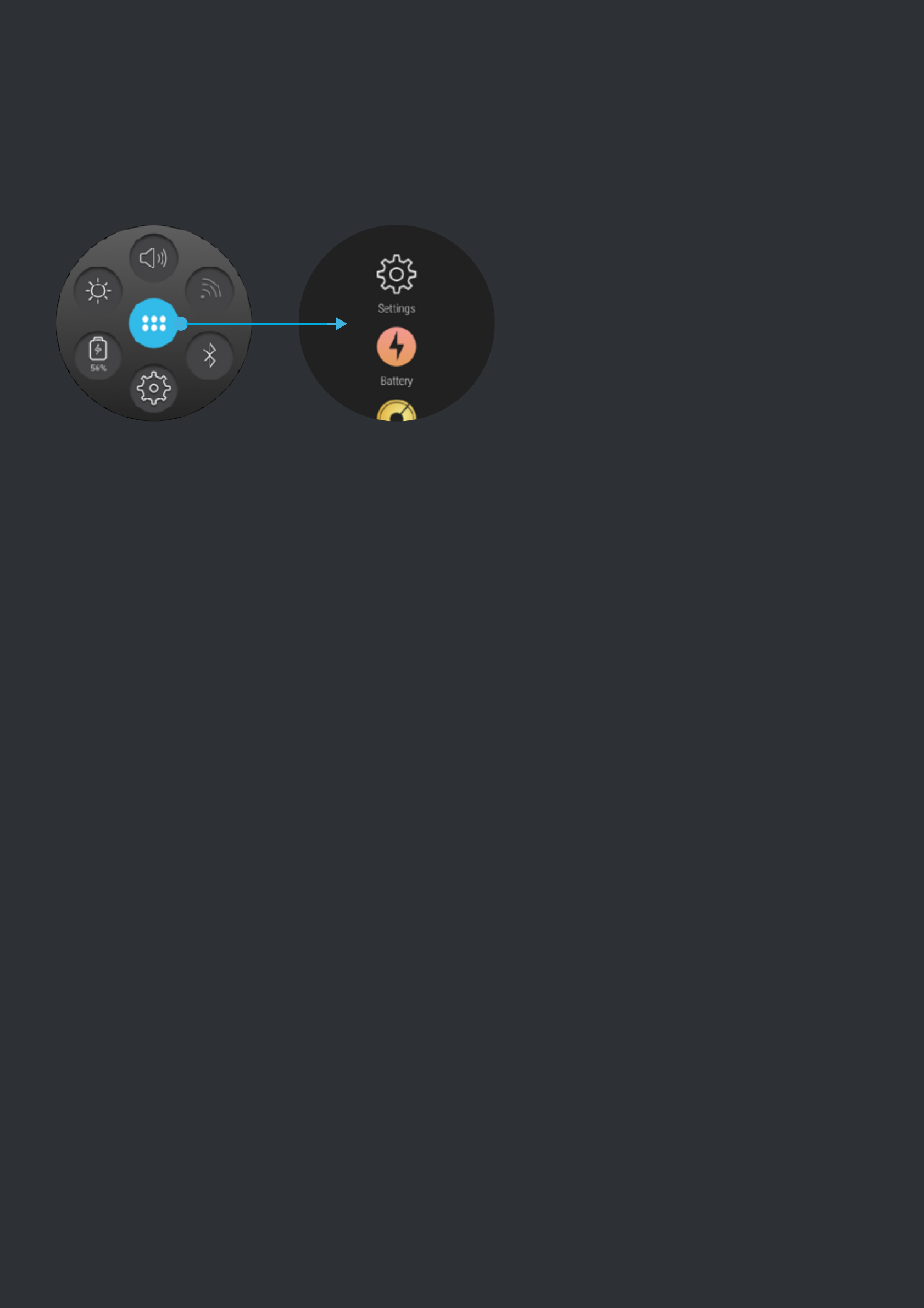

Swipe up to the settings glance, then tap the App drawer button.
5. App Drawer
7
6. Settings

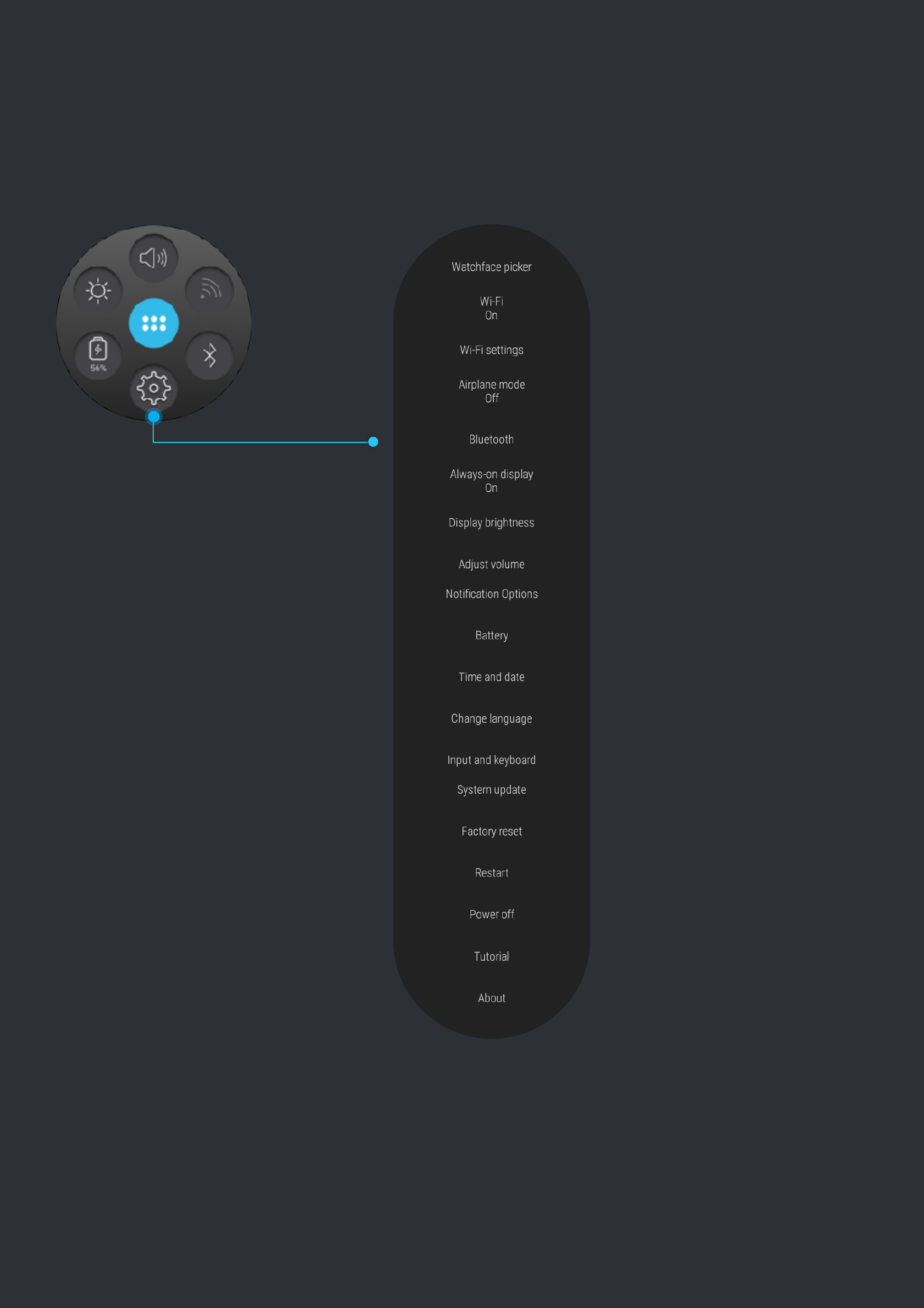

Swipe up to the settings glance, tap gear icon to settings
8

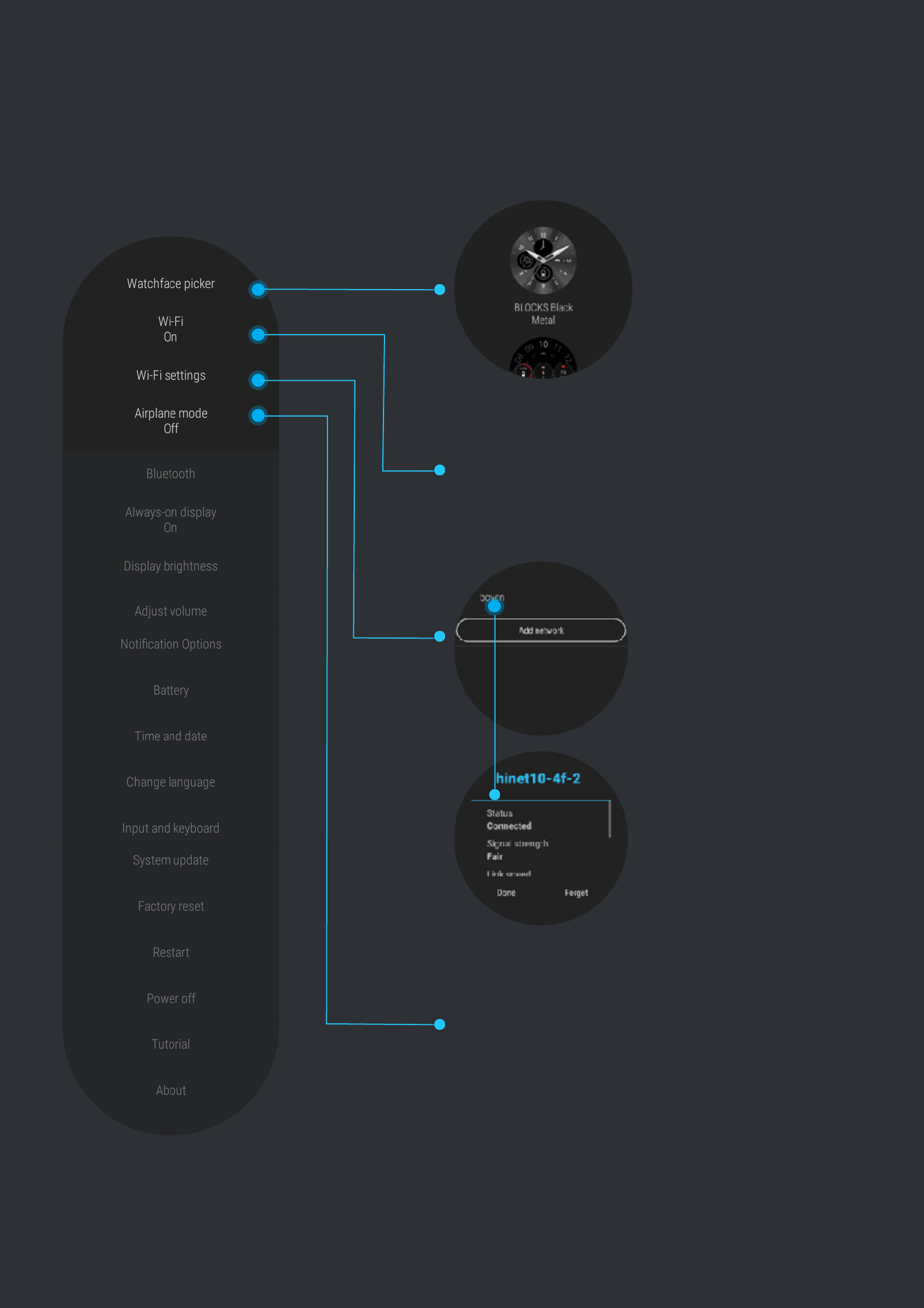

6.1 Settings Watchface picker / Wi-Fi / Wi-Fi settings / Airplane mode
Watchface picker
Toggle: Wi-Fi on/off
Network list
Toggle: Airplane mode on/off
WiFi status
Blocks Proprietary and Confidential ©
9
Reconnect the device
Turn on/off Bluetooth
Set up the Bluetooth
internet tethering
Keep tethering active
on/off
Start pairing

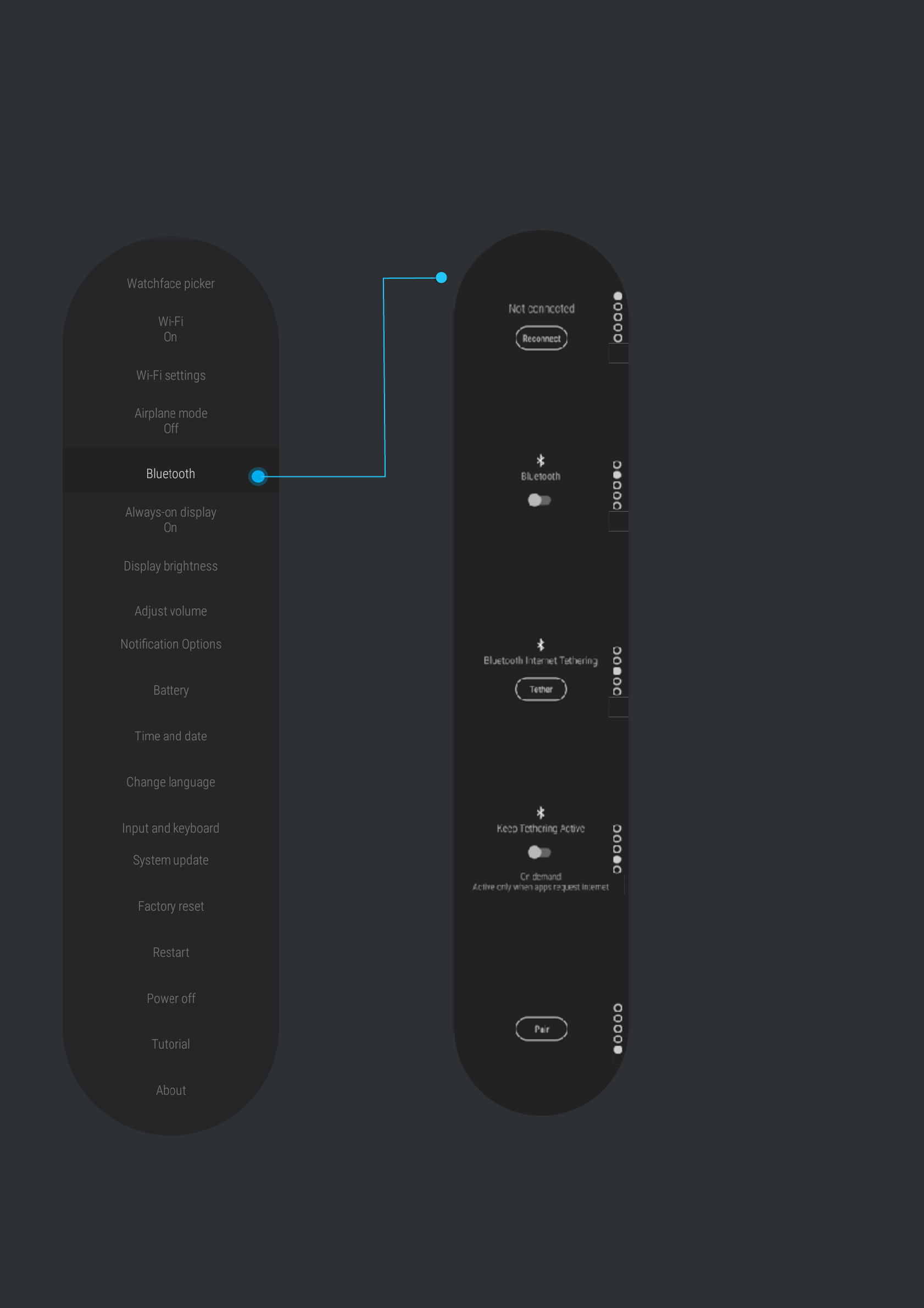

6.2 Settings Bluetooth
Blocks Proprietary and Confidential ©
10

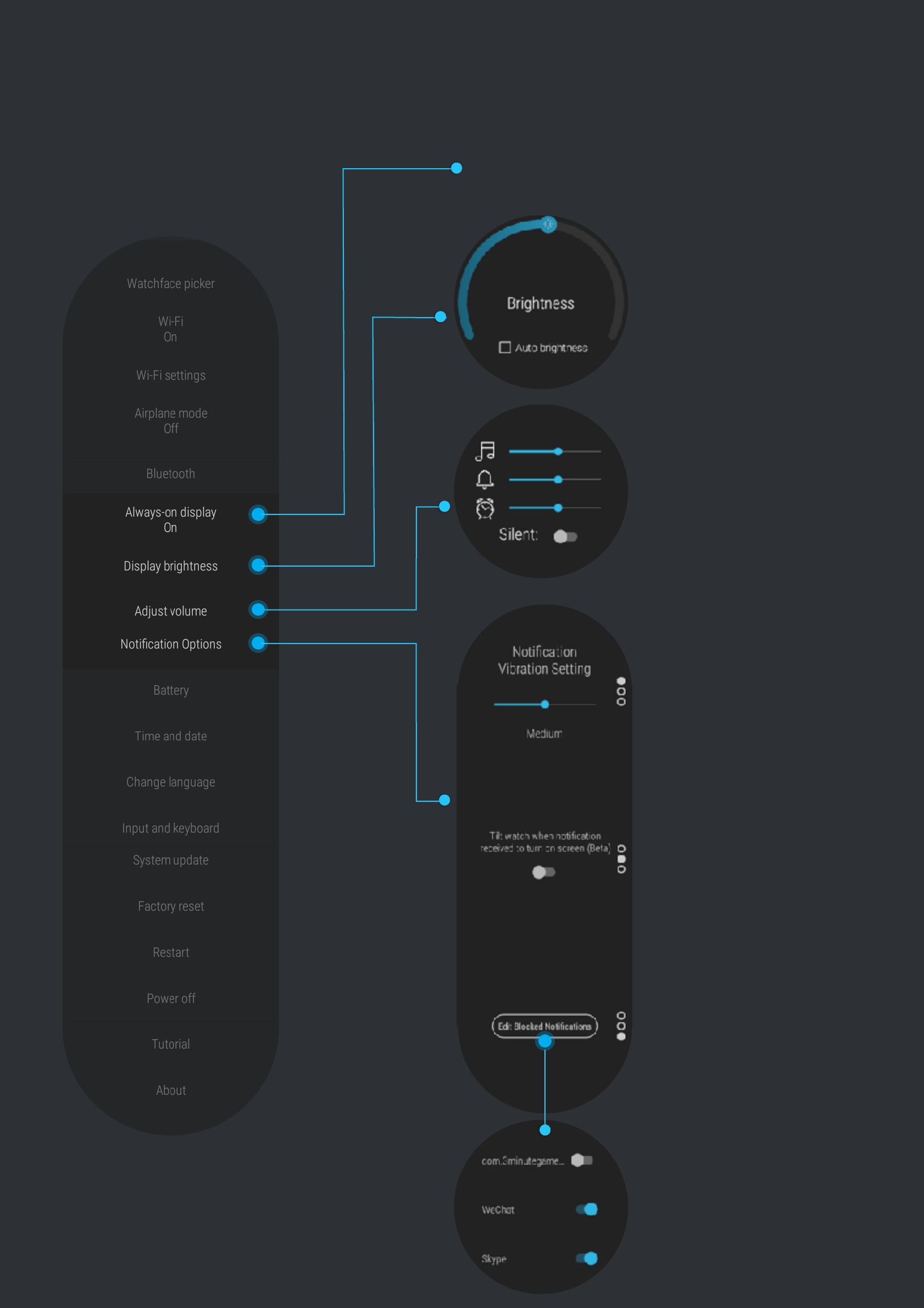

6.3 Settings
Toggle:Always on display on/off
Always on display / Display brightness / Adjust volume / Notification
Adjust brightness
Switch auto brightness on/off
Adjust the volume of music,
notification, and alarm.
Switch silent mode on/off
Notification vibration setting
Turn on/off tilt watch turning
on screen to see notification
Edit blocked notifications
Blocks Proprietary and Confidential ©
11

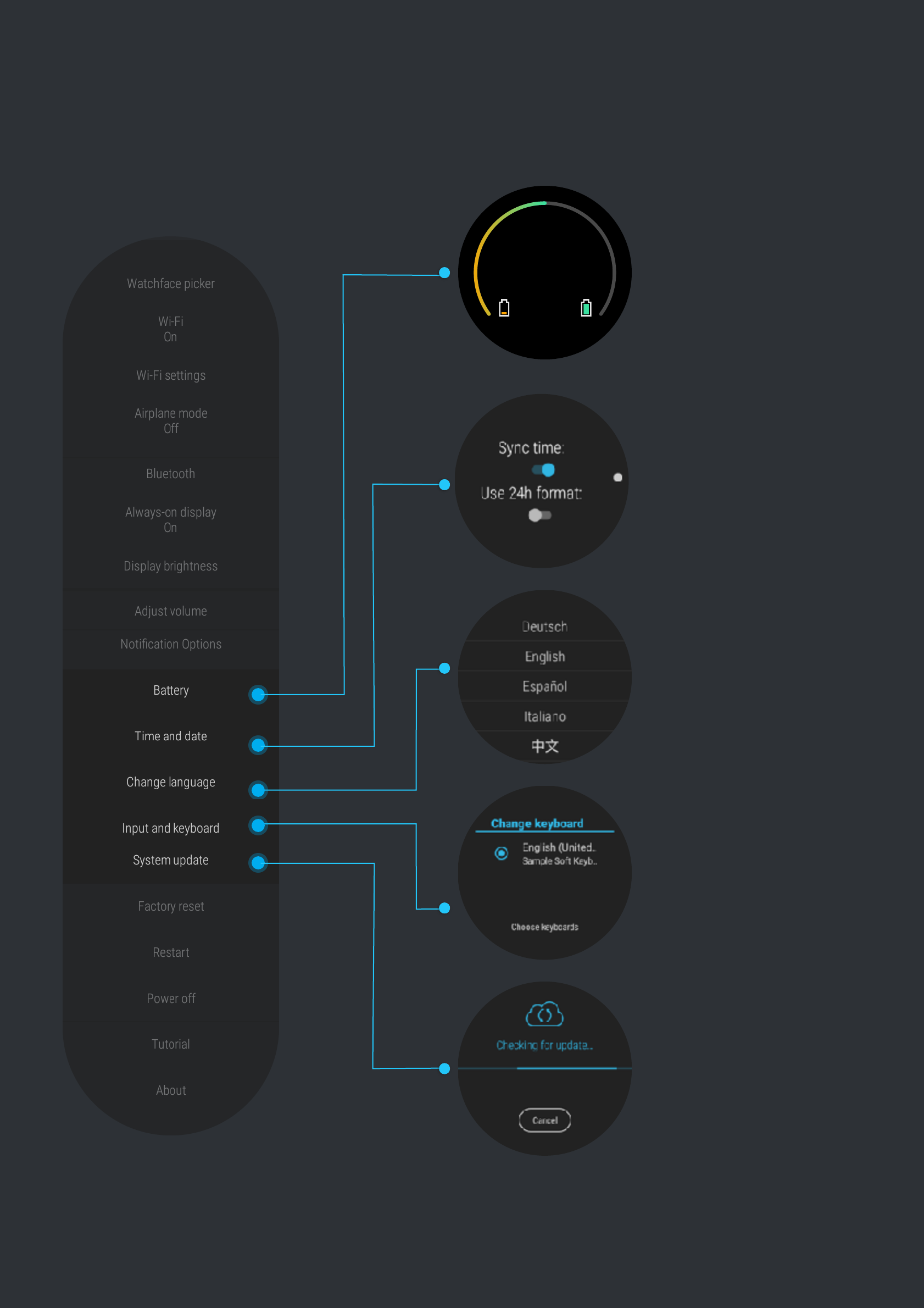

6.4 Settings
Battery
50%
Battery / Time & date / Change language / System update
Battery status
Time and date setting
Change language
Change keyboard
Check system update
Blocks Proprietary and Confidential ©
12

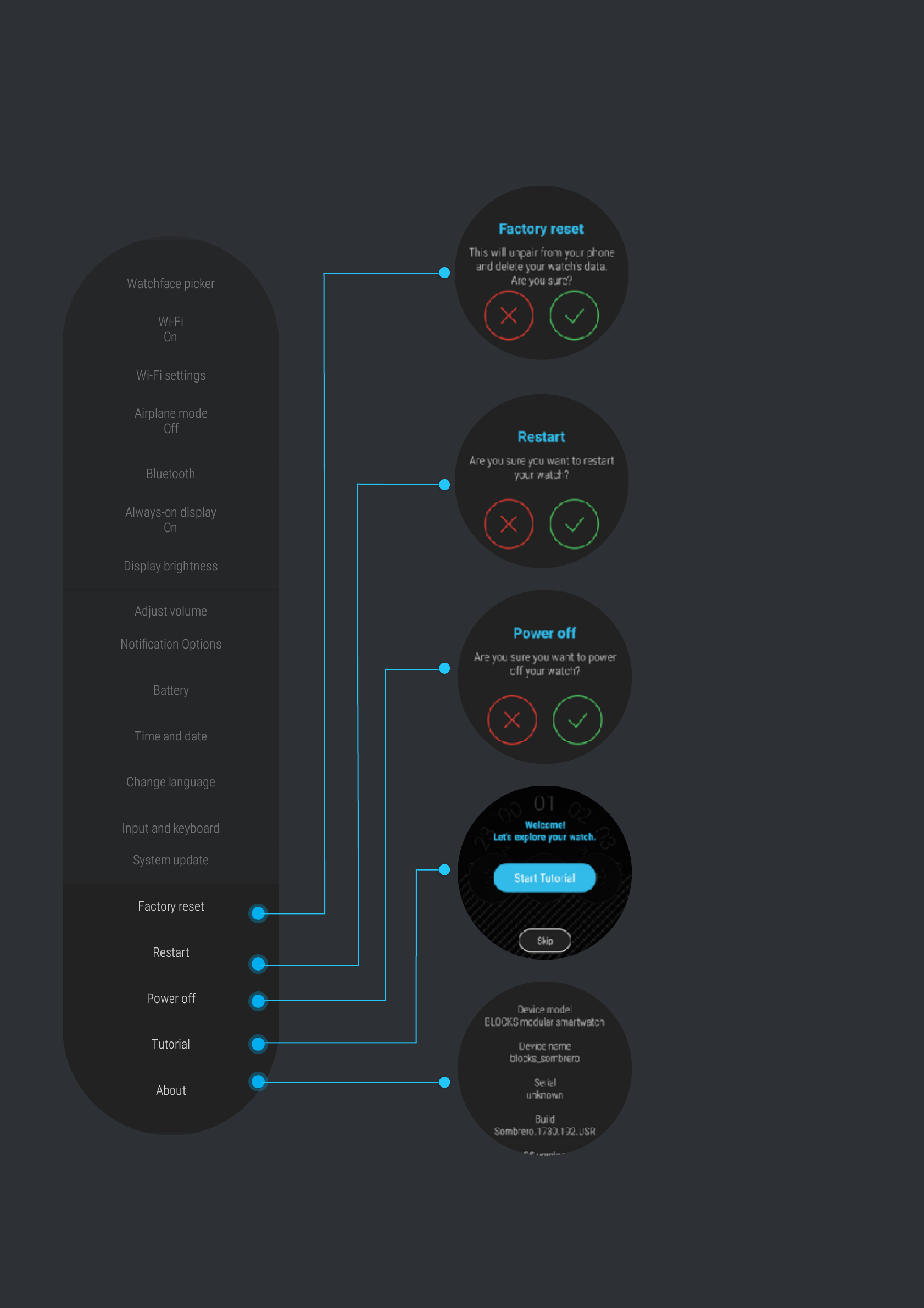

6.5 Settings Battery / Time & date / Change language / System update
Factory reset
Restart
Power off
Tutorial mode
About this device:
•Device model
•Device name
•Serial number
•Build
•Os version
•Open source licenses
•WiFi MAC address
•Bluetooth MAC address
Blocks Proprietary and Confidential ©
Check remaining power:
13

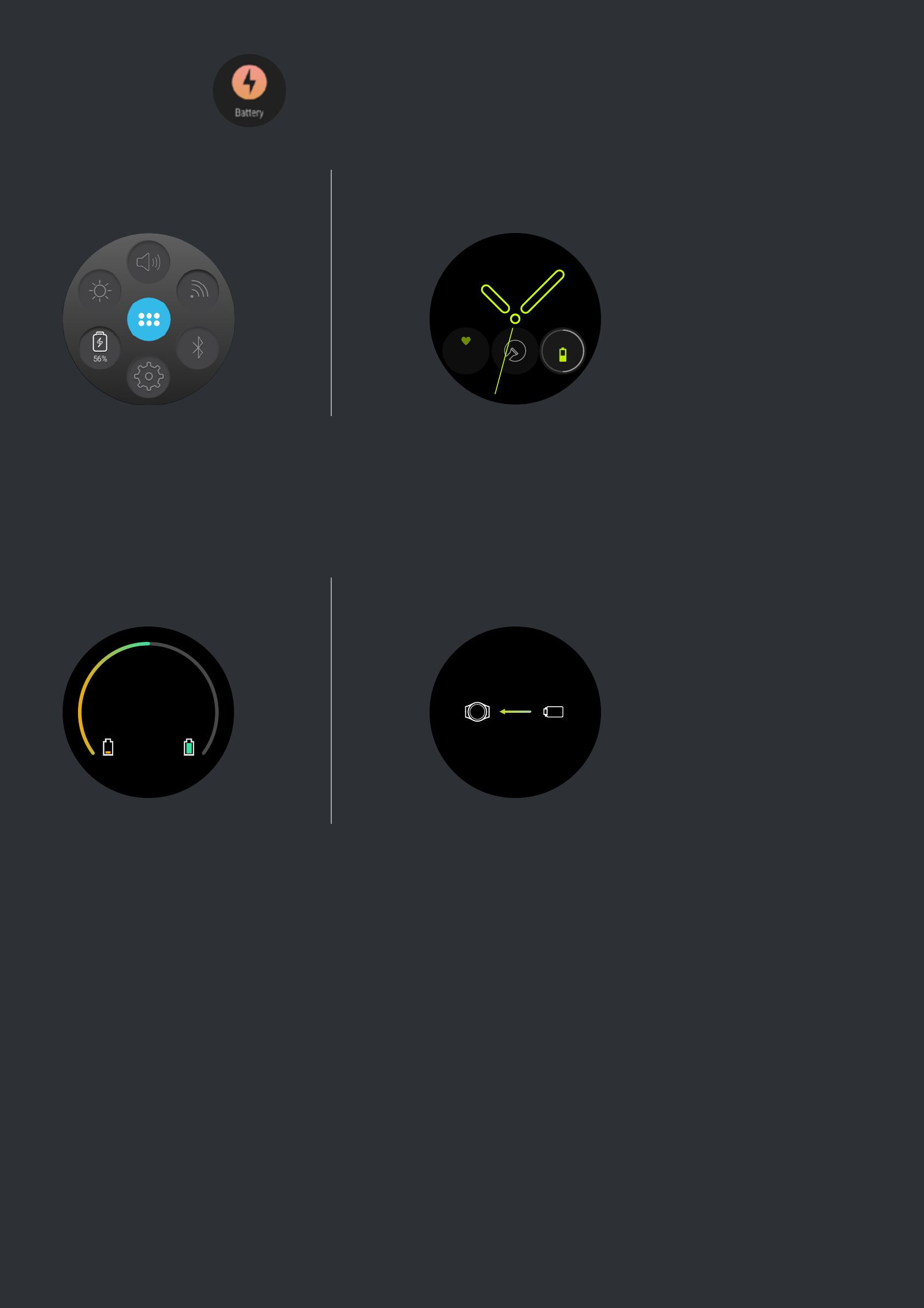

7. Battery
Tap battery icon to check the
battery status:
Core battery
Blocks Proprietary and Confidential ©
Connect to extra battery
Show the core battery
status
Show core and extra
battery status
70
CORE
12
1. Swipe up on the watch
face to setting glance.
2. Add the battery container
to your watch face.
Battery
50%
100 %100 %
Core Battery
30 min to full

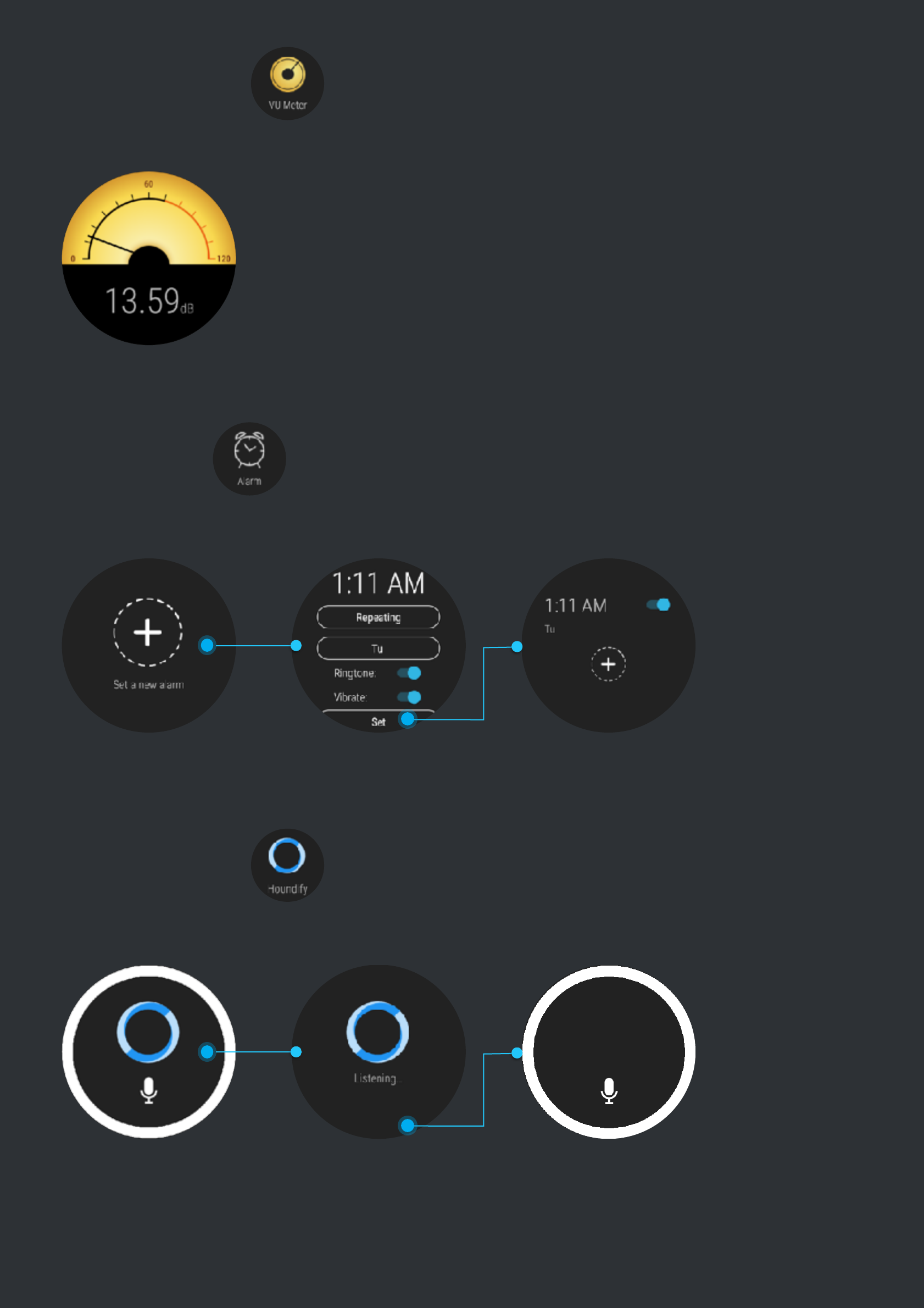

Environmental noise monitor
14
8. VU Meter
Blocks Proprietary and Confidential ©
Alarm setting
9.Alarm
Voice assistant
10. Houndify
It is 5:34 pm in
London, United
Kingdom.

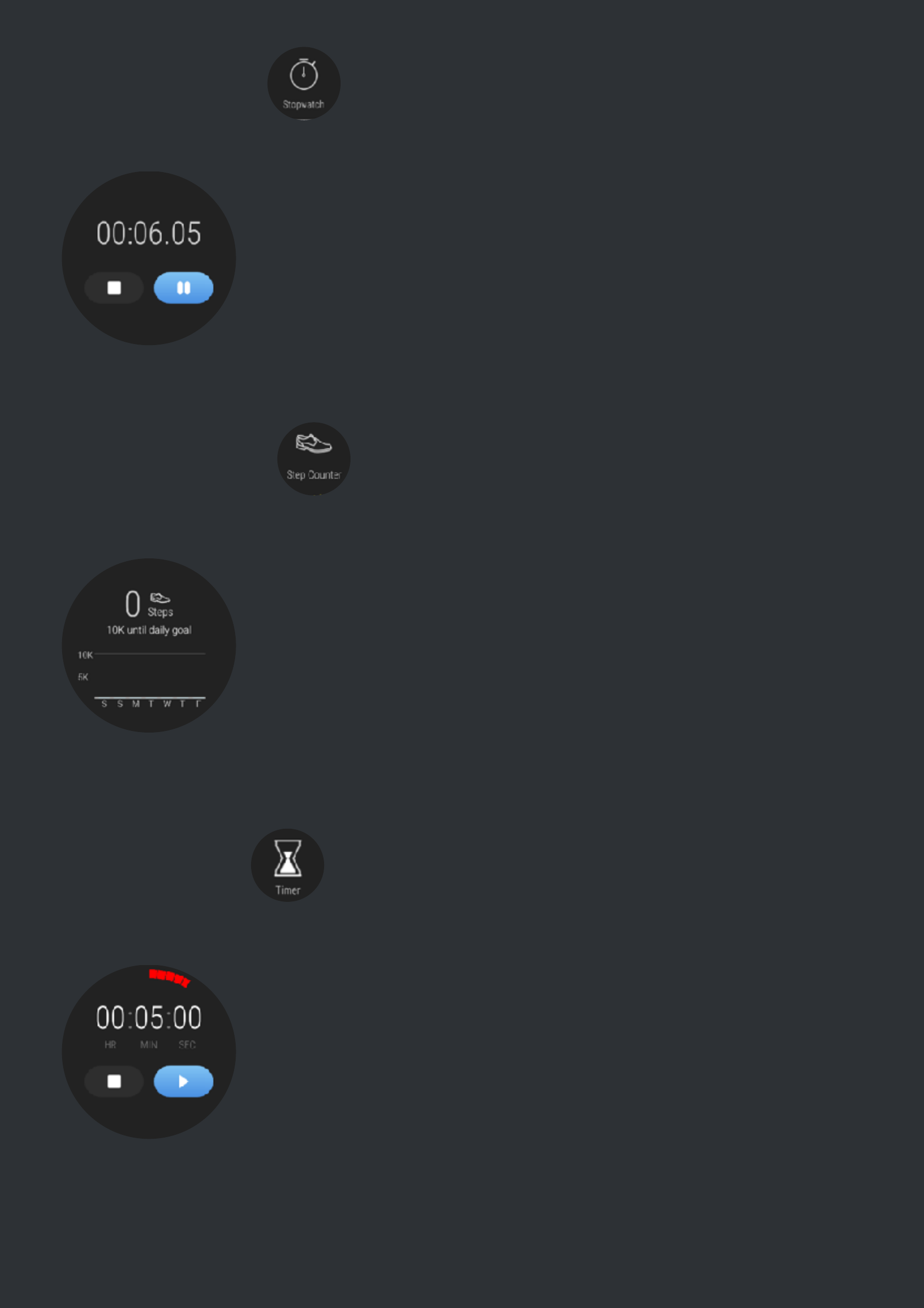

Start, stop and reset
15
11. Stopwatch
Blocks Proprietary and Confidential ©
Show the steps you take
throughout the day.
12. Set Counter
Rotate to set the time, press
start to countdown.
13. Timer

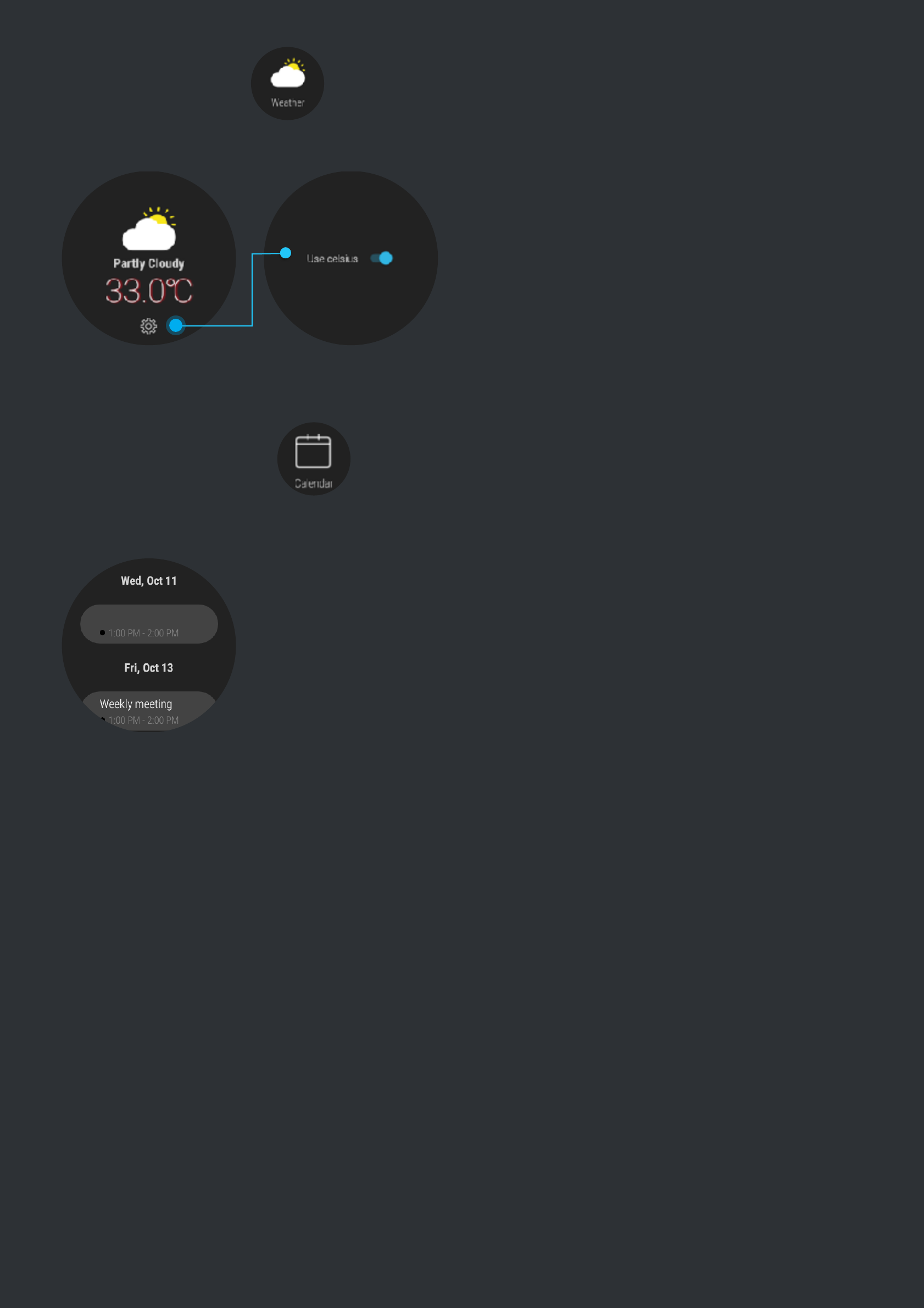

Check the weather
16
14. Weather
Blocks Proprietary and Confidential ©
Upcoming events
15. Calendar
Design team sync
17Blocks Proprietary and Confidential ©

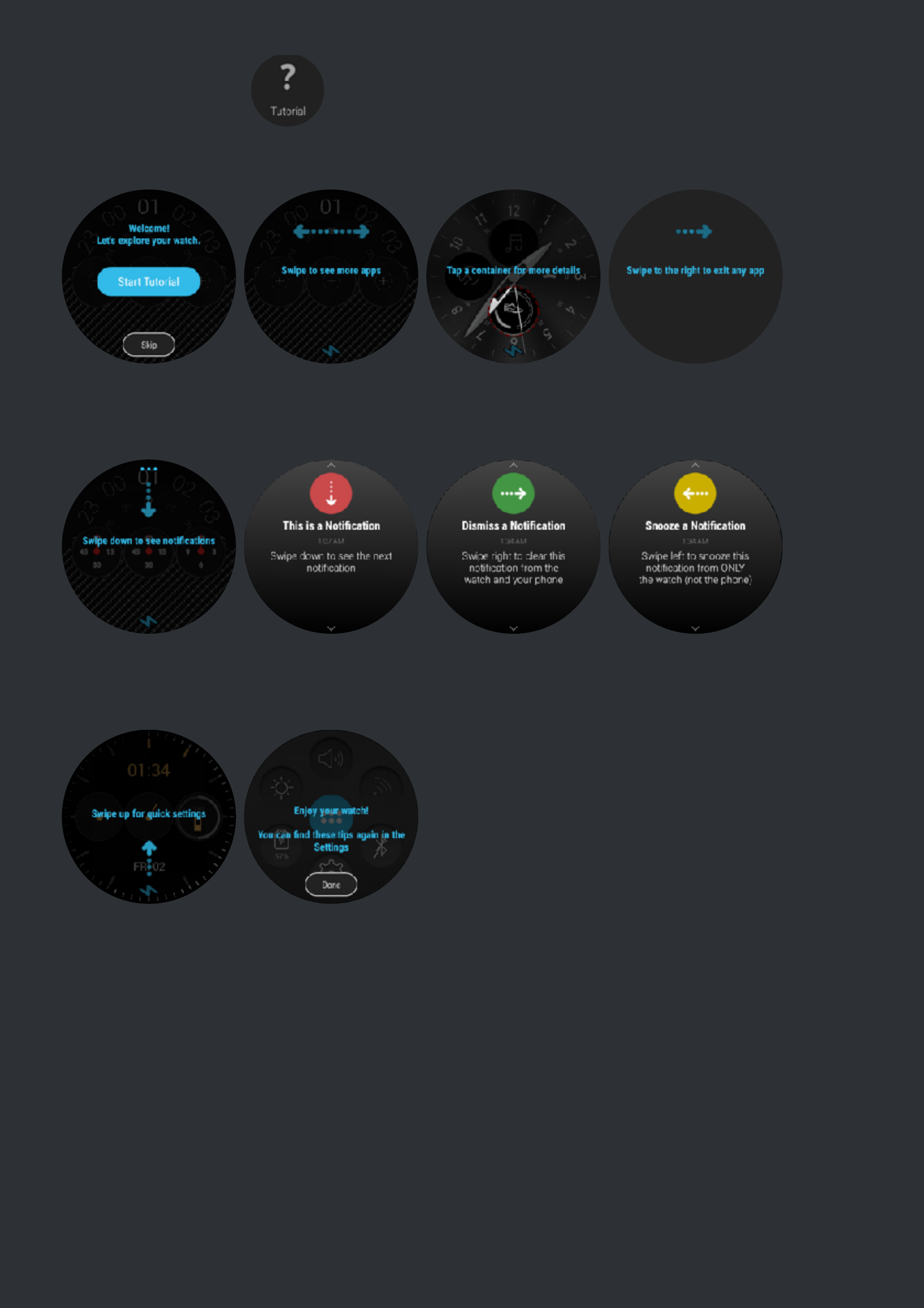

Enter tutorial mode to
learn gestures
16. Tutorial
Start Swipe to view Tap a container for
quick launch
Swipe right to exit
Swipe down to see
notification
Notification page Swipe right to dismiss Swipe left to snooze
Swipe up for quick
settings
18Blocks Proprietary and Confidential ©

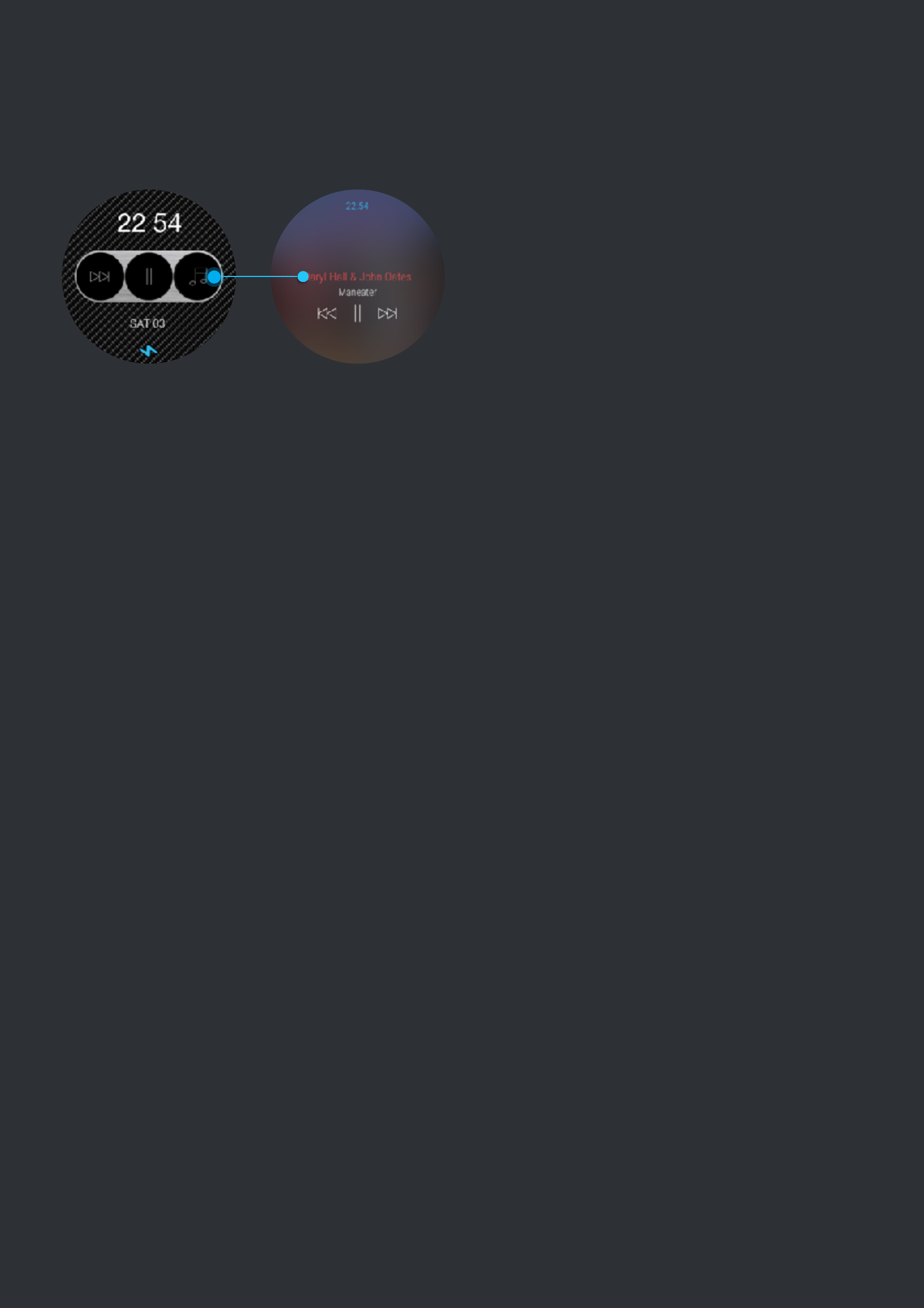

User can add Music control containers on watch face to play/pause and play next song
17. Music
Tap music icon to music control app
20Blocks Proprietary and Confidential ©
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for compliance
could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference that may cause undesired operation of
the device.
FCC compliance statement
FCC RF Exposure requirements: The highest SAR value reported under
this standard during product certification for use next to the head
with the minimum separation distance of 0mm is 0.42W/Kg(Wrist)
and 10mm is 0.30W/Kg(mouth). This transmitter must not be collocated or
operating in conjunction with any other antenna or transmitter.
This product is compliance to FCC RF Exposure requirements and refers to FCC website
https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.cfm search for FCC ID: 2AHBVBLKS002
21
The symbol above means that according to local laws and regulations your product and/or its battery shall be
disposed of separately from household waste. When this product reaches its end of life, take it to a collection
point designated by local authorities. The separate collection and recycling of your product and/or its battery
at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that
protects human health and the environment.
台灣 廢電池請回收
This device has been tested to and conforms to the regulatory requirement of the European Union and has
attained CE marking. The CE Mark is a conformity marking consisting of the letters ‘CE’. The CE Mark applies
to products regulated by certain European health, safety and environmental protection legislation. The CE Mark
obligatory for products it applies to: the manufacturer affixes the marking in order to be allowed to sell his
product in European market.
This product conforms to the essential requirement of the R&TTE directive 1999/5/EC in order to attain CE
Marking.
The CE Marking is not a quality mark. Foremost, it refers to the safety rather than to the quality of a product.
Secondly, CE Marking is mandatory for the product it applies to, whereas most quality markings are voluntary.
Blocks Proprietary and Confidential ©
