Bontec BONTEC-T011 Transmitter Keyless User Manual Remote Keyless Entry BONTEC T011
Bontec Co., Ltd. Transmitter Keyless Remote Keyless Entry BONTEC T011
Bontec >
users manual
Remote Keyless Entry
(BONTEC-T011)
BONTEC Co., Ltd.
#27-31, HANCHUN-RI, DUCK-SAN -MYUN,, JINCHUN-GUN,CHUNG-BUK,KOREA
- INDEX -
- An outline
- Description of Transmitter and Receiver
FCC NOTICE
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC FULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED
OPERATION.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communication. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit difference from that to which
the receiver is connected.
- Consult the dealer of an experienced radio/TV technician for help.
NOTE : The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
An outline of Transmitter and ETACS
1. How to use BONTEC
1. How to use BONTEC1. How to use BONTEC
1. How to use BONTEC-
--
-T011,R011
T011,R011T011,R011
T011,R011
- BONTEC-T011,R011 is Remote Keyless System.
- This unit control door lock/unlock with wireless.
- Lock button push , then door lock.
- Unlock button push, then door unlock.
- Trunk button push, then Trunk Open
- Panic button push, then Panic Alarm

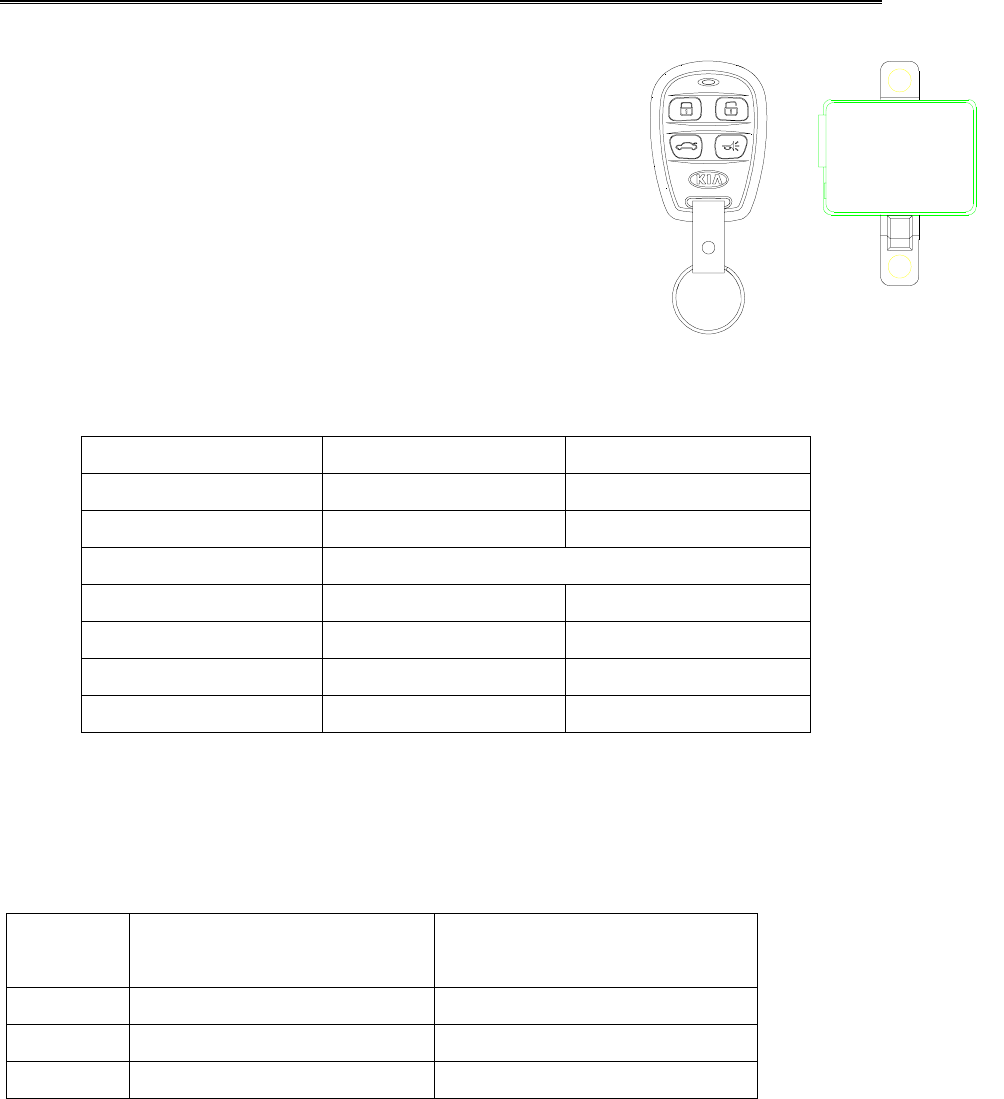

2. Introduction of Transmitter
2. Introduction of Transmitter2. Introduction of Transmitter
2. Introduction of Transmitter
- Transmitter has three button
- Button marking are LOCK, UNLOCK, TRUNK, PANIC
- Transmitter use thee voltage battery
- Frequency is 315Mhz
- Modulation item is SAW Resonator
- Transmitter use Rolling code algorithm
3. Introduction of Receiver
3. Introduction of Receiver3. Introduction of Receiver
3. Introduction of Receiver
- Receiver control car door
- Receiver has RF module(315)
- RF module use superregentive circuit
- Receiver send Door Lock/Unlock/Trunk open/Panic to ETACS
- Receiver has internal eeprom that save code
Description of Transmitter and ETACS
1. PRIMARY FUNTION
- Remote door lock/unlock
- Remote Back Glass Open/panic
- LED turn on ( When button is pushed )
- Operating distance : 7~ 10 m
- Id input(setting mode)
2. ELECTRICAL CHARACTERISTICS
TRANSMITTER RECEIVER
Operating voltage 3 VDC 10 ~ 16 VDC
Consumption current Max 20mA Max 5mA
Operating frequency 315㎒
Power 10mW under -
Sensitivity - -100dBm(typical)
Operating temperature -20 ~ +60℃ -30 ~ +80℃
etc AM modulation Superheterodyne
3. DESCRIPTION MODE
1) Mode
Mode ID INPUT
(Setting Mode) Normal Mode
B+ ON ON
CAR KEY - OFF
SETTING ON OFF
2) Id input(Setting Mode)
When Setting Mode, lock button push,

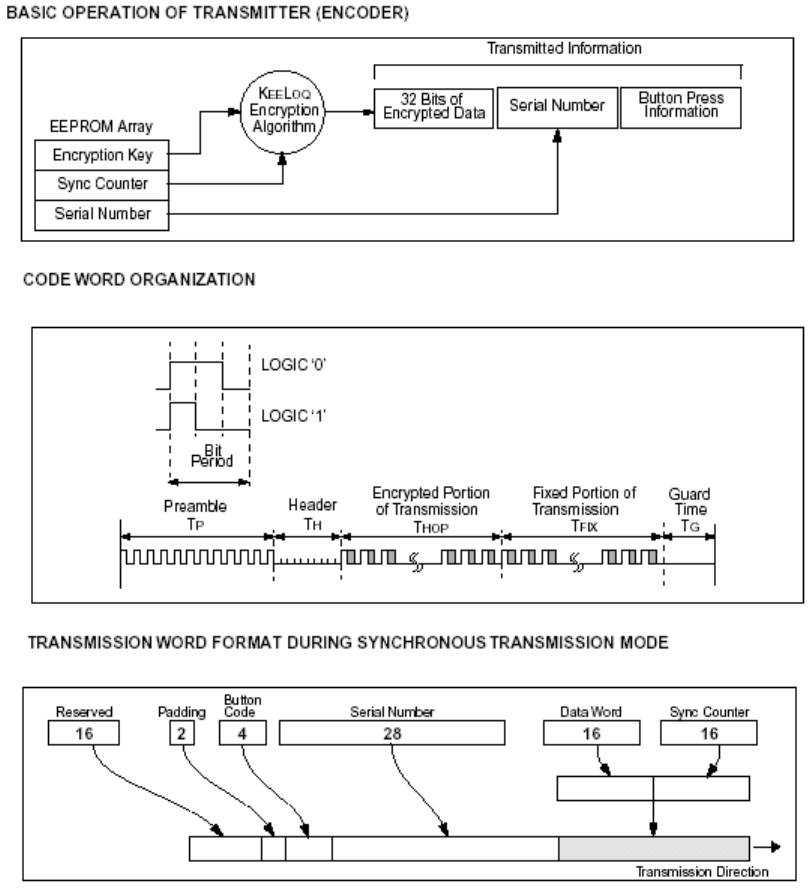

4. OPERATING DIAGRAM
1) TRANSMITTER
5. OPERATING DIAGRAM

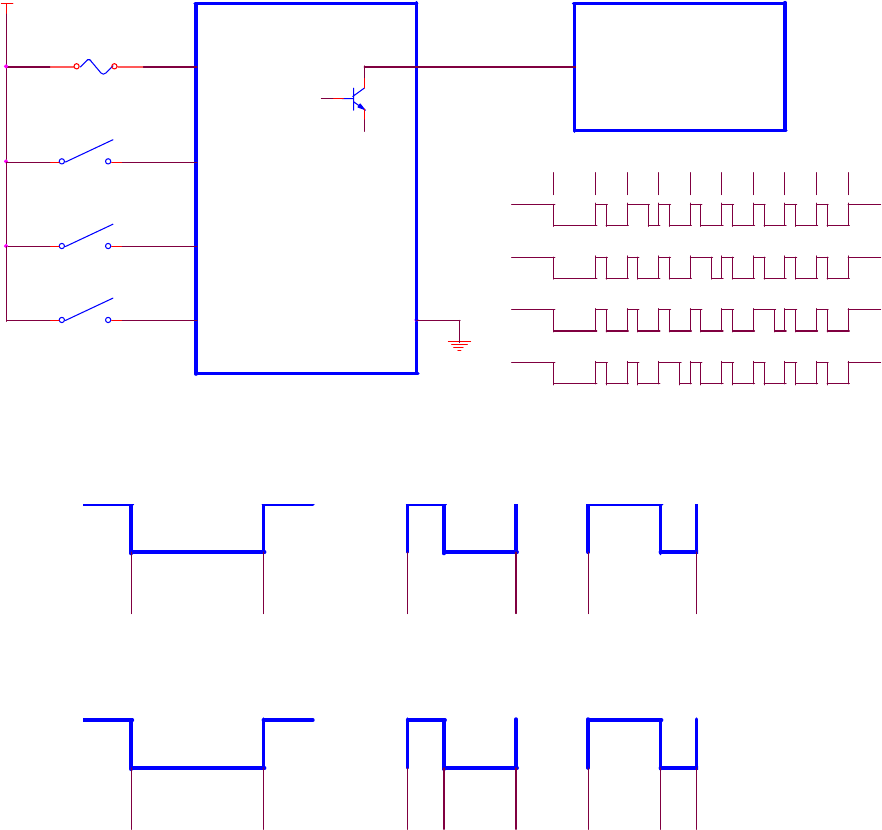

* DESCRIPTION OF OUTPUT SIGNAL
KEYLESS SWITCH
IG SWITCH
SET SWITCH
LOCK
UNLOCK
START
SETTING
END
SETTING
DOOR CONTROLLER
LOCK/UNLOCK
START SETTING /
END SETTING
BATTERY
<- START -> <- " 0 " -> <- " 1 " ->
<- T3 -> T2 <-T1-> T2<-T1->
T1 : 24 msec
T2 : 8 msec
T3 : 49 msec

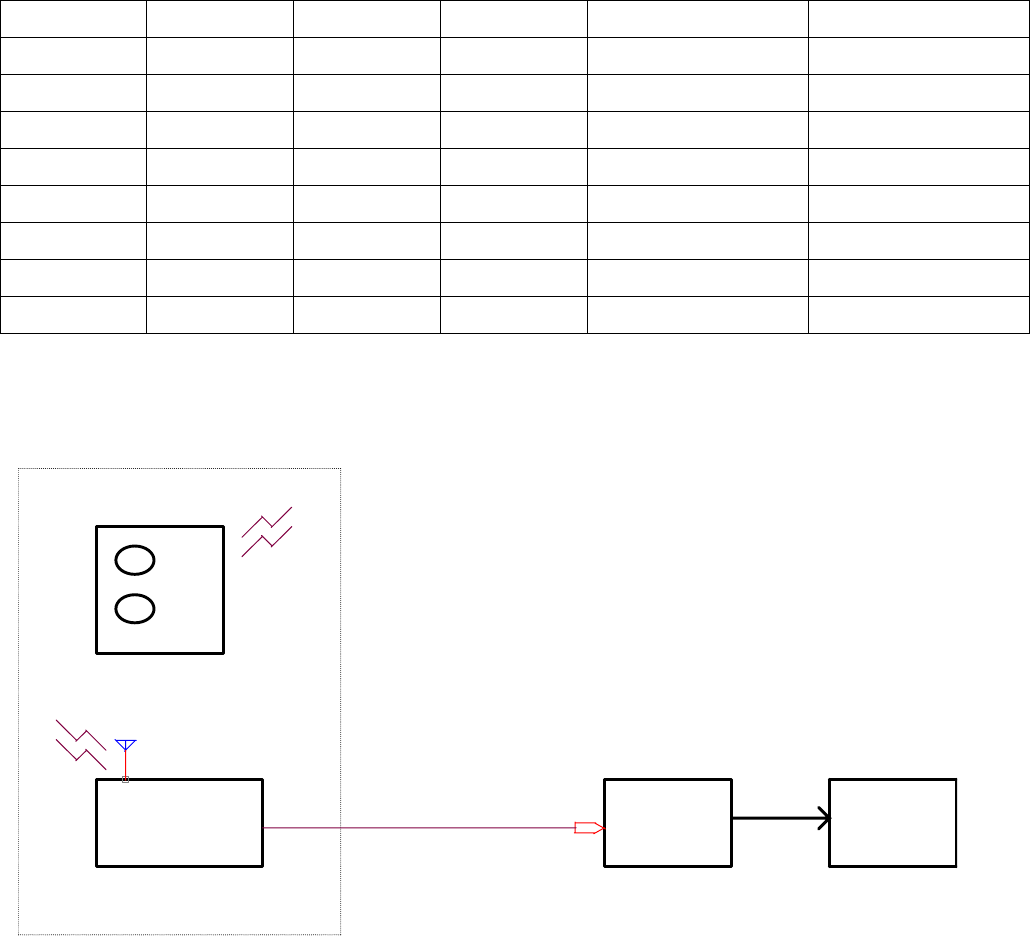

* A cause
BATTERY IG SW. SET SW. KEYLESS SW. OPERATING MODE SETTING MODE
OFF OFF OFF ENABLE DISABLE
OFF OFF ON DISABLE DISABLE
OFF ON OFF DISABLE DISABLE
OFF ON ON DISABLE DISABLE
ON OFF OFF DISABLE DISABLE
ON OFF ON DISABLE DISABLE
ON ON OFF DISABLE DISABLE
ON ON ON DISABLE ENABLE
LOCK
TRANSMITTER
RECEIVER DOOR CONTROLLER
R.K.E
(
Remote ke
y
less entr
y)
LOCK DOOR
UNLOCK
433.92MHz
UNLOCK
END SETTING
START SETTING
ANTENNA
LOCK / UNLOCK Signal
