Bontec HM-T003 SECURITY/REMOTE CONTROL TRANSMITTER User Manual HM T003 UserMan

Bontec Co., Ltd. SECURITY/REMOTE CONTROL TRANSMITTER HM T003 UserMan

Contents

USERS MANUAL 2

Remote Keyless Entry(HM-T003)Users ManualHYUNDAI MOBIS Co., Ltd.#80-9,MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI,449-910,KOREA

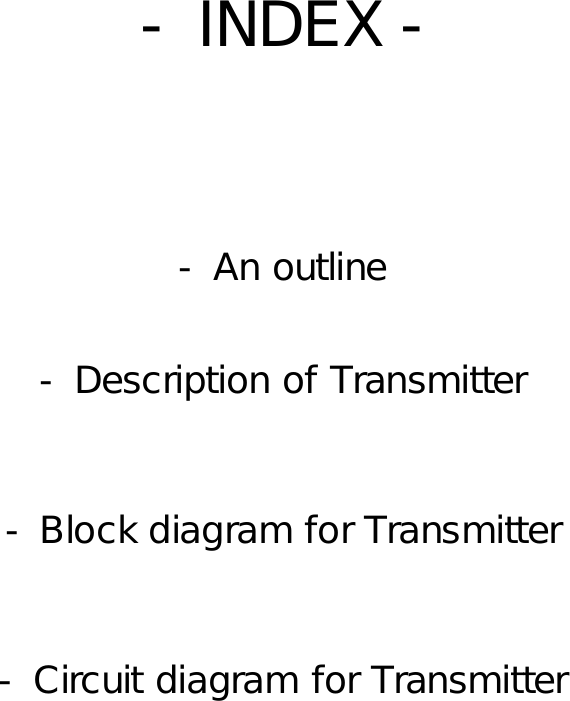

- Block diagram for Transmitter - INDEX -- An outline - Description of Transmitter - Circuit diagram for Transmitter
1. How to use HM-T003- HM-T003 is Remote Keyless Tramsmitter- This unit controll door lock/unlock with wireless.- This unit consist of Transmitter(HM-T003) & Receiver- Push button , then door lock. Or Unlock2. Introduction of Transmitter(HM-T003)- Transmitter has one button - Button marking are LOCK, UNLOCK- Transmitter use 3V DC internal battery- Freqency is 315MHz- Modulation item is SAW Resonator- Transmitter use Rolling code algorithmThis device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The manufacturer is not responsible for any Radio or TVInterference caused by unauthorized modifications to thisEquipment. Such modifications could void the user's authority To operate the equipment.An outline of Transmitter

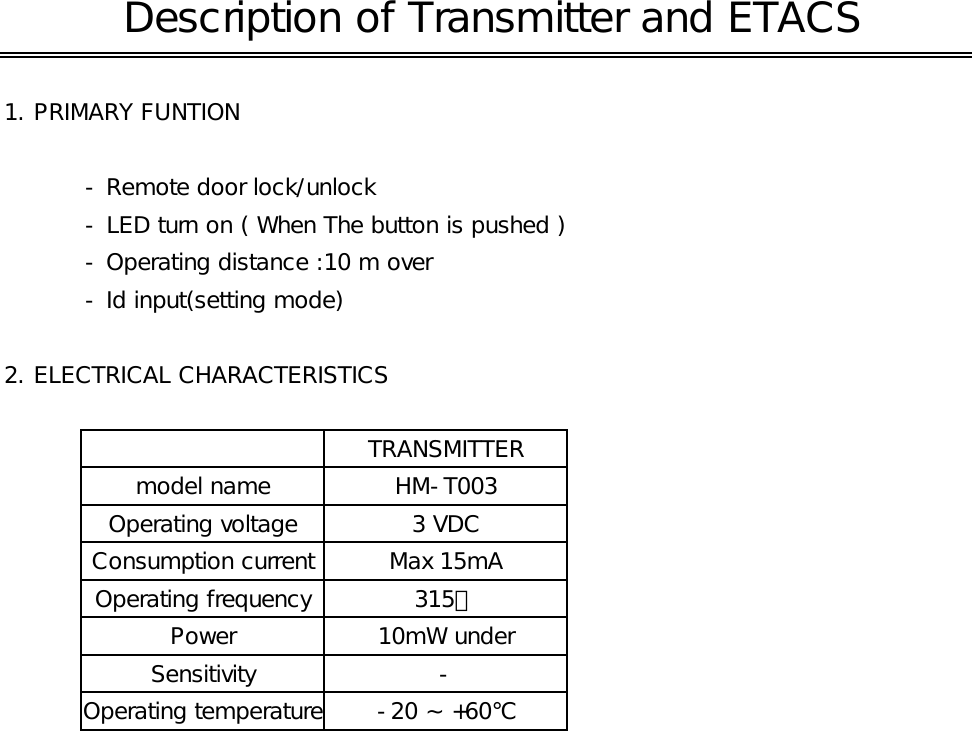

1. PRIMARY FUNTION - Remote door lock/unlock- LED turn on ( When The button is pushed )- Operating distance :10 m over- Id input(setting mode)2. ELECTRICAL CHARACTERISTICSSensitivity Description of Transmitter and ETACS315㎒model name HM-T003Operating voltage 3 VDCTRANSMITTEROperating temperature -20 ~ +60℃Operating frequencyPower 10mW underConsumption current Max 15mA-

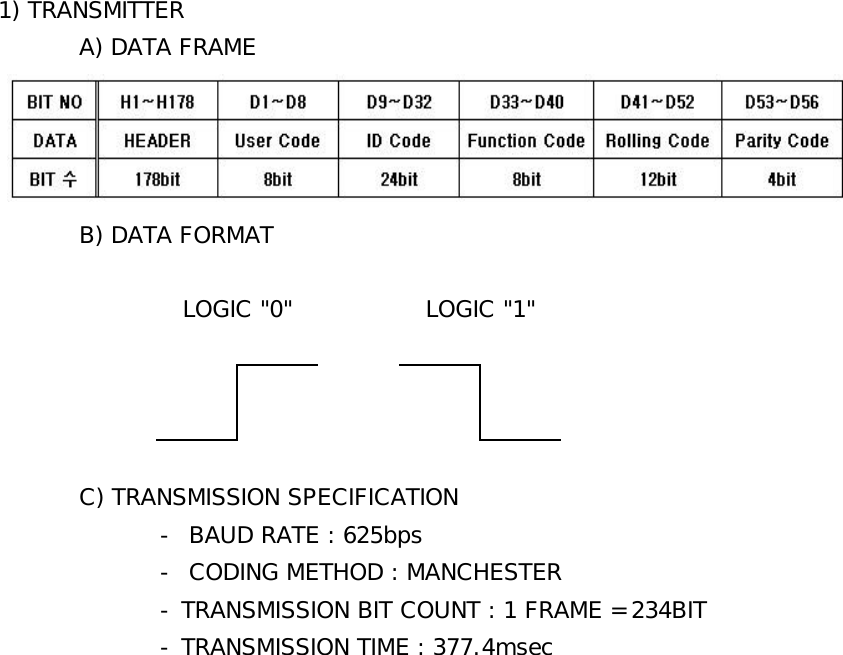

1) TRANSMITTERA) DATA FRAMEB) DATA FORMAT C) TRANSMISSION SPECIFICATION- BAUD RATE : 625bps - CODING METHOD : MANCHESTER - TRANSMISSION BIT COUNT : 1 FRAME = 234BIT- TRANSMISSION TIME : 377.4msecLOGIC "0" LOGIC "1"

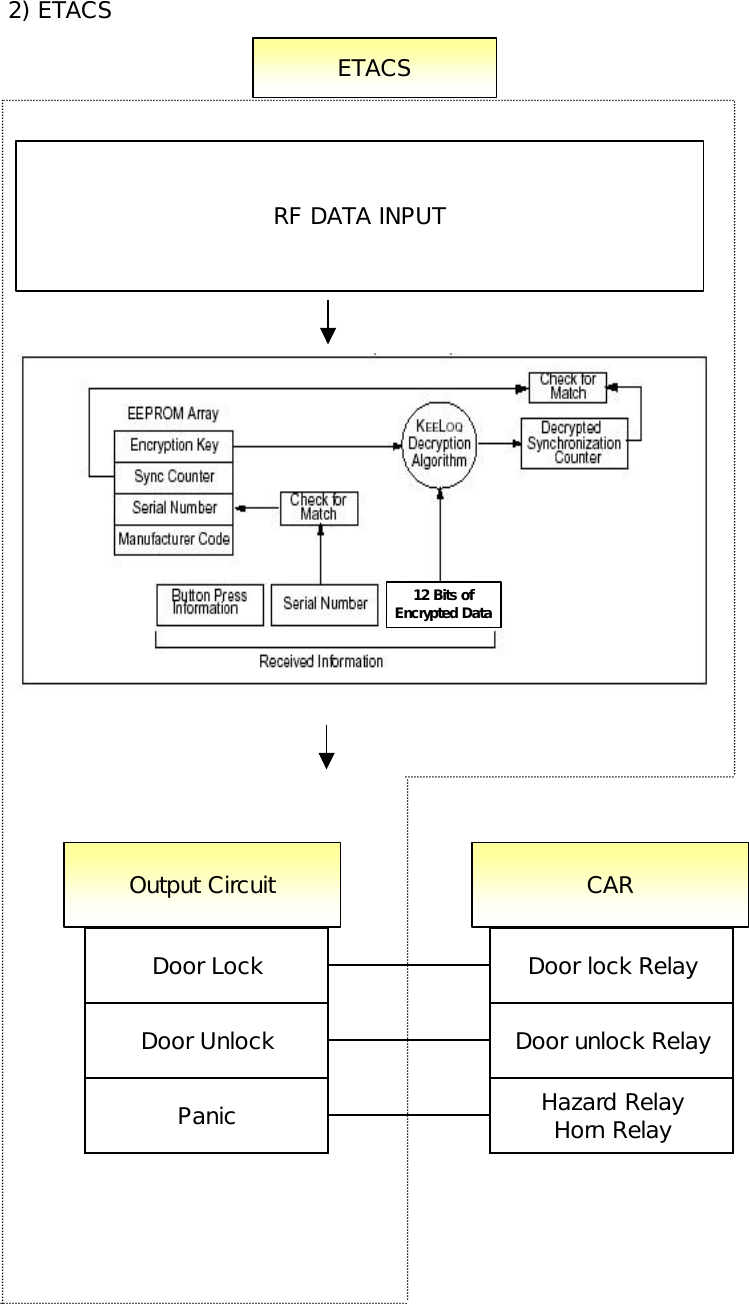

2) ETACSHazard RelayHorn RelayDoor LockDoor UnlockPanicDoor lock RelayDoor unlock RelayRF DATA INPUTETACSOutput Circuit CARENCRYPTIONALGORITHM12 Bits ofEncrypted Data

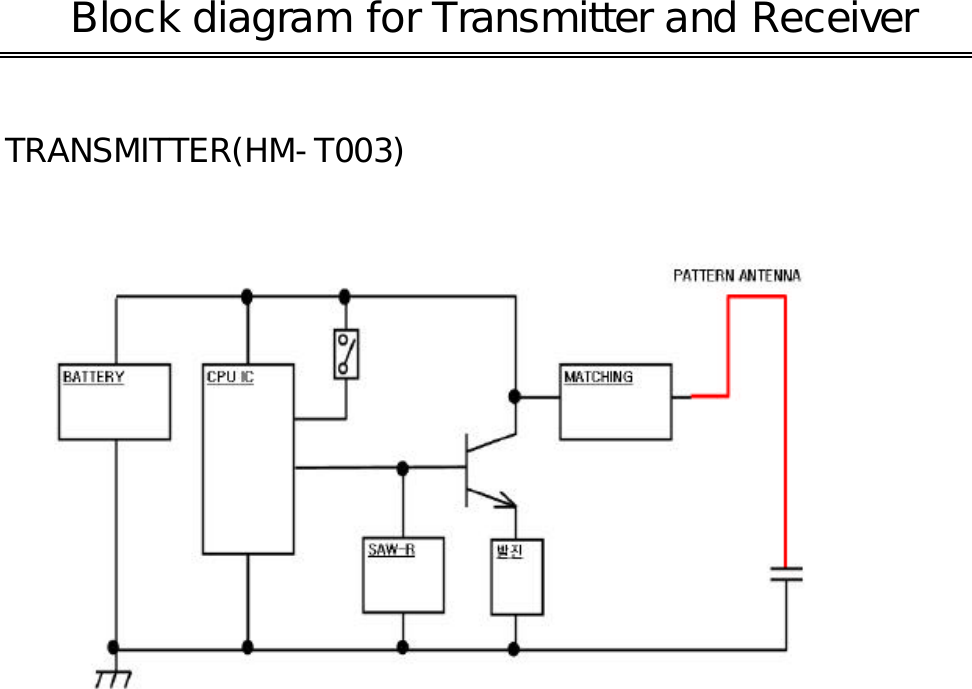

TRANSMITTER(HM-T003) Block diagram for Transmitter and Receiver

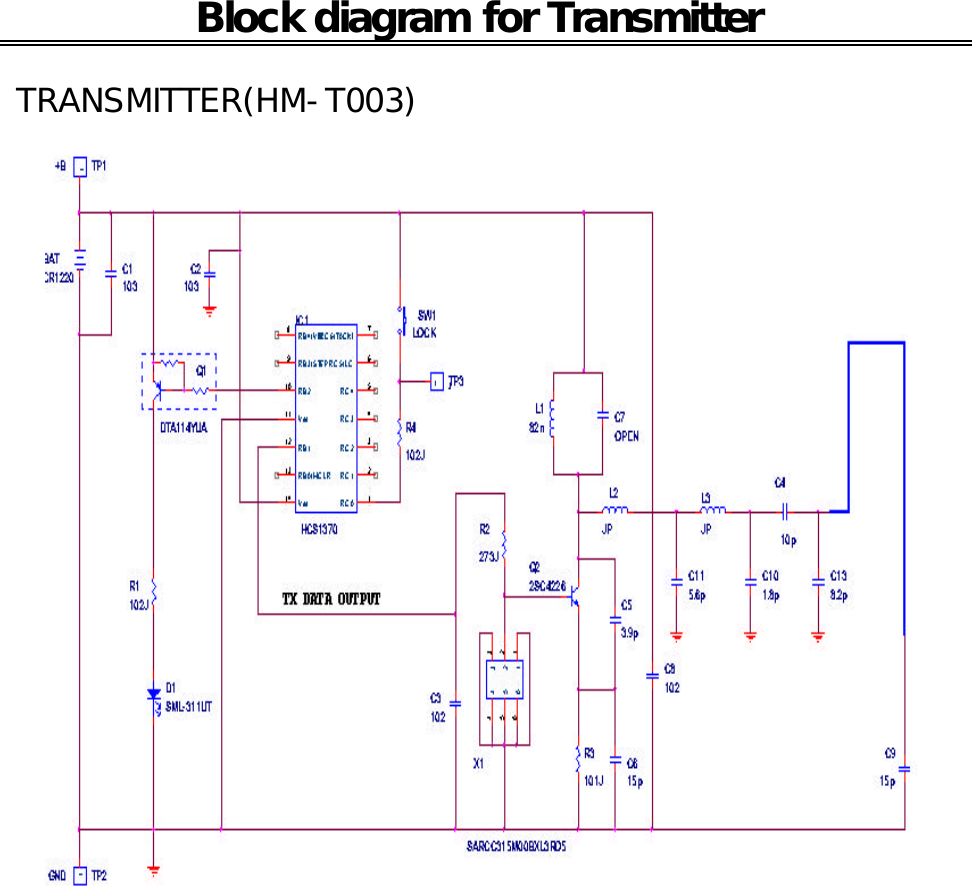

TRANSMITTER(HM-T003) Block diagram for Transmitter

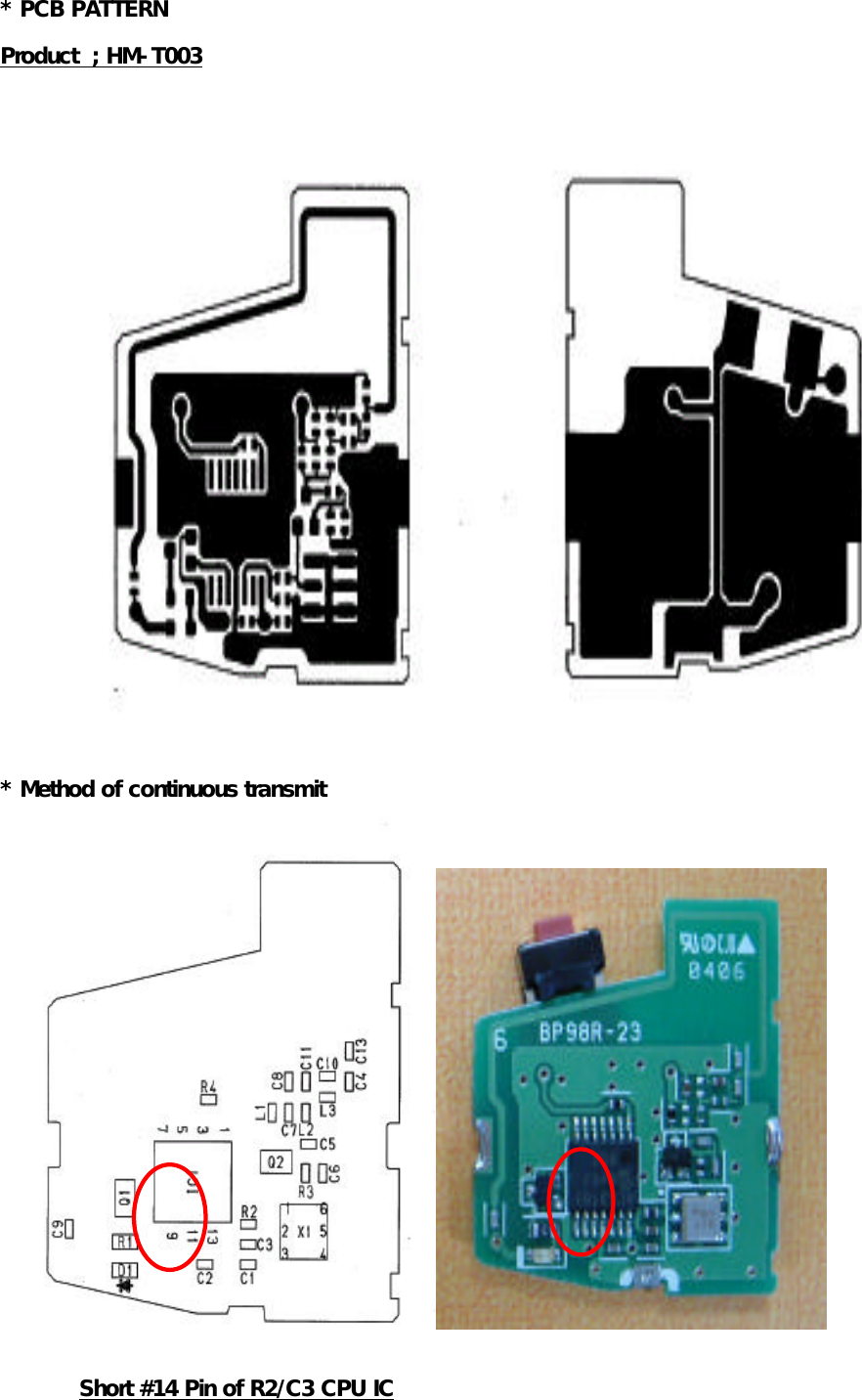

* PCB PATTERNProduct ; HM-T003TOP PATTERN* Method of continuous transmitShort #14 Pin of R2/C3 CPU IC
