Borqs BeiJing XR6M Tablet Remote User Manual
Borqs BeiJing Ltd Tablet Remote
User manual
1
USER MANUAL
Tablet Remote
VIZIO
Model: XR6M
2
Table of Contents...
Chapter 01 Introduction
Chapter 02 Safety precaution
Chapter 03 About device and OS
1 Charging the battery
2 Switching on/off
3 Unlocking the screen
4 Restarting the device
5 Factory reset
6 Home page
7 Function operations
8 Settings
9 Wireless Network
10 Bluetooth
11 USB Charging Port
12 Installation of application
13 Uninstallation of application
Chapter 04 Troubleshooting
3
Chapter 01 Introduction
Congratulations on the purchase of the Tablet !
This device is built-in high performance Wifi receiver module,
G-sensor, also can bring you into the portable media Tablet
world and fulfilled your entertainment needs. It can support
picture, video, music, E-book, games, online chat and other
functions, moreover, various settings will fully show your
individuality.
This manual contains important safety and operating
information in order to prevent accidents, please read this
manual thoroughly and keep it for future reference.
Chapter 02 Safety precautions
To use this Tablet safely, please read and follow the
instructions in this manual carefully before use.
Never use the Tablet while driving or when operating any
vehicle, as this could cause an accident. It is also against
the law in many areas. Take care when using the Tablet
outdoors, especially when crossing the street.
Do not listen to music at very high volumes using the
earphones as this can permanently damage your hearing.
Keep the Tablet clean and never store it next to a heat
source or in dirty, humid or wet places. Keep it out of direct
sunlight.
4
Do not put the Tablet in high temperature places (over
40ºC), especially not in a car with the windows closed in
summer.
Keep the Tablet away from strong magnetic fields.
Please don’t turn on the device in where the wireless
equipment is forbidden or when the usage of the device
will cause interference and danger.
Press the Tablet’s buttons gently. Pressing them or the
screen too hard can damage the Tablet.
Do not use the Tablet in an electronics-prohibited area,
such as in an airplane.
Do not use the Tablet in an extremely dry environment, as
this can lead to static discharge, which can damage the
Tablet.
Do not subject the product to harsh impacts.
Do not drop the appliance. This may result in damage to
the product.
Do not attempt to dismantle or repair this unit yourself,
Repairs should only be performed by qualified personnel
only.
We will not be responsible for any memory loss caused by
product damage, repairs or other reasons.
Disconnect the appliance from the power source when
cleaning.
In order to prevent program failure, never disconnect the
Tablet suddenly from a PC during downloading, uploading
or formatting to prevent program failure.
5
Use a slightly damp, lint-free cloth to clean this appliance.
Do not dismantle the Tablet or use alcohol, thinner or
benzene to clean the surface of the Tablet .
Chapter 03 About device

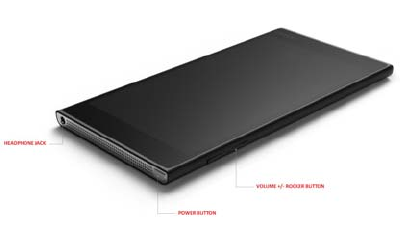

Below is the view structure.
6
1. Charging the battery
Important: The battery must be charged for at about 3 hours
before using it for the first time.
2. Switching on/off
To switch on the Tablet PC, press and hold the "power"
button. When startup window appears, release the button.
The system initialization may take several minutes. Please
wait patiently.

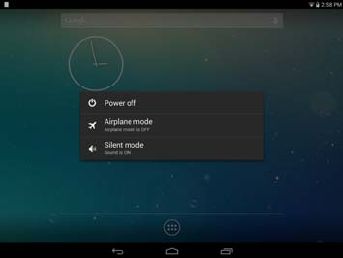

To switch off the tablet PC, press and hold the "power" button,
when "power off " message appears, release the button.
Touch the message, then press OK.
7

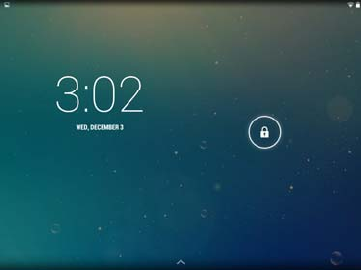

3.Unlocking the screen
If you do not use the screen during certain period of time, the
screen will be locked.
To unlock the screen, press the power button once and drag
"Lock" image right.
4.Restarting the device
If the screen does not response to key press or tap, keep
power button for long time to restart your Tablet PC
5.Factory reset
To delete all data and restore your Tablet PC to factory
defaults, touch“Settings” ->“Backup&reset” ->“Factory data
reset” ->“Reset tablet”
8

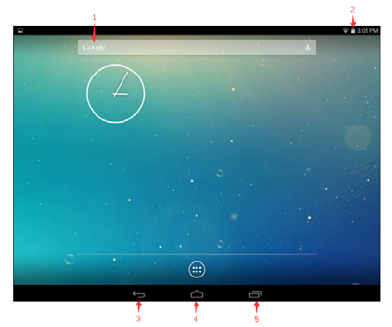

6.Home page
The Home screen gives you an overview of the contents of
your device and gives you access to all of it’s available
functions and applications.
1.Google Search
2.Notification bar
3. Back icon
4. Home icon
5. Recent Apps
9
7. Functions Operation
Click the related program icons to enter corresponding
functions.
7.1 Music
Click ‘Music’ icon to open the music application. This
application is used to play and store MP3 audio files.
7.2 Photo/Video
Click ‘Photo’, you will see all photos in this
application. Click the photo files and review it.
7.3 Browser
Click ‘Browser’ icon to open ‘web browser’
application and freely browse the internet. (Before
you enter into website, please check you connect the
wifi)
7.4 Calculator
Click ‘Calculator’ icon to open the calculator
application. This calculator is used to perform
advanced mathematical operations. Use the number
pad to enter the numbers.
10
7.5 Calendar
Click ‘Calendar’ icon to open the calendar application.
You can personalize and add your memorandum.
7.6 Clock
Click ‘Clock’ icon to open the Clock application. You
can personalize and program several types of
alarms.
7.7 Email
Click ‘Email’ icon to open the email application and
go directly to your personal e-mail software. This
application is compatible with most e-mail software
and is used to easily read, send and receive e-mails.
7.8 File Manager
Click ‘File Manager’ icon to open your tablet’s
navigator and have access to the contents of your
Micro SD or device’s internal memory.
11

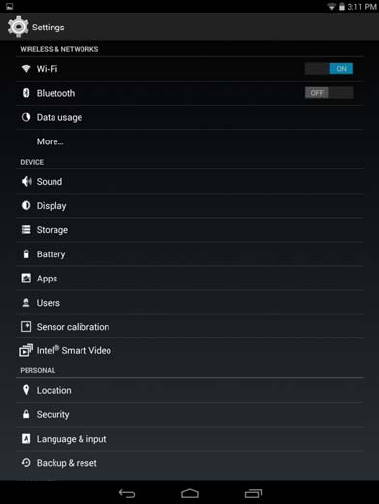

8.Settings
12
8.1 Wifi
Turn on the wifi and connect it.
8.2 Bluetooth
Turn on the Bluetooth
8.3 Data usage
Set data usage cycle.
8.4 Sound
Set the volumes, system sounds
8.5 Display
Set the brightness, wallpaper, screensaver etc.
8.6 Storage
Show all storage and space of apps in internal memory/ SD
card/USB disk.
8.7 Battery
Show battery usage data.
8.8 Apps
Show all apps you installed.
8.9 Users
Sync your accounts you setup.
8.10 Location
Determine your location by Internet
13
8.11 Security
Set the screen security/Encryption/Passwords etc.
8.12 Language & Input
Set the language of device and input language you want.
8.13 Backup & reset
Backup data or recover factory data reset.
8.14 Date & Time
Set the date & time of device.
8.15 Accessibility
Set the font, auto-rotate etc.
8.16 Developer options
Show pointer location, screen updates, CPU usage etc.
8.17 About tablet
Show the model number, version etc.
9. Wireless networks
Prior to starting an Internet-application, activate Wi-Fi
connection and set up Wi-Fi network.
1.Touch the icon "Settings” -> “Wi-Fi”. Select Wi-Fi item and
set the switch to on position.
2. The device will automatically start searching for available
networks and will display them on the right panel.
3. Select any network from the list and press “Connect”. If the
14
network you selected is protected by WEP-protocol, type the
security key, then press “Connect” button.
When the connection is successfully created, “Connected to”
(Network name) message will appear on the screen.
10. Bluetooth
Tap "Settings" -> Select " Bluetooth" -> Tap "On" to switch on
the Bluetooth function. The device will automatically search
foravailable Bluetooth device.Select the Bluetooth device and
start data transmission.
11. USB Charging Port
USB port does not have data transmission function. And you
can connect your device to your computer for charging.
12. Installation of application
Install the third party application procedure:
You can gain the third party application which match the
Android system from internet, and install it by yourself in the
device. Copy the application into SD card, and insert in the
device
1. Click “Explorer” application, choose the application you
need to install.
2. Hold the application you need to install. It popup install,
15
click install apk.
2. Finish the installation as guide, it will operate.
Note: The third party procedure searched from internet to use
on the system are all suffixed with .apk.
13. Uninstallation of application
Uninstall application procedure:
1. Click setting icon in main interface.
2. Click manage application procedure, list all the application
procedures installed in the system.
3. Click the APK you want to uninstall, click uninstall.
4. Click confirm to finish uninstallation.
Skill: The procedure manager installed by system has many
continent methods
to uninstall, after opening procedure manager, click uninstall,
it will list
all the application procedures installed by system.
16
Chapter 04 Troubleshooting
Problem Solution
The device will turn
itself off after a few
seconds
Check that the battery is charged.
No volume is heard Adjust the volume level
Check if audio file is broken
Screen is hard to see
in bright light.
Adjust the screen brightness in
the system menu. Avoid using the
reader in direct sunlight.
Data on the screen is
corrupted or a
program is not
responding properly
keep power button for long time to
restart your Tablet PC
Can't copy file into the
device
Check if the device is connected
to the computer correctly.
Check if the memory space is full.
Check if the USB cable is broken
17
FCCCaution
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1)This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
18
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Information and Statement
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of
tissue. Device types: XR6M (FCC ID: 2ABDK-XR6M) has also been
tested against this SAR limit. The highest SAR value when properly worn
on the body is 1.11W/kg. To maintain compliance with FCC RF exposure
requirements, use accessories that maintain a 1cm separation distance
between the user's body. The use of belt clips, holsters and similar
accessories should not contain metallic components in its assembly. The
use of accessories that do not satisfy these requirements may not comply
with FCC RF exposure requirements, and should be avoided.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
19
ICwarning
This device complies with Industry Canada licence-exempt RSS
standard(s).
Operation is subject to the following two conditions:
(1)This device may not cause interference and (2) this device must accept
any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence.L'exploitation est
autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
