Installation Manual
__________________________________________________________________________________________________________________
Edition: July 2009 Document N°: 953-26b Page 1 of 10
IS76 Beacon with Ferrite Antenna
Installation Manual
__________________________________________________________________________________________________________________
Edition: September 2011 Document N°: 953-26b Page 2 of 10
Document No 953.26b
IS76 Beacon with Ferrite Antenna: Installation Manual
Edition: September 2011
Editor: TeleAlarm SA
All rights reserved.
TeleAlarm SA reserves the right to make changes to the information contained in this document at any
time without prior notice. Great care has been given to the contents of this document; however
TeleAlarm SA cannot be held liable for the consequences of any errors or omissions contained herein
or for consequential or incidental damages incurred as a result of acting on information contained in
the document.
TeleAlarm SA Bosch Group
Administration, R&D and Aftersale
Rue du Pont 23
CH-2300 la Chaux-de-Fonds
Switzerland
Phone +41 (0)32 911 11 11
Fax +41 (0)32 911 11 00
www.telealarm.com
Bosch Sicherheitssysteme GmbH
Haus-ServiceRuf
Ingersheimer Straße 16
D-70499 Stuttgart
Germany
Phone 0711 3653 1000
Fax 0711 811 5125 294
Haus-Service.Ruf@de.bosch.com
www.bosch-sicherheitsprodukte.de
Bosch Security Systems Ltd
Broadwater Park
North Orbital Road
Denham
UB9 5HN
United Kingdom
Phone 01895-878088
Fax 01895-878089
uk.securitysystems@bosch.com
www.boschsecurity.co.uk
Bosch Security Systems France
Atlantic 361
361, avenue du Général de Gaulle
F-92147 Clamart
France
Phone + 33 (0)825 12 8000 (0,15 € TTC/Min)
Fax + 33 (0)820 900 960 (0,12 € TTC/Min)
fr.securitysystems@bosch.com
www.boschsecurity.fr
Bosch Security Systems BV
Postbus 80002
NL-5600 JB Eindhoven
Netherlands
Phone +31 40 25 77 200
Fax +31 40 25 77 202
nl.securitysystems@bosch.com
www.boschsecurity.nl
Bosch Security Systems nv/sa
Torkonjestraat 21F
B-8510 Marke
Belgium
Phone +32 (0)56 20 02 40
Fax +32 (0)56 20 26 75
be.securitysystems@bosch.com
www.boschsecurity.be
Bosch Security Systems AB
Vestagatan 2
SE-416 64 Göteborg
Sweden
Phone +46 (0)31 722 5300
Fax +46 (0)31 722 5340
se.securitysystems@bosch.com
www.boschsecurity.se
__________________________________________________________________________________________________________________
Edition: July 2009 Document N°: 953-26b Page 3 of 10
Content
Locator Function .............................................................................................................. 4
IS76 Beacon with Ferrite Antenna .................................................................................... 4
IS76 Ferrite Antenna .................................................................................................... 4
IS76 Ferrite Beacon Controller...................................................................................... 5
System Supervision...................................................................................................... 5
Features of the IS76 Beacon System ............................................................................... 5
IS76 Ferrite Antenna........................................................................................................ 6
IS76 Beacon Controller .................................................................................................... 6
Connection Compartment ................................................................................................ 7
Enable Locator Function in NurseCall System .................................................................. 7
Configuration and Wiring.................................................................................................. 8
Ferrite Beacon Antenna ................................................................................................... 9
Ferrite Beacon Controller ................................................................................................. 9
__________________________________________________________________________________________________________________
Edition: September 2011 Document N°: 953-26b Page 4 of 10
Locator Function
The NurseCall system can be set to handle a Locator function. For this purpose, beacon
modules and antennas of type IS75 or IS76 need to be installed on doors or corridors in the
building you want to supervise. When passing one of these modules the Wristband Transmit-
ters of type S37L or the Pendant Transmitters of type S35L refresh the position information
that is stored into them. When triggering an Alarm, the transmitters S37L and S35L do not
only transmit the identification (who sent the alarm), but also the position of the last passed
module (where has the alarm been triggered).
At the arrival of a call, the information of the actual position is indicated additionally on the
NurseCall units. This information can be made visible by pressing the yellow button on the
NurseCall Main- or Relay Unit.
“Locator” information block:
255 positions (POS: 000 - 254) can be differentiated. When passing beacon modules with
position numbers 231 - 254 the transmitters S37L and S35L can send a call for help auto-
matically without manual activation (wandering). Fixed transmitters that do not handle a
Locator function (N46) are always indicated with the position 000.
IS76 Beacon with Ferrite Antenna
The IS76 Beacon system consists of two elements:
The IS76 Ferrite Antenna
The IS76 Ferrite Beacon Controller
IS76 Ferrite Antenna
The IS76 Ferrite antenna has to be mounted on the place that has to be identified with a
location beacon code. The antenna is well suited to be mounted in a vertical position on (or
next to) a door frame. In some circumstances it may also be mounted horizontally. The IS76
Ferrite Antenna can be placed outdoors as well as indoors.
HELP A03
POS: 077
__________________________________________________________________________________________________________________
Edition: July 2009 Document N°: 953-26b Page 5 of 10

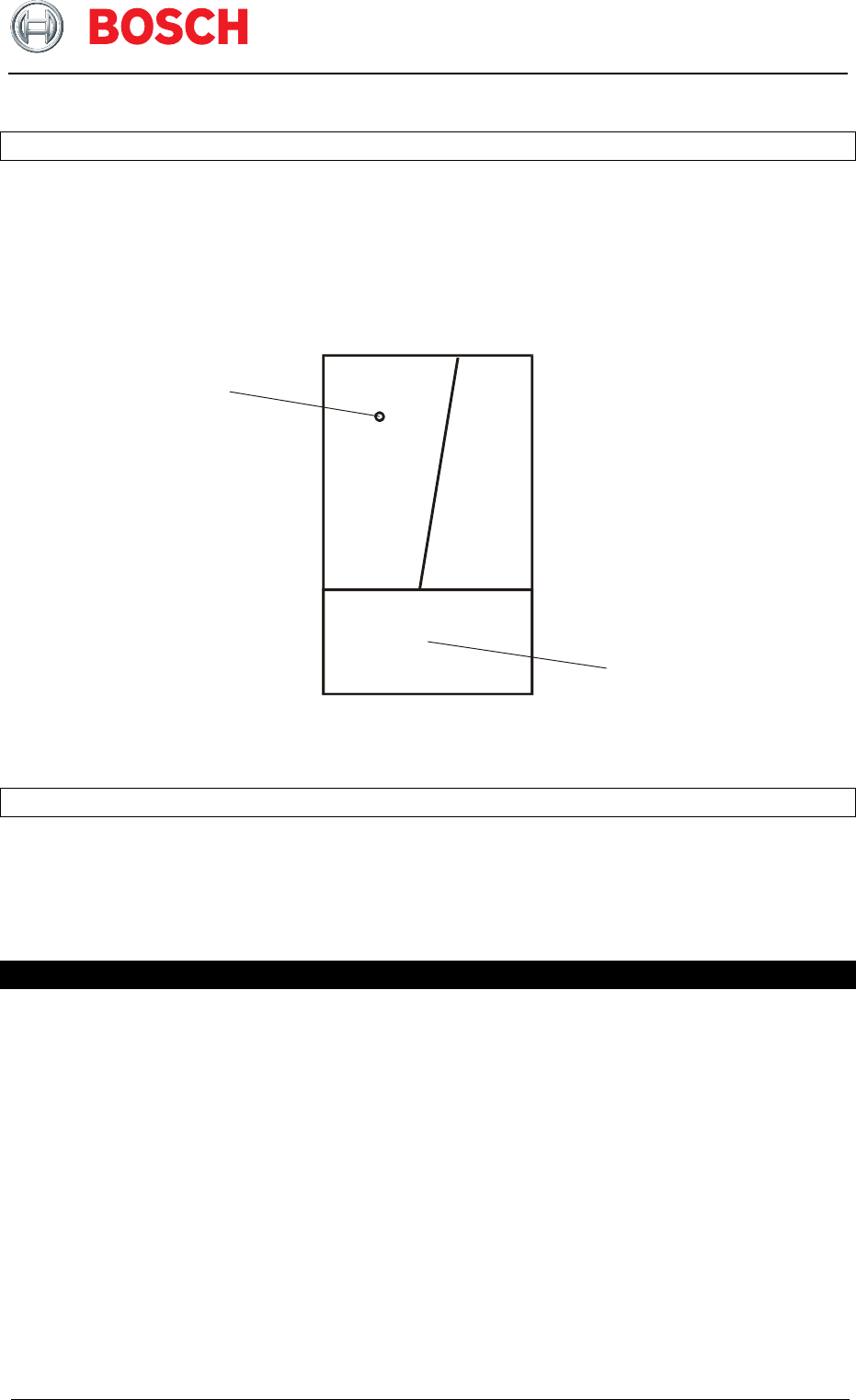

IS76 Ferrite Beacon Controller
The IS76 Ferrite Beacon Controller is necessary to drive the IS76 Ferrite Antenna. It con-
nects to the mains power via an external power supply. Up to two IS76 Ferrite Antennas may
be connected to the IS76 Beacon Controller, depending on the size of the passage that has
to be covered with the beacon. The beacon location code is set-up on the IS76 Ferrite
Beacon Controller. Contrary to the ferrite antenna, the IS76 Ferrite Beacon Controller has to
be mounted indoors, in a well ventilated cool place.
Connection
compartment
Supervision
Signal lamp
(LED):
Figure 1
System Supervision
The operation of the IS76 Beacon system is supervised. An eventual operation failure
(broken wire or overload) is indicated by the front panel LED and by the opening of a
"normally closed" relay contact that is accessible from the terminal block. The supervision
output may be connected to an RAC-type alarm transmitter which would transmit the beacon
operation failure to the NurseCall System.
Features of the IS76 Beacon System
Ferrite antenna offers a better defined capture range that is less dependent on the
surrounding building material
The antenna may be installed in or outdoors
Up to 230 user selectable position (location) codes (001 to 230)
Up to 24 user selectable "Wandering" codes (231 to 254)
Supervision of the beacon functionality
__________________________________________________________________________________________________________________
Edition: September 2011 Document N°: 953-26b Page 6 of 10

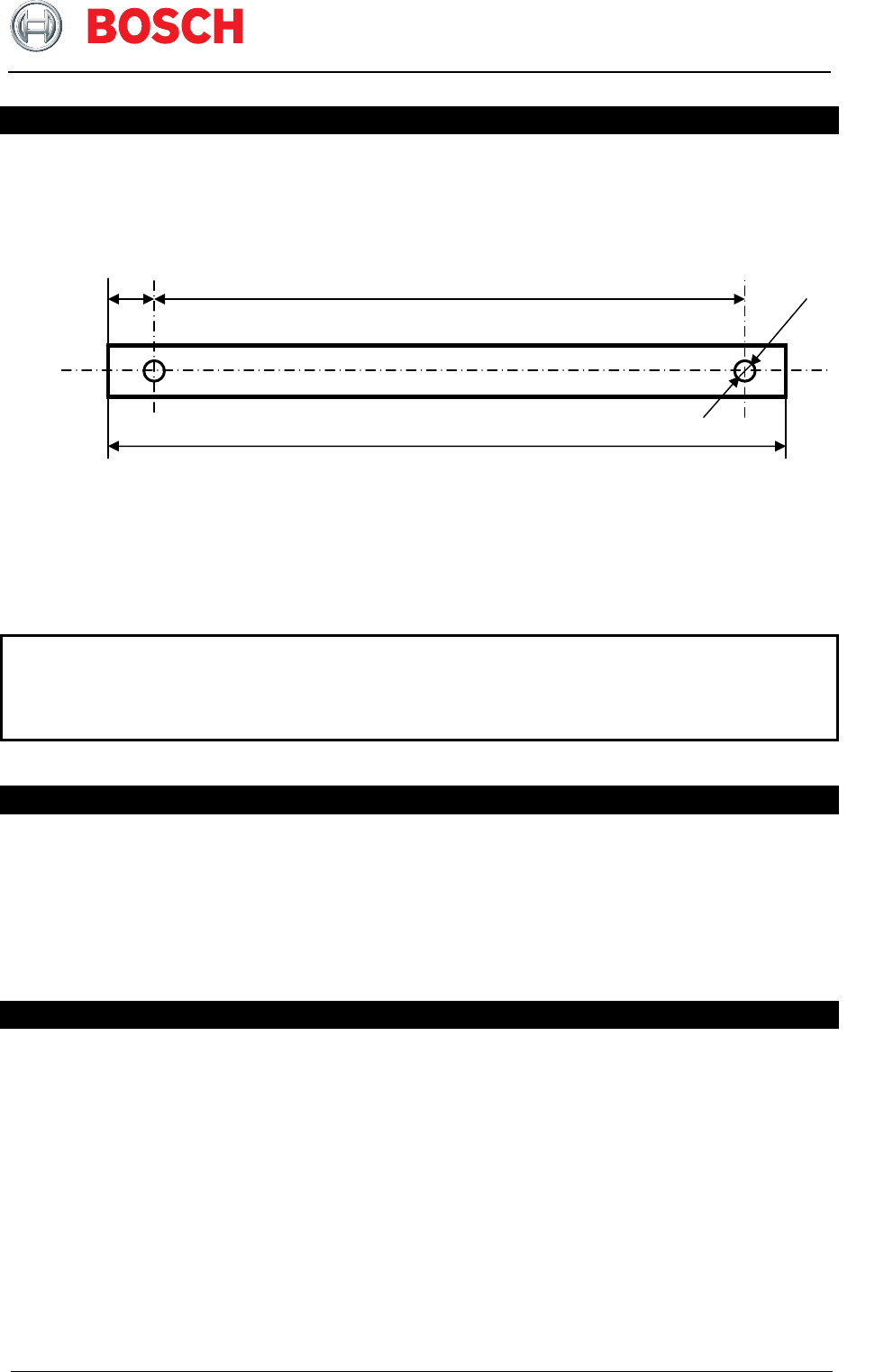

IS76 Ferrite Antenna
The Antenna is best fitted to be mounted vertically on a door's frame. In any case, the middle
of the antenna should be at a height of 1 meter from the floor. The antenna has to be fixed by
two screws, according to the figure below.
Figure 2
Remove the cover caps at both ends of the antenna by sliding them against the outside
Secure the antenna against the wall with both screws
Replace the cover caps by sliding them over the housing
Note:
Even if the functionality of the Ferrite Beacon System is not affected by the presence
of metallic items, it is not recommended to fix the antenna directly against such items.
In order to avoid overheating of the IS76 Beacon Controller, install the antenna at least
1.5 cm away from metallic frames or surfaces.
IS76 Beacon Controller
The IS76 Beacon Controller can be fixed with two to five screws on the wall. Two holes at 60
mm interval are provided for direct mounting on connection boxes.
The three upper holes are used for positioning the device and cannot be reached from the
Connection Compartment.
Two of the lower holes can be reached from outside and thus used for fixing the device.
FCC Statement
Note:
This device complies with Part 15 of the FCC Rules [and with RSS-210 of Industry Canada].
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Note:
Changes or modifications made to this equipment not expressly approved by (manufacturer
name) may void the FCC authorization to operate this equipment.
30mm +/- 1mm 540mm +/-
1mm
2 X
D 5.5mm
600mm 0/-10mm
__________________________________________________________________________________________________________________
Edition: July 2009 Document N°: 953-26b Page 7 of 10

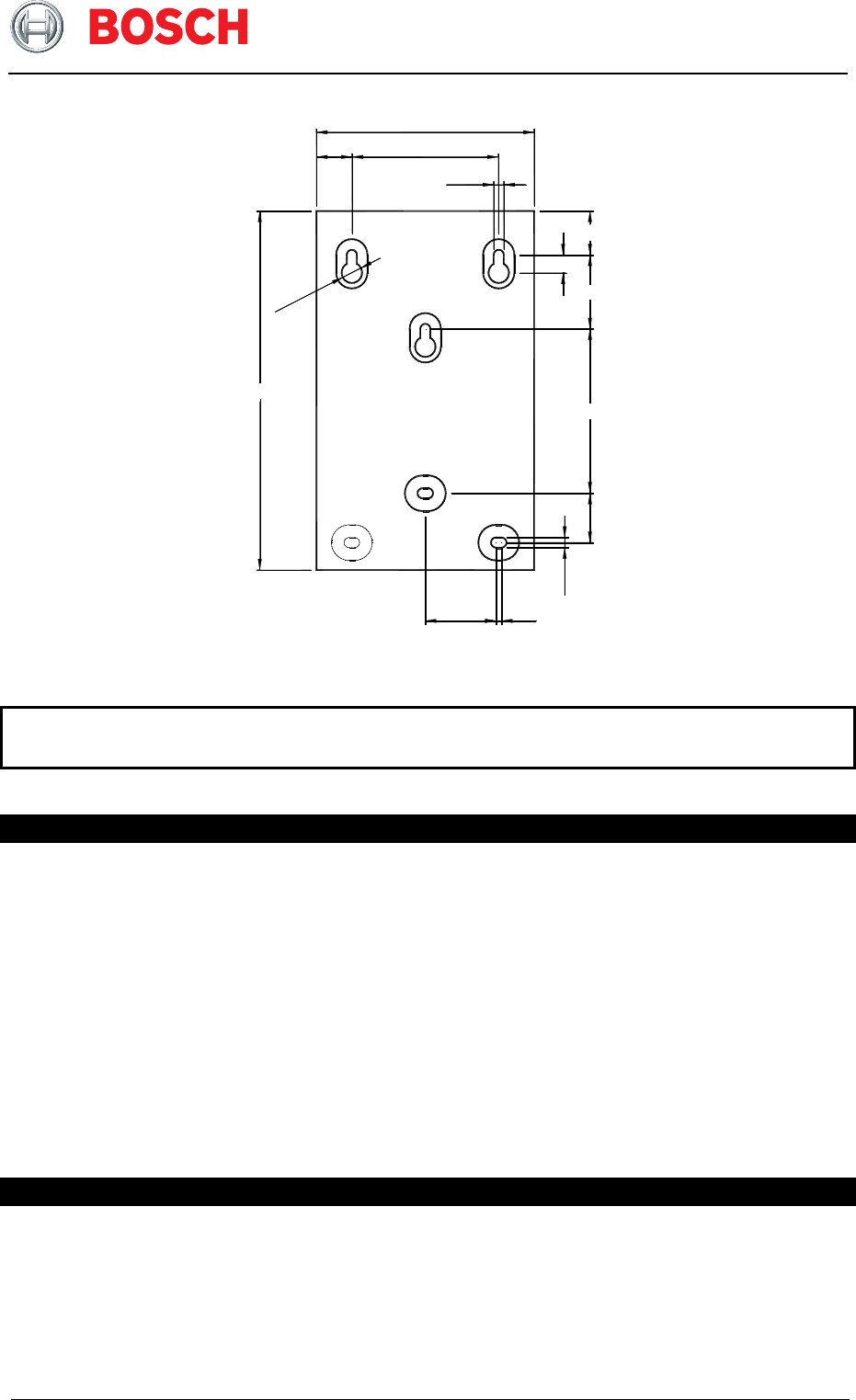

53.8
80
131
13.1
Ø7.5
59.9
18.1
3.7
2
26
3.7
16
27
6.6
Figure 3
Important Note:
In order to ensure proper cooling of the Beacon Controller, the unit needs to be in-
stalled vertically in a well ventilated place (avoid to mount it in sealed boxes).
Connection Compartment
All of the wiring and configuration functions such as:
Connection of the IS76 Ferrite Antenna(s)
Connection of the wired supervision output
Setting of the Location identification code
Can be carried out in the connection compartment. It is reached by taking off the lower part
of the housing (see). This can be done even if the device is fixed on the wall.
The connection cables can be channelled towards the outside through the hole next to the
terminal blocks or downwards by breaking off part of the rear housing.
Connection of the power supply can be done without taking off the lower part of the housing.
Enable Locator Function in NurseCall System
In order to be operational, the Locator function has to be enabled in the NurseCall Main Unit
(refer to section "Selection Locate Function YES or No" in the NurseCall User Manual)
__________________________________________________________________________________________________________________
Edition: September 2011 Document N°: 953-26b Page 8 of 10

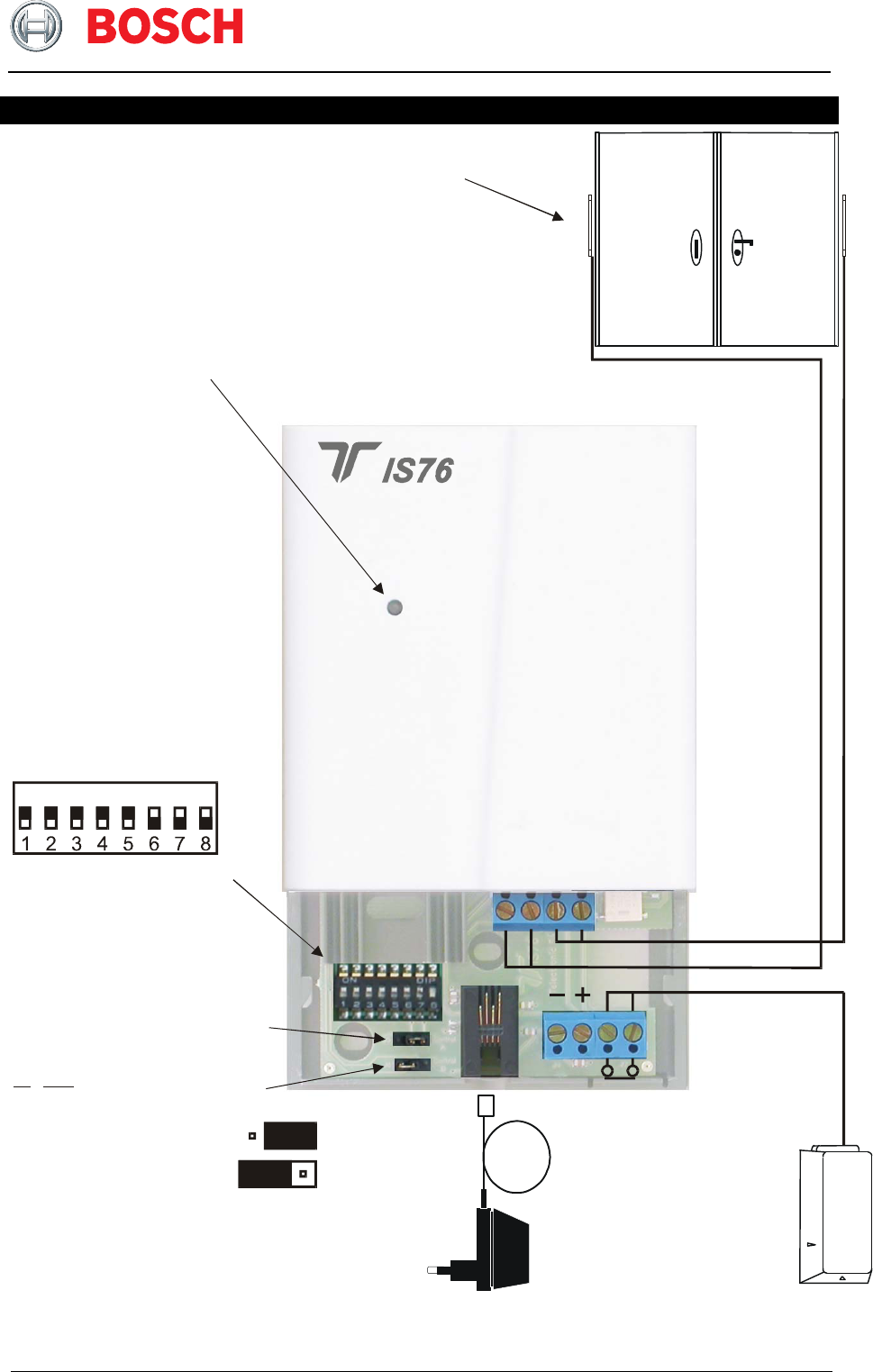

Configuration and Wiring
ON
+
+
+
+
+
+
+
+
128
64
32
16
8
4
2
1
1x128
1x64
1x32
1x16
1x8
0x4
0x2
248
0x1
+
+
+
+
+
+
=
+
Position number:
Supervision Signal Lamp:
Green: ok
Red: operation failure
Ferrite Beacon Antenna A
Ferrite Beacon Antenna B*
Supervision Output
Power Supply 24 VDC
Supervision of
Beacon A:
Supervision of
Beacon B:
Enabled
Disabled
*Antenna B is optional
It is used to extend the
capture range on large
(double) doors
RAC
(optional)
Blue*
Blue*
White*
White*
*Polarity of
the antenna
and the
wiring has to
be respected
when two
antennas are
used for the
same beacon
location
A
B*
Example above:
__________________________________________________________________________________________________________________
Edition: July 2009 Document N°: 953-26b Page 9 of 10

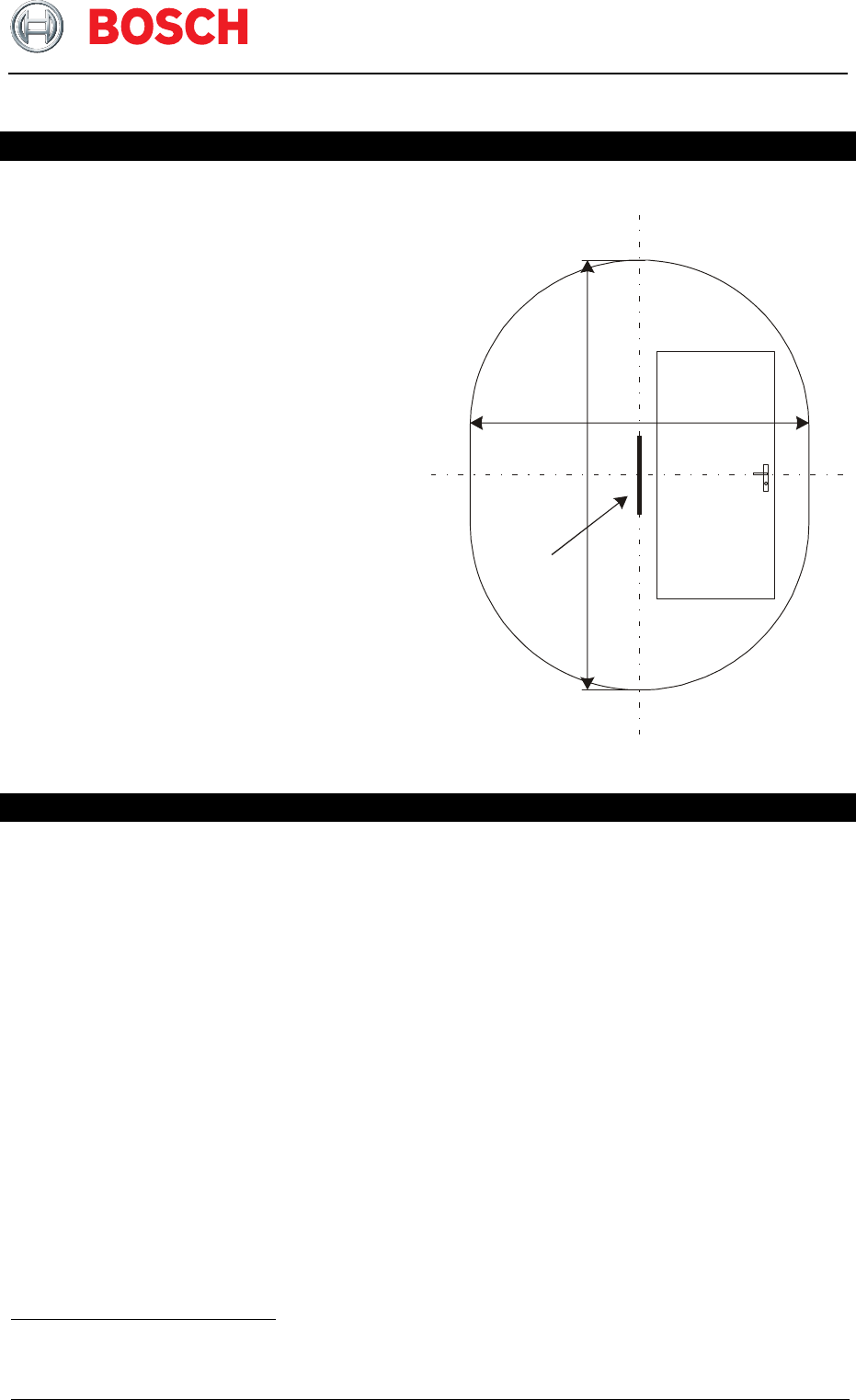

Ferrite Beacon Antenna
Housing
Plastic case ASA for wall mounting
L x H x P 600 x 30 x 30 mm
Weight about 700 g
Connecting cable
2 m "twisted pair"
(may be extended up to 10 m)
Operation Range1
typ. 2.6 m
typ. 3.6 m
Antenna
1 When used in conjunction with S37L Wristband Transmitters of REV B and higher.
Ferrite Beacon Controller
Housing
Plastic case ASA
For wall mounting (L x H x P) 133 x 82 x 26 mm
Weight about 200 g
AC Power supply (included) 100 – 240 VAC
DC Power supply 22 - 24 VDC / max. 400 mA (1 antenna)
Max. 800 mA (2 antennas)
Frequency 68 kHz
Supervision Output Relay
Max. Switching power 125 VA / 60 W
Max. Switching voltage 40 V DC
Max. switching current 2 A
Technical data is subject to changes.
__________________________________________________________________________________________________________________
Edition: September 2011 Document N°: 953-26b Page 10 of 10
FCC Statement for Class B digital device
Note:
This equipment has been tested and found to comply with the limits for a Class B digital de-
vice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the re-
ceiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
