Installation Considerations
Notas de instalação
Aandachtspunten voor installatie
Conseils relatifs à l’installation
Montagehinweise
Informazioni sull’installazione
Consejos de instalación
ᅝ㺙⊼ᛣџ乍
Tritech
® Detector
Installation Instructions
TriTech detector
installatiehandleiding
Notice d’installation du
détecteur TriTech
TriTech-Melder-
Installationsanleitungen
Istruzioni di installazione
del rilevatore TriTech
Instruções de instalação
do detector TriTech
Instrucciones de instalación
del detector TriTech
ϝᡔᴃ᥶⌟఼ᅝ㺙䇈ᯢ
www.boschsecuritysystems.com
TriTech® and Pet Friendly® are
registered trademarks of Bosch
Security Systems in the United States.
© 2004 Bosch Security Systems
4998153063D
Blue Line D1-P
FCC and RSS-210
This device complies with Part 15 of the FCC Rules and
with RSS-210 of Industry and Science Canada. Operation is
subject to two conditions:
1.This device cannot cause harmful interference.
2.This device must accept any interference, including
interference that might cause undesired operation.
Changes or modifi cations not expressly approved by Bosch
Security Systems can void the user’s authority to operate
the equipment.
UL
Use only a Listed limited-power source.
SELV
Connect all wiring to a safety extra-low voltage (SELV)
circuit only.
Sluit alle bedrading uitsluitend aan op een circuit met een
extra lage veiligheidsspanning.
Prenez soin de connecter tous les câbles à un circuit à très
basse tension de sécurité (SELV).
Alle Drähte sind ohne Ausnahme an Niederspannung
anzuschließen.
Collegare tutti i cavi esclusivamente a un circuito SELV
(circuito di sicurezza a bassissima tensione).
Ligue todas as cablagens apenas a um circuito de
segurança de tensão extra baixa (SELV).
Conecte el cableado únicamente a un circuito de seguridad
para voltajes muy bajos (SELV).
ҙ䰤ᇚ᠔᳝ⱘ㒓䏃ϢᅝܼᵕԢ⬉य़˄6(/9˅⬉䏃䖲
᥹DŽ
Options
Opções
Opties
Options de montage
Optionen
Opzioni
Opciones
ৃ䗝䚼ӊ
EIA/CCIR: ISM-BLA1-CM-C
NTSC/PAL: ISM-BLA1-CM-E
1
The pet immunity feature was not tested by UL.
Sabotage-optie voor muur
Wall tamper
Autosurveillance mur
Abreißsabotageüberwachung
Antirimozione
Tamper de parede
Bucle de antisabotaje de pared
๭㺙䰆ᢚ
1
2
3

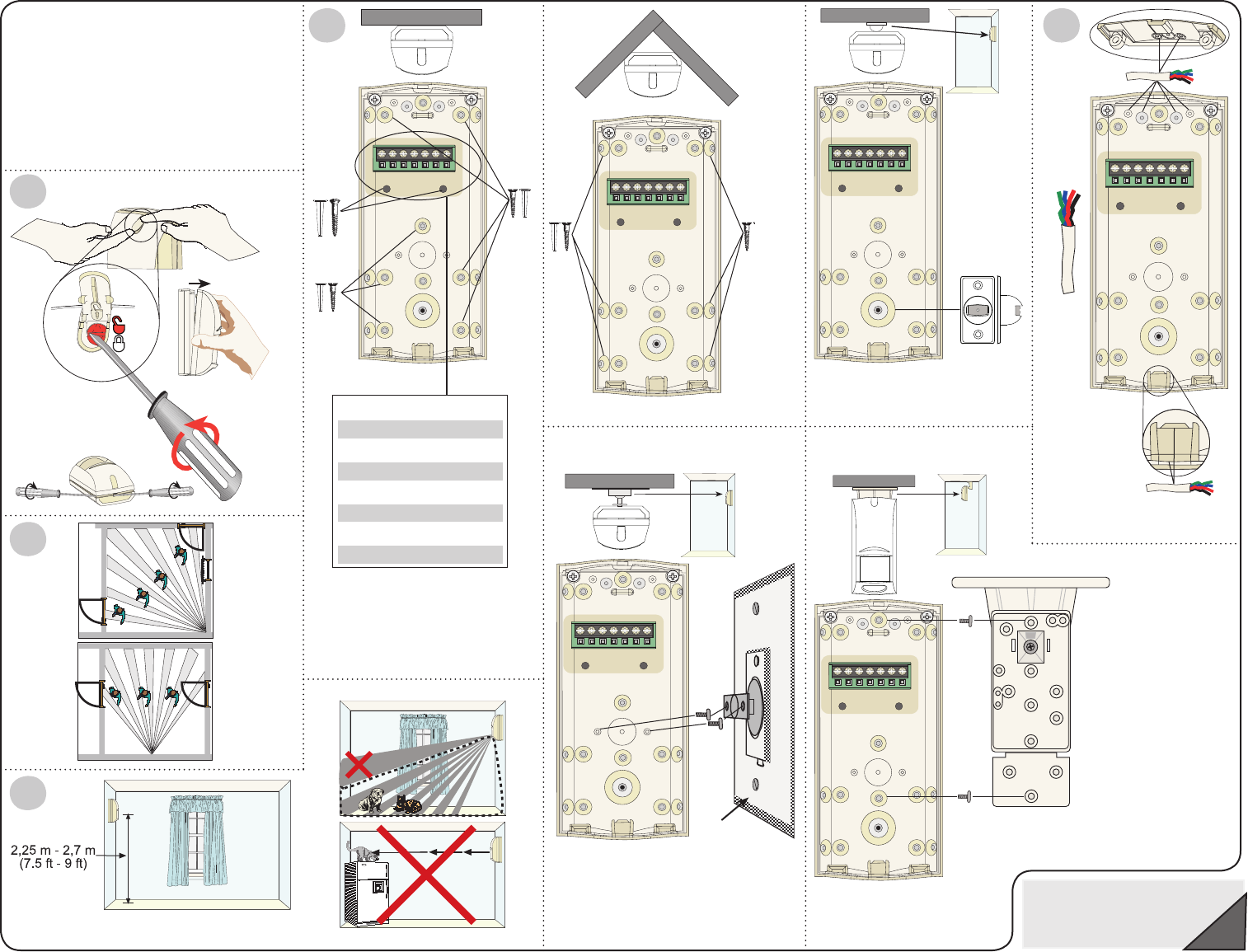

Installation
Instalação
Installatie
Installation
Montage
Installazione
Instalación
ᅝ㺙
B335
B338
B328
© 2004 Bosch Security Systems
4998153063D
2
X
4-6
54
1
2
3
© 2004 Bosch Security Systems
4998153063D

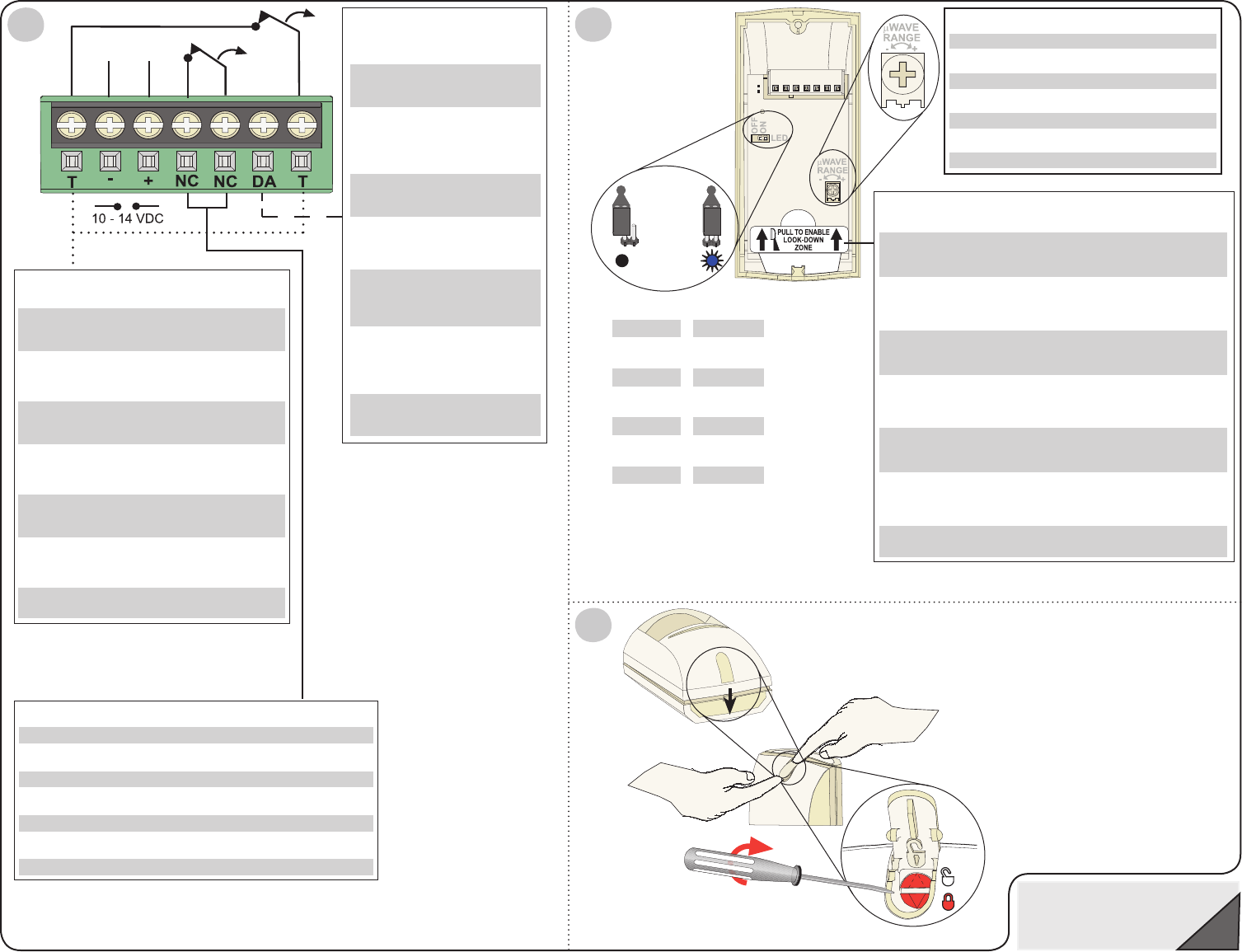

Tamper Contact: Connect to a 24-hour protection
circuit; maximum rating 125 mA, 28 VDC, 3 W.
Digital Alarm: Activates optional
plug-in modules, 5 V normally,
grounded during alarm.
Digitaal alarm: Activeert optionele
plug-in modules, 5 V normaal,
geaard tijdens alarm.
Alarme à collecteur ouvert :
Active les modules enfi chables en
option, 5 V au repos, à la masse
lorsque l’alarme est active.
Digitaler Alarm: Aktiviert
optionale Steckmodule, 5 V
normal, 0 V während Alarm.
Allarme digitale: attiva moduli
plug-in opzionali, di norma 5 V,
chiude a terra durante l’allarme.
Alarme digital: Activa os módulos
de encaixe opcionais, normalmente
5 V, ligados à terra durante o
alarme.
Alarma digital: Activa los modos
enchufables opcionales; por lo
general 5V; actúa como toma de
tierra durante la alarma.
᭄ᄫ䄺᡹˖▔⌏ৃ䗝ⱘᦦܹᓣ
῵ഫˈℷᐌᯊЎӣˈ䄺᡹ᳳ䯈
᥹ഄDŽ
Alarm Relay: Maximum rating 125 mA, 28 VDC, 3 W.
Alarmrelais: Maximale belasting: 125 mA, 28 VDC, 3 W.
Relais d’alarme : Capacité maximale 125 mA, 28 Vcc, 3 W.
Alarmrelais: Max. 125mA, 28V DC, 3W.
Relè di allarme: potenza nominale massima di 125 mA, 28 V CC, 3 W.
Relé do alarme: Capacidade máxima de 125 mA, 28 VCC, 3 W.
Relé de alarma: Valores máximos: 125 mA, 28 VDC, 3 W.
䄺᡹㒻⬉఼˖᳔໻乱ᅮ↿ᅝˈӣⳈ⌕ˈ⪺DŽ
+-
+
-
Sabotagecontact: Verbinden met een 24-uurs
beschermingscircuit; Maximale belasting: 125 mA,
28 VDC, 3 W.
Contact d’autosurveillance : Connecter à un circuit
de protection fonctionnant 24h/24 ; capacité
maximale 125 mA, 28 Vcc, 3 W.
Sabotageschutzkontakt: Schließen Sie den Kontakt
an eine Sabotagelinie an. Max. 125mA, 28V DC,
3W.
Contacto do tamper: Ligue a um circuito de
protecção de 24 horas; capacidade máxima
de 125 mA, 28 VCC, 3 W.
Contacto de bucle antisabotaje: Conecte el circuito
de bucle de antisabotaje a un circuito de protección
24 horas; Valores máximos: 125 mA, 28 VDC, 3 W.
䰆ᢚ㘨㒰˖䖲᥹ࠄᇣᯊֱᡸ⬉䏃˗᳔໻乱
ᅮ↿ᅝˈӣⳈ⌕ˈ⪺DŽ
3
Contatto antimanomissione: collegare a una zona
24 ore in centrale; potenza nominale massima di
125 mA, 28 V CC, 3 W.
LED
݇䯁
Off
Arrêt
Aus
Spento
Apagado
Desligado
Uit
Ligado
On
Encendido
Aan
Marche
Ein
Acceso
ᠧᓔ
Microwave range adjustment
Réglage de la portée hyperfréquence
Einstellung des Mikrowellenbereichs
Regolazione del range delle microonde
Ajuste del rango de microondas
ᖂ⊶㣗ೈ䇗ᭈ
Regule o alcance do dispositivo de microondas
Aanpassing van radarbereik
Non-pet installations only: Pull to enable look-down zone.
Note: You cannot replace tape once it is removed.
Alleen voor installaties zonder huisdieren: Trekken om de
optionele kruipzone in te stellen. Opmerking: U kunt de tape
niet terugplaatsen nadat die is verwijderd.
Si vous ne possédez pas d’animaux domestiques : Retirez
l’autocollant pour activer la détection verticale. Remarque : une
fois retiré, ne pas recoller l’autocollant.
Nur für Installationen an Orten ohne Haustiere: Ziehen, um
Unterkriechschutzzone zu aktivieren. Hinweis: Das Klebeband
kann nach dem Abnehmen nicht wieder aufgetragen werden.
Solo per le installazioni senza animali: Tirare per abilitare l’area
antistrisciamento. Nota: una volta rimosso il nastro non può più
essere riposizionato.
Apenas para as instalações sem animais domésticos: Retire
para activar a zona vista de cima (Ângulo 0°). Nota: Uma vez
retirada, a fi ta-cola não pode ser recolocada.
Únicamente para instalaciones sin animales domésticos: Tire
para activar la zona de vista ángulo cero. Nota: Una vez retirada,
la cinta no puede sustituirse.
ҙ䰤᮴ᅴ⠽ᅝ㺙˖ᩩϟਃ⫼׃㾚ऎDŽ
໛⊼˖㛊ᏺϔᮺ⿏䰸᮴⊩ݡ䌈ϞDŽ
6 7
8
Specifi cations
Especifi cações
Technische specifi catie
Caractéristiques techniques
Technische Daten
Specifi che tecniche
Especifi caciones
㾘Ḑ
Walk Test
Teste de passagem
Looptest
Test de marche
Gehtest
Walk Test
Prueba de paseo
ℹ⌟
LED On
LED Aan
LED Marche
LED Ein
LED Acceso
LED Ligado
LED Encendido
থܝѠᵕㅵᠧᓔ
Note: Have an installer test the detector at least yearly.
Opmerking: Laat de detector tenminste eens per jaar
door een installateur testen.
Remarque : faites tester le détecteur par un installateur
agréé au moins une fois par an.
Hinweis: Ein Installateur sollte den Melder wenigstens
einmal pro Jahr testen.
Nota: fare verifi care il rilevatore da un installatore almeno una volta all’anno.
Nota: Solicite a um instalador que teste o detector pelo menos uma vez por ano.
Nota: Haga que un instalador pruebe el detector al menos una vez al año.
໛⊼˖䇋ᅝ㺙Ҏਬ⌟䆩᥶⌟఼ˈ㟇ᇥ↣ᑈϔ⃵DŽ
Power the detector. Wait at least 2 min.
Detector inschakelen. Wacht enminste
2 min.
Mettez le détecteur sous tension. Patientez
au moins 2 min.
Melder wird eingeschaltet. Wenigstens
2 Minuten lang warten.
Accendere il rilevatore. Attendere
2 minuti.
Ligar o detector. Aguardar no mínimo 2
minutos.
Ў᥶⌟఼կ⬉DŽㄝ׭㟇ᇥϸߚ䩳DŽ
Encienda el detector. Espere al
menos 2 min.
-29°C to +49°C (-20°F to +120°F )
For UL Listed installations, the temperature range
is 0°C to +49°C (+32°F to +120°F)
Increase microwave adjustment slightly until range is met.
Pas de radar iets verder aan totdat het gewenste bereik wordt verkregen.
Augmenter légèrement le réglage de l’hyperfréquence pour obtenir la portée requise.
Erhöhen Sie sich Mikrowelleneinstellung ein wenig, bis die Reichweite stimmt.
Aumentare leggermente la portata delle microonde fi no a quando non si raggiunge il range
desiderato.
Aumente ligeiramente a regulação do dispositivo de microondas até que consiga o alcance
pretendido.
Aumente ligeramente el ajuste de microondas hasta alcanzar el rango necesario.
⿡ᖂ๲ࡴᖂ⊶䇗ᭈⳈ㟇䖒ࠄ㣗ೈDŽ
Blue
Blauwe
Bleu
Blau
Blu
Azul
Azul
Look-down zone
׃㾚ऎ
Zona de vista ángulo cero
Zona vista de cima
Area antistrisciamento
Unterkriechschutzzone
Zone de détection verticale
Kruipzone (optioneel)
Microwave
Radar
Hyperfréquence
Mikrowelle
Microonde
Microondas
Microondas
ᖂ⊶
PIR
PIR
IRP
PIR
PIR
PIR
PIR
3,5
Yellow
Gele
Jaune
Gelb
Giallo
Amarelo
Amarillo
Green
Groene
Vert
Grün
Verde
Verde
Verde
No activity
Power-up
Dual alarm
Microwave
alarm
PIR alarm
Geen activiteit
Opstarten
Tweevoudig
alarm
Radaralarm
PIR-alarm
Aucune activité Keine Aktivität Nessuna
attività Sem actividade Sin actividad ᮴⌏ࡼ
⬉⑤ਃࡼ
ঠ䄺᡹
ᖂ⊶䄺᡹
3,5䄺᡹
Alimentation
initiale
Alarme double
Alarme
hyperfréquence
Alarme IRP
Starten
Dualer Alarm
Mikrowellen-alarm
PIR-Alarm
Prima
alimentazione
Allarme
doppio
Allarme
microonde
Allarme PIR
A iniciar
Alarme duplo
Alarme de
microondas
Alarme do PIR
Encendido
Alarma dual
Alarma de
microondas
Alarma de
infrarrojos pasivos
µW: ISM-BLD1-P-F1 10.525 GHz
ISM-BLD1-P-F3 9.9 GHz
ISM-BLD1-P-F4 10.687 GHz
Current
Draw: 15 mA @ 12 VDC, alarm
current 22 mA
Standby
Power: No internal standby battery.
For UL Listed product
installations, provide 4 h (60
mAh) standby power from the
control unit or by a UL Listed
burglary power supply.
Humidity: 0 to 95% non-condensing
(0 to 85% UL installations)
Stroomverbruik: 15 mA op 12 VDC, Alarmstroomverbruik 22 mA
Relatieve vochtigheid: 0 tot 95% niet condenserend
Consommation : 15 mA à 12 Vcc, 22 mA en alarme
Humidité : de 0 à 95% sans condensation
Stromaufnahme: 15 mA bei 12 V DC, 22 mA (Alarmstrom)
Luftfeuchtigkeit: 0 bis 95%, nicht-kondensierend
Assorbimento di corrente: 15 mA @ 12 Vcc, corrente in allarme 22 mA
Umidità: Da 0 a 95% senza condensa
Consumo de corriente: 15 mA a 12 Vcc, 22 mA en alarma
Humedad: de 0 a 95% sin condensación
Consumo: 15 mA a 12 VCC, Consumo do alarme 22 mA
Humidade: 0 a 95% sem condensação
᳔໻⬉⌕˖ P$#9'&ǃ䄺᡹⬉⌕P$
⑓ᑺ˖ 㟇䴲ދޱ
Supervision: Tests itself every 3 h. If microwave fails, PIR continues to operate.
Supervisie: Test zichzelf elke 3 uur. Wanneer de radar uitvalt, blijft de PIR werken.
Contrôle : Test automatique toutes les 3 heures. En cas de défaillance du système
hyperfréquence, le système IRP prend le relais.
Überwachung: Alle 3 Stunden wird eine Selbstprüfung durchgeführt. Falls das
Mikrowellensystem versagt, erfolgt die Erkennung mit dem PIR-System.
Supervisione: Esegue un test automatico ogni 3 ore. Se il sensore a microonde si guasta, quello
PIR continua a funzionare.
Supervisão: Efectua um teste autónomo de 3 em 3 horas. Se o dispositivo de microondas falhar,
o PIR continua a funcionar.
Supervisión: El dispositivo efectúa una prueba cada 3 horas. Si las microondas fallan, los
infrarrojos pasivos siguen funcionando.
ⲥ⌟˖↣ᇣᯊ㞾㸠⌟䆩ϔ⃵DŽ㢹ᖂ⊶༅ᬜˈ3,5㒻㓁䖤㸠DŽ
© 2004 Bosch Security Systems
4998153063D
4
1
2
4
3

Navigation menu
